USER MANUAL GAWU12CCTG Gladiator

BALL, GOLF & CLEAN-UP CADDY INSTALLATION SAFETY 2
BALL, GOLF & CLEAN-UP CADDY INSTALLATION INSTRUCTIONS 2

Mount the Ball Caddy to GearTrack® Channels or GearWall® Panels. 3
Assemble Ball Caddy. 3
Assemble Golf Caddy. 4
Mount the Golf Caddy to the wall. 4
Assemble Clean-up Caddy. 6
Mount the Clean-up Caddy to the wall. 6

Warranty. 6

TABLE DES MATIÈRES

SURETE DES INSTALLATIONS DU CASIER A ACCESSIORES POUR NETTOYAGE, DU CASIER DE GOLF ET DU PANIER POUR BALLONS...8 SURETE DES INSTALLATIONS DU CASIER A ACCESSIORES POUR NETTOYAGE, DU CASIER DE GOLF ET DU PANIER POUR BALLONS...8

www.gladiatorgarageworks.com

www.gladiatorgarageworks.ca

BALL, GOLF AND CLEAN-UP CADDY INSTALLATION SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

ADANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

BALL, GOLF AND CLEAN-UP CADDY INSTALLATION INSTRUCTIONS

Parts Maximum Weight Limit Tools and Parts Required
Ball Caddy 25 lbs (11.3 kg) N/A
Golf Caddy	25 lbs (11.3 kg) for the shoe shelf
	50 lbs (22.7 kg) for the golf bag shelf
	75 lbs (34.0 kg) for the golf bag caddy
Clean-Up Caddy 25 lbs (11.3kg)

IMPORTANT : Intended to be installed on Gladiator® Garageworks GearWall® panels or GearTrack® channels.

NOTES :

1. Be sure the Gladiator® GearWall® panel or GearTrack® channel is installed with mounting screws in every slot and at every stud location with a maximum of 24" (60.96 cm) horizontally between screws.
2. Remove the caddies parts and fasteners, and dispose of/recycle all packaging materials.

BALL CADDY

Mount the Ball Caddy to GearTrack® channel or GearWall® panel for Assembly

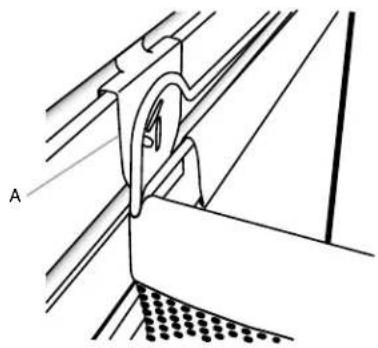

1. Align the mounting brackets, one on each side of the rear frame, with the desired slots in the GearWall® panel or GearTrack® channel.
2. Engage the bracket rims into the slots in the GearWall ^念 panel or GearTrack channel by lifting up, pushing toward the wall and lowering the rims into the slots.

A. Mounting bracket

1. Inspect the ball caddy from the side to ensure the bracket rims are fully engaged in the slots.

Assemble Ball Caddy

IMPORTANT: Before assembling, first mount the ball caddy to GearWall® panel or GearTrack® channel.

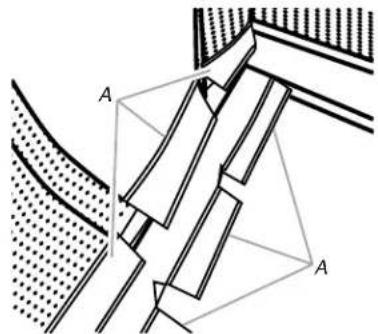

1. Reach inside the ball caddy and unfasten the fabric closures running along the bottom front of the caddy.

A. Fabric closures

1. Slide the hollow metal rods onto each end of the lower frame, as shown.

A. Hollow metal rod
B. Lower frame

1. Holding the lower frame where it is joined with the metal rods, place the frame, bottom edge down, into the ball caddy at an angle.

A. Upper frame
C. Lower frame
B. Ball caddy front

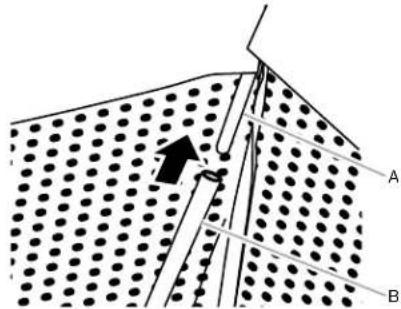

1. Slide the hollow metal rods that are joined to the lower frame, onto each end of the upper frame, as shown.

A. Upper frame
B. Ball caddy front

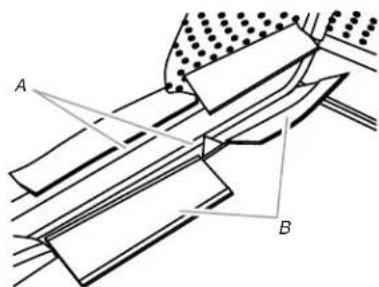

1. Pull the lower frame forward until it is between the fabric closures at the bottom of the ball caddy. Fasten the fabric closures around both cross bars of the lower frame.

NOTE : Make sure the fabric closures are fastened tightly around both the upper and lower crossbars of the frame.

A.Crossbar
B. Fabric closures

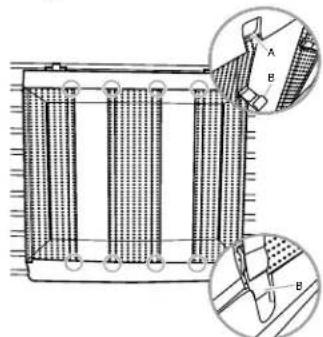

1. Attach the eight hooks, one on each end of the four elastic straps, onto the upper and lower frame, as shown.

A. Upper frame
B. Hook

GOLF CADDY

Assemble Golf Caddy

F1

F1: 5 / 16 (7.93 mm)
hex-head bolt (14)

F2

F2:5/16" (7.93 mm) flange nut (4)

1. Using 5 / 16 (7.93 mm) hex-head bolts (F1) and 5 / 16 (7.93 mm) flange nuts (F2), attach the golf bag shelf to the sides as shown.

A. 5 / 16 (7.93 mm) flange nut (F2)

B. ^5/_16 (7.93 mm) hex-head bolt (F1)

1. Create a shoe shelf by using 516 (7.93 mm) hex-head bolts (F1), to attach the 5 rods to both sides of the golf caddy, as shown.

A. 5 / 16 (7.93 mm) hex-head bolt (F1)

1. Stand the golf caddy upright.

Attach Mounting Brackets

F2 F3b

F7

F2^5 / 16 (7.93 mm) flange nut (8)
F3b Phillips-head screw (4)
F7 Carriage-head bolt (8)

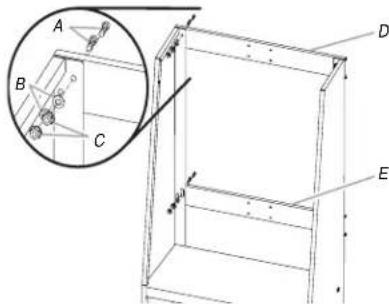

1. With the mounting bracket rims pointing down, align the 2 bracket holes with the top two holes in each side.
2. Working from the back, insert a carriage-head bolt (F7) through the holes in the bracket and into the side.

3. Working from the front, fasten each bolt with a washer (F8) and a flange nut (F2). Completely tighten the nuts.

4. Repeat steps 1 through 3 to attach the lower mounting bracket.

NOTE: Hand tighten the nuts attaching the lower bracket. In order to mount the golf caddy on the wall, this bracket will need to be adjusted.

A. Carriage-head bolts (F7)
D. Upper mounting bracket
B. Washer (F8)
E. Lower mounting bracket
C. Flange nuts (F2)

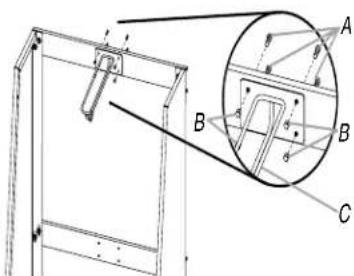

1. Using Phillips-head screws (F3b) and acorn nuts (F10), attach the golf bag divider to the 4 holes in the center of the upper mounting bracket.

A. Phillips-head screws (F3b)

C. Golf bag divider

B. Acorn nuts (F10)

Mount the Golf Caddy to the Wall

IMPORTANT: If Gladiator® GearTrack® channels will be used to mount the golf caddy, they must be installed 18" (46 cm) apart.

1. Determine caddy mounting location on GearWall ^© panel or GearTrack channels.
2. Engage the upper mounting bracket into the wall slots by lifting up, pushing toward the wall and lowering the bracket rims into the slots.
3. Inspect the golf caddy from the side to ensure the upper mounting bracket rims are fully engaged in the slots as shown.

A. Bracket rim B.Slot

C. Mounting bracket fully engaged

1. Grasping the bolts, lift up on the lower mounting bracket to align the bracket rims with the slots on the GearWall® panel or GearTrack® channel.
2. Push the golf caddy toward the wall and lower the lower bracket rims into the slots. NOTE: Make sure the lower mounting bracket is fully engaged in the slots.
3. Using a 1/2 (1.27 cm) wrench, tighten the nuts on the lower mounting bracket.
4. Inspect the golf caddy from the sides to ensure both the upper and lower mounting brackets are fully engaged in their respective slots as shown.

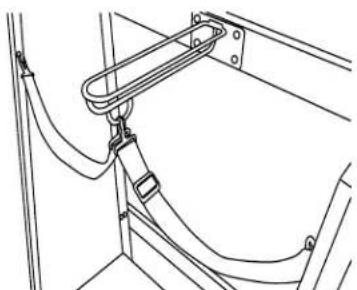

1. Attach each strap to the side panel and to the D-ring on the golf bag divider, as shown.

CLEAN-UP CADDY

Assemble Clean-Up Caddy

F3b

F3b Phillips-head screw (2)

F10

F10 Acorn nut (6)

1. Insert the threaded studs at the top of each side piece into the two holes in each side of the caddy back.

NOTE: Make sure the bracket rim on the caddy back is to the outside of the side pieces.

1. Using two acorn nuts (F10) per side, attach the sides to the back. Completely tighten with a 3/8 (9.52 mm) nut driver.

A. Acorn nuts (F10)

1. Attach the caddy shelf (with the name badge facing up) by interlocking the shelf tabs with the tabs on the back.

NOTE: Make sure the lower mounting bracket is fully engaged in the slots.

A. Bottom piece

1. Using the two Phillips-head screws (F3b) and two acorn nuts (F10) fasten the caddy shelf to the sides.

A. Phillips-head screw (F3b)

B. Acorn nut (F10)

1. Holding each screw in place with a screwdriver, completely tighten the acorn nut with the nut driver.

Mount the Clean-Up Caddy to the Wall

1. Engage the bracket rims located on the back of the caddy into the slots in the GearWall® panel or GearTrack® channel by lifting up, pushing toward the wall and lowering the rims into the slots.

2. Inspect the caddy from the side to ensure the bracket rims are fully engaged in the slots as shown.

WARRANTY

For warranty information:

In U.S.A. call 1-866-342-4089 or visit our website at

www.GliadiatorGW.com

In Canada call 1-800-807-6777 or visit our website at www.gladiatorgarageworks.ca

There are many benefits for registering the product. Find out more and register the product online at www.gladiatorgarageworks.com.
