Astucio SK5005 - Deep fryer TEFAL - Free user manual and instructions

Product type	Electric deep fryer
Brand	Tefal
Model	Astucio SK5005
Frying capacity	1.2 kg of fries
Oil capacity	2.5 L
Tank type	With non-stick coating
Filtration system	Thermo-Spot® for optimal cooking
Adjustable thermostat	Yes, by graduations
On/Off	On/Off switch with indicator light
Safety	Automatic shut-off if lid is not positioned correctly; tank compatible with all heat sources except induction
Tank material	Aluminum with non-stick coating
Lid material	Plastic (removable lid)
Power	1500 W (estimated)
Supply voltage	220-240 V, 50/60 Hz
Dimensions (L x D x H)	Approximately 40 x 30 x 30 cm (estimated)
Net weight	Approximately 4 kg (estimated)
Cleaning	Tank dishwasher safe; lid and base washable with hot sponge
Maintenance	Do not use metallic sponge or scouring powder; never immerse the control unit
Accessories included	Lid, support pot, base
Warranty	2 years, spare parts available via authorized service
Use	Household use only
Indicators	Power-on indicator light

Frequently Asked Questions - Astucio SK5005 TEFAL

How to clean the Astucio SK5005 deep fryer?

The tank can be washed in the dishwasher. The lid and base are cleaned with a sponge using hot water and dish soap. Never use metallic sponge or scouring powder to preserve the non-stick coating.

How much oil should I put in the deep fryer?

The oil capacity is approximately 2.5 L. Do not exceed the maximum level indicated in the tank to avoid spillage.

Can I use the tank on an induction hob?

Yes, the pot is compatible with all heat sources except induction. For gas or electric cooking, you can use the Thermo-Spot® as a temperature indicator.

Why won't the deep fryer turn on?

Check that the lid is correctly positioned on the pot: a safety system prevents the appliance from starting if the lid is not properly engaged. Also ensure the appliance is plugged in.

Can I fry frozen food?

Yes, but remove excess ice and dry the food before immersing in hot oil to avoid splattering. Do not exceed the maximum capacity of 1.2 kg of fries.

How do I use the Thermo-Spot®?

The Thermo-Spot® is a temperature indicator on the tank: when it becomes uniformly red, the ideal temperature for frying is reached. Use it only on an external heat source (not with the heating lid).

What type of oil should I use?

Use a frying oil suitable for high-temperature cooking, such as peanut or sunflower oil. Avoid unrefined oils or those with a low smoke point.

Does the deep fryer have automatic shut-off?

Yes, a safety system cuts the power if the lid is not correctly positioned. Under normal use, turn it off after use with the switch; never leave the appliance unattended.

Can I replace a damaged power cord?

No, the cord must be replaced only by the manufacturer, its after-sales service, or a qualified person to avoid any danger. Contact Tefal or an authorized center.

Is it normal to have odor or smoke on first use?

Yes, a slight odor and smoke may occur during the first few minutes of use. This is normal; ensure the room is well ventilated.

USER MANUAL Astucio SK5005 TEFAL

Black-and-white photo of a stainless steel electric stove with open lid and handle, no visible text or symbols

FR

EN

CS

SK

HU

PL

RU

UK

KK

BG

HR

RO

SL

ET

LV

LT

* FR : selon modèle
EN : depending on the model
HU: modelltöl függöen
SK : podl'a modelu
CS : podle modelu
PL: w zależności od modelu
RU : в зависимости от модели
UK: залежно від моделі
КК: үлгісіне қарай
BG : в зависимост от модела
HR : ovisno o modelu
RO : în funcție de model
SL : glede na model
ET : söltuvalt mudelist
LV : atkarībā no modela
LT : priklausomai nuo modelio

CONSIGNES DE SÉCURITÉ RÉCAUTIONS IMPORTANTES :

• For your safety, this product conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).
• This appliance is intended for domestic household use only.

It is not intended to be used in the following applications, and the guarantee will not apply for

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Never leave the appliance unattended when in us

• Do not consume foodstuff that comes into contact with the parts marked with 📄go.
• Read the instructions in this leaflet carefully and keep them within reach. They apply to every versi depending on the accessories that come with your appliance.

• Never leave the appliance unattended when plugged in.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Accessible surface temperatures can be high when the appliance is operating. Never touch these surfaces, always use the handles.
• Never use the appliance if it is not working correct if it has been fallen or if it has been damaged.
• Any intervention other than normal cleaning and maintenance by customer must be performed by an approved service center.
• The power cord must never be close to or in contact with hot parts of the appliance, rotating parts, close to a source of heat or resting on sharp edges.
• Never place the appliance below or close to easily inflammable objects (e.g. curtains, etc.).
• Never disconnect the plug by pulling on the power cord.
• If parts of the appliance should catch fire, never

EN

try to extinguish flames with water. Disconnect the appliance and smother the flames with a wet cloth.

• Allow the appliance to cool down completely before you clean and store it.
• Never move the appliance as long as it is hot.

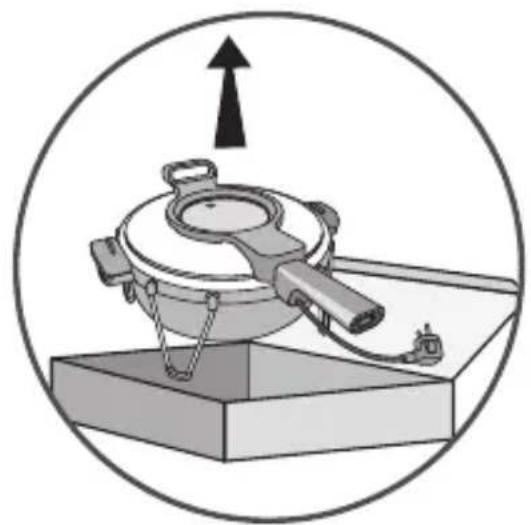

• Remove all packaging materials, stickers and accessories from the inside and the outside of the appliance.
• Fully unwind the power cord.
• If the appliance is used in the centre of the table, keep it out of the reach of children.
• To prevent the appliance from overheating, do not place it in a corner or against a wall.
• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture etc.) or on a soft surface such as a tea-towel. Always place on flat, stable, heat-resistant work surface away from water splashes and any sources of heat.
• If an extension cord is used, make sure to choose one of equivalent diameter with an earthed socket.
  • Always plug the appliance into an earthed socket.
• Position the cord carefully, whether an extension

is used or not, so that guests can move freely around the table without tripping over it.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

- Do not immerse the control panel and the power cord in water.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

Thank you for buying this appliance, which is intended for domestic use only.

Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

Our company has an ongoing policy of research and development and may modify these products without prior notice.

Prevention of accidents at home

• For a child, even a slight burn may sometimes be serious. As they grow up, teach your children to be careful around hot appliances in the kitchen.
• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.

Assembly

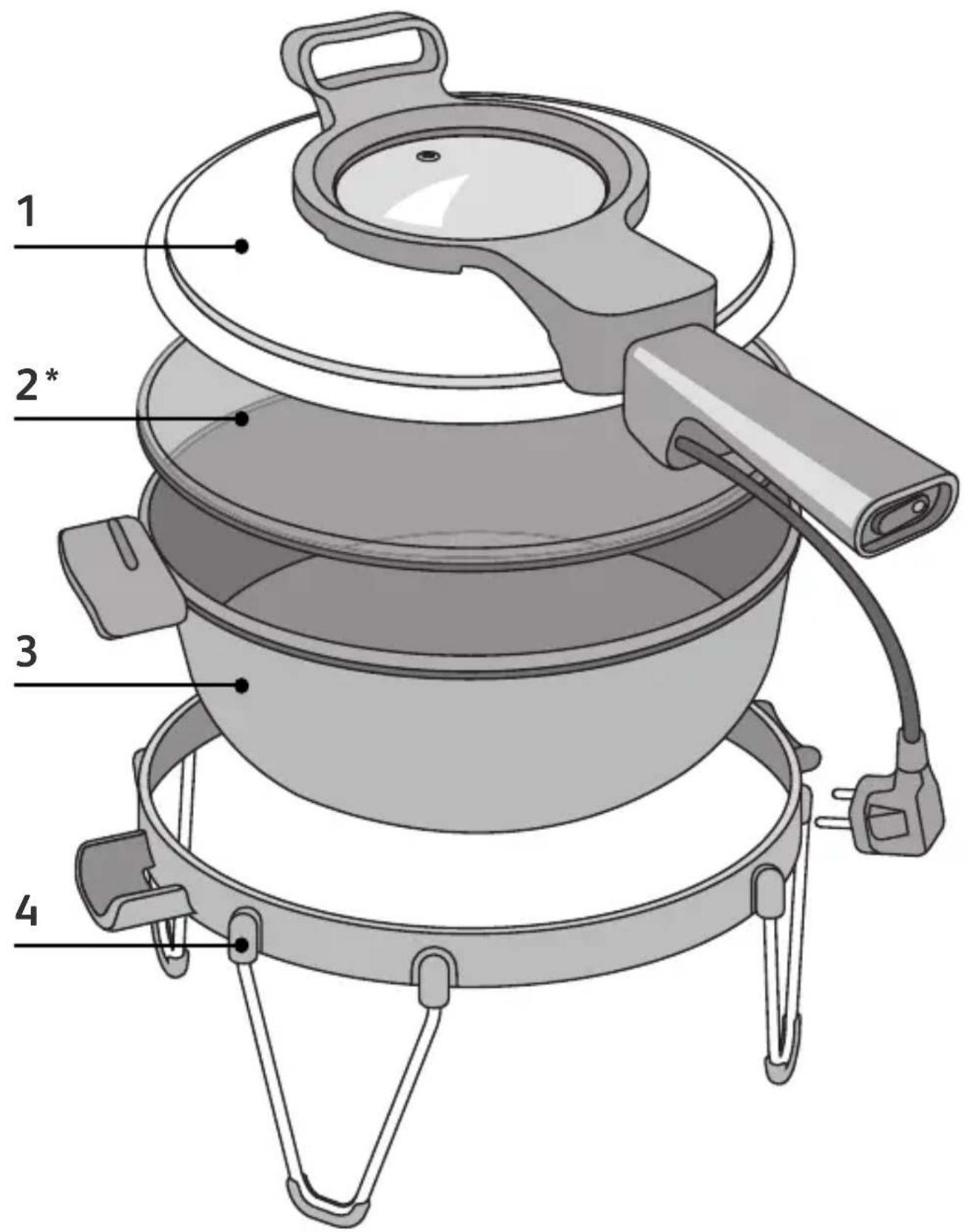

• Use only the lid (1) with the pot (3) and the support stand (4).

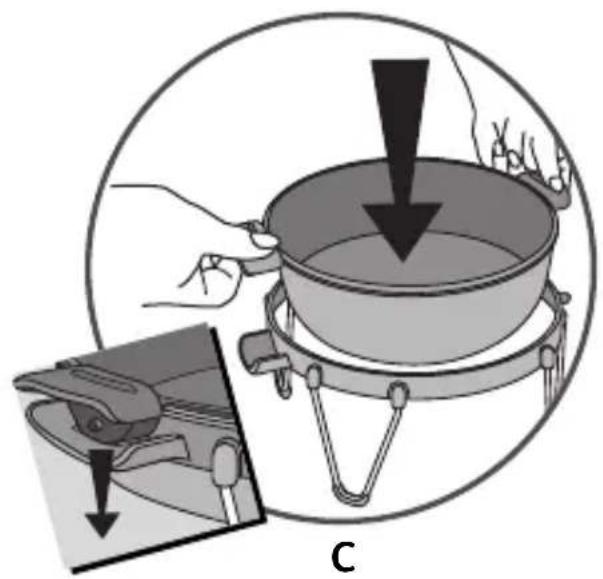

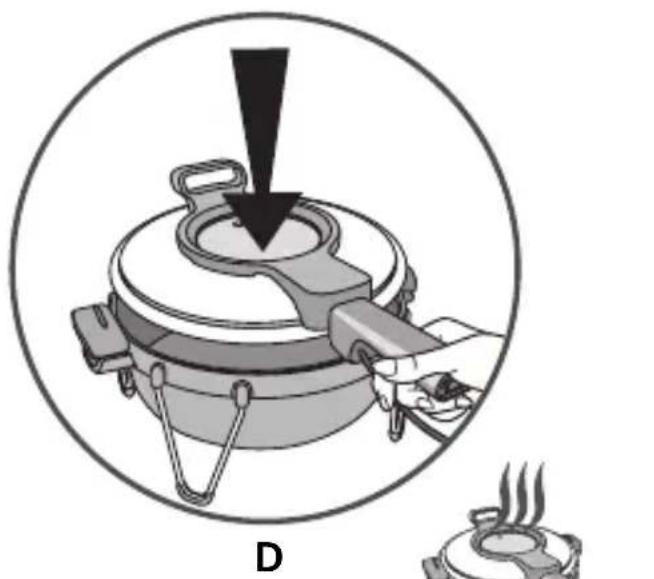

• Ensure that the lid is secure, stable and fitted correctly onto the appliance - C - D.
• Use only the pot provided with the appliance or provided by the manufacturer or its service agent.
• Place the base of the appliance on a flat, stable heat-resistant surface.

Using

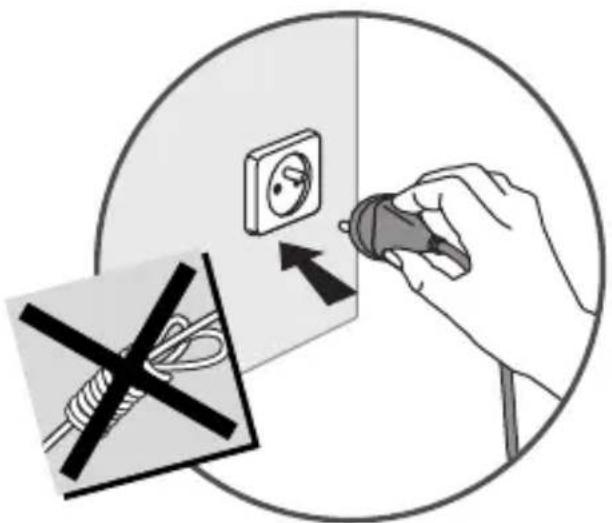

• Plug the appliance into a socket.

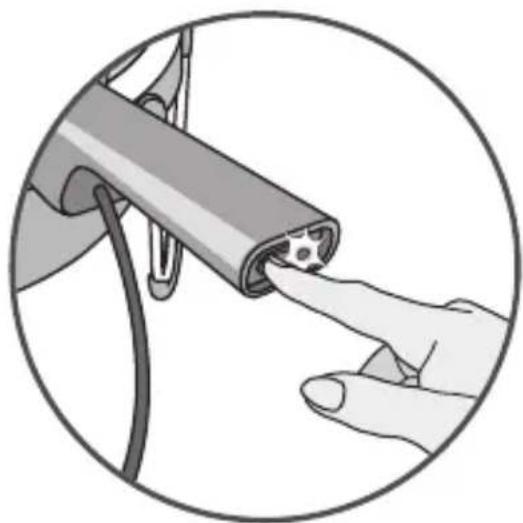

• Turn on the appliance by pressing the On/Off switch: the light switches on - F.

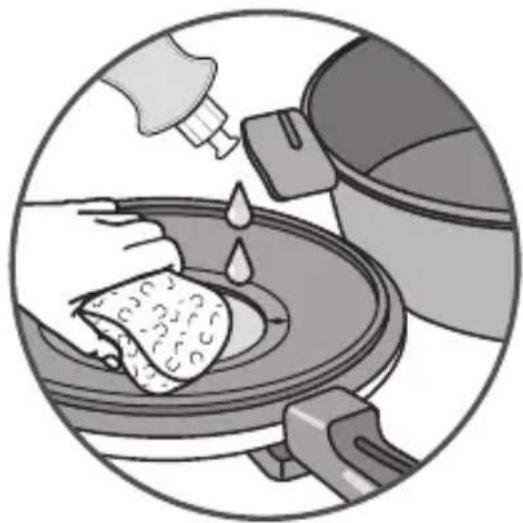

• Before using for the first time, wipe over the pot using kitchen paper towel dipped in a little cooking oil. Remove any surplus oil using clean kitchen paper towel.
• To prevent damage to the pot, only use it on the appliance for which it was designed.

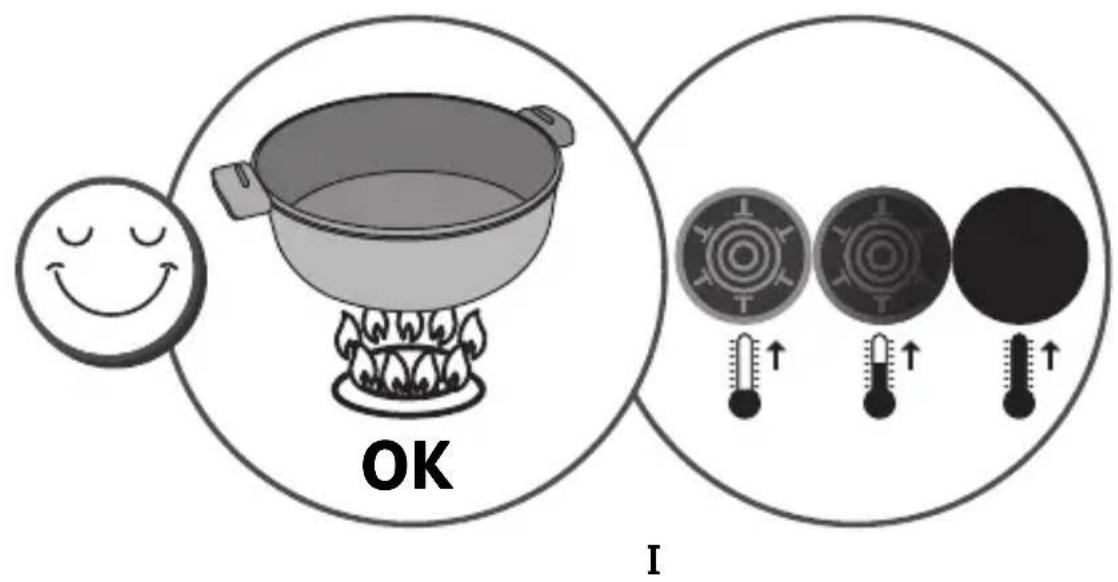

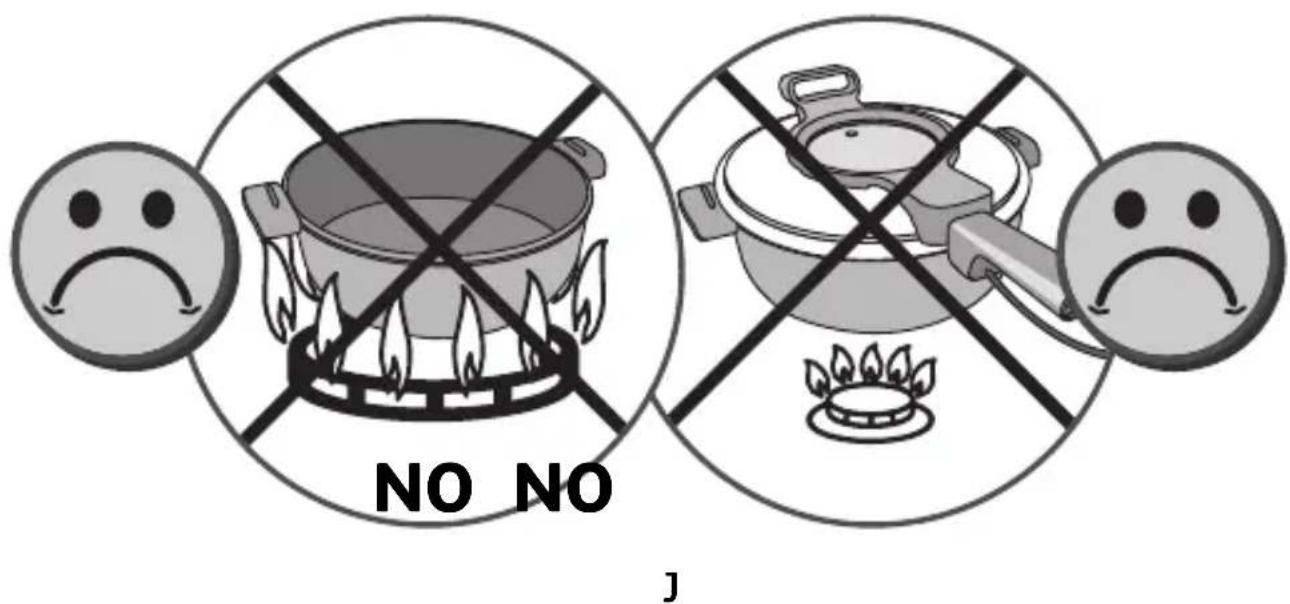

• The pot can be used on all kinds of stove tops except induction - I - and pay attention to the Thermo-Spot®.

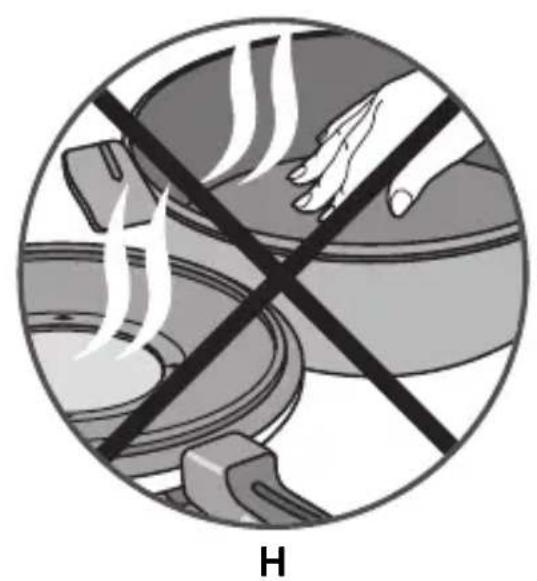

• Never use the plastic lid* (2) when the pot is hot.
• If the lid is not fitted correctly, the safety system does not allow cooking to start.
• To avoid spoiling your appliance, do not cook flambe recipes in it.

Close supervision is necessary when any appliance is used by or near children.

Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds.

We advise bird owners to keep them away from the cooking area.

Do not move the appliance when in use.

On first use, there may be a slight odour and a little smoke during the first few minutes.

Do not slice directly in the dish.

Do not use aluminium foil or other objects between the pot and the lid.

To preserve the non-stick properties of the coating, do not cook food in aluminium foil.

Never use the appliance when it is empty.

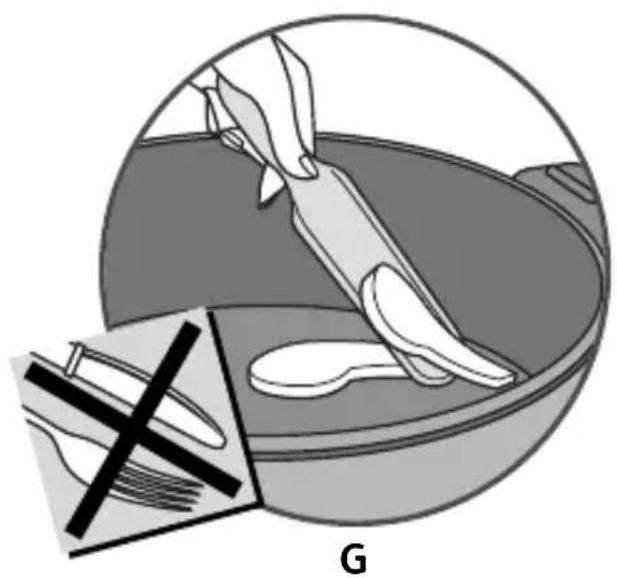

- Always use a plastic or wooden spatula to preserve the coating of pot.

After use

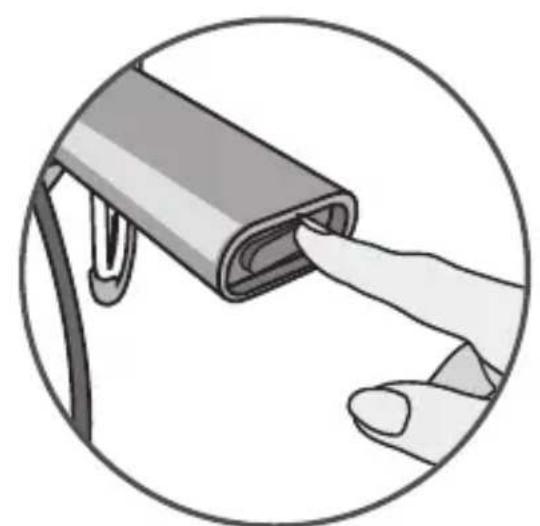

• Turn off the appliance by pressing the On/Off switch: the light switches off - K.

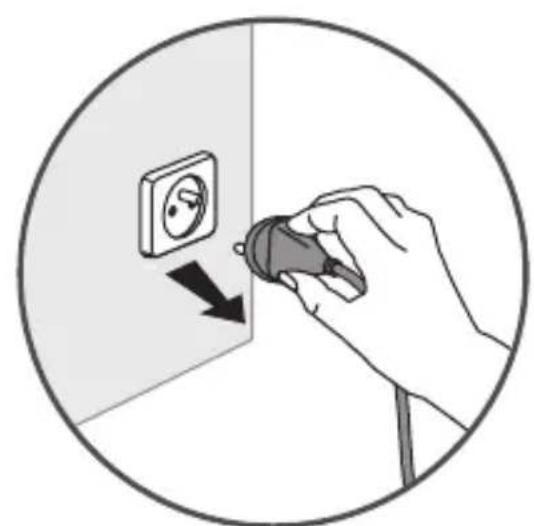

• Unplug the appliance - L.

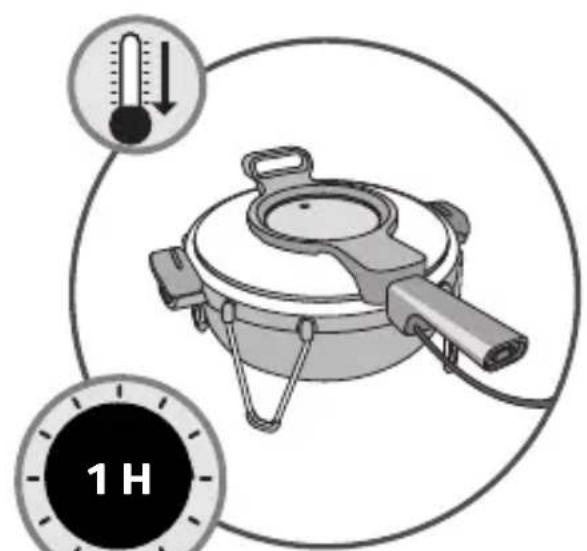

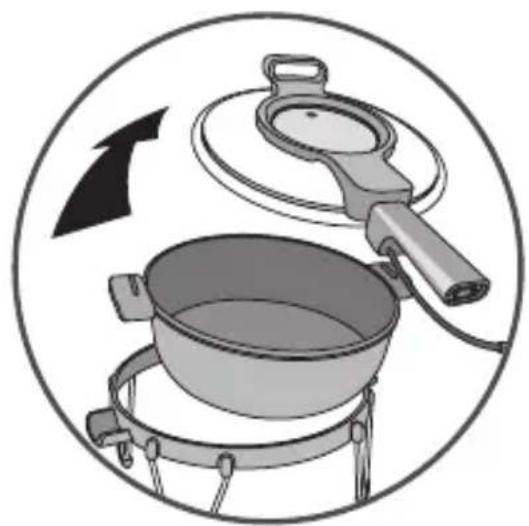

• Check that the appliance is cooled and unplugged before storing away - M.

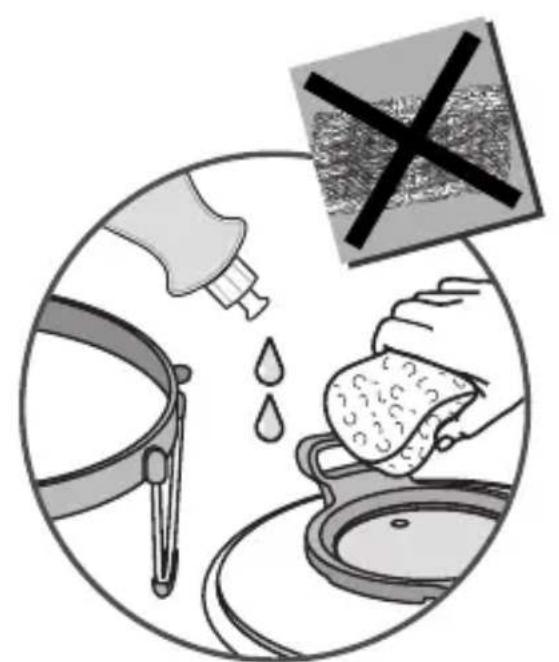

• Clean the lid and support stand with a sponge, hot water and washing up liquid - O.

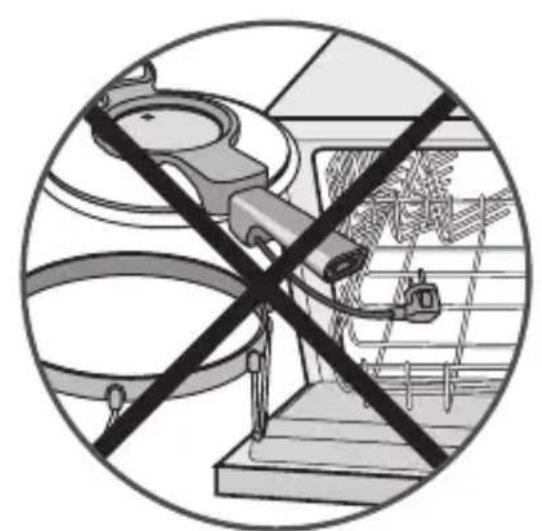

Do not immerse the appliance in water.

Do not use a metallic sponge or scouring powder.

Don't put the hot pot under water or on a fragile surface.

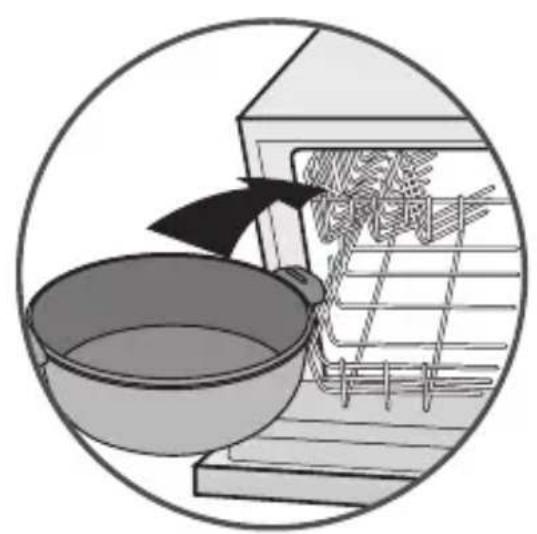

The pot is dishwasher safe.

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

BEZPEČNOSTNÍ POKYNY BEZPEČNOSTNÍ OPATŘENÍ:

Illustration of four common cooking utensils: open box, stirrer, pan, and stand (no text or symbols)

Illustration of a cooking pot with an upward arrow, enclosed in a circle (no text or symbols)

A

Illustration of a hand pouring liquid into a container with a cloth, no text or symbols present

B

Illustration of a cooking process showing a pan being heated by hands, with a magnified inset showing the same setup (no text or symbols present)

Illustration of a cooking pot with a downward arrow and a cooking pan, accompanied by a small pot on a stove (no text or symbols)

2

E

Illustration of a hand interacting with a device via cable (no text or symbols visible)

F
100

Illustration of a hand using a knife to clean food in a bowl, with a cross symbol and label 'G' (no text or symbols on the diagram itself)

Circular diagram showing a hand holding a tool crossed over a mechanical component, with no visible text or symbols.

Illustration of a hand inserting a clip into a paperclip, enclosed in a circular frame (no text or symbols)

K

Illustration of a hand inserting a plug into an electrical socket, showing a black arrow indicating direction (no text or symbols)

L

M

Illustration of a cooking pot and saucer on a stove inside a circular frame, with an arrow indicating rotation (no text or symbols)

N

Illustration showing a hand pouring liquid into a bowl with a magnifying glass above, symbolizing food safety or cleaning (no text present)

0

Cross-sectional diagram of a mechanical device with no visible text or symbols

P

Illustration of a cooking pan and a grater inside a kitchen (no text or symbols)

Q
