USER MANUAL 3 Cook Turbo CADAC

Black open portable stove with two grilles and a flat lid, no visible text or symbols on the main subject.

Product code: 303FC-20

Black open portable stove with three gas burners and a black lid (no visible text or symbols)

Product code: 303FC-10

USER INSTRUCTIONS

EN DE DA ES FR IT NL NO PL SV SL FITR □□□□□

EN Explanation of Symbols 2 Figure Reference Guide 4 User Instructions
DE Symbolerklärung 2 Bildreferenzhandbuch 4 Gebrauchsanweisung 18
DA Forklaring af symboler 2 Billedreferencevejledning 4 Brugervejledning 24
ES Explicación de los símbolos 2 Guía de referencia de imagen 4 Instrucciones para el usuario 30
FR Explication des symboles 2 Guide de référence des images 4 Mode d'emploi 36
IT Spiegazione dei simboli 2 Figura Guida di riferimento 4 Istruzioni per l'utente 42
NL Verklaring van symbolen 2 Figuur referenties 4 Handleiding 48
NO Forklaring av symboler 2 Figur Referanseguide 4 Brukerveiledning 54 Objaśnienie symboli 2
PL Przewodnik rysunkowy 4 Instrukcje dla użytkownika 60 Förklaring av symboler 2
sv Bildreferensguide 4 Användarinstruktioner 66 Razlaga simbolov 2
SL Slika Referenčni vodnik 4 Navodila za uporabo 72
Symbolien selitykset 2 Kuvan viiteopas 4 Käyttöohjeet 78 Sembollerin açıklaması 2 Şekil Referans kılavuzu 4 Kullanıcı talimatları 84

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

EN Recycling packaging material. Place the packaging material in the appropriate recycling waste bins wherever possible.
DE Verpackungsmaterial recyclen. Geben Sie das Verpackungsmaterial nach Möglichkeit in die entsprechenden Wertstofftonnen.
DA Genbrug af emballagemateriale! Anbring emballagematerialet i de relevante genbrugsaffaldsbeholdere, hvor det er muligt.
ES ¡Reciclado de material de embalaje. Coloque el material de embalaje en los contenedores de residuos de reciclaje apropiados siempre que sea posible.
FR Recyclage des matériaux d'emballage. Dans la mesure du possible, placez le matériel d'emballage dans les poubelles de recyclage appropriées.
IT Riciclaggio del materiale da imballaggio. Collocare il materiale di imballaggio negli appositi contenitori per rifiuti per il riciclaggio, ove possibile.
NL Verpakkingsmateriaal recyclen. Deponeer het verpakkingsmateriaal waar mogelijk in de daarvoor bestemde afvalbakken.
NO Resirkulering av emballasjemateriale. Plasser emballasjematerialet i riktige søppelkasser for resirkulering der det er mulig.
PL Recykling materiałów opakowaniowych. W miarę możliwości umieść materiał opakowaniowy w odpowiednich pojemnikach na odpady recyklingowe.
sv Återvinning av förpackningsmaterial. Placera förpackningsmaterialet i lämpliga återvinningskärl där det är möjligt.
SL Recikliranje embalaže. Embalažni material odložite v ustrezne zabojnike za recikliranje odpadkov, kjer koli je to mogoče.
FI Pakkausmateriaalit kierrätykseen. Sijoita pakkausmateriaali sopiviin kierrätysastioihin aina kun mahdollista.
TR Ambalaj malzemelerinin geri dönüşümü. Ambalaj malzemesini mümkün olan her yerde uygun geri dönüşüm atık kutularına koyun.

Black triangular warning symbol with an exclamation mark (no text or numbers)

EN

Safety instruction:

Indicates a hazardous situation that, if not avoided, may result in death or serious injury.

DE

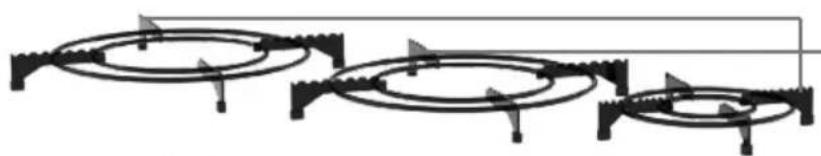

Pure mechanical diagram showing three sequential circular components with arrows indicating motion, no text or symbols present.

D
E
F
G

H
I
303FC-10

Pure diagram of three identical circular components with directional arrows, no text or symbols present

D
E
F
G
H
I

Interior view of a black gas stove with three burners and open lid (no text or symbols visible)

2

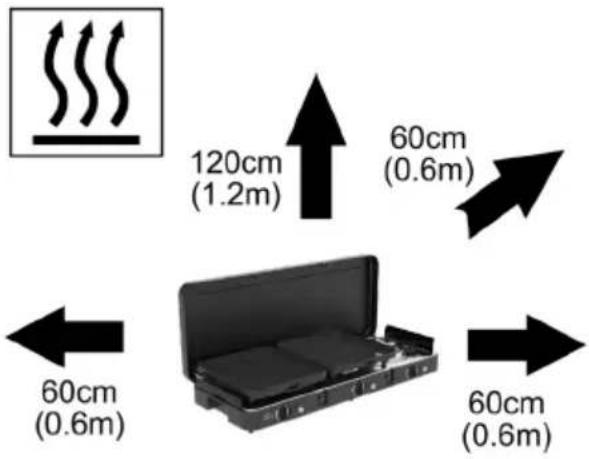

120cm (1.2m) 60cm (0.6m) 60cm (0.6m) 60cm (0.6m)

250mm 180mm 250mm 180mm 165mm 75mm XOMX TUBCHS

3

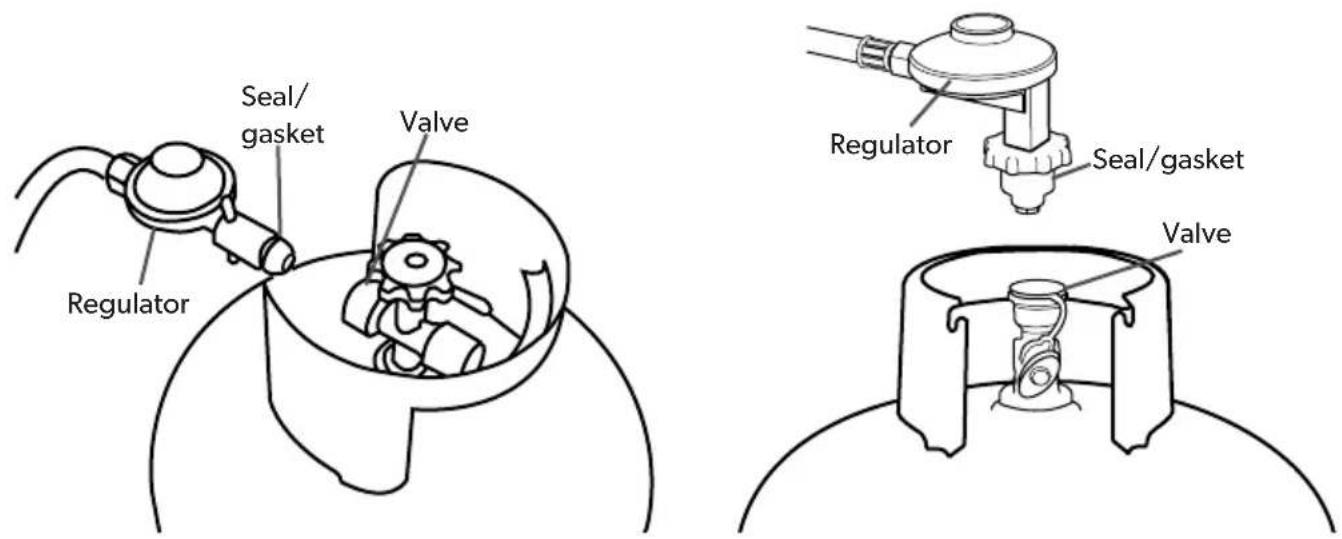

Regulator Seal/ gasket Valve Regulator Seal/gasket Valve

3 CONT.

Close-up of a golden mechanical component against a dark background (no visible text or symbols)

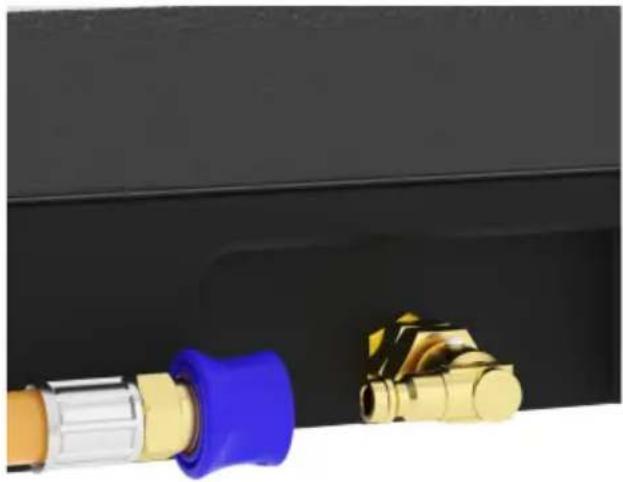

QR - Quick Release (303F-QR)

Close-up of two metallic pipe fittings with blue and gold connectors, attached to a black panel (no text or symbols visible)

Close-up of a mechanical component with brass connectors and a blue circular component being inserted by a tool (no text or symbols visible)

FRA système

Close-up of two gold-colored connectors with threaded ends, attached to a black electronic component (no text or symbols visible)

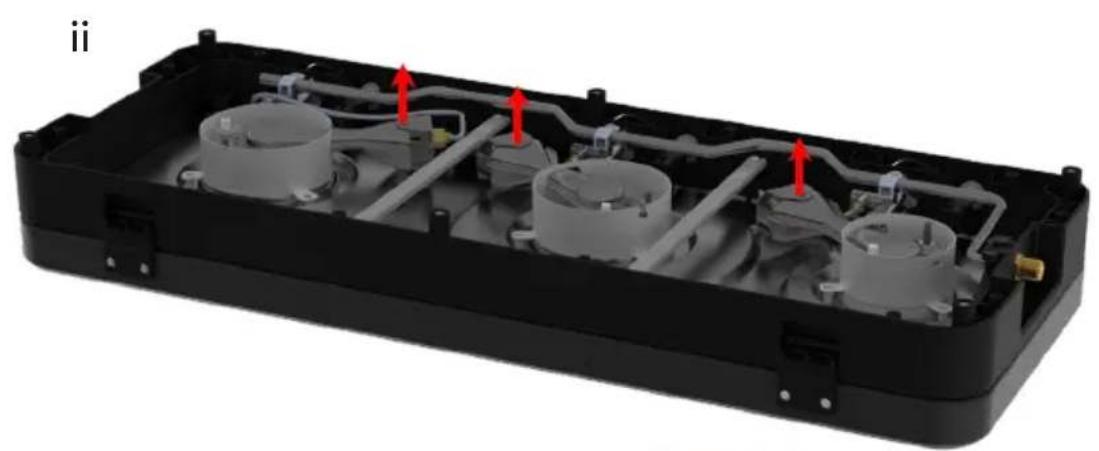

3D rendering of a black plastic enclosure with red directional arrows indicating mounting points (no text or symbols)

Interior view of a black plastic electrical enclosure with multiple cylindrical components and red arrows indicating flow or movement (no text or symbols)

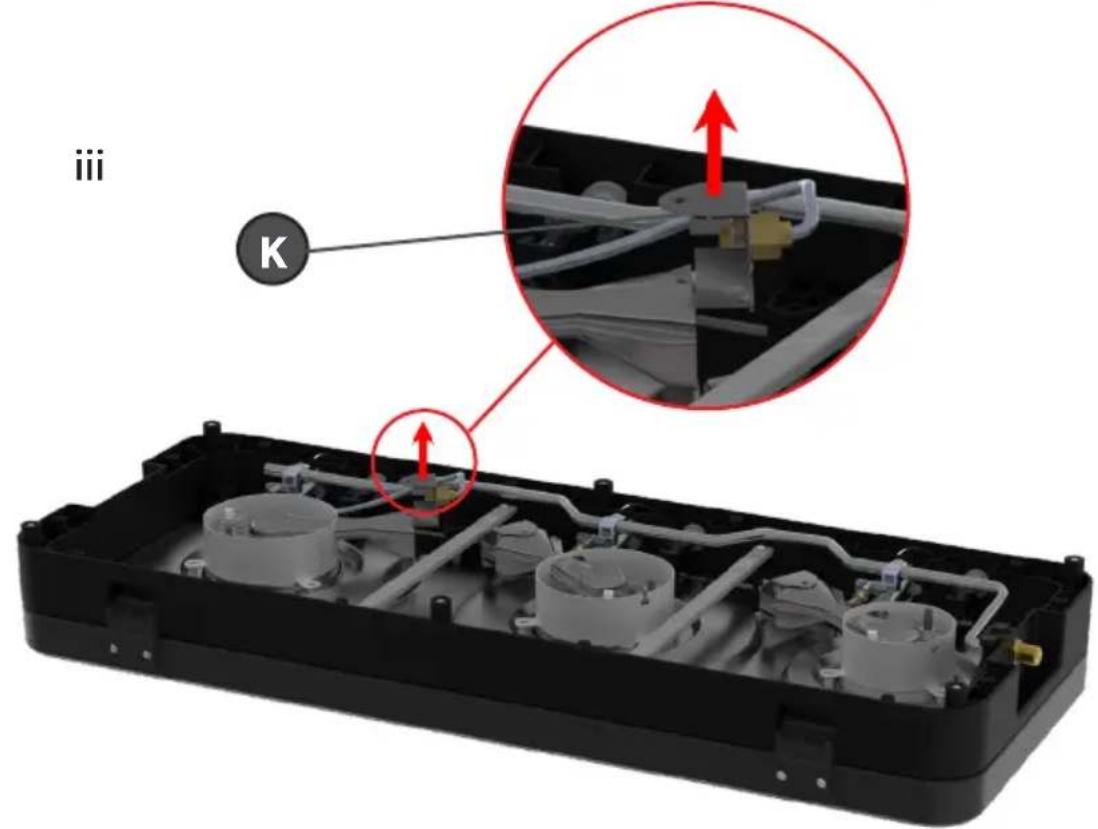

iii K

iv L

Close-up of a mechanical component with red arrows indicating direction, no visible text or symbols

vi M

Close-up of a metallic pipe fitting with a yellow connector and red arrow indicating direction (no text or symbols)

6

	203-100SKU: 9610004438		8640SKU: 9610004164		203-200SKU: 9610004439
	203-900SKU: 9610004517		98326SKU: 9610004465		203-300SKU: 9610004440
	98720CSKU: 9610004294		98710CSKU: 9610004292		98715CSKU: 9610004293
	203-400SKU: 9610004441	203-500CSKU: 9610004361

7

Provide ample ventilation. This gas appliance consumes air (oxygen). Do not use this appliance in an unventilated space to avoid endangering your life. If still more gas appliances and/or occupants using gas are added to the space, additional ventilation must be provided.

IMPORTANT

Read these instructions carefully so as to familiarise yourself with the appliance before fitting the appliance to a gas cylinder. Retain these instructions for future reference.

Country of Use	BE, FR, IT, LU, IE, GB, GR, PT, ES, CY, CZ, LT, CH, SI, LV, TR		PL	LU, NL, DK, FI, SE, CY, CZ, EE, LT, MT, SK, SI, BG, IS, NO, HR, RO, IT, HU, LV, GR	AT, CH, DE & SK
Appliance Catagories	I_3-(28-30/37)		I_3B/P(37)	I_3B/P(30)	I_3B/P(50)
Allowable gasses	Butane-G30	Propane-G31 Butane-G30, Propane-G31 or their mixture
Gas Pressure	28-30mbar	37mbar	37mbar	28-30mbar	50mbar
Jet Number (large burner)	0.73		0.69	0.73	0.64
Jet number (small burner)	0.51		0.49	0.51	0.45
Nominal Usage (large burner)	Butane - 160 g/h per burner(160g/h x 2 = 320g/h in total)		Butane - 160 g/h per burner(160g/h x 2 = 320g/h in total)	Butane - 160g/h per burner(160g/h x 2 = 320g/h in total)	Butane - 160g/h per burner(160g/h x 2 = 320g/h in total)
Nominal Usage (Small burner)	Butane - 80 g/h Butane - 80 g/h Butane - 80 g/h			Butane - 80 g/h
Gross nom. heat input (large burner)	2.2kW per burner(2.2kW x 2 = 4.4kW in total)		2.2kW per burner(2.2kW x 2 = 4.4kW in total)	2.2kW per burner(2.2kW x 2 = 4.4kW in total)	2.2kW per burner(2.2kW x 2 = 4.4kW in total)
Gross nom. heat input (small burner)	1.1kW		1.1kW	1.1kW	1.1kW
Nominal Usage (total)	400 g/h		400 g/h 400 g/h	400 g/h
Gross nom. heat input (Total)	5.5 kW		5.5 kW 5.5 kW 5 kW	5 kW

Country Name and Abbreviations
AT = Austria BE = Belgium BG	Bulgaria CH = Switzerland CY = Cyprus
CZ = Czech Republic DE = Germany DK = Denmark EE = Estonia ES = Spain
FI = Finland FR = France GB = United Kingdom GR = Greece HR = Croatia
HU = Hungary IE = Ireland IS + Iceland IT = Italy LT = Lithuania
LU = Luxembourg	LV = Latvia MT = Malta NL = Netherlands NO = Norway
PL = Poland	PT = Portugal	RO = Romania	SE = Sweden	SI = Slovenia
SK = Slovakia TR = Turkey

I 3B/P (50) Appliance category:

I3B/P(50): 50mbar Butane configurations regulator or 50mbar Propane configurations regulator or 50mbar butane/propane mixture configurations regulator.

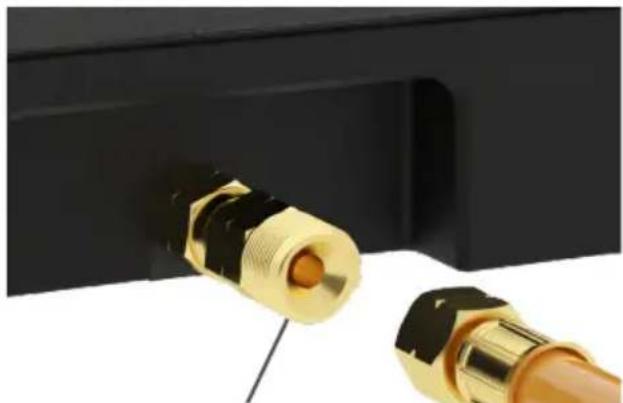

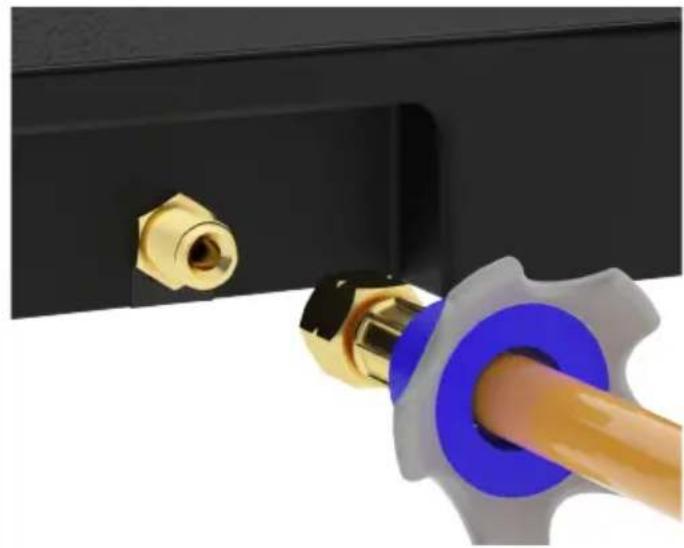

Screw a hose with the correct threaded fittings on each end, onto the left hand 1/4" BSP thread of the valve. Attach a suitable 50mbar low-pressure regulator on the end of the hose. The hose assembly used must comply with DIN 4815 part 2 or equivalent.

I 3B/P (30), I 3+ (28-30/37) Appliance categories:

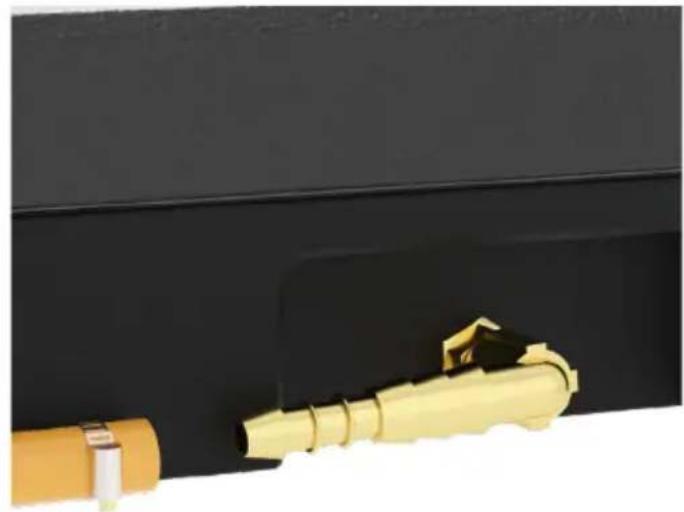

Push an approved hose onto the valve tailpiece until it is properly seated. On the other end, attach a suitable low pressure regulator.
I3B/P(30): 30mbar Butane configurations regulator or 30mbar Propane configurations regulator or 30mbar butane/propane mixture configuration regulator.
13+(28-30/37): 30mbar Butane configurations regulator or 37mbar Propane configurations regulator.

I3B/P(37) Appliance category:

Push an approved hose onto the valve tailpiece until it is properly seated. On the other end, attach a suitable low pressure regulator.

I3B/P(37): 37mbar Butane configurations regulator or 37mbar Propane configurations regulator or 37mbar butane/propane mixture configuration regulator.

The type of hose used shall comply with the relevant EN standard and locate requirement.

Safety information

These instructions are for your safety and to help you avoid risk of injury and/or damage. All warranties will become void if you do not follow these instructions.

• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible. The adjustment conditions for this appliance are stated on the label (or data plate).
• This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.
• CAUTION: The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the room is well ventilated especially when the appliance is in use.
• Prolonged intensive use of the appliance may require additional ventilation, for example the increasing of mechanical ventilation where present, additional ventilation to safely remove the products of combustion to outside (external) air whilst also providing room air changes with additional ventilation. Consult a professional before installation of the additional ventilation.
• The room where this appliance is used should have a window or a door that can be opened or partially open during use. If there is no window or door available for room ventilation, extra ventilation must be installed for your safety.
• Turn off the gas supply at the gas cylinder after use.
• CAUTION: This appliance is for cooking purposes only. It shall not be used for other purposes, for example room heating.
• WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY.
• Read these instructions carefully before using the appliance.
  • FOR INDOOR AND OUTDOOR USE.

Assembly and use (IMAGE SECTION 2 &3)

• Do not use the appliance if it has damaged or worn seals.
• Do not use an appliance that is leaking, damaged or which does not operate properly.
• Handle the appliance with care, do not drop it.
  • Always operate the appliance on a firm level surface.
• Ensure that the assembled product is stable and does not rock.
• This appliance is not suitable for installation or connection to a reticulated gas supply.
• This appliance must be kept away from flammable materials during use. Minimum safe distances are: Above the appliance 120cm. At the rear and sides 60cm.

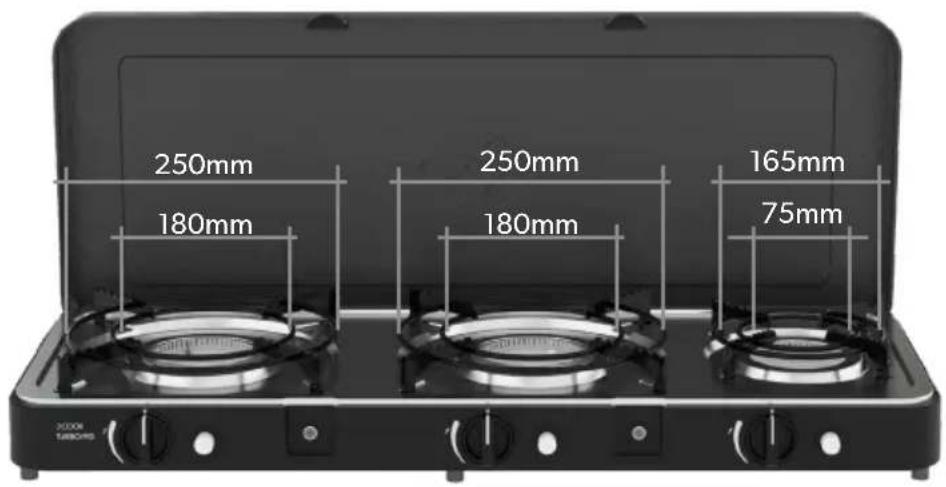

• When using a pot, the minimum and maximum pot size diameters are as follows:
  Large pot stand: 250mm maximum, 180mm minimum
  Small pot stand: 165mm maximum, 75mm minimum
• Do not use any cooking surface or pot that is larger than the recommended size. Our cooking surfaces have been specifically designed to allow gas combustion to escape and the closure of this space could affect the performance of this appliance.
• WARNING. Do not use a cooking vessels on the stove that overlaps its edges.
• Ensure that the device is clear of any spiderwebs, dirt or debris that would otherwise inhibit air flow, potentially leading to dangerous operating conditions.
  • Wind shields must be installed when using the appliance outdoors.
• Do not modify this appliance, any modification of the appliance may be dangerous. Do not use it for anything for which it has not been designed.
• Parts sealed should not be altered by the user.
• Do not move the appliance during use.
• Never leave the appliance unattended when lit.
• During use, parts of the appliance will become hot (particularly the burner). Avoid touching hot parts with bare hands. The use of gloves is recommended.
• Ensure your pot stands/cooking surfaces are correctly placed when using your appliance.

Hose

• The hose must be checked for wear or damage before every use and before connecting to the gas container.
• Do not use the appliance if it has a damaged or worn hose. Replace the hose.
• Do not twist or pinch the hose.
• The hose length should be no less than 0.8m and shall not exceed 1.5m. The hose should be replaced in accordance with the national requirement and its validity.

Gas Container

• Gas is supplied to the unit via a hose and regulator. The hose and regulator can be connected to a gas cylinder or a Power Pak which is a unit that takes two or more gas cartridges.
• IT COULD BE HAZARDOUS TO ATTEMPT TO FIT OTHER TYPES OF GAS CYLINDERS OR GAS CARTRIDGES (USED IN CONJUNCTION WITH THE POWER PAK).
• This appliance must only be used with an approved hose and regulator.
• Only to be used with a gas cylinder that does not exceed 500mm in height (not including the regulator) and 400mm in width.
• Ensure that the gas container is fitted or changed in a well-ventilated location, preferably outdoors, away from any sources of ignition such as naked flames, pilots, electric fires and away from other people.
• Keep gas containers away from heat and flame. Do not place on a stove or any other hot surface.
• Refillable containers are to be used only in the upright position so as to ensure proper fuel withdrawal. Failure to adhere to this may cause liquid discharge from the gas container resulting in a dangerous operating conditions.
• Do not try to remove the gas container whilst the appliance is in operation.
• The valve of the gas container must be kept in a closed position and the container must be disconnected from the appliance after use or when in storage.

Light back

• In the event of light back (where the flame burns back and ignites inside the burner or venturi housing), immediately turn off the gas supply by firstly closing the control valve on the gas cylinder and then the appliance valve. After the flame is extinguished, remove the regulator and check the condition of the seal; replace the seal if in doubt. Re-light the appliance.
• Should the flame persistently light back, return the product to your authorized repair agent.

Leaks

- If there is a gas leak on your appliance (smell of gas), immediately turn off the gas supply by turning the control knob clockwise to the OFF “•” position and take it into a flame free location where the gas leak may be detected and stopped. If you wish to check for gas leaks on your appliance, do it outside. Do not try to detect gas leaks using a flame; use soapy water.

How to check the appliance is connected to the gas supply in a sound fashion

• It is important that all gas connections have been correctly connected to prevent any gas leaks.
• The correct way is to smear the joint, i.e. where the gas container connects to the appliance, with soapy water. Turn the appliance control knob slightly anti-clockwise to turn the gas on. If bubbles form, then there is a gas leak. Immediately turn the gas off and disconnect the gas supply from the appliance. Check that all the connections are properly fitted. Check that the seal is in place and in good condition before connecting the gas supply. Re-check with soapy water after refitting the gas supply.
• If a gas leak persists, return the product to your local dealer for inspection/repair.

Fitting and changing the gas supply (IMAGE SECTION 3)

Connecting the gas supply

• Before connecting the appliance to a gas supply, ensure that the rubber seal on the regulator is in position and in good condition.
• Before connecting the hose and regulator to the appliance, check that the appliance control knob is in the OFF “•” position.
• Carry out this check each time you fit the appliance to a gas cylinder.
• Blow out any dust from the gas supply opening to prevent possible blockage of the jet.
  • Fit an approved hose and regulator to the appliance.
• Ensure that the gas supply (gas cylinder/gas cartridge) is fitted in a well-ventilated location away from any source of ignition, such as naked flames and away from other people.
• Do not twist or pinch the hose. Ensure that it is routed away from the stove body so as to prevent deterioration / damage to the hose caused by heat.
• Make sure that the gas cylinder is kept upright at all times, connect to the cylinder by screwing on hand tight until fully engaged.
• Ensure that a complete gas seal has been made (check for the smell of gas around the connection joint). Do not check for leaks with a naked flame. Use warm soapy water only, applied to the joints and connections of the appliance. Any leakage will show up as bubbles around the leakage area.
• If you cannot rectify the gas leak do not use the appliance. If you are in doubt, contact your nearest stockist.

Disconnecting and changing the gas supply

• After use, turn the appliance control knob to the OFF "●" position and close the gas supply.
• When you need to replace your empty cylinder, make sure that the gas is closed at the cylinder valve.
• Do not smoke while changing the cylinder.
• Remove the regulator from the empty cylinder.
• Attach the regulator to the full cylinder, refer to the instructions above on how to connect the gas supply.
• Apply the same care and checking procedures as if fitting a new gas cylinder.

How to check if your gas cylinder is empty

• The easiest way to check if you are low on gas is by picking up your gas cylinder.
• If you think your gas cylinder is feeling a little lighter than you'd like, weighing the bottle is a great way to see how much gas is left. Most cylinders will have the empty weight stamped on either the neck or foot ring, and if the weight indicated on the stamp and the weight of your cylinder are the same, you're out of gas. You can then approximate the amount of gas you have left by the difference in weight.

Operating the appliance (IMAGE SECTION 4)

• When operating this appliance, please take care to ensure that all parts are in good working order and that you have checked for any gas leaks before lighting the appliance with every use.
• Cooking surfaces can simply be placed and are ready to use. No assembly required.
• PLEASE NOTE: Please ensure all protective packaging and plastic are removed from the appliance before use.
• The appliance is designed for use with cooking vessels of not less than 180mm in diameter and not greater than 250mm in diameter.
• For additional safety, this appliance is fitted with a 'Flame Failure Device' (FFD), ensuring that the gas supply to the burner shuts off immediately should the flame inadvertently go out. In the event that this happens, be sure to turn close off the gas supply by closing the gas cylinder valve.

Precautions to observe before lighting.

• Use this appliance only on a firm level surface.
  • After prolonged storage, inspect the appliance for any insects and webs, which may affect gas flow.

Lighting the appliance using the piezo

• It is recommended to remove any cooking surfaces when trying to light the appliance. This way it will be easy to see the burner when it is lit.
• To light up the appliance using the piezo igniter, push in and turn the control knob 90^ in an anti-clockwise direction, then press the piezo button to ignite the gas. If the gas does not ignite on the first spark, turn the control knob back to its OFF “•” position. Try again, by pushing and turning the control knob anti-clockwise and push the piezo button to ignite the gas. If the gas has not ignited in the first two to three seconds you should close the control valve by turing the control knob back to its OFF “•” position.
• Do not hold in the piezo button or control knob for more than 15 seconds.
• If after 15 seconds the burner has not lit, stop operating the device and wait at least 1 minute, allowing accumulated gas to escape, before attempting a further ignition of the burner.
• Repeat the above process if necessary until the flame ignites. The flame should normally light up within the first one to two seconds.
• In the event of the burner flames being accidentally extinguished, turn the control knob to the OFF “•” position and do not attempt to re-ignite the burner for at least 1 minute.

Lighting up using a BBQ lighter

- When starting cold, the appliance may be lit from the top prior to fitting the desired cooking surface. When lighting up a hot appliance, it is recommended that this be done by sticking a barbecue lighter through one of the vent holes underneath the burner, until it is in line with the burner (DO NOT place the BBQ lighter through the large hole directly underneath the burner). Ignite the BBQ lighter. Whilst the BBQ lighter is lit, push and turn the control knob anti-clockwise to light the burner.

General

• Once the appliance is lit, the flame intensity may be adjusted by turning the control knob anti-clockwise to reduce the flame or clockwise to increase the flame.
• When cooking food with a high fat content, flaring may occur if the selected heat setting is too high. Should this happen, turn the heat down until the flaring ceases.
• Do not move the appliance when in use. It is unsafe practice to move the appliance whilst lit and may cause flaring.
• After use, first close the control valve on the gas cylinder (where applicable). When the flame has extinguished, close the control valve on the appliance.

GreenGrill cooking

Most CADAC | Dometic cooking surfaces feature GreenGrill non-stick ceramic coating which is PFOA-free and non-toxic, allowing for healthier cooking.

To prepare the cooking surface

- To prepare the cooking surface Before first use, it is recommended that you prepare the cooking surface to prevent food from sticking.

Apply a thin layer of cooking oil over the entire cooking surface and heat it over medium heat for 2-3 minutes.

Allow the cooking surface to cool before washing it in warm soapy water.

Re-apply a thin layer of oil to the cooking surface. It is now ready for use.

Cleaning your cooking surface

• Always allow cooking surfaces to cool completely before immersing in water.
- Clean your cooking surface with warm, soapy water and a soft sponge. Avoid the use of scouring pads.
• To loosen stubborn stains or residues, soak the cooking surface for a few minutes in warm water before attempting to wash.

Maintenance

• After cleaning, we recommend spreading a small amount of oil to the cooking surface before storing to protect the surface against air and moisture.
• Most cooking surfaces are supplied with a convenient storage bag. Place the oiled cooking surface in a plastic bag before storing it in its bag to keep the bag clean and free of any residue.

NOTE

• GreenGrill coating conducts heat better than regular (PTFE) non-stick coatings. Therefore, we recommend using only 75% of the usual power setting.
  • To avoid damage to your cooking surface, never leave it on the heat source without a coating of oil.
• We recommend frying with sunflower or rapeseed oil due to their high burning points. The use of olive oil is not recommended due to its lower burning point, which can cause ingredients to stick or burn.
  Tip: bring meat or fish to room temperature before frying to prevent sticking.
• The CADAC | Dometic Soft Soak and Soft Soak Brush (sold separately) are ideal cleaning products for GreenGrill cooking surfaces, aiding in soaking and removing stubborn food residue. n a plastic bag before you put it into its storage bag so you are ensured the storage bag remains clean and oil free.

Cooking options

These are the available cooking options.

Grilling: This cooking option is ideal for fat-free grilling of chicken, sausages, chops, kebabs, fish or vegetables. For this type of cooking, use the grill plate.

Caution: Please note that when cooking fatty meats some fat will splatter onto the unit which may cause flare-ups. Please use caution when handling such meats. The cooking temperatures are easily adjusted to suit your own requirements by turning the control knob to regulate the degree of heat.

Frying: This option is ideal for stir-fries, fish, breakfast, pancakes, prawns, paella and vegetables. For this type of cooking, use the flat grill. Please note that being a shallow pan, it is not suitable for deep-frying. The easy clean surface encourages the minimum use of fat for healthy cooking.

Boiling: For this type of cooking, place the pot stand in its locator grooves ensuring that it is properly seated. Place a suitably sized pot. One liter of water will boil in approximately 6 minutes depending on the conditions, size of pot used, etc. Use windshields in case of windy conditions

Note: When using small sized pots do not attempt to use pots with plastic handles as these can get extremely hot.

Paella: This cooking option is ideal for preparing paellas, risottos, pasta dishes, traditional breakfasts etc. The Paella Pan is made from a high quality pressed aluminium which allows for excellent heat distribution and retention.

Coffee: Use the smaller burner and pot stand for this option.

Cleaning the appliance

• It is recommended to clean your appliance after every use. This will prolong the life of your appliance.
• Allow the appliance to cool down before you clean it.
• Use a damp cloth wrung out in a solution of soapy water to clean exterior surfaces.
  • To clean the stove body, simply wipe with a damp cloth using a little detergent, if necessary.
  • DO NOT IMMERSE IN WATER as this will allow water to get into the burner tube causing the appliance to malfunction.
  • Make sure that no water gets onto the burners or pilot/light area. Wipe the appliance completely dry before use.
• Do not use abrasive cleaners as they may damage the surfaces.
• Clean the appliance after each use. After cleaning recondition the cooking surface with a light wipe of oil.
• Do not use any high-pressure steam equipment or a water jet to clean the appliance.
• Note: For stubborn stains, CADAC oven cleaner may be used.

Storage

Always allow the unit to cool down and be cleaned before storing.

- Turn off the gas supply to the appliance, disconnect and remove the gas supply from the appliance.

- Never store an appliance with the gas supply connected, this is an unsafe practice.

- Store the appliance and gas supply in a well-ventilated area away from combustible material. Storage of cylinders should preferably be outdoors and must NOT be in a basement.

Maintenance and troubleshooting

• If you clean and maintain your appliance on a regular basis, the life of your appliance will extend and the possibility of problems will decrease.
• We recommend the service of your appliance to be every twelve (12) months by a service agent to ensure continued efficient operation.
  • This appliance must only be serviced by an authorized person.
• Check your gas hose and connections regularly for any signs of leaks and every time the gas cylinder is re-filled or fitted to the appliance with every use.

Troubleshooting

In the case of a spattering flame or jet blockage:

- Clean your burner ports in case of an over spill.

• We recommend to clean or replace the jets every six (6) months to ensure continued efficient operation of your appliance.

- Should the appliance operate abnormally after storage and all checks have not isolated the problem, the jet may be blocked. A blocked jet would be indicated by a weaker yellowish flame or no flame at all in extreme cases. Under these circumstances it will be necessary to remove and check and thoroughly clean out any foreign matter which may have gathered in the appliance. This may be done by removing the jet using standard tools and blow any dirt from the jet, alternatively, you may purchase new jets from your local store. Do not attempt to clean the jet mechanically.

- Clean your burner ports in case of an over spill. - We recommend to clean or replace the jets every six (6) months to ensure continued efficient operation of your appliance. - Should the appliance operate abnormally after storage and all checks have not isolated the problem, the jet may be blocked. A blocked jet would be indicated by a weaker yellowish flame or no flame at all in extreme cases. Under these circumstances it will be necessary to remove and check and thoroughly clean out any foreign matter which may have gathered in the appliance. This may be done by removing the jet using standard tools and blow any dirt from the jet, alternatively, you may purchase new jets from your local store. Do not attempt to clean the jet mechanically.

Replacing a Blocked Jet: (IMAGE SECTION 5)

• Your appliance is fitted with a specific size jet to regulate the correct amount of gas.
• Should the hole in the jet become blocked, this may result in a small flame or no flame at all. Do not attempt to clean the jet with a pin or other such device as this may damage the orifice, which could make the appliance unsafe.
  • To replace the jet: Remove any cooking surfaces, close the lid and turn the appliance upside down.
  i) Gently unscrew the bottom panel by removing the screws as indicated.
  ii) Unscrew the screw for the affected burner(s).
  iii) To access the jet, lift up the airvent cover (K) as indicated.
  iv) Carefully loosen the hex nut (L) and remove the airvent cover to expose and access the jet (M).
  vi) Remove the jet using a suitable spanner. Do not use pliers on the jet as this may damage the jet, making it unusable or impossible to remove.
  vii) Screw the new jet into the valve. Do not over-tighten as this may damage the jet.
  Reverse the above steps to reassemble the appliance.

Accessories (IMAGE SECTION 6)

A variety of compatible accessories are available. Contact your local supplier for availability.

Spares (IMAGE SECTION 7)

Always use genuine spares as they have been designed to give optimum performance. Contact your local supplier for assistance.

Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country. (see www.cadacinternational.com/support).

For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date;

- A reason for the claim or description of the fault.

Note that self-repair or non-professional repair can have safety consequences and might void the warranty.

VORSICHT

Accessoires (SECTIONS D'IMAGES 6)

114 Deanfield Court, Link59 Business Park

Clitheroe, Lancashire, BB71QS

United Kingdom

Tel: [phone]

Email: [e-mail]

YOUR LOCAL DEALER:

www.cadacinternational.com/support
