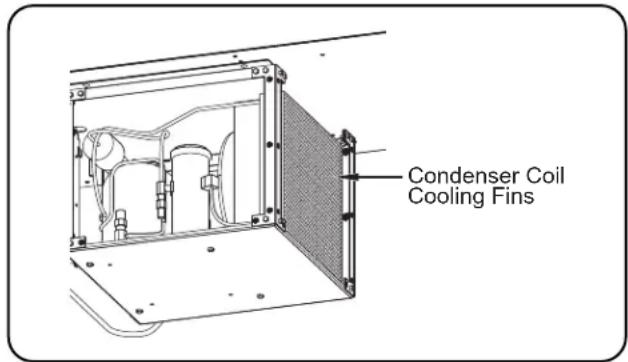

Monthly Cleaning 12

Troubleshooting Guide ....13

Options and Accessories....14

Limited Warranty....15

Authorized Parts Distributors......Back Cover

IMPORTANT OWNER INFORMATION

Record the model number, serial number, voltage, and purchase date of the unit in the spaces below (specification label located on bottom of unit and back of control panel). Please have this information available when calling Hatco for service assistance.

Model No. ____

Serial No. ____

Voltage

Date of Purchase ____

Register your unit!

Completing online warranty registration will prevent delay in obtaining warranty coverage. Access the Hatco website at www.hatcocorp.com, select the Parts & Service pull-down menu, and click on "Warranty Registration".

Business

Hours: 7:00 AM to 5:00 PM Central Standard Time (CST)

(Summer Hours: June to September—7:00 AM to 5:00 PM CST Monday–Thursday 7:00 AM to 4:00 PM CST Friday)

Telephone: [phone]

e-mail: [e-mail]

Fax: [phone] (Parts and Service)

414-671-3976 (International)

24 Hour 7 Day Parts and Service Assistance available in the United States and Canada by calling 800-558-0607.

Additional information can be found by visiting our web site at www.hatcocorp.com.

INTRODUCTION

Hatco Frost Top Drop-In Shelves are specially designed to hold quick-turnaround, cold foods such as pre-chilled beverages, snacks, hors d'oeuvres, and side dishes. The insulated, top-mount units are designed for full-size sheet pans and are available in 3/4, one, two, and three pan standard configurations as well as two and three pan slim configurations.

All models are equipped with a condensing unit that can be rotated to accommodate the installation location. For additional installation flexibility, the condensing units on FTB-2, FTB-3, FTB-S2, and FTB-S3 models also can be installed in several positions along the bottom of the frost top enclosure using pre-drilled holes. One year parts and on-site labor warranty is standard.

Hatco Frost Top Drop-In Shelves are a product of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance, and optimum performance. Every unit is inspected and tested thoroughly prior to shipment.

This manual provides the installation, safety, and operating instructions for Frost Top Drop-In Shelves. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of a unit.

Safety information that appears in this manual is identified by the following signal word panels:

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.

WARNING

ELECTRIC SHOCK HAZARD:

• Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.
• Turn OFF power switch and disconnect unit from power source before performing any cleaning, adjustments, or maintenance.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Discontinue use if power cord is frayed or worn.
• Do not attempt to repair or replace a damaged power cord. Cord must be replaced by Hatco, an Authorized Hatco Service Agent, or a person with similar qualifications.
• This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

FIRE HAZARD:

• Install unit with a minimum of 2" (51 mm) of space between all sides of the condensing unit and any combustible surfaces.
• Do not use flammable cleaning solutions to clean this unit EXPLOSION HAZARD: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

This unit must be installed by qualified, trained installers. Installation must conform to all local electrical and plumbing codes. Check with local plumbing and electrical inspectors for proper procedures and codes.

Make sure food product has been chilled to the proper food-safe temperature before placing in unit. Failure to chill food product properly may result in serious health risks. This unit is for holding pre-chilled food product only.

Hatco Corporation is not responsible for actual food product serving temperature. It is the responsibility of the user to ensure that food product is held and served at a safe temperature.

This unit is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from the unit.

WARNING

Make sure all operators have been instructed on the safe and proper use of the unit.

Maintain proper cleanliness of the unit. Proper cleanliness and sanitation is critical for food-safe operation. Refer to the MAINTENANCE section for cleaning procedures.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350; fax [phone]; or International fax [phone].

CAUTION

Locate unit at the proper counter height in an area that is convenient for use. Location should be level and strong enough to support weight of unit and contents.

NOTICE

This unit is designed for use in environments where the ambient temperature is between 65°F (18°C) and 86°F (30°C).

When shipped during cold weather months, store unit in proper ambient temperature environment for 10 hours to prevent compressor and/or refrigerant line damage. If unit is turned on and there is excessive noise and vibration, turn off immediately and allow additional warm up time.

Provide louvered or grill-style openings with a minimum size of 12" x 12"/144 square inches (31 x 31 cm/961 square cm) in the cabinetry in front of and behind the condensing unit for proper ventilation. Failure to provide adequate air flow through the condensing unit may cause unit failure and will void the unit warranty.

Do not recirculate exhaust air inside cabinet when multiple refrigerated wells are installed together. Intake air should enter from outside of cabinet.

Transport and install unit in upright position only. Failure to do so may result in damage to the refrigeration system.

Use caution and avoid hitting condensing unit hoses/lines when installing unit. Damage caused during installation is not covered under warranty.

Do not locate unit in an area subject to excessive temperatures or grease from grills, fryers, etc. Excessive temperatures could cause damage to the unit.

Clean unit daily to avoid malfunctions and maintain sanitary operation.

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch the finish of the unit, marring its appearance and making it susceptible to soil accumulation.

Do not use steel wool for cleaning. Steel wool will scratch the finish.

Do not use harsh chemicals such as bleach, cleaners containing bleach, or oven cleaners to clean the unit.

This unit is intended for commercial use only—NOT for household use.

All Models

Hatco Frost Top Drop-In Shelves are reliable and versatile. Each unit has an insulated, stainless steel and aluminized steel housing. The bottom of the recessed frost top enclosure is covered with a copper evaporator coil to provide even cooling from edge to edge. A 1" NPT drain in the recessed enclosure is standard on all units except the FTB-3/4 and FTB-1. Frost Top Drop-In Shelves are controlled by a digital temperature controller and a Power I/O (on/off) Switch housed in a single, remote-mountable control panel. The control panel is connected to the condensing unit with a 48" (1219 mm) power cord. A 6' (1829 mm) power cord and plug connected to the control panel provides power to the entire unit. All models are designed to be mounted to the topside of various types of countertop material including stainless steel, wood, Corian, Swanstone, etc... Hatco Frost Top Drop-In Shelves are designed, manufactured, and tested to maintain safe food holding temperatures.

The ecoization logo identifies products designed to reflect Hatco's commitment to improving, protecting, and preserving the global environment. Hatco Frost Top Drop-In Shelves qualify for the ecoization logo through the use of eco-friendly insulation as well as a highly efficient condensing unit.

FTB-x Models

FTB-X Models are available in 3/4, one, two, and three pan configurations. These models orient full-size sheet pans in the standard position with the short side facing the customer.

FTB-Sx Models

FTB-SX Models are available in two and three pan configurations. These models are "slim" designed and orient full-size sheet pans with the long side facing the customer. The slim design allows easy, reachable access to everything on the frost top.

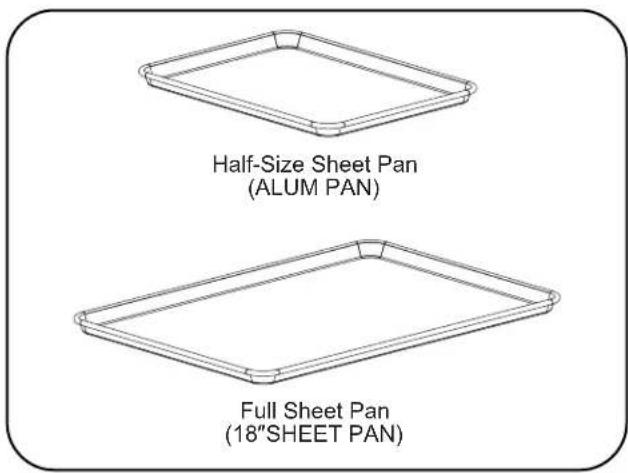

NOTE: Sheet Pans are available for the Frost Top Drop-In Shelves. Refer to the OPTIONS AND ACCESSORIES section in this manual for details.

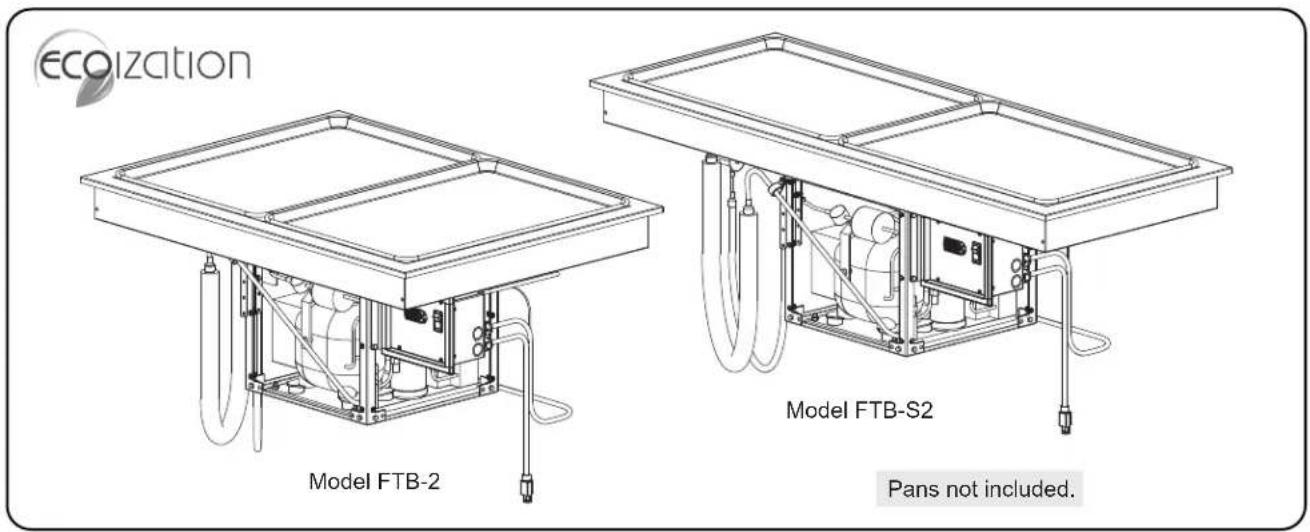

ecoization Model FTB-2 Model FTB-S2 Pans not included.

Frost Top Drop-In Shelves (Models FTB-2 and FTB-S2 shown)

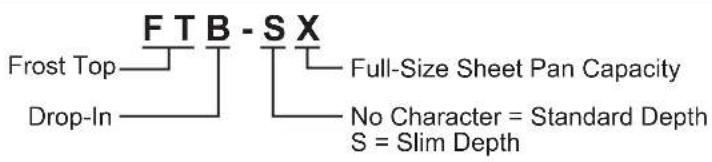

MODEL DESIGNATION

FTB-SX Frost Top Drop-In Full-Size Sheet Pan Capacity No Character = Standard Depth S = Slim Depth

Plug Configuration

Units are supplied from the factory with an electrical cord and plug installed. Plugs are supplied according to the applications.

WARNING

ELECTRIC SHOCK HAZARD: Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.

NEMA 5-15P

BS-1363

CEE 7/7 Schuko

AS 3112

Plug Configuration

NOTE: Receptacle not supplied by Hatco.

Electrical Rating Chart

Model	Compressor Size	Volts Watts Amps Plug		Configuration	Shipping Weight
FTB-3/4 1/4	hp 120 804 6.7 N	NEMA 5-15P 120 lbs. (54 kg)
FTB-1	1/4 hp 120	804 6.7 NEMA 5-15P
	1/3 hp	220-230-240	616-667-744	2.8-2.9-3.1	BS-1363, AS 3112, CEE 7/7
FTB-2	1/4 hp 120	804 6.7 NEMA 5-15P
	1/3 hp	220-230-240	616-667-744	2.8-2.9-3.1	BS-1363, AS 3112, CEE 7/7
FTB-3	1/4 hp 120	804 6.7 NEMA 5-15P
	1/3 hp	220-230-240	616-667-744	2.8-2.9-3.1	BS-1363, AS 3112, CEE 7/7
FTB-S2	1/4 hp 120	804 6.7 NEMA 5-15P
	1/3 hp	220-230-240	616-667-744	2.8-2.9-3.1	BS-1363, AS 3112, CEE 7/7
FTB-S3	1/4 hp 120	804 6.7 NEMA 5-15P
	1/3 hp	220-230-240	616-667-744	2.8-2.9-3.1	BS-1363, AS 3112, CEE 7/7

The shaded areas contain electrical information for International models only.

NOTE: Shipping weight includes packaging.

NOTE: The specification labels are located on the bottom of the unit and the back of the control panel. See the label for the serial number and verification of unit electrical information.

Refrigerant Information

All Hatco Frost Top Drop-In Shelves use R404A refrigerant in the condenser unit.

Design Pressure

Model High Side Low Side
FTB-3/4,FTB-1,FTB-2	373 psig(25.7 bar)	174 psig(11.99 bar)
FTB-3,FTB-S2,FTB-S3	425 psig(29.3 bar)	244 psig(16.82 bar)

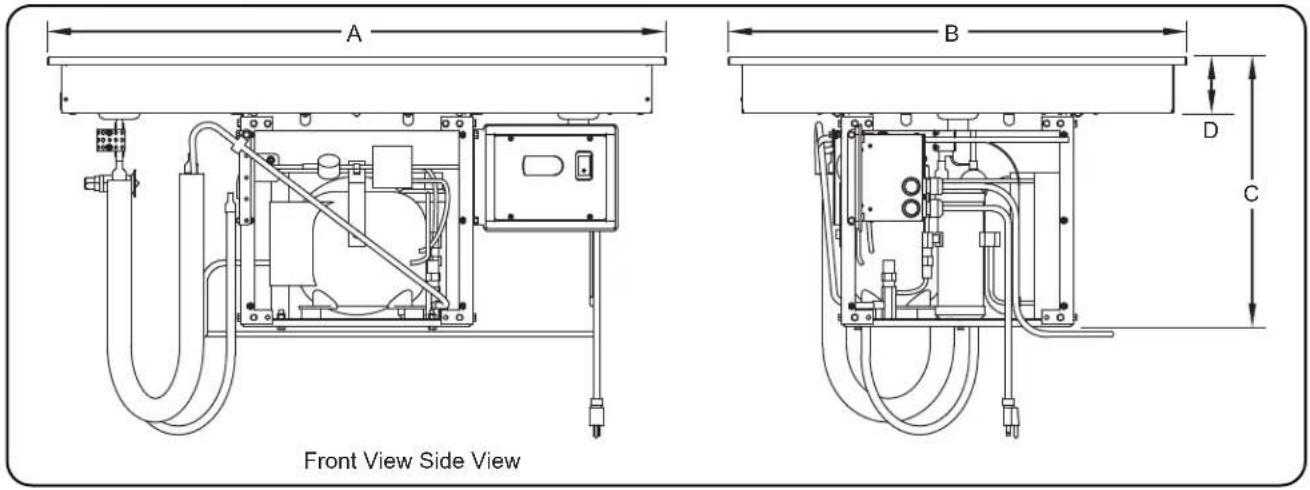

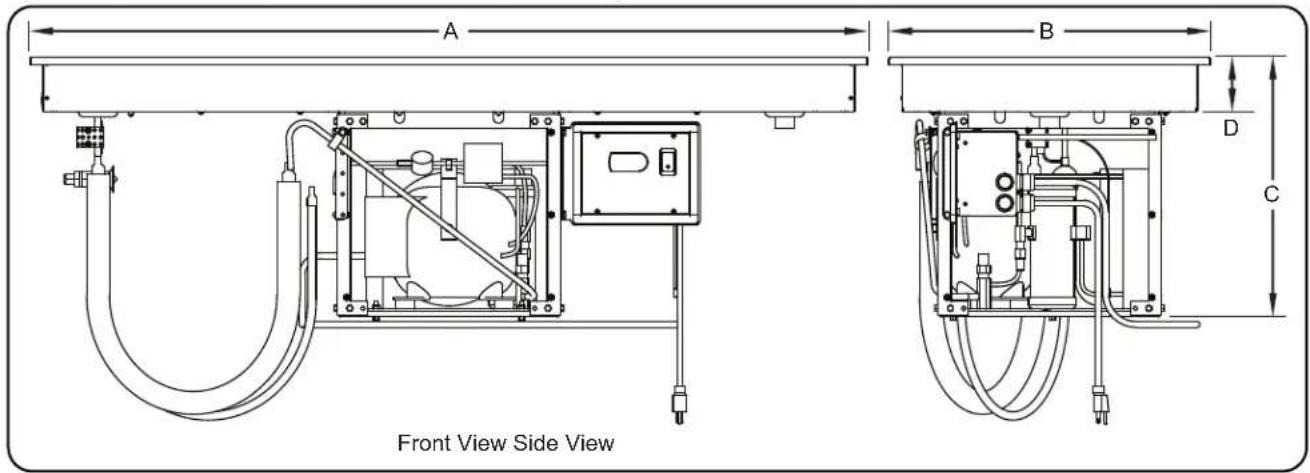

Dimensions — FTB Models

Model	Width (A)	Depth (B)	Overall Height (C)	Enclosure Height (D)
FTB-3/4	21-1/16" (535 mm)	18" (457 mm)	17-1/4" (437 mm)	3-9/16" (90 mm)
FTB-1	21-1/16" (535 mm)	28-15/16" (735 mm)	17-1/4" (437 mm)	3-9/16" (90 mm)
FTB-2	39" (991 mm)	28-15/16" (735 mm)	17-1/4" (437 mm)	3-9/16" (90 mm)
FTB-3	57" (1448 mm)	28-15/16" (735 mm)	17-1/4" (437 mm)	3-9/16" (90 mm)

Dimensions—FTB Model

Dimensions — FTB-S Models

Model	Width (A)	Depth (B)	Overall Height (C)	Enclosure Height (D)
FTB-S2	54-15/16" (1395 mm)	21-1/16" (535 mm)	17-1/4" (437 mm)	3-9/16" (90 mm)
FTB-S3	80-13/16" (2053 mm)	21-1/16" (535 mm)	17-1/4" (437 mm)	3-9/16" (90 mm)

Dimensions—FTB-S Model

General

Frost Top Drop-In Shelves are shipped from the factory completely assembled and ready for use. Use the following information and procedures to prepare the unit and installation site as well as to install the unit.

WARNING

ELECTRIC SHOCK HAZARD:

• Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.
• Unit is not weatherproof. Locate unit indoors.

FIRE HAZARD: Install unit with a minimum of 2" (51 mm) of space between all sides of the condensing unit and any combustible surfaces.

This unit must be installed by qualified, trained installers. Installation must conform to all local electrical and plumbing codes. Check with local plumbing and electrical inspectors for proper procedures and codes.

CAUTION

Locate unit at the proper counter height in an area that is convenient for use. Location should be level and strong enough to support weight of unit and contents.

NOTICE

Transport and install unit in upright position only. Failure to do so may result in damage to the refrigeration system.

When shipped during cold weather months, store unit in proper ambient temperature environment for 10 hours to prevent compressor and/or refrigerant line damage. If unit is turned on and there is excessive noise and vibration, turn off immediately and allow additional warm up time.

This unit is designed for use in environments where the ambient temperature is between 65°F (18°C) and 86°F (30°C).

Provide louvered or grill-style openings with a minimum size of 12" x 12"/144 square inches (31 x 31 cm/961 square cm) in the cabinetry in front of and behind the condensing unit for proper ventilation. Failure to provide adequate air flow through the condensing unit may cause unit failure and will void the unit warranty.

Do not locate unit in an area subject to excessive temperatures or grease from grills, fryers, etc. Excessive temperatures could cause damage to the unit.

All Frost Top Drop-In Shelves are shipped in a wooden frame for protection and stability. Keep the unit in the wooden frame until the unit and the installation site are completely prepared for the unit to be installed.

1. Remove all external packaging from the unit.
2. Remove tape, protective packaging, and literature from all surfaces of unit.

NOTE: To prevent delay in obtaining warranty coverage, complete online warranty registration. See the IMPORTANT OWNER INFORMATION section for details.

Preparing the Unit for Installation

The orientation of the condensing unit on all FTB models can be adjusted to match the layout of the installation site. It can be rotated 90° or 180° from its factory-installed position. On FTB-3, FTB-S2, and FTB-S3 models, the condensing unit can be installed in several positions along the bottom of the frost top enclosure using pre-drilled holes at 6-1/2" (165 mm) increments. The condensing unit on FTB-2 models can be installed in pre-drilled holes at 3" (76 mm) increments.

Survey the installation site and determine if adjustment to the orientation and/or position of the condensing unit is necessary. Take into account the need for louvered or grill-style openings in the cabinetry to provide proper ventilation for the condensing unit as well as access to the control panel. One of these ventilation openings must be in front of the condensing coils with the other on the opposite side. If adjustment to the orientation and/or position of the condensing unit is necessary, use the following procedure(s).

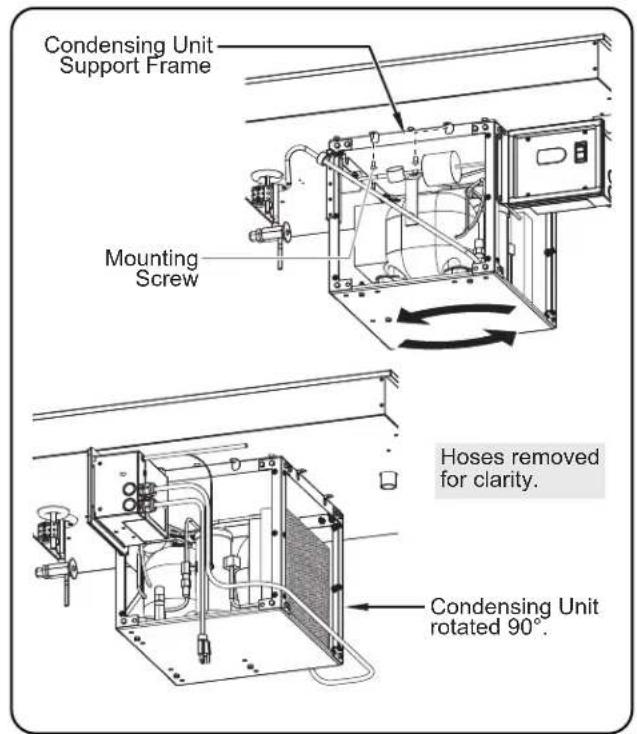

Rotating the Condensing Unit

This procedure can be performed on all FTB models.

1. Place blocks underneath the condensing unit for support during rotation.
2. Remove the 4 mounting screws that secure the condensing unit support frame to the underside of the frost top enclosure.
3. Rotate the condensing unit 90° or 180°, depending on the installation site.

NOTE: Do not rotate the condensing unit in a direction that will put the evaporator lines or any other obstruction in front of the condenser coil.

1. Reattach the condensing unit support frame to the underside of the frost top enclosure using the 4 mounting screws.

Condensing Unit Support Frame Mounting Screw Hoses removed for clarity. Condensing Unit rotated 90°.

Rotating the Condensing Unit

Moving the Condensing Unit

This procedure can be performed on FTB-2, FTB-3, FTB-S2, and FTB-S3 models only.

1. Remove the four mounting screws that secure the condensing unit support frame to the underside of the frost top enclosure.
2. Move the condensing unit to the desired position. The condensing unit can be installed in several positions along the bottom of the frost top enclosure using pre-drilled holes at 6-1/2" (165 mm) increments (3" [76 mm] increments for FTB-2).
3. Reattach the condensing unit support frame to the frost top enclosure using the four mounting screws.

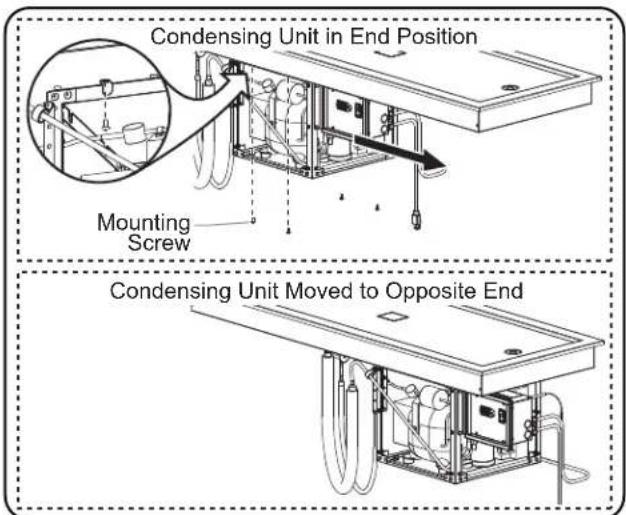

Condensing Unit in End Position Mounting Screw Condensing Unit Moved to Opposite End

Moving a Condensing Unit

Preparing the Installation Site

1. Cut the appropriate opening in the countertop for the unit being installed. Refer to "Countertop Cutout Dimensions" in this section.
2. If installing the control panel remotely, cut and drill the appropriate holes in the vertical surface where the control panel will be installed. Refer to the "Installing the Control Panel Remotely" procedure for cutout dimensions.
3. Make structural modifications or add bracing underneath the countertop to ensure the countertop will support the weight of the unit and its contents. Make sure a minimum 2" (51 mm) clearance will be available between the condensing unit and any interior surface.

NOTE: The countertop must be level to ensure proper draining of the frost top enclosure.

1. Cut the required openings in the cabinetry to provide proper ventilation to the condensing unit as well as access to the control panel. Two openings, each with a minimum size of 12" x 12"/144 square inches (31 x 31 cm/961 square cm), are required. For proper operation, one of these ventilation openings must be in front of the condenser coils with the other on the opposite side. Louvered or grill-style panels should be installed in the openings to protect the condensing unit.
2. Make sure a grounded electrical receptacle of the correct voltage, size, and plug configuration is within 6' (1829 mm) of the mounting location for the control panel. See the SPECIFICATIONS section for details.

Installing the Unit

NOTICE

Use caution and avoid hitting condensing unit hoses/lines when installing unit. Damage caused during installation is not covered under warranty.

1. Lift the unit out of the wooden shipping frame and carefully lower it into the countertop cutout. This step requires two or more people, depending on the unit.
2. Apply National Sanitation Foundation-approved (NSF-approved) silicone sealant around the edge of the unit to seal it to the countertop.
3. Install the control panel in the desired location.

- The control panel can be installed on one of three sides of the condensing unit support frame. Do not install the control panel in front of the condenser coils.

- The control panel can be installed remotely within 48" (1219 mm) of the condensing unit. Refer to the "Installing the Control Panel Remotely" procedure in this section.

1. Connect the 1" NPT drain fitting to a trap and drain line (except FTB-3/4 and -1 models). If a trap and drain line are not available, a catch pan (not supplied) must be used under the drain fitting to contain water draining from the frost top enclosure.

NOTE: Consult a qualified plumber for proper trap and drain installation that conforms to local plumbing codes.

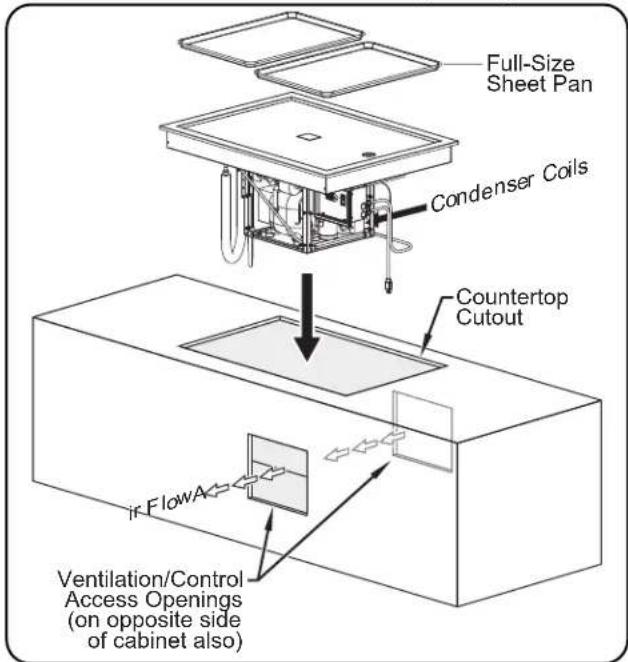

Full-Size Sheet Pan Condenser Coils Countertop Cutout FlowA Ventilation/Control Access Openings (on opposite side of cabinet also)

Installing a FTB-2

1. Clean the frost top enclosure thoroughly in preparation for initial operation. Refer to the MAINTENANCE section for proper cleaning procedures.

NOTE: If a catch pan is used underneath the drain fitting, make sure the pan is emptied regularly to prevent overflowing.

1. Plug the unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. See the SPECIFICATIONS section for details.

Installing the Control Panel Remotely

Use the following procedure to install the control panel remotely.

WARNING

Control panel must be mounted in a vertical surface. Mounting control panel in a horizontal surface may result in the collection of liquids and lead to electric shock.

1. Remove the four trim cover screws from the control panel, and remove the trim cover.
2. Position the control panel into the cutout opening through the backside.
3. Fasten the control panel to the vertical surface using four screws (not supplied).
4. Reinstall the trim cover on the control panel and secure in position using the four trim cover screws. Seal the trim cover to the mounting surface with silicone adhesive.

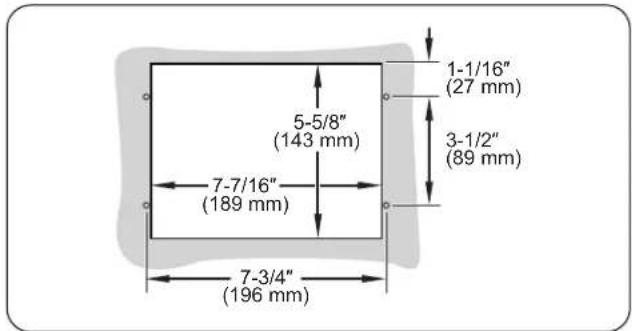

1-1/16" (27 mm) 5-5/8" (143 mm) 3-1/2" (89 mm) 7-7/16" (189 mm) 7-3/4" (196 mm)

Control Panel Cutout Dimensions
NOTE: Make sure the width of the control panel cutout does not exceed the above dimension.

Countertop Cutout Dimensions

Model	Width(A)	Depth(B)
FTB-3/4	19-7/16" to 20-1/8"(494 to 511 mm)	16-1/2" to 17-1/16"(419 to 433 mm)
FTB-1	19-7/16" to 20-1/8"(494 to 511 mm)	27-7/16" to 28"(697 to 711 mm)
FTB-2	37-3/8" to 38"(949 to 965 mm)	27-5/16" to 28"(694 to 711 mm)
FTB-3	55-3/8" to 56"(1407 to 1422 mm)	27-5/16" to 28"(694 to 711 mm)

Model	Width(A)	Depth(B)
FTB-S2	53-5/16" to 54"(1354 to 1372 mm)	19-7/16" to 20-1/8"(494 to 511 mm)
FTB-S3	79-3/16" to 79-7/8"(2011 to 2029 mm)	19-7/16" to 20-1/8"(494 to 511 mm)

FTB-3 A B

FTB-S2 A B

FTB and FTB-S Series Countertop Cutout Dimensions.

General

Use the following procedures to operate a Frost Top Drop-In Shelf.

WARNING

Read all safety messages in the Important Safety Information section before operating this equipment.

Make sure food product has been chilled to the proper food-safe temperature before placing in the unit. Failure to chill food product properly may result in serious health risks. This unit is for holding pre-chilled food product only.

NOTICE

When shipped during cold weather months, store unit in proper ambient temperature environment for 10 hours to prevent compressor and/or refrigerant line damage. If unit is turned on and there is excessive noise and vibration, turn off immediately and allow additional warm up time.

This unit is designed for use in environments where the ambient temperature is between 65°F (18°C) and 86°F (30°C).

Startup

1. Move the Power I/O (on/off) Switch to the "I" (on) position (located on the control panel).

2. The digital temperature controller will energize and "ON" will appear on the display, followed by the current temperature of the unit.
   • The symbol on the display will illuminate to show the condensing unit is active and chilling the frost top.

NOTE: The unit is pre-set at the factory to a setpoint temperature of 25^ F ( -4^ C). If ambient conditions require adjustment to the setpoint temperature, refer to the “Changing the Setpoint Temperature” in this section.

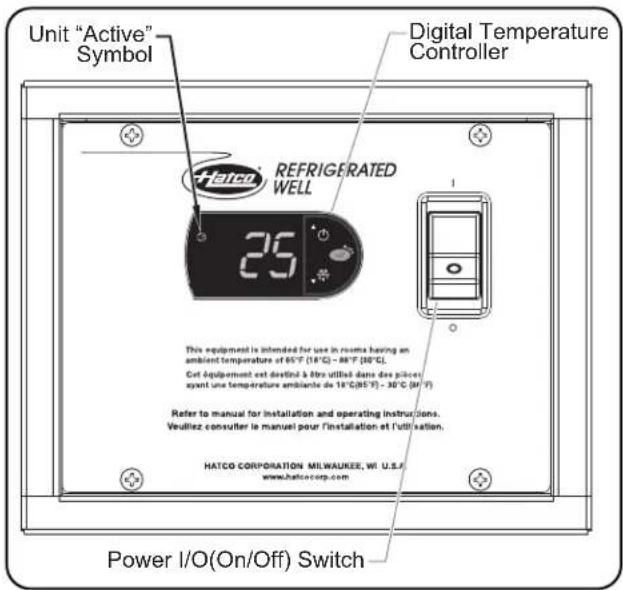

Unit "Active" Symbol Digital Temperature Controller HATCO REFRIGERATED WELL 25 This equipment is intended for use in rooms having an ambient temperature of 65°F (18°C) - 40°F (30°C). Get Equipment set destill & fibre utilised dans des pilocent exant une température ambiante de 18°C(65°F) - 30°C (90°F) Refer to manual for installation and operating instructions. Veuillez consulter le manuel pour l'installation et l'utilisation. HATCO CORPORATION MILWAUKEE, WI U.S.A. www.hatcocorp.com Power I/O(On/Off) Switch

FTB Series Control Panel

1. Allow the unit approximately 30 minutes to reach the setpoint temperature before loading pre-chilled food product.
2. Verify on the display that the unit has reached the proper setpoint temperature, and load the frost top with food pans that contain pre-chilled food product.

• Always use a food pan. Do not place food directly into the frost top.
- Stir thick food items frequently to keep food chilled uniformly.

WARNING

Hatco Corporation is not responsible for the actual food product serving temperature. It is the responsibility of the user to ensure that the food product is held and served at a safe temperature.

Shutdown

1. Move the Power I/O (on/off) Switch to the "O" (off) position. The digital temperature controller and condensing unit will shut off.
2. Perform the "Daily Cleaning" procedure in the MAINTENANCE section of this manual.

NOTICE

Clean unit daily to avoid malfunctions and maintain sanitary operation.

NOTE: If a catch pan is used underneath the drain fitting, make sure the pan is emptied regularly to prevent overflowing.

Changing the Setpoint Temperature

Use the following procedure to change the setpoint temperature on the digital temperature controller.

NOTE: Changes to the setpoint temperature should be made in small increments (1 to 2 degrees). Wait at least two hours after a change in setpoint temperature before checking for the desired result.

1. Press and hold the key for one second until the display flashes the current setpoint temperature.
2. Press the or key to increase or decrease the setpoint temperature. If no key is pressed within 60 seconds, the display will revert to normal operation and the current temperature of the unit will be shown on the display.
3. Press the key set to lock in the new setpoint temperature. The display will revert to show the current temperature of the unit.

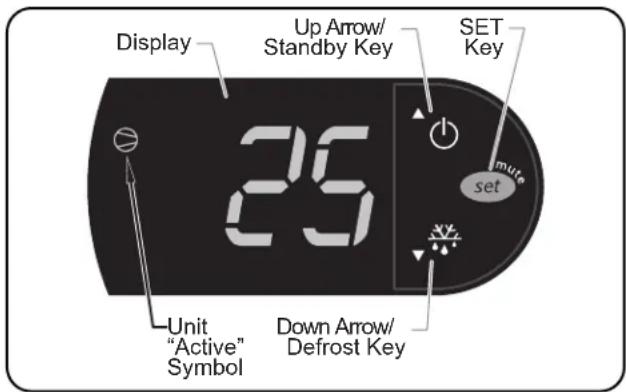

Display Up Arrow/ Standby Key SET Key Unit "Active" Symbol Down Arrow/ Defrost Key set

Digital Temperature Controller

Setting the Auto-Defrost Cycle

Hatco Frost Top Drop-In Shelves are programmed at the factory with the auto-defrost cycle deactivated. Use the following procedure to activate the auto-defrost cycle if ambient or operational conditions require the unit to defrost occasionally. When the unit is in a defrost cycle, will appear on the display.

1. Press and hold the key for three seconds to access programming mode. "PS" (password) will appear on the display.
2. Press the key again. A numeric value will appear on the display.
3. Press the ⏻ or ▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▲
4. Use the ⏻ or ⚙️ key to scroll through the programmable parameters until "dl" (defrost interval) appears on the display.
5. Press the set key to select "dl". The current number of defrost cycles will be shown on the display. For new units, this value will be "0".
6. Press the ⏻ or ⚡ key within 60 seconds to scroll to the desired number of hours between defrost cycles. See below for examples of how the defrost cycle(s) operate:

"0" = auto-defrost is deactivated
"1" = unit will defrost every hour
"4" = unit will defrost every four hours (recommended)
"12" = unit will defrost every twelve hours

If no key is pressed within 60 seconds, the display will revert to normal operation and the current temperature of the unit will be shown on the display.

1. Press the set key to lock in the new defrost cycle setting.
2. Press and hold the set key for three seconds to exit programming mode. The display will revert to show the current temperature of the unit.

NOTE: Once the unit begins a defrost cycle, defrosting cannot be cancelled. Defrosting lasts approximately 30 minutes.

General

Hatco Frost Top Drop-In Shelves are designed for maximum durability and performance, with minimum maintenance.

WARNING

ELECTRIC SHOCK HAZARD:

• Turn OFF power switch and disconnect unit from power source before performing any cleaning, adjustments, or maintenance.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.

FIRE HAZARD: Do not use flammable cleaning solutions to clean this unit.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350; fax [phone]; or International fax [phone].

NOTICE

Clean unit daily to avoid malfunctions and maintain sanitary operation.

Do not use steel wool for cleaning. Steel wool will scratch the finish.

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch the finish of the unit, marring its appearance and making it susceptible to soil accumulation.

Do not use harsh chemicals such as bleach, cleaners containing bleach, or oven cleaners to clean this unit.

Daily Cleaning

1. Move the Power I/O (on/off) Switch to the "O" (off) position and allow the unit to defrost.

NOTE: If a catch pan is used underneath the drain fitting, make sure the pan is emptied regularly to prevent overflowing.

1. Remove and wash any pans.

2. Clean the frost top using a damp cloth or sponge and mild detergent. Use a plastic scouring pad to remove any hardened food particles or mineral deposits.

3. Wipe down the frost top with a non-abrasive, sanitized cloth to remove the detergent residue. Repeat until all detergent residue is gone and the frost top is clean.

4. Wipe dry the entire unit using a non-abrasive, dry cloth.

5. Wipe down the outside of the louvered or grill-style panels installed in the ventilation openings.

Monthly Cleaning

Perform the following procedure monthly to maintain proper and efficient operation of the Frost Top Drop-In Shelf as well as prevent malfunction.

1. Remove and clean both sides of the louvered or grill-style panels that are installed in the ventilation openings. Dirt and dust build-up in the panels can restrict air flow to the condensing unit and cause over-heating.
2. Clean the condenser coil cooling fins. Dirt, dust, and lint build-up in the cooling fins will prevent proper cooling of the refrigerant in the refrigeration system. This buildup will cause inefficient operation and can lead to unit failure. Use the following methods to clean the condenser coil cooling fins:

• Vacuum the cooling fins.

- Brush the cooling fins vertically using a condenser coil brush. NOTICE: Use caution when brushing the cooling fins, they are delicate and can be bent easily. DO NOT use a wire brush.

Condenser Coil Cooling Fins

Condenser Coil Cooling Fins
NOTE: Depending on the conditions of the installation site, this cleaning procedure may need to be performed more often or less often than monthly. Monitor the level of dirt, dust, and lint buildup on the panels and cooling fins, and make adjustments to the frequency of cleanings as necessary.

WARNING

This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.

WARNING

ELECTRIC SHOCK HAZARD: Turn OFF power switch and disconnect unit from power source before performing any cleaning, adjustments, or maintenance.

Symptom Probable	Cause Corrective Action
Unit too cold. Setpoint temperature	temperature too low. Adjust the setpoint temperature	ature to a higher setting.Refer to the “Changing the Setpoint Temperature” procedure in the OPERATION section.
	Digital temperature controller not working properly.	Contact Authorized Service Agent or Hatco for assistance.
Unit not cold enough. Food	product not pre-chilled before loading in unit.	Load unit with pre-chilled food product only.
	Setpoint temperature set too high. Adjust	the setpoint temperature to a lower setting.Refer to the “Changing the Setpoint Temperature” procedure in the OPERATION section.
	Condenser coil and/or ventilation panels are plugged.	Clean the condenser coil and ventilation panels.Refer to the “Monthly Cleaning” procedure in the MAINTENANCE section.
	Too much frost built up inside of unit.	Turn off, defrost, and clean the unit. Activate an auto-defrost cycle, if necessary (refer to the “Setting the Auto-Defrost Cycle” procedure in the OPERATION section).
	Digital temperature controller not working properly.	Contact Authorized Service Agent or Hatco for assistance.
	Refrigerant low/leaking or other internal condensing unit malfunction.	Contact Authorized Service Agent or Hatco for assistance.
Unit makes excessive noise and vibration when turned on.	Internal components have not been adequately warmed before operation.	Turn off unit immediately. Unit should be stored in a warm environment of 65°F (18°C) for at least 10 hours.
Unit plugged in, but not working.	Unit turned off.	Turn on unit.
	Circuit breaker tripped.	Reset circuit breaker. If circuit breaker continues to trip, contact Authorized Service Agent or Hatco for assistance.
	Digital temperature controller not working properly.	Contact Authorized Service Agent or Hatco for assistance.
	Condensing unit overheated.	Contact Authorized Service Agent or Hatco for assistance.
	Internal condensing unit malfunction.	Contact Authorized Service Agent or Hatco for assistance.

Troubleshooting Questions?

If you continue to have problems resolving an issue, please contact the nearest Authorized Hatco Service Agency or Hatco for assistance. To locate the nearest Service Agency, log onto the Hatco website at www.hatcocorp.com and click on Find Service Agent, or contact the Hatco Parts and Service Team at:

Telephone: [phone] or 414-671-6350

e-mail: [e-mail]

Fax: [phone] or 414-671-3976

Food Pans

Accessory food pans are available in various sizes.

ALUM PAN ....Half-size aluminum sheet pan — 18"W x 13"D (457 x 330 mm)

18"SHEET PAN ....Full size aluminum sheet pan — 18"W x 26"D (457 x 660 mm)

Half-Size Sheet Pan (ALUM PAN) Full Sheet Pan (18" SHEET PAN)

Food Pans

LIMITED WARRANTY

1. PRODUCT WARRANTY

Hatco warrants the products that it manufactures (the "Products") to be free from defects in materials and workmanship, under normal use and service, for a period of one (1) year from the date of purchase when installed and maintained in accordance with Hatco's written instructions or 18 months from the date of shipment from Hatco. Buyer must establish the Product's purchase date by registering the Product with Hatco or by other means satisfactory to Hatco in its sole discretion.

Hatco warrants the following Product components to be free from defects in materials and workmanship from the date of purchase (subject to the foregoing conditions) for the period(s) of time and on the conditions listed below:

a) One (1) Year Parts and Labor PLUS One (1) Additional Year Parts-Only Warranty:

Conveyor Toaster Elements (metal sheathed) Drawer Warmer Elements (metal sheathed) Drawer Warmer Drawer Rollers and Slides Strip Heater Elements (metal sheathed) Display Warmer Elements (metal sheathed air heating) Holding Cabinet Elements (metal sheathed air heating) Heated Well Elements — HW and HWB Series (metal sheathed)

b) One (1) Year Parts and Labor PLUS Four (4) Years Parts-Only Warranty:

3CS and FR Tanks

c) One (1) Year Parts and Labor PLUS Nine (9) Years Parts-Only Warranty on:

Electric Booster Heater Tanks Gas Booster Heater Tanks

d) Ninety (90) Day Parts-Only Warranty:

Replacement Parts

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR PATENT OR OTHER INTELLECTUAL PROPERTY RIGHT INFRINGEMENT. Without limiting the generality of the foregoing, SUCH WARRANTIES DO NOT COVER: Coated incandescent light bulbs, fluorescent lights, heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light tubes, glass components, and fuses; Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack, or freezing; or Product misuse, tampering or misapplication, improper installation, or application of improper voltage.

2. LIMITATION OF REMEDIES AND DAMAGES

Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely, at Hatco's option, to repair or replacement using new or refurbished parts or Product by Hatco or a Hatco-authorized service agency (other than where Buyer is located outside of the United States, Canada, United Kingdom, or Australia, in which case Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely to replacement of part under warranty) with respect to any claim made within the applicable warranty period referred to above. Hatco reserves the right to accept or reject any such claim in whole or in part. In the context of this Limited Warranty, "refurbished" means a part or Product that has been returned to its original specifications by Hatco or a Hatco-authorized service agency. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer's sole expense. HATCO WILL NOT BE LIABLE, UNDER ANY CIRCUMSTANCES, FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING BUT NOT LIMITED TO LABOR COSTS OR LOST PROFITS RESULTING FROM THE USE OF OR INABILITY TO USE THE PRODUCTS OR FROM THE PRODUCTS BEING INCORPORATED IN OR BECOMING A COMPONENT OF ANY OTHER PRODUCT OR GOODS.

Technical line drawing of an electrical enclosure with tubing and wiring, labeled 'A' (no text or symbols beyond label)

Technical line drawing of an electrical enclosure with tubing and a control panel, no text or symbols present

1. GARANTIE DU PRODUIT

Service Solutions Group

Phoenix 602-234-244

Byassee Equipment Co

Phoenix 602-252-0402

CALIFORNIA

Industrial Electric

Commercial Parts & Service, Inc.

Huntington Beach 714-379-7100

Chapman Appl. Service

San Diego 619-298-7106

P & D Appliance

Commercial Parts & Service, Inc.

S. San Francisco 650-635-1900

COLORADO

Hawkins Commercial Appliance

Englewood 303-781-5548

FLORIDA

Whaley Foodservice Repair

Jacksonville 904-725-7800

Whaley Foodservice Repair

Orlando 407-757-0851

B.G.S.I

Pompano Beach 954-971-0456

Comm. Appliance Service

Tampa 813-663-0313

GEORGIA

TWC Services

Mableton 770-438-9797

Heritage Service Group

Norcross 866-388-9837

Southeastern Rest. Svc.

Norcross 770-446-6177

HAWAII

Burney's Comm. Service, Inc

Honolulu 808-848-1466

Food Equip Parts & Service

Honolulu 808-847-4871

ILLINOIS

Parts Town

Lombard 708-865-7278

Eichenauer Elec. Service

Decatur 217-429-4229

Midwest Elec. Appl. Service

Elmhurst 630-279-8000

Cone's Repair Service

Moline 309-797-5323

INDIANA

GCS Service

Indianapolis 800-727-8710

IOWA

Goodwin Tucker Group

Des Moines 515-262-9308

KENTUCKY

Service Solutions Group

Lexington 859-254-8854

Service Solutions Group

Louisville 502-451-5411

LOUISIANA

Chandlers Parts & Service

Baton Rouge 225-272-6620

MARYLAND

Electric Motor Service

Baltimore 410-467-8080

GCS Service

Silver Spring 301-585-7550

MASSACHUSETTS

Ace Service Co., Inc.

Needham 781-449-4220

MICHIGAN

Bildons Appliance Service

Detroit 248-478-3320

Commercial Kitchen Service

Bay City 989-893-4561

Midwest Food Equip. Service

Grandville 616-261-2000

MINNESOTA

GCS Service

Minnetonka 800-822-2303

x20365

MISSOURI

General Parts

Kansas City 816-421-5400

Commercial Kitchen Services

St. Louis 314-890-0700

Kaemmerlen Parts & Service

St. Louis 314-535-2222

NEBRASKA

Anderson Electric

Omaha 402-341-1414

NEVADA

Burney's Commercial

Las Vegas 702-736-0006

Hi. Tech Commercial Service

N. Las Vegas 702-649-4616

NEW JERSEY

Jay Hill Repair

Fairfield 973-575-9145

Service Plus

Flanders 973-691-6300

NEW YORK

Acme American Repairs, Inc.

Brooklyn 718-456-6544

Alpro Service Co.

Brooklyn 718-386-2515

Appliance Installation

Buffalo 716-884-7425

Duffy's Equipment Services, Inc

Buffalo 800-836-1014

3 Wire Northern

Plattsburgh 800-634-5005

Duffy's Equipment Services, Inc

Sauquoit 800-836-1014

J.B. Brady, Inc.

Syracuse 315-422-9271

NORTH CAROLINA

Authorized Appliance

Charlotte 704-377-4501

OHIO

Akron/Canton Comm. Svc. Inc.

Akron 330-753-6634

Service Solutions Group

Cincinnati 513-772-6600

Commercial Parts and Service

Columbus 614-221-0057

Electrical Appl. Repair Service

Electrical Appl. Repair Service Brooklyn Heights 216-459-8700

E. A. Wichman Co.

Toledo 419-385-9121

OKLAHOMA

Hagar Rest. Service, Inc.

Oklahoma City 405-235-2184

Krueger, Inc.

Oklahoma City 405-528-8883

OREGON

Ron's Service, Inc.

Portland 503-624-0890

PENNSYLVANIA

Elmer Schultz Services

Philadelphia 215-627-5401

FAST Comm. Appl. Service

Philadelphia 215-288-4800

Appliance Installation & Service

Pittsburgh 412-809-0244

K & D Service Co.

Harrisburg 717-236-9039

Electric Repair Co.

Reading 610-376-5444

RHODE ISLAND

Marshall Electric Co.

Providence 401-331-1163

SOUTH CAROLINA

Whaley Foodservice Repair

Lexington 803-996-9900

TENNESSEE

Camp Electric

Memphis 901-527-7543

TEXAS

GCS Service

Fort Worth 800-433-1804

Armstrong Repair Service

Houston 713-666-7100

Cooking Equipment Specialist

Mesquite 972-686-6666

Commercial Kitchen Repair Co.

San Antonio 210-735-2811

UTAH

La Monica's Rest. Equip. Service

Murray 801-263-3221

VIRGINIA

Daubers

Norfolk

Daubers

Springfield 703-866-3600

WASHINGTON

3Wire Restaurant Appliance

Seattle 800-207-3146

WISCONSIN

A.S.C., Inc.

Madison 608-246-3160

A.S.C., Inc.

Milwaukee 414-543-6460

CANADA

ALBERTA

Key Food Equipment Service

Edmonton 780-438-1690

BRITISH COLUMBIA

Key Food Equipment Service

Vancouver 604-433-4484

Key Food Equipment Service

Victoria 250-920-4888

MANITOBA

Air Rite, Inc.

Winnipeg 204-895-2300

NEW BRUNSWICK

EMR Services, Ltd

Moncton 506-855-4228

ONTARIO

R.G. Henderson Ltd

Toronto 416-422-5580

Choquette - CKS, Inc.

Ottawa 613-739-8458

QUÉBEC

Choquette - CKS, Inc.

Montreal 514-722-2000

Choquette - CKS, Inc.

Québec City 418-681-3944

UNITED KINGDOM

Marren Group

Northants [phone]

HATCO CORPORATION

P.O. Box 340500

Milwaukee, WI 53234-0500 U.S.A. 800-558-0607 414-671-6350

Parts and Service Fax [phone]

International Fax [phone]

[e-mail]

www.hatcocorp.com

Register your unit online!

See IMPORTANT OWNER INFORMATION section for details.
