USER MANUAL KV1808W INVENTUM

Front view of a modern stainless steel refrigerator with two doors and wheels (no visible text or symbols)

1. Safety instructions page 14

2. Appliance description page 19

3. Before the first use page 20

4. Usage page 20

5. Cleaning & maintenance page 21

6. Troubleshooting page 21

7. Reversing the door opening page 22

General terms and conditions of service and warranty page 45

Deutsch

Labeled interior diagram of a refrigerator showing numbered compartments and doors

Line drawing of a tray with six circular cutouts (no text or symbols)

10 11

Pure geometric diagram of a rectangular frame with internal triangular patterns and a vertical line at the bottom (no text or symbols)

3 ingebruikname

Simple line drawing of a 3D cube with a small protrusion on top (no text or symbols)

Simple line drawing of a 3D cube with a small protrusion on top (no text or symbols)

Simple line drawing of a vertical rectangular object with a curved arrow indicating rotation (no text or symbols)

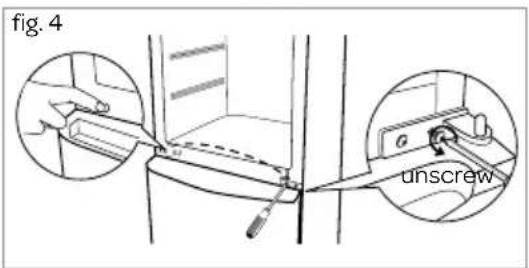

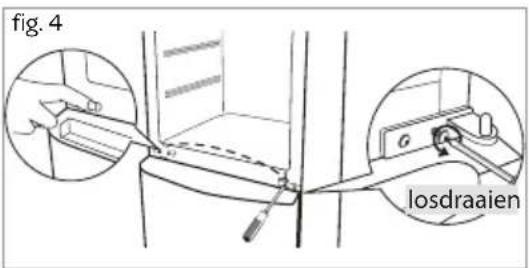

fig. 4 losdraaien

Simple line drawing of a cylindrical object with curved ends, labeled 'fig. 5' (no text or symbols on the object itself)

Line drawing of a refrigerator with a side panel and cooling unit (no text or symbols)

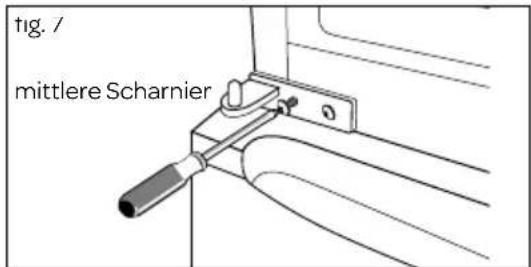

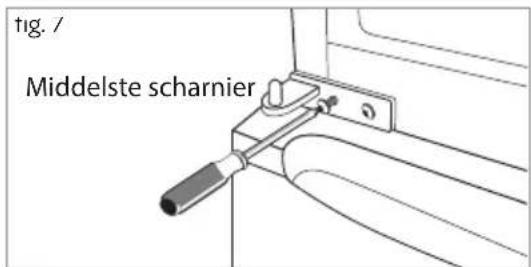

fig. / Middelste scharnier

Technical line drawing of a mechanical bracket with a screwdriver inserted, labeled 'fig. 8' (no text or symbols on the diagram itself)

1 safety instructions

- Carefully and fully read the instruction manual prior to using the appliance and carefully store the manual for future reference.

• Only use this appliance for the purposes described in the instruction. The appliance is suitable for storing food.
• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.
• The appliance falls under protective class I and may only be used in combination with an earthed connection. The manufacturer is not liable for unsuitable operation and possible damage caused by unsuitable electric installations.
• Make sure that children are unable to play with the appliance, such as hide in it. This is dangerous.
• Keep the appliance out of reach of children. Children do not see the dangers when handling electrical appliances. Therefore, never allow children to work with electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.
• The appliance can be used by children of 8 years and older and persons with a limited physical, sensory or mental capacity or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards involved.
• The appliance may not be cleaned or maintained by children, unless this is done under supervision.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Never bend the power cord sharply or allow it to run across hot parts.
• Make sure that the power supply cable does not get jammed during installation or is running along sharp edges.
• The connection point, socket and/or plug must always be accessible.

- Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the shop or our technical service. Never replace the plug or cord yourself.

- The appliance must be moved and installed by two or more persons.

- When moving the appliance, do not lift it or pull the doors or handles.

- Be careful when moving the appliance to prevent the floor from getting damaged.

- During installation, do make sure the power cable is not damaged.

- Check that the appliance is not placed too close to a heat source.

- Do not place heat generating appliances such as (microwave) ovens on top of the appliance.

- In order to ensure proper ventilation, a free space of 10 cm should be maintained around the appliance.

• Install the appliance on a sturdy, flat and stable surface.

• Install the appliance in a dry and well ventilated room. The appliance is intended for use in a room where the ambient temperature falls within the applicable class, depending on the climate class found on the information plate on the back of the

- Never cover the ventilation openings.

- Do not store explosive or highly flammable substances in the appliance. The vapours could cause a fire hazard or an explosion.

- Do not store glass bottles or jars with liquids in the freezer, as they could break when frozen.

- Do not use mechanical, electrical or chemical agents to speed up the defrosting process.

- Repairs to electrical appliances should only be performed by skilled persons.

- Only use the appliance indoors.

- Always remove the plug from the socket when the appliance must be cleaned or repaired.

- Never use the appliance with parts that are not recommended or supplied by the manufacturer.

- Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the plug with wet or moist hands.

Climate class Ambient temperature

SN From 10°C to 32°C

N From 16°C to 32°C

ST From 16°C to 38°C

T From 16°C to 43°C

• Be careful with ice cubes and ice pops. If these are consumed directly out of the freezer, there is a risk of frostbite.
• Never submerge the appliance, cord or plug in water.
• Never clean the appliance with a high pressure cleaner or steam cleaner.
• The appliance cannot be used with a timer or separate remote control.

• This appliance is intended for household and similar use, such as:

• in staff kitchens, shops, offices and other work environments;

• by guests of hotels, motels and other residential environments;
• in Bed&Breakfast type environments;
• farms.

- If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable.

WARNING: Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

WARNING: Risk of fire/ flammable materials

If the refrigerant circuit should be damaged:

- Avoid open flames and sources of ignition.

- Thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a shortcircuit, fire, and/or electric shock.

INFORMATION ABOUT HOW TO AVOID FOOD CONTAMINATION

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that come in contact with food and accessible drainage systems.
  • Store raw meat and fish in suitable containers in the appliance, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Order Com	partments TYPE	Target storage temp. [°C]	Appropriate food
1 Fridge +2 -	+8 Eggs, cooked food	d, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2 (***)*-Freezer ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
3 ***-Freezer ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
4 **-Freezer ≤-12 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
5 *-Freezer ≤-6 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
6 0-star -6 +0 Fresh pork, beef, fish, chicken, some packaged processed foods, etc.(recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non-freezable foods).
7 Chill		-2 ~ +3	Fresh/ frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C).
8 Fresh food		0 ~ +4	Fresh pork, beef, fish, chicken, cooked food, etc. (recommended to eat within the same day, preferably no more than 3 days).
9 Wine +5 ~	+20 Red wine, white wine, sparkling wine, etc.

NOTE:

Please store different foods according to the compartments or target storage temperature of your purchased products..

- If the refrigerating appliance is left empty for long periods, switch off. Defrost, clean and dry it and leave the door open to prevent mould developing within the appliance.

Water dispenser cleaning (special for water dispenser products):

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

WARNING

- Food needs to be packed in bags and liquids in bottles or capped containers before putting into the appliance to avoid the problem that the inside of the appliance is not easy to clean.

ENVIRONMENTAL PROTECTION

The appliance is energy-efficient. Save even more energy when using the appliance with the following tips, and how to dispose of your appliance in an environmentally-friendly way.

Saving energy

• A high ambient temperature will have a negative effect on the energy consumption. Direct sunlight and other heat sources near the appliance also have a negative effect.
• Keep ventilation holes free. Covered and dirty holes cause a higher energy consumption. Ensure sufficient space around the appliance, so that a proper ventilation and air flow around the appliance is possible.
• Do not open the doors of the appliance more often than necessary and leave the doors open as briefly as possible.
  • The distance between the shelves and the rear wall ensures a free air circulation. Do not place food against the rear wall.
• Allow cooked food that you want to store in the appliance to cool down to room temperature before placing it in the appliance.
• A door rubber that does not close properly could increase the energy consumption.
• If the instructions are not observed, this could lead to a higher energy consumption.

Environmentally-friendly disposal

Recycling - WEEE

• Dispose of packaging in an environmentally-friendly manner.
• This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

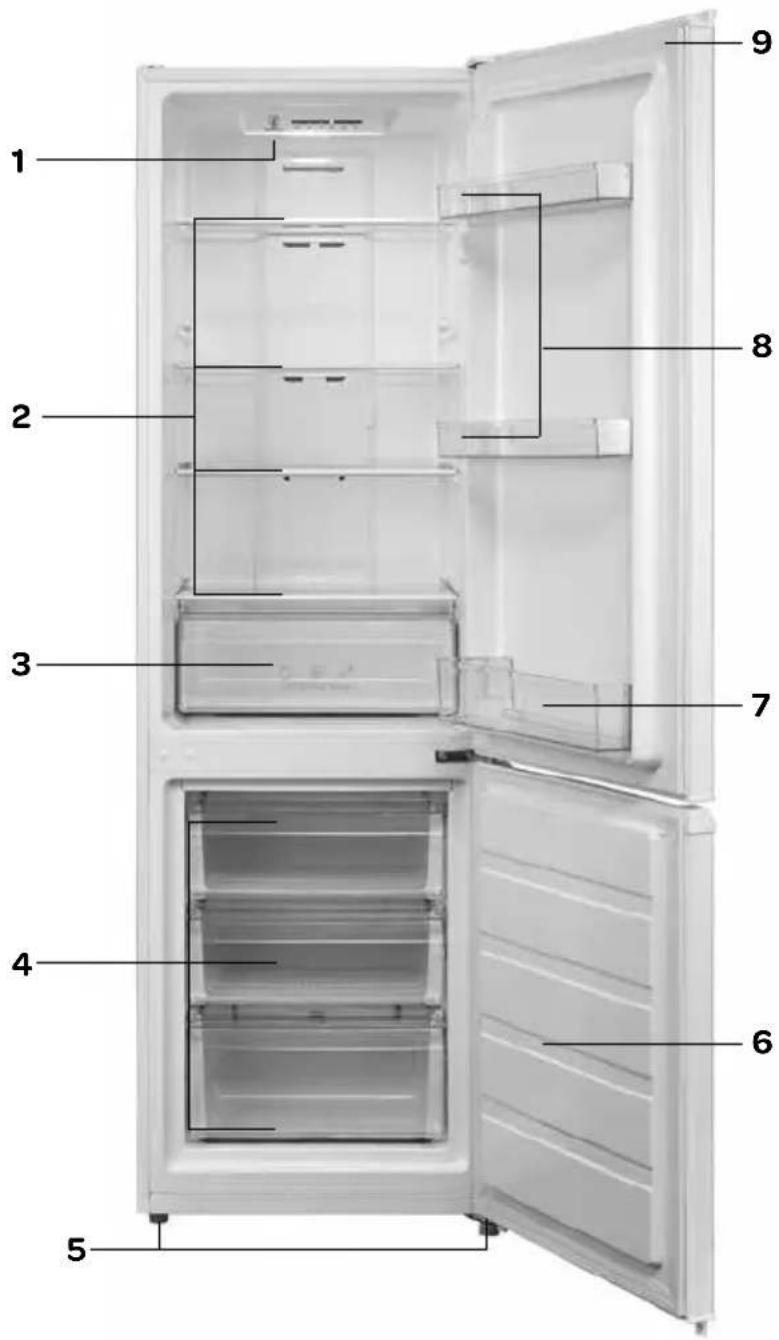

2 appliance description

1. Interior lighting with thermostat
2. Glass shelves
3. Crisp drawer
4. Freezer drawers
5. Adjustable feet
6. Door - freezer section
7. Bottle compartment
8. Door compartments
9. Door - cooler section
10. Egg tray
11. Icecube holder

Labeled interior diagram of a refrigerator showing numbered compartments for identification

Line drawing of a six-cylinder baking tray with circular cavities (no text or symbols)

10 11

Pure geometric diagram of a rectangular frame with internal triangular patterns and a vertical line at the bottom (no text or symbols)

3 before the first use

Before using the appliance for the first time, you should proceed as follows: carefully unpack the appliance and remove all packaging material and any promotional stickers. Keep the packaging (plastic bags, polystyrene and cardboard) out of the reach of children. After unpacking the appliance, check it for external damage that may have occurred during transport. Place the appliance on a sturdy, flat surface and make sure there is enough space all around for sufficient ventilation. A minimum space of 10 cm is required between the appliance and the surrounding walls. In this way the appliance is able to release heat properly, cool well and function in an energy efficient way. You can use the adjustable feet to level the appliance. Do not place the appliance near heat sources such as central heating or a stove. Do take note of the climate class of the appliance. When placed in a room that is too cold, the appliance will not function properly.

After placing the appliance, leave it for at least 3 hours before inserting the plug in the socket.

First clean the interior of the appliance. Use warm soapy water with, for instance, washing-up liquid, all-purpose cleaner or soda. Wipe the inside of the appliance after cleaning with clean water and properly wipe everything dry. Leave the appliance to dry for 1 to 2 hours.

4 usage

The control unit of the appliance is located on the inside. Check that the voltage corresponds with what is stated on the information plate and insert the plug in the socket.

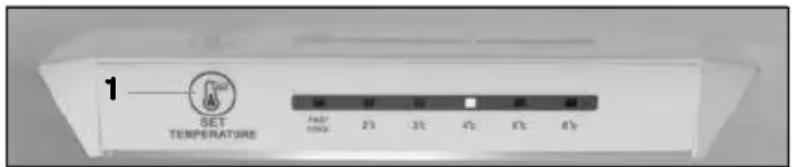

SETTING THE TEMPERATURE OF THE COOLER SECTION

The thermostat of the cooler section is located on the inside of the refrigerator. Repeatedly press the temperature knob [1] to set the required temperature. There are six temperature positions.

2°C is the coldest position and the FAST COOL position ensures that the appliance cools down rapidly. If too much food is stored in the refrigerator at once, it is possible to switch on the FAST COOL function. The refrigerator makes the food as cool as possible for a period of 40 hours,

1 SET TEMPERATURE 温度 25 35 45 45 45

after which the refrigerator switches back to the pre-set temperature. By pressing 'set temperature' [1] the Fast Cool mode will be switched off in the meantime.

We recommend setting the appliance to the temperature position of 4^ C when using the appliance in a room with room temperature.

The appliance will now cool continuously until the set temperature has been reached. Allow the appliance to reach the required temperature with no food. Usually this will take 2 to 3 hours. After that, you can set the thermostat knob to the required position and fill the appliance with food.

If the ambient temperature rises, set the appliance to a lower temperature position in order to be able to guarantee the interior temperature.

SETTING THE TEMPERATURE OF THE FREEZER SECTION

The thermostat of the freezer section is located on the inside of the refrigerator, behind the vegetable drawer.

There are three positions. The COOLER (winter) position is the coldest position. Turn the thermostat knob [2] to the required position.

We recommend setting the appliance to the NORMAL position when using the appliance in a room with room temperature.

If the ambient temperature rises, turn the thermostat knob between positions NORMAL and COOL (summer) to be able to guarantee the interior temperature.

NORMAL COOL (CSUPPER) COOL DP (MIPSE) 2

Attention:

The ambient temperature, the frequency of opening the door and the position of the appliance have an effect on the temperature in the appliance. Take this into account when setting the thermostat.

• Do not place hot food in the appliance.
• You should never place hazardous, highly flammable or explosive substances such as alcohol, acetone or petrol in the appliance, because there will be a hazard of explosion.
• Carefully package meat and fish to prevent unpleasant smells.
• Leave sufficient space between the different foods, to allow the air to circulate properly.
• Do not place food against the rear wall of the appliance. The shelves have a stopper to prevent this.
• Do not leave the door open for longer than necessary.

20 · English

5 cleaning & maintenance

Before cleaning the appliance, switch it off by removing the plug from the socket.

Clean the interior of the appliance. Use warm soapy water with, for instance, washing-up liquid, all-purpose cleaner or soda in order to prevent nasty smells. Wipe the inside of the appliance after cleaning with clean water and properly wipe everything dry. Leave the appliance to dry for 1 to 2 hours.

The shelves, drawers and door compartments can be removed from the appliance easily and washed by hand. These components may never be cleaned in the dishwasher.

Clean the outside of the appliance and the door rubbers with a soft damp cloth. The grill of the condenser at the rear of the appliance can be cleaned with a vacuum cleaner with soft brush attachment.

DEFROSTING

The freezer section of this appliance is free from frost - no-frost. If used correctly, no ice will be formed.

If an ice layer is created after all, defrost the freezer section when the ice layer has reached a thickness of 3 mm. Remove all products from the freezer section. Store the frozen products on a cool location, packaged in newspapers and blankets. Remove the plug from the socket and keep the door of the cooler section closed while defrosting the freezer section.

Defrost the freezer section Defrosting can be accelerated by placing a tray with hot water in the freezer section. Do not use sharp metal objects to scrape the freezer section clean, use a plastic ice scraper.

Clean and dry the freezer section. Insert the plug in the socket and set the thermostat to the required setting. Place the frozen products back in the freezer section once it has reached the required temperature.

Warning Never remove ice with sharp objects, defrosting sprays, a hair dryer, a heater or something similar.

This could lead to unsafe situations and cause irreparable damage to the appliance

Replacing the LED lamp

This appliance has been provided with a LED lamp. This lamp lasts for a longer period of time. When the LED lamp in the appliance is broken, you are not able to replace it yourself. Contact the Inventum service department.

6 troubleshooting

Breakdown Cause Solution
Appliance does not do anything; led does not light up	Plug not in socket Insert the plug in the socket.
Temperature in the appliance is too high or too low	Incorrect thermostat setting - Set the thermostat to the correct position- Check whether the MIN or MAX position has been set for the freezer section.
	Ventilation openings are blocked Clean the ventilation openings
Appliance makes noise Is the appliance	ance properly installed? Check the installation
	Does the rear of the appliance make contact with something?	Check this and move the appliance forward

Remark: bubbling and expansion noises in the cooling circuit are normal.

7 reversing the door opening

The doors of the appliance can be opened on the right or left side. In order to reverse the door opening, observe the instructions below. It would be best to do this with two people.

Attention: remove the plug from the socket. Remove all items from the appliance, including the shelves, before reversing the door opening.

• Remove the protective cover on the hinge - fig.1.
• On the right top side, remove the hinge with the three bolts (do take note of the plastic adapter bushes between the hinge and the door) - fig.2. On the left top side of the appliance, remove the two bolts.
• Carefully remove the upper door by moving it towards you and lifting it off the middle hinge. Place this door on a safe location - fig. 3.

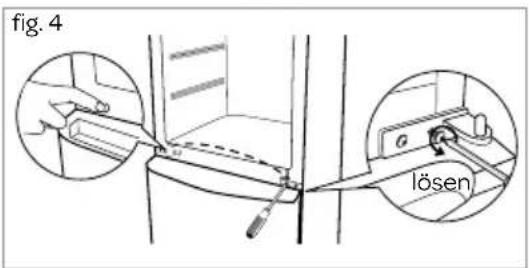

• Remove the middle hinge on the right side by loosening the two bolts and put it aside for the moment. Immediately move the white protective caps from the left to the right side and place them on the location where the middle hinge was removed - fig. 4.
• Carefully remove the bottom door by moving it towards you and lifting it off the bottom hinge - fig. 5. Place this door on a safe location.
• At the bottom side of the door, move the plastic block from the right side to the left side.
• Then tilt the appliance backwards by maximum 45^ .

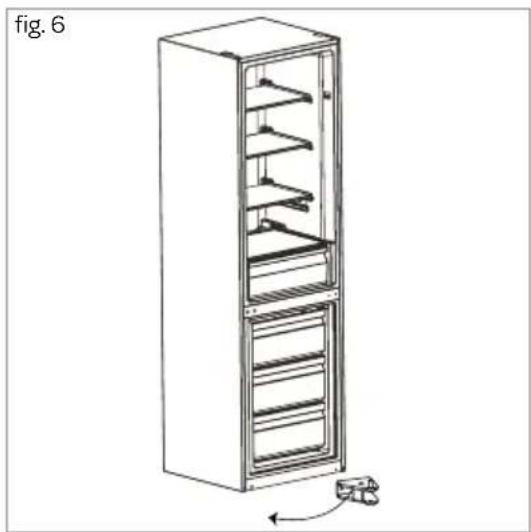

• On the left bottom side, remove the adjustable foot and the two bolts.
• On the right bottom side, remove the hinge and the three bolts - fig. 6. Then place the hinge on the left bottom side with the bolts.
• Place the adjustable foot on the right bottom side and re-insert the bolts there as well.
• Place the bottom door against the appliance and make sure the bottom side is properly placed on the bottom hinge. Make sure the door is straight in relation to the exterior of the appliance.

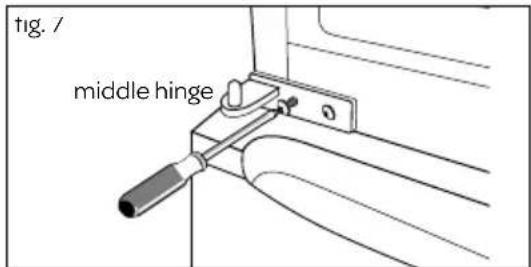

• Now mount the middle hinge and accompanying bolts on the left side - fig. 7. Make sure the hinge is placed in the top side of the bottom door. Use the adapter bushes and tighten the bolts. The bottom door has now been mounted.
• Now place the upper door against the appliance and make sure the bottom side is properly placed on the middle hinge.

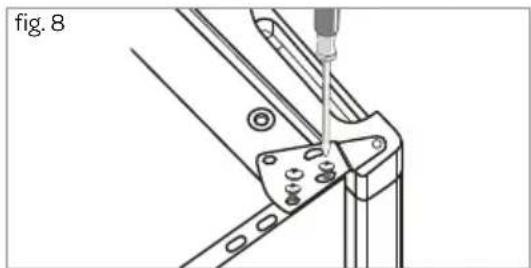

• On the left top side, place the hinge with plastic adapter bushes and fasten it with the bolts - fig. 8. Make sure the door is straight in relation to the exterior of the appliance.
• Carefully place the appliance upright again.
• On the right top side, screw the bolts back in the appliance.
• Place the protective cover back on the upper hinge.
• Allow the appliance to rest for 2 to 3 hours before inserting the plug in the socket.

Simple line drawing of a 3D cube with a small protrusion on top (no text or symbols)

Simple line drawing of a 3D cube with a small protrusion on top (no text or symbols)

Simple line drawing of a vertical rectangular object with a curved arrow indicating rotation (no text or symbols)

fig. 4 unscrew

Simple line drawing of a cylindrical object with curved ends, labeled 'fig. 5' (no text or symbols on the object itself)

Line drawing of a refrigerator with a side panel and cooling unit (no text or symbols)

fig. / middle hinge

Technical line drawing of a mechanical bracket with a screwdriver inserted, labeled 'fig. 8' (no text or symbols on the diagram itself)

Labeled interior diagram of a refrigerator showing numbered compartments and doors

Line drawing of a tray with six circular cutouts (no text or symbols)

10 11

Pure geometric diagram of a rectangular frame with internal triangular patterns and a vertical line at the bottom (no text or symbols)

3 Inbetriebnahme

Simple line drawing of a 3D cube with a small protrusion on top (no text or symbols)

Simple line drawing of a 3D cube with a small protrusion on top (no text or symbols)

Simple line drawing of a vertical rectangular object with a curved arrow indicating rotation (no text or symbols)

fig. 4 lösen

Simple line drawing of a cylindrical object with curved ends, labeled 'fig. 5' (no text or symbols on the object itself)

Line drawing of a refrigerator with a side panel and cooling unit (no text or symbols)

fig. / mittlere Scharnier

Technical line drawing of a mechanical bracket with a screwdriver inserted, labeled 'fig. 8' (no text or symbols on the diagram itself)

Labeled interior diagram of a refrigerator showing numbered compartments for identification

Line drawing of a tray with six circular cutouts (no text or symbols)

10 11

Pure technical line drawing of a rectangular tray with internal compartments (no text or symbols)

3 mise en service

1 SET TEMPERATURE -50V 2% 3% 4% 5% 6%

Simple line drawing of a 3D cube with a small protrusion on top (no text or symbols)

Simple line drawing of a 3D cube with a small protrusion on top (no text or symbols)

Simple line drawing of a vertical rectangular object with a curved arrow indicating rotation (no text or symbols)

fig. 4 devissez

Simple line drawing of a cylindrical object with curved ends, labeled 'fig. 5' (no text or symbols on the object itself)

Line drawing of a refrigerator with a side panel and cooling unit (no text or symbols)

fig. / charnière centrale

Technical line drawing of a mechanical bracket with a screwdriver inserted, labeled 'fig. 8' (no text or symbols on the diagram itself)

General terms and conditions of service and warranty

5-year Inventum warranty!

1. Customers enjoy a 5-year full manufacturer's warranty on all Inventum products.
2. Within this period, a defective product or part, which makes normal functioning of the product or part impossible, will always be repaired free of charge or, if repair is not possible and/or does not provide a solution, replaced (by the same or equivalent product). The assessment of this lies with Inventum.
3. In order to make a claim under the 5-year Inventum warranty you must, within two months after discovering the fault or defect, either return the product to the shop where you bought it, or contact the Inventum customer service department by using the form at www.inventum.eu/service.
4. The warranty period starts from the date stated on the product's original sales receipt.
5. To invoke the warranty, you must always send a copy of the original proof of purchase with the service request and present the original proof of purchase to the service technician.
6. The 5-year warranty applies only to normal domestic use of Inventum products within the Netherlands.

Warranty exclusions

1. The 5-year Inventum guarantee does not apply in case of: normal wear and tear, consumables, improper use, insufficient or incorrect maintenance, incorrect and/or inexpert assembly and installation of the appliance, repairs by unauthorised third parties, business or commercial use, missing serial number, damage caused by an external cause. This enumeration is not exhaustive.
2. B-choice products and products that have been built-in in a showroom are not covered by the 5-year Inventum warranty. All optical damage such as dents, scratches and slight traces of use are excluded from any warranty.

Reporting malfunctions on Inventum products

1. Faults or defects on Inventum products can be reported by using the service request form on the website www.inventum.eu/service or through the seller of the product.
2. A copy of the original proof of purchase must be included with the request.
3. Inventum's service department determines whether the product will be repaired or replaced, based on the request and the sales receipt.

Important to know

• Products sent without prior notification will not be accepted. Further to the notification you will be informed by Inventum whether a warranty applies and whether you must return the product.
• The replacement or repair of a defective product, or a part thereof, does not lead to an extension of the original warranty period.
• Products eligible for replacement or repair must be emptied and clean.

For a detailed explanation of the warranty conditions and items excluded from them, please visit Inventum's website www.inventum.eu/algemene-voorwaarden

These general warranty and service conditions apply to Inventum brand products purchased after 27 April 2022 and intended for use within the Netherlands.

For Inventum products used outside the Netherlands, but within a EU Member State, the warranty rules of that country apply. Inventum provides warranty and service by a white goods technician only in the Netherlands.

As a consumer, you are entitled by law to a properly working product. Does the product break down sooner than you might expect? This means that the product is not in conformity. In that case, the law offers you, the buyer, with a number of legal remedies for your protection. This legal protection is not affected by the above commercial warranty given by Inventum on Inventum products used within the Netherlands.

Modifications and errors reserved

Place FSC logo inside

facebook.com/inventum1908

pinterest.com/inventum1908

youtube.com/inventum1908

instagram.com/inventum1908
