USER MANUAL ProSpray 3.31 WAGNER

Line drawing of a mechanical power tool with wheels and control panel (no text or symbols)

PROSPRAY 3.29 / 3.31

BETRIEBSANLEITUNG • OWNER'S MANUAL MODE D'EMPLOI • ISTRUZIONE PER L'USO

GBI F I

MODEL:

0558005 0558037

0558006 0558038

Warnung!

Warning symbols for electrical hazard, one warning with exclamation mark and the other showing a broken tool.

GeFAHR: HocHdRucKScHLAucH

GeFAHR: exPLoSloNS- uNd BRANdGeFAHR

Technical diagram of a power saw machine with numbered parts and exploded view, showing internal components and assembly details.

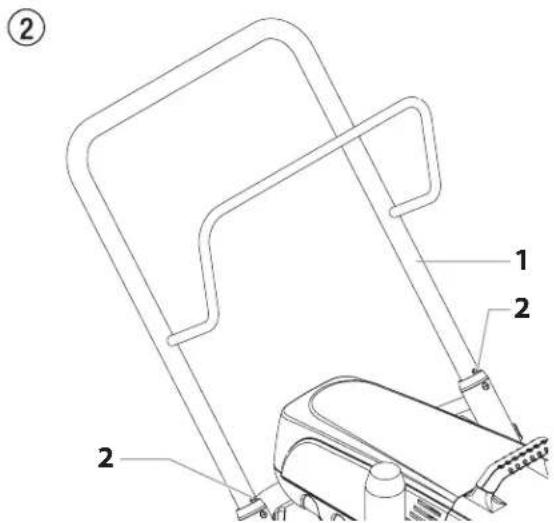

3.6 TRANSPORT

Technical diagram of a mechanical device with labeled parts 1 and 2, showing structural components.

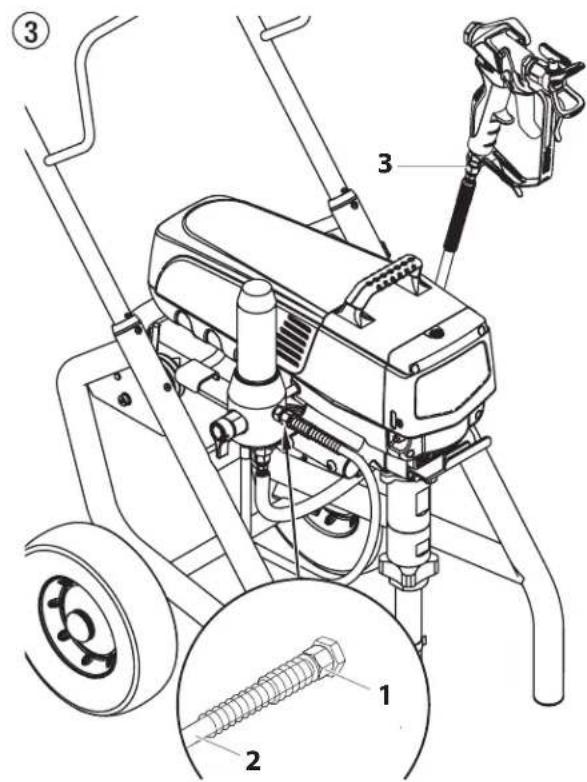

3.7 TRANSPORT IM FAHRZEUG

Technical diagram of a power tool with labeled parts including a spring, screw, and push pump assembly

Technical diagram showing mechanical assembly with labeled parts 4 and ④, including a hand operating a component.

Technical diagram of a power tool with numbered parts and exploded view, showing internal components and assembly.

4.6 GeRäT mIT BeScHlcHTuNGSSToFF IN BeTRleB NeHmeN

Menüfensters Volume Pumped

Menüfensters Unit Serial #

Illustration showing three hands holding a flashlight with prohibition symbols below, likely illustrating a lighting or anti-smoking concept.

Diagram of a mechanical component with a cylindrical shaft and hexagonal nut, showing a rotation arrow (no text or symbols)

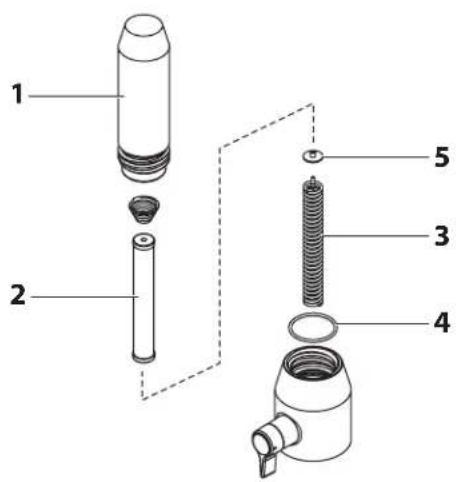

8.3 HocHdRucKFILTeR ReINIGeN

Exploded view diagram of a mechanical assembly with numbered parts for identification

8.4 ReINIGuNG deR AIRLeSS-SPRITzPISToLe

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical diagram of a mechanical assembly with numbered components, likely a device or component assembly.

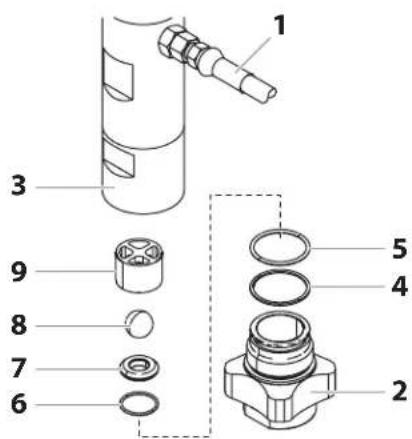

11.2 eIN- uNd AuSLASSVeNTIL

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a mechanical device with no visible text or symbols

Line drawing of a temperature sensor device with coiled tubing and connector (no text or symbols on the device itself)

Technical line drawing of a mechanical pump or reel assembly with no visible text or symbols

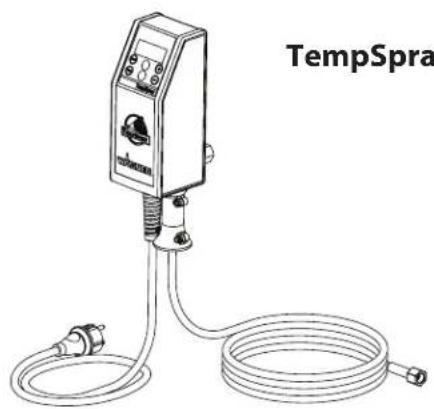

TempSpray H 226 TempSpray H 326

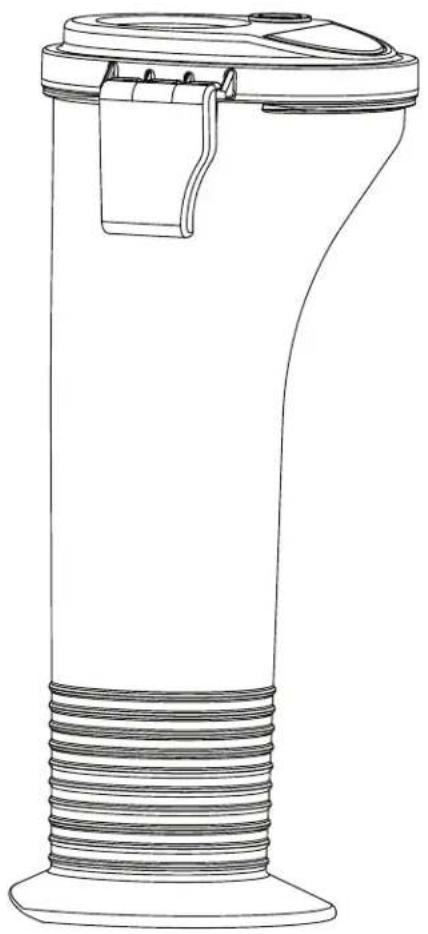

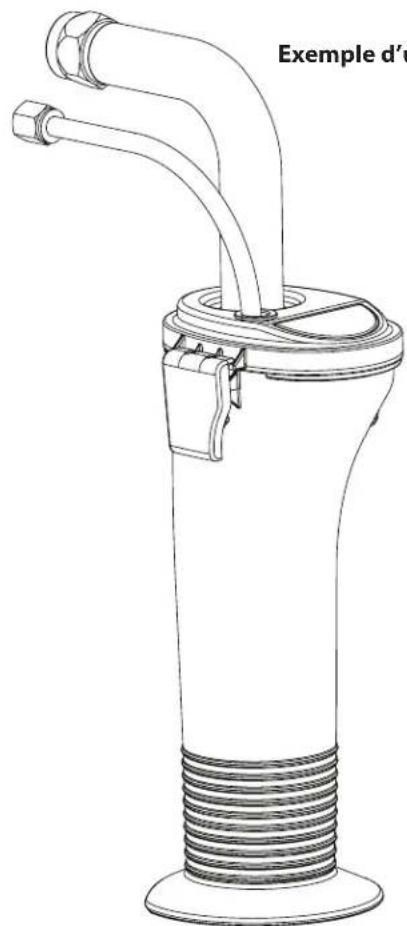

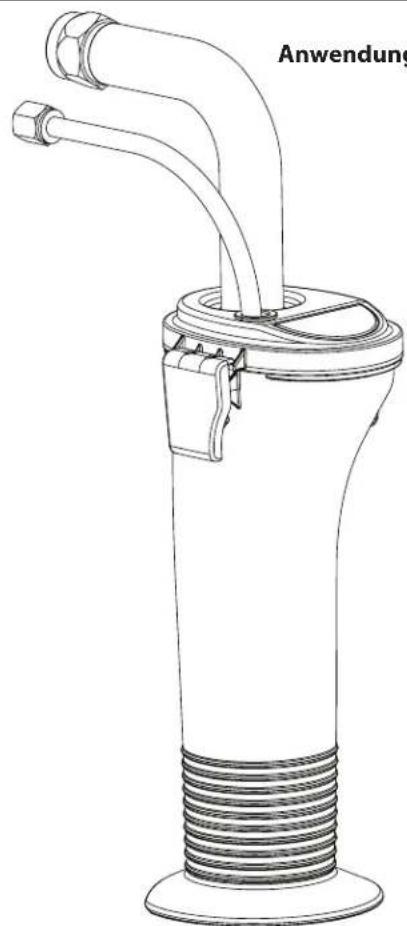

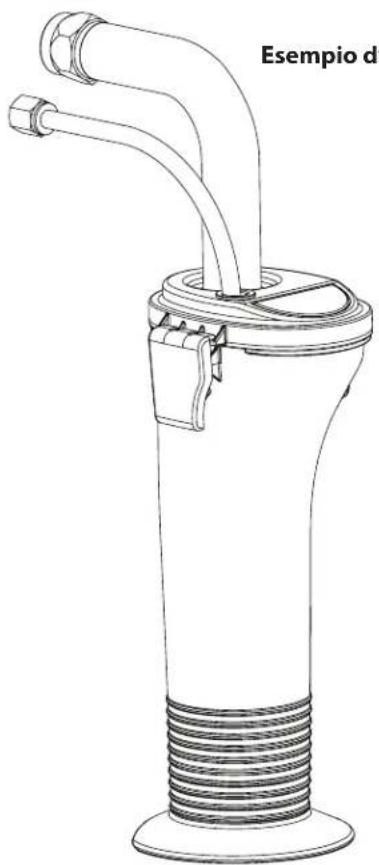

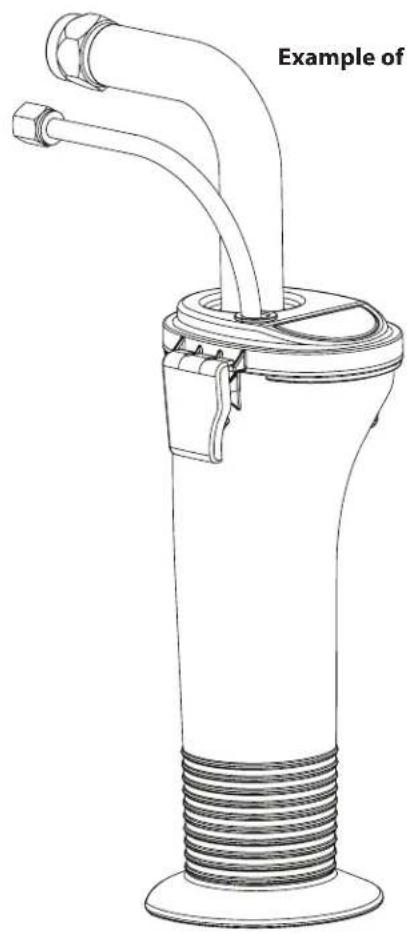

12.6 PUMP-RUNNER

(Best. Nr. 2306987)

Technical line drawing of a mechanical component with threaded base and mounting bracket (no text or symbols)

Attention: Danger of injury by injection!

Airless units develop extremely high spraying pressures.

Warning sign with exclamation mark and broken tool symbol indicating hazard or hazard

Never put your fingers, hands or any other parts of the body into the spray jet!

Never point the spray gun at yourself, other persons or animals.

Never use the spray gun without safety guard.

Do not treat a spraying injury as a harmless cut. In case of injury to the skin through coating materials or solvents, consult a doctor immediately for quick and expert treatment. Inform the doctor about the coating material or solvent used.

The operating instructions state that the following points must always be observed before starting up:

1. Faulty units must not be used.
2. Secure Wagner spray gun using the trigger lock on the trigger.
3. Ensure that the unit is properly earthed.
4. Check allowable operating pressure of high-pressure hose and spray gun.
5. Check all connections for leaks.

The instructions regarding regular cleaning and maintenance of the unit must be strictly observed.

Before any work is done on the unit or for every break in work the following rules must be observed:

1. Release the pressure from spray gun and hose.
2. Secure the Wagner spray gun using the trigger lock on the trigger.
3. Switch off unit.

Be safety conscious!

1 SAFeTy ReGuLATIoNS FoR AIRLeSS SPRAyING 34

1.1 Explanation of symbols used 34
1.2 Electric safety 38
1.3 Electrostatic charging (formation of sparks or flames) ____ 38

2 GeNeRAL Vl eW oF APPLICATIoN 39

2.1 Application 39
2.2 Coating materials 39

3 deScRIPTIoN of uNIT 40

3.1 Airless process 40
3.2 Functioning of the unit 40
3.3 Technical data 40
3.4 Legend for explanatory diagram PS 3.29 / 3.31 ____ 41

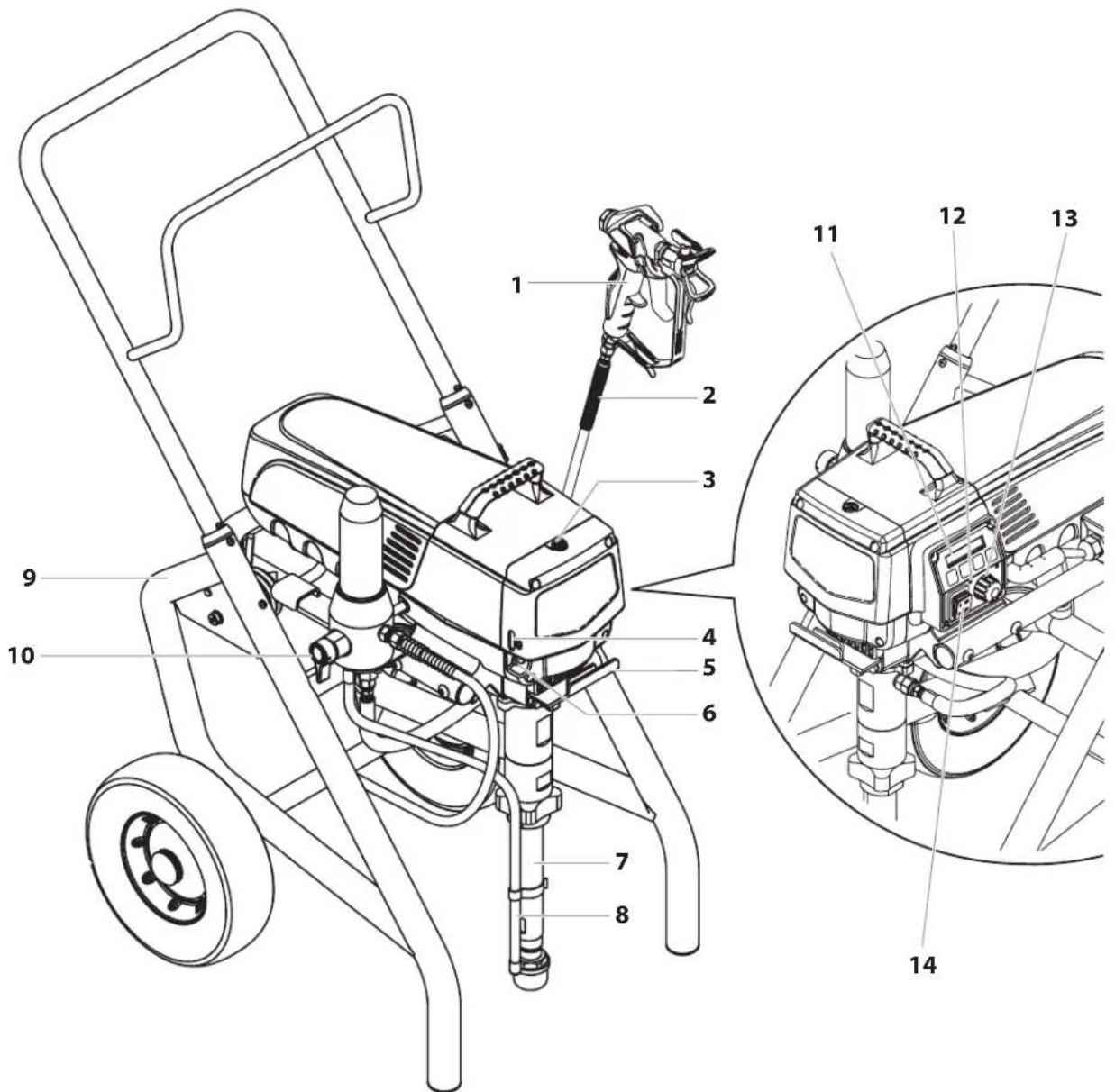

3.5 Explanatory diagram PS 3.29 / 3.31 41
3.6 Transportation 42

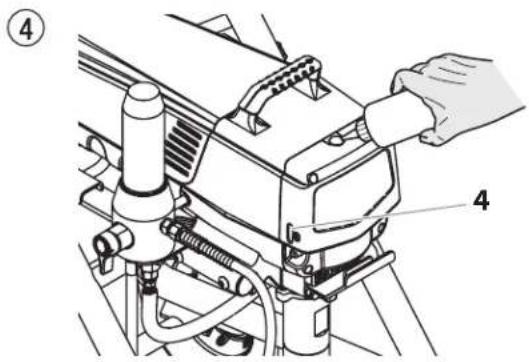

3.7 Transportation in vehicle 42

4 STARTING oPeRATION 42

4.1 High-pressure hose, spray gun and separating oil _ 42

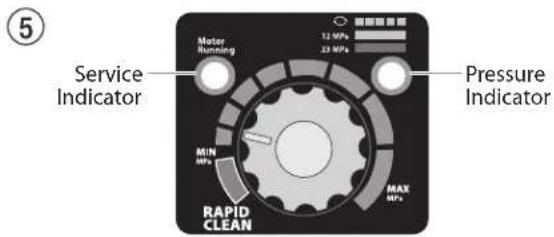

4.2 Control panel indicators 43

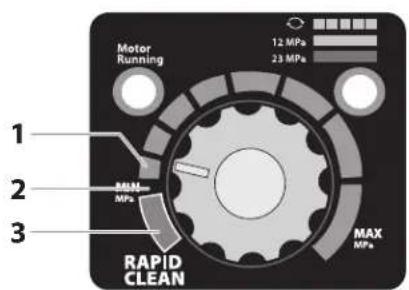

4.3 Pressure control knob settings 43
4.4 Connection to the mains network 44

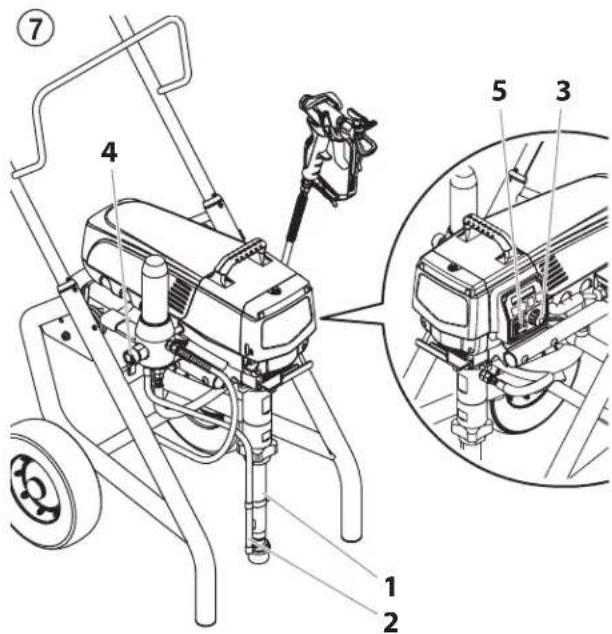

4.5 Cleaning preserving agent when starting-up of operation initially ____ 44
4.6 Taking the unit into operation with coating material 44

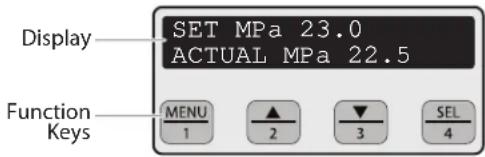

4.7 Digital Electronic Spray Control (DESC) 45

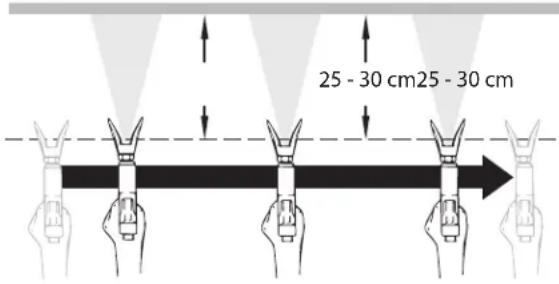

5 SPRAyING TecHNique 47

6 HANdLING THe HIGH-PReSSuRe HoSe 48

7 INTeRRuPTIoN oF WoWK 48

8 cLeANING THE uNIT (SHuTTING doWN) \_ 49

8.1 Cleaning unit from outside 49
8.2 Suction filter 49
8.3 Cleaning the high-pressure filter 50
8.4 Cleaning Airless spray gun 50

9 Remedy IN cASe of FAuLTS 51

10 SeRVlcING 52

10.1 General servicing ____ 52
10.2 High-pressure hose 52

11 RePAIRS AT THE uNIT 52

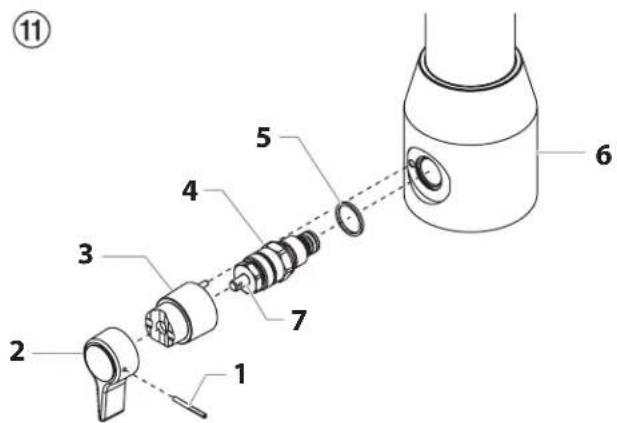

11.1 Relief valve 52
11.2 Inlet and outlet valve 53

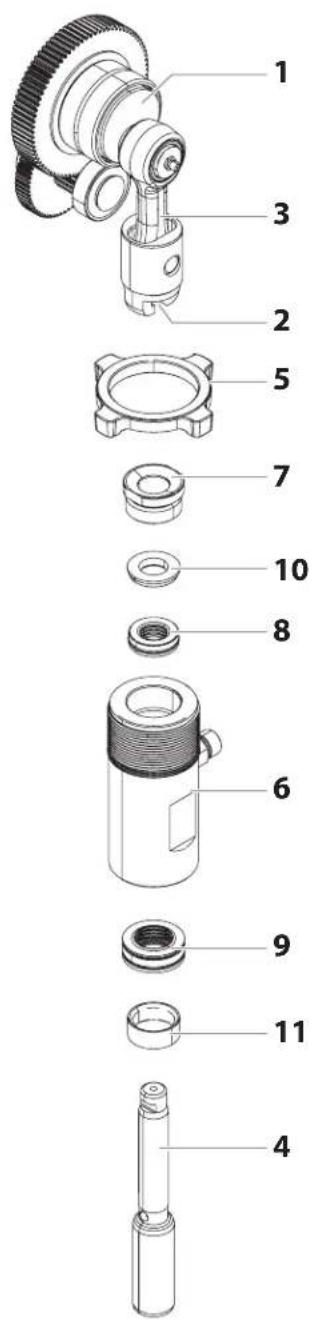

11.3 Packings 54

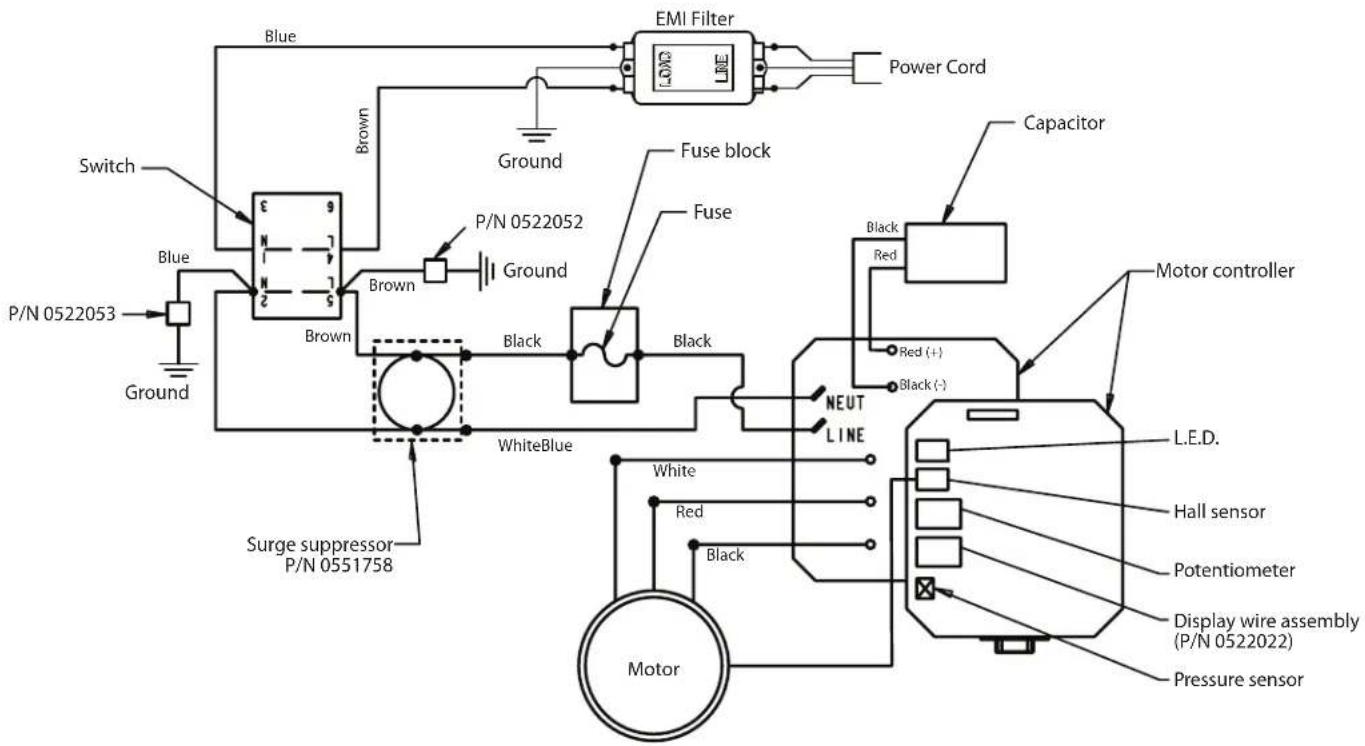

11.4 PS 3.29 / 3.31 connection diagram ____ 56
11.5 Digital Electronic Spray Control (DESC) Error Messages ____ 56

12 APPeNdIx 57

12.1 Selection of tip 57
12.2 Servicing and cleaning of Airless hard-metal tips ____57

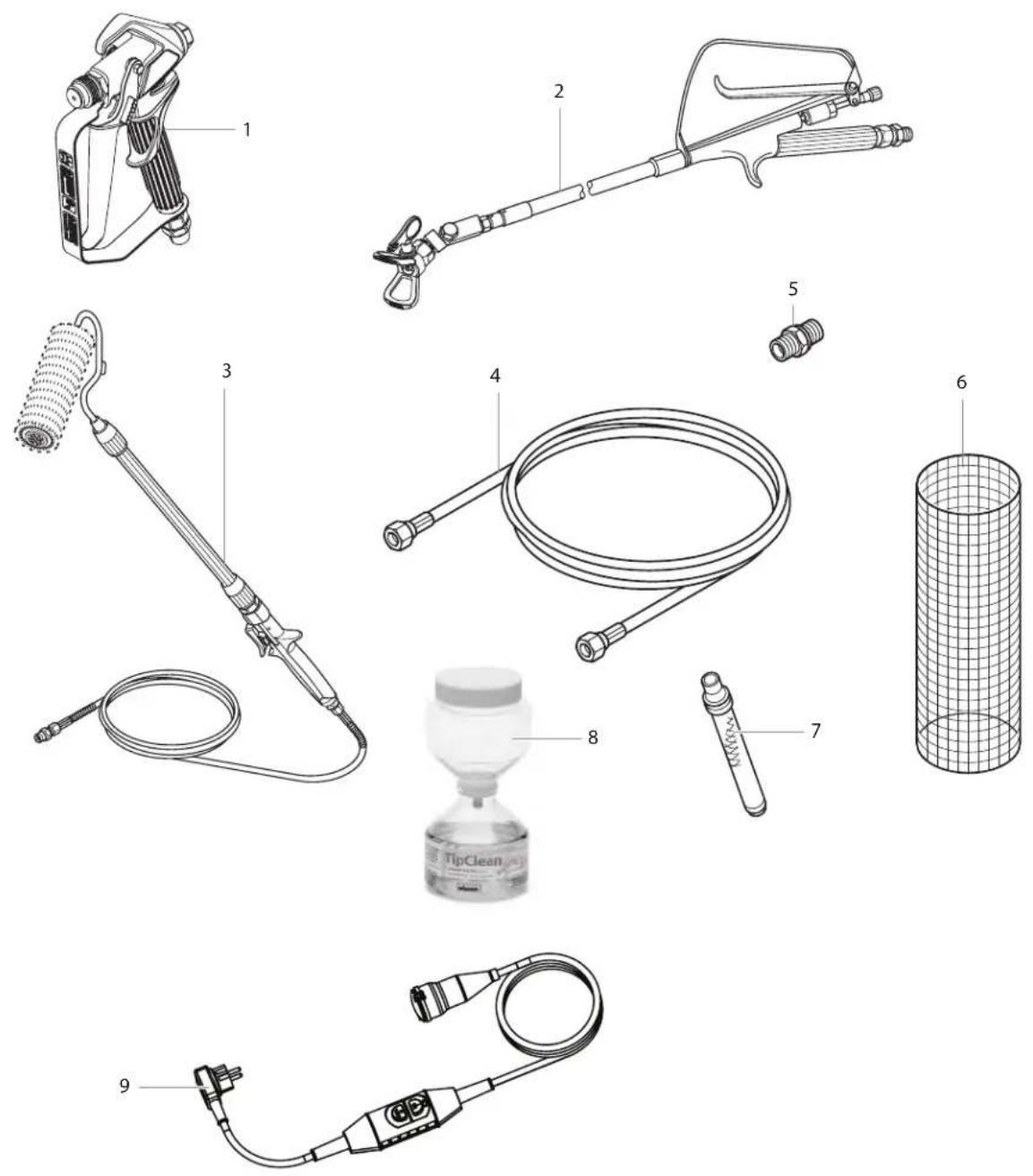

12.3 Spray gun accessories 57
12.4 Airless tip table 58/59
12.5 TempSpray 60
12.6 Pump-Runner 61

AcceSSoRleS FoR PRoSPRAy 3.29 / 3.31 \_ 122/123

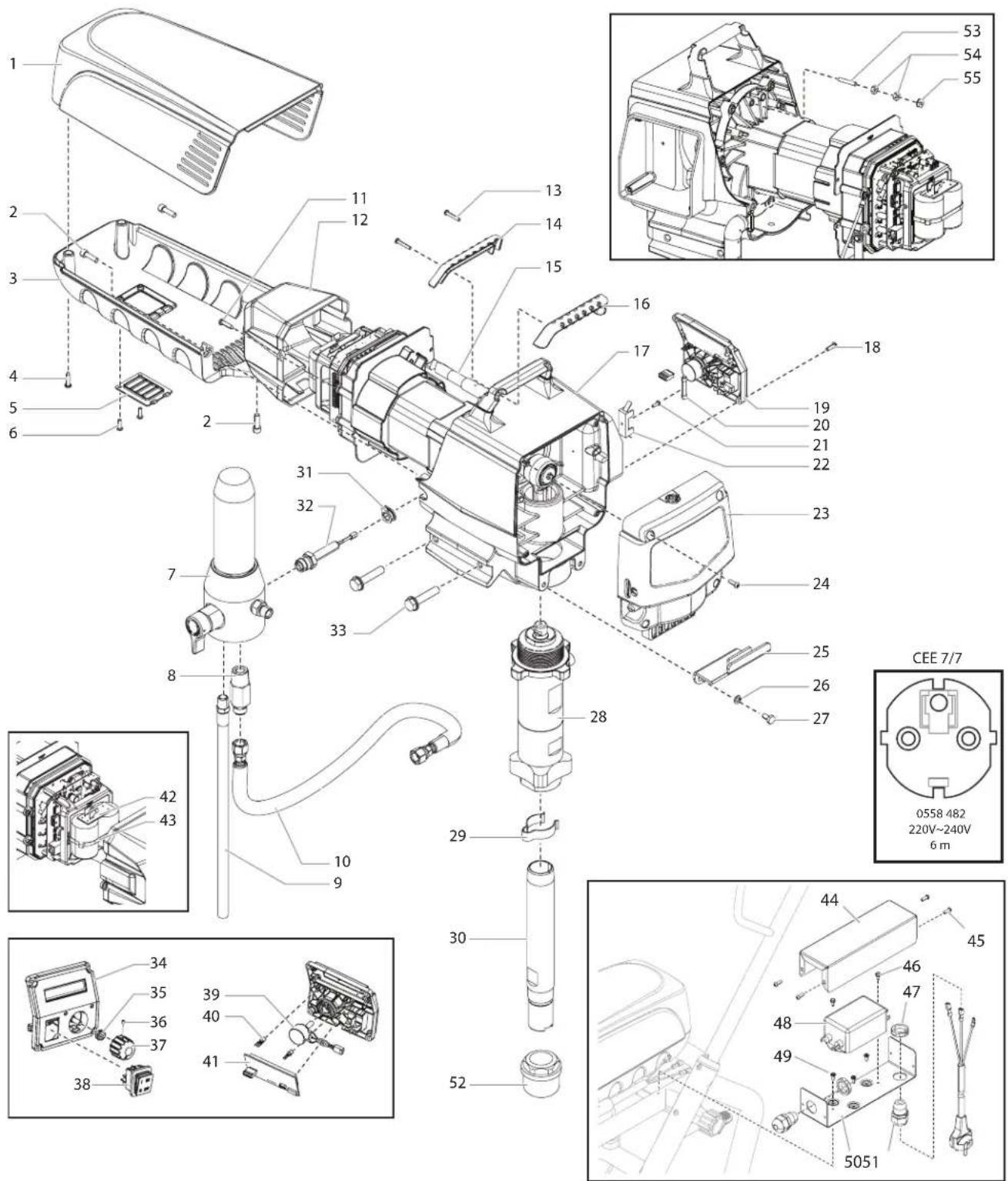

Spare parts list for main assembly 124/125
Spare parts list for the fluid section 126/127
Spare parts list for drive assembly 128/129

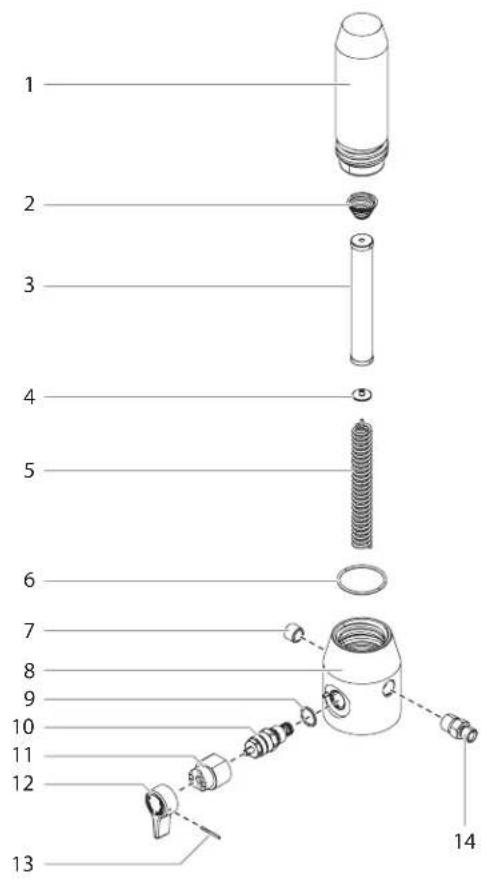

Spare parts list of filter assembly 130/131

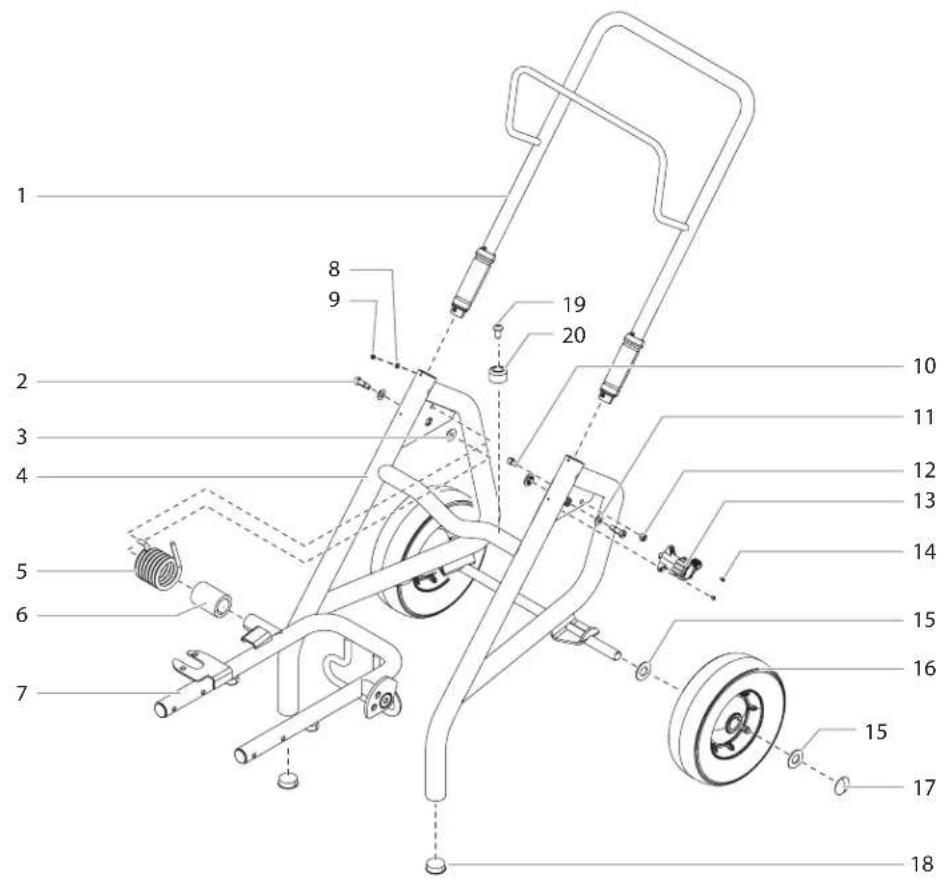

Spare parts list of upright cart assembly 132/133

ImPoRTANT NoTeS oN PROducT LIABILITY \_135

3+2 yeARS GuARANTee FoR PRoFeSSIoNAL

FINISHING 135

SALeS AND SeRVIce comPANleS 143/144

1 SAFeTy ReGuLATIoNS FoR AIRLeSS SPRAyING

1.1 exPLANATIoN oF SymBoLS uSed

This manual contains information that must be read and understood before using the equipment. When you come to an area that has one of the following symbols, pay particular attention and make certain to heed the safeguard.

→ This symbol indicates a potential hazard that may cause serious injury or loss of life. Important safety information will follow.

→ This symbol indicates a potential hazard to you or to the equipment. Important information that tells how to prevent damage to the equipment or how to avoid causes of minor injuries will follow.

→ Danger of skin injection

→ Danger of fire from solvent and paint fumes

Danger of explosion from solvent, paint fumes and incompatible materials

→ Danger of injury from inhalation of harmful vapors

Notes give important information → which should be given special attention.

HAzARd: INJecTloN INJuRy

Attention: Danger of injury by injection! A high pressure stream produced by this equipment can pierce the skin and underlying tissues, leading to serious injury and possible amputation.

Do not treat a spraying injury as a harmless cut. In case of injury to the skin through coating materials or solvents, consult a doctor immediately for quick and expert treatment. Inform the doctor about the coating material or solvent used.

PReVeNTIoN:

• NEVER aim the gun at any part of the body.
- NEVER allow any part of the body to touch the fluid stream. DO NOT allow body to touch a leak in the fluid hose.
- NEVER put your hand in front of the gun. Gloves will not provide protection against an injection injury.
- ALWAYS lock the gun trigger, shut the fluid pump off and release all pressure before servicing, cleaning the tip guard, changing tips, or leaving unattended. Pressure will not be released by turning off the engine. The PRIME/SPRAY valve or pressure bleed valve must be turned to their appropriate positions to relieve system pressure.
- ALWAYS keep tip guard in place while spraying. The tip guard provides some protection but is mainly a warning device.
- ALWAYS remove the spray tip before flushing or cleaning the system.
- NEVER use a spray gun without a working trigger lock and trigger guard in place.

- All accessories must be rated at or above the maximum operating pressure range of the sprayer. This includes spray tips, guns, extensions, and hose.

HAzARd: HIGH PReSSuRe HoSe

The paint hose can develop leaks from wear, kinking and abuse. A leak can inject material into the skin. Inspect the hose before each use.

PReVeNTIoN:

• Avoid sharp bending or kinking of the high-pressure hose. The smallest bending radius amounts to about 20 cm.
• Do not drive over the high-pressure hose. Protect against sharp objects and edges.
• Replace any damaged high-pressure hose immediately.
• Never repair defective high-pressure hoses yourself!
• Electrostatic charging of spray guns and the high-pressure hose is discharged through the high-pressure hose. For this reason the electric resistance between the connections of the high-pressure hose must be equal to or lower than 1MΩ.
• For reasons of function, safety and durability use only original Wagner high-pressure hoses.
• Before each use, check all hoses for cuts, leaks, abrasion or bulging of cover. Check for damage or movement of couplings. Immediately replace the hose if any of these conditions exist. Never repair a paint hose. Replace it with another earthed high-pressure hose.
• Make sure power cord, air hose and spray hoses are routed in such a manner to minimize slip, trip and fall hazard.

HAzARd: exPLoSloN oR FIRe

Flammable vapors, such as solvent and paint vapors, in work area can ignite or explode.

PReVeNTIoN:

• Do not use materials with a flashpoint below 38^ C ( 100^ F). Flashpoint is the temperature at which a fluid can produce enough vapors to ignite.
• Do not use the unit in work places which are covered by the explosion protection regulations.
• Provide extensive exhaust and fresh air introduction to keep the air within the spray area free from accumulation of flammable vapors.
• Avoid all ignition sources such as static electricity sparks, electrical appliances, flames, pilot lights, hot objects, and sparks from connecting and disconnecting power cords or working light switches.
  • Do not smoke in spray area.
• Place sprayer sufficient distance from the spray object in a well ventilated area (add more hose if necessary). Flammable vapors are often heavier than air. Floor area must be extremely well ventilated. The pump contains arcing parts that emit sparks and can ignite vapors.
• The equipment and objects in and around the spray area must be properly grounded to prevent static sparks.
• Use only conductive or earthed high pressure fluid hose. Gun must be earthed through hose connections.
• Power cord must be connected to a grounded circuit (electric units only).
• Always flush unit into separate metal container, at low pump pressure, with spray tip removed. Hold gun firmly against side of

container to ground container and prevent static sparks.

• Follow material and solvent manufacturer's warnings and instructions. Be familiar with the coating material's MSDS sheet and technical information to ensure safe use.
• Use lowest possible pressure to flush equipment.
• When cleaning the unit with solvents, the solvent should never be sprayed or pumped back into a container with a small opening (bunghole). An explosive gas/air mixture can arise. The container must be earthed.
• Do not use a paint or solvent containing halogenated hydrocarbons. Such as chlorine, bleach, mildewcide, methylene chloride and trichloroethane. They are not compatible with aluminum. Contact the coating supplier about compatibility of material with aluminum.

HAzARd: HAzARdouS VAPoRS

Paints, solvents, and other materials can be harmful if inhaled or come in contact with body. Vapors can cause severe nausea, fainting, or poisoning.

PReVeNTIoN:

• Wear respiratory protection when spraying. Read all instructions supplied with the mask to be sure it will provide the necessary protection.
• All local regulations regarding protection against hazardous vapors must be observed.
• Wear protective eyewear.
• Protective clothing, gloves and possibly skin protection cream are necessary for the protection of the skin. Observe the regulations of the manufacturer concerning coating materials, solvents and cleaning agents in preparation, processing and cleaning units.

HAzARd: GeNeRAL

This product can cause severe injury or property damage.

PReVeNTIoN:

• Follow all appropriate local, state, and national codes governing ventilation, fire prevention, and operation.
• Pulling the trigger causes a recoil force to the hand that is holding the spray gun. The recoil force of the spray gun is particularly powerful when the tip has been removed and a high pressure has been set on the airless pump. When cleaning without a spray tip, set the pressure control knob to the lowest pressure.
• Use only manufacturer authorized parts. User assumes all risks and liabilities when using parts that do not meet the minimum specifications and safety devices of the pump manufacturer.
• ALWAYS follow the material manufacturer's instructions for safe handling of paint and solvents.
• Clean up all material and solvent spills immediately to prevent slip hazard.
• Wear ear protection. This unit can produce noise levels above 85 dB(A).
• Never leave this equipment unattended. Keep away from children or anyone not familiar with the operation of airless equipment.
  • Device weighs in excess of 36 kg. Three-person lift is required.
  • Do not spray on windy days.
• The device and all related liquids (i.e. hydraulic oil) must be disposed of in an environmentally friendly way.

1.2 eLecTRIc SAFeTy

Electric models must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having an earthing wire with an appropriate earthing plug. Connection to the mains only through a special feed point, e.g. through an error protection installation with INF < 30 mA.

DANGER — Work or repairs at the electrical equipment may only be carried out by a skilled electrician. No liability is assumed for incorrect installation. Switch the unit off. Before all repair work, unplug the power plug from the outlet.

Danger of short-circuits caused by water ingressing into the electrical equipment. Never spray down the unit with high-pressure or high-pressure steam cleaners.

WoRK oR RePAIRS AT THE eLecTRIcAL equIPmeNT:

These may only be carried out by a skilled electrician. No liability is assumed for incorrect installation.

1.3 eLecTRoSTATIC cHARGING (FoRmATIoN of SPARKS or FLAmeS)

Electrostatic charging of the unit may occur during spraying due to the flow speed of the coating material. These can cause sparks and flames upon discharge. The unit must therefore always be earthed via the electrical system. The unit must be connected to an appropriately-grounded safety outlet.

An electrostatic charging of spray guns and the high-pressure hose is discharged through the high-pressure hose. For this reason the electric resistance between the connections of the high-pressure hose must be equal to or lower than 1 MΩ.

2 GENERAL VIEW OF APPLICATION

2.1 APPLICATION

Materials	Object Size	Model
		PS 3.21	PS 3.23	PS 3.25	PS 3.29	PS 3.31	PS 3.34	PS 3.39
Release agents, oils, undercoats, primers, fillers, synthetic resin-based paints, acrylic paints recommended nozzle size: FineFinish 0.008" - 0.014"	up to 200 m2
	200 m2 - 800 m2
	more than 800 m2
Emulsion paints, latex paints recommended nozzle size: 0.017" - 0.027"	up to 200 m2
	200 m2 - 800 m2
	more than 800 m2
Anti-corrosive agents, flame retardants, fabric adhesive recommended nozzle size: 0.021" - 0.031"	up to 200 m2
	200 m2 - 800 m2
	more than 800 m2
Airless-scrapers recommended nozzle size: 0.027" - 0.039"	up to 200 m2
	200 m2 - 800 m2
	more than 800 m2

2.2 COATING MATERIALS

PROCESSIBLE COATING MATERIALS

Pay attention to the Airless quality of the coating materials to be processed.

Dilutable lacquers and paints or those containing solvents, two-component coating materials, dispersions, latex paints, release agents, oils, undercoats, primers, and fillers.

No other materials should be used for spraying without Wagner's approval.

FILTERING

Despite suction filter and insertion filter in the spray gun, filtering of the coating material is generally advisable.

Stir coating material before commencement of work.

Attention: Make sure, when stirring up with motor-driven agitators that no air bubbles are stirred in. Air bubbles disturb when spraying and can, in fact, lead to interruption of operation.

VISCOSITY

With this unit it is possible to process highly viscous coating materials of up to around 25.000 MPa·s.

If highly viscous coating materials cannot be taken in by suction, they must be diluted in accordance with the manufacturer's instructions.

TWO-COMPONENT COATING MATERIAL

The appropriate processing time must be adhered to exactly. Within this time rinse through and clean the unit meticulously with the appropriate cleaning materials.

COATING MATERIALS WITH SHARP-EDGED ADDITIONAL MATERIALS

These have a strong wear and tear effect on valves, high-pressure hose, spray gun and tip. The durability of these parts cane be reduced appreciably through this.

3 DESCRIPTION OF UNIT

3.1 AIRLESS PROCESS

The main areas of application are thick layers of highly viscous coating material for large areas and a high consumption of material.

A piston pump takes in the coating material by suction and conveys it to the tip. Pressed through the tip at a pressure of up to a maximum of 221 bar (22.1 MPa), the coating material is atomised. This high pressure has the effect of micro fine atomisation of the coating material.

As no air is used in this process, it is described as an AIRLESS process.

This method of spraying has the advantages of finest atomisation, cloudless operation and a smooth, bubble-free surface. As well as these, the advantages of the speed of work and convenience must be mentioned.

3.2 FUNCTIONING OF THE UNIT

In the following there is a short description of the technical construction for better understanding of the function.

Wagner PS 3.29 / 3.31 units are electrically driven high-pressure spraying units.

A gear unit transfers the driving force to a crankshaft. The crankshaft moves the pistons of the material feed pump up and down.

The inlet valve is opened automatically by the upwards movement of the piston. The outlet valve is opened when the piston moves downward.

The coating material flows under high pressure through the high-pressure hose to the spray gun. When the coating material exits from the tip it atomizes.

The pressure control knob controls the volume and the operating pressure of the coating material.

3.3 TECHNICAL DATA

	PS 3.29 PS 3.31
Voltage
	220~240 VAC, 50/60 Hz	220~240 VAC, 50/60 Hz
Max. current consumption
	7.5 A 8 A
Power Cord
	3 x 1.5 mm2 - 6 m 3 x	1.5 mm2 - 6 m
Acceptance capacity
	1725 Watt 1840 Watt
Max. operating pressure
	221 bar (22.1 MPa) 221 bar (22.1 MPa)
Volume flow at 12 MPa (120 bar) with water
	3.0 l/min	3.8 l/min
Max tip size
	0.029 inch - 0.73 mm	0.032 inch - 0.81 mm
Max. temperature of the coating material
	43°C	43°C
Max viscosity
	25.000 MPa·s	25.000 MPa·s
Weight
	43.5 kg	43.5 kg
Special high-pressure hose
	DN 6 mm, 15 m, connection thread M 16 x 1.5	DN 6 mm, 15 m, connection thread M 16 x 1.5
Dimensions (L X W X H)
	590 x 529 x 726 mm	590 x 529 x 726 mm
Altitude
	This equipment will operate correctly up to 2000 m above mean sea level	This equipment will operate correctly up to 2000 m above mean sea level
Vibration
	Spray gun does not exceed 2.5m/s2	Spray gun does not exceed 2.5m/s2
Max sound pressure level
	80 dB*	80 dB*

* Place of measurement: 1 m distance from unit and 1.60m above floor, 12 MPa (120 bar) operating pressure, reverberant floor

3.4 LeGeNd FoR exPLANAToRy dIAGRAM PRoSPRAy 3.29 / 3.31

1. Spray gun

2. Pail hook

3. High-pressure hose

4. Oil button

5. Oil cup for EasyGlide (EasyGlide prevents increased wear of the packings)

6. Suction tube

7. Oil level gauge

8. Return hose

9. Cart

10. Relief valve

Lever position vertical - PRIME ( circulation) Lever position horizontal - SPRAY ( ≥slant )

1. Digital Electronic Spray Control (DESC)

2. Control panel indicators

3. Pressure control knob

4. ON/OFF switch

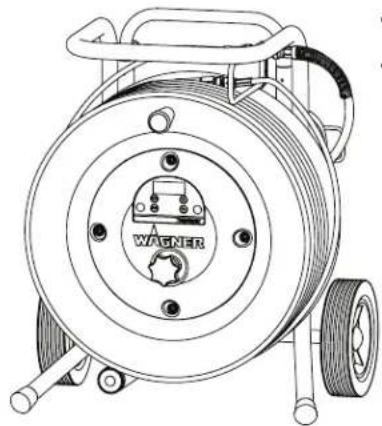

3.5 exPLANAToRy dIAGRAM PS 3.29 / 3.31

①

Technical diagram of a power saw machine with numbered parts and exploded view, showing internal components and assembly details.

3.6 TRANSPORTATION

Pushing or pulling the unit

Pull out the handle (Fig. 2, Item 1) until it will come no further. Insert the handle – push the buttons (2) on the spars, and then push in the handle.

Technical diagram of a mechanical device with labeled parts, showing components 1 and 2.

3.7 TRANSPORTATION IN VEHICLE

Secure the unit with a suitable fastening.

1. Screw the high-pressure hose (2) to the coating material outlet (Fig. 3, Item 1).
2. Screw the spray gun (3) with the selected tip onto the high-pressure hose.
3. Tighten the union nuts at the high-pressure hoses firmly so that coating material does not leak.

Technical diagram of a power tool with labeled parts including a spring, screw, and push pump assembly

1. Remove the oil cup cap with a straight-slot screwdriver.
2. Fill the oil cup with EasyGlide (Fig. 4) until the oil gauge (4) is showing that it is full.

EasyGlide prevents increased wear and tear to the packings.

1. Replace oil cup cap.
2. Press oil button 2-5 times to prime the oiler. Press once for every eight hours of usage to lubricate the fluid section.

Technical diagram showing mechanical assembly with labeled parts, including a hand adjusting components

4.2 CONTROL PANEL INDICATORS

The following is a description of the control panel indicators.

⑤ Service Indicator Meter Running 12 MPa 23 MPa Pressure Indicator MIN MPa MAX MPa RAPID CLEAN

SERVICE INDICATOR

The Service indicator is on when the motor is commanded to run. This indicator is used by service centers to troubleshoot motor problems.

PRESSURE INDICATOR

The pressure indicator shows the current operating pressure of the sprayer. It has three different indications: blinking yellow, solid yellow, and solid green.

Blinking Yellow

When the pressure indicator is blinking yellow, the sprayer is operating between 0 and 1.4 MPa (14 bar). A blinking yellow pressure indicator means:

• The sprayer is plugged in and turned "ON"
• The sprayer is at priming pressure (little or no pressure)
• It is safe to move the relief valve between positions
• It is safe to change or replace the spray tip

If the pressure indicator begins blinking yellow when the pressure control knob is set at a higher pressure and the relief valve is in the SPRAY position, either the spray tip is worn or the sprayer is in need of service/repair.

Solid Yellow

When the pressure indicator is solid yellow, the sprayer is operating between 1.4 MPa (14 bar) and 12 MPa (120 bar). A solid yellow pressure indicator means:

- The sprayer is at the proper pressure setting for spraying stain, lacquer, varnish, and multi-colors

Solid Green

When the pressure indicator is solid green, the sprayer is operating between 12 MPa (120 bar) and 23 MPa (230 bar). A solid green pressure indicator means:

• The sprayer is at the proper pressure setting for spraying oil-based and latex house paints
• The sprayer is operating at peak performance at a high pressure setting
• If the pressure indicator goes to solid yellow when the pressure is set so that it starts at solid green, it indicates one of the following:

a. Tip Wear Indicator — when spraying with latex or at high pressure the solid yellow appears. This means the tip is worn and needs to be replaced.

b. Tip Too Large — when a tip that is too large for the sprayer is put in the gun, the pressure indicator will turn from solid green to solid yellow.

c. Fluid Section Wear — if a solid yellow pressure indicator appears when using a new tip and the pressure is set at maximum, service may be required (worn packings, worn piston, stuck valve, etc...).

4.3 PRESSURE CONTROL KNOB SETTINGS

1. Minimum pressure setting
2. Black zone – no pressure generation
3. Blue zone – pulsating pressure for cleaning

⑥

Motor Running 1.2 MPa 2.3 MPa 2 MIN MPa MAX MPa RAPID CLEAN

4.4 coNNecTloN To THE mAINS NeTWoRK

The unit must be connected to an appropriately-grounded safety outlet.

Before connecting the unit to the mains supply, ensure that the line voltage matches that specified on the unit's rating plate. The connection must be equipped with a residual current protective device with INF ≤ 30 mA.

Wagner's accessories program also includes a mobile operator protection device for the electronic supply, which can also be used with other electronic equipment.

4.5 cLeANING PReSeRVING AGeNT WHeN STARTING-uP oF oPeRATION INITIALLY

1. Immerse the suction tube (Fig. 7, Item 2) return hose (1) into a container with a suitable cleaning agent.
2. Turn the pressure control knob counterclockwise (3) to minimum pressure.
3. Open the relief valve (4), valve position PRIME (circulation).
4. Switch the unit (5) ON.
5. Wait until the cleaning agent exudes from the return hose.
6. Close the relief valve, valve position SPRAY ( ^37 spray).
7. Pull the trigger of the spray gun.
8. Spray the cleaning agent from the unit into an open collecting container.

Technical diagram of a power tool with numbered parts and an inset close-up view of the component.

4.6 TAKING THE uNIT INTO oPeRATION WITH coATING mATeRIAL

1. Immerse the suction tube (Fig. 7, Item 2) and return hose (1) into the coating material container.
2. Turn the pressure control knob counterclockwise (3) to minimum pressure.
3. Open the relief valve (4), valve position PRIME (circulation).
4. Switch the unit (5) ON.
5. Wait until the coating material exudes from the return hose.
6. Close the relief valve, valve position SPRAY ( ^37 spray).
7. Trigger the spray gun several times and spray into a collecting container until the coating material exits the spray gun without interruption.
8. Increase the pressure by slowly turning up the pressure control knob.
   Check the spray pattern and increase the pressure until the atomization is correct.
   Always turn the pressure control knob to the lowest setting with good atomization.
9. The unit is ready to spray.

4.7 DIGITAL ELECTRONIC SPRAY CONTROL (DESC)

The Digital Electronic Spray Control (DESC) increases the functionality of the sprayer. It is installed directly below the pressure control knob on the control panel. It consists of a display and four function keys. The display shows various menu screens that allow the user to customize and monitor sprayer operation using the function keys.

Display SET MPa 23.0 ACTUAL MPa 22.5 Function Keys MENU 1 ▲ 2 ▼ 3 SEL 4

The pressure control knob overrides the Digital Electronic Spray Control (DESC) settings. Anytime the pressure control knob is turned, the sprayer pressure will change accordingly.

FUNCTION KEYS

The function keys are numbered 1–4. Each key is labeled with an additional function as well.

#1/Menu Key Pressing the #1 key scrolls through the available menu screens or performs a function described on the active menu screen.
#2/▲ Key	Pressing the #2 key performs a function described on the active menu screen or increases a value.
#3/▼ Key	Pressing the #3 key performs a function described on the active menu screen or decrease a value.
#4/Select Key	Pressing the #4 key selects the active menu screen or performs a function described on the active menu screen.

MENU SCREENS

Several menu screens are available for the user to customize and monitor sprayer operation. They include Main Screen, Volume Pumped, Job Volume, Unit Serial #, Timers, Job Timers, Service Time, Security Code, Prime, and Rapid Clean.

MAIN SCREEN

The Main Screen is the default screen for the control system at sprayer startup. Pressing the #2 key switches between PSI, BAR and MPa units of

measure. Press the #1 key to scroll through the remaining menu screens.

For sprayers equipped with an nine-language Digital Electronic Spray Control (DESC):

Pressing the #2 key at the Main Screen switches between PSI, Bar and MPa units of measure.

Pressing the #3 key at the Main Screen changes the language of the text on the display. There are a total of nine languages available. Each time the #1 key is pressed, a different language will appear. The languages, in order of appearance, are: English, Spanish, Dutch, Danish, Swedish, German, French, Italian, and Portuguese.

VOLUME PUMPED SCREEN

The Volume Pumped screen shows the total number of gallons or liters sprayed by the sprayer.

To select the Volume Pumped screen, press the #4 key.

JOB VOLUME SCREEN

The Job Volume screen allows the user to reset a liter counter to track usage on specific jobs.

To select the Job Volume screen, press the #4 key.

UNIT SERIAL # SCREEN

The Unit Serial # screen shows the sprayers serial number.

To select the Unit Serial # screen, press the #4 key.

TimeRS ScReeN

The Timers screen shows the total time the sprayer has been turned on as well as the total time the sprayer has been running (pumping).

To select the Timers screen, press the #4 key.

JoB TimeRS ScReeN

The Job Timers screen allows the user to reset the "ON TIME" and "RUN TIME" to track time on specific jobs.

To select the Job Timers screen, press the #4 key. "JOB ON" screen will appear. Press #3 to reset. Press #1 to continue to "JOB RUN" screen.

Press #3 to reset. Press #1 to scroll through the remaining menu screens.

SeRVIce TIme ScReeN

The Service Time screen allows the user to set a service time interval (in hours). Below the set time, the

screens shows the current amount of hours on the sprayer since the last activation of the service timer. To select the Service Timer screen, press the #4 key.

To set the service time, press the #2 (up) and/or the #3 (down) keys to the desired time (run hours will increase/

decrease in increments of 25 for each time you press a key).

When the sprayer reaches the SERVICE@ time selected, the screen will display "SERVICE DUE". To reset the timer, press the #3 key when the pump is first turned on. This will reset the "SERVICE DUE" message and also reset the "SERVICE TIME" to the previous setting.

SecuRITy code ScReeN

The Security Code screen allows the user to set a four digit security code to prevent unauthorized use of the

sprayer. If a security code has been set, the control system display will ask for the code at startup. If the correct code is entered, the display will show the Main Screen and the sprayer will operate. If the wrong code is entered, the display will continue to ask for the correct code and the sprayer will not work. To set or change the security code, press the #2 key.

If the sprayer is new, no security code is set and the Main Screen will appear at startup. When setting a security code for the first time, the "Enter Old Code Number" screen will appear, and you will need to enter "1111".

Enter the old security code number to access the screen that allows the code change. If the wrong code is entered, the display will continue to ask for the correct code and the security code cannot be changed.

Enter the new security code. Once the new code is entered, the display will automatically ask that the new code be re-entered for verification. If the same new code is re-entered, the display will confirm that the new

ENTER NEW CODE NUMBER XXXX

RE-ENTER NEW NUMBER XXXX

NEW CODE NUMBER ACCEPTED

code has been accepted and return to the Main Screen. If the new code is re-entered incorrectly, the display will return to the "Enter New Code Number" screen and the process will repeat. If you forget or misplace your security code, you can contact Wagner customer service for assistance.

To inactivate the security function, enter "1111" at the "Enter New Code Number" screen (this is the default code that leaves the sprayer unlocked). As a result, the Main Screen will appear at sprayer startup.

PRIme ScReeN

The Prime screen appears when the pressure control knob is set at the "MIN" setting.

PRIME

RAPId cLeAN ScReeN

The Rapid Clean screen appears when the pressure control knob is set at the RAPID CLEAN position and the PRIME/SPRAY valve is in the PRIME position.

If there is no action at any menu screen for 30 seconds, the display will go back to the Main Screen.

5 SPRAyING

Injection hazard. Do not spray without the tip guard in place. NEVER trigger the gun unless the tip is completely turned to either the spray or the unclog position. ALWAYS engage the gun trigger lock before removing, replacing or cleaning tip.

A) The key to a good paint job is an even coating over the entire surface. Keep your arm moving at a constant speed and keep the spray gun at a constant distance from the surface. The best spraying distance is 10-12 inches (25 to 30 cm) between the spray tip and the surface.

A

25 - 30 cm

B) Keep the spray gun at right angles to the surface. This means moving your entire arm back and forth rather than just flexing your wrist.

Keep the spray gun perpendicular to the surface, otherwise one end of the pattern will be thicker than the other.

B

Diagram showing three hands holding a tool with no text, each marked with a prohibition symbol

c) Trigger gun after starting the stroke. Release the trigger before ending the stroke. The spray gun should be moving when the trigger is pulled and released. Overlap each stroke by about 30%. This will ensure an even coating.

C

25 - 30 cm 25 - 30 cm

If very sharp edges result or if there are streaks in the spray jet – increase the operating pressure or dilute the coating material.

6 HANdLING The HIGH-PReSSuRe HoSe

	The unit is equipped with a high-pressure hose specially suited for piston pumps.
	Danger of injury through leaking high-pressure hose. Replace any damaged high-pressure hose immediately.Never repair defective high-pressure hoses yourself!

The high-pressure hose is to be handled with care. Avoid sharp bends and folds: the smallest bending radius is about 8" (20 cm).

Do not drive over the high-pressure hose. Protect against sharp objects and edges.

Never pull on the high-pressure hose to move the device.

Make sure that the high-pressure hose cannot twist. This can be avoided by using a Wagner spray gun with a swivel joint and a hose system.

	When using the high-pressure hose while working on scaffolding, it is best to always guide the hose along the outside of the scaffolding.
	The risk of damage rises with the age of the high-pressure hose. Wagner recommends replacing high-pressure hoses after 6 years.
	Use only Wagner original-high-pressure hoses in order to ensure functionality, safety and durability.

7 INTeRRuPTIoN oF WoRK

1. Open the relief valve, valve position PRIME (circulation).
2. Switch the unit OFF.
3. Turn the pressure control knob counterclockwise to minimum pressure.
4. Pull the trigger of the spray gun in order to release the pressure from the high-pressure hose and spray gun.
5. Secure the spray gun, refer to the operating manual of the spray gun.
6. If a standard tip is to be cleaned, see Page 57, Section 12.2. If a non-standard tip is installed, proceed according to the relevant operating manual.
7. Depending on the model, leave the suction tube or the suction hose and return hose immersed in the coating material or swivel or immerse it into a corresponding cleaning agent.

If fast-drying or two-component coating material is used, ensure that the unit is rinsed with a suitable cleaning agent within the processing time.

8 CLEANING THE UNIT (SHUTTING DOWN)

	A clean state is the best method of ensuring operation without problems. After you have finished spraying, clean the unit. Under no circumstances may any remaining coating material dry and harden in the unit.
	The cleaning agent used for cleaning (only with an ignition point above 38 °C) must be suitable for the coating material used.
	Secure the spray gun, refer to the operating manual of the spray gun.Clean and remove tip.For a standard tip, refer to Page 57, Section 12.2.If a non-standard tip is installed, proceed according to the relevant operating manual.

1. Remove suction hose from the coating material.
2. Close the relief valve, valve position SPRAY ( ≥slant spray).
3. Switch the unit ON.

Attention	The container must be earthed in case of coating materials which contain solvents.
	Caution! Do not pump or spray into a container with a small opening (bunghole)!

1. Pull the trigger of the spray gun in order to pump the remaining coating material from the suction hose, high-pressure hose and the spray gun into an open container.
2. Immerse suction hose with return hose into a container with a suitable cleaning agent.
3. Turn the pressure control knob counterclockwise to minimum pressure.
4. Open the relief valve, valve position PRIME (circulation).
5. Pump a suitable cleaning agent in the circuit for a few minutes.
6. Close the relief valve, valve position SPRAY ( ^37 spray).
7. Pull the trigger of the spray gun.
8. Pump the remaining cleaning agent into an open container until the unit is empty.
9. Switch the unit OFF.

8.1 CLEANING UNIT FROM OUTSIDE

	First of all pull out mains plug from socket.
	Danger of short circuit through penetrating water!Never spray down the unit with high-pressure or high-pressure steam cleaners.Do not put the high-pressure hose into solvents. Use only a wet cloth to wipe down the outside of the hose.

Wipe down unit externally with a cloth which has been immersed in a suitable cleaning agent.

8.2 SUCTION FILTER

A clean suction filter always guarantees maximum feed quantity, constant spraying pressure and problem-free functioning of the unit.

1. Screw off the filter (Fig. 8) from suction tube.
2. Clean or replace the filter.

Carry out cleaning with a hard brush and an appropriate cleaning agent.

⑧

Mechanical assembly diagram showing a pin inserted into a hexagonal nut with a curved arrow indicating rotation (no text or symbols)

8.3 cLeANING THE HIGH-PReSSuRe FILTeR

Clean the filter cartridge regularly. A soiled or clogged high-pressure filter can cause a poor spray pattern or a clogged tip.

1. Turn the pressure control knob counterclockwise to minimum pressure.
2. Open the relief valve, valve position PRIME (circulation).
3. Switch the unit OFF.

Unplug the power plug from the outlet.

1. Unscrew the filter housing (Fig. 9, Item 1). with a strap wrench.
2. Pull the filter cartridge (2) from the bearing spring (3).
3. Clean all the parts with the corresponding cleaning agent. If necessary, replace the filter cartridge.
4. Check the O-ring (4), replace it if necessary.
5. Place the bearing ring (5) against the bearing spring (3). Slide the filter cartridge (2) over the bearing spring.
6. Screw in filter housing (1) and tighten it as far as possible with the strap wrench.

⑨

Exploded view diagram of a mechanical assembly with numbered parts for identification

8.4 cLeANING AIRLeSS SPRAy GuN

Clean the spray gun after each use.

1. Rinse airless spray gun with an appropriate cleaning agent.
2. Clean tip thoroughly with appropriate cleaning agent so that no coating material residue remains.
3. Thoroughly clean the outside of the airless spray gun.

INTAKE FILTeR IN AIRLeSS SPRAy GuN (FIG. 10)

1. Unclip the top of the trigger guard (1) from the gun head.
2. Using the bottom of the trigger guard as a wrench, loosen and remove the handle assembly (2) from the gun head.
3. Pull the old filter (3) out of the gun head. Clean or replace.
4. Slide the new filter, tapered end first, into the gun head.
5. Thread the handle assembly into the gun head. Tighten with the trigger wrench.
6. Snap the trigger guard back onto the gun head.

10

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

9 REMEDY IN CASE OF FAULTS

Type of malfunction	Possible cause	Measures for eliminating the malfunction
A. Unit does not start	1. No voltage applied.2. Pressure setting too low.3. ON/OFF switch defective.	1. Check voltage supply.2. Turn up pressure control knob.3. Replace.
B. Unit does not draw in material	1. Relief valve is set to SPRAY (spray).2. Filter projects over the fluid level and sucks air.3. Filter clogged.4. Suction hose/suction tube is loose, i.e. the unit is sucking in outside air.	1. Set relief valve to PRIME (circulation).2. Refill the coating material.3. Clean or replace the filter.4. Clean connecting points. Replace O-rings if necessary.Secure suction hose with retaining clip.
C. Unit draws in material, but the pressure does not build up	1. Tip heavily worn.2. Tip too large.3. Pressure setting too low.4. Filter clogged.5. Coating material flows through the return hose when the relief valve is in the SPRAY (spray) position.6. Packings sticky or worn.7. Valve balls worn.8. Valve seats worn.	1. Replace2. Replace tip.3. Turn pressure control knob clockwise to increase.4. Clean or replace the filter.5. Remove and clean or replace relief valve.6. Remove and clean or replace packings.7. Remove and replace valve balls.8. Remove and replace valve seats.
D. Coating material exits at the top of the fluid section	1. Upper packing is worn.2. Piston is worn.	1. Remove and replace packing.2. Remove and replace piston.
E. Increased pulsation at the spray gun	1. Incorrect high-pressure hose type.2. Tip worn or too large.3. Pressure too high.	1. Only use WAGNER original-high-pressure hoses in order to ensure functionality, safety and durability.2. Replace tip.3. Turn pressure control knob to a lower number.
F. Poor spray pattern	1. Tip is too large for the coating material which is to be sprayed.2. Pressure setting incorrect.3. Volume too low.4. Coating material viscosity too high.	1. Replace tip.2. Turn pressure control knob until a satisfactory spraying pattern is achieved.3. Clean or replace all filters.4. Thin out according to the manufacturer's instructions.
G. Unit loses power	1. Pressure setting too low.	1. Turn pressure control knob clockwise to increase.
H. Pump over-pressurizes and will not shut off.	1. Pressure switch defective.2. Transducer defective.	1. Take unit to a Wagner authorized service center.2. Take unit to a Wagner authorized service center.

10 SeRVlcING

10.1 GeNeRAL SeRVlcING

Servicing of the unit should be carried out once annually by the WAGNER service.

1. Check high-pressure hoses, device connecting line and plug for damage.
2. Check the inlet valve, outlet valve and filter for wear.

10.2 HIGH-PReSSuRe HoSe

Inspect the high-pressure hose visually for any notches or bulges, in particular at the transition in the fittings. It must be possible to turn the union nuts freely.

The risk of damage rises with the age of the high-pressure hose. Wagner recommends replacing high-pressure hoses after 6 years.

11 RePAIRS AT THE uNIT

	Switch the unit OFF.Before all repair work: Unplug the power plug from the outlet.
	Make sure to check for grounding continuity after service is performed on any electrical components.Use an ohmmeter to determine that there is continuity between accessible dead-metal parts of the product and the grounding blade of the attachment plug.

11.1 ReLleF VALVe

Attention

The valve housing (4) should not be repaired. If worn, it should always be replaced with a new one.

1. Use a drift punch of 2 mm to remove the grooved pin (Fig. 11, Item 1) from the relief valve handle (2).
2. Remove the relief valve handle (2) and cam base (3).
3. Using a wrench, remove the valve housing (4) from the pump manifold (6).
4. Ensure that the seal (5) is seated correctly, then screw the new valve housing (4) completely into the pump manifold (6). Tighten securely with a wrench.
5. Align the cam base (3) with the hole in the pump manifold (6). Lubricate the cam base with grease and slide on the cam base.
6. Bring the hole in the valve shaft (7) and in the relief valve handle (2) into alignment.
7. Insert the grooved pin (1) to secure the relief valve handle in position.

Technical diagram of a mechanical assembly with numbered components, likely a valve or connector assembly.

11.2 INLeT AND ouTLeT VALVe

1. Remove the four screws in the front cover and then remove the front cover.

Danger of crushing - do not reach with the fingers or tool between the moving parts.

1. Turn the pressure control knob to minimum pressure. The DESC screen should say "PRIME".

2. Press the #1 key on the DESC control panel. The "CREEP MODE" screen will now appear.

3. Slowly turn the pressure control knob clockwise to increase the pressure. The crankshaft/slider assembly will begin to move very slowly.

4. When it reaches the bottom, dead-center of its stroke, turn the pressure control knob back to minimum pressure. The crankshaft/slider assembly should stop.

5. Unplug the power plug from the outlet.

6. Pull off clamp on suction tube and remove return hose.

7. Unscrew the connection hose (Fig. 12, item 1) from the high-pressure filter.

8. Turn the knob on the side of the cart clockwise to unlock the cart. Tilt the cart backwards until it locks into place.

9. Loosen and unscrew inlet valve housing (2) from the lower housing (3) with light blows from a hammer or unscrew with an adjusting wrench.

10. Remove bearing ring (4), O-ring (5), O-ring (6), inlet valve seat (7), inlet valve ball (8) and upper ball guide (9).

11. Clean all the parts with the corresponding cleaning agent.

Check the inlet valve housing (2), inlet valve seat (7) and inlet valve ball (8) for wear and replace the parts if necessary. If the worn inlet valve seat (7) is unused on one side, install it the other way around.

1. Carry out installation in the reverse order.

Lubricate O-ring (5) with machine grease and ensure proper seating in the inlet valve housing (2).

12

Exploded view diagram of a mechanical assembly with numbered parts for identification

1. Unscrew lower housing (Fig. 13, Item 10) with adjusting wrench while holding the upper housing (11) securely with a second adjusting wrench.

2. Remove bearing ring (13) and O-ring (12).

3. Screw out outlet valve housing (14) from the piston (15) with 3/8 inch hexagon socket head wrench.

4. Remove the upper seal (16), upper ball guide (17), outlet valve ball (18), washer (19) and outlet valve seating (20).

5. Clean all the parts with the corresponding cleaning agent. Check outlet valve housing (14), outlet valve seat (20), outlet valve ball (18) and upper ball guide (17) for wear and replace parts if necessary. If the worn outlet valve seat (20) is unused on one side, install it the other way around.

6. Carry out installation in the reverse order.

Lubricate O-ring (12) with machine grease and ensure proper seating in the lower housing (10).

13

11 16 17 18 19 20 14 15 12 13 10

11.3 PAcKINGS

1. Remove inlet valve housing in accordance with the steps in Chapter 11.2, Page 53.
2. It is not necessary to remove the outlet valve.
3. Loosen lock nut (Fig. 14, Item 5) counterclockwise with light blows from a hammer.
4. Unscrew upper housing (6) counterclockwise from the gear unit housing.
5. Clamp upper housing (6) at the wrench surfaces vertically in a vice.

Do not tighten vice excessively to prevent crushing.

1. Screw out threaded joint (7).
2. Slide the piston rod (4) forward until the piston is out of the T-slot (2) on the slider assembly (3).
3. Push piston (4) downward out of the upper housing (6). Check piston for wear and replace if necessary.
4. Remove upper packing (8) and lower packing (9) from the upper housing (6).

Do not damage inside of upper housing.

14

Exploded view diagram of a mechanical assembly with numbered parts for identification

1. Remove the transportation devices from the upper and lower packings. (The transportation device from the upper packing is required for installation of the piston.)

2. Lubricate upper packing (8) and lower packing (9) with machine grease.

3. Insert upper packing (Fig. 15) with O-ring (1) and protruding lip (2) downward into the upper housing (6).

15

1. Place intermediate ring (Fig. 14, Item 10) on the upper packing (8).

2. Screw threaded joint (Fig. 14, Item 7) into the upper housing (6) and tighten to 34 - 41 Nm.

3. Insert lower packing (Fig. 16) in such a way that the side with the smaller distance between the O-ring (1) and the protruding lip (2) faces upward.

16

2 1

1. Move the lower packing to the end position using the installation tool.

2. Push installation tool (included in scope of delivery of the upper packing as a transportation device) for the piston (Fig. 14, Item 4) onto the piston from above.

3. Lubricate installation tool and piston (4) with machine grease.

4. Push piston (4) through the lower and upper packings until the upper end of the piston protrudes from the threaded joint (7).

5. Remove installation tool from piston (4).

6. Slide the top of the piston (4) into the T-slot (2) on the slider assembly (3).

7. Screw lock nut (5) at the upper housing (6) until it touches.

8. Lubricate the threading of the upper housing (6) with machine grease.

Remove upper housing from the vice.

1. Screw upper housing (6) into the gear unit housing until the lock nut (5) touches and the connector for the connection hose faces the rear.

2. Tighten lock nut (5) with light hammer blows.

3. Insert guide ring (11) into the lower housing (Fig. 13, Item 10) and screw lower housing into upper housing and tighten.

4. Screw on and tighten connection hose.

5. Screw in inlet valve housing (Fig. 12, item 2), see Chapter 11.2, Item 13.

6. Screw on and tighten suction tube.

7. Fasten return hose with clamp at suction tube.

8. Install front cover.

11.4 PS 3.29 / 3.31 coNNecTloN dIAGRAM

11.5 dIGITAL eLecTRoNlc SPRAy coNTRoL (deSc) eRRoR meSSAGeS

The following error message screens appear whenever the Digital Electronic Spray Control (DESC) detects a problem with the sprayer. Once a problem occurs and the error message appears, the sprayer will shut down.

Before proceeding, relieve any pressure remaining in the system (valve position PRIME O). Additionally, follow all other warnings to reduce the risk of an injection injury, injury from moving parts or electric shock. Always unplug the sprayer before servicing!

cHecK TRANSduceR ScReeN

The Check Transducer screen appears when the transducer has become disconnected or is defective. Take the sprayer to a Wagner authorized service center for repair.

cHecK PoTeNTlomeTeR ScReeN

The Check Potentiometer screen appears when the potentiometer has become disconnected or is defective. Take the sprayer to a Wagner authorized service center for repair.

cHecK moToR ScReeN

Indicates the motor is shut down due to connection problems between the motor and controller. Take the sprayer to a Wagner authorized service center for repair.

LoW VoLTAGe ScReeN

The Low Voltage screen appears when the sprayer shuts down because of low input voltage. Check the power supply and correct the problem. Restart the sprayer.

HIGH moToR TemPeRATuRe ScReeN

The High Motor Temperature screen appears when the temperature of the motor has risen too high. Take the sprayer to a Wagner authorized service center for repair.

HIGH mecHANlcal LoAd

The High Mechanical Load screen appears when the sprayer shuts down because of high current or when the sprayer goes into current fold back mode. Take the sprayer to a Wagner authorized service center for repair.

HIGH coNTRoL TemPeRATuRe ScReeN

Indicates the DESC is shut down due to excessive heat. Take the sprayer to a Wagner authorized service center for repair.

HIGH MECHANICAL LOAD

BAd HALL cycLe PoWeR ScReeN

Indicates the motor or motor hall affect sensors are defective. Take the sprayer to a Wagner authorized service center for repair.

HIGH CONTROL TEMPERATURE

BAD HALL CYCLE POWER

12 APPENDIX

12.1 SELECTION OF TIP

To achieve faultless and rational working, the selection of the tip is of the greatest importance.

In many cases the correct tip can only be determined by means of a spraying test.

SOME RULES FOR THIS:

The spray jet must be even.

If streaks appear in the spray jet the spraying pressure is either too low or the viscosity of the coating material to high.

REMEDY: Increase pressure or dilute coating material. Each pump conveys a certain quantity in proportion to the size of the tip:

The following principle is valid: large tip = low pressure small tip = high pressure

There is a large range of tips with various spraying angles.

12.2 SERVICING AND CLEANING OF AIRLESS HARD-METAL TIPS

STANDARD TIPS

If a different tip type has been fitted, then clean it according to manufacturer's instructions.

The tip has a bore processed with the greatest precision. Careful handling is necessary to achieve long durability. Do not forget the fact that the hard-metal insert is brittle! Never throw the tip or handle with sharp metal objects.

The following points must be observed to keep the tip clean and ready for use:

1. Turn the relief valve handle fully counterclockwise (Circulation).
2. Remove the tip from the spray gun.
3. Place tip in an appropriate cleaning agent until all coating material residue is dissolved.
4. If there is high-pressure air available, blow out tip.
5. Remove any residue by means of a sharp wooden rod (toothpick).
6. Check the tip with the help of a magnifying glass and, if necessary, repeat points 3 to 5.

12.3 SPRAY GUN ACCESSORIES

Illustration of a mechanical device with no visible text or symbols

Flat jet adjusting tip
up to 250 bar (25 MPa

Contact protection
for the flat jet
adjustment tip
Order No. 0097 294

Tip marking	Bore mm	Spray width at about 30 cm removal of spray objectPressure 100 bar (10 MPa)	Use	Flat jet adjusting tip Order No.
15	0.13 - 0.46	5 - 35 cm	Paints	0999 057
20	0.18 - 0.48	5 - 50 cm	Paints, fillers	0999 053
28	0.28 - 0.66	8 - 55 cm	Paints, dispersions	0999 054
41	0.43 - 0.88	10 - 60 cm	Rust protection paints - dispersions	0999 055
49	0.53 - 1.37	10 - 40 cm	Large-area coats	0999 056

Tip extension with slewable knee joint (without tip)

Length: 100 cm

Length: 200 cm

Length: 300 cm

Order no. 0096 015

Order no. 0096 016

Order no. 0096 017

Tip extension

15 cm, F-thread, Order no. 0556 051

30 cm, F-thread, Order no. 0556 052

45 cm, F-thread, Order no. 0556 053

60 cm, F-thread, Order no. 0556 054

15 cm, G-thread, Order no. 0556 074

30 cm, G-thread, Order no. 0556 075

45 cm, G-thread, Order no. 0556 076

60 cm, G-thread, Order no. 0556 077

12.4 AIRLESS TIP TABLE

Wagner
TradeTip 3 tip
up to 270 bar
(27 MPa)

without tip
F thread (11/16 - 16 UN)
for Wagner spray guns
Order no. 0289391
without tip
G thread (7/8 - 14 UN)
for Graco/Titan spray guns
Order no. 0289390

All of the tips in the table below are supplied together with the appropriate gun filter.

Application Tip marking Spray		angle	Bore inch / mm	Spraying width mm 1)	Gun filter Order	no.
Water-thinnable and solvent-based paints and varnishes, oils, separating agents	107	10^	0.007 / 0.18	100	red	0553107
	207	20^	0.007 / 0.18	120	red	0553207
	307	30^	0.007 / 0.18	150	red	0553307
	407	40^	0.007 / 0.18	190	red	0553407
	109	10^	0.009 / 0.23	100	red	0553109
	209	20^	0.009 / 0.23	120	red	0553209
	309	30^	0.009 / 0.23	150	red	0553309
	409	40^	0.009 / 0.23	190	red	0553409
	509	50^	0.009 / 0.23	225	red	0553509
	609	60^	0.009 / 0.23	270	red	0553609
Synthetic-resin paintsPVC paints	111	10^	0.011 / 0.28	100	red	0553111
	211	20^	0.011 / 0.28	120	red	0553211
	311	30^	0.011 / 0.28	150	red	0553311
	411	40^	0.011 / 0.28	190	red	0553411
	511	50^	0.011 / 0.28	225	red	0553511
	611	60^	0.011 / 0.28	270	red	0553611
Paints, primersFillers	113	10^	0.013 / 0.33	100	red	0553113
	213	20^	0.013 / 0.33	120	red	0553213
	313	30^	0.013 / 0.33	150	red	0553313
	413	40^	0.013 / 0.33	190	red	0553413
	513	50^	0.013 / 0.33	225	red	0553513
	613	60^	0.013 / 0.33	270	red	0553613
	813	80^	0.013 / 0.33	330	red	0553813
FillersRust protection paints	115	10^	0.015 / 0.38	100	yellow	0553115
	215	20^	0.015 / 0.38	120	yellow	0553215
	315	30^	0.015 / 0.38	150	yellow	0553315
	415	40^	0.015 / 0.38	190	yellow	0553415
	515	50^	0.015 / 0.38	225	yellow	0553515
	615	60^	0.015 / 0.38	270	yellow	0553615
	715	70^	0.015 / 0.38	300	yellow	0553715
	815	80^	0.015 / 0.38	330	yellow	0553815
Rust protection paintsLatex paintsDispersions	117	10^	0.017 / 0.43	100	white	0553117
	217	20^	0.017 / 0.43	120	white	0553217
	317	30^	0.017 / 0.43	150	white	0553317
	417	40^	0.017 / 0.43	190	white	0553417
	517	50^	0.017 / 0.43	225	white	0553517
	617	60^	0.017 / 0.43	270	white	0553617
	717	70^	0.017 / 0.43	300	white	0553717
	817	80^	0.017 / 0.43	330	white	0553817
Rust protection paintsLatex paintsDispersions	219	20^	0.019 / 0.48	120	white	0553219
	319	30^	0.019 / 0.48	150	white	0553319
	419	40^	0.019 / 0.48	190	white	0553419
	519	50^	0.019 / 0.48	225	white	0553519
	619	60^	0.019 / 0.48	270	white	0553619
	719	70^	0.019 / 0.48	300	white	0553719
	819	80^	0.019 / 0.48	330	white	0553819
	919	90^	0.019 / 0.48	385	white	0553919

1) Spray width at about 30 cm to the object and 100 bar (10 MPa) pressure with synthetic-resin paint 20 DIN seconds.

Application Tip marking Spray		angle	Bore inch / mm	Spraying width mm 1)	Gun filter Order no.
Flame retardant 221		20°	0.021 / 0.53	120	white	0553221
	321	30°	0.021 / 0.53	150	white	0553321
	421	40°	0.021 / 0.53	190	white	0553421
	521	50°	0.021 / 0.53	225	white	0553521
	621	60°	0.021 / 0.53	270	white	0553621
	721	70°	0.021 / 0.53	300	white	0553721
	821	80°	0.021 / 0.53	330	white	0553821
Roof coatings 223		20°	0.023 / 0.58	120	white	0553223
	323	30°	0.023 / 0.58	150	white	0553323
	423	40°	0.023 / 0.58	190	white	0553423
	523	50°	0.023 / 0.58	225	white	0553523
	623	60°	0.023 / 0.58	270	white	0553623
	723	70°	0.023 / 0.58	300	white	0553723
	823	80°	0.023 / 0.58	330	white	0553823
Thick-film materials, Corrosion protection Spray filler	225	20°	0.025 / 0.64	120	white	0553225
	325	30°	0.025 / 0.64	150	white	0553325
	425	40°	0.025 / 0.64	190	white	0553425
	525	50°	0.025 / 0.64	225	white	0553525
	625	60°	0.025 / 0.64	270	white	0553625
	725	70°	0.025 / 0.64	300	white	0553725
	825	80°	0.025 / 0.64	330	white	0553825
	227	20°	0.027 / 0.69	120	white	0553227
	327	30°	0.027 / 0.69	150	white	0553327
	427	40°	0.027 / 0.69	190	white	0553427
	527	50°	0.027 / 0.69	225	white	0553527
	627	60°	0.027 / 0.69	270	white	0553627
	827	80°	0.027 / 0.69	330	white	0553827
	229	20°	0.029 / 0.75	120	white	0553229
	329	30°	0.029 / 0.75	150	white	0553329
	429	40°	0.029 / 0.75	190	white	0553429
	529	50°	0.029 / 0.75	225	white	0553529
	629	60°	0.029 / 0.75	270	white	0553629
	231	20°	0.031 / 0.79	120	white	0553231
	331	30°	0.031 / 0.79	150	white	0553331
	431	40°	0.031 / 0.79	190	white	0553431
	531	50°	0.031 / 0.79	225	white	0553531
	631	60°	0.031 / 0.79	270	white	0553631
	731	70°	0.031 / 0.79	300	white	0553731
	831	80°	0.031 / 0.79	330	white	0553831
	233	20°	0.033 / 0.83	120	white	0553233
	333	30°	0.033 / 0.83	150	white	0553333
	433	40°	0.033 / 0.83	190	white	0553433
	533	50°	0.033 / 0.83	225	white	0553533
	633	60°	0.033 / 0.83	270	white	0553633
	235	20°	0.035 / 0.90	120	white	0553235
	335	30°	0.035 / 0.90	150	white	0553335
	435	40°	0.035 / 0.90	190	white	0553435
	535	50°	0.035 / 0.90	225	white	0553535
	635	60°	0.035 / 0.90	270	white	0553635
	735	70°	0.035 / 0.90	300	white	0553735
	439	40°	0.039 / 0.99	190	white	0553439
	539	50°	0.039 / 0.99	225	white	0553539
	639	60°	0.039 / 0.99	270	white	0553639
Heavy duty applications 243		20°	0.043 / 1.10	120	green	0553243
	443	40°	0.043 / 1.10	190	green	0553443
	543	50°	0.043 / 1.10	225	green	0553543
	643	60°	0.043 / 1.10	270	green	0553643
	445	40°	0.045 / 1.14	190	green	0553445
	545	50°	0.045 / 1.14	225	green	0553545
	645	60°	0.045 / 1.14	270	green	0553645
	451	40°	0.051 / 1.30	190	green	0553451
	551	50°	0.051 / 1.30	225	green	0553551
	651	60°	0.051 / 1.30	270	green	0553651
	252	20°	0.052 / 1.32	120	green	0553252
	455	40°	0.055 / 1.40	190	green	0553455
	555	50°	0.055 / 1.40	225	green	0553555
	655	60°	0.055 / 1.40	270	green	0553655
	261	20°	0.061 / 1.55	120	green	0553261
	461	40°	0.061 / 1.55	190	green	0553461
	561	50°	0.061 / 1.55	225	green	0553561
	661	60°	0.061 / 1.55	270	green	0553661
	263	20°	0.063 / 1.60	120	green	0553263
	463	40°	0.063 / 1.60	190	green	0553463
	565	50°	0.065 / 1.65	225	green	0553565
	665	60°	0.065 / 1.65	270	green	0553665
	267	20°	0.067 / 1.70	120	green	0553267
	467	40°	0.067 / 1.70	190	green	0553467

1) Spray width at about 30 cm to the object and 100 bar (10 MPa) pressure with synthetic-resin paint 20 DIN seconds.

12.5 TEMPSPRAY

The paint material is heated to the required temperature uniformly by an electric heating element, which is located inside the hose (regulated from 20°C to 60°C).

Advantages:

• Constant paint temperature even at low outside temperatures
• Considerably better working of high viscosity coating materials
• Increased application efficiency
• Savings in solvents due to reduction in viscosity
• Adaptable to all airless units

Order No.	Description
23116592311852	TempSpray H 126 (ideal for lacquer jobs)Basic unit 1/4" incl. stainless steel hose, DN6, 1/4", 10mSpraypack consisting of: basic unit (2311659), Airless gun AG 14 NPS 1/4", incl. Trade Tip 2 nozzler holder (F-thread) and Trade Tip 2 Fine Finish 410
23116602311853	TempSpray H 226 (ideal for dispersions/materials with high viscosity)Basic unit 1/4" incl. Hose reel, heated hose DN10, 15m, hose 1/4" DN4, 1mSpraypack consisting of: Basic unit (2311660), Airless gun AG 14 NPS 1/4", incl. Trade Tip 2 nozzler holder (F-thread) and Trade Tip 2 nozzle 419
23116612311854	TempSpray H 326 (ideal for dispersions/materials with high viscosity)Basic unit 1/4" incl. Hose reel, heated hose DN10, 30m, hose 1/4" DN4, 1mSpraypack consisting of: Basic unit (2311661), Airless gun AG 14 NPS 1/4", incl. Trade Tip 2 nozzler holder (F-thread) and Trade Tip 2 nozzle 421

Line drawing of a temperature sensor device with coiled tubing and connector (no text or symbols on the device itself)

Technical line drawing of a mechanical pump or reel assembly with no visible text or symbols

TempSpray H 226

TempSpray H 326

12.6 PUMP-RUNNER

(Order No. 2306987)

Universal accessories for cleaning, clean transportation and preservation of the pump unit.

Features:

• Simpler cleaning – the cleaning liquid circulates constantly through the pump making thorough cleaning of the interior
  • No cleaning necessary during work stoppage or change of location because the paint in the pump cannot dry out or leak
  • Better protection
• Simple assembly

Suitable for the following models:

Diaphragm Pumps Double-stroke piston pumps
SF 21	Finish 270/370	PS 24	PS 3.25
SF 23	Nespray Deco	PS 26	PS 3.29
SF 27	Nespray 31	PS 30	PS 3.31
SF 31		PS 34	PS 3.34
SF 7000

Order this at the same time:

EasyClean, cleaning and preservation agent (118ml) Order no. 0508 620.

Line drawing of a cylindrical mechanical component with threaded base and top clamped end (no text or symbols)

Technical line drawing of a mechanical device with two tubes and threaded base (no text or symbols)

Attention!

Warning symbols for electrical hazard, one warning with exclamation mark and the other showing a broken tool.

Technical diagram of a power saw machine with numbered parts and exploded view, showing internal components and assembly details.

3.6 TRANSPORT

Technical diagram of a mechanical device with labeled parts, showing components 1 and 2.

3.7 TRANSPORT PAR VÉHICULE

Technical diagram of a power tool with labeled parts including a spring, screw, and push lever assembly

Technical diagram showing a mechanical assembly with labeled parts, including a hand operating a component and numbered callouts.

4.2 VOYANTS DU PANNEAU DE COMMANDES

Technical diagram of a power tool with numbered parts and exploded view, showing internal components and assembly.

4.6 mISE n SERVice du mATéRIeL AVec Le PRoduIT de ReVêTemeNT

Illustration showing three hands holding a light bulb with a prohibition symbol, each pointing at a light bulb above them.

Mechanical assembly diagram showing a bolt being inserted into a cylindrical component with a curved arrow indicating rotation (no text or symbols)

8.3 NeTToyAGe du FILTRe HAuTe PReSSIoN

Exploded view diagram of a mechanical assembly with numbered parts for identification

8.4 NeTToyAGe du PISToLeT AIRLeSS

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

9 DÉPANNAGE

Technical diagram of a mechanical assembly with numbered components, likely a valve or pump component.

11.2 cLAPeT d'AdmISSIoN eT de ReFouLemeNT

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of a mechanical assembly with numbered parts for identification

12.1 CHOIX DES BUSES

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a temperature sensor device with coiled tubing and connector (no text or symbols on the device itself)

Technical line drawing of a mechanical power spool with visible coil and base (no text or symbols)

TempSpray H 226

TempSpray H 326

12.6 PUMP-RUNNER

(Réf. No. 2306987)

Line drawing of a cylindrical mechanical component with threaded base and mounting bracket (no text or symbols)

Line drawing of a mechanical device with two pipes and threaded base (no text or symbols)

Avvertenza!

Two triangular warning signs: one with an exclamation mark and the other showing a broken tool or plug.

Technical diagram of a power saw machine with numbered parts for identification and assembly reference.

3.6 TRASPORTO

Technical diagram of a mechanical device with labeled parts, showing components 1 and 2.

3.7 TRASPORTO CON UN VEICOLO

Technical diagram of a power tool with labeled parts including a spring, screw, and hand pump assembly

Technical diagram showing a mechanical assembly with labeled parts, including a hand operating a component.

4.2 INDICATORI DEL PANNELLO DI CONTROLLO

Technical diagram of a power tool with numbered parts and exploded view, showing internal components and assembly.

VIdeATA PRIme (INNeSco PomPA)

Diagram showing three hands holding a tool with no text, each holding a pair of scissors and a prohibition symbol below.

Mechanical assembly diagram showing a bolt and nut assembly with a curved arrow indicating rotation (no text or symbols)

8.3 PuLizIA del FILTRo Ad ALTA PReSSIoNe

Exploded view diagram of a mechanical assembly with numbered parts for identification

8.4 PuLizIA deLL'AeRoGRAFo AIRLeSS

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical diagram of a device with numbered components, likely a mechanical or electrical assembly.

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a mechanical device with no visible text or symbols

Line drawing of a temperature sensor device with coiled tubing and connector (no text or symbols on the device itself)

Line drawing of a mechanical power spool with visible coil and base (no text or symbols)

TempSpray H 226 TempSpray H 326

12.6 PUMP-RUNNER

(N° ord. 2306987)

Line drawing of a cylindrical mechanical component with threaded base and mounting bracket (no text or symbols)

Line drawing of a mechanical device with coiled tubing and two protruding pipes (no text or symbols)

d zuBeHöRBILd GB AcceSSoRleS ILLuSTRATIoN

FILLuSTRATIoN deS AcceSSoIReS I FIGuRA deGLI AcceSSoRI

#	PS 3.29 / 3.31	Benennung Description	Description Denominazione
1	0538 041	Spritzpistole Vector Pro 2-Finger	Spray gun, Vector Pro 2-finger	Pistolet Vector Pro 2-doigt	Aerografo Vector Pro 2-dita
	0538 040	Spritzpistole Vector Pro 4-Finger	Spray gun, Vector Pro 4-finger	Pistolet Vector Pro 4-doigt	Aerografo Vector Pro 4-dita
	0538 042	Spritzpistole Vector Grip 2-Finger	Spray gun, Vector Grip 2-finger	Pistolet Vector Grip 2-doigt	Aerografo Vector Grip 2-dita
	0538 043	Spritzpistole Vector Grip 4-Finger	Spray gun, Vector Grip 4-finger	Pistolet Vector Grip 4-doigt	Aerografo Vector Grip 4-dita
2 029	6 441	Auslegerpistole 120 cm, G-Gewinde 7/8"	Pole gun 120 cm, G-thread 7/8"	Pistolet à rallonge 120 cm, filet F, 7/8"	Aerografo con prolunga da 120 cm, Filettatura G, 7/8"
	0296 443	Auslegerpistole 120 cm, F-Gewinde 11/16"	Pole gun 120 cm, F-thread 11/16"	Pistolet à rallonge 120 cm, filet G, 11/16"	Aerografo con prolunga da 120 cm, Filettatura F, 11/16"
	0296 442	Auslegerpistole 200 cm, G-Gewinde 7/8"	Pole gun 200 cm, G-thread 7/8"	Pistolet à rallonge 200 cm, filet F, 7/8"	Aerografo con prolunga da 200 cm, Filettatura F, 11/16"
	0296 444	Auslegerpistole 200 cm, F-Gewinde 11/16"	Pole gun 200 cm, F-thread 11/16"	Pistolet à rallonge 200 cm, filet G, 11/16"	Aerografo con prolunga da 200 cm, Filettatura F, 11/16"
3 034	5 010 Inline Roller	IR-100 In-line roller IR-100 Rouleau	à alimentation interne	IR-100	Rullo Inline IR-100
4 998	4 573 Hochdruckschlauch DN 4 mm, 7,5 m mit Edelstahnippel	High-pressure hose DN 4 mm, 7.5 m with stainless steel nipple, 1/4"	Flexible à haute pression DN 4 mm, 7.5 m, avec raccords en acier inox, 1/4"	Tubo flessibile ad alta pressione DN 4 mm, 7,5 m, con nipplo di acciaio inossidabile, 1/4"
	9984 574 Hochdruckschlauch DN 6 mm, 15 m für Dispersion	High-pressure hose DN 6 mm, 15 m for dispersion, 1/4"	Flexible à haute pression DN 6 mm, 15 m, pour vinyle, 1/4"	Tubo flessibile ad alta pressione DN 6 mm, 15 m, per rivestimento a dispersione, 1/4"
	9984 575 Hochdruckschlauch DN 6 mm, 30 m für Dispersion	High-pressure hose DN 6 mm, 30 m for dispersion, 1/4"	Flexible à haute pression DN 6 mm, 15 m, pour vinyle, 1/4"	Tubo flessibile ad alta pressione DN 6 mm, 30 m, per rivestimento a dispersione, 1/4"
5 003	4 038 Doppelstuizen zum Kuppeln von Hochdruckschläuchen (1/4" x 1/4")	Double socket for coupling high-pressure hoses (1/4" x 1/4")	Flexible à haute pression DN 6 mm, 30 m, pour vinyle, 1/4"	Raccordi doppio per l'accoppiamento di tubi flessibili ad alta pressione (1/4" x 1/4")
6 003	4 950 Metex-Reuse Reuse zur Vorfilterung von Beschichtungsstoff im Gebinde. Ansaugrohr direkt in die Reuse stellen.	Metex-Reuse Reuse for pre-filtering of coating material in vessel. Place suction pipe in the reuse.	Tamis Metex. Tamis de préfiltrage du produit dans son bidon d'origine. Mettre le tube d'aspiration directement dans le tamis.	Nassa Metex. Nassa di prefiltraggio del materiale di copertura nella confezione. Collocare il tubo di aspirazione direttamente nella nassa.
	0034 952	Siebpaket (5 Stück) für Lack	Sieve package (5 pcs) for paint	Jeu de filtres (5 pièces) pour laque	Pacchetto di filtri (5 unità) per vernice
	0034 951 Siebpaket (5 Stück) für Dispersion	Sieve package (5 pcs) for dispersion	Jeu de filtres (5 pièces) pour vinyle	Pacchetto di filtri (5 unità) per materiale a dispersione
7 003	4 383 Pistolenfilter, rot, 1 Stück; 180 MA extra fein	Gun filter, red, 1 piece; 180 mesh extra fine	Filtre du pistolet, rouge, 1 pièce; 180 mailles extra-fines	Filtro della pistola, rosso, 1 pezzo; rete 180 extra fine
	0097 022 Pistolenfilter, rot, 10 Stück; 180 MA extra fein	Gun filter, red, 10 pieces; 180 mesh extra fine	Filtre du pistolet, rouge, 10 pièces; 180 mailles extra-fines	Filtro della pistola, rosso, 10 pezzi; rete 180 extra fine
	0043 235 Pistolenfilter, gelb, 1 Stück; 100 MA fein	Gun filter, yellow, 1 piece; 100 mesh fine	Filtre du pistolet, jaune, 1 pièce; 100 mailles fines	Filtro della pistola, giallo, 1 pezzo; rete 100 extra fine
	0097 023 Pistolenfilter, gelb, 10 Stück; 100 MA fein	Gun filter, yellow, 10 pieces; 100 mesh fine	Filtre du pistolet, jaune, 10 pièces; 100 mailles fines	Filtro della pistola, giallo, 10 pezzi; rete 100 extra fine
	0034 377 Pistolenfilter, weiß, 1 Stück; 50 MA mittel	Gun filter, white, 1 piece; 50 mesh medium	Filtre du pistolet, blanc, 1 pièce; 50 mailles moyennes	Filtro della pistola, bianco, 1 pezzo; rete 50 media
	0097 024 Pistolenfilter, weiß, 10 Stück; 50 MA mittel	Gun filter, white, 10 pieces; 50 mesh medium	Filtre du pistolet, blanc, 10 pièces; 50 mailles moyennes	Filtro della pistola, bianco, 10 pezzi; rete 50 media
	0089 323 Pistolenfilter, grün, 1 Stück; 30 MA grob	Gun filter, green, 1 piece; 30 mesh coarse	Filtre du pistolet, vert, 1 pièce; 30 mailles grossières	Filtro della pistola, verde, 1 pezzo; rete 30 a grana grossa
	0097 025 Pistolenfilter, grün, 10 Stück; 30 MA grob	Gun filter, green, 10 pieces; 30 mesh coarse	Filtre du pistolet, vert, 10 pièces; 30 mailles grossières	Filtro della pistola, verde, 10 pezzi; rete 30 a grana grossa
8 009	7 108 TipClean Reinigungset für leichtes Reinigen und zum Schutz von Düsen	TipClean Cleaning Set for easy cleaning and conservation of nozzles	Kit de nettoyage TipClean pour une conservation et un nettoyage faciles des buses	Set di pulizia TipClean per pulizia e conservazione facili degli ugelli
	0508 619	EasyGlide, Spezialöl (118ml)	EasyGlide, special oil (118ml)	EasyGlide, huile spéciale (118 ml)	EasyGlide, olio speciale (118 ml)
	0508 620 EasyClean, Reinigungs-und Schutzmittel (118 ml)	EasyClean, cleaning and conservation agent (118 ml)	EasyClean, produit de conservation et de nettoyage (118 ml)	EasyClean, agente per pulizia e conservazione (118 ml)
9 231	2 909 Personenschutzsicherung PRCD (FI-Sicherung) 230V / 16A (3 m)		Personel protection switch (PRCD) 230V / 16A (3 m)	Interrupteur de protection des personnes (disjoncteur différentiel) 230V / 16A (3 m)	Salvavita 230 V / 16 A (3 m)

d HAuPTBAuGRuPPe GB mAIN ASSemBLy

FeNSemBLE PRINcIPAL IGRuPPo PRINcIPALe

Exploded view diagram of a mechanical assembly with numbered components and corresponding close-ups of internal parts.

#	PS 3.29 / 3.31	Benennung Description	Désignation Denominazione
1	0290 270	Motorabdeckung	Motor shroud	Couverture du moteur	Copertura del motore
2 0508	559 Schraube (2) Screw (2) Vis (2) Vite (2)
3 0290	269 Verkleidungsunterteil Belly pan Cuvette Puntale
4 9802	266 Schraube (2) Screw (2) Vis (2) Vite (2)
5 0290	228 Klappe Door Porte Sportello
6 0509	218 Schraube (2) Screw (2) Vis (2) Vite (2)
7	0552 240A	Hochdruckfilter	Filter assembly	Filtre haute pression	Filtro de alta pressione
8	805-549	Doppelstutzen	Fitting	Raccord	Accessorio
9	0507 785	Rücklaufschlauch	Return tube	Tuyau de retour	Tubo flessibile di ritorno
10	0507 387	Schlauch	Hose	Tuyau	Flessibile
11	9802 266 Schraube (2) Screw (2) Vis (2) Vite (2)
12	0290 225	Elektronikabdeckung	Electronic cover	Couvercle électronique	Copertura elettronica
13	9805 317 Schraube (2) Screw (2) Vis (2) Vite (2)
14	0290 212	Griffhülle, hinten	Handle cover, back	Couvre poignée, arrière	Copertura maniglia, parte posteriore
15	0558 493	Kabel-Jumper	Power cord jumper	Bretelle de cordon d'alimentation	Ponticello del cavo di alimentazione
16	0290 213	Griffhülle, vorne	Handle cover, front	Couvre poignée, avant	Copertura maniglia, parte anteriore
17	----	Baugruppe Antrieb	Drive assembly	Carter d'enrenages	Gruppo azionamento
18	0509 218 Schraube (4) Screw (4) Vis (4) Vite (4)
19	0558 321A	Baugruppe Bedienfeld, vollständig, umfasst (Pos. 34-41)	Control panel assembly, complete (includes items 34-41)	Ensemble panneau de commande, complet (comprend les éléments 34 à 41)	Gruppo pannello di controllo, completo (comprende articoli n. 34-41)
20	9852 345	Sicherung, 10A	Fuse, 10A	Fusible, 10A	Fusibile, 10A
21	9804 916	Schraube	Screw	Vis	Vite
22	0522 210	Montageplatte	Mounting plate	Plaque de montage	Piastra di montaggio
23	0290 279	Frontabdeckung / Baugruppe Öler	Face plate / oiler assembly	Ensemble graisseur / plaque frontale	Gruppo disco portapezzo / oliatore
24	0509 218 Schraube (4) Screw (4) Vis (4) Vite (4)
25	0290 260	Eimerhaken	Pail hook	Crochet de seau	Gancio di secchio
26	9821 503	Scheibe (2)	Washer (2)	Rondelle (2)	Rondella (2)
27	0290 271 Schraube (2) Screw (2) Vis (2) Vite (2)
28	0290 238	Farbstufe	Fluid section assembly	Ensemble de pompe à peinture	Stadio della vernice
29	0507 783	Klammer	Clip	Agrafe de fixation	Fermaglio
30	0507 782	Ansaugrohr	Suction tube	Tube d'aspiration	Tubo di aspirazione
31	0290 253	Stopfen	Grommit	Bouchon	Spina
32	0551 778	Baugruppe Meßwertaufnehmer	Transducer assembly	Capteur de pression	Trasduttore di pressione
33	9805 348 Schraube (4) Screw (4) Vis (4) Vite (4)
34	0290 252	Abdeckung Bedienfeld	Control panel cover with label	Capot du panneau de commande	Copertura del pannello di controllo
35	0507 749	Mutter mit Dichtring	Nut with seal	Écrou étanche	Dado con guarnizione
36	0290 202	Stellschraube	Set screw	Vis de réglage	Vite di regolazione
37	0290 218	Druckregler	Knob	Bouton de réglage de pression	Manopola di regolazione della pressione
38	9850 936	Schalter	Switch	Interrupteur	Interruttore
39	0508 579	Potentiometer	Potentiometer	Potentiomètre	Potenziometro
40	0522 007	Baugruppe LED	LED assembly	Ensemble DEL	Gruppo LED
41	0290 220 Bildschirm Digital Electronic Spray Control (DESC)		Digital Electronic Spray Control (DESC) display	Affichage DESC (Digital Electronic Spray Control)	Display sistema di controllo digitale (DESC)
42	0522 051	Kondensator	Capacitor assembly	Condensateur	Condensatore
43	0551 543	Kabelbinder	Tie wrap	Attache de câble	Legatura del cavo
44	0558 454	Halterungsabdeckung	Bracket cover	Couvercle de support	Copertura della staffa
45	0509 218 Schraube (4) Screw (4) Vis (4) Vite (4)
46	9800 340 Schraube (2) Screw (2) Vis (2) Vite (2)
47	0551 980	Sicherungsmutter (2)	Lock nut (2)	Contre-écrou (2)	Dado di blocco (2)
48	0522 424	EMI filter, 20A	EMI filter, 20A	Filtre EMI, 20 A	Filtro EMI, 20A
49	9805 240 Schraube (3) Screw (3) Vis (3) Vite (3)
50	0558 453	Halterung	Bracket	Support	Staffa
51	0551 714	Zugentlastung (2)	Cord grip (2)	Bride de cordon (2)	Presa cavo (2)
52	5006 536	Filter	Inlet screen	Filtre	Filtro
53	9805 403	Stellschraube	Set screw	Vis de réglage	Vite di regolazione
54	9810 103	Mutter (2)	Nut (2)	Écrou (2)	Dado (2)
55	0524 353	Mutter	Nut	Écrou	Dado
	0551 758	Schwankung Entstörer (nicht gezeigt)	Surge protector (not shown)	Bondir suppressor (non représenté)	Limitatore disovracorrente (non illustrato)
	0522 052	Leitung (nicht gezeigt)	Wire assembly (not shown)	Ensemble fil (non représenté)	Filo metallico (non illustrato)
	0522 053	Leitung (nicht gezeigt)	Wire assembly (not shown)	Ensemble fil (non représenté)	Filo metallico (non illustrato)
	0522 022	Biklschirm Drahteinheit (nicht gezeigt)	Display wire assembly (not shown)	Affichage groupe de fils (non représenté)	Display gruppo cablaggio (non illustrato)

d FARBSTuFe GB FLuld SecTIoN

Exploded view diagram of a mechanical assembly with numbered parts for identification

#	PS 3.29 / 3.31	Benennung Description Désignation Denominazione
1 0558	323A Baugruppe Gehäuse Housing assembly	Logement Gruppo alloggiamento
2 0290	241 Schiebeeinheit Slider assembly Coulisseau Gruppo cursore
3 0290	254 Anlaufscheibe Thrust washer Disque de butée Ralla
4	0290 239	Kurbelwelle	Gear/crankshaft assembly	Vilebrequin	Albero a gomiti
5	0290 240	Getrieberad, Stufe 1	1st stage gear	Roue dentée, étage 1	Ruota dentata, stadio 1
6	0558 324A	Baugruppe motor	Motor assembly	Ensemble de moteur	Gruppo motore
7	0508 559	Schraube (6)	Screw (6)	Vis (6)	Vite (6)
8	0558 558	Zwischenwand	Baffle assembly	Paroi intermédiaire	Parete intermedia
9	0509 218	Schraube (4)	Screw (4)	Vis (4)	Vite (4)
10	0558 535 Elektroniksteuerung (PS 3.29)	Electronic control assembly (PS 3.29)	Ensemble de commandes électroniques (PS 3.29)	Gruppo dei comandi elettronici (PS 3.29)
	0558 536 Elektroniksteuerung (PS 3.31)	Electronic control assembly (PS 3.31)	Ensemble de commandes électroniques (PS 3.31)	Gruppo dei comandi elettronici (PS 3.31)
11	9802 266	Schraube (2)	Screw (2)	Vis (2)	Vite (2)
12	9822 106	Scheibe	Washer	Rondelle	Rondella
13	0522 040	Leiter Montage	Wire assembly	Fil de montage	Filo di montaggio
14	0558 559	Erdungsstreifen	Ground strap	Courroie de terre	Cinturino a terra
15	9822 631	Scheibe	Washer	Rondelle	Rondella
16	9800 340	Grundschraube (2)	Ground screw (2)	Vis de terre (2)	Vite a terra (2)

d HocHdRuKFILTeR GB FILTeR ASSemBLy

F FILTeR HAuTe PReSSIoN I FILTRo Ad ALTA PReSSIoNe

1 2 3 4 5 6 7 8 9 10 11 12 13 14

#	PS 3.29 / 3.31	Benennung Description Désignation Denominazione
1 05	24 918 Filtergehäuse	Filter housing Corps de filtre	Scatola del filtro
2 14	058 Konusfeder Conical spring Ressort Molla conica
3 05	08 748 Filterpatrone, 60 Maschen(Standardausrüstung)	Filter, 60 mesh (standard)	Filtre, 60 mailles (standard)	Filtro, 60 maglie (standard)
	0508 451	Filterpatrone, 30 Maschen	Filter, 30 mesh	Filtre, 30 mailles	Filtro, 30 maglie
	0508 452	Filterpatrone, 100 Maschen	Filter, 100 mesh	Filtre, 100 mailles	Filtro, 100 maglie
4 05	08 603 Stützscheibe Bearing ring		Rondelle	Rondella
5	0508 749	Stützfeder	Bearing spring	Ressort	Molla di spinta
6	0551 951	O-ring	O-ring	Joint torique	O-ring
7	0507 739	Rohrverschlussschraube	Pipe plug	Bouchon fileté	Tappo tubo
8	0290 264	Gehäuse	Housing	Logement	Alloggiamento
9	0507 745	Dichtungsring	Gasket	Joint	Guarnizione
10	0558 727 Baugruppe Bypass-Ventil(beinhaltet Pos. 9)		Bypass valve assembly(includes item 9)	Ensemble by-pass(comprend le élémentPos. 9)	Gruppo valvola di by-pass(comprende articoli 9)
11	0507 931	Nockengrund	Cam base	Support de came	Base della camma
12	0508 744	Ventilschalter	Relief valve knob	Bouton du robinet	Impugnatura della valvola
13	5006 543	Kerbstift	Groove pin	Goupille cannelée	Perno scanalato
14	0088 162	Doppelstutzen	Fitting	Raccord double	Bocchettone doppio
	0507 254 Entlastungsventil mitHandgriff (beinhaltet Pos.9 – 13)		Relief valve w/ handle(includes items 9 – 13)	Vanne de décharge avecla poignée (comprend leséléments Pos. 9 à 13)	Valvola di sfiato con la maniglia (comprende articoli 9 – 13)

d HoHeR WAGeN GB uPRIGHT cART ASSemBLy

F cHARIoT HAuT I cAReLLo ALTo

Technical diagram of a mechanical device with numbered parts for identification

#	PS 3.29 / 3.31	Benennung Description Désignation Denominazione
1 0290	207 Handgriff (inklusive der Elemente 8-9)	Handle assembly (includes items 8-9)	Poignée (comprend les éléments 8-9)	Impugnatura (comprende articoli n 8-9)
2 9805	352 Schraube (2) Screw (2) Vis (2) Vite (2)
3 0290	257 Buchse Bushing Bague Boccola
4 0290	235 Grundgestell Cart weldment Châssis de base Telaio di base
5 9894	275 Stützfeder Spring Ressort	Molla
6 0290	294 Buchse Sleeve Douille	Bussola
7	0290 244	Baugruppe Wagen	Carriage assembly	Ensemble chariot	Gruppo di trasporto
8	0509 386	Scheibe (4)	Washer (4)	Rondelle (4)	Rondella (4)
9 0295	608 Schraube (4) Screw (4) Vis (4) Vite (4)
10	0279 481	Schraube	Screw	Vis	Vite
11	9820 305	Scheibe (2)	Washer (2)	Rondelle (2)	Rondella (2)
12	0555 319	Arretiermutter	Jam nut	Ecrou d'arrêt	Dado di arresto
13	0290 236	Baugruppe Nocken	Cam assembly	Ensemble came	Gruppo camma
14	9805 353 Schraube (2) Screw (2) Vis (2) Vite (2)
15	0294 534	Abstandhalter (4)	Spacer (4)	Entretoise (4)	Distanziatore (4)
16	0278 373	Rad (2)	Wheel (2)	Roue (2)	Ruota (2)
17	9890 104	Radkappe (2)	Axle cap (2)	Chapeau de roue (2)	Coppa coprimozzo (2)
18	9885 571	Verschlussstopfen (2)	Plug (2)	Bouchon (2)	Tappo (2)
19	54458	Schraube (2) Screw (2) Vis (2)	Vite (2)
20	13538	Fuß (2)	Pad (2)	Pied (2)	Piede (2)

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

As a result of an EC regulation being effective as from January 1, 1990, the manufacturer shall only be liable for his product if all parts come from him or are released by him, and if the devices are properly mounted and operated. If the user applies outside accessories and spare parts, the manufacturer's liability can fully or partially be inapplicable; in extreme cases usage of the entire device can be prohibited by the competent authorities (employer's liability insurance association and factory inspectorate division).

Only the usage of original WAGNER accessories and spare parts guarantees that all safety regulations are observed.

3+2 YEARS GUARANTEE FOR PROFESSIONAL FINISHING

Wagner professional guarantee

(Status 01.02.2009)

1. Scope of guarantee

All Wagner professional colour application devices (hereafter referred to as products) are carefully inspected, tested and are subject to strict checks under Wagner quality assurance. Wagner exclusively issues extended guarantees to commercial or professional users (hereafter referred to as "customer") who have purchased the product in an authorised specialist shop, and which relate to the products listed for that customer on the Internet under www.wagner-group.com/profi-guarantee.

The buyer's claim for liability for defects from the purchase agreement with the seller as well as statutory rights are not impaired by this guarantee.

We provide a guarantee in that we decide whether to replace or repair the product or individual parts, or take the device back and reimburse the purchase price. The costs for materials and working hours are our responsibility. Replaced products or parts become our property.

2. Guarantee period and registration

The guarantee period amounts to 36 months. For industrial use or equal wear, such as shift operations in particular, or in the event of rentals it amounts to 12 months.

Systems driven by petrol or air are also guaranteed for a 12 month period.

The guarantee period begins with the day of delivery by the authorised specialist shop. The date on the original purchase document is authoritative.

For all products bought in authorised specialist shops from 01.02.2009 the guarantee period is extended to 24 months providing the buyer of these devices registers in accordance with the following conditions within 4 weeks of the day of delivery by the authorised specialist shop.

Registration can be completed on the Internet under www.wagner-group.com/profi-guarantee. The guarantee certificate is valid as confirmation, as is the original purchase document that carries the date of the purchase. Registration is only possible if the buyer is in agreement with having the data being stored that is entered during registration.

When services are carried out under guarantee the guarantee period for the product is neither extended nor renewed.

Once the guarantee period has expired, claims made against the guarantee or from the guarantee can no longer be enforced.

3. Handling

If defects can be seen in the materials, processing or performance of the device during the guarantee period, guarantee claims must be made immediately, or at the latest within a period of 2 weeks.

The authorised specialist shop that delivered the device is entitled to accept guarantee claims. Guarantee claims may also be made to the service centres named in our operating instructions. The product has to be sent without charge or presented together with the original purchase document that includes details of the purchase date and the name of the product. In order to claim for an extension to the guarantee, the guarantee certificate must be included.

The costs as well as the risk of loss or damage to the product in transit or by the centre that accepts the guarantee claims or who delivers the repaired product, are the responsibility of the customer.

4. Exclusion of guarantee

Guarantee claims cannot be considered

• for parts that are subject to wear and tear due to use or other natural wear and tear, as well as defects in the product that are a result of natural wear and tear, or wear and tear due to use. This includes in particular cables, valves, packaging, jets, cylinders, pistons, means-carrying housing components, filters, pipes, seals, rotors, stators, etc. Damage due to wear and tear that is caused in particular by sanded coating materials, such as dispersions, plaster, putty, adhesives, glazes, quartz foundation.
• in the event of errors in devices that are due to non-compliance with the operating instructions, unsuitable or unprofessional use, incorrect assembly and/or commissioning by the buyer or by a third party, or utilisation other than is intended, abnormal ambient conditions, unsuitable coating materials, unsuitable operating conditions, operation with the incorrect mains voltage supply/frequency, over-operation or defective servicing or care and/or cleaning.
• for errors in the device that have been caused by using accessory parts, additional components or spare parts that are not original Wagner parts.
• for products to which modifications or additions have been carried out.
• for products where the serial number has been removed or is illegible
• for products to which attempts at repairs have been carried out by unauthorised persons.
• for products with slight deviations from the target properties, which are negligible with regard to the value and usability of the device.
• for products that have been partially or fully taken apart.

5. Additional regulations.

The above guarantees apply exclusively to products that have been bought by authorised specialist shops in the EU, CIS, Australia and are used within the reference country.

If the check shows that the case is not a guarantee case, repairs are carried out at the expense of the buyer.

The above regulations manage the legal relationship to us concludingly. Additional claims, in particular for damages and losses of any type, which occur as a result of the product or its use, are excluded from the product liability act except with regard to the area of application.

Claims for liability for defects to the specialist trader remain unaffected.

German law applies to this guarantee. The contractual language is German. In the event that the meaning of the German and a foreign text of this guarantee deviate from one another, the meaning of the German text has priority.

J. Wagner GmbH

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

Federal Republic of Germany

NOTE IMPORTANTE SUR LA RESPONSABILITÉ DE PRODUIT

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

In observance of the European Directive 2002/96/EC on waste electrical and electronic equipment and implementation in accordance with national law, this product is not to be disposed of together with household waste material but must be recycled in an environmentally friendly way!

Wagner or one of our dealers will take back your used Wagner waste electrical or electronic equipment and will dispose of it for you in an environmentally friendly way. Please ask your local Wagner service centre or dealer for details or contact us direct.

-F-

GB Wagner Spraytech (UK) Limited

The Coach House

2 Main Road

Middleton Cheney OX17 2ND

Great Britain

UK-Helpline 01295 714200

Fax [phone]

[e-mail]

B WSB Finishing Equipment

Veilinglaan 56-58

1861 Meise-Wolvertem

Belgium

Tel. [phone]

Telefax +32/2/269 78 45

[e-mail]

NL WSB Finishing Equipment BV

De Heldinnenlaan 200,

3543 MB Utrecht

Netherlands

Tel. [phone]

Telefax +31/ 30/241 17 87

[e-mail]

d J. Wagner GmbH

Telefax 04.42.53.44.36
