Product Type	PoE Network Repeater/Extender
Brand	Intellinet
Model	560962
Supported PoE Standard	IEEE 802.3af/at (PoE+), up to 24.5 W
Number of Ports	2 RJ45 ports (PoE input, PoE output)
Maximum Distance per Ethernet Segment	100 m (Cat5e/6 cable)
Maximum Total Distance (5 repeaters in series)	600 m
Power Delivered to End Device	8.6 W (with 5 repeaters) to 24.5 W (with 1 repeater)
LED Indicators	PoE (yellow): on if PoE power detected; Data (green): blinking if activity
Power Supply	Via PoE port (PoE injector or switch required)
Housing Material	ABS Plastic
Dimensions (L x W x H)	100 x 70 x 30 mm (estimated)
Weight	100 g (estimated)
Operating Temperature	0 °C to 40 °C (estimated)
Operating Humidity	20% to 80% RH non-condensing (estimated)
Mounting	On flat surface via screws (mounting holes on base)
Compliance	CE (2014/30/EU, 2014/35/EU), WEEE
Maintenance and Cleaning	Disconnect before cleaning; use a dry, soft cloth
Spare Parts and Repairability	No spare parts available; device not user-repairable
Warranty	2 years (check with retailer)

Frequently Asked Questions - 560962 Intellinet

What is the role of the Intellinet 560962?

It is a PoE network repeater/extender that extends the data transmission and PoE power distance up to 600 meters by using multiple units in series.

Which cables should be used with this repeater?

Use high-quality Ethernet Cat5e or Cat6 cables, with a maximum length of 100 meters between each repeater.

Can it be used with non-PoE devices?

Yes, the repeater can be used solely to extend the data transmission distance even if the device is not PoE-compatible. In that case, the device's power must be supplied separately.

How many repeaters can be daisy-chained?

The recommended maximum is 5 repeaters in series, allowing a total distance of 600 meters.

What is the maximum power delivered at the end of the chain?

With a single repeater (200 m), the power can reach 24.5 W. With 5 repeaters (600 m), it drops to approximately 8.6 W. The supported standard is IEEE 802.3at (PoE+).

How to know if the device is properly connected?

The Yellow LED (PoE) should be on if PoE power is detected. The Green LED (Data) lights up or blinks when an active Ethernet link is present.

Can the repeater be mounted on the wall?

Yes, the device has two mounting holes on its base to screw it onto a flat surface and secure the connections.

What is the difference between this repeater and a regular PoE switch?

This repeater does not act as a switch: it has only two ports (input/output) and is used solely to regenerate the signal and power over long distances. It does not allow multiple devices to be connected simultaneously.

How to clean the device?

Unplug it before any cleaning. Use a soft, dry cloth to wipe the surface. Do not use chemical or abrasive cleaners.

What to do in case of failure?

Since no spare parts are available and the device is not user-repairable, contact the after-sales service of your retailer or Intellinet for warranty or replacement options.

USER MANUAL 560962 Intellinet

Gigabit High- Power PoE+ Extender Repeater Instructions

Model 560962-v2 (IPE-IND)

Important: Read before use. • Importante: Leer antes de usar.

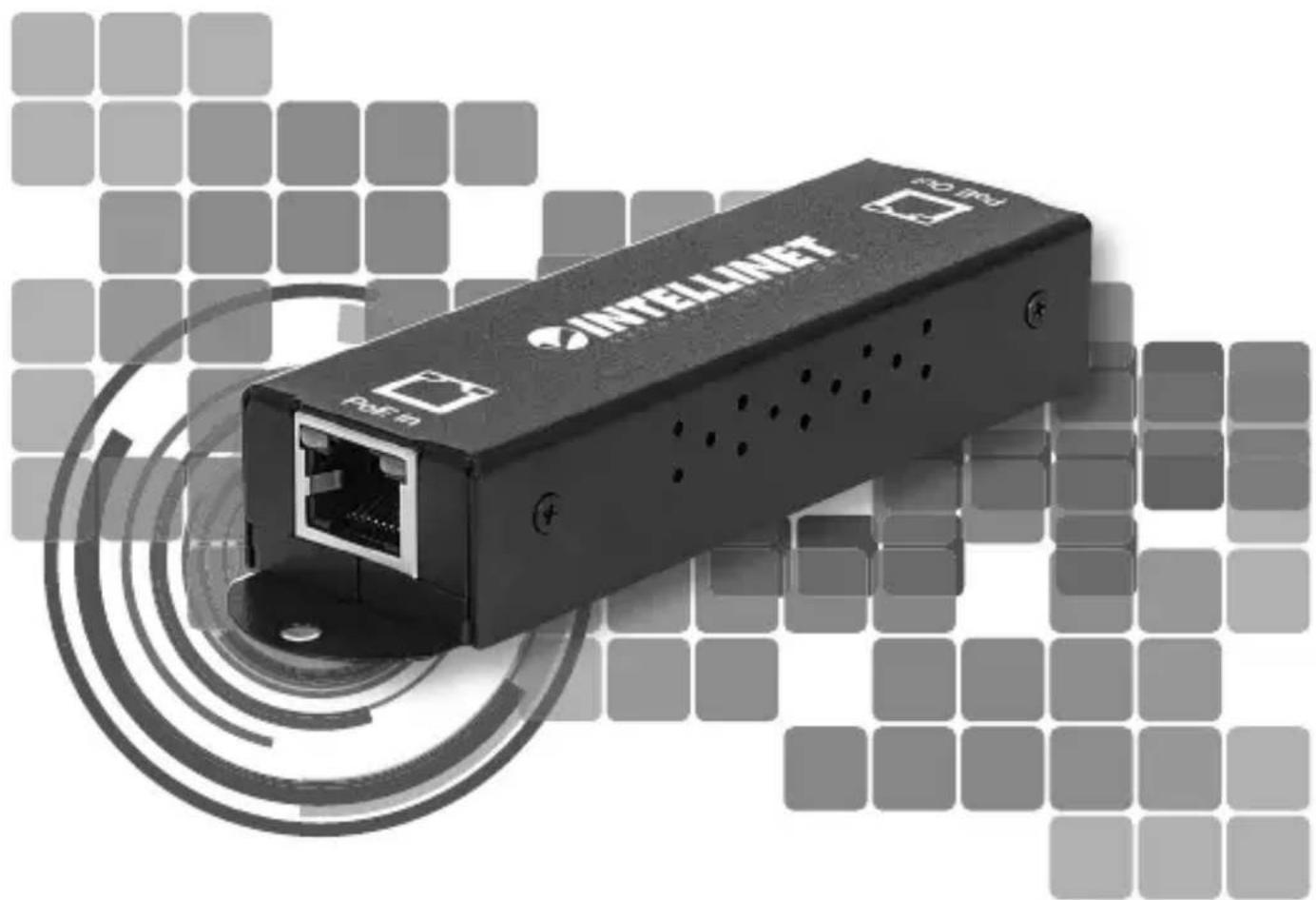

Exterior view of a black INTELLONET network device with ports and I/O port, set against a patterned grid background (no readable text or symbols on the device itself)

For additional benefits:

Scan to register your product warranty

or go to: register.intellinet-network.com/r/560962

This guide presents the basic steps to set up and operate this device.

For specifications, visit intellinetnetwork.com. Register your product at

register.intellinet-network.com/r/560962 or scan the QR code on the cover.

Connections

Setup is quick and easy!

1 Plug a Cat5e/6 Ethernet cable — up to 100 m long — from your powered source device (for example, a PoE injector or switch) into the PoE In connector on the extender/repeater.
2 Plug a second Cat5e/6 Ethernet cable — also up to 100 m long — from the device you want to transmit power and data to (for example, a PoE network camera) into the PoE Out connector on the extender/repeater.

The LED chart below explains how you can tell if your connections are good.

LED Color Status Operation
PoE Yellow		On Port is linked to a PSE/PoE device.
		Off No	PSE/PoE device is linked.
Data Green		On Valid port connection.
		Blinking Data transmitted/received.
		Off No	link established.

The distance chart below explains how much power you can expect to be delivered to your PoE device based on how many extender/repeaters you connect in series (5 is the maximum recommended).

Number of Extenders Distance Max. wattage of powered device
1 200 m (656 ft.) 24.592
2 300 m (984 ft.) 20.140
3 400 m (1,312 ft.) 16.176
4 500 m (1,640 ft.) 12.56
5 600 m (1,968 ft.)	8.60

Functionality

This extender/repeater supports the IEEE 802.3at protocol and is designed to work with all IEEE 802.3af- or IEEE 802.3at-compliant devices. Note: If your connected device is not PoE compliant, this extender/repeater can still be used to extend data-only transmission distances.

The two holes on the base of the housing allow you to screw the extender/repeater in place to help maintain secure cable connections.

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

ENGLISH: This symbol on the product or its

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules.

These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment. CE

ENGLISH : This device complies with the requirements of CE 2014/30/EU and / or 2014/35/EU. The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/560962
