USER MANUAL Serie 6 BGS41POW3 BOSCH

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη ουσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratın veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[hu]	Olvassa be a QR-kódot vagy keresse fel a weboldalt a kibővített használati utasítás megnyitásához. Ott ki-egészítő információkat talál a készülékkel vagy tartozékkal kapcsolatban.
[kk]	QR- кодын сканерленіз немесе кенейтілген пайдалану нүсқаулықты ашу үшін веб-сайтқа кірініз. Онда сіз құрылғы немесе керек-жарактар туралы көбірек ақпарат таба аласыз.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.
[bg]	Сканирайте QR кода или посетете уебстраницата, за да отворите разширените указания за използването. Там ще откриете допълнителна информация за Вашия уред или принадлежност.
[uk]	Щоб отримати докладніші вказівки з користування, зіскануйте QR-код або відвідайте сайт. Там ви знайдете додаткові відомості про прилад або приладдя.
[az]	İstifadəniz üçün daha geniş göstərişləri açmaqdan ötrü, QR-kodunu skan edin və ya veb səhifəyə daxil olun. Oradan Siz cihaziniz və aksessuariniza dair əlave məlumat tapa bilərsiniz.
[ka]	құқұлұзбөмғон QR-здққо әб ғұздғоқ әзд-гздғққққ, құқққ ғұқұлбққ ғздқұмұбғдәқ құқбққ әдққққ ɑːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːdқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқҚұмыңққққққ әб әсфұқұққққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқұқ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ ɔːдқққ

QR code image containing encoded data, no visible human-readable text

Diagram showing a blue pipe being dropped and then placed on a cylindrical object, with no text or symbols present.

4

CLICK

Illustration of a hand holding a pipe with a blue tube and black arrow indicating downward motion (no text or symbols)

5

CLICK

广力云智慧零售收银系统

Two vertical diagrams showing a blue object being lifted by ropes, with arrows indicating direction (no text or symbols)

6

Illustration of a hand using a blue tool to adjust or install a car component, with no visible text or symbols.

7

Line drawing of a hand adjusting a blue component on a mechanical device (no text or symbols)

8

max min

9

Diagram illustrating a mechanical or electrical device operation with labeled components and directional arrows indicating motion.

10

Diagram showing a car's engine being adjusted to a blue vacuum cleaner (no text or symbols present)

11

Diagram showing a hand using a blue tool to lift a vacuum cleaner, labeled with step numbers ① and ②.

12

Diagram showing a car's internal components with numbered annotations indicating assembly or inspection steps

The image is too blurry to recognize any text content.

Illustration of a vacuum cleaner with a blue component being inserted, showing mechanical components and a close-up view (no text or symbols)

14

Diagram illustrating two-step instructions for handling a blue object, labeled with arrows and numbered steps ① and ②.

15

Diagram illustrating two-step instructions for converting a blue pipe into a container, with arrows indicating direction and cycle.

16

Diagram showing a blue flexible hose being inserted into a container with labeled parts 1 and 2

17

Illustration showing a hand using a gas mask to clean water, with three blue X marks indicating inspection or rejection.

18

max

19

1 2

20

Diagram showing a hand inserting a device into a blue container with labeled parts ① and ②, illustrating a process for cleaning or packaging.

21

Illustration of a blue cylindrical container pouring liquid into a rectangular basin (no text or symbols)

22

Diagram of a container with a blue internal component and an upward arrow indicating flow or movement (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a blue showerhead spraying water onto a textured base (no text or symbols)

24

① ② CLICK

25

Illustration of a hand holding a blue-handled device with a mesh floor, next to a small white object (no text or symbols visible)

26

Diagram of a kitchen sink with a blue plastic grater and arrow indicating rotation (no text or symbols)

27

Diagram showing a blue grid-patterned object being inserted into a container, with an arrow pointing to the component (no text or symbols present)

28

Illustration of a hand holding a blue textured object with triangular patterns (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a blue showerhead spraying water onto a meshed surface (no text or symbols)

30

24 h

The image is too blurry to recognize any text content.

CLICK

32

CLICK

33

Technical line drawing of a mechanical device with no visible text or symbols

34

Illustration of a hand using a blue mechanical component to adjust a car's seat (no text or symbols visible)

35

Diagram of a car's internal components with arrows indicating flow or movement, no text or symbols present

36

Diagram showing a device's internal structure with labeled component '1' and directional arrow indicating assembly or operation.

The image is too blurry to recognize any text content.

Diagram of a car interior showing a blue mesh component inserted into a housing, with an upward arrow indicating direction (no text or symbols present)

38

Illustration of a hand pressing a grid on a blue computer keyboard (no text or symbols)

The image is too blurry to recognize any text content.

Diagram showing a blue showerhead spraying water onto a grid-patterned surface (no text or symbols)

40

CLICK 24 h

The image is too blurry to recognize any text content.

Diagram of a car interior showing a grid and battery pack with an upward arrow indicating flow or movement (no text or symbols present)

42

Illustration of a hand pressing down on a blue rectangular object with motion lines indicating motion (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a blue showerhead spraying water onto a rectangular surface (no text or symbols)

44

24 h

The image is too blurry to recognize any text content.

CLICK

46

Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

■ Do not connect the appliance if it has been damaged in transit. Only use this appliance:

■ With genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.

■ For cleaning surfaces.

■ In private households and in enclosed spaces in a domestic environment at room temperature.

■ Up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ For vacuum-cleaning persons or animals.
■ For vacuuming up harmful, sharp-edged, hot or burning substances.
■ For vacuuming up damp substances or liquids.
■ For vacuuming up highly flammable or explosive materials and gases.
■ For vacuuming up ash or soot from stoves and central heating systems.
■ For vacuuming up toner dust from printers and photocopiers.
■ For vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.

en Safety

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ Never pull or carry the appliance by the power cord.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 18
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.
- Connect and operate the appliance only in accordance with the specifications on the rating plate.
- Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
- The protective conductor system of the domestic electrical installation must be properly installed.
- When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
▶ Pull out the power cord completely.
- Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
- When vacuuming stairs, ensure that there are no persons underneath the appliance.
- When taking a break from vacuuming, switch off the appliance and pull out the mains plug.

▶ Retract the power cord.
- When the cord is being rewound automatically, ensure that the mains plug is not thrown in the direction of persons, body parts, animals or objects.
- Keep packaging material away from children.
▶ Do not let children play with packaging material.

Preventing material damage

▶ Never place the appliance on the hose.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
▶ Never operate the appliance without the motor protection filter.
▶ Never operate the appliance without the exhaust filter.

Overview

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

→ Fig. 1

1	Adjustable floor tool with click connection ^1
2	Hose
3	Telescopic tube with sliding switch and click connection ^1
4	Handle
5	Power cord
6	Sensor Control indicator
7	Parking aid
8	Rear flap release button
9	Rear flap
10	Handle
11	Power control and on/off switch
12	Dust container release button
13	Fluff filter

^1 Depending on the appliance specifications

14	Dust container
15	Dust container handle
16	Storage aid

^1 Depending on the appliance specifications

Operation

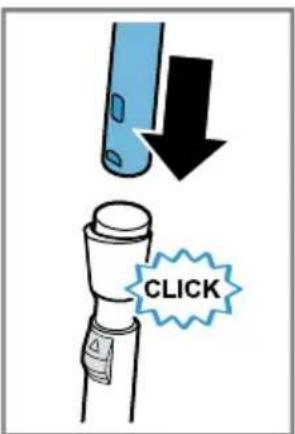

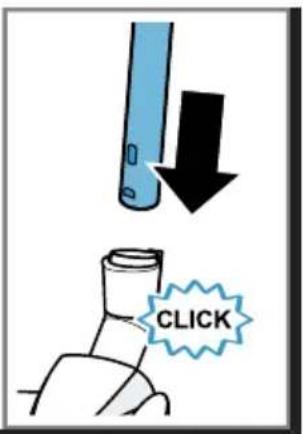

Installing the appliance

→ Fig. 2 - 5

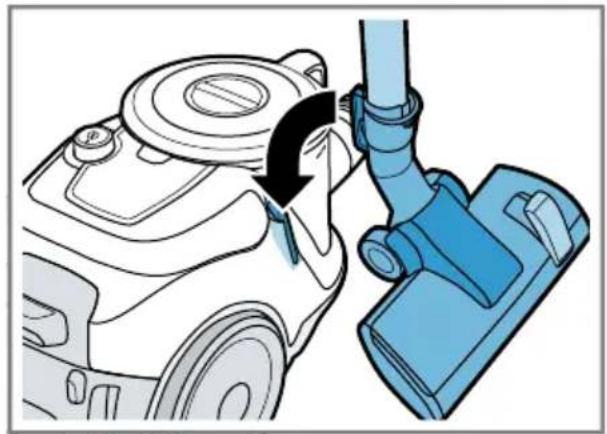

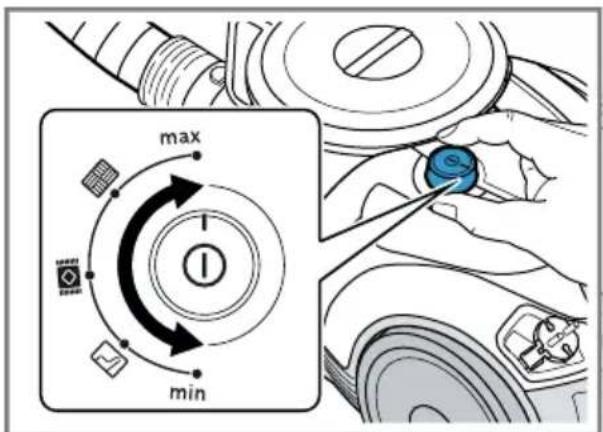

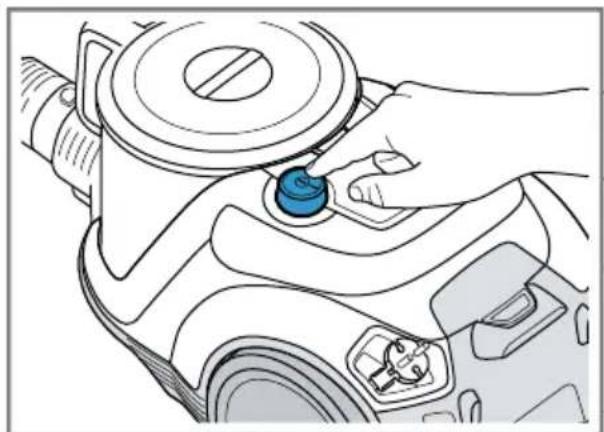

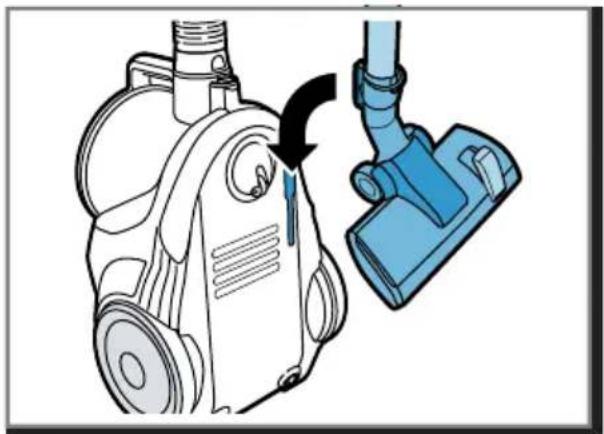

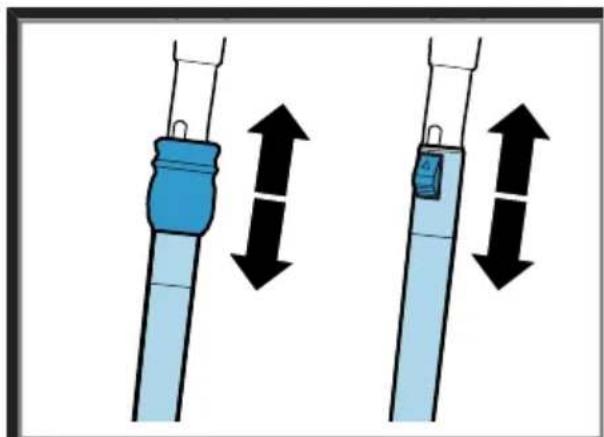

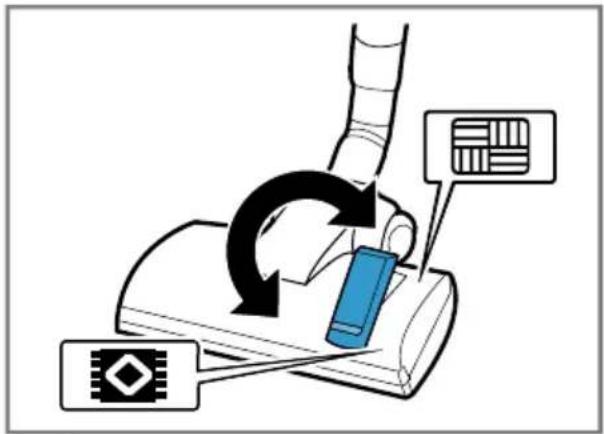

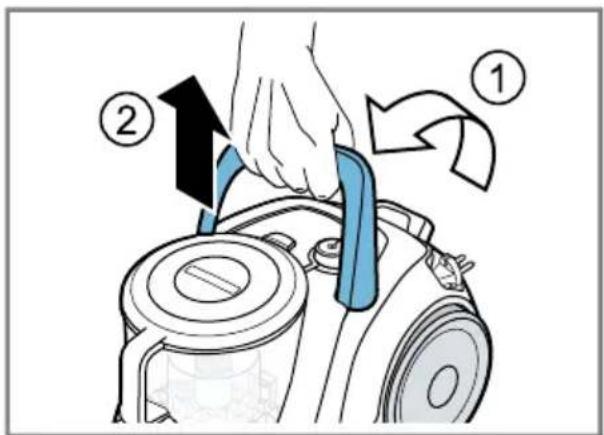

Operating the appliance

→ Fig. 6 - 14

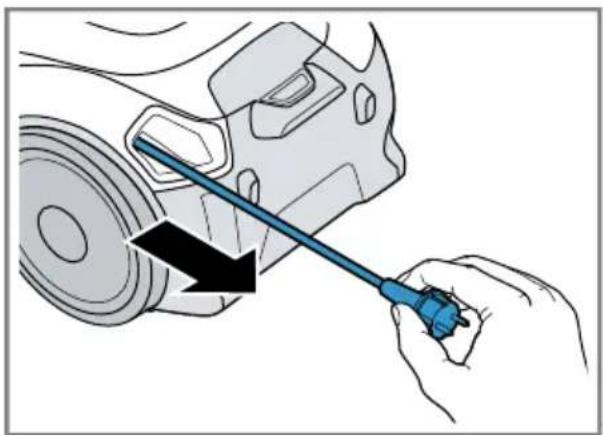

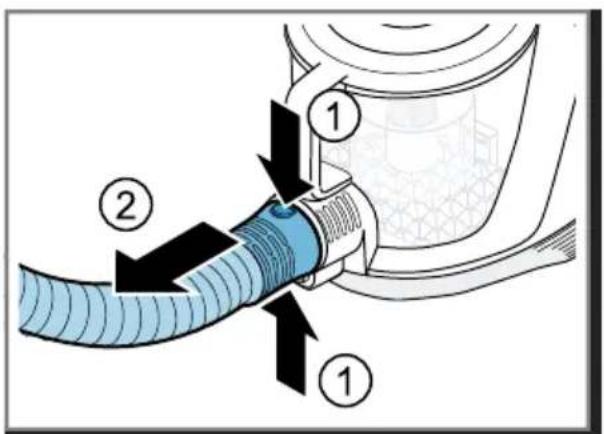

Removing the appliance

→ Fig. 15 - 17

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

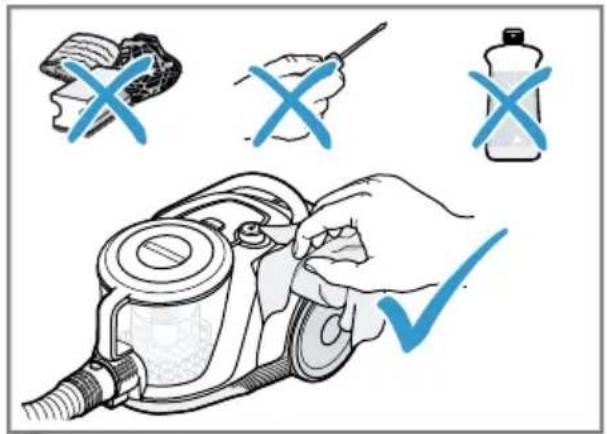

Cleaning the appliance

Requirement: The appliance is switched off.

- Clean the appliance and the accessory using a soft cloth and a commercially available plastic cleaner. → Fig. 18

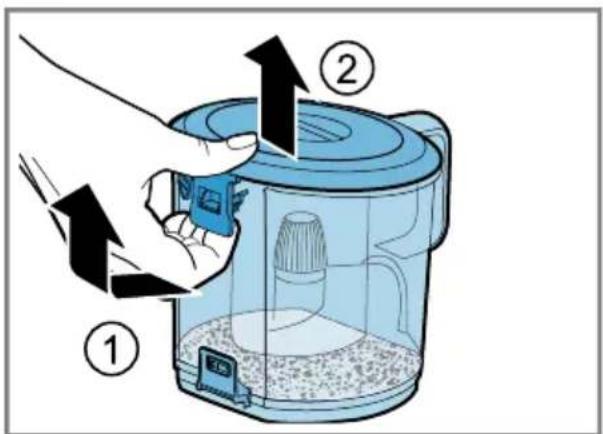

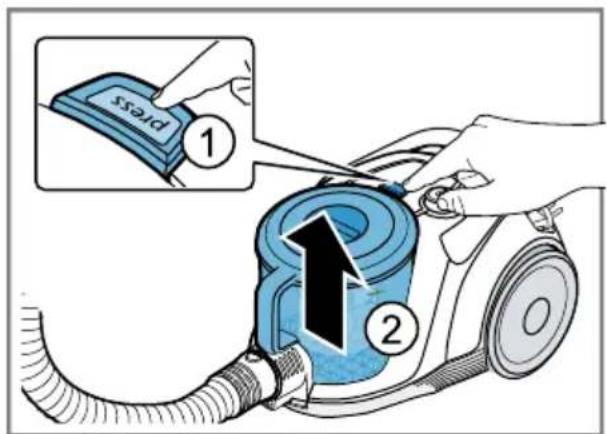

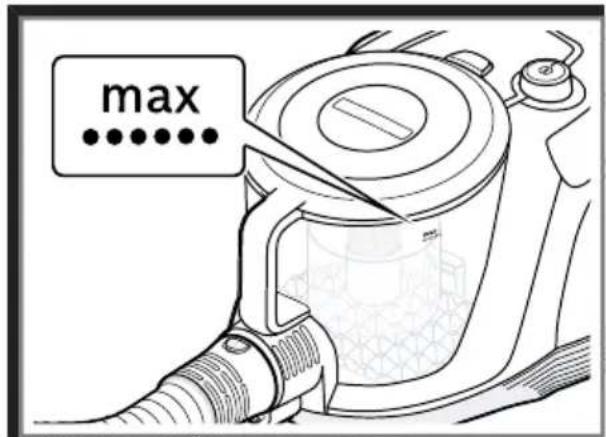

Emptying the dust container

→ Fig. 19 - 22

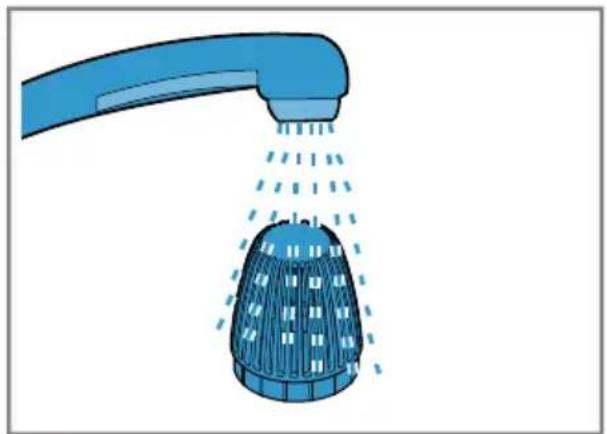

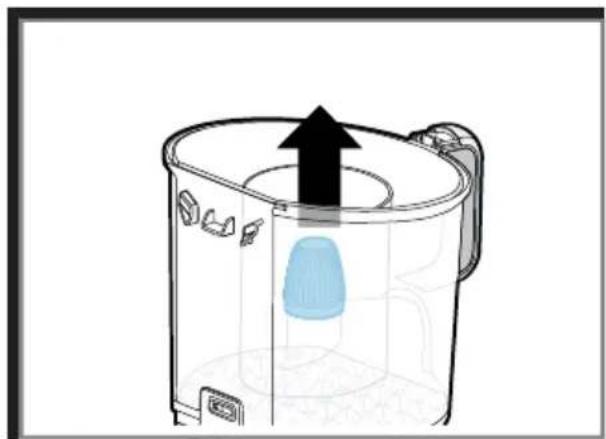

Cleaning the fluff filter

→ Fig. 23 - 25

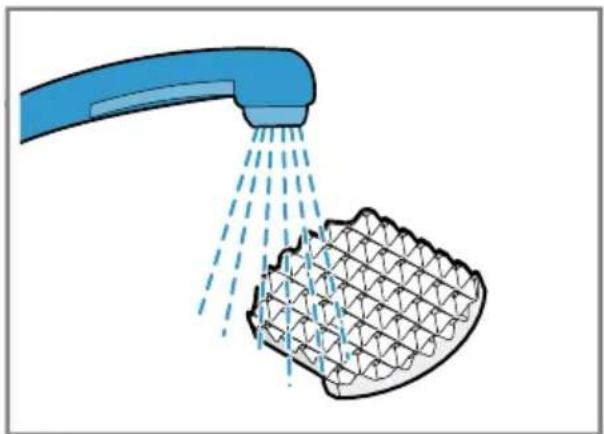

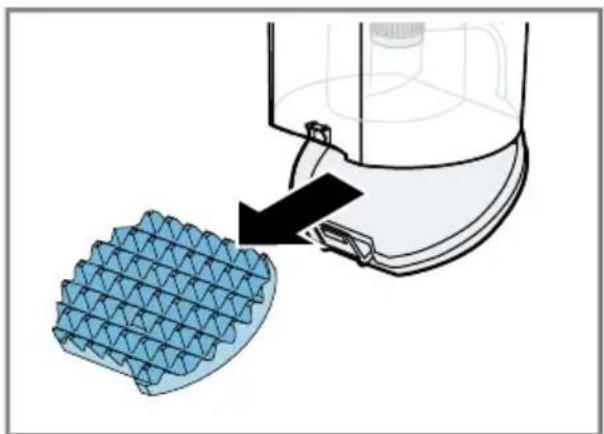

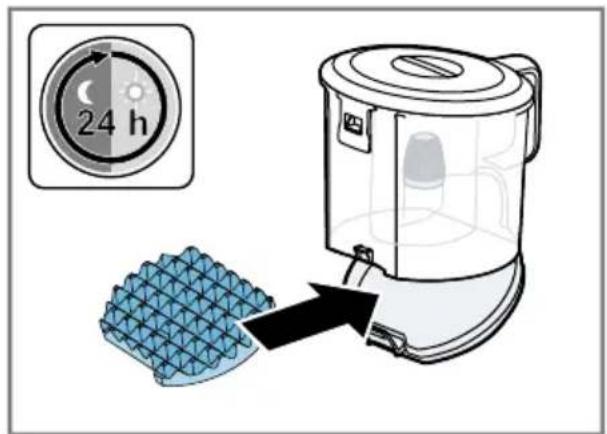

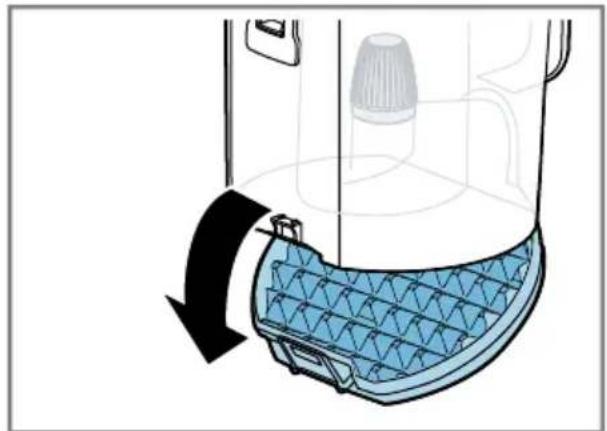

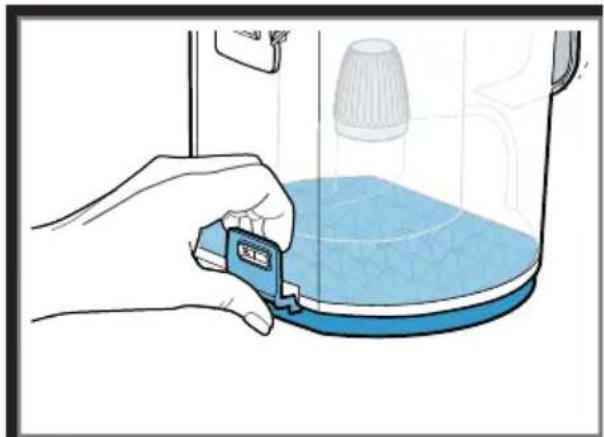

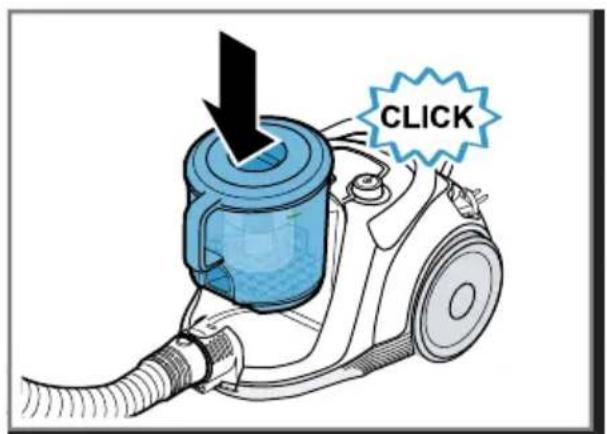

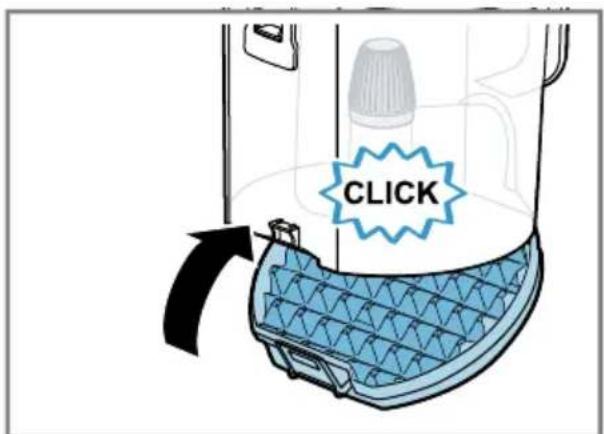

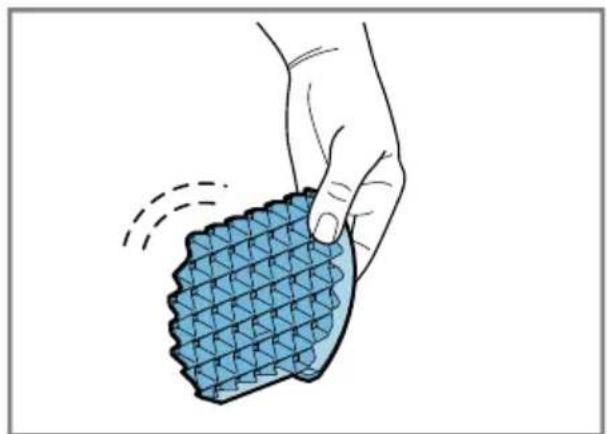

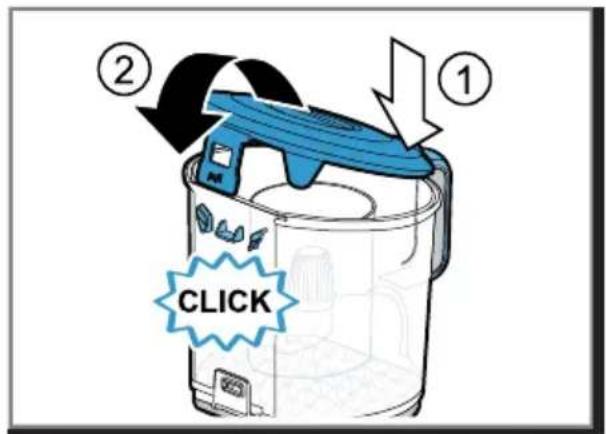

Cleaning the filter in the dust container

→ Fig. 26 - 33

en Troubleshooting

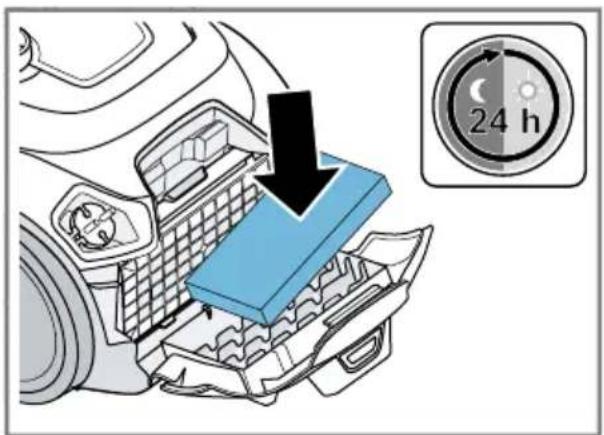

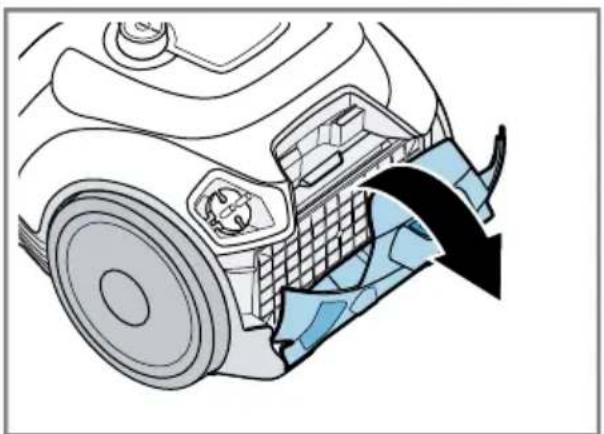

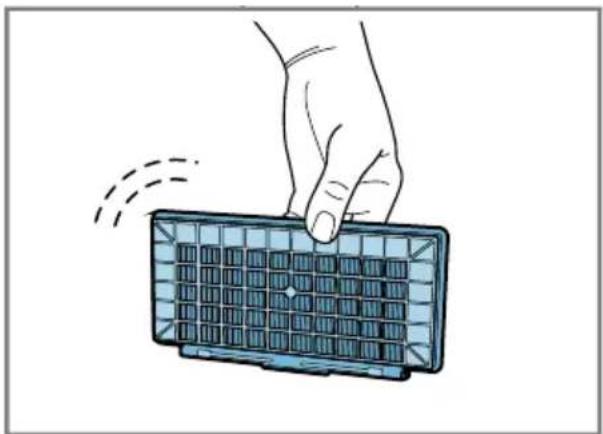

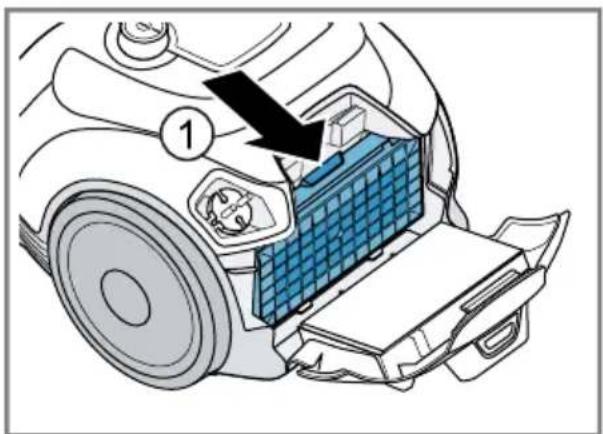

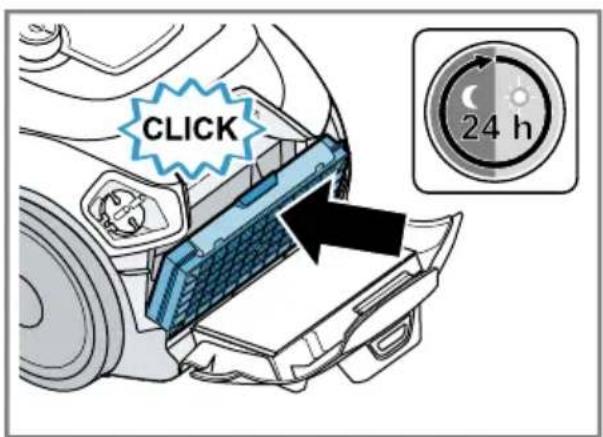

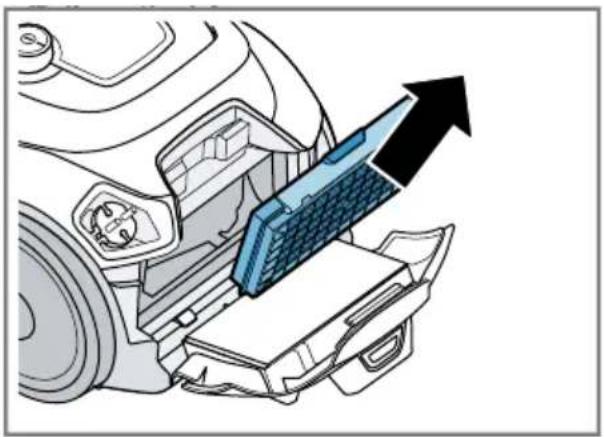

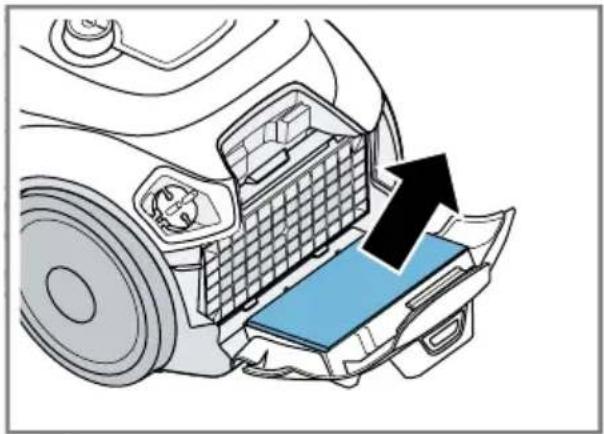

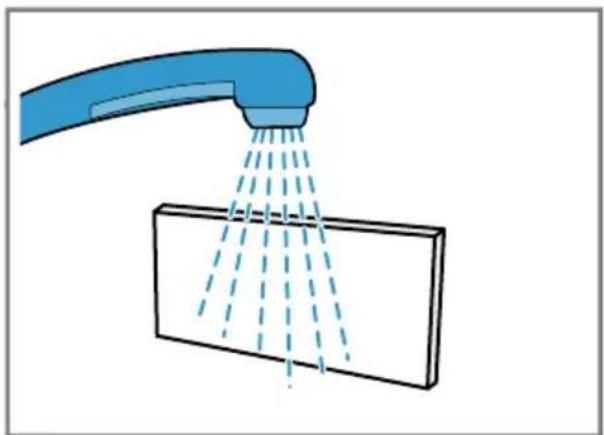

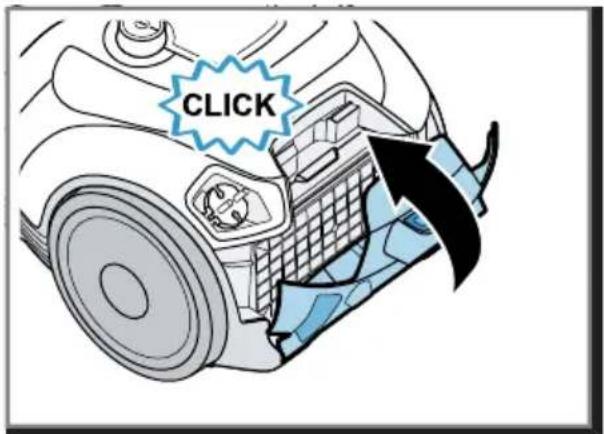

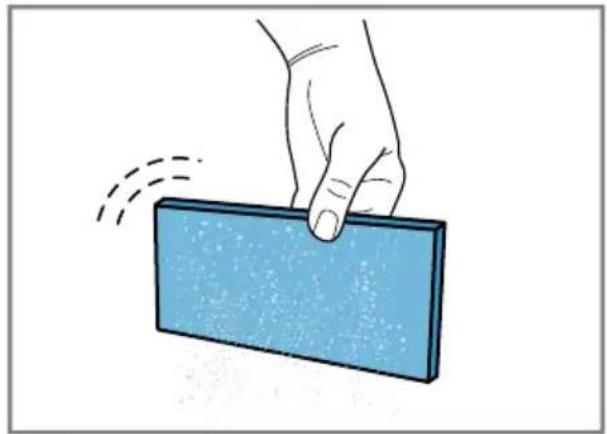

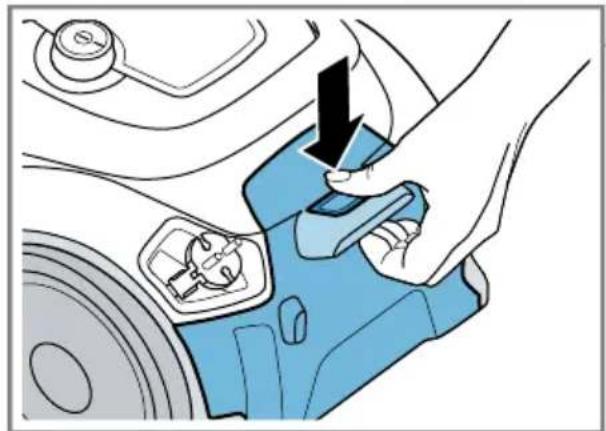

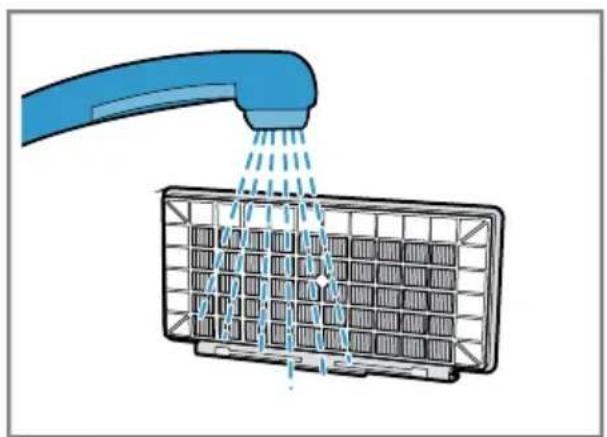

Cleaning the exhaust filter

→ Fig. 34 - 46

Troubleshooting

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

The appliance is adjusted to the lowest power level.

The Sensor Control indicator flashes red. Filter in the dust container is soiled.

1. Switch off the appliance.
2. Clean the filter in the dust container.

The appliance is adjusted to the lowest power level.

The Sensor Control indicator lights up red. Dust container is full

1. Check the fill level of the dust container.
2. Empty the dust container as needed.
   Fluff filter is soiled.

▶ Clean the fluff filter.

Brush on the turbo nozzle does not turn.

Brush roller is soiled.

▶ Clean the brush roller.

Suction power is too low.

▶ Turn the power controller to maximum suction power.

Disposing of old appliance

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
