USER MANUAL 65U740NB Kivi

Abstract blue textured pattern with white and dark regions, no visible text or symbols

EN KIVI LED TV User manual

Hello there! It's me, your KIVI color LED-TV, and I will tell you how to use me safely.

If you still have any questions about my settings, functionality, or have any complaints or suggestions, please contact the support service.

To chat, scan the QR-code or call by phone numbers.

QR code with a central logo, likely linking to a digital resource or website.

CONTENTS

3 General information about me.

4 Attention!

5 Who am I? My features.

6-7 Remote control.

8 Connection ports.

9 When something goes wrong.

SPIS RTEŚCI

PRODUCT NAME	KIVI COLOR LCD TV
Warranty period	2 years
Operating temperature,°C	+15 - +35
Relative humidity while storing, %	45 - 75
Temperature while storing,°C	+5 - +40
Atmospheric pressure, KPA / mmHg	86 - 106 / 650 - 800
Relative humidity while operating, %	55 - 70
Electricity consumption in off mode	<1 W or missing

Recommendation only for countries where EU directives apply. This device complies with the standards and meets the requirements of Directive 2014/53 / EU.

* Service life – the calendar period of use of products for their intended purpose, starting from commissioning, during which the manufacturer (importer/supplier-legal entity accepts the claims) guarantees safety, ensures the possibility of its use and is responsible for any defects caused by its fault.
** The manufacturing plant depends on the state of sale. Detailed information about the origin of the product in your region can be found on the label, packaging, or product.

TO BE SAFE WITH ME:

Make sure that all screws in the supports and bracket are properly tightened.

I do not recommend using unlicensed software.

Use a certified cable with the HDMI logo.

TO TRANSPORT ME:

I will be in an upright position, full completeness and packaging. Do not place the box on the side of the display.

Hold me by the top and bottom of the body, not by the display or stand.

DON'T USE ME IF:

• The power cord, plug, or screen is damaged.
• I fallen myself or your favorite cat fallen on me.

TO USE ME EFFECTIVELY AND SAFELLY:

• Read and follow all instructions and precautions.
• If your outlet doesn't fit, please, contact a specialist.
• Please connect me to power supply using a voltage stabilizer or relay only.

TO KEEP ME CLEAN:

• Wipe me with a cloth designed for the care and maintenance of the LCD screens.
• Do not spray liquids directly on me.
• If you touch me with greasy or sticky hands, turn me off, apply screen cleaner to a microfiber cloth, and wipe me down.

Tiny black or colored spots can appear on my liquid crystal panel while in operation.

Depending on the viewing location, brightness, and color of the panel can change. And it is absolutely Okay.

CE RECO CD

This symbol indicates that I have double isolation between the mains voltage and dangerous parts for you.
Friends, unfortunately, I am not eternal. Therefore, at the end of my term, I shall be handed over to the receiving point of electrical and electronic equipment. For more detailed information about receiving and disposal points, please contact local municipal authorities or a household waste disposal company.

FEATURES

Model	32H750NB32H750NW	32F750NB32F750NW	40F750NB	43U750NB43U750NW	50U750NB	55U750NB55U750NW55U850NB	65U740NB
Diagonal screen size, inches/cm	32/81 32/81 40/102 43/109 50/127 55/140 65/165
Resolution	HD1366x768	FHD1920x1080			UHD3840x2160
USB 2.0	2				2
HDMI	3				4
HDMI	HDMI 1.4a HDMI 2.1
Wi-Fi	a/b/g/n/ac
VESA standard, mm	200x100 200x200 400x200
VESAbolts	M4 M4 M6 M6 M6 M6
Width, height, depth, mm	720x425x62	720x425x62	901x511x64	960x556x64	1116x642x61	1229x710x63	1448x830x61
Dimensions with stand, mm	720x465x180	720x464x204	901x574x240	960x620x240	1116x705x240	1229x772x260	1448x899x300
Net weight, kg	4,2 4,2 6,4 7,4		10,5 13	17,3

*Indicators of power supply, power consumption related to the operation of "Home" TV Mode, indicators mode "store" may differ upwards.
**The complete set, appearance and specifications of the product may differ or may be changed by the manufacturer without prior notice

INPUT IMPEDANCE: 75 Ω

For stable reception of digital TV channels, I recommend using an external antenna with an amplifier (the gain ratio of 30 dB or more).

NOTE:

The manufacturer, importer, or supplier are not responsible for damage to my components due to high voltage supply through the antenna port.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI and Microsoft Administrator, Inc.

Manufactured under DOLBY LABORATORIES license. The DOLBY, DOLBY AUDIO, and Double D symbols are trademarks of DOLBY and laboratories.

This product is manufactured, distributed, serviced and warranted exclusively by SHENZHEN MTC CO., LTD. "JVC" is a trademark of JVCKENWOOD Corporation, used by this company is under license. "Sound by JVC". Sound certificated by JVC.

REMOTE CONTROL (RC40) / POINTER (RC60)

Assigning keys

To put me in standby mode, turn the power off or on To put me to sleep, press briefly. To switch to standby mode, hold down the button and press OK Play/pause for RC40 remote controls Activating the pointer for RC60 remote controls Go to the previous menu Home page Sound level YouTube KIVI Media Select among input signal sources Google assistant activation menu Settings menu Move the display menu. OK - confirms the selection. When you need to agree with something Display menu Mute the sound Next or previous channels NETFLIX KIVI MEDIA MEDIA Media service

NOTE:

1 The pointer control mode is completed with models 43U750NB, 43U750NW, 50U750NB, 55U750NB, 55U750NW, 50U850NB, 55U850NB, 65U850NB.
2 The voice search function is available in the RC40/60 remote controls.
3 The manufacturer may change The complete set and appearance may differ or may be changed by the manufacturer without prior notice.
4 Remote control has CE certification.

Remote control (RC) range — up to 10 meters..

To make it work - insert the alkaline batteries and point it at me.

Do not mix new batteries with old ones, and do not leave the remote control near a heat source.

If you don't use the remote control for more than one month, get the batteries out of there.

I HAVE TO APOLOGIZE FOR SOME INCONVENIENCES!

Unfortunately, the standard Google Gboard keyboard temporarily does not support the remote control-pointer.

THEREFORE:

Open Settings using the notification window that appears when you click on the pointer button on the remote control.

Connect the Wi-Fi, log in to Google Play, and install the necessary app for the pointer to work correctly.

After installing it, click on the pointer button on the remote contro

If you have already connected me to the Internet before - wait about 5-10 minutes, while the leanback app will appear in the general list of programs (the "+" icon in the main menu).

After that, press the pointer button on the remote control

IF ANYTHING:

When using a remote control pointer in applications, not all buttons and symbols are supported.

You can adjust the speed of the pointer by pressing the buttons simultaneously:

- Speed increase - pointer button ⬆ + right;

- Speed reduction - pointer button ⬆ + left.

Detailed instructions with images are also available on the website kivismart.com, in the "24/7 support" section

CONNECTING DEVICES

I am compatible with most devices for video and audio playback and can be connected to a Bluray, game console, stereo system, etc.

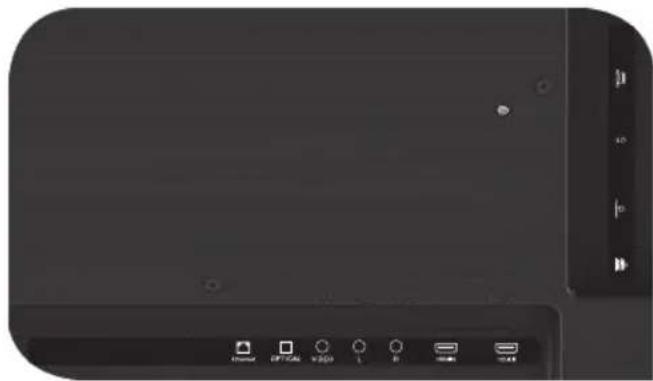

HD / FHD MODELS

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

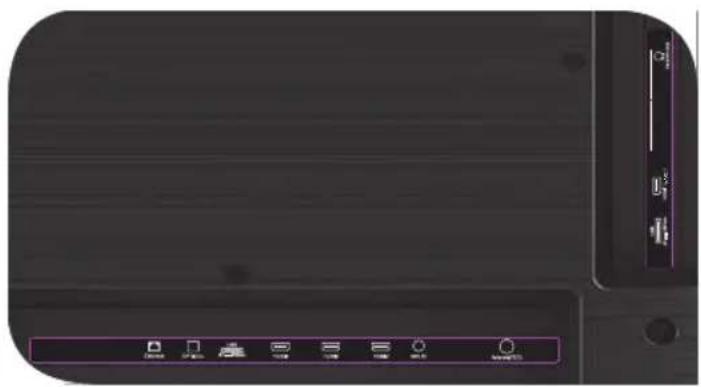

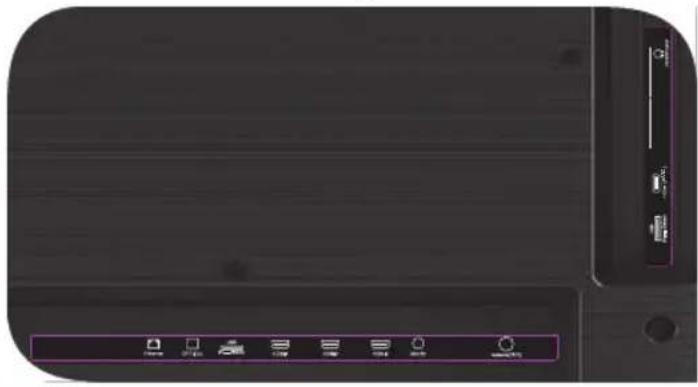

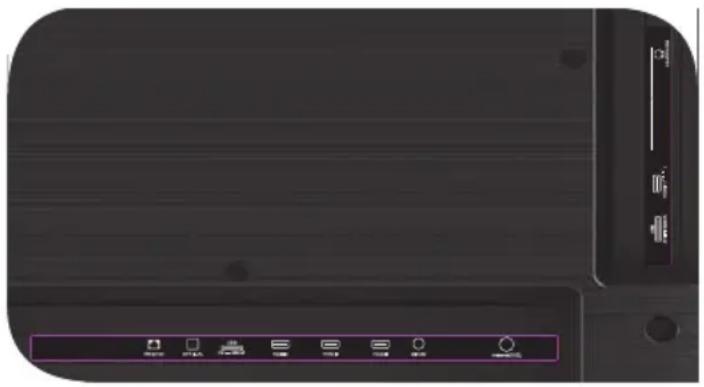

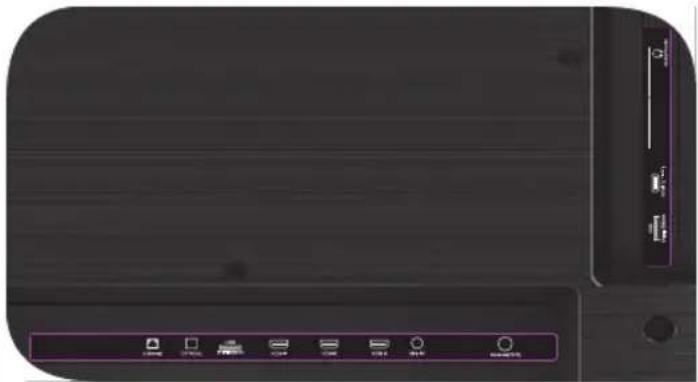

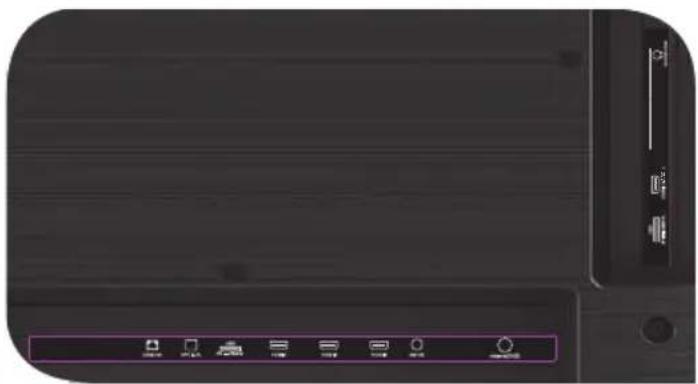

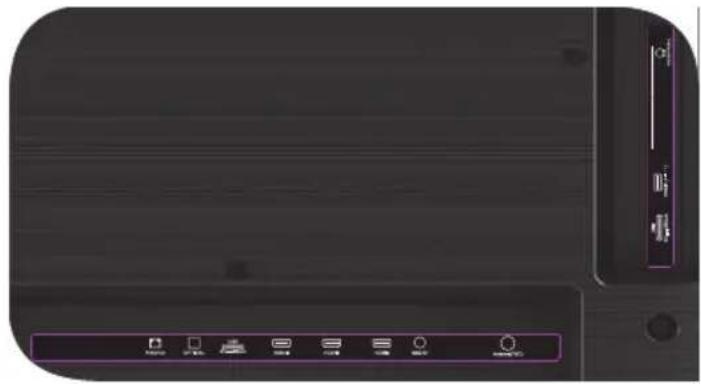

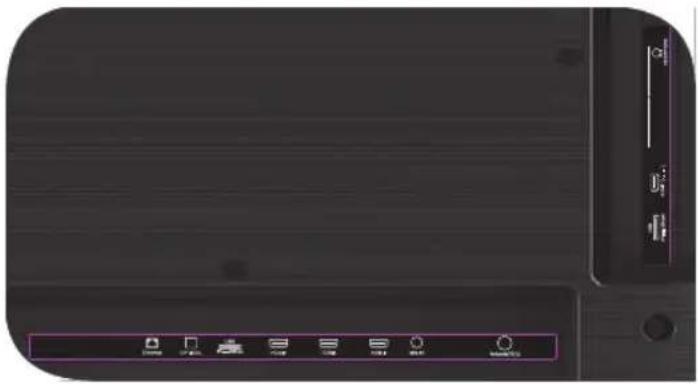

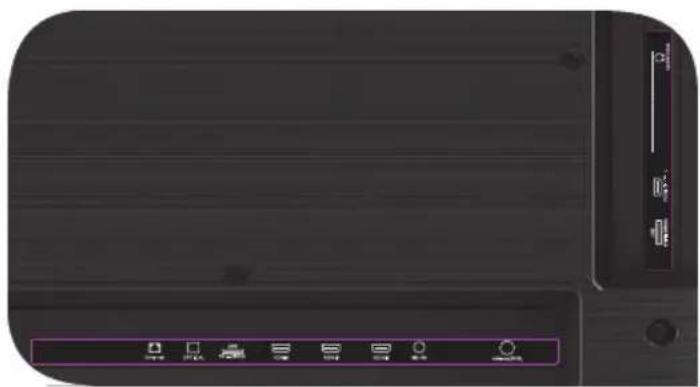

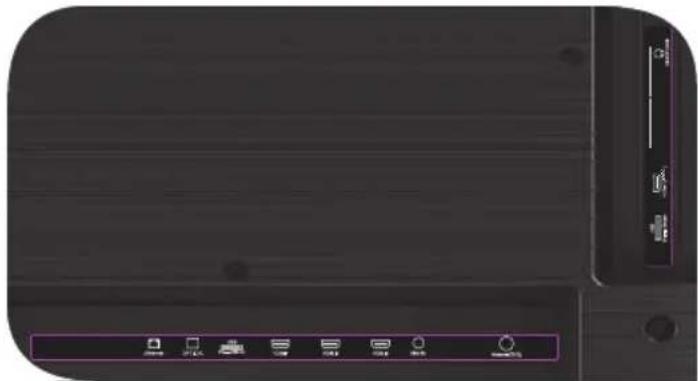

UHD MODELS

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

USB Input for USB devices (500mA) HDMI HDMI input Antenna Antenna connection port CI CAM module connection port Mini AV IN Composite audio/video input

VIDEO Composite video input LAN Ethernet input HEADPHONE Headphone output (3.5 mm) OPTICAL OUT Optical output

NOTE:

1. All external devices should not be connected after you turn me off.
2. The maximum load on the USB port should not exceed 0.5 A.
3. The TV supports ARC, CEC. 2K supports HDMI 1.4 a, 4K supports HDMI 2.1.

CONNECTING A CI CONDITIONAL ACCESS CARD

A CAM module with a CI conditional access card can be attached to a digital cable broadcasting service provider along with information for use.

The names of individual menu modes, the designations of some connectors and places of application, and the performance of individual ergonomic control functions may differ slightly from those described and depicted in this manual.

CA Card CI module (Side with the provider's brand logo) Contact side

slot TB+DVB-C authorization card CAM-module

In addition to hardware-related malfunctions, if there are any non-standard operations, power me off for 30 seconds.

Unstable or missing broadcast / cable TV signal	1. I'm on the antenna, but I cannot find channels, and I broadcast channels with image distortion or audio interruptions.	1. For stable reception of DVB-T2 (digital) and ATV (analog) signals, use an external antenna with an amplifier (gain 30 dB and more).Additional power to the antenna input is already transmitted and cannot be supplied via my USB ports.Point your antenna toward the nearest TV tower.If you are using a room antenna, raise it higher, rotate it around your own axle, and move it around the room.Make sure that you have selected an antenna in the settings ->Channel -> channel setup mode menu.Configure the channels manually.For a stable image and sound, the indicators shall be from 50% or higher.Check the integrity of the cable.
	2. I'm cable, but I don't find channels, and I broadcast channels with image distortion or audio interruptions.	2. If you are using cable TV (DVB-C) or a common house antenna, I recommend connecting without a splitter. If possible, connect me to another antenna cable.Make sure that you have selected an antenna in the Settings -> Channel -> Channel setup mode menu.Configure the channels manually.Check the integrity of the cable.Use a signal amplifier.
Sound is not played on external speakers	1. Connecting speakers via Bluetooth	1. Connect Bluetooth speakers via the Settings menu - Remote controls and accessories- Add a device.
	2. Connect speakers via HDMI	2. Connect the speakers to me via the HDMI (ARC) Jack.In the Settings menu -> Sound -> Speakers — select "External audio system". In the Settings menu -> Device Settings -> Inputs -> HDMI EDID version- set the value to "EDID 1.4".In Settings menu -> Device Settings -> Sound -> digital output - select Auto, Skip, PCM, etc.
	3. Connect speakers via AUX (3.5 mm headphone jack)	3. Make sure that the audio cable is inserted all the way into the 3.5 jack.
	4. Connecting speakers via optics	4. Attach the speakers to the OPTICAL connector.In the Settings menu -> Device Settings -> Sound -> Digital output-> select Auto, Skip, PCM, etc.Use the VOL button on the remote control to turn down the sound volume until it is completely turned off. Use the remote control from the speakers to increase the sound to the desired level.

IMPEDANCJA WEJŚCIOWA: 75 OM

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

MODELE UHD

Front view of a black electronic device with control buttons and indicator lights (no visible text or symbols)

CA Card CI module (Side with the provider's brand logo) Contact side

slot TB+DVB-C authorization card CAM-module

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

E CA Card CI module (Side with the Provider's brand logo) Contact side

slot TB+DVB-C authorization card CAM-module

CE RECOCONOMICS CD

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

MODÈLES UHD

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

CA Card CI module (Side with the provider's brand logo) Contact side

slot carte d'autorisation TB+DVB-C module CAM

PENTRU CA SĂ FIU CURAT:

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

MODELE UHD

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

CA Card CI module (Side with the provider's brand logo) Contact side

slots Autorizacijas karte TB+DVB-C CAM modulis

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

МОДЕЛИ UND

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

CA Card CI module (Side with the provider's brand logo) Contact side

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

UHD MODELLEK

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

CA Card CI module (Side with the Provider's brand logo) Contact side

ABY SE MNOU BYLO BEZPEČNO:

KIVJ nebo

VSTUPNÍ IMPEDANCE: 75 Ω

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

MODELY UHD

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

CA Card CI module (Side with the provider's brand logo) Contact side

CE RECOCONOMICS CD

CHARAKTERISTIKOS

Modelis	32H750NB32H750NW	32F750NB32F750NW	40F750NB	43U750NB	43U750NW	50U750NB	55U750NBU750NW55U850NB	65U740NB
Ekrano jstrižalnés dydis, coliai/cm	32/81 32/	81 40/102 43/	109 43/109	50/127 55/140	65/165
Raiška	HD FHD1366x768	1920x1080 3840x2160			UHD
USB 2.0 2	2
HDMI	3				4
HDMI	HDMI 1.4a			HDMI 2.1
Wi-Fi	a/b/g/n/ac
Standartas VESA, mm	200x100 200x200 400x200
Varžtu tipas VESA	M4	M4	M6	M6	M6	M6	M6	M6
Plotis, aukštis, MM	720x425x62	720x425x62	901x511x64	960x556x64	960x556x64	1116x642x61	1229x710x63	1448x830x61
Dydis su stovu, mm	720x465x180	720x464x204	901x574x240	960x620x240	960x620x240	1116x705x240	1229x772x260	1448x899x300
Svoris neto, kg	4,2	4,2	6,4	7,4	7,4	10,5	13	17,3

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

MODELIAI UHD

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

CA Card CI module (Side with the provider's brand edge) Contact side

lizdas TB+DVB-C Kortelè CAM modulis

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

MUDELID UHD

Front view of a black electronic device with control panel buttons (no readable text or symbols)

USB USB-seadmete sisend (500mA)

CA Card CI module (Side with the provider's brand logo) Contact side

pesa autoriseerimiskaart TB+DVB-C CAM-module

Front view of a black electronic device with ports and indicator lights (no readable text or symbols)

UHD MODELI

Front view of a black electronic device with indicator lights and ports (no readable text or symbols)

USB Ieeja USB iericēm (500mA) HDMI HDMI tipa ieeja Antenna Antenas savienojuma ports CI CAM moduļa savienojuma ports Mini AV IN Kompozīta audio/video ieeja

NEPOUŽÍVAJTE MA, AK:

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

MODELY UHD

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

USB Vstup pre USB zariadenia (500 mA) HDMI HDMI vstup Antenna Port na pripojenie antény CI Port na pripojenie CAM modulu Mini AV INKompozitný audio/video vstup

CA Card CI module (Side with the provider's brand logo) Contact side

slot autorizačná karta TB+DVB-C CAM-module

CE RECOCONOMICS No DOLLAR CD

TEXNIKA ΔΕΔΟΜΕΝΑ

Μοντέλο	32H750NB32H750NW	32F750NB32F750NW	40F750NB	43U750NB	43U750NW	50U750NB	55U750NBU750NW55U850NB	65U740NB
Διαγώνιο μέγεθος της οθόνης, ίντσα / εκατ.	32/81 32/	81 40/102 43/	109 43/109	50/127 55/140		65/165
Ανάλυση	HD FHD1366x768	1920x1080 3840x2160			UHD
USB 2.0 2	2
HDMI	3				4
HDMI	HDMI 1.4a			HDMI 2.1
Wi-Fi	a/b/g/n/ac
Standard VESA mm	200x100 200x200 400x200
Τύπος μπουλονιών VESA	M4	M4	M6	M6	M6	M6	M6	M6
Szerokość, Wysokość, mm	720x425 x62	720x425 x62	901x511 x64	960x556 x64	960x556 x64	1116x642 x61	1229x710 x63	1448x830 x61
Μεγέθη με βάση, χιλ.	720x465 x180	720x464 x204	901x574 x240	960x620 x240	960x620 x240	1116x705 x240	1229x772 x260	1448x899 x300
Καθαρό βάρος, κιλό	4,2	4,2	6,4	7,4	7,4	10,5	13	17,3

Front view of a black electronic device with ports and indicator lights (no readable text or symbols)

MONTELA UHD

Front view of a black electronic device with control buttons and ports (no visible text or symbols)

CA Card CI module (Side with the provider's brand logo) Contact side

CE CD © Recycle No Disposal CD

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

MODELOS
UHD

Front view of a black electronic device with control buttons and indicator lights (no readable text or symbols)

CA Card CI module (Side with the provider's brand logo) Contact side

CE RECOCONOMICS CD

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

MODELOS UHD

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

CA Card CI module (Side with the provider's brand logo) Contact side

Full troubleshooting instructions are available via the QR code.

Scan the QR code using your smartphone or Viber camera.
