USER MANUAL 65U730QB Kivi

EN KIVI LED TV User manual

Hello there! It's me, your KIVI color LED-TV, and I will tell you how to use me safely.

QR code with central Facebook logo, likely linking to a digital resource or website

	CONTENTS	EN
3	General information about me. Attention! Who am I? My features. Remote control. Connection ports. When something goes wrong.
5
6
7
8
	СЪДЪРЖАНИЕ	BG
9	Обща информация за мен. Внимание! Кой съм аз? Монте характеристики. Дистанционно. Портове за свързване. Когато нещо се обърка.
10
11
12
13
14
	OBSAH	CS
15	Obecné informace o mně. Pozor! Kdo jsem? Moje charakteristiky. Dálkové ovládání. Spojovací porty. Když se něco pokazilo.
16
17
18
19
20
	INHALT	DE
21	Allgemeine Informationen über mich. Achtung! Wer bin ich? Meine Eigenschaften. Fernbedienung. Verbindungsports. Wenn etwas schief läuft.
22
23
24
25
26
	ПЕПЕХОМENO	EL
27	Гевикёс плпрофоріес για εμένα. Прогохні! Поїос еімай? Та характпrietкá μου. Тлдесетпротрію. Оурес оудесп. Cuando algo anda mal.
28
29
30
31
32
	CONTENIDO	ES
33	Información general sobre mí. Atención! Quién soy! Mis especificaciones. Mando a distancia. Puertos de conexión. Cuando algo anda mal.
34
35
36
37
38
	SISUKORD ET	ET
39	Üldteave minu kohta. Tähelepanu! Kes mina olen? Minu omadused Kaugjuht. Ühenduspordid. Juhul kui midagi läks valesti.
40
41
42
43
44
	SOMMAIRE	FR
45	Informations générales sur moi. Attention! Qui suis-je? Mes caractéristiques. Télécommande. Ports de connexion. En cas de problème.
46
47
48
49
50
	SADRŽAJ	HR
51	Opći podaci o meni. Pažnja! Tko sam ja? Moje osobine. Daljinski upravljač. Priključni priključci. Kad nešto krene po zlu.
52
53
54
55
56
	TARTALOM	HU
57	Általános információ rólam. Figyelem! Ki vagyok én? Jellemzóim. Távirányító. Csatlakoztató portok. Ha valami nem úgy sült el.
58
59
60
61
62
	CONTENUTI	IT
63	Informazioni generali su di me. Attenzione! Chi sono? Le mie caratteristiche. Telecomando. Porte di connessione. Quando qualcosa va storto.
64
65
66
67
68

	TURINYS	LT
69	Bendra informacija apie mane
70	Dèmesio!
71	Kas aš? Mano charakteristikos.
72	Tâlvadības pults.
73	Prijungimo prievadai.
74	Kai kažkas nesigauna.
	SATURS	LV
75	Vispārīga informācija par mani.
76	Uzmanību!
77	Kas es esmu? Mani raksturojumi.
78	Nuotolinio pultas.
79	Savienojuma porti.
80	Kad kaut kas nogāja greizi.
	WERREJ	MT
81	Informazzjoni generali dwari.
82	Attenzjoni!
83	Min jiena? Il-karatteristici tieghi.
84	Kontroll mill-bogħod.
85	Ports tal-konnessjoni.
86	Meta tigri xi ħağa ħažina.
	SPIS RTEŚCI	PL
87	Ogólne informacje o mnie.
88	Uwaga!
89	Kim jestem? Moje cechy.
90	Pilot.
91	Porty połączeń.
92	Kiedy coś poszło nie tak.
	CONTEÚDO	PT
93	Informação geral sobre mim.
94	Atenção!
95	Quem sou! Minhas especificações.
96	Controle remoto.
97	Portos de conexão.
98	Quando algo anda mal.
	CONTINUT	RO
99	Informații generale despre mine.
100	Atenție!
101	Cine sunt eu? Caracteristicile mele.
102	Telecomanda.
103	Porturi de conectare.
104	Ceva nu a mers bine.
	СОДЕРЖАНИЕ	RU
105	Общая информация обо мне.
106	Внимание!
107	Кто я? Мои характеристики.
108	Пульт.
109	Порты подключения.
110	Когда что-то пошло не так.
	OBSAH	SK
111	Všeobecné informácie o mne.
112	Upozornenia!
113	Kto som? Moje vlastnosti.
114	Dialkové ovládanie.
115	Pripojovacie porty.
116	Ked' sa niečo pokazí.
	VSEBINA	SL
117	Splošne informacije o meni.
118	Pozor!
119	Kdo sem jaz? Moje lastnosti.
120	Daljinski upravljalnik.
121	Priključna vrata.
122	Ko gre kaj narobe.
	ЗМИСТ	UA
123	Загальна інформація про мене.
124	Увага!
125	Хто я? Мої характеристики.
126	Пульт.
127	Порти підключення.
128	Коли щось пішло не так.

PRODUCT NAME	KIVI COLOR LCD TV
Warranty period *
Operating temperature, °C	+15 - +35
Relative humidity while storing, %	45 - 75
Temperature while storing, °C	+5 - +40
Atmospheric pressure, KPA / mmHg	86 - 106 / 650 - 800
Relative humidity while operating, %	55 - 70
Electricity consumption in off mode	<1 W or missing

Recommendation only for countries where EU directives apply. This device complies with the standards and meets the requirements of Directive 2014/53 / EU.

*You can find information about the warranty period in the corresponding language of your country. The warranty period may be changed according to the update in the warranty legislation of the country.

TO BE SAFE WITH ME:

Make sure that all screws in the supports and bracket are properly tightened.

I do not recommend using unlicensed software.

Use a certified cable with the HDMI logo.

TO TRANSPORT ME:

I should be in upright position, fully complete and packaged. Do not place the box on the side of the display.

Hold me by the top and bottom of the body, not by the display or stand.

kivismart.com

DON'T USE ME IF:

• The power cord, plug, or screen is damaged.
• I fallen myself or your favorite cat fallen on me.

TO USE ME EFFECTIVELY AND SAFELYS:

• Read and follow all instructions and precautions.
• If your outlet doesn't fit, please, contact a specialist.
• Please connect me to power supply using a voltage stabilizer or relay only.

TO KEEP ME CLEAN:

• Wipe me with a cloth designed for the care and maintenance of the LCD screens.
• Do not spray liquids directly on me.
• If you touch me with greasy or sticky hands, turn me off, apply screen cleaner to a microfiber cloth, and wipe me down.

NOTE:

Do not place me on unstable or vibrating surfaces, or under TV objects that reflect and absorb sound.

Tiny black or colored spots can appear on my liquid crystal panel while in operation.

Depending on the viewing location, brightness, and color of the panel can change. And it is absolutely Okay.

This symbol indicates that I have double isolation between the mains voltage and dangerous parts for you.
Friends, unfortunately, I am not eternal. Therefore, at the end of my term, I shall be handed over to the receiving point of electrical and electronic equipment. For more detailed information about receiving and disposal points, please contact local municipal authorities or a household waste disposal company.

FEATURES

Model	32H730QB32H735QB			43U730QB5	DU730QB40F	730QB730QB	QB730QB
Diagonal screen size, inches/cm	32/81	40/102 43/10943/109			50/127 55/140 65/165
Resolution	HD1366x768	FHD1920x1080		UHD3840x2160
USB 2.0	2			2
HDMI	2			3
HDMI	HDMI 1.4			HDMI 2.0/2.1
Wi-Fi	a/b/g/n/ac
VESA standard, mm	200x200 400x200 300x300
VESA screws	M4 M4 ST		M6	M6 M6	M6		M6
Width, height, depth, mm	720x427x68	893x509x82	958x558x72	958x558x72	1112x642x70	1228x711x73	1445x832x90
Dimensions with stand, mm	720x477x223	893x561x198	958x610x228	958x610x228	1112x693x299	1228x763x299	1445x885x300
Net weight, kg	3,9	5,66,7	6,7		10,1	12,8	15,3

NOTE:

The complete set, appearance and specifications of the product may differ or may be changed by the manufacturer without prior notice.

INPUT IMPEDANCE: 75 Ω

For stable reception of digital TV channels, I recommend using an external antenna with an amplifier (the gain ratio of 30 dB or more).

NOTE:

The manufacturer, importer, or supplier are not responsible for damage to my components due to high voltage supply through the antenna port.

Dolby Audio

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI and Microsoft Administrator, Inc. Manufactured under DOLBY LABORATORIES license. The DOLBY, DOLBY AUDIO, and Double D symbols are trademarks of DOLBY and laboratories.

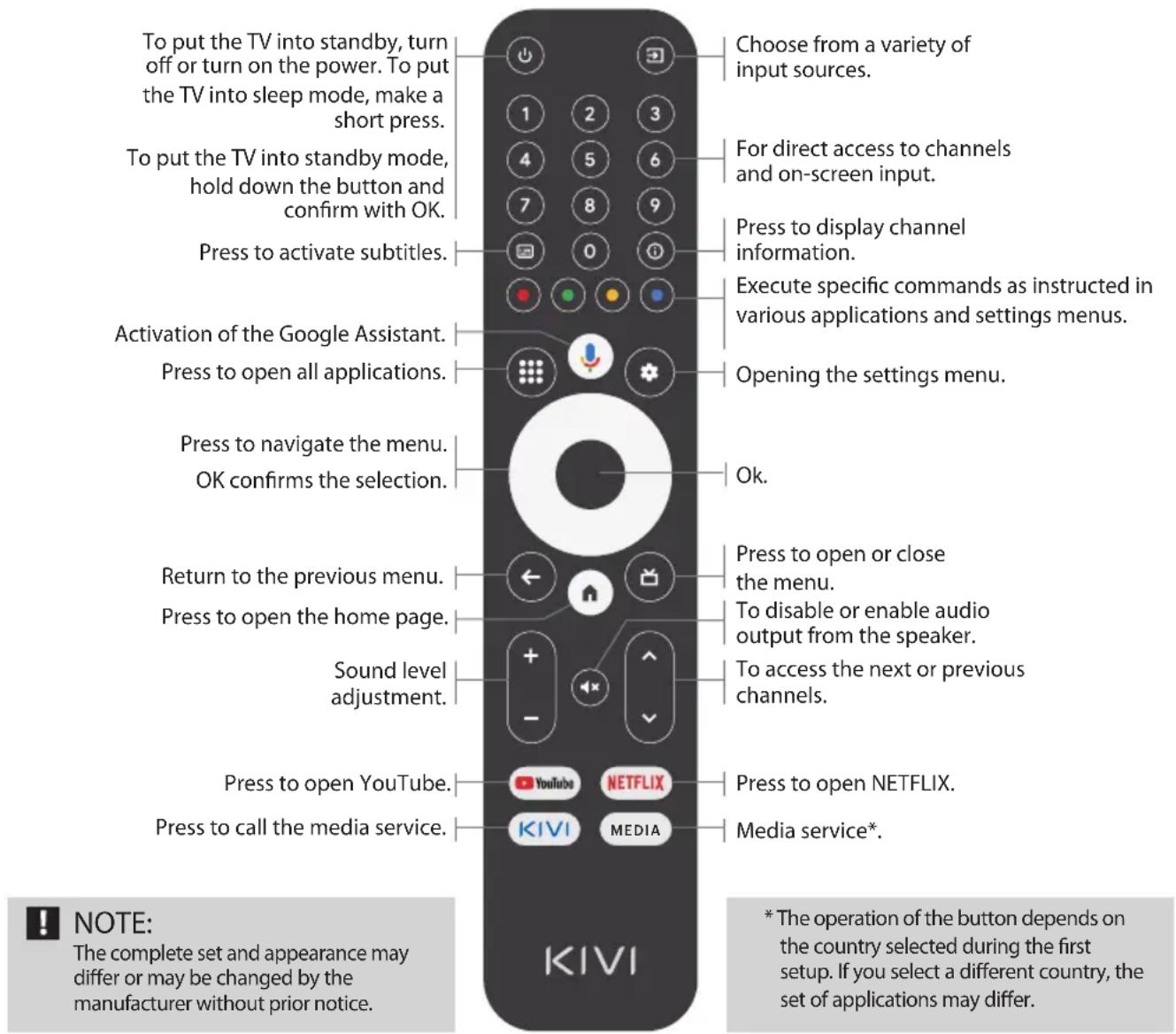

REMOTE CONTROL (RC45)

Key assignment:

To put the TV into standby, turn off or turn on the power. To put the TV into sleep mode, make a short press. To put the TV into standby mode, hold down the button and confirm with OK. Press to activate subtitles. Activation of the Google Assistant. Press to open all applications. Press to navigate the menu. OK confirms the selection. Return to the previous menu. Press to open the home page. Sound level adjustment. Press to open YouTube. Press to call the media service. Choose from a variety of input sources. For direct access to channels and on-screen input. Press to display channel information. Execute specific commands as instructed in various applications and settings menus. Opening the settings menu. Press to open or close the menu. To disable or enable audio output from the speaker. To access the next or previous channels. Press to open NETFLIX. Press to open KIVI Media service*. NOTE: The complete set and appearance may differ or may be changed by the manufacturer without prior notice. * The operation of the button depends on the country selected during the first setup. If you select a different country, the set of applications may differ.

Remote control (RC) range — up to 10 meters.

To make it work - insert the alkaline batteries and point it at me.

Do not mix new batteries with old ones, and do not leave the remote control near a heat source.

If you don't use the remote control for more than one month, get the batteries out of there.

CONNECTING DEVICES

I am compatible with most devices for video and audio playback and can be connected to a Blu-ray, game console, stereo system, etc.

HD MODELS

ETHERNET HDMI 2 HDMI 1(ARC) ANTENNA (75Ω) MINI AV USB (5V, 500mA) OPTICAL

FHD MODELS

ETHERNET USB (5V, 500mA) HDMI 2 HDMI 1(ARC) ANTENNA (75Ω) MINI AV OPTICAL

UHD MODELS

ANTENNA (75Ω) ETHERNET HDMI 3 HDMI 2 HDMI 1(ARC) USB (5V, 500mA) MINI AV OPTICAL

or

USB (5V, 500mA) ETHERNET ANTENNA (75Ω) HDMI 3 HDMI 2 HDMI 1(ARC) OPTICAL MINI AV HEADPHONE

USB Input for USB devices (500 mA)

HDMI HDMI input

Antenna Antenna connection port

CI CAM module connection port

Mini AV Composite audio/video input-UHD

VIDEO Composite video input

ETHERNET Ethernet input

HEADPHONE Headphone output (3.5 mm)

OPTICAL Optical output

NOTE:

1. All external devices should not be connected after you turn me off.
2. The maximum load on the USB port should not exceed 0.5 A.
3. The TV supports ARC, CEC. 2K supports HDMI 1.4 a, 4K supports HDMI 2.1 and eARC.

CONNECTING A CI CONDITIONAL ACCESS CARD

A CAM module with a CI conditional access attached to a digital cable broadcasting service provider along with information for use.

The names of individual menu modes, the designations of some connectors and places of application, and the performance of individual ergonomic control functions may differ slightly from those described and depicted this manual.

card can be CA Card CI module (Slide with the Provider's brand logo) Contact side

slot draded in in TV + DVB-C authorization card CAM-module

In addition to hardware-related malfunctions, if there are any non-standal power me off for 30 seconds.

Unstable or missing broadcast/cable TV signal	I have an antenna connected, but I can't find channels, shows channels with distortion or sound interruptions	For stable reception of DVB-T2 (digital) and ATV (analog) signals - use an external antenna with an amplifier with an additional power supply.Additional power supply of the antenna input is not provided from the side of the TV and USB connectors.Point the antenna towards the nearest TV tower.If you use a room antenna, raise it higher, pay attention around your own axis and move the room.Make sure that the correct input source is selected - Antenna or Analog TV.Adjust the channels manually (with manual adjustment, the level and quality of the signal will be displayed).For the stability of the image and sound, the indicators should be from 50% to higher.Check the integrity of the cable.
	I have cable TV connected, but I can't find channels, shows channels with distortion or sound interruptions	When using cable TV (DVB-C), I recommend connecting without using a splitter. Connect me to another antenna cable if possible.Make sure the correct input source is Cable TV.Adjust the channels manually (with manual adjustment, the level and quality of the signal will be displayed).Check the integrity of the cable.Use a signal booster.
No sound is output to external speakers	Connecting speakers via Bluetooth	Connect Bluetooth speakers via the menu Settings → Remote controls and accessories → Add devices.Enable visibility / sync mode on the external device.
	Connecting speakers via HDMI	Connect the speakers to me via the HDMI (ARC) connector.In Settings → Device Settings → Input Sources → HDMI EDID Version → select the EDID value.In Settings → Device Settings → Sound → Digital Output → select Auto, Skip, PCM, etc.
	Connection of acoustics through the 3.5 connector for headphones	Make sure the audio cable is fully inserted into the 3.5 jack.
	Connecting acoustics through optics	Connect the speakers to the OPTICAL jack.In Settings → Device Settings → Sound → Digital Output → select Auto, Skip, PCM, etc.Use the VOL button on the remote control to reduce the sound volume until it is completely turned off.The remote from the acoustics will increase the sound to the required level.
The image from the PC / game console is not displayed	An external device is connected to me via HDMI, there is no image, the inscription “No signal”	Check the performance and version of the HDMI cable on another compatible device.HDR and 4K (Ultra HD) content can be transmitted via HDMI 2.0 and higher. Only UHD KIVI models are supported.► HDR. Go to Settings → Device settings → Picture → HDR → select On.► 4K (Ultra HD). In Settings → Device Settings → Input Sources → HDMI EDID Version → select EDID 2.0 or EDID 2.1.On a PC, change the resolution in the control menu of the video driver, and select the appropriate image broadcast mode.In the settings of the game console, configure the corresponding menu items according to the manufacturer's instructions.
No or unstable Internet connection	I am connected to a Wi-Fi or Ethernet network with no Internet access	Turn off the TV and router from the outlet for 1 minute.Check and set the correct date and time in Settings → Device settings → Date and time.

Detailed instructions with images are also available on the website kivismart.com, in the "Support" section

CE RECOCONOMICS CD

ABY SE MNOU BYLO BEZPEČNO:

VSTUPNÍ IMPEDANCE: 75 Ω

CE RECOCONOMICS CD

CE RECOCONOMICS CCTV CD No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Line No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dashed-Like No Dotted Line

CE RECO Recycle Bin CD

Three black-and-white icons: a square, a recycling symbol, and a waste bin (no text or labels)

Dan is-simbolu jindika li ghandi izolament doppju bejn il-vultagg tal-mains u l-partijiet perikoluzi ghalik.
Hbieb, sfortunatament, jien m'inix etern. Ghaldaqstant, fit-tmiem tat-terminu tieghi, jien se ninghata lil punt ta' riceviment ta' taghmir elettriku u elettroniku. Ghal informazzjoni aktar dettaljata dwar punti ta' riceviment u rimi, jekk jogħgbok ikkuntattja lill-awtoritajiet municipali lokali jew kumpanija għar-rimi tal-iskart domestiku.

KARATTERISTIĆI

Mudell	32H730QB32H735QB			43U730QB5	DU730QB40F735QB730QB6	QB730QB
Daqs dijagonali tal-iskrin, pulzieri/cm	32/81	40/102 43/10943/109			50/127 55/140 65/165
Rizoluzzjoni	HD1366x768	FHD1920x1080		UHD3840x2160
USB 2.0	2			2
HDMI	2			3
HDMI	HDMI 1.4			HDMI 2.0/2.1
Wi-Fi	a/b/g/n/ac
Standard VESA, mm	200x200 400x200 300x300
Viti VESA	M4 M4 ST		M6	M6 M6	M6
Wisa', gholi, fond, mm	720x427x68	893x509x82	958x558x72	958x558x72	1112x642x70	1228x711x73
Dimensjonijiet bl-istand, mm	720x477x223	893x561x198	958x610x228	958x610x228	1112x693x299	1228x763x299
Piž nett, kg	3,9	5,66,7	6,7		10,1	12,8

NOTA:

Is-sett komplet, id-dehra u l-ispecifikazzjonijiet tal-prodott jistghu jkunu differenti jew jistghu jigu mibdula mill-manifattur minghajr avviż minn qabel.

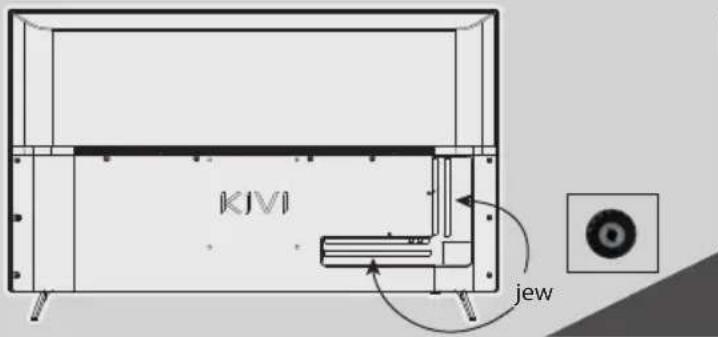

INSTALLA L-ANTENNA TIEGHI KIF MURI HAWN TAHT

KIVI jew

IMPEDANZA TAL-INPUT: 75 Ω

CE CO2 RECO WATERBING

! UWAGA:

IMPEDANCJA WEJŚCIOWA: 75 OM

CONTROLE REMOTO(RC45)

PENTRU CA SĂ FIU CURAT:

Three black-and-white icons: a square, a recycling symbol, and a waste bin (no text or symbols)

NOTĂ:

Three black-and-white icons: a square, a recycling symbol, and a trash bin (no text or labels)

! ПРИМЕЧАНИЕ:

NEPOUŽÍVAJTE MA, AK:

CE RECOCONOMICS CCT No DEDUCATION CD

NE MOREM BITI UPORABLJEN, ČE:

Full troubleshooting instructions are available via the QR code.

Scan the QR code using your smartphone or Viber camera.
