USER MANUAL 81570 DeLOCK

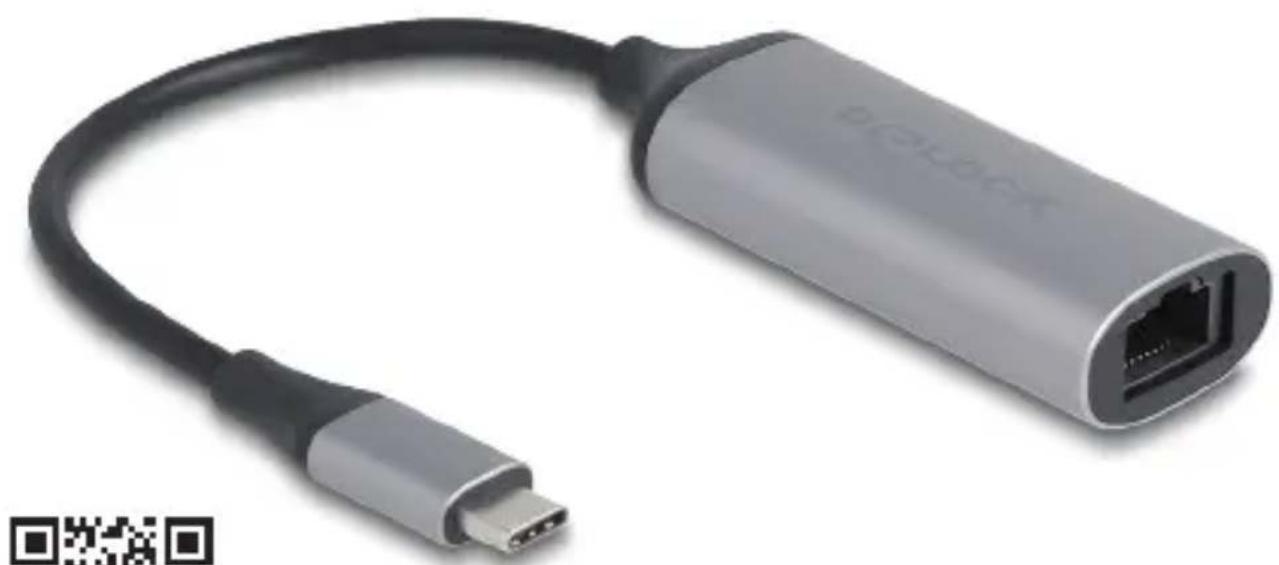

5 Gigabit LAN Adapter with USB Type-C™ interface
FC
Product-No: 81570
User manual no: 81570-a
www.delock.com
Description
The adapter by Delock expands a PC or laptop by one network interface via the USB Type-C ^TM interface.
NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps, 2,5 Gbps and 5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
Technical details
- Connectors:
1 x USB 10 Gbps USB Type-C™ male
1 x 5 Gigabit LAN RJ45 jack - Chipset: Realtek RTL8157
• Data transfer rate:
Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1000 Mbps
NBASE-T with up to 2.5 Gbps and 5 Gbps
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.1Q Virtual LAN (VLAN) - Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
• Supports 16k Jumbo Frames
• LED indicator for link and activity - USB bus powered
- Robust metal housing
- Colour: anthracite
• Cable length without connectors: ca. 15 cm - Dimensions (LxWxH): ca. 60 × 27 × 16 ~mm
System requirements
• Linux Kernel 6.5 or above
• Mac OS 14.5 or above
- Windows 10/10-64/11
- PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Package content
- USB Type-C™ 5 Gigabit LAN adapter
- User manual
Safety instructions
- Protect the product against moisture
- Protect the product against direct sunlight
Driver Installation
Windows 10/10-64/11
- Switch on your computer.
- Connect the adapter to an available USB port of your computer.
- Download the driver from the product page: https://www.delock.com/produkte/G_81570/treiber.html.
- Follow the instructions of the driver installation.
- Restart your system after the installation.
- After restart you can start using the device immediately.
Mac OS 14.5
- Switch on your computer.
- Connect the adapter to an available USB port of your computer.
- The driver will be found automatically and installed.
- You can now start to use the device.
Support Delock
If you have further questions, please contact our customer support support@delock.de
You can find current product information on our homepage:
www.delock.com
Final clause
Information and data contained in this manual are subject to change without notice in advance. Errors and misprints excepted.
Copyright
No part of this user manual may be reproduced, or transmitted for any purpose, regardless in which way or by any means, electronically or mechanically, without explicit written approval of Delock.
Edition: 10/2024
Declaration of conformity
Products with a CE symbol fulfill the EMC directive (2014/30/EU) and RoHS directive (2011/65/EU+2015/863+2017/2102), which were released by the EU-comission.
The declaration of conformity can be downloaded here: https://www.delock.de/produkte/G_81570/merkmale.html
WEEE-notice
The WEEE (Waste Electrical and Electronic Equipment)-directive, which became effective as European law on February 13th 2003, resulted in an all out change in the disposal of disused electro devices. The primarily purpose of this directive is the avoidance of electrical waste (WEEE) and at the same time the support of recycling and other forms of recycling in order to reduce waste. The WEEE-logo on the device and the package indicates that the device should not be disposed in the normal household garbage. You are responsible for taking the disused electrical and electronic devices to a respective collecting point. A separated collection and reasonable recycling of your electrical waste helps handling the natural resources more economical. Furthermore recycling of electrical waste is a contribution to keep the environment and thus also the health of men. Further information about disposal of electrical and electronic waste, recycling and the collection points are available in local organizations, waste management enterprises, in specialized trade and the producer of the device.
