USER MANUAL RT30A3000SA SAMSUNG

Free Standing Appliance

Black-and-white illustration of ice cubes with bubbles rising, no text or symbols present

SAMSUNG

Close-up of a bivalve shell with open mouth (no text or symbols visible)

Abstract black-and-white photo of a cube with water droplets and bubbles, no text or symbols present

Contents

Safety information 3

Important safety symbols and precautions: 7

Severe warning signs for transportation and site 7

Critical installation warnings 8

Installation cautions 12

Critical usage warnings 13

Usage cautions 18

Cleaning cautions 20

Critical disposal warnings 21

Additional tips for proper usage 23

Saving Energy Tips 24

Instructions about the WEEE 26

Installation 27

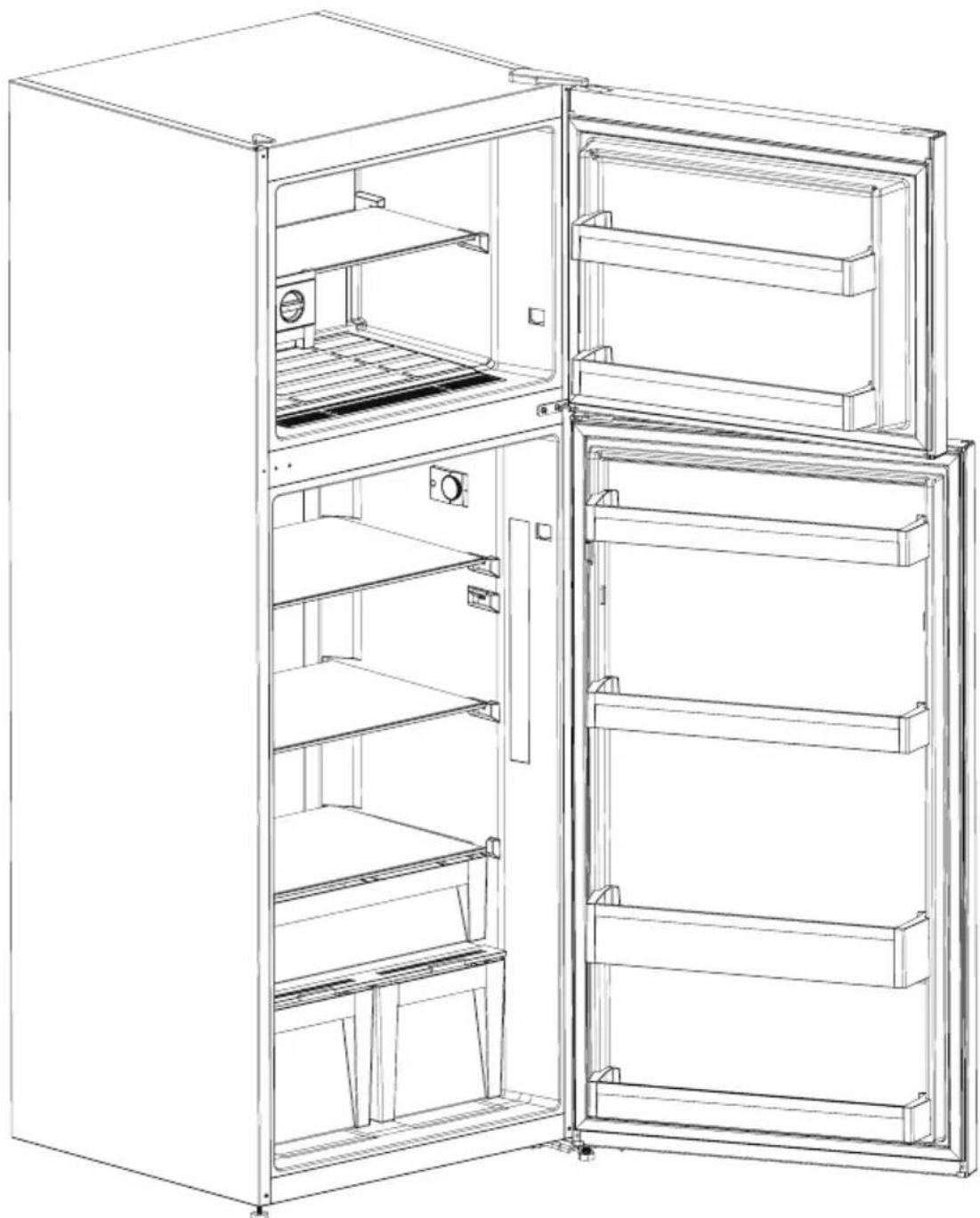

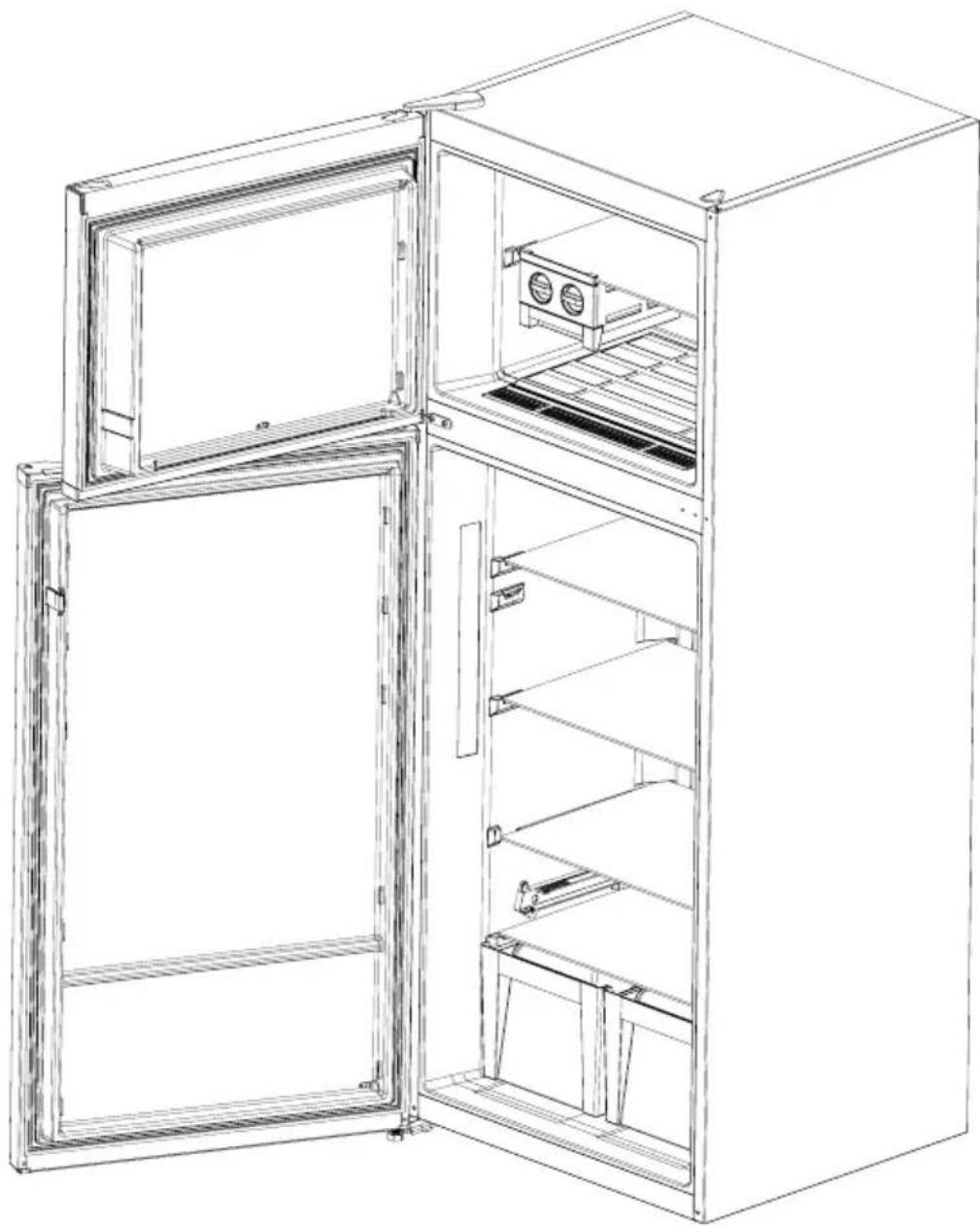

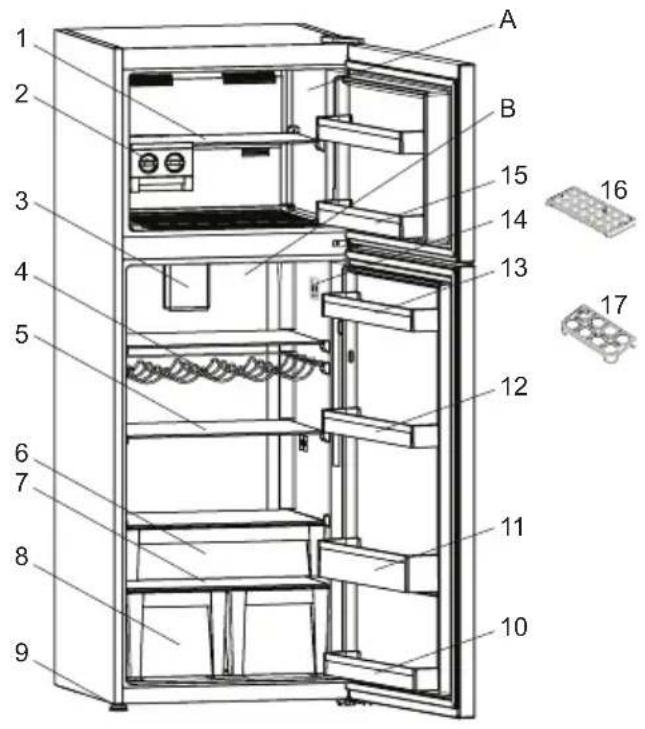

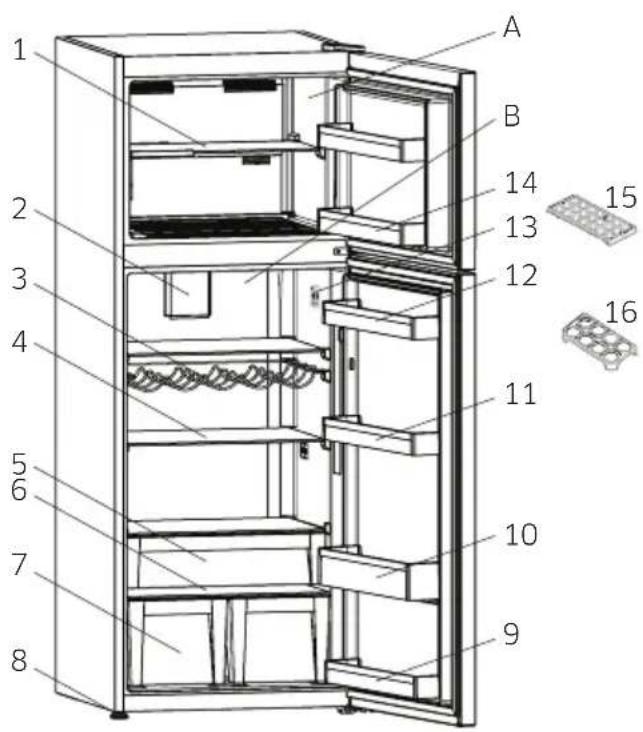

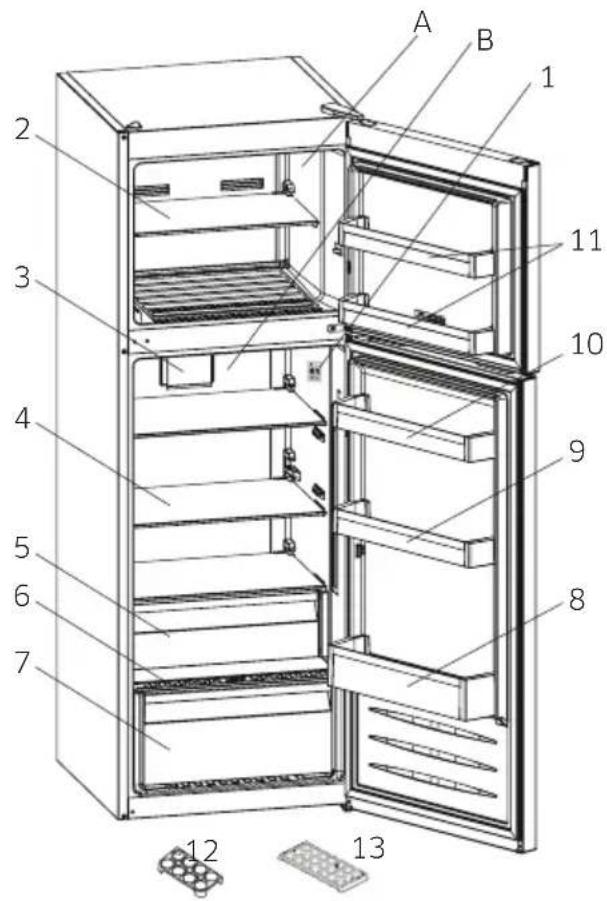

Refrigerator at a glance 31

Step-by-step installation 32

Operations 36

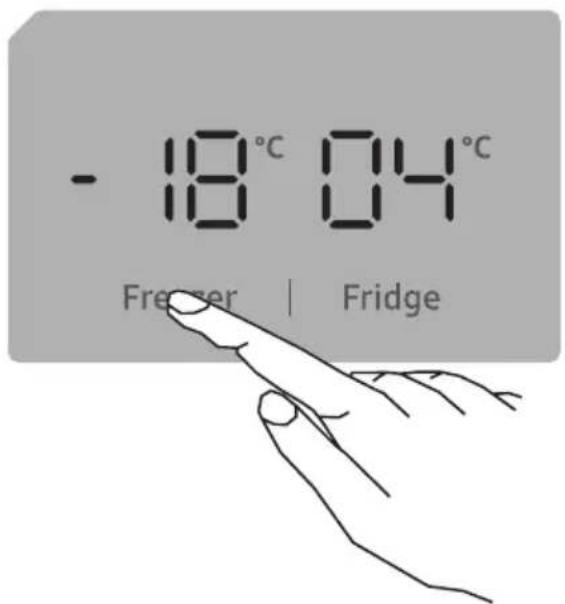

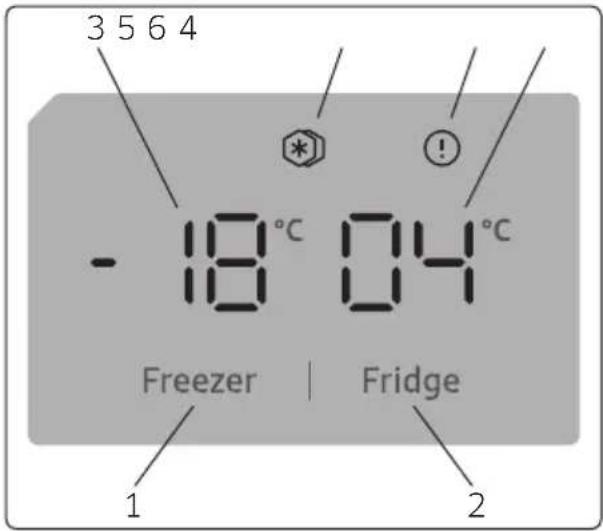

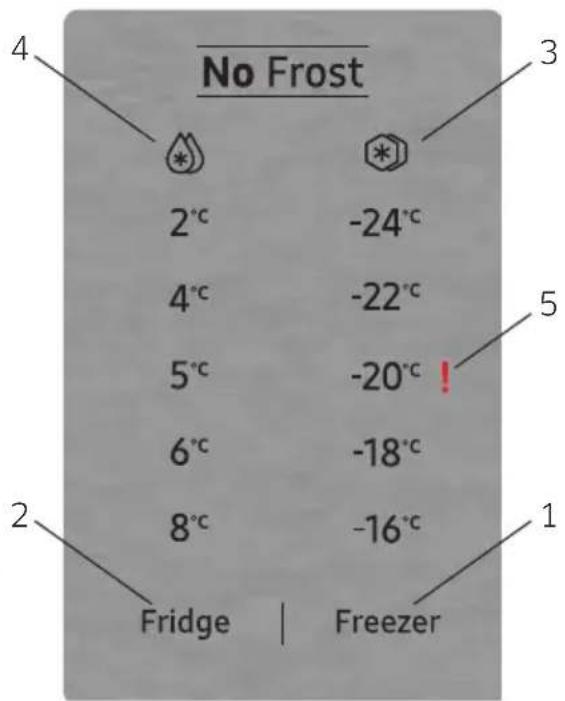

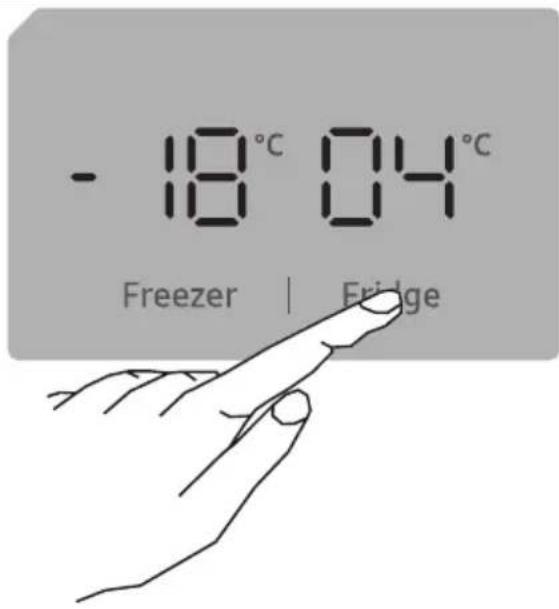

Display and Control Panel (Internal display) 36

Operating your Fridge Freezer 36

Display and Control Panel (External display) 38

Operating Your Fridge Freezer 39

Temperature Adjustment Warnings 42

Accessories 43

Maintenance 45

Handle and care 45

Cleaning 46

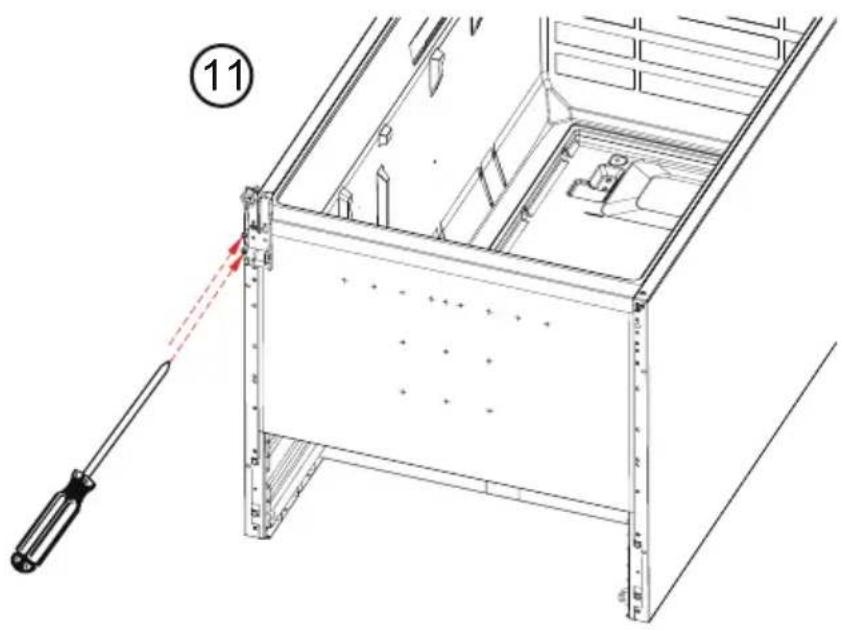

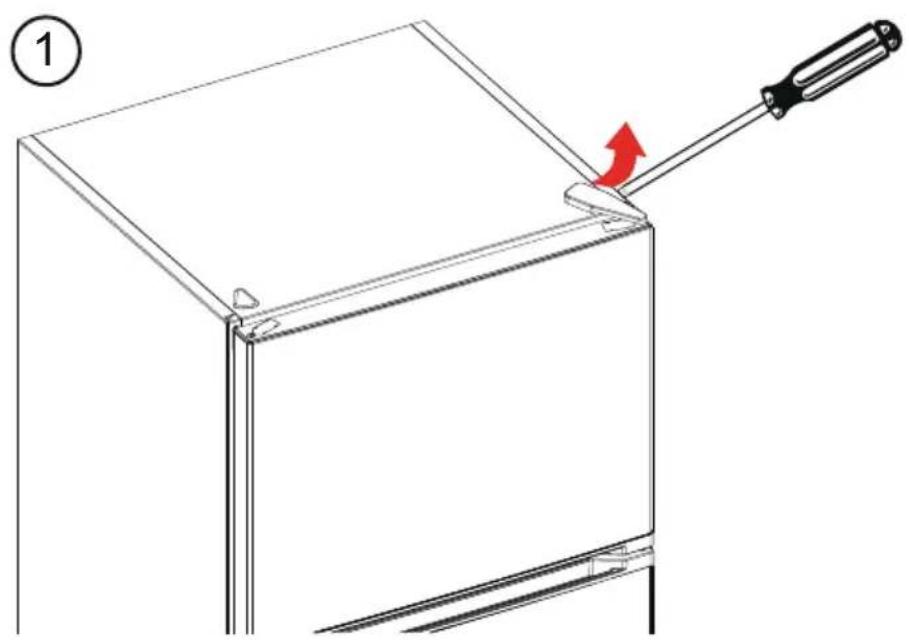

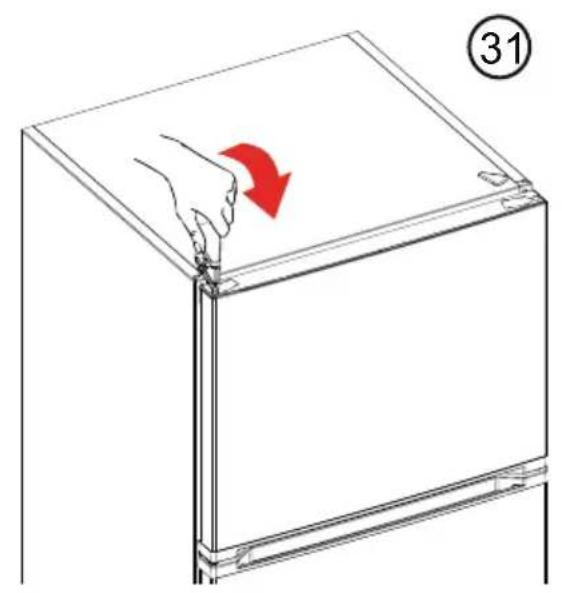

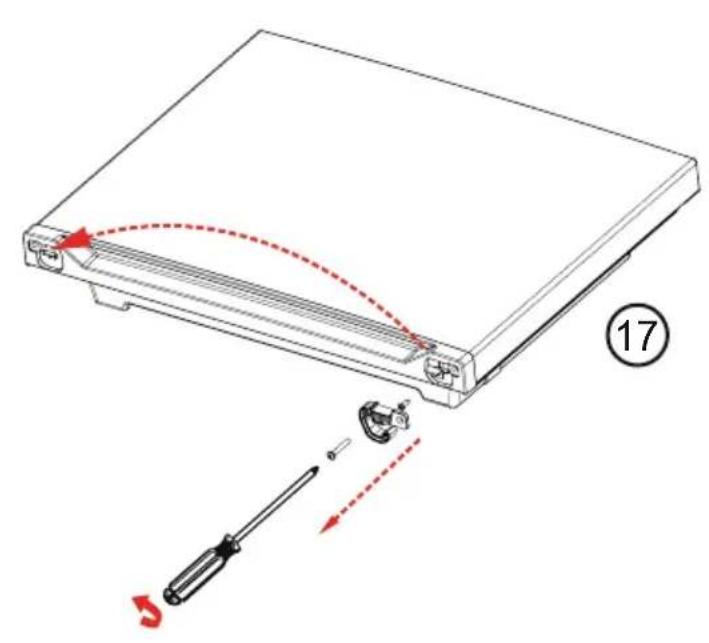

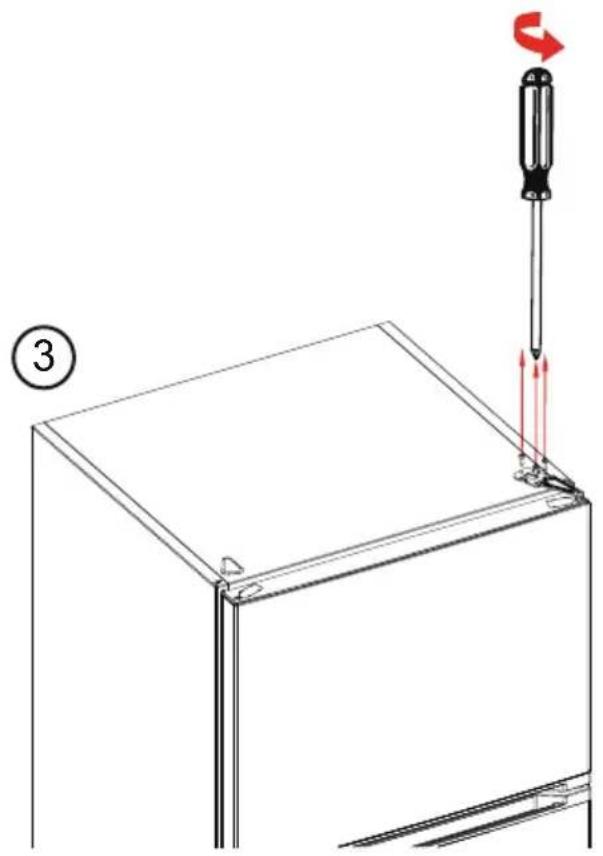

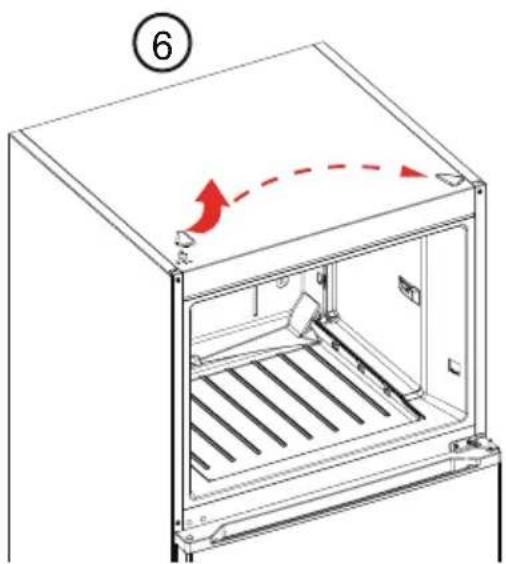

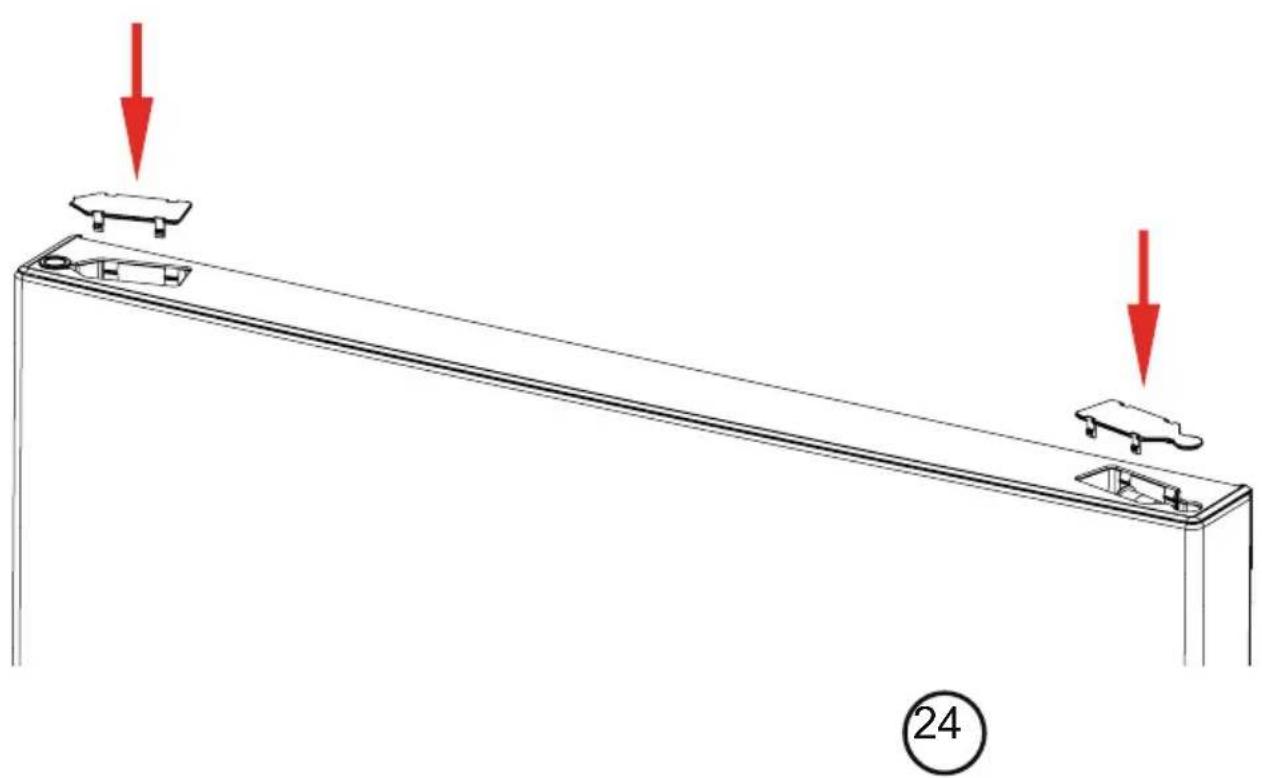

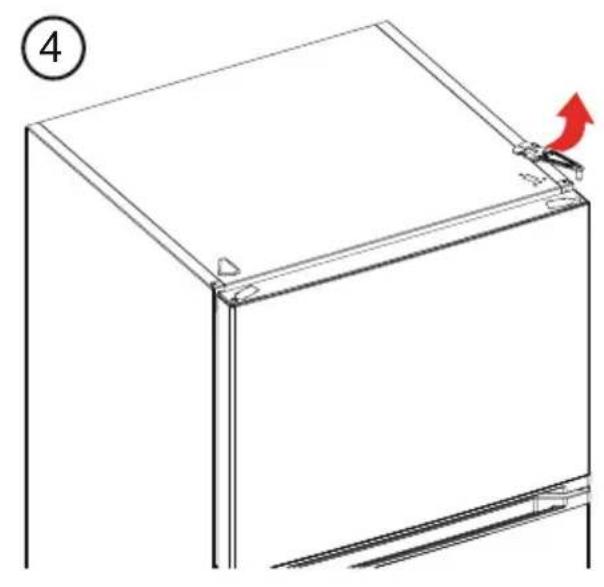

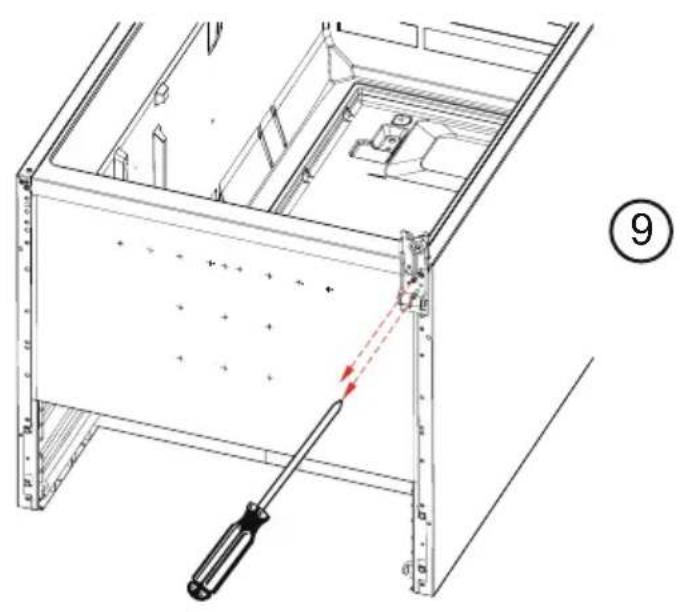

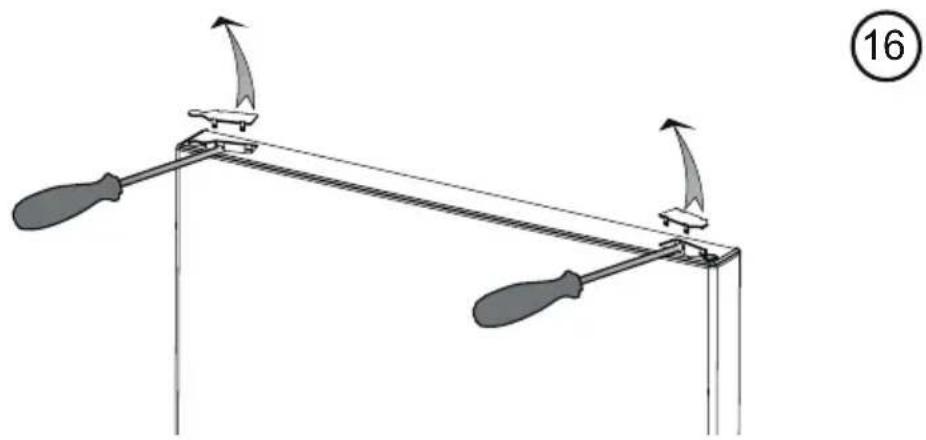

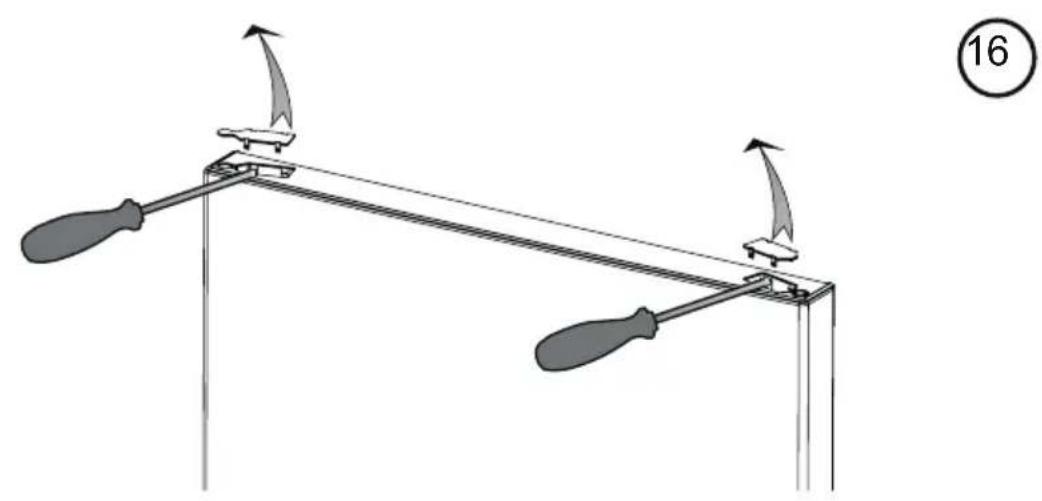

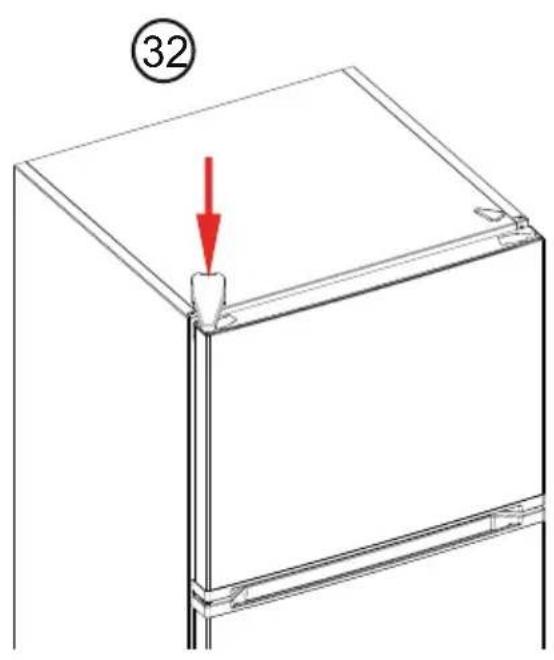

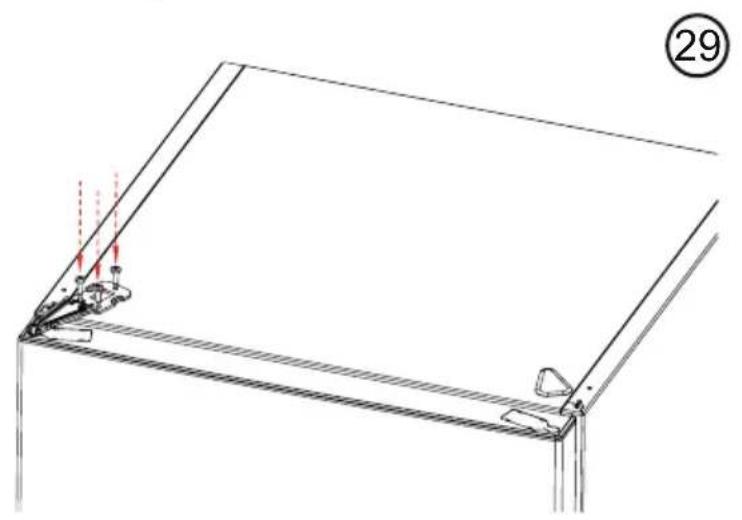

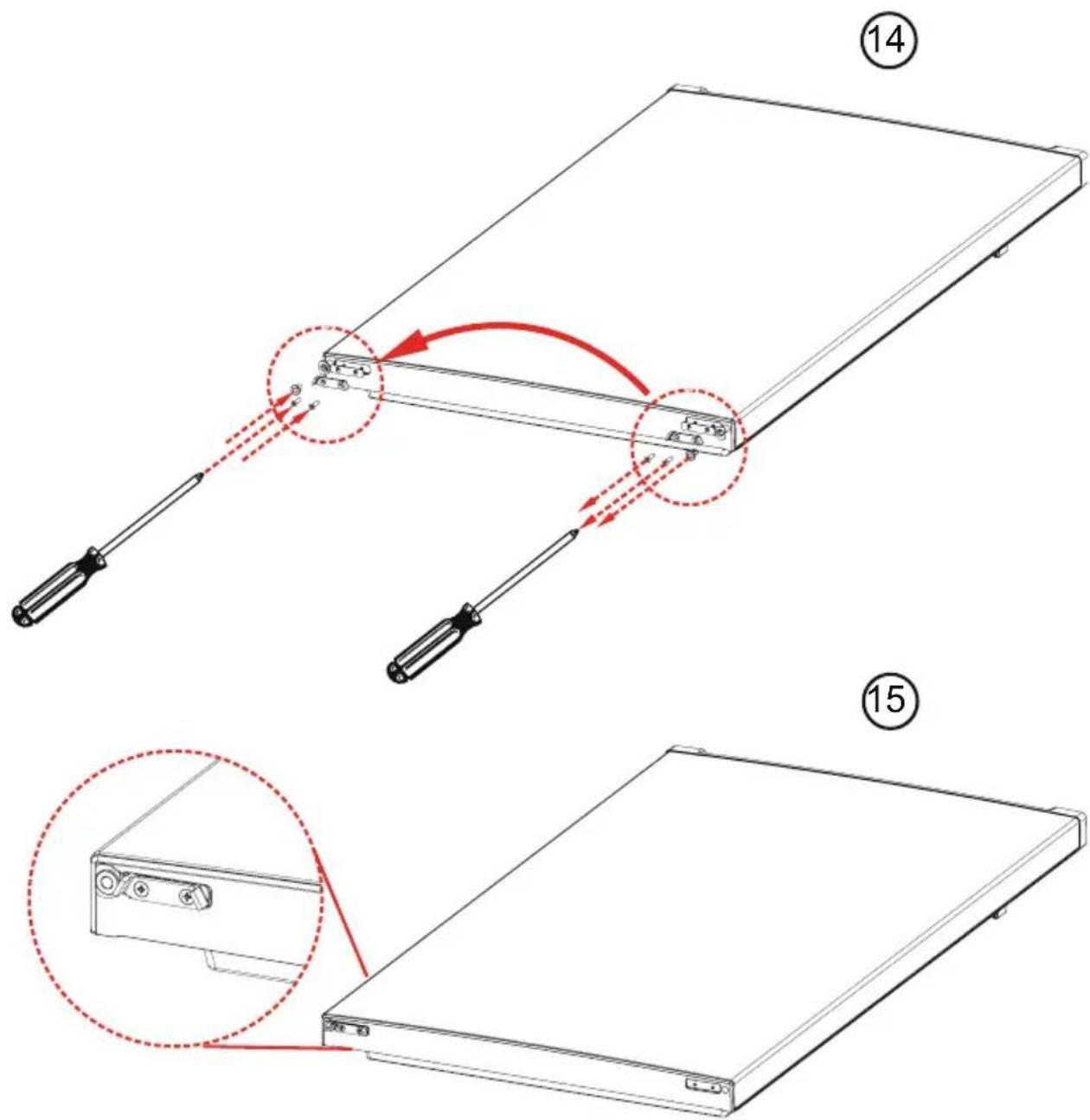

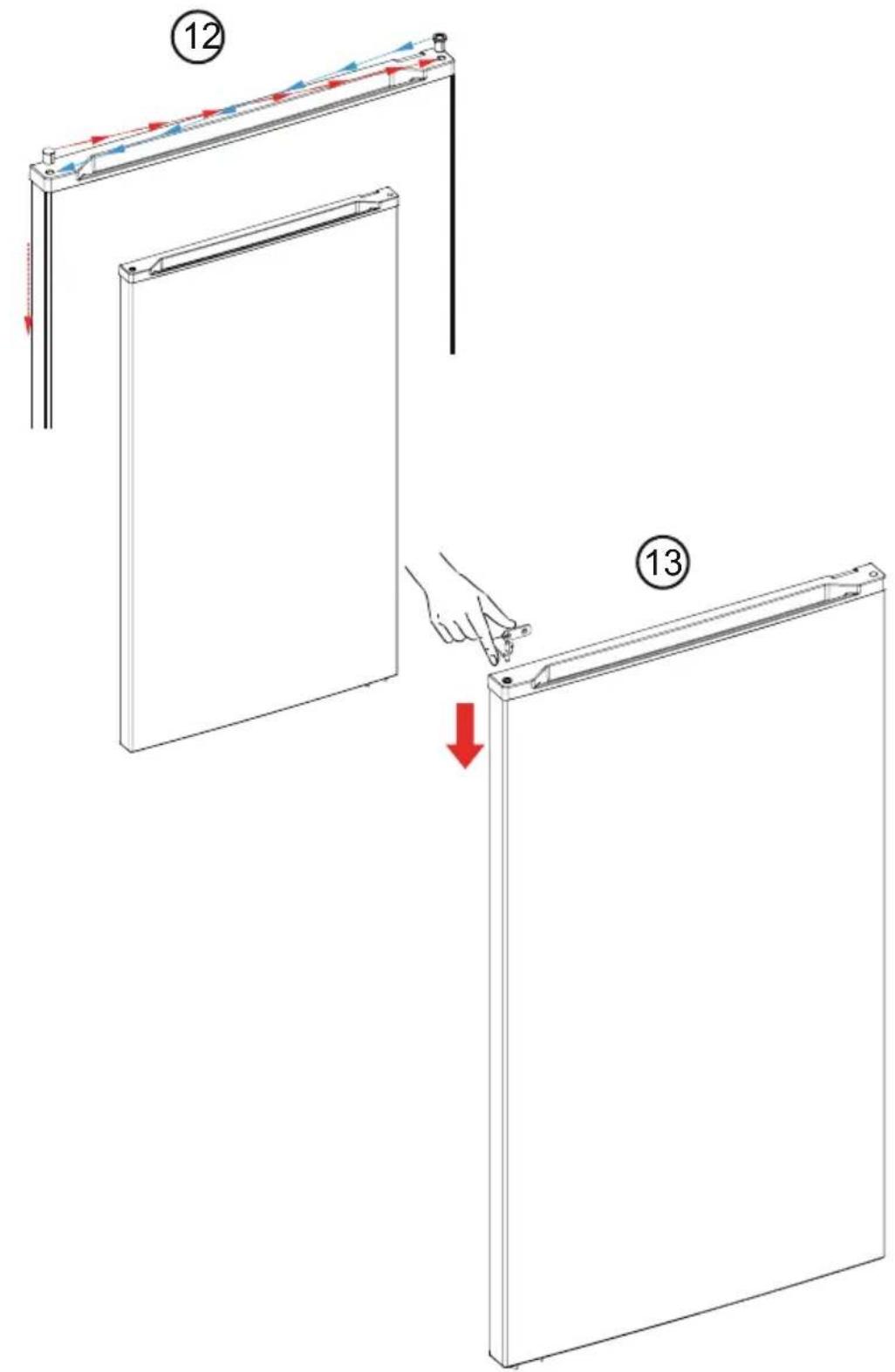

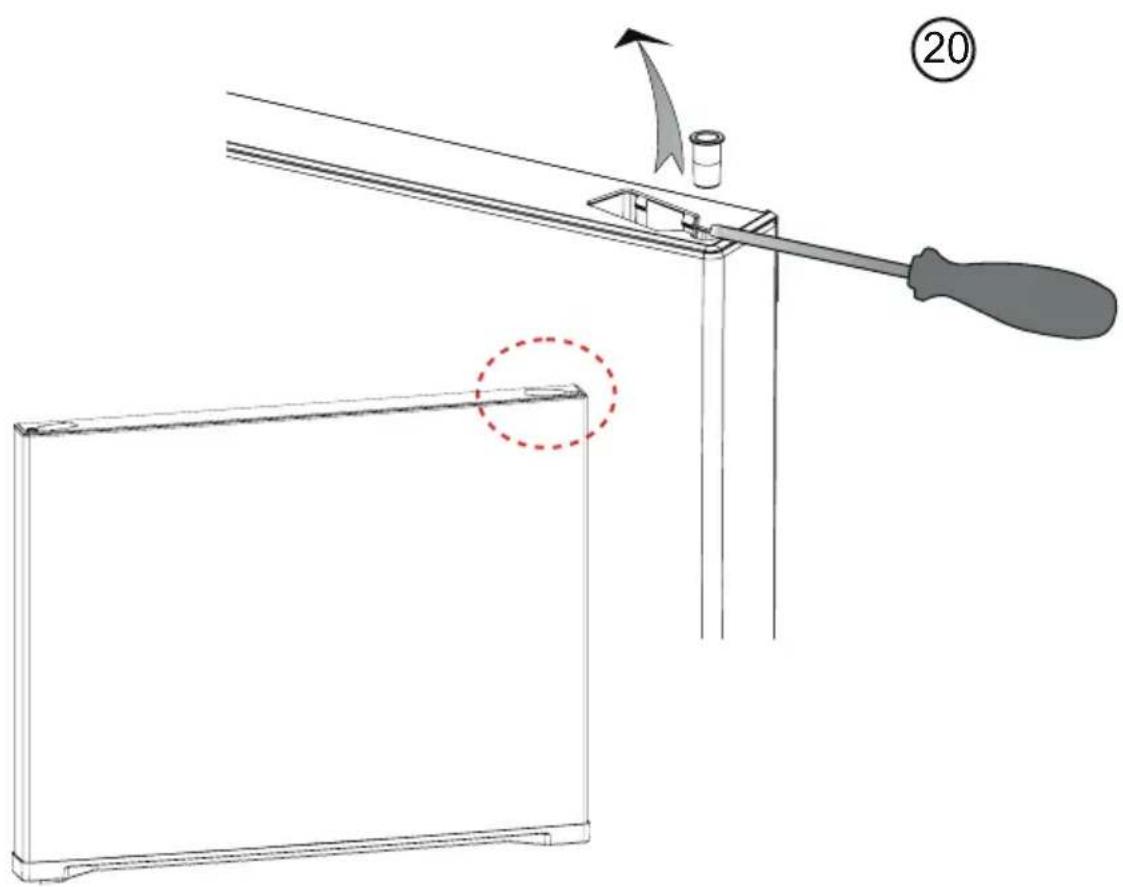

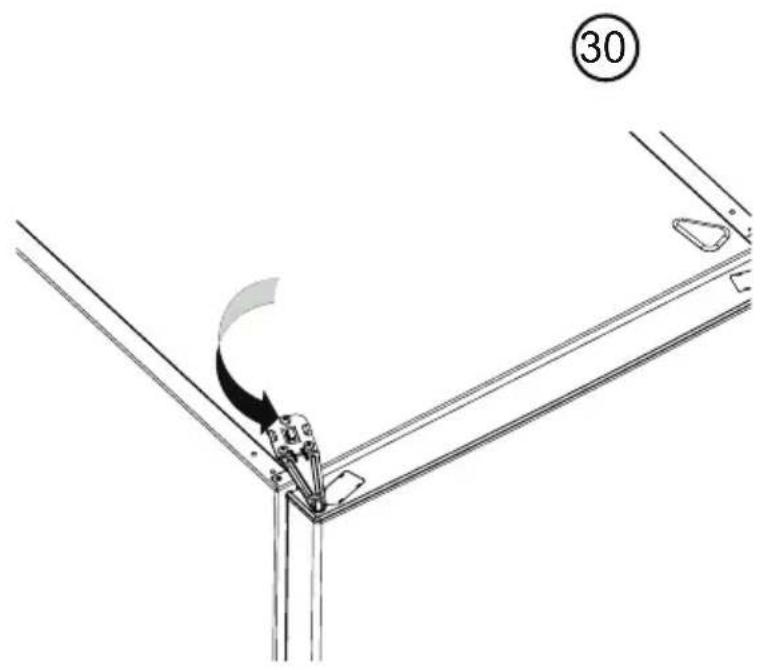

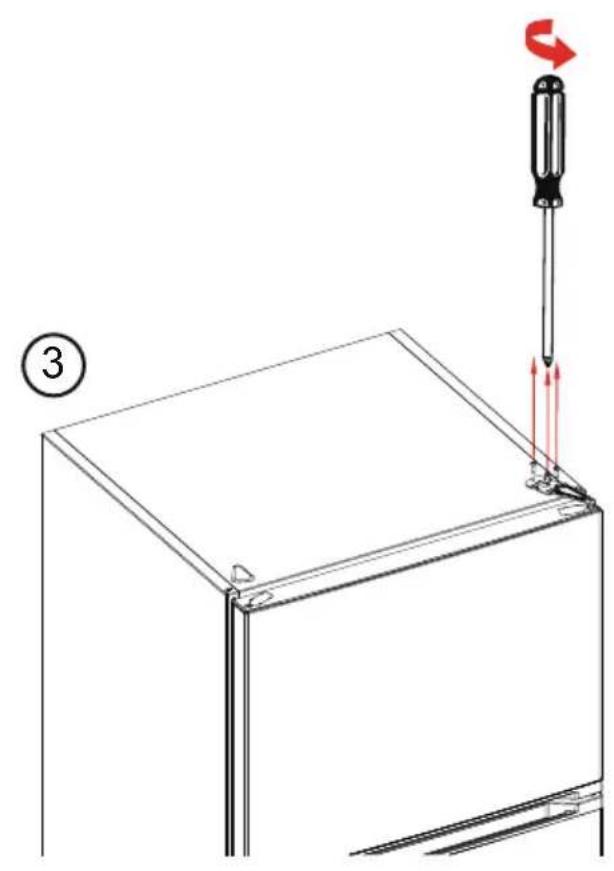

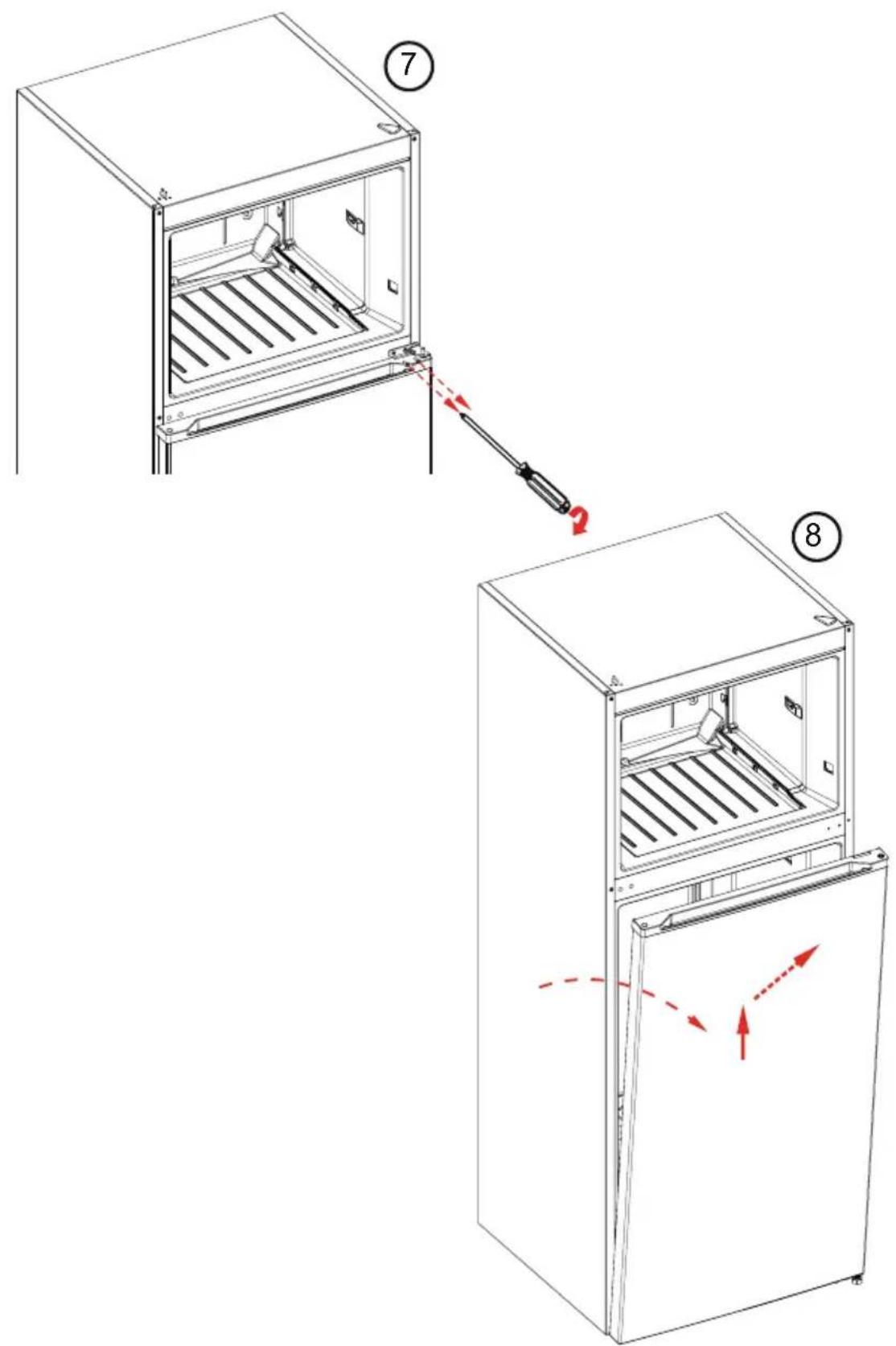

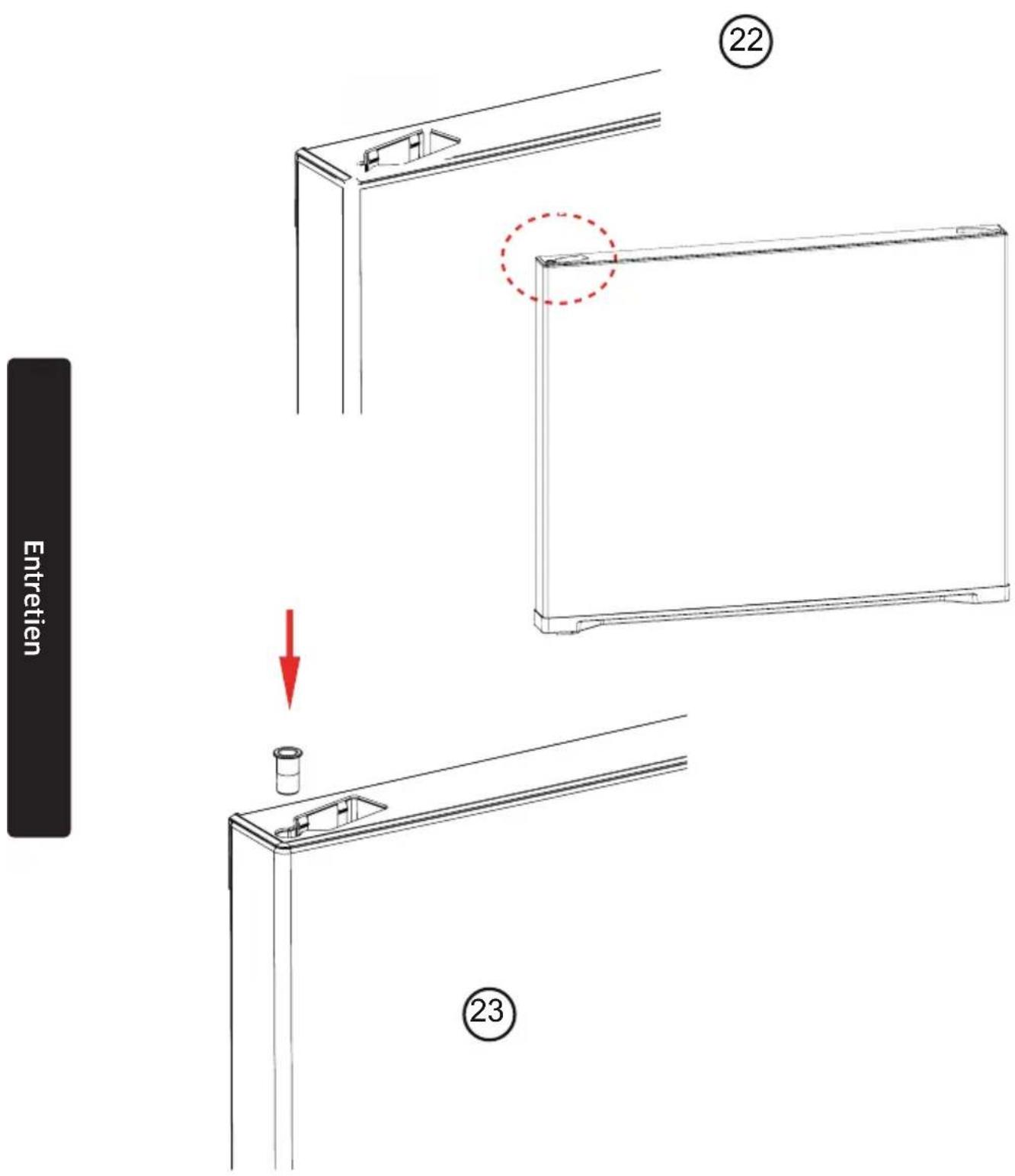

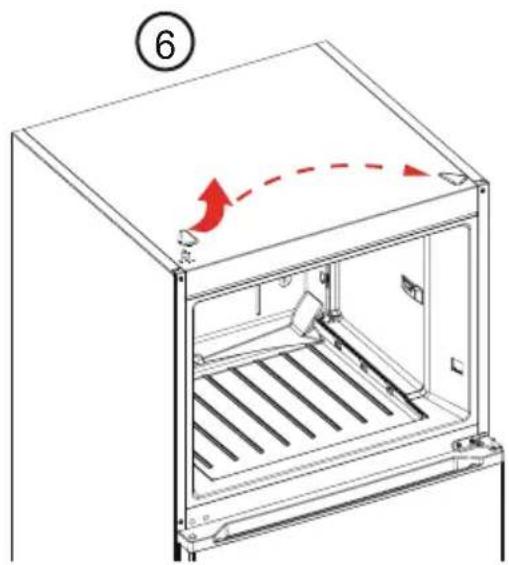

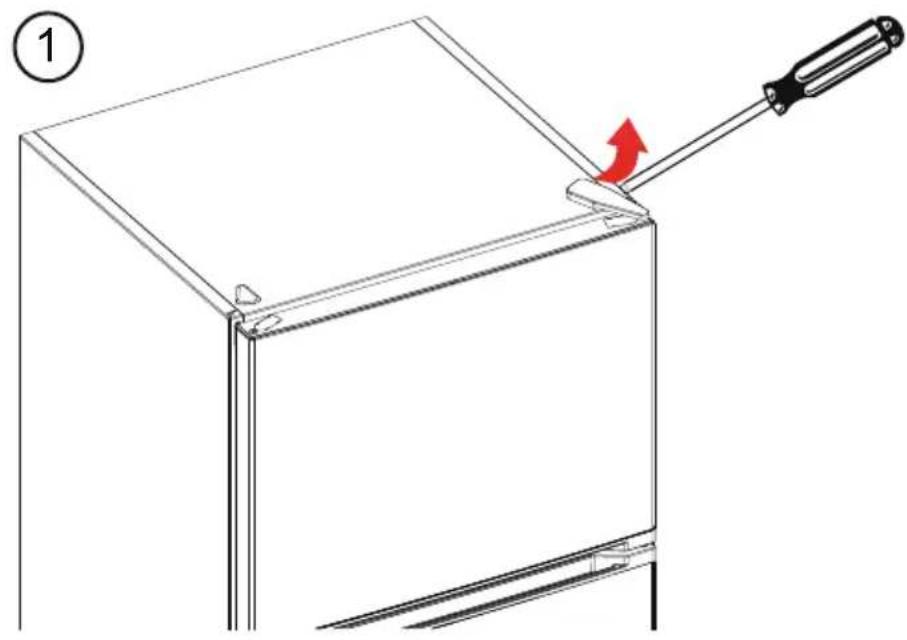

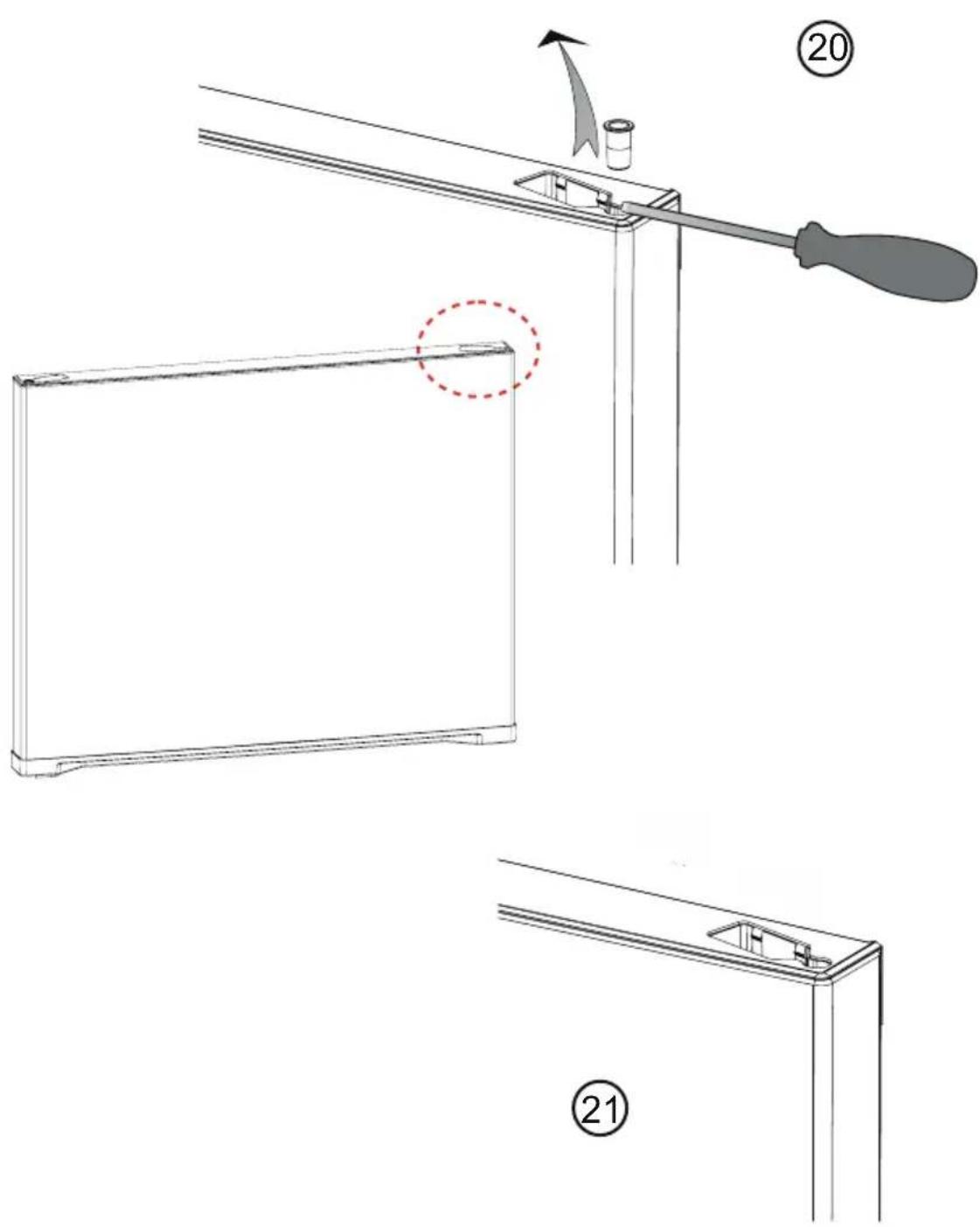

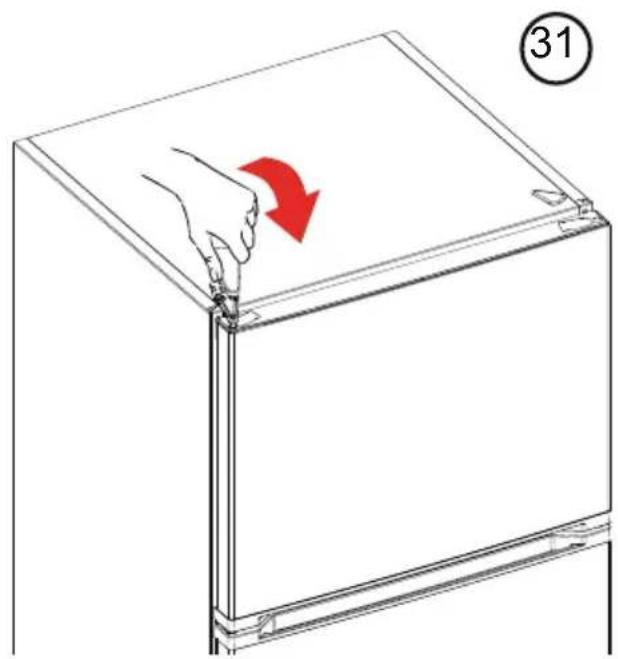

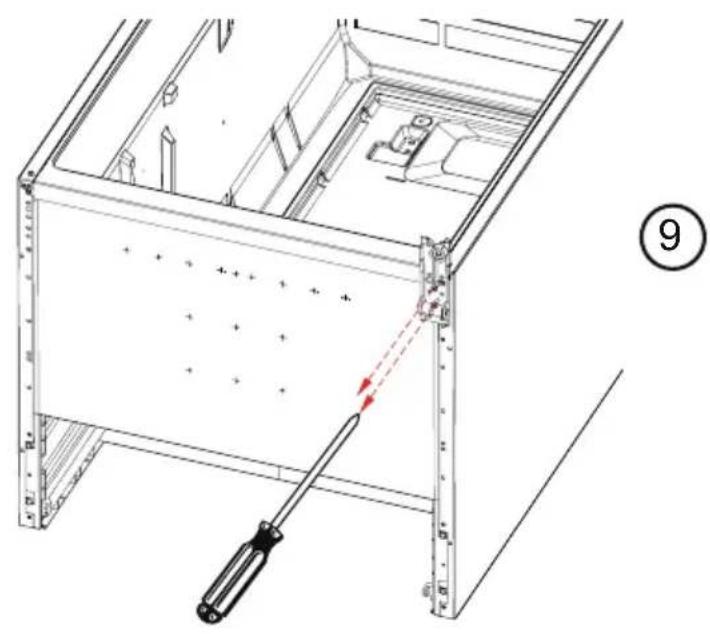

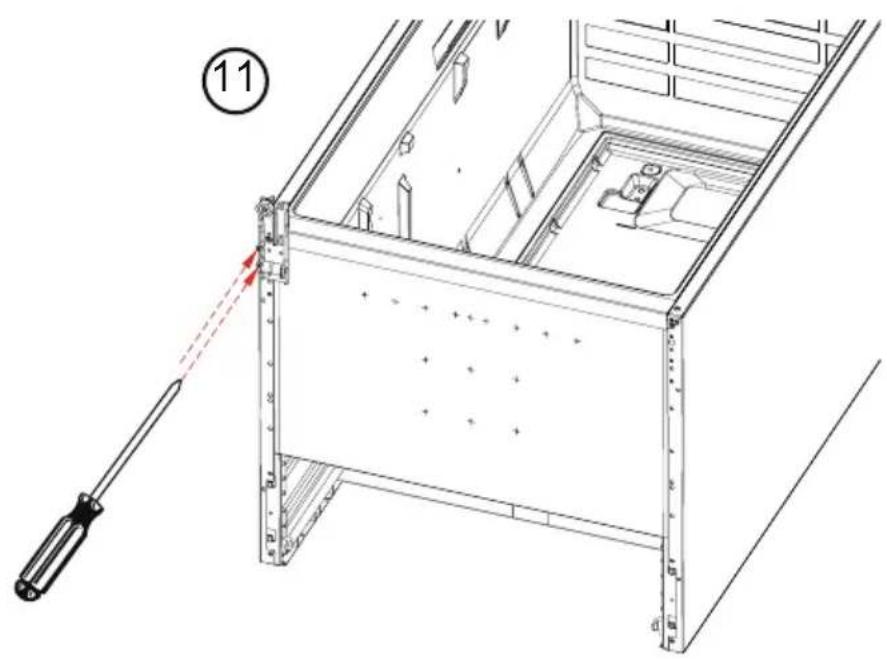

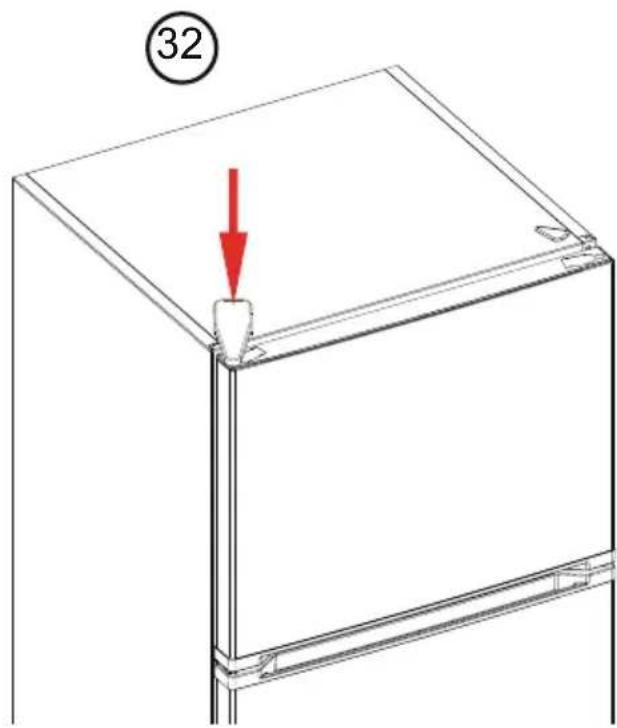

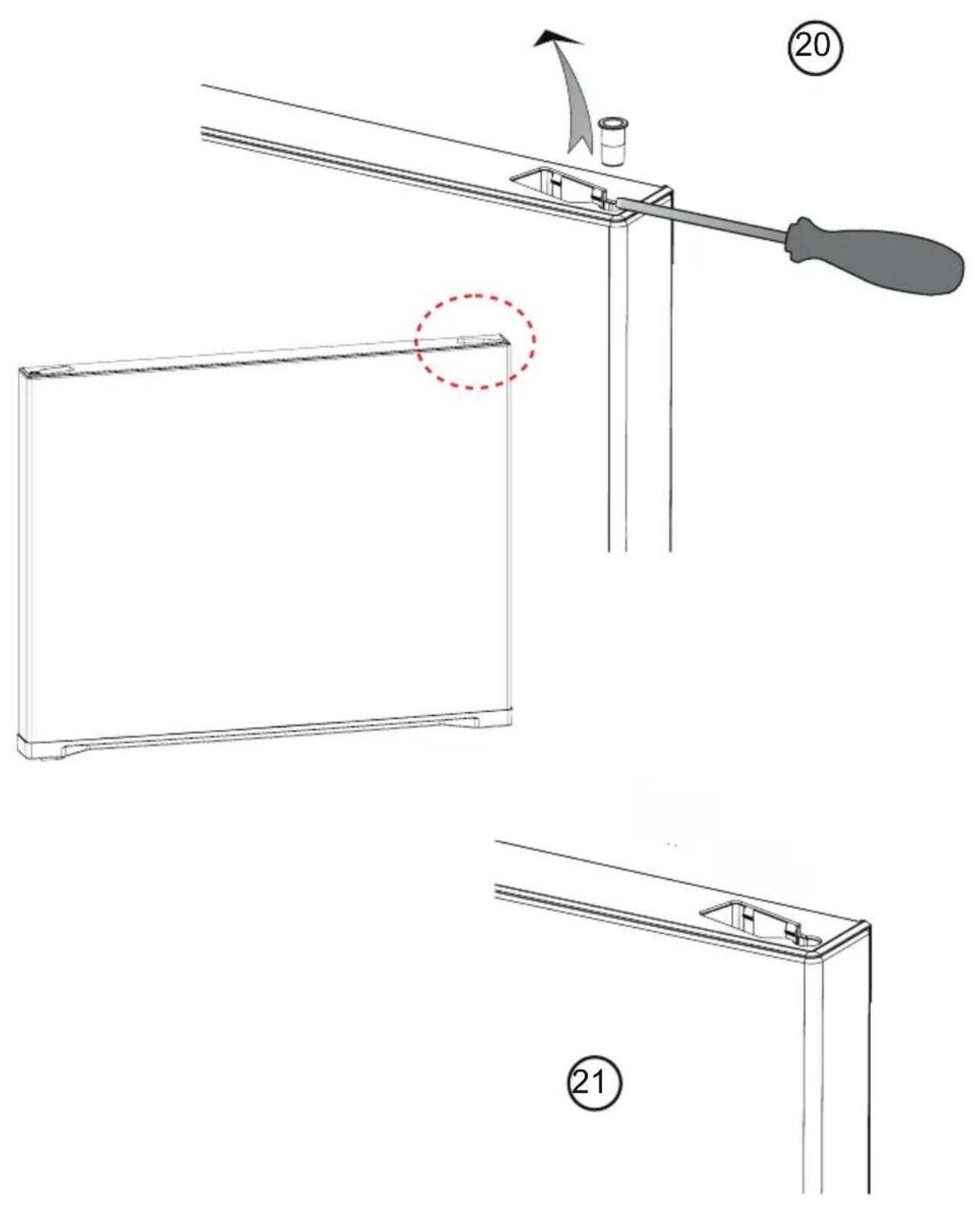

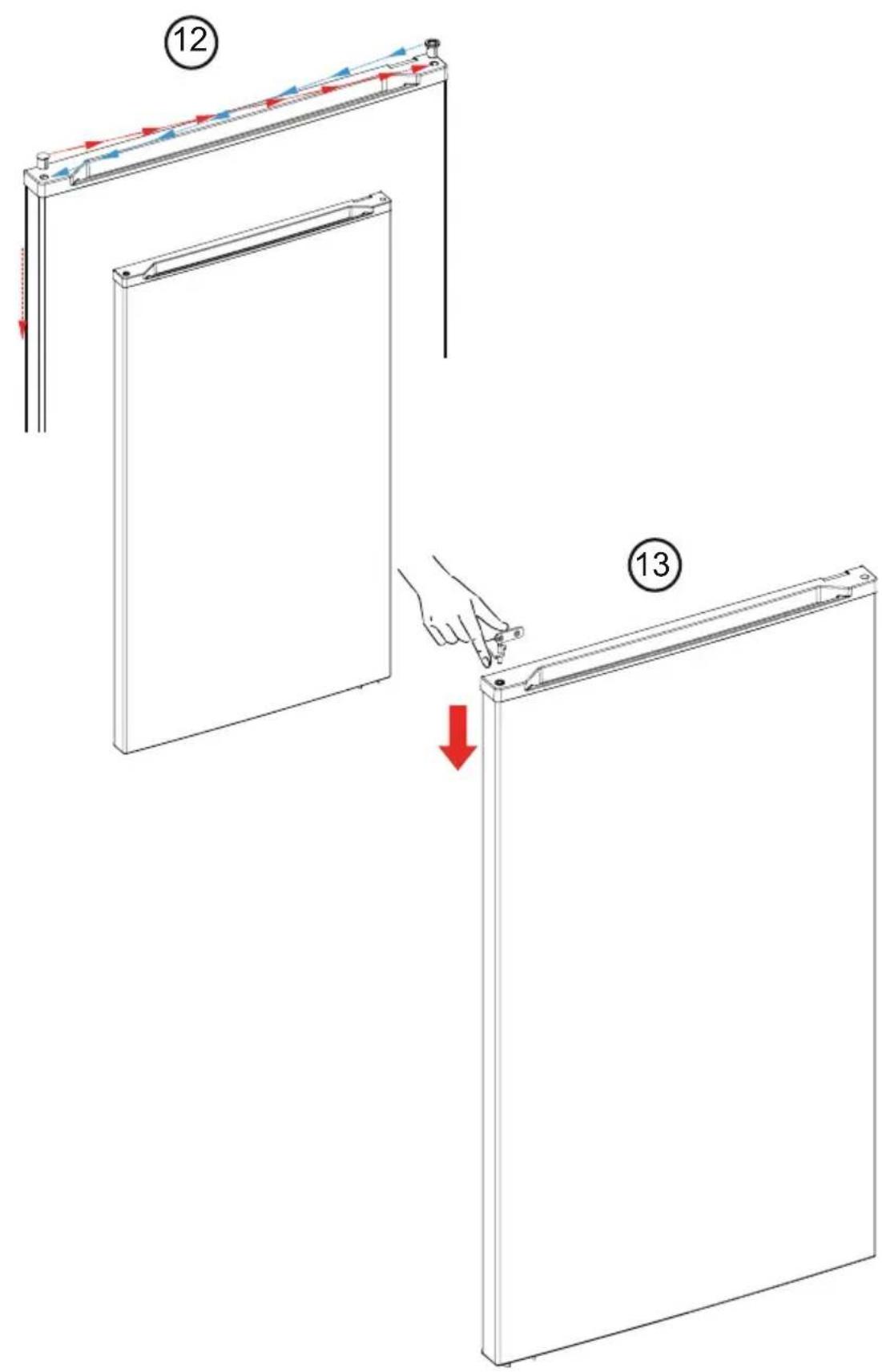

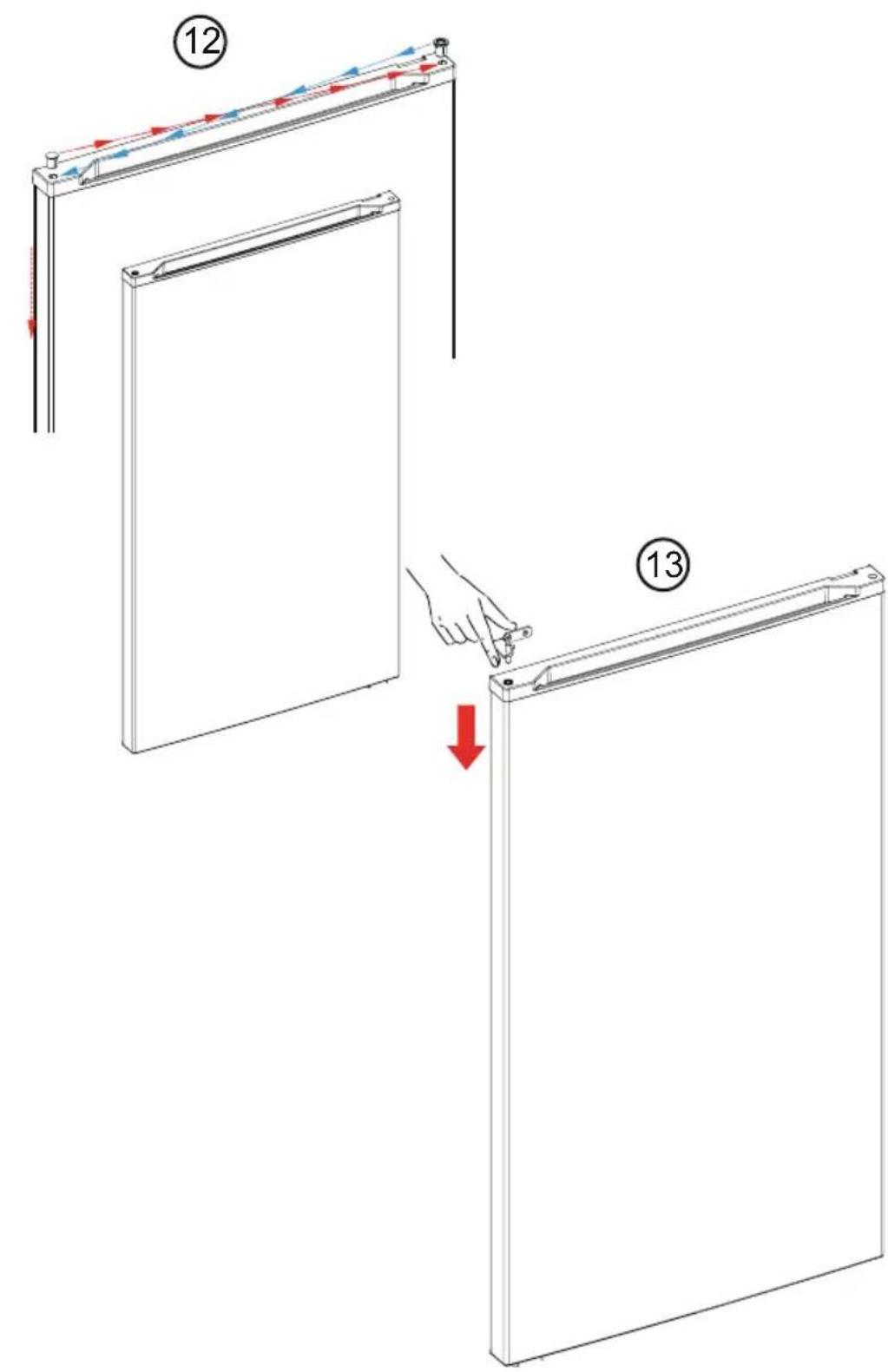

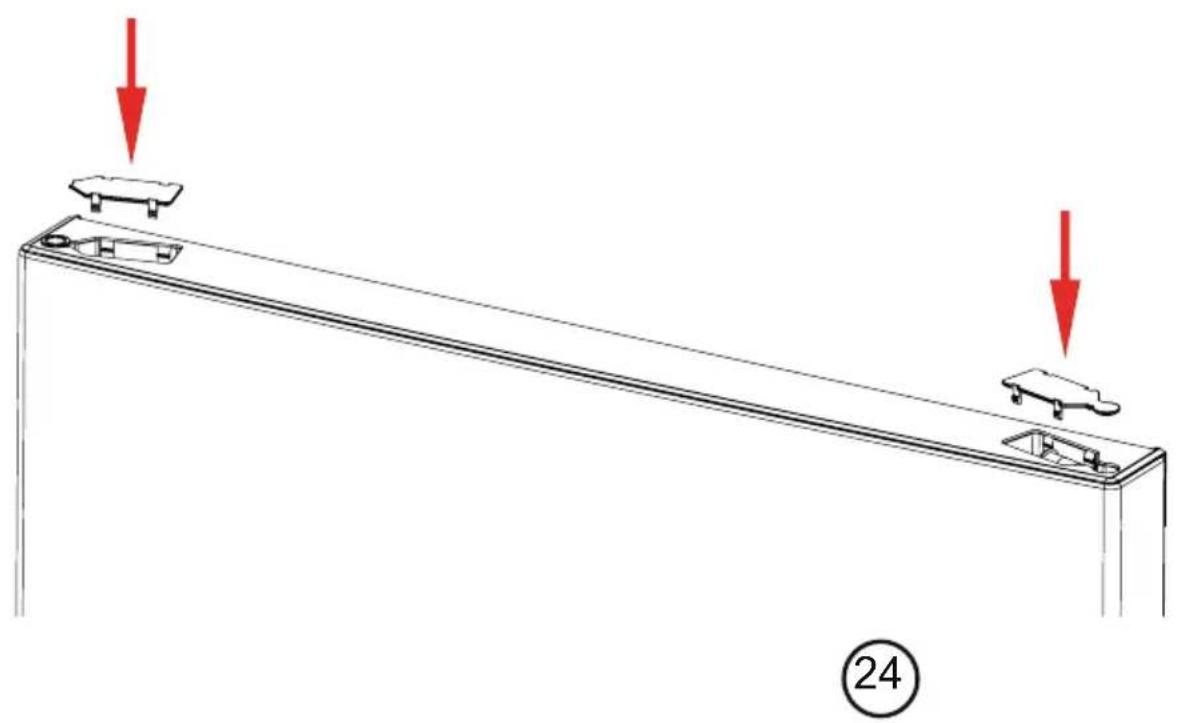

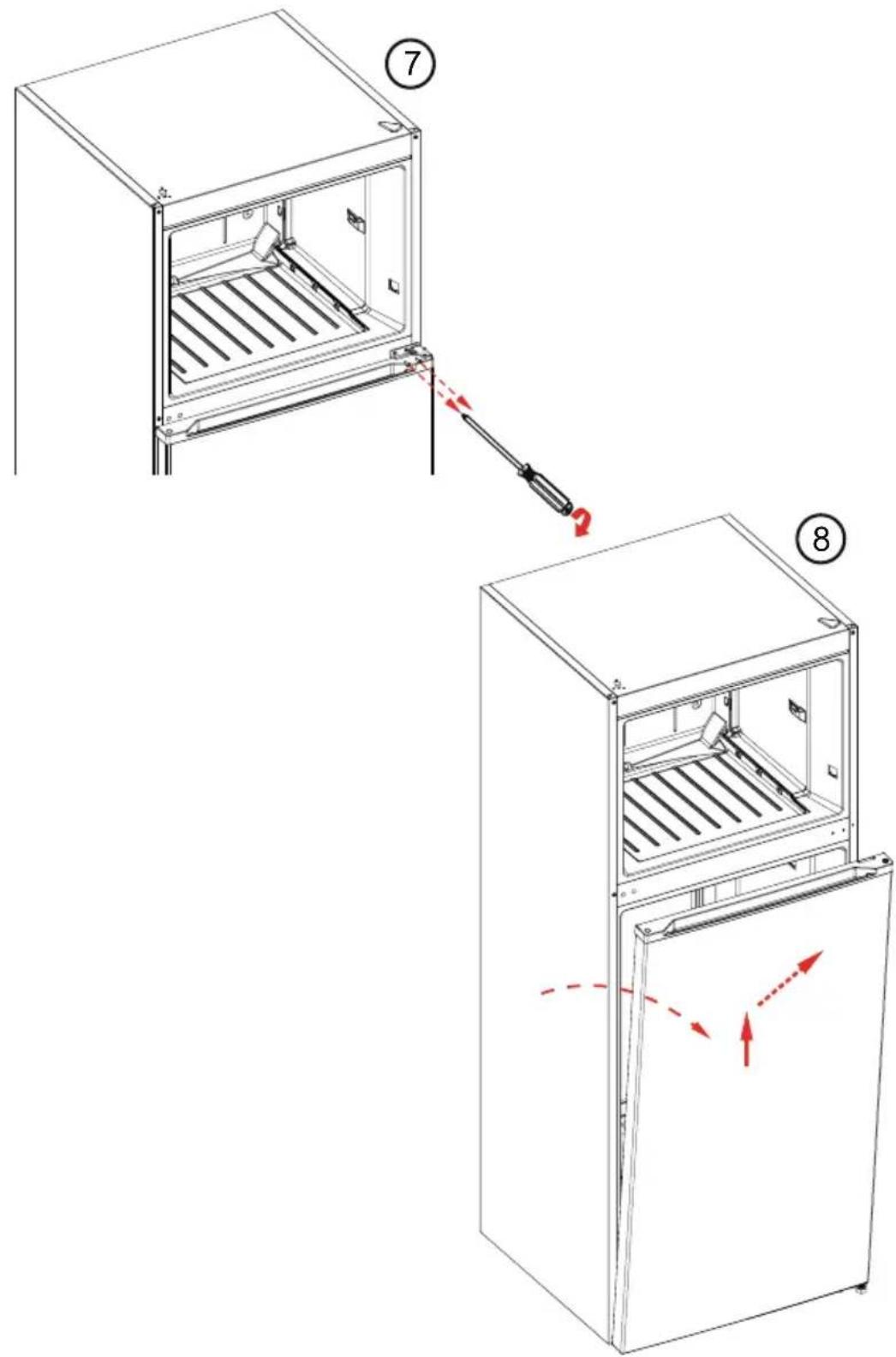

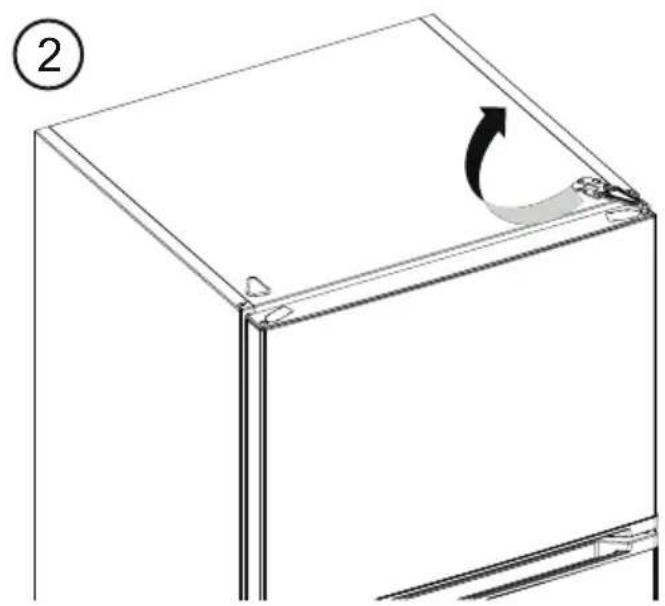

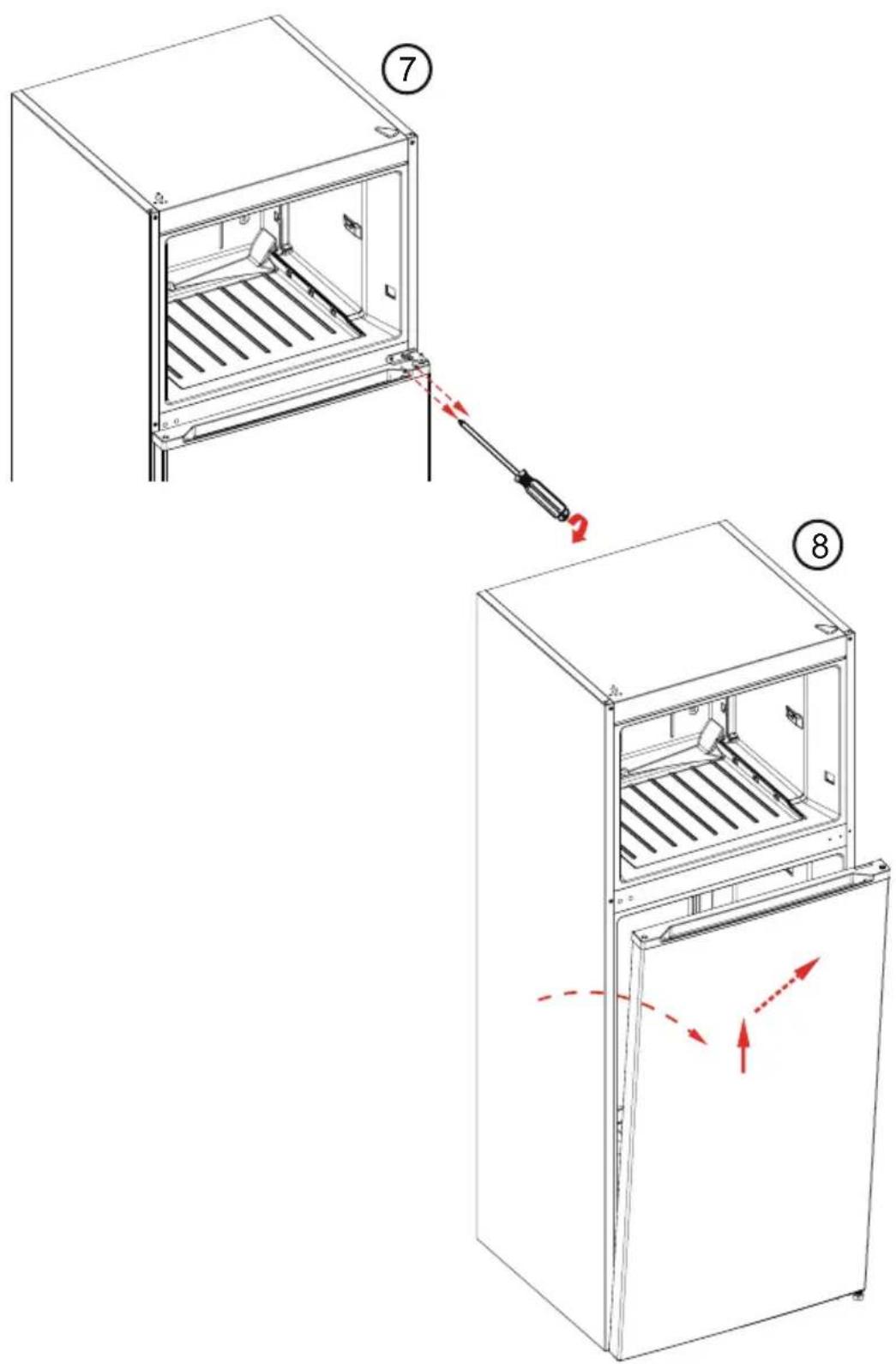

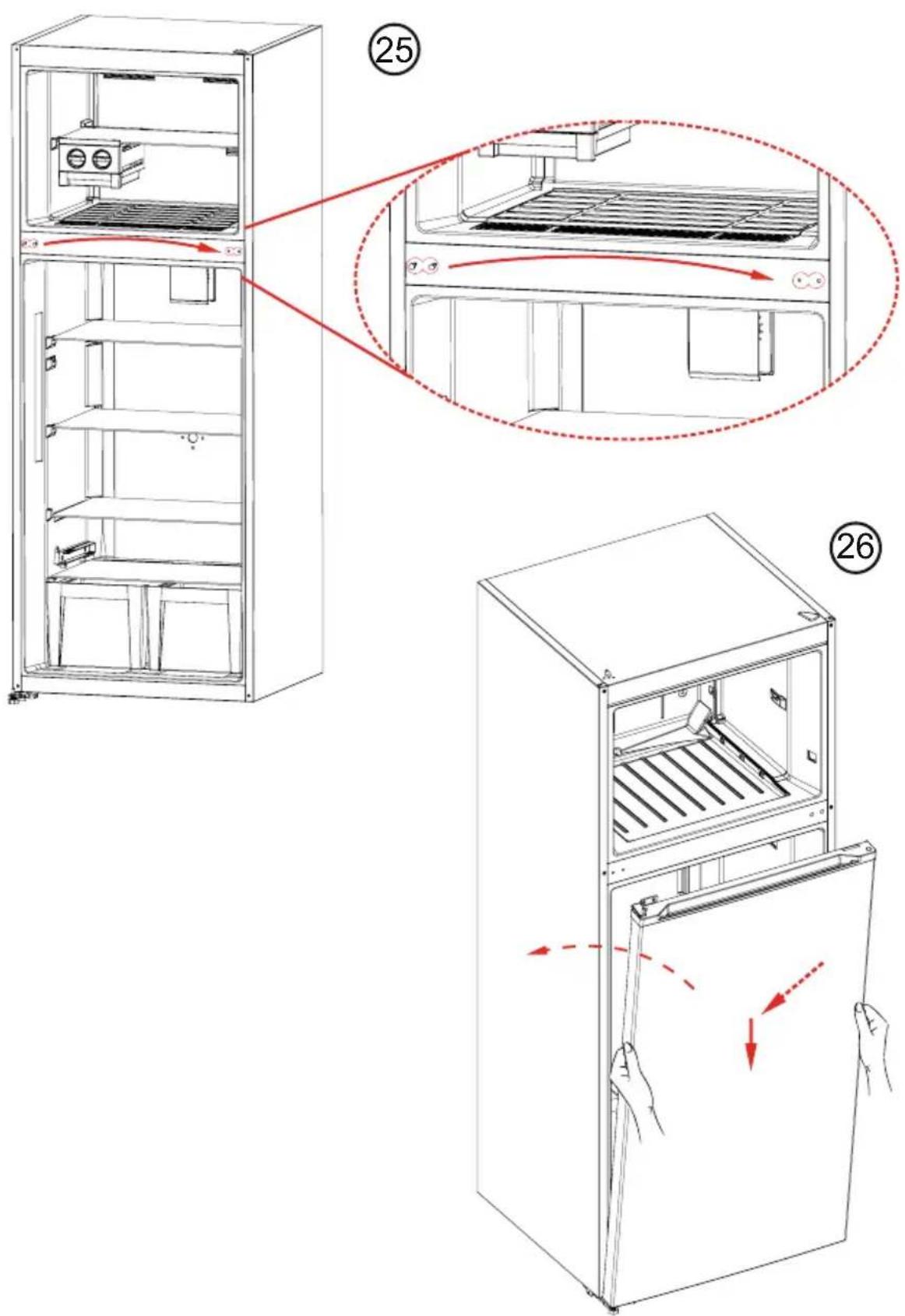

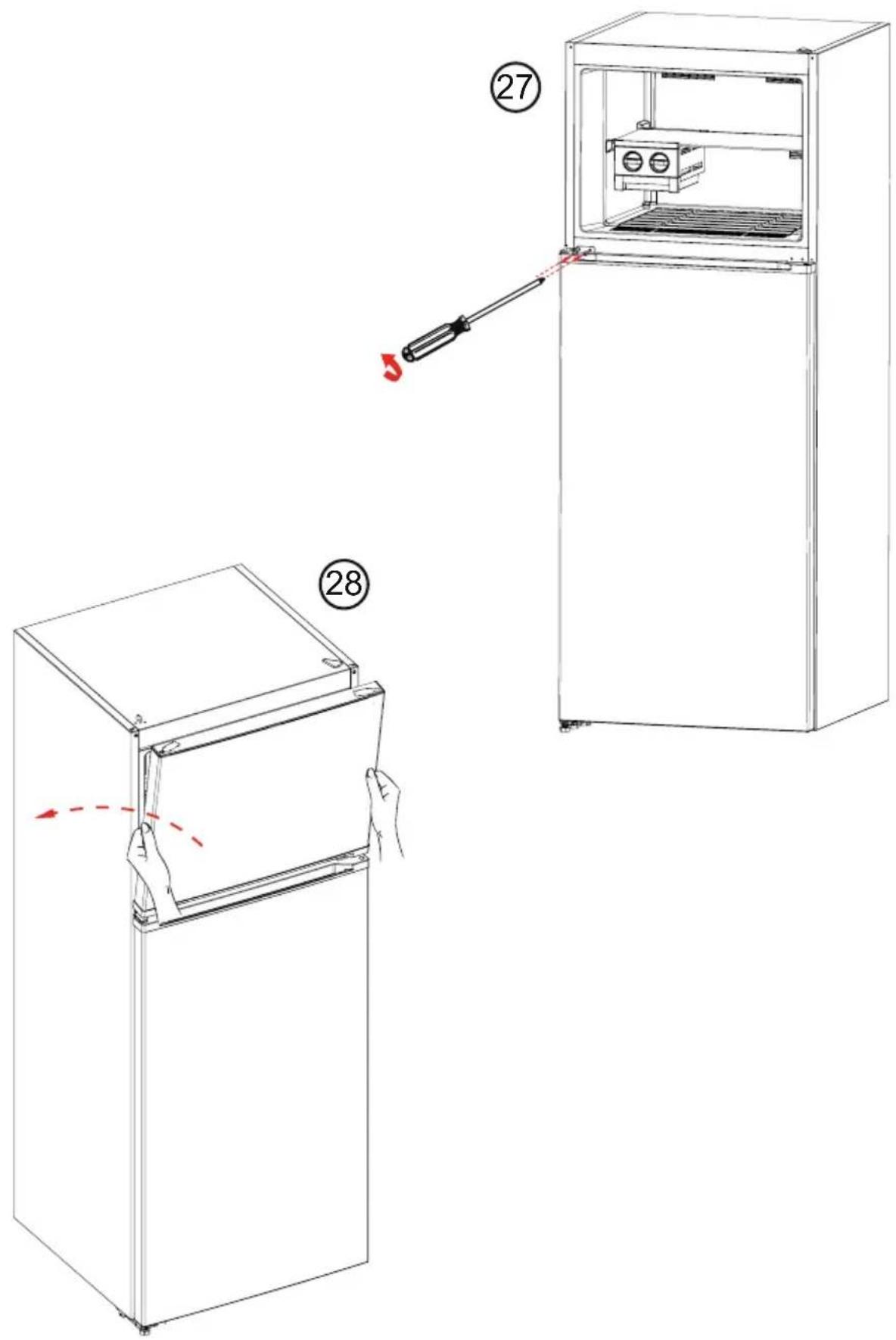

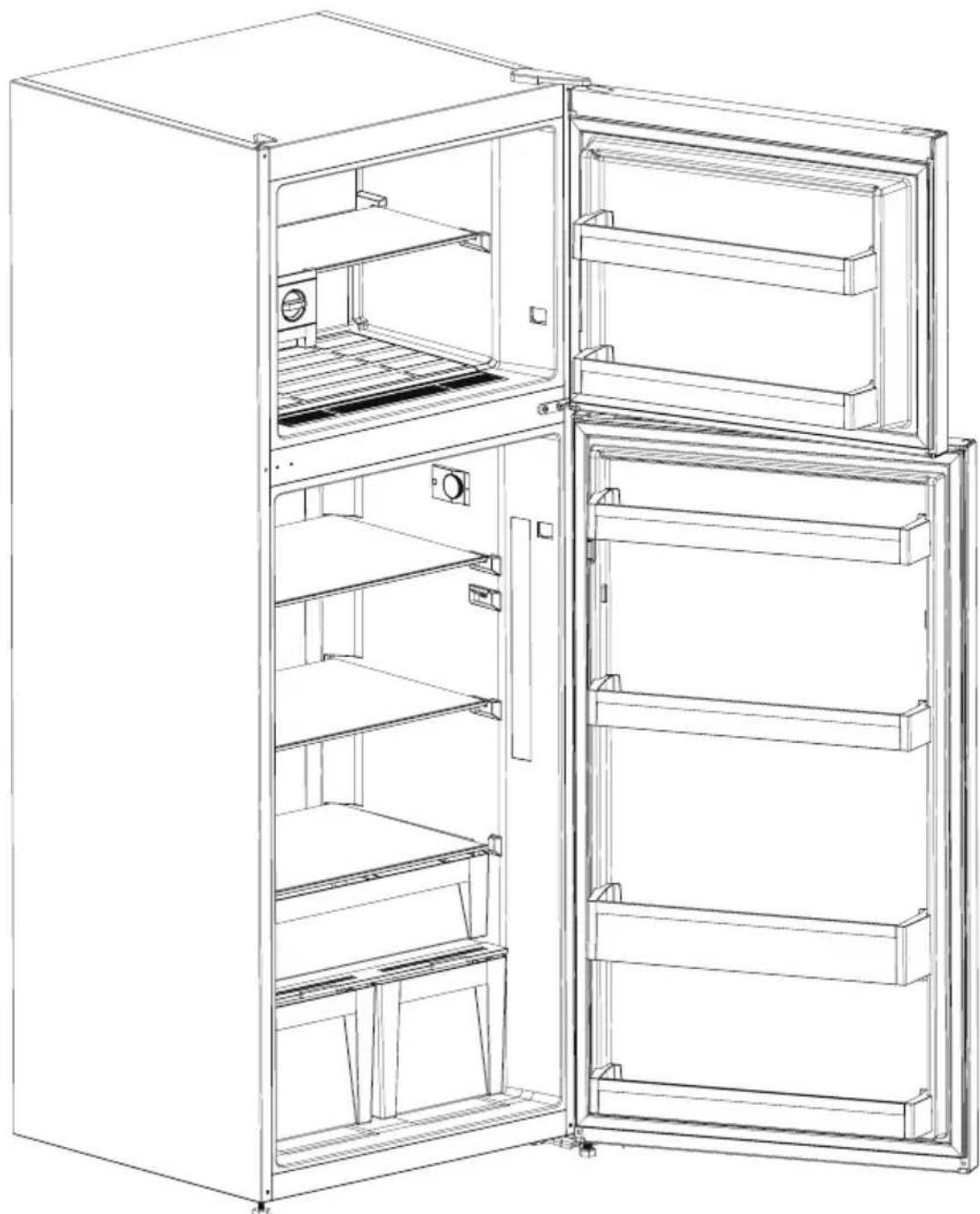

How to reverse door(applicable model only) 47

Troubleshooting 65

BEFORE CALLING AFTER-SALES SERVICE 65

Errors 65

General 67

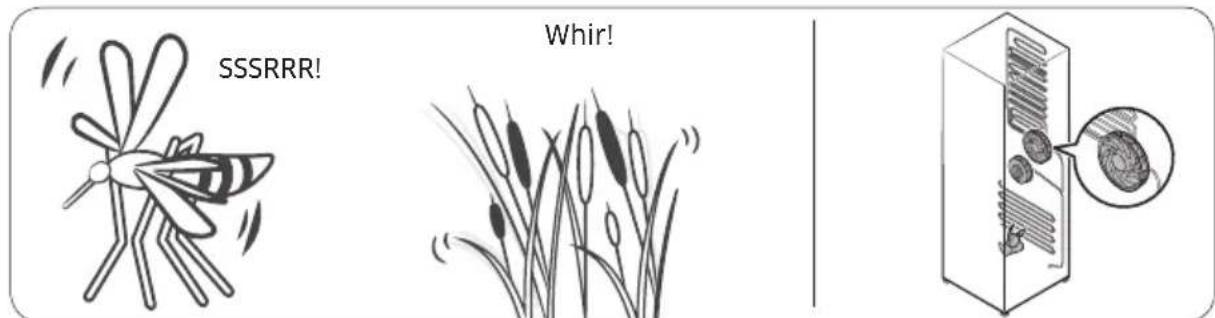

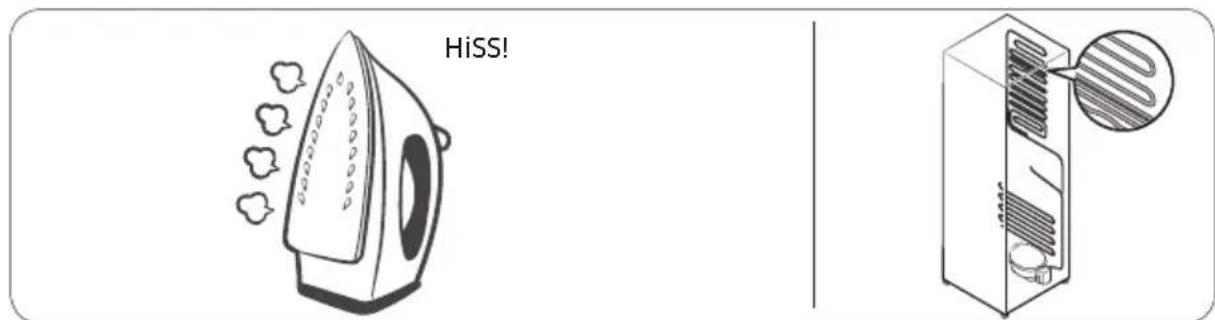

Do you hear abnormal sounds from the refrigerator? 69

• Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those who lack experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• It is not recommended for children aged under 8 years old to load and unload refrigerating appliances.
• Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur.

It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.

- Because these following operating instructions cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help an information online at www.samsung.com.

- In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.

- Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. The room must be 1 m ^3 in size for every 8 g of R-600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

- Refrigerant leaking out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked flames and move anything flammable away from the product and ventilate the room immediately.

- Failing to do so may result in fire or explosion.

- It is an hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland – the authorized Service Person MUST hold a Gas Work Authorisation or Licence for hydrocarbon refrigerants, to carry out Servicing or repairs which involve the removal of covers. (For Australia only)

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the electrical socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualified pe sons in order to avoid a hazard.
• WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

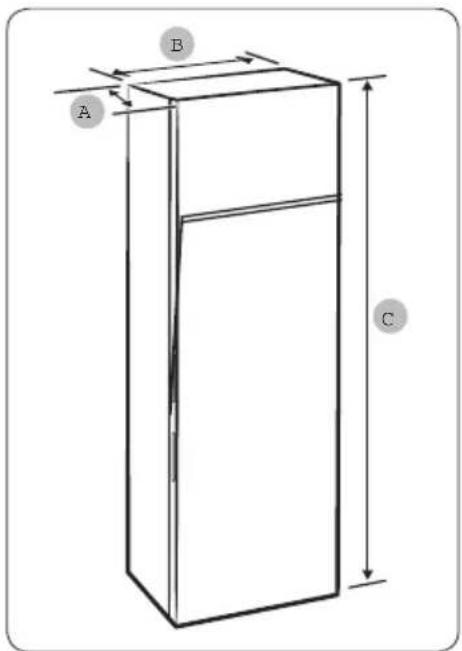

• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.
• This appliance is not intended for use at altitudes exceeding 2000 m.
• Do not use an electric plug adaptor.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded electrical socket of 16 amperes. If this type of socket is not available in your house, please have it installed by an authorized electrician.
• If your appliance uses R600a as a refrigerant (this information will be provided on the label of the fridge) you should take care during transportation and installation to prevent the fridge elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the fridge elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- If the electrical supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Warning; Risk of fire / flammable materials

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and ice cubes.
• One-, two- and three-star compartments are not suitable for freezing fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

Severe warning signs for transportation and site

WARNING

- When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. - Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and ventilate the room in which the appliance is standing for several minutes.

- This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

Critical installation warnings

WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water.
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.
• Do not plug several appliances into the same multiple electrical power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.
• This provides the best performance and also prevents overloading of house wiring circuits, which could cause a fire hazard from overheated wires.
• If the wall electric power supply socket is loose, do not insert the power plug.
• There is a risk of electric shock of fire.

• Do not use a power cord that has cracks or abrasion damage along its length or at either end.

• Do not bend the power cord excessively or place heavy objects on it.

• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.

- This may result in an electric shock or fire.

- Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

- Damage to the cord may cause a short-circuit, fire, and/or electric shock.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not install this appliance near a heater or inflammable material.
• Do not install this appliance in a location where gas may leak.

- This may result in an electric shock or fire.

• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.
• Connect the power plug in the correct position with the cord hanging down.

- If you connect the power plug upside down, the cord may get damaged and cause a fire or electric shock.

• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of children.

- There is a risk of death from suffocation if a child puts the packing materials on his or her head.

- The appliance must be positioned so that the plug is easily accessible after installation.

- Failing to do so may result in an electric shock or fire due to electric leakage.

- Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops).

- Deteriorated insulation of electrical parts may cause an electric shock or fire.

• If any dust or water are found in the refrigerator, pull out power plug and contact your Samsung Electronics service center.
• Otherwise there is a risk of damage and fire.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.).
• This may result in an electric shock, fire, damage to problems with the product, or injury.
• You need to remove all the protective plastic film before you initially plug the product in.
• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.

- There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.

- The refrigerator must be electrical safely grounded. - Always make sure that you have electrical ground the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

- Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground. - You must electrical ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.

- This may result in an electric shock, fire, explosion, or problems with the product.

- Plug the power plug into the wall electric socket firmly. Do not use a damaged power plug, damaged power cord, or a loose electric power supply wall socket.

- This may result in an electric shock or fire.

- If the power cord is damaged, have it immediately replaced by the manufacturer or one of its service agents.

- The fuse on the refrigerator must be changed by a qualified technician or service company.

- Failing to do so may result in an electric shock or personal injury.

- WARNING When positioning the appliance, ensure the power cord is not trapped or damaged.

• WARNING Do not locate multiple electric portable socket-outlets or portable electric power supplies at the rear of the appliance.
• WARNING Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Installation cautions

CAUTION

• Allow sufficient space around the refrigerator and install it on a flat surface.
• Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.
• Allow the appliance to stand for 2 hours after installation before loading foods and turning on.
  • We strongly recommend you have a qualifie technician or service company install the refrigerator.
• Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.
  • Overload on any one door may fell the refrigerator, causing physical injury.
• The electric power supply socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be located outside the area of the rear of the appliance.

Critical usage warnings

WARNING

• Do not insert the power plug into an electrical wall socket with wet hands.
• This may result in an electric shock.
• Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause personal injury and/or material damage.
• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.
• This may result in an electric shock or injury.
• Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
• This may cause frostbite.
• Do not put a container filled with water on top of the refrigerator.
• If spilled, there is a risk of fire or electric shock.
• Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such flammable products) in the refrigerator.
• This refrigerator is for storing food only.
• This may result in fire or explosion.

• Do not let children hang on the door or door bins. A serious injury may occur.

• Do not let children go inside the refrigerator. They could become trapped.

• Do not insert your hands into the bottom area under the appliance.

- Any sharp edges may cause personal injury.

- Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the refrigerator.

- Products that require strict temperature controls must not be stored in the refrigerator.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• If you detect a smell of chemical or smoke, pull out the power plug immediately and contact your Samsung Electronics service center.
• If any dust or water is visible in the Refrigerator, pull out power plug and contact your Samsung Electronics service center.

- Otherwise there is a risk of fire.

- Do not let children step on a drawer.

- The drawer may break and cause injury.

• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter inside the refrigerator.
• Do not allow babies or children go inside the drawer.

- It can cause death from suffocation by entrapment or personal injury.

• Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and cause personal injury or material damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in an electric shock, fire, or damage to the product.
• Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside of the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator for removing bad odours.
• This may result in an electric shock or fire.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, fire, problems with the product, or injury. Do not put a container filled with water on the appliance.
• If spilled, there is a risk of fire or electric shock.
• WARNING Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING Do not damage the refrigerant circuit.
• Never stare directly at the UV LED lamp for long periods of time.

- This may result in eye strain due to the ultraviolet rays.

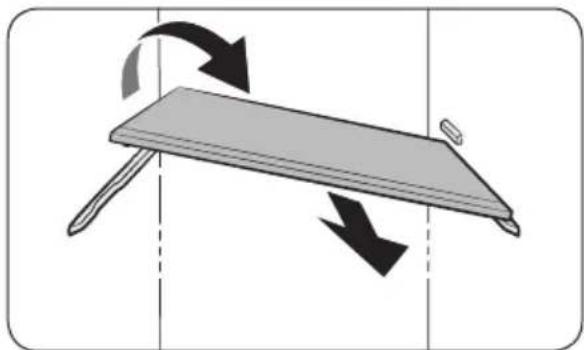

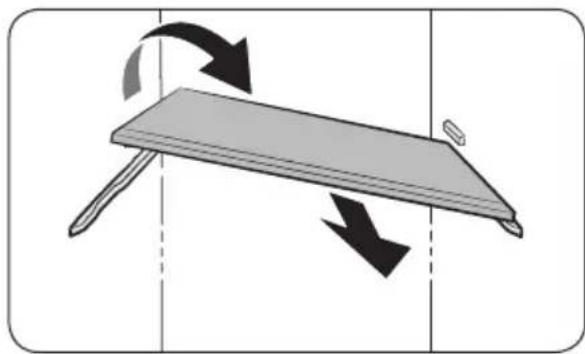

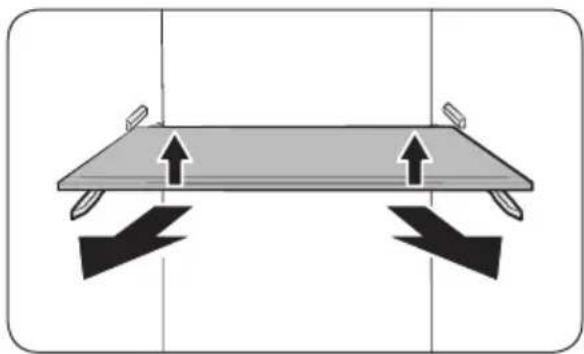

• Do not fit fridge shelf in upside down. Shelf stopper will not work.
• It may cause a personal injury because of glass shelf drop.
• Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when opening the doors children may be in the area.

• If a gas leak is detected, avoid any naked flames or potential sources of ignition, and vent the room in which the appliance is standing for several minutes.

• Do not touch the appliance or power cord.

• Do not use a ventilating fan.

• A spark may result in explosion or fire.

• Use only the LED Lamps provided by the manufacturer or its service agents.

• Bottles should be stored tightly together so that they do not fall out.
• This product is intended only for the storage of food in a domestic environment.
• Do not attempt to repair, disassemble, or modify the refrigerator yourself.

- Unauthorized modifications can cause safety problems. To reverse an unauthorized modification, we will charge the full cost of parts and labor.

- Do not use any fuse (such as cooper, steel wire, etc.) other than a standard approved fuse.

- If your refrigerator needs to be repaired or reinstalled, contact your nearest service center.

- Failing to do so may result in an electric shock, fire, problems with the product, or injury.

• If the interior or exterior LED lamp has stop working, contact your nearest service center.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator from the electric supply wall socket immediately and contact your Samsung Electronics service center.

- Failing to do so may result in an electric or fire hazards.

- Pull the power plug out of the electric supply wall socket before changing the interior lamps of the refrigerator.

- Otherwise, there is a risk of electric shock.

• If you experience difficulty changing a non-LED light, contact a Samsung service center.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.

- Contact a Samsung service center.

• Plug the power plug into the electric supply wall socket firmly.
• Do not use a damaged power plug, damaged power cord or a loose electric supply wall wall socket.

- This may result in an electric shock or fire.

Usage cautions

CAUTION

- Do not re-freeze frozen foods that have thawed completely. Do not place carbonated or fizzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer.

- When the contents freeze, the glass may break and cause personal injury.

• To get the best performance from the product:

- Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.

- Wrap food up properly or place it in airtight containers before putting it into the refrigerator.

- Please observe maximum storage times and expiration dates of frozen goods.

- Do not place glass or bottles or carbonated beverages into the freezer.

- The container may freeze and break, and this may result in injury.

- Do not place carbonated or fizzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer.

- When the contents freeze, the glass may break and cause personal injury and property damage.

• Service Warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung

responsible for safety issues that result from 3rd party modifications.

- Do not block the air vents inside the refrigerator.

- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled.

- Wipe excess moisture from the inside and leave the doors open.

- Otherwise, odor and mold may develop.

- If the refrigerator is disconnected from the electric power supply, you should wait for at least five minutes before plugging it back in.

- If the refrigerator gets wet, pull out the power plug and contact your Samsung Electronics service center.

- Do not strike or apply excessive force to any glass surface.

- Broken glass may result in a personal injury and/or property damage.

- Be careful that your fingers are not caught in.

- If the refrigerator is flooded, make sure to contact your nearest service center.

- There is a risk of electric shock or fire.

- Do not keep vegetable oil in your refrigerator's door or bins. The oil can solidify, making it foul-tasting and difficult to use. In addition, the open container can leak and the leaked oil can cause the door or bin to crack. Open oil containers are best kept in a cool and shaded place such as a cupboard or pantry.

- Examples of vegetable oil: olive oil, corn oil, rapeseed oil, etc.

Cleaning cautions

CAUTION

- Do not spray water directly on the inside or outside the refrigerator.

- There is a risk of fire or electric shock.

- Do not use a hair dryer to dry the inside of the refrigerator.

- Do not place a lighted candle in the refrigerator to remove bad odors.

- This may result in an electric shock or fire.

- Do not spray cleaning products directly on the display.

- Printed letters on the display may come off.

- If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service center.

- Failing to do so may result in an electric shock or fire.

- Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.

- Otherwise, there is a risk of fire or electric shock.

- Do not clean the appliance by spraying water directly onto it.

- Do not use benzene, thinner, or Clorox, Chloride for cleaning.

- They may damage the surface of the appliance and may cause a fire.

- Before cleaning or performing maintenance, unplug the appliance from the electric wall socket.

- Failing to do so may result in an electric shock or fire.

• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.
• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets.

- These can scratch or damage the material.

- Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping.

Critical disposal warnings

WARNING

• Please dispose of the packaging material from this product in an environmentally friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. If this refrigerator contains flammable gas (refrigerant R-600a), contact your local authority in regard to safe disposal of this product.

- When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance.

- If trapped inside, the child may become injured suffocate to death.

- Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

- Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over his or her head, the child could suffocate.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

If the water dispenser is available

Clean water tanks if they have not been used for 48 hours, flush the water system connected to a water supply if water has not been drawn for 5 days.

Additional tips for proper usage

• In the event of a power failure, call the local office of your electric company and ask how long the failure is going to last.
• Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.
• Should the power failure last more than 24 hours, remove and discard all frozen food.

- The refrigerator might not operate consistently (frozen contents can thaw or temperatures can become too warm in the frozen food compartment) if sited for an extended period of time in a location where ambient air temperatures are constantly below the temperatures for which the appliance is designed.

- In case of particular foods, keeping it under refrigeration can have a bad effect on preservation due to its properties.

• Your appliance is frost free, which means there is no need to manually defrost your appliance. This will be carried out automatically.
• Temperature rise during defrosting complies with ISO requirements. If you want to prevent an undue rise in the temperature of frozen food while the appliance defrosts, wrap the frozen food in several layers of newspaper.
• Do not re-freeze frozen foods that have thawed completely.

Saving Energy Tips

• Install the appliance in a cool, dry room with adequate ventilation. Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (a radiator, for example).
• Not to block any vents and grilles is recommended for energy efficiency.
• Allow warm food to cool down before placing it in the appliance.
• Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator.
• Do not keep the door of the refrigerator open for too long when putting food in or taking food out. The shorter the time the door is open, the less frost build-up you'll have in the freezer.
• It is recommended to install the refrigerator with clearance to the back and sides. This will help reduce power consumption and keep your energy bills lower.

We recommend the value of clearance to be :

- Right, left, and back side: more than 50 mm

- Top side: more than 100 mm

- For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves on the position supplied by manufacturer.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

Instructions about the WEEE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it.

WARNING

• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualified technician.
• Dispose of the product packaging material in compliance with the local regulations.
• To prevent electric shock, unplug the power cord before servicing or replacements.

Installation warnings

Before using your fridge freezer for the first time, please pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge freezer starts to cool.
• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not be exposed to direct sunlight.
• Your fridge freezer must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your fridge freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.
• Do not cover the body or top of fridge freezer with lace. This will affect the performance of your fridge freezer.
• Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).
• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge freezer after cleaning.

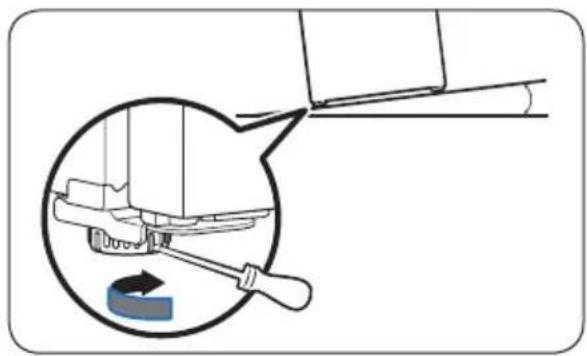

• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.
• When the product is running, high temperature can be noticed on the side panels. This situation is normal.
• In order for the product to work efficiently, there must be some gap around it for air circulation. If you are going to place the product in a recessed area on the wall, make sure that the gap should be 100 mm between top surface and ceiling, 50 mm between walls and side panels.

- The distance between the appliance and back wall must be a maximum of 75 mm.

1.1 During Usage

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
• Do not place glass bottles or cans in the ice-making compartment as they will burst when the contents freeze.
• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

Refrigerator at a glance(RT30A\*\*\*\*)

The actual image and provided component parts of the refrigerator may differ, depending on the model and the country.

A B 1 2 3 11 10 4 9 5 6 8 7 12 13

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A) Freezer compartment

B) Fridge compartment

1) Interior display

2) Freezer shelf

3) Turbo fan *

4) Fridge shelves

5) Chiller *

6) Crisper cover

7) Crisper

8) Bottle shelf

The actual image and provided component parts of the refrigerator may differ, depending on the model and the country.

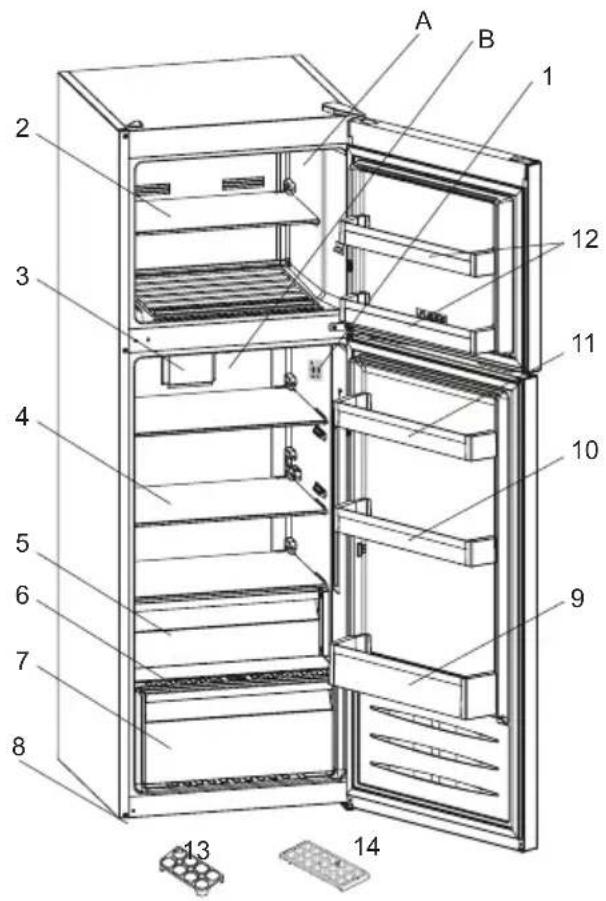

1 2 3 4 5 6 7 8 A B 14 13 12 11 10 9 15 16

This presentation is only for information about the parts of appliance. Parts may vary according to the appliance model.

A) Freezer compartment
B) Fridge compartment
1) Freezer shelf
2) Turbo fan *
3) Wine rack *
4) Fridge shelves

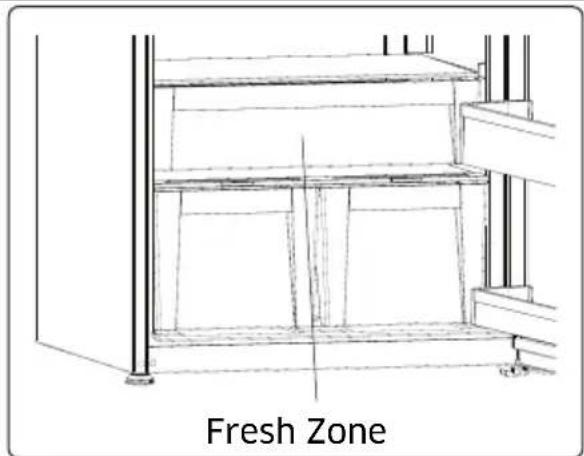

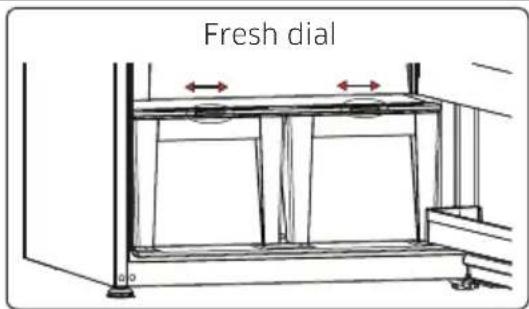

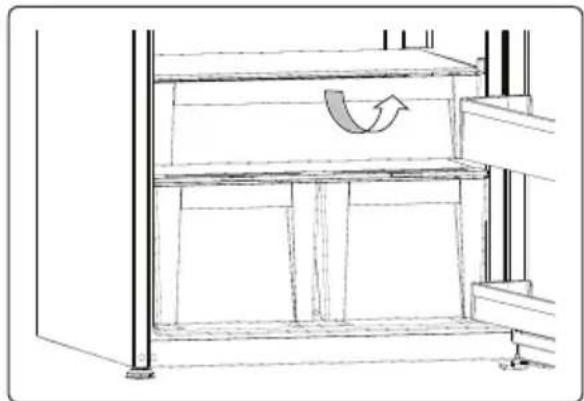

5) Fresh zone *
6) Vegetable & Fruit drawer cover
7) Vegetable & Fruit drawer
8) Levelling feet
9) Door bottom shelf *
10) Bottle shelf
11) Adjustable door shelf * / door shelf
12) Door shelf
13) Interior display
14) Freezer door shelves *

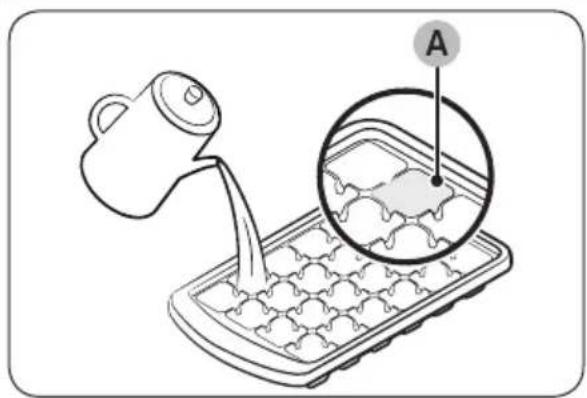

15) Ice box tray *
16) Egg holder

* In some models

NOTE

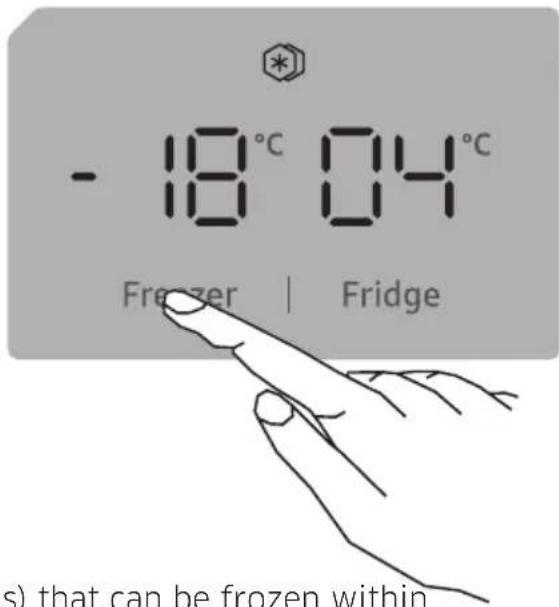

• To quickly freeze large quantities of food, use the bottom drawer.
- For best energy efficiency, make sure all of shelves, drawers, and baskets are placed in their original position.
- To freeze large amounts of food, activate Super freeze when putting food in the freezer.

To secure more storage space (applicable models only)

To get more space, you can remove the top and middle drawer of freezer compartment since it does not affect thermal and mechanical characteristics. A declared storage volume of frozen food storage compartment is calculated with these drawers removed.

Step-by-step installation

STEP 1 Select a site

Site requirements:

• Solid, level surface without carpeting or flooring that may o struct ventilation
• Away from direct sunlight
• Adequate room for opening and closing the door
• Away from a heat source
  • Room for maintenance and servicing
  • Temperature range: between 10 °C and 43 °C

Effective temperature range

The refrigerator is designed to operate normally in the temperature range specified by its class rating.

Climate Class Symbol	Ambient Temperature (°C)
	IEC 62552 (ISO 15502) ISO 8561
Extended Temperate SN Between +10 and +32 +10 and +32
Temperate N Between +16 and +32 +16 and +32
Subtropical ST Between +16 and +38 +18 and +38
Tropical T Between +16 and +43 +18 and +43

NOTE

The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

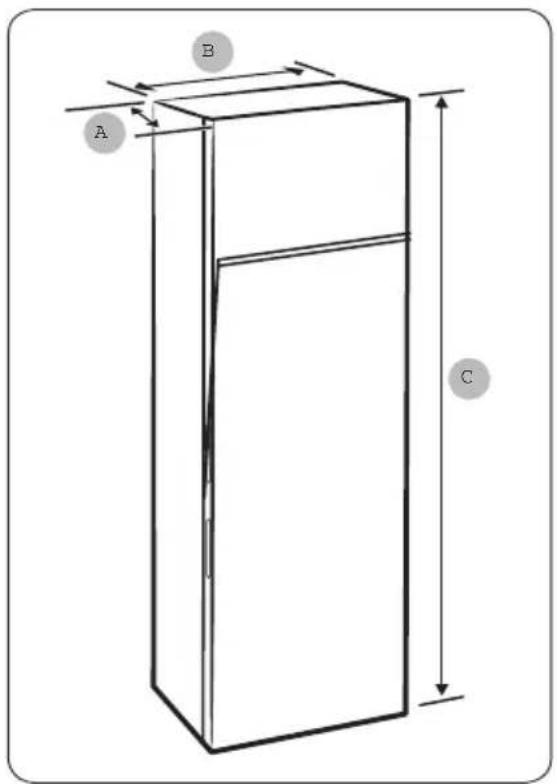

Clearance

See the images and tables below for space requirements for installation.

A B C

	RT30A	RT40A
Deep (A) (w/out handle)	640 mm	720 mm
Deep (A) (with handle)	695 mm	775 mm
Width (B)	595 mm	700 mm
Overall Height (C)	1710 mm	1730 mm

01 0101 02 03 04 05 06 07

RT30A***
1	more than 50 mm recommended
2	120° (Fridge) / 160° (Freezer)
3	570 mm (maximum)
4	1100 mm (maximum)
5	558 mm
6	5 mm
7	1200 mm

RT40A****
1	more than 50 mm recommended
2	120° (Fridge) / 140° (Freezer)
3	513 mm (maximum)
4	1213 mm (maximum)
5	661 mm
6	5 mm
7	1371 mm

NOTE

The measurements in the above table may differ, depending on the measuring method.

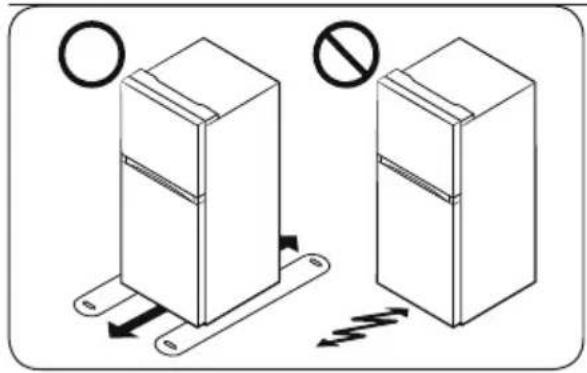

STEP 2 Flooring

Diagram showing two refrigerator doors with directional arrows and a prohibition sign, indicating parking or cooling conditions.

- The surface to install the refrigerator must support a fully loaded refrigerator, or approximately 90 kg.

• To protect the floo, put a large piece of cardboard on each leg of the refrigerator.

- Once the refrigerator is in its final p sition, do not move it unless necessary to protect the floor. If you have to, use a thick paper or cloth such as old carpets along the movement path.

STEP 3 Adjust the levelling legs

CAUTION

• The refrigerator must be levelled on a flat, solid floor. Failing to do so can cause damage to the refrigerator or physical injury.
• Levelling must be performed with an empty refrigerator. Make sure no food items remain inside the refrigerator.
• For safety reasons, adjust the front side a little higher than the rear side.

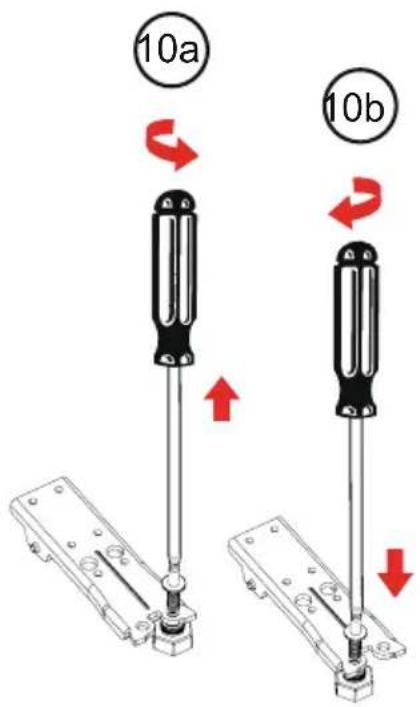

The refrigerator can be levelled using the front legs that have a special screw (leveller) for levelling purposes. Use a fla -head screwdriver for levelling.

Diagram showing a mechanical device with a lever and rotating component, no text or symbols present

To adjust the height of the left side:

Insert a flat-head screwdriver into the leveller of the front left leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower.

Diagram showing a mechanical device with a circular inset highlighting a component (no text or symbols present)

To adjust the height of the right side:

Insert a flat-head screwdriver into the leveller of the front right leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower.

STEP 4 Initial settings

By completing the following steps, the refrigerator should be fully functioning.

1. Remove the PE foam sheet on each shelf corner, which is attached to protect the refrigerator during transportation.
2. Plug the power cord into the wall socket to turn the refrigerator on.
3. Open the door, and check if the interior light lights up.
4. Set the temperature to the coldest, and wait for about an hour. The freezer will then be slightly chilled, and the motor will run smoothly.
5. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready for use.

STEP 5 Final check

When installation is complete, confirm that

• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a flat level surface with a reasonable clearance from the wall or the cabinet.
• The refrigerator is level and is sitting firmly on the floor.
• The door opens and closes freely, and the interior light turns on automatically when you open the door.

Display and Control Panel (Internal display)

3 5 6 4 - 18°C 04°C Freezer | Fridge 1 2

Using the Control Panel

1. Enables the setting of the freezer.
2. Enables the setting of the cooler.
3. Freezer set value screen.
4. Cooler set value screen.
5. Super freeze symbol.
6. Alarm symbol.

Operating your Fridge Freezer

Once you have plugged in the product, all symbols will be displayed for 2 seconds and the initial values will be shown as -18 °C on the freezer adjustment indicator, and +4 °C on the fridge adjustment indicator.

Freezer Temperature Settings

• The initial temperature value for the freezer setting indicator is -18 °C.
• Press the freezer set button once. When you first press the button, the previous value will blink on the screen.
• Whenever you press the same button, a lower temperature will be set (-16 °C, -18 °C, -20 °C, -22 °C or -24 °C).
• If you continue to press the button, it will restart from -16 °C.

- 18°C 04°C Ferrer | Fridge

Cooler Temperature Settings

• The initial temperature value for the cooler setting indicator is +4 °C.
• Press the cooler button once.
• Whenever you press the button, a lower temperature will be set (+8 °C, +6 °C, +5 °C, +4 °C, or +2 °C).
• If you continue to press the button, it will restart from +8 °C.

- 18°C 04°C Freezer | Fridge

Super Freeze Mode

Purpose

• To freeze a large quantity of food that cannot fit on the fast freeze shelf.
  • To freeze prepared foods.
  • To freeze fresh food quickly to retain freshness.

How to use

To enable the super freeze mode, press and hold the freezer temperature setting button for 3 seconds. Once the super

freeze mode has been set, the super freeze symbol on the indicator will be lit and the machine will beep to confirm the mode has been switched on.

During Super Freeze Mode:

• The temperature of the Cooler may be adjusted. In this case, Super Freeze mode will continue.
• Super Freeze mode can be cancelled in the same way it is selected.

- 18°C 04°C Frozer | Fridge s) that can be frozen within

Notes:

• The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is shown on the appliance label.
• For optimal appliance performance in maximum freezer capacity, activate super freeze mode.

Super freeze mode will automatically cancel after 24 hours, depending on the environmental temperature or when the freezer sensor reaches a sufficiently temperature.

Display and Control Panel (External display)

Using the Control Panel

1. It enables the setting value of freezer to be modified and super freeze mode to be activated if desired. Freezer may be set to -16, -18, -20, -22, -24 °C and Super freeze.
2. It enables the setting value of cooler to be modified and super cool mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C and super cool.
3. It is super freeze indicator.
4. It is super cooling indicator.
5. Sr alarm indicator.

Using the Control Panel

Cooler Set Button

The cooler set button allows changes to be made to the temperature of the cooler compartment.

Super cool mode can also be activated using this button.

No Frost 2°C -24°C 4°C -22°C 5°C -20°C! 6°C -18°C 8°C -16°C Fridge | Freezer 1 2 3 4 5

Freezer Set Button

The freezer set button allows changes to be made to the temperature of the freezer compartment. Super freezer mode can also be activated using this button.

Sr Alarm

Sr alarm will change to red if any problems occur.

Operating Your Fridge Freezer

Super Cool Mode

When would it be used?

• To cooling huge quantities of food.
• To cooling fast food.
• To cooling food quickly.
- To store seasonal food for a long period
- Activating Super Cool Mode

Push the cooler set button until the super cool symbol illuminates. The buzzer will sound twice and the mode will be set.

During Super Cool Mode

Super cool mode can be cancelled in the same way it is selected.

Super Freeze Mode

When would it be used?

• To freeze a large quantity of food that cannot fit on the ast freeze shelf.
  • To freeze prepared foods.
• To freeze fresh food quickly to retain freshness.

Activating Super Freeze Mode

Push the freezer set button until the super freez symbol illuminates. The buzzer will sound twice and the mode will be set.

During Super Freeze Mode

Super freez mode can be cancelled in the same way it is selected.

Screen Saver Mode

Purpose

This mode saves energy by switching off all control panel lighting when the panel is left inactive.

How to Use

• Screen saver mode will be activated automatically after 30 seconds.
• If you press any key while the lighting of the control panel is off, the current machine settings will reappear on the display to let you make any change you wish.
• If you do not cancel the screen saving mode or press any key for 30 seconds, control panel will remain off.

To deactivate the screen saving mode,

• To cancel the screen saving mode, first of all, you need to press any key to activate the keys and then press and hold the freezer set button for 5 seconds.
• To reactivate screen saving mode, press and hold the freezer set button for 5 seconds.

Cooler Temperature Settings

• Press the cooler set button once.
• When you first press the button, the previous value will appear on the setting indicator of the cooler.
• Whenever you press this button, a lower temperature will be set (+8 °C, +6 °C, +5 °C, +4 °C, +2 °C, or super cool).
• If you press the cooler set button until the super cool symbol appears on the cooler setting indicator, and do not press any buttons for 3 second, super cool will flash
• If you continue to press the same button, it will restart from +8 °C.

Freezer Temperature Settings

• Press the freezer set button once.
• When you first press the button, the previous value will appear on the setting indicator of the freezer.
• Whenever you press this button, a lower temperature will be set (-16 °C, -18 °C, -20 °C, -22 °C, -24 °C, or super freeze).
• If you press the freezer set button until the super freez symbol appears on the freezer setting indicator, and do not press any buttons for 3 second, super freezer will flash
• If you continue to press the same button, it will restart from -16 °C.

Recommended Settings for the Freezer and Cooler Compartment Temperature

Freezer Compartment	Cooler Compartment	Remarks
-18 °C 4	°C	For regular use and best performance.
-20 °C, -22 °C or -24 °C 4	°C	Recommended when environmental temperature exceeds 30 °C.
Super Freeze mode 4	°C	Must be used when you wish to freeze food in a short period of time.
-18 °C, -20 °C, -22 °C or -24 °C	2 °C	These temperature settings must be used when the environmental temperature is high or if you think the refrigerator compartment is not cool enough because the door is being opened frequently.

Temperature Adjustment Warnings

• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency.
• Do not start another adjustment while you are already making an adjustment.
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge and the ambient temperature in the location of your fridge.
• In order to allow your fridge to reach the operating temperature after being connected to mains, do not open the doors frequently or place large quantities of food in the fridge. Please note that, depending on the ambient temperature, it may take 24 hours for your fridge to reach the operating temperature.
• A 5 minute delay function is applied to prevent damage to the compressor of your fridge when connecting or disconnecting to mains, or when an energy breakdown occurs. Your fridge will begin to operate normally after 5 minutes.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Important installation instructions

This appliance is designed to work in difficult climate conditions and is powered with 'Freezer Shield' technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

Accessories

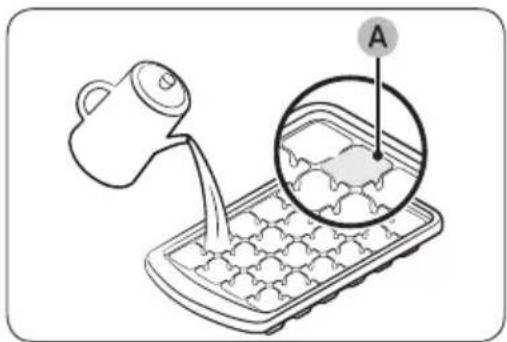

Diagram illustrating a cooking process with a kettle pouring liquid into a tray, labeled with point A pointing to a circular diagram showing a food item.

To make ice cubes:

- Tray ice maker: Fill the tray with water up to the maximum level (A) as shown in the illustration.

- Icetray: Fill the tray with water up to the maximum level marked on the inner rear of the tray.

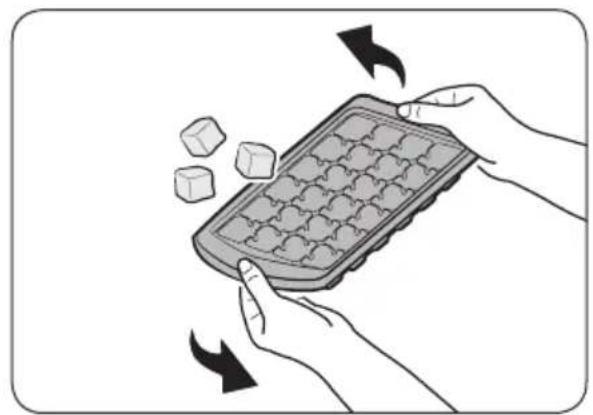

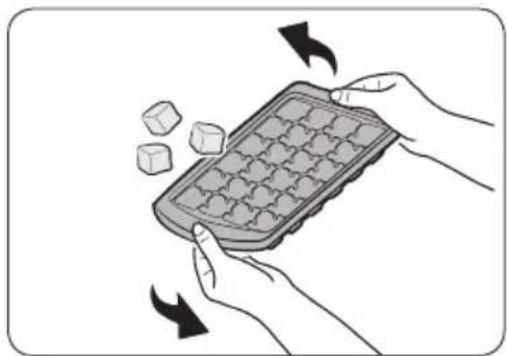

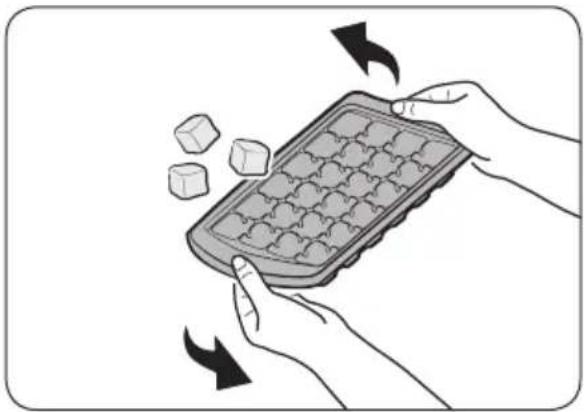

Illustration of hands holding a tray with ice cubes, showing cooling process with arrows (no text or symbols)

To empty the ice tray, hold both ends of the tray and gently twist to remove the ice cubes.

The Fresh Zone (RT40A\*\*\*\*, In some models)

Fresh Zone

Keeping food in the Fresh Zone, instead of the freezer or refrigerator compartments, allows food to retain freshness and flavour for longer, while preserving its fresh appearance. When the fresh zone tray becomes dirty, remove it and wash with water.

(Water freezes at 0^ C, but food containing salt or sugar freezes at temperatures lower than this).

The fresh zone is usually used for storing foods such as raw fish, lightly pickled food, rice, and so on.

Do not put food you want to freeze or ice trays (to make ice) in the fresh zone

To remove the fresh zone (RT40A****, In some models)

Technical line drawing of a mechanical assembly with a curved arrow indicating motion or force (no text or symbols)

• Pull the fresh zone towards you by sliding it on the rails.

- Pull the fresh zone up from the rail and remove it from the fridge.

After the fresh zone is removed, there will be space for up to 20kg of food to be placed in the fridge.

The Fresh Dial (RT40A****, In some models)

Fresh dial

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within.

The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

Handle and care

Diagram of a table with two arrows indicating upward and downward motion, no text or symbols present

1. Lift the front or rear of the shelf slightly up to pull it out.

Diagram of a flatboard with arrows indicating rotation and movement, no text or symbols present

1. Turn the shelf diagonally to remove it.

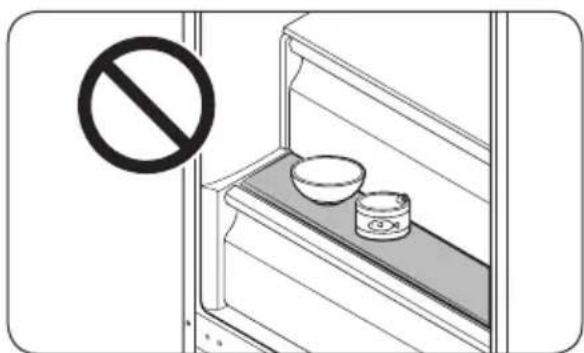

Diagram showing a refrigerator with a no-smoking symbol and two containers on the side, indicating food safety restrictions.

CAUTION

• Do not put food or objects in front of the Vegetable box. The door will not close properly.
• The shelf must be inserted correctly. Do not insert upside down.
• When reinserting the shelf, make sure to push in the shelf to the end until it fits.
• Glass containers may scratch the surface of glass shelves.

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning purposes. They may damage the surface of the refrigerator and cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.
2. When done, use a dry cloth or paper towel to dry well.

3. Plug in the power cord.

4. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.

LED Lamps

To replace the lamps of the refrigerator, contact a local Samsung service centre.

WARNING

The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock.

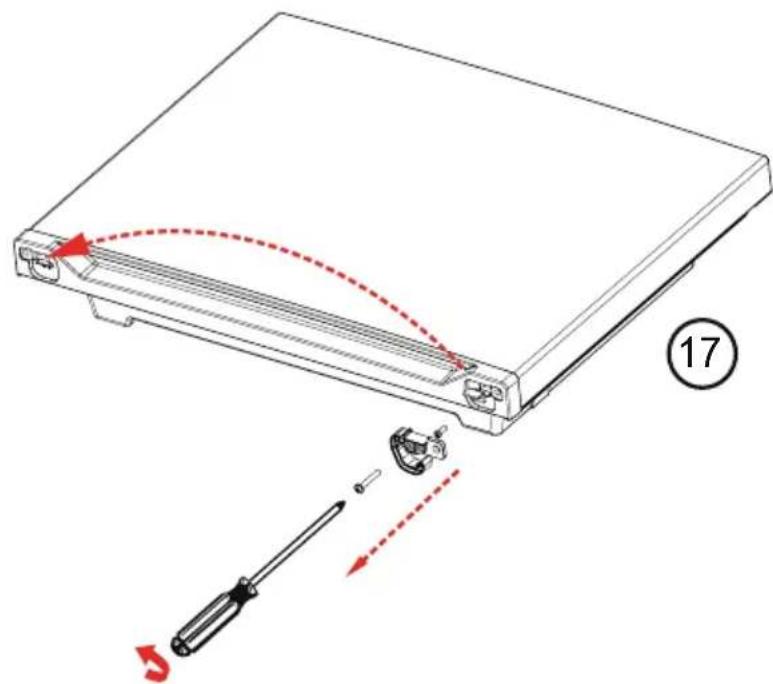

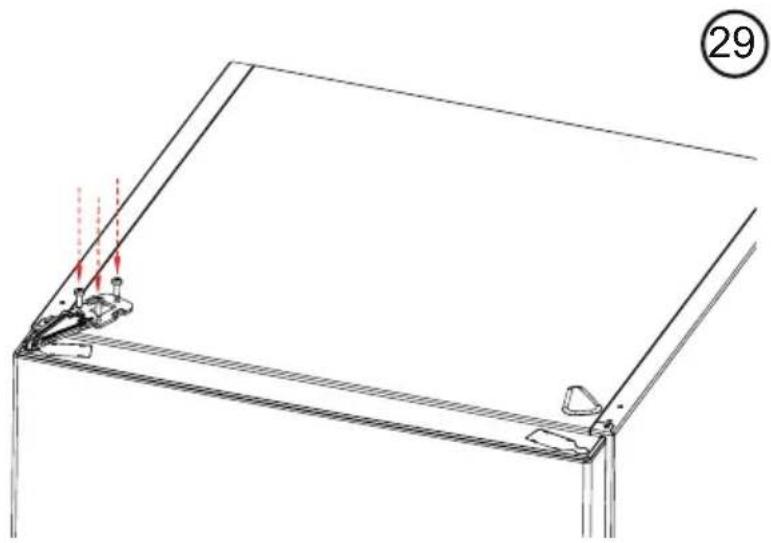

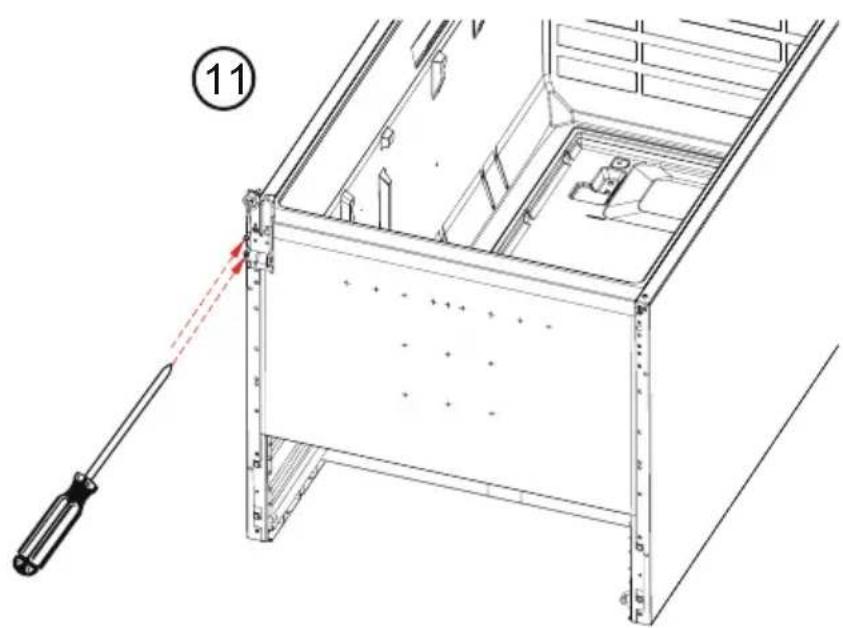

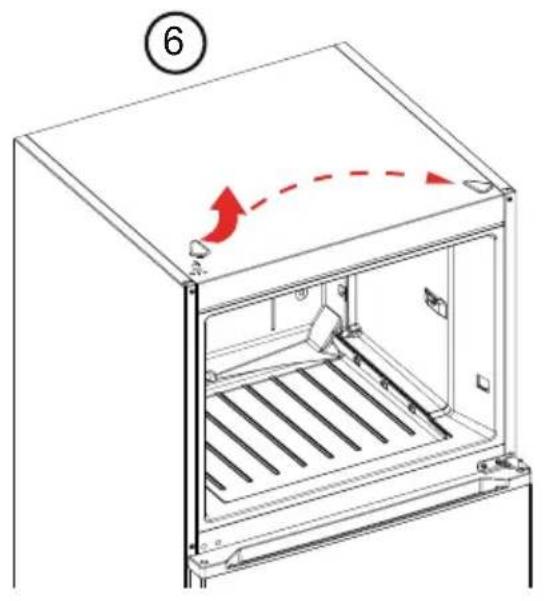

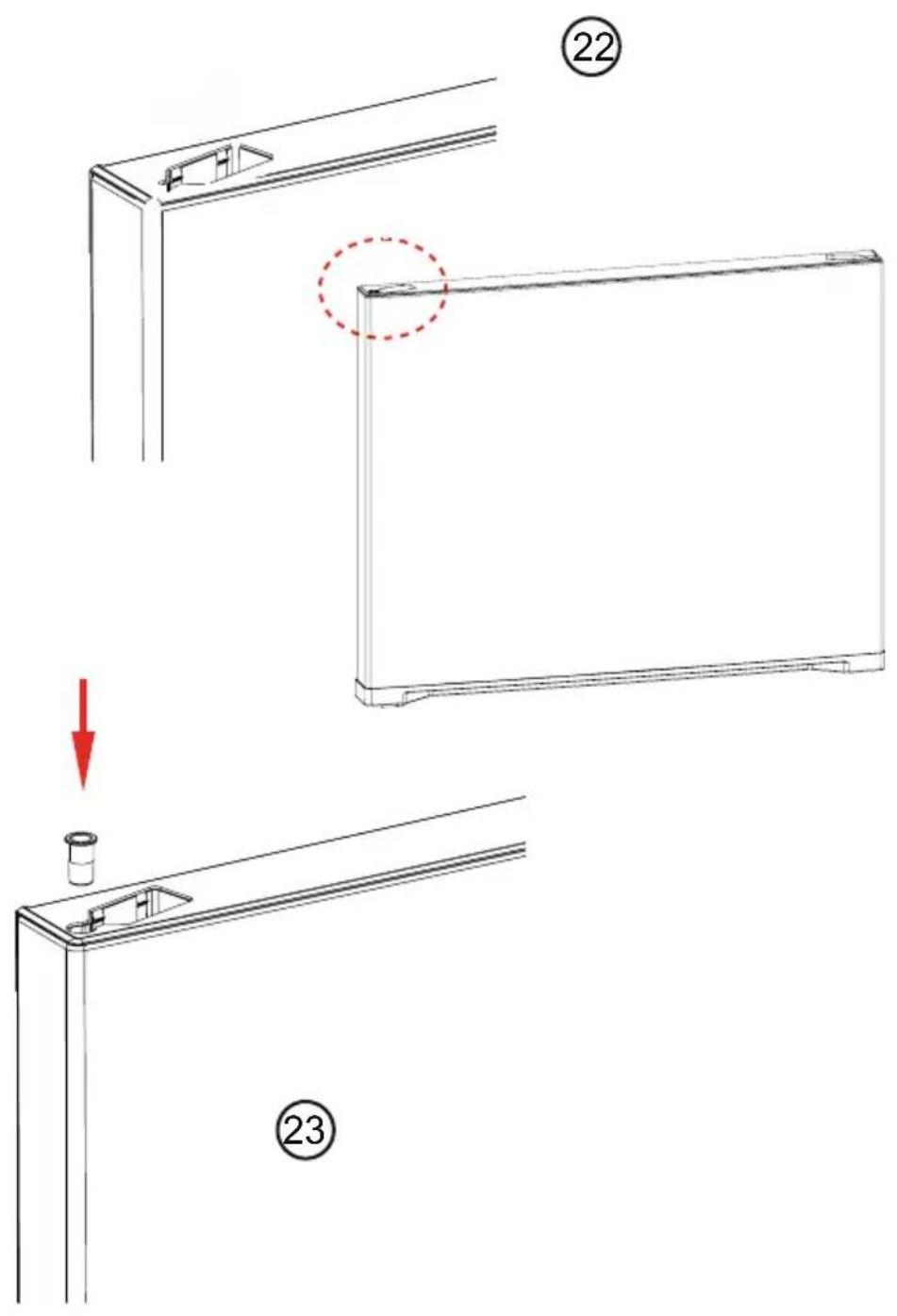

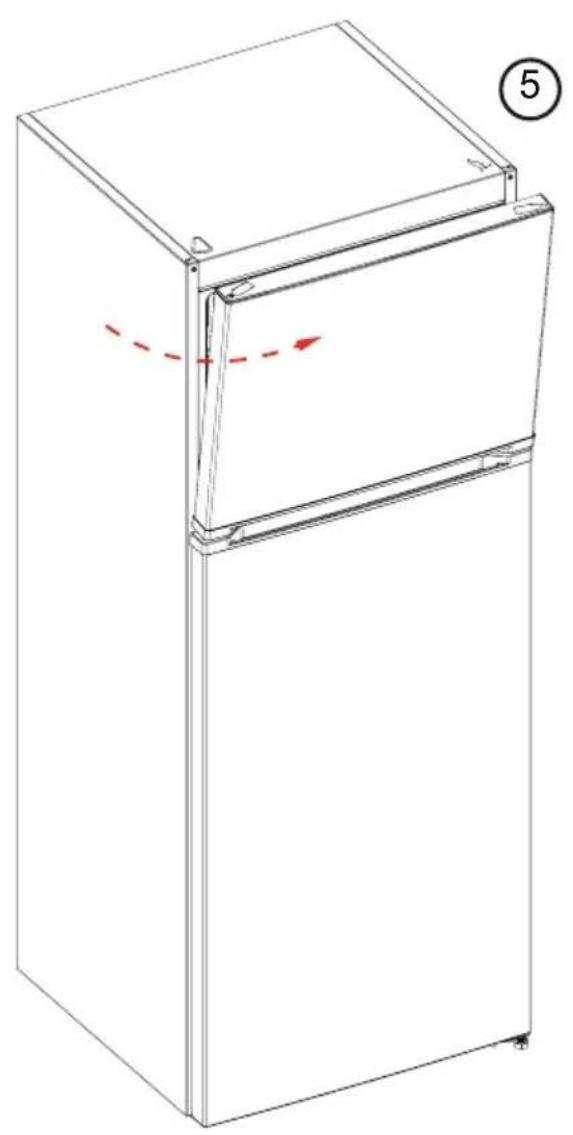

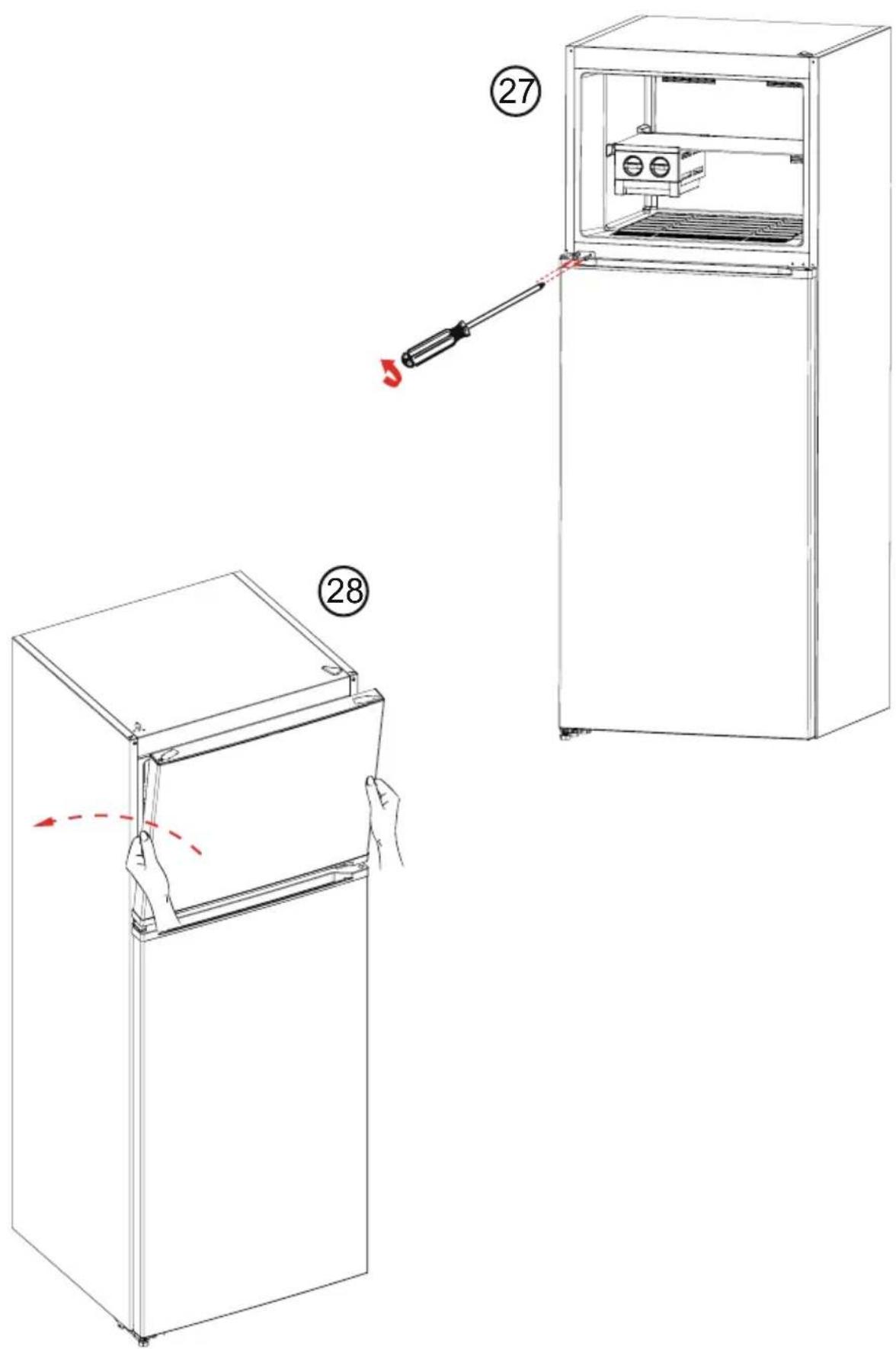

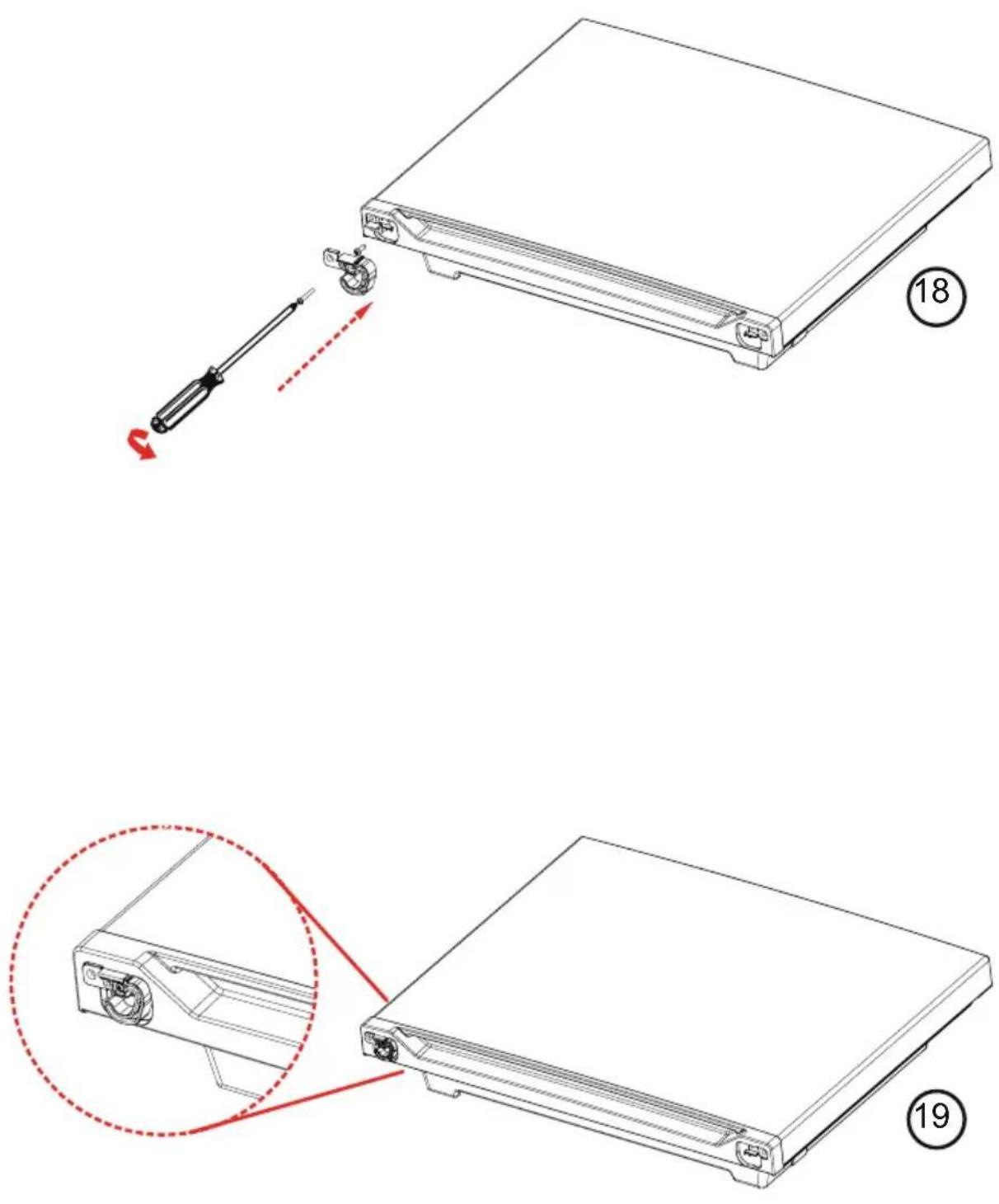

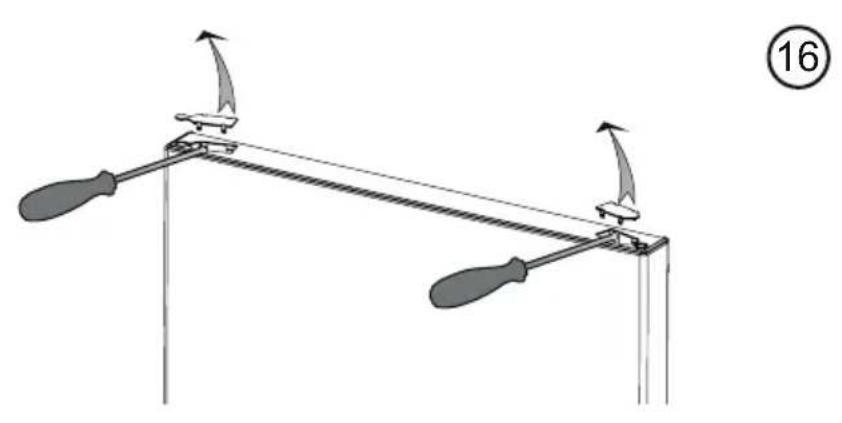

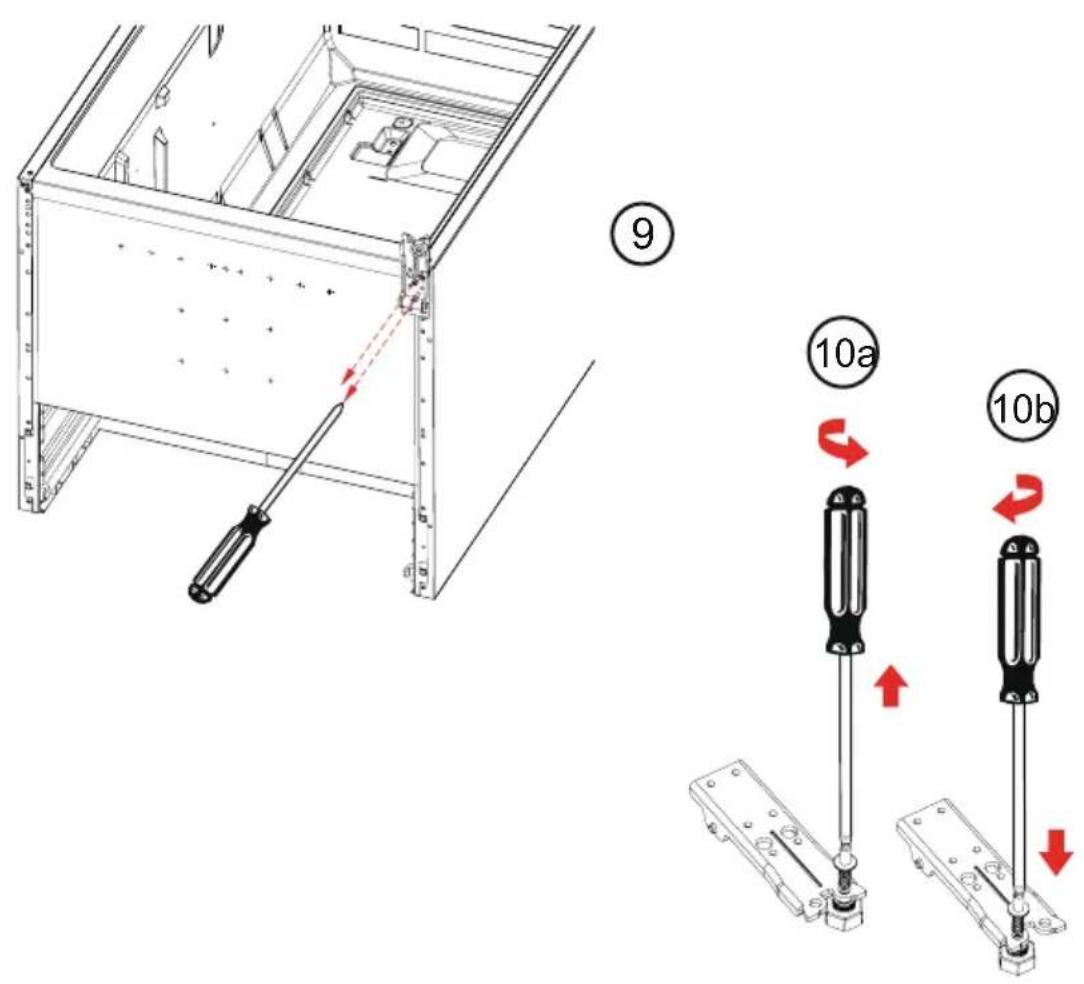

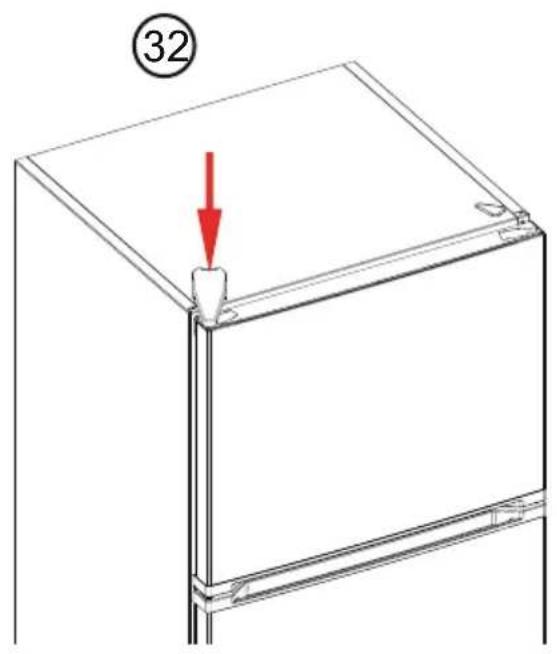

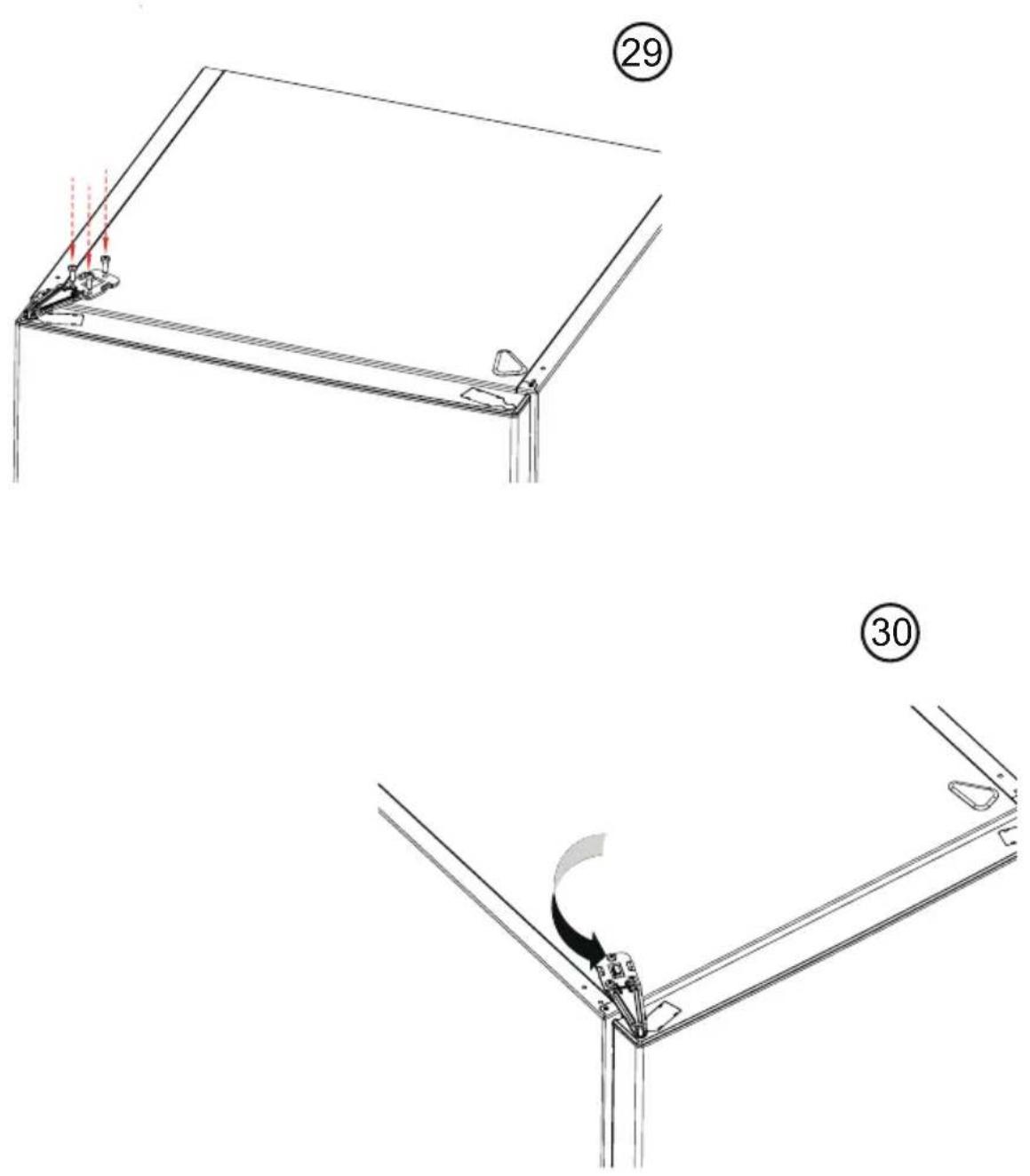

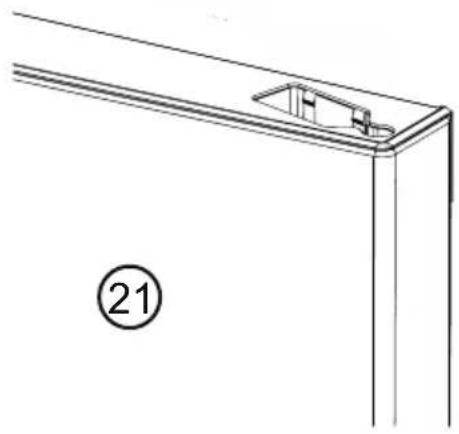

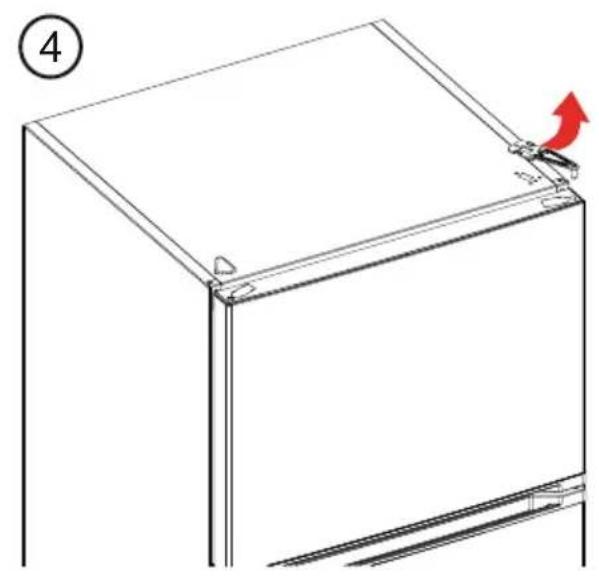

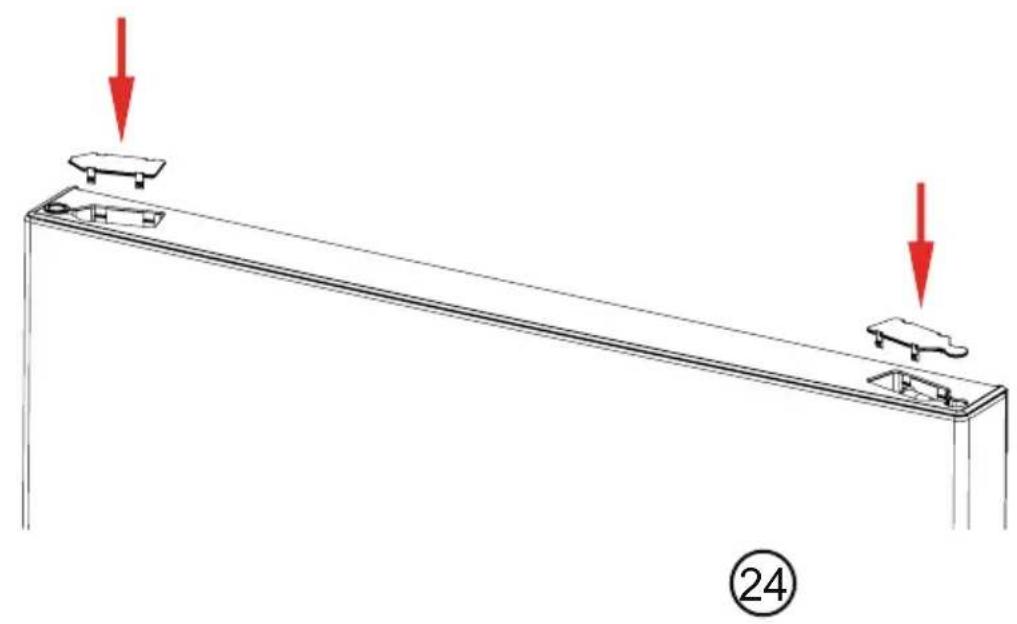

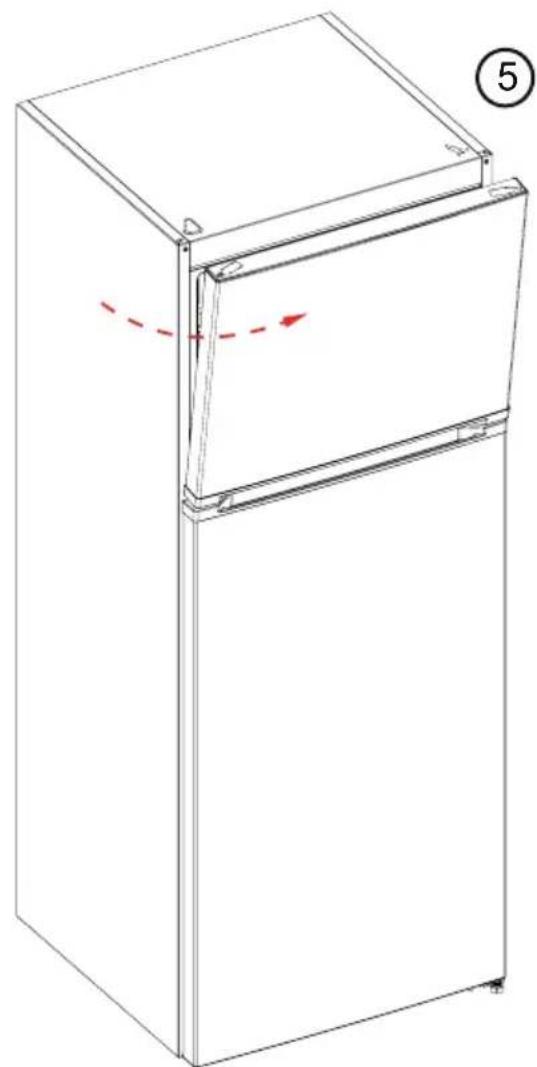

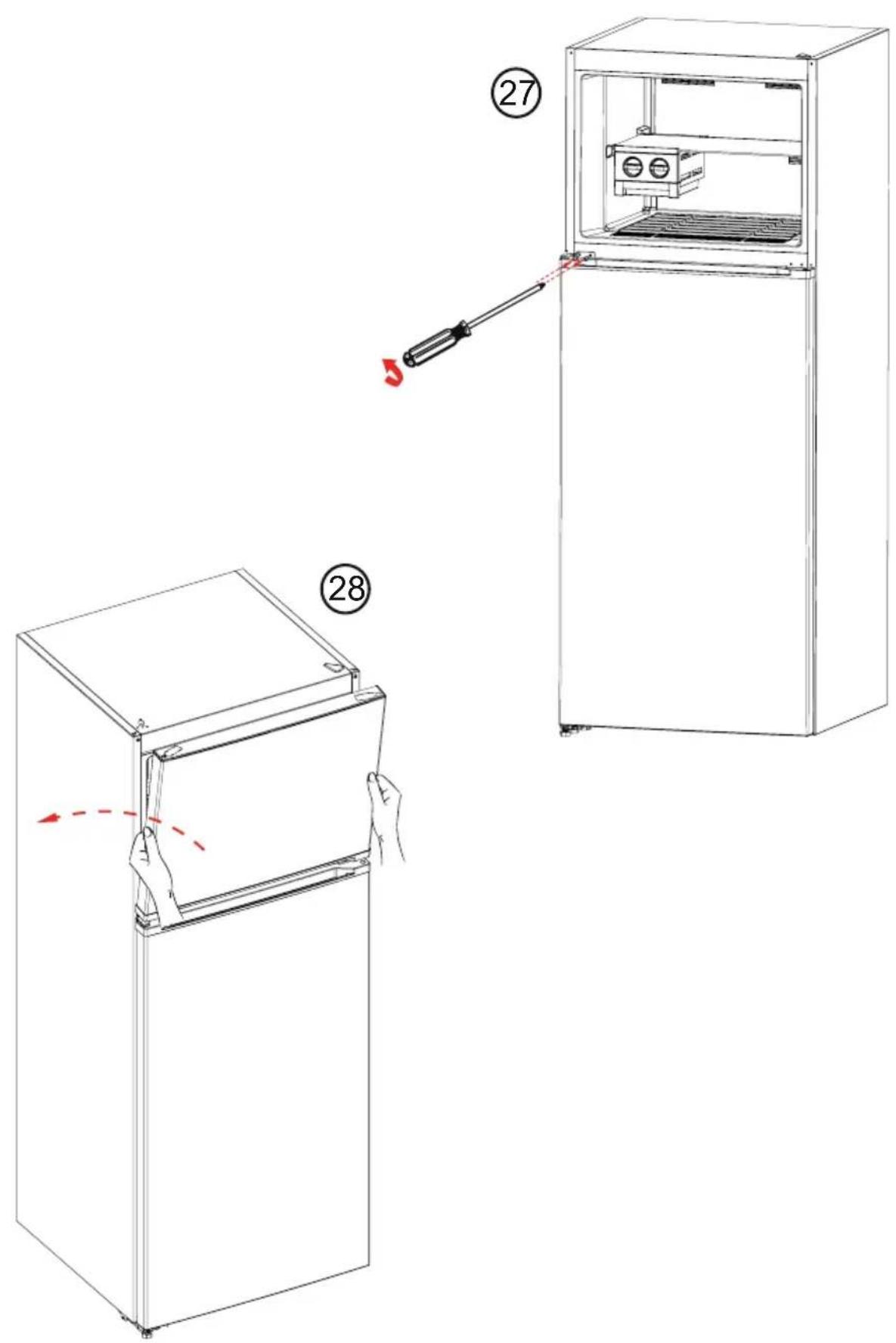

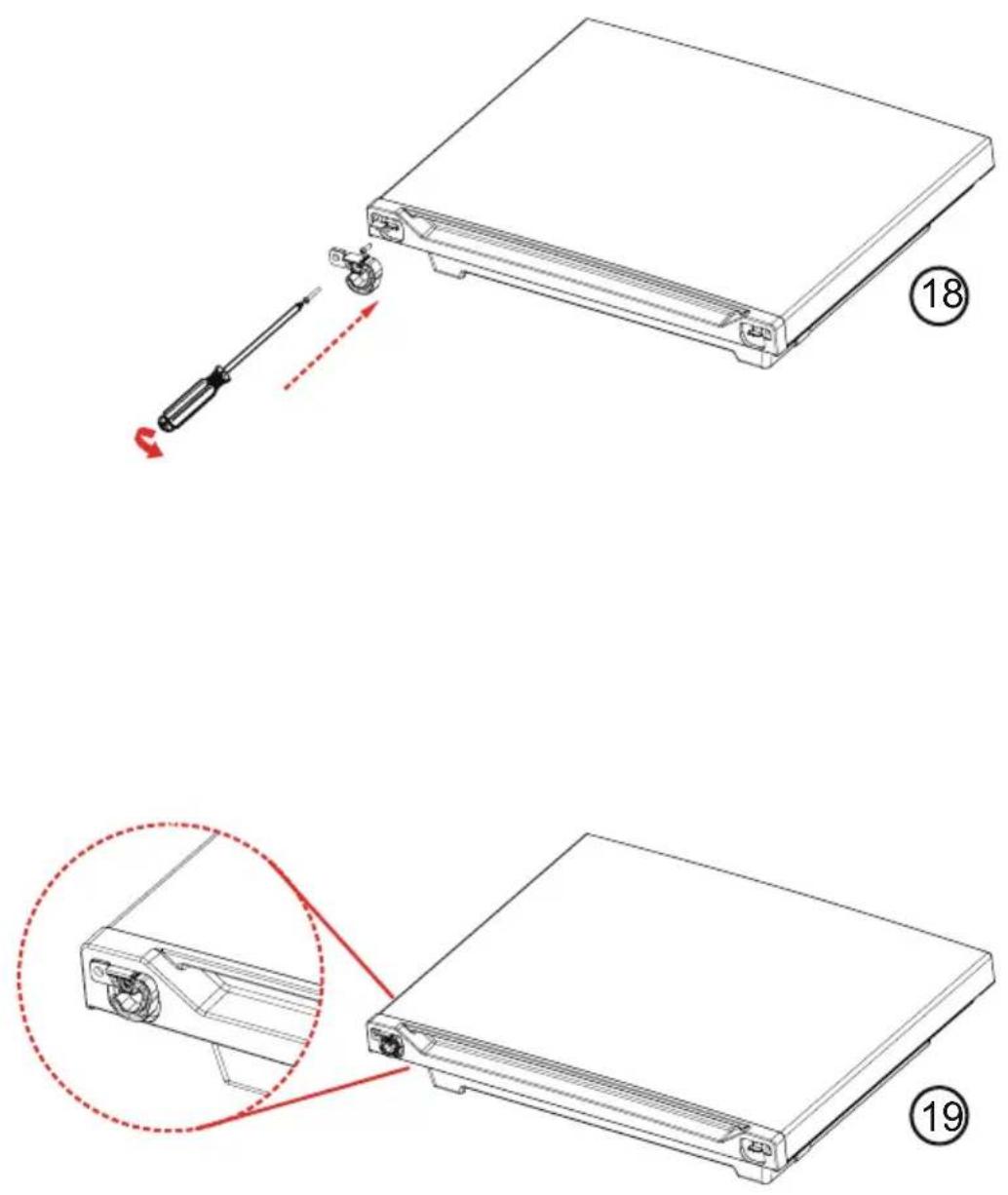

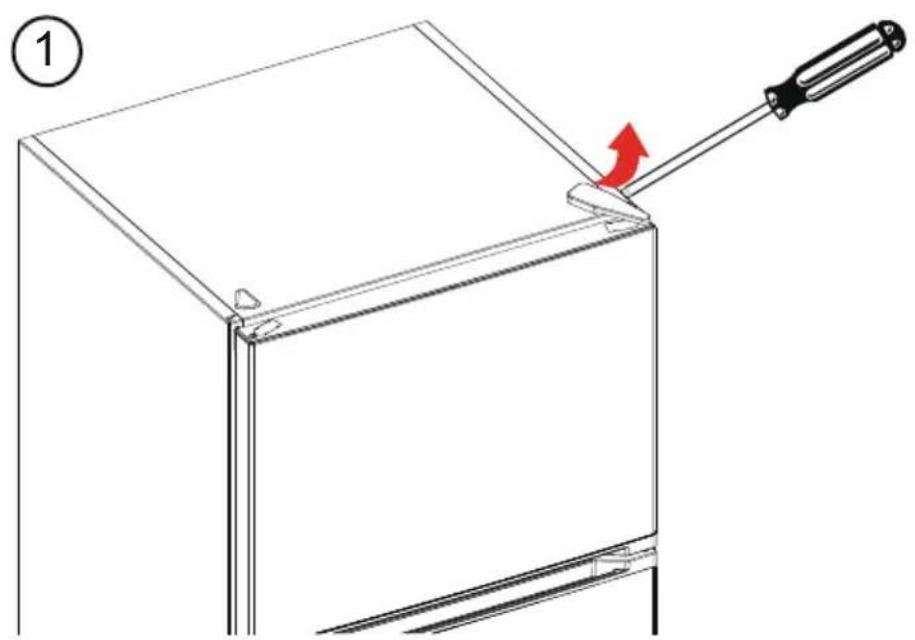

How to reverse door(applicable model only)

Line drawing of a double-door refrigerator with open doors and shelves (no text or symbols)

Maintenance

Line drawing of a mechanical component with a red arrow indicating a turning point (no text or symbols)

Diagram of a 3D cabinet or enclosure with an arrow indicating rotation, no text or symbols present

Diagram showing a screwdriver inserted into a component, with red arrows indicating direction of movement or force on the component.

Line drawing of a refrigerator with a red arrow indicating a change, no text or symbols present

Line drawing of a refrigerator with lid and side door, showing a red dashed arrow indicating rotation (no text or symbols)

⑥

Diagram showing two steps of a refrigerator interior with labeled components and directional arrows indicating movement.

Maintenance

Technical diagram of a mechanical device with a screwdriver and numbered component, showing assembly steps and alignment.

Diagram showing three steps of a door frame installation with directional arrows and numbered annotations (12, 13)

Maintenance

Technical diagram showing two configurations (⑭ and ⑮) of a server rack with attached sensors, highlighting the internal components and red dotted arrows indicating motion.

Diagram of a mechanical lever system with two fulvers and a curved blade, no text or symbols present

Diagram showing a device with a screwdriver and a curved dashed line indicating motion, labeled with number 17.

Technical diagram showing a lever mechanism with labeled component 20 and a red dashed circle highlighting a specific point on the lever.

Technical line drawing of a structural bracket with a labeled section (21), no text or symbols present.

Technical diagram showing three steps of a mechanical assembly with labeled components and a red arrow indicating direction.

Simple line drawing of a horizontal beam with two supports and two downward arrows indicating force or movement (no text or symbols)

Diagram showing a refrigerator interior with labeled parts and a hand holding the lid, illustrating the process of opening and disassembly.

Maintenance

Technical line drawing of a structural frame with supports and a numbered circle marker (29), showing no text or symbols.

Technical diagram showing a mechanical assembly with a curved arrow indicating motion, labeled with number 30 (no text or symbols on the diagram itself)

Line drawing of a refrigerator with a hand pressing down on the lid, showing a red arrow indicating rotation (no text or symbols)

③2

Line drawing of an open refrigerator with doors open, showing internal shelves and ventilation grilles (no text or symbols)

BEFORE CALLING AFTER-SALES SERVICE

Errors

Your fridge will warn you if the temperatures for the cooler and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and cooler indicators.

ERROR TYPE MEANING WHY WHAT TO DO
E01 Sensor warning			Call Service for assistance as soon as possible.
E02 Sensor warning			Call Service for assistance as soon as possible.
E03 Sensor warning			Call Service for assistance as soon as possible.
E06 Sensor warning			Call Service for assistance as soon as possible.
E07 Sensor warning			Call Service for assistance as soon as possible.
E08	Low Voltage Warning	Power supply to the device has dropped to below 170 V.	-This is not a device failure, this error helps to prevent damages to the compressor.-The voltage needs to be increased back to required levelsIf this warning continues an authorised technician needs to be contacted.
E09	Freezer compartment is not cold enough	Likely to occur after long term power failure.	1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Remove any products which have thawed/defrosted during this error. They can be used within a short period of time.3. Do not add any fresh produce to the freezer compartment until the correct temperature has been reached and the error is no longer.If this warning continues an authorised technician needs to be contacted.
E10	Fridge compartment is not cold enough	Likely to occur after:-Long term power failure.-Hot food has been left in the fridge.	1. Set the fridge temperature to a colder value or set Super Cool. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Please empty the location at the front area of air duct channel holes and avoid putting food close to the sensor.If this warning continues an authorised technician needs to be contacted.
E11	Fridge compartment is too cold	Various	1. Check is Super Cool mode is activated2. Reduce the fridge compartment temperature3. Check to see if vents are clear and not cloggedIf this warning continues an authorised technician needs to be contacted.

Errors

Your appliance will warn you if the temperature(s) is/are at improper levels or if a problem occurs with the appliance. SR Alarm indicator (☐) is displayed in the control panel.

ERROR TYPE	arm indicator
MEANING	Turing
WHY	There is/are some part(s) out of order or there is a failure in the cooling process.The product is plugged for the first time or a long-time power interruption for 1 hour.
WHAT TO DO	Check the door is open or not and check if the product working 1 hour.If the door is not open and the product had worked 1 hour, call service for assistance as soon as possible.

General

Temperature

Symptom Possible causes Solution
Fridge/freezer does not operate.Fridge/freezer temperature is warm.	Power cord is not plugged in properly.	Properly plug in the power cord.
	Temperature control is not set correctly.	Set the temperature lower.
	Refrigerator is located near a heat source or direct sunlight.	Keep the refrigerator away from direct sunlight or a heat source.
	Not enough clearance between refrigerator and sides/rear.	We recommend that the gap between the refrigerator and nearby walls (or cabinets) is more than 50 mm.
	The refrigerator is overloaded. Food is blocking the refrigerator vents.	Do not overload the refrigerator. Do not allow food to block ventilation.
Fridge/freezer is over-cooling.	Temperature control is not set correctly.	Set the temperature higher.
Exterior wall is hot.	Refrigerator has hot pipe in the exterior wall.	To prevent condensation, the refrigerator has hot pipe in the front and side walls. If the ambient temperature rises, this equipment may produce more heat. This is not a system failure.

Odors

Symptom Possible	causes Solution
Refrigerator has odors.	Spoiled food.	Clean the refrigerator and remove any spoiled food.
	Food with strong odors.	Make sure strong smelling food is wrapped airtight.

Frost

Symptom Possible	causes Solution
Frost around the vents. Food is blocking the vents.		Make sure no food blocks the refrigerator vents.
Frost on interior walls. Door is not closed roperly.		Make sure food does not block the door. Clean the door gasket.
Fruits or vegetables are frozen.	Fruits or vegetables are stored in the Optimal Fresh Zone.	• Store fruits or vegetables in the vegetable box, or adjust the inner dial of the Optimal Fresh Zone (MAX to MIN). • For more information about Optimal Fresh Zone.
Food in the fridge are frozen.	The temperature of the fridge is too low.	Adjust the temperature.
	Food with high moisture content (such as fruit and vegetable) contact with cold air directly.	Do not store food with high moisture content at the back of the fridge.

Condensation

Symptom Possible	causes Solution
Condensation forms on the interior walls.	If door is left open, moisture enters the refrigerator.	Remove the moisture and do not open the door for a long time.
	Food with high moisture content.	Make sure food is wrapped airtight.

Do you hear abnormal sounds from the refrigerator?

Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user.

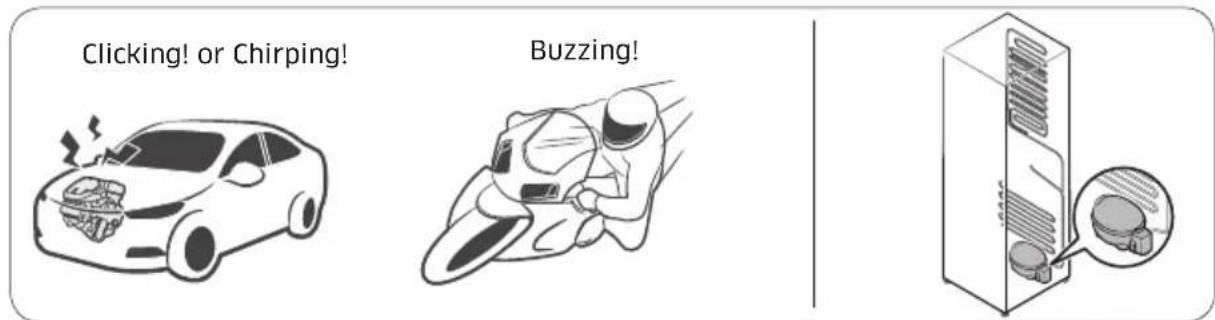

These sounds are normal.

- When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease.

Clicking! or Chirping! Buzzing!

- While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur.

SSSRRR! Whir!

- During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.

HiSS!

Troubleshooting

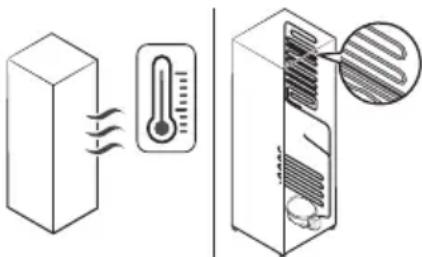

- As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds.

Simple line drawing of a kettle emitting smoke (no text or symbols)

Diagram of a heat exchanger or cooling unit with internal pipes and a magnified inset showing airflow direction (no text or labels)

- As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

crucking.

3D diagram of a rectangular prism with internal compartments (no text or symbols)

- Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Contact Center Web Site
U.A.E 800-SAMSUNG (800 - 726 7864)		www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
OMAN 800-SAM CS (800-72627)
KUWAIT 183-CALL (183-2255)
BAHRAIN 8000-GSAM (8000-4726)
QATAR 800-CALL (800-2255)
EGYPT	08000-726786416580	www.samsung.com/eg/support
ALGERIA 3004 w	www.samsung.com/n_africa/support
PAKISTAN	0800-Samsung (7267864)	www.samsung.com/pk/support
TUNISIA 80 100	012 www.samsung.com/n_africa/support
JORDAN	0800-2227306-577-7444	www.samsung.com/levant/support
Lebanon	1598
Iraq 80010080
MOROCCO 080 100	22 55 www.samsung.com/n_africa/support

Réfrigérateur

Guide d'utilisation

RT30A****, RT40A****

Appareil non encastrable

Black-and-white illustration of ice cubes with bubbles rising, no text or symbols present

SAMSUNG

Close-up of a bivalve shell with open mouth (no text or symbols visible)

Abstract black-and-white photo of a cube with water droplets and bubbles, no text or symbols present

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Installation

A B 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Installation

1 2 3 4 5 6 7 8 9 A B 15 14 13 12 11 10 16 17

Illustration of two refrigerator doors with directional arrows indicating movement, no text or symbols present

Diagram showing a mechanical device with a lever and rotating arrow, no text or symbols present

Diagram showing a mechanical component being inserted into a circular inset, with no visible text or symbols.

- 18°C 04°C Freezer | Fridge

Mode Super congélation

Objectif

Mode Super congélation

Diagram illustrating a cooking process with a kettle pouring liquid into a tray, labeled with point A pointing to a circular diagram showing a food item.

Illustration of hands holding a tray with ice cubes, showing cooling effect (no text or symbols)

Bac à glaçons

Fresh Zone

Technical line drawing of a mechanical assembly with a curved arrow indicating motion or force (no text or symbols)

Fresh dial

Diagram of a table with two opposing arrows indicating opposing forces or movements (no text or symbols present)

Diagram of a flatboard with arrows indicating rotation and movement, no text or symbols present

Diagram showing a refrigerator with a no-smoking symbol and two containers on the side (no text or labels)

ATTENTION

Line drawing of an open refrigerator with shelves and doors open (no text or symbols)

Line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

Diagram of a 3D box frame with a curved arrow indicating rotation, no text or symbols present

Diagram showing a screwdriver inserted into a rectangular panel, with red arrows indicating direction (no text or symbols present)

Line drawing of a cabinet or refrigerator with a red arrow indicating a change, no text or symbols present

Line drawing of a refrigerator with lid and side door, showing internal structure and red motion indicator (no text or symbols)

⑥

Diagram showing a refrigerator interior with labeled components and directional arrows indicating movement or force.

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing internal components and alignment (no text or symbols)

10a 10b

Technical diagram of a mechanical device with a screwdriver inserted, showing internal components and a numbered callout (11)

Diagram illustrating a door frame assembly with numbered components and directional arrows indicating movement or force.

Technical diagram showing two steps of a device with labeled components and red dashed arrows indicating motion or assembly.

Diagram of a mechanical lever system with two fulvers and a triangular support, no text or symbols present

Diagram illustrating a device's internal structure with labeled components and directional arrows indicating motion or movement.

Technical diagram showing a mechanical device with labeled parts and a highlighted section, including numbered annotations (20 and 21).

Entretien

Entretien 22 23

Diagram of a lever system with two supports and two downward arrows indicating force or movement (no text or symbols present)

Entretien

Diagram showing a refrigerator interior with labeled parts and a hand holding the lid, illustrating the process of opening and disassembly.

Entretien

Line drawing of a refrigerator with a hand pressing down on the lid, showing a red arrow indicating rotation (no text or symbols)

③2

Line drawing of a double-door refrigerator with open doors and internal shelves (no text or symbols)

Illustration of a car with exhaust smoke and exhaust flames (no text or symbols)

Bourdonnement!

Line drawing of a person riding a motorcycle (no text or symbols)

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Simple line drawing of a mosquito with wings and legs, no text or symbols present

Ronronnement!

Illustration of wild grass with coniferous leaves and small bolls (no text or symbols)

Diagram of a server rack with internal components and a magnified inset showing a gear mechanism (no text or symbols)

Illustration of a steam iron with steam bubbles (no text or symbols)

Isometric line drawing of a refrigerator internal structure with a magnified inset showing internal airflow (no text or symbols)

Simple line drawing of a kettle emitting smoke (no text or symbols)

Isometric line drawing of a refrigerant unit with heat exchanger and cooling fins (no text or symbols)

Diagram of a tree with leaves and a lightning bolt, showing canopy and ground (no text or symbols)

3D diagram of a rectangular prism with internal compartments, no text or symbols present

Isometric line drawing of a refrigerator with heat exchanger and a magnified inset showing internal airflow (no text or symbols)

Simple line drawing of a kettle with smoke and a cup, no text or symbols present

ر ا ر خ جت الاملك

3D diagram of a rectangular prism with internal compartments (no text or symbols)

صن د ع

صَّلَّةٍ مُحْتَبِدِ

يَمْلُهُ لِحْتَّلَةٍ مَكْتَ مَلَا كِيَام وَسَلِيمَنَ تَيْبِهِ الْعَلَّطَّالِ فِم

مختسملا

تكافهصلًا قيداع

Illustration of a server rack with two circular components inserted, one highlighted by an inset showing internal structure (no text or symbols)

إنيناً

Line drawing of a person riding a motorcycle (no text or symbols)

! ر ي رجلة قطقط

Illustration of a car with exhaust flames and exhaust smoke (no text or symbols)

شطلاه فتحة

Diagram of a server rack with two circular components and an inset showing one (no text or symbols)

زا ١٠

Illustration of wild grass with reeds and leaves, no text or symbols present

ر ！ ر س

Simple line drawing of a mosquito with wings and antennae (no text or symbols)

الصيداند از إجرهناً

Isometric illustration of a refrigerator with heat exchanger and a magnified inset showing internal insulation (no text or symbols)

Illustration of a steam iron with steam bubbles (no text or symbols)

山地

Line drawing of a double-door refrigerator with open doors and internal shelves (no text or symbols)

Line drawing of a refrigerator with a hand holding a clip and a red arrow indicating rotation (no text or symbols)

③2

Technical line drawing of a structural frame with mounting brackets and red dashed lines indicating force or movement (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

Diagram showing two steps of a refrigerator interior: opening and disassembly, with numbered annotations (27, 28) indicating process flow.

Technical line drawing of a mechanical assembly with two downward arrows indicating force or displacement (no text or symbols present)

Technical diagram showing assembly steps of a device with labeled components and a red dashed circle highlighting a specific section.

Diagram of a mechanical lever system with two fulvers and directional arrows, no text or symbols present

Diagram illustrating a device's internal structure with labeled components and motion arrows, including a screwdriver and a curved dashed line indicating motion.

Technical diagram showing three steps of a door frame installation with labeled components and directional arrows indicating movement.

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing internal components and alignment (no text or symbols)

10a 10b

⑪

Technical diagram showing a refrigerator interior with labeled components and directional arrows indicating movement or force.

Line drawing of a refrigerator with lid and side door, showing internal structure and a red dashed arrow indicating rotation (no text or symbols)

⑥

Diagram showing a screwdriver inserted into a rectangular panel, with red arrows indicating direction (no text or symbols present)

Line drawing of a 3D cabinet or enclosure with a red arrow indicating a directional change (no text or symbols present)

Line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

Diagram of a 3D box with a curved arrow indicating rotation or movement, no text or symbols present

Line drawing of a double refrigerator with open doors and internal shelves (no text or symbols)

Diagram showing a table with two arrows indicating upward and downward motion, no text or symbols present

الصوقت بستهان

Diagram of a table with arrows indicating movement or rotation, no text or symbols present

قَلِيلَا

دخله معكوببا

لَانَةٍ حِبْ حَقَد

Diagram showing a refrigerator with a no-smoking symbol and two containers, indicating food safety or disinfection.

L

جُشْتَمَاعِطُلَا يُلَا بُوْتَ وَيْفِمَجَتِي نَ وَأَ وَصَ جُشْلَعِ عَ نُصَالَ جُشْلَا تَمْعِلِّفَاتِقُلمٍ جُرْلِّاط

Technical line drawing of a mechanical assembly with a curved arrow indicating motion or force (no text or symbols)

الغَمْعَلَةِ الْقُفْجِدًا

Fresh dial

مَقْمِيلَدُ حَلَّكَالِ إِنْ رَوَكَيْجِيةِ يَذْهُّاِ الْمَكَةِ رَ اضْنَظْعُ لَتَفَلَ

العربية بساني حُمْنَّهِ

طلا تجف مباني

الله في

: صلتابعكم

مُجْلَاعِ نَجِد

[Unreadable]

الله ● ذ يص

الجَلَّةِ

Diagram illustrating a cooking step with a pitcher pouring liquid into a tray, labeled with point A pointing to a circular diagram showing a pattern.

فُتَل جَمْلِهِد جَلَّكَا بِلَكْمَطْرَقَيْهِ وَقَمْرَب

Illustration of hands holding a tray with ice cubes, showing cooling effect (no text or symbols)

- 18°C 04°C Froger | Fridge

. تُلَكَيْمِعِ يَسْو

Diagram showing two refrigerator doors with directional arrows and a prohibition sign, indicating parking or cooling conditions.

فَلْبِضَ لَحَالَةِ يُوْتُلا

قوطخلا

Diagram showing a mechanical device with a lever and rotating component, no text or symbols present

ضل

Diagram showing a mechanical component being inserted into a circular inset, with no visible text or symbols.

A B C

RT40A

50	بِمْطَّفَّقَيْنَصْح
(٢٠٥٠١٥٠١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٦	2
(٢٠٥٠١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥٢	3
(٢٠٥٠١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠٢	4
(٢٠٥٠١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠٣	5
(٢٠٥٠١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠٠	6
(٢٠٥٠١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠١٥١٥٠٤	7

RT30A

Technical diagram of a refrigerator with numbered parts for identification

أ) مقصورة الفريزر

(قصورة الثالثة)

(1ف الفريزر

(الله2صنع الثالث)*

* (3روحة التربو)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Black and white photo of water droplets in mid-air, creating ripples (no text or symbols)

الثلاثة

Close-up of a metallic object with reflective surfaces, possibly a shell or gasket (no text or symbols visible)

Black-and-white illustration of ice cubes with bubbles and droplets, no text or symbols present

Abstract black-and-white photo of a cube partially submerged in ice with bubbles rising (no text or symbols)

SAMSUNG
