USER MANUAL 88017 DeLOCK

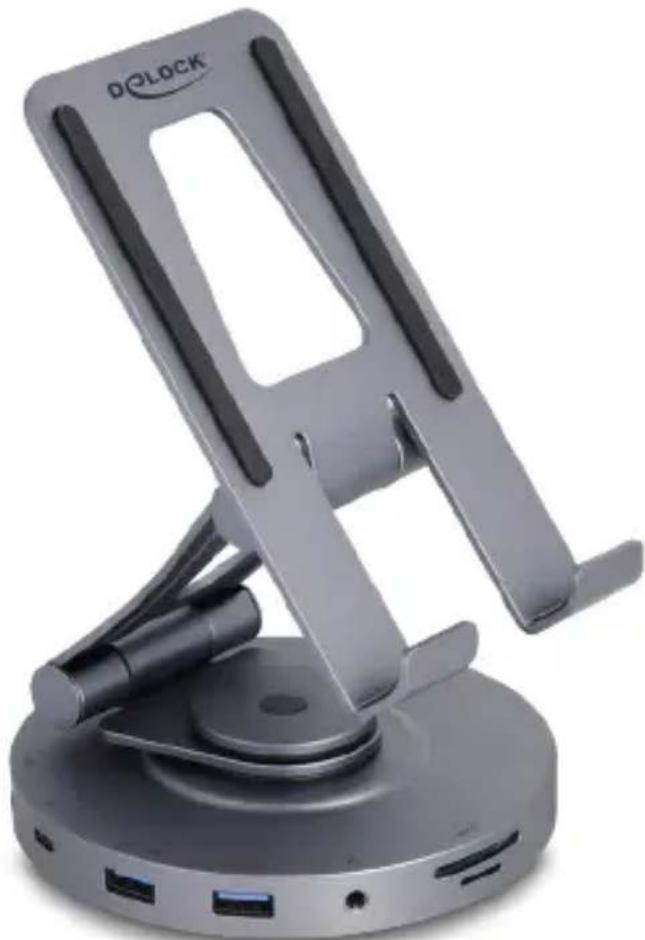

Tablet and Laptop Docking Station
Product-No: 88017
User manual no: 88017-a
www.delock.com
Description
This docking stand for tablets and laptops with holder by Delock convinces not only with its design, but also with stability and function, for example, with the 360^ rotatable mount. The rubber pads attached to the bottom and in the holder ensure that neither the device nor the holder slips.
Ideal even for longer video calls or series marathons
Thanks to the recess in the holder, the tablet can also be charged while it is upright. This makes the holder ideal for long Facetime or Skype video calls, as well as for a series marathon.
Docking station
The docking station can be connected to a mobile device with USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. A monitor with a maximum resolution of up to 4K 60 Hz can be operated at the HDMI output. Integrated USB ports enable the use of peripheral devices and connections for a headset and an SD or Micro SD card slot complete the equipment.
USB Power Delivery (USB PD 3.0) support up to 60 watt
The docking station has a USB Type-C™ Power Delivery port. If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 60 watts during operation.
Specification
- Connectors:
1 x USB 5 Gbps USB Type-CTM female
2 x USB 5 Gbps Type-A female
1 x HDMI female
1 x USB Type-C™ female (power supply)
1 x Headset 3.5 mm 4 pin jack
1 x SD slot
1 x Micro SD slot
-
Resolution up to 3840 × 2160 @ 60Hz (depending on the system and the connected hardware)
Transmission of audio and video signals
Output power: 1 x USB Type-CTM female max. 60 W
Supports HDCP
Metal housing
Colour: grey
Weight: ca. 316 g -
Dimensions: diameter ca. 120 mm ,height ca. 15 mm
- Cable length without connectors: ca. 24 cm
- For laptops and tablets up to 14"
System requirements
Android 11.0 or above
- Chrome OS
- iPad Air (4th Generation) or above
- iPad Pro (3rd Generation) or above
Mac OS 12.4 or above
Windows 10/10-64/11
- Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free Thunderbolt™ 3 port
Package content
- Holder with docking station
- User manual
Safety instructions
- Protect the product against moisture
- Protect the product against direct sunlight
- Ensure not to use damaged cables.
- Always wipe off the product with soft cloth, not with water.
Hardware Installation
- Connect the smartphone or tablet with the integrated USB Type-C™ cable located at the bottom of the docking station.
- Connect a power supply to the USB Type-C™ charging port to charge your mobile device while using.
- HDMI Port: You can connect an external HDMI monitor to the HDMI port.
You can set the additional display on mirroring or extended.
In order to change the setting, proceed like this:
Windows: Click with the right mouse button on the desktop and click on "display settings".
Afterwards you can change the graphics settings.
Mac: Open the System Preferences > Displays.
It can happen that the security settings need to be changed. Therefor go to System Preferences > Security & Privacy > Privacy and set the hook on "DisplayLinkUserAgent".
- USB Ports: You can connect USB devices to these ports.
- Audio Port: Connect an audio cable to the stereo jack to use the headset and headphone jack via the docking station.
- Card reader: It can only be used one storage medium, not several at the same time.
Support Delock
If you have further questions, please contact our customer support support@delock.de
You can find current product information on our homepage: www.delock.com
Final clause
Information and data contained in this manual are subject to change without notice in advance. Errors and misprints excepted.
Copyright
No part of this user manual may be reproduced, or transmitted for any purpose, regardless in which way or by any means, electronically or mechanically, without explicit written approval of Delock.
Packungsinhalt
Hardwareinstallation
Declaration of conformity
Products with a CE symbol fulfill the EMC directive (2014/30/EU) and RoHS directive (2011/65/EU+2015/863+2017/2102), which were released by the EU-comission.
The declaration of conformity can be downloaded here: https://www.delock.de/produkte/G_88017/merkmale.html
WEEE-notice
The WEEE (Waste Electrical and Electronic Equipment)-directive, which became effective as European law on February 13th 2003, resulted in an all out change in the disposal of disused electro devices. The primarily purpose of this directive is the avoidance of electrical waste (WEEE) and at the same time the support of recycling and other forms of recycling in order to reduce waste. The WEEE-logo on the device and the package indicates that the device should not be disposed in the normal household garbage. You are responsible for taking the disused electrical and electronical devices to a respective collecting point. A separated collection and reasonable recycling of your electrical waste helps handling the natural resources more economical. Furthermore recycling of electrical waste is a contribution to keep the environment and thus also the health of men. Further information about disposal of electrical and electronical waste, recycling and the collection points are available in local organizations, waste management enterprises, in specialized trade and the producer of the device.
