Cook 1 - Electric cooktop Melchioni - Free user manual and instructions

USER MANUAL Cook 1 Melchioni

1 plate Electric cooker

White electric stove with black top and control knob, no visible text or symbols on the appliance itself.

IT Manuale d'uso 1

EN User manual 6

1 methion/only 2 3

Thank you for purchasing this product. Before use, it is recommended that you carefully read all the instructions and keep them for future reference. Do not use this appliance for purposes other than those described in this manual.

CONNECTION TO THE MAINS SUPPLY

The equipment should only be connected to an earth socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the barbecue.

IMPORTANT SAFETY INSTRUCTIONS

ATTENTION:

• This appliance can be used by children from 8 years of age and by people with reduced physical, sensory or mental abilities, or with a lack of experience and knowledge if they have been ensured adequate surveillance, or if they have received instructions on the safe use of the appliance and understood the related hazards.
• Do not leave parts of the packaging within reach of children, nor use it as a game: it is an electrical appliance and should be considered as such.
• Do not pull the power cable or the appliance itself to disconnect the plug from the socket.
• During use, the appliance can reach particularly high temperatures.
• Prevent children from using the appliance for fun.
• The use of any electrical appliance involves the observance of some fundamental rules, in particular:

o Do not touch the appliance with wet or damp hands.
o Children must be supervised to ensure that they do not play with the appliance.
o Do not use the appliance with bare feet.
o Do not leave the appliance exposed to atmospheric agents (rain, sun).
o Do not subject it to shocks.

• The ignition of the appliance must not be controlled by an external timer or other remote control devices
  Attention: avoid covering the heating element with aluminum foil or placing an aluminum barbecue tray on it, since the accumulation of heat that would be created in this case could damage it irreparably.
• Before using the appliance, carefully check its integrity, as well as that of the power cable. If any damage is found, avoid turning it on and contact an authorized Technical Assistance Center.
• Do not operate the appliance without pots.
• During use, the appliance must be positioned on a flat, horizontal and heat-resistant surface and any splashes or grease stains. When cooking high-fat foods, these splashes are practically inevitable.
• During use, the appliance must not be positioned near a wall or flammable surfaces.
• Foods with a high fat content can burn easily: their cooking must therefore be monitored continuously.
• The operation of the appliance must be carefully monitored. For safety reasons, it is recommended not to leave it within the reach of children.
• During use, the plate and the base can reach very high temperatures, which are maintained for a long time even after the appliance has been turned off. In order to avoid any burns, before touching it you must wait until it has completely cooled down.
• In order to prevent electrocution, the appliance and the power cable must not be immersed in or come in contact with it.

• Do not allow the power cable to come into contact with hot surfaces, which could damage the insulating coating.
  • Always unplug the power cord from the power outlet:

• in case of failure or malfunction

• before carrying out any cleaning operation

• at the end of the use.

• The possible use of an extension can lead to a loss of power and overheating of the cable. If it is necessary to use one, it must be ensured that the cable is completely extended, and not coiled.

• Before moving, transporting or storing the appliance, wait until it has completely cooled down.
• Avoid storing or leaving the appliance outdoors, or in places where it is exposed to the sun or environmental humidity.
• The manufacturer cannot accept any responsibility for damage resulting from improper use or failure to comply with the instructions.
• The appliance is designed and built for a typically domestic use, and not for commercial use.
• In order to comply with the legal requirements and to avoid dangers for the user, any repairs that may be necessary must be carried out by an authorized Technical Assistance Center.
• In the event of damage or malfunctions, the appliance must be repaired at an authorized Technical Assistance Center. Repairs require special tools. Avoid trying to repair it yourself.
• DANGER: this appliance is intended for indoor use only.
• DANGER: avoid submerging the appliance or the plug of the power cable in water
• DANGER: in case of damage, the power supply cable must be replaced by an authorized Technical Assistance Center.

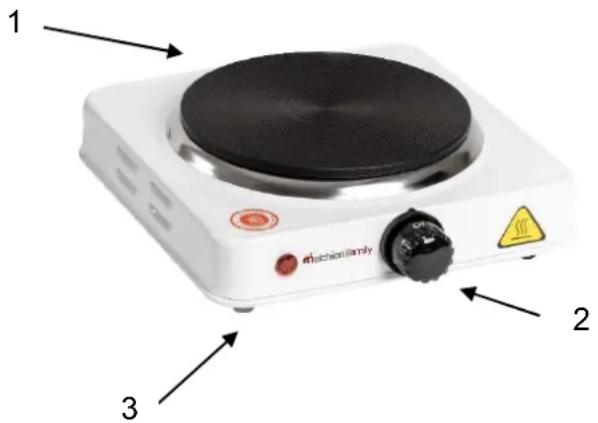

DESCRIPTION OF THE COMPONENTS

1 motorfully 2 3

1 - Cast iron heating plate.
2 - Adjustable thermostat.
3 - Indicator light.

FIRST USE

Before using the appliance for the first time, ensure good ventilation in the room and allow the appliance to warm up for 3 minutes at maximum power (without placing containers or saucepans on it).

During this operation, it may give off a slight smell and some smoke may escape. This phenomenon is completely normal and will not last long.

Ensure adequate ventilation by opening windows and / or balconies.

Then clean the appliance as described in the "CLEANING AND MAINTENANCE" paragraph.

USE

Always place a saucepan on the plates before turning on the appliance.

Make sure that the external parts of the pan are clean and dry. Do not use painted pots / pans

To avoid damaging the cooking plate, use only flat-bottomed pots / pans. It is advisable to use specific pots for cooking on electric plates

Always use cookware with a diameter equal to or greater than that of the plate.

During use, position the power cable in order to avoid contact with excessively hot surfaces.

THERMOSTAT SETTINGS

MAX: Pre-cooking and fast frying

4-5: Normal cooking, frying
3-4: Light boiling
1-2: Keep warm

After use, turn the thermostat knob to the "OFF" position and disconnect the plug from the socket

WARNING LIGHT

The indicator light remains active during the heating of the plate. So it switches off as soon as the plate reaches the desired temperature

CLEANING AND MAINTENANCE

• Before cleaning the appliance, make sure it is unplugged and completely cooled.
• To avoid any risk of electric shock, do not clean the appliance with water and do not immerse it in water
• Always clean the plates after each use to avoid accumulation of cooked food. Allow the plates to cool. Cleaning is simpler if the plates are slightly hot
• Clean the cooking plate and the body of the appliance with a soft damp cloth.
• For cleaning, avoid using abrasive sponges or concentrated detergents.

STORAGE

After cleaning, the grill should be stored indoors in a dry location.

SPECIFICATIONS

Power supply: AC 220-240V, 50/60Hz

Power: 1000 W

CONFORMITY OF THE PRODUCT

The producer Melchioni Spa declares that the product Electric cooker Mod. COOK1 (Cod. 118360114) is in compliance with Directive 2014/30/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The producer Melchioni Spa declares that the product Electric cooker Mod. COOK1 (Cod. 118360114) is in compliance with Directive 2014/35/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

The producer Melchioni Spa declares that the product Electric cooker Mod. COOK1 (Cod. 118360114) is in compliance with Directive 2009/125/EC of the European Parliament and of the Council, of 21 october 2009, establishing a framework for the setting of ecodesign requirements for energy-related products.

The producer Melchioni Spa declares that the product Electric cooker Mod. COOK1 (Cod. 118360114) is in compliance with Directive 2011/65/EU of the European Parliament and of the Council, of 8 June 2011 and subsequent Commission Delegated Directive 2015/863, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

According to Directive 2012/19/EU of the European Parliament and of the Council, of 4 July 2012, on waste electrical

and electronic equipment (WEEE), the presence of the crossed-out bin symbol indicates that this appliance is not to be considered as urban waste: its disposal must therefore be carried out by separate collection. Disposal in a non-separate manner may constitute a potential harm to the environment and health. This product can be returned to the distributor when purchasing a new device. Improper disposal of the appliance constitutes misconduct and is subject to sanctions by the Public Security Authority. For further information, contact the local administration responsible for environmental matters.

PRODUCT WARRANTY

Melchioni Spa, based in Milan (Italy), via Colletta 37, recognizes a conventional guarantee on the product for a period of two years from the date of the first purchase by the consumer. This guarantee does not affect the validity of the legislation in force concerning consumer goods (Legislative Decree 6 September 2005 n. 206 art. 128 and following), of which the consumer remains the owner. This guarantee applies to the entire territory of the European Union.

The components or parts that are found to be defective for ascertained manufacturing causes will be repaired or replaced free of charge through the dealer, during the above warranty period. Melchioni Spa reserves the right to make a complete replacement of the device, if repairability is impossible or excessively expensive, with another device of similar characteristics (Legislative Decree 6 September 2005 no. 206 art. 130) during the warranty period. In this case, the validity of the warranty remains that of the original purchase: the service provided under warranty does not extend the warranty period.

In any case, this appliance will not be considered defective in terms of materials or manufacture should it be adapted, changed or adjusted, in order to comply with national or local safety and / or technical standards, in force in a country other than that for which it is was originally designed and manufactured. This appliance has been designed and built for domestic use only: any other use will invalidate the benefits of the guarantee.

The warranty does not cover:

• parts subject to wear or tear, nor those parts that require periodic replacement and / or maintenance
  • professional use of the product
• malfunctions or any defects due to incorrect installation, configuration, software / BIOS / firmware update not performed by authorized Melchioni Spa
  • repairs or interventions carried out by persons not authorized by Melchioni Spa
• manipulation of assembly components or, where applicable, of the software
• defects caused by fall or transport, lightning, voltage fluctuations, liquid infiltration, opening of the appliance, bad weather, fire, public disturbances, inadequate ventilation or incorrect power supply
• any accessories, for example: boxes, bags, batteries, etc. used with this product
  • home interventions for convenience checks or presumed defects

The recognition of the guarantee by Melchioni Spa is subject to the presentation of a tax document that proves the actual date of purchase. The same must not show any tampering or deletions, in the presence of which Melchioni Spa reserves the right to refuse the provision of treatment under warranty.

The warranty will not be recognized if the serial number or model of the appliance is non-existent, abraded or modified.

This warranty does not include any right to compensation for direct or indirect damage, of any nature, to people or things, caused by any inefficiency of the appliance. Any extensions, promises or services in this regard, insured by the retailer, will be borne by the latter.

1 Mechanical 2 3

1 - Plaque chauffante en fonte.
2 - Thermostat réglable.
3 - Voyant lumineux.

PREMIÈRE UTILISATION

4-5: Cuisson normale, friture

Consommation: 1000 W

CONFORMITÉ DU PRODUIT

White electric induction cooktop with a black rotary top and control knob, labeled with arrows and warning symbols (no readable text or numbers)
