USER MANUAL MK-17S30B2 MIDEA

Line drawing of a modern water heater with handle and side panel (no text or symbols)

Bitte lesen Sie die

Web: www.midea.com/de

Kundendienst:

Telefon: [phone] - 0

Fax: [phone]

E-mail: [e-mail]

65760 Eschborn Germany

Midea

make yourself at home

ELECTRIC KETTLE

Bedienungsanleitung

Line drawing of a modern water heater with handle and side panel (no text or symbols)

Bitte lesen Sie die

Technical Date of the Product.... 6

How to use....6

Product Menu 6

Product Function Description 7

Botton Function Description 8

Cleaning....9

IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons, do not immerse cord, plugs, base or kettle in water or other liquid.
4. Never leave the appliance unattended when in use. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use, no water in kettle, filling water, moving kettle and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Call our toll-free Customer Assistance Number for examination, repair or adjustment.
7. Do not use a base unit other than the one supplied. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces. Always store excess portion of the power cord in the compartment of the base unit.
10. Electric kettle must be operated on a flat surface. Do not place on or near a hot gas or electric burner, or in a heated oven, or on the top of other electric appliances.
11. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn control to off, then

SAFETY PRECAUTIONS

remove plug from wall outlet.

1. Do not use appliance for other than intended use.
2. To avoid circuit overload, do not operate another high wattage appliance on the same circuit.
3. Do not fill kettle when positioned on base. Dry the water on the bottom of the body before placing it onto the power base.
4. Be aware of steam being emitted from spout or lid especially during refilling. Do not remove lid during boiling cycle.
5. Do not use the kettle to heat anything other than water.
6. Do not fill above the “max” indication marking. Do not operate kettle if water is below minimum marking. If the kettle is overfilled, boiling water may be ejected. The kettle is only to be used with the base unit provided.
7. Do not insert any object into slots or holes of the kettle.
8. Open the lid with the release button only. Push lid down to lock in place.
9. Scalding may occur if the lid is removed during the brewing cycles.
10. This appliance is for HOUSEHOLD USE ONLY. DO NOT OPERATE APPLIANCE IF THE LINE CORD SHOWS ANY DAMAGE OR IF APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.
11. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by

SAFETY PRECAUTIONS

children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

1. This appliance is intended to be used in household and similar applications such as:

-Staff kitchen areas in shops, office and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-In bed and breakfast type environments;

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agentor similarly qualified persons in order to avoid a hazard.

2. Warning: Avoid spillage on the connector.

3. The heating element surface is subject to residual heat after use.

SAVE THESE INSTRUCTIONS.

Warning: Misuse may cause potential injury. The heating element surface is subject to residual heat after use.

Brief introduction

Rational design, bring convenience and enjoyment to your life

1. Rapid boiling, save time and energy for you.
2. Removable filter to keep the water clean.
3. Strix control to switch off after boiling.
4. Automatically cuts out for boil-dry protection.
5. 360 Rotational power base.
6. Easy read water gauge.
7. Thermostat of high quality.

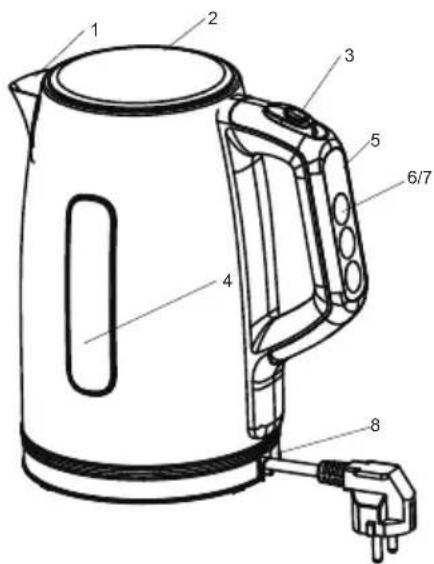

Part Name

1 2 3 4 5 6/7 8

No.	Description
1	Spout
2	Lid
3	Lid opening button
4	Water gauge
5	Handle
6	Menu
7	Button
8	Power base

Technical Date of the Product

Model No.	Rated voltage Capacity	Rated power Dimensions	Weight
MK-17S30B2-E5	220-240V~ 50/60Hz	1.7L1850-2200W 220x150x243m	1.25kg

How to use

For the first time to use or no use for a long time, it is recommended that you fill to the maximum level mark with fresh tap water, boil and empty the kettle at least 2 times to clear kettle of any tiny particles. Do not drink such water.

1. Press the lid lock on the handle, and you can open it.
2. Remove the kettle from the base to the filling place. Fill the kettle with desired amount (no less than the minimum and no more than the maximum.) Put back the lid; place the kettle back on the base unit.
3. Connect the plug into a power outlet (220-240V, AC), switch the kettle on by pressing the switch. The light will illuminate to indicate the kettle is heating.
4. The kettle will automatically switch off once the water has boiled and the neon light goes off.
5. Lift the kettle from the base, and you can pour out the water into container.

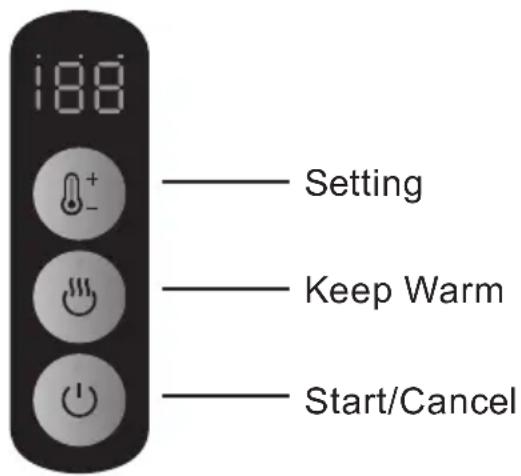

Product Menu

188 Setting Keep Warm Start/Cancel

Product Function Description

1. Power on: The kettle is placed on the base, the display screen is bright for 1 seconds, long noise for 1 seconds, then the water temperature is displayed, enter standby;
2. One-button boiling: Standby and non-temperature setting state (i.e. display the actual water temperature), press the power button (Start), boil water to 100 degrees and then enter standby state. In the process of boiling water, the digital tube shows the real-time water temperature, lights up 1, and the power lamp is always on.
3. Fixed temperature boiling water: set the temperature by setting key (70-80-90-100-40-60 in order), light 1. Stand by and the temperature setting state (that is, display the setting temperature), press the power button (Start) to boil water to the setting temperature and then enter the standby state. In the process of boiling water, the digital tube shows the real-time water temperature, lights up 1, and the power lamp is always on.
4. Heat preservation mode 1: Setting the temperature (70-80-90-100-40-60 in sequence). (When the heat preservation mode is set first, the heat preservation mode is maintained while setting the temperature, and the dots above the digital tube are displayed accordingly.) Press the heat preservation mode to select the key, set the boiling water heat preservation mode (100°C heat preservation key is invalid), light 1 + 2. Stand by and the temperature setting state (i.e. display the set temperature), press the power supply key (Start) to start boiling water, boiling water reaches the target temperature and enters the heat preservation state. At the same time, the buzzer calls three times. During the heat preservation process, the set temperature (1.0L-1.7L, +3/-3°C, +1.0L-0.5L (excluding 1.0), +5/-5°C) is maintained, and then the boiling water enters the shutdown state after 60 +2/-2 minutes.(Temperature control and thermal insulation keys in no sequence)
5. Heat preservation mode 2: Setting the temperature (70-80-90-100-40-60 in sequence). (When the heat preservation mode is set first, the heat preservation mode is maintained while setting the temperature, and the dots above the digital tube are displayed accordingly.) Press the heat preservation mode to select the key, set the boiling water heat preservation mode (100°C heat preservation key is invalid), light 1 + 2 + 3.

Product Function Description

Standby and temperature setting state (that is to say, display the set temperature), press the power button (Start) to start boiling water, boiling water to 100^ C, then enter the heat preservation state, and buzzer calls 3 times. In the process of heat preservation, the temperature should be maintained after cooling down to the set temperature, and the set temperature should be maintained (1.0L-1.7L, +3/-3°C, 1.0L-0.5L (excluding 1.0), +5/-5°C) after 60 +2/-2 minutes, the machine will be shut down. (Temperature control and thermal insulation keys in no sequence)

1. Note 1: In standby state, the operation of "temperature selection" or "heat preservation mode setting" key enters the temperature setting state (i.e. display the setting temperature). If the "Start" key is operated in 3S, the user-set boiling function will be activated. If the "Start" key is not operated in 3S, the machine will return to the non-temperature setting state (i.e. display the actual temperature). The "Start" key is operated in this state, and the boiling water can be directly activated to 100°C.
2. Note 2: When the heat preservation mode is set to 1 or 2, then the setting temperature can be adjusted by setting key. The adjustment range can only be adjusted between 70-80-90-40-60.

Botton Function Description

1. Temperature adjustment button: 70-80-90-100-40-60°C cycle setting temperature;
2. Press start directly after power-on. By default, 100^ C is turned on and off, light 1, and start key light is on.
3. Press the heat preservation key once, heat preservation mode 1: heat preservation after boiling water setting temperature; light 1 + 2 , heat preservation key light (it is suggested to change into heat preservation before lighting).
4. Press the heat preservation key twice, heat preservation mode 2: after boiling water to 100^ C, wait for cooling to set temperature for heat preservation; light 1 + 2 + 3 , heat preservation key light (suggested to be

Botton Function Description

changed into heat preservation and then light up).

1. Press the heat preservation key three times, cancel the heat preservation, turn on the lamp 1, turn off the heat preservation key lamp;
2. After pressing the start, the light flashes twice (two sounds at the same time), and then remains on, after canceling, the power lamp goes out.

Press once again to cancel, stop heating/insulation, real-time display of water temperature, enter standby.

1. Default key prompt sound, setting key and keep ware key combination press, long sound, switch to button silent sound; Repeat combination key, short sound, restore key prompt sound.

Note: Every triggering function button needs "drop" sound feedback, which is not functional in the following cases.

1. Setting up 100°C, pressing the heat preservation key has no function.

Cleaning

Note

To prolong the kettle's life, please clean the mineral deposits in the kettle regularly.

Always unplug from the plug socket and allow to cool down before cleaning.

Do not use chemical, steel wool, or abrasive cleaners to clean the outside of the kettle, as these will scratch the surface and fade the outside color.

1. Fill the kettle with 0.5L white vinegar and the remainder with water and allow to stand for over 1 hours;
2. Empty the solution from the kettle. Wipe off the deposits remained with damp cloth
3. Fill the kettle with clean water, bring to boil and then discard the water. Repeat and the kettle will be ready to use;
4. If necessary, repeat the operations above for several times;
5. Do not immerse into water. The surface of the kettle may be wiped over with a damp cloth and polished with a soft dry cloth.
6. Grasp the top of the scale filter and pull upwards to remove. Wash with clean water and dry thoroughly before replacing in the kettle.

The appliance must not be disposed of with regular household waste. At the end of its service life, the appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment. By Collection and recycling of old appliances you are making an important contribution to the conservation of our natural resources and provide for environmentally sound and healthy disposal.

Warranty policy / service

We congratulate you to your new device and are convinced that you will be satisfied and have your joy with this modern appliance.

However, if you recognize a reason for a complaint, please contact us:

Midea Europe GmbH

Phone: [phone] - 0

In case of service:

Homepage: www.midea.com/de Email: [e-mail]

In case of a technical fault, enter your exact address, telephone number, sales contract number and Device type (from the type plate of the device).

A precise fault description saves you time and money. For special questions, please contact the customer service center.

Before calling for service:

Please check whether there is an operating error or a cause that has nothing to do with the function of your device.

Please observe the note in the user manual and check whether:

• The power plug is connected
• The power plug may be damaged
• Electricity is available

Warranty terms

This device has been manufactured and tested according to the most modern methods. The seller warrants for faultless material and proper manufacture for a period of 24 months from the date of sale to the end user. The unit is not suitable for commercial use.

The claim under guarantee lapses in the event of intervention by the Buyer or by a third party.

Damage caused as a result of improper handling or operation, incorrect installation or storage, improper connection or installation as well as an act [...] of God or other external factors shall not be covered by this warranty.

When claims are submitted, the manufacturer reserves the right to make improvements to defective parts or to replace or exchange the device.

Only if it is not possible to achieve the intended use of the device by repairing or replacing the device, the buyer can demand a reduction of the purchase price or the cancellation of the purchase contract within 6 months from the date of purchase.

Claims for damages, including consequential damages, are excluded unless they are based on intent or gross negligence.

The guarantee claim exists only with submission of the product and the purchase receipt. This warranty is valid within Germany.
