USER MANUAL ZPSA60-28 TDK-Lambda

General Safety Instructions:

ENGLISH

READ SAFETY INSTRUCTIONS

Servicing:

These products are not customer serviceable. TDK-Lambda UK LTD. and their authorised agents only are permitted to carry out repairs.

Critical Components:

These products are not authorised for use as critical components in nuclear control systems, life support systems or equipment for use in hazardous environments without the express written approval of the Managing Director of TDK-Lambda EMEA.

Product Usage:

These products are designed for use within a host equipment which restricts access to authorised competent personnel.

Environmental:

These products are IPX0, and therefore chemicals/solvents, cleaning agents and other liquids must not be used.

Environment:

This power supply is a switch mode power supply for use in applications within a Pollution Degree 2, overvoltage category II environment. Material Group IIIb PCB's are used within it.

Output Loading:

The output power taken from the power supply must not exceed the rating stated on the power supply label, except as stated in the product limitations in this handbook.

Input Parameters:

This product must be operated within the input parameters stated in the product limitations in this handbook.

End of Life Disposal:

The unit contains components that require special disposal. Make sure that the unit is properly disposed of at the end of its service life and in accordance with local regulations.

RISK OF ELECTRIC SHOCK

High Voltage Warning:

Dangerous voltages are present within the power supply. The professional installer must protect service personnel from inadvertent contact with these dangerous voltages in the end equipment.

This product must be reliably earthed and professionally installed in accordance with the prevailing local electrical wiring regulations and safety standards.

The (+) or (-) output(s) can be earthed or left floating.

An internal fuse protects the unit and must not be replaced by the user. In case of internal defect, the unit must be returned to TDK-Lambda UK LTD or one of their authorised agents.

HOT SURFACE

External Hot Surfaces:

In accordance with local regulations for Health and Safety at work, manufacturers have an obligation to protect service engineers as well as users. In order to comply with this, a label must be fitted to these products which is clearly visible to service personnel accessing the overall equipment, and which legibly warns that surfaces of these products may be hot and must not be touched when the products are in operation.

Attention-Danger haute tension:

SOLO PER I PRODOTTI A CA-CC

RISCHIO DI SCOSSA ELETTRICA

APENAS PRODUTOS CA-CC

RISCO DE CHOQUE ELÉCTRICO

Special Safety Instructions:

Standard Specific Safety Instructions:

Whilst all individual outputs are classed as SELV outputs in accordance with the standard IEC/EN/UL/CSA60950-1 (<60Vdc or 42.4V peak), seriesed combinations of these outputs may exceed these values and become hazardous output voltages.

If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

Environmental Specifications:

Description Operation Storage
Use Indoor -
Temperature	0°C - +70°C (derating at 2.5%/°C from 50°C)	-20°C - +85°C
	(For ZPSA40/60 -3,-5,-9)
	0°C - +70°C derating at 2.5%/°C from 40°C)
Humidity 10 - 95% RH, non-condensing 10 - 95% RH, non-		condensing
Altitude 2000M 2000M
Orientation See Fig 1 ALL
Material Group	IIIb
Pollution Degree	2
IP Protection Class	IPX0

Level of Insulation:

Dielectric Strength testing is carried out as follows:

Primary mains to earth: 1.5kVAC

Primary mains circuits to secondary: 3kVAC, 4142VDC

Output to earth isolation 500VDC

.Safety Approvals:

UL/cUL60950-1 ( 2^nd Edition)

IEC / EN60950-1(2 ^nd Edition)

CE marking when applied to any ZPSA40/60-xx product indicates compliance with the Low Voltage Directive (2006/95/EC) in that it complies with EN60950-1 ( 2^nd Edition).

Fusing: Internal fuses (F1): Single fuse in the L line, T2.2AL, 250V,

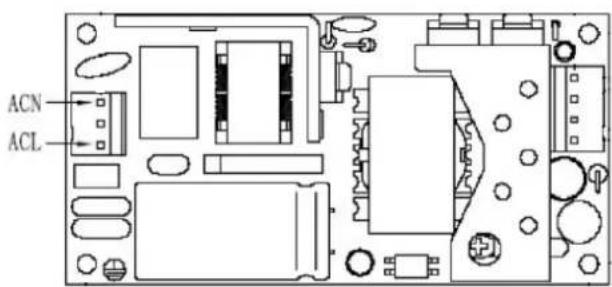

Input Connection

ACN - Neutral ACL - Live

Input connector mates with Molex housing 09-50-3031 and Molex 2878 series crimp terminal

ZPSA40/60 -xx

ACN ACL

Input Parameters:

Standard 60950-1
Rated input voltage 100-240 VAC
Input voltage range 90 – 264VAC
Input frequency range 47 – 63Hz
Maximum input current115/240VAC	130mA/0.70mA	270mA/0.130mA	400mA/0.200mA
Inrush current 30A max at 230VAC
Class of Equipment II
Overvoltage Category II

Output Parameters:

Model Vout (V) Output		current (A)
	3.3	6.0
	5	6.0
	9	4.45
40W	12	3.34
	15	2.67
	24	1.67
	28	1.43
	36	1.11
	48	0.834

Model Vout (V) Output		current (A)
60W	3.3	8.0
	5	8.0
	9	6.67
	12	5.0
	15	4.0
	24	2.5
	28	2.14
	36	1.67
	48	1.25

Output connector mates with Molex housing 09-50-3041 and Molex 2878 series crimp terminal

Adjusting output voltage beyond the set value stated may cause overvoltage protection (OVP) to operate, whereby the output will latch off. To reset for normal operation simply adjust the potentiometer to reduce the output voltage to within its range and cycle the input off then on.

All outputs are SELV except under the following circumstance: Outputs connected in series are non-SELV if the total output voltage exceeds 60Vdc If the total voltage of outputs connected in series exceed the 60Vdc SELV limit then all outputs must be considered non-SELV.

Non-SELV outputs are hazardous and must not be made user accessible. Consideration must be given to service engineers making inadvertent contact with the output terminals in the end equipment.

Cooling for unit

The ZPSA40/60 series are convection cooled, recommended installation

Equipment top

Pure schematic diagram of a mechanical or industrial system with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

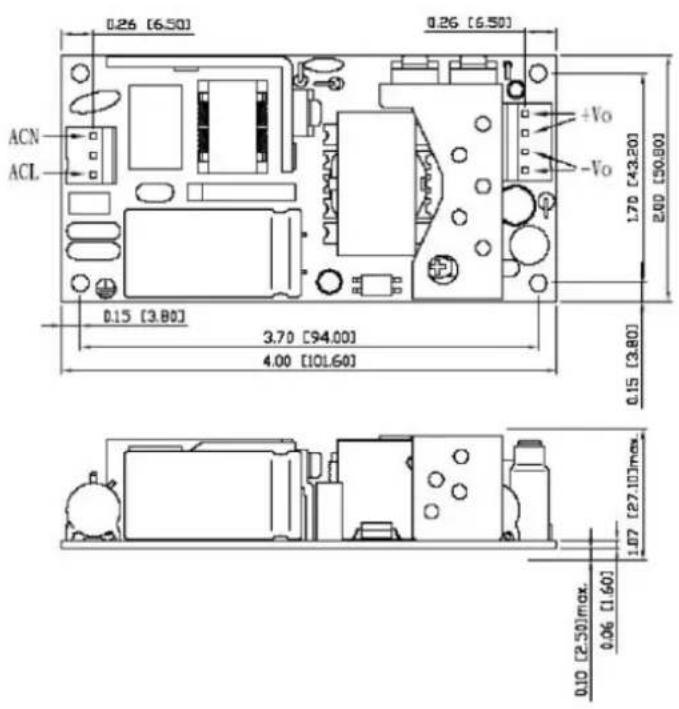

Mechanical Outline Drawings:

ZPSA40/60-xx

0.26 [6.50] 0.26 [6.50] ACN ACL +Vo -Vo 1.70 [43.20] 2.00 [90.80] 0.15 [3.80] 3.70 [94.00] 4.00 [10L60] 0.15 [3.80] 1.07 [27.10]max. 0.10 [2.50]max. 0.06 [1.60]

Note: All Dimensions are in inches (mm)

Tolerances: XX±0.2 (.X±.5) unless

otherwise noted
