USER MANUAL GAWP082PBY Gladiator

Install the GearTrack® Channels....4

Install the Gearwall® Panels 7

INSTALLATION INSTRUCTION OF HOOKS, BINS AND BASKETS....12

WARRANTY 14

TABLE DES MATIÈRES

SÛRETÉ DES INSTALLATIONS DES PROFILÉS GEARTRACK® ET DES PANNEAUX GEARWALL®....16

INSTRUCTIONS D'INSTALLATION DES PROFILÉS GEARTRACK® ET DES PANNEAUX GEARWALL®....16

Installation des profilés GearTrack ^ 18

www.gladiatorgarageworks.com

www.gladiatorgarageworks.ca

GEARTRACK® CHANNELS AND GEARWALL® PANELS INSTALLATION SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

GEARTRACK® CHANNELS/GEARWALL® PANELS INSTALLATION INSTRUCTIONS

Parts and Tools

■ Remove all parts and fasteners from their packaging, and dispose of/recycle all packaging materials.
■ Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

PARTS
Parts	GearTrack®Channels GearWall			®Panels
	Masonry / Poured Concrete	Bare Wood Studs	Drywall Over Wood Studs 1/2"(1.3 cm), 5/8" (1.6 cm), 3/4" (1.9 cm)	Masonry / Poured Concrete	Bare Wood Studs	Drywall Over Wood Studs 1/2"(1.3 cm), 5/8" (1.6 cm), 3/4" (1.9 cm)
#8 x 11⁄4"(3.08 cm)*
#8 x 2" (5.08 cm) (included)*
3/16" (4.76 mm) x 13⁄4" (4.45 cm)**
Construction adhesive
2" (5.08 cm) x 4" (10.16 cm) Wooden studs
1⁄4" (6.3 mm) x 23⁄4" (6.99 cm)**

* Use an all-weather flat-head type deck screw.
** Use a flat-head type masonry screw.

TOOLS
Tools	GearTrack®Channels GearWall			®Panels
	Masonry / Poured Concrete	Bare Wood Studs	Drywall Over Wood Studs 1⁄2"(1.3 cm), 5/8" (1.6 cm), 3⁄4" (1.9 cm)	Masonry / Poured Concrete	Bare Wood Studs	Drywall Over Wood Studs 1⁄2"(1.3 cm), 5/8" (1.6 cm), 3⁄4" (1.9 cm)
Level
Tape Measure
Cordless Drill
1/8" (3 mm) Drill Bit for Pre-drilling holes
Stud Finder
Ac Finder
Square
Pencil
Jigsaw
Circular Saw
Chalk Line
Line Level
Hammer Drill
Caulk Gun
Chalk Line With Plumb Bob
3⁄16"(4.7 mm) X 5"(12.7 cm) Masonry Drill Bit
5/32"(3.9 mm) Masonry Drill Bit

■Screw thread engagement into the wooden stud should be 1" (2.54 cm) minimum. For drywall of a thickness not listed in the chart above, see graphic below.

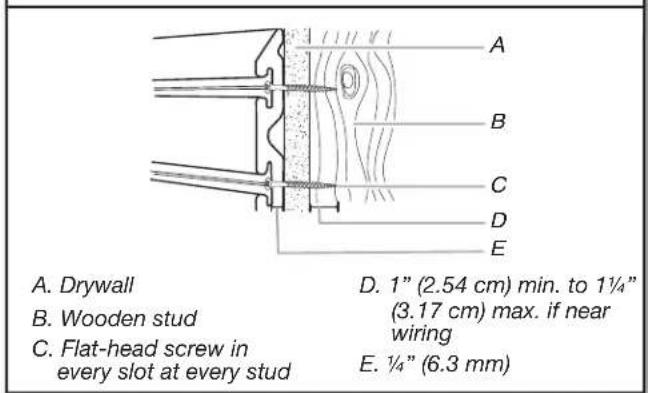

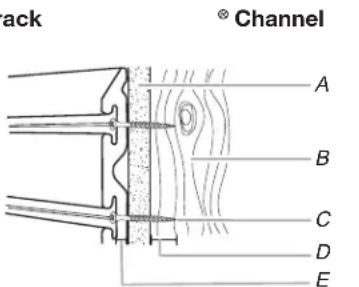

GearWall® Panel Gea A B C D E

A. Drywall
B. Wooden stud
C. Flat-head screw in every slot at every stud

Stack Channel A B C D E

D. 1" (2.54 cm) min. to 1¼" (3.17 cm) max. if near wiring
E. 1/4" (6.3 mm)
IMPORTANT: Compare screw length to electrical wire locations. Be sure the screw will not pierce electrical wiring.
NOTE: Maximum weight limit is 75 lbs per linear ft (30.48 cm) for GearTrack® Channels and 50 lbs per sq ft (2.39 kPa) for GearWall® Panels

Install the GearTrack® Channels

Prepare the Wall

Masonry Block / Poured Concrete Wall

■Before installing GearTrack® to masonry walls, you must waterproof the walls to avoid mildew or foundation damage. Walls that appear dry may actually become damp when enclosed by paneling. Install the channels in accordance with all local codes and ordinances.

Wood Studs and Drywall over Wood Studs

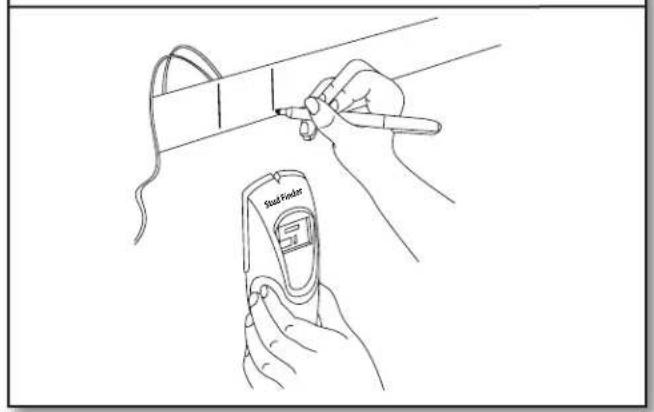

1. Locate Studs and Electrical


Said Finder

■Use a stud finder to mark the edges of the studs within your planned installation area. Be sure to also mark the locations of electrical wiring.

IMPORTANT: Compare screw length to electrical wiring locations. Be sure the screw will not pierce electrical wiring.

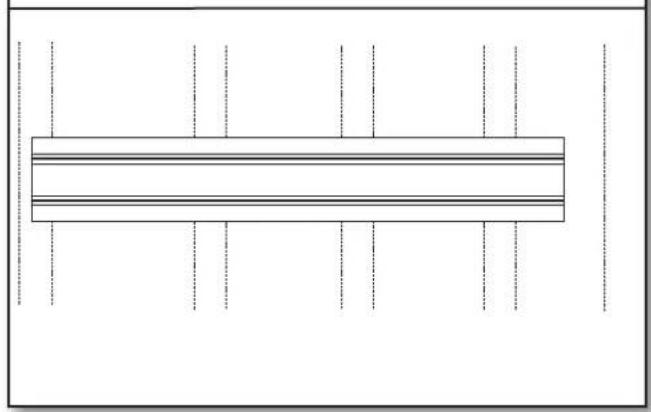

1. Cut to Length


Simple line drawing of a rectangular object with horizontal lines and vertical supports, no text or symbols present.

■If necessary, cut the first channel to this length, making sure the cut is square.

NOTE: Channels cut to shorter than 24" (60.96 cm) long should not be used.

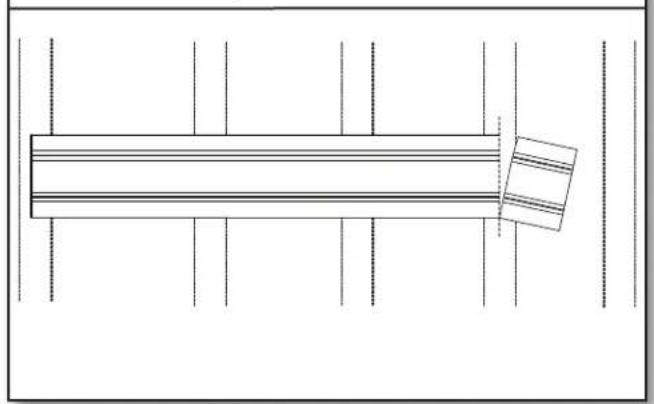

1. Measure the Channels


Pure diagram of a rectangular structure with horizontal lines and vertical dotted lines, no text or symbols present.

■GearTrack® Channels should be mounted to the wall so that they begin and end at wooden studs. Measure from the center of the stud at the beginning of the desired coverage area to the center of the last wooden stud that is within 32" (81.3 cm), 42" (106.7 cm) or 48" (121.9 cm), depending on the length of your GearTrack® Channel.

Mounting the Channels

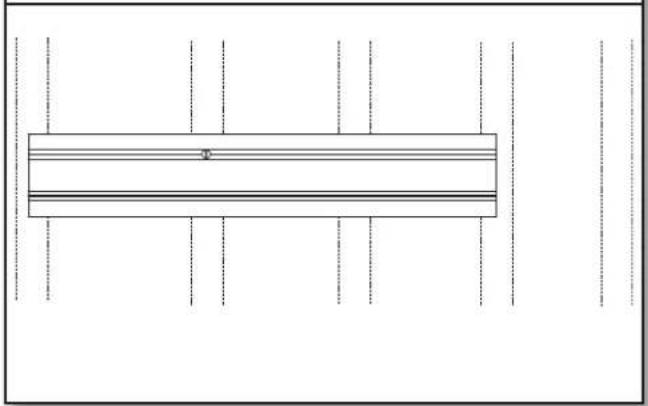

1. Drive First Screw


Pure technical diagram of a rectangular structure with vertical dashed lines and horizontal lines, no text or symbols present.

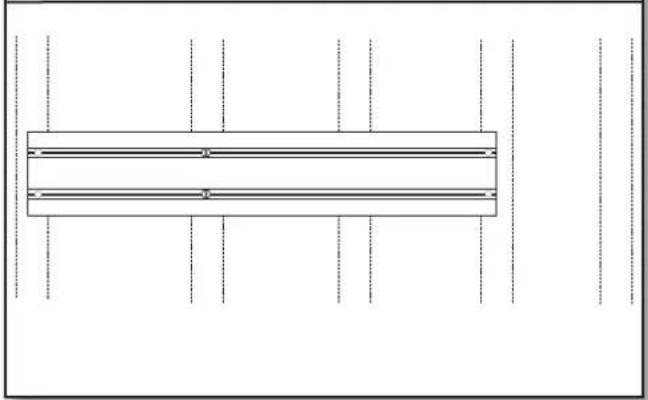

■Holding the channel up in the desired location, drive a screw through the top slot groove and into the center of the stud nearest to the middle of the channel until it is flush with the surface.

NOTE: If installing GearTrack® Channels on masonry block or poured concrete, you may put construction adhesive on the GearTrack® Channel before attaching it to the wall for extra hold.

1. Predrill Holes


Pure diagram of a rectangular structure with horizontal lines and vertical dashed lines, no text or symbols present.

■If splitting occurs, you may find it necessary to predrill and countersink the screw holes near channel ends with a 18 " (3 mm) drill bit.

1. Inspect Screw Installation


A. Drywall B. Wooden stud C. Flat-head screw in every slot at every stud D. 1" (2.54 cm) min. to 1¼" (3.17 cm) max. if near wiring E. ¼" (6.3 mm)

■Make sure all screws are installed and flush with the channel.

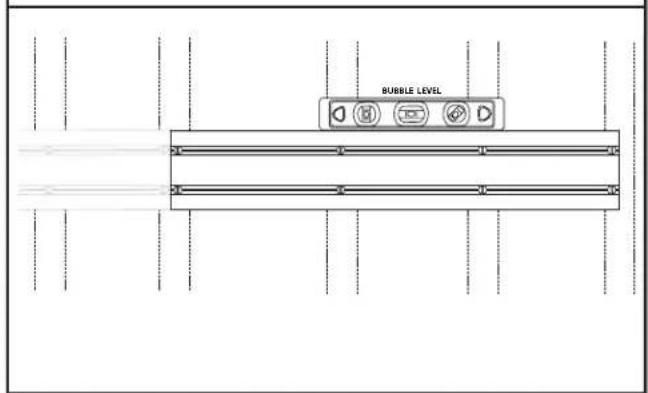

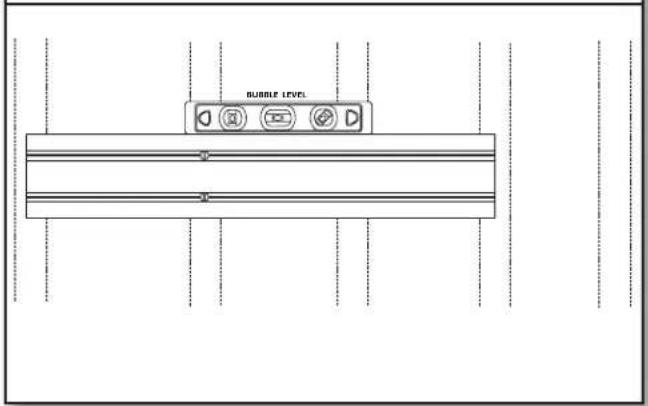

1. Level the Channel


BURBLE LEVEL

■Check that the GearTrack® Channel is level, and then drive a second screw through the bottom slot groove and into the center of the same stud as in the previous step.

1. Drive Remaining Screws


Pure architectural floor plan lines without any text, numbers, or symbols

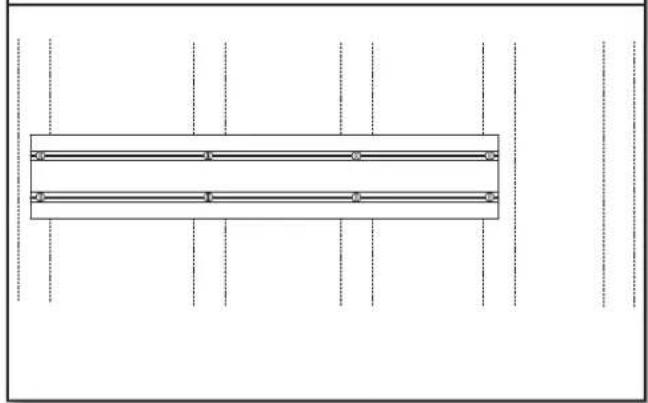

■Drive a screw in every slot at every stud location.

1. Repeat for Additional Channels


BUBBLE LEVEL

■Repeat this process for the next desired application area.

1. Channel Spacing

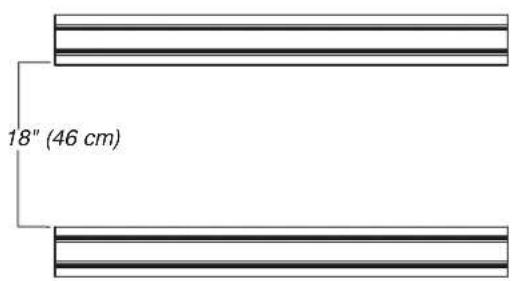

18" (46 cm)

NOTE: If channels are to be used to support accessory hooks and/or small item bins, they may be spaced in any way desired. If channels are being used to support Gladiator® Wall GearBoxes, they must be installed 18" (46 cm) apart.

1. Install Ends Caps (sold separately)


Pure diagram of two mechanical or electrical components with directional arrows, no text or symbols present.

■From the front, snap the end cap onto each end of the run of GearTrack® Channel.

Install the GearWall® Panels

Plan your Installation

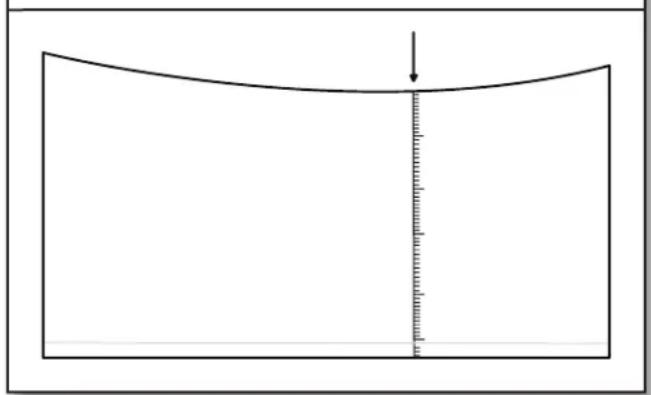

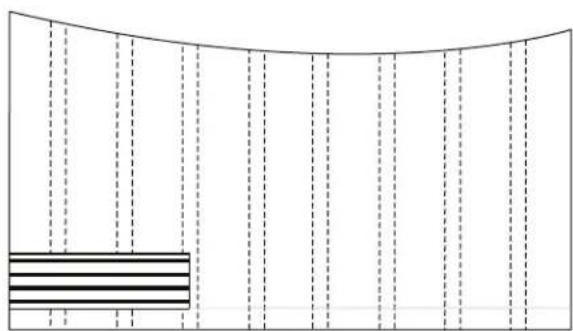

1. Measure Ceiling Sag


Diagram showing upward and downward arrows within a curved boundary, no text or symbols present

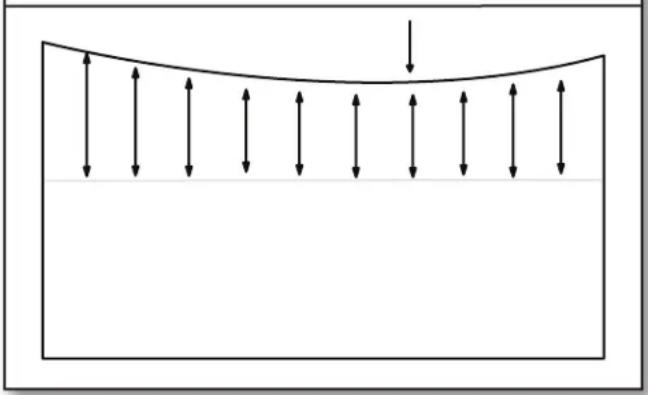

■Snap a level chalk line at a convenient height on the wall(s). Measure from the chalk line to the ceiling and determine the lowest point of the ceiling along the wall.

1. Mark Bottom of Wall


Simple line drawing of a curved object with a vertical measurement line and arrow, no text or symbols present.

■Starting from the lowest point of the ceiling, measure down to the floor. Round the measurement down to the nearest foot and mark. Snap a level chalk line 14 " (6.3 mm) below the mark. Repeat step for remaining walls.
NOTE: For partial wall installation, simply snap a level chalk line at the desired height of the bottom of the wall.

Prepare the Wall

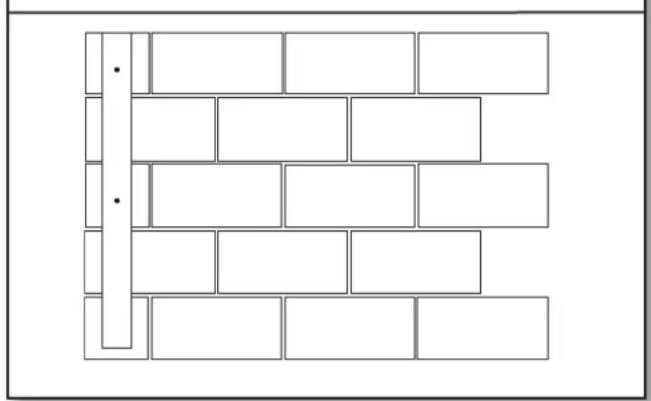

Masonry Block / Poured Concrete Wall

Before you can install the panels on poured concrete or masonry block walls, you must install 2" (5.08 cm) x 4" (10.16 cm) wooden studs to the wall with the 4" (10.16 cm) side against the wall. The wooden studs must be installed over the entire area to be covered by the GearWall® panels. This provides a level surface on which to mount the panels.

1. Mount First Stud

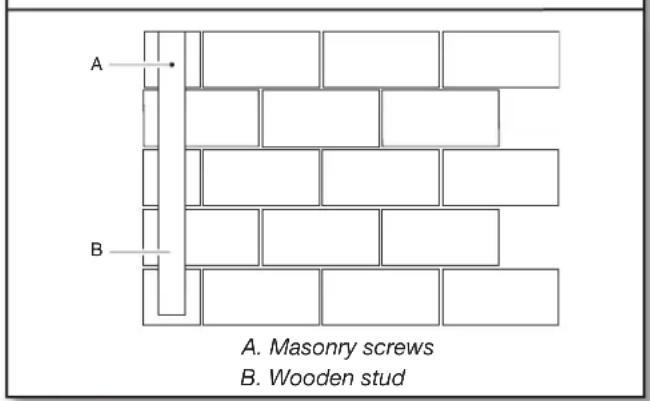

A. Masonry screws B. Wooden stud

■Install the first stud at the starting edge of the desired coverage area to act as a guide. Drill a hole through the stud and into the wall surface. Follow masonry screw manufacturer's instructions for proper installation. For best results use a hammer drill and masonry bit.
NOTE: For extra hold, you may choose to put construction adhesive on the stud before attaching it to the wall.

1. Secure First Stud


Pure architectural grid layout with rectangular blocks and a vertical line (no text or symbols)

• Secure the stud to the wall by placing 1/4" (6.3 mm) x 23/4" (6.9 cm) masonry screws every 18" (45.72 cm).

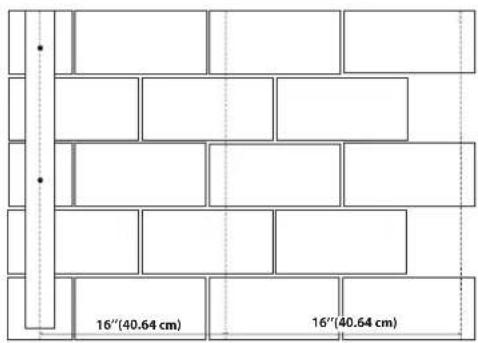

3. Measure Location of Remaining Studs

16"(40.64 cm) 16"(40.64 cm)

■Use this stud as your guide. Measure 16" (40.64 cm) from the corner and snap a vertical chalk line using a chalk line with a plumb bob. Snap a chalk line every 16" (40.64 cm) from this point.

Wood Studs and Drywall over Wood Studs

1. Locate Studs and Electrical

Blood Limiter

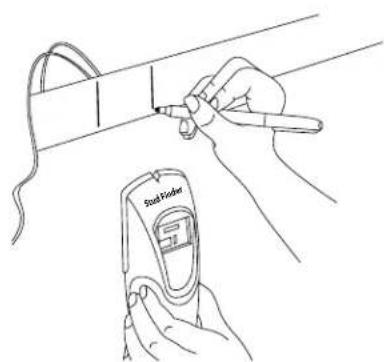

■Use a stud finder to mark the edges of the studs within your planned installation area. Be sure to also mark the locations of electrical wiring.

IMPORTANT: Compare screw length to electrical wiring locations. Be sure the screw will not pierce electrical wiring.

4. Mount Remaining Studs

Pure geometric pattern of interlocking rectangles and trapezoids without any text, numbers, or symbols

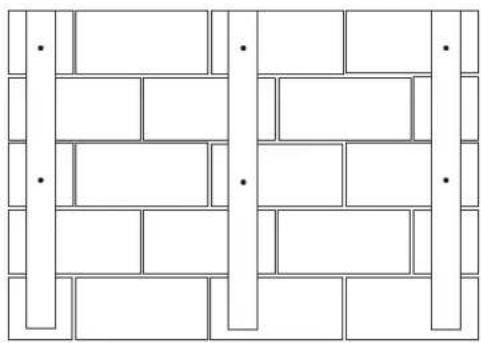

■Align the center of the stud with the chalk line. Attach the remaining studs to the wall as you did in steps 1-2.

Mount the Panels

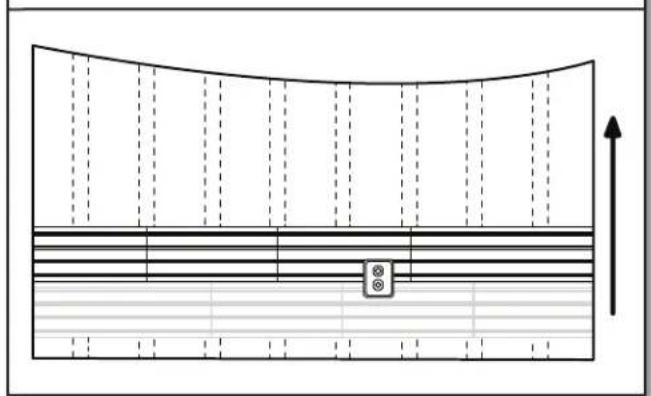

1. Orient the Panel


Pure mechanical component diagram with two vertical arrows indicating direction (no text or symbols)

■Panels are installed with the interlock tongue up and the groove down.

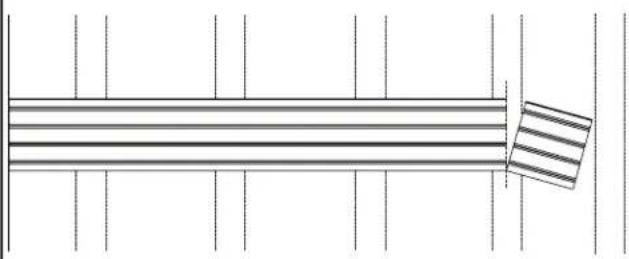

1. Cut to Length


Pure diagram of a horizontal beam with vertical supports and a separate triangular support at the end (no text or symbols)

■Cut the first panel to this length, making sure the cut is square. Be sure to also cut around any windows, doors, and outlets.

NOTE: Panels shorter than 24" (60.96 cm) long should not be used.

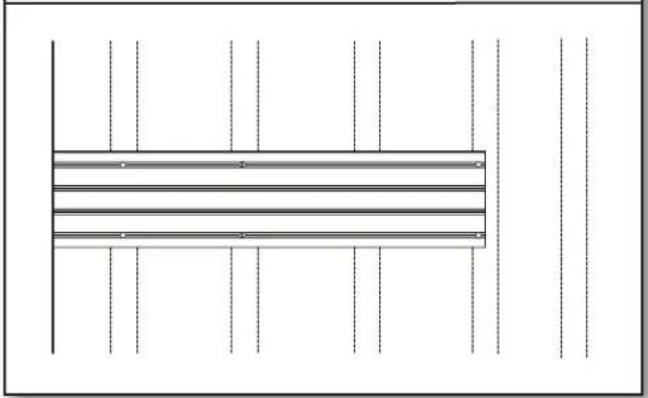

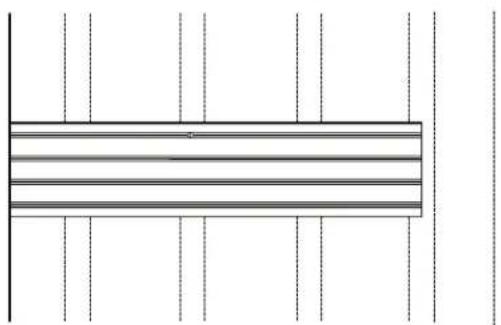

1. Drive First Screw


Pure geometric diagram with horizontal lines and vertical dashed lines, no text or symbols present

■Holding the panel up in the desired location, drive a screw through the top slot groove and into the stud nearest to the middle of the channel until it is flush with the surface.

1. Measure the Panel


Pure horizontal bar diagram with vertical dashed lines, no text or symbols present

■Measure from the starting edge of the desired coverage area to the center of the last wooden stud that is within 4 ft (1.22 m). Take note of interference with any windows, doors, and outlets.

1. Locate the Panel


Pure diagram of a curved boundary with vertical dashed lines and a horizontal bar at the bottom (no text or symbols)

■Place the panel above the horizontal chalk line applied in the "Prepare the Wall" section. Align the panel with both the starting edge and the horizontal chalk line.

NOTE: If installing an optional trim kit, be sure to apply the trim at this time if mounting against an interior corner (see "Trim Options" for details).

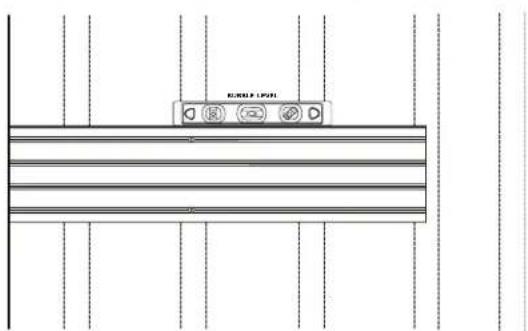

1. Level the Panel


RUMBER LIP 100%

■Check that the panel is level, and then drive a second screw through the bottom slot groove and into the same stud as in the previous step.

1. Predrill Holes


Pure architectural floor plan lines without any text, numbers, or symbols

■If splitting occurs, you may find it necessary to predrill and countersink the screw holes near channel ends.

1. Drive Remaining Screws


Pure electrical circuit lines without any symbols

■Drive a screw in every slot at every stud location.

1. Repeat Until Row Complete


Diagram showing a curved channel with horizontal lines and a directional arrow, labeled with symbols 'B' and 'G'

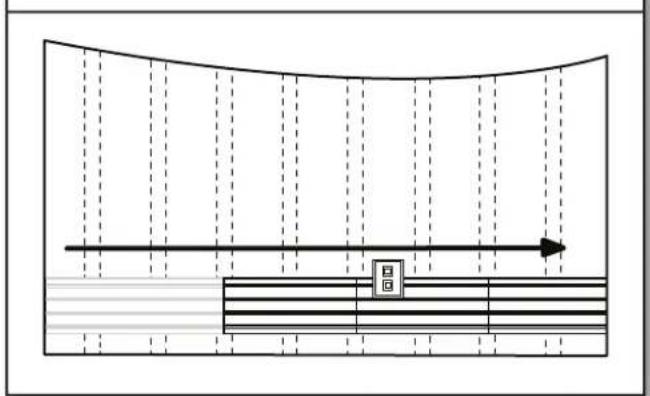

■Repeat steps 1-4 with additional panels until you reach the opposite edge of the desired coverage area.
NOTE: If installing an optional trim kit, be sure to apply the trim around any windows, doors, and outlets you encounter along the way, as well as to the final piece of the row if mounting against an interior corner (see "Trim Options" for details).

1. Repeat Until Desired Coverage


Pure diagram of a curved channel with horizontal and vertical lines, no text or symbols present

■Repeat step 5, installing each following row of wall panels until the wall is finished. If the wall is wider than the 4 ft (1.22 m) panel, you will need to stagger the vertical panel joints in each row with the seams at the wooden studs, as shown.
NOTE: The final row of panels can be rip cut lengthwise to fit the required height.

Trim Options

■ You may choose to apply trim to any exposed corners or edges. Below are some recommended configurations:

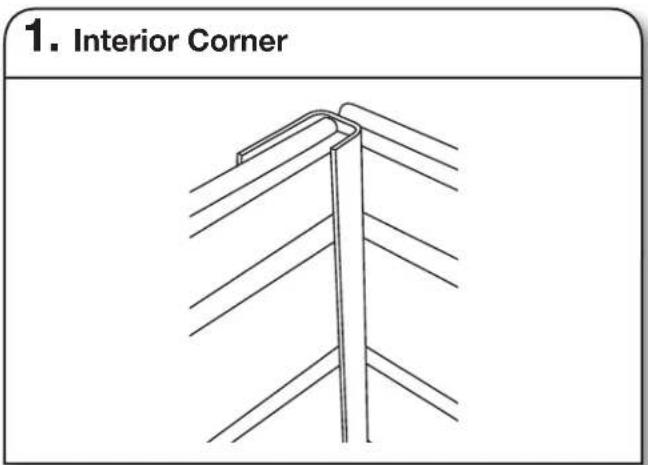

1. Interior Corner

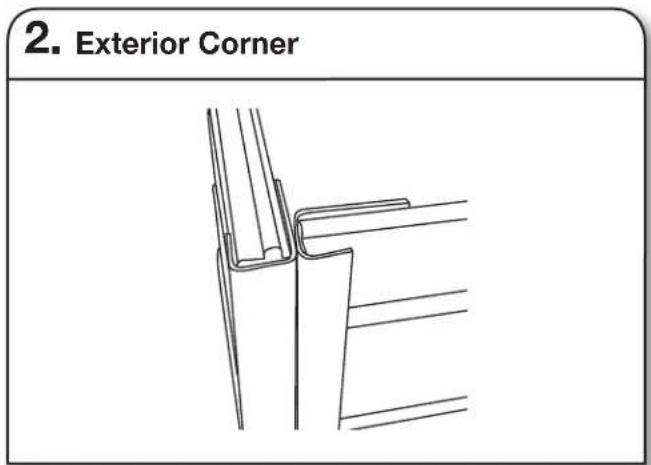

2. Exterior Corner

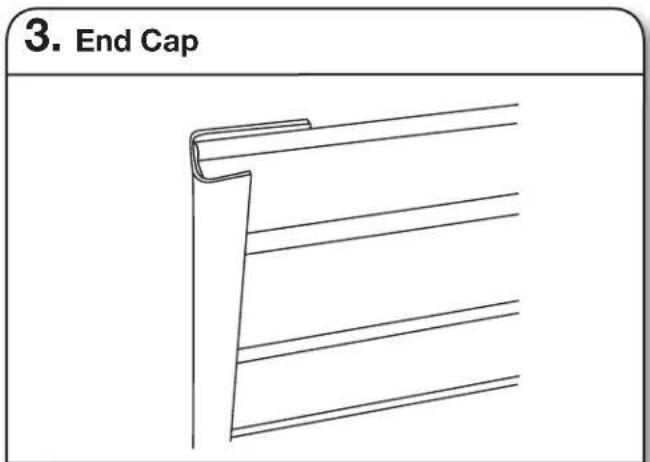

3. End Cap

4. Windows, Doors, and Outlets

NOTE: The current trim options do not apply to masonry block or poured concrete wall installation.

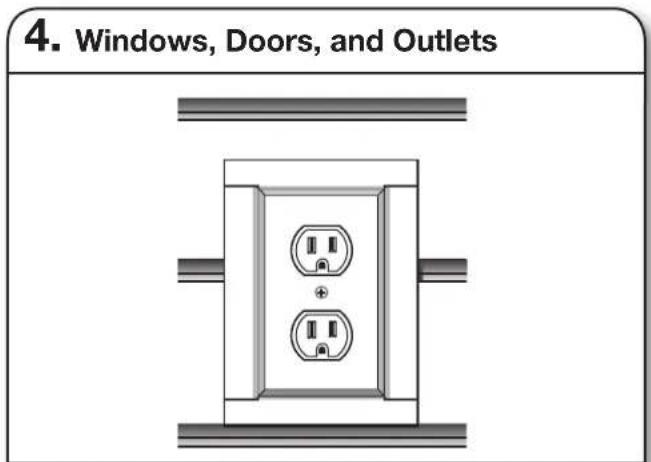

- Trim may also be applied around windows, doors, and outlets. Be sure to notch the trim as shown to ensure a snug fit:

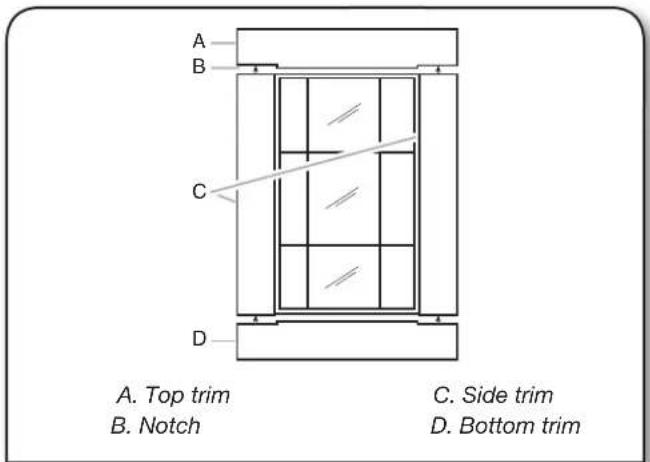

A. Top trim B. Notch C. Side trim D. Bottom trim

INSTALLATION INSTRUCTION OF HOOKS, BINS AND BASKETS

Parts Maximum Weight Limit
Claw Hook, Dual Hook, Big Hook, Utility Hook 50 lbs	(22.7 kg)
Horizontal Bike Hook 25 lbs (11.3 kg) for each hook and 50 lbs (22.7 kg) for the pair
Deep Hook, Wide Hook, Vertical Bike Hook 30 lbs (13.6)
Tool Hook, Cradle Hook, Twin Hook, S Hook, Scoop Hook	25 lbs (11.3 kg)
Fishing Pole Hook 10 lbs (4.5 kg) for each hook and 20 lbs (9.1 kg) for the pair
J & L Hook, Loop Hook 5 lbs (2.2 kg)
Storage Bin Holder 25 lbs (11.3 kg) for each hook and 50 lbs (22.7 kg) for the pair
24” (60.96 cm) Mesh Basket 35 lbs (15.9 kg)
18” (45.7 cm) Wire Basket 35 lbs (15.9 kg)
Caddy Bag 25 lbs (11.3 kg)
Small Item Bin 10 lbs (4.5 kg)

IMPORTANT : Intended to be installed on Gladiator® Garageworks GearWall® panels or GearTrack® channels.

NOTE : Be sure the Gladiator® GearWall® panel or GearTrack® channel is installed with mounting screws in every slot and at every stud location with a maximum of 24" (60.96 cm) horizontally between screws.

Big Hook	Vertical Bike Hook	S Hook	L Hook
Utility Hook	Tool Hook	Scoop Hook	Mesh Basket
Deep Hook	Twin Hook	J Hook	Wire Basket

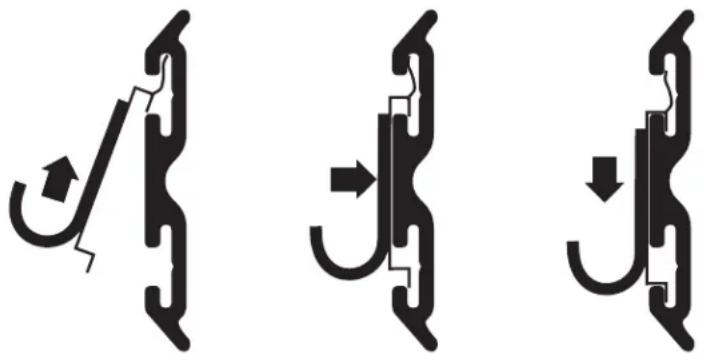

Hooks Installation to GearTrack® Channels/GearWall® Panels

Three abstract black-and-white line drawings resembling stylized letterforms or mechanical components, with no text or symbols present.

Install the Claw Hook Advanced Bike Storage v3.0

Claw Hook Advanced Bike Storage

Technical diagram showing a mechanical assembly with labeled parts A and B, including a magnified inset view of a component.

A. Lever lock
B. GearTrack® channel

Technical line drawing of a mechanical device with labeled parts C and D (no text or symbols beyond labels)

C. Hook arm
D. Plunger

Install the Fishing Pole Hook

Fishing Pole Hook (Vertical)

Pure electrical circuit lines without any symbols

IMPORTANT :

■The Gladiator Claw™ Advanced Bike Storage v3.0 hook holds either wheel of a bike.

1. Determine where you want to hang the bike. Engage the storage hook mounting bracket into the wall slots by lifting up, pushing toward the wall and lowering the bracket rims into the slots.
2. Inspect the bike storage hook from the side to make sure the mounting bracket rims are fully engaged in the slots.
3. Turn the lever lock counterclockwise to lock the storage hook to the GearWall® panel or GearTrack® channel. Make sure the lever lock is in the fully locked position, as shown.
4. Press the plunger until the hook arms are in the open position.
5. Lift the bike up and press the bike tire against the plunger. The hook arms will close around the wheel. Make sure both arms are completely closed around the wheel.
6. Remove the bike by lifting the bike up and pressing the tire against the plunger. The hook arms will open to release the bike wheel.

Fishing Pole Hook (Horizontal)

Pure mechanical diagram showing a lever mechanism with no text, numbers, or symbols

■Designed to be used as a pair, the set of four fishing pole holders will support two fishing poles mounted either vertically or horizontally, as shown.

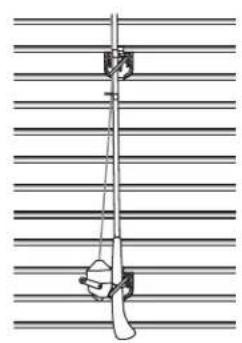

1. Install the fishing pole holders into the slots in the GearWall® panel or GearTrack® channel so that distance between the holders is one half the length of the fishing pole.

NOTE : Engage the bracket rims into the slots by lifting up, pushing toward the wall and lowering the rims into the slots.

1. Inspect the bracket from the side to ensure the rims are fully engaged in the slots as shown.
2. Set the fishing pole into the holders.

Install the Horizontal Bike Hook

Horizontal Bike Hook

Technical line drawing of a rail track support structure with levers and guide rails (no text or symbols)

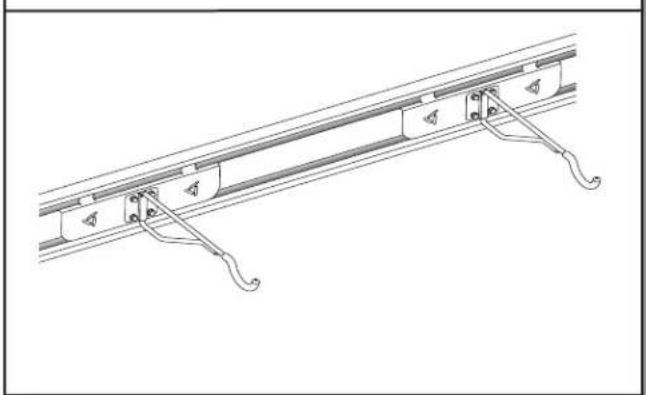

■When not in use, bike hook may be rotated to the side so it lies flat against the bracket.

1. Engage the bracket rims on the horizontal bike hook into the slots in the GearWall® panel or GearTrack® channel by lifting up, pushing toward the wall and lowering the rims into the slots.
2. Inspect the bracket from the side to ensure the rims are fully engaged in the slots as shown.

Install the Storage Bin Holder

Storage Bin Holder

3D rendering of a cylindrical container with a side-mounted bracket, no text or symbols present

■Designed to be used as a pair, the bin holders will support one storage bin up to a maximum 18 gallon size.

1. Measure the length of the storage bin 4" (10.2 cm) to 5" (12.7 cm) from the bottom.
2. Install the storage bin holders into the slots in the GearWall ^® panel or GearTrack ^® channel so that distance between the top of the holders is the same as the length of the storage bin.
   NOTE : Engage the bracket rims into the slots by lifting up, pushing toward the wall and lowering the rims into the slots.
3. Inspect the bracket from the side to ensure the rims are fully engaged in the slots as shown.
4. Set the storage bin into the bin holders so that the bottom and sides are supported by the storage bin holders.

WARRANTY

For warranty information:

In U.S.A. call 1-866-342-4089 or visit our website at

www.GladiatorGW.com

In Canada call 1-800-807-6777 or visit our website at

www.gladiatorgarageworks.ca

There are many benefits for registering the product. Find out more and register the product online at www.gladiatorgarageworks.com.

NOTES

SÛRETÉ DES INSTALLATIONS DES PROFILÉS GEARTRACK® ET DES PANNEAUX GEARWALL®

Simple line drawing of a rectangular object with horizontal lines and vertical supports, no text or symbols present.

Pure diagram of a rectangular structure with horizontal lines and vertical dashed lines, no text or symbols present.

Pure technical diagram of a rectangular structure with vertical dashed lines and horizontal lines, no text or symbols present.

Pure diagram of a rectangular structure with horizontal lines and vertical dashed lines, no text or symbols present.

Pure architectural floor plan lines without any text, numbers, or symbols

18" (46 cm)

Pure diagram of two mechanical or electrical components with arrows indicating direction (no text or symbols)

Diagram showing upward arrows inside a curved boundary with a horizontal line at the bottom (no text or symbols)

Simple line drawing of a curved object with a vertical measurement scale, no text or symbols present

Pure architectural grid layout with rectangular blocks and a vertical line, no text or symbols present

Pure architectural grid pattern with rectangular blocks and diagonal dividers (no text or symbols)

Pure mechanical component diagram showing two vertical slots with downward and upward arrows (no text or symbols)

Pure diagram of a horizontal beam with vertical supports and a separate slanted block, no text or symbols present.

Pure diagram of a horizontal bar with vertical dashed lines, no text or symbols present

Pure horizontal line pattern with vertical tick marks, no text or symbols present

Pure diagram of vertical dashed lines and a horizontal bar, without any text, numbers, or symbols

Pure architectural floor plan lines without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

Diagram showing a curved boundary with horizontal lines and a central rectangular object, no text or symbols present.

Pure diagram of a curved channel with horizontal and vertical lines, no text or symbols present

Three abstract black line patterns on white background, no text or symbols present

Technical diagram showing a mechanical assembly with labeled parts A and B, including a magnified inset view of a component.

Technical line drawing of a mechanical device with labeled parts C and D (no text or symbols beyond labels)

Simple line drawing of a pole with a hammer and scale, mounted on a horizontal surface (no text or symbols)

IMPORTANT :

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a rail track support structure with hook brackets and mounting feet (no text or symbols)

3D rendering of a bucket with a support bracket, showing no text or symbols

www.gladiatorgarageworks.ca

Steel Ender

Top-down schematic of a mechanical assembly with horizontal and vertical components (no text or labels)

Pure diagram of a rectangular structure with horizontal lines and vertical dashed lines, no text or symbols present.

Pure technical diagram of a rectangular component with horizontal lines and vertical dashed lines, no text or symbols present.

Pure diagram of a rectangular structure with horizontal and vertical dotted lines, no text or symbols present

Pure architectural floor plan lines without any text, numbers, or symbols

18" (46 cm)

Diagram showing two mechanical or structural components with arrows indicating direction (no text or symbols)

Diagram showing upward and downward arrows within a curved boundary, no text or symbols present

Simple line drawing of a curved object with a vertical measurement line and arrow, no text or symbols present.

Pure architectural grid layout with rectangular blocks and diagonal lines, no text or symbols present

Pure architectural grid pattern with rectangular blocks and vertical dividers (no text or symbols)

Pure mechanical component diagram showing two vertical slots with downward and upward arrows (no text or symbols)

Pure diagram of a horizontal beam with vertical supports and a separate rectangular block on the right side (no text or symbols)

Pure diagram of a horizontal bar with vertical dashed lines, no text or symbols present

Pure horizontal line pattern with vertical tick marks, no text or symbols present

Pure diagram of vertical dashed lines and a horizontal bar, without any text, numbers, or symbols

NURUF LIPOR

Pure architectural floor plan lines without any text, numbers, or symbols

Pure diagram of parallel lines with horizontal bars and dots, no text or symbols present

Diagram showing a curved boundary with horizontal lines and a directional arrow, no text or symbols present

Pure diagram of a curved channel with horizontal and vertical lines, no text or symbols present

Pure technical line drawing of a vertical structural component with diagonal braces (no text or symbols)

1. Esquina exterior


Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Line drawing of a wooden shelf with horizontal ribs and a corner clip (no text or symbols)

Diagram of a double electrical outlet with two outlets and a positive terminal, mounted on a wall (no text or symbols)

Three abstract black-and-white diagrams showing curved and straight shapes with directional arrows, no text or symbols present.

Technical diagram showing mechanical assembly with labeled parts A and B, including a magnified inset view of a component.

A. Traba de palanca B. Canal GearTrack®

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Simple line drawing of a vertical pole with a hanging object, set against a grid of horizontal lines (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a rail track support structure with hook brackets and mounting feet (no text or symbols)

3D rendering of a cylindrical container with a base supported by two small blocks, no text or symbols present

www.gladiatorgarageworks.ca

www.gladiatorgarageworks.com.

NOTAS

^6 /TM ©2017 Gladiator. All rights reserved. Used under license in Canada.
