USER MANUAL EWADH17TZXSD2 DAIKIN
BAS integration guide
Modbus protocol
Doc. Name:
D-EIGOC00103-23_01EN_EWAD/H_EWFD/H-T/MZD
Product Name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Control software name:
ETRA / OMEGA
Table of contents
- Introduction 3
- About this document 4
2.1 Revision History 4
2.2 Notice 4
2.3 Before starting 4
-
Safety information 5
-
Commission this unit in a Modbus network....6
4.1 General information 6
4.2 Modbus MSTP module (POL902)....7
4.3 Modbus MSTP software option (Microtech 4)....9
- Modbus integration list 10
5.1 Alarm Codes and Indexes....24
1. Introduction
This document contains information to incorporate a MicroTech® III and Microtech 4 Unit Controllers into a building automation system (BAS) via Modbus communication protocols.
Microtech III and Microtech 4 are suitable for network integration. Data points accessible from a Modbus network are made available to a BAS provided that the proper communication module (Microtech III and Microtech 4) or the corresponding software option (Microtech 4) are installed / acrivated.
Modbus terms are not defined. Refer to the standard Modbus specifications for definitions and details about the protocol.
2. About this document
2.1 Revision History
| Version | Date | Software Version | Description |
| D-EIGOC00103-22EN_EWAD-TZD | 12/2023 | ETRA / OMEGA | First version released |
2.2 Notice
© 2014 Daikin Applied Europe, Cecchina, Roma. All rights reserved throughout the world ^TM ® The following are trademarks or registered trademarks of their respective companies:
• Modbus from Schneider Electric (originally from Modicon)
• MicroTech III from Daikin Applied Europe.
- MicroTech 4 from Daikin Applied Europe.
2.3 Before starting
| Application range | This document refers to the following components: | ||
| Microtech III | Controller | ||
| Microtech 4 | Controller | ||
| POL902.00/STD | Modbus MSTP module | ||
| Users | Users of this document are intended to be:- Modbus systems integrators- Service Technicians- Plant Engineers- Sales staff | ||
| Conventions | Microtech III e Microtech 4 further in this document and when proper will be referred to as "Microtech" | ||
| Abbreviation | |||
| BSP | Board Support Package (operating system) | ||
| References | Siemens Building Technologies - CB1J3960en - Modbus communication, slave mode Siemens Building Technologies - CB1Q3934en - ClimatixTM Modbus communication modules POL902.00The Modbus Organization - www.modbus.org | ||
Product name:
EWAD/H-T/MZD & EWFD/H-
T/MZD
Software name:
ETRA / OMEGA
3. Safety information
Only personnel qualified in accordance with IEC (International Electrotechnical Commission) recommendations may be permitted access to electrical components. It is particularly recommended that all sources of electricity to the unit be shut off before any work is begun. Shut off main power supply at the main circuit breaker or isolator.
IMPORTANT: This equipment uses and emits electromagnetic signals. Tests have shown that the equipment conforms to all applicable codes with respect to electromagnetic compatibility.
RISK OF ELECTROCUTION: Even when the main circuit breaker or isolator is switched off, certain circuits may still be energized, since they may be connected to a separate power source.
RISK OF BURNS: Electrical currents cause components to get hot either temporarily or permanently. Handle power cable, electrical cables and conduits, terminal box covers and motor frames with great care.
| Field of application | Use Modbus communication module only for control and monitoring functions in ventilation, air conditioning and refrigeration plants. | |
| Intended use | Trouble-free and safe product operation of the above products presupposes transport, storage, mounting, installation, and commissioning as intended as well as careful operation. | |
| Electrical installation | Fuses, switches, wiring and grounding must comply with local safety regulations for electrical installations. | |
| Wiring | When wiring, strictly separate AC 230 V mains voltage from AC 24 V safety extralow voltage (SELV) to protect against electrical shock! | |
| Commissioning and maintenance | Only qualified staff trained accordingly may prepare for use, commission, and maintain Modbus communication modules.Maintenance of Modbus communication modules generally only means regular cleaning. We recommend removing dust and dirt from system components installed in the control panels during standard service. | |
| Faults | Only authorized staff may diagnose and correct faults and recommission the plant. This applies to working within the panel as well (e.g. testing or changing fuses). | |
| Storage and transport | Refer to the environmental conditions specified in the respective data sheets for storage and transport. If in doubt, contact your supplier. | |
| Disposal | Devices contain electrical and electronic components; do not dispose of them in household garbage. Observe all local and applicable laws. |
4. Commission this unit in a Modbus network
4.1 General information

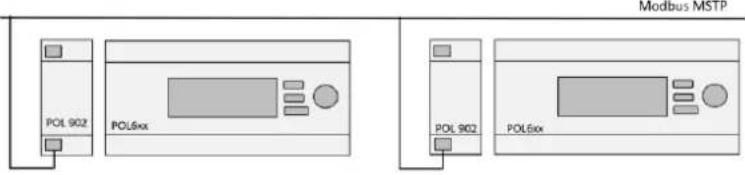

| Unit controller is a Microtech III or a POL638 | Microtech III controller can be integrated in a Modbus network provided that it is equipped with the proper communication module. See “Communication modules” section below in this page. |

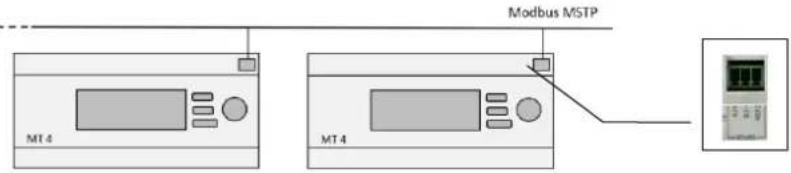

| Unit controller is a Microtech 4 | Microtech 4 controller can be integrated in a Modbus network provided one of the followings:a) it is equipped with the proper communication moduleb) the onboard communication has been made available (software option). |
| Modbus MSTP (POL902) | Communication module to configure Microtech controllers in Modbus network is the POL902:---- |
| Communication software option | For Microtech 4, Modbus communication is also available onboard the controller as a software option.---- |
4.2 Modbus MSTP module (POL902)

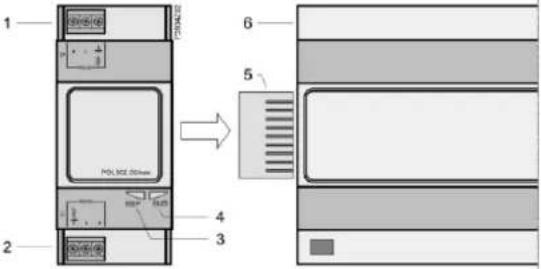

| Module description |  | ||||
| Part | Description | ||||
| 1 | Modbus RS485 interface T1 (slave, channel 0). | ||||
| 2 | Modbus RS485 interface T2 (slave, channel 1). | ||||
| 3 | Status display "BSP" (Board Support Package). | ||||
| 4 | Status display "BUS" (bus connections o.k. / bus traffic). | ||||
| 5 | Plug connection "Communication extension bus". | ||||
| 6 | Microtech III controller. | ||||
| BSP Led | Color | Flashing frequency | Meaning | ||
| Green | Steady on | BSP operating and communication with controller working. | |||
| Yellow | Steady on | BSP operating, but no communication with controller. | |||
| Red | Steady on | Hardware fault. | |||
| Red/Yellow | Flashing at 1 Hz(1 second on/ 1 second off) | Upgrade mode running. | |||
| Red | Flashing at 2 Hz(0,5 second on/ 0,5 second off) | BSP error (software error). | |||
| BUS Led | Color | Flashing frequency | Meaning | ||
| Green | Steady on | Communication active. | |||
| Yellow | Steady on | Initializing | |||
| Red | Steady on | Communication interrupted. | |||
| Module connection | Step | Action | |||
| 1 | Power off the controller | ||||
| 2 | Connect POL902 module to the controller via plug connection (part 5). | ||||
| 4 | Power on the controller | ||||
| Configuration procedure | Step | Action | |||
| 1 | Check that BUS led status is steady on green coloured. | ||||
| 2 | Navigate the unit's keypad/display to the main menu page and set the "service" password | ||||
| 3 | Navigate the unit's keypad/display following the path below:Main menu→Commissioning→Modbus | ||||
| 4 | Set parameters in the table below as needed according to the local network | ||||
| Configuration parameters | Parameter | Default value | |||
| Address T1 | 1 | ||||
| Parity T1 | None | ||||
| 2 Stop bits T1 | Yes | ||||
| Baud rate T1 | 19200 | ||||
| Rspnce Dly T1 | 5 ms | ||||
| Port T2 | Passive | ||||
| Address T2 | 1 | ||||
| Parity T2 | None | ||||
| 2 Stop bits T2 | Yes | ||||
| Baud rate T2 | 19200 | ||||
| Rspnce Dly T2 | 5 ms | ||||
4.3 Modbus MSTP software option (Microtech 4)
| Option enabling | 1. From the HMI main menu choose: | |||
| Commissioning→Configuration→Software Options2. Select “On” for option #1-Modbus Slave MSTP3. Insert the unlock password4. Apply Changes |  | |||
| Option configuration | 5. From the HMI main menu choose: | |||
| Commissioning6. Select “SW Modbus MSTP” |  | |||
| 7. Select proper parameters for Modbus communication |  | |||
| Parameter | Default value | |||
| Address | Variable | |||
| Baudrate | 19200 | |||
| Parity | None | |||
| 2StopBits | No | |||
| Delay | 100 ms | |||
| Response Timeout | 100 ms | |||
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
- Modbus integration list
| Description | Type | Address | Gain | Range | Read/Write |
| Unit - Control Source | UNSIGNED WORD | 1 | 1 | 0 Network1 Local | R |
| Unit - Enabled State | UNSIGNED WORD | 2 | 1 | 0 Disabled1 Enabled | R |
| Unit - Run Allowed | UNSIGNED WORD | 3 | 1 | 0 Off1 Allowed | R |
| Unit - Capacity Limited | UNSIGNED WORD | 4 | 1 | 0 NotLimited1 Limited | R |
| Unit - Alarm Output | UNSIGNED WORD | 5 | 1 | 0 NoAlarm1 Alarm | R |
| Evaporator - Water Flow State | UNSIGNED WORD | 6 | 1 | 0 NoFlow1 Flow | R |
| Unit - Operating State | UNSIGNED WORD | 8 | 1 | 0 ThermoOff1 ThermoOn | R |
| Unit - Enable Setpoint | UNSIGNED WORD | 9 | 1 | 0 Disable1 Enable | W |
| Unit - Alarm Reset Setpoint | UNSIGNED WORD | 10 | 1 | 0 None1 Clear | W |
| Unit - Active Operation Mode | UNSIGNED WORD | 11 | 1 | 1 Ice2 Cool3 Heat | R |
| Unit - Active Temperature Setpoint | SIGNED WORD | 12 | 0,1 | °C | R |
| Unit - Actual Capacity | SIGNED WORD | 13 | 0,1 | % | R |
| Unit - Active Capacity Limit | SIGNED WORD | 14 | 0,1 | % | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Page 10 / 41
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Unit - Status | UNSIGNED WORD | 15 | 1 | 1 Off2 Start3 Run4 PreShutdown5 Service | R |
| Evaporator Entering Water Temperature | SIGNED WORD | 16 | 0,1 | °C | R |
| Evaporator Leaving Water Temperature | SIGNED WORD | 17 | 0,1 | °C | R |
| Heat Recovery - Enable Setpoint | UNSIGNED WORD | 18 | 1 | 0 Disable1 Enable | W |
| Heat Recovery - Entering Water Temperature | SIGNED WORD | 22 | 0,1 | °C | R |
| Heat Recovery - Leaving Water Temperature | SIGNED WORD | 23 | 0,1 | °C | R |
| Outside Air Temperature | SIGNED WORD | 24 | 0,1 | °C | R |
| Unit - Average Current | SIGNED WORD | 25 | 1 | A | R |
| Unit - Average Voltage | SIGNED WORD | 26 | 0,1 | V | R |
| Unit - Active Power | SIGNED WORD | 27 | 0,1 | kW | R |
| Unit Alarm - Warning Index | SIGNED WORD | 28 | 1 | 0...65534 | R |
| Unit Alarm - Problem Index | SIGNED WORD | 29 | 1 | 0...65534 | R |
| Unit Alarm - Fault Index | SIGNED WORD | 30 | 1 | 0...65534 | R |
| Unit Alarm - Warning Code | SIGNED WORD | 31 | 1 | 0...65534 | R |
| Unit Alarm - Problem Code | SIGNED WORD | 32 | 1 | 0...65534 | R |
| Unit Alarm - Fault Code | SIGNED WORD | 33 | 1 | 0...65534 | R |
| Unit - Operation Mode Setpoint | UNSIGNED WORD | 34 | 1 | 0 NULL1 Ice2 Cool3 Heat | W |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Unit - Cool Temperature Setpoint | SIGNED WORD | 35 | 0,1 | °C | W |
| Unit - Ice Temperature Setpoint | SIGNED WORD | 36 | 0,1 | °C | W |
| Unit - Heat Temperature Setpoint | SIGNED WORD | 37 | 0,1 | °C | W |
| Unit - Capacity Limit Setpoint | SIGNED WORD | 38 | 0,1 | % | W |
| Circuit 1 - Condenser Refrigerant Pressure | SIGNED WORD | 39 | 0,1 | kPa | R |
| Circuit 1 - Condenser Saturated Temperature | SIGNED WORD | 40 | 0,1 | °C | R |
| Circuit 1 - Evaporator Refrigerant Pressure | SIGNED WORD | 41 | 0,1 | kPa | R |
| Circuit 1 - Evaporator Saturated Temperature | SIGNED WORD | 42 | 0,1 | °C | R |
| Circuit 2 - Condenser Refrigerant Pressure | SIGNED WORD | 43 | 0,1 | kPa | R |
| Circuit 2 - Condenser Saturated Temperature | SIGNED WORD | 44 | 0,1 | °C | R |
| Circuit 2 - Evaporator Refrigerant Pressure | SIGNED WORD | 45 | 0,1 | kPa | R |
| Circuit 2 - Evaporator Saturated Temperature | SIGNED WORD | 46 | 0,1 | °C | R |
| Circuit 1 - Shutdown Alarm | UNSIGNED WORD | 51 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 - Shutdown Alarm | UNSIGNED WORD | 52 | 1 | 0 NoAlarm1 Alarm | R |
| Unit - Shutdown Alarm | UNSIGNED WORD | 54 | 1 | 0 NoAlarm1 Alarm | R |
| Heat Recovery - Temperature Setpoint | SIGNED WORD | 59 | 1 | °C | W |
| Heat Recovery - Operating State | UNSIGNED WORD | 60 | 1 | 1 Off2 Recirculation3 Regulation | R |
| Circ 1 Compressor 1 - Suction Temperature | SIGNED WORD | 65 | 0,1 | °C | R |
| Circ 1 Compressor 1 - Discharge Temperature | SIGNED WORD | 68 | 0,1 | °C | R |
| Circ 1 Compressor 1 - RLA Percentage | SIGNED WORD | 69 | 1 | % | R |
| Circ 1 Compressor 1 - Current | SIGNED WORD | 70 | 1 | A | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Circ 1 Compressor 1 - Power | SIGNED WORD | 72 | 1 | kW | R |
| Circ 1 Compressor 1 - Number of Starts | UNSIGNED WORD | 73 | 1 | - | W |
| Circ 1 Compressor 1 - Number of Running Hours | UNSIGNED DOUBLE | 74 | 1 | h | W |
| Circ 2 Compressor 1 - Suction Temperature | SIGNED WORD | 104 | 0,1 | °C | R |
| Circ 2 Compressor 1 - Discharge Temperature | SIGNED WORD | 107 | 0,1 | °C | R |
| Circ 2 Compressor 1 - RLA Percentage | SIGNED WORD | 108 | 1 | % | R |
| Circ 2 Compressor 1 - Current | SIGNED WORD | 109 | 1 | A | R |
| Circ 2 Compressor 1 - Power | SIGNED WORD | 111 | 1 | kW | R |
| Circ 2 Compressor 1 - Number of Starts | UNSIGNED WORD | 112 | 1 | - | W |
| Circ 2 Compressor 1 - Number of Running Hours | UNSIGNED DOUBLE | 113 | 1 | h | W |
| Freecooling - Enable Setpoint | UNSIGNED WORD | 250 | 1 | 0 Disable1 Enable | W |
| Freecooling - Status | UNSIGNED WORD | 251 | 1 | 0 Unit Off1 FC Full2 FC Mix3 Mech | R |
| Freecooling - Enabled State | UNSIGNED WORD | 252 | 1 | 1 No2 Yes | R |
| AntiVacuum Protection State | UNSIGNED WORD | 258 | 1 | 0 No1 Yes | R |
| Performance - Unit Thermal Capacity | UNSIGNED DOUBLE | 260 | 0,1 | kW | R |
| Performance - Unit Power Input | UNSIGNED DOUBLE | 262 | 0,1 | kW | R |
| Performance - Unit Efficiency | SIGNED WORD | 264 | 0,01 | - | R |
| Performance - Unit Integrated Efficiency | SIGNED WORD | 265 | 0,01 | - | R |
| Performance - Unit Thermal Energy | UNSIGNED DOUBLE | 266 | 0,1 | MWh | R |
| Performance - Unit Electrical Energy | UNSIGNED DOUBLE | 268 | 0,1 | MWh | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Performance - Freecooling Thermal Capacity | UNSIGNED DOUBLE | 273 | 0,1 | kW | R |
| Performance - Mechanical Thermal Capacity | UNSIGNED DOUBLE | 275 | 0,1 | kW | R |
| Performance - Percentage of Freecooling Capacity | UNSIGNED WORD | 277 | 1 | % | R |
| Evaporator Pump - Speed | SIGNED WORD | 296 | 1 | % | R |
| Evaporator Pump 1 - Number of Running Hours | UNSIGNED DOUBLE | 303 | 1 | - | R |
| Evaporator Pump 1 - Operating State | UNSIGNED WORD | 305 | 1 | 0 Stop1 Run | R |
| Evaporator Pump 2 - Number of Running Hours | UNSIGNED DOUBLE | 306 | 1 | - | R |
| Evaporator Pump 2 - Operating State | UNSIGNED WORD | 308 | 1 | 0 Stop1 Run | R |
| Evaporator Pump - Electrical Power | UNSIGNED WORD | 310 | 0,1 | kW | R |
| Evaporator Differential Pressure | UNSIGNED WORD | 312 | 1 | kPa | R |
| Evaporator Estimated Water Flow | UNSIGNED WORD | 314 | 0,1 | kg/s | R |
| Evaporator Pump - Speed RPM | UNSIGNED WORD | 322 | 0,1 | rpm | R |
| Unit - Measurement unit setpoint | UNSIGNED WORD | 316 | 1 | 0 English1 Metric | W |
| Unit - Model | UNSIGNED WORD | 317 | 1 | 1 Centrifugal2 Water Cooled3 Air Cooled4 HeatPump5 Reserved6 Reserved7 Reserved8 Reserved9 Other | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Unit - Safety Mode Setpoint | UNSIGNED WORD | 318 | 0 Off1 On | R | |
| Unit - Safety Mode State | UNSIGNED WORD | 319 | 0 Off1 On | R | |
| Unit Alarm - Evaporator Entering Temperature Sensor Fault | UNSIGNED WORD | 366 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Warning - Setpoint Reset Input Out of Range | UNSIGNED WORD | 377 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Warning - Demand Limit Input Out of Range | UNSIGNED WORD | 378 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Warning - Power Loss while Compressor Running | UNSIGNED WORD | 384 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Warning - Power Loss while Compressor Running | UNSIGNED WORD | 385 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Warning - Inhibition for Low Ambient Temperature | UNSIGNED WORD | 388 | 1 | 0 NoAlarm1 Alarm | R |
| Evaporator Pump 1 - Fault | UNSIGNED WORD | 430 | 1 | 0 NoAlarm1 Alarm | R |
| Evaporator Pump 2 - Fault | UNSIGNED WORD | 431 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 1 Comp 1 Alarm - Low Pressure Ratio | UNSIGNED WORD | 440 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 2 Comp 1 Alarm - Low Pressure Ratio | UNSIGNED WORD | 442 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Alarm - Outside Air Temperature Sensor Fault | UNSIGNED WORD | 446 | 1 | 0 NoAlarm1 Alarm | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Circ 1 Comp 1 Alarm - High Motor Current | UNSIGNED WORD | 447 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 2 Comp 1 Alarm - High Motor Current | UNSIGNED WORD | 449 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 1 Comp 1 Alarm - High Motor Temperature | UNSIGNED WORD | 478 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 2 Comp 1 Alarm - High Motor Temperature | UNSIGNED WORD | 480 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - Condenser Pressure Sensor Fault | UNSIGNED WORD | 509 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - Condenser Pressure Sensor Fault | UNSIGNED WORD | 511 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - Condenser High Pressure | UNSIGNED WORD | 517 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - Condenser High Pressure | UNSIGNED WORD | 519 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - Discharge Temperature Sensor Fault | UNSIGNED WORD | 529 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - Discharge Temperature Sensor Fault | UNSIGNED WORD | 531 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 1 Comp 1 Alarm - High Discharge Temperature | UNSIGNED WORD | 535 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 2 Comp 1 Alarm - High Discharge Temperature | UNSIGNED WORD | 537 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Alarm - Evaporator Water Flow Loss | UNSIGNED WORD | 542 | 1 | 0 NoAlarm1 Alarm | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Unit Alarm - Evaporator Water Freeze | UNSIGNED WORD | 543 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - Evaporator Pressure Low | UNSIGNED WORD | 545 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - Evaporator Pressure Low | UNSIGNED WORD | 547 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - Evaporator Pressure Sensor Failure | UNSIGNED WORD | 552 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - Evaporator Pressure Sensor Failure | UNSIGNED WORD | 554 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - Too many restart | UNSIGNED WORD | 583 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - Too many restart | UNSIGNED WORD | 585 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Alarm - Evaporator Leaving Temperature Sensor Fault | UNSIGNED WORD | 589 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - Mechanical High Pressure | UNSIGNED WORD | 601 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - Mechanical High Pressure | UNSIGNED WORD | 603 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - Oil Filter High Pressure | UNSIGNED WORD | 637 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - Oil Filter High Pressure | UNSIGNED WORD | 639 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - Oil Pressure Sensor Failure | UNSIGNED WORD | 643 | 1 | 0 NoAlarm1 Alarm | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Circuit 2 Alarm - Oil Pressure Sensor Failure | UNSIGNED WORD | 645 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Alarm - Phase Voltage | UNSIGNED WORD | 661 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - OverVoltage | UNSIGNED WORD | 667 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - OverVoltage | UNSIGNED WORD | 668 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - UnderVoltage | UNSIGNED WORD | 670 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - UnderVoltage | UNSIGNED WORD | 671 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 1 Comp 1 Alarm - Suction Temperature Sensor Fault | UNSIGNED WORD | 698 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 2 Comp 1 Alarm - Suction Temperature Sensor Fault | UNSIGNED WORD | 700 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - No Pressure at Start | UNSIGNED WORD | 711 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - No Pressure at Start | UNSIGNED WORD | 712 | 1 | 0 NoAlarm1 Alarm | R |
| Controller Alarm - Circuit 1 Board Offline | UNSIGNED WORD | 723 | 1 | 0 NoAlarm1 Alarm | R |
| Controller Alarm - Circuit 2 Board Offline | UNSIGNED WORD | 724 | 1 | 0 NoAlarm1 Alarm | R |
| Unit - Power Restore | UNSIGNED WORD | 740 | 1 | 0 NoAlarm1 Alarm | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Circuit 1 Alarm - Pumpdown Failure | UNSIGNED WORD | 741 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - Pumpdown Failure | UNSIGNED WORD | 742 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Alarm - External Event | UNSIGNED WORD | 745 | 1 | 0 NoAlarm1 Alarm | R |
| Controller Alarm - Unit Board Offline | UNSIGNED WORD | 746 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - No Pressure change at Start | UNSIGNED WORD | 747 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - No Pressure change at Start | UNSIGNED WORD | 748 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 1 Compr 1 Alarm - VFD Fault | UNSIGNED WORD | 762 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 2 Compr 1 Alarm - VFD Fault | UNSIGNED WORD | 764 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 1 Compr 1 Alarm - VFD High Temperature | UNSIGNED WORD | 768 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 2 Compr 1 Alarm - VFD High Temperature | UNSIGNED WORD | 770 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 1 Compr 1 Alarm - VFD Communication Failure | UNSIGNED WORD | 774 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 2 Compr 1 Alarm - VFD Communication Failure | UNSIGNED WORD | 776 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Alarm - Emergency Stop Switch | UNSIGNED WORD | 798 | 1 | 0 NoAlarm1 Alarm | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Unit Alarm - Evaporator Temperature Sensors Inverted | UNSIGNED WORD | 799 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Alarm - External Alarm | UNSIGNED WORD | 800 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 1 Compr 1 Problem - Low Discharge Superheat | UNSIGNED WORD | 808 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 2 Compr 1 Problem - Low Discharge Superheat | UNSIGNED WORD | 810 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Warning - Curennt Limit Input Out Of Range | UNSIGNED WORD | 814 | 1 | 0 NoAlarm1 Alarm | R |
| Controller Alarm - Option Board Offline | UNSIGNED WORD | 815 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - Gas Leakage | UNSIGNED WORD | 844 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 2 Alarm - Gas Leakage | UNSIGNED WORD | 845 | 1 | 0 NoAlarm1 Alarm | R |
| Unit - Electrical Panel Temperature | SIGNED WORD | 850 | 0,1 | °C | R |
| Unit Warning - Electrical Panel Temp Sensor Fault | UNSIGNED WORD | 851 | 1 | 0 NoAlarm1 Alarm | R |
| Unit Warning - Electrical Panel High Temperature | UNSIGNED WORD | 852 | 1 | 0 NoAlarm1 Alarm | R |
| Controller Alarm - Fan Board Offline | UNSIGNED WORD | 900 | 1 | 0 NoAlarm1 Alarm | R |
| Circuit 1 Alarm - Fan Fault | UNSIGNED WORD | 901 | 1 | 0 NoAlarm1 Alarm | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Circuit 2 Alarm - Fan Fault | UNSIGNED WORD | 902 | 1 | 0 NoAlarm1 Alarm | R |
| Shunt Active Filter – Grid Voltage | SIGNED WORD | 950 | 1 | V | R |
| Shunt Active Filter – Grid Active Power | SIGNED WORD | 951 | 1 | kW | R |
| Shunt Active Filter – Grid Power Factor | SIGNED WORD | 952 | 1 | R | |
| Shunt Active Filter – Grid TDDi | SIGNED WORD | 953 | 1 | % | R |
| Circ 2 Compressor 1 - Actual Capacity | SIGNED WORD | 1800 | 0,1 | % | R |
| Circ 2 Compressor 1 - OffAuto Setpoint | UNSIGNED WORD | 1801 | 1 | 0 Off1 Auto | W |
| Circ 2 Compressor 1 - Full Load State | UNSIGNED WORD | 1802 | 1 | 0 Normal1 Full Load | R |
| Circ 2 Compressor 1 - VFD Output | SIGNED WORD | 1805 | 1 | rpm | R |
| Circ 2 Compressor 1 - Alarm Active | UNSIGNED WORD | 1806 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 2 Compressor 1 - Oil Feed Pressure | SIGNED WORD | 1809 | 0,1 | kPa | R |
| Circ 2 Compressor 1 - Operating State | UNSIGNED WORD | 1812 | 1 | 0 Stop1 Run | R |
| Circ 1 Compressor 1 - Actual Capacity | SIGNED WORD | 1840 | 0,1 | % | R |
| Circ 1 Compressor 1 - OffAuto Setpoint | UNSIGNED WORD | 1841 | 1 | 0 Off1 Auto | W |
| Circ 1 Compressor 1 - Full Load State | UNSIGNED WORD | 1842 | 1 | 0 Normal1 Full Load | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Circ 1 Compressor 1 - VFD Output | SIGNED WORD | 1845 | 1 | rpm | R |
| Circ 1 Compressor 1 - Alarm Active | UNSIGNED WORD | 1846 | 1 | 0 NoAlarm1 Alarm | R |
| Circ 1 Compressor 1 - Oil Feed Pressure | SIGNED WORD | 1849 | 0,1 | kPa | R |
| Circ 1 Compressor 1 - Operating State | UNSIGNED WORD | 1852 | 1 | 0 Stop1 Run | R |
| Unit - Refrigerant type | UNSIGNED WORD | 1854 | 1 | 1 R222 R134a3 R407c4 R410a5 R1234ze5 resv3 | R |
| Unit - Number of Circuits | SIGNED WORD | 1855 | 1 | 1...2 | R |
| Unit - Number of Compressors | SIGNED WORD | 1856 | 1 | 1...4 | R |
| Circuit 2 - Evaporator Superheat Active Setpoint | SIGNED WORD | 1896 | 0,1 | dK | R |
| Circuit 1 - Evaporator Superheat Active Setpoint | SIGNED WORD | 1897 | 0,1 | dK | R |
| Circuit 2 - Evaporator Superheat Temperature | SIGNED WORD | 1898 | 0,1 | dK | R |
| Circuit 1 - Evaporator Superheat Temperature | SIGNED WORD | 1899 | 0,1 | dK | R |
| Unit - Active Energy | UNSIGNED DOUBLE | 1900 | 0,1 | kWh | R |
| Unit - Power Factor | SIGNED WORD | 1902 | 0,01 | - | R |
| Unit - Current Limit Setpoint | SIGNED WORD | 1903 | 0,1 | A | W |
| Variable Flow - Plant Differential Pressure | SIGNED WORD | 1905 | 0,1 | kPa | W |
| Varibale Flow - Water Bypass Valve State | UNSIGNED WORD | 1906 | 1 | 0 Closed1 Opened | R |
| Varibale Flow - Plant Differential Pressure setpoint | UNSIGNED WORD | 1909 | 0,1 | kPa | W |
| Variable Flow - Plant Delta Temperature | SIGNED WORD | 1911 | 0,1 | °C | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| Description | Type | Address | Gain | Range | Read/Write |
| Variable Flow - Plant Delta Temperature Setpoint | SIGNED WORD | 1913 | 0,1 | ^ | W |
| Variable Flow - Fixed Speed 1 Setpoint | SIGNED WORD | 1915 | 0,1 | % | W |
| Circuit 2 - Expansion Valve Position | SIGNED WORD | 1966 | 1 | % | R |
| Circuit 2 - Fan Speed | SIGNED WORD | 1970 | 1 | % | R |
| Circuit 2 - Condenser Approach Temperature | SIGNED WORD | 1971 | 0,1 | dK | R |
| Circuit 2 - Evaporator Approach Temperature | SIGNED WORD | 1972 | 0,1 | dK | R |
| Circuit 2 - Fan Staging | SIGNED WORD | 1981 | 1 | 0 Off1 Run | R |
| Circuit 1 - Expansion Valve Position | SIGNED WORD | 1982 | 1 | % | R |
| Circuit 1 - Fan Speed | SIGNED WORD | 1986 | 1 | % | R |
| Circuit 1 - Condenser Approach Temperature | SIGNED WORD | 1987 | 0,1 | dK | R |
| Circuit 1 - Evaporator Approach Temperature | SIGNED WORD | 1988 | 0,1 | dK | R |
| Circuit 1 - Fan Staging | SIGNED WORD | 1997 | 1 | 0 Off1 Run | R |
| Noise Reduction - Enable Setpoint | UNSIGNED WORD | 1998 | 1 | 0 Auto1 Reducing | W |
| Noise Reduction - Operating State | UNSIGNED WORD | 2000 | 1 | 0 Normal1 Reduced | R |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
5.1 Alarm Codes and Indexes
| Premise | Unit communicates to BAS the status alarm through Codes and Indexes.Those are grouped in 3 level of alarm | ||
| Levels of Alarm | The three levels of alarms are as it follows: | ||
| Level | Description | ||
| Warning | They are notifications from unit or equipment of an incorrect status | ||
| Problem | They are notifications from unit or equipment of a status that does allow unit to work properly | ||
| Fault | They are notifications from unit or equipment (circuits, Compressors, Sensors, etc) that can cause stop of the unit or specific equipment | ||
| Index | Index describes the general cause of the notification | ||
| Code | Code describes which equipment or device of the unit is generating a notification | ||
| CODE | INDEX | LEVEL | Device | Description |
| 257 | 1 | Warning | Unit | Condenser Entering Water Temperature Sensor Failure |
| 513 | 2 | Warning | Unit | Evaporator Entering Water Temperature Sensor Failure |
| 769 | 3 | Warning | Unit | Liquid Line Refrigerant Temperature Sensor Failure |
| 1025 | 4 | Warning | Unit | Condenser Leaving Water Temperature Sensor Failure (STOP if Heat) |
| 1281 | 5 | Warning | Unit | Evaporator pump maintenance |
| 1537 | 6 | Warning | Unit | Condenser pump maintenance |
| 1829 | 7 | Warning | C1.Comp1 | Compressor maintenance #n |
| 1833 | Warning | C1.Comp2 | ||
| 1837 | Warning | C1.Comp3 | ||
| 1861 | Warning | C2.Comp1 | ||
| 1865 | Warning | C2.Comp2 | ||
| 1869 | Warning | C2.Comp3 |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Page 24 / 41
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 2049 | 8 | Warning | Unit | Bad setpoint override input |
| 2305 | 9 | Warning | Unit | Bad demand limit input |
| 2561 | 10 | Warning | Unit | Power Loss While Running |
| 2817 | 11 | Warning | Unit | Unit Power Restore |
| 3105 | 12 | Warning | Circuit 1 | Circuit Failed Pumpdown |
| 3137 | Warning | Circuit 2 | ||
| 3329 | 13 | Warning | Unit | External Event |
| 3585 | 14 | Warning | Unit | Bad Current Limit Input |
| 3841 | 15 | Warning | Unit | Option Controller Communication Failed |
| 4128 | 16 | Warning | Circuit 1 | Low Refrigerant Charge |
| 4160 | Warning | Circuit 2 | ||
| 4352 | 17 | Warning | Unit | Chiller network Communication Failure |
| 6177 | 24 | Warning | Circuit 1 | Economizer Pressure Sensor Fault #n |
| 6209 | Warning | Circuit 2 | ||
| 6433 | 25 | Warning | Circuit 1 | Economizer Temperature Sensor Fault #n |
| 6465 | Warning | Circuit 2 | ||
| 6689 | 26 | Warning | Circuit 1 | Economizer EXV Motor Fault |
| 6721 | Warning | Circuit 2 | ||
| 7201 | 28 | Warning | Circuit 1 | Economizer EXV Module Communications Fault |
| 7233 | Warning | Circuit 2 | ||
| 7461 | 29 | Warning | C1.Comp1 | Hot Gas Bypass Fault |
| 7465 | Warning | C1.Comp2 | ||
| 7493 | Warning | C1.Comp1 | ||
| 7497 | Warning | C1.Comp2 | ||
| 7681 | 30 | Warning | Unit | Energy Meter Commununication Failure |
| 9729 | 38 | Warning | Unit | Heat Recovery Entering Water Temperature Sensor Fault |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 9985 | 39 | Warning | Unit | Heat Recovery Leaving Water Temperature Sensor Fault |
| 10241 | 40 | Warning | Unit | SwitchBox Temperature High |
| 10497 | 41 | Warning | Unit | SwitchBox Temperature Sesnor Fault |
| 10785 | 42 | Warning | Circuit 1 | Defrost EXV Motor Fault |
| 10817 | Warning | Circuit 2 | ||
| 11009 | 43 | Warning | Unit | Heat Recovery EWT or LWT freeze |
| 11265 | 44 | Warning | Unit | Heat Recovery Water Temperature Inverted |
| 11553 | 45 | Warning | Circuit 1 | Liquid Refrigerant Temperature Sensor Fault |
| 11585 | Warning | Circuit 2 | ||
| 11777 | 46 | Warning | Unit | Smart Grid Communication Failure |
| 16418 | 64 | Problem | Circuit 1 | Power Loss While Running |
| 16450 | Problem | Circuit 2 | ||
| 16642 | 65 | Problem | Unit | START INHIBITED - Ambient Temperature Low |
| 16898 | 66 | Problem | Unit | INHIBIT LOAD – Condenser Pressure High |
| 17186 | 67 | Problem | Circuit 1 | INHIBIT LOAD – Condenser Pressure High |
| 17218 | Problem | Circuit 2 | ||
| 17410 | 68 | Problem | Unit | UNLOAD – Condenser Pressure High |
| 17698 | 69 | Problem | Circuit 1 | UNLOAD – Condenser Pressure High |
| 17730 | Problem | Circuit 2 | ||
| 18178 | 71 | Problem | Pump 1 | PUMP START ATTEMPTED - Condenser Pump #1 Failure |
| 18434 | 72 | Problem | Pump 2 | PUMP START ATTEMPTED - Condenser Pump #2 Failure |
| 18722 | 73 | Problem | Circuit 1 | INHIBIT LOAD - Discharge Temperature High |
| 18754 | Problem | Circuit 2 | ||
| 18946 | 74 | Problem | Unit | NO EWT RESET - Entering Evaporator Temperature Sensor Failure |
| 19202 | 75 | Problem | Unit | INHIBIT LOAD - Evaporator Pressure Low |
| 19490 | 76 | Problem | Circuit 1 | INHIBIT LOAD - Evaporator Pressure Low |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 19522 | Problem | Circuit 2 | ||
| 19714 | 77 | Problem | Unit | UNLOAD - Evaporator Pressure Low |
| 20002 | 78 | Problem | Circuit 1 | UNLOAD - Evaporator Pressure Low |
| 20034 | Problem | Circuit 2 | ||
| 20262 | 79 | Problem | C1.Comp1 | UNLOAD - Compressor Motor Current High |
| 20266 | Problem | C1.Comp2 | ||
| 20294 | Problem | C2.Comp1 | ||
| 20298 | Problem | C2.Comp2 | ||
| 20513 | 80 | Problem | Circuit 1 | UNLOAD - Discharge Temperature High |
| 20545 | Problem | Circuit 2 | ||
| 20738 | 81 | Problem | Pump 1 | PUMP START ATTEMPTED - Evaporator Pump #1 Failure |
| 20994 | 82 | Problem | Pump 2 | PUMP START ATTEMPTED - Evaporator Pump #2 Failure |
| 21250 | 83 | Problem | Unit | (Check Chiller Display for Cause) |
| 21542 | 84 | Problem | C1.Comp1 | INHIBIT LOAD - Compressor Motor Current High |
| 21546 | Problem | C1.Comp2 | ||
| 21574 | Problem | C2.Comp1 | ||
| 21578 | Problem | C2.Comp2 | ||
| 21763 | 85 | Problem | Unit | UNLOAD - Power Holes |
| 22050 | 86 | Problem | Circuit 1 | INHIBIT FREECOOLING - Wrong Valve Position |
| 22082 | Problem | Circuit 2 | ||
| 22274 | 87 | Problem | Unit | DATACENTER MODULE - SAF Side - Top Temperature Sensor Fault |
| 22530 | 88 | Problem | Unit | DATACENTER MODULE - SAF Side - Top Left Temperature Sensor Fault |
| 22786 | 89 | Problem | Unit | DATACENTER MODULE - SAF Side - Top Right Temperature Sensor Fault |
| 23042 | 90 | Problem | Unit | DATACENTER MODULE - PLC Side - Temperature Sensor Fault |
| 23298 | 91 | Problem | Unit | DATACENTER MODULE - SAF Side - Bottom Temperature Sensor Fault |
| 23554 | 92 | Problem | Unit | DATACENTER MODULE - SAF Side - Relative Humidity Sensor Fault |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 23810 | 93 | Problem | Unit | DATACENTER MODULE - Module Communication Fail |
| 1027 | 4 | Fault | Unit | UNIT SHUTDOWN - Condenser Leaving Water Temperature Sensor Failure (If Watercooled Heatpump) |
| 5671 | 22 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Oil Sump Temperature High |
| 5675 | Fault | C1.Comp2 | ||
| 5703 | Fault | C2.Comp1 | ||
| 5707 | Fault | C2.Comp2 | ||
| 6691 | 26 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Eco EXV Alarm |
| 6723 | Fault | Circuit 2 | ||
| 6947 | 27 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Fans Fault Alarm |
| 6979 | Fault | Circuit 2 | ||
| 9251 | 36 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - EXV Alarm |
| 9283 | Fault | Circuit 2 | ||
| 26151 | 102 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Discharge Pressure Sensor Fault |
| 26155 | Fault | C1.Comp2 | ||
| 26407 | 103 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Suction Pressure Low |
| 26411 | Fault | C1.Comp2 | ||
| 26663 | 104 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Discharge Pressure High |
| 26667 | Fault | C1.Comp2 | ||
| 27943 | 109 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Surge Temperature |
| 27947 | Fault | C1.Comp2 | ||
| 31015 | 121 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Suction Pressure Sensor Fault |
| 31019 | Fault | C1.Comp2 | ||
| 32551 | 127 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Low pressure ratio |
| 32555 | Fault | C1.Comp2 | ||
| 32583 | Fault | C2.Comp1 | ||
| 32587 | Fault | C2.Comp2 |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 32771 | 128 | Fault | Unit | UNIT SHUTDOWN - Outside Air Temperature Sensor Fault |
| 33063 | 129 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Motor Overload Trip |
| 33067 | Fault | C1.Comp2 | ||
| 33095 | Fault | C2.Comp1 | ||
| 33099 | Fault | C2.Comp2 | ||
| 33059 | 129 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Motor Current High |
| 33091 | Fault | Circuit 2 | ||
| 33795 | 132 | Fault | Unit | UNIT SHUTDOWN - Motor Protector Trip |
| 34087 | 133 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Motor Protector Trip |
| 34091 | Fault | C1.Comp2 | ||
| 34119 | Fault | C2.Comp1 | ||
| 34123 | Fault | C2.Comp2 | ||
| 34083 | 133 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Motor Protector Trip |
| 34115 | Fault | Circuit 2 | ||
| 34343 | 134 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Current High |
| 34347 | Fault | C1.Comp2 | ||
| 34375 | Fault | C2.Comp1 | ||
| 34379 | Fault | C2.Comp2 | ||
| 34599 | 135 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Motor Temperature High #n |
| 34603 | Fault | C1.Comp2 | ||
| 34631 | Fault | C2.Comp1 | ||
| 34635 | Fault | C2.Comp2 | ||
| 34855 | 136 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Temperature Sensor Fault |
| 34859 | Fault | C1.Comp2 | ||
| 34887 | Fault | C2.Comp1 | ||
| 34891 | Fault | C2.Comp2 |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Page 29 / 41
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 35111 | 137 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Phase Loss |
| 35115 | Fault | C1.Comp2 | ||
| 35143 | Fault | C2.Comp1 | ||
| 35147 | Fault | C2.Comp2 | ||
| 35367 | 138 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Phase Reversal |
| 35371 | Fault | C1.Comp2 | ||
| 35399 | Fault | C2.Comp1 | ||
| 35403 | Fault | C2.Comp2 | ||
| 35623 | 139 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Overvoltage |
| 35627 | Fault | C1.Comp2 | ||
| 35655 | Fault | C2.Comp1 | ||
| 35659 | Fault | C2.Comp2 | ||
| 35879 | 140 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Undervoltage |
| 35883 | Fault | C1.Comp2 | ||
| 35911 | Fault | C2.Comp1 | ||
| 35915 | Fault | C2.Comp2 | ||
| 36099 | 141 | Fault | Unit | UNIT SHUTDOWN - Condenser Pressure Sensor Fault |
| 36391 | 142 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Condenser Pressure Sensor Fault #n |
| 36395 | Fault | C1.Comp2 | ||
| 36423 | Fault | C2.Comp1 | ||
| 36427 | Fault | C2.Comp2 | ||
| 36387 | 142 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Condenser Pressure Sensor Fault #n |
| 36419 | Fault | Circuit 2 | ||
| 36611 | 143 | Fault | Unit | UNIT SHUTDOWN - Condenser Water Flow Loss |
| 36867 | 144 | Fault | Unit | UNIT SHUTDOWN - Condenser Pressure High |
| 37155 | 145 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Condenser Pressure High #n |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Page 30 / 41
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 37187 | Fault | Circuit 2 | ||
| 37415 | 146 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Current High with Compressor OFF #n |
| 37419 | Fault | C1.Comp2 | ||
| 37447 | Fault | C2.Comp1 | ||
| 37451 | Fault | C2.Comp2 | ||
| 37671 | 147 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Discharge Temperature Sensor Fault #n |
| 37675 | Fault | C1.Comp2 | ||
| 37703 | Fault | C2.Comp1 | ||
| 37707 | Fault | C2.Comp2 | ||
| 37927 | 148 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Discharge Temperature High #n |
| 37931 | Fault | C1.Comp2 | ||
| 37959 | Fault | C2.Comp1 | ||
| 37963 | Fault | C2.Comp2 | ||
| 38147 | 149 | Fault | Unit | UNIT SHUTDOWN - Condenser Entering Water Temperature Sensor Fault |
| 38403 | 150 | Fault | Unit | UNIT SHUTDOWN - Evaporator Water Flow Loss |
| 38659 | 151 | Fault | Unit | UNIT SHUTDOWN - Evaporator LWT or EWT Low (Freeze) |
| 38915 | 152 | Fault | Unit | UNIT SHUTDOWN - Evaporator Pressure Low |
| 39207 | 153 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Evaporator (or Suction) Pressure Low #n |
| 39211 | Fault | C1.Comp2 | ||
| 39239 | Fault | C2.Comp1 | ||
| 39243 | Fault | C2.Comp2 | ||
| 39203 | 153 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Evaporator Pressure Low |
| 39235 | Fault | Circuit 2 | ||
| 39427 | 154 | Fault | Unit | UNIT SHUTDOWN - Evaporator Pressure Sensor Fault |
| 39719 | 155 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Evaporator Pressure Sensor Fault #n |
| 39723 | Fault | C1.Comp2 |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 39751 | Fault | C2.Comp1 | ||
| 39755 | Fault | C2.Comp2 | ||
| 39715 | 155 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Evaporator Pressure Sensor Fault #n |
| 39747 | Fault | Circuit 2 | ||
| 39975 | 156 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Ground Fault Trip #n |
| 39979 | Fault | C1.Comp2 | ||
| 40007 | Fault | C2.Comp1 | ||
| 40011 | Fault | C2.Comp2 | ||
| 40231 | 157 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Lift Pressure Low #n |
| 40235 | Fault | C1.Comp2 | ||
| 40263 | Fault | C2.Comp1 | ||
| 40267 | Fault | C2.Comp2 | ||
| 40483 | 158 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Liquid Line Pressure Sensor Fault #n |
| 40515 | Fault | Circuit 2 | ||
| 40739 | 159 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Liquid Line Temperature Sensor Fault #n |
| 40771 | Fault | Circuit 2 | ||
| 40963 | 160 | Fault | Unit | UNIT LOCKOUT - Number of Allowed Re-Starts Exceeded |
| 41255 | 161 | Fault | C1.Comp1 | COMPRESSOR LOCKOUT - Number of Allowed Restarts Exceeded #n |
| 41259 | Fault | C1.Comp2 | ||
| 41287 | Fault | C2.Comp1 | ||
| 41291 | Fault | C2.Comp2 | ||
| 41251 | 161 | Fault | Circuit 1 | CIRCUIT LOCKOUT - Number of Allowed Restarts Exceeded #n |
| 41283 | Fault | Circuit 2 | ||
| 41475 | 162 | Fault | Unit | UNIT SHUTDOWN - Evaporator Leaving Water Temperature Sensor Fault |
| 41731 | 163 | Fault | Unit | UNIT SHUTDOWN - Evaporator Entering Water Temperature Sensor Fault |
| 42023 | 164 | Fault | C1.Comp1 |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Page 32 / 41
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 42027 | Fault | C1.Comp2 | COMPRESSOR SHUTDOWN - Evaporator Leaving Water Temperature Sensor Fault #n | |
| 42055 | Fault | C2.Comp1 | ||
| 42059 | Fault | C2.Comp2 | ||
| 42019 | 164 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Evaporator Leaving Water Temperature Sensor Fault #n |
| 42051 | Fault | Circuit 2 | ||
| 42243 | 165 | Fault | Unit | UNIT SHUTDOWN - Mechanical High Pressure Trip |
| 42535 | 166 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Mechanical High Pressure Trip #n |
| 42539 | Fault | C1.Comp2 | ||
| 42567 | Fault | C2.Comp1 | ||
| 42571 | Fault | C2.Comp2 | ||
| 42531 | 166 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Mechanical High Pressure Trip #n |
| 42563 | Fault | Circuit 2 | ||
| 42791 | 167 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Oil Net Pressure Low #n |
| 42795 | Fault | C1.Comp2 | ||
| 42823 | Fault | C2.Comp1 | ||
| 42827 | Fault | C2.Comp2 | ||
| 43047 | 168 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Oil Feed Temperature High #n |
| 43051 | Fault | C1.Comp2 | ||
| 43079 | Fault | C2.Comp1 | ||
| 43083 | Fault | C2.Comp2 | ||
| 43303 | 169 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Oil Feed Temperature Low #n |
| 43307 | Fault | C1.Comp2 | ||
| 43335 | Fault | C2.Comp1 | ||
| 43339 | Fault | C2.Comp2 | ||
| 43559 | 170 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Oil Feed Temperature Sensor Fault #n |
| 43563 | Fault | C1.Comp2 |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Page 33 / 41
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 43591 | Fault | C2.Comp1 | ||
| 43595 | Fault | C2.Comp2 | ||
| 43815 | 171 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Oil Level Low #n |
| 43819 | Fault | C1.Comp2 | ||
| 43847 | Fault | C2.Comp1 | ||
| 43851 | Fault | C2.Comp2 | ||
| 44071 | 172 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Oil Delta Pressure High #n |
| 44075 | Fault | C1.Comp2 | ||
| 44103 | Fault | C2.Comp1 | ||
| 44107 | Fault | C2.Comp2 | ||
| 44327 | 173 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Oil Feed Pressure Sensor Fault #n |
| 44331 | Fault | C1.Comp2 | ||
| 44359 | Fault | C2.Comp1 | ||
| 44363 | Fault | C2.Comp2 | ||
| 44583 | 174 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Oil Sump Pressure Sensor Fault #n |
| 44587 | Fault | C1.Comp2 | ||
| 44615 | Fault | C2.Comp1 | ||
| 44619 | Fault | C2.Comp2 | ||
| 44839 | 175 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Oil Sump Temperature Sensor Fault #n |
| 44843 | Fault | C1.Comp2 | ||
| 44871 | Fault | C2.Comp1 | ||
| 44875 | Fault | C2.Comp2 | ||
| 45059 | 176 | Fault | Unit | UINT SHUTDOWN - Phase Voltage Monitoring Alarm |
| 45091 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Phase Voltage Monitoring Alarm | |
| 45123 | Fault | Circuit 2 | ||
| 45351 | 177 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Starter Fault #n |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 45355 | Fault | C1.Comp2 | ||
| 45383 | Fault | C2.Comp1 | ||
| 45387 | Fault | C2.Comp2 | ||
| 45607 | 178 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - No Starter Transition #n |
| 45611 | Fault | C1.Comp2 | ||
| 45639 | Fault | C2.Comp1 | ||
| 45643 | Fault | C2.Comp2 | ||
| 45863 | 179 | Fault | C1.Comp1 | COMPRESSOR START ABORT - Oil Pressure Low #n |
| 45867 | Fault | C1.Comp2 | ||
| 45895 | Fault | C2.Comp1 | ||
| 45899 | Fault | C2.Comp2 | ||
| 46119 | 180 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Subcooling Low #n |
| 46123 | Fault | C1.Comp2 | ||
| 46151 | Fault | C2.Comp1 | ||
| 46155 | Fault | C2.Comp2 | ||
| 46375 | 181 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Surge Suction Superheat High-Running #n |
| 46379 | Fault | C1.Comp2 | ||
| 46407 | Fault | C2.Comp1 | ||
| 46411 | Fault | C2.Comp2 | ||
| 46631 | 182 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Surge Suction Superheat High-Starting #n |
| 46635 | Fault | C1.Comp2 | ||
| 46663 | Fault | C2.Comp1 | ||
| 46667 | Fault | C2.Comp2 | ||
| 46887 | 183 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Suction Temperature Sensor Fault #n |
| 46891 | Fault | C1.Comp2 | ||
| 46919 | Fault | C2.Comp1 |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Page 35 / 41
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 46923 | Fault | C2.Comp2 | ||
| 46883 | 183 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Suction Temperature Sensor Fault #n |
| 46915 | Fault | Circuit 2 | ||
| 47143 | 184 | Fault | C1.Comp1 | COMPRESSOR START ABORT - Vanes Alarm #n |
| 47147 | Fault | C1.Comp2 | ||
| 47175 | Fault | C2.Comp1 | ||
| 47179 | Fault | C2.Comp2 | ||
| 47399 | 185 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN – Motor Fault #n |
| 47403 | Fault | C1.Comp2 | ||
| 47431 | Fault | C2.Comp1 | ||
| 47435 | Fault | C2.Comp2 | ||
| 47619 | 186 | Fault | Unit | UNIT SHUTDOWN - Mechanical Low Pressure Trip |
| 47911 | 187 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Mechanical Low Pressure Trip #n |
| 47915 | Fault | C1.Comp2 | ||
| 47943 | Fault | C2.Comp1 | ||
| 47947 | Fault | C2.Comp2 | ||
| 47907 | 187 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Mechanical Low Pressure Trip #n |
| 47939 | Fault | Circuit 2 | ||
| 48131 | 188 | Fault | Unit | Controller board offline #n(Circuit number describe Control board number. 0=Unit alarm for Extension modules other than Circuits extension) |
| 48163 | Fault | Circuit 1 | ||
| 48195 | Fault | Circuit 2 | ||
| 48419 | 189 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - No Pressure Change After Start |
| 48451 | Fault | Circuit 2 | ||
| 48675 | 190 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - No Pressure at Startup |
| 48707 | Fault | Circuit 2 | ||
| 48935 | 191 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Slide position sensor Fault #n |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 48939 | Fault | C1.Comp2 | ||
| 48967 | Fault | C2.Comp1 | ||
| 48971 | Fault | C2.Comp2 | ||
| 49155 | 192 | Fault | Unit | UNIT STOP - Emergency Stop Alarm |
| 49411 | 193 | Fault | Unit | UNIT STOP - Evaporator Water Temperatures Inverted |
| 49667 | 194 | Fault | Unit | UNIT STOP - External Alarm |
| 49923 | 195 | Fault | Unit | UNIT SHUTDOWN - Evaporator Leaving Water Temperature 1 Sensor Fault |
| 50179 | 196 | Fault | Unit | UNIT SHUTDOWN - Evaporator Leaving Water Temperature 2 Sensor Fault |
| 50435 | 197 | Fault | Unit | UNIT SHUTDOWN - Evaporator 1 Freeze Protection |
| 50691 | 198 | Fault | Unit | UNIT SHUTDOWN - Evaporator 2 Freeze Protection |
| 50983 | 199 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Fault #n |
| 50987 | Fault | C1.Comp2 | ||
| 51015 | Fault | C2.Comp1 | ||
| 51019 | Fault | C2.Comp2 | ||
| 51239 | 200 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Temperature High #n |
| 51243 | Fault | C1.Comp2 | ||
| 51271 | Fault | C2.Comp1 | ||
| 51275 | Fault | C2.Comp2 | ||
| 51495 | 201 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Communication Error #n |
| 51499 | Fault | C1.Comp2 | ||
| 51527 | Fault | C2.Comp1 | ||
| 51531 | Fault | C2.Comp2 | ||
| 51751 | 202 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Temperature Low #n |
| 51755 | Fault | C1.Comp2 | ||
| 51783 | Fault | C2.Comp1 | ||
| 51787 | Fault | C2.Comp2 |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Page 37 / 41
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 52007 | 203 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Undergrid |
| 52011 | Fault | C1.Comp2 | ||
| 52039 | Fault | C2.Comp1 | ||
| 52043 | Fault | C2.Comp2 | ||
| 52263 | 204 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Overgrid |
| 52267 | Fault | C1.Comp2 | ||
| 52295 | Fault | C2.Comp1 | ||
| 52299 | Fault | C2.Comp2 | ||
| 52519 | 205 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Discharge Superheat Low #n |
| 52523 | Fault | C1.Comp2 | ||
| 52551 | Fault | C2.Comp1 | ||
| 52555 | Fault | C2.Comp2 | ||
| 52739 | 206 | Fault | Unit | UNIT SHUTDOWN - Gas Leakage |
| 52771 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Gas Leakage | |
| 52803 | Fault | Circuit 2 | ||
| 52995 | 207 | Fault | Unit | UNIT SHUTDOWN - Battery Mode |
| 53251 | 208 | Fault | Unit | UNIT SHUTDOWN - High Pitch (Marine) |
| 53507 | 209 | Fault | Unit | UNIT SHUTDOWN - High Roll (Marine) |
| 53763 | 210 | Fault | Unit | UNIT SHUTDOWN - Pitch Sensor Fault (Marine) |
| 54019 | 211 | Fault | Unit | UNIT SHUTDOWN - Roll Sensor Fault (Marine) |
| 54275 | 212 | Fault | Unit | UNIT SHUTDOWN - Evaporator Differential Pressure Sensor Fault |
| 54531 | 213 | Fault | Unit | UNIT SHUTDOWN - Evaporator Differential Pressure High |
| 54787 | 214 | Fault | Unit | UNIT SHUTDOWN - Condenser Differential Pressure Sensor Fault |
| 55043 | 215 | Fault | Unit | UNIT SHUTDOWN - Condenser Differential Pressure High |
| 55335 | 216 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Card Temperature High |
| 55339 | Fault | C1.Comp2 |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 55367 | Fault | C2.Comp1 | ||
| 55371 | Fault | C2.Comp2 | ||
| 55591 | 217 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - RLA High |
| 55595 | Fault | C1.Comp2 | ||
| 55623 | Fault | C2.Comp1 | ||
| 55627 | Fault | C2.Comp2 | ||
| 55847 | 218 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - RLA Low |
| 55851 | Fault | C1.Comp2 | ||
| 55879 | Fault | C2.Comp1 | ||
| 55883 | Fault | C2.Comp2 | ||
| 56103 | 219 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - Surge Alarm |
| 56107 | Fault | C1.Comp2 | ||
| 56135 | Fault | C2.Comp1 | ||
| 56139 | Fault | C2.Comp2 | ||
| 56323 | 220 | Fault | Unit | UNIT SHUTDOWN - Evaporator Water Differential Pressure Low |
| 56579 | 221 | Fault | Unit | UNIT SHUTDOWN - Condenser Water Differential Pressure Low |
| 56835 | 222 | Fault | Unit | UNIT SHUTDOWN - Unit or Compressor not configured |
| 57091 | 223 | Fault | Unit | UNIT SHUTDOWN - Power Availability Alarm (Marine) |
| 57347 | 224 | Fault | Unit | UNIT SHUTDOWN - Freecooling water valves feedback Alarm |
| 57635 | 225 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Freecooling Valves Feedback Alarm |
| 57667 | Fault | Circuit 2 | ||
| 57895 | 226 | Fault | C1.Comp1 | COMPRESSOR SHUTDOWN - VFD Components to be replaced |
| 57899 | Fault | C1.Comp2 | ||
| 57927 | Fault | C2.Comp1 | ||
| 57931 | Fault | C2.Comp2 |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Software name:
ETRA / OMEGA
BAS Integration Guide-Modbus protocol
Document Name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H-T/MZD
| CODE | INDEX | LEVEL | Device | Description |
| 58147 | 227 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Fans Communication Fail |
| 58179 | Fault | Circuit 2 | ||
| 58403 | 228 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Anti-Chattering Alarm |
| 58435 | Fault | Circuit 2 | ||
| 58663 | 229 | Fault | C1.Comp1 | CIRCUIT SHUTDOWN - Comp X Alarm |
| 58667 | Fault | C1.Comp2 | ||
| 58671 | Fault | C1.Comp3 | ||
| 58675 | Fault | C1.Comp4 | ||
| 58695 | Fault | C2.Comp1 | ||
| 58699 | Fault | C2.Comp2 | ||
| 58703 | Fault | C2.Comp3 | ||
| 58707 | Fault | C2.Comp4 | ||
| 58915 | 230 | Fault | Circuit 1 | CIRCUIT SHUTDOWN - Ssh Low Limit Alarm |
| 58947 | Fault | Circuit 2 | ||
| 59139 | 231 | Fault | Unit | UNIT SHUTDOWN - Tank Water Temp Sensor fault |
| 59651 | 233 | Fault | Unit | UNIT SHUTDOWN - Condenser LWT or EWT (freeze) |
| 59907 | 234 | Fault | Unit | UNIT SHUTDOWN - Changeover Valve hardware Alarm |
| 60163 | 235 | Fault | Unit | UNIT SHUTDOWN - Changeover Valve feedback Alarm |
| 60419 | 236 | Fault | Unit | UNIT SHUTDOWN – Beluga Pump Fault Alarm |
| 60675 | 237 | Fault | Unit | UNIT SHUTDOWN – Beluga Pump Modbus Communication Alarm |
Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD
Page 40 / 41
Software name:
ETRA / OMEGA
The present publication is drawn up by of information only and does not constitute an offer binding upon Daikin Applied Europe S.p.A..Daikin Applied Europe S.p.A. has compiled the content of this publication to the best of its knowledge. No express or implied warranty is given for the completeness, accuracy, reliability or fitness for particular purpose of its content, and the products and services presented therein. Specification are subject to change without prior notice. Refer to the data communicated at the time of the order. Daikin Applied Europe S.p.A. explicitly rejects any liability for any direct or indirect damage, in the broadest sense, arising from or related to the use and/or interpretation of this publication. All content is copyrighted by Daikin Applied Europe S.p.A.
