Product type	Air-cooled chiller
Brand	Daikin
Model	EWAD650TZSSD1
Category	Commercial/industrial air conditioning
Power supply	400 V three-phase, 50 Hz (estimated)
Controller	MicroTech 4 (or MicroTech III depending on version)
Communication protocol	Modbus RTU (MSTP) via POL902 module or software option
User interface	Integrated keypad and display for local configuration
Compressors	2 circuits with screw compressors, variable speed drive (VFD)
Refrigerant	R410A (or R134a/R407C depending on configuration)
Nominal cooling capacity	Approximately 650 kW (indicative based on model)
Main functions	Cooling, heat pump (option), freecooling, heat recovery, noise reduction
Monitoring and alarms	Temperature, pressure, flow sensors; hierarchical alarms (warning, problem, fault)
Safety	Emergency stop, high/low pressure protection, freeze protection, motor thermal protection
Maintenance	Regular condenser cleaning, filter inspection, pressure checks
Cleaning	Dusting of grilles and fans, cleaning of condenser coil (water)
Spare parts	Available via Daikin network: electronic boards, sensors, valves, compressors
Repairability	High repairability index; modular and accessible components
Weight	Approximately 3000-4000 kg (estimated for a chiller of this capacity)
Dimensions (L x W x H)	Approximately 4500 x 2200 x 2500 mm (estimated)
Standards	IEC compliant, EMC compatible

Frequently Asked Questions - EWAD650TZSSD1 DAIKIN

How to integrate the EWAD650TZSSD1 unit into a Modbus network?

Integration is done via the POL902 Modbus module (for MicroTech III) or by enabling the Modbus MSTP software option in the MicroTech 4 controller. Configure the address, baud rate, parity, and stop bits from the HMI according to the local network.

What are the default Modbus communication parameters?

Default values are: Address T1 = 1, Parity = None, 2 stop bits = Yes, Baud rate = 19200, Response delay = 5 ms. For port T2, the default setting is Passive.

How to reset an alarm on the EWAD650TZSSD1?

From the HMI, go to the main menu and use the 'Alarm Reset Setpoint' (Modbus address 10) by setting the value to 1 (Clear). Ensure the alarm cause is resolved before reset.

What is the commissioning procedure for the Modbus module?

1) Power off the controller. 2) Connect the POL902 module to the expansion connector. 3) Power back on. 4) Check that the BUS LED is solid green. 5) Access Commissioning > Modbus menu and set network parameters.

How to configure the evaporator water pumps?

Pumps are controlled via the controller outputs. You can monitor their status (On/Off) and run hours via Modbus addresses (e.g., Evaporator Pump 1 Operating State at address 305). Speed and power are also available.

What to do in case of an error code on the display?

The error code corresponds to a level (Warning, Problem, Fault) and an index. Refer to chapter 5.1 of the manual to identify the component and description. Serious alarms (Fault) cause compressor or unit shutdown.

How to perform condenser maintenance?

For an air-cooled condenser, regularly clean the fins and fans with compressed air or low-pressure water. Check for obstructions and motor condition. For a water-cooled condenser, periodic descaling is necessary.

What is the required power supply voltage?

The unit requires a three-phase 400 V / 50 Hz supply (standard estimate for this type of chiller). Check the nameplate for exact voltage and maximum current.

How to optimize chiller energy efficiency?

Use advanced functions such as freecooling (if installed), noise reduction, and temperature setpoint adjustment. Monitor performance via Modbus data (efficiency, power, energy) and adjust capacity limits.

Where to find the detailed wiring diagram?

The wiring diagram is provided in the unit's technical documentation, usually in the appendix of the installation manual. For the Modbus module, refer to the 'BAS Integration Guide' which includes RS485 interface wiring.

USER MANUAL EWAD650TZSSD1 DAIKIN

BAS integration guide

Modbus protocol

Doc. Name:

D-EIGOC00103-23_01EN_EWAD/H_EWFD/H-T/MZD

Product Name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Control software name:

ETRA / OMEGA

Table of contents

1. Introduction 3
2. About this document 4

2.1 Revision History 4
2.2 Notice 4
2.3 Before starting 4

1. Safety information 5

2. Commission this unit in a Modbus network....6

4.1 General information 6
4.2 Modbus MSTP module (POL902)....7
4.3 Modbus MSTP software option (Microtech 4)....9

1. Modbus integration list 10

5.1 Alarm Codes and Indexes....24

1. Introduction

This document contains information to incorporate a MicroTech® III and Microtech 4 Unit Controllers into a building automation system (BAS) via Modbus communication protocols.

Microtech III and Microtech 4 are suitable for network integration. Data points accessible from a Modbus network are made available to a BAS provided that the proper communication module (Microtech III and Microtech 4) or the corresponding software option (Microtech 4) are installed / acrivated.

Modbus terms are not defined. Refer to the standard Modbus specifications for definitions and details about the protocol.

2. About this document

2.1 Revision History

Version	Date	Software Version	Description
D-EIGOC00103-22EN_EWAD-TZD	12/2023	ETRA / OMEGA	First version released

2.2 Notice

© 2014 Daikin Applied Europe, Cecchina, Roma. All rights reserved throughout the world ^TM ® The following are trademarks or registered trademarks of their respective companies:

• Modbus from Schneider Electric (originally from Modicon)
• MicroTech III from Daikin Applied Europe.
- MicroTech 4 from Daikin Applied Europe.

2.3 Before starting

Application range		This document refers to the following components:
		Microtech III	Controller
		Microtech 4	Controller
		POL902.00/STD	Modbus MSTP module
Users		Users of this document are intended to be:- Modbus systems integrators- Service Technicians- Plant Engineers- Sales staff
Conventions		Microtech III e Microtech 4 further in this document and when proper will be referred to as "Microtech"
Abbreviation
		BSP	Board Support Package (operating system)
References		Siemens Building Technologies - CB1J3960en - Modbus communication, slave mode Siemens Building Technologies - CB1Q3934en - ClimatixTM Modbus communication modules POL902.00The Modbus Organization - www.modbus.org

Product name:

EWAD/H-T/MZD & EWFD/H-

T/MZD

Software name:

ETRA / OMEGA

3. Safety information

Only personnel qualified in accordance with IEC (International Electrotechnical Commission) recommendations may be permitted access to electrical components. It is particularly recommended that all sources of electricity to the unit be shut off before any work is begun. Shut off main power supply at the main circuit breaker or isolator.

IMPORTANT: This equipment uses and emits electromagnetic signals. Tests have shown that the equipment conforms to all applicable codes with respect to electromagnetic compatibility.

RISK OF ELECTROCUTION: Even when the main circuit breaker or isolator is switched off, certain circuits may still be energized, since they may be connected to a separate power source.

RISK OF BURNS: Electrical currents cause components to get hot either temporarily or permanently. Handle power cable, electrical cables and conduits, terminal box covers and motor frames with great care.

Field of application		Use Modbus communication module only for control and monitoring functions in ventilation, air conditioning and refrigeration plants.
Intended use		Trouble-free and safe product operation of the above products presupposes transport, storage, mounting, installation, and commissioning as intended as well as careful operation.
Electrical installation		Fuses, switches, wiring and grounding must comply with local safety regulations for electrical installations.
Wiring		When wiring, strictly separate AC 230 V mains voltage from AC 24 V safety extralow voltage (SELV) to protect against electrical shock!
Commissioning and maintenance		Only qualified staff trained accordingly may prepare for use, commission, and maintain Modbus communication modules.Maintenance of Modbus communication modules generally only means regular cleaning. We recommend removing dust and dirt from system components installed in the control panels during standard service.
Faults		Only authorized staff may diagnose and correct faults and recommission the plant. This applies to working within the panel as well (e.g. testing or changing fuses).
Storage and transport		Refer to the environmental conditions specified in the respective data sheets for storage and transport. If in doubt, contact your supplier.
Disposal		Devices contain electrical and electronic components; do not dispose of them in household garbage. Observe all local and applicable laws.

4. Commission this unit in a Modbus network

4.1 General information

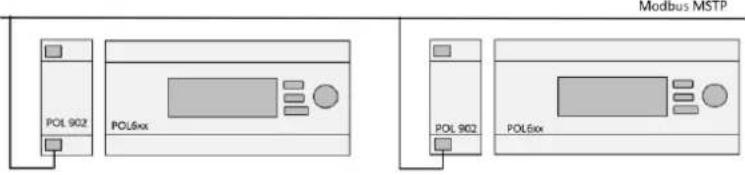

Unit controller is a Microtech III or a POL638	Microtech III controller can be integrated in a Modbus network provided that it is equipped with the proper communication module. See “Communication modules” section below in this page.

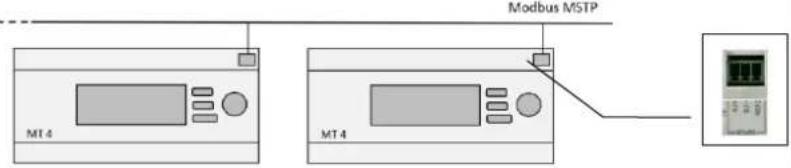

Unit controller is a Microtech 4	Microtech 4 controller can be integrated in a Modbus network provided one of the followings:a) it is equipped with the proper communication moduleb) the onboard communication has been made available (software option).
Modbus MSTP (POL902)	Communication module to configure Microtech controllers in Modbus network is the POL902:----
Communication software option	For Microtech 4, Modbus communication is also available onboard the controller as a software option.----

4.2 Modbus MSTP module (POL902)

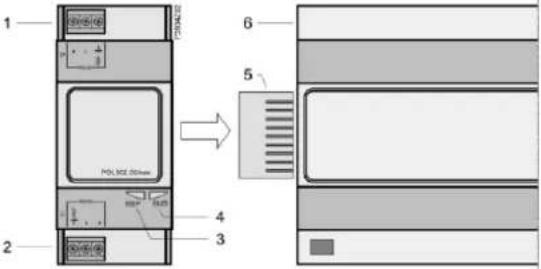

Module description
		Part	Description
		1	Modbus RS485 interface T1 (slave, channel 0).
		2	Modbus RS485 interface T2 (slave, channel 1).
		3	Status display "BSP" (Board Support Package).
		4	Status display "BUS" (bus connections o.k. / bus traffic).
		5	Plug connection "Communication extension bus".
		6	Microtech III controller.
BSP Led		Color		Flashing frequency	Meaning
		Green		Steady on	BSP operating and communication with controller working.
		Yellow		Steady on	BSP operating, but no communication with controller.
		Red		Steady on	Hardware fault.
		Red/Yellow		Flashing at 1 Hz(1 second on/ 1 second off)	Upgrade mode running.
		Red		Flashing at 2 Hz(0,5 second on/ 0,5 second off)	BSP error (software error).
BUS Led		Color		Flashing frequency	Meaning
		Green		Steady on	Communication active.
		Yellow		Steady on	Initializing
		Red		Steady on	Communication interrupted.
Module connection		Step	Action
		1	Power off the controller
		2	Connect POL902 module to the controller via plug connection (part 5).
		4	Power on the controller
Configuration procedure		Step	Action
		1	Check that BUS led status is steady on green coloured.
		2	Navigate the unit's keypad/display to the main menu page and set the "service" password
		3	Navigate the unit's keypad/display following the path below:Main menu→Commissioning→Modbus
		4	Set parameters in the table below as needed according to the local network
Configuration parameters		Parameter		Default value
		Address T1		1
		Parity T1		None
		2 Stop bits T1		Yes
		Baud rate T1		19200
		Rspnce Dly T1		5 ms
		Port T2		Passive
		Address T2		1
		Parity T2		None
			2 Stop bits T2	Yes
			Baud rate T2	19200
			Rspnce Dly T2	5 ms

4.3 Modbus MSTP software option (Microtech 4)

Option enabling		1. From the HMI main menu choose:
		Commissioning→Configuration→Software Options2. Select “On” for option #1-Modbus Slave MSTP3. Insert the unlock password4. Apply Changes
Option configuration		5. From the HMI main menu choose:
		Commissioning6. Select “SW Modbus MSTP”
		7. Select proper parameters for Modbus communication
		Parameter	Default value
		Address	Variable
		Baudrate	19200
		Parity	None
		2StopBits	No
		Delay	100 ms
		Response Timeout	100 ms

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

1. Modbus integration list

Description	Type	Address	Gain	Range	Read/Write
Unit - Control Source	UNSIGNED WORD	1	1	0 Network1 Local	R
Unit - Enabled State	UNSIGNED WORD	2	1	0 Disabled1 Enabled	R
Unit - Run Allowed	UNSIGNED WORD	3	1	0 Off1 Allowed	R
Unit - Capacity Limited	UNSIGNED WORD	4	1	0 NotLimited1 Limited	R
Unit - Alarm Output	UNSIGNED WORD	5	1	0 NoAlarm1 Alarm	R
Evaporator - Water Flow State	UNSIGNED WORD	6	1	0 NoFlow1 Flow	R
Unit - Operating State	UNSIGNED WORD	8	1	0 ThermoOff1 ThermoOn	R
Unit - Enable Setpoint	UNSIGNED WORD	9	1	0 Disable1 Enable	W
Unit - Alarm Reset Setpoint	UNSIGNED WORD	10	1	0 None1 Clear	W
Unit - Active Operation Mode	UNSIGNED WORD	11	1	1 Ice2 Cool3 Heat	R
Unit - Active Temperature Setpoint	SIGNED WORD	12	0,1	°C	R
Unit - Actual Capacity	SIGNED WORD	13	0,1	%	R
Unit - Active Capacity Limit	SIGNED WORD	14	0,1	%	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Page 10 / 41

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Unit - Status	UNSIGNED WORD	15	1	1 Off2 Start3 Run4 PreShutdown5 Service	R
Evaporator Entering Water Temperature	SIGNED WORD	16	0,1	°C	R
Evaporator Leaving Water Temperature	SIGNED WORD	17	0,1	°C	R
Heat Recovery - Enable Setpoint	UNSIGNED WORD	18	1	0 Disable1 Enable	W
Heat Recovery - Entering Water Temperature	SIGNED WORD	22	0,1	°C	R
Heat Recovery - Leaving Water Temperature	SIGNED WORD	23	0,1	°C	R
Outside Air Temperature	SIGNED WORD	24	0,1	°C	R
Unit - Average Current	SIGNED WORD	25	1	A	R
Unit - Average Voltage	SIGNED WORD	26	0,1	V	R
Unit - Active Power	SIGNED WORD	27	0,1	kW	R
Unit Alarm - Warning Index	SIGNED WORD	28	1	0...65534	R
Unit Alarm - Problem Index	SIGNED WORD	29	1	0...65534	R
Unit Alarm - Fault Index	SIGNED WORD	30	1	0...65534	R
Unit Alarm - Warning Code	SIGNED WORD	31	1	0...65534	R
Unit Alarm - Problem Code	SIGNED WORD	32	1	0...65534	R
Unit Alarm - Fault Code	SIGNED WORD	33	1	0...65534	R
Unit - Operation Mode Setpoint	UNSIGNED WORD	34	1	0 NULL1 Ice2 Cool3 Heat	W

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Unit - Cool Temperature Setpoint	SIGNED WORD	35	0,1	°C	W
Unit - Ice Temperature Setpoint	SIGNED WORD	36	0,1	°C	W
Unit - Heat Temperature Setpoint	SIGNED WORD	37	0,1	°C	W
Unit - Capacity Limit Setpoint	SIGNED WORD	38	0,1	%	W
Circuit 1 - Condenser Refrigerant Pressure	SIGNED WORD	39	0,1	kPa	R
Circuit 1 - Condenser Saturated Temperature	SIGNED WORD	40	0,1	°C	R
Circuit 1 - Evaporator Refrigerant Pressure	SIGNED WORD	41	0,1	kPa	R
Circuit 1 - Evaporator Saturated Temperature	SIGNED WORD	42	0,1	°C	R
Circuit 2 - Condenser Refrigerant Pressure	SIGNED WORD	43	0,1	kPa	R
Circuit 2 - Condenser Saturated Temperature	SIGNED WORD	44	0,1	°C	R
Circuit 2 - Evaporator Refrigerant Pressure	SIGNED WORD	45	0,1	kPa	R
Circuit 2 - Evaporator Saturated Temperature	SIGNED WORD	46	0,1	°C	R
Circuit 1 - Shutdown Alarm	UNSIGNED WORD	51	1	0 NoAlarm1 Alarm	R
Circuit 2 - Shutdown Alarm	UNSIGNED WORD	52	1	0 NoAlarm1 Alarm	R
Unit - Shutdown Alarm	UNSIGNED WORD	54	1	0 NoAlarm1 Alarm	R
Heat Recovery - Temperature Setpoint	SIGNED WORD	59	1	°C	W
Heat Recovery - Operating State	UNSIGNED WORD	60	1	1 Off2 Recirculation3 Regulation	R
Circ 1 Compressor 1 - Suction Temperature	SIGNED WORD	65	0,1	°C	R
Circ 1 Compressor 1 - Discharge Temperature	SIGNED WORD	68	0,1	°C	R
Circ 1 Compressor 1 - RLA Percentage	SIGNED WORD	69	1	%	R
Circ 1 Compressor 1 - Current	SIGNED WORD	70	1	A	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Circ 1 Compressor 1 - Power	SIGNED WORD	72	1	kW	R
Circ 1 Compressor 1 - Number of Starts	UNSIGNED WORD	73	1	-	W
Circ 1 Compressor 1 - Number of Running Hours	UNSIGNED DOUBLE	74	1	h	W
Circ 2 Compressor 1 - Suction Temperature	SIGNED WORD	104	0,1	°C	R
Circ 2 Compressor 1 - Discharge Temperature	SIGNED WORD	107	0,1	°C	R
Circ 2 Compressor 1 - RLA Percentage	SIGNED WORD	108	1	%	R
Circ 2 Compressor 1 - Current	SIGNED WORD	109	1	A	R
Circ 2 Compressor 1 - Power	SIGNED WORD	111	1	kW	R
Circ 2 Compressor 1 - Number of Starts	UNSIGNED WORD	112	1	-	W
Circ 2 Compressor 1 - Number of Running Hours	UNSIGNED DOUBLE	113	1	h	W
Freecooling - Enable Setpoint	UNSIGNED WORD	250	1	0 Disable1 Enable	W
Freecooling - Status	UNSIGNED WORD	251	1	0 Unit Off1 FC Full2 FC Mix3 Mech	R
Freecooling - Enabled State	UNSIGNED WORD	252	1	1 No2 Yes	R
AntiVacuum Protection State	UNSIGNED WORD	258	1	0 No1 Yes	R
Performance - Unit Thermal Capacity	UNSIGNED DOUBLE	260	0,1	kW	R
Performance - Unit Power Input	UNSIGNED DOUBLE	262	0,1	kW	R
Performance - Unit Efficiency	SIGNED WORD	264	0,01	-	R
Performance - Unit Integrated Efficiency	SIGNED WORD	265	0,01	-	R
Performance - Unit Thermal Energy	UNSIGNED DOUBLE	266	0,1	MWh	R
Performance - Unit Electrical Energy	UNSIGNED DOUBLE	268	0,1	MWh	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Performance - Freecooling Thermal Capacity	UNSIGNED DOUBLE	273	0,1	kW	R
Performance - Mechanical Thermal Capacity	UNSIGNED DOUBLE	275	0,1	kW	R
Performance - Percentage of Freecooling Capacity	UNSIGNED WORD	277	1	%	R
Evaporator Pump - Speed	SIGNED WORD	296	1	%	R
Evaporator Pump 1 - Number of Running Hours	UNSIGNED DOUBLE	303	1	-	R
Evaporator Pump 1 - Operating State	UNSIGNED WORD	305	1	0 Stop1 Run	R
Evaporator Pump 2 - Number of Running Hours	UNSIGNED DOUBLE	306	1	-	R
Evaporator Pump 2 - Operating State	UNSIGNED WORD	308	1	0 Stop1 Run	R
Evaporator Pump - Electrical Power	UNSIGNED WORD	310	0,1	kW	R
Evaporator Differential Pressure	UNSIGNED WORD	312	1	kPa	R
Evaporator Estimated Water Flow	UNSIGNED WORD	314	0,1	kg/s	R
Evaporator Pump - Speed RPM	UNSIGNED WORD	322	0,1	rpm	R
Unit - Measurement unit setpoint	UNSIGNED WORD	316	1	0 English1 Metric	W
Unit - Model	UNSIGNED WORD	317	1	1 Centrifugal2 Water Cooled3 Air Cooled4 HeatPump5 Reserved6 Reserved7 Reserved8 Reserved9 Other	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Unit - Safety Mode Setpoint	UNSIGNED WORD	318		0 Off1 On	R
Unit - Safety Mode State	UNSIGNED WORD	319		0 Off1 On	R
Unit Alarm - Evaporator Entering Temperature Sensor Fault	UNSIGNED WORD	366	1	0 NoAlarm1 Alarm	R
Unit Warning - Setpoint Reset Input Out of Range	UNSIGNED WORD	377	1	0 NoAlarm1 Alarm	R
Unit Warning - Demand Limit Input Out of Range	UNSIGNED WORD	378	1	0 NoAlarm1 Alarm	R
Circuit 1 Warning - Power Loss while Compressor Running	UNSIGNED WORD	384	1	0 NoAlarm1 Alarm	R
Circuit 2 Warning - Power Loss while Compressor Running	UNSIGNED WORD	385	1	0 NoAlarm1 Alarm	R
Unit Warning - Inhibition for Low Ambient Temperature	UNSIGNED WORD	388	1	0 NoAlarm1 Alarm	R
Evaporator Pump 1 - Fault	UNSIGNED WORD	430	1	0 NoAlarm1 Alarm	R
Evaporator Pump 2 - Fault	UNSIGNED WORD	431	1	0 NoAlarm1 Alarm	R
Circ 1 Comp 1 Alarm - Low Pressure Ratio	UNSIGNED WORD	440	1	0 NoAlarm1 Alarm	R
Circ 2 Comp 1 Alarm - Low Pressure Ratio	UNSIGNED WORD	442	1	0 NoAlarm1 Alarm	R
Unit Alarm - Outside Air Temperature Sensor Fault	UNSIGNED WORD	446	1	0 NoAlarm1 Alarm	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Circ 1 Comp 1 Alarm - High Motor Current	UNSIGNED WORD	447	1	0 NoAlarm1 Alarm	R
Circ 2 Comp 1 Alarm - High Motor Current	UNSIGNED WORD	449	1	0 NoAlarm1 Alarm	R
Circ 1 Comp 1 Alarm - High Motor Temperature	UNSIGNED WORD	478	1	0 NoAlarm1 Alarm	R
Circ 2 Comp 1 Alarm - High Motor Temperature	UNSIGNED WORD	480	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - Condenser Pressure Sensor Fault	UNSIGNED WORD	509	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - Condenser Pressure Sensor Fault	UNSIGNED WORD	511	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - Condenser High Pressure	UNSIGNED WORD	517	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - Condenser High Pressure	UNSIGNED WORD	519	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - Discharge Temperature Sensor Fault	UNSIGNED WORD	529	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - Discharge Temperature Sensor Fault	UNSIGNED WORD	531	1	0 NoAlarm1 Alarm	R
Circ 1 Comp 1 Alarm - High Discharge Temperature	UNSIGNED WORD	535	1	0 NoAlarm1 Alarm	R
Circ 2 Comp 1 Alarm - High Discharge Temperature	UNSIGNED WORD	537	1	0 NoAlarm1 Alarm	R
Unit Alarm - Evaporator Water Flow Loss	UNSIGNED WORD	542	1	0 NoAlarm1 Alarm	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Unit Alarm - Evaporator Water Freeze	UNSIGNED WORD	543	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - Evaporator Pressure Low	UNSIGNED WORD	545	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - Evaporator Pressure Low	UNSIGNED WORD	547	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - Evaporator Pressure Sensor Failure	UNSIGNED WORD	552	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - Evaporator Pressure Sensor Failure	UNSIGNED WORD	554	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - Too many restart	UNSIGNED WORD	583	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - Too many restart	UNSIGNED WORD	585	1	0 NoAlarm1 Alarm	R
Unit Alarm - Evaporator Leaving Temperature Sensor Fault	UNSIGNED WORD	589	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - Mechanical High Pressure	UNSIGNED WORD	601	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - Mechanical High Pressure	UNSIGNED WORD	603	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - Oil Filter High Pressure	UNSIGNED WORD	637	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - Oil Filter High Pressure	UNSIGNED WORD	639	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - Oil Pressure Sensor Failure	UNSIGNED WORD	643	1	0 NoAlarm1 Alarm	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Circuit 2 Alarm - Oil Pressure Sensor Failure	UNSIGNED WORD	645	1	0 NoAlarm1 Alarm	R
Unit Alarm - Phase Voltage	UNSIGNED WORD	661	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - OverVoltage	UNSIGNED WORD	667	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - OverVoltage	UNSIGNED WORD	668	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - UnderVoltage	UNSIGNED WORD	670	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - UnderVoltage	UNSIGNED WORD	671	1	0 NoAlarm1 Alarm	R
Circ 1 Comp 1 Alarm - Suction Temperature Sensor Fault	UNSIGNED WORD	698	1	0 NoAlarm1 Alarm	R
Circ 2 Comp 1 Alarm - Suction Temperature Sensor Fault	UNSIGNED WORD	700	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - No Pressure at Start	UNSIGNED WORD	711	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - No Pressure at Start	UNSIGNED WORD	712	1	0 NoAlarm1 Alarm	R
Controller Alarm - Circuit 1 Board Offline	UNSIGNED WORD	723	1	0 NoAlarm1 Alarm	R
Controller Alarm - Circuit 2 Board Offline	UNSIGNED WORD	724	1	0 NoAlarm1 Alarm	R
Unit - Power Restore	UNSIGNED WORD	740	1	0 NoAlarm1 Alarm	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Circuit 1 Alarm - Pumpdown Failure	UNSIGNED WORD	741	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - Pumpdown Failure	UNSIGNED WORD	742	1	0 NoAlarm1 Alarm	R
Unit Alarm - External Event	UNSIGNED WORD	745	1	0 NoAlarm1 Alarm	R
Controller Alarm - Unit Board Offline	UNSIGNED WORD	746	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - No Pressure change at Start	UNSIGNED WORD	747	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - No Pressure change at Start	UNSIGNED WORD	748	1	0 NoAlarm1 Alarm	R
Circ 1 Compr 1 Alarm - VFD Fault	UNSIGNED WORD	762	1	0 NoAlarm1 Alarm	R
Circ 2 Compr 1 Alarm - VFD Fault	UNSIGNED WORD	764	1	0 NoAlarm1 Alarm	R
Circ 1 Compr 1 Alarm - VFD High Temperature	UNSIGNED WORD	768	1	0 NoAlarm1 Alarm	R
Circ 2 Compr 1 Alarm - VFD High Temperature	UNSIGNED WORD	770	1	0 NoAlarm1 Alarm	R
Circ 1 Compr 1 Alarm - VFD Communication Failure	UNSIGNED WORD	774	1	0 NoAlarm1 Alarm	R
Circ 2 Compr 1 Alarm - VFD Communication Failure	UNSIGNED WORD	776	1	0 NoAlarm1 Alarm	R
Unit Alarm - Emergency Stop Switch	UNSIGNED WORD	798	1	0 NoAlarm1 Alarm	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Unit Alarm - Evaporator Temperature Sensors Inverted	UNSIGNED WORD	799	1	0 NoAlarm1 Alarm	R
Unit Alarm - External Alarm	UNSIGNED WORD	800	1	0 NoAlarm1 Alarm	R
Circ 1 Compr 1 Problem - Low Discharge Superheat	UNSIGNED WORD	808	1	0 NoAlarm1 Alarm	R
Circ 2 Compr 1 Problem - Low Discharge Superheat	UNSIGNED WORD	810	1	0 NoAlarm1 Alarm	R
Unit Warning - Curennt Limit Input Out Of Range	UNSIGNED WORD	814	1	0 NoAlarm1 Alarm	R
Controller Alarm - Option Board Offline	UNSIGNED WORD	815	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - Gas Leakage	UNSIGNED WORD	844	1	0 NoAlarm1 Alarm	R
Circuit 2 Alarm - Gas Leakage	UNSIGNED WORD	845	1	0 NoAlarm1 Alarm	R
Unit - Electrical Panel Temperature	SIGNED WORD	850	0,1	°C	R
Unit Warning - Electrical Panel Temp Sensor Fault	UNSIGNED WORD	851	1	0 NoAlarm1 Alarm	R
Unit Warning - Electrical Panel High Temperature	UNSIGNED WORD	852	1	0 NoAlarm1 Alarm	R
Controller Alarm - Fan Board Offline	UNSIGNED WORD	900	1	0 NoAlarm1 Alarm	R
Circuit 1 Alarm - Fan Fault	UNSIGNED WORD	901	1	0 NoAlarm1 Alarm	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Circuit 2 Alarm - Fan Fault	UNSIGNED WORD	902	1	0 NoAlarm1 Alarm	R
Shunt Active Filter – Grid Voltage	SIGNED WORD	950	1	V	R
Shunt Active Filter – Grid Active Power	SIGNED WORD	951	1	kW	R
Shunt Active Filter – Grid Power Factor	SIGNED WORD	952	1		R
Shunt Active Filter – Grid TDDi	SIGNED WORD	953	1	%	R
Circ 2 Compressor 1 - Actual Capacity	SIGNED WORD	1800	0,1	%	R
Circ 2 Compressor 1 - OffAuto Setpoint	UNSIGNED WORD	1801	1	0 Off1 Auto	W
Circ 2 Compressor 1 - Full Load State	UNSIGNED WORD	1802	1	0 Normal1 Full Load	R
Circ 2 Compressor 1 - VFD Output	SIGNED WORD	1805	1	rpm	R
Circ 2 Compressor 1 - Alarm Active	UNSIGNED WORD	1806	1	0 NoAlarm1 Alarm	R
Circ 2 Compressor 1 - Oil Feed Pressure	SIGNED WORD	1809	0,1	kPa	R
Circ 2 Compressor 1 - Operating State	UNSIGNED WORD	1812	1	0 Stop1 Run	R
Circ 1 Compressor 1 - Actual Capacity	SIGNED WORD	1840	0,1	%	R
Circ 1 Compressor 1 - OffAuto Setpoint	UNSIGNED WORD	1841	1	0 Off1 Auto	W
Circ 1 Compressor 1 - Full Load State	UNSIGNED WORD	1842	1	0 Normal1 Full Load	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Circ 1 Compressor 1 - VFD Output	SIGNED WORD	1845	1	rpm	R
Circ 1 Compressor 1 - Alarm Active	UNSIGNED WORD	1846	1	0 NoAlarm1 Alarm	R
Circ 1 Compressor 1 - Oil Feed Pressure	SIGNED WORD	1849	0,1	kPa	R
Circ 1 Compressor 1 - Operating State	UNSIGNED WORD	1852	1	0 Stop1 Run	R
Unit - Refrigerant type	UNSIGNED WORD	1854	1	1 R222 R134a3 R407c4 R410a5 R1234ze5 resv3	R
Unit - Number of Circuits	SIGNED WORD	1855	1	1...2	R
Unit - Number of Compressors	SIGNED WORD	1856	1	1...4	R
Circuit 2 - Evaporator Superheat Active Setpoint	SIGNED WORD	1896	0,1	dK	R
Circuit 1 - Evaporator Superheat Active Setpoint	SIGNED WORD	1897	0,1	dK	R
Circuit 2 - Evaporator Superheat Temperature	SIGNED WORD	1898	0,1	dK	R
Circuit 1 - Evaporator Superheat Temperature	SIGNED WORD	1899	0,1	dK	R
Unit - Active Energy	UNSIGNED DOUBLE	1900	0,1	kWh	R
Unit - Power Factor	SIGNED WORD	1902	0,01	-	R
Unit - Current Limit Setpoint	SIGNED WORD	1903	0,1	A	W
Variable Flow - Plant Differential Pressure	SIGNED WORD	1905	0,1	kPa	W
Varibale Flow - Water Bypass Valve State	UNSIGNED WORD	1906	1	0 Closed1 Opened	R
Varibale Flow - Plant Differential Pressure setpoint	UNSIGNED WORD	1909	0,1	kPa	W
Variable Flow - Plant Delta Temperature	SIGNED WORD	1911	0,1	°C	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

Description	Type	Address	Gain	Range	Read/Write
Variable Flow - Plant Delta Temperature Setpoint	SIGNED WORD	1913	0,1	^	W
Variable Flow - Fixed Speed 1 Setpoint	SIGNED WORD	1915	0,1	%	W
Circuit 2 - Expansion Valve Position	SIGNED WORD	1966	1	%	R
Circuit 2 - Fan Speed	SIGNED WORD	1970	1	%	R
Circuit 2 - Condenser Approach Temperature	SIGNED WORD	1971	0,1	dK	R
Circuit 2 - Evaporator Approach Temperature	SIGNED WORD	1972	0,1	dK	R
Circuit 2 - Fan Staging	SIGNED WORD	1981	1	0 Off1 Run	R
Circuit 1 - Expansion Valve Position	SIGNED WORD	1982	1	%	R
Circuit 1 - Fan Speed	SIGNED WORD	1986	1	%	R
Circuit 1 - Condenser Approach Temperature	SIGNED WORD	1987	0,1	dK	R
Circuit 1 - Evaporator Approach Temperature	SIGNED WORD	1988	0,1	dK	R
Circuit 1 - Fan Staging	SIGNED WORD	1997	1	0 Off1 Run	R
Noise Reduction - Enable Setpoint	UNSIGNED WORD	1998	1	0 Auto1 Reducing	W
Noise Reduction - Operating State	UNSIGNED WORD	2000	1	0 Normal1 Reduced	R

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

5.1 Alarm Codes and Indexes

Premise		Unit communicates to BAS the status alarm through Codes and Indexes.Those are grouped in 3 level of alarm
Levels of Alarm		The three levels of alarms are as it follows:
		Level	Description
		Warning	They are notifications from unit or equipment of an incorrect status
		Problem	They are notifications from unit or equipment of a status that does allow unit to work properly
		Fault	They are notifications from unit or equipment (circuits, Compressors, Sensors, etc) that can cause stop of the unit or specific equipment
Index		Index describes the general cause of the notification
Code		Code describes which equipment or device of the unit is generating a notification

CODE	INDEX	LEVEL	Device	Description
257	1	Warning	Unit	Condenser Entering Water Temperature Sensor Failure
513	2	Warning	Unit	Evaporator Entering Water Temperature Sensor Failure
769	3	Warning	Unit	Liquid Line Refrigerant Temperature Sensor Failure
1025	4	Warning	Unit	Condenser Leaving Water Temperature Sensor Failure (STOP if Heat)
1281	5	Warning	Unit	Evaporator pump maintenance
1537	6	Warning	Unit	Condenser pump maintenance
1829	7	Warning	C1.Comp1	Compressor maintenance #n
1833		Warning	C1.Comp2
1837		Warning	C1.Comp3
1861		Warning	C2.Comp1
1865		Warning	C2.Comp2
1869		Warning	C2.Comp3

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Page 24 / 41

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
2049	8	Warning	Unit	Bad setpoint override input
2305	9	Warning	Unit	Bad demand limit input
2561	10	Warning	Unit	Power Loss While Running
2817	11	Warning	Unit	Unit Power Restore
3105	12	Warning	Circuit 1	Circuit Failed Pumpdown
3137		Warning	Circuit 2
3329	13	Warning	Unit	External Event
3585	14	Warning	Unit	Bad Current Limit Input
3841	15	Warning	Unit	Option Controller Communication Failed
4128	16	Warning	Circuit 1	Low Refrigerant Charge
4160		Warning	Circuit 2
4352	17	Warning	Unit	Chiller network Communication Failure
6177	24	Warning	Circuit 1	Economizer Pressure Sensor Fault #n
6209		Warning	Circuit 2
6433	25	Warning	Circuit 1	Economizer Temperature Sensor Fault #n
6465		Warning	Circuit 2
6689	26	Warning	Circuit 1	Economizer EXV Motor Fault
6721		Warning	Circuit 2
7201	28	Warning	Circuit 1	Economizer EXV Module Communications Fault
7233		Warning	Circuit 2
7461	29	Warning	C1.Comp1	Hot Gas Bypass Fault
7465		Warning	C1.Comp2
7493		Warning	C1.Comp1
7497		Warning	C1.Comp2
7681	30	Warning	Unit	Energy Meter Commununication Failure
9729	38	Warning	Unit	Heat Recovery Entering Water Temperature Sensor Fault

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
9985	39	Warning	Unit	Heat Recovery Leaving Water Temperature Sensor Fault
10241	40	Warning	Unit	SwitchBox Temperature High
10497	41	Warning	Unit	SwitchBox Temperature Sesnor Fault
10785	42	Warning	Circuit 1	Defrost EXV Motor Fault
10817		Warning	Circuit 2
11009	43	Warning	Unit	Heat Recovery EWT or LWT freeze
11265	44	Warning	Unit	Heat Recovery Water Temperature Inverted
11553	45	Warning	Circuit 1	Liquid Refrigerant Temperature Sensor Fault
11585		Warning	Circuit 2
11777	46	Warning	Unit	Smart Grid Communication Failure
16418	64	Problem	Circuit 1	Power Loss While Running
16450		Problem	Circuit 2
16642	65	Problem	Unit	START INHIBITED - Ambient Temperature Low
16898	66	Problem	Unit	INHIBIT LOAD – Condenser Pressure High
17186	67	Problem	Circuit 1	INHIBIT LOAD – Condenser Pressure High
17218		Problem	Circuit 2
17410	68	Problem	Unit	UNLOAD – Condenser Pressure High
17698	69	Problem	Circuit 1	UNLOAD – Condenser Pressure High
17730		Problem	Circuit 2
18178	71	Problem	Pump 1	PUMP START ATTEMPTED - Condenser Pump #1 Failure
18434	72	Problem	Pump 2	PUMP START ATTEMPTED - Condenser Pump #2 Failure
18722	73	Problem	Circuit 1	INHIBIT LOAD - Discharge Temperature High
18754		Problem	Circuit 2
18946	74	Problem	Unit	NO EWT RESET - Entering Evaporator Temperature Sensor Failure
19202	75	Problem	Unit	INHIBIT LOAD - Evaporator Pressure Low
19490	76	Problem	Circuit 1	INHIBIT LOAD - Evaporator Pressure Low

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
19522		Problem	Circuit 2
19714	77	Problem	Unit	UNLOAD - Evaporator Pressure Low
20002	78	Problem	Circuit 1	UNLOAD - Evaporator Pressure Low
20034		Problem	Circuit 2
20262	79	Problem	C1.Comp1	UNLOAD - Compressor Motor Current High
20266		Problem	C1.Comp2
20294		Problem	C2.Comp1
20298		Problem	C2.Comp2
20513	80	Problem	Circuit 1	UNLOAD - Discharge Temperature High
20545		Problem	Circuit 2
20738	81	Problem	Pump 1	PUMP START ATTEMPTED - Evaporator Pump #1 Failure
20994	82	Problem	Pump 2	PUMP START ATTEMPTED - Evaporator Pump #2 Failure
21250	83	Problem	Unit	(Check Chiller Display for Cause)
21542	84	Problem	C1.Comp1	INHIBIT LOAD - Compressor Motor Current High
21546		Problem	C1.Comp2
21574		Problem	C2.Comp1
21578		Problem	C2.Comp2
21763	85	Problem	Unit	UNLOAD - Power Holes
22050	86	Problem	Circuit 1	INHIBIT FREECOOLING - Wrong Valve Position
22082		Problem	Circuit 2
22274	87	Problem	Unit	DATACENTER MODULE - SAF Side - Top Temperature Sensor Fault
22530	88	Problem	Unit	DATACENTER MODULE - SAF Side - Top Left Temperature Sensor Fault
22786	89	Problem	Unit	DATACENTER MODULE - SAF Side - Top Right Temperature Sensor Fault
23042	90	Problem	Unit	DATACENTER MODULE - PLC Side - Temperature Sensor Fault
23298	91	Problem	Unit	DATACENTER MODULE - SAF Side - Bottom Temperature Sensor Fault
23554	92	Problem	Unit	DATACENTER MODULE - SAF Side - Relative Humidity Sensor Fault

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
23810	93	Problem	Unit	DATACENTER MODULE - Module Communication Fail
1027	4	Fault	Unit	UNIT SHUTDOWN - Condenser Leaving Water Temperature Sensor Failure (If Watercooled Heatpump)
5671	22	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Oil Sump Temperature High
5675		Fault	C1.Comp2
5703		Fault	C2.Comp1
5707		Fault	C2.Comp2
6691	26	Fault	Circuit 1	CIRCUIT SHUTDOWN - Eco EXV Alarm
6723		Fault	Circuit 2
6947	27	Fault	Circuit 1	CIRCUIT SHUTDOWN - Fans Fault Alarm
6979		Fault	Circuit 2
9251	36	Fault	Circuit 1	CIRCUIT SHUTDOWN - EXV Alarm
9283		Fault	Circuit 2
26151	102	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Discharge Pressure Sensor Fault
26155		Fault	C1.Comp2
26407	103	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Suction Pressure Low
26411		Fault	C1.Comp2
26663	104	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Discharge Pressure High
26667		Fault	C1.Comp2
27943	109	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Surge Temperature
27947		Fault	C1.Comp2
31015	121	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Suction Pressure Sensor Fault
31019		Fault	C1.Comp2
32551	127	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Low pressure ratio
32555		Fault	C1.Comp2
32583		Fault	C2.Comp1
32587		Fault	C2.Comp2

Product name:
EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
32771	128	Fault	Unit	UNIT SHUTDOWN - Outside Air Temperature Sensor Fault
33063	129	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Motor Overload Trip
33067		Fault	C1.Comp2
33095		Fault	C2.Comp1
33099		Fault	C2.Comp2
33059	129	Fault	Circuit 1	CIRCUIT SHUTDOWN - Motor Current High
33091		Fault	Circuit 2
33795	132	Fault	Unit	UNIT SHUTDOWN - Motor Protector Trip
34087	133	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Motor Protector Trip
34091		Fault	C1.Comp2
34119		Fault	C2.Comp1
34123		Fault	C2.Comp2
34083	133	Fault	Circuit 1	CIRCUIT SHUTDOWN - Motor Protector Trip
34115		Fault	Circuit 2
34343	134	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Current High
34347		Fault	C1.Comp2
34375		Fault	C2.Comp1
34379		Fault	C2.Comp2
34599	135	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Motor Temperature High #n
34603		Fault	C1.Comp2
34631		Fault	C2.Comp1
34635		Fault	C2.Comp2
34855	136	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Temperature Sensor Fault
34859		Fault	C1.Comp2
34887		Fault	C2.Comp1
34891		Fault	C2.Comp2

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Page 29 / 41

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
35111	137	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Phase Loss
35115		Fault	C1.Comp2
35143		Fault	C2.Comp1
35147		Fault	C2.Comp2
35367	138	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Phase Reversal
35371		Fault	C1.Comp2
35399		Fault	C2.Comp1
35403		Fault	C2.Comp2
35623	139	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Overvoltage
35627		Fault	C1.Comp2
35655		Fault	C2.Comp1
35659		Fault	C2.Comp2
35879	140	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Undervoltage
35883		Fault	C1.Comp2
35911		Fault	C2.Comp1
35915		Fault	C2.Comp2
36099	141	Fault	Unit	UNIT SHUTDOWN - Condenser Pressure Sensor Fault
36391	142	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Condenser Pressure Sensor Fault #n
36395		Fault	C1.Comp2
36423		Fault	C2.Comp1
36427		Fault	C2.Comp2
36387	142	Fault	Circuit 1	CIRCUIT SHUTDOWN - Condenser Pressure Sensor Fault #n
36419		Fault	Circuit 2
36611	143	Fault	Unit	UNIT SHUTDOWN - Condenser Water Flow Loss
36867	144	Fault	Unit	UNIT SHUTDOWN - Condenser Pressure High
37155	145	Fault	Circuit 1	CIRCUIT SHUTDOWN - Condenser Pressure High #n

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Page 30 / 41

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
37187		Fault	Circuit 2
37415	146	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Current High with Compressor OFF #n
37419		Fault	C1.Comp2
37447		Fault	C2.Comp1
37451		Fault	C2.Comp2
37671	147	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Discharge Temperature Sensor Fault #n
37675		Fault	C1.Comp2
37703		Fault	C2.Comp1
37707		Fault	C2.Comp2
37927	148	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Discharge Temperature High #n
37931		Fault	C1.Comp2
37959		Fault	C2.Comp1
37963		Fault	C2.Comp2
38147	149	Fault	Unit	UNIT SHUTDOWN - Condenser Entering Water Temperature Sensor Fault
38403	150	Fault	Unit	UNIT SHUTDOWN - Evaporator Water Flow Loss
38659	151	Fault	Unit	UNIT SHUTDOWN - Evaporator LWT or EWT Low (Freeze)
38915	152	Fault	Unit	UNIT SHUTDOWN - Evaporator Pressure Low
39207	153	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Evaporator (or Suction) Pressure Low #n
39211		Fault	C1.Comp2
39239		Fault	C2.Comp1
39243		Fault	C2.Comp2
39203	153	Fault	Circuit 1	CIRCUIT SHUTDOWN - Evaporator Pressure Low
39235		Fault	Circuit 2
39427	154	Fault	Unit	UNIT SHUTDOWN - Evaporator Pressure Sensor Fault
39719	155	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Evaporator Pressure Sensor Fault #n
39723		Fault	C1.Comp2

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
39751		Fault	C2.Comp1
39755		Fault	C2.Comp2
39715	155	Fault	Circuit 1	CIRCUIT SHUTDOWN - Evaporator Pressure Sensor Fault #n
39747		Fault	Circuit 2
39975	156	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Ground Fault Trip #n
39979		Fault	C1.Comp2
40007		Fault	C2.Comp1
40011		Fault	C2.Comp2
40231	157	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Lift Pressure Low #n
40235		Fault	C1.Comp2
40263		Fault	C2.Comp1
40267		Fault	C2.Comp2
40483	158	Fault	Circuit 1	CIRCUIT SHUTDOWN - Liquid Line Pressure Sensor Fault #n
40515		Fault	Circuit 2
40739	159	Fault	Circuit 1	CIRCUIT SHUTDOWN - Liquid Line Temperature Sensor Fault #n
40771		Fault	Circuit 2
40963	160	Fault	Unit	UNIT LOCKOUT - Number of Allowed Re-Starts Exceeded
41255	161	Fault	C1.Comp1	COMPRESSOR LOCKOUT - Number of Allowed Restarts Exceeded #n
41259		Fault	C1.Comp2
41287		Fault	C2.Comp1
41291		Fault	C2.Comp2
41251	161	Fault	Circuit 1	CIRCUIT LOCKOUT - Number of Allowed Restarts Exceeded #n
41283		Fault	Circuit 2
41475	162	Fault	Unit	UNIT SHUTDOWN - Evaporator Leaving Water Temperature Sensor Fault
41731	163	Fault	Unit	UNIT SHUTDOWN - Evaporator Entering Water Temperature Sensor Fault
42023	164	Fault	C1.Comp1

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Page 32 / 41

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
42027		Fault	C1.Comp2	COMPRESSOR SHUTDOWN - Evaporator Leaving Water Temperature Sensor Fault #n
42055		Fault	C2.Comp1
42059		Fault	C2.Comp2
42019	164	Fault	Circuit 1	CIRCUIT SHUTDOWN - Evaporator Leaving Water Temperature Sensor Fault #n
42051		Fault	Circuit 2
42243	165	Fault	Unit	UNIT SHUTDOWN - Mechanical High Pressure Trip
42535	166	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Mechanical High Pressure Trip #n
42539		Fault	C1.Comp2
42567		Fault	C2.Comp1
42571		Fault	C2.Comp2
42531	166	Fault	Circuit 1	CIRCUIT SHUTDOWN - Mechanical High Pressure Trip #n
42563		Fault	Circuit 2
42791	167	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Oil Net Pressure Low #n
42795		Fault	C1.Comp2
42823		Fault	C2.Comp1
42827		Fault	C2.Comp2
43047	168	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Oil Feed Temperature High #n
43051		Fault	C1.Comp2
43079		Fault	C2.Comp1
43083		Fault	C2.Comp2
43303	169	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Oil Feed Temperature Low #n
43307		Fault	C1.Comp2
43335		Fault	C2.Comp1
43339		Fault	C2.Comp2
43559	170	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Oil Feed Temperature Sensor Fault #n
43563		Fault	C1.Comp2

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Page 33 / 41

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
43591		Fault	C2.Comp1
43595		Fault	C2.Comp2
43815	171	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Oil Level Low #n
43819		Fault	C1.Comp2
43847		Fault	C2.Comp1
43851		Fault	C2.Comp2
44071	172	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Oil Delta Pressure High #n
44075		Fault	C1.Comp2
44103		Fault	C2.Comp1
44107		Fault	C2.Comp2
44327	173	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Oil Feed Pressure Sensor Fault #n
44331		Fault	C1.Comp2
44359		Fault	C2.Comp1
44363		Fault	C2.Comp2
44583	174	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Oil Sump Pressure Sensor Fault #n
44587		Fault	C1.Comp2
44615		Fault	C2.Comp1
44619		Fault	C2.Comp2
44839	175	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Oil Sump Temperature Sensor Fault #n
44843		Fault	C1.Comp2
44871		Fault	C2.Comp1
44875		Fault	C2.Comp2
45059	176	Fault	Unit	UINT SHUTDOWN - Phase Voltage Monitoring Alarm
45091		Fault	Circuit 1	CIRCUIT SHUTDOWN - Phase Voltage Monitoring Alarm
45123		Fault	Circuit 2
45351	177	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Starter Fault #n

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
45355		Fault	C1.Comp2
45383		Fault	C2.Comp1
45387		Fault	C2.Comp2
45607	178	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - No Starter Transition #n
45611		Fault	C1.Comp2
45639		Fault	C2.Comp1
45643		Fault	C2.Comp2
45863	179	Fault	C1.Comp1	COMPRESSOR START ABORT - Oil Pressure Low #n
45867		Fault	C1.Comp2
45895		Fault	C2.Comp1
45899		Fault	C2.Comp2
46119	180	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Subcooling Low #n
46123		Fault	C1.Comp2
46151		Fault	C2.Comp1
46155		Fault	C2.Comp2
46375	181	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Surge Suction Superheat High-Running #n
46379		Fault	C1.Comp2
46407		Fault	C2.Comp1
46411		Fault	C2.Comp2
46631	182	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Surge Suction Superheat High-Starting #n
46635		Fault	C1.Comp2
46663		Fault	C2.Comp1
46667		Fault	C2.Comp2
46887	183	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Suction Temperature Sensor Fault #n
46891		Fault	C1.Comp2
46919		Fault	C2.Comp1

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Page 35 / 41

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
46923		Fault	C2.Comp2
46883	183	Fault	Circuit 1	CIRCUIT SHUTDOWN - Suction Temperature Sensor Fault #n
46915		Fault	Circuit 2
47143	184	Fault	C1.Comp1	COMPRESSOR START ABORT - Vanes Alarm #n
47147		Fault	C1.Comp2
47175		Fault	C2.Comp1
47179		Fault	C2.Comp2
47399	185	Fault	C1.Comp1	COMPRESSOR SHUTDOWN – Motor Fault #n
47403		Fault	C1.Comp2
47431		Fault	C2.Comp1
47435		Fault	C2.Comp2
47619	186	Fault	Unit	UNIT SHUTDOWN - Mechanical Low Pressure Trip
47911	187	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Mechanical Low Pressure Trip #n
47915		Fault	C1.Comp2
47943		Fault	C2.Comp1
47947		Fault	C2.Comp2
47907	187	Fault	Circuit 1	CIRCUIT SHUTDOWN - Mechanical Low Pressure Trip #n
47939		Fault	Circuit 2
48131	188	Fault	Unit	Controller board offline #n(Circuit number describe Control board number. 0=Unit alarm for Extension modules other than Circuits extension)
48163		Fault	Circuit 1
48195		Fault	Circuit 2
48419	189	Fault	Circuit 1	CIRCUIT SHUTDOWN - No Pressure Change After Start
48451		Fault	Circuit 2
48675	190	Fault	Circuit 1	CIRCUIT SHUTDOWN - No Pressure at Startup
48707		Fault	Circuit 2
48935	191	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Slide position sensor Fault #n

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
48939		Fault	C1.Comp2
48967		Fault	C2.Comp1
48971		Fault	C2.Comp2
49155	192	Fault	Unit	UNIT STOP - Emergency Stop Alarm
49411	193	Fault	Unit	UNIT STOP - Evaporator Water Temperatures Inverted
49667	194	Fault	Unit	UNIT STOP - External Alarm
49923	195	Fault	Unit	UNIT SHUTDOWN - Evaporator Leaving Water Temperature 1 Sensor Fault
50179	196	Fault	Unit	UNIT SHUTDOWN - Evaporator Leaving Water Temperature 2 Sensor Fault
50435	197	Fault	Unit	UNIT SHUTDOWN - Evaporator 1 Freeze Protection
50691	198	Fault	Unit	UNIT SHUTDOWN - Evaporator 2 Freeze Protection
50983	199	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Fault #n
50987		Fault	C1.Comp2
51015		Fault	C2.Comp1
51019		Fault	C2.Comp2
51239	200	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Temperature High #n
51243		Fault	C1.Comp2
51271		Fault	C2.Comp1
51275		Fault	C2.Comp2
51495	201	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Communication Error #n
51499		Fault	C1.Comp2
51527		Fault	C2.Comp1
51531		Fault	C2.Comp2
51751	202	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Temperature Low #n
51755		Fault	C1.Comp2
51783		Fault	C2.Comp1
51787		Fault	C2.Comp2

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Page 37 / 41

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
52007	203	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Undergrid
52011		Fault	C1.Comp2
52039		Fault	C2.Comp1
52043		Fault	C2.Comp2
52263	204	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Overgrid
52267		Fault	C1.Comp2
52295		Fault	C2.Comp1
52299		Fault	C2.Comp2
52519	205	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Discharge Superheat Low #n
52523		Fault	C1.Comp2
52551		Fault	C2.Comp1
52555		Fault	C2.Comp2
52739	206	Fault	Unit	UNIT SHUTDOWN - Gas Leakage
52771		Fault	Circuit 1	CIRCUIT SHUTDOWN - Gas Leakage
52803		Fault	Circuit 2
52995	207	Fault	Unit	UNIT SHUTDOWN - Battery Mode
53251	208	Fault	Unit	UNIT SHUTDOWN - High Pitch (Marine)
53507	209	Fault	Unit	UNIT SHUTDOWN - High Roll (Marine)
53763	210	Fault	Unit	UNIT SHUTDOWN - Pitch Sensor Fault (Marine)
54019	211	Fault	Unit	UNIT SHUTDOWN - Roll Sensor Fault (Marine)
54275	212	Fault	Unit	UNIT SHUTDOWN - Evaporator Differential Pressure Sensor Fault
54531	213	Fault	Unit	UNIT SHUTDOWN - Evaporator Differential Pressure High
54787	214	Fault	Unit	UNIT SHUTDOWN - Condenser Differential Pressure Sensor Fault
55043	215	Fault	Unit	UNIT SHUTDOWN - Condenser Differential Pressure High
55335	216	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Card Temperature High
55339		Fault	C1.Comp2

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
55367		Fault	C2.Comp1
55371		Fault	C2.Comp2
55591	217	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - RLA High
55595		Fault	C1.Comp2
55623		Fault	C2.Comp1
55627		Fault	C2.Comp2
55847	218	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - RLA Low
55851		Fault	C1.Comp2
55879		Fault	C2.Comp1
55883		Fault	C2.Comp2
56103	219	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - Surge Alarm
56107		Fault	C1.Comp2
56135		Fault	C2.Comp1
56139		Fault	C2.Comp2
56323	220	Fault	Unit	UNIT SHUTDOWN - Evaporator Water Differential Pressure Low
56579	221	Fault	Unit	UNIT SHUTDOWN - Condenser Water Differential Pressure Low
56835	222	Fault	Unit	UNIT SHUTDOWN - Unit or Compressor not configured
57091	223	Fault	Unit	UNIT SHUTDOWN - Power Availability Alarm (Marine)
57347	224	Fault	Unit	UNIT SHUTDOWN - Freecooling water valves feedback Alarm
57635	225	Fault	Circuit 1	CIRCUIT SHUTDOWN - Freecooling Valves Feedback Alarm
57667		Fault	Circuit 2
57895	226	Fault	C1.Comp1	COMPRESSOR SHUTDOWN - VFD Components to be replaced
57899		Fault	C1.Comp2
57927		Fault	C2.Comp1
57931		Fault	C2.Comp2

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Page 39 / 41

Software name:

ETRA / OMEGA

BAS Integration Guide-Modbus protocol

Document Name:

D-EIGOC00103-

23_01EN_EWAD/H_EWFD/H-T/MZD

CODE	INDEX	LEVEL	Device	Description
58147	227	Fault	Circuit 1	CIRCUIT SHUTDOWN - Fans Communication Fail
58179		Fault	Circuit 2
58403	228	Fault	Circuit 1	CIRCUIT SHUTDOWN - Anti-Chattering Alarm
58435		Fault	Circuit 2
58663	229	Fault	C1.Comp1	CIRCUIT SHUTDOWN - Comp X Alarm
58667		Fault	C1.Comp2
58671		Fault	C1.Comp3
58675		Fault	C1.Comp4
58695		Fault	C2.Comp1
58699		Fault	C2.Comp2
58703		Fault	C2.Comp3
58707		Fault	C2.Comp4
58915	230	Fault	Circuit 1	CIRCUIT SHUTDOWN - Ssh Low Limit Alarm
58947		Fault	Circuit 2
59139	231	Fault	Unit	UNIT SHUTDOWN - Tank Water Temp Sensor fault
59651	233	Fault	Unit	UNIT SHUTDOWN - Condenser LWT or EWT (freeze)
59907	234	Fault	Unit	UNIT SHUTDOWN - Changeover Valve hardware Alarm
60163	235	Fault	Unit	UNIT SHUTDOWN - Changeover Valve feedback Alarm
60419	236	Fault	Unit	UNIT SHUTDOWN – Beluga Pump Fault Alarm
60675	237	Fault	Unit	UNIT SHUTDOWN – Beluga Pump Modbus Communication Alarm

Product name:

EWAD/H-T/MZD & EWFD/H-T/MZD

Page 40 / 41

Software name:

ETRA / OMEGA

The present publication is drawn up by of information only and does not constitute an offer binding upon Daikin Applied Europe S.p.A..Daikin Applied Europe S.p.A. has compiled the content of this publication to the best of its knowledge. No express or implied warranty is given for the completeness, accuracy, reliability or fitness for particular purpose of its content, and the products and services presented therein. Specification are subject to change without prior notice. Refer to the data communicated at the time of the order. Daikin Applied Europe S.p.A. explicitly rejects any liability for any direct or indirect damage, in the broadest sense, arising from or related to the use and/or interpretation of this publication. All content is copyrighted by Daikin Applied Europe S.p.A.
