USER MANUAL I-PAC+ 28 Calorex

I-PAC / I-PAC+ inverter heat pumps

IPT 8, 12, 16, 22, 28

Owner Installation Manual 1005494 Issue 6

HEALTH AND SAFETY WARNING

This product contains electrical and rotational equipment. ONLY competent trained people should work on this device, and must be isolated electrically before removing access panels.

This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

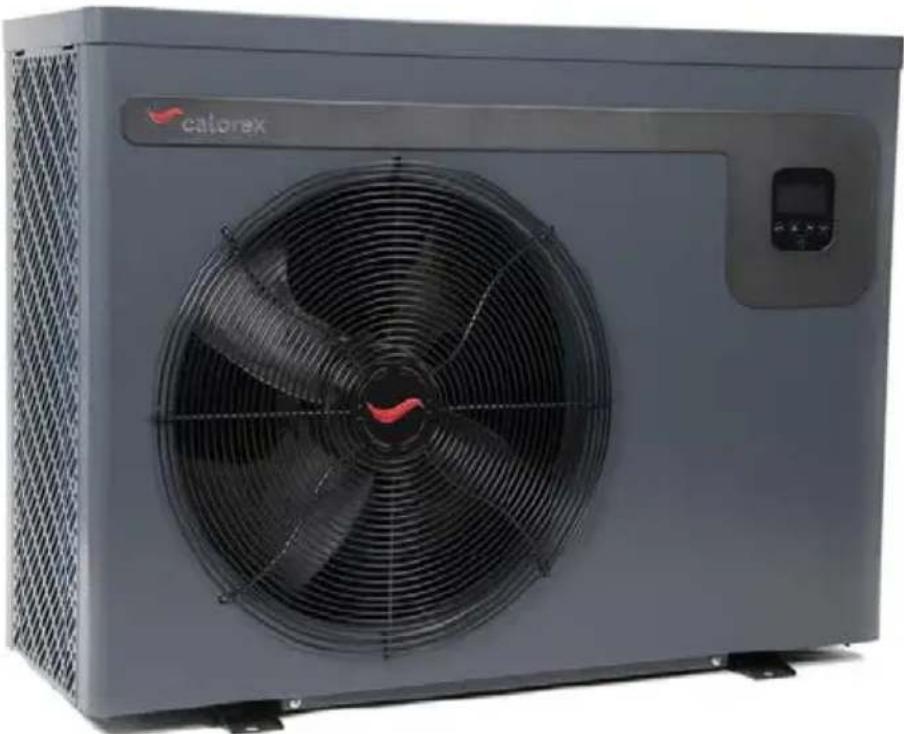

Exterior view of a gray industrial air conditioning unit with a black fan and ventilation grille (no visible text or symbols)

CONTENTS

HEALTH AND SAFETY WARNING ....2

1.0 INTRODUCTION ....4

1.1 FOREWORD 4

1.2 WARNINGS ....4

2.0 ABOUT YOUR HEAT PUMP 8

2.1 TRANSPORTATION 8

2.2 ACCESSORIES....8

2.3 OPTIONAL ACCESSORIES....9

2.4 FEATURES....10

2.5 OPERATING CONDITIONS AND RANGE ...10

2.6 OPERATING MODES ....10

3.0 INSTALLATION ....11

3.1 POSITIONING AND AIRFLOW....11

3.2 REFRIGERANT TYPE AND INSTALLED LOCATION....14

3.3 POOL WATER CIRCUIT....15

3.4 PLUMBING....16

3.5 INITIAL CHECKS ....16

3.6 ELECTROLYTIC CORROSION IN SWIMMING POOLS....17

3.7 ELECTRIC WIRING AND SUPPLY .....17

3.8 CONNECTING THE HEAT PUMP TO THE POWER SUPPLY ....18

3.9 POOL PUMP SYNCHRONISATION TERMINALS P1 AND P2....19

3.10 INSTALLING THE OPTIONAL REMOTE CONTROLLER ....20

4.0 USING YOUR HEAT PUMP....22

4.1 THE KEY PAD 22

4.2 OPERATING INSTRUCTIONS....23

4.3 USING THE APP....24

4.4 USING THE OPTIONAL REMOTE CONTROLLER ....30

4.5 THE KEY PAD ....30

4.6 OPERATING INSTRUCTIONS....31

5.0 TESTING....32

5.1 HEAT PUMP MALFUNCTION ....32

5.2 PROTECTION CODES ....33

5.3 FAULT CODES....34

6.0 MAINTENANCE 35

7.0 TROUBLE SHOOTING COMMON FAULTS .....35

8.0 DATASHEETS 36

9.0 DIMENSIONS 39

9.1 DIMENSIONS....40

10.0 WINTERISATION PROCEDURE ....41

10.1 START UP PROCEDURE AFTER WINTERISATION ....41

11.0 WARRANTY CONDITIONS....42

12.0 DECLARATION OF CONFORMITY....43

1.0 INTRODUCTION

1.1 FOREWORD

Thank you for choosing this product, which is designed for quiet and energy efficient operation. It is the ideal way to heat your pool in an environmentally friendly way.

This guide provides information needed to install and operate the product effectively. Please ensure you read this manual and use the correct installation and operating procedures.

This manual is intended for installers and users. Read the entire manual before using the heat pump. Awareness of the correct operating procedure for the machine and any safety devices is important, to avoid damage or injury.

The appliance can be used by children aged from 8 years and above and persons with reduced, physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1.2 WARNINGS

Important safety information is contained in this manual and marked on the heat pump.

Please read and follow all safety advice.

The refrigerant used in this heat pump is R32. This refrigerant is environmentally friendly, but safety instructions must be strictly adhered to.

The WARNING sign denotes a hazard. It calls attention to a procedure or practice, which if not adhered to could result in injury. Warning signs and procedures must be complied with.

If a refrigerant leak is suspected stop using the heat pump and contact Dantherm Group UK service.

[e-mail]

Take the following precautions in order to avoid any danger:

REFRIGERANT SAFETY:

This heat pump contains R32 refrigerant. Work on the refrigeration system, repair and disposal must be carried out by appropriately qualified and registered engineers.

Repair, service and disposal must be carried out in the EU by F-Gas registered engineers.

Completely de-gas the refrigerant before any brazing is performed. Brazing can only be carried out by technicians trained to EU 517/2014.

Risk assessments must be carried out before maintenance or repairs are started.

Appropriate safety measures and risk assessments must be taken before work commences.

Do not attempt to work on the equipment by yourself.

Consult the qualified engineer undertaking the work to establish all requirements before work commences.

ACTIONS TO AVOID (OPERATION AND HANDLING):

Be especially careful when handling the heat pump, not to cause any damage that may result in leakage of the cooling circuit.

Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

Do not pierce or burn.

IN CASE OF FIRE:

Toxic fumes may occur in the event of fire. You must leave the room as quickly as possible in the event of fire.

LOCATION REQUIREMENTS:

The heat pump contains R32 refrigerant so the following location requirements must be fulfilled:

The heat pump must be kept away from sources of fire or naked flames.

The heat pump must be installed, operated and stored where the floor area is larger than the minimum requirement., see section 3.2.

The heat pump shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).

Keep the ventilation openings clear of obstruction during operation.

Do not use or store combustible gas or liquids near the heat pump.

Check if there are any local regulations, which you must comply to, when installing or storing the heat pump.

Be aware that refrigerants may not contain an odour.

Installation must be carried out by competent people, in accordance with this manual.

INSTALLATION:

Read the instructions before installation, use and maintenance.

If R32 gas leaks during the installation process, stop the installation immediately and call the service centre.

If a repair is required, please contact the nearest after-sales service centre.

To avoid over heating or over cooling of pool water check and set the temperature on the control panel.

The heating performance can be improved by insulating the flow and return pipework.

It is recommended that a cover is used on the swimming pool to reduce heat losses.

AIRFLOW:

The heat pump must have access to adequate airflow. See section 3.1.

Do not place obstructions that will block air flow near the inlet or outlet.

ELECTRICAL SAFETY:

Mains power isolator should be out of reach of children.

After a power cut, when the power supply is restored, the heat pump may start up without warning.

Electric storms can damage electronic equipment. Ideally the heat pump should be switched off at the mains.

HEAT PUMP MALFUNCTION:

WARNING: Isolate heat pump electrically and wait 3 minutes before removing panels or entering heat pump.

Refer to the user check list in section 5.2 and the error codes listed in section 5.3 before initiating a service call.

Do not attempt to interfere with any internal control settings as these have been factory calibrated and sealed.

Any sign of abnormal operation such as water dripping should be reported immediately to the installer. If in doubt or if advice is required contact the Service support team on telephone [phone] (option 4).

MAINTENANCE:

Isolate the power supply of the heat pump and wait 3 minutes before cleaning examination or repair.

Please clean this machine with household detergents or clean water. NEVER use petroleum spirit, thinners or any similar fuel.

Check bolts, cables and connections regularly.

DISPOSAL:

Repair, service and disposal of redundant heat pumps must be completed by authorised technicians. It is illegal to allow refrigerant gases to escape to air.

Do not attempt to work on the equipment by yourself. Improper operation may cause danger.

	Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
	The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.
	Do not piece or burn.
	Be aware that refrigerants may not contain an odour.
	Appliance shall be installed, operated and stored in a room with a floor area larger than Xm2, where X is the “minimum area” shown in section 3.2 and section 8.0.

	The heat pump must be kept away from sources of fire or naked flames.
	The heat pump must be installed in well ventilated area. Closed areas are not permitted.
	Repair and disposal must be carried out by F-Gas registered engineers.
	Completely de-gas the refrigerant before any brazing is performed. Brazing can only be carried out by technicians trained to EU 517/2014.

2.0 ABOUT YOUR HEAT PUMP

2.1 TRANSPORTATION

Always keep the heat pump upright.

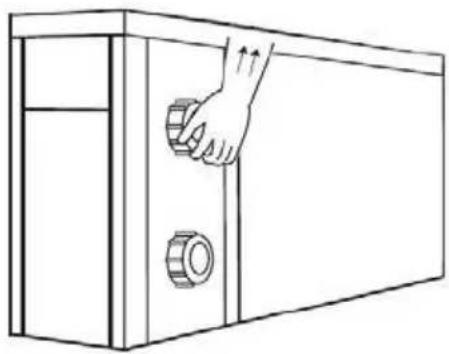

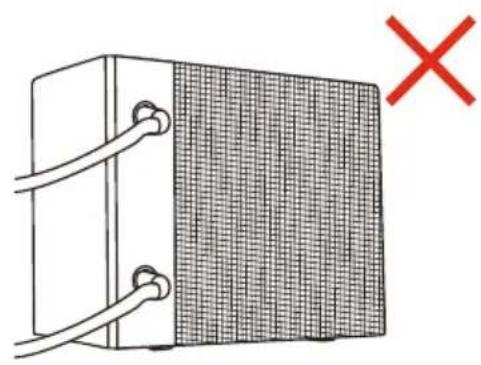

Do not lift the heat pump by the water inlet or outlet connections.

(If this is done the titanium heat exchanger inside the heat pump could be damaged).

2.2 ACCESSORIES

These accessories are provided with the heat pump.

Line drawing of a rectangular air conditioner unit with a circular vent and control panel (no text or symbols)

Rubber Feet (kit of 4)

Close-up of a metallic mechanical component with a black base and threaded top (no visible text or symbols)

Simple line drawing of a box with two arrows pointing outward (no text or symbols)

Close-up of a white, coiled, flexible plastic or fiber against a dark background (no text or symbols visible)

Simple line drawing of a rectangular box with an upward arrow on its side, no text or symbols present.

X

Line drawing of a hand opening a cabinet with two circular switches (no text or symbols)

Water union connectors

2 × 112

2 × 50mm

Four black plastic ring components arranged in a 2x2 grid (no text or symbols visible)

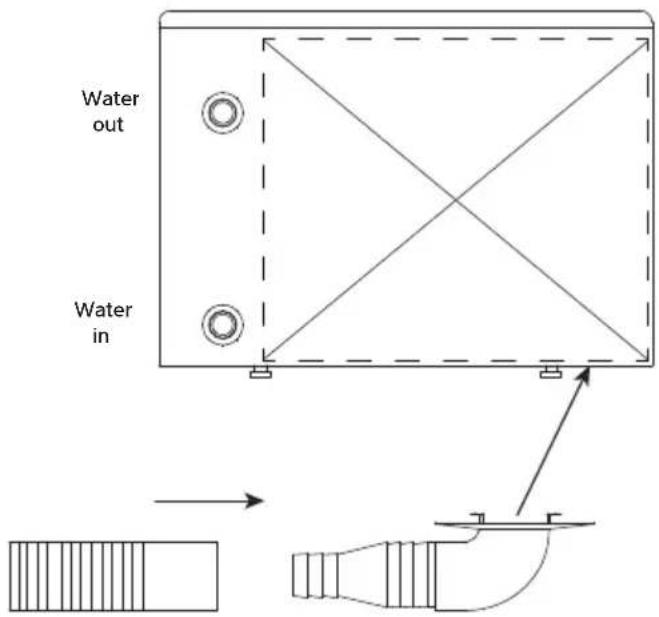

Drainage kit

2.3 OPTIONAL ACCESSORIES

The following items are additional accessories available for purchase.

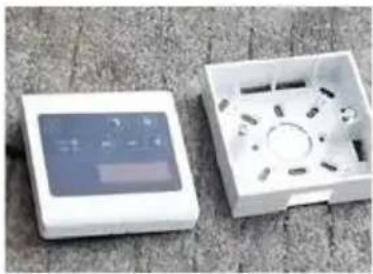

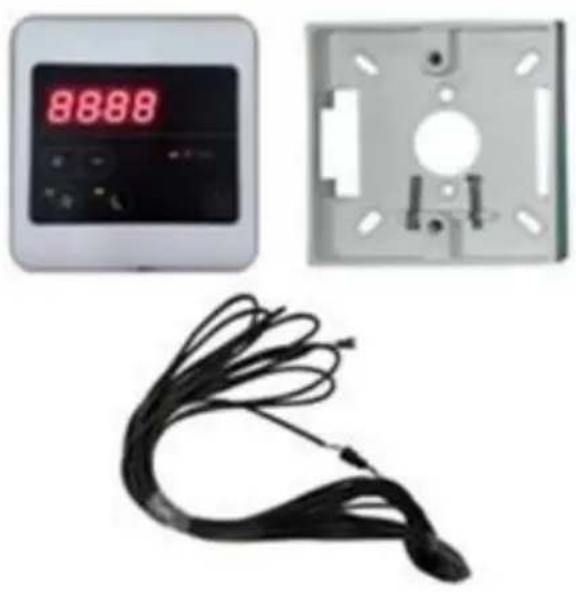

Remote controller kit for indoor installation.

(10m extension cable).

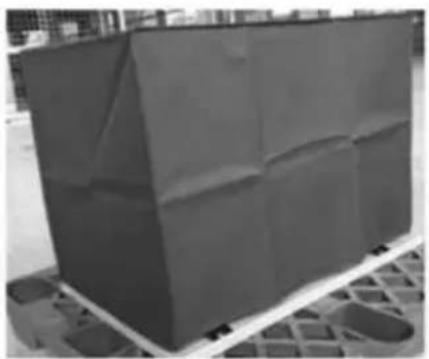

Winter cover.

Black cardboard box on a white platform, no visible text or symbols

2.4 FEATURES

• Stepless DC inverter compressor
  • EEV Technology (Electronic Equalisation Valve)
• Quick reverse cycle defrosting with 4-way valve
  • High-efficiency twisted titanium heat exchanger
  • High pressure and low pressure protection
• Soft start and wide voltage application
  • Stable inverter control system

2.5 OPERATING CONDITIONS AND RANGE

Air temperature operating range:

I-PAC (IPT X models): -5-43°C

I-PAC+ (IPT Y models): -10-43°C

Water temperature setting range:

Heating: 18°C-40°C

Cooling: 12°C-30°C

2.6 OPERATING MODES

The heat pump has two modes: Boost mode and Whisper mode.

Mode Modes Characteristics
	Boost mode	Heating capacity: 20% to 100% capacityIntelligent optimizationFastest heating
	Whisper mode	Heating capacity: 20% to 80% capacitySound level: 3dB(A) lower than Boost mode

3.0 INSTALLATION

Installation must only be attempted by competent personnel.

3.1 POSITIONING AND AIRFLOW

The heat pump must be positioned in a well ventilated area. Minimum distances between the heat pump and any obstructions are shown below.

• The heat pump must be fixed by M10 bolts to a concrete base or mounting brackets. These must be solid and fixed securely. Brackets must be corrosion proof.
• Do not block inlet or outlet grilles.

Airflow - general principles

The heat pump absorbs energy from the air drawn through it. To function effectively the heat pump must have access to the fresh air it needs.

• Air must not recirculate. The air leaving the heat pump must not be sucked back into the inlet.
• Air must not be restricted. The air volume must not be reduced.
- The minimum required distances shown below must be provided to minimise the risk of air recirculation or restriction and reduction in performance. Further examples are shown on the following page.

700mm 2500 mm 500 mm 700mm

Possible positions of a Calorex heat pump

Suitable opening

The red lines represent the air inlet area

\* Controls are obscured by the wall. Connect to optional remote control panel or Wi-Fi before installing the heat pump in position.

Required free areas to provide air flow to and from heat pumps when installed in an enclosed area or where required to pass air through a wall etc. Ensure the heat pump is sealed against the wall so the outlet air cannot recirculate. Ensure the hole through the wall is sealed to avoid the outlet air entering cavities and is smooth so the outlet air is not restricted.

Free area is the available area through which air can pass through a grille or louvres.

Minimum free areas m^2
Model Discharge area
IPT 8 0.169
IPT 12 0.169
IPT 16ALX 0.169
IPT 16ALY 0.229
IPT 22 0.301
IPT 28 0.301

To comply with safety regulations regarding electrical installations in wet areas the heat pump must be installed at least 350cm away from the edge of the pool or spa.

>350 cm Swimming pool or spa

3.2 REFRIGERANT TYPE AND INSTALLED LOCATION

This heat pump contains R32, which is an environmentally friendly refrigerant with a GWP (Global Warming Potential) of 675. R32 has the safety in use classification of A2L, being low toxicity and lower flammability. In practical terms it is very difficult to ignite an A2L refrigerant, but this classification requires a risk assessment to be undertaken for the possibility of refrigerant being released by accident into an area connected to the heat pump, considering the application, location of components, and the installed refrigerant charge. This installation guidance can form the framework for such a risk assessment for the installation.

All flammable refrigerants will not ignite if the concentration level in a room stays below their lower flammability limit (LFL). European standard EN378 defines requirements to remain far below the lower flammable limit in case of accidental leakage. By choosing the location as dictated by EN378-1:2016 the probability of forming a flammable atmosphere can be eliminated. Please refer to the minimum area for each product and the interpretation below regarding locations of heat pump and swimming pool. This information is provided as a guide only and does not supersede the regulations or health and safety requirements.

Model IPT	8ALX IPT1	2ALX IPT16	ALX IPT22AL	X IPT12ALY	IPT16ALY	IPT22A/BLY	IPT28ALY
Refrigerant charge	R32 kg 0.6	0.9 1.1 2	0.9 1.2 2 2.7
Minimum area	m^2 3.1 6.9	10.3 34.0	6.9 12.3 34.0	62.0
Notes *Assumed worst case for access category: a - general access and location class: I - mechanical equipment in occupied space; both as defined in line with EN378-1 2016 section 5.1 table 4 and section 5.3*Minimum Area is calculated in line with section C.2 on EN378-1 2016 (calculation C.2)

INTERPRETATION

Please refer to the installation situations below for how to apply the minimum area stated above.

Pool outside and heat pump outside:

Automatically meets the minimum area requirement because outside space is unlimited.

Pool outside and heat pump inside a plant room:

Automatically meets the minimum area requirement because the room must open to the outside for heat pump airflow and the outside space is unlimited.

Pool inside and heat pump outside:

The pool hall must exceed the minimum area requirement shown above.

Pool inside and heat pump inside a plant room, isolated from the pool hall:

The pool hall must exceed the minimum area requirement shown above.

Pool inside and heat pump inside a plant room, ventilated to the pool hall:

The pool hall and plant room combined must exceed the minimum area requirement shown above.

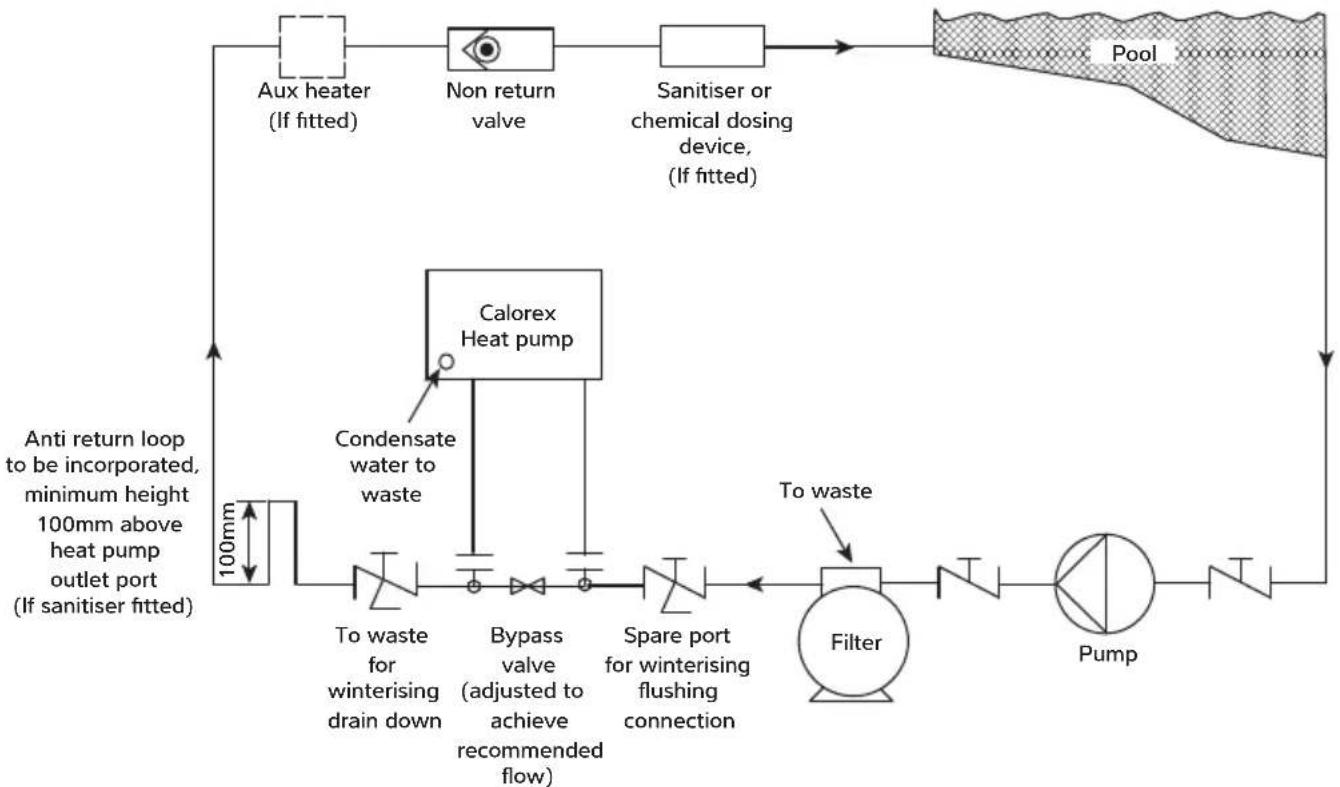

3.3 POOL WATER CIRCUIT

KEY
Isolation valve
Breakable coupling
Three way valve

3.4 PLUMBING

IMPORTANT

Before installing the heat pump ensure the blanking disks are removed from the pool water in/out connections. These should drop out when the adaptors are unscrewed.

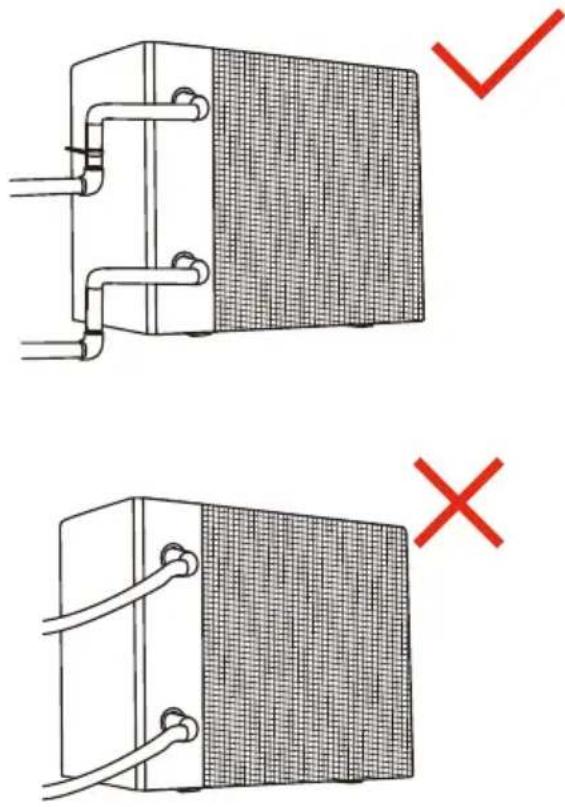

1. Ensure that bypass is installed and set to achieve the recommended flow rates stated in the data sheet.
2. Ensure that the condensate drain kit supplied is fixed and is drained to a drain or soak-away. (It is best to do this first before the heat pump is fixed to pipework or the ground).
3. Inlet and outlet pipework must be supported to avoid excessive strain on the connections.
4. Water quality must be maintained. See warranty conditions.

Water out Water in

Hose. Condensate adaptor.
Fit in hole in base of unit. Approximate position shown.
Note: Fittings shown at larger scale for clarity.

Technical diagram showing two mechanical components with red checkmark and cross symbols indicating failure or rejection status.

3.5 INITIAL CHECKS

Start the filtration pump before the heat pump is turned on, and turn off the heat pump before the filtration pump. It is recommended to turn off the heat pump prior to backwashing.

Before starting the heat pump, please check for any leakage of water; and check/set the required temperature on the controller, and then turn on.

In order to protect the components, the heat pump incorporates time delays. When starting heating/cooling the fan will run for one minute before the compressor starts. When the heat pump stops heating/cooling, or is turned off by the user, the fan will continue to run for one minute.

After starting up, check for any error codes or abnormal noise from the heat pump.

3.6 ELECTROLYTIC CORROSION IN SWIMMING POOLS

Electrolytic corrosion will occur when dissimilar metals that are in contact with each other create a potential difference between themselves. Sometimes separated by a conductive substance known as an electrolyte, the dissimilar metals will create a small voltage (potential difference) that allows the ions of one material to pass to the other.

Just like a battery, ions will pass from the most positive material to the more negative material.

Anything more than 0.3 volts can cause the most positive material to degrade.

A swimming pool with its associated equipment can create this effect. The pool water being an ideal electrolyte and components of the filtration circuit, heating system, steps, lights etc providing the dissimilar metals needed to complete the circuit.

Whilst these small voltages are rarely a safety threat, they can create premature failure through corrosion. Not dissimilar to corrosion through oxidation, electrolytic corrosion can cause complete failure of a metallic material in a very short period of time.

In order to prevent this type of corrosion all metallic components in contact with swimming pool water should be bonded together using 10mm^2 bonding cable. This includes non-electrical items such as metal filters, pump strainer boxes, heat exchangers, steps and handrails. It is highly recommended that bonding be retrofitted to existing pools, which may not be protected by this system.

3.7 ELECTRIC WIRING AND SUPPLY

All electrical work to be carried out in accordance with I.E.E. regulations, latest issue, or local codes of practice as applicable.

The machine should be installed in accordance with EMC2004/108/EC.

Always isolate the main power supply before removing machine covers.

The machine power supply must incorporate the following. Fuses or motor type circuit breakers (aM Fuse / MCB type C) to specified rating (see datasheet). When using a fuse, H.R.C. fuses are recommended. An isolator which disconnects all poles must be must fitted within 2m and in line of sight of the heat pump. The isolator must have a minimum of 3mm air gap when turned off.

All units must be correctly earthed/grounded and its own separate type RCD earth leakage trip installed which protects the machine only. See data sheet for the correct type.

The following limits of operation must not be exceeded. Failure to provide the necessary voltages will invalidate the warranty. This voltage must be available at the heat pump whilst running. The voltage must not drop below the above figures when starting the compressor.

Minimum Maximum

Voltage

Single phase machines 207V 253V

Three-phase machines 360V 440V

Cycle frequency (50Hz) 47.5Hz 52.5Hz

3.8 CONNECTING THE HEAT PUMP TO THE POWER SUPPLY

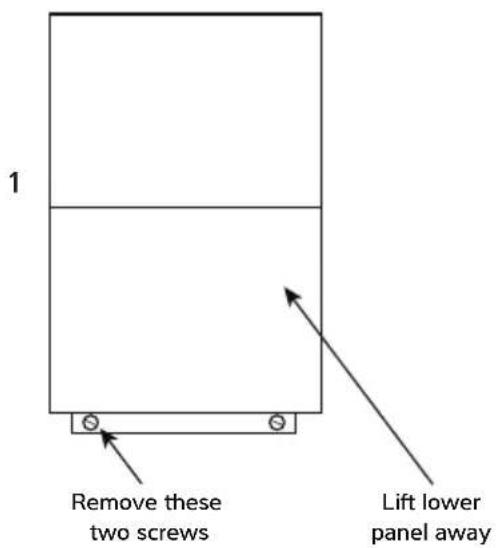

1 Remove these two screws Lift lower panel away

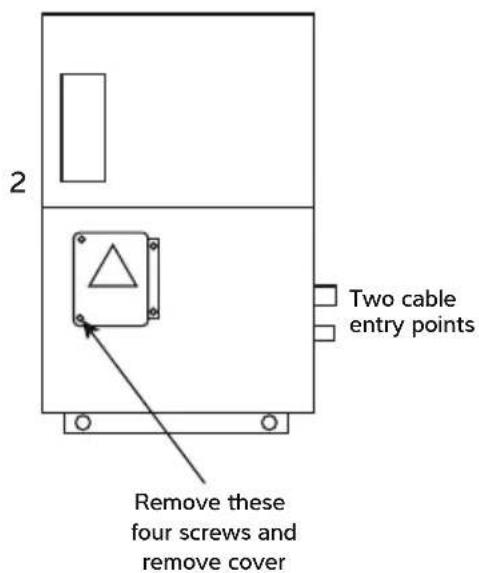

2 Remove these four screws and remove cover Two cable entry points

Single phase
Terminals in Heat Pump Electrics enclosure

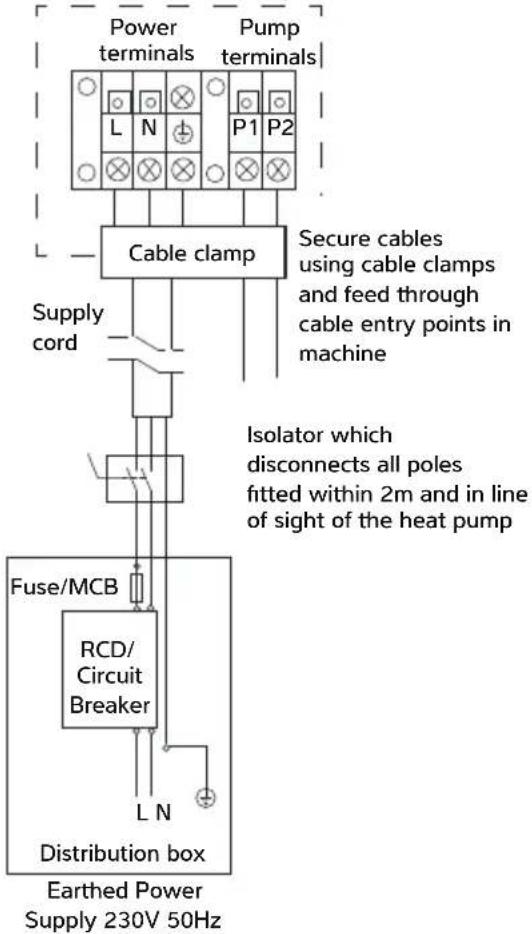

Power terminals Pump terminals L N P1 P2 Cable clamp Secure cables using cable clamps and feed through cable entry points in machine Supply cord Isolator which disconnects all poles fitted within 2m and in line of sight of the heat pump Fuse/MCB RCD/ Circuit Breaker Distribution box L N Earthed Power Supply 230V 50Hz

Three phase
Terminals in Heat Pump Electrics enclosure

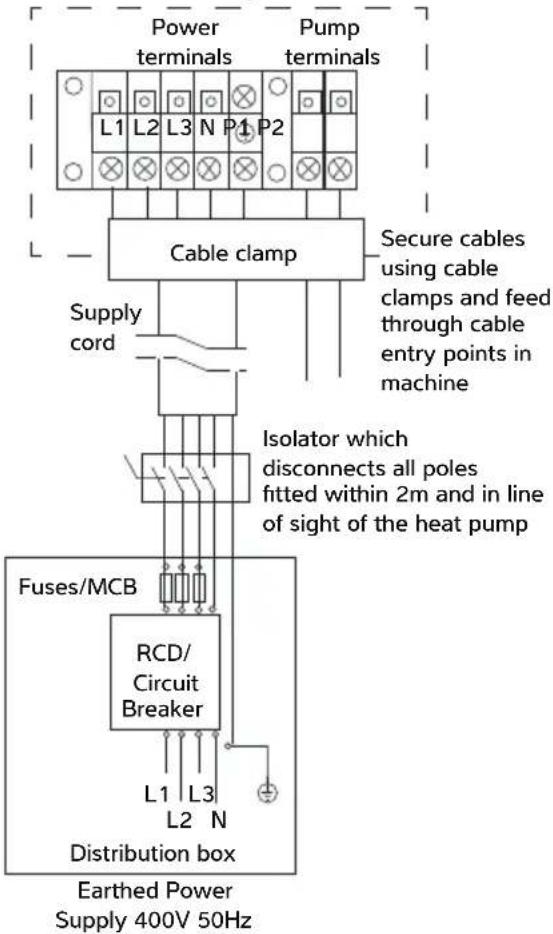

Power terminals Pump terminals L1 L2 L3 N P1 P2 Cable clamp Secure cables using cable clamps and feed through cable entry points in machine Supply cord Isolator which disconnects all poles fitted within 2m and in line of sight of the heat pump Fuses/MCB RCD/ Circuit Breaker Distribution box L1 L2 N Earthed Power Supply 400V 50Hz

3.9 POOL PUMP SYNCHRONISATION TERMINALS P1 AND P2

For installations where the pool filter pump runs continuously, these terminals do not need to be used.

For installations where a timeclock controls the pool filter pump, and the same pump provides water flow to the heat pump, the heat pump can override "pump off" periods to ensure the pool is heated/cooled. To activate this setting please speak to your installer.

When installed in parallel with the timeclock, the pool filter pump will run when:

a) a block period of "pump on" has been set on the time clock for filtration purposes.

b) the heat pump runs the pool filter pump for temperature sampling and if the pool subsequently requires heating/cooling.

This feature operates by over-riding the timeclock for 3 minutes to circulate the pool water through the heat pump to sample the water temperature. The default sampling time interval is 1 hour. If the

measured temperature is more than 1^ C from the set temperature, the point heat pump will continue to run the filter pump and heat/cool the pool. If the measured temperature is within 1^ C of the set temperature, the filter pump will turned off until the next sampling period, or the next timeclock “pump on” period.

When the pool pump is already running, and the heat pump is not heating/cooling, the heat pump will sample the water temperature once per hour and will start heating/cooling if needed. The heat pump will ignore a demand to heat/cool the pool until the sampling timer (default 1 hour) has elapsed*.

This feature will reduce the pool filter pump run time to minimise pump energy usage.

*If the pool filter pump is later changed to run continuously, it is recommended to de-activate this setting so the heat pump will respond to a heating/ cooling demand without waiting for the sampling time interval to elapse. To deactivate this setting please speak to your installer.

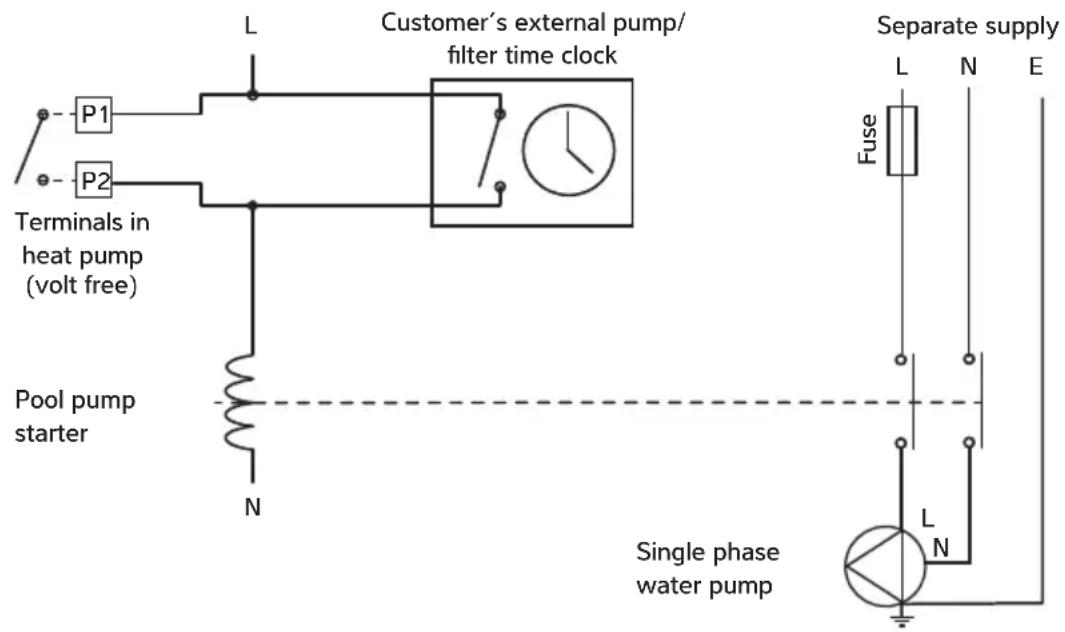

Customer's external pump/ filter time clock Separate supply L N E P1 P2 Terminals in heat pump (volt free) Pool pump starter N Single phase water pump Fuse L N

3.10 INSTALLING THE OPTIONAL REMOTE CONTROLLER

This optional accessory replaces the integral controller and can be installed up to 10m away.

Take the lid off the I-PAC to gain access to the existing controller. Remove the front cover. Disconnect the plug from the socket on the back of the controller as shown.

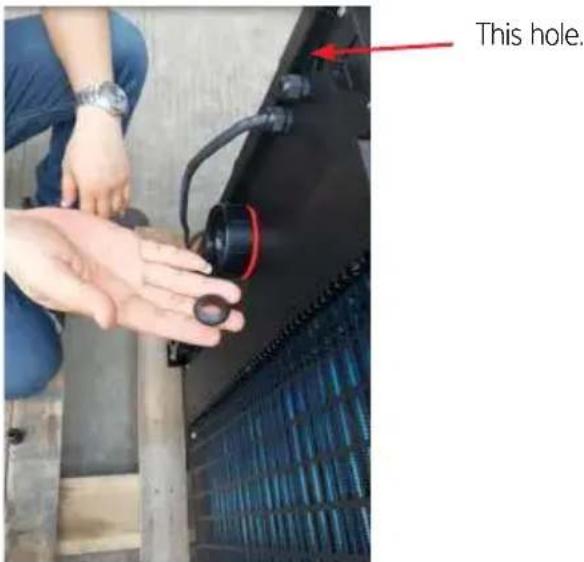

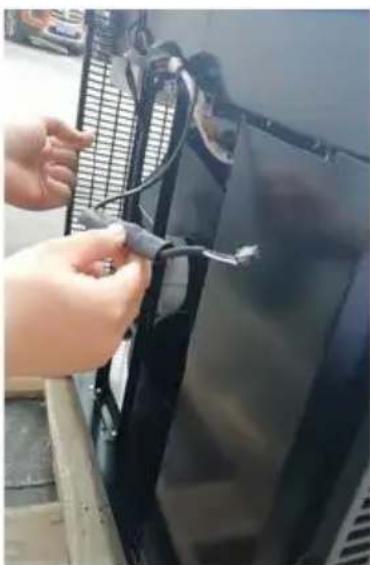

Remove the bulkhead connector from the position shown and replace it with a rubber grommet.

Person installing or adjusting a black panel on a wooden surface (no visible text or symbols)

Feed the 10m cable through the grommet.

This hole.

Route the cable inside the I-PAC securing it where necessary.

Close-up of a hand using a tool to adjust or install a black electronic device with cables and connectors (no visible text or symbols)

Close-up of hands installing a black plastic component with a cable, no visible text or symbols

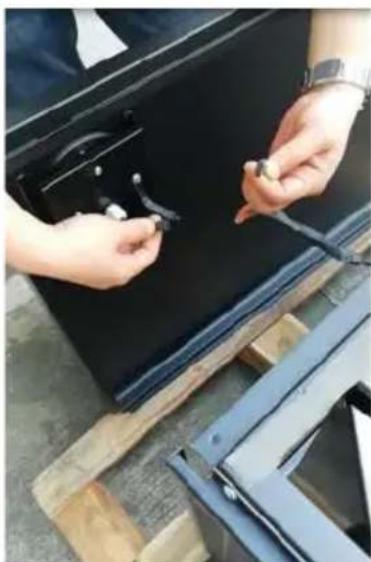

Connect the lead. Connect the lead.

Close-up of hands installing or adjusting a small component on a dark surface, no visible text or symbols

Remove the two screws from the back of the Remote Controller.

Two white electronic devices with internal components, one displaying a display screen and the other showing a circular socket (no visible text or symbols)

White electronic device with black cable and connector, placed on a wooden surface (no visible text or symbols)

Remove the appropriate knock out and fit the back of the box to the wall.

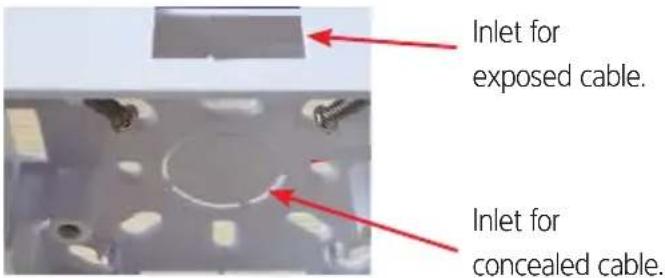

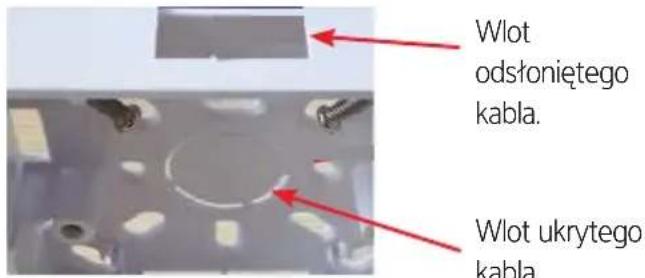

Inlet for exposed cable. Inlet for concealed cable.

If the cable is concealed, fit the grommet in the hole to protect the cable from rubbing.

Secure the cable from the controller in the I-PAC

Refit the front cover and the top cover.

To check that the installation is correct, set the temperature on the remote controller to slightly higher than the pool water. The I-PAC should run to heat the pool, immediately if the pump synchronisation is not in use, or at the next sampling period if pump synchronisation is in use.

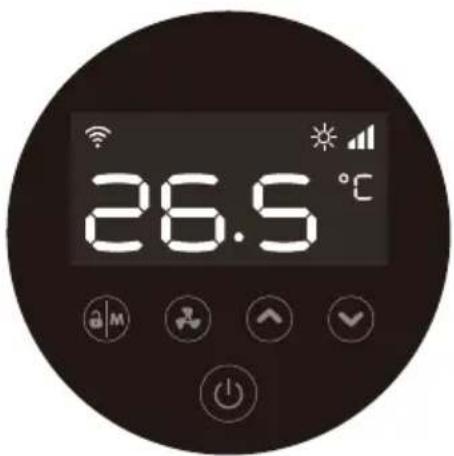

Symbol Designation Function
	On/Off	1. Power On/Off2. Wi-Fi Setting
	Lock/Unlock and Heat Mode	1. Lock/Unlock Screen2. Heating mode (18-40°C)3. Cooling mode (12-30°C)4. Auto mode (12-40°C)
	Speed Mode	1. Boost2. Whisper
	Up/Down Temperature Setting

The buttons will turn dark when the controller is locked.

4.2 OPERATING INSTRUCTIONS

IMPORTANT

Remember that at startup there is a 1 minute time delay before the heat pump starts

a. Screen lock

1) Press 3 seconds to lock or unlock the screen. The buttons will turn dark when the controller is locked.

2) Automatic lock period: 30 seconds if no operation.

b. Power on

Press 📄M8 seconds to unlock screen.

Press to power on the heat pump.

c. Temperature setting

Press and to display and adjust the set temperature.

d. Mode selection

1. Heating/Cooling/Auto

Press ☐ to switch between heating, cooling, and automatic modes.

Mode Symbol Water temperature setting range
Heating		18-40°C
Cooling 12-30°C
Auto		12-40°C

e. Speed Mode selection

Press to switch between Boost mode and Whisper mode.

Default mode: Boost.

Please choose Boost mode for initial heating.

f. Wi-Fi

When the screen is on, press 📋 on 3 seconds, after flashes, enter Wi-Fi connection.

Connect Wi-Fi on mobile phone and input password, then control equipment by Wi-Fi. When APP connects Wi-Fi successfully 📤 light is on.

g. Defrosting

1. Automatic defrosting: When the heat pump is defrosting, the lamp flashes; after defrosting the lamp stops flashing.

2. Forced defrosting: When the heat pump is heating and the compressor has been running continuously for at least 10 minutes, press ⚣ and √ simultaneously for 5 seconds to start forced defrosting. The ┌ lamp flashes and defrost starts, when the ┌ lamp stops flashing defrosting stops.

The interval between forced defrosts must be more than 30 minutes.

4.3 USING THE APP

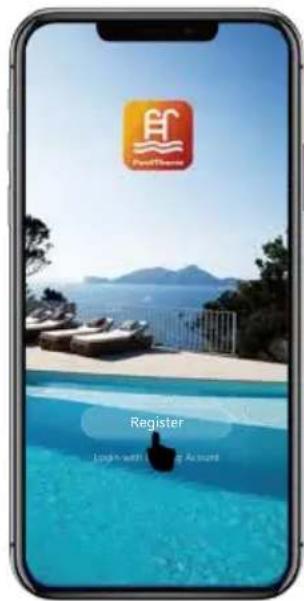

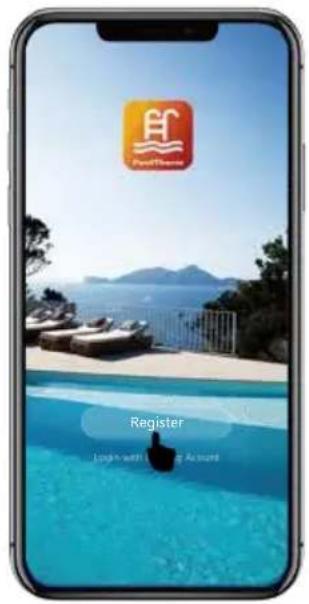

a. APP Download b. Account registration

Android please download from

iOS please download from

1. Register by mobile or E-mail.


PepTherms Register Login with 200 Account

1. Mobile or E-mail registration.

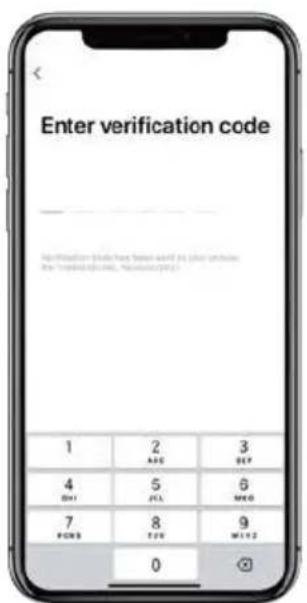

Register Germany +49 Obtain verification code I agree with Service Account and Private Ratio

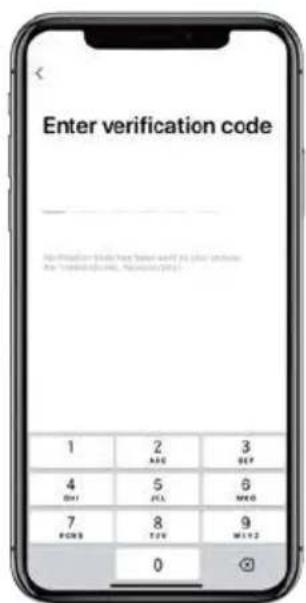

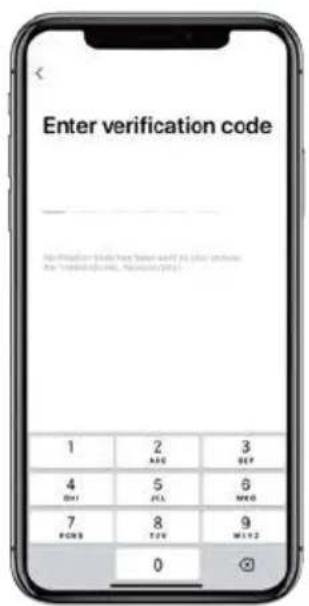

Enter verification code Amplification code has been sent to the previous the trading code, following page 1 2 3 A## ##Y 4 5 6 #H PL ##D 7 8 9 #C#S T#X M#Z 0

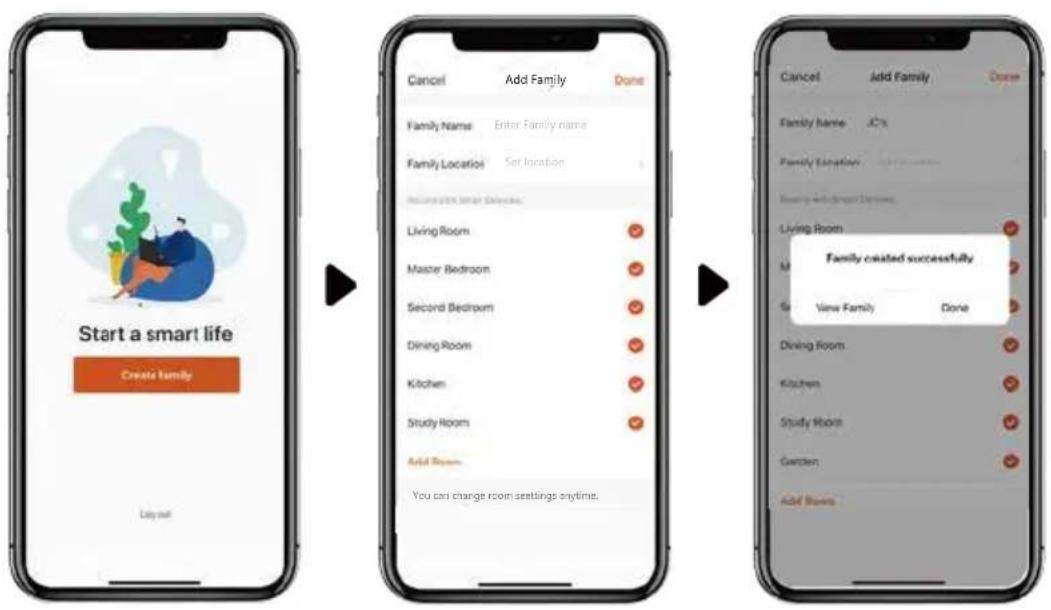

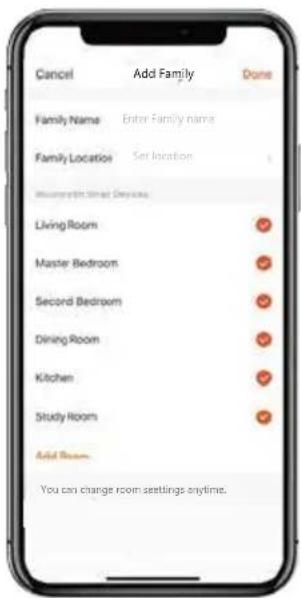

c. Create family

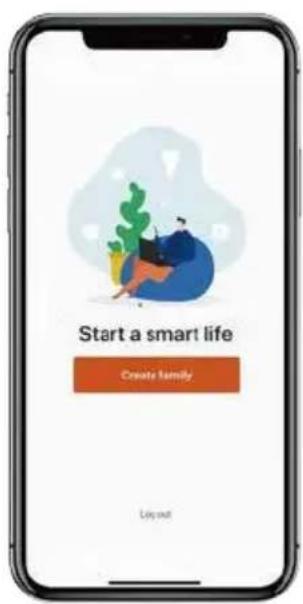

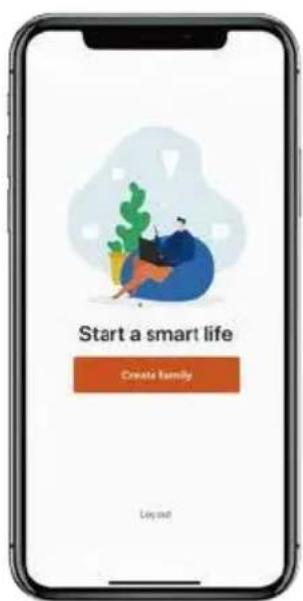

Start a smart life Create family Lay out

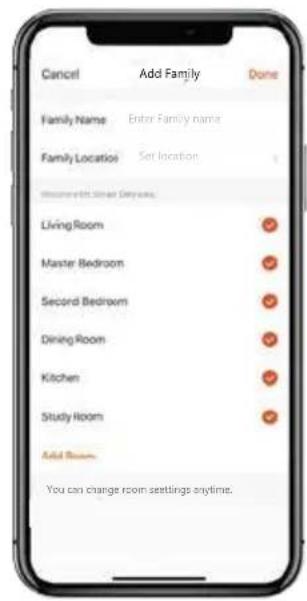

Cancel Add Family Done Family Name Enter Family name Family Location Set location Recommended Sign or Unknown Living Room Master Bedroom Second Bedroom Dining Room Kitchen Study Room Add Room You can change room settings anytime.

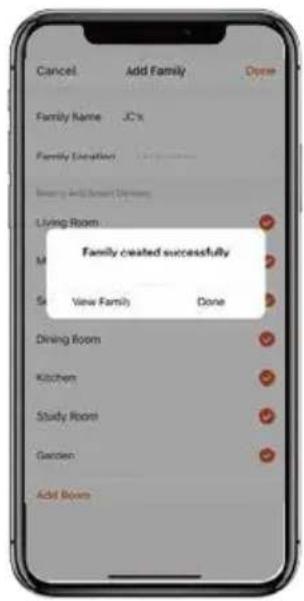

Cancel Add Family Done Family Name JC's Family Type Living Room Family created successfully View Family Done Dining Room Kitchen Study Room Garden Add Room

d. APP Pairing

26.5 °C

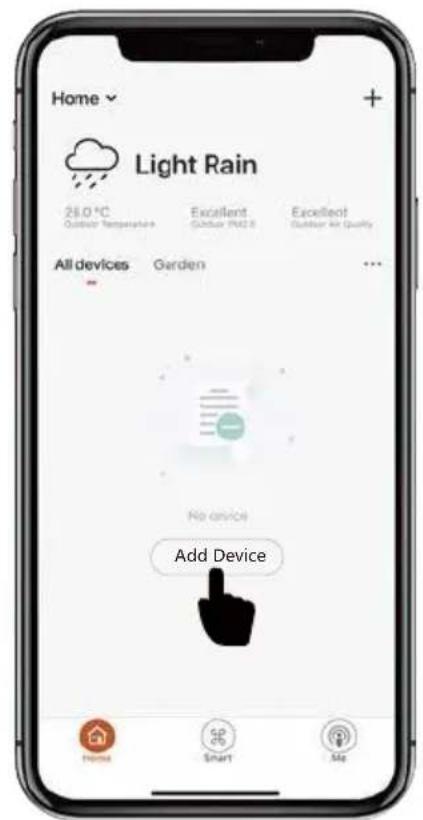

Please make sure you are connected to the Wi-Fi.

1. Press "f" three seconds to unlock the screen.

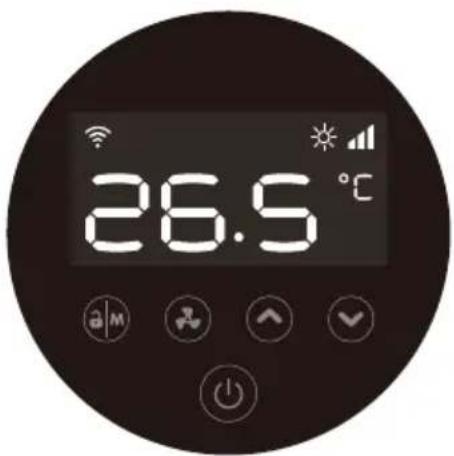

2. Press "💡" for three seconds then release, after hearing the beep, enter the Wi-Fi code. During connection the "💡" flashes. When the APP connects to the Wi-Fi successfully the "💡" light will come on.

Home Light Rain 28.0 °C Outdoor Temperature Excellent Outdoor HVAC 5 Excellent Outdoor Air Quality All devices Garden No device Add Device Home Smart Air

▶

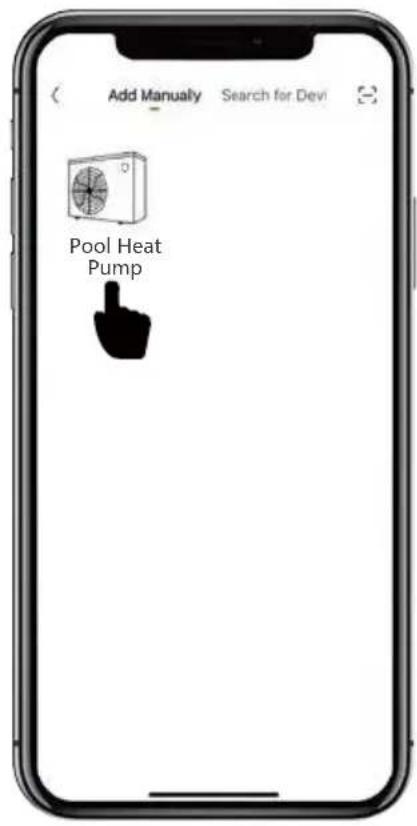

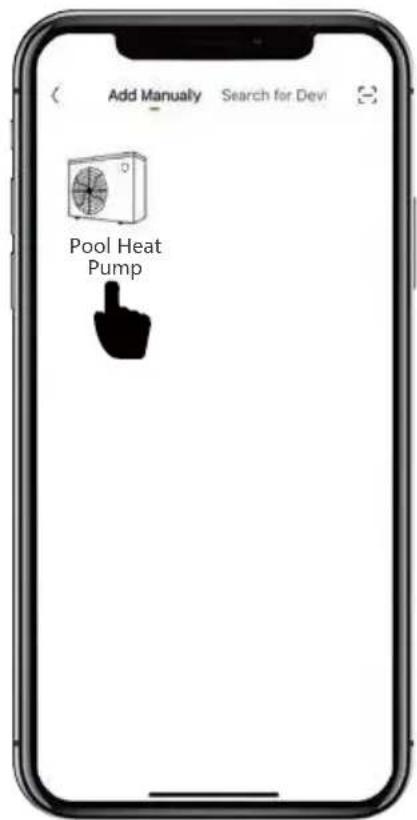

Add Manually Search for Devi Pool Heat Pump

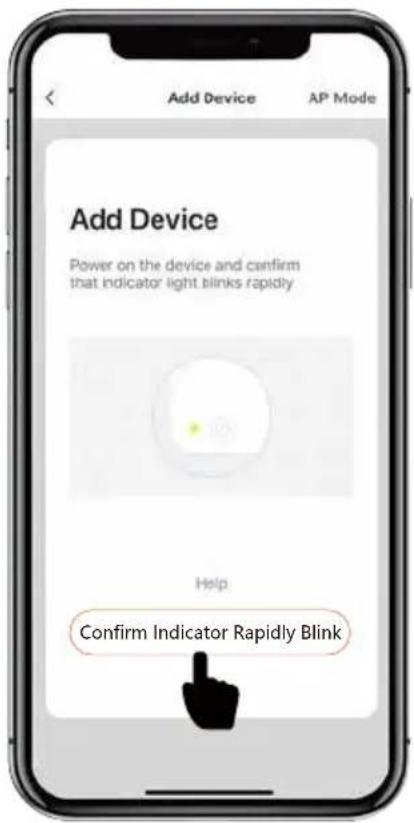

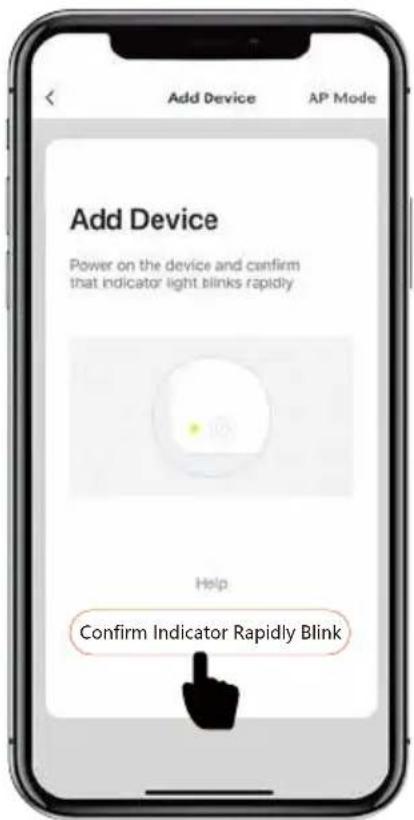

Add Device Power on the device and confirm that indicator light blinks rapidly Help Confirm Indicator Rapidly Blink

▶

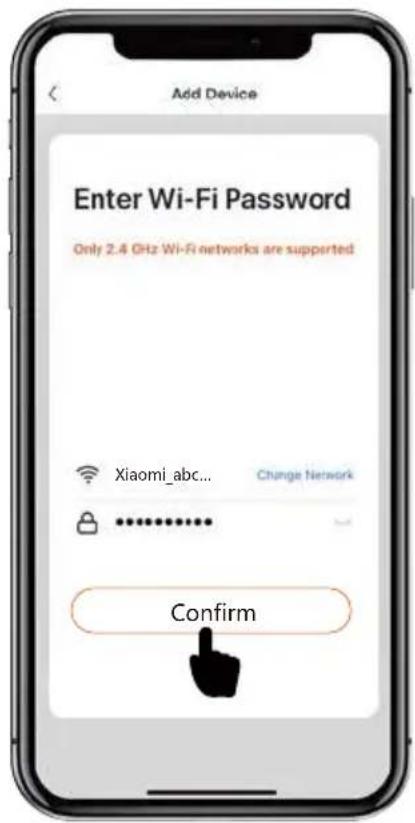

Add Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

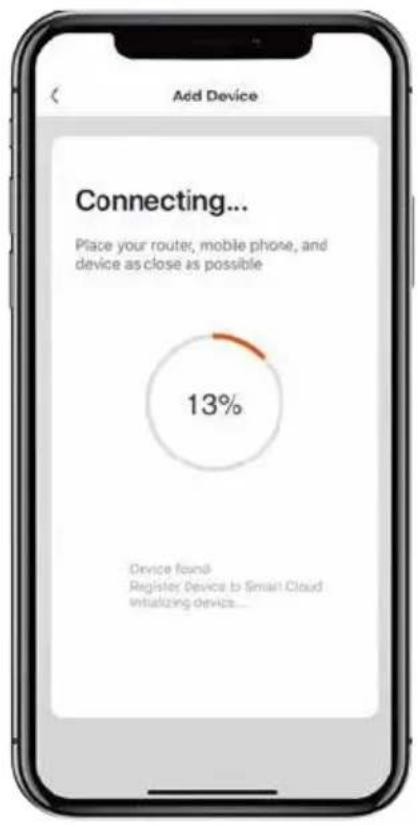

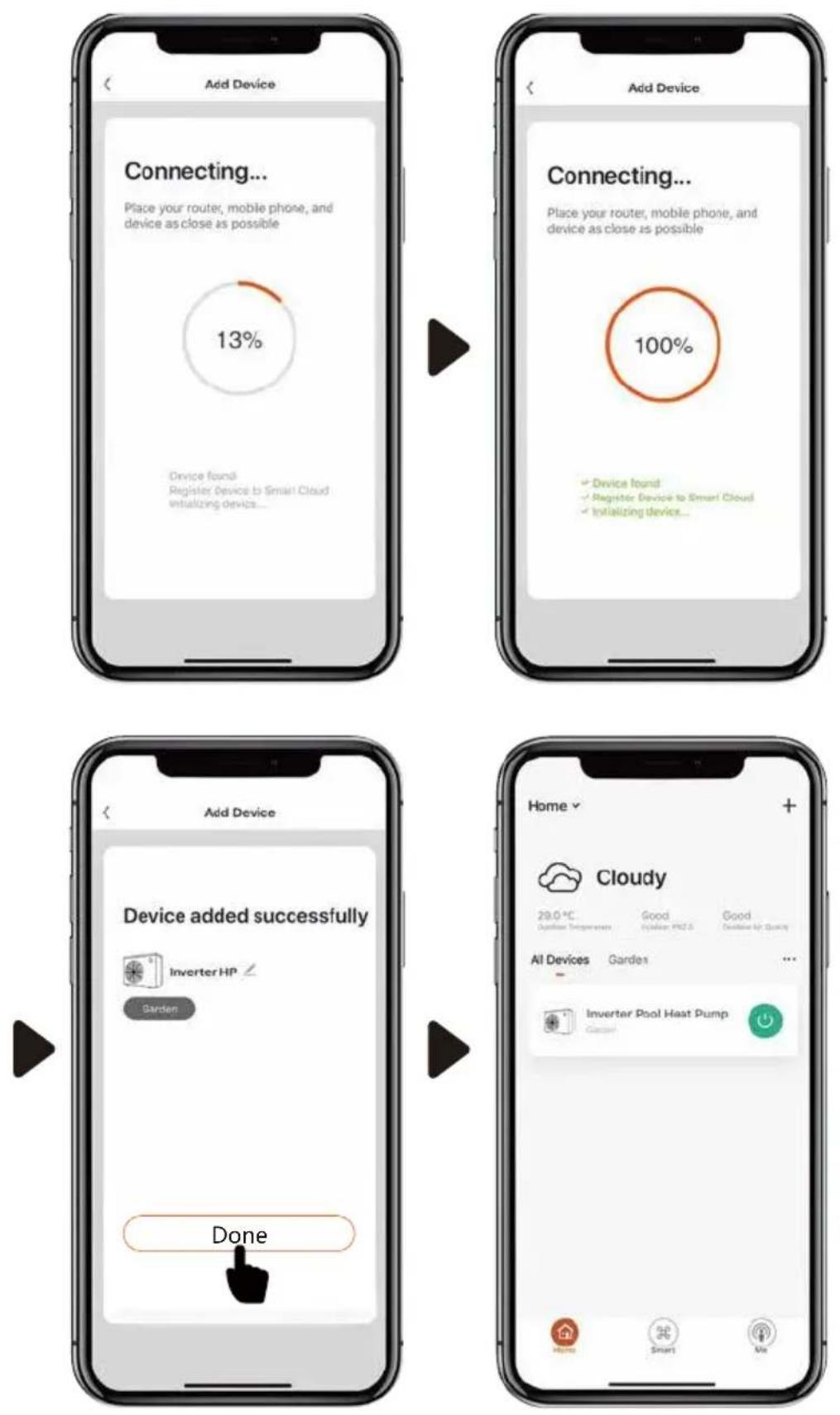

Add Device Connecting... Place your router, mobile phone, and device as close as possible 13% Device found Register Device to Smart Cloud initializing devices...

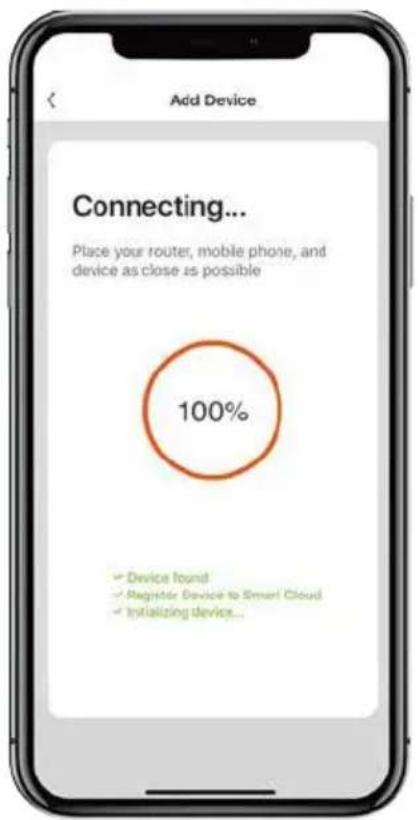

Add Device Connecting... Place your router, mobile phone, and device as close as possible 100% Device found Register Device to Smart Cloud Initializing device...

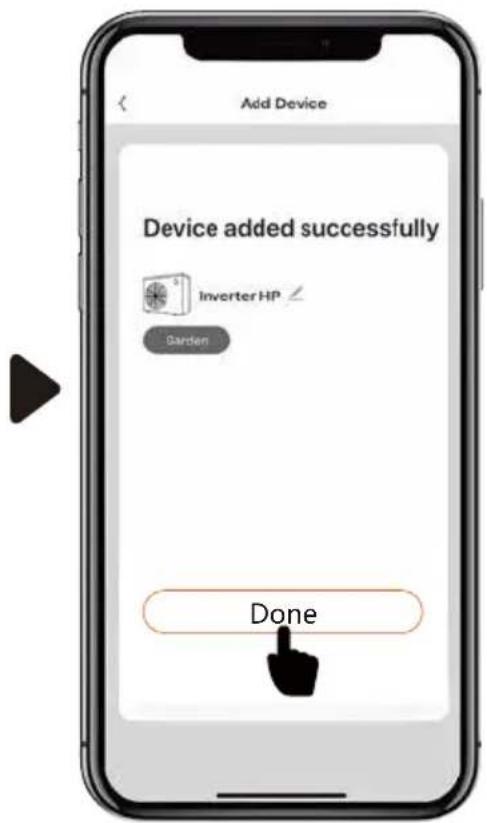

Add Device Device added successfully Inverter HP Garden Done

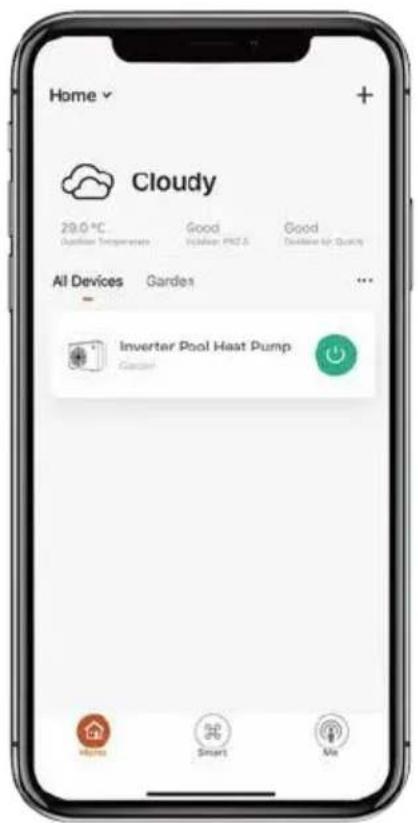

Home Cloudy 29.0 °C Good Good Air Quality Temperature Air Quality All Devices Garden Inverter Pool Heat Pump Garden

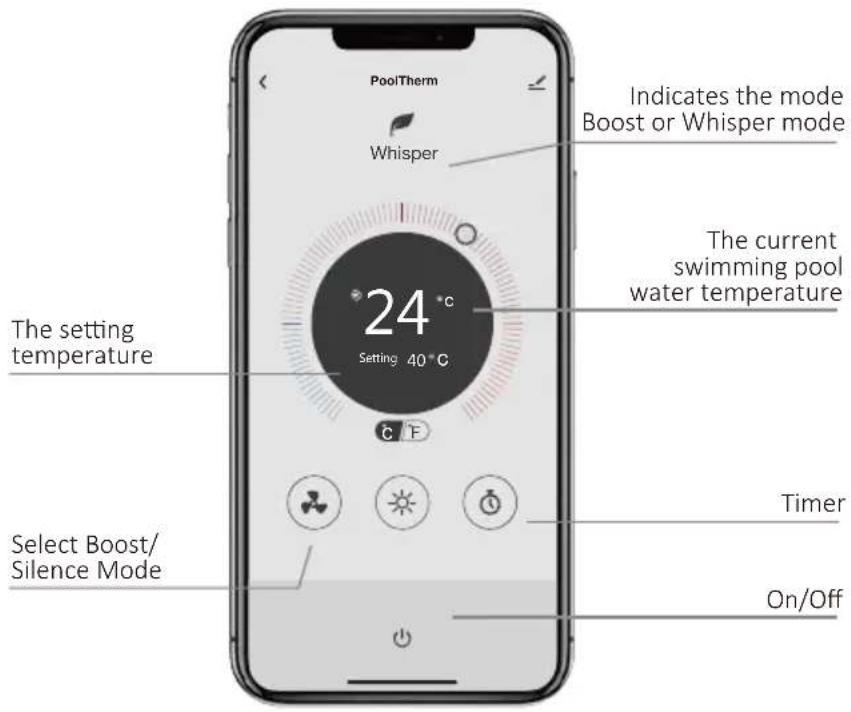

e. Operation

1. For heat pump with Heating function only :

PoolTherm Whisper Indicates the mode Boost or Whisper mode The setting temperature 24 °C Setting 40 °C The current swimming pool water temperature C F Timer Select Boost/ Silence Mode On/Off

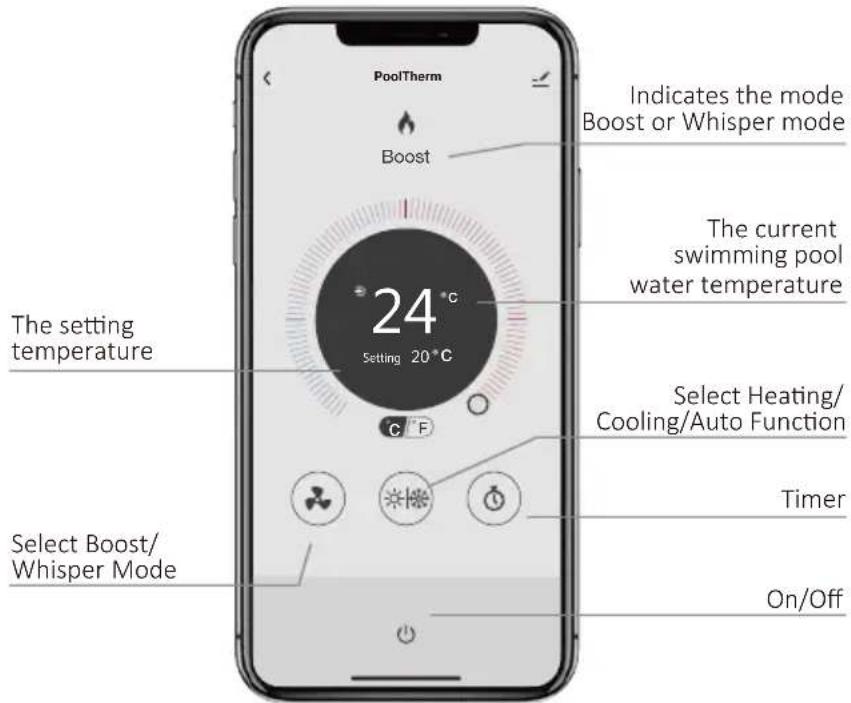

1. For heat pump with Heating and Cooling function :

PoolTherm Indicates the mode Boost or Whisper mode Boost The setting temperature 24°C Setting 20°C C F The current swimming pool water temperature Select Heating/ Cooling/Auto Function Timer Select Boost/ Whisper Mode On/Off

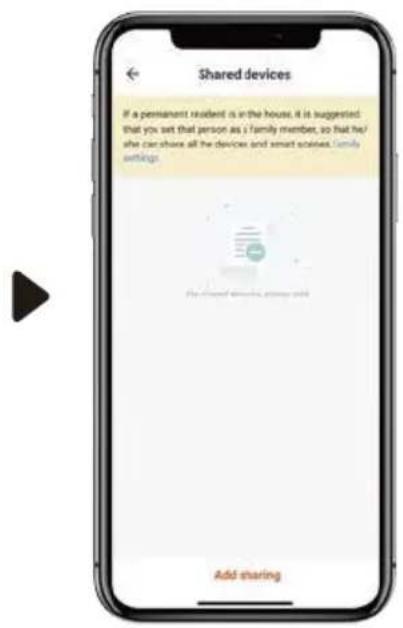

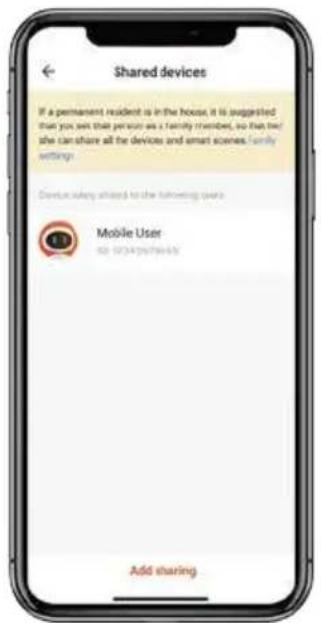

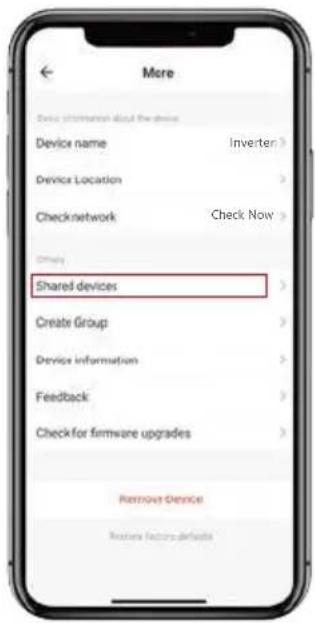

f. Share devices to your family members

After pairing, if your family members also want to control the device.

Please let your family members register the APP first, and then the administrator can operate as below:

PoolTherm Boost 24°C Setting 20°C C F

More Device information about the device Device name Inverter > Device Location Check network Check Now > Options Shared devices > Create Group > Device information > Feedback > Check for firmware upgrades > Remove Device Restore factors defaults

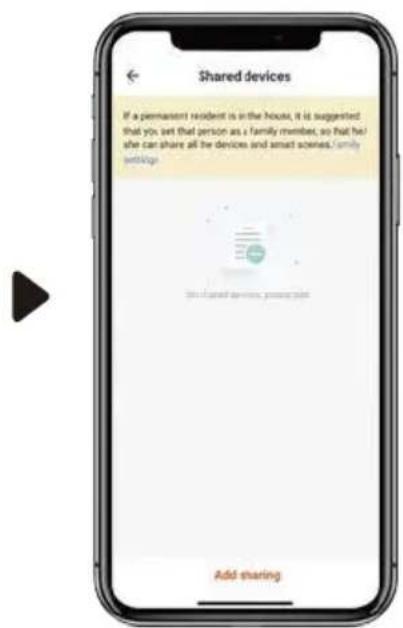

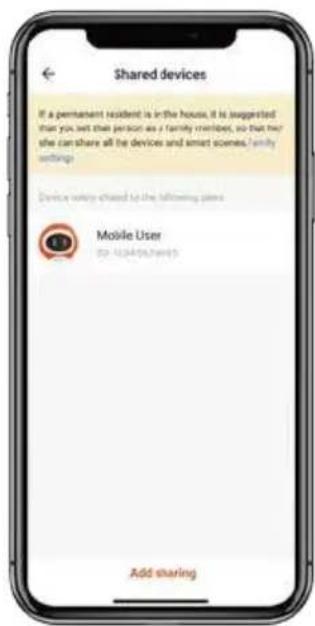

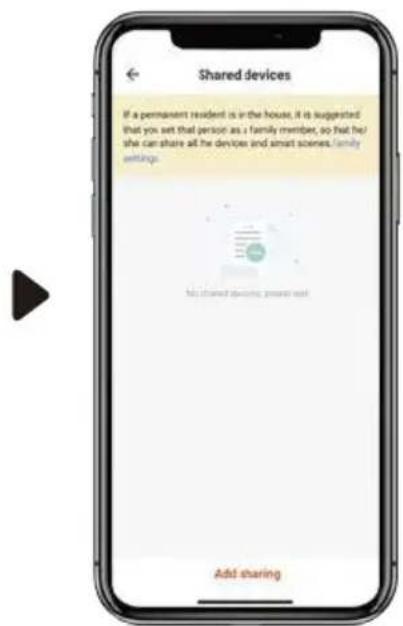

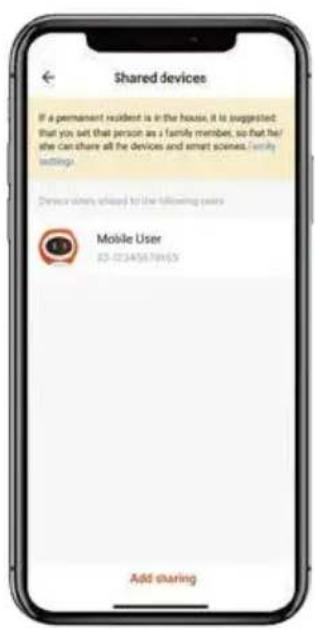

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that he/ she can share all the devices and smart games. Family settings. The shared devices, together said Add sharing

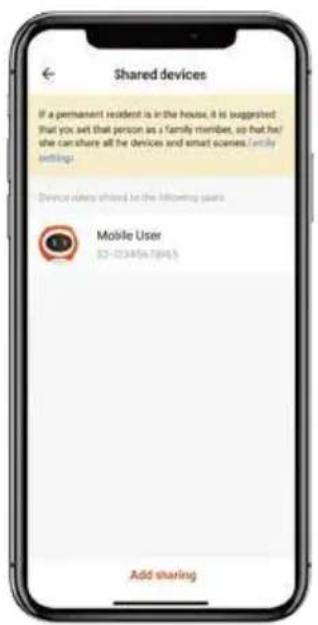

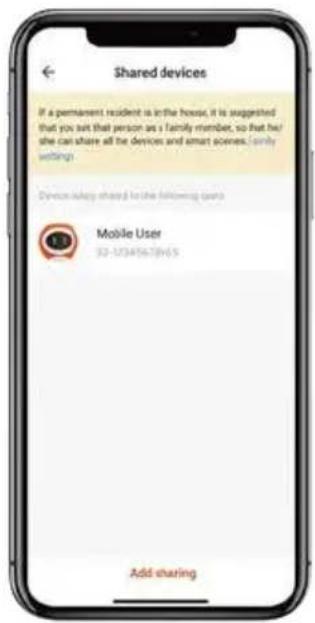

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that he/ she can share all the devices and smart scenes/family settings. Device who was shared to the following users: Mobile User 02-0345678945 Add sharing

Notes:

1. The weather forecast is just for reference.

App is subject to updating without notice.

4.4 USING THE OPTIONAL REMOTE CONTROLLER

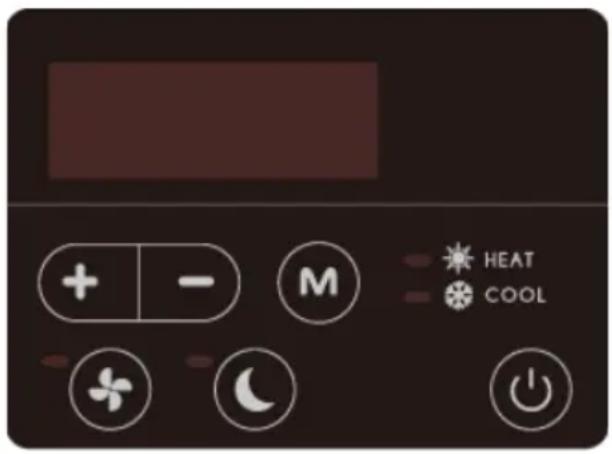

4.5 THE KEY PAD

+ - M HEAT COOL

Symbol Function
			Power On/Off
			Heating/Cooling/Auto mode
			Press to start Boost mode
			Press to start Whisper mode
			Temperature setting and display.

4.6 OPERATING INSTRUCTIONS

a. Power On & Power Off

Press to power on or power off the heat pump.

b. Temperature Setting

Press + - to display and adjust temperature.

c) Mode selection

1. Heating/Cooling/Auto modes

Press Ⓜ to choose heating, cooling and automatic mode.

In heating mode the ✿ light is on.

In cooling mode the light is on.

In automatic mode the and the lights are on.

1. Whisper and Boost modes

Press 📋 to start Boost mode, and light will turn on.

Press 📞 to start Whisper mode, and light will turn

on. (Default mode is Boost).

Please choose Boost mode for initial heating.

c. Defrosting

1. Automatic defrosting

When machine is defrosting, the -lamp flashes; after defrosting the -lamp is illuminated.

1. Forced defrosting

When the heat pump is heating and the compressor has been working continuously for at least 10 minutes, press Ⓞ and □ on the touchscreen controller simultaneously for 5 seconds to start forced defrosting. The ┌ lamp flashes and defrost starts, when the ┌ lamp stops flashing defrosting stops.

The interval between forced defrosts must be more than 30 minutes.

5.0 TESTING

Inspect the heat pump before use

• Check that the fan, air inlets and outlets are not obstructed.
• It is prohibited to install refrigeration pipe or components in corrosive environment.

5.1 HEAT PUMP MALFUNCTION

WARNING: Isolate heat pump electrically, and wait 3 minutes before removing panels or entering heat pump.

• Refer to the user check list in section 5.2 and the error codes listed in section 5.3 before initiating a service call.

• Do not attempt to interfere with any internal control settings as these have been factory calibrated and sealed.

• Check that the electric wiring conforms to the electric wiring diagram and that the machine is earthed.

• Double check that the main power switch is off.
• Check the temperature setting.

- Any sign of abnormal operation such as water dripping should be reported immediately to the installer. If in doubt or if advice is required contact the Service support team on telephone [phone] (option 4).

Fault Reason Solution
Heat pump doesn’t run	No power Wait until the power is restored
	Power is switched off Switch on the power
	Fuse has blown Check and change the fuse
	The breaker is off Check and turn on the breaker
Fan running but with insufficient heating	Evaporator blocked Remove the obstructions
	Air outlet blocked Remove the obstructions
	Compressor start delay Wait for the delay timer to time out
Display normal, but no heating	Set temperature too low Set desired heating temperature
	Start delay Wait for the delay timer to time out
Inaccurate switch action	Stop the machine, and cut off the power supply immediately, then contact your dealer
The fuse blows frequently or leakage circuit breaker trips frequently
If above solutions don’t work, please contact your installer with detailed information and your model number. Don’t try to repair it yourself.

5.2 PROTECTION CODES

These codes indicate machine stopping due to external circumstances.

These are not faults with the heat pump.

No Display Reason Solution
1 E3	No water flow through the heat pump. Check water circuit and pool pump.
2 E4	Three phase rotation protection.		Check phases connected correctly (Electrician required)
3	E5	Voltage of power supply to heat pump is out of range.	Check the power supply.
4	E6	Low water flow indicated by more than 10°C difference in inlet and outlet temperature.	Check water flow and pool pump.
5	Eb	Ambient temperature is out of range, either lower than -5°C (-10°C Y version) or higher than 43°C.	If outside, wait for ambient conditions to improve (winterisation may be required). If installed in a sheltered place, check for air recirculation.
5	Ed	Frost protection. The heat pump runs in heating mode for a short time when in standby mode to prevent frost build up. This does not replace winterisation.	Heat pump will resume standby once process is completed.

5.3 FAULT CODES

When the heat pump displays these error codes please contact your installer for advice.

No Display Description of fault code

1 E1 High pressure alarm

2 E2 Low pressure alarm

4 E7 Water outlet temp out of range alarm

5 E8 High exhaust temp alarm

6 EA Evaporator overheat alarm (only in cooling mode)

7 P0 Controller communication failure

8 P1 Water inlet temp sensor failure

9 P2 Water outlet temp sensor failure

10 P3 Gas exhaust temp sensor failure

11 P4 Evaporator coil pipe temp sensor failure

12 P5 Gas return temp sensor failure

13 P6 Cooling coil pipe temp sensor failure

14 P7 Ambient temp sensor failure

15 P8 Cooling plate sensor failure

16 P9 Current sensor failure

17 PA Restart memory failure

18 F1 Compressor drive module failure

19 F2 PFC module failure

20 F3 Compressor start failure

21 F4 Compressor running failure

22 F5 Inverter board over current protection

23 F6 Inverter board overheat protection

24 F7 Current protection

25 F8 Cooling plate overheat protection

26 F9 Fan motor failure

27 Fb Power filter plate - no power protection

28 FA PFC module over current protection

6.0 MAINTENANCE

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Isolate the power supply of the heat pump and wait 3 Minutes before cleaning, examination or repair.

Cover the heat pump body when not in use.

Please clean this machine with household detergents or clean water, NEVER use petroleum spirit, thinners or any similar fuel.

Check bolts, cables and connections regularly.

Repair, service and disposal of redundant heat pumps must be completed by authorised technicians. It is illegal to allow refrigerant gases to escape to air.

Do not attempt to work on the equipment by yourself. Improper operation may cause danger.

7.0 TROUBLE SHOOTING COMMON FAULTS

Yellow triangular warning sign with black exclamation mark symbol

Requirements for service personnel

Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, F-Gas registered.

Do not attempt to work on the equipment by yourself.

8.0 DATASHEETS

MODEL UNITS IPT8	ALX IPT	12 ALX IPT16 ALX	IPT22 ALX
PERFORMANCE CONDITION: Air 27°C/Water 27°C/RH 80%
Heating capacity kW 9.5 13.0 20.0	25.0
COP range 13.2-5.4 13.5-5.6 13.5	5.7 13.8	5.8
Average COP at 50% Speed		8.9	9.7	9.3	9.6
PERFORMANCE CONDITION: Air 15°C/Water 26°C/RH 70%
Heating capacity kW 7.0	9.5	13.5	17.0
COP range		6.9-4.2	7.0-4.0	7.0-4.2	7.2-4.0
Average COP at 50% Speed		6.3	6.1	6.3	6.4
PERFORMANCE CONDITION: Air 35°C/Water 28°C/RH 80%
Cooling capacity (kW)		3.9	5.2	7.4	9.4
TECHNICAL SPECIFICATIONS
Operating air temperature	°C	-5°C to 43°C
Water heating setting range °C		18°C to 40°C
Water cooling setting range	°C	12°C to 30°C
POWER SUPPLY		230V Single Phase 50Hz
Rated input power	kW	0.3-1.79	0.40-2.38	0.57-3.21	0.69-4.25
Rated input current	A	1.38-7.58	1.82-10.8	2.60-14.61	3.16-19.32
Maximum input current	A	9.5	12.5	19.5	20
Rated RCD type F	mA	30	30	30	30
Rated Fuse aM / MCB type C	A	16	16	25	25
Sound pressure level at 10m	dB(A)	19.6-31.5	21.9-32.0	24.3-36.1	24.9-36.7
Recommended water flow rate	m^3/h	3.0-5.0	4.0-6.0 7.0-10.0	10.0-12.0
Pressure drop	m/kPa	0.36/3.5	0.41/4.0	0.56/5.5	0.77/7.5
Pool water connections	Inches	11⁄2" or 50mm Female
GENERAL DATA
Net dimensions (w x d x h)	mm	864 x 359 x 648	864 x 359 x 648	954 x 359 x 748	1084 x 429 x 948
Packed dimensions (w x d x h)	mm	950 x 375 x 675	950 x 375 x 675	1040 x 375 x 775	1130 x 445 x 985
Net weight	kg	47	49	68	90
HERMETIC SYSTEM
Refrigerant charge R32	kg	0.6	0.9	1.1	2.0
Minimum area requirement	m2	3.1	6.9	10.3	34.0

NOTES: Heat pump performance parameters are subject to change without notice. Always refer to the nameplate.
Global warming potential (GWP) R32 - 675.
The data is subject to modification without prior warning.

MODEL UNITS IPT 12	ALY IPT	16 ALY IPT22 ALY
PERFORMANCE CONDITION: Air 27°C/Water 27°C/RH 80%
Heating capacity kW 15.0 21.0 27.5
COP range 15.0-6.6 14.8-6.4 15.0-6.5
Average COP at 50% Speed 10.6 10.3 10.3
PERFORMANCE CONDITION: Air 15°C/Water 26°C/RH 70%
Heating capacity kW 10.5 14.5 18.0
COP range 7.7-4.6 7.1-4.6		7.5-4.6
Average COP at 50% Speed		6.4	6.3	6.3
PERFORMANCE CONDITION: Air 35°C/Water 28°C/RH 80%
Cooling capacity	kW	6.7	9.5	11.9
TECHNICAL SPECIFICATIONS
Operating air temperature	°C	-10°C to 43°C
Water heating setting range		18°C to 40°C
Water cooling setting range		12°C to 30°C
POWER SUPPLY		230V Single Phase 50Hz
Rated input power	kW	0.27-2.28	0.41-3.15	0.48-3.91
Rated input current	A	1.17-9.91	1.78-13.69	2.08-17.00
Maximum input current	A	13.5	17	20
Rated RCD type F	mA	30	30	30
Rated Fuse aM / MCB type C	A	20	25	25
Sound pressure level at 10m	dB(A)	20.8-24.5	20.4-33.7	23.0-34.4
Recommended water flow rate	m^3/h	5.0-7.0	8.0-10.0	10.0-12.0
Pressure drop	m/kPa	0.49/4.8	0.61/6.0	0.77/7.5
Pool water connections	Inches	11⁄2" or 50mm Female
GENERAL DATA
Net dimensions (w x d x h)	mm	954x359x648	954x429x755	1084x429x948
Packed dimensions (w x d x h)	mm	1040x445x655	1040x445x655	1130x445x985
Net weight	kg	52	68	90
HERMETIC SYSTEM
Refrigerant charge R32	kg	0.9	1.2	2.0
Minimum area requirement	m2	6.9	12.3	34.0

NOTES: Heat pump performance parameters are subject to change without notice. Always refer to the nameplate.
Global warming potential (GWP) R32 - 675.
The data is subject to modification without prior warning.

MODEL UNITS IPT16	BLY IPT	22 BLY IPT28 BLY
PERFORMANCE CONDITION: Air 27°C/Water 27°C/RH 80%
Heating capacity kW 21.0 27.5 36.0
COP range 14.8-6.4 15.0-6.8 14.8-6.0
Average COP at 50% Speed 10.3 10.3 10.2
PERFORMANCE CONDITION: Air 15°C/Water 26°C/RH 70%
Heating capacity kW 14.5 18.0 23.9
COP range 7.1-4.6 7.5-4.6		7.5-4.6
Average COP at 50% Speed		6.3	6.3	6.3
PERFORMANCE CONDITION: Air 35°C/Water 28°C/RH 80%
Cooling capacity	kW	9.5	11.9 16.0
TECHNICAL SPECIFICATIONS
Operating air temperature °C		-10°C to 43°C
Water heating setting range		18°C to 40°C
Water cooling setting range		12°C to 30°C
Power supply		400V Three Phase 50Hz
Rated input power	kW	0.41-3.15	0.48-3.91	0.64-5.20
Rated input current	A	0.59-4.56	0.69-5.66	0.92-7.53
Maximum input current	A	5.8	7	9.5
Rated RCD type B	mA	30	30	30
Rated Fuse aM / MCB type C	A	10	10	16
Sound pressure level at 10m	dB(A)	20.4-33.7	23.0-34.4	22.1-34.2
Recommended water flow rate	m^3/h	8.0-10.0	10.0-12.0	12.0-18.0
Pressure drop	m/kPa	0.61/6.0	0.77/7.5	0.85/8.5
Pool water connections Inches		11⁄2" or 50mm Female
GENERAL DATA
Net dimensions (w x d x h)	mm	954x429x755	1084x429x948	1154x539x948
Packed dimensions (w x d x h)	mm	1040x445x655	1130x445x985	1200x555x985
Net weight	kg	68	93	120
HERMETIC SYSTEM
Refrigerant charge R32	kg 1.2	2.0	2.7
Minimum area requirement	m2 12.3 34.0 62.0

NOTES Heat pump performance parameters are subject to change without notice. Always refer to the nameplate.
Global warming potential (GWP) R32 - 675.
The data is subject to modification without prior warning.

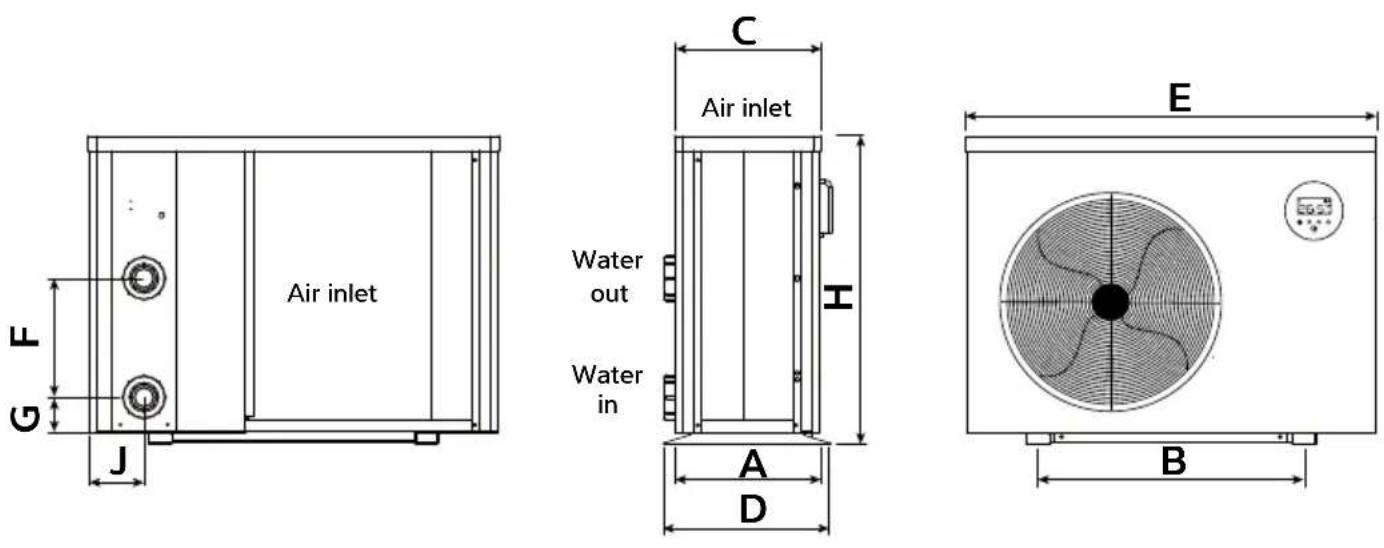

9.0 DIMENSIONS

	A B C	D E F G H J
IPT8 ALX 334	560	318	359	864	250	74	648	116
IPT12 ALX 334	560	318	359	864	290	74	648	116
IPT16 ALX 334	590	318	359	954	390	74	748	116
IPT22 ALX 404	720	388	429	1084	640	74	948	107

	A B C	D E F G H J
IPT12 ALY 334	590	318	359	954	340	74	648	107
IPT16 ALY 404	590	388	429	954	460	74	755	107
IPT16 BLY 404	590	388	429	954	460	74	755	107
IPT22 ALY 404	720	388	429	1084	620	74	948	107
IPT22 BLY 404	720	388	429	1084	620	74	948	107
IPT28 BLY 514	790	498	539	1154	650	74	948	128

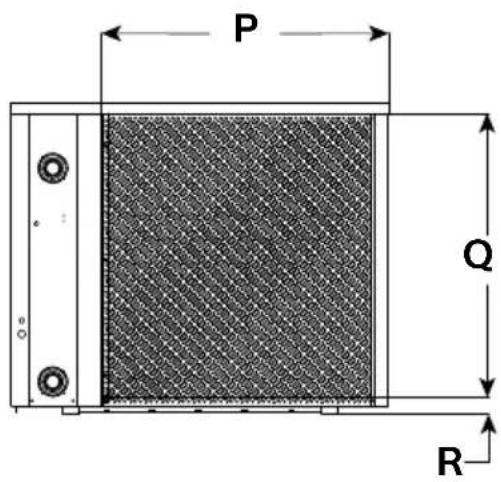

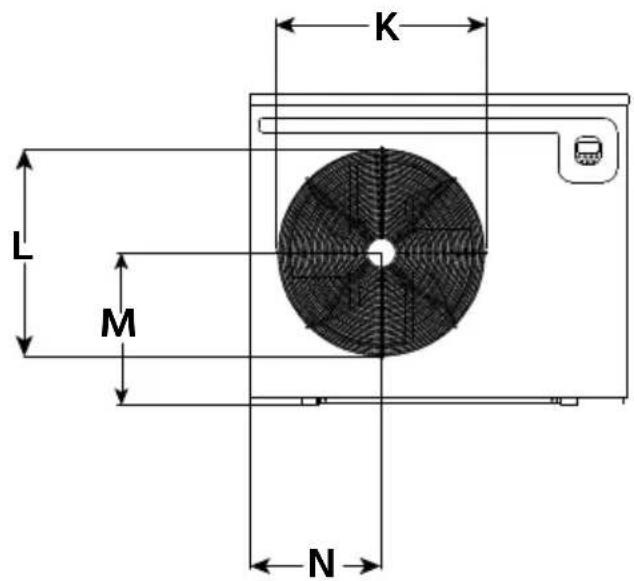

9.1 DIMENSIONS

K L M N

P Q R

	KLMNPQR
IPT8 ALX	478 465	285 288 533 565 50
IPT12 ALX	478 465	285 288 630 565 50
IPT16 ALX	478 465	349 315 675 666 50
IPT22 ALX	645 630	462 405 799 861 50

	KLMNPQR
IPT12 ALY	478 465	300 349 743 566 50
IPT16 ALY	587 540	370 349 731 667 50
IPT16 BLY	587 540	370 349 731 667 50
IPT22 ALY	645 630	462 405 799 861 50
IPT22 BLY	645 640	462 405 799 861 50
IPT28 BLY	645 630	462 400 876 866 50

10.0 WINTERISATION PROCEDURE

WARNING. Isolate machine before opening! As heat pump embodies electrical and rotational equipment, it is recommended for your own safety that a competent person carries out the following procedure.

(Drain Down Procedure)

ALL MODELS

Objective

To provide frost protection

To eliminate corrosion problems

To inhibit electrical components

1. Switch off electrical supply to heat pump.
2. Remove external fuses and keep in safe place away from heat pump to prevent accidental operation of heat pump.

3. Ensure water circulation pump is switched off.

4. Drain water from heat pump by:
   a) Drain valve if fitted.
   b) Disconnecting pipework to and from heat pump.
   c) Remove condenser drain down cover.
   d) Flush through water circuit in heat pump by using CLEAN TAP WATER (NOT POOL WATER) via hose into outlet connection – run for 10 minutes minimum, use spray nozzle if available.
   e) Allow to drain – fit plastic bags secured by elastic bands over water connections.

5. Uncover electrical enclosure (page 18) and liberally spray interior of unit, with moisture repellent aerosol WD-40 or similar, reseal enclosure.
6. If heat pump located outside, protect from weather by covering with VENTILATED cover. A bespoke cover is available. Do not use plastic sheet as condensation can occur within unit.

If this procedure is not adopted and frost or corrosion damage results then the warranty will become invalid.

10.1 START UP PROCEDURE AFTER WINTERISATION

1. Replace covers (if not fitted).
2. Remove front grille – using soft brush clean finned surfaces of heat pump. Replace panel.
3. Remove plastic covers on water connections and reconnect water piping or close drain valve.

4. Start up water circulating pump and leave running for at least 14 hour to establish flow and enable any air in system to escape.

5. Replace fuses to heat pump circuit.

6. Switch on heat pump.
7. Check control thermostat is set to required pool temperature.
8. Check daily to ensure pool water is at correct pH and has correct chemical balance. See section 11.0 Warranty conditions.

11.0 WARRANTY CONDITIONS

The following exclusions apply to the warranty given by Dantherm Ltd. No claims will be accepted if:

1. The heat pump is installed in any way that is not in accordance with the current procedures as defined by Dantherm Ltd.
2. The heat pump has been worked upon or is adjusted by anyone other than a person authorised to do so by Dantherm Ltd.
3. The heat pump is incorrectly sized for the application.
4. The water flow through the machine is outside the specified limits.
5. The water pH level and/or chemical balance is outside the following limits:

Acidity pH pH 7.2 - 7.8
Total Alkalinity, as CaCO3 ppm	80 - 1	20
Total Hardness, as CaCO3 ppm	150 - 2	250
Total Dissolved Solids ppm	1000
Maximum Salt Content ppm	35000
Free Chlorine Range ppm 1	- 2 Domestic
Free Chlorine Range ppm 3	- 6 Commercial
Superchlorination max 30ppm for 24 hrs
Bromine ppm 2 - 5
Baquacil ppm 25 - 50
Ozone ppm 0.9 Max
Maximum Copper Content ppm 1
Aquamatic Ionic Purifier	ppm 2 Max

1. The heat pump has suffered frost damage.

2. The electrical supply is insufficient or in any way incorrect.

3. The fan amps and duct pressure are outside the specified limits.

4. The air flow to and from the machine is outside the specified limits.

If in doubt or if advice is required please contact the Dantherm Group UK Service Department by calling [phone] (option 4) or email [e-mail]

Please give MODEL NUMBER and SERIAL NUMBER of your heat pump when making technical or service enquiries. This will assist in correct diagnosis and ensure service can be provided with the minimum delay.

12.0 DECLARATION OF CONFORMITY

DANTHERM GROUP

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

[phone]

DECLARATION OF CONFORMITY

We hereby certify that the following Dantherm models:

IPT8A, IPT12A, IPT16A, IPT22A, IPT16B, IPT22B, IPT28B range of electrically driven refrigeration heat pumps.

Conforms with

EN 60335-1:2012+A13:2017, EN 60335-2-40:2015, EN 62233:2008 and therefore comply with the Low Voltage Electrical Equipment Directive 2014/35/EU and the essential safety requirements of the Machinery Directive 2005/42/EC.

Conforms with

EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013 and therefore comply with the Electromagnetic Compatibility Directive 2014/30/EU.

Compliant to RoHS Directive 2011/55/EC amended by Directive [EU] 2015/863

Inside the scope of the WEEE directive 2012/19/EU.

Don Kempster

Finance Director

Lincretive 2012/12/30.

Date

25/3/2021

AERIAL

calorex

Dantherm

MASTER

Dantherm A/S

Marienlystvej 65

DK-7800 Skive

Denmark

t.+45 96 14 37 00

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

Dantherm GmbH

Oststraße 148

22844 Norderstedt

Germany

t.+49 40 526 8790

Dantherm S.p.A.

Via Gardesana 11

37010 Pastrengo (VR)

Italy

L.+39 045 6770533

Dantherm Sp. z o.o.

ul. Magazynowa 5a

62-023 Gadki

Poland

t.+48 61 65 44 000

Dantherm SP S.A.

C/Calabozos 6

(Polígono Industrial)

28108 Alcobendas, Madrid

Spain

t.+34 91 661 45 00

Dantherm SAS

23 rue Eugène Henaff

69694 Vénissieux Cedex

France

t.+33478471111

Dantherm AS

Løkkeåsveien 26

3138 Skallestad

Norway

t.+47 33 35 16 00

Dantherm AB

Fridhemsvägen 3

602 13 Norrköping

Sweden

t.+46(0)11 19 30 40

Dantherm LLC

Transportnaya 22/2

142800, Stupino

Moscow

Russia

t.+7(495)6424448

MCS China

Unit 2B, No. 512

Yunchuan Road

Baoshang, Shanghai, 201906

China

t.+8621 61486668

Termigo S.L

Manufacturers details:

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t. [phone]

[e-mail]

Exterior view of a gray industrial air conditioning unit with a black fan and ventilation grille (no visible text or symbols)

TABLE DES MATIÈRES

PRÉCAUTIONS DE SÉCURITÉ....2

1.0 INTRODUCTION ....4

1.1 AVANT-PROPOS ....4

1.2 AVERTISSEMENTS....4

2.2 ACCESSOIRES......8

2.3 ACCESSOIRES EN OPTION....9

2.4 CARACTÉRISTIQUES....10

2.5 CONDITIONS ET PLAGE DE FONCTIONNEMENT .... 10

2.6 MODES DE FONCTIONNEMENT .....10

3.0 INSTALLATION 11

3.1 POSITIONNEMENT ET CIRCULATION D'AIR....11

3.2 TYPE DE RÉFRIGÉRANT ET POSITION INSTALLÉE ....14

3.3 CIRCUIT D'EAU DE PISCINE.... 15

3.4 PLOMBERIE....16

3.5 CONTRÔLES INITIAUX ....16

3.6 CORROSION ÉLECTROLYTIQUE DANS LES PISCINES....17

3.7 CÂBLAGE ÉLECTRIQUE ET ALIMENTATION....17

3.8 RACCORDEMENT DE LA POMPE À CHALEUR À L'ALIMENTATION ÉLECTRIQUE... 18

3.9 SYNCHRONISATION DE LA POMPE DE PISCINE BORNES P1 ET P2....19

3.10 INSTALLATION DU DISPOSITIF DE COMMANDE À DISTANCE EN OPTION ....20

4.0 UTILISATION DE VOTRE POMPE À CHALEUR....22

4.1 CLAVIER....22

4.2 MODE D'EMPLOI 23

4.3 UTILISATION DE L'APP 24

4.4 UTILISATION DE LA COMMANDE À DISTANCE EN OPTION....30

4.5 CLAVIER....30

4.6 MODE D'EMPLOI 31

5.0 TESTS 32

5.1 DYSFONCTIONNEMENT DE LA POMPE À CHALEUR....32

5.2 CODES DE PROTECTION ....33

5.3 CODES DE PANNES....34

6.0 MAINTENANCE 35

7.0 DÉPANNAGE DES PANNES COURANTES .....35

8.0 FICHES TECHNIQUES....36

9.0 DIMENSIONS....39

9.1 DIMENSIONS....40

10.0 PROCÉDURE D'HIVERNAGE 41

10.1 PROCÉDURE DE DÉMARRAGE APRÈS L'HIVERNAGE ....41

11.0 CONDITIONS DE GARANTIE 42

12.0 DÉCLARATION DE CONFORMITÉ CE .....43

1.0 INTRODUCTION

1.1 AVANT-PROPOS

Line drawing of a rectangular air conditioner unit with a five-petal fan and control panel (no text or symbols)

Riebben Feetchouc (kit de 4)

Close-up of a black cylindrical object with a metallic protrusion and a small metallic end (no visible text or symbols)

Simple line drawing of a box with two boxes and two arrows pointing outward (no text or symbols)

Close-up of a white, coiled, looped plastic or rubber film against a dark background (no text or symbols visible)

Simple line drawing of a rectangular box with an upward arrow on its side, placed on a base (no text or symbols)

X

Line drawing of a hand opening a cabinet with two circular switches (no text or symbols)

Watercolors de commercio's eau

2 × 112, 2 × 50mm

Four black plastic washers arranged in a 2x2 grid (no text or symbols visible)

Drainageakite

2.3 ACCESSOIRES EN OPTION

Stacked cardboard boxes on a conveyor belt, no visible text or symbols

2.4 CARACTÉRISTIQUES

Possible positions of a Calorex heat pump

Swimming pool spa >350 cm

3.2 TYPE DE RÉFRIGÉRANT ET LIEU D'INSTALLATION

Technical diagram showing two mechanical components with red checkmark and cross symbols indicating failure or rejection status.

3.5 CONTRÔLES INITIAUX

Person installing or adjusting a black panel on a wooden surface (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a black electronic device with cables and connectors (no visible text or symbols)

Close-up of hands installing a black plastic component with a cable, no visible text or symbols

Close-up of hands installing or adjusting a small component on a dark surface, no visible text or symbols

Two white electronic devices on a textured surface: one with a display screen and the other with a plastic housing (no visible text or symbols)

White electronic device with black cable and connector, placed on a wooden surface (no visible text or symbols)

Register Germany +49 Obtain verification code I agree with Service Account and Private Ratio

Enter verification code Amplification code has been useful for your previous the trading period, following the 1 2 3 OK OK OK 4 5 6 OK PLC MSO 7 8 9 OKS TOG MIME 0

Start a smart life Create Family Layout

Cancel Add Family Done Family Name Enter Family name Family Location Set location Recommendation: Enter Delivered. Living Room Master Bedroom Second Bedroom Dining Room Kitchen Study Room Add Room You can change room settings anytime.

Cancel Add Family Done Family Name JC's Family Education Reserve and Resort Drinks Living Room Family created successfully M View Family Done Sr Dining Room Kitchen Study Room Garden Add Room

d. Appairage de l'application

26.5 °C

Home Light Rain 28.0°C Outdoor Temperature Excellent Outdoor HVAC Excellent Outdoor Air Quality All devices Garden No device Add Device Home Smart Air

▶

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Help Confirm Indicator Rapidly Blink

▶

Add Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

e. Fonctionnement

Share devices Create Group Device Information Feedback Check for firmware upgrades Remove Device Restore History Defaults

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that has she can share all the devices and smart scenes. family weblogs Add sharing

Shared devices If a permanent resident is in the house, it is suggested that you left that person as a family member, so that her she can share all the devices and smart scenes/family settings. Device safety closed to the following plan: Mobile User For: 10.445.7985 Add sharing

Remarques :

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Yellow triangular warning sign with black exclamation mark symbol

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

[phone]

DÉCLARATION OF CONFORMITÉ

Handwritten signature or scribble on a line, possibly a signature or annotation

Date

25/3/2021

CE

AERIAL

calorex

Dantherm

MASTER

Dantherm A/S

Marienlystvej 65

DK-7800 Skive

Denmark

t.+45 96 14 37 00

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

Dantherm GmbH

Oststraße 148

22844 Norderstedt

Germany

t.+49 40 526 8790

Dantherm S.p.A.

Via Gardesana 11

37010 Pastrengo (VR)

Italy

t.+390456770533

Dantherm Sp. zo.o.

ul. Magazynowa 5a

62-023 Gądki

Poland

t.+48616544000

Dantherm SP S.A.

C/Calabozos 6

(Polígono Industrial)

28108 Alcobendas, Madrid

Spain

t.+34 91 661 45 00

Dantherm SAS

23 rue Eugène Henaff

69694 Vénissieux Cedex

France

t.+33 4 78 47 11 11

Dantherm AS

Løkkeåsveien 26

3138 Skallestad

Norway

t.+47 33 35 16 00

Dantherm AB

Fridhemsvägen 3

602 13 Norrköping

Sweden

t.+46(0)11 19 30 40

Dantherm LLC

Transportnaya 22/2

142800, Stupino

Moscow

Russia

t.+7(495)6424448

MCS China

Unit 2B, No. 512

Yunchuan Road

Baoshang, Shanghai, 201906

China

t.+8621 61486668

Termigo S.L

Manufacturers details:

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

[e-mail]

I-PAC / I-PAC+ Inverter-Wärmepumpen

IPT 8, 12, 16, 22, 28

Exterior view of a gray industrial air conditioning unit with a black fan and ventilation grille (no visible text or symbols)

INHALTSVERZEICHNIS

Line drawing of a rectangular air conditioner unit with a circular vent and control panel (no text or symbols)

RubbierFeet

(4er-Set)

Close-up of a metallic mechanical component with a black base and threaded shaft (no visible text or symbols)

Simple line drawing of a rectangular box with an upward arrow on its side, no text or symbols present.

X

Line drawing of a hand opening a cabinet with two circular switches (no text or symbols)

Wateraunolorsconnectors

2 × 112
2 × 50mm

Four black plastic washers arranged in a 2x2 grid (no text or symbols visible)

Drainage kit

Close-up of a white, coiled, oval-shaped plastic or rubber film against a dark background (no text or symbols visible)

2.3 OPTIONALES ZUBEHÖR

Exterior view of a modern office building (no signage)

Technical diagram showing two mechanical components with red checkmark and cross symbols indicating failure or rejection status.

Person installing or adjusting a black panel on a wooden surface (no visible text or symbols)

Person adjusting a black industrial component with a red valve and blue mesh panel (no visible text or symbols)

Close-up of a hand connecting wires to a black electronic device with connectors (no visible text or symbols)

Close-up of hands holding a cable with wires attached to a black electrical panel (no visible text or symbols)

Close-up of hands installing or adjusting a small component with a tool (no visible text or symbols)

Two white electronic devices with internal components, one displaying a display screen and the other showing a circular socket (no visible text or symbols)

White electronic device with black cable and connector, placed on a wooden surface (no visible text or symbols)

Register Log-in with 100% Account

Register Germany +49 Obtain verification code I agree with Service Award and Private Ratio

Enter verification code Amplification code has been sent to all other options for the verification code, following this.

c. Familie anlegen

Start a smart life Create Family Lay out

Cancel Add Family Done Family Name Enter Family name Family Location Set location Household Single Owners. Living Room Master Bedroom Second Bedroom Dining Room Kitchen Study Room Add Room You can change room settings anytime.

Cancel Add Family Close Family Name JC's Family Creation Building and Smart Room Living Room Family created successfully M Se View Family Done Dining Room Kitchen Study Room Garden Add Room

d. APP-Kopplung

26.5 °C

Home Light Rain 28.0 °C Outdoor Temperature Excellent Outdoor PAOS Excellent Outdoor Air Quality All devices Garden No device Add Device

▶

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Help Confirm Indicator Rapidly Blink

▶

Add Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

Add Device Connecting... Place your router, mobile phone, and device as close as possible 13% Device found Register Device to Smart Cloud initializing devices...

Add Device Connecting... Place your router, mobile phone, and device as close as possible 100% Device found Register Device to Smart Cloud Initializing device...

Add Device Device added successfully Inverter HP Garden Done

Home Cloudy 29.0°C Good Good Applifier Temperature Appliance PRTG All Devices Garden Inverter Pool Heat Pump Garden Smart Via

e. Bedienung

More Device information about the devices Device name Inverter Device Location Check network Check Now Options Shared devices Create Group Device information Feedback Check for firmware upgrades Remove Device Restore factors defaults

Shared devices If a permanent resident is in the house, it is suggested: that you set that person as a family member, so that he/ she can share all the devices and smart stories. Family settings. The shared devices, together said Add sharing

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that has she can share all the devices and smart scenes/only settings. Device visits shared to the following users: Mobile User (01-0234)5678945 Add sharing

Hinweise:

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Yellow triangular warning sign with black exclamation mark symbol

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

[phone]

Abstract line drawing with intersecting curves and a horizontal line (no text or symbols)

Date

25/3/21

CE

AERIAL

calorex

Dantherm

MASTER

Dantherm A/S

Marienlystvej 65

DK-7800 Skive

Denmark

t.+45 96 14 37 00

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

Dantherm GmbH

Oststraße 148

22844 Norderstedt

Germany

t.+49 40 526 8790

Dantherm S.p.A.

Via Gardesana 11

37010 Pastrengo (VR)

Italy

t.+39 045 6770533

Dantherm Sp. z o.o.

ul. Magazynowa 5a

62-023 Gądki

Poland

t.+48 61 65 44 000

Dantherm SP S.A.

C/Calabozos 6

(Polígono Industrial)

28108 Alcobendas, Madrid

Spain

t.+34 91 661 45 00

Dantherm SAS

23 rue Eugène Henaff

69694 Vénissieux Cedex

France

t.+33 4 78 47 11 11

Dantherm AS

Løkkeåsveien 26

3138 Skallestad

Norway

t.+47 33 35 16 00

Dantherm AB

Fridhemsvägen 3

602 13 Norrköping

Sweden

t.+46(0)11 19 30 40

Dantherm LLC

Transportnaya 22/2

142800, Stupino

Moscow

Russia

t.+7(495)6424448

MCS China

Unit 2B, No. 512

Yunchuan Road

Baoshang, Shanghai, 201906

China

t.+8621 61486668

Termigo S.L

Manufacturers details:

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

[e-mail]

Bombas de calor inverter I-PAC / I-PAC+ IPT 8, 12, 16, 22, 28

Exterior view of a gray industrial air conditioning unit with a black fan and ventilation grille (no visible text or symbols)

ÍNDICE

9.1 DIMENSIONES....40

10.0 OPERACIONES QUE SE DEBEN REALIZAR ANTES DEL INVIERNO....41

10.1 OPERACIONES DE ARRANQUE DESPUÉS DEL INVIERNO....41

11.0 CONDICIONES DE LA GARANTÍA......42

[e-mail]

Line drawing of a rectangular air conditioner unit with a circular fan and control panel (no text or symbols)

Pies de goma (kit de 4)

Simple line drawing of a box with two arrows pointing outward (no text or symbols)

Simple line drawing of a rectangular box with an upward arrow on its side, placed on a base (no text or symbols)

X

Line drawing of a hand opening a cabinet with two circular switches (no text or symbols)

Four black plastic ring components arranged in a 2x2 grid (no text or symbols visible)

Kit de drenaje

Close-up of a metallic mechanical component with a spherical top and black base (no visible text or symbols)

Close-up of a white, coiled, flexible plastic or rubber strip against a dark background (no text or symbols visible)

2.3 ACCESORIOS OPCIONALES

I-PAC (modelos IPT X): -5-43 °C

I-PAC+ (modelos IPT Y): -10-43°C

>350 cm Swimming space

Technical diagram showing two mechanical components with red checkmark and cross symbols indicating failure or rejection status.

Person installing or adjusting a black panel on a wooden table, no visible text or symbols

Person adjusting a black industrial component with a red arrow pointing to the component (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a black electronic device with cables and connectors (no visible text or symbols)

Hand holding a cable attached to a black electrical panel, no visible text or symbols

Close-up of hands holding a small electronic component, possibly a connector or connector (no visible text or symbols)

Two white electronic devices on a textured surface: one with a display screen and the other with a plastic housing (no visible text or symbols)

White electronic device with black cable and connector, placed on a wooden surface (no visible text or symbols)

Register Germany +49 Obtain verification code I agree with Service Account and Private Ratio

Enter verification code Amplification code has been sent to all other options the trading code, making this.

c. Crear familia

Start a smart life Create Family Log out

Cancel Add Family Done Family Name Enter Family name Family Location Set location Incomplete Street Airways Living Room Master Bedroom Second Bedroom Dining Room Kitchen Study Room Add Room You can change room settings anytime.

Cancel Add Family Close Family Name JC's Family Location Opening and Insert Options Living Room Family created successfully M View Family Done S Diving Room Kitchen Study Room Garden Add Room

Home Light Rain 28.0°C Outdoor Temperature Excellent Outdoor HVAC Excellent Outdoor Air Quality All devices Garden No device Add Device Home Smart Air

▶

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Help Confirm Indicator Rapidly Blink

▶

Add Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

Add Device Connecting... Place your router, mobile phone, and device as close as possible 13% Device found Register Device to Smart Cloud initializing devices...

Add Device Connecting... Place your router, mobile phone, and device as close as possible 100% Device found Register Device to Smart Cloud Initializing device...

Add Device Device added successfully Inverter HP Garden Done

Home Cloudy 29.0°C Good Good Applifier Temperature Appliance PRTG All Devices Garden Inverter Pool Heat Pump Garden

e. Funcionamiento

Share devices Create Group Device Information Feedback Check for firmware upgrades Remove Device Preview Factory defaults

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that he/she can share all the device and smart screens family settings. Add sharing

Shared devices If a permanent resident is in the house, it is suggested that you ask that person as a family member, so that her she can share all the devices and smart scenes. Family settings. Device likely shared to the following users: Mobile User 52-57345678965 Add sharing

Notas:

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Yellow triangular warning sign with black exclamation mark symbol

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

[phone]

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

Dantherm GmbH

Oststraße 148

22844 Norderstedt

Germany

t.+49 40 526 8790

Dantherm S.p.A.

Via Gardesana 11

37010 Pastrengo (VR)

Italy

t.+39 045 6770533

Dantherm Sp. z o.o.

ul. Magazynowa 5a

62-023 Gądki

Poland

t.+48616544000

Dantherm SP S.A.

C/Calabozos 6

(Polígono Industrial)

28108 Alcobendas, Madrid

Spain

t.+34 91 661 45 00

Dantherm SAS

23 rue Eugène Henaff

69694 Vénissieux Cedex

France

t.+33478471111

Dantherm AS

Løkkeåsveien 26

3138 Skallestad

Norway

t.+47 33 35 16 00

Dantherm AB

Fridhemsvägen 3

602 13 Norrköping

Sweden

t.+46(0)11 19 30 40

Dantherm LLC

Transportnaya 22/2

142800, Stupino

Moscow

Russia

t.+7(495)6424448

MCS China

Unit 2B, No. 512

Yunchuan Road

Baoshang, Shanghai, 201906

China

t.+8621 61486668

Termigo S.L

Manufacturers details:

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

e. [e-mail]

Pompe di calore inverter I-PAC/I-PAC+ IPT 8, 12, 16, 22, 28

Exterior view of a gray industrial air conditioning unit with a black fan and ventilation grille (no visible text or symbols)

INDICE

1.0 INTRODUZIONE ....4

1.1 PREMESSA....4

1.2 AVVERTENZE....4

3.4 IMPIANTO IDRAULICO....16

3.5 CONTROLLI INIZIALI 16

3.6 CORROSIONE ELETTROLITICA NELLE PISCINE....17

Line drawing of a rectangular air conditioner unit with a circular fan and control panel (no text or symbols)

Riebbien Geretma

-kit di 4)

Close-up of a metallic cylindrical component with a black base and metallic top (no visible text or symbols)

Simple line drawing of a rectangular box with an upward arrow on its side, placed on a base (no text or symbols)

X

Line drawing of a hand opening a cabinet with two circular switches (no text or symbols)

Four black plastic washers arranged in a 2x2 grid (no text or symbols visible)

Drainagekit

Close-up of a white, coiled, flexible plastic or fiber against a dark background (no text or symbols visible)

Stacked cardboard boxes on a conveyor belt, no visible text or symbols

2.4 CARATTERISTICHE

Piscis Swimming job mass spaggio >350 cm

Technical line drawing of a heat exchanger or cooling unit with pipes and a grid-patterned insulation (no text or symbols)

Simple line drawing of a rectangular box with two cables and a grid-patterned side, marked with a red X (no text or symbols)

3.5 CONTROLLI INIZIALI

Person installing or adjusting a black panel on a wooden surface (no visible text or symbols)

Person adjusting a black industrial component with a red arrow pointing to the component (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a black electronic device with cables and connectors (no visible text or symbols)

Close-up of hands installing a black cable on a vehicle chassis (no visible text or symbols)

Close-up of hands installing or adjusting a small component on a dark surface (no visible text or symbols)

Two white electronic devices on a textured surface: one with a display screen and the other with a plastic housing (no visible text or symbols)

White electronic device with black cable and connector, placed on a wooden surface (no visible text or symbols)

And And Poland, secoisente and from

iOS p@Ssecadovateadafrom

Register Login with the Account

Register Germany +49 Obtain verification code I agree with Service Award and Private Ratio

Enter verification code Verification Code has been sent to your instructions for verification code, information/other.

Start a smart life Create Family Layout

Cancel Add Family Done Family Name Enter Family name Family Location Set location Recommended Sign or Unknown Living Room Master Bedroom Second Bedroom Dining Room Kitchen Study Room Add Room You can change room settings anytime.

Cancel Add Family Done Family Name JC's Family Education Reserve and Resort Divisions Living Room Family created successfully M View Family Done Sr Dining Room Kitchen Study Room Garden Add Room

Home Light Rain 28.0°C Outdoor Temperature Excellent Outdoor HVAC Excellent Outdoor Air Quality All devices Garden No device Add Device Home Smart Air

▶

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Help Confirm Indicator Rapidly Blink

▶

Add Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

e. Funzionamento

Share devices Create Group Device information Feedback Check for firmware upgrades Remove Device Restore factory defaults

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that her she can share all the devices and smart stories. family settings. No shared device, present well! Add sharing

Shared devices If a permanent resident is in the house, it is suggested that you seek that person as a family member, so that two she can share all the devices and smart scenes. Family settings. Device identity allows to the following users: Mobile User Add sharing

Note:

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Isolare

7.0 RISOLUZIONE DEI PROBLEMI PIÙ COMUNI 6.0 MANUTEN

Yellow triangular warning sign with black exclamation mark symbol

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

[phone]

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

Dantherm GmbH

Oststraße 148

22844 Norderstedt

Germany

t.+49 40 526 8790

Dantherm S.p.A.

Via Gardesana 11

37010 Pastrengo (VR)

Italy

t.+39 045 6770533

Dantherm Sp. z o.o.

ul. Magazynowa 5a

62-023 Gadki

Poland

t.+48 61 65 44 000

Dantherm SP S.A.

C/Calabozos 6

(Polígono Industrial)

28108 Alcobendas, Madrid

Spain

t.+34 91 661 45 00

Dantherm SAS

23 rue Eugène Henaff

69694 Vénissieux Cedex

France

t.+33 4 78 47 11 11

Dantherm AS

Løkkeåsveien 26

3138 Skallestad

Norway

t.+47 33 35 16 00

Dantherm AB

Fridhemsvägen 3

602 13 Norrköping

Sweden

t.+46(0)11 19 30 40

Dantherm LLC

Transportnaya 22/2

142800, Stupino

Moscow

Russia

1.+7(495)6424448

MCS China

Unit 2B, No. 512

Yunchuan Road

Baoshang, Shanghai, 201906

China

t.+8621 61486668

Termigo S.L

Manufacturers details:

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

[e-mail]

IPT 8, 12, 16, 22, 28

Exterior view of a gray industrial air conditioning unit with a black fan and ventilation grille (no visible text or symbols)

SPIS TREŚCI

OSTRZEŻENIE BHP 2

1.0 WPROWADZENIE....4

Line drawing of a rectangular air conditioner unit with a circular fan and control panel (no text or symbols)

Close-up of a metallic mechanical component with a black base and threaded shaft (no visible text or symbols)

Simple line drawing of a box with two boxes and two arrows pointing outward (no text or symbols)

Close-up of a white, coiled, flexible plastic or rubber strip against a dark background (no text or symbols visible)

Simple line drawing of a rectangular box with an upward arrow on the top face (no text or symbols)

X

Line drawing of a hand opening a cabinet with two circular switches (no text or symbols)

Rwaterczaniopdyconnectors
2 × 112, 2 × 50mm

Four black plastic ring components arranged in a 2x2 grid (no text or symbols visible)

Deatnagedkittywowy

2.3 OPCJONALNE AKCESORIA

Exterior view of a modern office building (no signage)

2.4 FUNKCJE

I-PAC (modele IPT X): -5-43°C

I-PAC+ (modele IPT Y): -10-43°C

>350 cm Swimming pool spa

3.2 CZĘŚĆ ŚRODKOWA I INSTALACJA

Technical diagram showing two mechanical components with red checkmark and cross symbols indicating failure or rejection status.

3.5 KONTROLE POCZĄTKOWE

Person installing or adjusting a black panel on a wooden surface (no visible text or symbols)

Close-up of hands adjusting a black industrial component with a red arrow pointing to a circular component (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a black electronic device with cables and connectors (no visible text or symbols)

Close-up of hands installing a cable on a black electrical panel (no visible text or symbols)

Close-up of hands installing or adjusting a small component on a dark surface (no visible text or symbols)

White electronic device with black cable and connector, placed on a wooden surface (no visible text or symbols)

Two white electronic devices on a textured surface: one with a display screen and the other with a plastic housing (no visible text or symbols)

Register Login with the Account

Register Germany +49 Obtain verification code I agree with Service Award and Private Ratio

Enter verification code Amplification code has been sent to other instructions the trading procedure, Refining process.

c. Utwórz rodzinę

d. Parowanie APP

26.5 °C

Home Light Rain 28.0°C Outdoor Temperature Excellent Outdoor HVAC Excellent Outdoor Air Quality All devices Garden No device Add Device Home Smart Air

▶

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Help Confirm Indicator Rapidly Blink

▶

Add Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

e. Działanie

More Device information about the device Device name Inverter Device Location Check network Check Now Shared devices Create Group Device information Feedback Check for firmware upgrades Remove Device Remove factory defaults

Shared devices If a permanent resident is in the house, it is suggested. that you vet that person as a family member, so that he/ she can share all the devices and smart scenes/family settings to shared devices press add Add sharing

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that her/ she can share all the devices and smart scenes/family settings. Device starts advised to the following pairs: Mobile User 83-02145679H65 Add sharing

Uwagi:

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Yellow triangular warning sign with black exclamation mark symbol

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

[phone]

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

Dantherm GmbH

Oststraße 148

22844 Norderstedt

Germany

t.+49 40 526 8790

Dantherm S.p.A.

Via Gardesana 11

37010 Pastrengo (VR)

Italy

t.+390456770533

Dantherm Sp. z o.o.

ul. Magazynowa 5a

62-023 Gadki

Poland

t.+48 61 65 44 000

Dantherm SP S.A.

C/Calabozos 6

(Polígono Industrial)

28108 Alcobendas, Madrid

Spain

t.+34 91 661 45 00

Dantherm SAS

23 rue Eugène Henaff

69694 Vénissieux Cedex

France

t.+33478471111

Dantherm AS

Løkkeåsveien 26

3138 Skallestad

Norway

t.+47 33 35 16 00

Dantherm AB

Fridhemsvägen 3

602 13 Norrköping

Sweden

t.+46(0)11 19 30 40

Dantherm LLC

Transportnaya 22/2

142800, Stupino

Moscow

Russia

t.+7(495)642 444 8

MCS China

Unit 2B, No. 512

Yunchuan Road

Baoshang, Shanghai, 201906

China

t.+8621 61486668

Termigo S.L

Manufacturers details:

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

[e-mail]

Bombas de calor de inversor I-PAC/I-PAC+

IPT 8, 12, 16, 22, 28

Exterior view of a gray calorex air conditioning unit with a five-petal fan and control panel (no visible text or symbols)

ÍNDICE

AVISO DE SAÚDE E SEGURANÇA 2

1.0 INTRODUÇÃO....4

1.1 PREFÁCIO....4

1.2 AVISOS....4

2.0 SOBRE A SUA BOMBA DE CALOR.... 8

2.1 TRANSPORTE 8

2.2 ACESSÓRIOS....8

2.3 ACESSÓRIOS OPCIONAIS....9

2.4 CARACTERÍSTICAS....10

3.4 CANALIZAÇÕES....16

3.5 VERIFICAÇÕES INICIAIS......16

3.6 CORROSÃO ELETROLÍTICA EM PISCINAS ...17

9.1 DIMENSÕES......40

Line drawing of a rectangular air conditioner unit with a circular fan and control panel (no text or symbols)

Péside boracha

(conjunto de 4)

Close-up of a metallic mechanical component with a cylindrical shaft and black base (no visible text or symbols)

Simple line drawing of a box with two arrows pointing outward (no text or symbols)

Close-up of a white, coiled, flexible plastic or rubber film against a dark background (no text or symbols visible)

Simple line drawing of a rectangular box with an upward arrow on the top face (no text or symbols)

X

Line drawing of a hand opening a cabinet with two circular switches (no text or symbols)

Waterouside urinectosa.

2 × 112,
2 × 50mm

Four black plastic washers arranged in a 2x2 grid (no text or symbols visible)

Köralindgeägjem

2.3 ACESSÓRIOS OPCIONAIS

Stacked cardboard boxes on a conveyor belt, no visible text or symbols

2.4 CARACTERÍSTICAS

I-PAC (modelos IPT X): -5-43 °C

I-PAC+ (modelos IPT Y): -10-43 °C

Technical line drawing of a heat exchanger or cooling unit with pipes and a grid-patterned insulation (no text or symbols)

Diagram of a rectangular device with two cables and a grid-patterned panel, marked with a red X (no text or symbols)

3.5 VERIFICAÇÕES INICIAIS

Person assembling or adjusting a black panel on wooden pallets (no visible text or symbols)

Close-up of hands adjusting a black industrial component with a red circular knob, no visible text or symbols

Close-up of a hand using a tool to connect cables to a black electronic device with visible wiring (no text or symbols)

Close-up of a hand holding a cable attached to a black panel, with no visible text or symbols.

Close-up of hands installing or adjusting a small component on a dark surface, no visible text or symbols

Two white electronic devices with internal components, one displaying a display screen and the other showing a circular socket (no visible text or symbols)

White electronic device with black cable and connector, placed on a wooden surface (no visible text or symbols)

Register Germany +49 Obtain verification code I agree with Service Account and Private Ratio

Enter verification code Amplification code has been useful for your previous the trading period, following the 1 2 3 OK OK OK 4 5 6 OK PLC MSO 7 8 9 OKS TOG MIME 0

c. Criar família

Start a smart life Create Family Layout

Cancel Add Family Done Family Name Enter Family name Family Location Set location Description: Senior Family Living Room Master Bedroom Second Bedroom Dining Room Kitchen Study Room Add Room You can change room settings anytime.

Cancel Add Family Done Family Name JC's Family Education Is something about the house Living Room Family created successfully View Family Done Dining Room Kitchen Study Room Garden Add Room

Home Light Rain 28.0°C Outdoor Temperature Excellent Outdoor PAOS Excellent Outdoor Air Quality All devices Garden No device Add Device

▶

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Help Confirm Indicator Rapidly Blink

▶

Add Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

Add Device Connecting... Place your router, mobile phone, and device as close as possible 13% Device found Register Device to Smart Cloud initializing devices...

Add Device Connecting... Place your router, mobile phone, and device as close as possible 100% Device found Register Device to Smart Cloud Initializing device...

Add Device Device added successfully Inverter HP Garden Done

Home Cloudy 29.0°C Good Good Applifier Temperature Appliance PRTG All Devices Garden Inverter Pool Heat Pump Garden

e. Funcionamento

Share devices Create Group Device information Feedback Check for firmware upgrades Remove Device Restore factors defaults

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that he/ she can share all the devices and smart scenes. Family settings. Add sharing

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that he/ she can share all the devices and smart scenes (only settings) Device who shared to the following keys Mobile User 03-02349678945 Add sharing

Notas:

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Yellow triangular warning sign with black exclamation mark symbol

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

[phone]

Abstract line drawing with intersecting curves and a small mark (no text or symbols)

Data 25-3-2021

CE

AERIAL

calorex

Dantherm

MASTER

Dantherm A/S

Marienlystvej 65

DK-7800 Skive

Denmark

t.+45 96 14 37 00

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

L.+44(0)1621856611

Dantherm GmbH

Oststraße 148

22844 Norderstedt

Germany

t.+49 40 526 8790

Dantherm S.p.A.

Via Gardesana 11

37010 Pastrengo (VR)

Italy

L.+39 045 6770533

Dantherm Sp. z o.o.

ul. Magazynowa 5a

62-023 Gądki

Poland

t.+48616544000

Dantherm SP S.A.

C/Calabozos 6

(Polígono Industrial)

28108 Alcobendas, Madrid

Spain

t.+34 91 661 45 00

Dantherm SAS

23 rue Eugène Henaff

69694 Vénissieux Cedex

France

t.+33478471111

Dantherm AS

Løkkeåsveien 26

3138 Skallestad

Norway

t.+47 33 35 16 00

Dantherm AB

Fridhemsvägen 3

602 13 Norrköping

Sweden

t.+46(0)11 19 30 40

Dantherm LLC

Transportnaya 22/2

142800, Stupino

Moscow

Russia

t.+7(495)6424448

MCS China

Unit 2B, No. 512

Yunchuan Road

Baoshang, Shanghai, 201906

China

t.+8621 61486668

Termigo S.L

Manufacturers details:

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t. [phone]

[e-mail]
