HPBTKT - Earphones LEXIBOOK - Free user manual and instructions

USER MANUAL HPBTKT LEXIBOOK

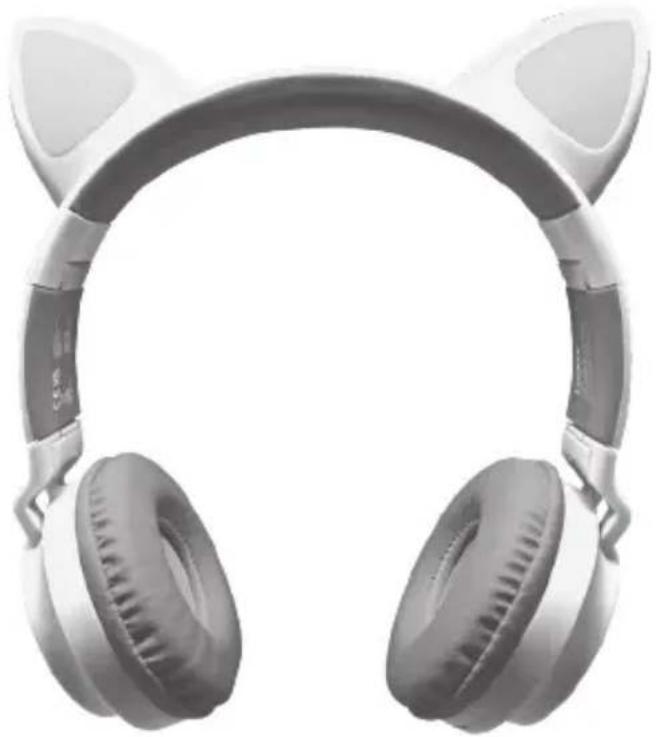

2-IN-1 CAT BLUETOOTH® HEADPHONES WITH LIGHTS CASQUE BLUETOOTH® CHAT 2-EN-1 AVEC LUMIÈRES

LEXIBOOK

MODE D'EMPLOI
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUAL DE INSTRUÇOES
MANUALE DI ISTRUZIONI
BEDIENUNG SANLEITUNG
GEBRUKSAANWIJZING
BRUGSANVISNING
INSTRUKCJA OBSLUGI
HASZNALATI UTMUTATIO
NAVOD K POUZITI

HPBTKT_03

(6) Aux-in plug

DEBALLAGE DE L'APPAREIL

SISVANFR

EMPLACEMENT DES TOUCHES

FONCTION SANS FIL (BLUETOOTH®)

UNPACKING THE DEVICE

When unpacking, ensure that the following elements are included:
1x Bluetooth® cat 2-in-1 headset with lights
1x USB Type C charging cable 1x 3.5mm audio cable 1x Instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded.

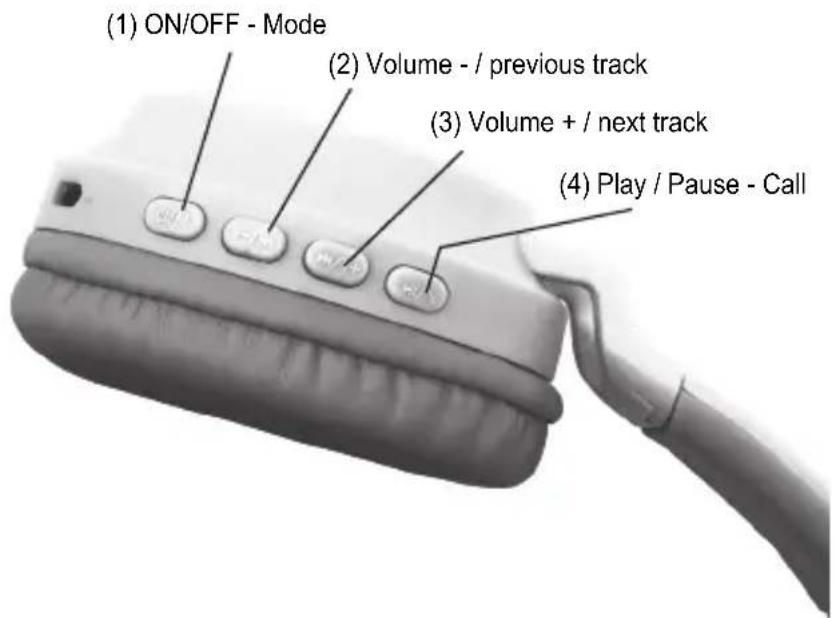

LOCATION OF CONTROLS

Refer to the diagram p.2:

1. ON/OFF - Mode
2. Volume - / previous track
3. Volume +/next track

4. Play/Pause - Call

5. SD card slot

6. Aux-in slot
7. USB-C slot

POWER SUPPLY

The 85db wireless rechargeable headphones with light operates with the USB type C charging cable (included) or with a USB type adaptor (not included) 5.0V = 280mA .

Charging the device

1. Check that the Bluetooth is switched off.
2. Insert the small end of the USB type C cable (included) into the USB type C charging slot (7)
3. Connect the other end of the cable into the USB port of your powered computer or USB type power adaptor and connect it to a wall socket.
4. The LED light flashes in red when the device is charging. Once charged, the LED light will stay red.

Note: Continue to enjoy listening to music with the Aux In cable when charging the device.

Note: After approximately 5 minutes of inactivity, headset off automatically.

WARNING: Mal-function or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, switch it off and then on again, or unplug the USB cable

WARNING:

• Danger of explosion if battery is incorrectly replaced. Please only replace it with the same or equivalent battery
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep a minimum distance around the device for sufficient ventilation;
• the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.;
• no naked flame sources, such as lighted candles, should be placed on the apparatus;
• the use of apparatus in tropical and/or moderate climates.
• Batteries should be disposed properly. Take them to the collection container in order to protect the environment;
• Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types);
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; and
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

CAUTION: Too high volume can damage your hearing. For this reason, please turn the volume down.

HSIN3

WIRELESS FUNCTION (BLUETOOTH®)

1. Press the Mode button (1) on the headphones. The LED indicator will flash.
2. Activate the Bluetooth® function on your personal device (smartphone, MP3 player, etc.) and make sure it is in discoverable mode.
3. Confirm pairing or select the Bluetooth® name "HPBTKT" to connect your player to the headphones.
4. If pairing is successful, the Bluetooth® light will stop flashing. You can play an audio or a video file.
5. To stop the connection with the headphones, disconnect the Bluetooth on your audio player.

Notes:

• When turned on, the headphones automatically search for a device that has previously synchronized with.
• If your Bluetooth® device requires a password, the default password is 0000.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Lexbook® is under license. Other trademarks and trade names are those of their respective owners. © 2020 Bluetooth SIG, Inc.

SETTINGS

The headphones include 3 modes: wireless with Bluetooth connexion, wired via the AUX-IN cable (included) and with an SD card. As soon as the headphones are ON, the light effects will automatically be ON. To turn them off, turn OFF the headphone.

• In wired mode, connect the AUX-IN cable to the AUX-IN jack (6). Previous/ decrease volume (2), Play/Pause (4) and next/increase volume (3) buttons are disabled. Please use the control buttons on your music player.
• In Bluetooth®:
• Press Play/Pause (4) to start or pause the audio track.
• Short press Previous and Next buttons (2, 3) to change of audio track.
• Long press Previous and Next buttons (2, 3) to control the volume
• The headphones are equipped with a microphone that you can use for your calls.
• Press the call button (4) once to answer calls. To end a call press the call button (4) again.
• In SD mode, insert your SD card in the SD card slot (5).
  Use the control buttons on the headphone.
• To change the mode, unplug the AUX-In cable from the headset or remove the Bluetooth mode from your MP3 player

Note: In aux-in mode, the headset's music control buttons are disabled. Please use the control buttons on your player.

SPECIFICATIONS

• Bluetooth® 5.3 Technology
• Bluetooth® frequency range: 2402 - 2480 MHz
  Power transmitted: -9.15dBm
  Built-in rechargeable battery, 3,7V-400mAh, Lithium battery
• With 3.5mm audio in jack
• Charging current: DC5.0V -280mA
  Charging time: around 2 hours
• Playing time: up to 40 hours
• Effective distance: 10m (straight line without obstacle)
  The Maximum transmitted power is less than 20mW

SIMPLIFIED EU DECLARATION OF CONFORMITY

Lexibook® S.A.

6 avenue des Andes

Bathroom 11

91940 Les Ulis - France

Lexibook UK

PO Box 423

UMBERLEIGH

EX32 2JW, United Kingdom

Kind of product: Cat ears and lightings Bluetooth® headphones

Type designation: HPBTKT_03

Hereby, Lexibook Limited declares that the radio equipment type HPBTKT_03 is in compliance with Directive 2014/53/EU. and Radio Equipment Regulations 2017

The full text of the EU declaration of conformity is available at the following internet address:

https://www.lexibook.com/doc/hpbtkt_01.pdf

Yiu Wai Man

Product Development Manager

Hong Kong

1575

MAINTENANCE AND WARRANTY

Ensure that you switch off the device and unplug the power cable before cleaning. Wipe the device with a soft, dry cloth. If the surfaces are particularly dirty, clean them with a cloth that has been soaked in soapy water and then wrung out thoroughly. Wipe again with a dry cloth. Never use alcohol, petrol, solvents, cleaning products or other chemical products. And do not use compressed air to remove dust. At least charge the Bluetooth® Stereo Headphones once every 3 months in order to maintain the battery life.

This product is covered by our 2 years warranty program, except for the integrated battery which is covered by a 6-month warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observation of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.

In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

NOTE: Please keep this instruction manual, it contains important information.

Reference:HPBTKT_03

Designed and developed in Europe - Made in China

Lexibook

Lexibook S.A

6 avenue des Andes

Babinet 11

91940 Les Ulis

France

Lexibook UK

PO Box 423

UMBERLEIGH

EX32 2JW

United Kingdom

This product

is not a toy.

United Kingdom & Ireland

For after-sales service, please contact us at [e-mail]

www.lexibook.com

Environmental Protection:

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).

Correct disposal of batteries in this product

(Applicable in countries with separate collection systems)

This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2013/56/EU which cannot be disposed of with normal

household waste. All batteries should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. The correct disposal of your old batteries will help to prevent potential negative consequences for the environment, animal and human health. We strongly

advice you to take your product to an official collection point or service center to have a professional remove the rechargeable battery. Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. For more detailed information about disposal of your old batteries, please contact your city office or waste disposal service centre.

DESEMBALAJE DEL PRODUCTO

FUNCAOSEMFIOS(BLUETOOTH®)

© 2020 Bluetooth SIG, Inc.

DEFINIÇÖES

MANUTENÇAO E GARANTIA

FUNZIONE WIRELESS (BLUETOOTH®)

WIRESLESS-FUNKTION (BLUETOOTH®)

© 2020 Bluetooth SIG, Inc.

EINSTELLUNGEN

DRAADLOZE FUNC TIE (BLUETOOTH®)

© 2020 Bluetooth SIG. Inc.

BEÁLLITÁSOK

m = 311 ;

FIGYELMEZTETES

KONSERWACJA I GWARANCJA

© 2020 Bluetooth SIG, Inc.

NASTAVENI
