USER MANUAL the Smart Tea Infuser BTM600 BREVILLE

the Breville Smart Tea Infuser™

Instruction Book - BTM600

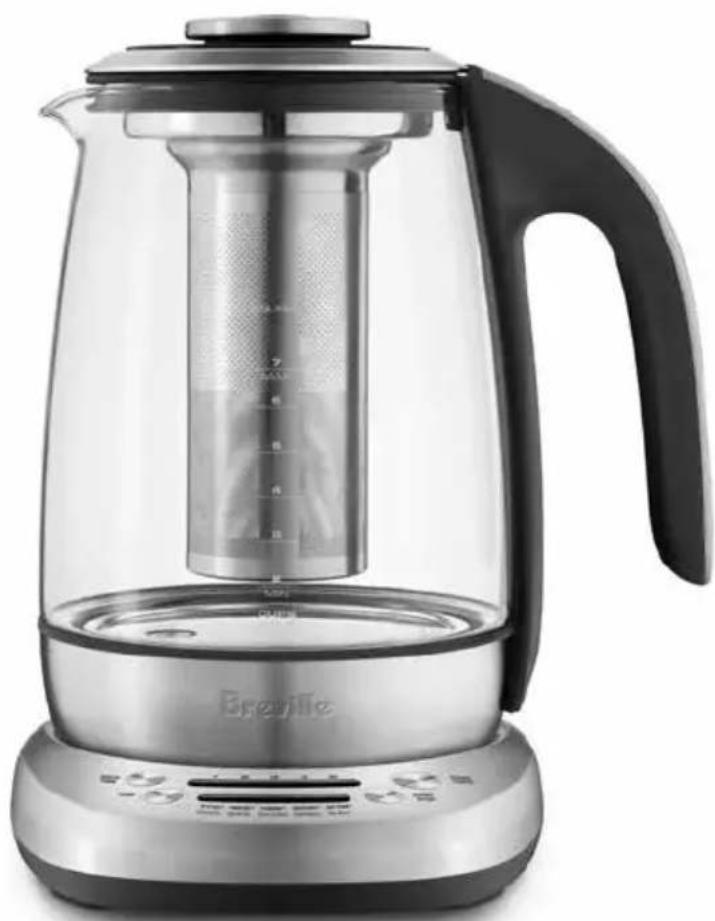

Exterior view of a modern glass tea pot with a digital display and control panel (no visible text or symbols)

Breville®

Contents

2 Breville Recommends Safety First

7 Components

9 Functions

11 Tips

12 Care & Cleaning

14 Troubleshooting

BREVILLE RECOMMENDS SAFETY FIRST

At Breville ^® we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

IMPORTANT SAFEGUARDS c UL us

READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

- Before using for the first time please ensure that your electricity supply is the same as shown on the rating label on the underside of the appliance. If you have any concerns please contact your local electricity company.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance. Close supervision is necessary when any appliance is used by or near children.

- Remove and safely discard any packaging material and promotional labels before using the appliance for the first time.

• To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the

power plug of this appliance.

- This appliance has been designed specifically for the purpose of heating and boiling quality drinking water and tea only. Under no circumstances should this product be used to heat or boil any other liquids or foodstuffs.

- Do not place the appliance near the edge of a bench or table during operation. Ensure that the surface is level, clean and free of water and other substances.

- Do not operate the appliance on a sink drain board.

- Do not place the appliance on or near a hot gas burner, electric element or where it could touch a heated oven.

- Keep the appliance clear of walls, curtains and other heat or steam sensitive materials. Minimum 20cm distance.

• Always ensure the appliance is properly assembled before use. Follow the instructions provided in this book.

- The appliance must be used only with the power base supplied.

- This appliance is not intended to be operated by means of an external timer or separate remote control system.

- Do not touch hot surfaces. Use the handle for lifting and carrying the appliance.

- Do not place anything on top of the lid.

- To disconnect, turn any control to "off," then remove plug from wall outlet.

- Remove the plug from the power outlet before attempting to move the appliance, when the appliance is not in use and before cleaning and storing.

- Use caution when pouring water from the glass jug, as boiling water and steam will scald. Do not pour water too quickly.

• To protect against electric shock, do not immerse the glass jug base, power base, power cord or power plug in water or allow moisture to come in contact with these parts.

- Do not wash jug exterior under running water.

- Do not open the lid during operation.

- Do not overfill the glass jug past the maximum water level mark. If the glass jug is overfilled, boiling water may be ejected.

- Keep the appliance clean. Follow the cleaning

instructions provided in this book.

- Do not spill water onto the connector.

WARNING

• Do not operate the appliance on an inclined surface. Do not move the appliance while it is switched on.
  • The heating element surface is subjected to residual heat after use.
• Do not remove the outer lid during and after operation. This may result in boiling water splashing from the glass jug. Pour out all the hot water from the glass jug before opening the lid to refill.
  • To prevent damage to the appliance do not use chemicals, alkaline cleaning agents, steel wool or abrasive cleaners to clean the inside or outside of the kettle. Use a mild cleaning agent with a soft damp cloth.

WARNING

- Never immerse the glass jug, power base, power cord or power plug in water or allow moisture to come in contact with these parts.

Prohibition sign showing a silo over a roof structure (no text or symbols)

WARNING

- Do not wash jug exterior under running water.

Prohibition sign with crossed-out diagram of a showerhead and building, indicating no fire protection or fire resistance.

- Misuse may cause injury.

IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES

• Fully unwind cord before use.
  • To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.
• Do not let the cord hang over the edge of a bench or table, touch hot surfaces, or become knotted.
• Do not leave the appliance unattended when in use.
  • This appliance is recommended for household use only. Do not use this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.
• It is recommended to regularly inspect the appliance.
• For any maintenance other than cleaning, call Breville Consumer Support.
  • This appliance is equipped with a power cord having a grounding wire with a grounding plug. The appliance must be grounded

using a 3-hole properly grounded outlet. In the event of an electrical short circuit, grounding reduces the risk of electrical shock.

• If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord.
• If the power outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord or use an adapter.
• Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

WARNING

• Do not operate the kettle on an inclined surface.
• Do not move the appliance while it is switched on.

SHORT CORD INSTRUCTIONS

• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer extension cords are available and may be used if care is exercised in their use.

If a long extension cord is used:

(1) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance;
(2) The extension cord should be a grounding-type 3-wire cord; and
(3) The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

WARNING

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

CALIFORNIA PROPOSITION 65:

(Applicable to California residents only). This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

SAVE THESE INSTRUCTIONS

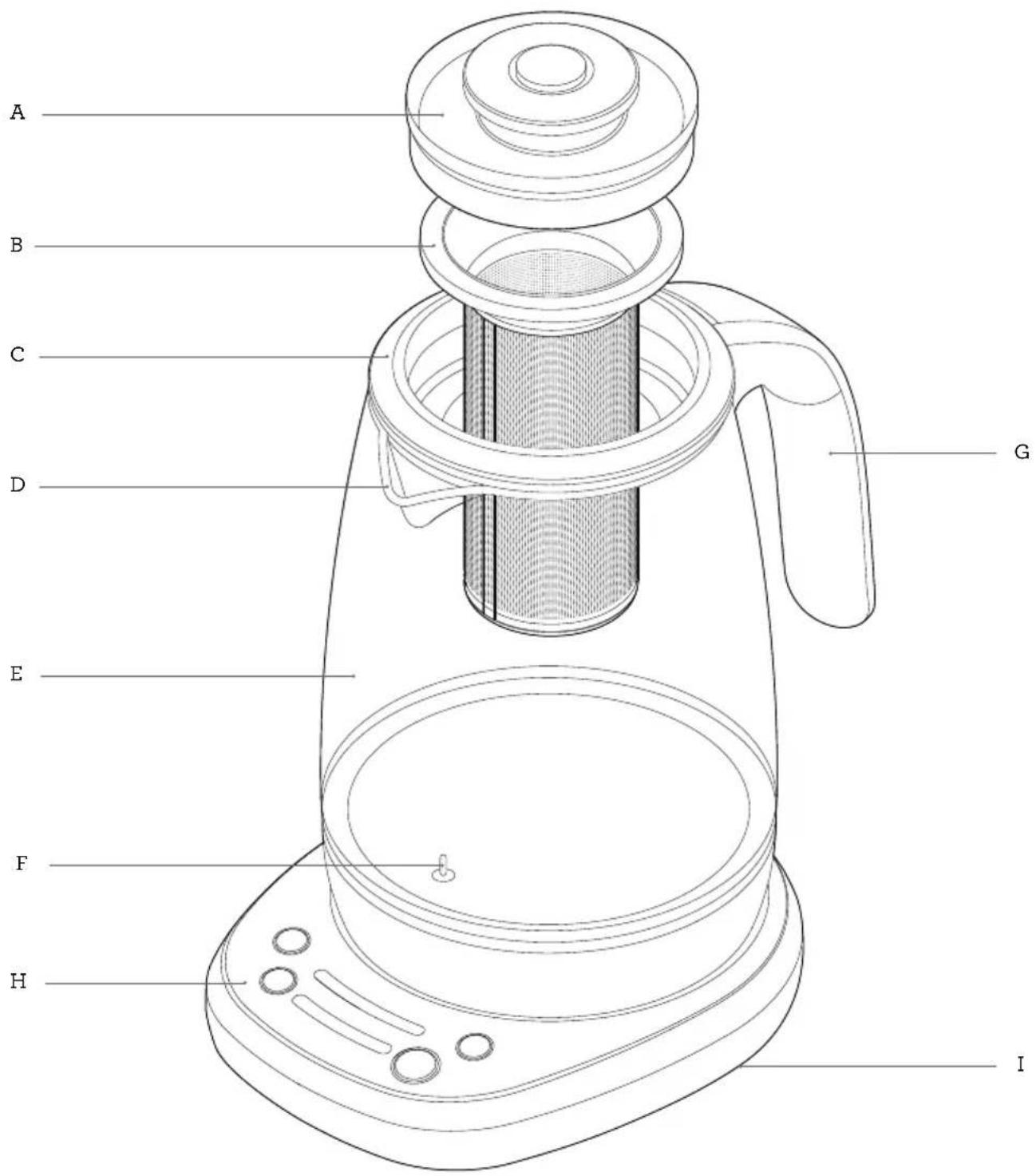

Components

A B C D E F H I G

A. Inner Lid
B. Stainless Steel Tea Basket
C. Outer Lid
D. Spout
E. Glass Body

F. Immersed Temperature Sensor
G. Handle
H. Power Base
I. Cord Storage

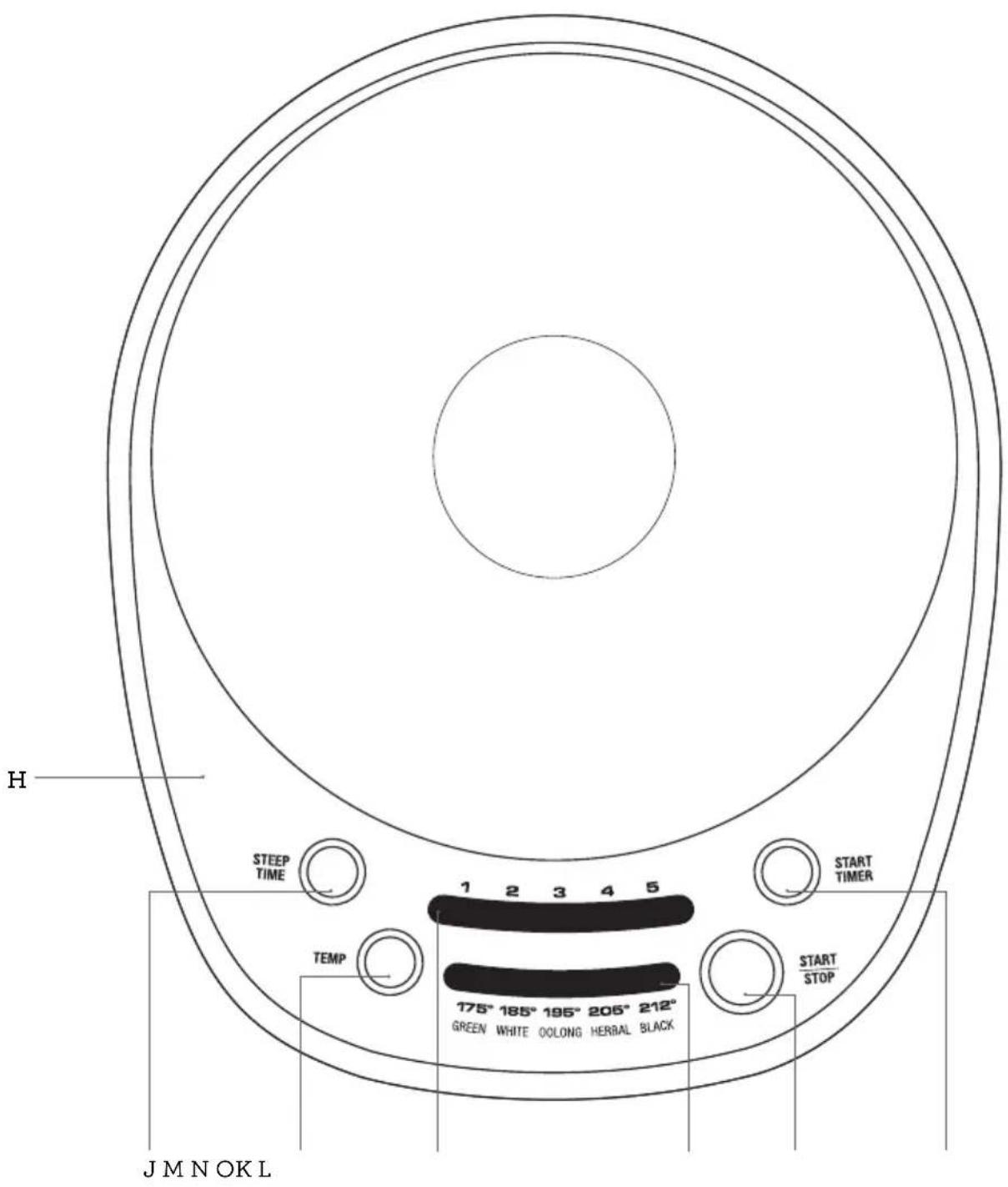

H STEEP TIME 1 2 3 4 5 TEMP START TIMER 175° 185° 195° 205° 212° GREEN WHITE OOLONG HERBAL BLACK START STOP J M N OK L

J. STEEP TIME button

K. TEMP Button

L. Steep time indicator

M. Temperature / tea type indicator

N. START/STOP button

O. START TIMER button

Functions

BEFORE FIRST USE

In order to remove any dust or protective residues from the manufacturing process, it is recommended to run a boiling cycle then discard the water.

1. Remove and safely discard any packing material, promotional labels and tape from the Breville Smart Tea Infuser™.

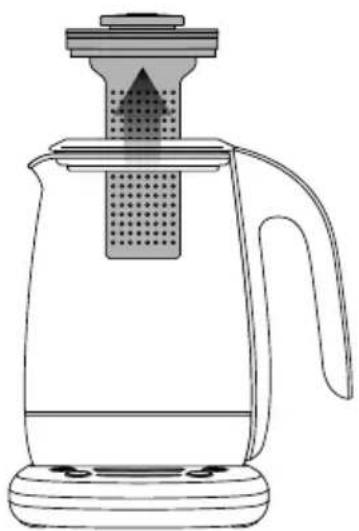

2. Lift the inner lid along with attached tea basket.

Line drawing of a kettle with a grater and lid, no text or symbols present

Then remove the outer lid. Wash the outer lid, tea basket, and inner lid in warm soapy water with a soft sponge, rinse and dry thoroughly.

WARNING

Never immerse the base of the glass jug, the power base, power cord or power plug in water or allow moisture to come in contact with these parts.

1. Place the power base on a flat, dry surface.

2. Unwind the power cord completely and insert the power plug into a grounded wall outlet.

WARNING

Never fill the glass jug with chilled water. Allow the Breville Smart Tea Infuser™ to cool before refilling.

WARNING

Filling past the MAX line may result in serious burns or injuries as a result of overflowing hot or boiling water. Filling below the MIN line will result in the Breville Smart Tea Infuser™ switching off before the water has boiled or reached the selected temperature.

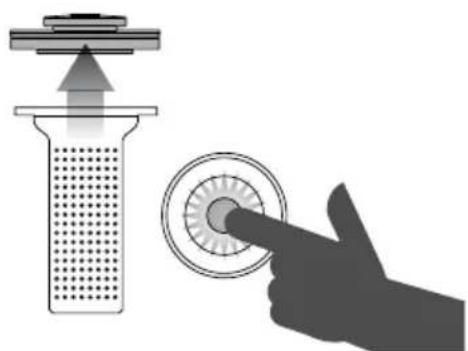

1. Detach the tea basket from the inner lid by pressing the button.

Illustration of a hand pressing a circular button on a perforated plastic component (no text or symbols)

1. Without the tea basket in place, fill the glass jug to the water MAX mark and place on the power base. Securely fit the lids onto the glass jug.

2. The Breville Smart Tea Infuser™ will beep and the buttons will illuminate.

3. Select '212°F' in the temperature indicator by pressing TEMP button and turn off the timer by pressing STEEP TIME button several times. Then press START/STOP button to start.

4. Once the water reaches 212^ F, it will beep 3 times.

5. Discard the water. The Breville Smart Tea Infuser™ is now ready to use.

BREWING TEA

1. Fill the glass jug with desired amount of water. Ensure you do not fill past the MAX mark. Place the outer lid, tea basket, and inner lid.
2. Select the tea type by pressing the TEMP button. The tea type determines brew temperature and steep time, based on medium strength. The Breville Smart Tea Infuser™ has 5 preset tea types recommended for optimal brewing of Green, White, Oolong, Herbal, or Black tea.

TEA TYPE		Green White Oolong Herbal Black
Preset Temp		175°F 185°F 195°F 205°F 212°F
Steep Time (mins)*	Mild	2	2	2	3	1
	Medium*	3	3	3	4	2
	Strong	4	4	4	5	3

* Preset steep time is based on medium strength, but you can adjust depending on your taste.

NOTE

This product is not calibrated for commercial or scientific use. Temperatures may vary ±3^ , which is within range for optimal brewing for each tea variety.

1. Start heating by pressing START/STOP button. The Breville Smart Tea Infuser™ will start heating.
2. Once the selected brew temperature is reached it will beep 3 times. Open the tea basket lid by pressing the detachment button and use a tea spoon (approximately 5g) to fill the basket with tea leaves. As a general guide, use 1 teaspoon of tea leaves per cup / 250ml of water, however this will depend on the instructions on tea packaging and your personal preference. Re-place the tea basket lid.

WATER TO TEASPOON RATIO

500mL/16oz	2 teaspoons
750mL/24oz	3 teaspoons
1000mL/32oz	4 teaspoons
1250mL/40oz	5 teaspoons
1500mL/48oz	6 teaspoons
1700mL/56oz	7 teaspoons

1. Start steeping by pressing the START TIMER button. The timer is set based on medium strength by default, but you can change this by pressing STEEP TIME button.

NOTE

Temperature and time can be changed during heating or steeping cycle.
6. Once brewing cycle is complete, the Breville Smart Tea Infuser™ will beep 3 times. Lift the inner lid along with tea basket, and detach the tea basket. Then close the lid. Your tea is ready now. The Breville Smart Tea Infuser™ will keep the tea warm until you are ready to drink.

NOTE

Keep warm will last for 30 minutes after the tea is brewed. When the glass jug is removed from the power base, it will stop keep warm function.

BOILING WATER

Remove the tea basket and fill the glass jug with water. Close the jug with the lid. Select the desired temperature by pressing TEMP button, and then turn off time indicator by pressing STEEP TIME button. Press START/STOP button to start. When finished, it will beep 3 times.

CHANGING BEEP VOLUME

Press and hold STEEP TIME button and TEMP button together for 2 seconds to enter volume adjustment mode. Press STEEP TIME button to choose among OFF (mute), 3 (default), and 5 (louder). To save and exit, press the two buttons together or wait for 7 seconds.

Tips

TEA TYPES

There are four main types of tea from the tea plant camellia sinensis. The picking and processing methods determine the type of tea finally produced.

Black Tea

Black tea is the most common type of tea worldwide. It is made by fermenting the harvested leaves for a couple of hours before heating or drying. This oxidation darkens the leaves and increases the amount of caffeine. Of all the teas, black tea has the strongest colour and flavour.

White Tea

White tea is the rarest and the most exclusive tea. White tea consists of the whitish buds of the tea plant which are steamed then left to dry naturally. This tea is low in caffeine and has a slightly sweet flavour.

Green Tea

Green tea makes up approximately ten percent of the world's tea. The leaves are picked, rolled and dried before they can go brown. Green tea has a distinctive aroma and has a slight astringent taste.

Oolong Tea

Oolong Tea is semi fermented, which means leaves are processed immediately after picking. They only have a short period of oxidation which turns the leaves from green to red/brown. Its leaves have a floral, fruity quality and hence have a delicate fruity taste. It is recommended not to drink Oolong tea with milk, sugar or lemon.

Herbal Infusions or Tisanes

Herbal infused teas are not produced from the tea plant, but from flowers, leaves, roots or seeds. Common herbal beverages are chamomile, peppermint, fennel, rose hip, and lemon verbena.

Herbal infusions that do not contain tea will generally not become bitter with extended brews. These can often be brewed with boiling water 3 times without jeopardising the taste.

Blends

Tea producers make blends by combining different types of teas, often in order to achieve flavour consistency from one season to the next. Common black tea blends include English Breakfast, Earl Grey, Irish Breakfast, and Russian Caravan.

TEA STORAGE

• Teas stored inside a vacuum sealed bag can be stored for up to two years, depending on the quality and grade of tea. Once opened, tea should be stored in an airtight container and kept in a dry and dark place.
• Once opened, black teas will last longer than green and oolong teas but all tea needs to be stored in ideal conditions.
• You can tell when tea is past its best if it has lost its aroma and will create either a bitter or dull tasting cup.

TIPS FOR OPTIMAL TEA BREWING

• Water quality affects taste. For best results, use filtered water.
• Finer tea particles and leaves will infuse more quickly than whole leaves. As a result, finer tea particles often release too much tannin too quickly, creating a harsher taste. Adjust the steeping time until desired strength is achieved.
• Use roughly one teaspoon of tea per cup/250ml of water.

Care & Cleaning

CLEANING THE GLASS JUG

1. After each use, empty the glass jug. Do not allow brewed tea to stand overnight.
2. Wipe the interior of the glass jug with a soft damp sponge or rinse with warm water.
3. Wipe the exterior of the glass jug with a soft damp cloth to clean.

WARNING

Never immerse or wash exterior of glass jug under running water.

Prohibition sign showing a building with a checkered pattern, enclosed in a circle (no text or symbols)

NOTE

Do not use chemicals, steel wool, or abrasive cleaners to clean the inside or outside of the glass jug as these may scratch the surface.

1. To remove the build-up of tannin, the astringent chemical constituent of tea, fill the glass jug with water up to the MAX mark and bring water to boil and allow water to cool for one minute. Add contents of Breville Tea Maker Cleaner (available at Breville web page) and allow to stand for 5 minutes. Empty Breville Smart Tea Infuser™, refill with fresh water and boil. Repeat this step again. Empty the Breville Smart Tea Infuser™ and rinse thoroughly.

2. Dry thoroughly with a soft, lint-free cloth before using.

NOTE

Through regular use over time, scale build-up can affect the performance and the life of the Breville Smart Tea Infuser™. Lime and phosphate are common forms of scale that can damage your Breville Smart Tea Infuser™. Lime scale, a harmless mineral, comes in the appearance of white-coloured or rusty looking build up on the inner walls and inner base of the glass jug. Phosphate scale can't be seen, however, it can cause the water to appear cloudy when heated. To prevent scale from damaging your Breville Smart Tea Infuser™, ensure to descale the glass jug regularly. Use Breville Descaler (available at Breville web page) and follow the instructions.

NOTE

Allow all parts of the Breville Smart Tea Infuser™ to cool completely before disassembling and cleaning.

WARNING

Never immerse the BASE OF THE GLASS JUG, POWER BASE, POWER CORD or POWER PLUG in water or allow moisture to come in contact with these parts.

Prohibition sign with crossed-out diagram of a showerhead and building, indicating no spray or disinfection

CLEANING THE OUTER LID

1. Wash the outer lid in warm soapy water with a soft sponge, rinse and dry thoroughly.
2. Alternatively, the outer lid is dishwasher safe.
3. Let all surfaces dry thoroughly prior to using.

CLEANING THE BASKET

1. Wash the inner lid and tea basket in warm soapy water with a soft sponge, rinse and dry thoroughly. A non-abrasive liquid cleanser or mild spray solution may be used to avoid build-up of stains. Apply the cleanser to the sponge, not the accessory surfaces, before cleaning.
2. The tea basket is dishwasher safe, but the inner lid is not.
3. Let all surfaces dry thoroughly prior to using.

CLEANING THE POWER BASE

1. Wipe the power base with a soft damp sponge.
2. Let all surfaces dry thoroughly prior to inserting the power plug into a wall outlet.

STORAGE

1. Ensure the Breville Smart Tea Infuser ^™ is switched off, cleaned and dried before storing.
2. Ensure that the tea basket is securely assembled.
3. Ensure that outer lid is securely in place.
4. Wrap the power cord around the power cord storage under the power base.
5. Stand the Breville Smart Tea Infuser™ upright on the power base. Do not store anything on top.

PROBLEM WHAT TO DO

The Breville Smart Tea InfuserTM does not switch ‘ON’	Check the power plug is securely inserted into the outlet.Insert the power plug into an independent outlet.Insert the power plug into a different outlet.Reset the circuit breaker if necessary.For additional safety the Breville Smart Tea InfuserTM is fitted with a thermal cut out. In the event of severe overheating, the Breville Smart Tea InfuserTM will automatically shut down to prevent further damage.
The Breville Smart Tea InfuserTM does not work	Check the glass jug is securely positioned on the power base.
I cannot select a certain function	Certain features cannot be selected or changed during the heating or brewing cycle.LED lights surrounding the buttons will indicate the availability of the functions.
After boiling water, bubbles appear around the temperature sensor	This is normal for the functionality of the Breville Smart Tea InfuserTM.
My tea tastes too weak or too strong	Perform a cleaning cycle as per instruction in the booklet.

the Breville Smart Tea Infuser™

Exterior view of a modern glass tea pot with a digital display and control panel (no visible text or symbols)

Breville®

Table des matières

Prohibition sign showing a trash bin with a diagonal line crossing it, no text or symbols present.

AVERTISSEMENT

Prohibition sign with crossed-out kitchen utensil and Chinese text

A B C D E F H I G

Line drawing of a modern electric kettle with a grater inside (no text or symbols)

Illustration showing a hand pressing a circular button next to a perforated plastic component (no text or symbols)

WATER TO TEASPOON RATIO

There are four main types of tea from the tea plant camellia sinensis. The picking and processing methods determine the type of tea finally produced.

Thé noir

Prohibition sign of a trash bin with no text or symbols

NOTE

Prohibition sign with crossed-out diagram of a showerhead and spray bottle, indicating no spray or explosion

NETTOYER LE COUVERCLE EXTERNE

Breville Consumer Support

USA

Mail: Breville USA 19400 S. Western Ave Torrance CA 90501-1119

Phone: [phone]-BREVILLE

Canada

Mail: Breville Canada 3595 boulevard Côte-Vertu, Saint-Laurent, Québec H4R 1R2

Phone: [phone]

Web: www.brevilleusasupport.com

Web: www.breville.ca/support

Breville®

Thought for food

Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928.

Copyright Breville Pty. Ltd. 2017.

Due to continued product improvement, the products illustrated/photographed

in this brochure may vary slightly from the actual product.
