USER MANUAL Designer Series HPA830W HONEYWELL

White Honeywell air purifier with perforated grille and three legs, no visible text or symbols on the device body.

HPA830 Series

If you have any questions about the operation of this product, please contact us:

1-800-477-0457

www.HoneywellPluggedIn.com/contact-us

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS AIR PURIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before operating the air purifier.
2. Place air purifier where it is not easily overturned by persons in the household.
3. ALWAYS turn the air purifier controls to the OFF position and unplug from the wall outlet when not in use.
4. To disconnect the air purifier, make sure the unit is powered OFF then grip the plug and pull it from the wall outlet. NEVER pull by the cord.
5. DO NOT use any product with a damaged cord or plug, any product that malfunctions, or any product that has been dropped or damaged in any manner. Keep the cord away from heated surfaces.
6. DO NOT use air purifier outdoors.
7. DO NOT use air purifier unless it is fully assembled.
8. DO NOT run power cord under carpets, and DO NOT cover with throw rugs. Arrange cord such that it will not be a tripping hazard.
9. DO NOT use air purifier where combustible gases or vapors are present.
10. DO NOT expose the air purifier to rain, or use near water, in a bathroom, laundry area or other damp location.
11. The air purifier MUST be used in its upright position.
12. DO NOT allow foreign objects to enter ventilation or exhaust opening as this may cause electric shock or damage to the air purifier. DO NOT block air outlets or intakes.

13. Locate air purifier near the outlet and DO NOT use with extension cord or power strip.

14. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

15. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
16. DO NOT sit, stand or place heavy objects on the air purifier.
17. ALWAYS disconnect power supply before servicing.
18. Keep out of reach of children and pets.
19. Filters may be harmful if ingested. Avoid breathing dust when changing filters.
20. SAVE THESE INSTRUCTIONS.

FOR FCC COMPLIANCE INFORMATION, PLEASE SEE LAST PAGE OF THIS MANUAL.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS AIR PURIFIER WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

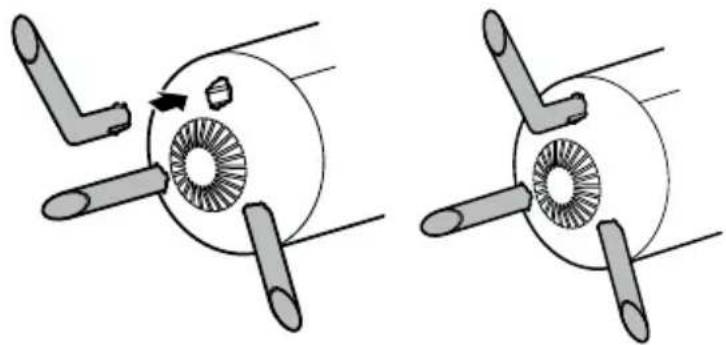

ASSEMBLING THE LEGS ONTO THE AIR PURIFIER

Before proceeding, install the legs included in the bottom of the package. Insert each leg into the hole at the bottom of the Air Purifier making sure to align the leg so it points outward. Insert each leg all the way until you feel it set into place.

Diagram showing two mechanical or electrical components with rotating parts and a small inset component, no text or symbols present.

GETTING TO KNOW YOUR AIR PURIFIER

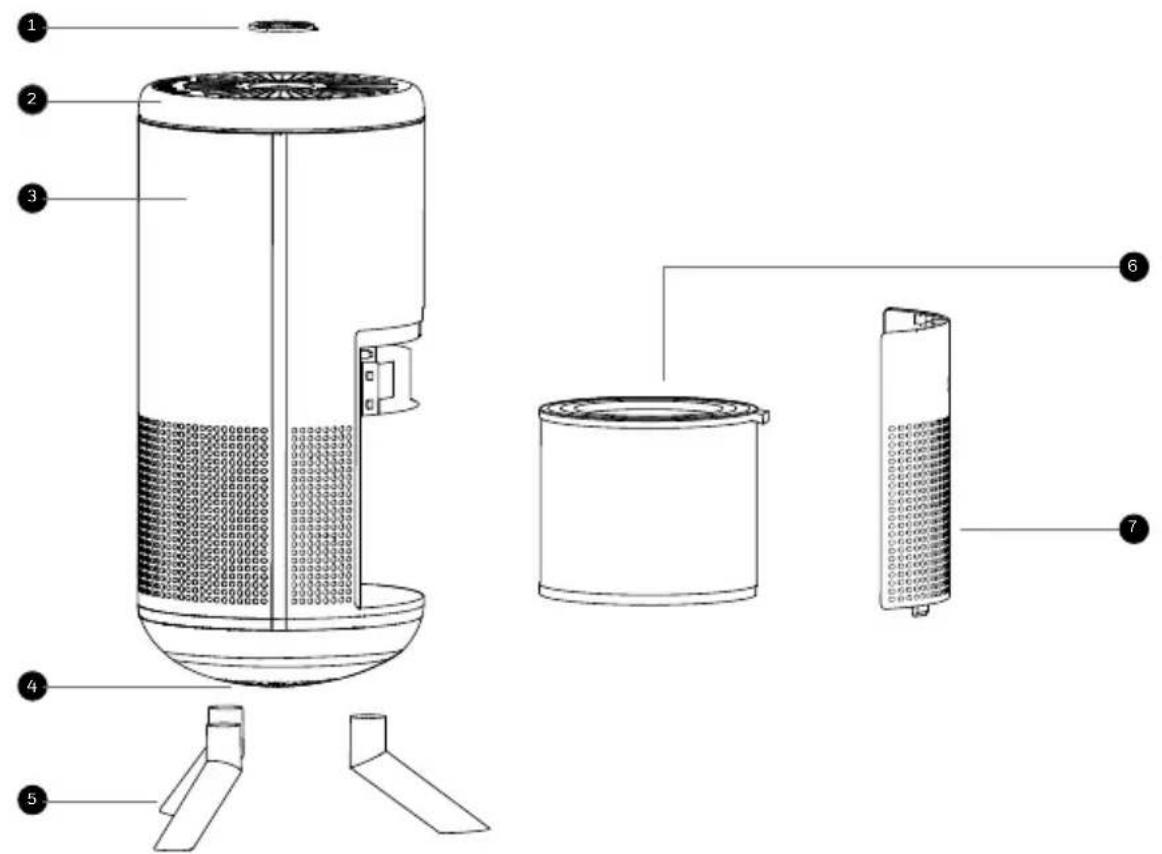

Technical diagram of a portable air purifier with labeled components including fan, vent, and water filter

1 Aromatherapy Tray cover
2 Air Outlet & Control Panel
3 Main Body
4 Air Quality Indicator Light
5 Legs

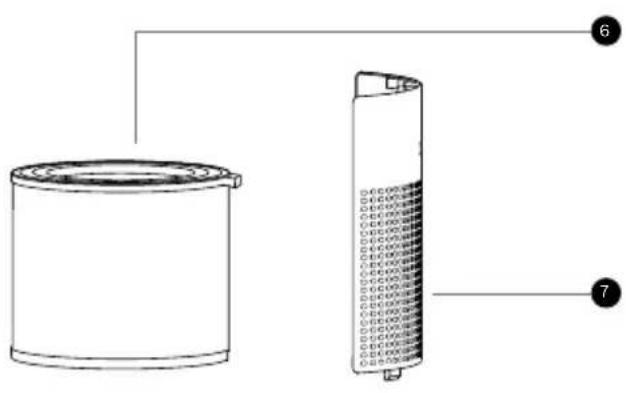

6 Pre-Filter & HEPA Filter
7 Grille Cover

CONTROLS AND FEATURES

1 Air Outlet Grille
2 Aromatherapy Essential Oils Tray
3 Filter Check/Reset & Indicator Light
4 Cleaning Level & Indicator Light
5 Auto Mode & Indicator Light
6 Sleep Mode & Indicator Light
7 Power Button & Indicator Light

Technical diagram of a multi-core electrical connector with labeled components and pin numbers

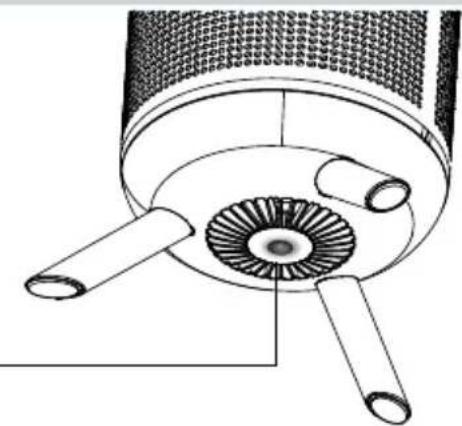

AIR QUALITY INDICATOR

The built-in VOC sensor constantly monitors room air quality.

The Air Quality Indicator Light on the bottom of the Air Purifier will illuminate the floor below it with the current room air quality level: Green=Good Yellow=Moderate Red=Poor

Air Quality Indicator Light

Technical diagram of a mechanical component with three cylindrical parts and a central gear-like structure (no text or symbols)

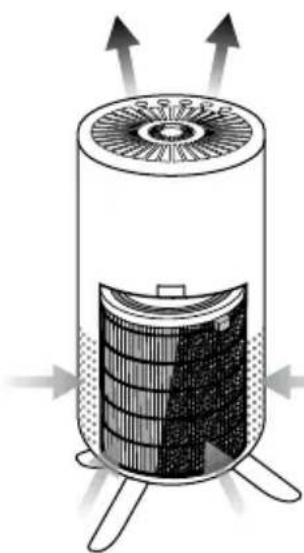

FILTRATION

The Honeywell Designer Series Air Purifier delivers proven HEPA performance with an odor fighting Pre-Filter, Certified Honeywell HEPA Filter and an UltraQuiet motor.

Diagram of a cylindrical device with internal components and directional arrows indicating airflow or heat flow (no text or symbols)

GETTING STARTED

1. Ensure that the unit is powered off and unplugged.
2. Select a firm, level, and flat location. Ensure the unit is more than 6 inches away from the closest wall or furniture so that the grille is not blocked. Portable air purifiers are more effective in rooms where all doors and windows are closed.

NOTE: If the unit is placed on a light-colored carpet, a small mat or rug should be used underneath to prevent staining. This is

especially important in homes with contamination from smoking, fireplaces, or where candles are burned.

1. Remove the filter grille cover by grasping the recess in the top center of the grille cover and pulling forward.
2. Remove the round filter cartridge from the air purifier by pulling on the tab on the top of the filter. This cartridge contains a wrapped HEPA Filter and wrapped Pre-Filter.
3. Remove protective plastic wrap from Filter(s).

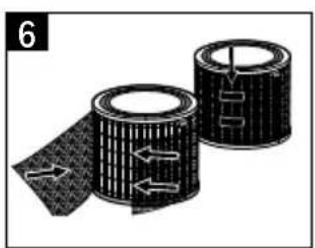

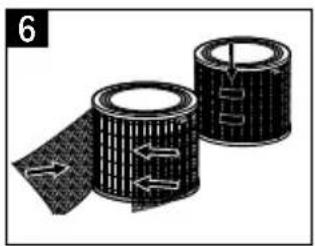

4. Wrap the Pre-Filter around the HEPA Filter cartridge and secure it with the fasteners provided.

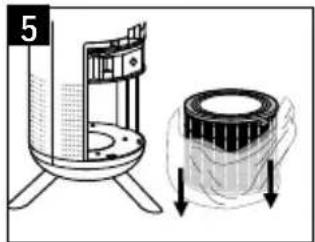

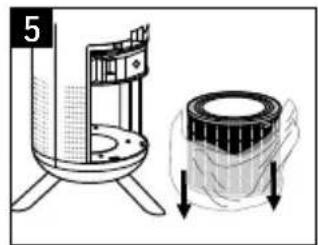

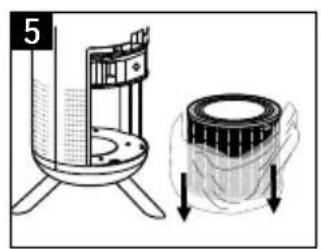

5. Place the Filter(s) back into the air purifier housing, making sure the plastic ring is at the top and the tab faces out.
6. Replace the filter grille cover by placing the tabs on the bottom of the grille into the slots on the unit. Gently push the top of the grille until secure.

Diagram of a cylindrical device with heat exchanger and three legs, showing airflow direction (no text or symbols)

Diagram of a container with liquid and an arrow indicating direction, no text or symbols present

4

Diagram showing a cylindrical device with internal components and a magnified view of its internal structure (no text or symbols)

Diagram of two cylindrical objects with arrows indicating movement or force, no text or symbols present

Diagram of a battery cell with internal components and an arrow indicating flow direction (no text or symbols)

8

ENERGY STAR

energy

ENERGY STAR

This product earned the ENERGY STAR label by meeting strict energy efficiency guidelines set by the U.S. EPA. Room air cleaners have demonstrated the potential for improving air quality and providing health benefits. EPA does not endorse manufacturer claims regarding the degree to which a specific product will produce healthier indoor air.

The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model's CADR for Smoke and the electrical energy it consumes, or CADR/Watt.

OPERATION

1. Ensure that the plastic wrap has been removed from the filters and the filters are replaced in the unit. Next, plug the power cord into a working electrical outlet.
2. Tap Power Button ⏻ to turn on the air purifier. The air purifier will start automatically on Auto Mode until another cleaning level is selected.
3. To shut off, tap the Power Button ⏻ once.
4. Use the Cleaning Level button ≡ to choose a different cleaning level.

MICROSCOPIC PARTICLES: quietest setting and optimized to capture small particles.

GENERAL CLEAN: recommended for dust and general, everyday air cleaning.

POLLEN: optimizes pollen capturing performance.

Sleep Mode

Pressing the SLEEP MODE button sets the unit to the lowest cleaning level for ultra-quiet nighttime operation while dimming control panel LEDs to 10% and completely turns off the Air Quality Indicator light.

Automatic Cleaning Mode & Air Quality Indicator

When the Auto mode (AUTO) is activated, the air purifier will automatically operate at the appropriate cleaning level to reduce the VOCs that are detected in the room. To select this mode, tap the Auto button and the Auto Mode light will illuminate to indicate the setting has been activated.

This air purifier is equipped with a VOC Sensor that detects the level of VOCs in the room and provides a visual display to indicate air quality. The Air Quality Indicator color display is located at the bottom of the air purifier. The VOC Sensor is constantly monitoring the air and the Air Quality Indicator light will illuminate the floor either green, yellow, or red depending on the level of VOCs detected in the room:

Green – Good air quality. There is a low level of VOCs detected.

Yellow – Moderate air quality. There is a moderate level of VOCs detected.

Red - Poor air quality. There is an elevated level of VOCs detected.

VOCs are gases that are emitted from certain household cleaning, home improvement, and even common home decor products.

NOTE: Upon start up, the unit may take a few minutes to calibrate and measure the air quality. During this time, the Air Quality Indicator will pulse between green, yellow, and red until the air quality is determined. When the appropriate reading is determined, the indicator will then remain a solid color.

Filter Check/Reset

This air purifier model has a Filter Check Light to remind you when it is time to replace the Pre-Filter and HEPA Filter based on the air purifier's hours of use.

When the Filter Reset Light illuminates, it is time to replace the Pre-Filter.

When the Filter Reset Light blinks every 2 seconds, it is time to replace the HEPA Filter.

For more detailed information, see the next section.

REPLACEMENT FILTERS

To help ensure stated product performance, use only Genuine Honeywell Replacement Filters

You can purchase Genuine Honeywell Replacement Filters at the retailer where you purchased your air purifier or order directly from www.HoneywellPluggedIn.com

Pre-Filter Options

Models:

HRF-AP1 (Odor Reducing)

HRF-APP1

(VOC & Odor Reducing)

Two plain gray rectangular panels with no text, numbers, or symbols visible.

HEPA Filter

Model:

HRFJ830 (1 Pack)

White plastic filter or filter component with a circular top and side edge (no text or symbols visible)

When the Filter Reset Indicator Light illuminates or blinks, it is time to replace one or more of the filters.

FILTER CHECK/RESET LIGHT FILTER WHEN		TO REPLACE	NUMBER OFFILTERS NEEDED
Solid Illumination(not blinking)	Honeywell Pre-Filter HRF-AP1 orHRF-APP1	Every 3 Months 1 Pre-Filter
Blinks every 2 seconds Honeywell HEPA FilterHRFJ830		Every 12 Months 1 HEPA Filter

To change either filter, remove the filter cartridge. See the Getting Started section for filter removal and replacement instructions (Page 5).

REPLACEMENT FILTERS (CONTINUED)

To change either filter, follow the steps described below:

1. Remove the HEPA Filter 🎨 and Pre-Filter 🎨 cartridge from the Air Purifier. Remove fasteners holding the Pre-Filter and remove the Pre-Filter from the HEPA Filter cartridge. Cut a new Pre-Filter from the Universal HRF-AP1 Pre-Filter using the old Filter as a template (5.7 in x 22.5 in). If also replacing the HEPA Filter, discard the used HEPA Filter but keep the Pre-Filter fasteners to use on the new HEPA Filter.

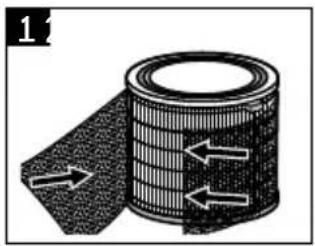

2. Wrap the new Pre-Filter around the HEPA Filter cartridge and secure it with the fasteners provided.
3. Reinsert assembled filter cartridge into the Air Purifier. Ensure the plastic ring is on the top with the tab facing out.

Diagram of a rolled-up cylindrical object with arrows indicating direction, no text or symbols present

Simple line drawing of a cylindrical container with a central arrow and two rectangular cutouts (no text or symbols)

Diagram of a cylindrical device with a rectangular panel and an arrow indicating direction (no text or symbols)

These replacement intervals are intended as guidelines only. Performance of any filter media is dependent upon the concentration of contaminants going through the system. High concentrations of contaminants such as dust, pet dander, and smoke will reduce the useful performance of the filters.

NOTE: The Pre-Filter and HEPA Filters are not washable and should not be vacuumed. DO NOT immerse them in water.

WARNING: Filters may be harmful if ingested. Avoid breathing dust when changing filters.

RESET FILTER CHECK INDICATOR

After you have replaced the appropriate filters, plug the unit back in. The Filter Reset Light will remain on or blinking until it is reset.

To reset the Filter Check/Reset Light:

With the unit powered ON, press and hold the Filter Reset button for 3 seconds until light turns off or stops blinking. The light will stay off until the next filter needs replacing.

NOTE: This procedure is the same whether you are resetting the Pre-Filter or HEPA Filter Reset Light.

USING THE AROMATHERAPY TRAY

This Designer Series Air Purifier features an Aromatherapy Tray (Essential oils not included). Follow the steps below to use the Aromatherapy feature on your Designer Series Air Purifier.

Add Essential Oil to the Aromatherapy Tray:

1. Open the cover of the Aromatherapy Tray.
2. Place cotton ball or other absorbing material (not included) into the tray.
3. Add a few drops of your favorite essential aroma oils (not included) onto the material.

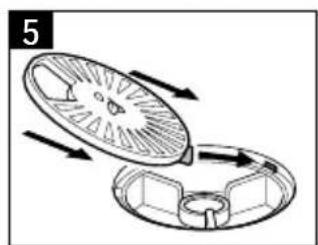

4. Once essential oils have been added, replace the cover by aligning the larger tab with the large slot and then pressing down until it snaps in place.

Aroma will be infused with the cleaner air being returned back into the room while the unit is in use.

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a circular structure with a smokestack emitting vapor, no text or symbols present

Illustration of a droplet being poured into a circular container with a petal inside (no text or symbols)

Diagram of a mechanical component with arrows indicating motion, no text or symbols present

Note: The use of scented aromatherapy oil may trigger the VOC to illuminate yellow or red under the unit and cause the unit to operate at a higher speed on AUTO mode.

CLEANING THE AROMATHERAPY TRAY

The aromatherapy tray can be removed from the unit for easier cleaning.

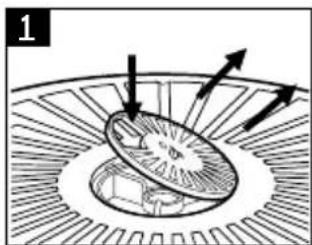

1. To clean the aromatherapy tray, remove the aromatherapy tray cover, and discard the absorbent materials or cotton.

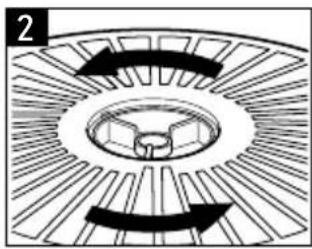

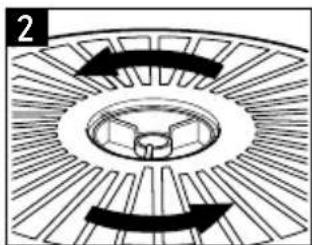

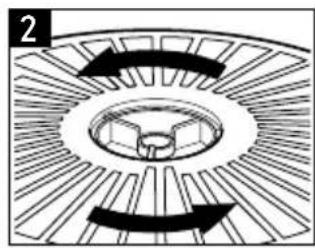

2. Twist the essential oils tray counter-clockwise (to the left) until it loosens, then lift it out of the unit.
3. Wipe down the tray and wash it under clean tap water until it is clean.

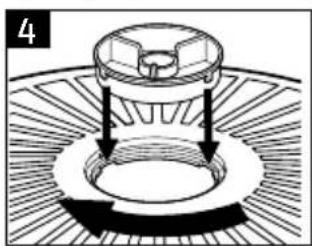

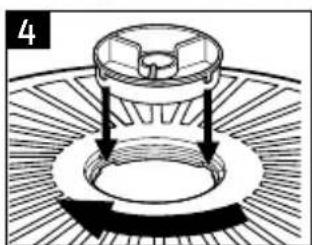

4. Insert clean essential oils tray and replace into the unit by aligning the tabs and twisting clockwise (to the right).
5. Add new cotton or other absorbent material and add a few drops of essential oils if desired and replace the cover as directed above.

Diagram of a circular mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a circular mechanical component with radial arrows indicating rotational direction (no text or symbols)

Illustration of a faucet with a drain outlet and a small circular component (no text or symbols)

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Diagram of a steering wheel with directional arrows indicating rotation or movement (no text or symbols)

CLEANING AND STORAGE

We recommend that you clean the air purifier at least once every 3 months and before extended storage.

Use only a dry cloth to wipe the external surfaces of the air purifier.

Do Not Use Water, Wax, Polish, Or Any Chemical Solution.

If your Air Purifier will not be used for more than 30 days, we recommend that you:

• Remove the HEPA and Pre-Filter cartridge from the unit.
• Wrap the HEPA and Pre-Filter cartridge in an air-tight plastic bag.

FREQUENTLY ASKED QUESTIONS

My Air Purifier is starting to make noise and the air output is less. What's wrong?

The filters may be dirty. High amounts of particles can block the pores in the filter and stop the air from moving through it. Replace the Filters. The HEPA Filters should be replaced every year and the Pre-Filter should be replaced every 3 months. Please note these are guidelines only and filters should be checked periodically as individual home conditions may vary. To ensure the unit continues to perform properly, replace with Genuine Honeywell Filters.

How long should I run my Air Purifier?

In general, the unit will be most effective when doors and windows are closed. It is recommended that you run your air purifier while you are at home to help clean the air. If desired or conditions warrant, you may run your air purifier 24 hours a day.

Can I wash any of the filters in my Air Purifier?

No. Washing the filters will ruin them.

What are VOCs?

Volatile Organic Compounds (VOCs) are emitted from various solids and liquids such as paints, cleaning supplies, building materials, and permanent markers. Some of these compounds have higher concentrations indoors than outside.

Why did my Air Purifier suddenly turn on a higher setting?

Is the air purifier set to Auto Mode? If it is, the unit may have sensed a higher level of VOCs and has adjusted the cleaning level accordingly.

You should first read all instructions before attempting to use this product.

A This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
B At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.
C This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D This warranty does not cover the HEPA Filter or Pre-Filter, except for material or workmanship defects.

Please go to www.HoneywellPluggedIn.com/warranty-registration to register your product and receive product information updates and new promotional offers.

CONSUMER RELATIONS

We are here to help. Call us toll-free at: 1-800-477-0457

Or visit our website at: www.HoneywellPluggedIn.com/contact-us;

In Canada visit: www.HoneywellPluggedIn.ca

Please be sure to specify the model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE AIR PURIFIER OR PERSONAL INJURY.

SÉRIES DESIGNER

White Honeywell air purifier with perforated grille and three legs, isolated on white background (no text or symbols on device body)

Séries HPA830

Diagram showing two mechanical or fluidic components with rotating parts and directional arrows (no text or symbols)

VOTRE PURIFICATEUR D'AIR

Technical diagram of a portable air purifier with labeled parts including fan, vent, and cooling unit

Diagram of a multi-core electrical connector with labeled components and pin numbers

INDICATEUR DE LA QUALITÉ DE L'AIR

Cross-sectional diagram of a mechanical component with three cylindrical parts and a central gear-like structure (no text or symbols)

FILTRATION

Diagram of a cylindrical device with internal components and directional arrows indicating flow or movement (no text or symbols)

INSTALLATION

Diagram of a cylindrical device with internal structure and directional arrows, no text or symbols present

Diagram of a container with liquid and a paper lid, supported by three legs (no text or symbols)

4

Diagram showing a cylindrical device with internal components and a magnified view of its internal structure, both without any text or symbols.

Two cylindrical objects with arrows indicating flow or movement, no visible text or symbols

Diagram of a device with a container and base, showing internal components (no text or symbols)

Diagram showing a device mounted on a base with arrows indicating movement or force, no text or symbols present.

energy

ENERGY STAR

Uniform dark gray surface with scattered small specks, no text or symbols visible

Filtre HEPA

Modèle :

HRFJ830C

(1 par paquet)

White plastic filter or filter component with no visible text or symbols

Diagram of a rolled-up cylindrical object with arrows indicating flow or movement, no text or symbols present

Diagram of a cylindrical object with textured surface and two rectangular cutouts, no text or symbols present

Diagram of a portable electronic device with a black panel and directional arrow indicating movement (no text or symbols)

Diagram of a circular mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a circular structure with a smokestack and arrow pointing to a central component (no text or symbols)

Illustration of a droplet being poured into a circular container with a petri dish (no text or symbols)

Diagram of a mechanical component with arrows indicating motion, no text or symbols present

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram of a circular mechanical component with radial arrows indicating rotational motion (no text or symbols)

Illustration of a faucet with a drain drain and a small container (no text or symbols)

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Diagram of a mechanical component with arrows indicating motion, no text or symbols present

NETTOYAGE ET RANGEMENT

White Honeywell air purifier with perforated grille and three legs, isolated on white background (no text or symbols on body)

Series HPA830

Diagram showing two mechanical or optical setups with rotating components and a small object, no text or symbols present.

Technical diagram of a portable air purifier with numbered parts labeled 1 to 5

Technical diagram showing a cylindrical component and its internal structure with numbered annotations.

Diagram of a multi-core electrical connector with labeled pins and components

Diagram of a cylindrical device with internal components and directional arrows indicating airflow or movement (no text or symbols)

INICIO

Diagram of a cylindrical device with heat source and three legs, showing airflow direction (no text or symbols)

Diagram of a container with liquid and a lid, showing an arrow indicating direction (no text or symbols)

4

Diagram showing a cylindrical device with internal components and a magnified view of its internal structure (no text or symbols)

Diagram of two cylindrical objects with arrows indicating movement or force, no text or symbols present

Diagram of a battery cell with an internal circuit board and water level indicator (no text or symbols)

8

ENERGY STAR

energy

ENERGY STAR

Two plain gray rectangular panels with no text, numbers, or symbols visible.

Filtro HEPA

Modelo:

HRFJ830 (1 Paquete)

White plastic filter or filter component with no visible text or symbols

Diagram of a rolled document with arrows indicating direction, no text or symbols present

Simple line drawing of a cylindrical container with a central arrow and two rectangular cutouts (no text or symbols)

Diagram of a device with a cylindrical component mounted on a tripod base, showing internal components and an arrow indicating direction (no text or symbols present)

Diagram of a circular mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a circular object with a smokestack emitting vapor, no text or symbols present

Illustration of a droplet being poured into a circular container with a petri dish (no text or symbols)

Diagram of a mechanical component with rotating arrows indicating motion (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with radial arrows indicating rotational direction (no text or symbols)

Illustration of a faucet with liquid being poured into a sink (no text or symbols)

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Diagram of a mechanical component with arrows indicating motion, no text or symbols present

LIMPIEZA Y ALMACENAMIENTO

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

© 2021 All rights reserved.

Kaz USA, Inc., a Helen of Troy Company

400 Donald Lynch Blvd., Suite 300, Marlborough, MA 01752

Honeywell is a trademark of Honeywell International Inc., used under license by Helen of Troy Limited.

Distributed in Canada by: Kaz Canada, Inc., a Helen of Troy Company

6700 Century Avenue, Suite 210, Mississauga, Ontario L5N 6A4

Contact us at 1-800-477-0457 or www.HoneywellPluggedIn.com

In Canada: www.HoneywellPluggedIn.ca

The ENERGY STAR name and marks are registered trademarks owned by the U.S. EPA.

Made in China

For Responsible recycling, please visit:

RECYCLE NATION

www.RecycleNation.com

Helen of Troy Limited.

www.RecycleNation.com
