USER MANUAL MIC256 EX CANDY

МИКРОВОЛНОВАЯ ПЕЧЬ ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

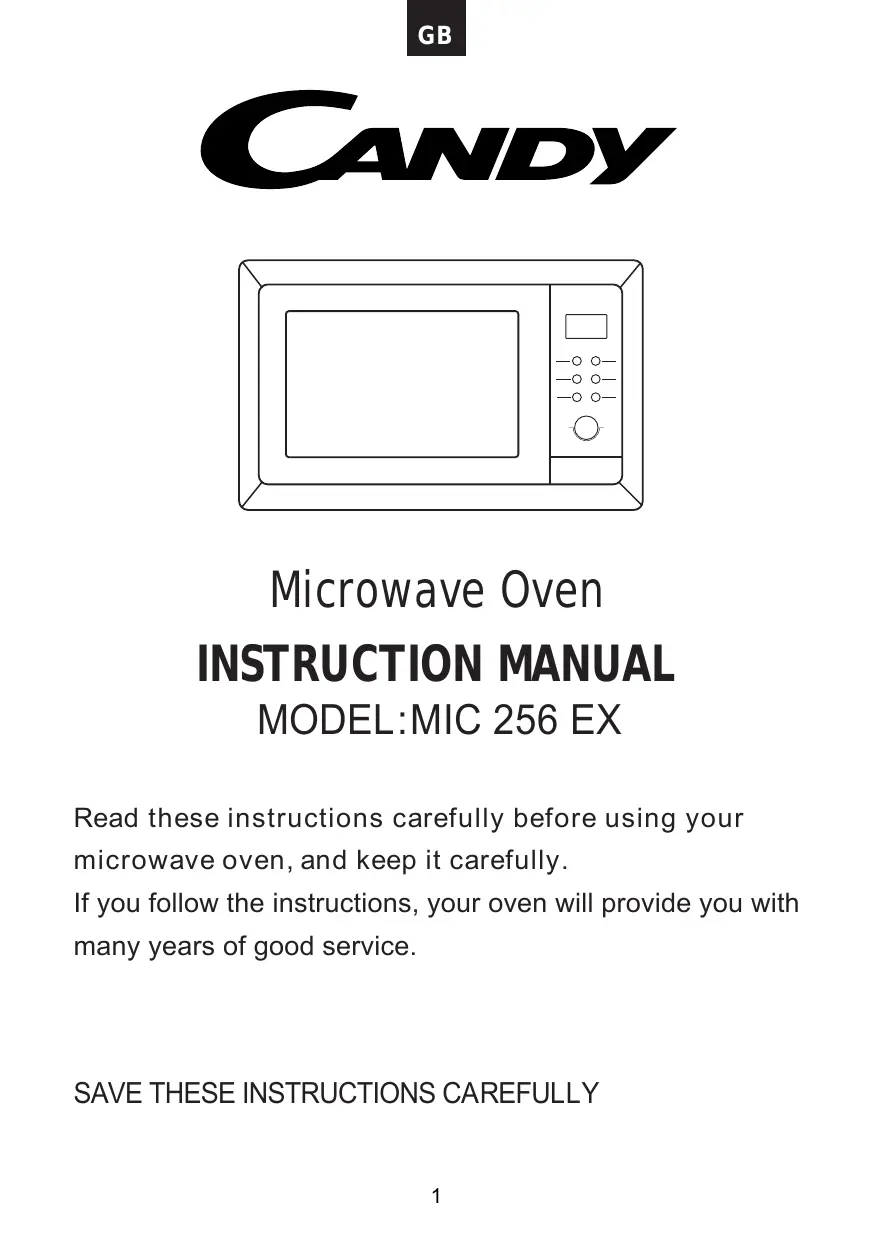

RU MIKROAALTOUUNI OHJEKÄSIKIRJA FI GB Microwave Oven INSTRUCTION MANUAL MODEL:MIC 256 EX Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY 1

GB PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications Model:

MIC 256 EX Rated Voltage:

Rated Input Power(Microwave):

1450W Rated Output Power(Microwave):

900W Rated Input Power(Grill):

1100W Rated Input Power(Convection):

2500W Oven Capacity:

25L Turntable Diameter:

GB IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must 14. Eggs in the shell and whole hard-boiled not be heated in sealed containers since eggs should not be heated in microwave they are liable to explode. ovens since they may explode, even 2. Warning: It is hazardous for anyone other after microwave heating has ended. than a competent person to remove a 15. Use this appliance only for its intended cover which gives protection against uses as described in manual. Do not exposure to microwave energy. use corrosive chemicals or vapors 3. Warning: Only allow children to use the in this appliance. This oven is especially oven without supervision when adequate designed to heat. It is not designed for instructions have been given so that the industrial or laboratory use. child is able to use the oven in a safe way 16. If the supply cord is damaged, it must and understand the hazards of improper be replaced by the manufacturer, its use. service agent or similarly qualified 4. Warning: When the appliance is operated persons in order to avoid a hazard. in the combination mode, children should 17. Do not store or use this appliance only use the oven under adult supervision outdoors. due to the temperatures generated. 18. Do not use this oven near water, in a (only for grill series) wet basement or near a swimming 5. Only use utensils suitable for use in pool. microwave ovens. 19. The temperature of accessible surfaces 6. The oven should be cleaned regularly and may be high when the appliance is any food deposits should be removed. operating. Keep cord away from heated 7. Read and follow the specific:"PRECAUsurface, and do not cover any events TIONS TO AVOID POSSIBLE EXPOSURE on the oven. TO EXCESSIVE MICROWAVE ENERGY". 20. Do not let cord hang over edge of table 8. When heating food in plastic or paper or counter. containers, keep an eye on the oven due 21. Failure to maintain the oven in a clean to the possibility of ignition. condition could lead to deterioration 9. If smoke is observed, switch off or unplug of the surface that could adversely the appliance and keep the door closed affect the life of the appliance and in order to stifle any flames. possibly result in a hazardous situation. 10. Do not overcook food. 22. The contents of feeding bottles and 11. Do not use the oven cavity for storage baby food jars shall be stirred or shaken purposes. Do not store items, such as and the temperature checked before bread, cookies, etc. inside the oven. consumption, in order to avoid burns.23. 12. Remove wire twist-ties and metal handles Microwave heating of beverages can from paper or plastic containers/bags result in delayed eruptive boiling, before placing them in the oven. therefore take care when handling the 13. Install or locate this oven only in container. accordance with the installation 24.Steam cleaner is not to be used. instructions provided. 25.During use the appliance becomes hot.Care should be taken to avoid touching heating elements inside the oven. 26.Accessible parts may become hot during use. Young children should be kept away. 27.Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering.

GB To Reduce the Risk of Injury to Persons Grounding Installation DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord , use only a 3-wire extension cord.

CLEANING Be sure to disconnect the oven from the power supply. 1. Clean the inside of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. 2. If a long cord set or extension cord is used: 1)The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2)The extension cord must be a groundingtype 3-wire cord. 3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

GB UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test: 1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question. 2. Cook on maximum power for 1 minute. 3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking. 4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven Utensils Remarks Aluminum foil

Browning dish Dinnerware Glass jars Glassware Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic

Plastic wrap Thermometers Wax paper

Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Use as a cover to prevent splattering or a wrap for steaming. Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Microwave-safe only (meat and candy thermometers). Use as a cover to prevent splattering and retain moisture.

GB Materials to be avoided in microwave oven Utensils Remarks Aluminum tray Food carton with metal handle Metal or metaltrimmed utensils Metal twist ties Paper bags Plastic foam Wood

May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

F E G Grill Rack( Only for Grill series )

C D B A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

Shut off oven power if the door is opened during operation.

A GB Turntable Installation Hub (underside)

a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. Turntable ring assembly

Installation and connection 1.This appliance is only intended for domestic use. 2.This oven is intended for built-in use only.It is not intended for counter-top use or for use inside a cupboard. 3. Please observe the special installation instructions. 4.The appliance can be installed in a 60cm wide wall-mounted cupboard(at lease 55cm deep and 85cm off the floor). 5.The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. 6.The mains voltage must correspond to the voltage specified on the rating plate. 7.The socket must be installed and connecting cable must only be replaced by a qualified electrician.If the plug is no longer to accessible following installation,an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm. 8.Adapters,multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

GB OPERATION INSTRUCTION This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1.Clock Setting When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once. 1) Press " CLOCK/PRE-SET " to choose 12-hour or 24-hour. 2) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour) or 1--12(12-hour). 3) Press " CLOCK/PRE-SET ", the minute figures will flash. 4) Turn "

" to adjust the minute figures, the input time should be within 0--59.

5) Press " CLOCK/PRE-SET" to finish clock setting. ":" will flash. Note: 1) If the clock is not set, it would not function when powered. 2) During the process of clock setting, if you press " STOP/CLEAR ", the oven will go back to the previous status automatically.

2. Microwave Cooking 1) Press the "MICROWAVE/GRILL/COMBI. " key once, and "P100" display. 2) Press " MICROWAVE/GRILL/COMBI. " for times or turn "

" to select the microwave

power from 100% to 10%. "P100", "P80", "P50", "P30", "P10" will display in order. 3) Press "START/+30SEC./CONFIRM " to confirm. 4)Turn "

" to adjust the cooking time. (The time setting should be 0:05- 95:00.)

5) Press " START/+30SEC./CONFIRM " to start cooking. NOTE: the step quantities for the adjustment time of the coding switch are as follow: 0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes Microwave Power Chart Press Once

GB 3. Grill Cooking 1) Press the "MICROWAVE/GRILL/COMBI. " key once, and "P100" display. 2) Press " MICROWAVE/GRILL/COMBI." for times or turn "

" to select the grill power.

Stop turning when "G-1" displays. 3) Press "START/+30SEC./CONFIRM " to confirm. 4)Turn "

" to adjust the cooking time. (The time setting should be 0:05- 95:00.)

5) Press " START/+30SEC./CONFIRM " to start cooking. Note: If half the grill time passes, the oven sounds twice to tell you to turn the food over. You can just leave continue working. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press"START/+30SEC./CONFIRM" to continue cooking. If no operation, the oven will work automatically and sound once.

4. Combination Cooking 1) Press the "MICROWAVE/GRILL/COMBI. " key once, and " P100" display. 2) Press " MICROWAVE/GRILL/COMBI." for times or turn "

" to select the grill power.

Stop turning when "C-1","C-2","C-3" or "C-4" displays. 3) Press "START/+30SEC./CONFIRM " to confirm. 4)Turn "

" to adjust the cooking time. (The time setting should be 0:05- 95:00.)

5) Press " START/+30SEC./CONFIRM " to start cooking.

Note: Combination instructions Instructions

5. Convection Cooking(With preheating funtion) The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

GB 1) Press the "CONVECTION " key once, "140" flash. 2) Keep pressing "CONVECTION" or turn "

" to select the convection function.

Note:the temperature can be chosen from 140 degrees to 230 degrees. 3) Press the " START/+30SEC./CONFIRM " to confirm the temperature. 4) Press the " START/+30SEC./CONFIRM " to start preheating.When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flash. 5) Put the food into the oven and close the door. Turn "

" to adjust the cooking time. (The maximum setting time is 95 minutes.)

6) Press the " START/+30SEC./CONFIRM " key to start cooking. Note: a. Cooking time cannot be input until the preheating temperature arrives. If the temperature arrives, door must be opened to input the cooking time. b. When the preheating time is more than 30 minutes and the temperature not arrives,buzzer will sound twice to tell you to input the cooking time. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states.

6. Convection Cooking( Without pre-heating function) 1) Press the "CONVECTION " key once, "140" flash. 2) Keep pressing "CONVECTION" or turn "

" to select the convection function.

Note:the temperature can be chosen from 140 degrees to 230 degrees. 3) Press the " START/+30SEC./CONFIRM " to confirm the temperature 4) Turn "

" to adjust the cooking time. (The maximum setting time is 95 minutes.)

5) Press the " START/+30SEC./CONFIRM " key to start cooking.

7.Multi-Stage Cooking Three stages can be maximumly set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin. Note: Auto menu and preheating cannot be set as one of the multi-stage. Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following: 1) Press "DEFROST BY W.T./TIME " twice, the screen will display "dEF2"; 2) Turn "

" to adjust the defrost time of 5 minutes;

3) Press"MICROWAVE/GRILL/COMBI." once; 4) Turn "

" to choose 80% microwave power till "P80" display;

GB 5) Press "START/+30SEC./CONFIRM" to confirm; 6) Turn "

" to adjust the cooking time of 7 minutes;

7) Press "START/+30SEC./CONFIRM" to start cooking.

8. Pre-set Function 1) Set the clock first. (Consult the instruction of clock setting.) 2) Input the cooking program. Three stages can be set at most. Defrosting should not be set in preset function.Auto menu can be set single stage only. Example: if you want to cook with 80% microwave power for 7 minutes. a. Press"MICROWAVE/GRILL/COMBI." once; b. Turn "

" to choose 80% microwave power till "P80" display;

c. Press "START/+30SEC./CONFIRM" to confirm; d. Turn "

" to adjust the cooking time of 7 minutes;

After the above steps, please do not press " START/+30SEC./CONFIRM ". Then do as following: 3) Press " CLOCK/PRE-SET ", current time displays and the hour figures flash. 4) Turn "

" to adjust the hour figures, the input time should be within 0--23(24-hour)

or 1--12(12-hour). 5) Press " CLOCK/PRE-SET ", the minute figures will flash. 6) Turn "

" to adjust the minute figures, the input time should be within 0--59.

7) Press " START/+30SEC./CONFIRM " to finish setting. ":" will light, buzzer will ring twice when the time arrives, then cooking will start automatically.

Note: clock must be set first. Otherwise,pre-set function will not work. 9. Auto Menu 1) In waiting state, turn "

" right to choose the function wanted,

and "A1","A2","A3"...."A10" will be displayed. 2) Press "START/ +30 SEC./CONFIRM" to confirm the menu you need. 3) Turn "

" to choose the weight of menu,and "g" indicator will light.

4) Press "START/ +30 SEC./CONFIRM" to start cooking. Note: Cake menu is under convection cooking with 180 -warm-up function, and you should preheat first following the auto menu operation, when the oven reaches the temperature, it will stop working and sound to remind opening the door to put cake in, then press "START/ +30 SEC./CONFIRM " to start cooking.

100(with water 800g)

150(with water 1200g)

100% Preheat at 180 degrees C-4

GB 10. Defrost by Weight 1) Press "DEFROST BY W.T./TIME" pad once,the oven will display "dEF1",. 2) Turn " " to select the weight of food.At the same time, "g" will lights, The weight should be 100-2000g. 3) Press "START/+30SEC./CONFIRM" key to start defrosting.

11. Defrost by Time 1) Press " DEFROST BY W.T./TIME " key twice, the oven will display "dEF2" 2) Turn "

" to select the cooking time. The maximum setting time is 95 minutes.

3) Press " START/+30SEC./CONFIRM" key to start defrosting.

12. Speedy Cooking 1) In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes. 2) During microwave,grill,convection and combination states, press "START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. Note: this function cannot work under defrost, auto menu and multi-stage cooking.

13. Speedy Microwave Cooking In waiting state, turn " " left to choose cooking time directly then press "START/+30SEC./CONFIRM " key to cook with 100% microwave power. This program can be set as one of multi-stage.

14. Inquiring Function (1) In cooking state, press"MICROWAVE/GRILL/ COMBI." or " CONVECTION", the current power will be displayed for 2-3 seconds. (2) In pre-set state, press " CLOCK/PRE-SET " to inquire the time for delay start cooking. The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display. (3) During cooking state, press "CLOCK/PRE-SET" to check the current time. It will be displayed for 2-3 seconds.

GB 15. Lock-out Function for Children Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and " " indicator will light. LED will display current time or 0:00. Lock quitting: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting that the lock is released, and " " indicator will disapear.

16. Specification (1) The buzzer will sound once when turning the knob at the beginning; (2) "START/+30 SEC./CONFIRM" must be pressed to continue cooking if the door is opened during cooking; (3) Once the cooking programme has been set , "START/+30 SEC./CONFIRM" is not pressed in 5 minutes. The current time will be displayed. The setting will be cancelled. (4) The buzzer sounds once by efficient press, inefficient press will be no responce. (5) The buzzer will sound five times to remind you when cooking is finished.

GB If something does trouble shooting; before seeking assistanace carry out the following checks first.

It is forbidden to run the unit without any food inside. It is very dangerous.

CUSTOMER ASSISTANCE SERVICE If you cannot identify the cause of the operating anomaly: switch off the appliance (do not subject it to rought treatment) and contact the Assistance Service. PRODUCT SERIAL NUMBER. Where can I find it? It is important that you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance. It will help to avoid wasted journerys to technicians, thereby (and most significantly) saving the corresponding callout charges.

GB This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
