Product type	Cooker hood
Brand	CANDY
Model	CMGL 972 X
Power supply	220-240 V ~ 50 Hz
Lighting power	LED max 1.5 W (G4)
Number of speeds	3 (minimum, intermediate, maximum)
Extraction type	External or recirculation (with charcoal filter)
Duct diameter	150 mm
Safety distance above hob	65 to 75 cm
Grease filter	Metal, monthly cleaning
Activated charcoal filter	Optional, annual replacement
Material	Stainless steel and glass
Installation	Wall-mounted, with brackets supplied
After-sales service	Contact consumer service with serial number
Environmental protection	Recycling per EU directive

Frequently Asked Questions - CMGL 972 X CANDY

How to install the hood above my hob?

Drill 3 holes of 8 mm to fix the wall bracket. Screw the bracket, then lift the hood and secure it. Install the non-return valve and the extraction duct (diameter 150 mm). Finally, place the chimney and adjust the height.

What is the ideal distance between the hood and the hob?

For best results, the hood should be placed at a distance between 65 and 75 cm above the hob.

How to clean the grease filter?

Clean the grease filter every month with a household cleaning product. Use a soft damp cloth. A dirty filter can reduce suction power and present a fire hazard.

When and how to replace the activated charcoal filter?

Replace the activated charcoal filter at least once a year, depending on usage. To install, remove the grease filter, then position the charcoal filter in the block and turn it clockwise.

How to replace the LED bulb?

Remove the screws of the glass and take it off. Disconnect the connection, remove the sockets and the cable. The bulbs (LED G4, max 1.5W) must be replaced together with the sockets and cable. Reassemble everything.

What to do if the hood vibrates strongly?

This can be due to a blocked turbine, a poorly fixed motor, or incorrect installation. Turn off the appliance and call a professional. Also check the wall bracket.

Why is the suction power weak?

Check the distance between the hood and the hob: it should be 65 to 75 cm. If it is too high, adjust the height. Also clean the filters.

How to switch to recirculation mode if I don't have external extraction?

Install an activated charcoal filter (sold separately). Remove the grease filter, insert the charcoal filter and turn it. No extraction duct is needed in recirculation mode.

Where to find the serial number of my appliance?

The serial number (16 digits starting with 3) is on the warranty certificate or on the appliance itself. It is necessary for any consumer service intervention.

What to do in case of unresolved fault?

Turn off the appliance and contact consumer service providing the product reference and serial number. Do not attempt to repair the motor or turbine yourself.

USER MANUAL CMGL 972 X CANDY

UPUTE ZA UGRADNJU I UPORABU

SADRŽAJ

UVOD 2

SIGURNOSNE NAPOMENE 2

UGRADNJA (NA ZID/VANJSKA VENTILACIJA) 5

UGRADNJA (UNUTARNJA VENTILACIJA) 9

OPIS DIJELOVA 10

RUKOVANJE 11

ČIŠĆENJE I ODRŽAVANJE 10

UKLANJANJE MANJIH PROBLEMA U RADU 11

TEHNIČKI PODACI 12

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Prije ugradnje, isključite uređaj i odspojite iz električne mreže.

1. Za najbolji radni učinak, kuhinjska napa treba biti postavljena na visini 65 \~75 cm iznad štednjaka/ploče za kuhanje.

65cm 75cm

Technical line drawing of two electronic components with mounting flanges (no text or symbols)

Diagram of a pipe with a coiled tube and a downward arrow indicating flow or direction (no text or symbols)

kuhinjska napa

Technical line drawing of a mechanical component with no visible text or symbols

6.

Diagram of a brick wall with a container and a small object inside, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows and a central block, no text or symbols present.

Pri unutarnjoj ventilaciji, za filtriranje dima i para koristi se aktivni ugljeni filter. Prije ugradnje aktivnog ugljenog filtera, prvo uklonite filter za masnoću. Pritisnite zasun i povucite filter prema dole.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly (no text or symbols visible)

CLOSE ZATVARANJE

VAŽNA NAPOMENA:

o Budite sigurni da je aktivni ugljeni filter sigurno i ispravno učvršćen. U suprotnom se može olabaviti i izazvati opasnost.
o Sa ugrađenim aktivnim ugljenim filterom, usisna snaga kuhinjske biti će manja.

OPIS DIJELOVA KUHINJSKE NAPE

Four circular icons with different leaf and fan symbols, arranged horizontally (no text or labels)

RADNE TIPKE

Tipka za malu brzinu

Pure electrical circuit lines without any symbols

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols present)

Diagram showing a brick wall with electrical outlets and a box on a tray, with an arrow indicating rotation (no text or symbols)

Isometric line drawing of a brick wall with a small object inside, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Illustration of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of an electric motor with a close button and fan blade (no text or symbols)

Poznámka:

Pure technical diagram showing two downward arrows pointing to a horizontal line with a central arrow (no text or symbols)

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 29

SAFETY PRECAUTION 29

SPECIFICATION 31

INSTALLATION (VENT OUTSIDE) 32

INSTALLATION (VENT INSIDE) 36

DESCRIPTION OF COMPONENTS 37

OPERATION 38

MAINTENANCE 38

TROBULESHOOTING 39

CONFORMITY WITH DIRECTIVES 40

ENVIRONMENTAL PROTECTION 40

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

☐ Never let the children operate the machine.
☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
☐ The cooker hood and its filter should be clean regularly in order to keep in good working condition.
☐ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.
☐ Forbid the direct baking from the gas cooker.
☐ Please keep the kitchen room a good convection.
Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.
☐ There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;
☐☐he air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;

Regulations concerning the discharge of air have to be fulfilled.

This appliance if not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person slide for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not flambé under the range hood.

The range hood is not intended to be installed over a hob having more than four hob elements

Electrical Shock Hazard

☐ Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
☐ Failure to follow these instructions can result in death, fire, or electrical shock.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty

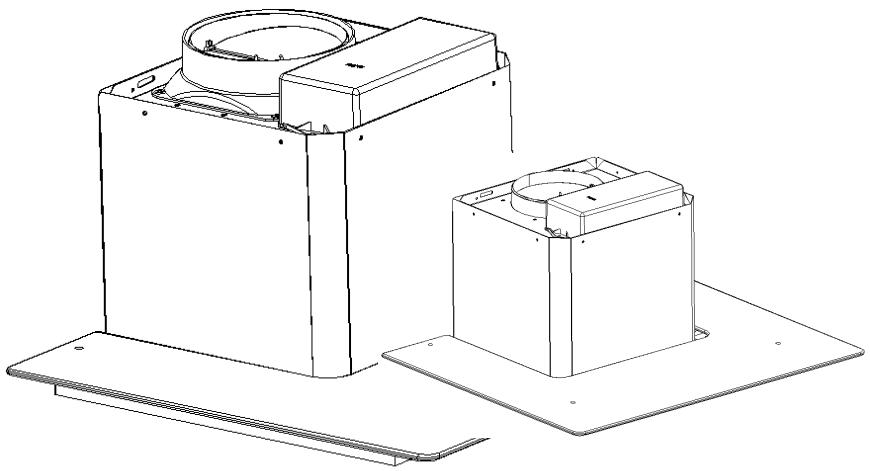

Casing		1
Upper Chimney 500mm		1
Lower Chimney 500mm		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugs φ8×φ6 white color		9
Screws ST4.0×30		9
φ7.2screws ST4.0×8		2

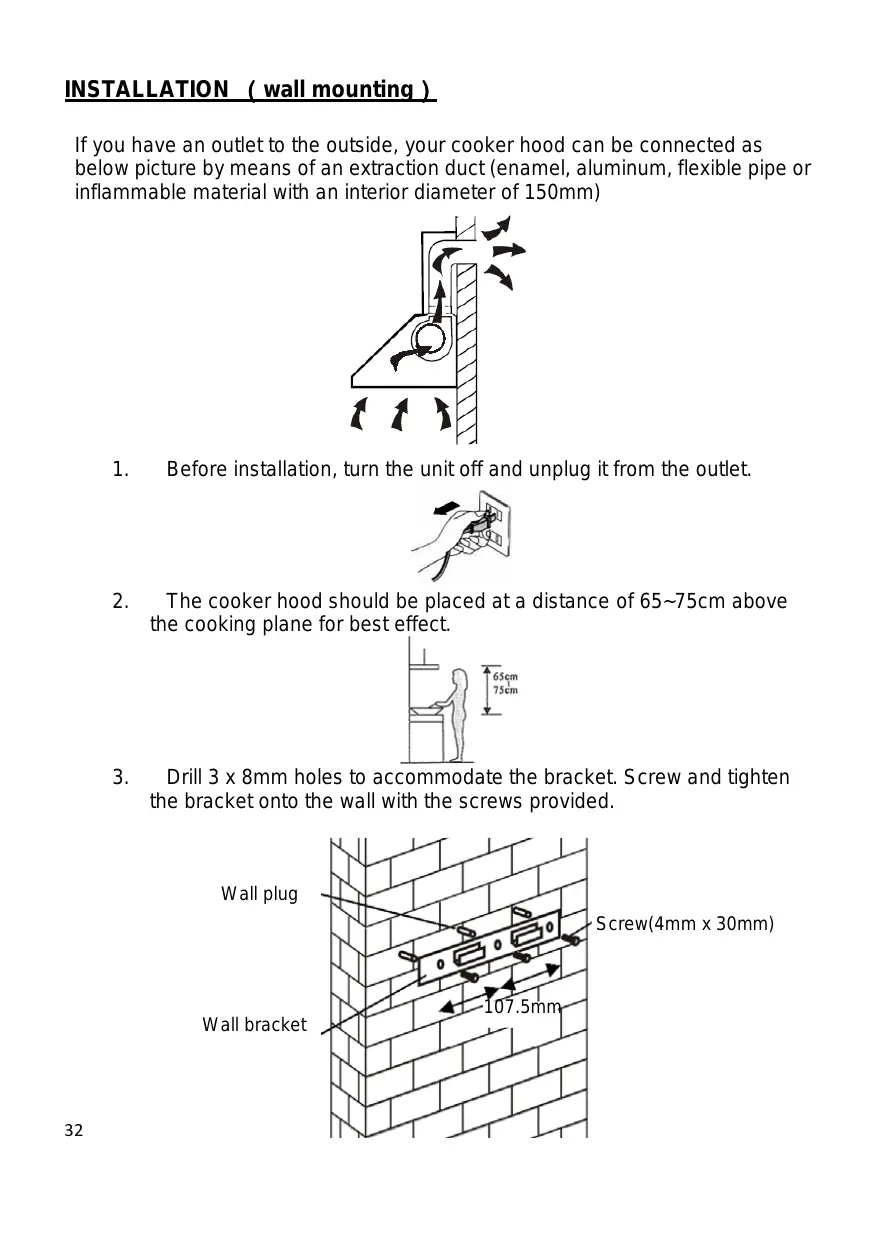

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

65cm 75cm

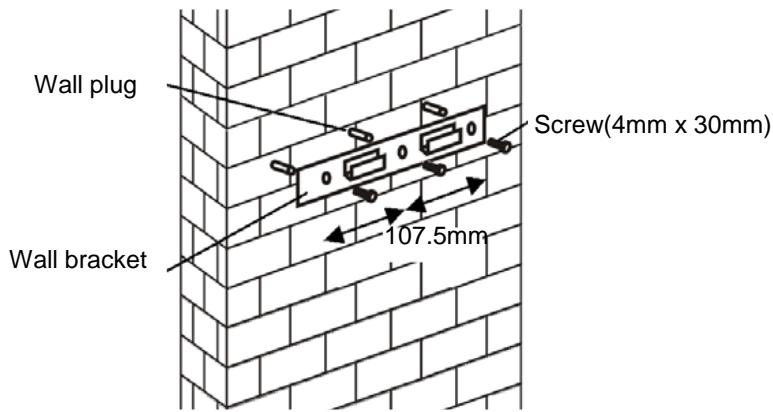

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

Wall plug Screw(4mm x 30mm) Wall bracket 107.5mm

1. Leave up the cooker hood and hang onto the wall bracket hook.

Technical line drawing of two mechanical components with mounting base (no text or symbols)

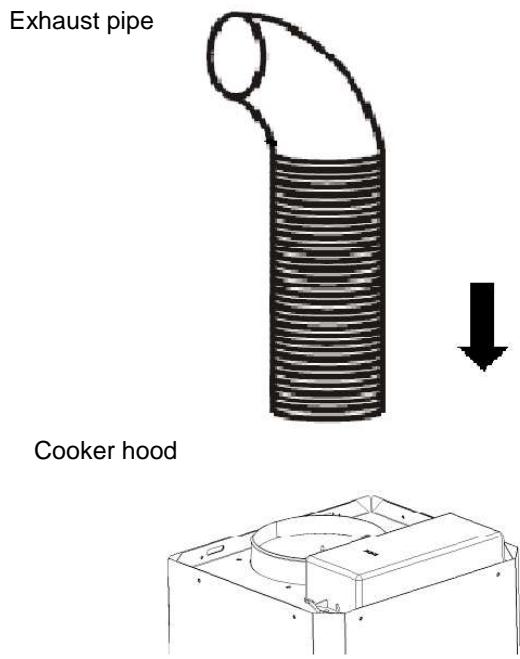

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

6.

i. Place the glass in appropriate position on the top the cooker hood.
ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

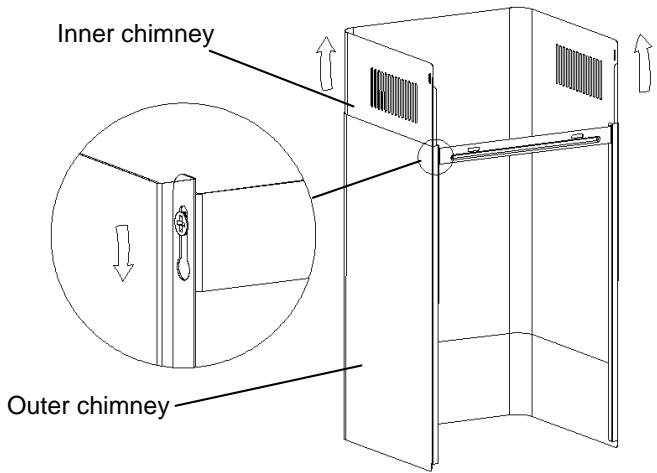

i. By Put the inner chimney into outer chimney . Then pulling out the inner chimney upwards. Adjust to reach the height required.

Diagram of a brick wall with a box and a small object inserted, no text or symbols present

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in below pictures.

Inner chimney Outer chimney

8.

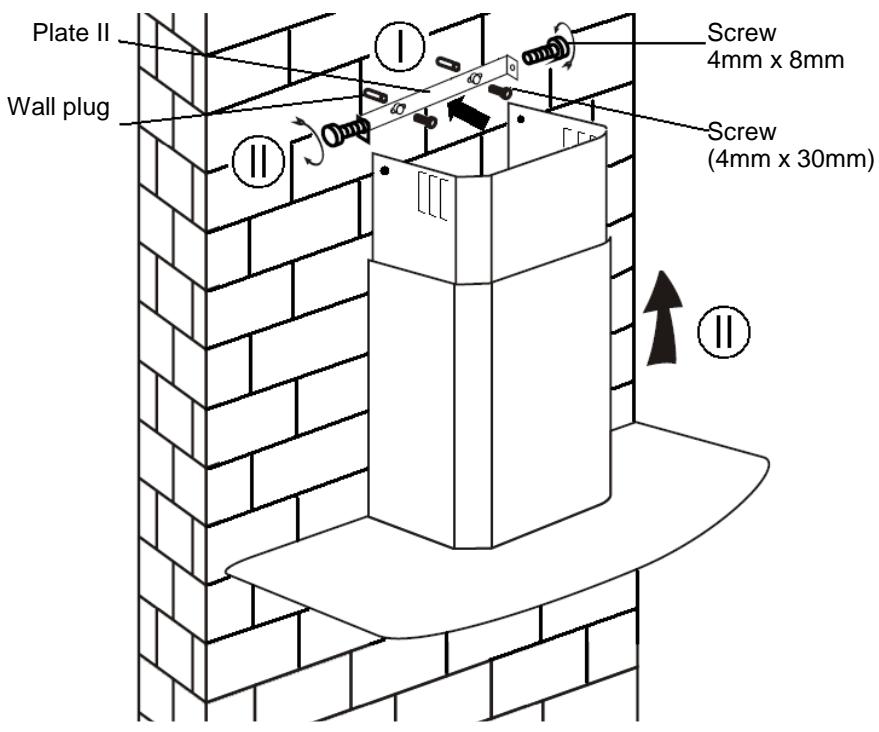

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.
ii. Assembly the chimney onto the unit and fix it with 2 screws.

Plate II Wall plug Screw 4mm x 8mm Screw (4mm x 30mm) II

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

Diagram of a mechanical or fluid system with directional arrows and a central component (no text or symbols)

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
When activated carbon filter attached, the suction power will be lowere

DESCRIPTION OF COMPONENTS

Four circular icons with different leaf and fan symbols, arranged horizontally (no text or labels)

OPERATION

Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Pure electrical circuit lines without any symbols

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: G4, MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROBULESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

NOTICE D'INSTALLATION ET

D'UTILISATION

Sommaire

INTRODUCTION 42

Installation (Evacuation) 45

Installation (Recyclage) 49

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Chevilles Fixation mural 107.5mm Vis (4mm x30mm)

Technical line drawing of two mechanical components with mounting flanges (no text or symbols)

Diagram of a coiled tube with a downward arrow indicating compression or reduction (no text or symbols)

Hotte

Technical line drawing of a mechanical component with no visible text or symbols

6.

Support II Fixation murale Visse 4mm x 8mm Visse(4mm x 30mm) II

Installation (En recyclage)

Installation (En recyclage)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of an electric motor with a close button and fan mechanism (no text or symbols)

Enclenché

NOTE :

Pure electrical circuit lines without any symbols
