Product Type	Wall-mounted cooker hood
Brand	CANDY
Model	CCE117
Power Supply	220-240 V, 50 Hz
Lighting Power	LED max 1.5 W
Number of Speeds	3 speeds + booster function
Control Type	Push buttons
Air Outlet Diameter	150 mm
Minimum Distance Plate-Hood	65 cm
Maximum Distance Plate-Hood	75 cm
Grease Filtration	Washable metal grease filter
Odour Filtration	Activated carbon filter (recirculation)
Grease Filter Maintenance	Every month
Carbon Filter Replacement	At least once a year
Recirculation Function	Yes, with activated carbon filter
External Extraction Function	Yes, pipe diameter 150 mm
Material	Glass and metal
Mounting Type	Wall-mounted
Use	Domestic only
Compliance	European directive 2012/19/EU

Frequently Asked Questions - CCE117 CANDY

What is the recommended distance between the hood and the hob?

The hood should be placed at a distance between 65 and 75 cm above the hob for best results.

How to clean the grease filter?

The grease filter should be cleaned every month with a household product. Use a soft damp cloth. Never use an abrasive sponge or harsh chemicals.

When should the activated carbon filter be replaced?

The activated carbon filter should be replaced at least once a year, depending on the frequency of use of the hood.

What to do if the hood vibrates heavily?

This may be due to a stuck turbine, a poorly fixed motor, or a unit poorly fixed to the bracket. Turn off the appliance and call a professional. Also check the bracket installation.

How to replace the LED bulb?

Remove the screws on the glass, take it off, disconnect the connection, and remove the sockets. Important: the bulbs cannot be replaced individually; you must buy the entire bulb, socket, and cable set.

The light works but the fan does not turn, what should I do?

This may indicate a stuck turbine or a damaged motor. Turn off the appliance and contact a professional for repair.

How to install the hood in recirculation mode?

In recirculation mode, the exhaust pipe is not necessary. Install the hood as in extraction mode, then add the activated carbon filters (by screwing into the block). The air will be filtered and returned to the room.

How to activate the booster function?

Press the + (speed plus) button until reaching maximum speed, then press button 4 (booster). The hood runs at full power for 5 minutes, then returns to the previous speed.

The suction power seems low, why?

Check that the distance between the hood and the hob is between 65 and 75 cm. If correct, clean the grease filter (clogged) or replace the activated carbon filter.

Where to find the serial number of the appliance?

The serial number (16 digits starting with 3) is on the guarantee certificate or on the appliance itself. Write it down before contacting customer service.

USER MANUAL CCE117 CANDY

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Prije ugradnje, isključite uređaj i odspojite iz električne mreže.

1. Za najbolji radni učinak, kuhinjska napa treba biti postavljena na visini 65 \~75 cm iznad štednjaka/ploče za kuhanje.

65cm 75cm

Za nagnuti panel model

- potrebno izbušiti 2x8mm dodatne rupe i pričvrsne vijke i zaporne vijke prije ugradnje

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

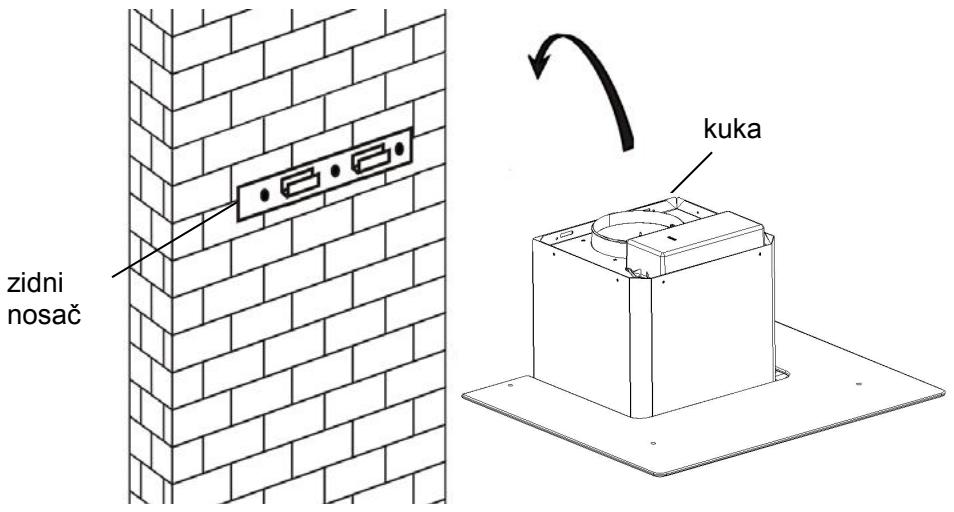

1. Podignite napu i objesite je na zidni nosač pomoću kuke.

zidni nosač kuka

Diagram of a brick wall with a container and a chimney, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows and a central component (no text or symbols)

Pri unutarnjoj ventilaciji, za filtriranje dima i para koristi se aktivni ugljeni filter. Prije ugradnje aktivnog ugljenog filtera, prvo uklonite filter za masnoću. Pritisnite zasun i povucite filter prema dole.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

CLOSE ZATVARANJE

VAŽNA NAPOMENA:

o Budite sigurni da je aktivni ugljeni filter sigurno i ispravno učvršćen. U suprotnom se može olabaviti i izazvati opasnost.
o Sa ugrađenim aktivnim ugljenim filterom, usisna snaga kuhinjske biti će manja.

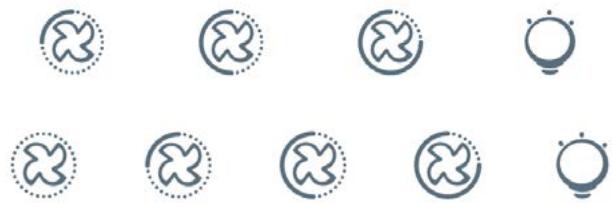

OPIS DIJELOVA KUHINJSKE NAPE

Grid of nine simple geometric symbols including crosses, circles, and a lightbulb, each with a dotted outline (no text or labels)

RADNE TIPKE

Tipka za malu brzinu

1

Pure electrical circuit lines without any symbols

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols present)

Diagram of a brick wall with a metal bracket and directional arrows indicating force or movement (no text or symbols)

Šroub 4x30 mm

Pro modely se šikmouplochou

Technical line drawing of a mechanical component with mounting holes and alignment lines (no text or symbols)

Diagram showing a brick wall with electrical outlets and a ceiling-mounted device, no text or symbols present.

Diagram of a brick wall with a box and a small object inside, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows and a central component (no text or symbols)

Illustration of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of an electric motor with visible cooling fins and mounting flanges (no text or symbols)

Poznámka:

Pure electrical circuit lines without any symbols

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 29

SAFETY PRECAUTION 29

SPECIFICATION 31

INSTALLATION (VENT OUTSIDE) 32

INSTALLATION (VENT INSIDE) 36

DESCRIPTION OF COMPONENTS 37

OPERATION 38

MAINTENANCE 38

TROBULESHOOTING 39

CONFORMITY WITH DIRECTIVES 40

ENVIRONMENTAL PROTECTION 40

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

CE

By placing the C marking on this product, we declare, on our own responsibility, compliance to all of European safety, health and environmental requirements stated in the legislation for this product.

SAFETY PRECAUTION

Never let the children operate the machine.

The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.

The cooker hood and its filter should be clean regularly in order to keep in good working condition.

Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.

Forbid the direct baking from the gas cooker.

Please keep the kitchen room a good convection.

Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.

There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;

he air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;

Regulations concerning the discharge of air have to be fulfilled.

This appliance if not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person slide for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not flambé under the range hood.

The range hood is not intended to be installed over a hob having more than four hob elements

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugsφ8×φ6 white color		9
ScrewsST4.0×30		9
φ7.2screwsST4.0×8		2

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

65cm 75cm

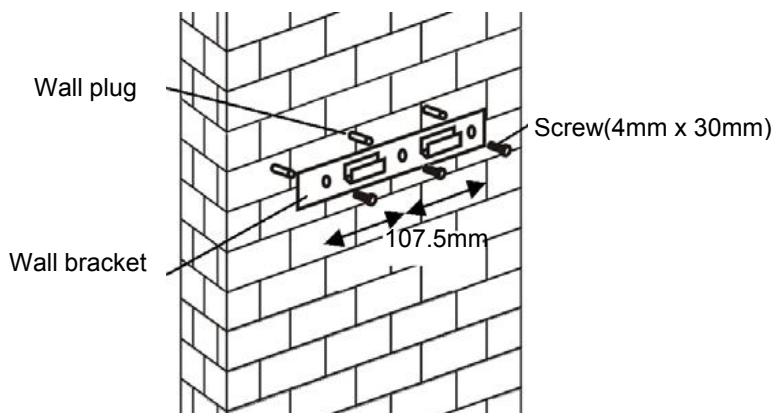

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

Wall plug Screw(4mm x 30mm) Wall bracket 107.5mm

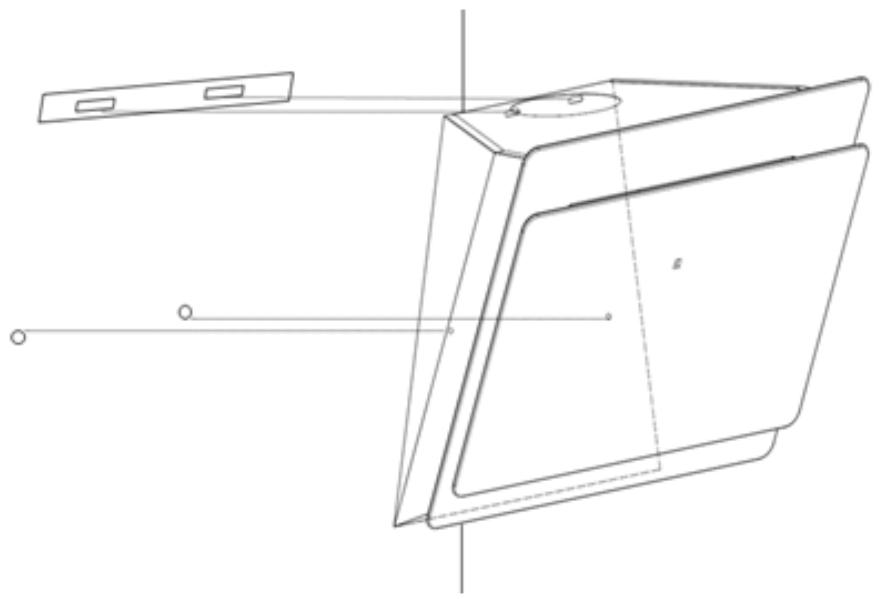

For inclined panel Model

- eed to drill 2x8mm extra holes & fixing screws & screw plugs before installation. Voor schuine modellen

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

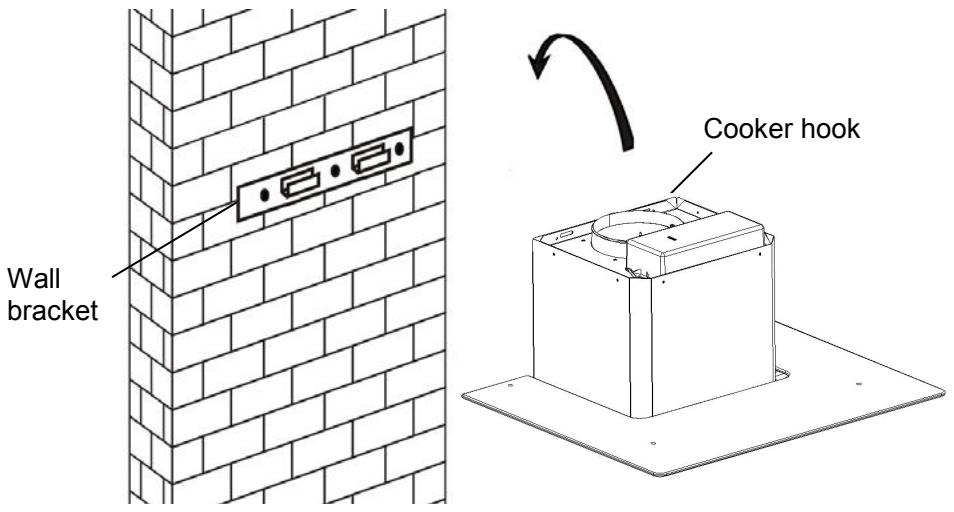

1. Leave up the cooker hood and hang onto the wall bracket hook.

Wall bracket Cooker hook

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

6.

i. Place the glass in appropriate position on the top the cooker hood.

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

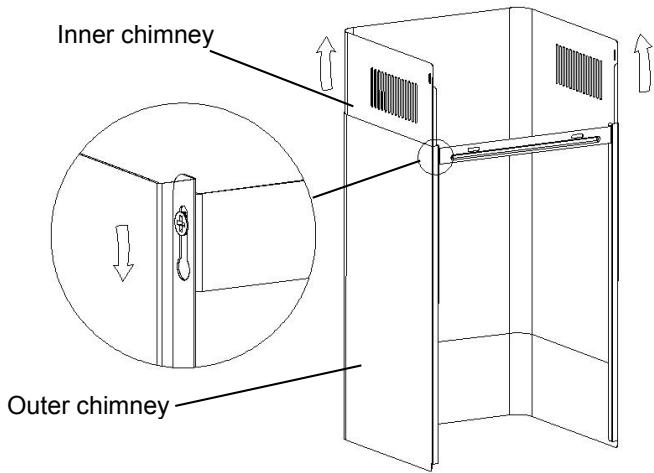

i. By Put the inner chimney into outer chimney . Then pulling out the inner chimney upwards. Adjust to reach the height required.

Diagram of a brick wall with a container and a chimney, no text or symbols present

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in below pictures.

Inner chimney Outer chimney

8.

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.

ii. Assembly the chimney onto the unit and fix it with 2 screws.

Plate II Wall plug Screw 4mm x 8mm Screw (4mm x 30mm) II

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "INSTALLATION (VENT

OUTSIDE").

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

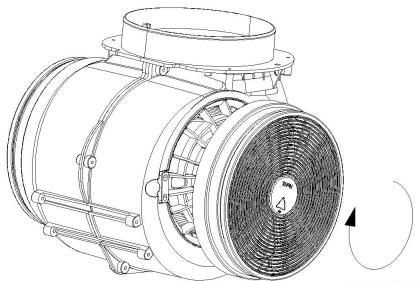

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

CLOSE

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
When activated carbon filter attached, the suction power will be lowere

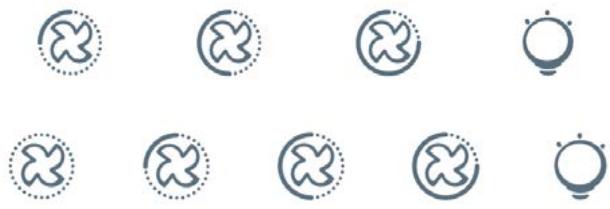

DESCRIPTION OF COMPONENTS

OPERATION

Low Speed button 1

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button 2

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button 3

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.

① On/Off button

It's used for turning on/off the fan.

+ Speed plus button

For increasing the speed of the fan

- Speed decrease button

For decreasing the speed of the fan.

Light button

8 Digital display

Fan speed display:"1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.

Quick timer: Press ⭕&⊖ hold for 1 second, Digital display will flashing & into 5 minutes count down, after 5 minutes motor & light will turn off automatic & Buzzer sound for 1 second.

Booster function

This hood has a booster function. To activate the booster, Press to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Pure electrical circuit lines without any symbols

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROBULESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

NOTICE D'INSTALLATION ET

D'UTILISATION

Sommaire

INTRODUCTION 42

Installation (Evacuation) 45

Installation (Recyclage) 49

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Chevilles Fixation mural 107.5mm Vis (4mm x30mm) 50

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Diagram of a pipe with a curved duct and a downward arrow indicating flow or direction (no text or symbols)

Hotte

Technical line drawing of a mechanical component with mounting flanges and a central circular feature (no text or symbols)

6.

Support II Fixation murale Visse 4mm x 8mm Visse(4mm x 30mm) II

Installation (En recyclage)

Installation (En recyclage)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Illustration of a hand pressing down on a laptop keyboard (no text or symbols visible)

Technical line drawing of an electric motor with a circular component and labeled 'CLOSE' (no text or symbols beyond label)

Enclenché

NOTE :

Grid of nine symbolic icons including crosses, circles, and a light bulb, each with dotted outlines (no text or labels)

Utilisation

Image showing five simple symbols: one with a minus sign, two with circles and an arrow, three with a plus sign, and one with a minus sign.

For decreasing the speed of the fan.

Bouton d'éclairage

8 Digital display

Fan speed display:"1" for Low speed, "2" for Medium speed, "3" for High speed, "4" pour la fonction Booster.

Quick timer: Press ⭕&⊖ hold for 1 second, Digital display will flashing & into 5 minutes count down, after 5 minutes motor & light will turn off automatic & Buzzer sound for 1 second.

Fonction booster

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Diagram of a brick wall with a box and upward arrow, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

HINWEIS:

Grid of nine simple geometric symbols including circles, crosses, and a lightbulb with dots (no text or labels)

BEDIENUNG

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Οπή Báση 107.5mm 80 Bíða (4mm x 30mm)

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Diagram of a pipe with a downward arrow indicating flow or direction (no text or symbols)

Καπέλο

Technical line drawing of a mechanical component with no visible text or symbols

6.

Isometric line drawing of a brick wall with a small object inside, no text or symbols present

Báση Οπή I II Bíða 4mm x 8mm Bíða(4mm x 30mm) II

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

ΣΗΜΕΙΩΣΗ:

CLOSE

Grid of nine symbolic icons including crosses, a light bulb, and a light bulb with a dot pattern (no text or labels)

ΔΕΙΤΟΥΡΓΙΕΣ

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Foro Supporto Vite (4mm x 30mm) 107.5mm

Per inclinato Modello pannello

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Supporto Aggancio

Diagram of a pipe with a downward arrow indicating flow or direction (no text or symbols)

Cappa

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Diagram of a brick wall with a container and a person inserted, no text or symbols present

Piastra a II Foro Vite 4mm x 8mm Vite (4mm x 30mm) II

Diagram of a mechanical or fluid system with directional arrows and a central block, no text or symbols present.

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of an electric motor with a close button and fan (no text or symbols)

NOTE:

Pure electrical circuit lines without any symbols

(Waste Electrical and Electronic Equipment - WEEE).

MONTAŻ (WERSJA WYWIEWOWA) 98

MONTAŻ (WERSJA Z RECYRKULACJA) 102

PANEL STEROWANIA 103

DZIAŁANIE 103

OBSŁUGA 104

MOŽLIWE USTERKI 105

OCHRONA ŚRODOWISKA 106

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Diagram of a coiled tube with a downward arrow indicating compression or reduction (no text or symbols)

Okap

Technical line drawing of a mechanical component with mounting flanges and a central circular feature (no text or symbols)

6.

Diagram of a brick wall with a container and a small object inside, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows and a central block (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

UWAGA:

Grid of nine symbolic icons including crosses, circles, and a light bulb, each with dotted outlines (no text or labels)

DZIAŁANIE

Pure electrical circuit lines without any symbols

Symbol of a trash bin crossed with no text or labels, representing waste sorting or recycling (no text present)

Regulations concerning the discharge of air have to be fulfilled.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Parafuso (4mm x 30mm)

Para modelos com painel inclinado

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Isometric line drawing of a box placed on a brick wall, with no text or symbols present.

Diagram of a mechanical or fluid system with directional arrows and a central block (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTA:

CLOSE

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram of a brick wall with a mounted component and directional arrows indicating force or movement (no text or symbols)

Surub (4mmx30mm)

107.5mm

141

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Technical line drawing of a brick wall and a box with a handle, no text or symbols present

Cos interior Cos exterior

8.

Placa II Priza de perete I surub 4mm x 8mm surub (4mm x 30mm) II

INSTALARE (VENTILARE ÎN INTERIOR)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTĂ:

Pure electrical circuit lines without any symbols

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols present)

1. Pred priključitevanjem cevi izklopite napo in potegnite vtikač iz vtičnice.

Vložek Nosilec 107.5mm Vijak (4mm x 30mm)

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

1. Napo obesite na kavlje na nosilcu, ki ste ga pritrdili na zid.

Nosilec Kuhinjska napa

Diagram of a pipe with a coiled tube and a downward arrow indicating flow or direction (no text or symbols)

Kuhinjska napa

Technical line drawing of a mechanical component with no visible text or symbols

6.

Technical line drawing of a mechanical assembly with a brick wall and base (no text or symbols)

Diagram of a conical structure with directional arrows indicating motion or force, no text or symbols present

V tem primeru v napo vstavite filter z aktivnim oglem, ki zadrži vonjave. Najprej morate sneti filter za maščobe, nato pa lahko vstavite ogleni filter. Potisnite na zapah in potegnite filter za maščobe navzdol.

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Potisnite aktivni ogleni filter v napo in ga zavrtite v desno, v smeri vrtenja urinega kazalca. Postopek ponovite na drugi strani nape.

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

(PRITRJEVANJE)
CLOSE

OPOMBA:

Grid of nine simple geometric symbols including circles, crosses, and a lightbulb with dots (no text or labels)

Tipka za počasno hitrost 1

Pure electrical circuit lines without any symbols

Odklopite žico za žarnico in z nape odklopite držalo žarnice in žico. Pomembno: Ni mogoče zamenjati samo žarnico, ampak potrebujete komplet – žarnico, nosilec in žico. (lučka LED: G4, MAX 1.5W)

Pritrdite novo žarnico z nosilcem in žico tako, kot je bila pritrjena pregorela žarnica. Nato ponovno priključite žico.

Ponovno namestite steklo in privijte vijake. Prepričajte se, da ste jih do konca zategnili.

ODPRAVLJANJE NEPRAVILNOST V DELOVANJU

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular electronic device with mounting brackets and a central circular component (no text or symbols)

Diagram showing a coiled tube with a downward arrow and a 3D mechanical component below (no text or symbols)

6.

Diagram of a brick wall with a container and a person inserted, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Two-step diagram showing hand pressing a component on a flat surface, with no text or symbols present.

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTA:

Grid of nine simple geometric symbols including crosses, circles, and a lightbulb, each with a dotted outline (no text or labels)

FUNCIONAMIENTO

Pure electrical circuit lines without any symbols

INSTALLATIE (VENTILATIE BUITEN) 165

INSTALLATIE (VENTILATIE BINNEN) 169

BESCHRIJVING VAN DE COMPONENTEN 170

WERKING 171

ONDERHOUD 171

PROBLEMEN OPLOSSEN 172

OVEREENSTEMMING MET RICHTLIJNEN 173

MILIEUBESCHERMING 173

INTRODUCTIE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Wandplug Schroeven (4mm x 30mm) 107.5mm Wandconsole

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Diagram of a pipe with a circular opening and a downward arrow indicating flow or direction (no text or symbols)

Afzuigkap

Technical line drawing of a mechanical component with no visible text or symbols

6.

Isometric line drawing of a brick wall with a small object inside, no text or symbols present

INSTALLATIE (BINNEN VENTILATIE)

Diagram of a conical device with directional arrows indicating motion or force, no text or symbols present

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of an electric motor with labeled 'CLOSE' and directional arrow (no text or symbols beyond label)

NOTA:

Grid of nine simple geometric symbols including circles, crosses, and a light bulb, each with a dotted outline (no text or labels)

WERKING

Toets Lage snelheid

This hood has a booster function. To activate the booster, Press to + speed 4, enter into highest speedwhile the hood is in use and it willincrease speed for 5 minutes, beforeslowing down again.

ONDERHOUD

Pure electrical circuit lines without any symbols
