Floor One S6 Extreme Pro iLoop Smart - Vacuum Cleaner TINECO - Free user manual and instructions

Product type	Cordless wet-dry vacuum
Brand	Tineco
Model	Floor One S6 Extreme Pro iLoop Smart
Power	Li-ion battery 21.6 V / 4,000 mAh
Power consumption	230 W
Charger input voltage	100-240 V~
Runtime (AUTO/ULTRA/SUCTION mode)	Approximately 35 minutes
Runtime (MAX mode)	Approximately 28 minutes
Charging time	4 to 5 hours
Clean water tank capacity	0.8 L
Dirty water tank capacity	0.7 L
Water flow rate	30 to 100 ml/min
Compatible surfaces	Hard floors (tile, hardwood, vinyl, etc.)
Cleaning modes	AUTO, MAX, ULTRA, SUCTION
Dirt detection	iLoop sensor (red/blue LED loop)
Connected features	Wi-Fi, Tineco app, voice control
Roller cleaning	Integrated automatic cleaning (self-cleaning)
Ingress protection rating	IPX4
Included accessories	Charging base, cleaning solution, cleaning tool, replacement brush roller, replacement dry filter
Warranty	2 years (limited, parts and labor)

Frequently Asked Questions - Floor One S6 Extreme Pro iLoop Smart TINECO

How to use AUTO mode?

Press the power button to start the appliance in AUTO mode. The iLoop sensor automatically detects the degree of dirt on the floor and adjusts the suction power and water flow. The LED loop changes from red (high dirt) to blue (low dirt).

The dirty water tank is full, what to do?

The appliance stops and a voice prompt alerts you. Pull the dirty water tank cover (RES) upward to empty it. Use the cleaning tool to remove debris, rinse the inside, and replace it. Also clean the dry filter if necessary.

What to do if suction power is low?

Check that the dry filter is installed and clean. Clean it under running water and let it dry completely. Make sure the brush roller is not obstructed. If the problem persists, consult the troubleshooting guide in the manual.

What type of cleaning solution to use?

Use exclusively the supplied Tineco cleaning solution. Add one bottle cap to the clean water tank (REP). Do not use acidic, alkaline, or flammable solutions to avoid damaging the appliance.

How to clean the brush roller?

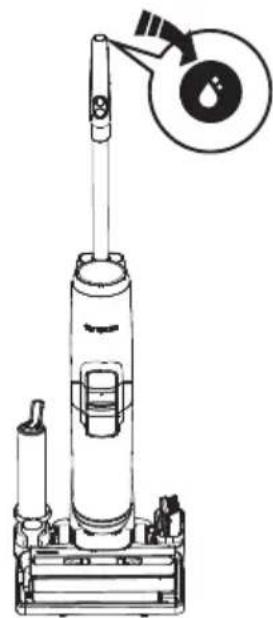

You can use the self-cleaning function: place the appliance on the charging base, battery >20% and REP >40% filled, then press the self-cleaning button. For manual cleaning, remove the cover, take out the roller, remove hair and debris with the tool, rinse with water, and let dry.

Can I use this appliance on carpet?

No, this appliance is designed only for hard floors such as tile, hardwood, vinyl. Do not use on carpet as this could damage the appliance or reduce performance.

How to connect the appliance to Wi-Fi?

Download the Tineco app from the App Store or Google Play. On the appliance, press and hold the Wi-Fi/Mute button for 3 seconds. Follow the instructions in the app to connect the appliance to your Wi-Fi network.

What does a solid red LED loop mean?

A solid red LED loop indicates that the dirt sensor is obstructed. Remove the dirty water tank (RES) and clean the sensor with a damp cloth or the cleaning tool. If the problem persists, restart the appliance.

How to change the voice prompt language?

Press the Wi-Fi/Mute button twice to change the language. You can also select the language in the Tineco app. Available languages may vary by market.

Where to find the serial number?

The serial number is on the back of the appliance after removing the dirty water tank (RES). It is required for product registration and warranty claims. Note it down at the time of purchase.

USER MANUAL Floor One S6 Extreme Pro iLoop Smart TINECO

Smart Cordless Floor Washer

Instruction Manual

Manual De Uso

Mode D'emploi

Black Tineco vacuum cleaner with attached control panel (no visible text or symbols on body)

*Actual product may differ from illustration.

CONTENTS

Important Safety Instructions....2

Specifications....6

Overview....7

Accessories....8

Assembly 9

Operation 10

Maintenance 15

Troubleshooting....19

Warranty 20

Important Safety Instructions

Z

SAVE THESE INSTRUCTIONS

Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the

appliance. Cleaning and user maintenance shall not be performed by children without supervision.

1. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

2. Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure.

3. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.

4. Use only as described in this manual. Use only manufacturer's recommended attachments.

5. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.

6. Do not handle charger, including charger plug, and charger terminals with wet hands.

7. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

8. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.

9. Use extra care when cleaning on stairs.

10. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

11. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

12. Do not use without filter.

13. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

14. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

15. Recharge only with the charger specified by Tineco. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

16. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.

17. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.

18. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

19. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266^ F ( 130^ C) may cause an explosion.

20. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

21. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

22. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

23. Always turn off this appliance before connecting or disconnecting the motorized nozzle.

24. Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2^ F ( 4^ C) but lower than 104^ F ( 40^ C). The charger is for indoor use only.

25. Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.

26. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.

27. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.

28. Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaks electricity.

29. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.

30. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.

31. Store appropriately indoors in a dry place after use.

32. Do not place or submerge appliance in standing water or try to clean flooded areas.

33. All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.

34. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

35. A hazard may occur if the appliance runs over the supply cord.

36. Do not use the appliance when the water depth is more than 5mm above the surface.

37. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

38. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

Range of Usage

1. The cordless hard floor cleaner is to be used on indoor hard floors, such as vinyl, tile, sealed wood, etc. Use on a rough surface may not get the best performance.
2. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.
3. Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About Cleaning Solution

1. A large amount of cleaning solution entering into the motor may cause damage to the appliance.
2. Add solution as instructed in the Operation section. We recommend using the provided cleaning solution. Do not use the product with acidic, alkaline solution, or any substances harmful to the environment.
3. Keep out of the reach of children. Avoid contact with eyes and skin, otherwise, rinse thoroughly with water. If irritation persist, seek medical advice. If product is swallowed seek medical advice.
4. Dirty water and solution disposal should comply with local environmental regulations.

About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
2. Charge the appliance with the Tineco adaptor. Input Voltage: AC 100-240V. Both high and low voltages can damage the adaptor, appliance, or even cause danger to the user.
3. Use extra care when cleaning on stairs.
4. Ensure that the Power Switch is in the OFF-position before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.
5. To avoid being tripped accidentally, please put away the appliance on the charging dock.
6. Always install the Dirty Water Tank and Clean Water Tank properly before use.
7. Do not allow the appliance or charger to get wet to avoid risk of fire or injury caused by a short circuit.

FCC Supplier's Declaration of Conformity

TINECO / FLOOR ONE S6 PRO SERIES

This appliance complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This appliance may not cause harmful interference, and (2) this appliance must accept any interference received, including interference that may cause undesired operation.

TINECO INTELLIGENT, INC.

1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA

WWW.TINECO.COM

1-855-292-8864

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and find it to comply with the limits for a Class B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

Note

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment, such modifications could void the user's authority to operate this equipment.

IC Note

This appliance contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s).

Operation is subject to the following two conditions:

(1) This appliance may not cause interference.

(2) This appliance must accept any interference, including interference that may cause undesired operation of the appliance.

• This Class B digital apparatus complies with Canadian ICES-003.
• This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

Specifications

Product FLOOR ONE S6 PRO SERIES
AC Input 100-240V~
Voltage 21.6V	== 4000mAh Lion
Rated Power 230W
Running Time AUTO/ULTRA/SUCTION: ~35 mins MAX: ~28 mins
Charging Time 4-5 hrs
Water Flow Rate 30~100ml/min
CWT Capacity ~0.8L
DWT Capacity ~0.7L
Waterproof IPX4

• For use only with TINECO charger S030-1B260100HU or KL-WA260100-A3.

Disposal

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.
• When removing the battery, the appliance must be powered off.
• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into fire, water or soil. Do not dispose of batteries and chargers into household waste!
• If battery leakage contacts skin or clothing, immediately flush with water to avoid irritation and seek medical help.

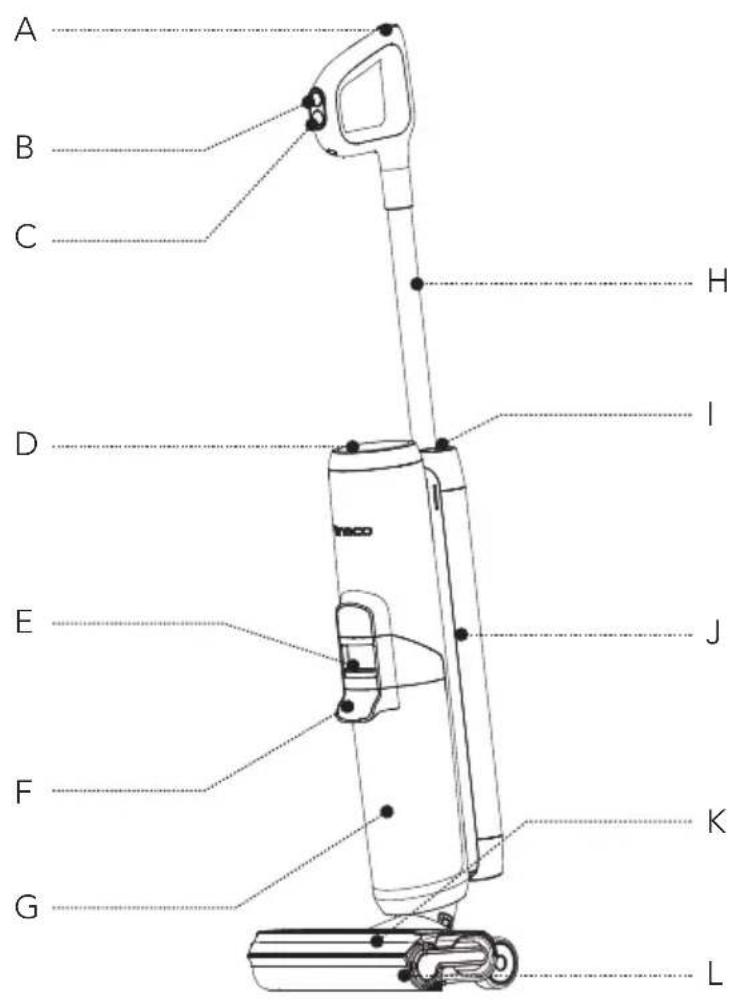

Overview

A B C D E F G H I J K L

Illustration of various electronic devices including a battery, earbuds, capacitor, and charging case (no text or labels)

A. Self-cleaning Button
B. AUTO/MAX/ULTRA/SUCTION Mode
C. Power On/Off
D. Digital Display
E. Dirty Water Tank Release
F. Dirty Water Tank Handle
G. Dirty Water Tank (DWT)
H. Tube
I. WiFi/Mute/Language Switch Button

J. Clean Water Tank (CWT)
K. Brush Roller Cover
L. Brush Roller
M. Deodorizing & Cleaning Solution
N. Cleaning Tool
O. Dry Filter & Holder
P. Accessory Holder
Q. Adaptor
R. Charging Dock

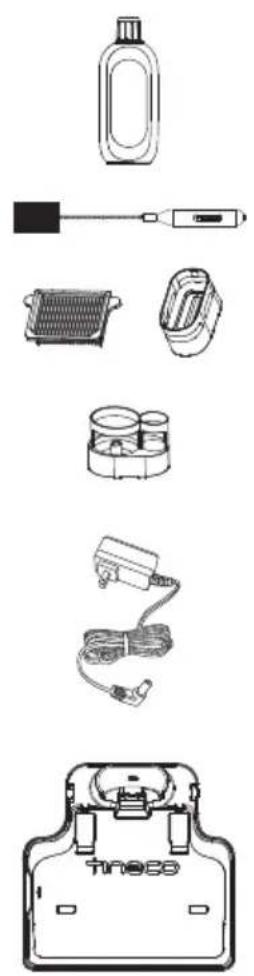

Accessories

Z

Note:

Accessories may vary among markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Deodorizing & Cleaning Solution

Removes dirt, grime, grease and tough stains from most types of hard surfaces, like tile, marble, sealed hardwood floors, and more.

Always use Tineco solution in your appliance.

Add one bottle cap of solution to each full tank of clean water.

Brush Roller

Soft roller head with bristles can be used to vacuum and wash at the same time. It can be easily cleaned with the self-cleaning function.

Dry Filter

Dry filter and filter net can block large particles and debris, ensure the appliance's durability.

* Please install the dry filter before use, or it may lead to weak suction.

Cleaning Tool

A full brush to clean the DWT, brush chamber and opening.

The tool also has a bristled end to remove dirt and mud on the roller and DWT.

Assembly

How to Assemble/Disassemble

Note:

For water tank and brush assembly, please refer to "Operation" and "Maintenance".

click

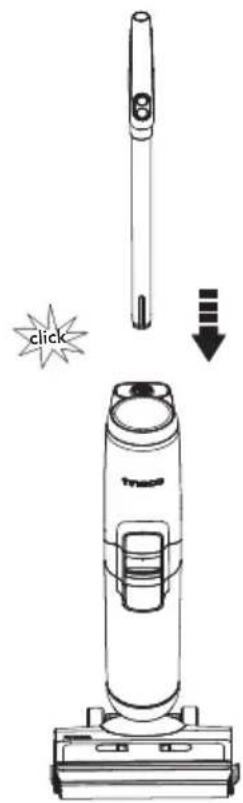

To assemble the handle, insert it into the appliance until you hear a click.

(3s) EN

Line drawing of a vacuum cleaner with a screwdriver and lever mechanism (no text or symbols)

In the event that the handle needs to be disassembled, press the spring to release the handle with a tool (like a screwdriver) and lift the released handle from the appliance.

Tips:

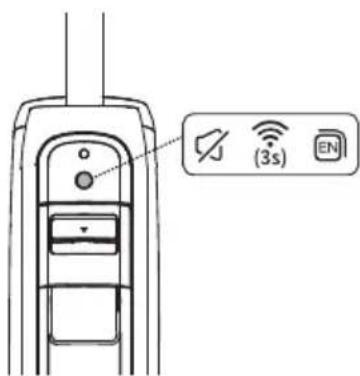

WiFi/Mute/Language Switch Button

• Press to turn on/off the voice prompt.
• Press twice to switch languages. (More voice languages will be added, please refer to the actual product for now.)
• Hold for 3 seconds to connect to network.

Operation

Preparing for Use

Before first use, please charge the appliance for 4-5 hours (refer to "Charging Instructions" for details). * Based on results from Tineco lab tests. Lab temperature 39.2^ (4^) 104^ (40^)

Diagram showing a hand holding a device with a speech bubble containing icons and a pointer, illustrating a diagnostic or testing process.

Press the ⓣ button and the appliance will start in AUTO mode by default. Press it again to turn off the appliance. Switch between AUTO, MAX, ULTRA and SUCTION modes by pressing the 🌐 button.

Line drawings of a vacuum cleaner with a 142-degree angle annotation (no text or symbols on the device itself)

Stop Working Start Again

The appliance will stop working when put upright and start running again when reclined.

* Do not recline more than 142° to avoid water leakage.

Tips: (SUCTION mode not available)

• Solution mode/Water Only mode:
  Appliance starts with Solution mode by default. Power on while the appliance is upright, long-press 🌐 for 3s to switch between the two modes.
• Switch to Water Only mode:
  LED Loop: Red → Blue (use water only)
• Switch to Solution mode:
  LED Loop: Blue → Red (use cleaning solution)

Line drawing of a vacuum cleaner with attached base mount (no text or symbols)

Place the appliance on the charging dock vertically after use for recharge and storage.

Note:

• Selecting the appropriate mode depending on the CWT contents is vital for maximum dirt detection effectiveness.
• Do not vacuum foamed liquid.
  • To vacuum water left on the surface, the appliance will keep running for 3 seconds after power off.

Filling Clean Water Tank

Illustration of hands operating a mechanical device with a tool, no text or symbols present

Press the Clean Water Tank release button to remove it from the appliance.

Technical diagram showing a mechanical device with labeled components and directional arrows, including a starburst symbol labeled 'click'.

Place the tank back into the appliance. You should hear a "Click" if done correctly.

Diagram illustrating a water spray system with labeled components including a bottle, faucet, and water drop, marked with 'MAX' annotation.

Open the tank cap, and fill with tap water to the Max line. When deep cleaning is necessary, add one bottle cap of solution to the CWT and tightly close the cap.

Note:

Only use water under 140°F/60°C. DO NOT USE HOT WATER.

Charging Instructions

Line drawing of a vacuum cleaner with an open electrical outlet, showing internal components and wiring (no text or symbols)

To charge the appliance, place the appliance on the charging dock and plug the adaptor into a power outlet.

1. To charge the appliance, connect the external charging cord to the charging dock and plug it into the wall outlet.
2. To avoid tripping hazards, please place the appliance on the charging dock near a wall during charging.

Note:

• The cooling system has been activated to optimize battery charging with a slight sound.
• During charging, long press the button for 10 seconds to turn on/off the cooling system.

Warning:

• Only charge the appliance with the adaptor supplied by Tineco.
• During long periods of not being used, the appliance must be charged once every 3 months for optimal performance. It may take 4-5 hours for a full charge.
• Store indoors in a dry place. Do not expose the appliance to sunlight or freezing temperatures. Recommended temperature range: 39.2°F (4°C) \~ 104°F (40°C).

Digital Display

- An updated display shows everything with interactive animation. giving you a brand new experience during and after cleaning.

Note:

Keep sharp objects away from the digital display screen to avoid scratches and scrapes.

Cleaning Mode Selection

AUTO Mode

AUTO treco

• In AUTO mode, the iLoop sensor automatically detects how dirty the floor is and applies the appropriate amount of detergent and suction power.
• A red dirt monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is detected. This mode automatically provides the best cleaning solution.

MAX Mode

MAX treco

• In AUTO mode, press the button to enter MAX mode.
• In MAX mode, the appliance will apply max suction power and will spray water/solution for embedded stains.

ULTRA Mode

ULTRA treco

• In MAX mode, press the button to enter ULTRA mode.
• In ULTRA mode, the appliance will prepare for 30 seconds and then start to work. This mode is suitable for deep cleaning.

SUCTION Mode

SUCTION treco

• In ULTRA mode, press the button to enter SUCTION mode.
• In SUCTION mode, the appliance will only absorb water and do not spray. We recommend using this mode on the wet surface.

Runtime

• In AUTO/ULTRA/SUCTION mode: \~35minutes
• In MAX mode: \~28minutes
  • Estimated runtime data was obtained by a Tineco Laboratory.

Charging Time

• A full charge takes approximately 4-5 hours.
• Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2^ (4°C) to 104^ (40°C).

App

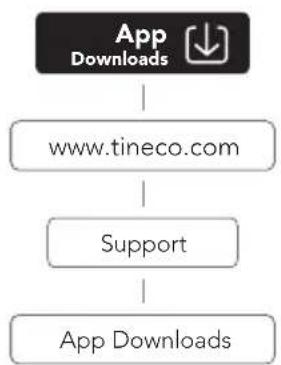

All the functions can be performed using the Tineco app. Download the Tineco app from App Store, Google Play and Tineco Official Site.

Note:

The default setting for voice prompt is English, you can set other languages via App.

Voice Prompt (Contents may vary, please in kind prevail.)

Status Reminder
Voice prompts on Voice prompts on
Voice prompts disabled Voice prompts disabled
Auto mode by default Auto mode
Switch to Suction mode Suction mode
Switch to Max mode Max mode
Switch to Ultra mode Ultra mode
Cleaning with water only Cleaning with water only
Cleaning with cleaning solution by default Cleaning with cleaning solution
Battery level: 10~20% Low battery
Battery level: 0~10% Low battery, please charge
Clean Water Tank is empty	Clean Water Tank empty, please refill water and cleaning solution
Need self cleaning Please begin self-cleaning cycle
Appliance not on the charging dock Please place appliance on charging dock
Dirty Water Tank is full Dirty Water Tank full, please empty
Dirty Water Tank not installed	Please install the Dirty Water Tank
Brush roller is tangled	Please clean the brush roller.
Power is off	Power off
Start charging	Charging has commenced
Begin self-cleaning cycle.	Auto-detecting whether to run self-cleaning cycle, please begin self-cleaning cycle
Battery insufficient for self-cleaning	Low battery, start charging
Sufficient battery to start self cleaning	Start self cleaning
Cleaning brush roller Cleaning brush roller
Cleaning debris channel	Cleaning debris channel
Auto detecting	Auto detecting
Deep cleaning	Deep cleaning
Self-cleaning stopped	Self-cleaning cycle stopped, please clean Dirty Water Tank
Self-cleaning complete	Self-cleaning cycle complete, please clean Dirty Water Tank

Maintenance

Note:

• For optimal performance and to prevent odors, always clean and dry DWT, filters, brush roller, brush roller cover completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
  • After maintenance, place the appliance on the charging dock vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Main Body

Diagram showing a hand holding a device with a speech bubble containing a grid icon and an arrow pointing to it, likely illustrating a diagnostic or testing procedure.

To reduce the risk of injury, switch off before performing maintenance.

Line drawing of a hand inserting a small object into a cylindrical container (no text or symbols)

Use a cloth to clean the surface with a neutral detergent. The cloth should be dry to prevent water from entering the appliance.

Solid red light

When LED loop illuminates red, remove Dirty Water Tank, clean the dirt sensor with a damp cloth or the cleaning tool.

Dirty Water Tank

Illustration showing four steps of a device operation: adding, lifting, opening, and clicking.

• When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt.
• Pull up the tank lid to empty the DWT. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT and place back into the appliance.

Dirty Water Tank Lid

Illustration of four different hand tools or devices, including a handheld device and water pumps, with no visible text or symbols.

If the Dirty Water Tank lid and the filter inside have been blocked, remove the tank lid and the filter, rinse both parts with water.

Dry Filter

Illustration showing three different cleaning or cleaning techniques: a smartphone with a brush, a water dispenser with a faucet, and a tool on a surface (no text or symbols present)

Grasp recessed area on each side of the dry filter and pull upward. Rinse under running water and must be completely dry before recombining with the lid of the DWT.

*A spare dry filter is provided with your appliance for convenient replacement.

Brush Roller Self-cleaning

Line drawing of a vacuum cleaner with a circular component and mechanical base (no text or symbols)

1. Place the appliance on the charging dock after use, the sensor will auto-detect the level of dirt.
2. When you hear the voice prompt "please begin self-cleaning cycle," press the self-cleaning button and begin the process.
3. Once complete, you will hear the voice prompt "self-cleaning completed, please clean the Dirty Water Tank." At this point, the appliance will begin charging.

Note:

• Ensure the charging dock is plugged in and the battery level>20%.
• Before self-cleaning cycle, please clean the DWT and ensure the water level in the CWT>40%.

Brush Roller Cover

Diagram showing a hand pressing a button on a device with labeled parts and directional arrows

Squeeze latches on the cover and pull upward to remove.

Illustration of a hand using a faucet to lift water from a metal frame (no text or symbols)

Rinse with water.

Diagram illustrating a camera mechanism with a click instruction and directional arrows, showing tool placement and action buttons.

When replacing, always latch the brush cover into place to avoid leakage.

Brush Roller

Illustration of a hand holding a cylindrical device with rollers and a scroll, showing mechanical components (no text or symbols)

Remove the brush roller by grabbing the brush roller tab and pulling out.

Illustration of four different tools: a cylindrical tube being inserted, a faucet with a water tap, a handheld device with a lever, and a sun symbol (no text or labels)

Using the cleaning tool, remove the hair and debris wrapped around the roller and rinse with water. Replace the brush roller back into the accessory holder, and allow it to dry completely before reinstalling.

Technical line drawing of a mechanical device with a screwdriver inserted, showing internal components and no visible text or symbols.

Remove hair and debris from the brush roller chamber and the opening with the cleaning tool.

Illustration of a hand holding a cylindrical device with scroll wheel and arrow indicating motion (no text or symbols)

Replace the brush roller by inserting its end into the left side of the holder, then attach the roller tab to the magnetic buckle on the right side to lock into place.

Note:

• A spare brush roller is provided with your appliance for convenient replacement.
• To maintain optimal performance, replace the brush roller every 8 months.

Troubleshooting

Problem Possible	cause Solution
The appliance does not turn on A	Auto protection for overheating Restart after cooling down
Weak suction	The dry filter is not installed, or the dry filter is dirty	Install the dry filter or clean and allow it to dry completely
Brush roller tangled in animation 📋 Voice prompt: Please clean the brush roller	1. The brush roller is blocked2. The brush roller is not installed	1. Remove blockages2. Install brush roller correctly
WiFi indicator is off WiFi is not connected		Follow the in-app guide to connect to WiFi
CWT empty in animation 📋 Voice prompt: Clean Water Tank empty, please refill water and cleaning solution	CWT is empty Refill CWT
DWT full in animation 📋 Voice prompt: Please clean Dirty Water Tank	The dirty water in DWT has reached the MAX line	Empty the dirty water and then reinstall the DWT
All lights off in operation Battery	overheat or malfunction	Cool the appliance down and restart
Battery indicator in red 📋 Voice prompt: Low battery, please charge	Low battery Charge the appliance, or restart
LED loop illuminates red 📋 Voice prompt: Please begin self-cleaning cycle	Dirt sensor malfunction or blocked	Remove blockages, clean the debris channel, or restart

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website

www.tineco.com for further support.

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

- Use of parts not in accordance with the Tineco Instruction Manual.

- Use of parts and accessories other than those produced or recommended by Tineco.

- External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.

- Repairs or alterations carried out by unauthorized parties or agents.

- Failing to clear blockage and other hazardous material from the appliance.

- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.

- Reduction in battery discharge time due to battery age or use.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.
  Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

Register: We highly recommend that upon purchase, you register your appliance by logging into our official website (www.tineco.com) or scanning the QR code (see right) to enjoy more exclusive benefits. To register, please enter the whole serial number (remove the Clean Water Tank and find it on the back of the appliance).

Failure to register your product won't diminish your warranty rights.

Serial number

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or its authorized agency.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Contact our Customer Service

Hotline: [phone]

or Visit Tineco website

www.tineco.com

for expert customer service.

CONTENIDO

A B C D E F G H I J K L

Illustration of various electronic devices including a battery, earbuds, capacitor, and charging case (no text or labels visible)

Line drawing of a vacuum cleaner with a screwdriver and handle (no text or symbols)

Diagram showing a hand holding a device with a speech bubble containing icons and text, likely illustrating a medical or diagnostic procedure.

Technical line drawing of a vacuum cleaner with a 142-degree angle标注 (no text or symbols on the device itself)

Line drawing of a vacuum cleaner with a cylindrical body and attached base (no text or symbols)

Illustration of hands operating a mechanical device with a tool, no text or symbols present

Technical diagram showing a mechanical device with labeled parts and directional arrows, including annotations ① and ②.

Diagram illustrating a water tap and faucet system with labeled MAX component

Line drawing of a vacuum cleaner with an inset close-up showing its electrical panel connection (no text or symbols present)

Diagram showing a hand holding a device with a speech bubble containing icons and a label pointing to it.

Hand holding a small container with a label 'trane' on top, no other text or symbols visible

Illustration of a hand holding a device with a curved arrow indicating motion (no text or symbols)

Illustration of two hands cleaning a faucet and a bucket with a sun symbol (no text or labels)

Line drawing of a vacuum cleaner with a droplet symbol and mechanical components (no text or labels)

Diagram showing a hand pressing a button on a device with labeled parts and directional arrows

Illustration of a hand pouring liquid into a rectangular tank with a faucet (no text or symbols)

Illustration of a hand holding a cylindrical device with rollers, showing mechanical components and a downward arrow indicating motion (no text or symbols)

Illustration showing three different tasks: a hand holding a cylindrical object, a water tap with a pipe, and a sun-dyeing stand (no text or symbols present)

Technical line drawing of a mechanical device with a tool inserted, no visible text or symbols

Illustration of a hand holding a cylindrical device with scroll wheel and paper roll, no text or symbols present

A B C D E F G H I J K L

Illustration of various electronic devices including a battery, earbuds, capacitor, and charging case (no text or labels)

click Truase

Line drawing of a vacuum cleaner with a screwdriver and lever mechanism (no text or symbols)

Diagram showing a hand holding a device with a speech bubble containing icons and a pointer, likely illustrating a medical or diagnostic concept.

Technical line drawing of a vacuum cleaner with an angle annotation showing <142° rotation (no text or symbols on the device itself)

Line drawing of a vacuum cleaner with attached base mount (no text or symbols)

Illustration of hands operating a mechanical device with a lever and handle (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and directional arrows, including 'clic' annotation.

Line drawing of a vacuum cleaner with attached electrical outlet, showing wiring and component layout (no text or symbols)

Diagram showing a hand holding a device with a speech bubble containing a circular icon and an arrow pointing to it, indicating a process or function.

Line drawing of a hand pressing down on a cylindrical container with a label 'TARRO' (no other text or symbols)

Illustration of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands cleaning a water tap and a bucket with a sun symbol (no text or labels)

Line drawing of a vacuum cleaner with a droplet symbol and mechanical components (no text or labels)

Diagram showing a hand pressing down on a device with labeled parts and directional arrows indicating movement or force.

Illustration of a hand holding a water tap with liquid flowing through it, no text or symbols present

Rincez à l'eau.

Diagram illustrating a manual press or press operation with a magnified view of the tool and a 'click' label, likely from an electronics or computer system.

Illustration of a hand holding a cylindrical device with rollers and a scroll, showing mechanical components (no text or symbols)

Illustration showing three different tasks: a hand holding a cylindrical object, a faucet with liquid, and a portable stand with a sun symbol (no text or labels)

Technical line drawing of a mechanical device with a screwdriver inserted, no visible text or symbols

Illustration of a hand holding a cylindrical device with scroll wheel, showing mechanical components and motion arrows (no text or symbols)
