USER MANUAL MGD7020RW MAYTAG

White MayTAG washing machine with front panel and control panel (no visible text or symbols on the device body)

TableofContents

OWNER'S MANUAL....3

DRYER SAFETY 3

Dryer Safety 3

Internet Connectivity Guide (Connected

Appliances only)......5

DRYER MAINTENANCE AND CARE 7

Cleaning the Dryer Location 7

Cleaning the Dryer Interior 7

Removing Accumulated Lint....7

Cleaning the Lint Screen 7

Changing the Drum Light (on some models) 8

Check Your Vent System for Good Airflow 8

Maintain Good Airflow 8

Nonuse, Storage and Moving Care 8

Special Instructions for Steam Models 9

INSTALLATION REQUIREMENTS....9

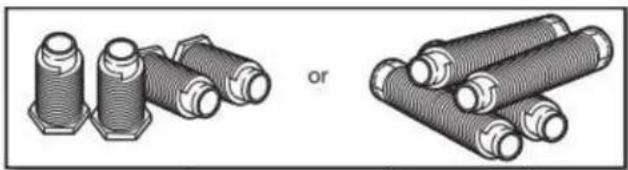

Tools and Parts 9

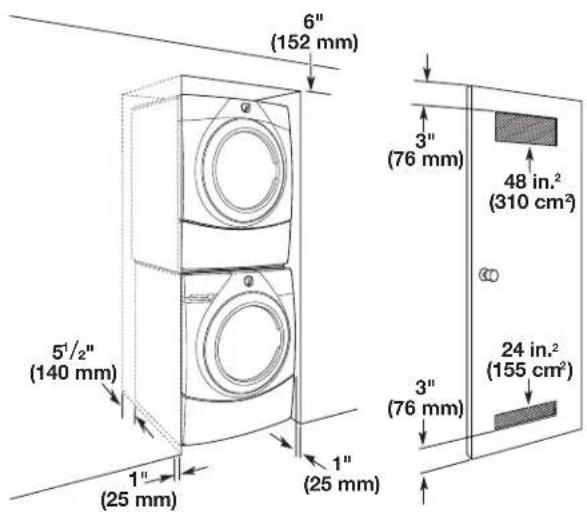

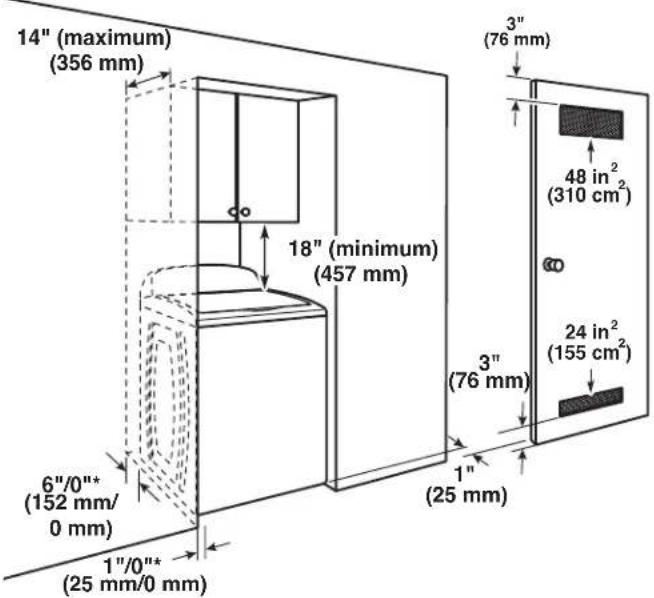

Location Requirements 10

Gas Dryer Power Hookup - USA and Canada 11

Gas Supply Requirements 12

INSTALLATION 13

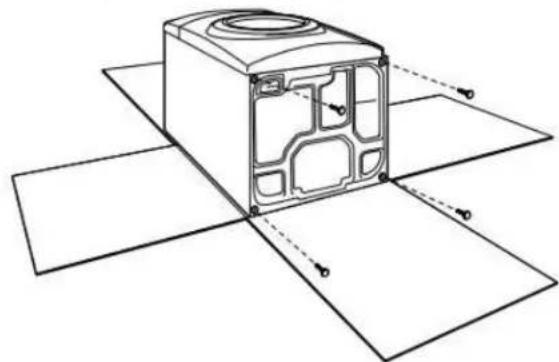

Install Leveling Legs 13

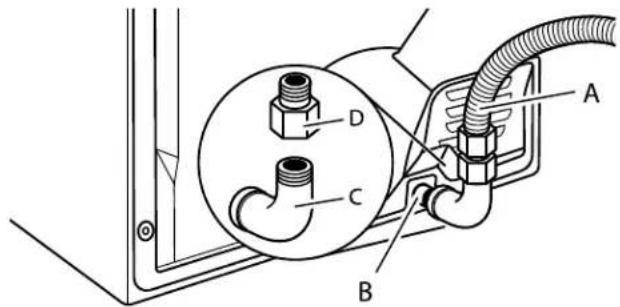

Make Gas Connection - USA and Canada....14

Venting Requirements....15

Plan Vent System 15

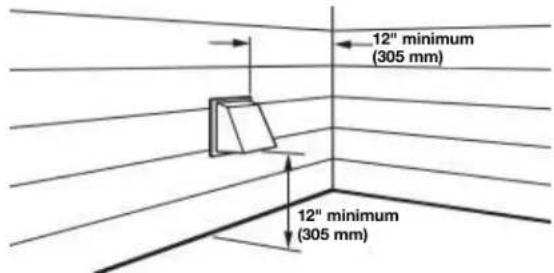

Install Vent System....17

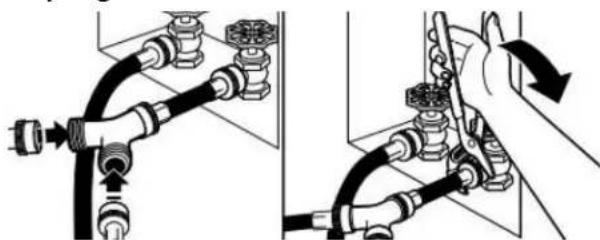

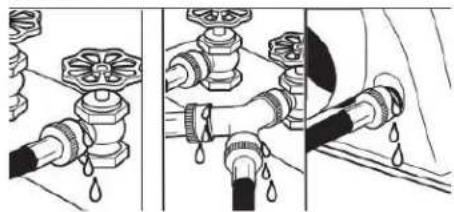

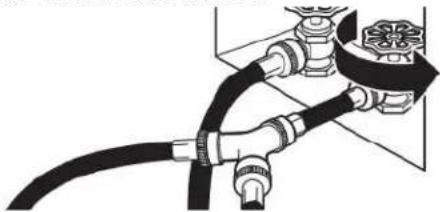

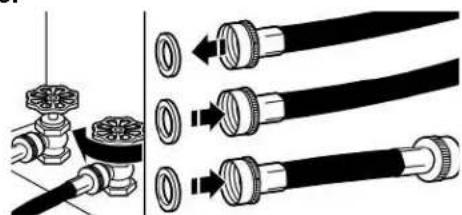

Connect Inlet Hoses 17

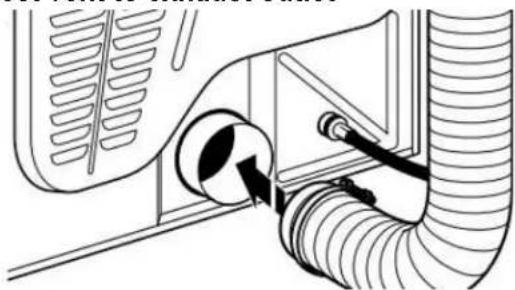

Connect Vent 18

Move Dryer in Place 18

Level Dryer....18

Complete Installation Checklist 19

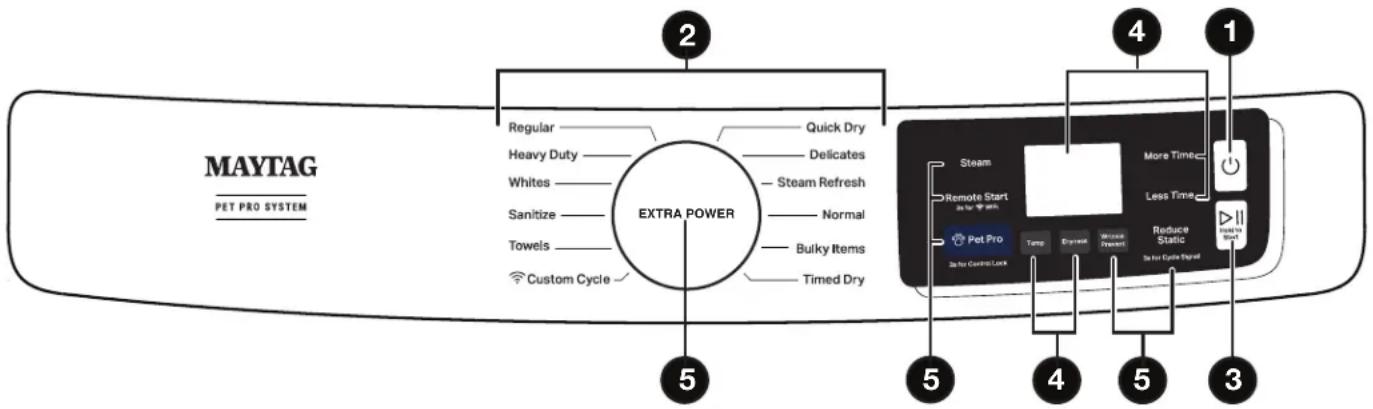

QUICK START GUIDE....20

Quick Start Guide 20

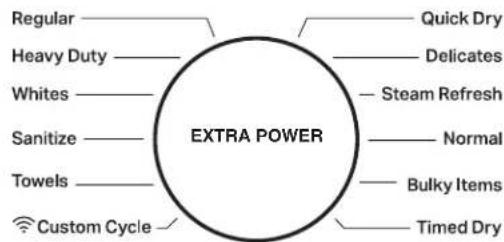

CYCLE GUIDE....23

Dryer Cycle Guide....23

TROUBLESHOOTING....25

Troubleshooting....25

Table des matières

GUIDE D'UTILISATION....29

SÉCURITÉ DE LA SÉCHEUSE....29

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
  ■ Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
  ■ Risk of Suffocation and Injury from Entrapment: Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
  ■ Before the appliance is removed from service or discarded, remove the door to the drying compartment.
  ■ Do not reach into the appliance if the drum is moving.
  ■ Do not install or store this appliance where it will be exposed to the weather.
  ■ Do not tamper with controls.
• Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
  ■ Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

■ Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
■ Clean lint screen before or after each load.
- Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.
■ The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.
■ Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).
■ See the Installation Instructions for grounding requirements and installation.

SAVE THESE INSTRUCTIONS

WARNING — “Risk of Fire”

• Clothes dryer installation must be performed by a qualified installer.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
• Do not install a clothes dryer with flexible plastic venting materials or flexible metal (foil type) duct. If flexible metal duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Save these instructions.

WARNING

FIRE HAZARD

Failure to follow safety warnings exactly could result in serious injury, death, or property damage.

Do not install a booster fan in the exhaust duct.

Install all clothes dryers in accordance with the installation instructions of the manufacturer of the dryer.

WARNING:

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death, or property damage.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:

- Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
  • If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

WARNING: Gas leaks cannot always be detected by smell.

Gas suppliers recommend that you use a gas detector approved by UL or CSA.

For more information, contact your gas supplier.

If a gas leak is detected, follow the "What to do if you smell gas" instructions.

IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the National Gas and Propane Installation Code, CSA B149.1.

The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, Part 1, CSA C22.1.

In the State of Massachusetts, the following installation instructions apply:

■ Installation and repairs must be performed by a qualified or licensed contractor, plumber, or gas fitter qualified or licensed by the State of Massachusetts.
■ Acceptable Shut-off Devices: Gas Cocks and Ball Valves installed for use shall be listed.
■ A flexible gas connector, when used, must not exceed 4 feet (121.9 cm).

IMPORTANT SAFETY INSTRUCTIONS

WHEN DISCARDING OR STORING YOUR OLD CLOTHES DRYER, REMOVE THE DOOR.

SAVE THESE INSTRUCTIONS

Internet Connectivity Guide for Connected Appliances Only

IMPORTANT: Proper installation of your appliance prior to use is your responsibility. Be sure to read and follow the installation instructions that came with your appliance.

Connectivity requires Wi-Fi and account creation. App features and functionality are subject to change. Data rates may apply. Once installed, launch the app. You will be guided through the steps to set up a user account and to connect your appliance.

You Will Need:

A home wireless router supporting Wi-Fi, 2.4 Ghz with WPA2 security. If you are unsure of your router's capabilities, refer to the router manufacturer's instructions.
■ The router to be on and have a live internet connection.
■ The 10-character SAID code for your appliance. The SAID code is either printed on a label on the appliance or found on the LCD screen.

Federal Communications Commission (FCC) Compliance Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
   Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Industry Canada (IC) Compliance Notice

This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

To comply with FCC and Industry Canada RF radiation exposure limits for general population, antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20 cm is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.

Connecting your front load smart appliance

NOTE: You may also go to www.maytag.com/connect for further instructions.

1. Download the MAYTAG™ app and create an account.

MAVTAG OPEN APP CREATE ACCOUNT

1. Select ADD APPLIANCE.

+ ADD APPLIANCE

1. Scan the QR code.

TIP: Find the QR code on the appliance label or manually enter the SAID and MAC.

SCAN QR CODE

1. Select your product type and model number.

CONFIRM APPLIANCE INFORMATION

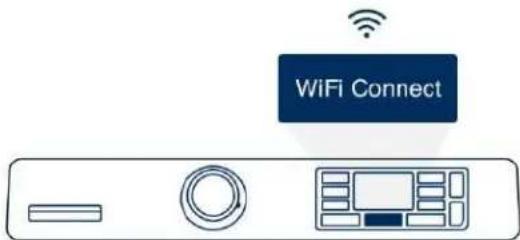

1. Press and quickly release the WiFi Connect button on the appliance.

TIP: Do NOT hold the button, this will put the appliance in wrong mode. If your appliance says to "Hold 3 sec.", please ignore.

WiFi Connect

1. In the app, select your network and enter your password.

TIP: If your home router has a choice of frequency bands, be sure to use the 2.4 GHz band router name.

1. A screen will appear that says "CONNECTING". These 4 steps can take up to 2 minutes to complete.

TIP: During this process, lights on the appliance will blink. This is normal. Once the appliance is connected, it will end on a solid white light.

1. Name your appliance and start using the remote features.

TIP: Remember to press the "Remote Enable" button when using these features.

DRYER MAINTENANCE AND CARE

Cleaning the Dryer Location

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Do not dry anything that has ever had anything flammable on it (even after washing).

Place dryer at least 18 inches (460 mm) above the floor for a garage installation.

Failure to do so can result in death, explosion, or fire.

Keep dryer area clear and free from items that would block the airflow for proper dryer operation. This includes clearing piles of laundry in front of the dryer.

Cleaning the Dryer Interior

To clean dryer drum:

1. Use either a mild dish detergent mixed at low concentration of a nonflammable cleaner and very warm water. Rub with a s cloth.

■ Rinse well with a wet sponge or towel.
■ Tumble a load of clean clothes or towels to dry drum.

1. Use a microfiber cloth and very warm water in a spray bottle clean the drum and a second microfiber towel to dry.

NOTE: Garments that contain unstable dyes, such as denim blue jeans or brightly colored cotton items, may discolor the rear of t

dryer interior. These stains are not harmful to your dryer and w not stain future loads of clothes. Dry unstable dye items inside to avoid transfer of dye.

Removing Accumulated Lint

From inside the dryer cabinet:

Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning should be done by a qualified appliance service or ventilation system cleaner.

From the exhaust vent:

Lint should be removed every 2 years, or more often, depending on dryer usage.

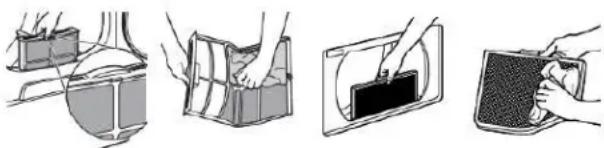

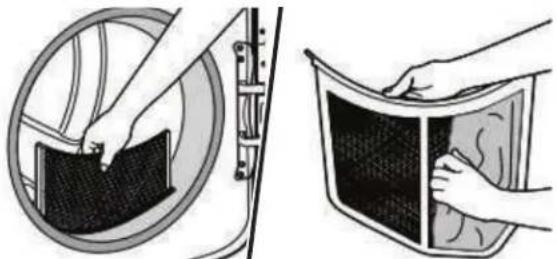

Cleaning the Lint Screen

Every load cleaning:

The lint screen may be located either in the door opening or the top of the dryer depending on model. A screen blocked by lint can increase drying time.

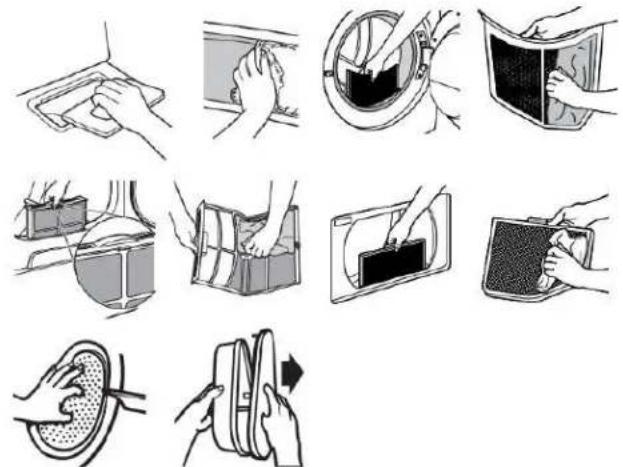

To clean:

1. Remove the lint screen. If necessary, press the tab to release and open the lint screen. Roll lint off the screen with your fingers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove.

1. Push the lint screen firmly back into place.

IMPORTANT:

■ Do not run the dryer with the lint screen loose, damaged, blocked, or missing. Doing so can cause overheating and damage to both the dryer and fabrics.
If lint falls off the screen into the dryer during removal, check the exhaust hood and remove the lint. See "Venting Requirements" in the Installation Instructions.
■ Clean space where lint screen is located, as needed. Using a vacuum, gently remove any lint that has accumulated outside of the lint screen.

As-needed cleaning:

Laundry detergent and fabric softener residue can build up on the lint screen. This buildup can cause longer drying times for your clothes, or cause the dryer to stop before your load is completely

dry. The screen is probably clogged if lint falls off while the screen is in the dryer. Clean the lint screen with a nylon brush every

6 months, or more frequently, if it becomes clogged due to a residue buildup.

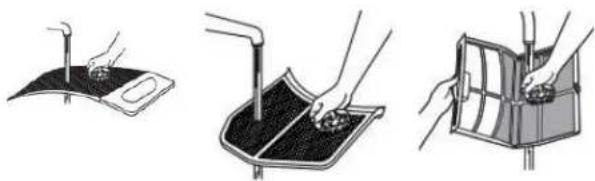

To wash:

1. Roll lint off the screen with your fingers.
2. Wet both sides of lint screen with hot water.
3. Wet a nylon brush with hot water and liquid detergent. Scrub lint screen with the brush to remove residue buildup.

Three-step illustration showing hands using a tool to clean or adjust a surface (no text or symbols present)

Illustration of two hand-drawn photos showing hands cleaning a surface and a meshed plate (no text or symbols)

1. Rinse screen with hot water.
2. Thoroughly dry lint screen with a clean towel. Reinstall screen in dryer.

Changing the Drum Light (on some models)

1. Unplug dryer or disconnect power.

2. Open the dryer door. Locate the light bulb cover on the back wall of the dryer. Using a 1/4" (6.5 mm) nut driver or socket wrench, remove the screw located in the lower right-hand corner of the cover. Remove the cover.

Hand holding a screwdriver to switch a device (no text or symbols visible)

1. Turn bulb counterclockwise. Replace the bulb with a 10 W appliance bulb only. Replace the cover and secure with the screw.

2. Plug in dryer or reconnect power.

Check Your Vent System for Good Airflow

WARNING

Fire Hazard

Use a heavy metal vent.

Do not use a plastic vent.

Do not use a metal foil vent.

Failure to follow these instructions can result in death or fire.

Good Airflow

Along with heat, dryers require good airflow to efficiently dry laundry. Proper venting will reduce your drying times and improve your energy savings. See Installation Instructions.

The venting system attached to the dryer plays a big role in good airflow. Blocked or crushed vents as well as improper venting installation will reduce air flow and dryer performance.

Service calls caused by improper venting are not covered by the warranty and will be paid by the customer, regardless of who installed the dryer. To clean or repair venting, contact a venting specialist.

Maintain Good Airflow

■ Cleaning your lint screen before each load.
■ Replace plastic or foil vent material with 4" (102 mm) diameter heavy, rigid vent material.
■ Use the shortest length of vent possible.

■ Use no more than four 90° elbows in a vent system; each bend and curve reduces airflow.

Good Better

■ Remove lint and debris from the exhaust hood.
■ Remove lint from the entire length of the vent system at least every 2 years. When cleaning is complete, be sure to follow the Installation Instructions for final product check.
■ Clear away items from the front of the dryer.

Nonuse, Storage, and Moving Care Nonuse or Storage Care

If you will be on vacation or not using your dryer for an extended period of time, you should:

1. Unplug dryer or disconnect power.
2. Clean lint screen. See "Cleaning the Lint Screen."
3. Close shutoff valve in gas supply line.
4. Steam Models Only: Turn off the water supply to the dryer. This helps to avoid flooding (due to a water pressure surge) while you are away.

Moving Care — Gas Models

1. Unplug the power supply cord.
2. Close shutoff valve in gas supply line.
3. Disconnect gas supply line pipe and remove fittings attached to dryer pipe.
4. Cap the open gas supply line.
5. Steam models only: Shut off water faucet. Disconnect the water inlet hose from faucet; then drain the hose. Transport hose separately.
6. Make sure leveling legs are secure in dryer base.
7. Use tape to secure dryer door.

To use the dryer again:

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Flush water pipes. Reconnect water inlet hose to faucet. Turn on water faucet.
2. Plug in dryer or reconnect power as described in the Installation Instructions.

Reinstalling the Dryer

Follow the Installation Instructions to locate, level, and connect the dryer.

Special Instructions for Steam Models

Install and store your dryer where it will not freeze. Because some water may stay in the hose, freezing can damage your dryer. If storing or moving your dryer during freezing weather, winterize it.

Water Inlet Hose

Replace inlet hose and hose screen after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hose if bulges, kinks, cuts, wear, or leaks are found.

When replacing your inlet hose, record the date of replacement.

To winterize the dryer:

1. Unplug dryer or disconnect power.
2. Shut off water faucet.
3. Disconnect water inlet hose from faucet and drain.

INSTALLATION REQUIREMENTS

Tools and Parts

NOTE: Install the clothes dryer according to the manufacturer's instructions and local codes.

Gather required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed for All Installations:

Simple line drawing of a screwdriver (no text or symbols)

Flat-blade screwdriver

Two interlocked circular hoses with metal clips attached (no text or symbols)

Vent clamps

Simple line drawing of a screwdriver with a handle and shaft (no text or symbols)

1/4" Nut driver

Simple diagram with three circular symbols inside a rectangular box (no text or labels)

Level

Line drawing of a pair of pliers (no text or symbols)

Pliers or slip-joint pliers

Simple line drawing of a measuring tape (no text or symbols)

Tape measure

Simple line drawing of a flat tool with a handle and central slot (no text or symbols)

Utility knife

Line drawing of a pair of pliers with a handle and base (no text or symbols)

Tin snips (new vent installations)

Two line drawings of a tool or tool with no text or symbols

Caulking gun and compound (new vent installations)

Line drawing of an adjustable wrench (no text or symbols)

Adjustable wrench that opens to 1" (25 mm) or hex-head socket wrench

Line drawing of a adjustable wrench (no text or symbols)

8" (203 mm) or 10" (254 mm) pipe wrench

Simple line drawing of a jar with a lid (no text or symbols)

^3 Pipe-joint compound resistant to propane gas

Parts Supplied:

Illustration of two types of threaded fasteners with no text or symbols

Leveling legs (4) (Length and appearance of legs may vary according to model)

Parts package is located in dryer drum. Check that all parts are included.

NOTE: Do not use leveling legs supplied with dryer if installing with a pedestal or a stack kit.

Parts Needed (steam models):

Simple line drawing of a T-shaped pipe fitting with two threaded ends (no text or symbols)

"Y" connector

Simple black curved line with two circular ends, no text or symbols present

2' (0.6 m) inlet hose

Simple line drawing of a ring-shaped object (no text or symbols)

Rubber washer

Coiled black cable or hose with two connectors, isolated on white background (no text or symbols)

5' (1.52 m) inlet hose

Parts Needed (not supplied with dryer):

Additional parts may be required, depending on your installation. Check local codes. Check existing electrical supply and venting. See "Electrical Requirements" and "Venting Requirements" before purchasing parts.

Mobile home installations require metal exhaust system hardware available for purchase from the dealer from whom you purchased your dryer. For further information, please refer to the Quick Start Guide for service contact information.

Available Accessories:

Accessories and replacement parts are available for your model. For ordering and contact information, please reference your Quick Start Guide.

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Do not dry anything that has ever had anything flammable on it (even after washing).

Place dryer at least 18 inches (460 mm) above the floor for a garage installation.

Failure to do so can result in death, explosion, or fire.

Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile homes, or sleeping quarters. Contact your local building inspector.

You will need:

■ A location allowing for proper exhaust installation. See "Venting Requirements."
■ A separate 15 A or 20 A circuit for gas dryers.
A grounded electrical outlet located within 2 ft (610 mm) of either side of the dryer. See "Electrical Requirements" in the "Gas Dryer Power Hookup" section.
■ A sturdy floor to support dryer and a total weight (dryer and load) of 200 lbs (90.7 kg). The combined weight of a companion appliance should also be considered.
■ Level floor with maximum slope of 1" (25 mm) under entire dryer. If slope is greater than 1" (25 mm), install Extended Dryer Feet Kit. If not level, clothes may not tumble properly and automatic sensor cycles may not operate correctly. Installing on carpet is not recommended.
■ For garage installation, place dryer at least 18" (460 mm) above floor. If using a pedestal, you will need 18" (460 mm) to bottom of dryer.
■ Steam models only: Cold water faucets located within 4 ft (1.2 m) of the water fill valves, and water pressure of 20-100 psi (137.9-689.6 kPa). You may use your washer's water supply by utilizing the necessary parts noted in "Parts needed" which you may need to purchase (those parts are not included with the your appliance and are optional).
■ The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.

IMPORTANT: Do not operate your dryer at temperatures below 45°F (7°C). Lower temperatures may cause dryer not to shut off at end of automatic sensor cycles, resulting in longer drying times.

Installation clearances:

For each arrangement, consider allowing more space for ease of installation and servicing, spacing for companion appliances, and clearances for walls, doors, and floor moldings. Space must be large enough to allow the door to fully open. Add spacing on all sides of dryer to reduce noise transfer. If a closet door is used, top and bottom air openings are required. Louvered doors with equivalent ventilation openings can be used.

Spacing for recessed area or closet

14" (maximum) (356 mm) 18" (minimum) (457 mm) 6"/0"* (152 mm/ 0 mm) 1"/0"* (25 mm/0 mm) 3" (76 mm) 48 in² (310 cm²) 3" (76 mm) 24 in² (155 cm²) 1" (25 mm)

*Recommended/Minimum spacing

NOTE: No other fuel-burning appliance can be installed in the same closet as a dryer.

All dimensions show recommended and minimum spacing allowed.

■ Additional spacing should be considered for ease of installation and servicing.
■ Additional clearances might be required for wall, door, and floor moldings.
■ Additional spacing of 1" (25 mm) on all sides of the dryer is recommended to reduce noise transfer.
■ For closet installation with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable.
■ Companion appliance spacing should also be considered.

Closet Installation (stacked washer and dryer):

6" (152 mm) 3" (76 mm) 48 in.² (310 cm²) 5½" (140 mm) 3" (76 mm) 24 in.² (155 cm²) 1" (25 mm) 1" (25 mm)

Minimum installation clearances (dryer only):

	Front Sides	Rear Top
Recessed	NA	0" (0 mm) 0" (0 mm)		18"(457 mm) to cabinet/shelf
Closet	1" (25 mm) Minimum	0" (0 mm) 0" (0 mm)		18"(457 mm) to cabinet/shelf

0" (0 mm) rear spacing is allowed for straight-back venting only. For steam models only, inlet hose must not be kinked.

IMPORTANT: Keep a minimum of 5½" (139.7 mm) clearance between the wall and the dryer to avoid crushing the vent.

Mobile Home – Additional installation requirements

This dryer is suitable for mobile home installations. The installation must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280) or the Standard for Mobile Homes, CAN/CSA-Z240 MH.

Mobile home installations require:

■ Metal exhaust system hardware, which is available for purchase from your dealer.
■ Mobile Home Installation Hold-Down Kit.
■ Special provisions must be made in mobile homes to introduce outside air into the dryer. The opening (such as a nearby window) should be at least twice as large as the dryer exhaust opening.

Gas Dryer Power Hookup – U.S.A. and Canada

Electrical Requirements

WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.

120 V, 60 Hz AC only, 15 A or 20 A fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is also recommended that a separate circuit serving only this dryer be provided. Do not use an extension cord.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected appliance:

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance: if it will not the outlet, have a proper outlet installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

Gas Supply Requirements

WARNING

Explosion Hazard

Use a new CSA International approved gas supply line. Install a shut-off valve.

Securely tighten all gas connections.

If connected to propane, have a qualified person make sure gas pressure does not exceed 13" (33 cm) water column.

Examples of a qualified person include: licensed heating personnel, authorized gas company personnel, and authorized service personnel.

Failure to do so can result in death, explosion, or fire.

Gas Type

Natural Gas:

This dryer is equipped for use with natural gas. It is certified by UL for use with propane gas with appropriate conversion.

- Your dryer must have the correct burner for the type of gas in your home. Burner information is located on the rating plate in the door well of your dryer. If this information does not agree with the type of gas available, contact your dealer or reference the contact information listed on your Quick Start Guide.

Propane Gas Conversion:

IMPORTANT: Conversion must be made by a qualified technician.

No attempt shall be made to convert the appliance from the gas specified on the model/serial rating plate for use with a different gas without consulting your gas company.

Gas Supply Line

Option 1 (Recommended Method)

Flexible stainless steel gas connector:

If local codes permit, use a new flexible stainless steel gas connector (Design-Certified by the American Gas Association or CSA International) to connect your dryer to the rigid gas supply line. Use an elbow and a 3/8" flare x 3/8" NPT adapter fitting between the stainless steel gas connector and the dryer gas pipe, as needed, to prevent kinking.

Option 2 (Alternate Method)

Approved aluminum or copper tubing:

• Must include 1/8" NPT minimum plugged tapping accessible for test gauge connection, immediately upstream of the gas connection to the dryer.
• 1/2" IPS pipe is recommended.
  ■ 3/8" approved aluminum or copper tubing is acceptable for lengths under 20 ft (6.1 m) if local codes and gas supplier permit.
  ■ If you are using natural gas, do not use copper tubing.
  ■ Lengths over 20 ft (6.1 m) should use larger tubing and a different size adapter fitting.
  If your dryer has been converted to use propane gas, 3/8" propane-compatible copper tubing can be used. If the total length of the supply line is more than 20 ft (6.1 m), use larger pipe.

NOTE: Pipe-joint compounds that resist the action of propane gas must be used. Do not use PTFE plumber's tape.

■ Must include shutoff valve.

In the U.S.A.:

An individual manual shutoff valve must be installed within six (6) ft (1.8 m) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1. The location should be easy to reach for opening and closing.

In Canada:

An individual manual shutoff valve must be installed in accordance with the B149.1, Natural Gas and Propane Installation Code. It is recommended that an individual manual shutoff valve be installed within six (6) ft (1.8 m) of the dryer. The location should be easy to reach for opening and closing.

Technical diagram of a mechanical assembly with labeled components A, B, C, D, and E

A. 3/8" flexible gas connector
B. 3/8" pipe-to-flare adapter fitting
C. 1/8" NPT minimum plugged tapping
D. 1/2" NPT gas supply line
E. Gas shutoff valve

Gas Supply Connection Requirements

■ The gas pipe that comes out through the rear of your dryer has a 3/8" male pipe thread.
■ Use an elbow and a 3/8" flare x 3/8" NPT adapter fitting between the flexible gas connector and the dryer gas pipe, as needed to avoid kinking.
■ Use only pipe-joint compound. Do not use PTFE plumber's tape.
■ This dryer must be connected to the gas supply line with a listed flexible gas connector that complies with the standard for connectors for gas appliances, ANSI Z21.24 or CSA 6.10.

Burner Input Requirements

Elevations above 2,000 ft (610 m)

■ When installed above 2,000 ft (610 m), a 4% reduction of the burner BTU rating shown on the model/serial number plate is required for each 1,000 ft (305 m) increase in elevation.

Gas supply pressure testing

■ The dryer must be disconnected from the gas supply piping system during pressure testing at pressures greater than 1/2 psi (3.45 kPa).

INSTALLATION

Install Leveling Legs

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

1. Prepare dryer for leveling legs

Technical line drawing of a mechanical housing with mounting holes and internal components (no text or symbols)

To avoid damaging floor, use a large flat piece of cardboard from dryer carton; place under entire back edge of dryer. Firmly grasp dryer body (not console panel) and gently lay dryer down on cardboard.

2. Screw in leveling legs

Leveling leg with diamond marking

Leveling leg without diamond marking

Using a wrench and tape measure, screw leveling leg into leg holes until bottom of foot is approximately 1/2" (13 mm) to 1½" (38 mm) from bottom of the dryer.

For leveling legs with the diamond marking:

Screw legs into leg holes by hand. Use a wrench to finish turning legs until diamond marking is no longer visible.

Place a carton corner post from dryer packaging under each of the two dryer back corners. Stand the dryer up. Slide the dryer on the corner posts until it is close to its final location. Leave enough room to connect the exhaust vent.

For mobile home use:

Gas dryers must be securely fastened to the floor.

Mobile home installations require a Mobile Home Installation Hold-Down Kit (PN 346764A). For ordering information, please reference the Quick Start Guide.

Make Gas Connection – U.S.A. and Canada

WARNING

Explosion Hazard

Use a new CSA International approved gas supply line.

Install a shut-off valve.

Securely tighten all gas connections.

If connected to propane, have a qualified person make sure gas pressure does not exceed 13" (33 cm) water column.

Examples of a qualified person include: licensed heating personnel, authorized gas company personnel, and authorized service personnel.

Failure to do so can result in death, explosion, or fire.

1. Connect gas supply to dryer

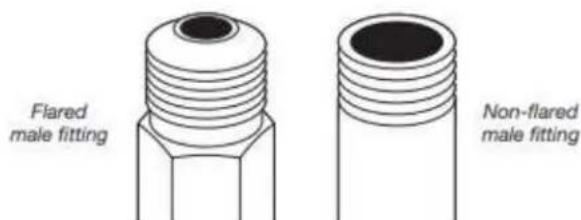

Flared male fitting Non-flared male fitting

Remove red cap from gas pipe. Using a wrench to tighten, connect gas supply to dryer. Use pipe-joint compound on threads of all non-flared male fittings. If flexible metal tubing is used, be sure there are no kinks.

NOTE: For propane gas connections, you must use pipe-joint compound resistant to action of propane gas. Do not use PTFE plumber's tape.

2. Plan pipe fitting connection

Technical diagram showing pipe fitting with labeled parts A, B, C, D and a magnified inset view of a pipe fitting component.

A. 3/8" (9.5 mm) flexible gas connector

C. 3/8" to 3/8" pipe elbow D. 3/8" pipe-to-flare adapter fitting

B. 3/8" (9.5 mm) dryer pipe

A combination of pipe fittings must be used to connect dryer to existing gas line. Recommended connection is shown. Your connection may be different, according to supply line type, size, and location.

3. Open shutoff valve

Two identical mechanical components labeled A and B connected to parallel lines (no text or symbols beyond labels)

A. Closed valve B. Open valve

Open shutoff valve in supply line; valve is open when handle is parallel to gas pipe. Then, test all connections by brushing on an approved noncorrosive leak-detection solution. Bubbles will show a leak. Correct any leaks found.

Venting Requirements

WARNING

Fire Hazard

Use a heavy metal vent.

Do not use a plastic vent.

Do not use a metal foil vent.

Failure to follow these instructions can result in death or fire.

WARNING: To reduce the risk of fire, this dryer MUST BE EXHAUSTED OUTDOORS.

IMPORTANT: Observe all governing codes and ordinances. Dryer exhaust must not be connected into any gas vent, chimney, wall, ceiling, attic, crawlspace, or a concealed space of a building. Only rigid or flexible metal vent shall be used for exhausting. Do not use plastic or metal foil vent.

4" (102 mm)

■ Only a 4" (102 mm) heavy metal exhaust vent and clamps be used.
■ Do not use plastic or metal foil vent.

Rigid metal vent:

■ Recommended for best drying performance and to avoid crushing and kinking.

Flexible metal vent (acceptable only if accessible to clean):

■ Must be fully extended and supported in final dryer location.
■ Remove excess to avoid sagging and kinking that may result in reduced airflow and poor performance.
■ Do not install in enclosed walls, ceilings, or floors.
■ The total length should not exceed 14 ft (2.4 m).
■ The length of flexible metal vent used must be included in the overall vent system design as shown in the "Vent System Chart."

Home Venting System:

■ If using an existing home vent system, clean lint from the entire length of the system before installing the dryer.
■ Make sure external exhaust hoods outside of the home is not plugged with lint or other outside debris.
- Replace plastic or metal foil vents with rigid metal or flexible metal vents. Review "Vent System Chart" and, if necessary, modify existing home vent system to achieve best drying performance.

Exhaust hoods:

■ An exhaust hood should cap the vent to keep rodents and insects from entering the home.
■ Must be at least 12" (305 mm) from ground or any object that may obstruct exhaust (such as flowers, rocks, bushes, or snow).
■ Do not use an exhaust hood with a magnetic latch.

Recommended Styles: Acceptable Style:

Louvered Hood Box Hood Angled Hood

Elbows:

■ 45° elbows provide better airflow than 90° elbows.

Good Better

Clamps:

■ Use clamps to seal all joints.
■ Exhaust vent must not be connected or secured with screws or other fastening devices that extend into interior of duct and catch lint. Do not use duct tape.

Vent products can be purchased from your dealer. For contact and ordering information, refer to your Quick Start Guide.

Plan Vent System

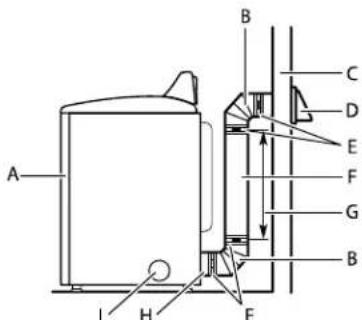

Recommended exhaust installations:

Typical installations vent the dryer from the rear of the dryer. Other installations are possible.

A B C D E F G B I H E

A. Dryer
F. Rigid metal or flexible metal vent
B. Elbow
G. Vent length necessary to connect
C. Wall
elbows
D. Exhaust hood
H. Exhaust outlet
E. Clamps
1. Optional side exhaust outlet

Optional exhaust installations:

WARNING

Fire Hazard

Cover unused exhaust holes with a manufacturer's exhaust cover kit.

Contact your local dealer.

Failure to follow these instructions can result in death, fire, electrical shock, or serious injury.

Some models can be converted to exhaust out the right side, left side, or through the bottom. If you prefer, you may contact your local dealer to have the dryer converted.

A

B

C

A. Standard rear offset exhaust installation
B. Left or right side exhaust installation (available only on select 27" wide models).
C. Bottom exhaust installation (available only on select 27-wide models).

Alternate installations for close clearances

Venting systems come in many varieties. Select the type best for your installation. Two close-clearance installations are shown.

NOTE: The following kits for close-clearance alternate installations are available for purchase. Refer to Quick Start Guid for contact information.

Line drawing of a portable electronic device with a coiled cable and ventilation duct (no text or symbols)

Line drawing of a mechanical device with internal components and a handle (no text or symbols)

Periscope installation

Over-The-Top installation (also available with one offset elbow). Semi rigid venting used in this example.

Special provisions for mobile home installations:

Exhaust vent must be securely fastened to a noncombustible portion of the mobile home and must not terminate beneath the mobile home. Terminate exhaust vent outside.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Determine vent path:

■ Select route that will provide straightest and most direct path outdoors.
Plan installation to use fewest number of elbows and turns.
■ When using elbows or making turns, allow as much room as possible.
■ Bend vent gradually to avoid kinking.
■ Use as few 90° turns as possible.

Determine vent length and elbows needed for best drying performance:

■ Use the following "Vent System Chart" to determine the type of vent material and hood combinations acceptable to use.

NOTE: Do not use vent that runs longer than those specified in the "Vent System Chart." Exhaust systems longer than those specified will:

■ Shorten life of dryer.
■ Reduce performance, resulting in longer drying times and increased energy usage.

7The "Vent System Charts" provide venting requirements that will help achieve best drying performance.

Vent System Chart
Number of 90° elbows	Type of vent Box/	ouvered or Angled hoods
e0 Rigid metal 64 ft (20 m)
1 Rigid metal 54 ft (16.5 m)
2 Rigid metal 44 ft (13.4 m)
3 Rigid metal 35 ft (10.7 m)
4 Rigid metal 27 ft (8.2 m)

NOTE: Side and bottom exhaust installations have a 90° turn inside the dryer. To determine maximum exhaust length, add one 90° turn to the chart.

Install Vent System

1. Install exhaust hood


12" minimum (305 mm) 12" minimum (305 mm)

Install exhaust hood and use caulking compound to seal exterior wall opening around exhaust hood.

1. Connect vent to exhaust hood


Pure technical diagram of a curved pipe or duct with a vertical support and hatched fill, no text or symbols present.

Vent must fit over the exhaust hood. Secure vent to exhaust hood with 4" (102 mm) clamp. Run vent to dryer location using straightest path possible. Avoid 90° turns. Use clamps to seal all joints. Do not use duct tape, screws, or other fastening devices that extend into interior of vent to secure vent, because they can catch lint.

Connect Inlet Hoses

For vented, non-steam models, skip to "Connect Vent." The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old hoses.

NOTE: Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Record hose installation or replacement dates on the hoses for future reference.

Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

1. Turn cold water off, remove and replace rubber washer


Diagram showing pipe fittings and connectors with arrows indicating assembly or connection (no text or symbols)

Turn cold water faucet off and remove washer inlet hose. Remove old rubber washer from inlet hose and replace with new rubber washer.

1. Attach short hose and "Y" connector


Diagram of pipe connection with hoses and valves (no text or labels)

Attach 2 ft (0.6 m) inlet hose to cold water faucet. Screw on coupling by hand until it is seated on faucet. Then attach "Y" connector to male end of the 2 ft (0.6 m) inlet hose. Screw on coupling by hand until it is seated on connector.

1. Tighten couplings


Diagram of a hand using a mechanical device to interact with a cable (no text or symbols present)

Using pliers, tighten the couplings with additional two-thirds turn.

NOTE: Do not overtighten. Damage to the coupling can result.

1. Attach long hose to "Y" connector and tighten couplings


Diagram showing two hands operating a pipe fitting with valve fittings (no text or symbols present)

Attach one of the 5 ft (1.5 m) inlet hose ends to the "Y" connector. Attach washer cold inlet hose to other side of "Y" connector. Screw on coupling by hand until it is seated on connector. Using pliers, tighten the couplings an additional two-thirds turn.

NOTE: Do not overtighten. Damage to the coupling can result.

1. Attach long hose to dryer fill valve and tighten coupling

Technical diagram showing mechanical assembly with zoomed-in detail (no text or symbols)

If applicable, remove protective cap from water inlet valve. Attach other end of long hose to fill valve on dryer back Screw on coupling by hand until it is seated on fill valve connector. Using pliers, tighten the couplings an additional two-thirds turn.

NOTE: Do not overtighten. Damage to the coupling can result.

NOTE: The Steam Dryer water connection may be in a different location.

1. Turn on cold water faucet

Pure electrical circuit lines without any symbols

Check that the water faucet is turned on.

1. Check for leaks

Three-panel illustration showing pipe fittings and water droplets, no text or symbols present

Check for leaks around "Y" connector, faucets, and hoses.

Connect Vent

1. Connect vent to exhaust outlet

Diagram of a car air duct system with hoses and ventilation ducts (no text or labels)

Using a 4" (102 mm) clamp, connect the vent to exhaust outlet in the dryer. If connecting to existing vent, make sure vent is clean. Dryer vent must fit over dryer exhaust outlet and inside exhaust hood. Check that vent is secured to exhaust hood with a 4" (102 mm) clamp.

1. Move dryer to final location

Line drawing of a washing machine with a black arrow indicating left motion (no text or symbols)

Move dryer to final location. Avoid crushing or kinking vent. After dryer is in place, remove corner posts and cardboard from under dryer.

IMPORTANT: Keep a minimum of 5½" (139.7 mm) clearance between the wall and the dryer to avoid crushing the vent.

Level Dryer

1. Level Dryer

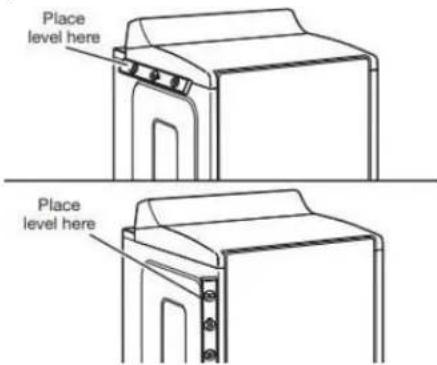

Place level here Place level here

Check levelness of dryer from side to side. Repeat from front to back.

NOTE: The dryer must be level for the moisture-sensing system to operate correctly.

Not Level

LEVEL

Not Level

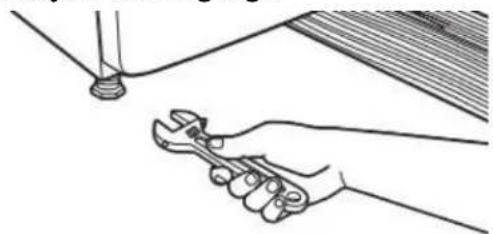

1. Tighten and adjust leveling legs

Illustration of a hand using a wrench to lift a pipe (no text or symbols present)

If dryer is not level, prop up using a wood block. Use wrench to adjust legs up or down, and check again for levelness. Once dryer is level, make sure all four legs are snug against the floor and the dryer does not rock.

Complete Installation Checklist

• Check that all parts are now installed. If there is an extra go back through steps to see what was skipped.
  ■ Check that you have all of your tools.
  ■ Dispose of/recycle all packaging materials.
• Check dryer's final location. Be sure vent is not crushed or kinked.
• Check that dryer is level. See "Level Dryer."
  ■ Remove film on console and any tape remaining on dryer.
  ■ Wipe dryer drum interior thoroughly with a damp cloth to remove any dust.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

■ Plug into a grounded 3 prong outlet.
■ Check that gas supply is on.
■ Check for leaks.
- Check that the flexible gas line is not crushed or kinked.

Steam Models Only:

■ Be sure the water faucets are on.
- Check for leaks around "Y" connector, faucet, and hoses.
If you live in a hard water area, use of a water softener is recommended to control the buildup of scale through the water system in the dryer. Over time, the buildup of lime scale may clog different parts of the water system, which will reduce product performance. Excessive scale buildup may lead to the need for certain part replacement or repair.

All Models:

part. Set the heat cycle for 20 minutes and start dryer. Do not select Air Only temperature setting.

If dryer will not start, check the following:

■ Controls are set in a running or "ON" position.
■ Start button has been pressed firmly.
■ Dryer is plugged into an outlet and/or electrical supply is connected.
■ Household fuse is intact and tight, or circuit breaker has not tripped.
■ Dryer door is closed.

- When the dryer has been running for 5 minutes, open the dryer door and feel for heat. If you feel heat, cancel cycle and close the door. If you do not feel heat, turn the dryer off and check to see whether gas supply shutoff valve is open.

■ If the gas supply shutoff valve is closed, open it and then repeat the 5-minute test as outlined above.
■ If the gas supply line shutoff valve is open, contact a qualified technician.
■ To change the door swing from a right-side opening to a left-side opening, see online "Dryer Door Reversal Instructions" for details.

If your Airflow screen reads "Check Vent," your dryer vent may be crushed or blocked.

NOTE: You may notice an odor when dryer is first heated. This odor is common when heating element is first used. The odor will go away.

QUICK START GUIDE

CONTROL PANEL AND FEATURES

MAYTAG PET PRO SYSTEM 2 Regular Heavy Duty Whites Sanitize Towels Custom Cycle EXTRA POWER Quick Dry Delicates Steam Refresh Normal Bulky Items Timed Dry 5 4 1 More Time Less Time Remote Start Pet Pro Do for Control Lock Temp Drainbox Wiseer Standard Reduce Static Do for Cycle Signal 3 5 4 5

Not all features, cycles, and options are available on all models. Appearance may vary.
NOTE: The control panel features a sensitive surface that responds to a light touch of your finger. To ensure your selections are registered, touch the control panel with your finger tip, not your fingernail. When selecting a setting or option, simply touch its name.

Button Descriptions

1. POWER/CANCEL

Touch to turn the dryer on/off or to stop/cancel a cycle.

2. CYCLE CONTROL KNOB

Turn the knob to select a cycle for your laundry load. See the "Cycle Guide" section for details.

Activate the Extra Power option for harder-to-dry loads. See the "Options" section for more information.

3. START/PAUSE

Touch and hold until LED counts down and the dryer starts; or touch once while a cycle is in process to pause it, touch again to resume.

4. LED DISPLAY AND SETTINGS

Display LCD will show the cycle settings and estimated time remaining. Adding or changing default options will also affect time shown in the display.

See the "Cycle Guide" section for details.

Not all settings are available with all cycles.

More Time/Less Time

Touch to increase or decrease the length of a Timed Dry or Quick Dry cycle.

Temp

When using any cycle except Sanitize, you may select a dry temperature based on the type of load you are drying. Use the warmest setting acceptable for the garments in the load. Follow garment label instructions.

Dryness

When using Sensor Cycles, you may select a Dryness level based on the type of load you are drying (except for the Sanitize cycle).

Cycle Status

The Cycle Status indicators show the progress of a cycle. Touch a button for the desired drying cycle. Not all indicators are available on all models. See the "Cycle Guide" section for cycle details.

Sensing

The Sensing indicator will light during Sensor Cycles to indicate that the moisture sensor on the dryer is operating. This indicator will not light during Timed Cycles or options such as Wrinkle Prevent.

Wet

The load is still wet and/or the cycle just started.

Damp

The load still has moisture remaining, a good point in the cycle to remove a garment to air dry or iron.

Cool Down

The dryer has finished drying with heat and is now tumbling without heat to cool it down and reduce wrinkling.

End

This indicates that the selected cycle has ended and the load may be removed from the dryer. If Wrinkle Prevent has been selected, the dryer may continue to tumble the load, even if "End" is displayed.

Check Vent

The Check Vent indicator is a feature available for Sensor Cycles only. This alert will show the status of airflow through the dryer and the dryer vent system for the dryer's life. During the sensing phase at the beginning of the cycle if it detects a blocked vent or low pressure it will display "Check Vent". Clean lint screen or vent for better performance. This light will stay on for the entire cycle. Refer to the "Troubleshooting" section for potential solutions to the issue. The light will be cleared upon completion of the cycle, touching Power, or opening the door. It will continue to illuminate during the cycle until the vent is cleared.

NOTE: The dryer will continue to operate even while the indicator is lit, but poor airflow can impact dry times and overall performance.

5. OPTIONS

Use to select available options for your dryer. Not all cycles and options are available on all models.

NOTE: For better performance when using Wrinkle Prevent, Reduce Static, Steam and Pet Pro, use with mid to larger load sizes.

Wrinkle Prevent

Touch to turn on/off and on with steam (select models). Wrinkle Prevent adds up to 150 minutes of periodic tumbling and heat to help reduce wrinkling. Wrinkle Prevent with Steam will add a short steam cycle after 60 minutes to help smooth wrinkles.

Reduce Static (on some models)

Touch to add this option to selected Sensor Cycles. The dryer will automatically tumble, pause, and introduce a small amount of moisture into the load to help reduce static. This option adds approximately 3 minutes to the total cycle time.

Steam (steam models only)

Touch to add steam to the end of certain Sensor Cycles to help smooth wrinkles. It is not available on Sanitize, Delicates, Steam Refresh, or Timed Cycles (Timed Dry, Quick Dry). Steam can be used with High or Medium heat settings. This option adds approximately 15 minutes to the total cycle time.

Pet Pro

The Pet Pro option uses a low heat, water and extended dry time to lift pet hair from clothes and capture it in the lint trap.

Remote Start

Touch each time you want to remotely control via the Maytag™ app. Follow the instructions in the "GET THE MAYTAG™ APP AND GET CONNECTED" section for more details

Note: Once Remote Enable has been selected, certain interactions will cause it to cancel "Remote Enable." Example: Opening the door.

GET THE MAYTAG™ APP AND GET CONNECTED

With your mobile device download the Maytag™ app. You can get subscription and connectivity instructions, terms of use, and privacy policy at www.maytag.com/connect or in Canada www.maytag.ca/connect.

Once installed, launch the app and you will be guided through the steps to subscribe and create your user account to connect to your appliance. If you have any problems or questions, call Maytag® Connected Appliances at 1-866-333-4591. (Only available for models with Wi-Fi capability). When unit is first powered on, it will prompt to select language before you see message to Download APP or press any other key to setup Wi-Fi later.

Extra Power

The Extra Power option can be used with both Sensor and Timed Dry Cycles. Press the knob to activate the Extra Power option, for an additional 10 minutes of cycle time (including additional heat and tumbling, where applicable). When activated, the Cycle Control knob will illuminate and the estimated time remaining on the display will show an additional 10 minutes.

OPERATING INSTRUCTIONS

WARNING

Fire Hazard

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it (including cooking oils).

Items containing foam, rubber, or plastic must be dried on a clothesline or by using an Air Cycle.

Failure to follow these instructions can result in death or fire.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Do not dry anything that has ever had anything flammable on it (even after washing).

Failure to follow these instructions can result in death, explosion, or fire.

WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS, located in your appliance's Owner's Manual, before operating this appliance.

1. Clean Lint Screen


Illustration showing a bicycle wheel and its side panel with hands, no text or symbols present

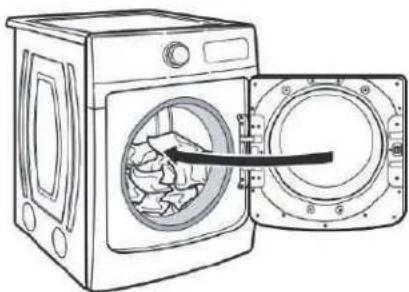

1. Load Clothes

Line drawing of a washing machine with open door and internal compartments (no text or symbols)

1. Turn Power On

2. Close Door; then Select Cycle and Settings

Regular Heavy Duty Whites Sanitize Towels Custom Cycle EXTRA POWER Quick Dry Delicates Steam Refresh Normal Bulky Items Timed Dry

1. Press START/PAUSE


DRYER CYCLE GUIDE

WARNING

Fire Hazard

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it (including cooking oils).

Items containing foam, rubber, or plastic must be dried on a clothesline or by using an Air Cycle.

Failure to follow these instructions can result in death or fire.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Do not dry anything that has ever had anything flammable on it (even after washing).

Failure to follow these instructions can result in death, explosion, or fire.

WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS, located in your appliance's Owner's Manual, before operating this appliance.

Sensor Cycles

If settings are changed, the new settings will be remembered. If there is a power failure, settings will return to the default. Not all features and cycles are available on all models. Not all settings and options are available on each cycle.

Use Sensor Cycles for better fabric care and energy savings. The dryer senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level.

NOTE: All temperatures listed in the first row are available for all cycles unless otherwise stated. Temperatures shown in bold are the default settings for that cycle.

Items to Dry: Cycle: Temperature: Description:
Heavyweight items such as towels or heavy work clothes	Heavy Duty High Medium Low	High	Uses stepped drying, starting with High heat, followed by Medium heat for enhanced fabric care and energy savings.
Work clothes, casual wear, mixed cottons, sheets, corduroys	Normal Medium	Uses Medium heat to	dry large loads of mixed fabrics and items.Normal is the most efficient cycle.
Undergarments, blouses, lingerie, performance wear	Delicates Low	Uses Low heat to gently	dry delicate items.
Large loads of heavyweight items	Sanitize High	This is a long cycle with	High heat, which has been proven to reduce household bacteria. This cycle is not recommended for all fabrics. Use for large loads or heavyweight fabrics. For best results, run cycle to completion. Do not interrupt.
Jackets, comforters, pillows, jeans	Bulky Items Medium	Use for drying large, bulky items; do not overfill dryer drum.Partway through the cycle, the signal will sound to indicate when it is time to rearrange items for optimal drying.
Shirts, blouses, permanent press, synthetics, lightweight items	Regular Medium	Uses Medium heat to	dry large loads of mixed fabrics and items.
White, sturdy items	Whites	High	Uses High heat to dry large loads of white, sturdy fabrics and items.
Large loads of towels and heavyweight items	Towels	High	This is a long cycle with High heat. This cycle is not recommended for all fabrics. Use for large loads of heavyweight fabrics.

NOTE: To create a Custom Cycle, download the MaytaApp and follow the instructions in the app. All cycles that can be saved as a favorite can be customized.
On steam models, you may select the “+Steam” setting to add a short steam cycle after 60 minutes. This is available only with High and Medium drying temperature settings.

Timed Dry Cycles

If settings are changed, the new settings will be remembered (except on Quick Dry). If there is a power failure, settings will return to the default. Not all features and cycles are available on all models. Not all settings and options are available on each cycle.

Adjusting drying time on Timed Cycles

When you select a Timed Dry Cycle, the time appears in the display. Use More Time and Less Time to increase or decrease the time in 5 minute increments. The maximum dry time is 150 minutes.

NOTE: All temperatures listed in the first row are available for all cycles unless otherwise stated. Temperatures shown in bold are the default settings for that cycle.

Items to Dry: Cycle: Temperature: Description:
Any loadNOTE: Select Air Dry to dry foam, rubber, plastic, or heat-sensitive fabrics	Timed Dry HighMediumLowAir Dry	MediumLowAir Dry	Use to dry items to a damp level for items that do not require entire drying cycle. Select a drying temperature based on the type of fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the setting.
Small loads and sportswear	Quick Dry High For small loads of 3-4	For small loads of 3-4	items.

On steam models, you may select the “+Steam” setting to add a short steam cycle after 60 minutes. This is available only with High and Medium drying temperature settings.

Steam Cycle (on some models)

Steam cycles are designed for use with dry loads to loosen wrinkles, reduce odors, and refresh fabrics. For better performance, use this cycle when using mid to larger load sizes.

Not all cycles and settings are available on all models. Settings and options shown in bold are default settings for that cycle.

Items to Refresh: Cycle: Temperature: Description:
Shirts, blouses and slacks	Steam Refresh	High Use to smooth	out wrinkles and reduce odors from loads left in the dryer too long. Do not add dryer sheets.

Selecting the Drying Temperature

Items to Dry:	Temperature: Description:
Towels and work clothes.	High	Heavyweight items
Sheets, blouses, dresses, underwear, permanent press fabrics, and some knits.	Low to Medium Medium	-weight items
Foam, rubber, plastic, other heat-sensitive fabrics.	Air (no heat)	Uses unheated air to dry heat-sensitive items
Bonded or laminated fabrics.	N/A	Some items should only be line-dried

NOTE: If you have questions about drying temperatures for various loads, refer to the care label directions.

Gas Dryer Models

NOTE: These clothes dryer's Government energy certifications were based on the Normal Cycle, Highest Temperature setting and More Dryness Level. The as-shipped defaults of Normal, Medium Temperature and Wrinkle Prevent Off were used except the Temperature Setting was changed from Medium to High and the Dryness level was changed from Normal to More. Cycles that are available for post sale download may use more energy than the Normal cycle, upon which the energy use rating of this dryer is based upon.

Electric Dryer Models

NOTE: These clothes dryer's Government energy certifications were based on the Normal Cycle, Highest Temperature setting and Normal Dryness Level. The as-shipped defaults of Normal, Medium Temperature and Wrinkle Prevent Off were used except the Temperature Setting was changed from Medium to High. Cycles that are available for post-sale download may use more energy than the Normal cycle, upon which the energy use rating of this dryer is based upon.

TROUBLESHOOTING

First try the solutions suggested here or visit our website at www.maytag.com/owners (in Canada, www.maytag.ca/owners) for assistance and to possibly avoid a service call.
If you experience	Possible Causes Solution
Dryer Operation
Dryer will not run	Door not closed completely. Make sure	the dryer door is closed completely.
	Start/Pause not touched firmly or long enough.	Touch and hold START/PAUSE until the display counts down and the dryer starts.
	Household fuse is blown or circuit breaker has tripped.	There may be two household fuses or circuit breakers for the dry Check that both fuses are intact and tight, or that both circuit breakers have not tripped. Replace the fuses or reset the breaker. If the problem continues, call an electrician.
	Incorrect power supply. Electric dryers require 240 V power supply. Check with a qualified electrician.
	Wrong type of fuse. Use a time-delay fuse.
Dryer will not heat	Household fuse is blown or circuit breaker has tripped.	The drum may be turning, but you may not have heat. Electric dryers use two household fuses or circuit breakers. Replace the fuses or reset the circuit breaker. If the problem continues, call a electrician.
	Incorrect power supply. Electric dryers require 240 V power supply. Check with a qualified electrician.
	Supply line valve not open. For gas dryers, make sure that the valve on the gas supply line is open.
Unusual Noise
Humming or whining noise with Steam cycle selected (on some models)	Water pump or water inlet valve (depending on model) on dryer is running.	The water pump or water inlet valve on the dryer is used during Steam function. If the dryer has just been installed or unused for extended period, the pump or valve may be louder and run longer. This is normal.NOTE: The valve may make this noise even with no water line connected.
Thumping noise Dryer hasn't been used in a while. This is due to temporary flat spots on the drum rollers. The thumpi sound will diminish after a few minutes.
Rattling or vibrating noise	A small object caught between the edges of dryer drum.	Check the front and rear edges of the drum for small objects. C out pockets before laundering.
	Dryer isn't properly leveled. The dryer may vibrate if not properly installed. See the Installation Instructions. All four dryer feet should be in firm contact with the floor.
	Clothing is balled up in dryer.	When balled up, the load will bounce, causing the dryer to vibrate. Separate the load items and restart the dryer.
Clicking noise	Gas valve operating.	On gas dryers, you may hear the gas valve clicking as it opens and closes. This is normal.
Loud humming or increased noise during cycle	Load is packed tightly or exhaust blocked.	Reduce load size to recommended load size in "Cycle Guide" section. Run the dryer for 5-10 minutes. Hold your hand under the outside exhaust hood to check air movement. If you do not feel movement or air movement is minimal, clean exhaust system of li or replace exhaust vent with heavy metal or flexible metal vent. S the Installation Instructions.
Dryer Results
Clothes are not drying satisfactorily or drying times are too long	Using Normal cycle. For optimal drying times, use Regular cycle. For optimal energy savings, use Normal cycle.
	Lint screen is clogged with lint. C	lean lint screen before each load.
	The exhaust vent or outside exhaustion hood is clogged with lint, restricting movement.	Run the dryer for 5-10 minutes. Hold your hand under the outside exhaust hood to check air movement. If you do not feel air movement or air movement is minimal, clean exhaust system of lint or replace exhaust vent with heavy metal or flexible metal the Installation Instructions.
	The exhaust vent is not the correct length.	Check that the exhaust vent is not too long or has too Long venting will increase drying times. See the Installation Instructions.
	The exhaust vent diameter is not correct size.	these 4" (102 mm) diameter vent material.
	The dryer is not level. Clothes no	contacting the moisture sensors during Sensor Cycles.See "Level Dryer" in the Installation Instructions.
	The AirDry temperature setting has been selected.	Select the correct temperature for the types of garments being dried. See "Cycle Guide" section.
	The load is too large and heavy quickly.	toSeparate the load to tumble freely.
	Fabric softener sheets are blocking grille.	the air outlet grille is just inside the door, behind the lint screen. Check that it is not blocked by a fabric softener sheet. Use only fabric softener sheet, and use it only once.
	The dryer is located in a room with temperature below 45°F (7°C).	Proper operation of dryer cycles requires temperatures above 45°F (7°C).
	The dryer is located in a closet.	Closet doors must have ventilation openings at the top and bottom of the door. The front of the dryer requires a minimum of 1" (2" of airspace and, for most installations, the rear of the dryer required 5" (127 mm). See the Installation Instructions.
Cycle time is too short	The load may not be contacting the sensor strips on Sensor Cycles.	Level the dryer. See the Installation Instructions. All four dryer fees should be in firm contact with the floor.
	Steam models only: Clothes are coming out of the Refresh cycle with damp or wet spots.	Under certain environmental or installation conditions may you experience under drying. Select the Timed Dry cycle, medium drying temperature, for 5 to 10 minutes.
	The Sensor Cycle is ending early.	Change the dryness level setting on Sensor Cycles. Increasing or decreasing the dryness level will change the amount of drying time in a cycle.
Lint on load Lint screen is clogged with lint. Clean lint screen before each load.
Stains on load Improper use of fabric softener. Add dryer fabric softener sheets at the beginning of the cycle. Fabric softener sheets added to a partially dried load can stain your garments. Do not use fabric softener sheets with steam cycles.
Stains on drum Loose dyes in clothes. Drum stains are caused by dyes in clothing (usually blue jeans). These will not transfer to other clothing.
Dryer Results (cont.)
Loads are wrinkled	The load was not removed from dryer the end of the cycle.	Steam models only: Select Steam Refresh cycle to tumble the with water and heat. This cycle is best for reducing wrinkles from loads left in the dryer too long.NOTE: Refer to garment care label instructions. Dry-clean-only garments are not recommended.
	The dryer was tightly packed. Dry	smaller loads that can tumble freely.
	Steam models only: For steam cycle the water is not properly connected with the dryer.	Make sure water is connected to the Cdayr that water inlet hose is connected to both the faucet and dryer's water inlet valve. Check that the water supply is turned on.
Odors	Recent painting, staining, or varnish in the area where your dryer is lo	ventilate the area. When the odors or fumes are gone from the locked ash and dry the clothing.
	Steam models only: For steam cycle the water is properly connected with the dryer.	Make sure water is connected to the Cdayr that water inlet hose is connected to both the faucet and dryer's water inlet valve. Check that the water supply is turned on.
	Odors are left in garments after wearing.	Steam models only: To remove odors left in garments wearing, select Steam Refresh. The Steam Refresh cycle is best for reducing wrinkles from loads left in the dryer too long.
Pet Hair Model with no Pet Pro Feature. N/A
Load too hot Load	removed before cool down portion of cycle complete.	Allow the dryer to complete the cool down portion of the removing the load.
	Using Timed Dry cycle with a high temperature setting.	Select a Sensor cycle with a lower heat setting to avoid the load.
Dryer Displaying Code Message or Cycle Status Indicator Lights Up
“PF” (power failure)	The drying cycle has been interrupt by a power failure.	Touch and hold START/PAUSE to restart the dryer.NOTE: The Control Lock function may be enabled when recovering from a power failure. To unlock the control, touch and hold Contr Lock for at least 3 seconds.
“L” or “L2” Diagnosti Code (low or no l voltage condition)	There may be a problem with your home power supply, keeping the dry heater from turning on.	The dryer will continue to run when this diagnostic code is present. Touch any setting or option name to clear the code from the dis and return to the estimated time remaining.Try the following:Check to see if a household fuse has blown or circuit breaker h tripped. Electric dryers use two household fuses or breakers. Replace the fuse or reset the circuit breaker.Confirm that the power cord is properly installed. Refer to the Installation Instructions for details.Select a Timed Dry heated cycle, and restart the dryer. If the message persists, consult a qualified electrician.
Dryer Displaying Code Message or Cycle Status Indicights Up(cont.)
Check Vent indicator is lit.	The lint screen or vent is clogged; vent is crushed or kinked or has many turns.	The dryer will continue to run when this diagnostic code is present to touch any setting or option name to clear the code from and return to the estimated time remaining.Try the following:Clean lint screen.Check to see if the vent run from the dryer to the wall is crushed or kinked.Confirm that the vent run from the dryer to the wall is free of lint and debris.Confirm that the exterior vent exhaust hood is free of lint and debris.Confirm that your vent system falls within the recommended run length and number of elbows for the type of vent you are using.Refer to “Plan Vent System” in the Installation Instructions for details.Select a Timed Dry heated cycle, and restart the dryer.If the message persists, have your entire home venting run cleaned.
“F# E#” (F1 E1, F E1, etc.) variable service codes	3The dryer is in need of service.	If a code beginning with an “F” appears in the display, alternating between F# and E#, the dryer control has detected a problem that requires service. Call for service.
“Loc” The Control	Lock is enabled. Touch and hold C	Control Lock for 3 seconds to unlock the controls of the dryer. During this time, the LED Display will count down “3-2-When the Control Lock is disabled, the LED Display will clear.

MAYING OPEN APP CREATE ACCOUNT

+ ADD APPLIANCE

EC34 CONFIRM APPLIANCE INFORMATION

WiFi Connect

Illustration of four different hand tools or diagrams, showing different actions: cleaning a panel, opening a window, holding a container, and opening a device (no text or symbols present)

Four-step diagram showing hand positioning and cleaning steps of a device (no text or symbols)

Illustration showing two hand-drawn diagrams: one depicting a circular object being handled, the other showing a magnified view of a cylindrical object with an arrow indicating rotation (no text or symbols)

Illustration of five different cleaning or cleaning techniques (no text or symbols present)

Hand holding a screwdriver to switch a small electronic device (no text or symbols visible)

Simple line drawing of a screwdriver (no text or symbols)

Two interlocked circular pipe clips with metal fasteners (no text or symbols)

Brides de conduit

Simple line drawing of a screwdriver with a handle and shaft (no text or symbols)

Simple line drawing of a rectangular object with three circular symbols inside, no text or labels present.

Niveau

Line drawing of a pair of pliers (no text or symbols)

Pince

Simple line drawing of a measuring tape (no text or symbols)

Ruban à mesurer

Simple line drawing of a flat tool with a handle and central slot (no text or symbols)

Couteau utilitaire

Line drawing of a pair of pliers (no text or symbols)

Two types of hairpins shown in line drawings: a cylindrical tube and a manual tool (no text or symbols)

Line drawing of an adjustable wrench (no text or symbols)

Line drawing of a adjustable wrench (no text or symbols)

Simple line drawing of a jar with a lid and handle (no text or symbols)

Illustration of two types of threaded fasteners, one with hexagonal end caps and the other with coiled bolts (no text or symbols)

Simple line drawing of a T-shaped pipe fitting with two side flanges (no text or symbols)

Raccord en « Y »

Simple line drawing of a ring-shaped object (no text or symbols)

Simple black curved line with two small circular endpoints (no text or symbols)

Coiled black cable or hose with two connectors (no text or symbols visible)

Technical line drawing of a mechanical housing component with mounting holes and alignment lines (no text or symbols)

Technical diagram showing pipe fitting with labeled components A, B, C, and D, including a magnified inset view of pipe connection details.

Two identical electrical cable or wire connection diagrams labeled A and B, no text or symbols present.

A B C D E F G B H I

Technical line drawing of a portable air conditioner unit with coiled tubing and ventilation slots (no text or symbols)

facultativesfacultatives ::

tatives : :

Pure technical line drawing of a curved pipe or duct with a vertical support (no text or symbols)

Diagram showing pipe fittings and valve connections (no text or symbols)

Pure diagram of pipe connections without any text, numbers, or symbols

Diagram of a hand using a tool to adjust or install mechanical components (no text or symbols visible)

Diagram showing two hands operating a valve assembly with tubing and fittings (no text or symbols present)

Technical diagram of a mechanical assembly with an inset showing a close-up detail (no text or symbols)

Pure electrical circuit lines without any symbols

Three-panel illustration showing pipe fittings and water droplets, no text or symbols present

Diagram of a car air duct system with pipe connection and fan (no text or labels)

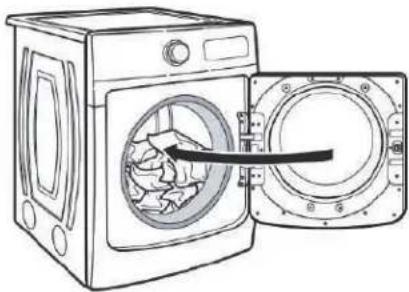

Line drawing of a single washing machine with a black arrow indicating left motion (no text or symbols)

Line drawing of a hand using a wrench to lift a pipe (no text or symbols)

MAYTAG PET PRO SYSTEM 2 Regular Heavy Duty Whites Sanitize Towels Custom Cycle EXTRA POWER Quick Dry Delicates Steam Refresh Normal Bulky Items Timed Dry 5 4 1 More Time Less Time Pet Pro Do for Control Lock Temp Eryseme Remove Press Reduce Static Do for Cycle Signal 3 4 5

Diagram of a hand cleaning a car wheel rim with a mesh cover (no text or symbols)

Illustration of hands holding a grid-like object with a curved panel (no text or symbols)

Line drawing of a washing machine with an open door showing internal components (no text or symbols)

Regular Heavy Duty Whites Sanitize Towels Custom Cycle EXTRA POWER Quick Dry Delicates Steam Refresh Normal Bulky Items Timed Dry

MAETING OPEN APP CREATE ACCOUNT

+ ADD APPLIANCE

CONFIRM APPLIANCE INFORMATION

WiFi Connect

Illustration of five different cleaning or cleaning techniques (no text or symbols present)

Hand holding a screwdriver to switch a device (no text or symbols visible)

Simple line drawing of a screwdriver (no text or symbols)

Two interlocked circular pipe clips with metal clips attached (no text or symbols)

Simple line drawing of a screwdriver with a cylindrical head and shaft (no text or symbols)

Simple diagram with three circular symbols inside a rectangular box (no text or labels)

Nivel

Sácatuercas de 1/4"

Line drawing of a pair of pliers (no text or symbols)

Simple line drawing of a measuring tape (no text or symbols)

Simple line drawing of a flat tool with a handle and central slot (no text or symbols)

Line drawing of a pair of pliers with a handle and base (no text or symbols)

Two line drawings of a hand tool: a cylindrical object and a manual claw (no text or symbols)

Line drawing of an adjustable wrench (no text or symbols)

Line drawing of a adjustable wrench (no text or symbols)

Llave para tubos de 8" (203 mm) o 10" (254 mm)

Simple line drawing of a jar with a lid and handle (no text or symbols)

Two types of threaded fasteners shown side by side, one with hexagonal end caps and the other with coiled spring (no text or symbols)

Simple line drawing of a T-shaped pipe fitting with two side flanges (no text or symbols)

Conector en "Y"

Simple black curved line with two circular endpoints (no text or symbols)

Simple line drawing of a ring-shaped object (no text or symbols)

Arandela de goma

Coiled black cable or hose with two end points, no text or symbols visible

Manguera de entrada de 5' (1,52 m)

Technical line drawing of a device casing with mounting holes and alignment planes (no text or symbols)

Technical diagram showing pipe fitting with labeled parts A, B, C, and D, including a magnified inset view of the pipe connection.

A. Conector

flexible de gas

de 3/8" (9,5 mmP.

B. Tubo de

secadora de 3/

8" (9,5 mm)

Two identical electrical cable or wire connection diagrams labeled A and B, no text or symbols present.

4" (102 mm)

A B C D E F G B I H E

Technical line drawing of two views of a portable air conditioner unit with coiled tubing and ventilation slots (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure technical line drawing of a curved pipe or duct with a vertical support and a horizontal bar (no text or symbols)

Diagram showing pipe fittings and valve connections (no text or symbols)

Pure diagram of pipe connections without any text, numbers, or symbols

Illustration of a hand using a mechanical device to adjust or install a component, with no visible text or symbols.

Illustration of two hands connecting a pipe fitting to a valve assembly (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure diagram of pipe connections without any text, numbers, or symbols

Illustration of three different pipe fittings with drops, showing different installation states (no text or symbols present)

Diagram of a car air duct system with hoses and ventilation ducts (no text or labels)

Line drawing of a front-loading washing machine with a black arrow indicating left motion (no text or symbols)

Place level here Place level here

Line drawing of a hand using a wrench to lift a pipe (no text or symbols)

MAYTAG PET PRO SYSTEM 2 Regular Heavy Duty Whites Sanitize Towels Custom Cycle EXTRA POWER Quick Dry Delicates Steam Refresh Normal Bulky Items Timed Dry 5 4 1 More Time Less Time Remote Start Pet Pro To For Control Lock Reduce Static In For Cycle Signal 5 4 5 3

Illustration showing two steps of cleaning a bicycle wheel rim: one with a circular frame and the other with hands holding a closed lid (no text or symbols)

1. Cargue la ropa

Line drawing of a washing machine with an open door and lid, showing internal components (no text or symbols)

Regular Heavy Duty Whites Sanitize Towels om Cycle EXTRA POWER Quick Dry Delicates Steam Refresh Normal Bulky Items Timed Dry

1. Presione START/PAUSE (INICIO/PAUSA)
