P-227 - Basket Pando - Free user manual and instructions

Product type	Wall-mounted range hood
Brand	Pando
Model	P-227
Power supply	220-240 V / 50 Hz
Minimum gas distance	65 cm
Lighting type	LED (replacement by authorized technical service)
Filters	Active carbon filters and grease filters
Material	Stainless steel
Maintenance and cleaning	Use the product INOX PANDO to clean and protect surfaces
Safety	Disconnect power before installation, respect minimum distance, adequate ventilation
Max negative pressure	0.04 mbar
Usage	Household use only
Installation	Reserved for qualified professionals
Warranty	Manufacturer's warranty (see conditions)
Included accessories	Installation manual, mounting kit

Frequently Asked Questions - P-227 Pando

What is the minimum distance between the hood and a gas hob?

The minimum distance must be 65 cm between the bottom of the hood and the surface supporting the containers.

Can I install the hood myself?

Installation must be carried out by a qualified professional or the official technical service to ensure safety.

How to clean the hood?

Use the product INOX PANDO (ref. 1059) specially designed for stainless steel, which cleans, shines and protects.

What to do if the LED lamps no longer work?

Replacement of the LED lamps must be carried out by Pando authorized technical service due to risk of electric shock.

How to replace the active carbon filters?

The active carbon filters must be replaced periodically by a qualified professional according to frequency of use.

Can I use the hood at the same time as a gas appliance?

Yes, but adequate ventilation of the room is necessary to avoid carbon monoxide accumulation.

What to do if the hood does not turn on?

First check the power supply and circuit breaker. If the problem persists, contact technical service.

Does the warranty cover aesthetic damage during installation?

No, aesthetic damage (scratches, impacts) occurring during installation is not covered by the manufacturer's warranty.

How to disconnect the hood from the power supply?

Unplug the power cord or use an accessible electrical switch compliant with standards.

Where can I get the INOX PANDO cleaning product?

The product INOX PANDO (ref. 1059) is available from Pando retailers or after-sales service.

USER MANUAL P-227 Pando

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

The International Certification Network

Quality Management System ISO 9001:2015

ES - Español

RECOGIDA DE LOS ELECTRODOMÉSTICOS

The symbol on the product or its packaging indicates that this product cannot be disposed of like normal domestic waste. The product must be handed over at a collection point for recycling electrical and electronic equipment. If you ensure that this product is correctly disposed of, you will help to avoid the possible negative environmental and public health effects that could arise from incorrect disposal. For more detailed information about recycling this product, please contact your city authorities, the domestic waste service or the establishment where you purchased it. This electrical appliance is marked in compliance with European Directive 2002/96/EC on electrical and electronic appliance waste (WEEE).

EN - INTRODUCTION

Firstly, we would like to thank you for your confidence in our firm when you chose a Pando extractor hood.

This manual and its annexes are a guide for the correct installation, usage and maintenance of your new Extractor Hood.

To learn everything about your hood, we recommend you read these instructions carefully from beginning to end and keep them for future reference.

Before starting the installation process read with care this installation manual and the attached user's manual, There are also instructions for the correct installation of the product.

Installation should only be carried out by qualified professionals, professional installers or the official technical service. The manual or installation guide must be read with care before starting the installation process.

When opening the packaging, check that all the components are in perfect state and all the accessories are present. If this is not the case, contact the dealer and do not install. Once installed, any damage to the exterior such as scratches, dents, stains, etc. will not be covered by the guarantee.

The manufacturer will not be held liable for any possible inaccuracies due to printing or trans-cription errors in this manual. The manufacturer reserves the right to incorporate modifications considered useful or necessary into the products, which will not alter their essential functional and safety characteristics.

EN - RECOMMENDATIONS TO BEAR IN MIND BEFORE INSTALLATION.

VERY IMPORTANT!

DO NOT REMOVE THE PROTECTIVE PLASTIC FROM THE HOOD UNTIL IT IS COMPLETELY INSTALLED, IF THIS PLASTIC IS NOT PRESENT IN AREAS THAT COULD HAVE A RISK OF DAMAGE DURING INSTALLATION, IT IS RECOMMENDED TO APPLY PROTECTIVE MATERIALS AGAINST IMPACT, SCRATCHES AND CONTACT WITH CORROSIVE AGENTS.

TAKE ESPECIAL CARE DURING THE INSTALLATION IF OTHER WORK IS ALSO IN PROGRESS, BECAUSE PAINT, SILICON, PLASTER AND OTHER MATERIALS COULD CONTAIN CORROSIVE CHEMICALS THAT MAY DAMAGE THE PRODUCT, IN THESE CASES IT IS RECOMMENDED TO ADEQUATELY PROTECT THE HOOD, BY FOR EXAMPLE, HERMETICALLY COVERING AREAS THAT COULD BE AFFECTED WITH PLASTIC.

THIS WILL AVOID DAMAGE TO THE OUTSIDE OF THE APPLIANCE, SOMETHING THAT WILL NOT BE COVERED BY THE GUARANTEE.

EN - SAFETY INSTRUCTIONS

- If the hood is to be used at the same time as gas fuelled or other fuelled appliances (not applicable to appliances exclusively designed to blow air into the room) the room must be properly ventilated.

- The exhausted air must not be led through a conduit that is used for exhausting fumes from other appliances using gas or other fuels (not applicable to devices destined exclusively to discharge the air inside the room).

-The minimum distance between the surface of the cooktop and the lower edge of the hood must be 65 cm if the the extractor hood is fitted over gas cooker. If the installation instructions of the gas cooker indicates a greater distance, this must be followed.

- Regulations regarding air evacuation must be respected.

- If the hood does not have a power cable with a plug, or other means for disconnection from the mains, with a separation of all poles to ensure total disconnection under category III conditions of overvoltage, means for disconnection of the fixed installation must be incorporated in accordance with installation regulations.

EN - AFETY INSTRUCTIONS

• Once the appliance has been delivered, within 24h, remove the packaging and check that it is in good state, visually inspecting the general state of the outside. If any anomaly or damage is observed, do not install and immediately inform the dealer or installer within 24h of reception.
• This hood has been designed for normal domestic use. It must not be used for industrial, professional, or any other use different from what it has been designed for.
• Pando will not be held liable for consequences or damages resulting from incorrect installation or misuse of the appliance.
• Do not try to alter any of the characteristics of this appliance, this could be dangerous and will automatically render the guarantee void.
• It must be possible and accessible for the user to disconnect the appliance from the mains after installation. The power plug should be easily accessible, if this is not the case, a switch for electrical disconnection, compliant with electrical installation regulations, must be fitted.
• Take special care when perforating walls or ceilings and ensure that there are no hidden electrical cables, pipes, metal beams, etc., as perforating them could cause great damage, short circuits or the transmission of noise and vibrations.
• IMPORTANT: Before connecting the appliance to the mains, make sure the current is first turned off (differential or circuit breaker on the general electrical panel of the house).
• Hood and conduit installation must comply with regulations on ventilation of closed spaces. More specifically, the exhausted air must not be led through a conduit that is used for exhausting fumes from other appliances using gas or other fuels (central heating installations, etc.).
• Negative pressure in the premises must not exceed 0.04 mbar. This will allow the hood to operate in optimum conditions. To achieve this, it is necessary to have a permanent entry of fresh air to avoid air stagnation, it is recommended to have a ventilation grille for this purpose. Doors and windows are not enough.

EN - SAFETY INSTRUCTIONS

- Attention! When the hood is in operation “in suction” at the same time as a heating system that depends on ambient air (gas, oil, coal boiler, chimney, etc.), take special care to avoid the hood absorbing air needed for combustion, this could cause dangerous accumulations of carbon monoxide in the premises or home, which could be deadly. If the extractor hood is installed together with a combustion appliance such as a boiler, chimney or local heating, the manufacturers of these appliances must be contacted to ensure optimum and risk-free operation.

- Electrical power supply must be stable and meet the electrical requirements of the appliance (see the nameplate of the appliance). If the power supply is unstable, with variations in voltage, current, surges and cuts, electrical storms, etc., the hood could malfunction and even be damaged, in which case repairs will not be covered by the guarantee. If any of these things happen, disconnect the hood and contact an electrician or your electrical company to solve the problem.

- To avoid hazards, it is forbidden to manipulate the appliance. If the power cable is damaged it must be replaced by the manufacturer through an authorised technical service. Any repairs that involve manipulating the appliance or its components must only be done by an authorised technical service.

- Improper and unauthorised handling of the hood, as well as modifying, cutting or perforating the body, structure, motor or wiring of the hood are expressly forbidden. In case of any of the above, the guarantee will be automatically void and the manufacturer will not be held liable for any possible harm or damages.

- The hood is an electrical appliance for fume extraction and must not be used as a support for objects or utensils.

- The LED lamps can not be manipulated by the user as there are risks of electric shock, handling, maintenance or replacement is a task reserved exclusively for official technical assistance service or authorized specialist installer.

- With the aim of constantly improving our products, we reserve the right to modify their functional characteristics or their appearance.

EN-It must be taken into account and provide that the hood and peripherals must have easy and safe access for possible maintenance or repair tasks of the official Pando technical service (SAT). The guarantee will NOT cover the costs and means necessary for access to a product that does not meet these conditions. In the event that the product is not easily accessible or safe, a criterion that will be issued by SAT in its initial inspection, it will be the responsibility of the client to place the means and assume the necessary costs so that the SAT can perform the intervention adequately.

CONTENIDO / CONTEÚDO / CONTENU / CONTENT

3.9x6 (x2) M4x10 (x2) 5x40 (x6) Ø8 (x6) (x3)

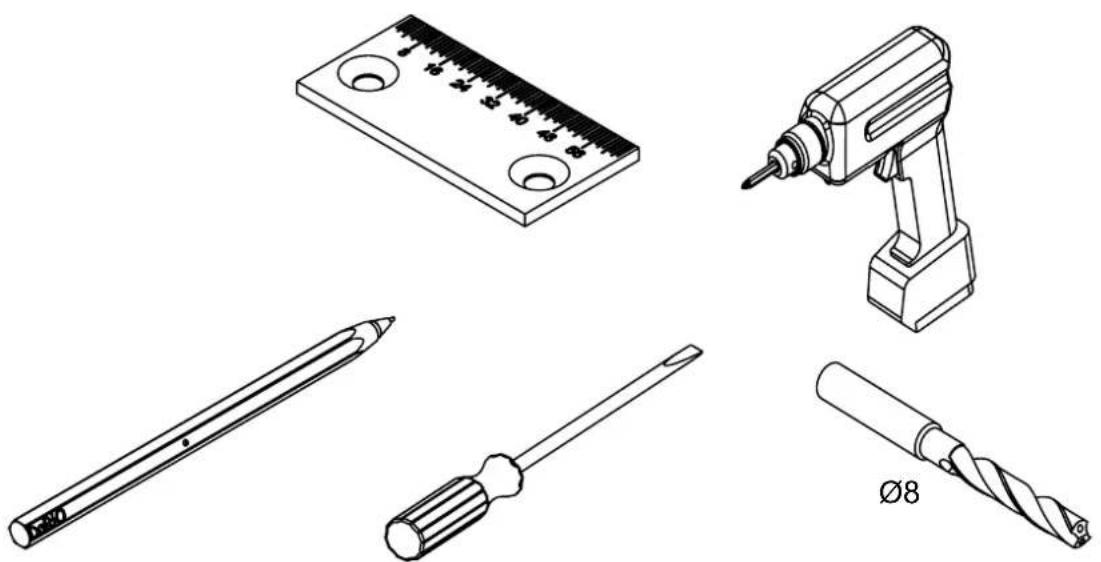

HERRAMIENTAS NECESARIAS / FERRAMENTAS NECESSÁRIAS / LES OUTILS NÉCESSAIRES / TOOLS NEEDLE

Illustration of four different types of tools: a screwdriver, a drill bit, a flat plate with holes, and a drill bit (no text or symbols present)

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

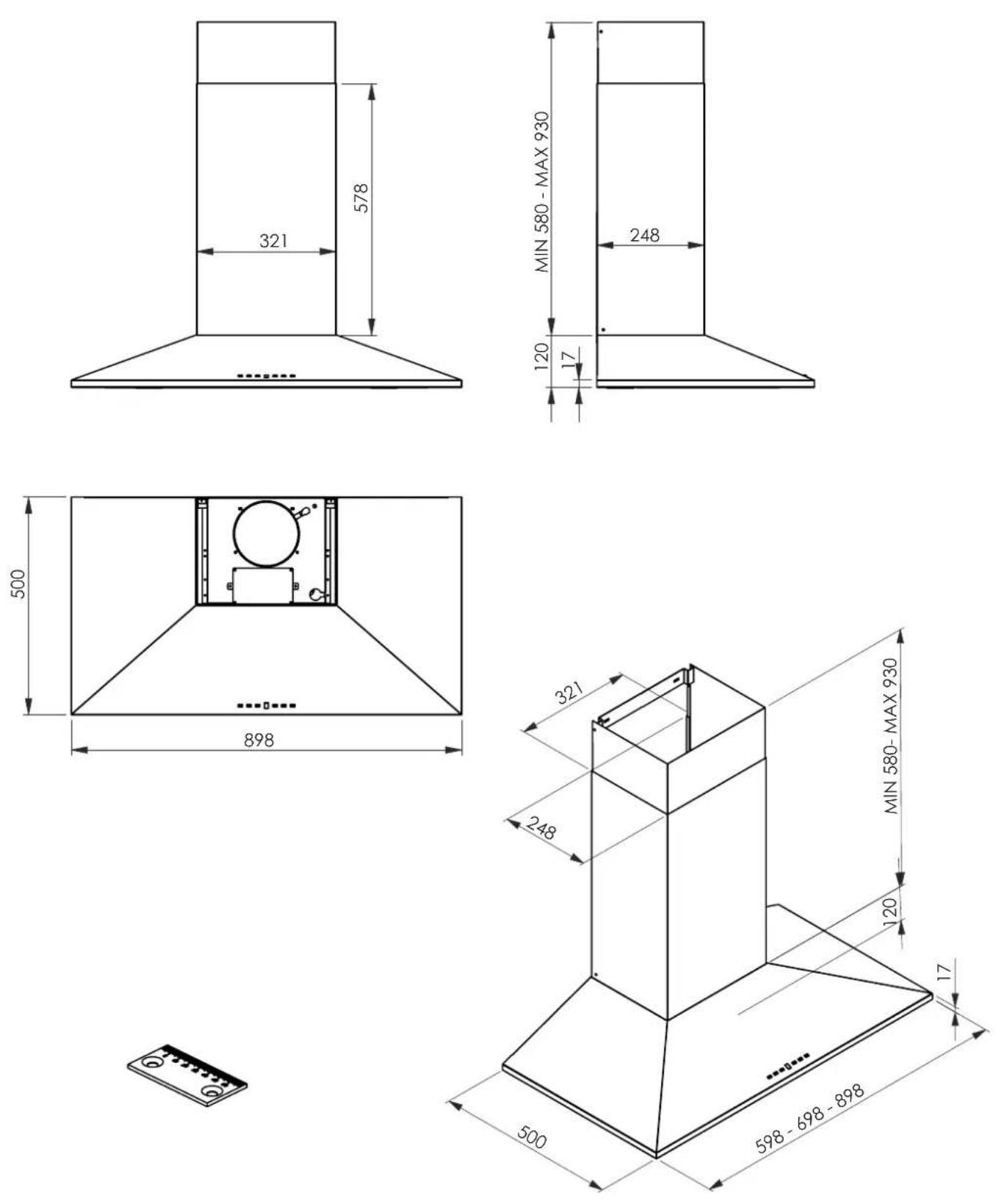

226 22 5 5 194 390 650 312 78 345 1550 900

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

1

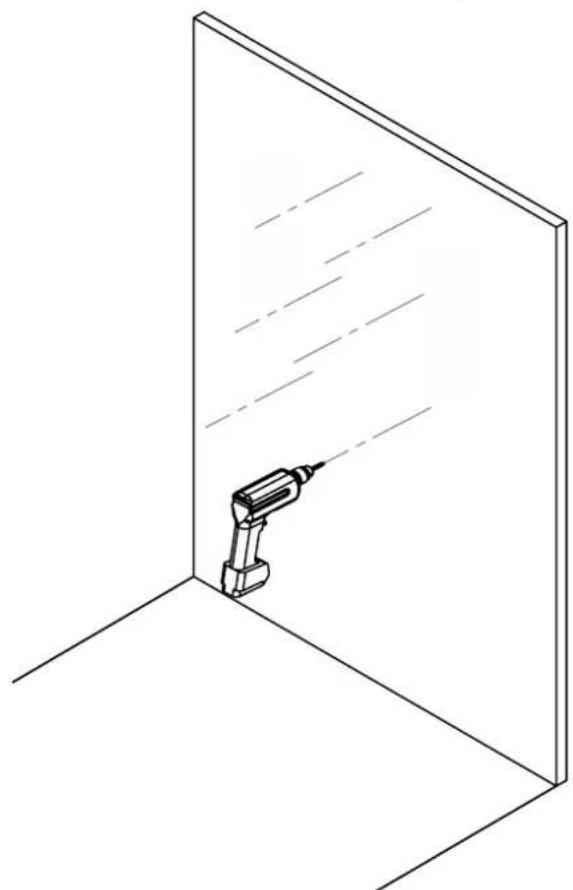

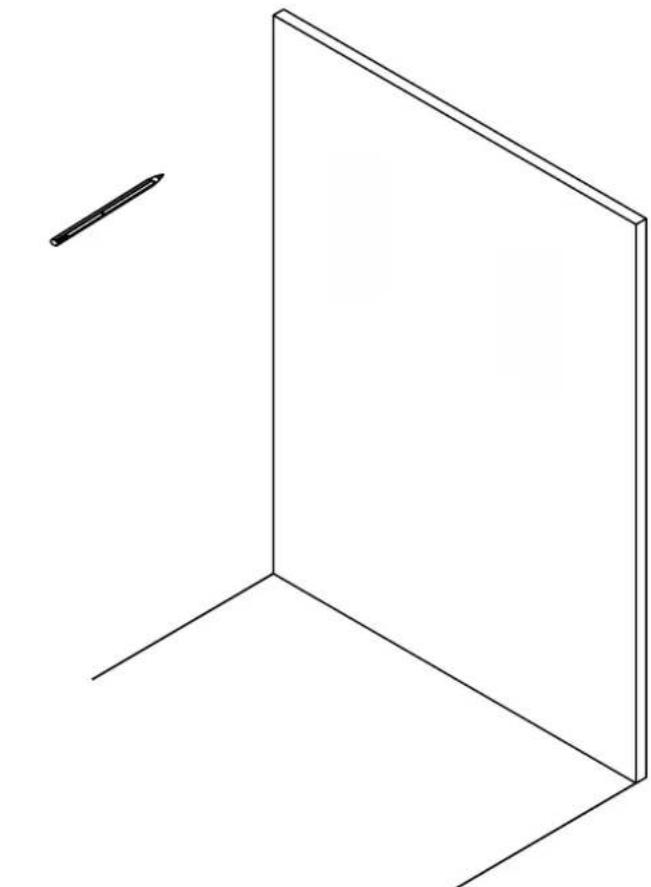

Simple line drawing of a 3D rectangular prism with a small pencil on one side (no text or symbols)

2

Line drawing of a robotic arm positioned at the edge of a rectangular panel (no text or symbols)

3

Technical illustration of a solar panel installation showing internal grid structure and base plate assembly (no text or symbols)

4

Technical diagram of a solar panel installation with a screwdriver and coordinate axis (x10), showing internal components without any text or symbols.

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

Ø8 (x2) 5x40 (x2) 5x40 (x2) + Ø8 (x2) Ø8 (x2) Ø8 (x2) ⑤ ⑥

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

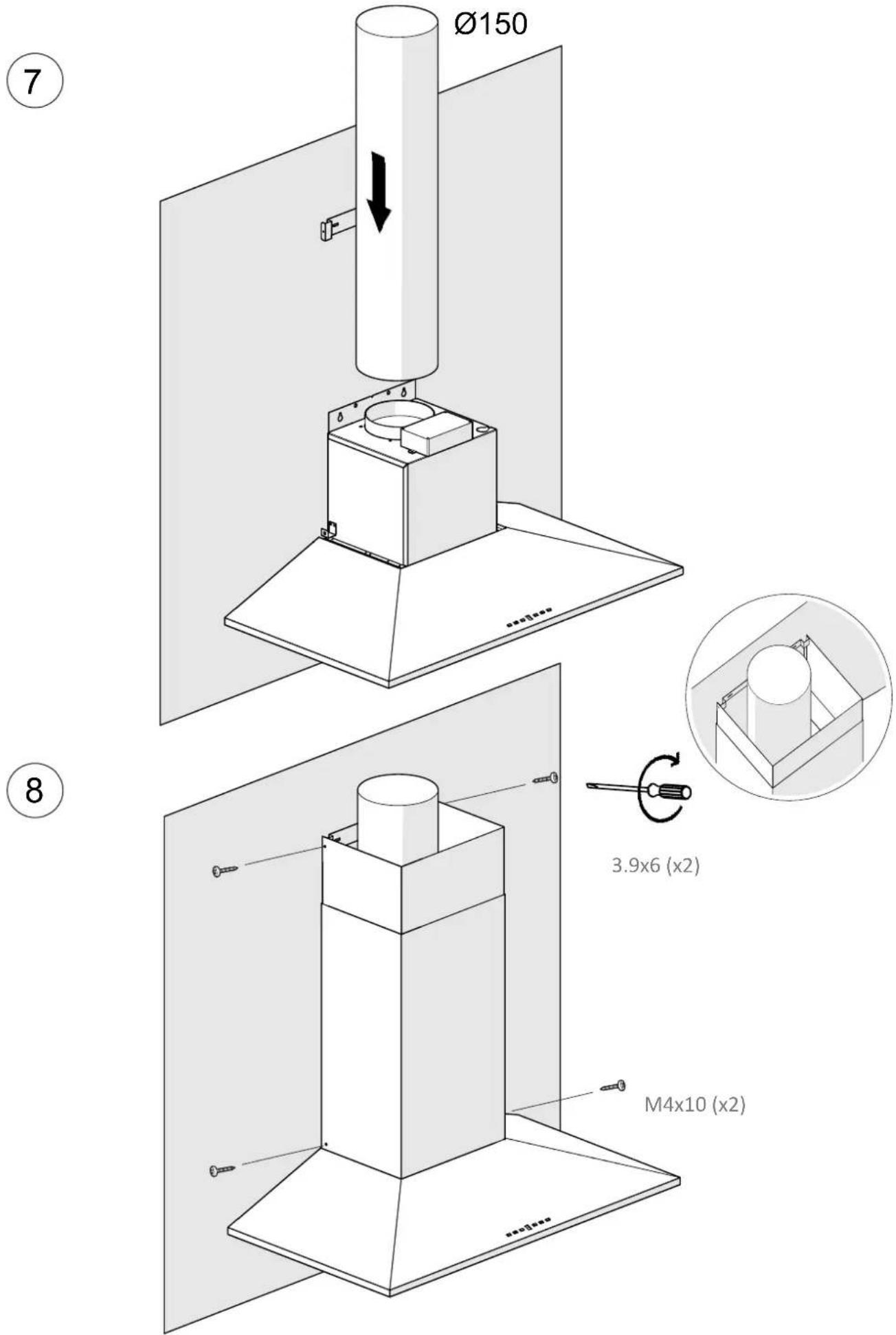

Ø150 7 8 3.9x6 (x2) M4x10 (x2)

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

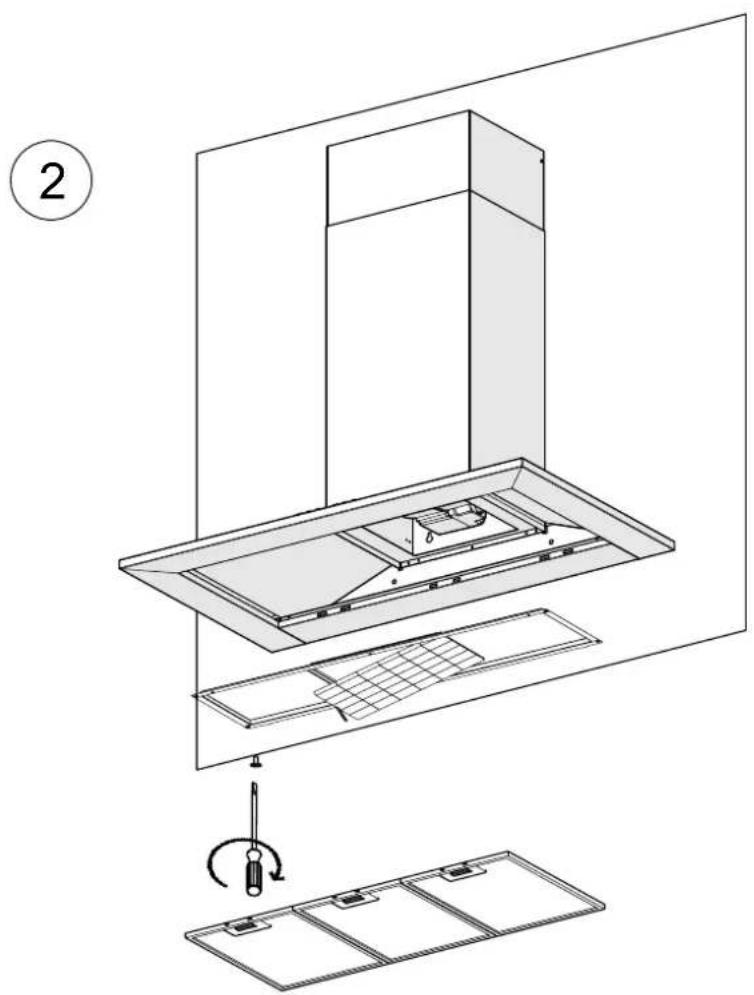

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

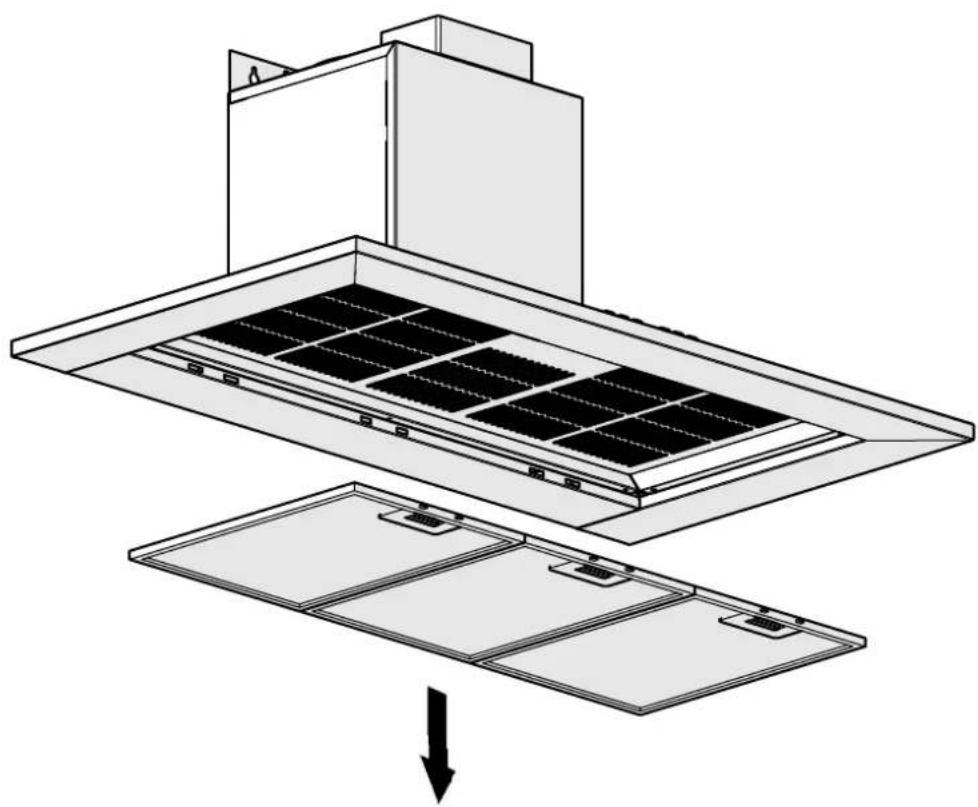

FILTRO ALUMINIO

FILTRO ALUMÍNIO

FILTRE D'ALUMINIUM

ALUMINIUM FILTER

Technical line drawing of a solar panel installation with mounting brackets (no text or symbols)

Illustration of hands interacting with a tablet device (no text or symbols visible)

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

(OPCIONAL / OPCIONAL / EN OPTION / OPTIONAL)

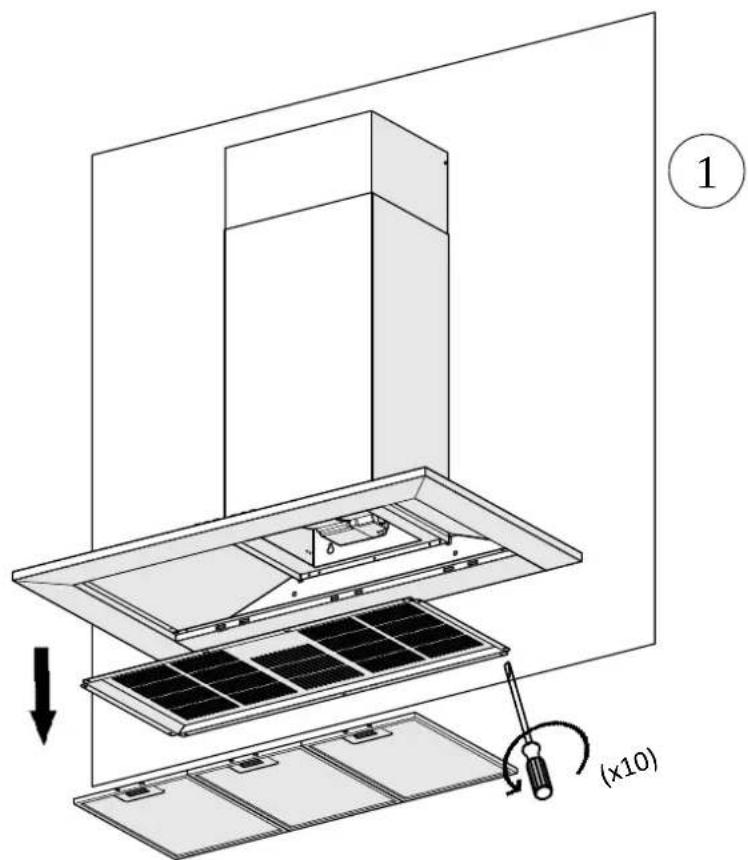

ACTIVE CARBON FILTERS (FCA)

(x10) ①

②

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

LIGHTING AND FEATURES

2

LED 1.3W, 12vDC

¡ATTENCIÓN!

LED-type lamps involve a complex manipulation in addition to an aerial connection of an internal connector that involves the risk of electric shock. Therefore, this type of manipulation must be done by the Pando technical assistance service or by a qualified and authorized professional installer. The manufacturer is not responsible for any damage caused by improper handling of led lamps by unauthorized personnel.

NOTAS/NOTAS/REMARQUES/NOTES:

NOTAS/NOTAS/REMARQUES/NOTES:

NOTAS/NOTAS/REMARQUES/NOTES:

INOX CLEAN LIMPIADOR, ABRILLANTADOR Y PROTECTOR DE ACERO INOXIDABLE Pando

ES

ESPRODUCTO EXCLUSIVO

LIMPIADOR,

ABRILLANTADOR Y

PROTECTOR DE ACERO INOXIDABLE

INOX PANDO, Referencia 1059.

PROPIEDADES:

EXCLUSIVE PRODUCT CLEANER, POLISH AND STAINLESS PROTECTOR

INOX PANDO, Reference 1059.

PROPERTIES:

Degreaser especially recommended for polishing stainless steel surfaces, with its complex formula based on paraffin it leaves an invisible film that acts as a protector and makes it shine.

APPLICATIONS:

Cleans, polishes and evens out stainless steel surfaces of extractor hoods and stainless steel kitchen furniture.
