P-745 - Basket Pando - Free user manual and instructions

Product Type	Extractor hood
Brand	Pando
Model	P-745
Usage	Domestic
Power supply	220-240 V ~ 50 Hz
Lighting	LED
Lamp replacement	By authorized technical service only
Filtration type	Metal grease filters
Filter maintenance	Washable (dishwasher recommended)
Hood material	Stainless steel
Minimum distance above gas hob	65 cm
Maximum allowed negative pressure	0.04 mbar
Protection during installation	Do not remove protective plastic before installation
Stainless steel maintenance	Use a specific degreaser (e.g., INOX PANDO)
Compliance	WEEE Directive 2002/96/EC
Installation	Reserved for qualified professionals
Extraction mode	Through duct (do not mix with combustion fumes)
Electrical disconnection	Must be accessible after installation
Warranty	Void in case of aesthetic damage after installation or misuse

Frequently Asked Questions - P-745 Pando

What is the minimum distance between the hood and the hob?

The minimum distance between the support surface of the cooking utensils and the bottom of the hood is 65 cm for gas cooking. If the cooking element instructions specify a greater distance, it must be taken into account.

How to clean the Pando P-745 hood?

To clean the hood, use a special stainless steel degreaser such as INOX PANDO. Apply to a soft cloth and polish the stainless steel surfaces. Do not use abrasive products. The metal grease filters can be washed in the dishwasher.

Can I replace the LED lamps myself?

No, the LED lamps are handled exclusively by the authorized technical service or a qualified professional installer due to the risk of electric shock. Do not attempt to replace them yourself.

What to do in case of hood malfunction?

If the hood does not work properly, first check that the power supply is stable and the plug is properly connected. If the problem persists, unplug it and contact the authorized technical service. Do not attempt to repair it yourself.

Can the hood be used in recirculation mode?

Yes, the hood can operate in recirculation mode if equipped with a charcoal filter (not supplied). However, the manual does not specify if the P-745 model is compatible. Consult your dealer or the installation manual.

How to install the hood correctly?

Installation must be carried out by a qualified professional. Read the installation manual carefully before starting. Ensure compliance with safety distances and avoid damaging electrical lines or pipes during drilling.

What are the risks of improper installation?

Improper installation can cause aesthetic damage (scratches, impacts) not covered by the warranty, and risks of electric shock or fire. In addition, air extraction may be inefficient and cause carbon monoxide accumulation if the hood is used with combustion appliances.

How to maintain the hood filters?

The metal grease filters must be cleaned regularly. They can be washed by hand with soapy water or in the dishwasher. Reassemble them after complete drying. Replace the charcoal filters if used (every 3 to 6 months depending on use).

What to do if the power cord is damaged?

If the power cord is defective, it must be replaced by the manufacturer, its authorized technical service or a qualified professional to avoid any danger. Do not use the hood with a damaged cord.

Is the hood covered by warranty?

The manufacturer's warranty applies subject to correct installation and proper use. Aesthetic damage occurring during installation (scratches, impacts) is not covered. Unauthorized repairs void the warranty. Contact your dealer for exact terms.

USER MANUAL P-745 Pando

EN – User and installation Manual.

P-745

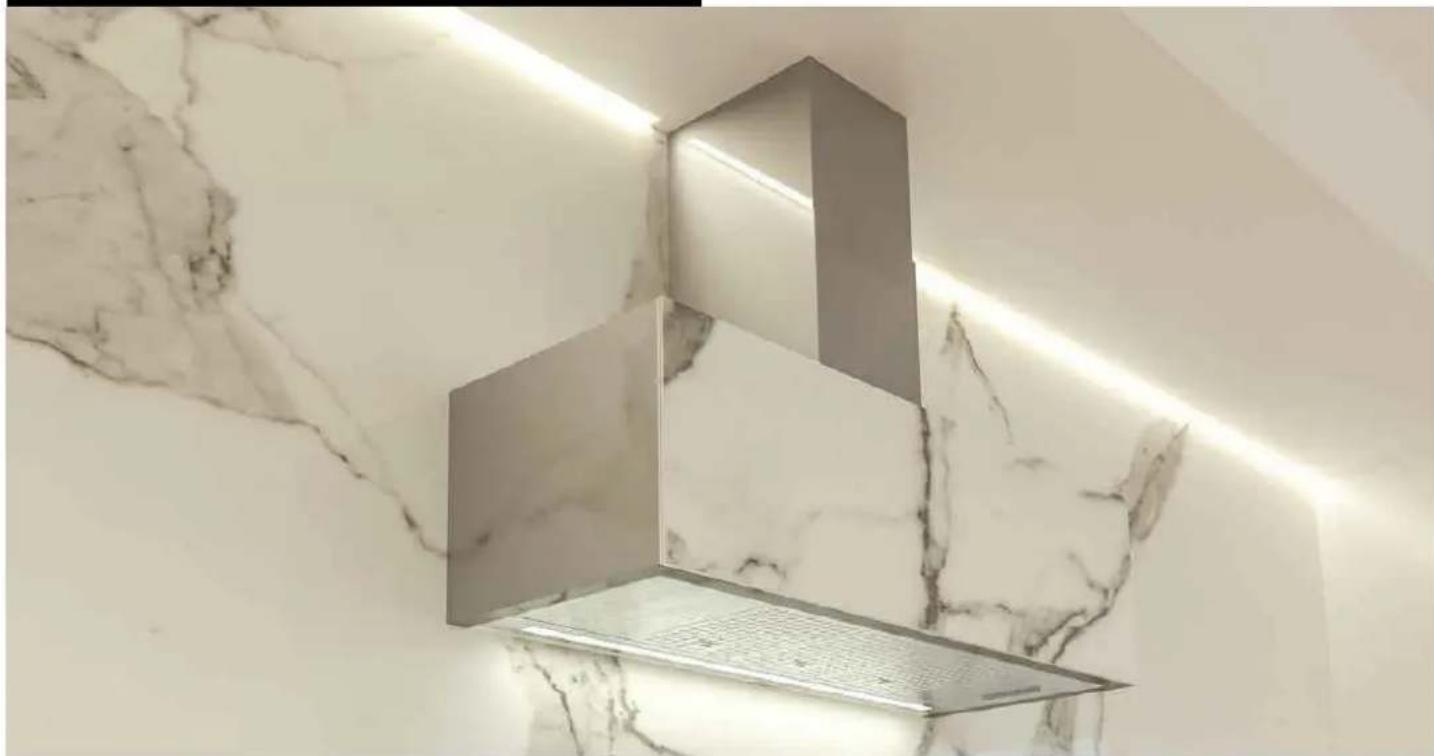

Modern minimalist wall-mounted metal structure with glossy marble and ceiling light, no visible text or symbols

The International Certification Network Quality Management System ISO 9001:2015

660066400171.V1.18

ES - Español

RECOGIDA DE LOS ELECTRODOMÉSTICOS

COLLECTION OF APPLIANCES

The symbol on the product or its packaging indicates that this product cannot be disposed of like normal domestic waste. The product must be handed over at a collection point for recycling electrical and electronic equipment. If you ensure that this product is correctly disposed of, you will help to avoid the possible negative environmental and public health effects that could arise from incorrect disposal. For more detailed information about recycling this product, please contact your city authorities, the domestic waste service or the establishment where you purchased it. This electrical appliance is marked in compliance with European Directive 2002/96/EC on electrical and electronic appliance waste (WEEE).

EN - INTRODUCTION

Firstly, we would like to thank you for your confidence in our firm when you chose a Pando extractor hood.

This manual and its annexes are a guide for the correct installation, usage and maintenance of your new Extractor Hood.

To learn everything about your hood, we recommend you read these instructions carefully from beginning to end and keep them for future reference.

Before starting the installation process read with care this installation manual and the attached user's manual, There are also instructions for the correct installation of the product.

Installation should only be carried out by qualified professionals, professional installers or the official technical service. The manual or installation guide must be read with care before starting the installation process.

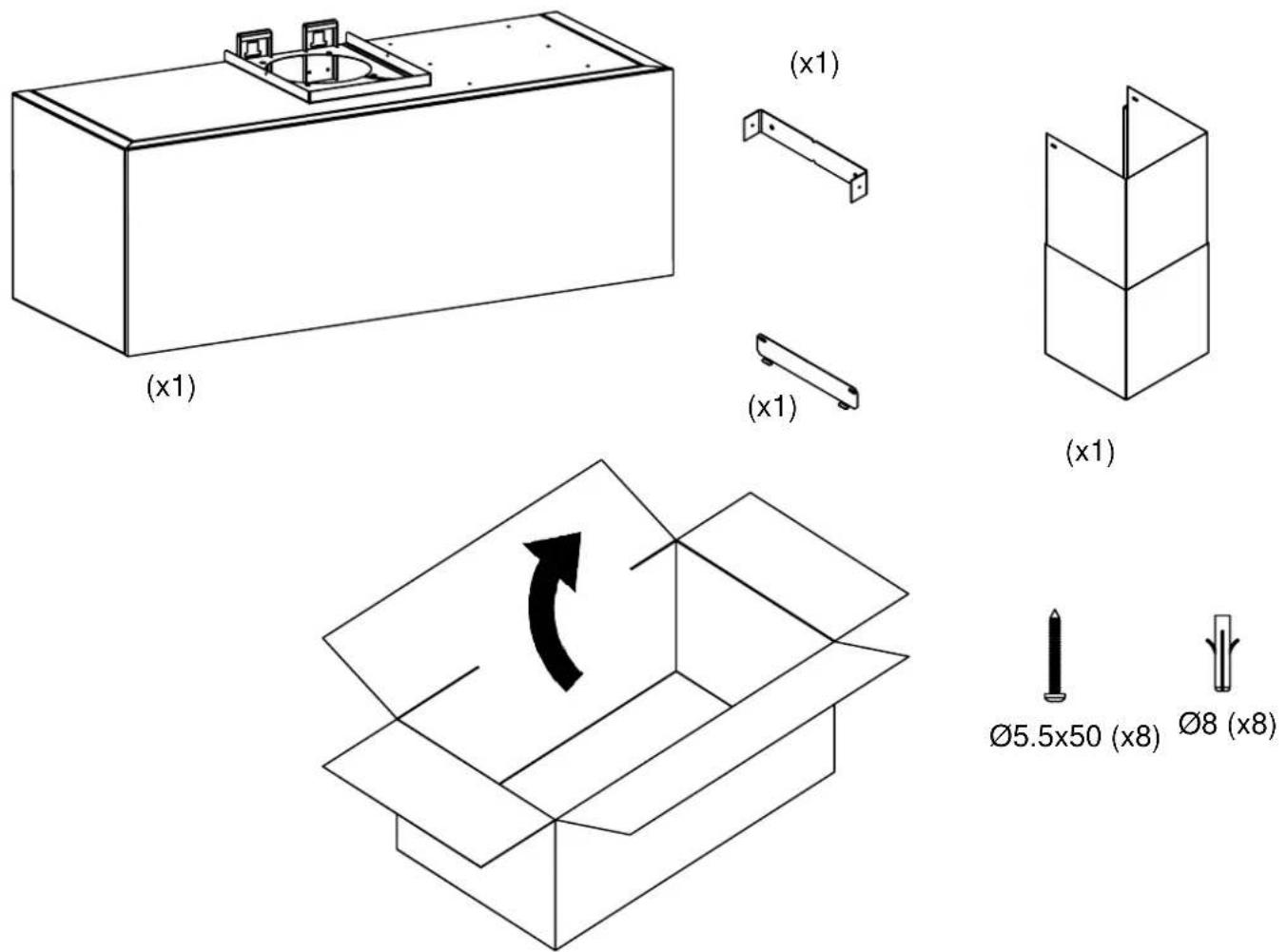

When opening the packaging, check that all the components are in perfect state and all the accessories are present. If this is not the case, contact the dealer and do not install. Once installed, any damage to the exterior such as scratches, dents, stains, etc. will not be covered by the guarantee.

The manufacturer will not be held liable for any possible inaccuracies due to printing or trans-cription errors in this manual. The manufacturer reserves the right to incorporate modifications considered useful or necessary into the products, which will not alter their essential functional and safety characteristics.

EN - RECOMMENDATIONS TO BEAR IN MIND BEFORE INSTALLATION.

VERY IMPORTANT!

DO NOT REMOVE THE PROTECTIVE PLASTIC FROM THE HOOD UNTIL IT IS COMPLETELY INSTALLED, IF THIS PLASTIC IS NOT PRESENT IN AREAS THAT COULD HAVE A RISK OF DAMAGE DURING INSTALLATION, IT IS RECOMMENDED TO APPLY PROTECTIVE MATERIALS AGAINST IMPACT, SCRATCHES AND CONTACT WITH CORROSIVE AGENTS.

TAKE ESPECIAL CARE DURING THE INSTALLATION IF OTHER WORK IS ALSO IN PROGRESS, BECAUSE PAINT, SILICON, PLASTER AND OTHER MATERIALS COULD CONTAIN CORROSIVE CHEMICALS THAT MAY DAMAGE THE PRODUCT, IN THESE CASES IT IS RECOMMENDED TO ADEQUATELY PROTECT THE HOOD, BY FOR EXAMPLE, HERMETICALLY COVERING AREAS THAT COULD BE AFFECTED WITH PLASTIC.

THIS WILL AVOID DAMAGE TO THE OUTSIDE OF THE APPLIANCE, SOMETHING THAT WILL NOT BE COVERED BY THE GUARANTEE.

EN - SAFETY INSTRUCTIONS

- If the hood is to be used at the same time as gas fuelled or other fuelled appliances (not applicable to appliances exclusively designed to blow air into the room) the room must be properly ventilated.

- The exhausted air must not be led through a conduit that is used for exhausting fumes from other appliances using gas or other fuels (not applicable to devices destined exclusively to discharge the air inside the room).

-The minimum distance between the surface of the cooktop and the lower edge of the hood must be 65 cm if the the extractor hood is fitted over gas cooker. If the installation instructions of the gas cooker indicates a greater distance, this must be followed.

- Regulations regarding air evacuation must be respected.

- If the hood does not have a power cable with a plug, or other means for disconnection from the mains, with a separation of all poles to ensure total disconnection under category III conditions of overvoltage, means for disconnection of the fixed installation must be incorporated in accordance with installation regulations.

EN - AFETY INSTRUCTIONS

• Once the appliance has been delivered, within 24h, remove the packaging and check that it is in good state, visually inspecting the general state of the outside. If any anomaly or damage is observed, do not install and immediately inform the dealer or installer within 24h of reception.
• This hood has been designed for normal domestic use. It must not be used for industrial, professional, or any other use different from what it has been designed for.
• Pando will not be held liable for consequences or damages resulting from incorrect installation or misuse of the appliance.
• Do not try to alter any of the characteristics of this appliance, this could be dangerous and will automatically render the guarantee void.
• It must be possible and accessible for the user to disconnect the appliance from the mains after installation. The power plug should be easily accessible, if this is not the case, a switch for electrical disconnection, compliant with electrical installation regulations, must be fitted.
• Take special care when perforating walls or ceilings and ensure that there are no hidden electrical cables, pipes, metal beams, etc., as perforating them could cause great damage, short circuits or the transmission of noise and vibrations.
• IMPORTANT: Before connecting the appliance to the mains, make sure the current is first turned off (differential or circuit breaker on the general electrical panel of the house).
• Hood and conduit installation must comply with regulations on ventilation of closed spaces. More specifically, the exhausted air must not be led through a conduit that is used for exhausting fumes from other appliances using gas or other fuels (central heating installations, etc.).
• Negative pressure in the premises must not exceed 0.04 mbar. This will allow the hood to operate in optimum conditions. To achieve this, it is necessary to have a permanent entry of fresh air to avoid air stagnation, it is recommended to have a ventilation grille for this purpose. Doors and windows are not enough.

EN - SAFETY INSTRUCTIONS

- Attention! When the hood is in operation “in suction” at the same time as a heating system that depends on ambient air (gas, oil, coal boiler, chimney, etc.), take special care to avoid the hood absorbing air needed for combustion, this could cause dangerous accumulations of carbon monoxide in the premises or home, which could be deadly. If the extractor hood is installed together with a combustion appliance such as a boiler, chimney or local heating, the manufacturers of these appliances must be contacted to ensure optimum and risk-free operation.

• Electrical power supply must be stable and meet the electrical requirements of the appliance (see the nameplate of the appliance). If the power supply is unstable, with variations in voltage, current, surges and cuts, electrical storms, etc., the hood could malfunction and even be damaged, in which case repairs will not be covered by the guarantee. If any of these things happen, disconnect the hood and contact an electrician or your electrical company to solve the problem.
• To avoid hazards, it is forbidden to manipulate the appliance. If the power cable is damaged it must be replaced by the manufacturer through an authorised technical service. Any repairs that involve manipulating the appliance or its components must only be done by an authorised technical service.
• Improper and unauthorised handling of the hood, as well as modifying, cutting or perforating the body, structure, motor or wiring of the hood are expressly forbidden. In case of any of the above, the guarantee will be automatically void and the manufacturer will not be held liable for any possible harm or damages.
• The hood is an electrical appliance for fume extraction and must not be used as a support for objects or utensils.
• The LED lamps can not be manipulated by the user as there are risks of electric shock, handling, maintenance or replacement is a task reserved exclusively for official technical assistance service or authorized specialist installer.
• With the aim of constantly improving our products, we reserve the right to modify their functional characteristics or their appearance.

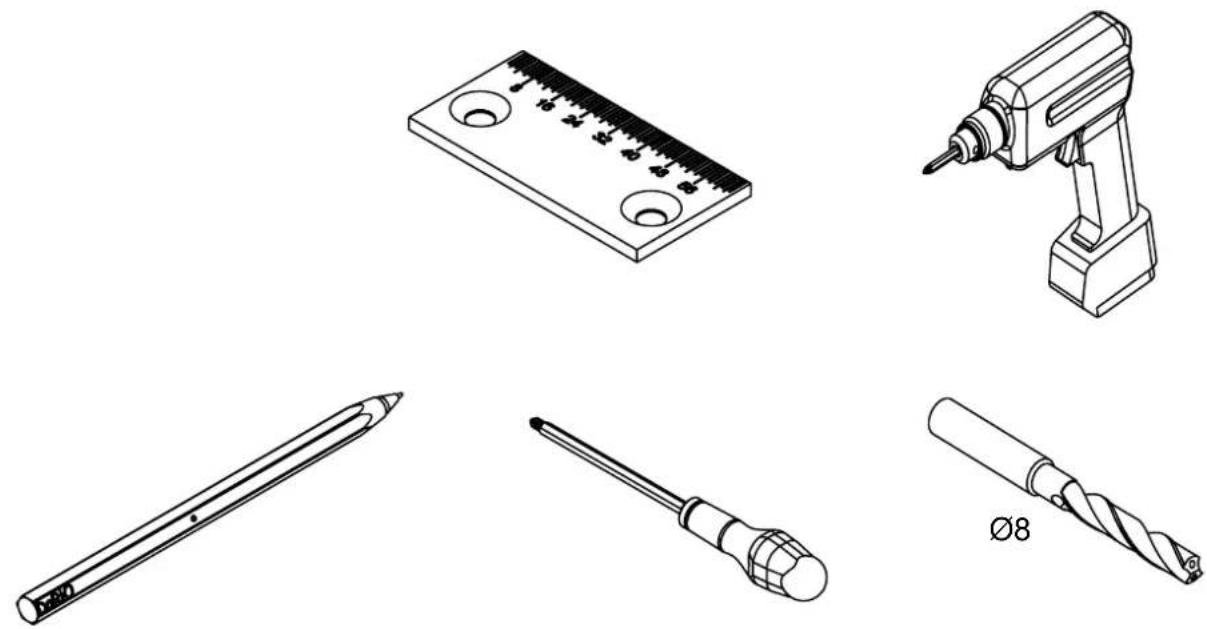

HERRAMIENTAS NECESARIAS / FERRAMENTAS NECESSÁRIAS / LES OUTILS NÉCESSAIRES / TOOLS NEEDLE

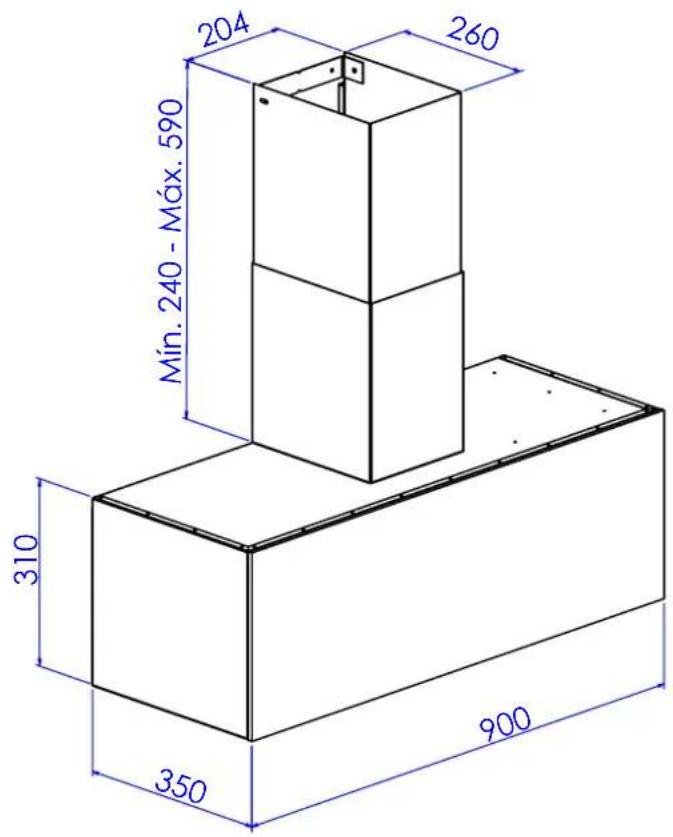

204 260 Mín. 240 - Máx. 590 310 350 900

PLANTILLA TALADROS / MODELO DO TURO / GABARIT DE POSE / TEMPLATE HOLES

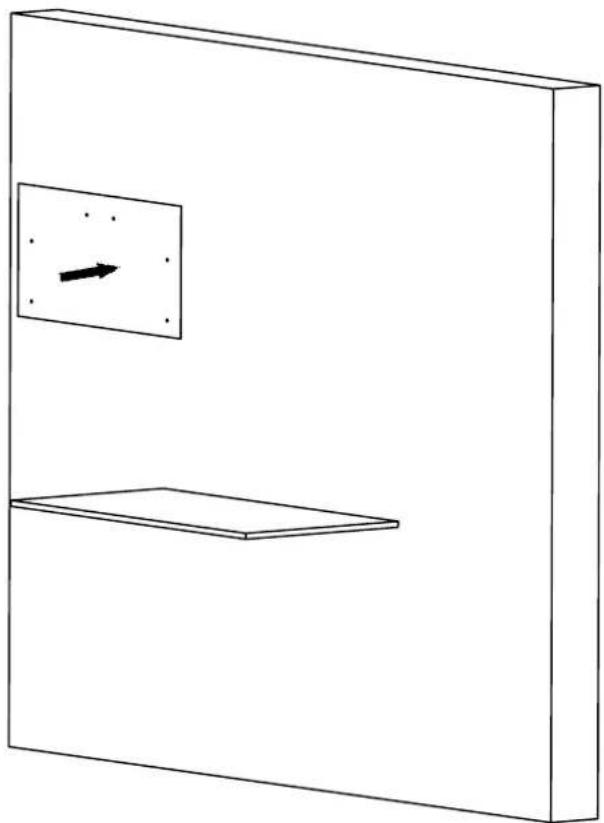

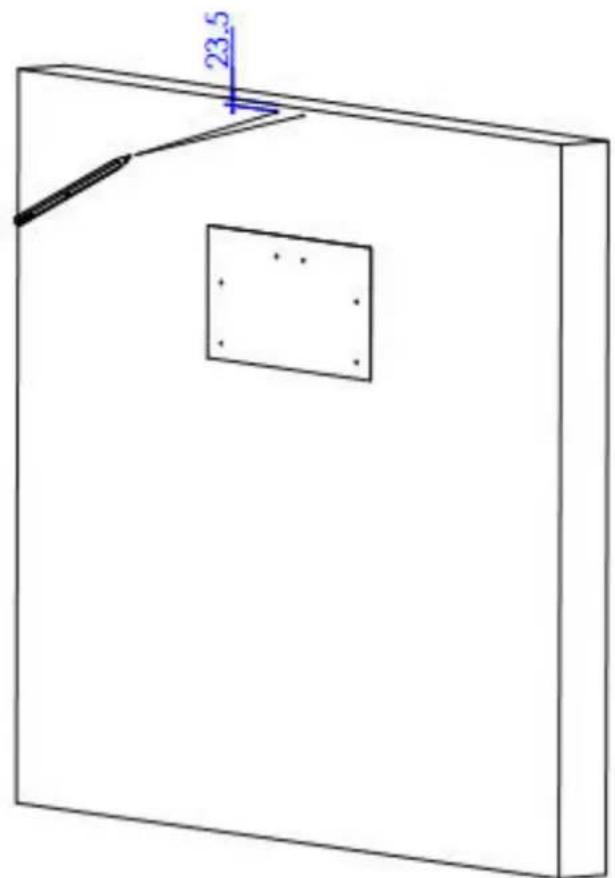

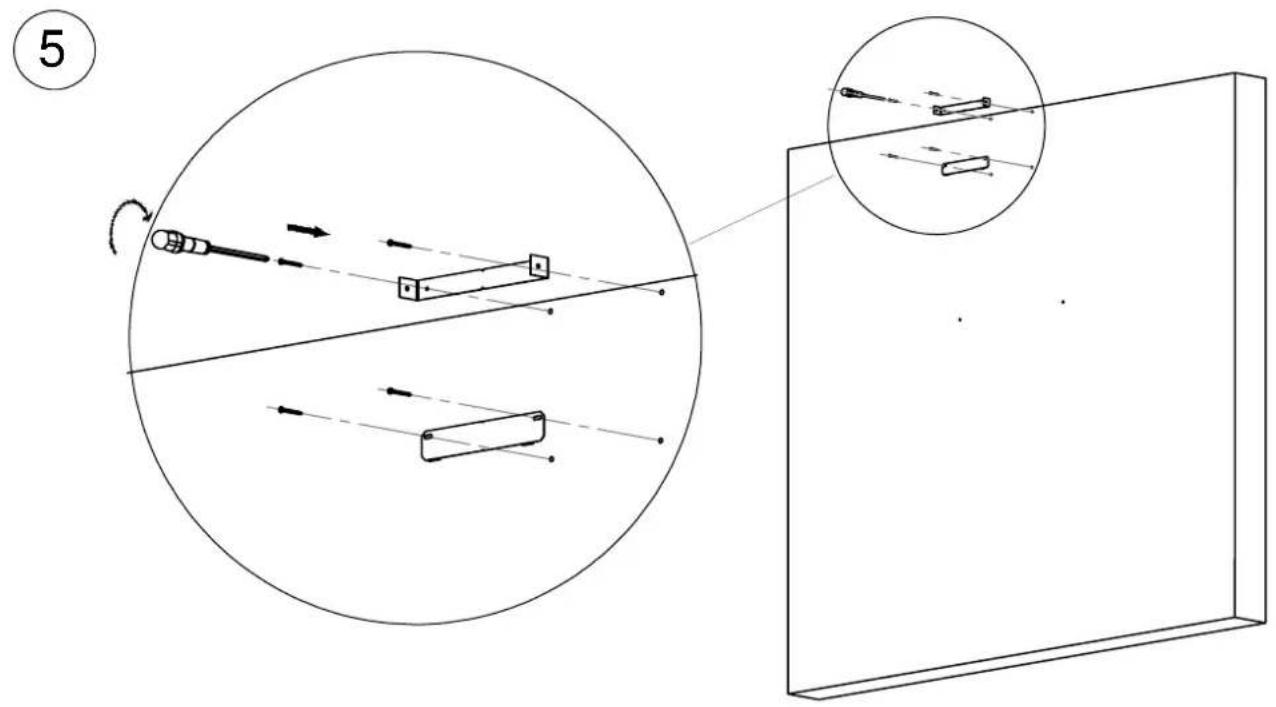

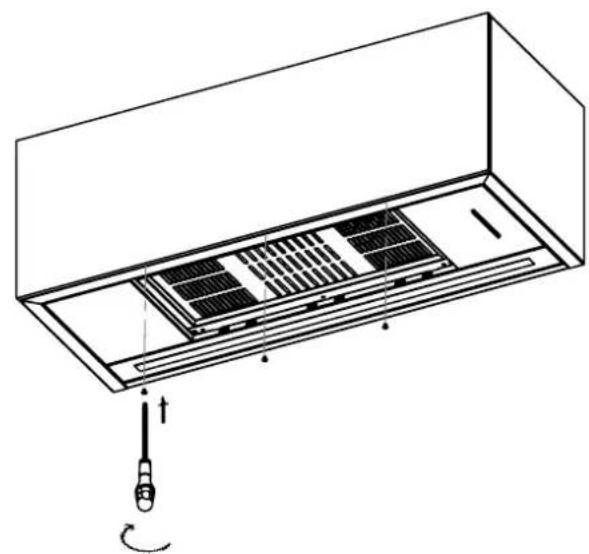

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

1

3D diagram of a rectangular box with two rectangular plates, one containing a small inset showing an arrow (no text or symbols)

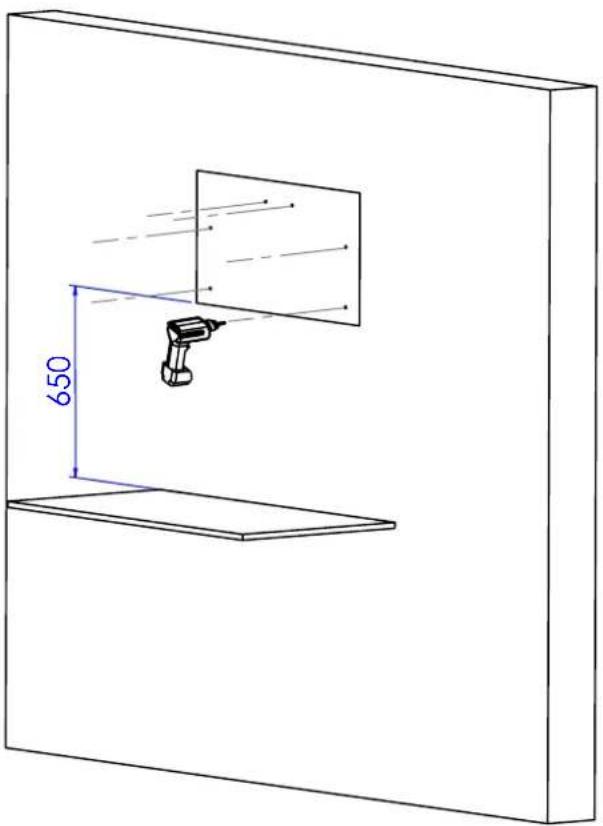

2

Technical line drawing of a mechanical component mounted on a platform, with dimension标注 650 (no text or symbols beyond measurement)

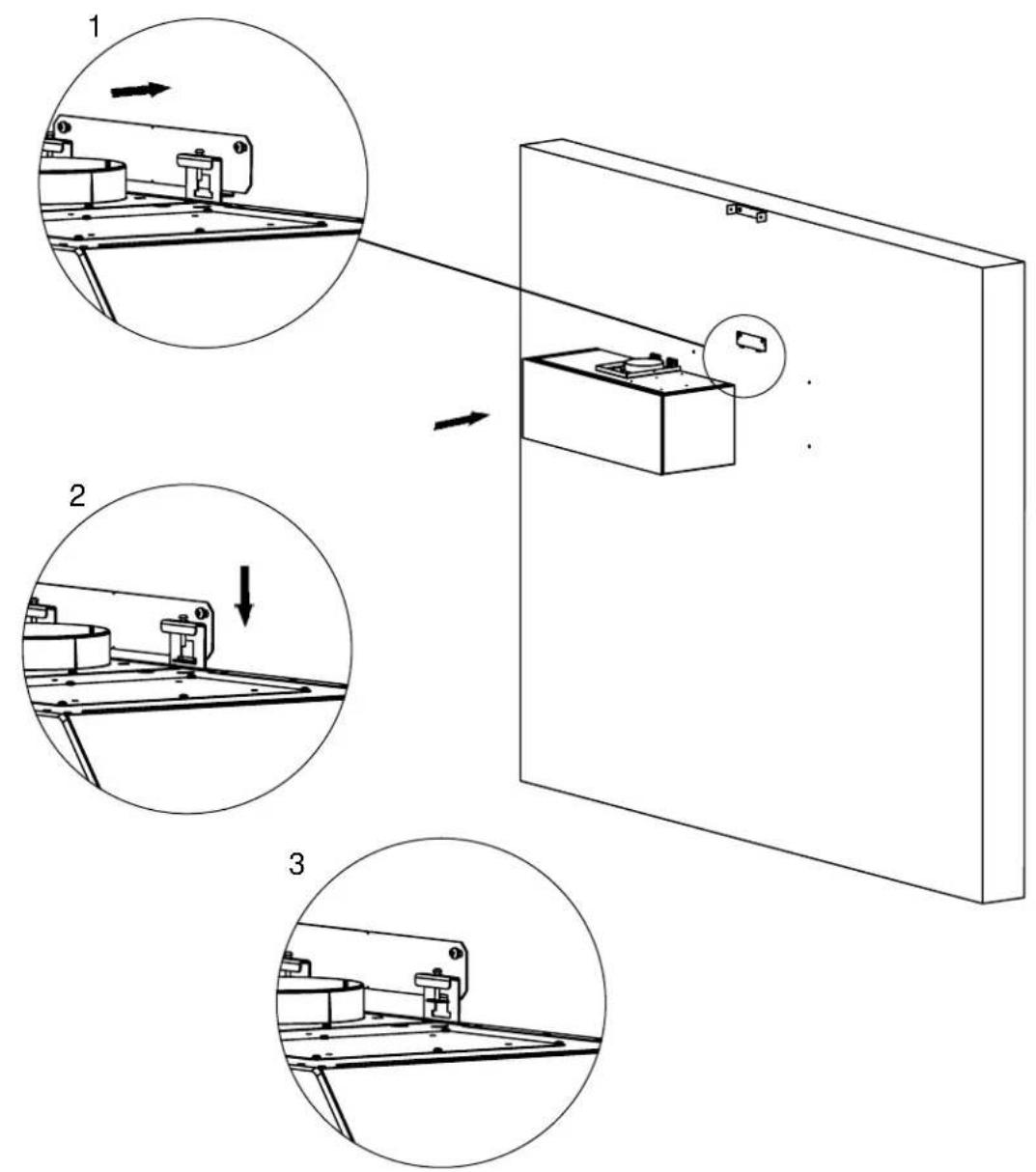

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

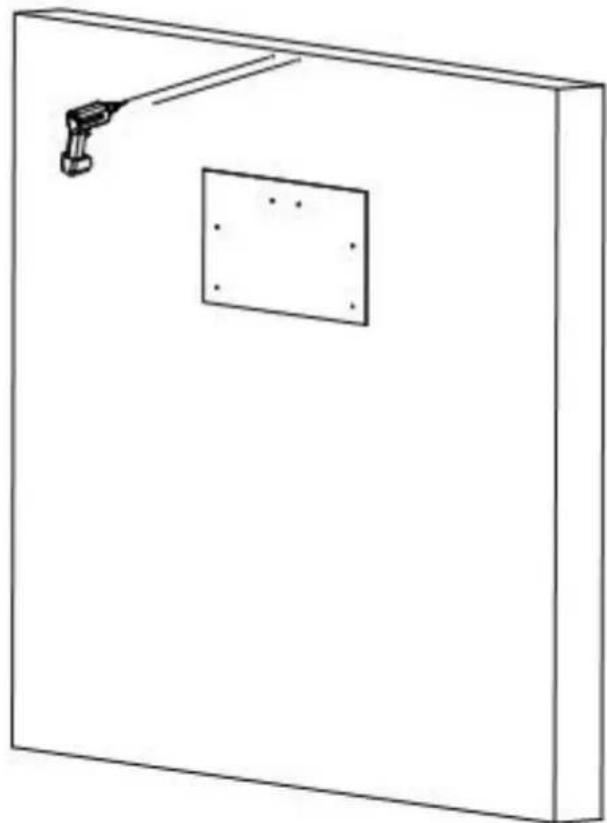

③

3D diagram of a rectangular block with a small square containing dots and a diagonal line, no text or symbols present.

4

Simple line drawing of a rectangular frame with a small mechanical component attached to the top, no text or symbols present.

⑤

6

7

Technical line drawing of a ceiling-mounted air vent with internal grid structure and screwdriver insertion (no text or symbols)

8

Technical line drawing of a cabinet or rack unit with internal components and a downward arrow indicating a component (no text or symbols present)

9

Technical diagram showing three steps of a mechanical assembly with labeled components and directional arrows indicating motion.

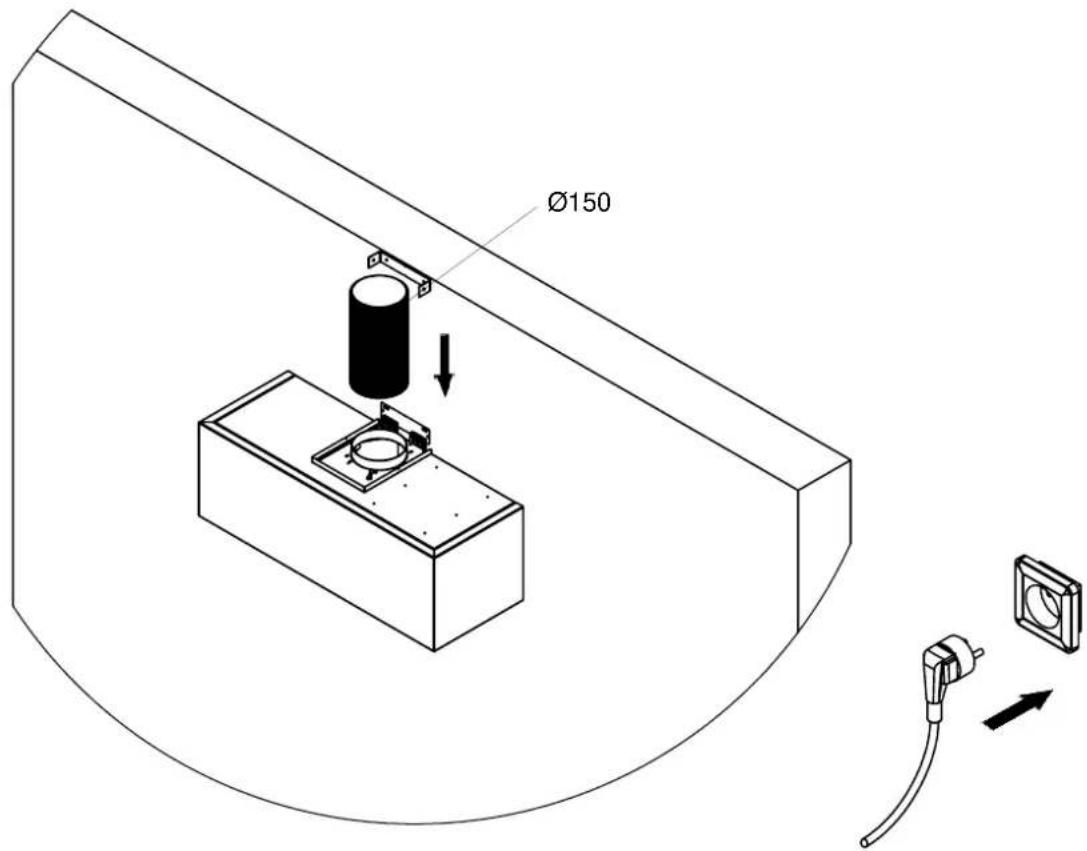

10

Technical line drawing of a mechanical assembly with no visible text or symbols

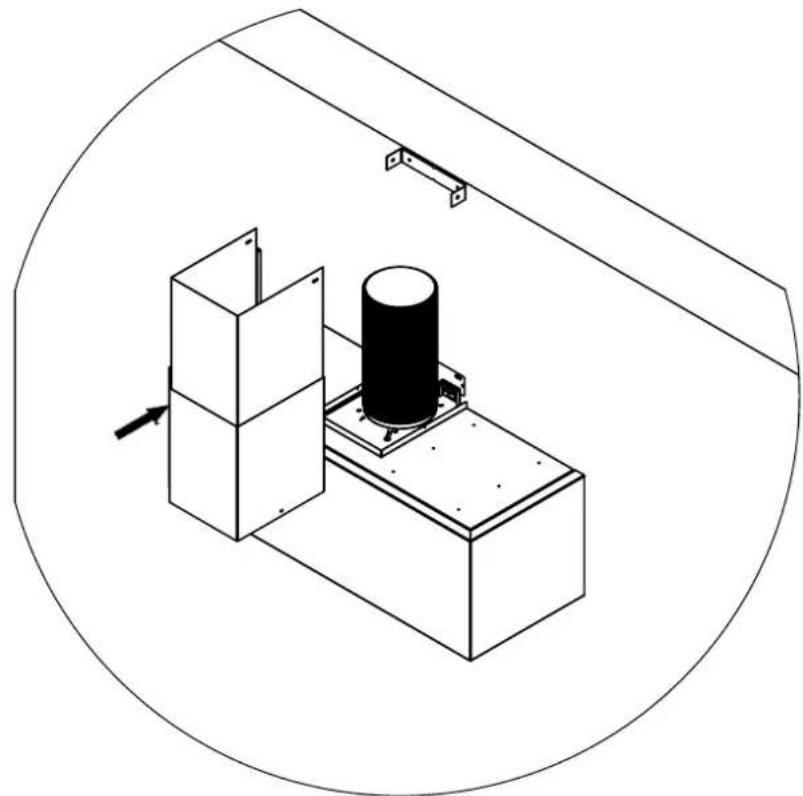

11

Ø150

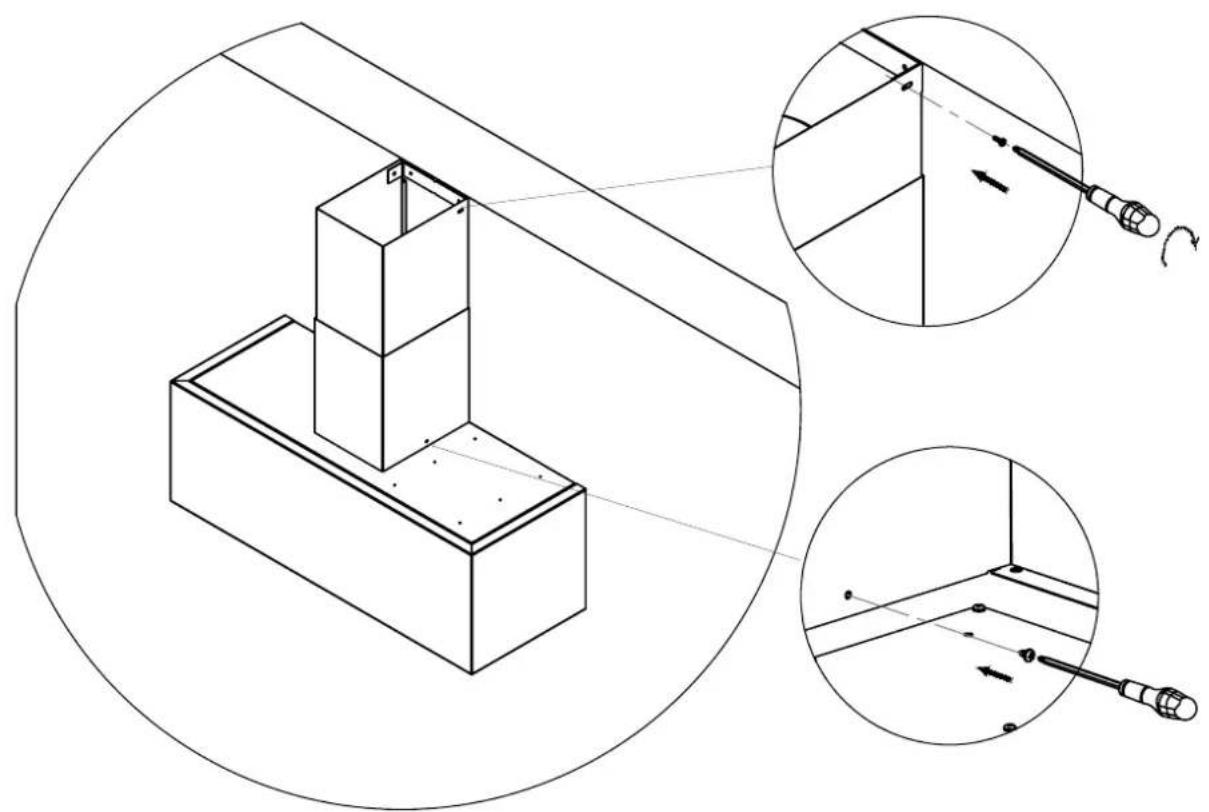

12

Technical line drawing of a mechanical assembly with a cylindrical component mounted on a base, enclosed in a circular frame (no text or symbols)

13

Technical line drawing of a mechanical assembly with two views showing internal components and alignment (no text or symbols)

14

Technical line drawing of an air duct system with a ventilation cover and fan base (no text or symbols)

15

Technical line drawing of a ceiling-mounted air vent with internal grid and screwdriver insertion (no text or symbols)

16

Technical line drawing of an air duct system with ventilation grilles and a mounted cabinet (no text or symbols)

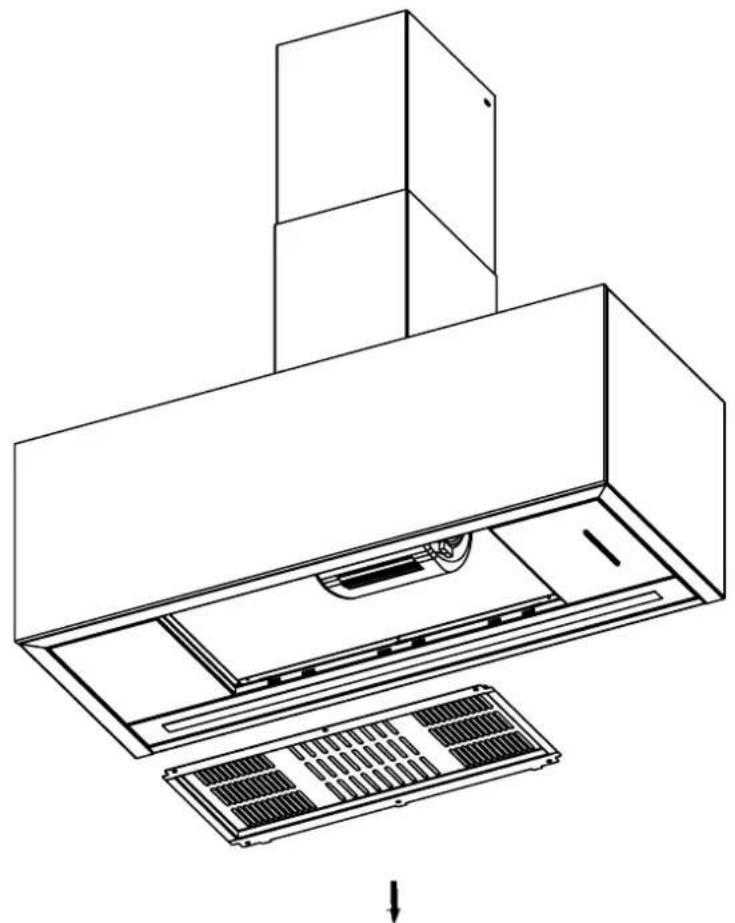

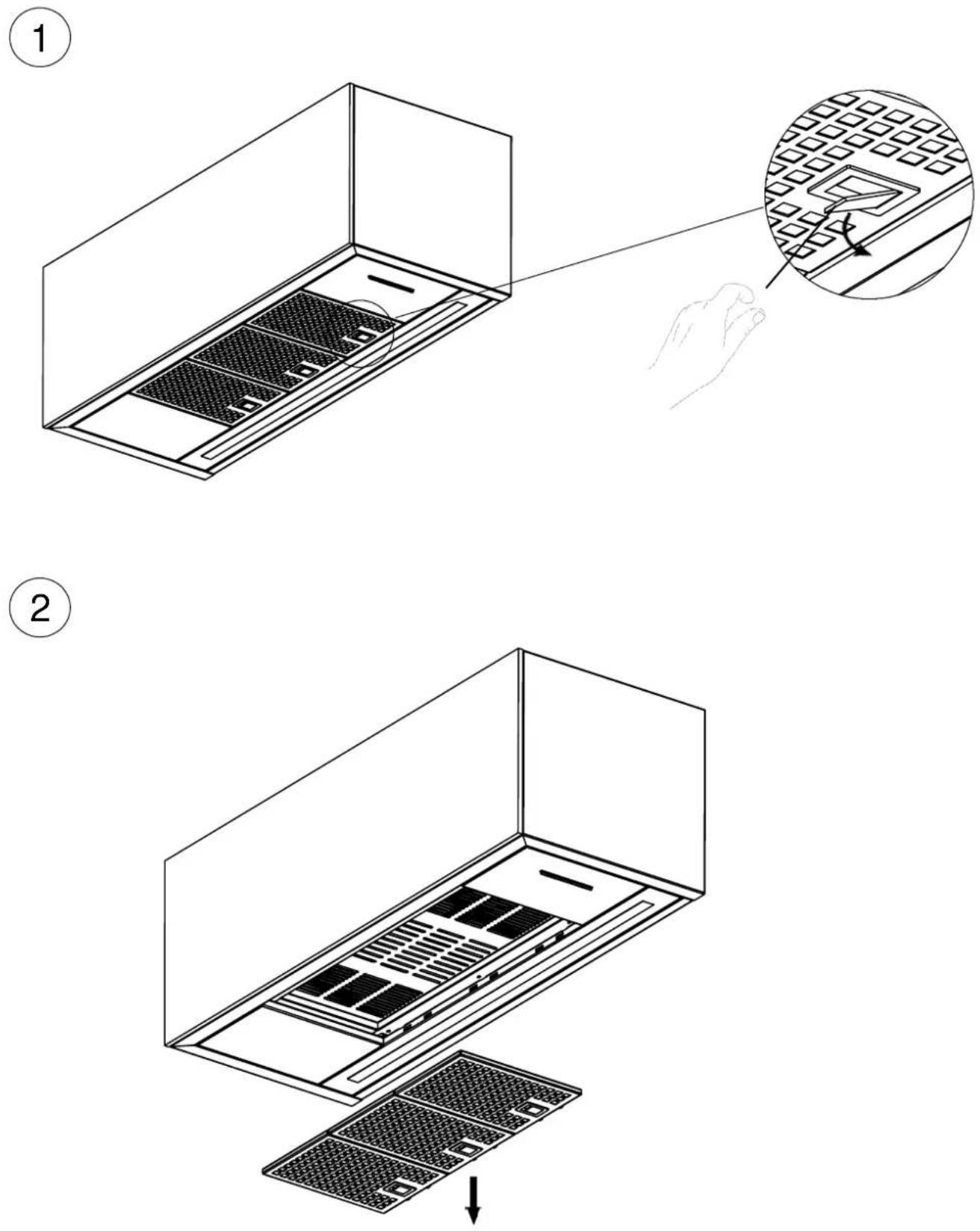

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

FILTRO INOX.

FILTRO INOX.

FILTRE D'INOX

INOX FILTER

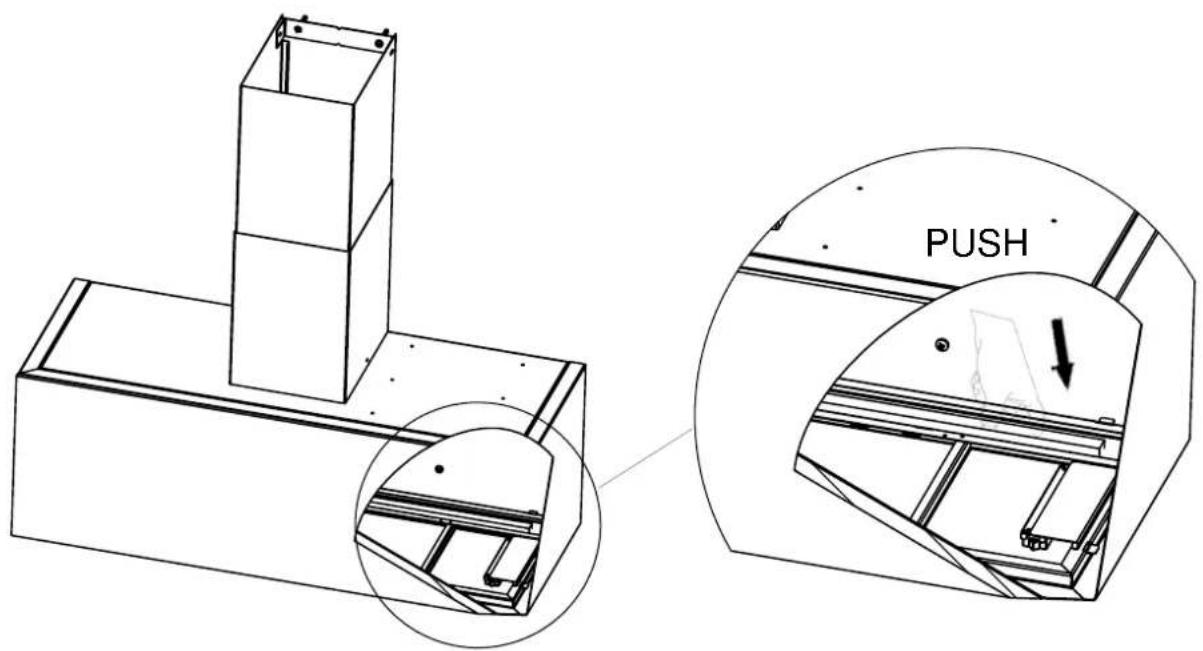

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

LED LIGHTING AND FEATURES

ATENCIÓN!

LED type lights involve a complex manipulation in addition to an air connection involving an internal connector risk of electric shock, therefore this type of handling must be done by the Pando official technical service or a qualified and authorized professional. The manufacturer will not be liable for any damage caused by mishandling of the L ED lights by unauthorized personnel.

Technical diagram showing installation steps of a solar panel with labeled components and directional arrows

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

LED LIGHTING AND FEATURES

Line drawing of an air duct system with a fan assembly and ventilation grilles (no text or symbols)

Diagram showing two cable or wire connector assemblies with arrows indicating connection points (no text or symbols present)

5

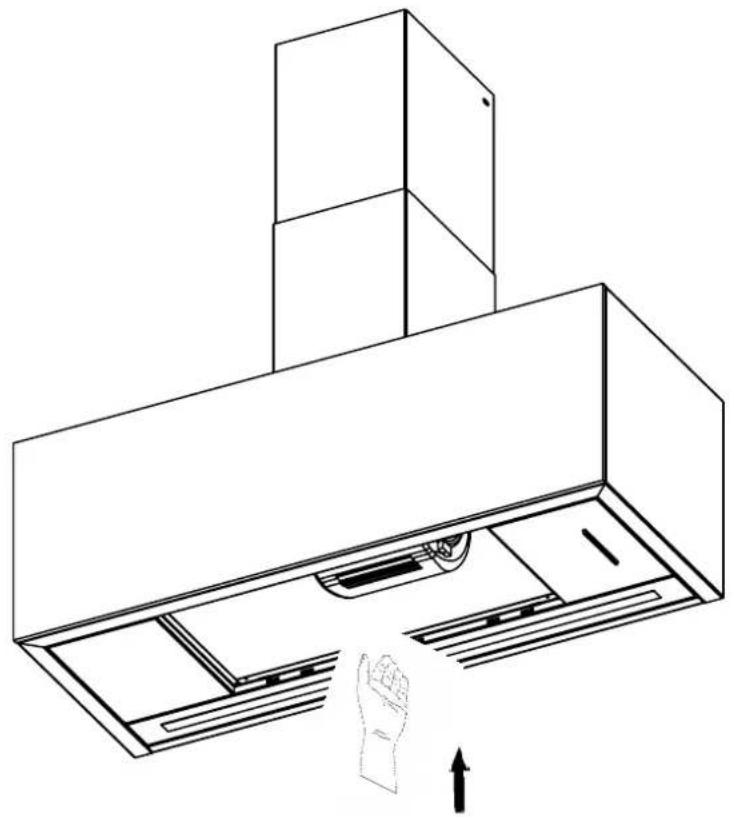

Line drawing of a kitchen air conditioner unit with a hand placed inside, showing airflow direction (no text or symbols)

6

PUSH

Long= 748mm P= 6.48W T= 4500K A= 12VDC

NOTAS/ NOTAS/ REMARQUES/ NOTES:
