Thank you for purchasing and placing your trust in a BRANDT product.

We have designed and made this product with you, your lifestyle and your requirements in mind so that it meets your expectations. It comes packed with more than 60 years of expertise, innovative spirit and passion.

In an effort to ensure that our products meet your requirements in the best possible way, our Customer Relations department is at your service, to answer all your questions and to listen to all your suggestions.

Visit our website at www.brandt.com where you will find our latest innovations, as well as useful and complementary information.

BRANDT is pleased to be on hand to offer daily support and to help you make the most of your purchase.

Important: Before using your appliance, read this user guide carefully to familiarise yourself more quickly with its operation.

SAFETY

This appliance complies with the European directives.

SAFETY GUIDELINES

For your safety and in order to use your appliance correctly, carefully read these instructions (including the warnings and useful advice), before installation and first use.

To avoid damaging the appliance and unnecessary injury, it is important that the persons who use the appliance fully understand how it works and the safety instructions.

Always keep these instructions close to the appliance so that they can accompany it in the event of resale or a change of house. In this way, the appliance will continue to function optimally and any risk of injury will be avoided.

The manufacturer shall not be held liable in the event of misuse of the appliance.

GENERAL SAFETY AND WARNINGS

This appliance is exclusively intended for domestic use in private households. It may only be used in a roofed, enclosed and heated environment such as a kitchen or any other room fulfilling these conditions. Its use on shared or professional premises such as in an office or workshop break room, a camp site building, or a hotel, etc., does not comply with the use defined by the manufacturer.

WARNING! Keep your appliance away from any source of flame during installation, servicing and use. The symbol in the margin which is found on the rear of your appliance, means that there are inflammable materials in this area.

The refrigerating and insulating agents used in this appliance contain inflammable gases.

When transporting, installing and servicing the appliance, make sure that none of the components of the cooling circuit are damaged. If the cooling circuit is damaged:

√ Avoid naked flames and all sources of inflammation.
√ Ventilate the room in which the appliance is installed.

Installation safety

• Your appliance must be installed and, if necessary, secured and used in accordance with the instructions in this manual in order to avoid any risks due to poor installation.
• Maintain clear of obstruction ventilation openings in the appliance enclosure or in the built-in structure.
• It is dangerous to change the composition of this model in any way whatsoever.
• Ensure that the power cord is not trapped or damaged when you position your appliance.
• Any damage to the power cord may result in a short circuit and/or electrocution.
• If the power cord is damaged, it should be replaced by the manufacturer, its after-sales service department or a similarly qualified person, so as to avoid danger.
• Do not place multiple plugs or portable power supply units behind the appliance.
• For models fitted with a water dispenser or an ice compartment, only fill or connect using a supply of drinking water.

Safety of vulnerable persons

- This appliance may be used by children aged 8 years or more and by people with physical, sensual or metal deficits and lacking experience or knowledge of the device provided that they are correctly supervised or have been provided with instructions regarding the safe use of the appliance and provided that the risks present have been fully

understood.

● Children must not play with the appliance.

- Cleaning and maintenance operations must not be carried out by children without supervision.

● Children aged 3 to 8 are allowed to load and unload refrigeration appliances.

- Keep all the packaging materials out of the reach of children, as they can cause suffocation.

Safety of use

- Do not damage the refrigerating circuit.

- Do not use any mechanical or other means, other than those recommended by the manufacturer, to speed up the defrosting process.

- Do not use any electric appliances inside the compartment for food, unless they are of a type recommended by the manufacturer.

- Do not store any explosive substances, such as aerosols containing inflammable propellant gases, inside the appliance.

Food safety

To avoid contaminating food, follow the instructions below:

● Leaving the door open for long periods of time may significantly raise the temperature in the appliance compartments.

- Regularly clean any surfaces that may come into contact with food and accessible drain systems.

- Clean water containers if they have not been used for 48 hours. Properly rinse the water distribution system connected to a fresh water network if no water has been drawn off for five days.

- Store raw meat and fish in the appropriate refrigerator compartments so that the latter products are not in contact with other food and do not drip onto other food.

- The "two star" compartments for frozen foods are suitable for storing food that is already frozen, for storing or making ice cream and ice cubes.

● The "one, two and three star" compartments are not suitable for freezing

fresh foods.

- If the refrigerator remains empty for an extended period of time, switch it off, defrost it, clean it, dry it and leave the door open to prevent any mould from forming inside the appliance.

DISPOSAL

This symbol indicates that this product should not be treated as household waste.

Only dispose of the appliance in certified collection centres.

Your appliance contains a large amount of recyclable material. It is marked with this label to indicate the used appliances must be disposed of in certified collection points.

Contact your local authority or retailer for details of your nearest used equipment collection points. Recycling of appliances organised by your manufacturer is carried out under the best conditions, in accordance with the European regulation on waste disposal of electronic and electrical equipment.

This appliance's packing materials are also recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

In accordance with the most recent legislative provisions applying to the protection and respect for the environment, your appliance does not contain any CFCs, but a refrigerant called R600a. The exact type of coolant gas used in your appliance is clearly shown on the ID plate inside the fridge part of your appliance, at the foot of the left-hand side panel. R600a is a non-polluting gas that does not harm the ozone layer and hardly contributes to the greenhouse effect at all.

Used appliances must be immediately made unusable.

Disconnect the power cord and cut it as close to the appliance as possible. Inhibit the closing mechanism of the door or, even better, detach the door, so that children or pets cannot remain enclosed inside the appliance when playing.

ECODESIGN

To access the information about your model, which is stored in the product database, in according with regulation (EU) 2019/2016 relative to energy labelling, please connect to the dedicated website at https://eprel.ec.europa.eu/

Find the reference of your appliance on the website by entering the service reference shown on the ID plate on your appliance.

Another way to access this information is to flash the QR code found on the energy label on your product.

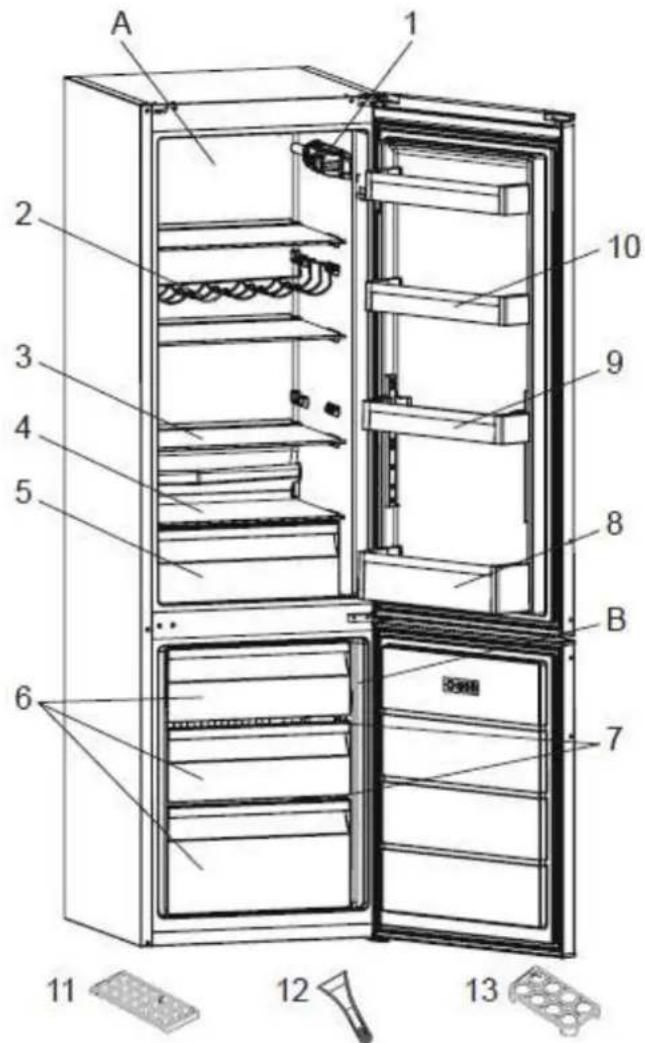

Layout and presentation of your appliance

This refrigeration appliance is not intended to be used as a built-in appliance

Your appliance was designed and tested to optimise its energy use.

A 1 2 3 4 5 6 7 8 9 10 11 12 13

A) Refrigerator compartment
B) Freezer compartment

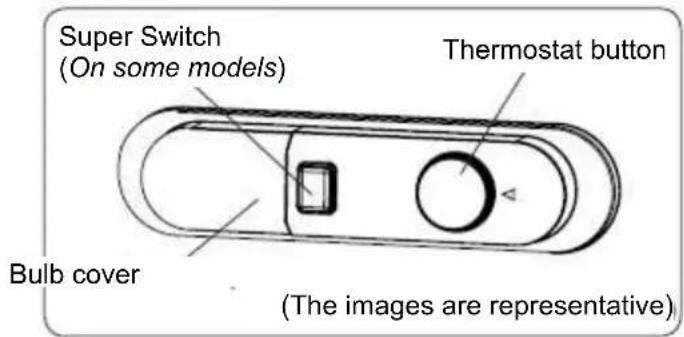

1) Thermostat box
2) Bottle racks *
3) Refrigerator shelves
4) Crisper top
5) Crisper
6) Freezer drawers
7) Glass freezer shelves
8) Bottle rack
9)/10) Door shelves
11) Ice tray
12) Plastic scraper *
13) Egg tray
* On some models

This illustration is provided as a guide only; please check your appliance to find out more.

You can only keep your food in good condition and optimise your energy consumption by following the instructions in this installation and user guide.

Energy-saving measures

In order to reduce the power consumption of your appliance:

○ Install it in a suitable location (see "Installing your appliance").
- Leave the doors open for the shortest time possible.
- Never put hot food in the fridge or the freezer, and in particular soups and other preparations that release a lot of steam.
- Check that your appliance is working correctly and do not allow too much ice to accumulate in the freezer (defrost when the ice is more than 5-6 mm thick). Clean the condenser on a regular basis.
- Regularly check the door seals and make sure that the doors can be closed properly. If this is not the case, contact after-sales service.
- Do not adjust the temperature too low.

Storing food

Here are some rules you should follow:

o Maintain the cold chain and select "Booster" mode at least 6 hours before coming home with groceries (if your model has this mode).
- Clean the refrigerator part at least once a month (see "Care and cleaning" section)
- Defrost the freezer and clean it at least once a year.
- Keep home-made food in the refrigerator after first taking care to leave it to cool.
○ Make sure that your appliance is set to the recommended temperatures shown below. The temperatures for every compartment are recommended to optimise storing food and avoid any waste.

Area	Type of compartment	Temperature temperature
Fresh food compartments	Fresh food compartment (refrigerator)	+4°C
Frozen food compartments	0 star compartment (depending on model)	0°C
	1 star compartment (depending on model)	-6°C
	2 star compartment (depending on model)	-12°C
	3 star compartment (depending on model)	-18°C
	4 star freezer drawers/shelves (depending on model)	-18°C

- Store the food in the locations recommended in the tables below.

Fresh food compartments

Refrigerator compartments	Logos & Markings	Type of food
Refrigerator door and door racks		Jams, drinks, eggs, condiments.Do not place perishable fresh food in these areas
Crisper		Lettuce, fruit, vegetables, herbsDo not put bananas, onions, potatoes or garlic in the refrigerator.
Highly perishable food drawer (depending on model)		Raw meat, fish, highly perishable food (for limited duration storage). Do not store fruit and vegetables in this drawer, they may perish quickly.
Lower shelf and cold area drawer (depending on model)
Intermediate shelf		Milk products
Top shelf		Cold cuts, prepared meals, meals to reheat

Frozen food compartments (compartments available depending on model)

Freezer compartments	Logos & Markings	Type of food
0 star compartment		To store sorbet for a few hours and make ice cubes.This compartment is not suitable for freezing fresh food.
1 star compartment		To store frozen products for a few hours and make ice cubes.This compartment is not suitable for freezing fresh food.
2 star compartment		To store frozen products for a few days, make ice cream and ice cubes.This compartment is not suitable for freezing fresh food.
3 star compartment		To store frozen products for a few weeks/months and to make ice cubes.This compartment is not suitable for freezing fresh food.
4 star freezer drawers/shelves		To freeze food and store:- Meat, fish (lower drawer/shelf).- Vegetables, chips (intermediate drawer/shelf).- Ice cream, fruit, ready-made dishes (upper drawer/shelf)

INSTALLATION

Care before installation

Before installing the appliance and connecting it to the power, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Never use detergents or abrasive cleaners, they will damage the inside coating.

When using the appliance for the first time or after a period of non-use, before putting the food in the compartment let the appliance run at least two hours on the higher settings.

Location

Warning! Never expose the appliance to a naked flame.

• Install the appliance in a dry and well ventilated place.
• The appliance should be located far from heat sources like radiators, boilers, sunlight, etc.
• Your appliance is designed to function optimally at a given ambient temperature. In this case, it is said to be designed for a particular "climate class". The climate class is clearly shown on the ID plate (see the "Contact" chapter). The refrigerator may not maintain satisfactory inside temperatures if it operates outside of the temperature limits set for the "climate class" it is designed for. Ensure that the chosen location is compliant with these temperature limits:

Class	Ambient temperature
SN	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 32°C
SN-ST	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 38°C
SN-T	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 43°C
N	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 32°C
ST	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 38°C
T	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 43°C

• Based on the above, avoid locating your appliance on balconies, verandas, terraces, in garages, etc. Excessively high temperature in summer and excessively low temperatures in winter can prevent it from functioning properly and therefore properly conserving food.
• The appliance must be made suitably level by adjusting one or more of the adjustable feed under the cabinet (see the "Levelling the appliance" section).
  If your appliance is fitted with casters, then remember that they should only be used for short movements. Do not move the appliance over long distances on its casters.

Reversing the opening direction of the doors

Before reversing the opening direction of the doors, prepare the following tools and equipment: flat screwdriver, Phillips screwdriver, etc.

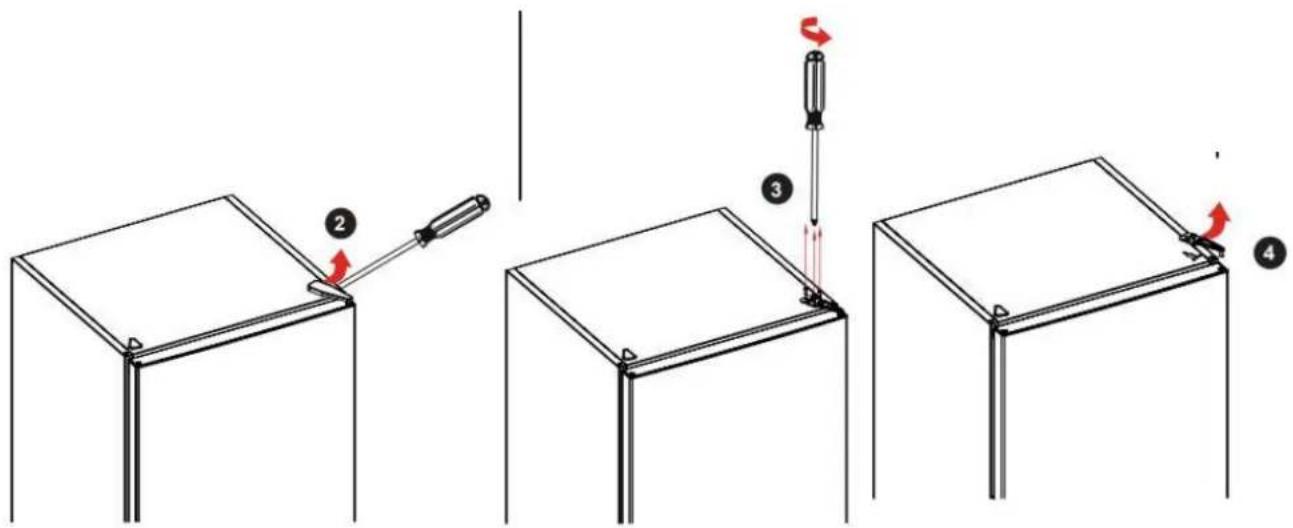

1. Remove the top hinge cover, then unscrew the top hinge.

Diagram illustrating four steps of a mechanical or electrical component assembly, labeled 2 to 4 with red arrows indicating direction.

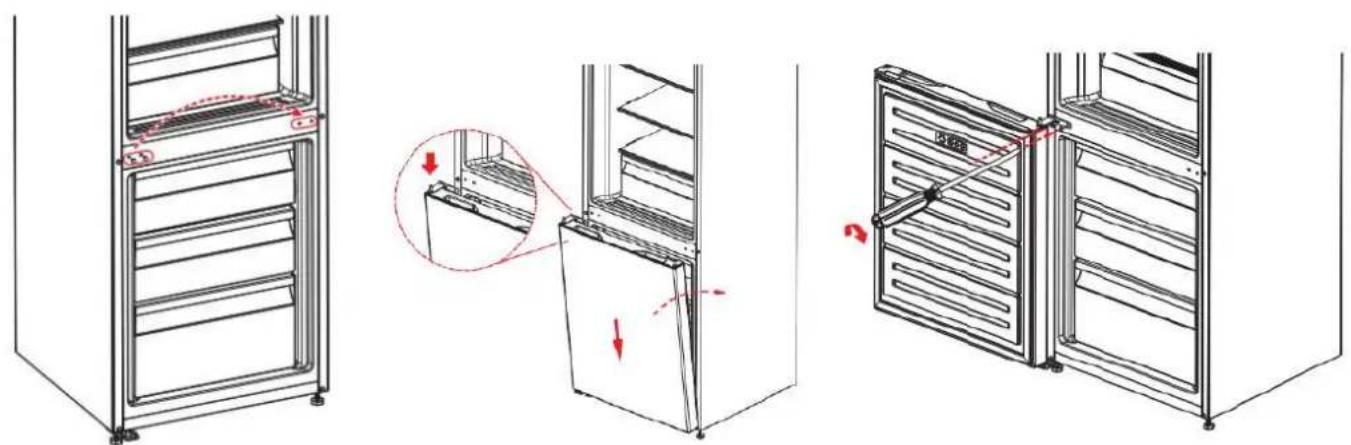

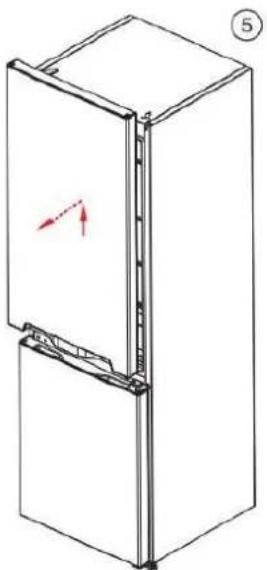

1. Lift the door and put it on foam to avoid scratching and damaging it.

Line drawing of a refrigerator with a door and side panel, showing a red directional arrow (no text or symbols)

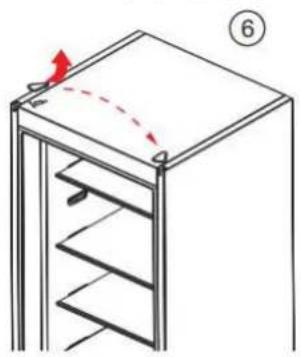

1. Reverse the hinge cover as shown on the picture below.

Diagram of a cabinet with ladder and door, showing a red dashed arrow indicating rotation (no text or symbols)

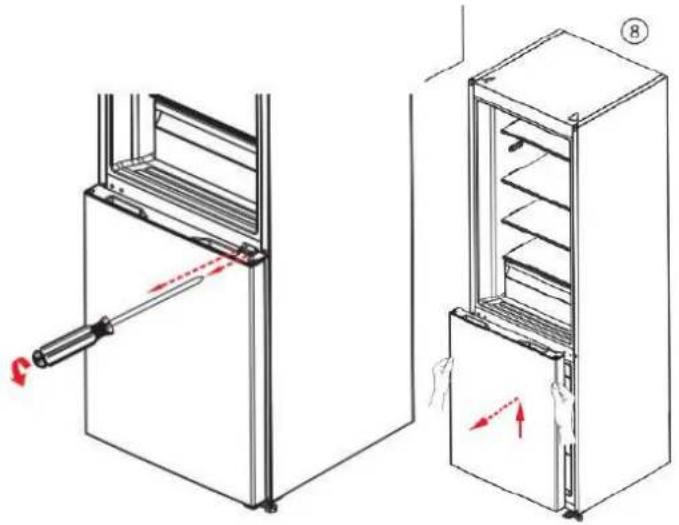

1. Remove the middle hinge using a Phillips screwdriver, then remove the bottom door.

Technical line drawing of a refrigerator with internal shelves and a handle, showing no text or symbols

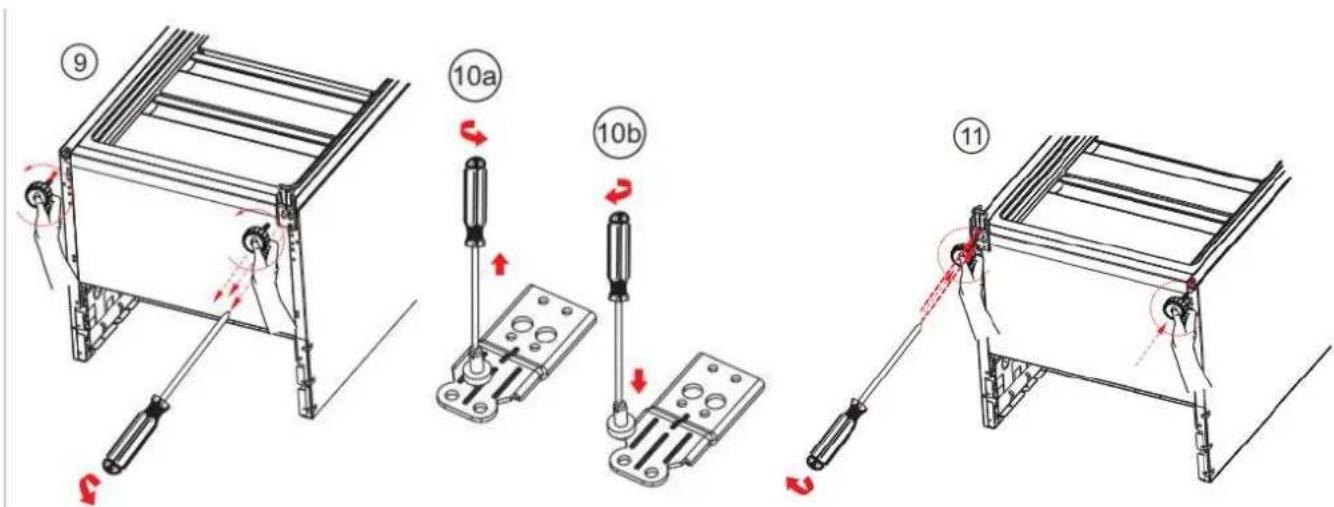

1. Lay down the refrigerator, remove the adjustment feet as shown below, then remove the bottom hinge using a Phillips screwdriver.

2. Adjust the central position of the bottom and top hinges on the other side.

Technical diagram showing three mechanical assembly steps with labeled components and red directional arrows indicating motion or movement.

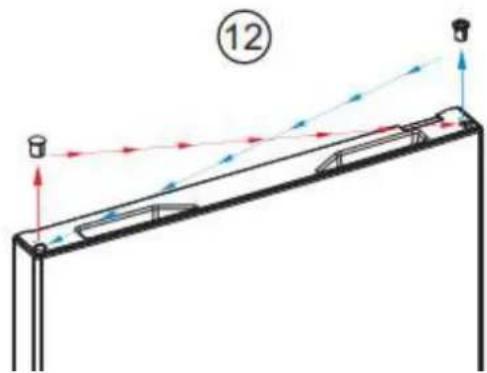

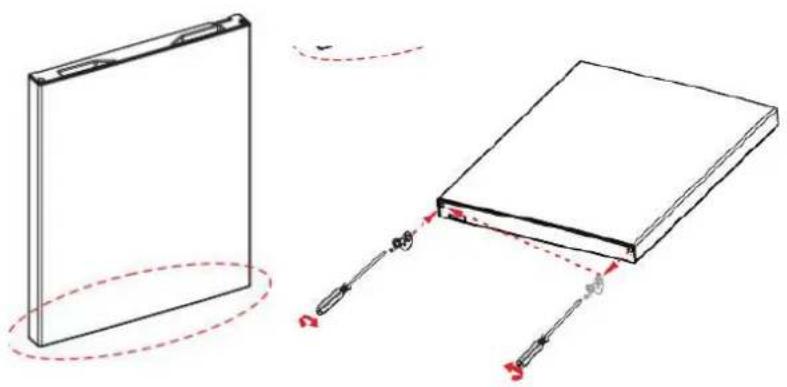

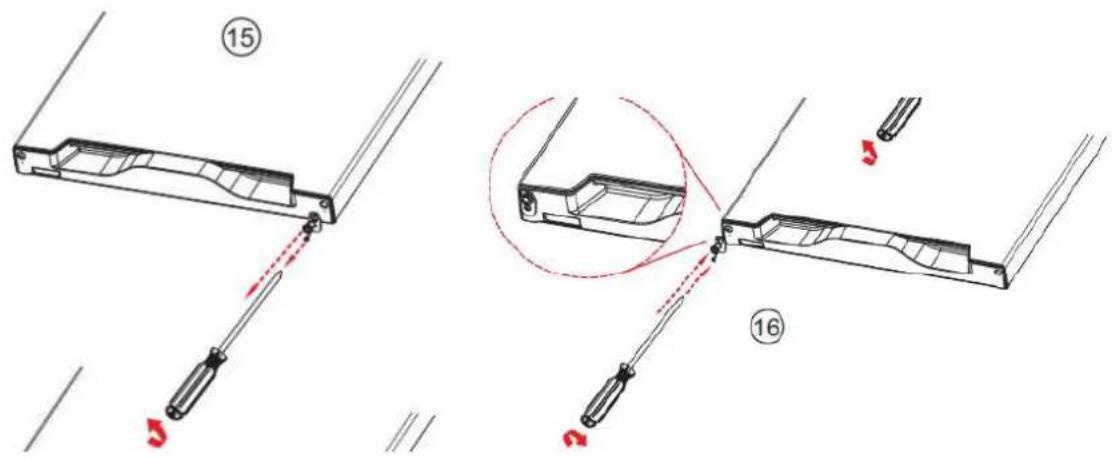

1. Reverse the mounting plate and the stem of the hinge on the bottom and top doors as shown on the diagram below.

Bottom:

⑫

Technical line drawing of a rectangular electronic device with internal components and red dashed lines indicating motion or alignment (no text or symbols)

Top:

Simple line drawing of a rectangular frame with a corner recess (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and red arrows indicating motion direction

1. Install the bottom door, then adjust and fix the middle hinge to the cabinet.


Technical diagram showing three steps of a refrigerator shelf with labeled components and directional arrows indicating movement.

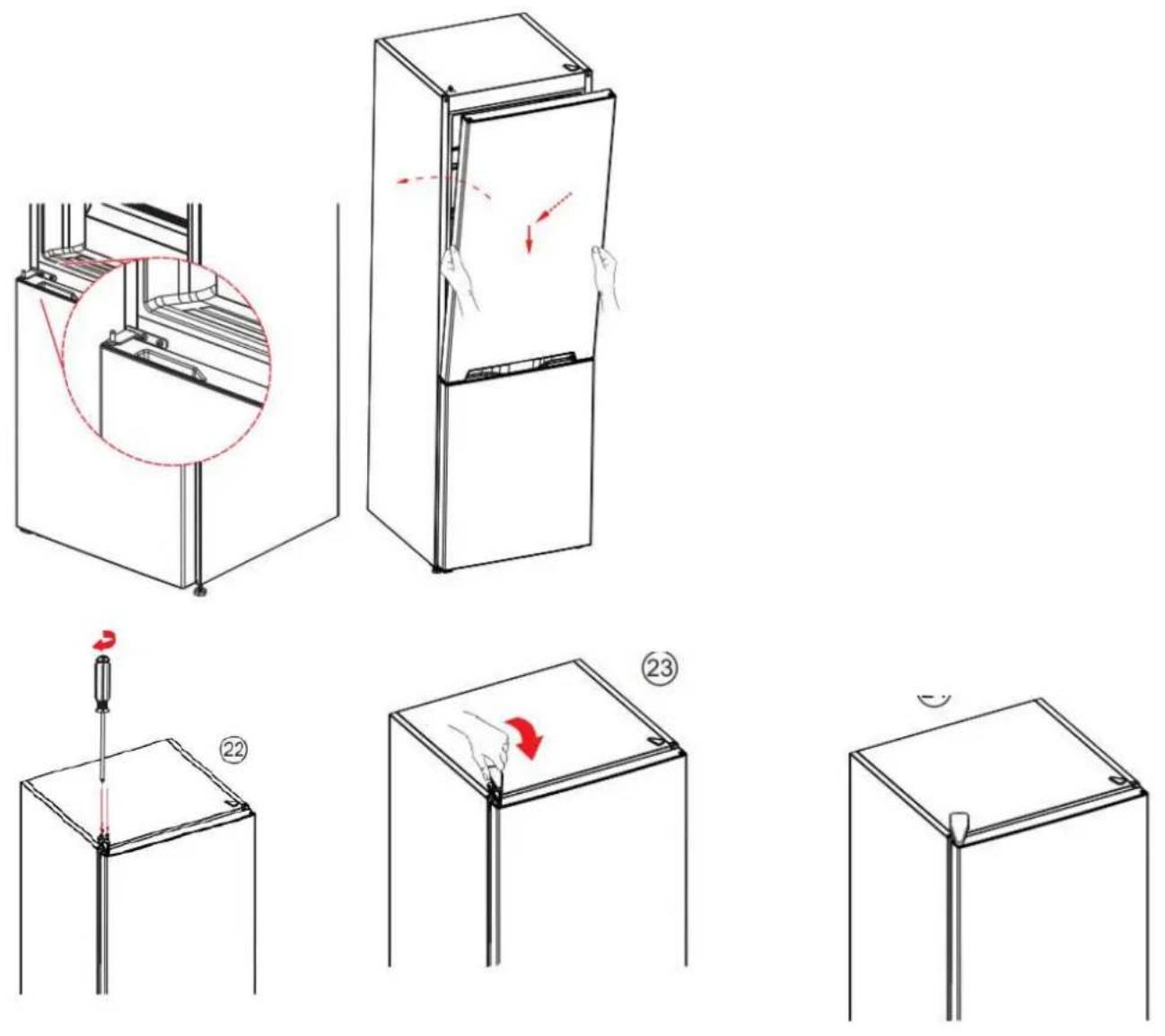

1. Position the top door. Make sure the door is aligned horizontally and vertically so that the seals are closed on all sides before tightening the top hinge. Then hold the top hinge in place and screw it to the top of the appliance. Finally, fit the hinge cover.

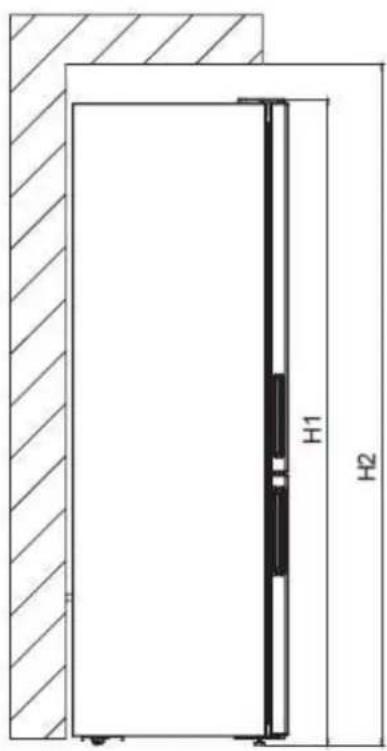

Space required

• Choose a location that is not directly to sunlight.
• Choose a location with enough space so that the refrigerator can open easily.
• Allow for a safety distance on the right-hand side, left-hand side, back and above the appliance when installing it. This allows optimising product performance, reduces your power consumption and therefore limits your electricity bill (see diagram below).
  • Make sure that air can freely circulate behind the appliance.

H1 H2

D1 W1

D2 W2

W3 .0

D3 90°

Overall dimensions 1

H1	mm	1800.0
W1	mm	540.0
D1	mm	595.0

the height, width and depth of the appliance without the handle.

Space required for use 2

H2	mm	1950.0
W2	mm	640.0
D2	mm	692.8

^2 the height, width and depth of the appliance, including the handle, and the space required for free circulation of the cooling air.

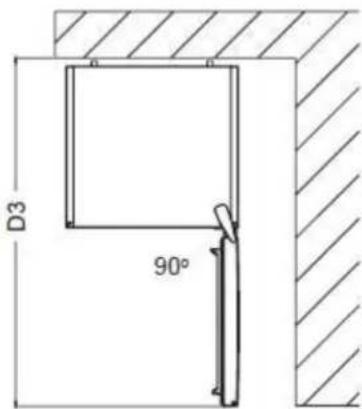

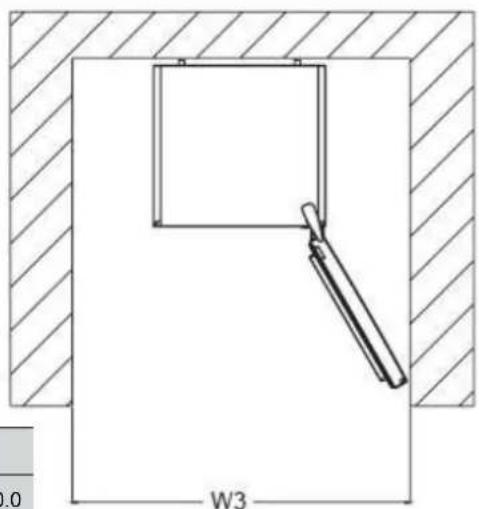

Overall space required for use ^3

W3	mm	650.2
D3	mm	1137.9

3 the height, width and depth of the appliance, including the handle, plus the space required for free circulation of the cooling air, plus the space required to allow the door to open to the minimum angle to allow removal of all internal equipment.

i Note that this appliance is not designed for built-in installation.

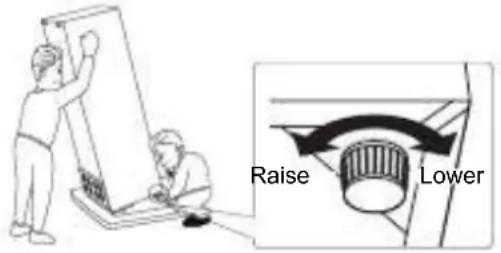

Levelling the appliance

Choose a place to install the refrigerator on a flat surface.

Two identical diagrams showing a checkmark and a cross inside vertical bars, likely indicating approval or rejection status.

If the appliance is not level, the doors will not be correctly aligned and the compartment seal cannot be guaranteed.

To level the appliance laterally, adjust the two adjustable feet on the front of the product.

Once the appliance is installed, ensure that it is slightly inclined rearwards. In this way, it will be easier to close the door. If necessary, adjust the setting of the adjustable feet.

Procedure for adjusting the feet at the front of the product:

Raise Lower

Electrical connections

Warning! It must be possible to unplug the appliance from the mains power, so the plug must remain easy to access after installation.

• The electric connections must meet the applicable standards and be capable of withstanding the maximum power shown on the ID plate.
• The power plug must be easily accessible and out of the reach of children.
• For your safety this appliance must be earthed. If the power plug is not earthed, consult a qualified electrician to connect your appliance in line with applicable regulations.
• Do not use extensions, adapters or multiple plugs.
• Do not place multiple plugs or portable power supply units behind the appliance.

The manufacturer declines all liability if the above mentioned safety precautions are not complied with. If in doubt, refer to your reseller.

"COLD AREA" indicator

The sign opposite can be found in your fridge.

It clearly shows the coldest zone of your appliance, where the temperature is lower than or equal to +4^ .

A temperature gauge in this zone allows you to check the settings of your fridge.

Adjust the thermostat

Temperature correct

Warning!

If the door of the fridge is left open for too long, the temperature inside the fridge will rise. Check the temperature gauge within 30 seconds after opening the door to make sure that the reading is correct.

Setting the refrigerator:

Thermostat

Super Switch (On some models) Thermostat button Bulb cover (The images are representative)

Temperature adjustment settings

1 to 2: For short-term food storage
3 to 4: For long-term food storage
5: Maximum cooling level. The appliance works for longer.
If necessary, adjust the temperature setting.

Super Freeze mode

Use:

• Freeze a large amount of food.
• Freeze prepared food.
• Quickly freeze fresh food to retain its freshness.

Press the switch to activate the super freeze mode. To turn it off, press the switch again Notes:

• The maximum quantity of fresh food (in kilograms) that can be frozen in 24 hours is indicated on the appliance label.
  For maximum freeze, turn the switch ON 24 hours before putting the fresh food in the freezer. Once the fresh food is in the freezer, in general 24 hours in the ON position is sufficient. If not, activate Super Freeze mode at least 3 hours before putting the food in the freezer.
• To save energy, put the switch in the OFF position 24 hours after putting the fresh food inside.

Switching off the product

To completely stop the appliance, put the thermostat on “•”.

Daily use

Your refrigerator compartment is equipped with shelves, door racks and drawers with various logos to help you store your food in the right place.

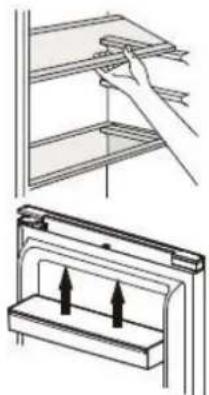

Using the shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Technical illustration showing a hand pressing down on a shelf and a mechanical component with upward arrows (no text or symbols)

Positioning the small door trays

The small door trays can be removed to assist cleaning. To do this, progressively pull the door rack in the direction indicated by the arrows until you can remove it completely. After cleaning it, replace it in the desired location.

Hints and Tips

• The refrigerator is a domestic appliance suited to short term conservation of food products like fruit, vegetables, drinks, etc.
• Do not use it as a specialised appliance for storing products that require storage in line with strict temperature rules, like medicines, etc.
  • Cooked foods must be cooled to ambient temperature before they are placed in the refrigerator.
  • We recommend placing food in sealed containers before storing them in the fridge.
• Never place food right next to the air outlet as this could impede the air flow and freeze the food.
• Never place volatile, inflammable or explosive liquids like solvents, alcohol, acetone or petrol in the fridge. There is an explosion hazard.
• Never leave the door open longer than necessary.

Hints for refrigeration

• Meat (all types) must be wrapped in sealed polyethylene bags and placed on the glass shelf above the crisper.
• For safety, store in this way only one or two days at the most.
  • Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer provided.
• Butter and cheese should be placed in special sealed containers, wrapped in aluminium foil or placed in a sealed bag.
• Milk bottles should be capped and stored in the bottle rack in the door.
• To save energy, all of the door shelves and glass shelves should be fitted in their designed location.

Hints for freezing

To help you optimise the freezing process, here are some important tips:

• The maximum amount of food that you can freeze every 24 hours can be found on the ID plate.
  • The freezing process takes 24 hours. Do not add any more food to freeze during this time.

• Only freeze good quality, fresh and properly washed food;

• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
• Wrap up the food in aluminium foil or polyethylene food wraps which are airtight.
• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid raising their temperature.
• Iced products, if consumed immediately after removal from the freezer compartment, may cause frost burns to the skin.
  • We recommend labelling and dating each frozen package.
• To obtain ice cubes faster, we recommend placing the ice cube trays in the top drawer.

Defrost

Before eating, frozen or deep frozen food may be thawed in the refrigerator compartment or at ambient temperature, depending on the time available.

Some food may also be cooked directly when taken out of the freezer, while it is still frozen. In this case, cooking will take longer.

Important In the event of accidental thawing, caused for example by a power break, quickly eat the thawed food. Never refreeze thawed food.

Warning! No thawed food may be replaced in the freezer. Place it in the refrigerator then eat it quickly.

Refreezing a thawed product encourages the spread of bacteria. This may become a health hazard if the bacteria that spreads are pathogens, as these may cause more or less serious food poisoning depending on the type of bacteria involved. If in doubt, cook the food involved.

Hints for the storage of frozen food

• To guarantee optimum performance, comply with the following instructions:
- Ensure that frozen food has been stored correctly by the food retailer.
- Ensure that frozen food is quickly carried from the retailer to your freezer.
- Do not open the door too often or avoid leaving the door open longer than necessary.
- Once thawed, food will deteriorate rapidly and should never be refrozen.
- Do not exceed the storage states shown on the food.

CARE & CLEANING

Warning! Always unplug your appliance before any maintenance work. Never pull on the power cord, but only on the plug itself.

Cleaning

For hygiene reasons, regularly clean the appliance (side walls and interior and exterior accessories).

Important! Ethereal oils and organic solvents can damage plastic parts, e.g. lemon juice, butyric acid or acetic acid.

• Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
• Remove food from the appliance. Store it in a cool place and keep well covered.
• Clean the appliance and the interior accessories with a cloth and lukewarm water with a diluted white vinegar or bicarbonate of soda solution.
  • After cleaning them, rinse surfaces with clear water and dry them.
  • After everything is dry, plug the appliance back into the plug.

Never clean the appliance with a steam cleaner.

Cleaning the drain

To stop the defrost water from running into the refrigerator, clean the drain at the back of the refrigerator part from time to time. To do this, use a cleaning product as shown in the diagram on the right.

Replacing the light

This product contains a light source with energy rating F.

The light inside the fridge uses a LED. To replace it, please contact your after sales service or an approved technician.

You will find all the useful information to contact our approved technicians and our After-Sales Service in the “CONTACTS & INFORMATION” paragraph

Defrosting the freezer

A thin coating of frost will slowly form on the inside walls of the freezer. This layer should be removed. Never use a sharp object as it could damage the appliance.

For hygiene and food conservation reasons, we recommend defrosting the freezer at least once a year by proceeding as follows:

• Pull out the mains plug from the mains socket.
- Remove any food from the compartment and place it in a special container to ensure that there is no break in the cold chain (e.g. in an ice box or insulated bag, etc.).
- Leave the freezer door open (NB: leave the refrigerator door closed) and place a basin under the appliance to recover the water from defrosting. You can also speed up this process by placing a bowl of hot water inside the compartment.
- Once defrosting is complete, dry the inside properly.
- Plug the power cord back in to return the appliance to service.
- Wait until the freezer has reached the recommended temperature before putting the food back in it.

Troubleshooting

Warning! If there is a fault, unplug your appliance. Only a qualified electrician or competent person may carry out troubleshooting.

If an operating problem occurs, check the following points before calling our approved after-sales department or a qualified professional.

Problem Cause Action
Appliance does not work	The appliance is switched off	Switch on the appliance.
	The fuse has blown	Check the fuse, replace if necessary
	The plug is not connected	Plug it into the socket
	The plug is faulty Electrical m	alfunctions need to be repaired by an electrician
The appliance does not work properly	The appliance is overloaded	Reduce the quantity of food in the appliance
	The doors do not close properly	Rearrange the interior
	There is not enough space at the back and sides of the appliance	Move your appliance until there is adequate space
A build-up of humidity in the appliance	Food packaging is wet before being placed in the appliance	Packaging must dry before it is placed in the appliance
	The refrigerator doors are opened frequently	Reduce how often you open the doors to avoid the humidity form the room entering the appliance
The doors do not open or close correctly	Food is preventing the doors from closing	Rearrange the interior
	The compartments, shelves or drawers are not properly in place	Put them back correctly
	The door seals are broken or twisted	Check the seals, replace if necessary
	The appliance is not level Check that the appliance or the frame are level, adjust if necessary
Unusual noises	The appliance is not level	Adjust the frame if it is not level
	The appliance is touching the wall or other objects	Move the appliance slightly
	A component, e.g. a hose, at the back of the appliance is touching another part of the appliance or the wall	If necessary, carefully bend the component out of the way
The food not cold enough	The temperature is not properly set	Please refer to the temperature control section
	The door was left open for an extended period	Only open the door when necessary
	A large quantity of warm food was placed in the appliance within the last 24 hours	Turn the thermostat to a higher setting temporarily to cool down the appliance.
	The appliance is near a heat source	Please refer to the installation location section
The appliance cools too much	The thermostat is too high	Turn the thermostat to a lower setting temporarily

Some noises may be heard during normal appliance operation (compressor operating cycle, automatic defrosting, circulation of the refrigerating gas through the appliance, etc.).

If you cannot find the cause of the fault, only call our approved after-sales service or a qualified professional.

Original replacement parts

During servicing, ask for only original spare parts to be used.

The minimum length of time for making available spare parts listed in European Regulation 2019-2019-EU and accessible especially to the appliance user is 10 years under the terms set out in the above regulation.

Guarantee

Please contact your reseller to benefit from the guarantee. The manufacturer does not offer any commercial guarantee for the refrigeration appliance.

Diagram illustrating four steps of a mechanical or electrical component assembly, labeled 2 to 4 with red arrows indicating direction.

Line drawing of a refrigerator with a door and side panel, showing a red directional arrow indicating movement (no text or symbols)

Diagram of a cabinet with shelves and a curved arrow indicating motion (no text or symbols)

Technical line drawing of a refrigerator with handle and side panel, showing internal structure and motion arrows (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and red-handled directional arrows indicating motion.

Technical line drawing of a rectangular electronic device with internal components and red dashed lines indicating motion or alignment (no text or symbols)

Superior:

Simple line drawing of a rectangular frame with a corner recess (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and red arrows indicating motion direction

Technical diagram showing three steps of a refrigerator shelf assembly with red arrows indicating movement and rotation.

Two identical diagrams showing a checkmark and an 'X' symbol inside vertical bars, likely indicating cancellation or rejection.

Subir Bajar

Conexión eléctrica

Technical illustration showing a hand placing a component onto a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)

Consejos y trucos

Diagram illustrating four steps of a mechanical or electrical component assembly, labeled 2 to 4 with red arrows indicating direction.

Line drawing of a refrigerator with a door and side panel, showing internal structure and red directional arrows (no text or symbols)

Diagram of a cabinet with shelves and a top shelf, showing a red dashed arrow indicating rotation or movement (no text or symbols)

Technical line drawing of a refrigerator with handle and door, showing internal shelves and a sliding mechanism (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Simple line drawing of a rectangular frame with a small notch at the bottom (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and red arrows indicating motion direction

Technical line drawing showing three steps of a refrigerator shelf assembly: opening, folding, and closing (no text or symbols present)

Technical diagram illustrating the step-by-step installation of a refrigerator with labeled parts and directional arrows indicating motion.

Two identical diagrams showing a checkmark inside vertical bars and a cross inside horizontal bars, likely indicating cancellation or rejection.

Technical illustration showing a hand placing a component onto a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)
