Dishwasher Instruction Manual

PART I: Generic Version

Please read this manual carefully before using the dishwasher. Keep this manual for future reference.

CONTENTS

01
SAFETY INFORMATION
02
PRODUCT OVERVIEW
03
USING YOUR DISHWASHER
9 Loading The Salt Into The Softener
Basket Loading Tips
04
MAINTENANCE AND CLEANING
15 External Care
Internal Care
18 Caring For The Dishwasher
05
INSTALLATION INSTRUCTION
19 Power Connection
Water Supply And Drain
21 Connection Of Drain Hoses
22 Positioning The Appliance
22 Free Standing Installation
06
TROUBLESHOOTING TIPS
28 Availability Of Spare Parts
07
LOADING THE BASKETS

NOTE:

• Reviewing the section on will help you solve some common problems by yourself.
• If you cannot solve the problems by yourself, please ask for help from a professional technician.
• The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
• If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

SAFETY INFORMATION

WARNING

When using your dishwasher, follow the precautions listed below:

• Installation and repair can only be carried out by a qualified technician
- This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. (For EN60335-1)

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1)

• Packaging material could be dangerous for children!
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and maintenance the appliance. Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Earthing Instructions

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

• Do not modify the plug provided with the appliance if it does not fit the outlet.

• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position.

• Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.
• Check that there are no detergent residues after completion of the wash cycle.

• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.

• For unmarked plastic items not so marked, check the manufacturer's recommendations.

• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused.
• To save energy, in stand by mode, the appliance will switch of automatically after 15 minutes without any user interaction.
• The maximum number of place settings to be washed is 15.
• The maximum permissible inlet water pressure is 1MPa.
• The minimum permissible inlet water pressure is 0.04MPa.

Disposal

- For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

• Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
• For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.
• DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

PRODUCT OVERVIEW

IMPORTANT:

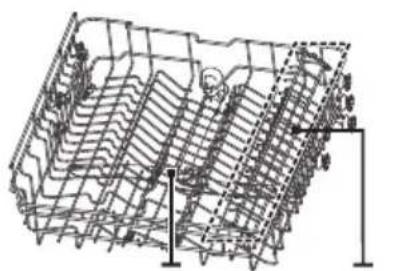

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

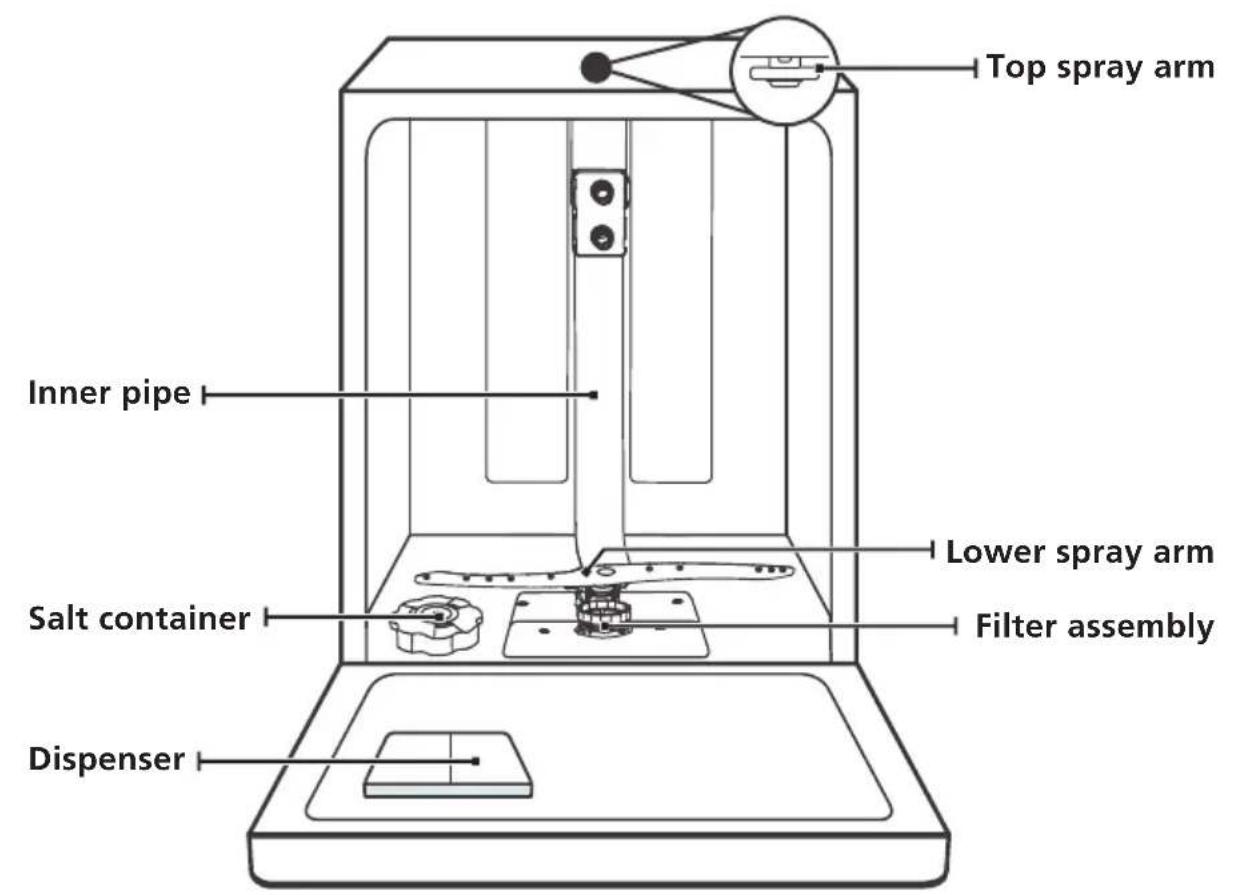

Top spray arm Inner pipe Lower spray arm Salt container Filter assembly Dispenser

Technical line drawing of a mechanical component with grid-like structure (no text or symbols)

Cutlery rack

Technical line drawing of a 3D structural framework with grid patterns and support columns (no text or symbols)

Upper spray arm
Cup rack

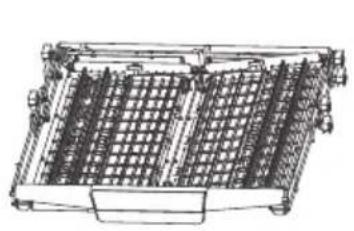

Upper basket

Line drawing of a multi-tiered wire mesh basket structure (no text or symbols)

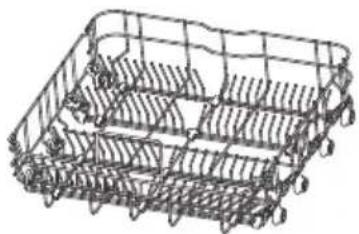

Lower basket

NOTE:

Pictures are only for reference, different models may be different.

USING YOUR DISHWASHER

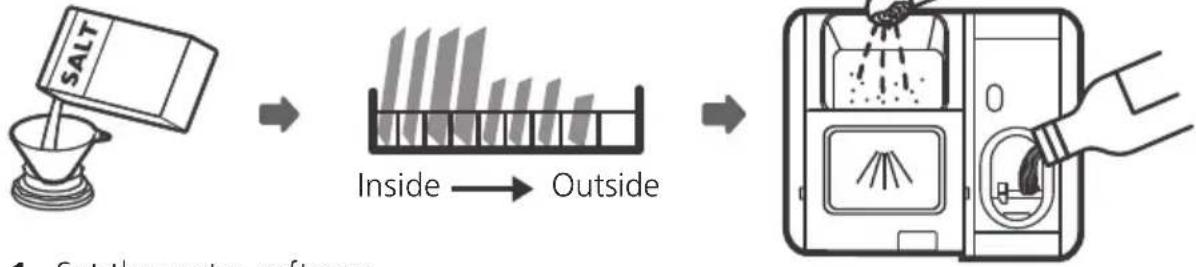

Before using your dishwasher :

1. Set the water softener
2. Loading the salt Into the softener
3. Loading the basket
4. Fill the dispenserdetergent

Please check the section 1 "Water Softener" of PART II: Special Version, If you need to set the water softener.

Loading The Salt Into The Softener

NOTE:

If your model does not have any water softener, you may skip this section. Always use salt intended for dishwasher use.

The salt container is located beneath the lower basket and should be filled as explained in the following:

WARNING

• Only use salt specifically designed for dishwashers use!
  Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
  • Only fill with salt before running a cycle.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

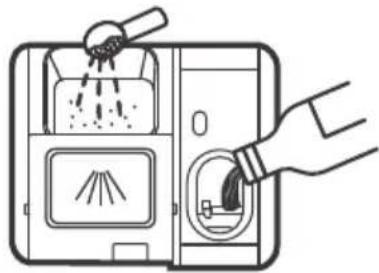

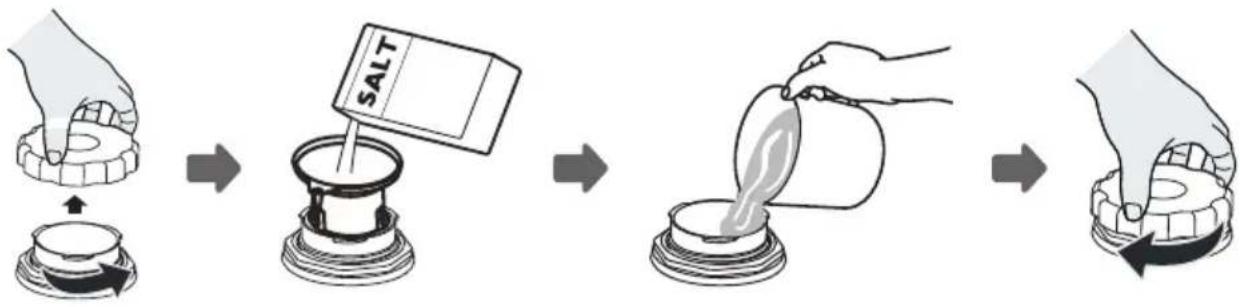

Please follow the steps below for adding dishwasher salt:

1. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg of dishwasher salt.

3. Fill the salt container to its maximum limit with water, It is normal for a small amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will turn off the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

- The salt container must only be refilled when the salt warning light ( ≈ ) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If there is no salt warning light in the control panel (for some model) can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

• If salt has spilled, run a soak or quick program to remove it.

Basket TipsLoading

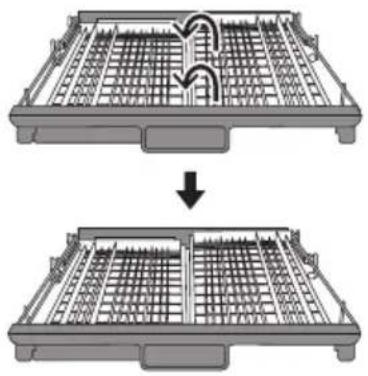

Adjusting cutlery rack

Two-step diagram showing a grid-based structure before and after transformation, with no visible text or symbols.

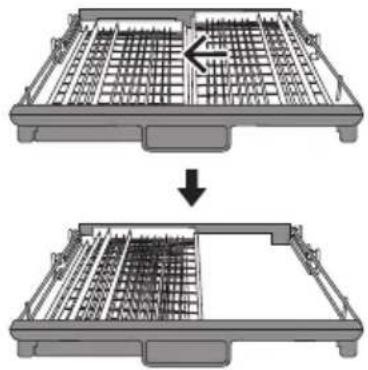

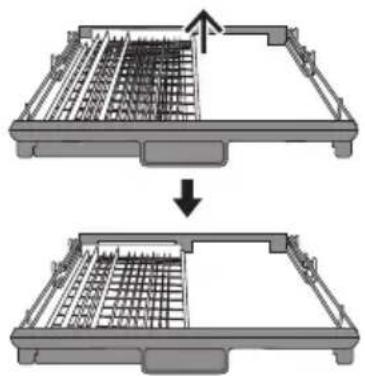

Lift the right basket up, both left and right baskets are flat.

Two-step diagram showing a grid-based structure before and after modification, with an arrow indicating the process (no text or symbols present)

Move the right basket from right to left, two basket are overlapping.

Two-step diagram showing structural change in a container or rack, with an arrow indicating upward movement (no text or symbols present)

Remove the right basket from the tray, only has the left basket.

Easy removal of cutlery

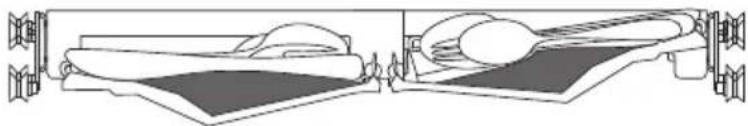

Using the principle of crank slider mechanism, the cutlery are suspended. Convenient finger goes deep under the knife and fork, and holds several cutlery at a time.

Pure mechanical diagram showing two views of a device with no text, numbers, or symbols

Make the most of space

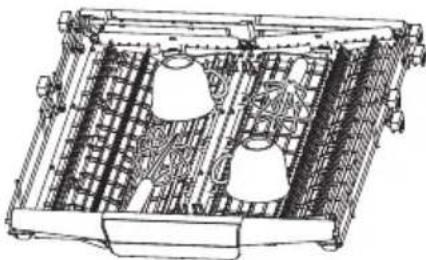

It can accommodate dishes such as egg beaters, cups, etc., and does not affect the upper basket.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Adjust the height of the rack

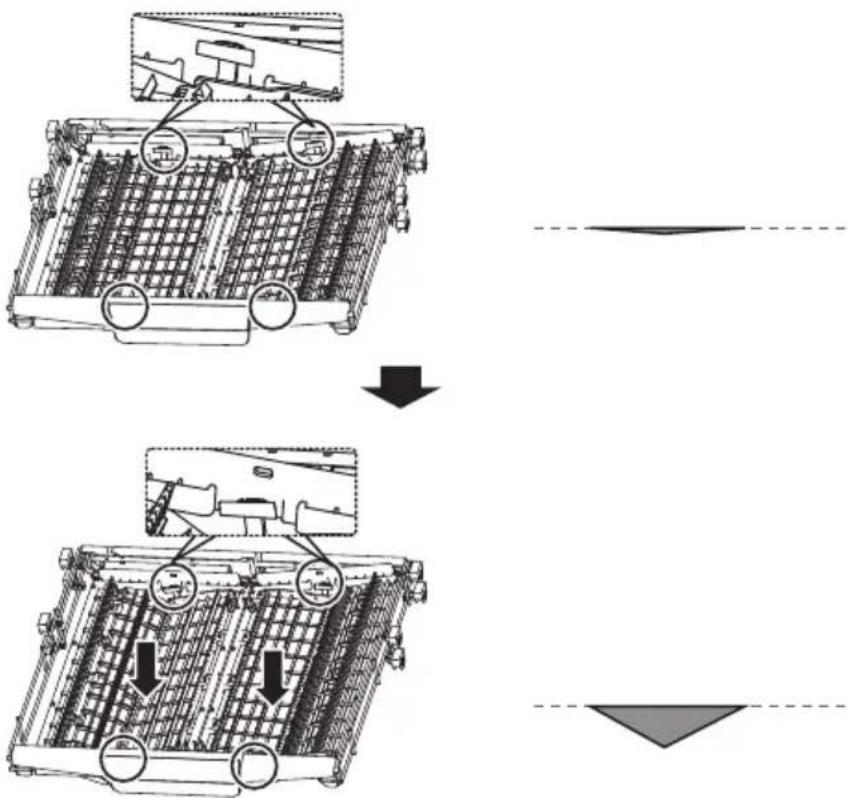

Loosen the four buttons on the tray and press down gently.

Diagram illustrating the process of a mechanical device with labeled parts and directional arrows indicating assembly steps.

Adjusting the upper basket

Type 1:

The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket.

To adjust the height of the upper rack, follow these steps:

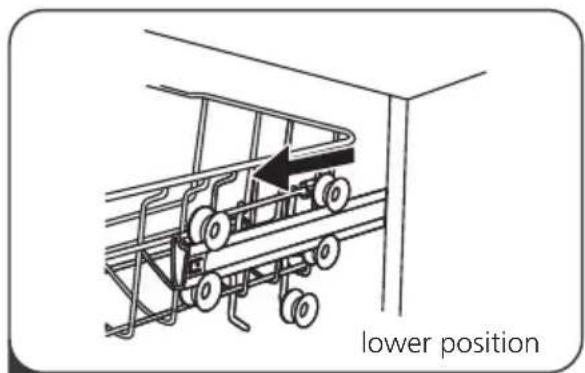

lower position

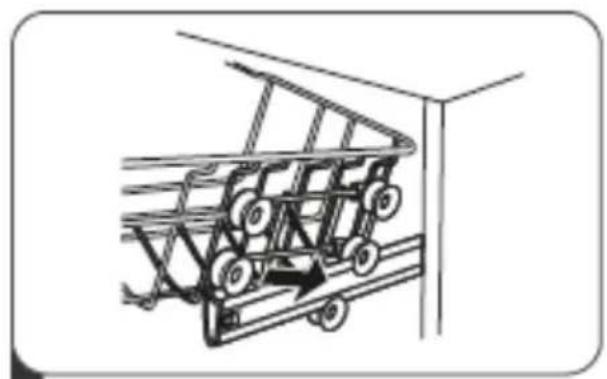

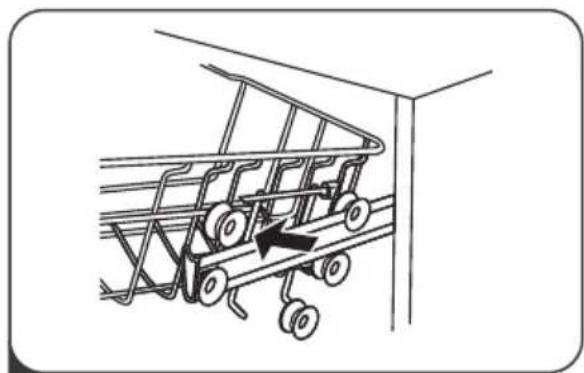

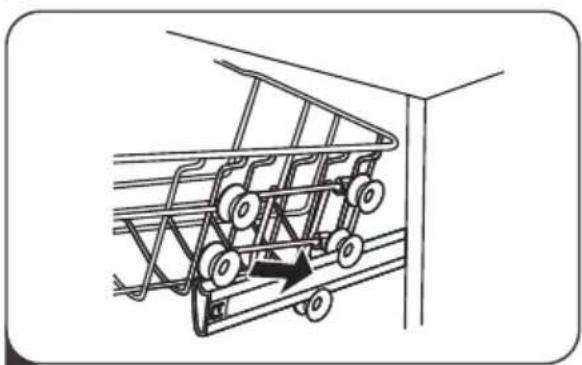

1 Pull out the upper basket.

Line drawing of a shopping cart with wheels and an arrow indicating motion (no text or symbols)

2 Remove the upper basket.

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

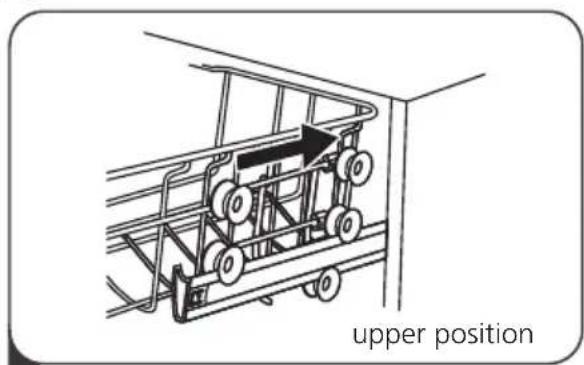

3 Re-attach the upper basket to upper or lower rollers.

upper position

4 Push in the upper basket.

Type 2:

Technical line drawing of a mechanical assembly with no visible text or symbols

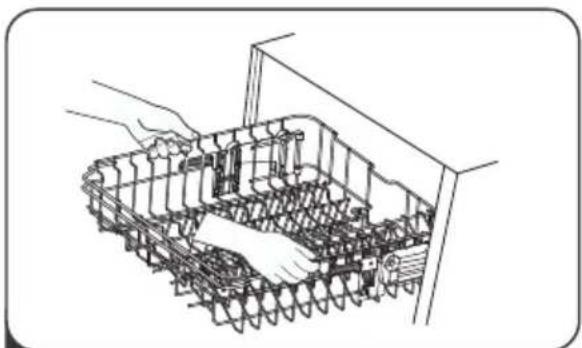

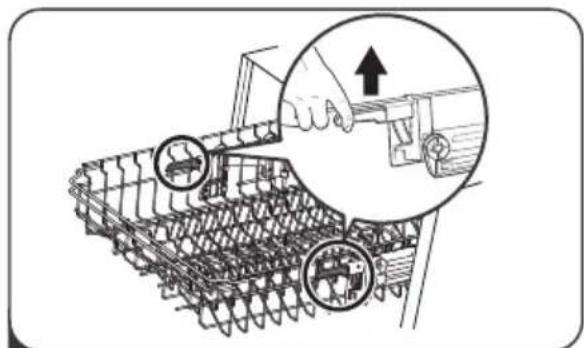

1 To raise the upper basket just lift, the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle.

Illustration of a tracked vehicle with two circular insets showing mechanical components (no text or symbols)

2 To lower the upper basket, adjust handles on each side to release the basket and lower it to the lower position.

Folding back the cup shelves

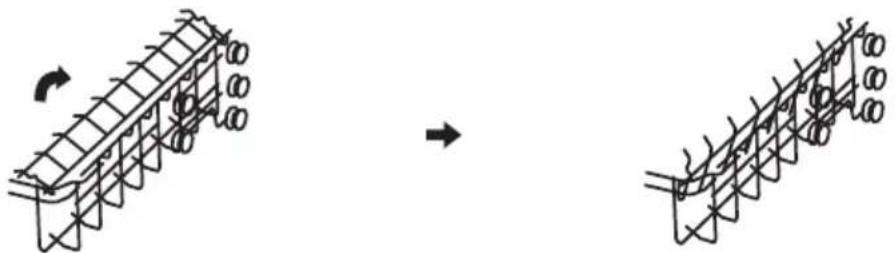

To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.

Diagram showing two mechanical assembly stages with rotating components and directional arrows (no text or symbols)

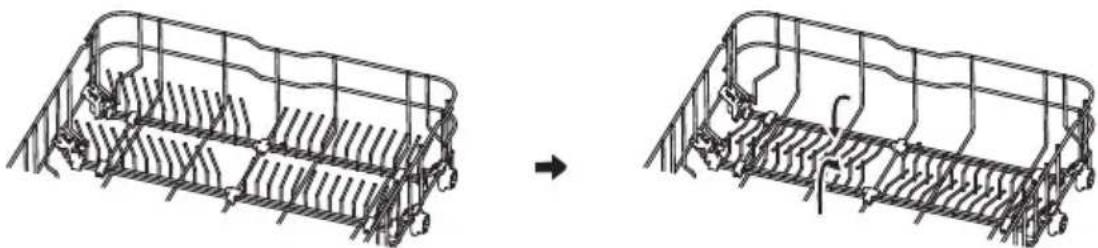

Folding back the rack shelves

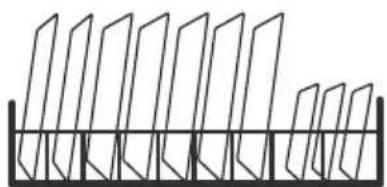

The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items.

raise upwards fold backwards

Diagram showing a structural change before and after modification, with no visible text or symbols

MAINTENANCE AND CLEANING

External Care

The door and the door seal

Clean the door seals regularly with a soft damp cloth to remove food deposits.

When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The control panel

If cleaning is required, the control panel should be wiped with a soft damp cloth only.

WARNING

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle, including foreign objects such as tooth picks or shards. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly, carefully remove foreign objects and clean the parts of the filtering system if necessary with water. Follow the steps below to clean the filter.

NOTE:

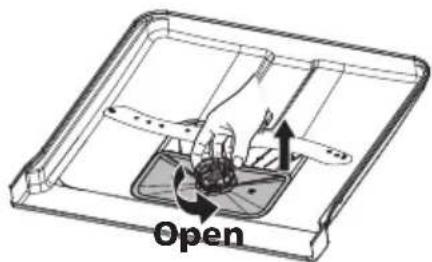

Pictures are only for reference, different models of the filtering system and spray arms may be different.

Open

1 Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

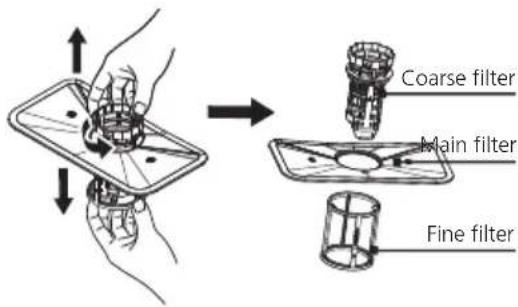

Coarse filter Main filter Fine filter

2 The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

Illustration of hands using a tool to spray or spray onto a surface, no text or symbols present

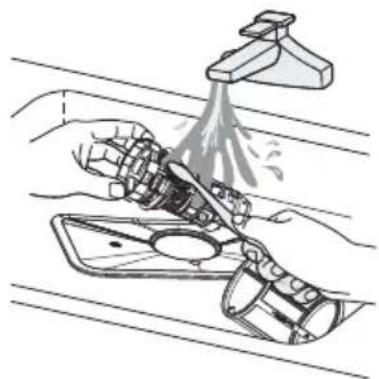

3 Larger food remnants can be cleaned by rinsing the filter under running water.

For a more thorough clean, use a soft cleaning brush.

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or symbols)

4 Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

WARNING

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
• Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To clean the spray arms, follow the instructions below:

Technical illustration of an airplane fuselage assembly with internal components and a magnified inset showing the engine mechanism (no text or symbols present)

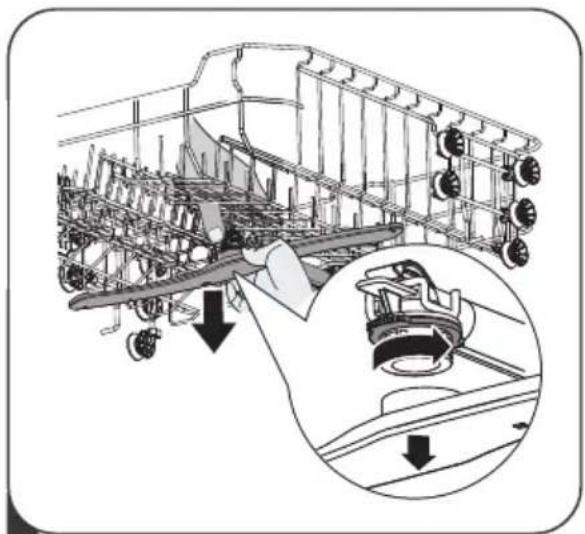

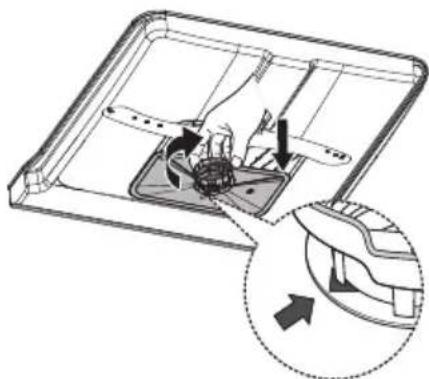

1 To remove the upper spray arm, hold the nut in the center still and rotate the spray arm counterclockwise to remove it.

Illustration of a hand using a tool to adjust or install a mechanical component inside a transparent tray (no text or symbols visible)

2 To remove the lower spray arm, pull out the spray arm upward.

Illustration of a hand washing a kitchen sink with a spray bottle (no text or symbols)

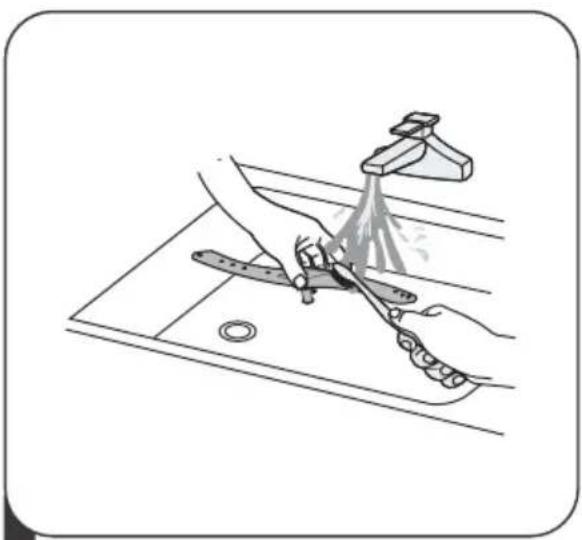

3 Wash the arms in soapy and warm water and use a soft brush to clean the jets.

Frost precaution

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside. for a while

Remove the plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a long time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

INSTALLATION INSTRUCTION

WARNING

Symbolic illustration of a hand with a lightning bolt and curved line, representing electrical hazard or electrical hazard (no text present)

Electrical Shock Hazard

Disconnect electrical power before installing dishwasher.

Failure to do so could result in death or electrical shock.

Attention

The installation of the pipes and electrical equipments should be done by professionals.

• About Power Connection

WARNING

For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Electrical requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

⚠ Ensure that proper earthing exists before use

Water Supply And Drain

Cold water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

Line drawing of a hand holding a faucet with a threaded pipe (no text or symbols)

ordinary supply hose

Line drawing of a faucet with a handle and valve (no text or symbols)

safety supply hose

About the safety supply hose

The safety supply hose consists of the double walls. The system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

WARNING

A hose that attaches to a tapn burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to connect the safety supply hose

1. Pull tlsafety supply hoses out from storage compartment located at rear of dishwasher.
2. Tightscrews of the safety supply hose to the faucet with thread 3/4inch.
3. Turn the water fully on before starting the dishwasher.

How to disconnect the safety supply hose

1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.

Connection Of Drain Hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000 mm. The free end of the hose must not be immersed in water to avoid the back flow of it.

Please securely fix the drain hose in either position A or position B

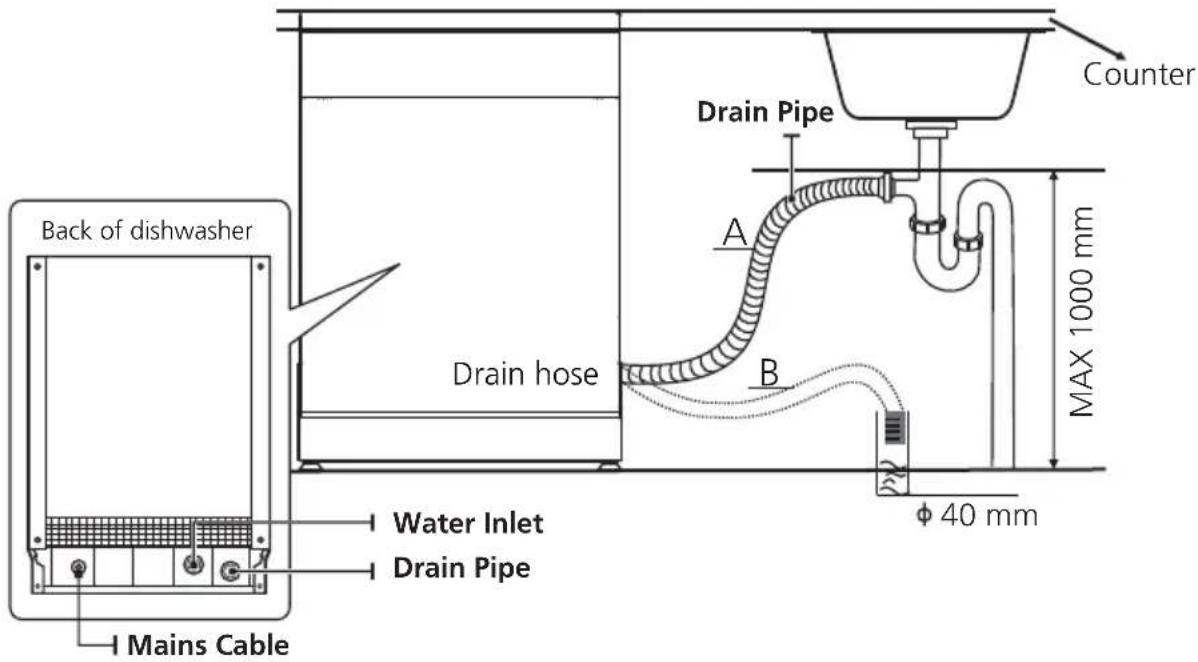

Counter Drain Pipe A B Back of dishwasher Drain hose MAX 1000 mm φ 40 mm Water Inlet Drain Pipe I Mains Cable

How to drain excess water from hoses

If the connection to the drain pipe is positioned higher than 1000 ~mm , excess water may remain in the drain hose. the hose It will be necessary to drain excess water from into a bowl or suitable container that is held outside and lower than the sink.

Water outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension hose

If you need a drain hose extension, make sure to use a similar drain hose. It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher could be reduced.

Syphon connection

The waste connection must be at a height less than 1000mm) from the bottom of the dishwasher

Positioning The Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the appliance

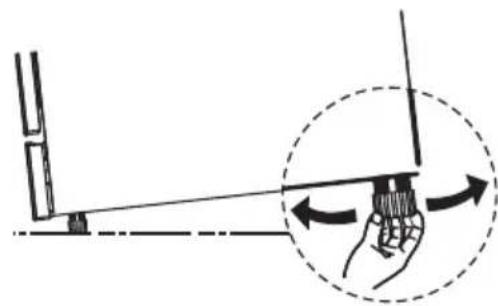

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°.

Diagram showing a hand holding a tool with an arrow indicating motion, no text or symbols present

Free Standing Installation

Fitting between existing carbinets

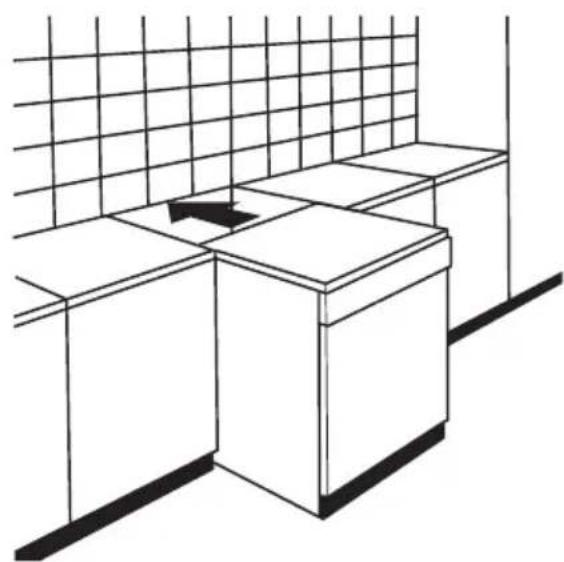

The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens.

The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof.

Line drawing of a minimalist kitchen or office space layout with no text, numbers, or symbols

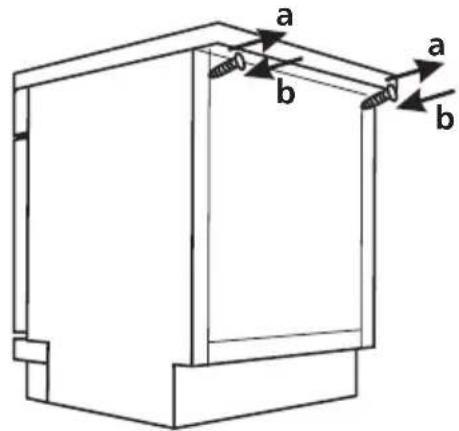

Underneath existing work top

(When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).

a b a b

Attention

After removing the work top, the screws must be screwed again under the rear edge of the top (b).

The height will then be reduced to 815 mm, as scheduled by the International Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top

Step 1. Selecting the best location for the dishwasher

The installation position of the dishwasher should be near the existing inlet and drain hose and power .

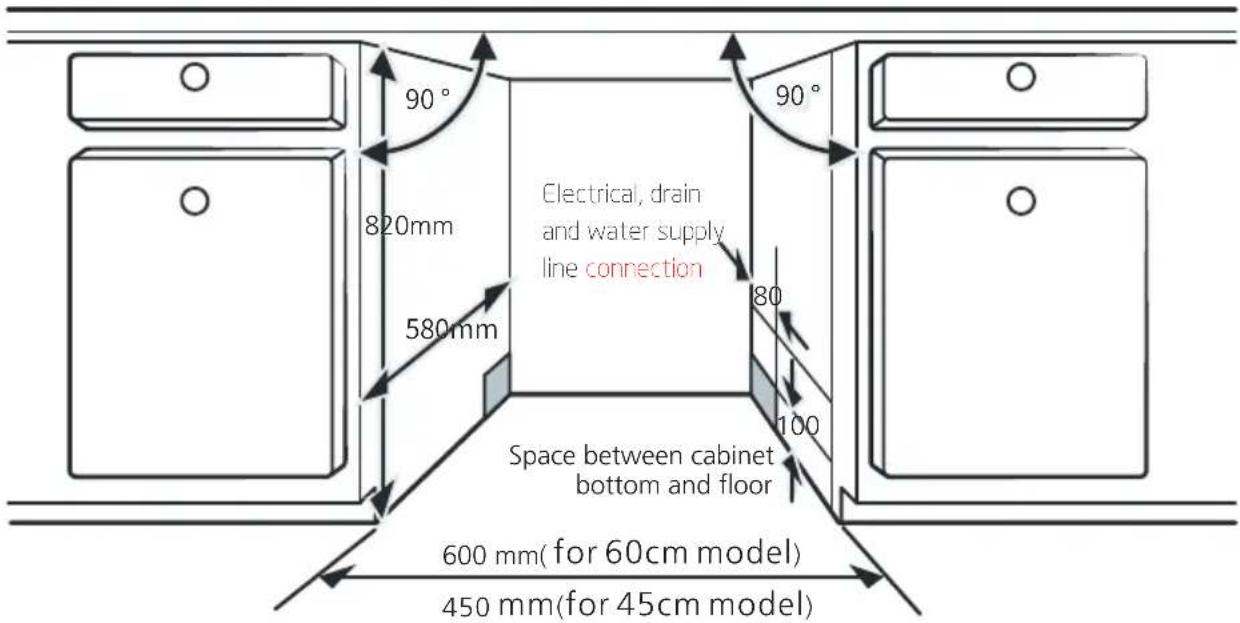

Illustrations of cabinet dimensions and installation position of the dishwasher.

1. Less than 5 mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

90° 820mm 580mm Electrical, drain and water supply line connection 90° 80 100 Space between cabinet bottom and floor 600 mm( for 60cm model ) 450 mm(for 45cm model )

1. If dishwasher is installed corner of the cabinet, there should be some space when the door is opened.

CabinetDishwasher

Door of dishwasher

Minimum space of 50mm

NOTE:

Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.

TROUBLESHOOTING TIPS

Before Calling For Service

Reviewing the charts on the following pages may save you from calling for service.

Problem Possible Causes What To Do
Dishwasher doesn't start	Fuse blown, or the circuit break tripped.	Replace fuse or reset circuit breaker.Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
Water not pumped form dishwasher	Twisted or trapped drain hose.	Check the drain hose.
	Filter clogged.	Check .the filter system
	Kitchen sink clogged.	Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining, you may need a plumber rather than a serviceman for dishwashers.
Foam in the tub Wrong detergent.		Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 liter of cold water to the bottom of the dishwasher.Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared.Repeat if necessary.

Problem Possible Causes What To Do

	Spilled .rinse aid Always wipe up spills rinse aid immediately.
Stained tub interior Detergent with colourant may have been used.		Make sure that the detergent has no colourant.
White film on inside surface	Hard water minerals. To clean the interior, use the damp soft cloth with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
	A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.	Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt.
	The lid of the softer is loose.	Check the softener lid is secure.
Knocking noise in the dishwasher	A spray arm is knocking against an item in a basket	Interrupt the program and rearrange the items which are obstructing the spray arm.
Rattling noise in the dishwasher	Items of crockery are loose in the dishwasher.	Interrupt the program and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function. If in doubt, contact a qualified plumber.
The dishes are not clean	The dishes were not loaded correctly.	See PART II “Preparing And Loading Dishes”.
	The program was not powerful enough.	Select a more intensive program.
Problem Possible Causes What To Do
The dishes are not clean.	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Items are blocking the movement of the spray arms.	Rearrange the items so that the spray can rotate freely.
	The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter correctly. Clean the spray arm jets.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
White spots appear on dishes and glasses.	Hard water area can cause limescale deposits.	Check water softener settings or fill status of salt container.
Black or grey marks on dishes	Aluminium utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser	Dishes block detergent dispenser	Re-loading the dishes properly.
The dishes aren't drying	Improper loading	Use gloves if detergent residue can be found on dishes to avoid skin irritations.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.

Problem

The dishes aren't drying

Possible Causes What To Do

Wrong program has been selected.

With a short program, the washing temperature is lower, decreasing cleaning performance. Choose a program with a long washing time.

Use of cutlery with a low-quality coating.

Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Self-repair or non-professional repair may cause serious risks to the safety of the user of the appliance and impact warranty.

Availability Of Spare Parts

Seven years after placing the last unit of the model on the market:

Motor, circulation and drain pump, heaters and heating elements, including heat pumps (separately or bundled), piping and related equipment including all hoses, valves, filters and aqua stops, structural and interior parts related to door assemblies (separately or bundled), printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software.

Ten years after placing the last unit of the model on the market:

Door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids.

LOADING THE BASKETS ACCORDING TO EN60436:

Loading the dishwasher to its full capacity will contribute to energy and water savings.

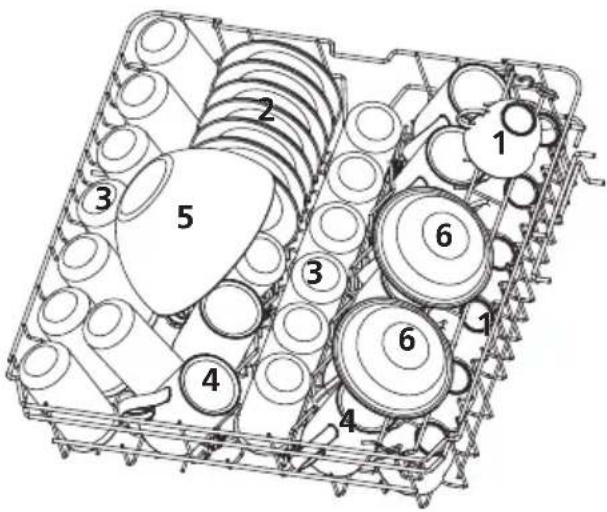

1. Upper basket:

Technical diagram of a mechanical assembly with numbered components for identification

Number	Item
1	Cups
2	Saucers
3	Glasses
4	Mugs
5	Glass bowl
6	Dessert bowls

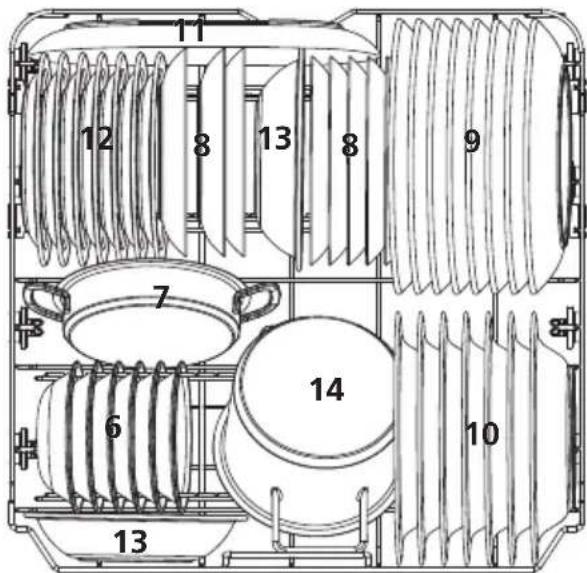

2. Lower basket:

12 8 13 8 9 7 6 14 10 13

Number	Item
7	Oven pot
8	Dessert plates
9	Dinner plates
10	Soup plates
11	Oval platter
12	Melamine dessert plates
13	Melamine bowls
14	Small pot

3.Cutlery rack:

37
6
3
5
2
2
1
1
2
2
6
4
3
8

1 32 6 4 5 7 8
1 Soup spoons
Information for comparability
2 Forks
tests in accordance with EN60436
3 Knives
Capacity: 15 place settings
4 Tea spoons
Position of the upper basket: lower position
5 Dessert spoons
Program: ECO
6 Serving spoons
Rinse aid setting: Max
7 Serving fork
Softener setting: H3
8 Gravy ladle

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Dishwasher

Instruction Manual

PART II: Special Version

CONTENTS

01

4 USING YOUR DISHWASHER

4 Control Panel

7 Water Softener

8 Preparing And Loading Dishes

11 Function Of The Rinse Aid And Detergent

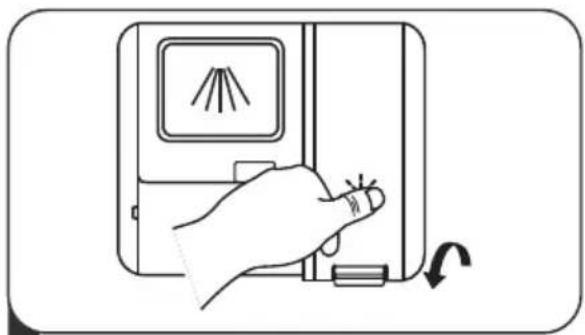

12 Filling The Rinse Aid Reservoir

13 Filling The Detergent Dispenser

14 PROGRAMD SELECTION

02

14 Wash Cycle Table

16 Saving Energy

16 Starting A Program

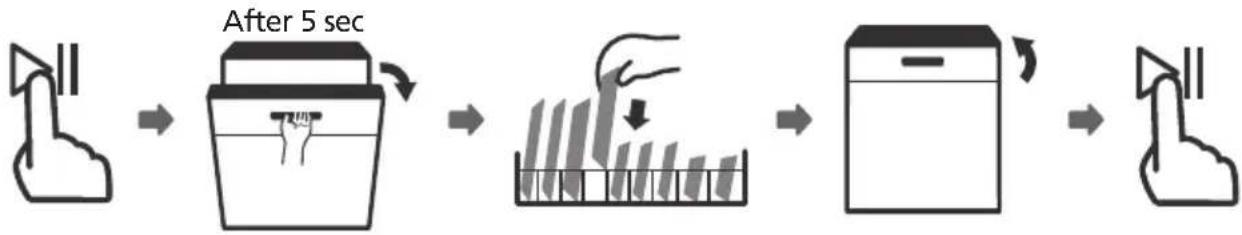

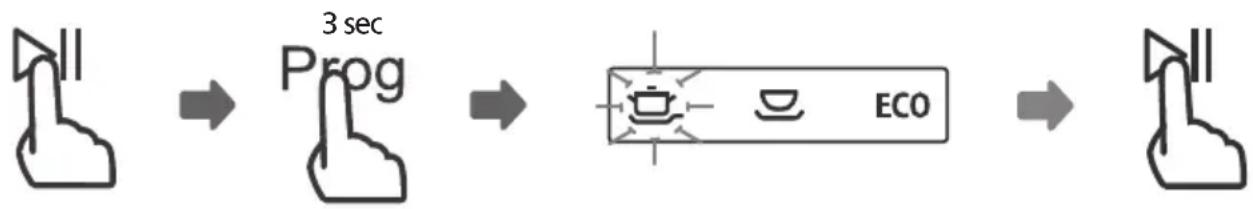

16 Changing The Program Mid-cycle

17 Forget To Add A Dish?

17 Auto Open

03

18 ERROR CODES

18 USAGE COUNTER

04

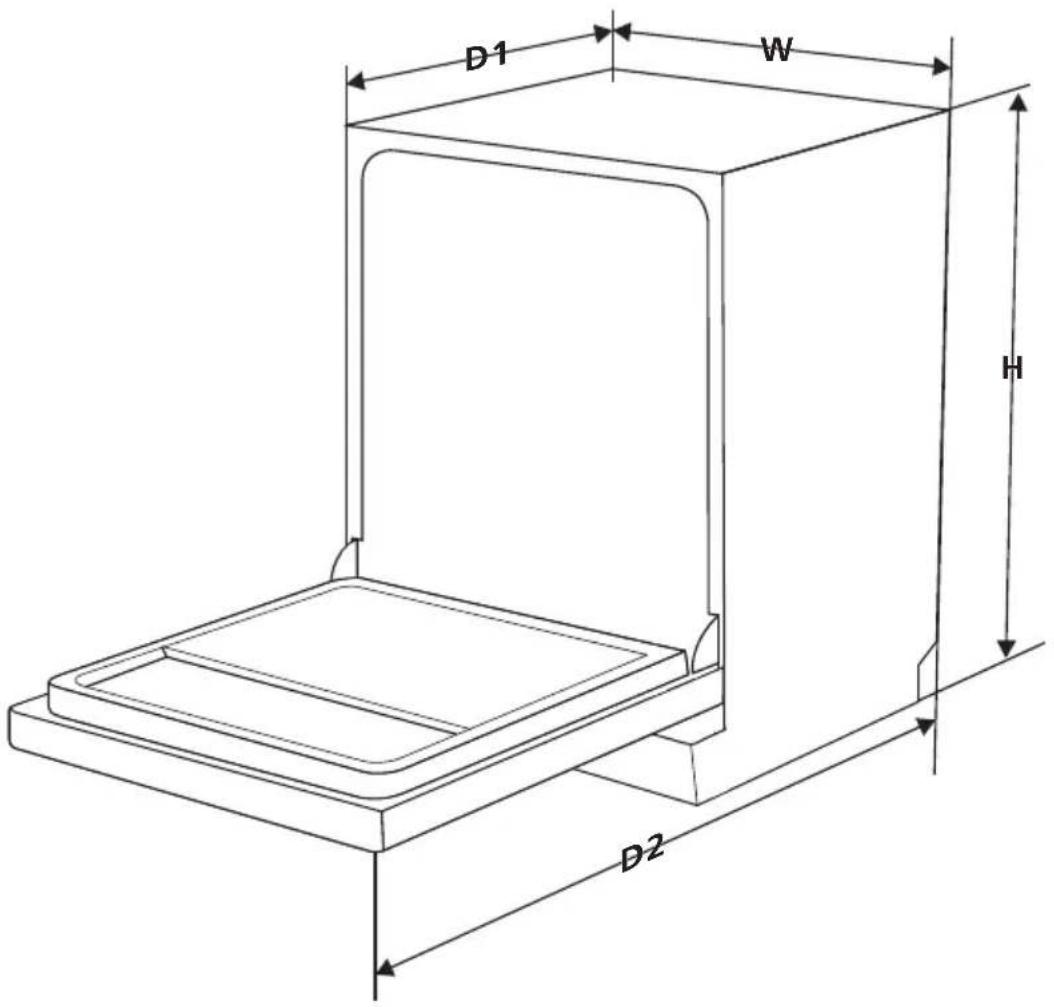

19 TECHNICAL INFORMATION

NOTE:

• If you cannot solve the problems by yourself, please ask for help from a professional technician.
• The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
• If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

QUICK USER GUIDE

Please read the corresponding content on the instruction manual for detailed operating method.

Pure diagram of a water supply system with a tank and pipe, no text or symbols present

1 Install the dishwasher

(Please check the section 5 "INSTALLATION INSTRUCTION")

of PART I : Generic Version.)

Simple line drawing of a fish and a bowl on a surface, no text or symbols present

2 Remove larger residue from dishes. Avoid pre-rinsing.

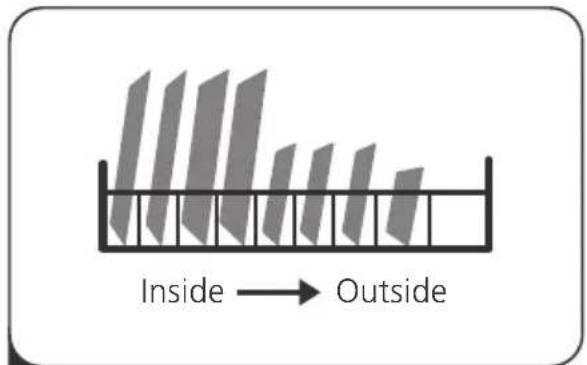

Inside → Outside

3 Load the baskets.

Illustration of a hand pouring liquid into a washing machine (no text or symbols)

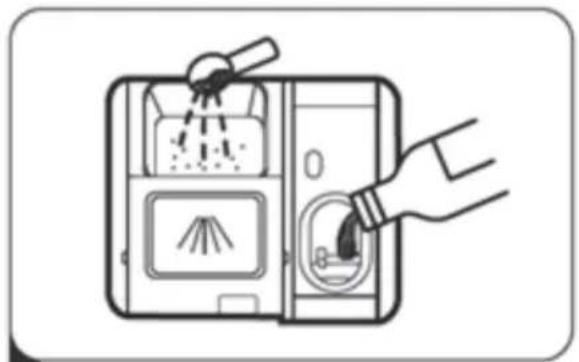

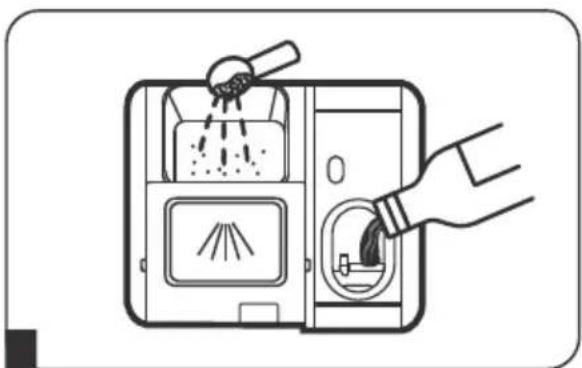

4 Fill the dispenser with detergent and rinse aid.

Simple line drawing of a refrigerator with sound waves (no text or symbols)

5 Select a suitable program and start the dishwasher.

USING YOUR DISHWASHER

Control Panel

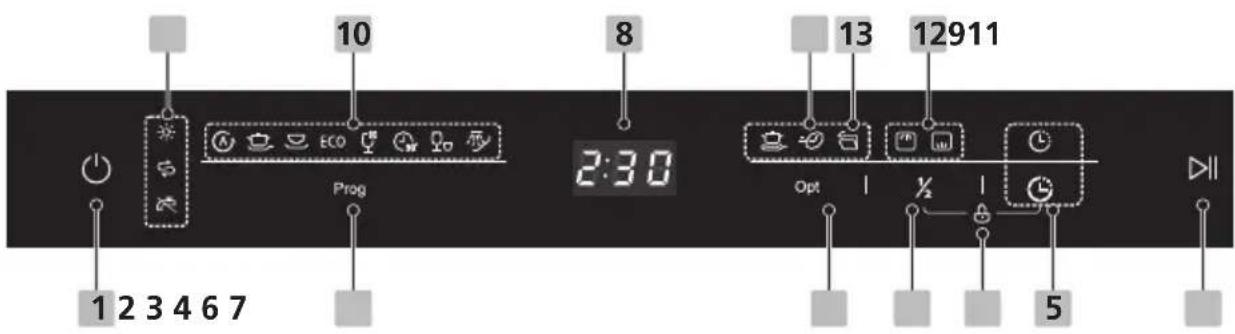

10 8 13 12911 Prog 2:30 Opt % 5 1 2 3 4 6 7 5

Operation (Button)

1 Power	Press this button to turn on the dishwasher, the screen lights up.
2 Program	Select the appropriate washing program and corresponding indicator will be lit.
3 Function	Press the button to select a function, corresponding indicator will be lit.
4 Alt	Press the button to select either upper basket or lower basket loaded, and the response indicator will be lit.
5 Delay	Press the button to increase the delay start time. Delay a cycle for up to 24 hours in one-hour increments. After setting the delay time, press the Start/Pause button to start.
6 Child lock	This option allows you to lock the buttons on the control panel, so children cannot accidentally start the dishwasher by pressing the buttons on the panel. Only the Power button remains active. To lock or unlock the buttons on the control panel, press and hold the Alt button+ Delay button for 3 seconds simultaneously.
■ Start/Pause7	To start the selected washing program or pause it when the dishwasher is working.

Display

8 Screen	To show the , delay time, remaining program time error code etc.
9 Warning icon	※ Rinse AidIf the “※” icon is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill.⇨ SaltIf the “⇨” icon is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled.⇨ Water FaucetIf the “⇨” icon is lit, it means the water faucet closed.
10 Program icon	A AutoFor lightly, normally or heavily soiled crockery with or without dried-on food.⇨ IntensiveFor heavily soiled items include pots and pans. ith dried on food.⇨ 5niversalFor normally soiled loads, such as pots, plates, glasses and lightly soiled pans.ECO E!)This is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.⇨ 4lassFor lightly soiled crockery and glass.⇨ 67 minFor normally soiled loads that need 3uick wash.⇨ RapidA shorter wash for lightly soiled loads that do not need drying.⇨ SoakTo rinse dishes that you plan to wash later that day.
11 Function icon	Strong washFor very dirty and hard to clean dishes. ( It can only be used with Intensive, universal, ECO, Glass, 90 min ) ExpressReduce the program time. ( It can only be used with Intensive, universal, ECO, Glass, 90 min)
12 Alt icon	UpperWhen you select Upper, only the upper rack nozzle is activated.The lower nozzle will not work. LowerWhen you select Lower, only the lower rack nozzle is activated. The upper nozzle will not work.
13 Auto open	Auto openAfter washing, the door will open automatically to achieve better drying effect.( It can be only used with Auto, Intensive, Universal, ECO, Glass, 90 min)Press and hold the Function button for 3 seconds to open or cancel this function. When the icon lights up, the function of Auto open is selected.

Strong wash

Express

Upper

Lower

Auto open

Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The more minerals there are, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area.

Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting salt consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Close the door, switch on the appliance;
2. Within 60 seconds after the appliance was switched on press the Program button for more than 5 seconds to enter the water softener setting mode.

the aid indication blinks as 1Hz frequencysalt

1. Press the Program button again to select the proper set according to your local environment, the setting will change in the following sequence:

$$ \mathrm{H} 3 - > \mathrm{H} 4 - > \mathrm{H} 5 - > \mathrm{H} 6 - > \mathrm{H} 1 - > \mathrm{H} 2 - > \mathrm{H} 3.; $$

1. Without operation in 5 seconds or press the Power button to complete the setup and exit the setting mode

WATER HARDNESS

German dH	French fH	British Clarke	Mmol/l	Water softner level	every X program sequence1)	Salt consumption (gram/cycle)
0 - 5	0 - 9	0 - 6	0 - 0.94	H1	No regeneration	0
6 - 11	10 - 20	7 - 14	1.0 - 2.0	H2	10	9
12 - 17	21 - 30	15 - 21	2.1 - 3.0	H3	5	12
18 - 22	31 - 40	22 - 28	3.1 - 4.0	H4	3	20
23 - 34	41 - 60	29 - 42	4.1 - 6.0	H5	2	30
35 - 55	61 - 98	43 - 69	6.1 - 9.8	H6	1	60

^1 dH=1.25 ^ Clarke=1.78 ^ fH=0.178mmol/l

The setting: H3factory

1) Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy consumption increases by 0.02 kWh and the program extends by 4 minutes.

Please check the section 3 "Loading The Salt Into The Softener" of PART I: Generic Version, If your dishwasher lacks salt.

NOTE:

If your model does not have any water softener, you may skip this section. Water Softener

Scanned document with four rows of text blocks, likely a form or template with checkboxes and a central label 'q'.

Preparing And Loading Dishes

• C
• &
•

For washing the following cutlery/dishes

Are not suitable

C
•
- ○
B
•
C
• "☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☑
W□□□□□□□□□□□□□
•

Are of limited suitability

• "☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☑
• "☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☑
G□z□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□q□□□□□□

Recommendations for loading the dishwasher

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water.

For best performance of the dishwasher, follow these loading guidelines.

(Features and appearance of baskets and cutlery baskets may vary from your model.)

Place objects in the dishwasher in following way:

• Items such as cups, glasses, pots/pans, etc. are faced downwards.
• Curved items, or ones with recesses, should be loaded aslant so that water can run off.
• All utensils are stacked securely and can not tip over.
• All utensils are placed in the way that the spray arms can rotate freely during washing.
• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
  • To avoid damage, glasses should not touch one another.
• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.
• Long bladed knives stored in an upright position are a potential hazard!
• Long and / or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

NOTE:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Removing the dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket.

WARNING

Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended.

Loading the upper basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Technical line drawing of a mechanical component with rollers and housing (no text or symbols)

Loading the lower basket

We suggest that you place large and difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it.

Pure geometric line drawing of a vertical structure with parallel planes, no text or symbols present

Loading the cutlery basket

Cutlery should be placed in the cutlery basket separate from each other in the appropriate positions. Avoid nesting of the cutlery to prevent insufficient cleaning performance.

WARNING

Circular diagram with grid lines and a crossed X symbol (no text or labels)

Do not let any item extend through the bottom.

Always load sharp utensils with the sharp point down!

For the best washing effect, please load the baskets refer to standard loading options on last section of PART I : Generic Version

Function Of The Rinse Aid And Detergent

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

WARNING

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to refill the rinse aid

The regularity of the dispenser needing to be refilled depends on how often dishes are washed and the rinse aid setting used.

• The Low Rinse Aid indicator ( ✉ ) will be lit when more rinse aid is needed.
• Do not overfill the rinse aid dispenser.

Function of detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

WARNING

- Proper Use of Detergent Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry. Do not fill detergent into the dispenser until you are ready to start the dishwasher.

Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

Filling The Rinse Aid Reservoir

Line drawing of a device with a screen and door, showing a lightning bolt and directional arrow (no text or symbols)

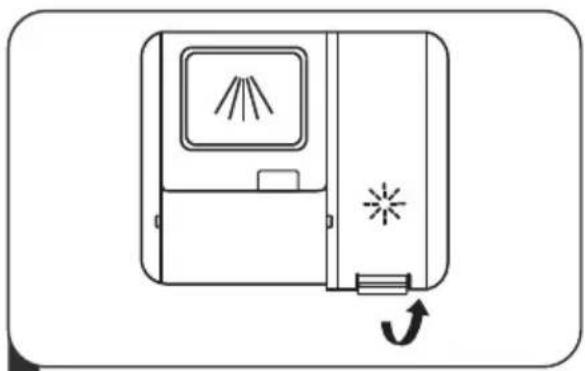

1 Remove the rinse reservoir cap by lifting up the handle.

Line drawing of a hand inserting a device into a device with a screen and plug (no text or symbols)

Line drawing of a hand pressing down on a device with a slide and scroll (no text or symbols)

3 Close the cap after all.

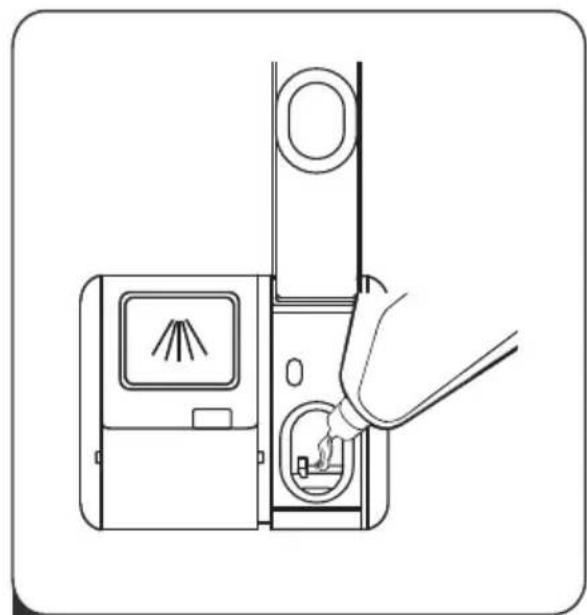

2 Pour the rinse aid into the dispenser, being careful not to overfill.

Adjusting the rinse aid reservoir

To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps.

1. Close the door, switch on the appliance.
2. Within 60 seconds after the appliance was switched on press the Program button for more than 5 seconds, and then press the Delay button to enter the set model, the rinse aid indication blinks as 1Hz frequency.
3. Press the Program button again to select the proper set according to your using habits, the setting will change in the following sequence: d3->d4->d5->d1->d2->d3. The higher the number, the more rinse aid the dishwasher uses.
4. Without operation in 5 seconds or press the Power button to complete the setup and exit the .setting mode

Filling The Detergent Dispenser

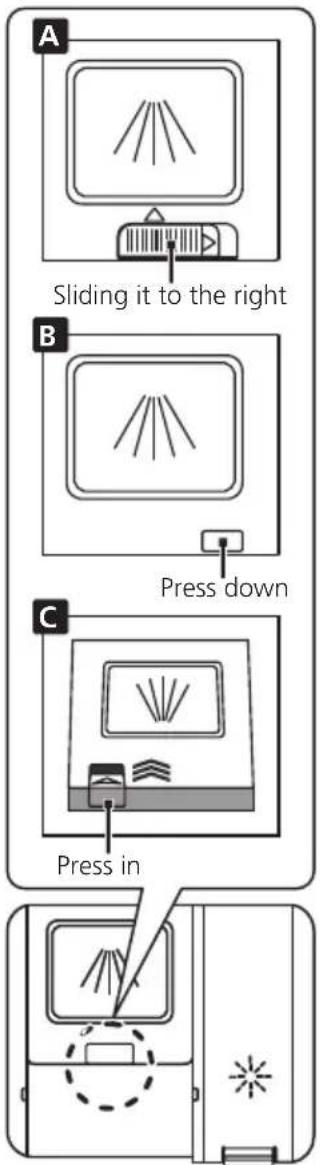

Three ways to open the cover:

A Sliding it to the right B Press down C Press in

1 Please choose an open way according to the actual situation.

A. Open the cap by sliding the release latch.

B. Open the cap by pressing down the release latch.

C. Open the cap by pressing in the release latch.

NOTE:

Please observe the manufacturer's recommendations on the detergent packaging.

Technical diagram showing two methods of a grinding or processing process: method A is using a tool with material, method B is using a tool on a sample.

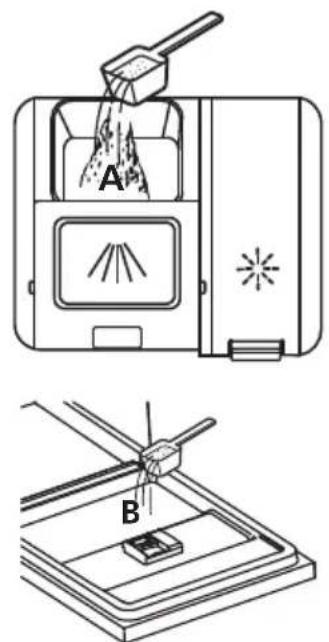

2 Add detergent into the larger cavity (A)

For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door. The additional detergent will activate during the pre-wash phase.

Diagram of a device with a screen and directional arrow, no text or symbols present

3 Close the flap by sliding it to the front and then pressing it down.

PROGRAM SELECTION

Wash Cycle Table

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. Consumption values and program duration are only indicative except for ECO program.

(●) indicates that the program uses rinse aid in the last rinse.

Program	Description Of Cycle	Detergent Pre/Main Wash	Running Time(min)	Energy (h)	Water (kW)	Rinse Aid
Auto	Pre-wash (45 °C)
	Autowash(55-65 °C)	4/19g
	Rinse	1 or 2 tabs	85-150	0.850~1.550	8.5~18.7	●
	Rinse(50~55 °C)
	Drying
Intensive	Pre-wash(50°C)
	Wash(65°C)
	Rinse	4/19g
	Rinse	1 or 2 tabs	205	1.615	18.6	●
	Rinse(60°C)
	Drying
Universal	Pre-wash(45°C)
	Wash(55°C)
	Rinse	4/19g
	Rinse(55°C)	1 or 2 tabs	175	1.230	14.8	●
	Drying
ECO (*EN60436)	Wash(50°C)
	Rinse	23g
	Rinse(45°C)	1 or 2 tabs	220	0.758	9.8	●
	Drying
Glass	Prewash
	Wash(50°C)
	Rinse(50°C)	4/19g
	Rinse(50°C)	1 or 2 tabs	120 0.995		14.8	●
	Drying
90 min	Wash(60°C)
	Rinse	23g
	Rinse(50°C)	1 or 2 tabs	90	1.180	11.9	●
	Drying
Program	Description Of Cycle	Detergent Pre/Mainwash	Running Time(min)	Energy (kWh)	Water (L)	Rinse Aid
	Wash(45°C)	12g	30W0.820W11.3			○
Rapid	Rinse(45°C)
	Prewash		15	0.018	4.1	○
Soak

NOTE:

ECO : The ECO program is suitable to clean normally soiled tableware, that (*EN60436) for this use, it is the most efficient program in terms of its combined energy and water consumption, and it is used to assess compliance with the EU ecodesign legislation.

Saving Energy

1. Pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.
2. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions.

Starting A Program

1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page "Product fiche". Make sure that the water supply is turned on to full pressure.
4. Close the door, press the Power button, to switch on the machine.
5. Choose a program, the response light will turn on. Then press the Start/Pause button, the dishwasher will start its cycle.

Changing The Program Mid-cycle

A program can only be changed if it has been running only for a short period of time, otherwise the detergent may have already been released or the wash water with detergent has already been drained. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Press the Start/Pause button to pause the washing.
2. Press Program button more than three seconds the machine will be in .program selection mode
3. Press the Program button to select the desired program.
4. Press the Start/Pause button, the dishwasher will continued to run.

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1 Press the Start/Pause button to pause the washing.
1 After the spray arms stopped working, you can open the door completely.
□1 Add the forgotten dishes.
31 Close the door.
☐1 Press the Start/Pause button, the dishwasher will continued to run after 10 seconds.

!

Simple line drawing of a box with a lid and handle (no text or symbols)

It is dangerous to open the door mid-cycle, as hot steam may scald you.

Auto Open Door

The dishwasher door opens automatically at the end of some programs. When the door opens it does not mean that the program is finished. There is still time to dry. At the end of this remaining time a beep sounds indicating that your program is now finished. (If the dishwasher is built-in the surrounding furnishings must be resistant to any condensation.)

Simple line drawing of a bin with a downward arrow indicating rotation (no text or symbols)

NOTE:

The dishwasher door must not be blocked when set to open automatically. This can disrupt door lock functionality.

ERROR CODES

If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes.

Codes	Meanings	Possible Causes
E1	Longer inlet time.	Faucets is not opened, or water intake is restricted, or water pressure is too low.
E3	Not reaching required temperature.	Malfunction of heating element.
E4	Overflow.	Some element of dishwasher leaks.
E8	Failure of orientation of distributary valve.	Open circuit or break of distributary valve.
Ed	Failure of communication between main circuit board with display circuit board.	Open circuit or break wiring for the communication.

WARNING

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.
• If there is an error code that cannot be solved, please request professional assistance.

USAGE COUNTER

When the power cord is connected, but the dishwasher is not turned on, close the door, press and hold the Delay button for 5 seconds, the dishwasher display will show the usage count.

for 5 Sec.

for 632 2 Sec.

for 9080 2 Sec.

Example:

632: Show "000" for two seconds, then show "632" for two seconds, at last it will be off. 9080: Show "009" for two seconds, then show "080" for two seconds, at last it will be off.

TECHNICAL INFORMATION

D1 W H D2

Height (H)	845mm
Width (W)	598mm
Depth (D1)	600mm (with the door closed)
Depth (D2)	1175mm (with the door opened 90° )

DATABASE ACCESS

In order to access to your model information stored in the product database, as set out in Regulation (EU) 2019/2017 and relating to energy labelling, please log on to the website: https://eprel.ec.europa.eu/

Look for the reference of your product on the website by putting the service reference that is indicated on your product rating plate.

Another means to access this information is to flash the "QR" code on the energy label of your product.

EN After Sales Service:

Any maintenance on your equipment should be undertaken by:

-Either your dealer,

-Or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

INFORMATION

The minimum period of availability of spare parts listed in the European Regulation 2019-2022-EU and accessible in particular to the user of the appliance, is 10 years under the conditions layed down in the same regulation.

Brandt

Underwater view of bubbles rising from a surface with water flowing through (no text or symbols)

MANUEL D'INSTRUCTIONS FR

Lave-vaisselle

BF3534CW

BF3534CX

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Lave-vaisselle

Mode d'emploi

Symbol of a trash bin with no text or numbers, crossed by two diagonal lines and a solid black rectangle below (no text or symbols present)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Diagram illustrating the process of a mechanical device with labeled parts and directional arrows indicating assembly steps.

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Diagram of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Mechanical assembly diagram showing a tracked vehicle with two circular components and a hand adjusting a tool (no text or symbols present)

Diagram showing two stages of a structural framework with circular elements, one before and one after rotation (no text or symbols)

Rabattre les tiges

Coarse filter Main filter Fine filter

2

Line drawing of a hand using a tool to clean or wash a surface, with no text or symbols present.

3

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or symbols)

4

Technical illustration of a biplane with internal components and directional arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component inside a transparent tray (no text or symbols visible)

Illustration of hands using a tool to clean or spray water on a kitchen sink (no text or symbols)

Symbolic illustration of a hand with a lightning bolt and smoke trail (no text or numbers)

Diagram showing a hand operating a tool with an inset close-up of the handle (no text or symbols)

Line drawing of a simple kitchen counter with a grid-patterned wall and an arrow indicating a component (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely a gear or housing component.

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Lave-vaisselle

Mode d'emploi

Technical line drawing of a kitchen sink with piping and a control valve (no text or symbols)

Simple line drawing of a fish and a circular object above a surface, with no text or symbols present.

Diagram of a device with a hand inserting a plug into a container, showing internal components and wiring (no text or symbols)

Simple line drawing of a kitchen appliance with sound waves (no text or symbols)

Technical line drawing of a mechanical component with gears and shafts (no text or symbols)

Pure diagram of vertical supports arranged in a grid-like pattern without any text, numbers, or symbols

Line drawing of a door with a window and starburst symbol, no text or labels present

Line drawing of a hand pressing down on a device with a slide and scroll, showing no text or symbols.

Line drawing of a hand inserting a device into a device with a fan-like icon (no text or symbols)

Technical diagram showing two methods of a device with labeled components A and B, illustrating mechanical or electrical assembly.

Diagram of a device with a screen and indicator lights, no text or symbols present

AVERTISSEMENT!

Simple line drawing of a box with a lid and handle (no text or symbols)

Simple line drawing of a bin with an arrow indicating rotation (no text or symbols)

REMARQUE :

1- RELATIONS CONSOMMATEURS FRANCE

Technical diagram of a refrigerator with labeled components and control panel

Underwater view of bubbles rising from a surface, with water and ice in the background (no text or symbols)

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Simple line drawing of a salt being poured into a funnel (no text or symbols)

Abstract geometric pattern with vertical bars and a horizontal bar (no text or symbols)

Interior → Exterior

Diagram showing a hand pouring liquid into a device with a bag, next to a washing machine (no text or symbols)

Pure mechanical diagram showing two connected components with no text or symbols

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Diagram illustrating the process of cooling a machine fan, showing step-by-step cooling steps with labeled components.

Diagram of a multi-level cart with wheels and an arrow indicating motion (no text or symbols)

2 Retire la bandeja superior

Technical line drawing of a mechanical cart with wheels and a directional arrow (no text or symbols)

Diagram of a robotic platform with chains and sensors, no text or symbols present

Illustration of a tracked vehicle with a hand adjusting a component, showing no text or symbols.

Diagram showing two structural components with arrows indicating direction of movement (no text or symbols)

Plegar las varillas

Diagram showing two stages of a mechanical or structural assembly, with no visible text or symbols.

MANTENIMIENTO Y LIMPIEZA

Illustration of a kitchen sink with a hand washing it, no text or symbols present

Diagram of a device interior with internal components and directional arrows, no visible text or symbols

Diagram of an airplane with structural components and a magnified inset showing airflow direction (no text or labels)

Illustration of a hand using a tool to lift a small object into a tray (no text or symbols)

Illustration of a kitchen sink with a hand using a tool to clean or wash the dish (no text or symbols)

Illustration of hands holding a faucet and valve (no text or symbols)

Line drawing of a faucet with handle and valve (no text or symbols)

Diagram showing a hand holding a tool with an arrow indicating motion, no text or symbols present

Line drawing of a kitchen counter with a grid-patterned wall and an arrow indicating a component (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely a gear or housing component.

Technical diagram of a mechanical device with numbered components for identification

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Pure technical diagram of a mechanical or electrical assembly without any text, numbers, or symbols

Simple line drawing of a fish on a surface with a magnifying glass above it (no text or symbols)

Interior → Exterior

3

Illustration of a hand inserting a plug into a device with a cloth inside, showing internal components (no text or symbols)

Simple line drawing of a refrigerator with sound waves (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure diagram of vertical slats arranged in a grid pattern without any text, numbers, or symbols

Line drawing of a door with a screen and starburst symbol, no text or labels present

Line drawing of a device with a handle inserting into a slot (no text or symbols)

Line drawing of a hand pressing down on a device with a scroll icon and arrow indicating rotation (no text or symbols)

Three ways to open the cover:

A

Gire a la derecha

B

Pulse

Press in

ADVERTENCIA

Simple line drawing of a box with a lid and handle (no text or symbols)

https://eprel.ec.europa.eu/

Technical diagram showing a mechanical component with an inset close-up view highlighting a feature labeled '主轴' (main shaft).

SINEMA SINEMA 2.000V, 1500V - - - - - - CE SINEMA SINEMA 2.000V, 1500V - - - - - - SINEMA SINEMA 2.000V, 1500V - - - - - - CE SINEMA SINEMA 2.000V, 1500V - - - - - - - CE SINEMA SINEMA 2.000V, 1500V - - - - - - - CE SINEMA SINEMA 2.000V, 1500V - - - - - - - CE SINEMA SINEMA 2.000V, 1500V - - - - - - - CE
