USER MANUAL XT 510TR Texas

XT Series - LMT Series

460 - 460TR - 465TR/E - 510TR - 515TR/E

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

ID

Technical diagram of a lawn mower with labeled components and exploded view, including parts like motors, sensors, and wiring.

M1

Line drawing of a lawn mower with attached tool and handle (no text or symbols)

M2

Technical line drawing of a mechanical assembly with green components, showing front and side views (no text or symbols)

M3

Technical diagram illustrating car seatbelting and safety warning, showing four steps with green arrows indicating warnings.

M7
123

Technical line drawing of a vehicle chassis with front wheel, side panels, and green component inset (no text or symbols)

Technical line drawing of a vehicle front view with gear and parking area (no text or symbols)

Technical line drawing of a tractor with visible blades, wheels, and a green cover (no text or symbols)

F1

Technical line drawing of a mechanical component with a green bracket and circular features (no text or symbols)

F2

Line drawing of a mechanical device with a hand pointing to a green button (no text or symbols)

3D diagram of a curved mechanical component with green highlighted section and black arrow indicating direction (no text or symbols)

Diagram of a green tool inserted into a car door, showing a hand positioning the handle (no text or symbols present)

3D diagram of a green curved structure with directional arrows, no text or symbols present

F3

A5

DK
Læs betjenings-vejledningen grundigt før maskinen benyttes	Benyt hørevæm og sikkerheds-briller	Advarsel:Sikkerheds-information omkring situationer der kan ende i personskade	Advarsel:Pas på flyvende objector	Brug ikke på skråninger over 22°	Rør ikke roterende dele
GB
Please read the user manual carefully before operating the machine.	Always wear eye and ear protection.	Warning:Safety information about hazards that can result in personal injury	Warning:Pay attention to thrown objects	Do not use on hills above 22°	Do not touch rotating parts
D
Bitte lesen Sie das Benutzerhandbuch aufmerksam durch, bevor Sie den Maschinen in Betrieb nehmen.	Tragen Sie immer Auge und Ohr Schutz.	Warnung:Sicheheits-informationen über Situationen die Personschaden verursachen können	Warnung:Achten Sie auf rotierende Messer!	Nicht auf Steigungen über 22 Grad verwenden!	Sich bewegende Teile nicht berühren
RO
Cititi cu atentie manualul de instructiuni inainte de utilizarea echipamentului.	Intotdeauna purtati ochelari si casti de protectie.	Avertisment:Informatii de siguranta despre pericolele care pot cauza ranirea grava	Avertisment:Aveti grija la obiectele aruncate.	Nu utilizati echipamentul pe dealuri cu un grad de inclinatie mai mare de 22°	Nu atingeti piesele rotative
IT
Leggere attentamente il manuale d'uso prima di utilizzare la macchina..	Indossare sempre protezioni per occhi e orecchie.	Attenzione:Onformazioni di sicurezza relativamente a pericoli che possono portare a danni personali.	Attenzione:Fare attenzione a lanciare Oggetti	Non utilizzare su terreni con pendenza superiore a 22°	Non toccare le parti rotanti
T
Lütfen makineyi kullanmadan önce kullanıcı el kitabını dikkatlice okuyunuz.	Daima göz ve kulak koruyucu ekipman kullanınız.	Uyan:Kişisel yaralamalara sebebiyet verebilecek tehlikeler hakkında güvenlik bigileri.	Uyarı:Atlmış Nesnelere Dikkat edin.	22° 'den fazla eğimli arazilerde kullanmayınız.	Dönen parçalara dokunmayın.
	DK
Fjern tændrørshætten fra tændrører før service eller reparation	Stop maskinen før oprydning	Hold afstand til personer, børn og dyr	Advarsel:Klingen er skarp, rør ikke ved knivbladet	Indsæt ikke hænder eller fødder under klipperskjoldet	Advarsel:Brug kun korrekt værktøj og reservedele
GB
Remove the spark plug cap from the spark plug before service or repair	Stop the engine before cleaning of work area	Keep distance to other people, children and animals	Warning:The blade is sharp, do not touch the knife	Do not place hands or feet under cutting deck	Warning:Always use correct tools and original spare parts
	D
Vor Service oder Reparatur: Zündkerzenstecker abziehen!	Motor abschalten vor der Reinigung des Messers	Halten Sie Abstand zu anderen Personen, Kindern und Tieren!	Warnung:Messer ist scharf!Nicht berühren!	Füße und Hände nicht unter dem Mäher halten!	Warnung:nur Originalteile und bedarfsgerechtes Werkzeug nutzen!
RO
Fjern tændrørshætten fra tændrører før service eller reparation	Stop maskinen før oprydning	Hold afstand til personer, børn og dyr	Advarsel:Klingen er skarp, rør ikke ved knivbladet	Indsæt ikke hænder eller fødder under klipperskjoldet	Advarsel:Brug kun корrekt værktøj og reservedele
	IT
Remove the spark plug cap from the spark plug before service or repair	Stop the engine before cleaning of work area	Keep distance to other people, children and animals	Warning:The blade is sharp, do not touch the knife	Do not place hands or feet under cutting deck	Warning:Always use correct tools and original spare parts
	TR
Vor Service oder Reparatur: Zündkerzenstecker abziehen!	Motor abschalten vor der Reinigung des Messers	Halten Sie Abstand zu anderen Personen, Kindern und Tieren!	Warnung:Messer ist scharf!Nicht berühren!	Füße und Hände nicht unter dem Mäher halten!	Warnung:nur Originalteile und bedarfsgerechtesWerkzeug nutzen!

DK Original brugsanvisning

Illustrationer 2

Advarselssymboler....9

GB Original instructions

Illustrations....2

Warning symbols....9

Safety.... 15

Identification of the parts 16

Mounting 16

Cable Adjustment.... 17

Battery (Electric starter) 17

Operation 17

Water nozzle 18

Oil change 18

Air Filter.... 18

Blade 18

Spark plug....18

Storage and maintenance 19

Warranty terms and conditions.... 19

Technical specifications 62

Troubleshooting 68

EC Certificate of conformity....77

Safety

Setup

Do not put hands or feet near or under rotating parts.

1. Read this manual carefully. Make sure that you are familiar with the different controls, settings and handles of the equipment.

⚠ Know how to stop the unit and ensure that you are familiar with emergency stop.

1. Never allow children or people unfamiliar with these instructions to use the machine. Note, that local regulations can restrict the age of the operator.

If you feel unwell, tired or have consumed alcohol or drugs, do not operate the machine.

Always inspect the machine before usage Ensure that no parts are worn or damaged.

⚠️ Replace worn out or damaged elements and bolts in sets to preserve balance.

The operator of the machine is responsible for people's safety.

⚠️ Never use the machine near children or animals.

The operator of the machine is held liable for any accidents or hazards to other people and their property.

1. Thoroughly inspect the area, where the equipment is to be used, if necessary remove any foreign objects.

Do not refuel gasoline indoors or while the engine is running.

Spilled gasoline is extremely flammable, never refuel while the engine is still hot.

Wipe off any spilled gasoline before starting the engine. Spilled gasoline on a hot engine may cause a fire or explosion!

⚠ Boots with non-slip soles with steel jacket is required. Avoid loose-fitting clothes.

Operation

1. After striking a foreign object, stop the engine immediately, remove the spark plug cap and inspect the machine thoroughly for damage. Repair the damage before continuing.

2. If the machine should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of damage.

3. Always turn off the engine and ensure that all moving parts have come to a complete stop before making any repairs, adjustments, or inspections.

Exercise extreme caution when operating on slopes.

Never operate the machine at a fast pace.

Do not overload machine capacity by attempting to push at too fast a rate.

Do not carry passengers.

Never allow any bystanders in front of unit.

Only operate the machine at daylight or in fully illuminated areas.

⚠ Ensure a stable foothold and always keep a firm hold on the handles. Always walk, never run.

Do not operate the machine when barefoot or wearing sandals.

Exercise extreme caution when changing direction on slopes

Never attempt to make any adjustments, while the engine is running.

Use extreme caution when reversing or pulling the machine backwards

1. Never operate the engine indoor or in areas with low ventilation. The exhaustion from the engine contains carbon monoxide. Failure to observe could result in permanent injury or death.

Due to vibrations from the handle, long time use can result in white fingers. If fatigue is felt in arms, hands or fingers – or visible signs of white fingers is appearing, the work should be stopped immediately and a sufficient time of break should be taken for recovery. To avoid white fingers, each user should operate the machine for no more than 1.5 hours per day.

Gasoline safety

Use extreme care in handling gasoline.

1. Gasoline is extremely flammable and the fumes are explosive. Serious personal injury can occur, when gasoline is spilled on yourself or your clothes. Rinse your skin and change clothes immediately!

Use only an approved gasoline container. Do not use soft drink bottle or similar!

Extinguish all cigarettes, cigars, pipes and other sources of ignition.

Never refuel your machine indoors.

Let the engine cool down before refilling

Never fill the fuel tank to more than 2.5 cm below filler in order to provide space for fuel to expansion.

After refueling, ensure that the cap tighten securely.

Never use the lock-function on the gasoline gun, when refueling.

Do not smoke while refueling.

A. Never refuel gasoline inside a building or where gasoline fumes may get in contact with an ignition source.

4 Keep gasoline and engine away from appliance, pilot lights, barbecues, electric appliances, power tools, etc.

Maintenance and storage

The engine shall be stopped when carrying out maintenance and cleaning operations, when changing tools and when being transported by means other than under its own power.

Check regularly that all bolts and nuts are tightened. Retighten if necessary.

The engine must be completely cooled before storing indoors or covered.

If the machine unused for a period of time, please refer to the instructions in this manual.

Maintain or replace safety and instruction labels, as necessary.

1. Only use original spare parts or accessories. If not original parts or accessories is used, the liability is no longer applied.

Miscellaneous

The motor is not pre-filled with oil.
Always before start check the engine oil level.
Factory-fitted control devices, such as the handle-mounted clutch cable, must not be removed or exposed.
Only drain the fuel tank outdoors. Gasoline is extremely flammable and the fumes are explosive.
⚠ Ensure that the machine is properly secured when transported on a flatbed etc.

Waste electrical products must not be disposed of with the household waste. This tool should be taken to your local recycling centre for safe treatment.

The lawnmower is manufactured according to the latest safety requirements. These include a blade brake that stops the motor and blade in 3 seconds when the blade brake. Every precaution is only effective when it is followed exactly. Use the following description when you mount your lawnmower.

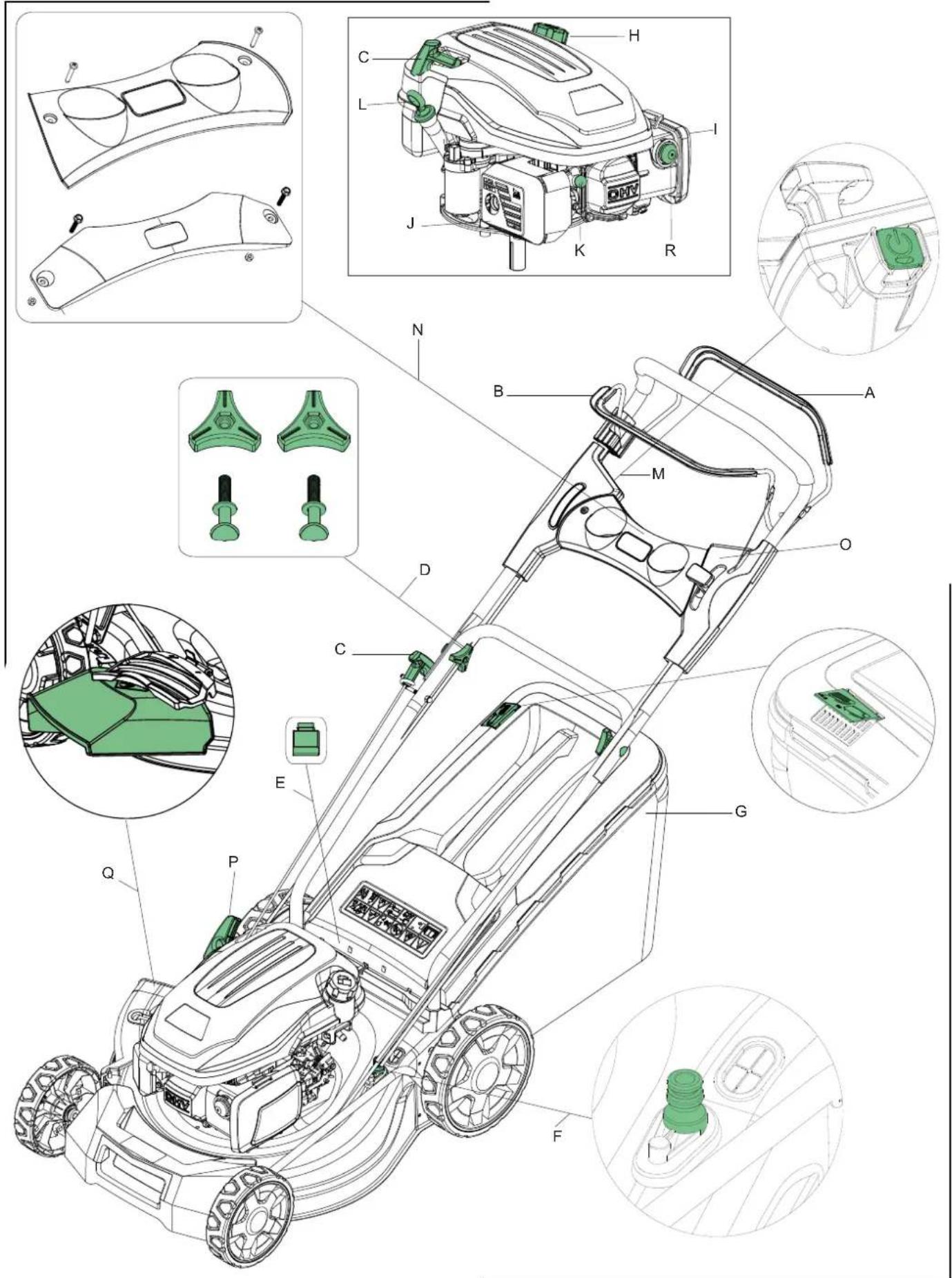

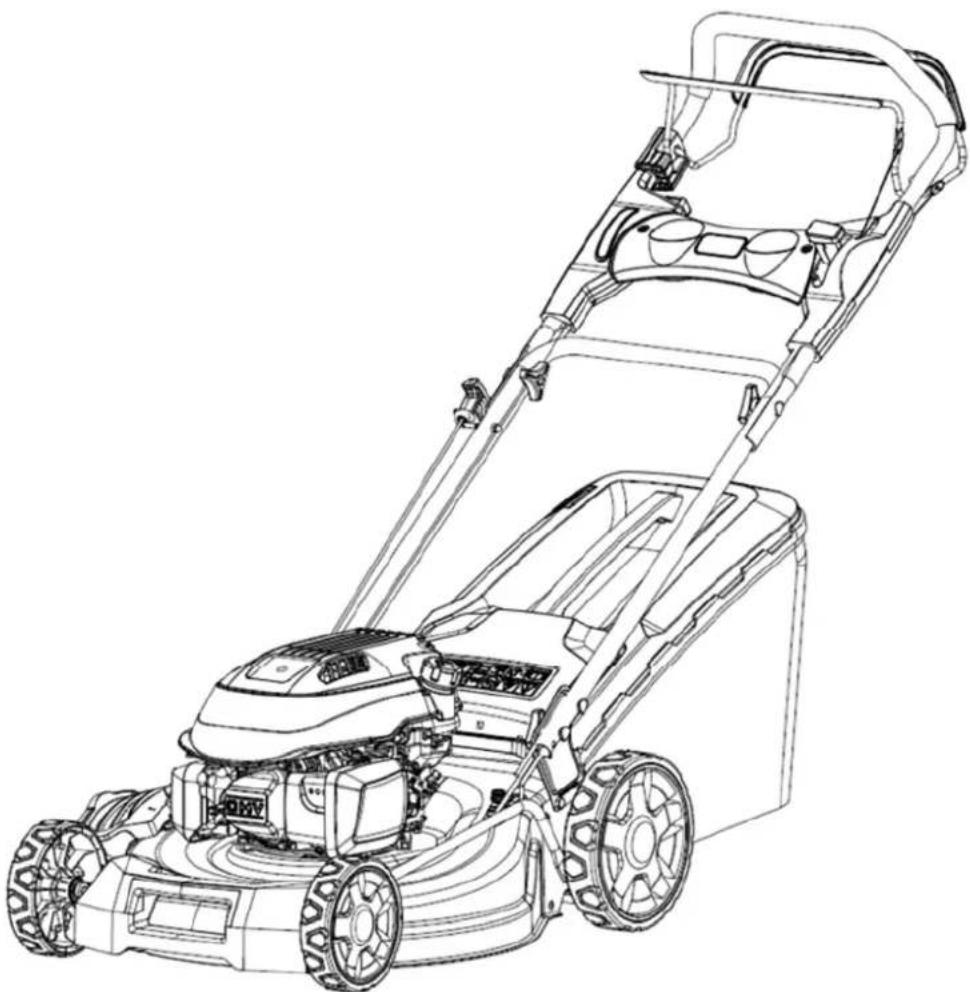

Identification of the parts

See Illustration ID

Notice: the illustrations may vary from your present model

A. Handlebar for drive *
B. Handlebar for engine brake
C. Recoil starter
D. Wing nut
E. Rear discharge guard with spacer block *
F. Water nozzle
G. Grass collector
H. Gasoline filling cap
I. Air Filter
J. Exhaust
K. Spark plug
L. Oil cap
M. Electric starter
N. Panel *
O. Throttle/Choke lever *
P. Height adjustment
Q. Side discharge guard *
R. Primer *

* may vary from your actual model.

Mounting

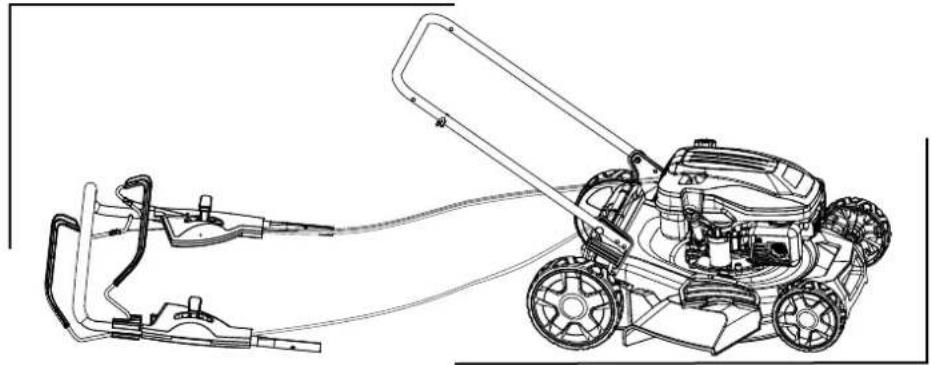

Unpacking: Illustration M1

Remove the mower from the box by pulling the machine out from the side. The box contains:

1 pcs mower

2 pcs wing nut set consisting of wing nuts, bolts and washers. (See ID; D)

1 pcs spacer block (See ID; E)

Warning: Ensure that cables are not pinched.

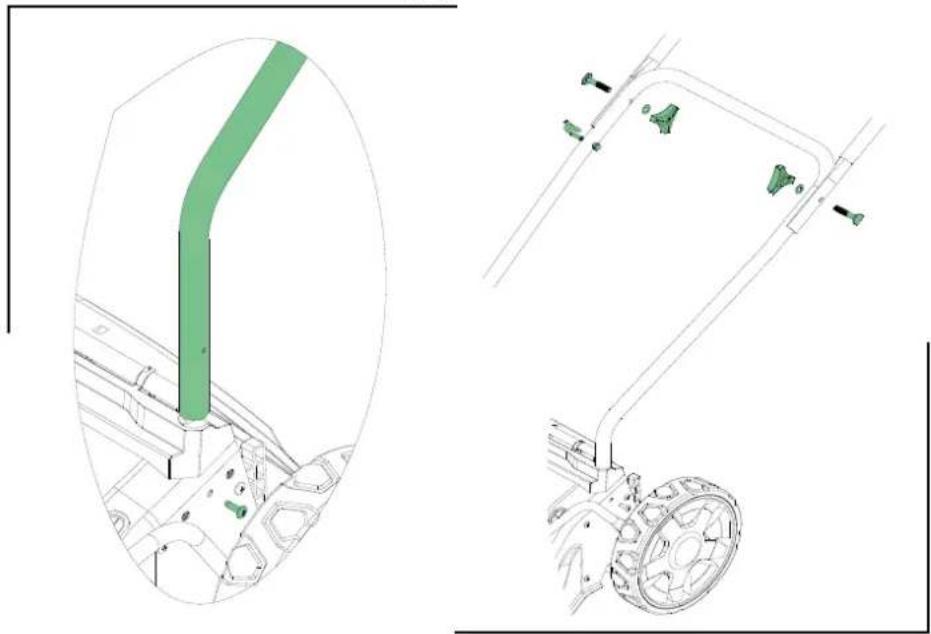

Handlebar and height adjustment: Illustration M2

The handlebars are height adjustable. This means that they can be adjusted so that it best fits you. Before you install the handlebar, it may be a good idea to have decided which height is best for you.

1. Attach the lower handlebar tubes as shown and fasten with screws.
2. Attach the upper handlebar on the lower. Fasten with wing nut from the inside of the handlebar.
3. Customize cable and secure with cable clamp.

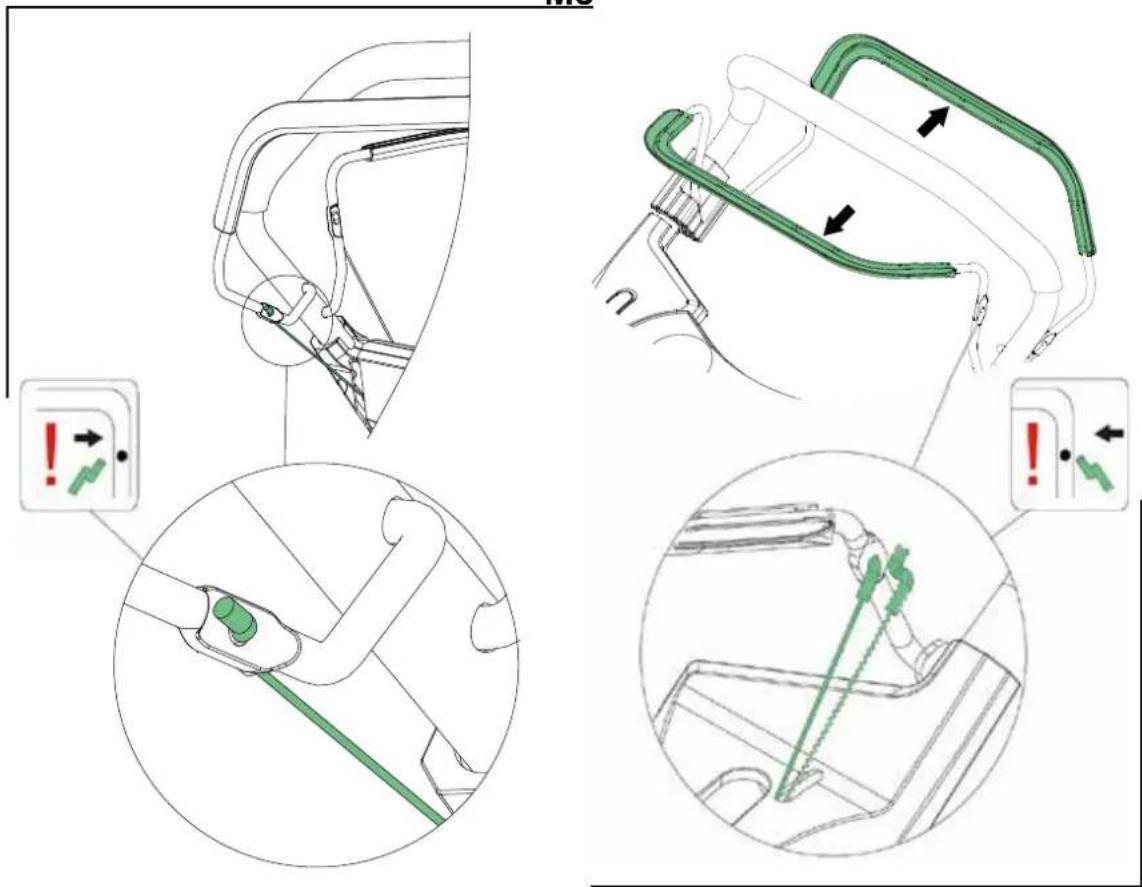

Mounting the engine brake cable: Illustration M3

1. Gently push the top handlebar ID:B forward
2. Insert the engine brake cable from the outside, into the hole in the bracket on handlebar ID:B and lock.

Mounting the drive cable: Illustration M3

1. Gently push the lower handlebar ID:A downward
2. Insert the drive cable from the inside, into the hole in the bracket on handlebar ID:A and lock.

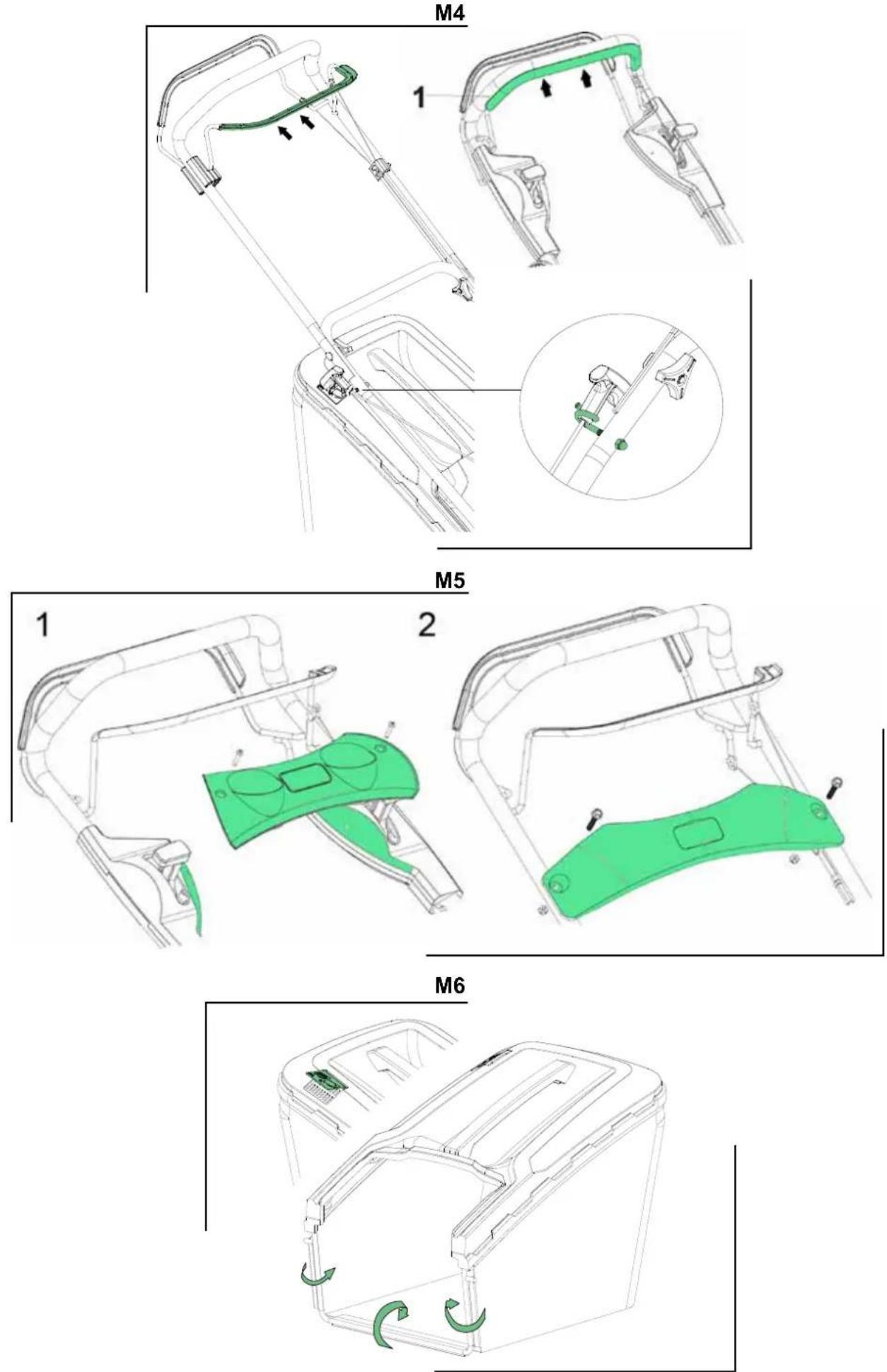

Mounting the recoil-starter: Illustration M4

1. Pull the engine brake handlebar and hold, in order to release the starter cord on the engine.

2. Pull gently the starter cord from the engine (Engine brake handlebar MUST be hold)

3. Attach the starter grip on the rack of handlebar.

4. Release the engine brake handlebar and the starter grip.

Mounting the panel: illustration M5\*

1. For models with panel with cup holder follow illustration M5-1

2. For models with panel follow illustration M5-2

*Note: Not all models do have panel.

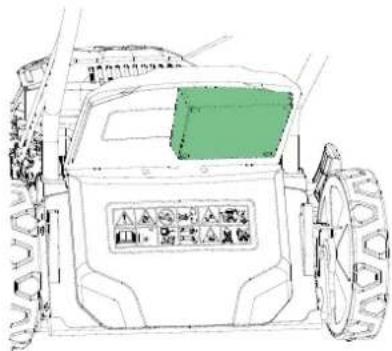

Mounting the grass collector: Illustration M6

1. Click the frame to the grass collector. The grass collector comes with a handy indicator showing whether the box is full of grass and needs emptying.

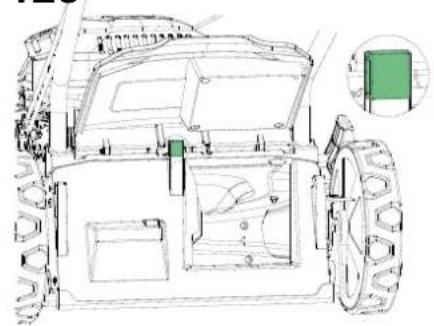

Rear discharge guard: Illustration M7-1

If you want to mow without grass collector it is important to attach the two spacer blocks.

1. Insert the spacer block (ID:E) under the rear discharge guard.

Note: The spacer block is for rear ejection only! Otherwise it should be removed.

Warning: If the spacer block is not mounted. The mower will have difficulties to dispose the grass.

Mulching plug: Illustration M7-2

1. Insert the mulching plug and remove side discharge guard, if you want to mow with mulching functionality. NB Don't use the grass collector

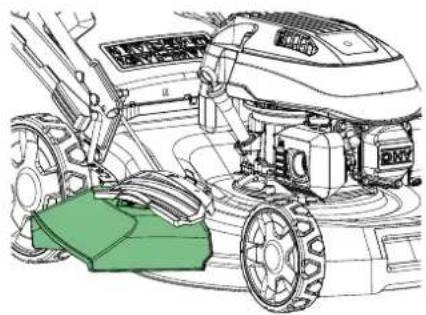

Side discharge guard: Illustration M7-3\*

1. Lift the side guard and insert side discharge guard. NB Don't use the grass collector

* Note: Not all models do have side discharge guard

Cable Adjustment

Before the machine is being used, the cable adjustment should always be checked.

The cables can be checked by activating the handles fully and check if the cable is tight. If not, it must be tightened. If the handle cannot easily be fully activated, the cable should be loosened.

After first season, it must be expected that the cables need to be adjusted for optimal activation, as cables can stretch when used.

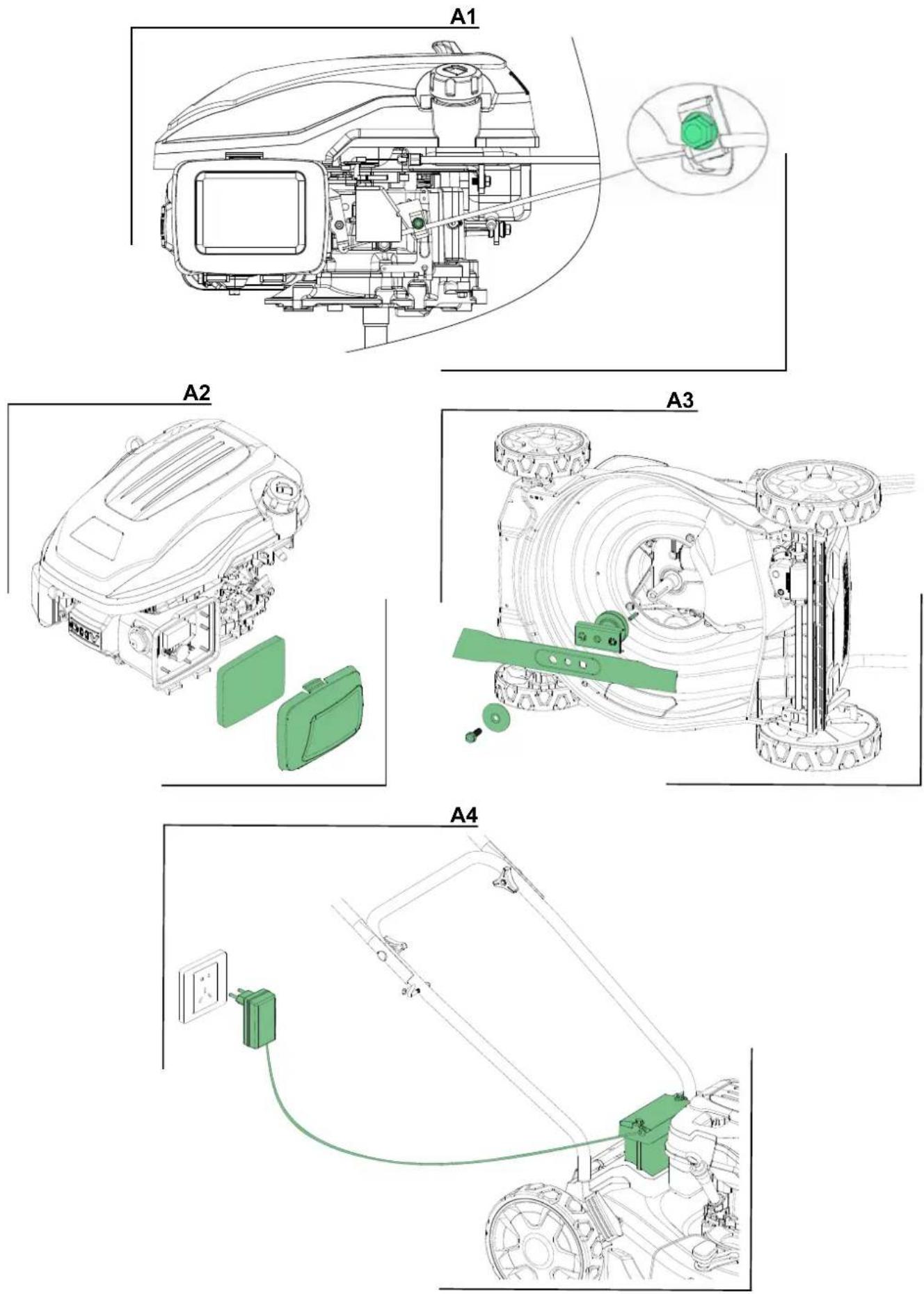

The following cables may be necessary to readjust: Illustration A1

1. Cable for throttle cable

Adjusting the throttle cable: Illustration A1 \*

If you experience slack in throttle cable, this can be solved simply by tighten or loosen the bolt on the engine block.

* Not all models have throttle cable.

Battery (Electric starter)

Charge the battery before use

Before the electric start function is used, the battery must be charged for 5 hours. Put the charger plug into the hole in the battery and connect the charger to a power supply. See illustration. A4

Charging during the season

The battery is not charged during use, so it will likely be necessary to charge the battery a couple of times during the season - depending if the number of start/stops of the engine. Put it for charging for around 5 hours.

Storage of battery

The battery must always be stored dry and warm during the winter. Never expose it for low temperatures.

Charge the battery completely before storing and then place the lawn mower in a place where it is not exposed to frost. Alternatively cover the battery with a thick carpet or similar, If the mower is in a shed/garage where there may be cold.

Charge the battery 1-2 times during the winter (at least every 3 ^rd month) to make sure the battery keeps it full capacity.

Incorrect storage can damage the battery and is not covered by warranty.

* Note: Not all models have electric starter

Operation

Always check and refill oil before the start! Read and apply the instructions given in the enclosed start guide!

The oil level should always be between min. and max on the dipstick. Fill with SAE-30 oil. There should be total 0.5 liter oil in the engine. Use only unleaded E5 fuel to the engine. Never overfill the tank.

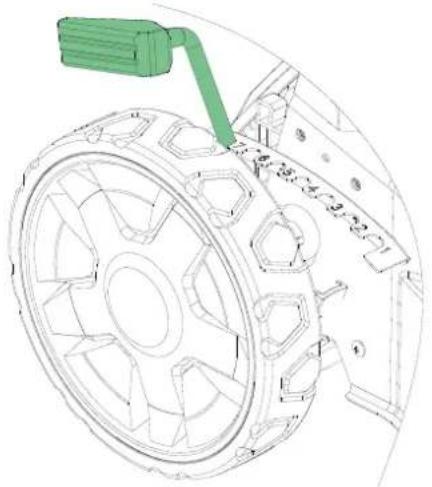

Cutting height adjustment: Illustration F1

(the illustrations may vary from your actual model) The mower has 7 different heights. The cutting height ranges from 28 mm to 70 mm

Start: Never start the mower directly on long grass.

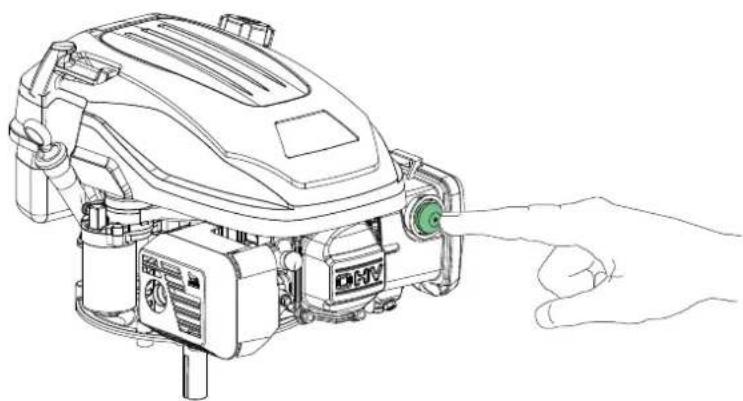

Recoil with primer: Illustration F2

1. Push the primer several times, first time push 1-3 times, if necessary, supplement with up to 3-5 times. Note: It is not possible to drown engine
2. Hold the handlebar for the engine brake; this will release the engine brake.
3. Pull the recoil starter gently until you feel resistance in the rope, then pull quickly and energetic. Do not at any time let go of the recoil starter but slide it gently into starting position.
4. Hold the bar for self-propelled in order to start mowing

Recoil with choke, throttle lever: Illustration F3

1. By cold engine set the choke lever on "Choke". By warm engine set the choke lever on "Rabbit".
2. Hold the handlebar for the engine brake; this will release the engine brake.
3. Pull the recoil starter gently until you feel resistance in the rope, then pull quickly and energetic. Do not at any time let go of the recoil starter but slide it gently into starting position.
4. Adjust the throttle lever.
5. Hold the bar for self-propelled in order to start mowing.

Electrical starter: Illustration F3-B

To avoid unintentionally starting the machine, the start button should be removed from the machine and stored safely when the machine is not in use.

1. By cold engine set the choke lever on "Choke". By warm engine set the choke lever on "Rabbit".
2. Move the throttle lever to full "Rabbit" (A)
3. Hold the handlebar for the engine brake; this will release the engine brake.
4. When starting the machine, insert the start button in the ignition lock below the handlebar and push in.
5. Hold the button (B) in until the engine starts and then release.
6. Adjust the throttle lever.
7. Hold the bar for self-propelled in order to start mowing.

Note: As long as operating the mower, the bar forengine brake must be engaged.

Throttle lever\*

Engine speed can be adjusted while driving. Turn gas handle to adjust rpm. (ID: M) It is recommended to run at full throttle for best cutting results.

* Note: Not all models have throttle control

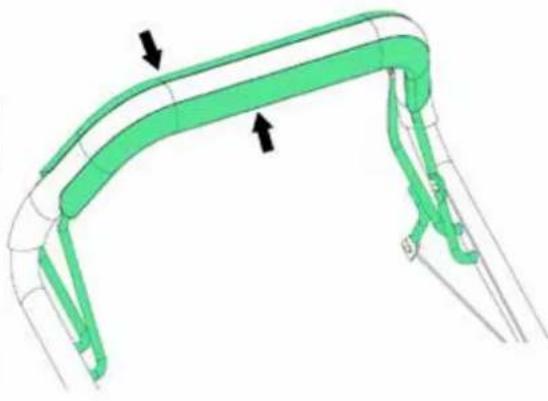

Stop: Illustration F4

Release the engine brake and self-propelled bar to turn off the mower and the engine

Note: The blades will still rotate at up to 3 seconds after stopping.

Water nozzle

The left side of the mower deck is fitted with a water nozzle for washing the deck. (See Illustration ID-F)

• When using the water nozzle, the machine must be in the lowest height position and placed on the lawn. This ensures that the water remains under the deck during cleaning.
• Attach a hose to the nozzle.
• Turn on the water and start the engine.
• The rotations of the blades will ensure that the water will clean the underside of the deck.

A. If above instruction is not followed, water may splash back on the gearbox and clutch cable, which increases the risk of corrosion and damage to both parts. This will not be covered by the warranty!

Note: For best result clean the deck with the water nozzle function right after each mowing. If the grass dries out, this function will not work optimally.

* Note: Not all models have water nozzle

Oil change

Oil should be changed for the first time after 5 hours, then at least 1 time per year.

You will need an oil extractor kit. Art. no. 40-11336 Oil and oil extractor kit is not included

Use an extractor kit and do as follows:

1. Turn on the engine and let it run for 5 min or until the engine is hot. A hot engine liquefies the oil which makes it easier to drain.
2. Suck the oil up through the oil filler hole using the syringe that came with the oil extractor kit. Use the hose to reach the sump.
3. Transfer the used oil into a empty container.
4. Fill the engine with SAE-30 oil (0.5 l.).
5. Check the oil level using the dipstick. (Min / Max)

Remember to dispose the used oil so that it does no harm to nature. Use your local recycling station.

Air Filter

The air filter should be inspected and cleaned regularly. If the filter has not been cleaned for a long time, the engine's power will drop.

See Illustration A2

1. Clean around the air filter before removing the cap.
2. Push the flap down and gently pull the cover
3. Carefully remove the paper filter and inspect it. Brush it with a soft brush. If it is very dirty, replace it. Be careful that no dirt gets into the inlet.
4. Reattach airfilter element
5. Please note that all parts are assembled correctly and properly closed, as shown in the picture.

Blade

Inspection of the blade

• Tilt the mower with the front upwards.
• Inspect blade for damage, cracks or excessive rust or corrosion.
• Check that the blade bolt is tightened.

Note: A dull blade can be sharpened! But a blade that is worn, bent, cracked or otherwise damaged must be replaced.

Removing the blade: See illustration A3

If you remove the blade to sharpen or replace it, you must use a torque wrench and some heavy gloves to protect your hands.

1. Loosen the blade bolt. Use a piece of wood to prevent the blade from turning around.
2. Remove the bolt, washer, blade and blade holder in that order
3. Sharpen or replace the blade.
4. Insert the blade holder, blade, washer and bolt in that order.
5. Tighten the blade bolt with 50 Nm. Use a piece of wood to prevent the blade from turning around.

Warning: A blade must be sharpened so it is in 100 % balance, otherwise it may cause vibrations that could damage the engine. Damage to engine due to faulty sharpening is not covered by warranty. We therefore recommend letting a service center sharpen the blade.

Spark plug

1. Remove the spark plug.
2. Brush off dirt from the spark plug.
3. Use a spark plug wrench to loosen the spark plug.
4. Check the insulation is intact.
5. Clean the spark plug with a wire brush.
6. Measure the electrode, taking care not to damage the electrode.
7. The distance should be: 0.7 to 0.8 mm
8. If the spark plug is undamaged refit or replace. Art. no. 448087
9. Reattach the spark plug.

Storage and maintenance

Maintain your lawnmower: Check all bolts, screws, nuts and deck. Dismount the blade and the belt plastic cover for regular cleaning. Always make sure that the blade is sharp. It's a good idea to take your lawn mower to an annual service check with your authorized service dealer. See your nearest service center at www.texas.dk.

Storage: After use the lawnmower kept in a dry and clean room. Clean the machine after every use. Grass and dirt must be removed from the underside of the deck. By tipping the mower (for cleaning) is recommended to tilt the front up (max. 45 degrees). If you tilt it sideways, the carburetor and air filter always face upwards, since oil may run out and destroy the engine. Be aware that removing the spark plug before the mower maintenance.

Winter storage: Empty the fuel tank and let the engine run until the gasoline in the carburetor is used up. Spark plug removed. Remove the spark plug and add a teaspoon of oil (engine oil) in the hole. Pull the starter to distribute oil. Mount the spark plug, but not the spark plug cap. Change oil as described in the section above. Spray silicone lubrication into the cables and move them.

Finally, clean the mower thoroughly. Dip a cloth in oil and luricate metal parts to prevent rust.

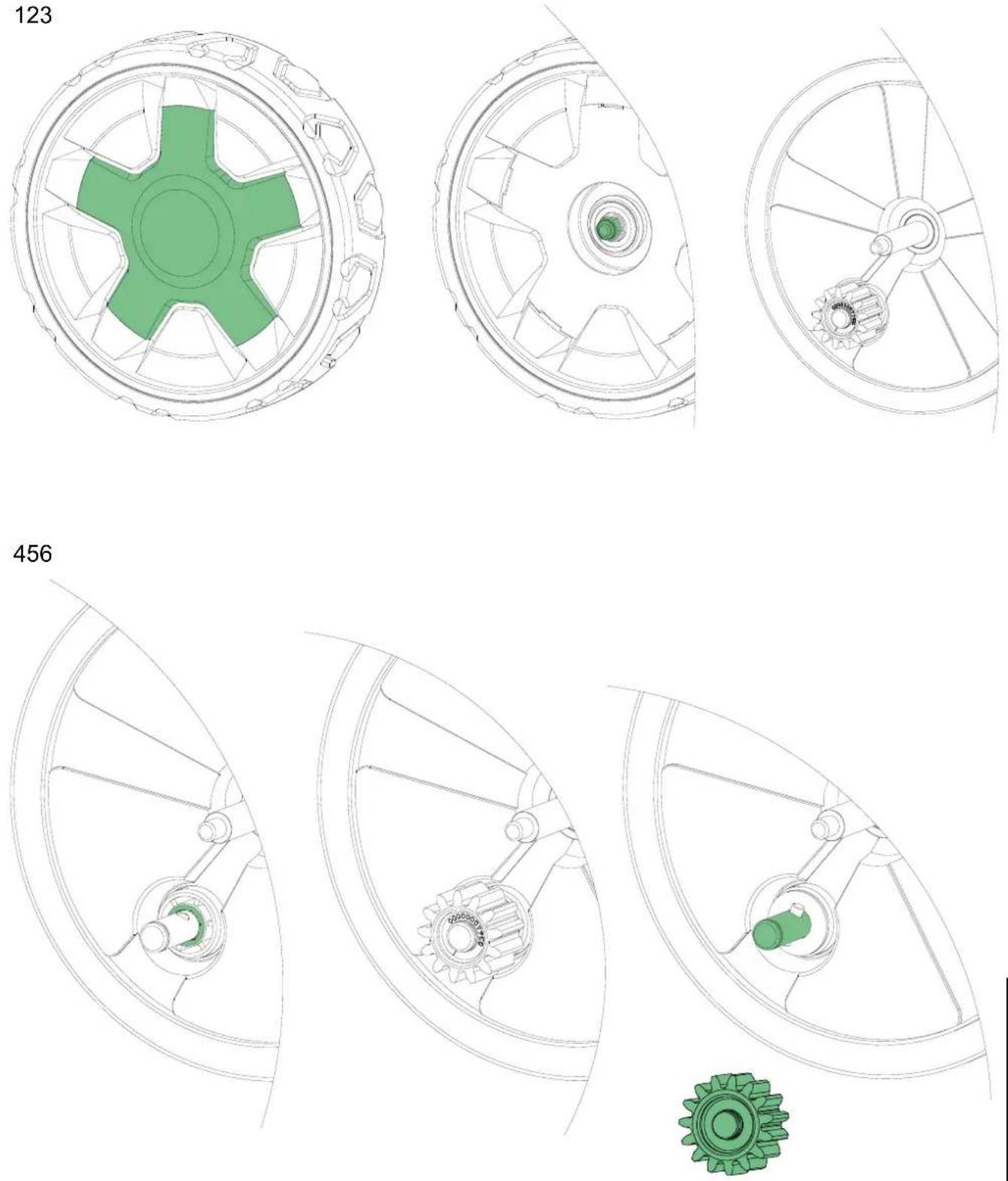

Cleaning and lubricating of rachet wheels: See illustration A5

Cleaning and lubricating of all rachet wheels should be done minimum once per year to ensure longer durability. If no maintenance is performed, the warranty will not cover these parts.

Follow below procedure (for both rear wheels)*:

1. Remove the wheel covers
2. Unscrew the nut with a 13 mm wrench
3. Pull of the washer and the wheel
4. Remove the retainer ring with a suitable tool and the ratchet wheel
5. Clean shaft/rachet wheel for old grease and dirt.
6. Lubricate with suitable grease (e.g. EP-0)
7. Mount the wheel and wheel cover again

* Only apply for self-propelled models.

Warranty terms and conditions

The warranty period is 2 years for private end users in EU countries.

Products sold for commercial use, only have a warranty period of 1 year.

The warranty covers material and/or fabrication faults.

Restrictions and requirements

Normal wear and replacement of wearing parts are NOT covered by the warranty.

Wearing parts, which are NOT covered for more than 12 months:

• Blades
• Cables
• Belts
• Fuses
• Switches
• Membranes/gaskets
• Spark plugs
  • Engine liquids (oil, gasoline)
• Starter cords
• Filters
• Battery: If the battery is not stored correct (frost-free and recharged every 3 months), the durability is only guaranteed for 6 months.

If you start the engine without adding oil, it will be damaged and cannot be repaired and therefore not covered by the warranty.

The warranty does NOT cover damages/faults caused by:

• Lack of service and maintenance
  • Structural changes
• Exposure to unusual external conditions
• Damages to the bodywork, deck, handles, panels etc.
• If the machine has been improperly used or overloaded
• Wrong use of oil, gasoline or other liquid types, which are not recommended in this user manual
• Bad or dirty gasoline, which results in contamination of the fuel system
• Use of unoriginal spare parts.
• Other conditions where Texas cannot be held responsible.

Whether a case is a warranty claim or not is determined in each case by an authorized service center.

Your receipt is your warranty note, why it should always be kept safe.

REMEMBER: The purchase of spare parts as well as any request for warranty repair, art. number (e.g. 900665XX), year and serial number should always be informed. It can be found on the CE-label located on the rearpart of the cutting deck behind the engine!

* We reserve the right to change the conditions and accept no liability for any misprints.

Difficult to start
Problem	Cause	Solution
Generally difficult to start	Wrong starting procedure	Follow the starting instructions in the manual precisely.
The start cable is very tight (will not start)	The brake handle is not being activatedThe machine is placed in high grass	Activate the brake handle and pull the start cord.Move the machine away from the high grass and repeat the start procedure.Set the height adjustment in the highest position, so that the blade is lifted free of the grass.
The machine will not start when the start cord is pulled, or the electric start button is pushed (or the starter "clicks" when attempting an electric start)	The brake handle is not being activatedThe wires are not connected to battery the brake cable is incorrectly adjustedThe machine is standing in high grassEngine is not primed before startingThe choke is not in the correct positionNo more gasoline in fuel tankThe gasoline is more than 3 months old	Activate the engine brake handle and press the electric start button.Check that the wires are connected from the battery to the motor and start button.Adjust the engine brake cable, following the instructions in the manual.Move the machine away from the high grass to start it.Tip the machine when starting.Set the height adjustment in the highest position, so that the blade can run freely.Push the primer 1-3 times before starting.Move the choke lever to a different position.Check and fill fuel tank with gasoline.Empty the fuel tank and carbureto r from old gasoline, and fill with new gasoline.
No ignition spark (cannot start)	The spark plug cap is looseThe spark plug is damp or dirtyIncorrect gap between the spark plug and the electrodeThe air filter is dirty or defective	Check that the cap is firmly attached to the spark plug.Check that there is no dirt on the spark plug, following the instructions in the manual.Check and adjust the spark plug gap, following the instructions in the manual.Alternatively, replace the spark plug.Check the air filter for dirt and clean it, following the instructions in the manual.
The mower starts, but runs unevenly
Problem	Cause	Solution
Insufficient engine revolutions	Lever is in the "Choke" positionThe throttle lever is set for "Turtle"	Set the lever in the "Run" position.Set the throttle lever for "Rabbit".
The rear wheels are not pulling, or only very little	The clutch cable is too tight/too looseThe ratchets in the rear wheels are worn	Adjust the clutch cable, following the instructions in the manual.Replace the ratchets.
The engine runs irregularly and/or its performance becomes poor as you are working	The spark plug cap is looseThe spark plug is dirtyIncorrect gap between the spark plug and the electrodeThe air filter is dirty or defectiveEvaporation of fuel in the carburetorLoose throttle cableDirt in the carburetor	Check that the cap is firmly attached to the spark plug.Check that the spark plug is clean and not damaged, following the instructions in the manual.Check and adjust the spark plug gap, following the instructions in the manual.Check the air filter for dirt and clean it, following the instructions in the manual.Wait a few minutes, and then try to start again.Tighten the throttle cable, following the instructions in the manual.Clean the carbureto r.
The engine will not stop
Problem	Cause	Solution
The machine does not stop after 5 seconds	The engine brake cable runs too tightly	Check and adjust the engine brake cable, following the instructions in the manual.

If your problem is not described above, please contact an approved service centre or Texas A/S.

Fehlerbehebung

2006/42/EC - 2014/30/EU - 2000/14/EC amended by 2005/88/EC

Overensstemmelsesvurdering procedure i henhold til bilag I • Conformity assessment procedure according to Annex I • Konformitätsbewertungsverfahren nach Anhang I • Procédure d'évaluation de la conformité conformément à l'annexe I • Procedura oceny zgodności zgodnie z załącznikiem I • Procedura de evaluare a conformitàții în conformitate cu anexa I • Conformiteits assessment-procedure conform Annex I • Procedura di valutazione della conformità secondo l'allegato I

2006/42/EC

Materiellet er udfört i overensstemmelse med fölgende standarder • Conforms with the following standards • In Übereinstimmung mit den folgende Standards • Conformément aux normes suivantes • Jest zgodna z następującymi normami • Echipament se face în conformitate cu următoarele standarde • Conforme ai seguenti standard

EN ISO 14982: 2009 - EN ISO 5395-1: 2013 - EN ISO 5395-2: 2013

Serial numbers: 2401580001 - 2612999999

Model

Responsible for documentation

Johnny Lolk

25.09.2023

Henry Tahn

Johnny Lolk

Managing Director

TEXAS

EQUIPMENT
