Product type	Professional double-plate electric crepe maker
Model	RC-CMD01
Brand	Royal Catering
Dimensions (L x D x H)	880 x 450 x 250 mm
Weight	30 kg
Power supply	230 V ~ 50 Hz
Rated power	6 kW (3 x 2 kW per plate)
Temperature range	50 - 300 °C
Heating plate diameter	400 mm each (2 plates)
IP protection class	IPX3
Electrical protection class	Class I
Main material	Stainless steel (inox)
Non-stick coating	Yes
Temperature adjustment	Rotary thermostat with indicator lights
Power indicator	Green
Heating indicator	Orange (lights up during heating)
Water drawer	Yes, for moistening spatula
Overheat protection	Yes, with Reset button
Cleaning	Clean with a damp cloth and mild detergent; do not immerse
Spare parts	Contact Royal Catering customer service for original parts
Warranty	2 years (subject to terms and conditions)
Intended use	Cooking of crepes and similar preparations

Frequently Asked Questions - RC-CMD01 Royal Catering

How do I use my RC-CMD01 crepe maker for the first time?

Before first use, clean the appliance and its components. Plug it in after ensuring the thermostat is set to 0. Pour water into the drawer. Set the desired temperature (50-300°C). Wait for the heating indicator to turn off. Apply a thin layer of batter and spread with a wooden or heat-resistant plastic spatula.

Why does the heating light stay on?

The heating indicator turns on when the plate is heating and turns off when the set temperature is reached. If it stays on, it may indicate that the temperature is not yet stable or the thermostat is faulty. Check the settings and let the appliance heat up for a few minutes.

Can I use metal utensils on the plate?

No, sharp metal utensils can scratch and damage the non-stick coating. Use only wooden or heat-resistant plastic utensils.

How do I clean the crepe maker after use?

Unplug the appliance and let it cool completely. Clean the surfaces with a soft damp cloth and mild detergent. Never use abrasive or corrosive products. The water drawer should be emptied and cleaned regularly.

What should I do if the appliance suddenly stops?

This may be due to the overheat protection. Unplug the appliance, let it cool, then remove the back cover and press the 'Reset' button. If the problem persists, contact customer service.

Can I use the RC-CMD01 crepe maker outdoors?

No, the appliance is designed for indoor use only. It should not be exposed to moisture or rain. Respect the IPX3 protection rating (protected against water splashes).

What is the power consumption of the appliance?

The total power is 6 kW (3 x 2 kW per plate). Ensure your electrical installation can support this power and that the outlet is properly grounded.

What is the water drawer for?

The water drawer is used to moisten the spatula for spreading the batter more easily. Fill it with water before use and clean it regularly to avoid grease buildup.

Does the appliance emit odor or smoke during first use?

Yes, this is normal. New heating elements may produce slight smoke or odor. Ensure the room is well ventilated. It disappears after a few minutes of use.

Where can I find spare parts for the RC-CMD01?

Contact Royal Catering customer service or your authorized dealer. Use only original spare parts to ensure safety and proper operation.

USER MANUAL RC-CMD01 Royal Catering

Abstract line drawing of stylized mythical creatures or mythical creatures (no text or symbols)

PRODUKTNAME CREPES MAKER

PRODUCT NAME CREPES MAKER

NAZWA PRODUKTU NALEŚNIKARKA PODWÓJNA

NALEŚNIKARKA POJEDYNCZA

NÁZEV VÝROBKU PALAČINKOVAČ

NOM DU PRODUIT CRÊPIÈRE

NOME DEL PRODOTTO CREPIERE

NOMBRE DEL PRODUCTO CREPERA

MODELL

PRODUCT MODEL

MODEL PRODUKTU

MODEL VÝROBKU RC-CMDUT RC-CM001

MODÈLE

MODELLO

MODELO

IMPORTEUR

IMPORTER

IMPORTER

DOVOZCE EXPONDO POLSKA SP. Z O.O. SP. K.

IMPORTATEUR

IMPORTATORE

IMPORTADOR

To ensure a long and failure-free operation of machines from Royal Catering, make sure that the thermostat knob is in the 0 position before connecting the device to a power source.

UWAGA!

Two wooden tools with curved blades and a black base, labeled with the number 7 (no text or symbols on the tools themselves)

Exterior view of a two-wheeled portable induction cooktop with two circular burners and attached cables (no text or symbols visible)

Exterior view of a stainless steel portable electrical device with circular top and labeled ports (no readable text or symbols)

Parameter description	Parameter value
Product name	NALEŚNIKARKA PODWÓJNA	NALEŚNIKARKA POJEDYNCZA
Model	RC-CMD01	RC-CMS01
Rated voltage [V~] / Frequency [Hz]	230/50
Rated power [kW]	3 x 2	3
Temperature range [°C]	50-300
Heating Surface dimensions [mm]	∅400 x2 ∅400
Protection rating IP	IPX3
Dimensions [Width x Depth x Height; mm]	880x450x250	450x450x250
Weight [kg]	30	14,7

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	ATTENTION! Electric shock warning!
	Class I protection device.
	ATTENTION! Hot surface, risk of burns!
	Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

The original operation manual is written in German. Other language versions are translations from the German.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to CREPES MAKER.

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
h) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
i) Do not use in very humid environments or in the direct vicinity of water tanks.
j) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.

d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Children or unauthorised persons are forbidden to enter a work station. (A distraction may result in loss of control over the device).
g) Use the device in a well-ventilated space.
h) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
i) Keep packaging elements and small assembly parts in a place not available to children.
j) Keep the device away from children and animals.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
e) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
f) To prevent the device from accidentally switching on, make sure that the thermostat knob is in the 0 position before connecting to a power source.

2.4. Safe device use

a) Do not use the device if the thermostat knob does not function properly. Devices which cannot be switched on and off using the switch are hazardous, should not be operated and must be repaired.

b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.

c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.

d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.

e) Keep the device out of the reach of children.

f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.

g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.

h) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.

i) Do not move, adjust or rotate the device in the course of work.

j) Do not leave this appliance unattended while it is in use.

k) Clean the device regularly to prevent stubborn grime from accumulating.

I) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.

m) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.

n) Keep the device away from sources of fire and heat.

o) Do not cover the ventilation openings!

p) The crepe maker is getting very hot, when the device heats up. Danger of burnings!

q) Use only tools of heat resistant plastic or wood, to avoid damages of the antisticking coating of the crepe maker. Make sure the tools have sharp edges.

r) Do not use this device for drying or heating objects.

s) Use kitchen utensils that are intended for use with food and that will not scratch the appliance. Do not use sharp and metal objects.

t) Regularly clean the tray to prevent permanent dirt deposits.

u) During operation, the appliance reaches high temperatures. Do not place the appliance near flammable or easily melting surfaces or near flammable materials.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is intended for frying crepes.

The user is liable for any damage resulting from unintended use of the device.

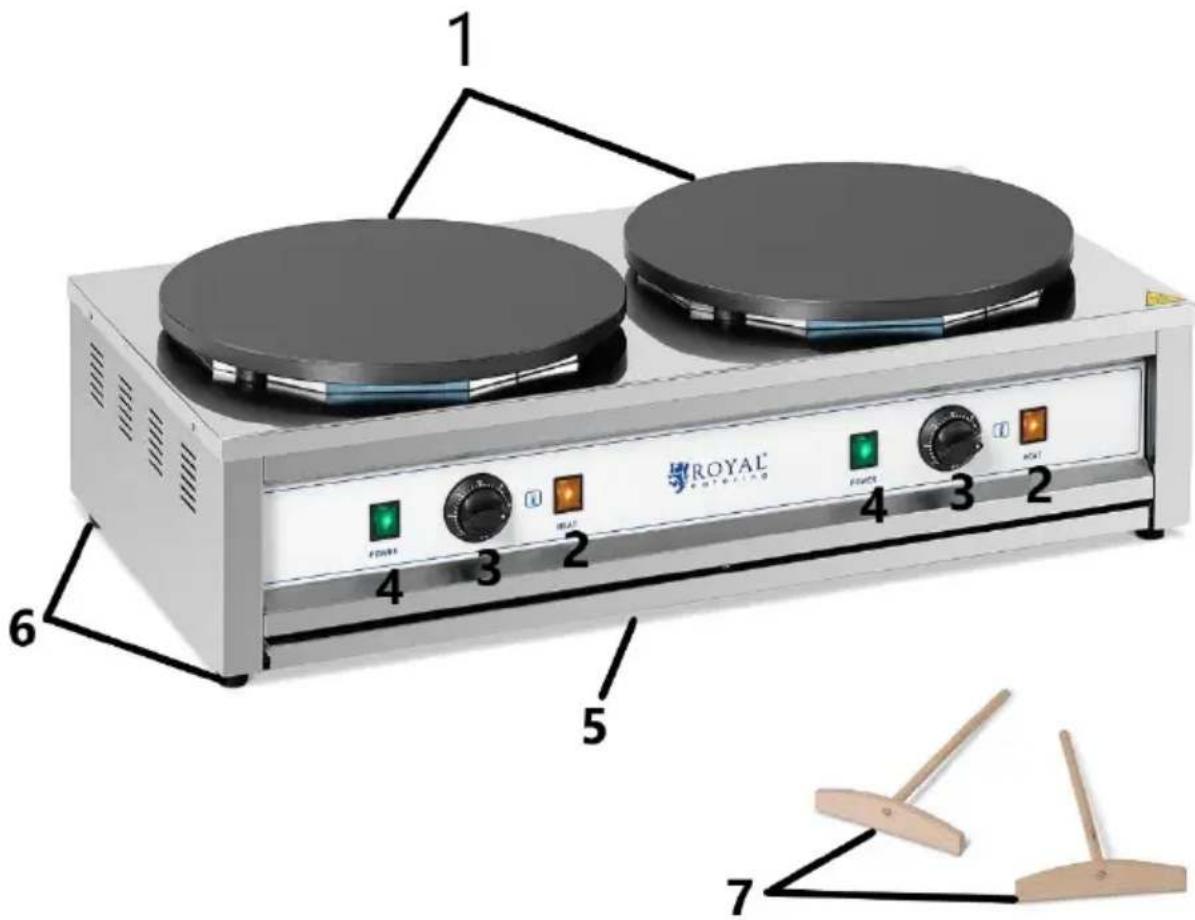

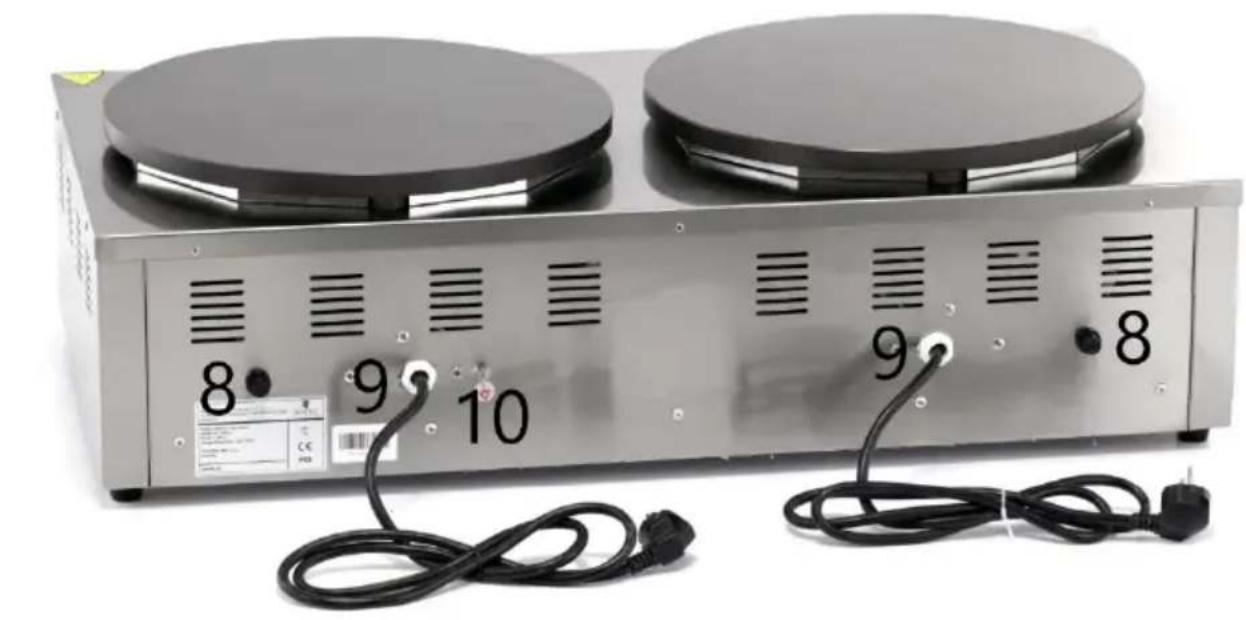

3.1. Device description RC-CMD01

Exterior view of a two-wheeled portable induction cooktop with two circular burners and labeled buttons (no text or symbols on the device itself)

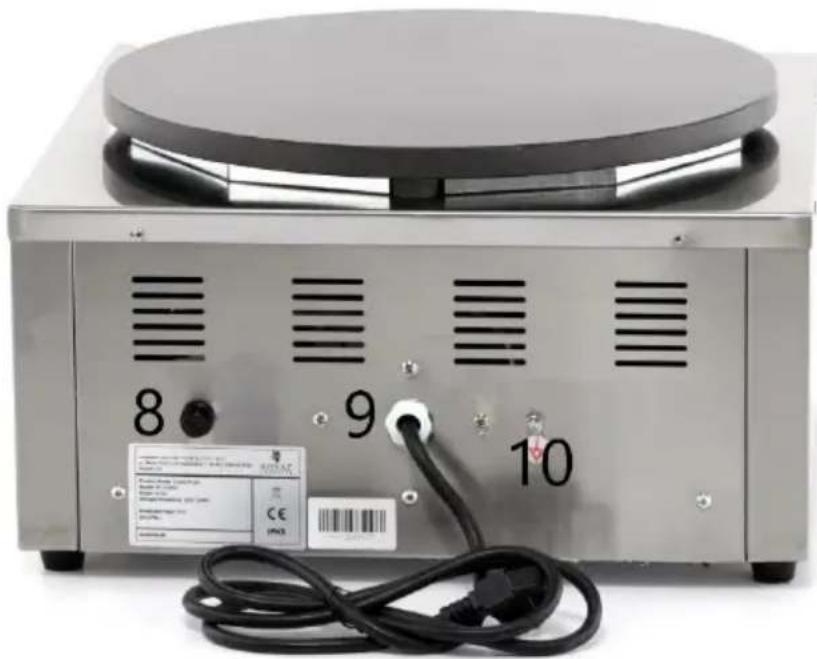

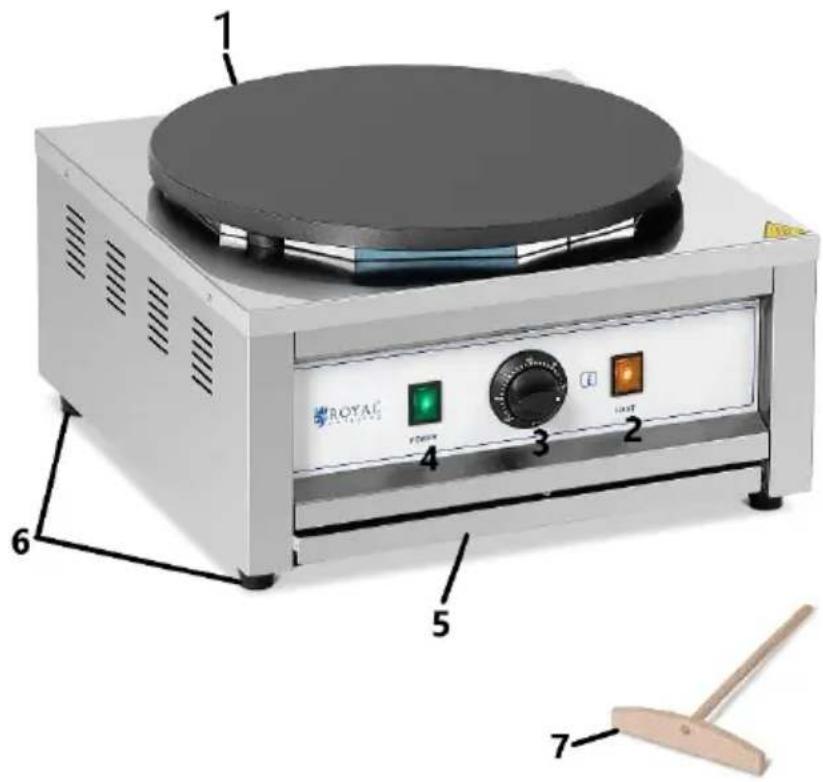

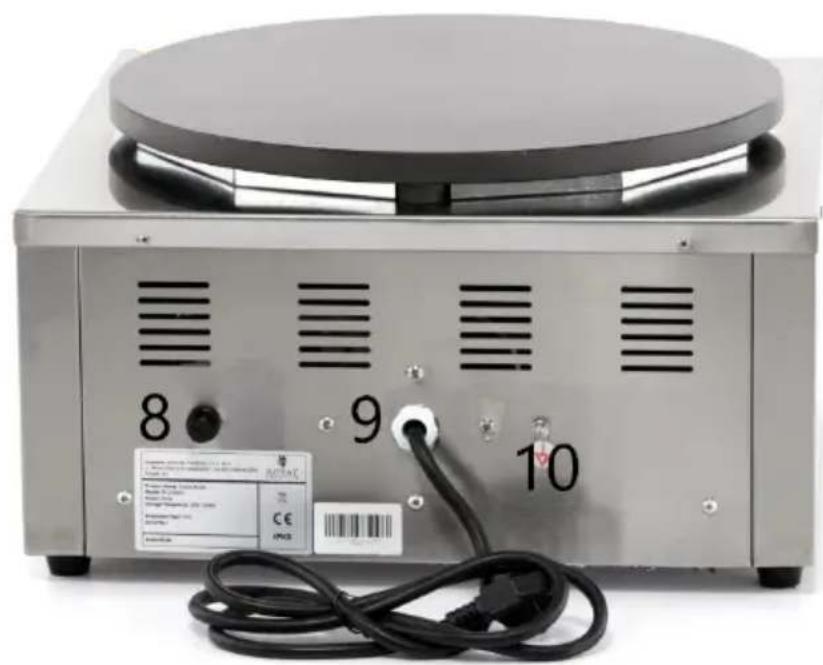

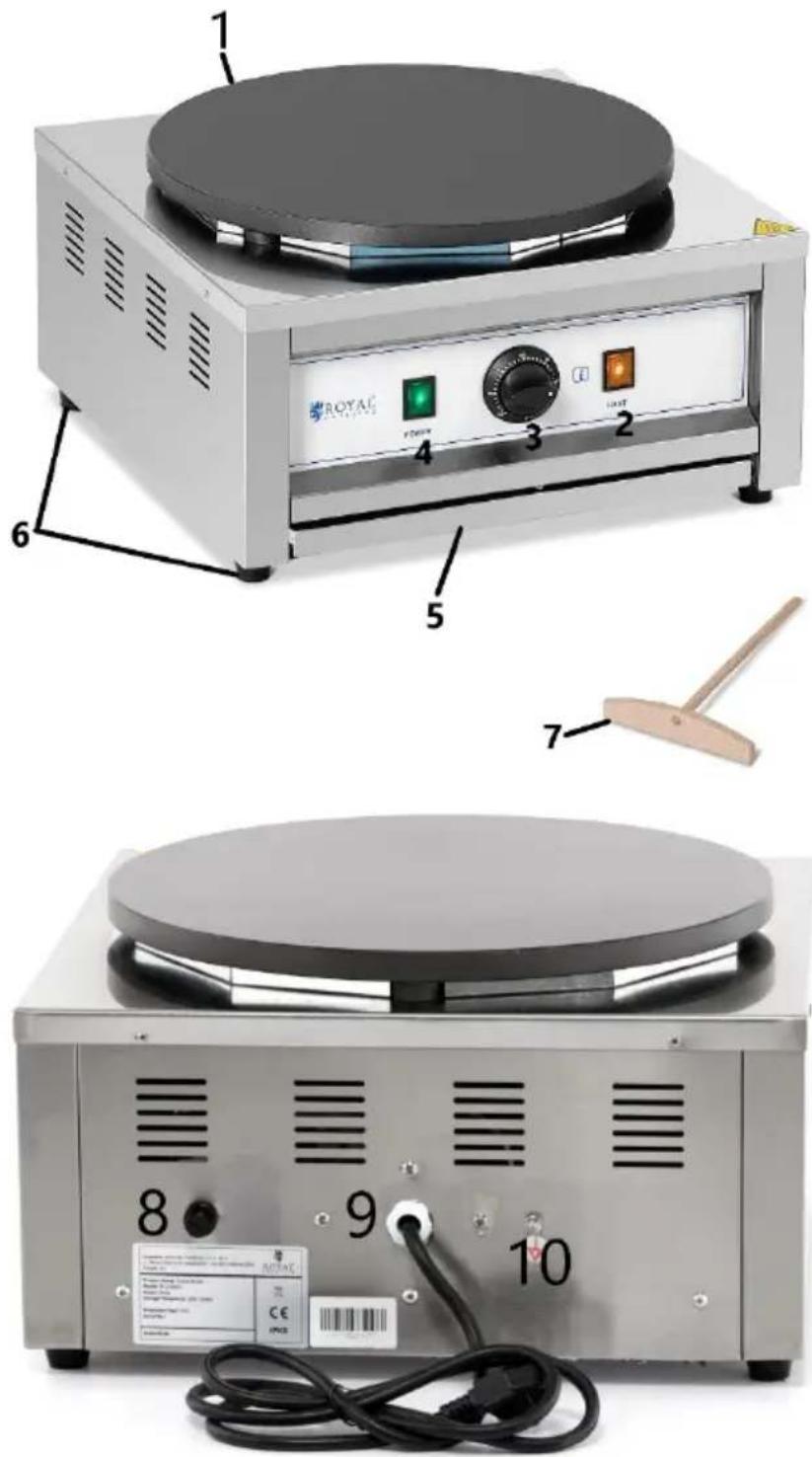

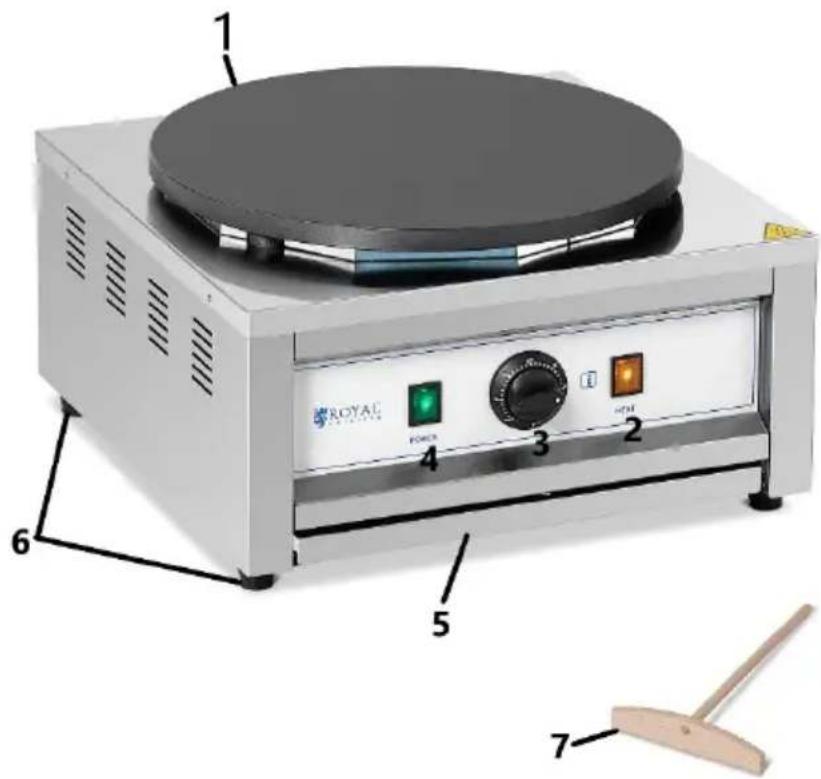

RC-CMS01

Exterior view of a circular industrial device with labeled ports and a cable (no readable text or symbols)

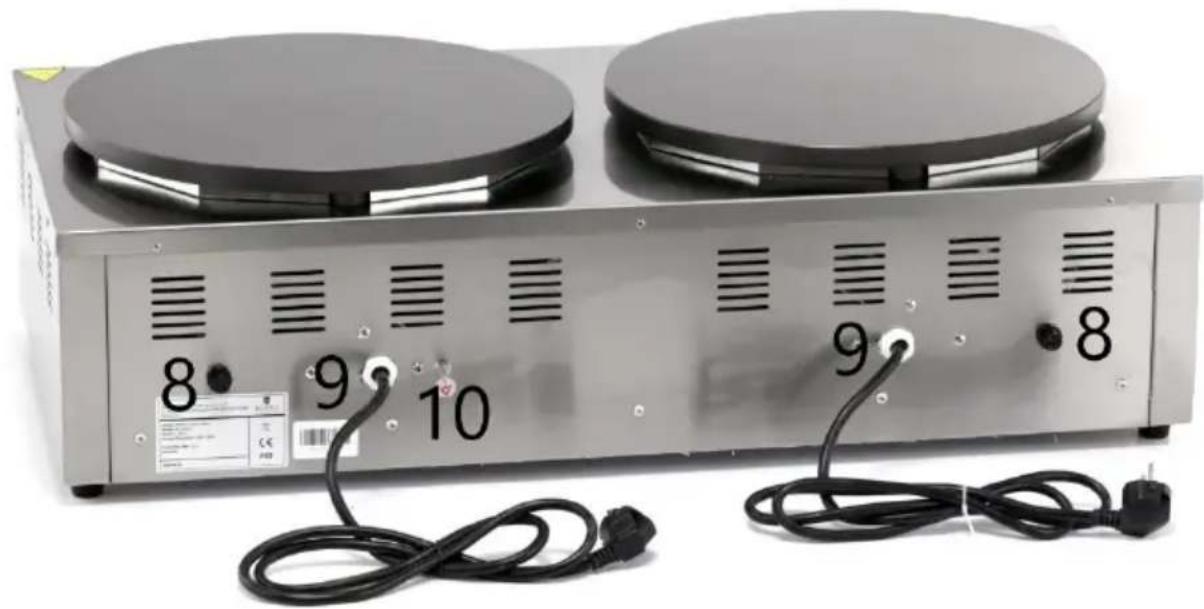

1. The pan
2. Heating indicator
3. Temperature control
4. Power light
5. Drawer
6. Feet
7. Spatula
8. RESET button
9. Power cord
10. Earthing clamp

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 50 cm distance between each side of the device and the wall or other objects.

Place the unit on a heat resistant basis!

The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Only use the device in a horizontal position. Do not shake the device.

Disassemble the device and all its components and clean them before the first use.

3.3. Device use

1. Ground the device housing, use the grounding terminal located on the back of the griddle.
2. Before connecting the device to the power supply, always check that the temperature control knob is set to "0".
3. Connect the power cord to a power outlet. The green power lamp will come on.
   In two pan models, each pan has a separate power cord, thermal protection and controls.
4. Pour water into the drawer. Top up the water in the drawer while the device is in use.
5. Use the temperature control knob to set the preferred heating temperature. The heating indicator will light up and it will go out when the set temperature is reached. For a crepe maker with two pans: for the left pan, the knob and the controls are on the left and for the right pan on the right). The thermostat will keep the temperature constant.
   Note: When used for the first time, the heating elements may emit a small amount of smoke.
6. Carefully put a portion of the previously prepared batter on the hot pan, and spread it over the pan with a spatula (dipping the spatula in water will facilitate spreading). Make sure that the batter does not overflow to the sides.
7. The finished crepes should be turned over and removed only with kitchen utensils made of heat-resistant plastic. Sharp metal utensils can damage the surface of the pan.
8. After using the griddle, set the thermostat to "0" and disconnect the device from the power supply.

The device is equipped with overheating protection. In the event of a protection trip, remove the cause and reset the device by removing the cover and pressing the Reset button located on the back of the appliance.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) Clean the vents with a brush and compressed air.
i) The device must be regularly inspected to check its technical efficiency and spot any damage.
j) Regularly clean the water drawer as it may collect pan fat and crumbs.

Dane techniczne

Two wooden tools with curved blades and a black base, labeled with the number 7 (no text or symbols on the tools themselves)

Exterior view of a two-wheeled portable induction cooktop with two circular burners and attached cables (no text or symbols visible)

Exterior view of a two-wheeled portable induction cooktop with two circular burners and labeled buttons (no text or symbols on the device itself)

RC-CMS01

Exterior view of a circular industrial device with labeled ports and a cable (no readable text or symbols)

Two wooden tools with curved blades and a black base, labeled with the number 7 (no text or symbols on the tools themselves)

Exterior view of a two-wheeled portable induction cooktop with two circular burners and attached cables (no text or symbols visible)

Exterior view of a stainless steel portable electrical device with circular top and labeled ports (no readable text or symbols)

Exterior view of a two-wheeled portable induction cooktop with two circular burners and labeled buttons (no text or symbols on the device itself)

RC-CMS01

Exterior view of a circular industrial device with labeled ports and a cable (no readable text or symbols)

Two wooden tools with curved blades and a black base, labeled with the number 7 (no text or symbols on the tools themselves)

Exterior view of a two-wheeled portable induction cooktop with two circular burners and attached cables (no text or symbols visible)

Exterior view of a stainless steel portable electrical device with circular top and labeled ports (no readable text or symbols)

For the disposal of the device please consider and act according to the national and local rules and regulations.
