USER MANUAL CK2000 Eurom

This product is only suitable for well insulated spaces or occasional use.

Diagram of a portable electric heater with labeled components including control panel, power plug, and fan.

Figuur 2.

Technical diagram of a server rack with labeled components and exploded view views

Figuur 3.

Creative Commons recycling symbol with crossed-out bin and recycling triangle

Please read and understand these safety instructions. Incorrect use can cause injury and will void EUROM's warranty.

WARNING

- Plastic bags can be dangerous. To avoid danger of suffocation, keep this bag away from babies and children.

WARNING

- Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

- To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m.

CAUTION

- Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

WARNING

In order to avoid overheating, do not cover the heater.

- Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with appliance. Cleaning and user maintenance shall not be done by children without supervision.

- Heater must not be located immediately below a socket-outlet.

- If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Do not use this heater if it has been dropped.

• Do not use if there are visible signs of damage to the heater.
• Use this heater on a horizontal and stable surface.
• Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

The device is equipped with an overheating protection, which switches it off automatically in case of internal overheating. Switch the device off, unplug the power plug, remove the source of overheating, let it cool down and use as normal. Do not use the device if the source of overheating cannot be traced or if the problem persists, but always contact your supplier.

General safety instructions

WARNING

• Prevent splashing water on or in the device.
• Do not immerse any part of the device in water or other liquids.
• Never insert fingers or other objects into the openings of the device.
• Do not expose the device to strong vibrations or mechanical stress.

WARNING

The device becomes very hot during use. Do not touch the device during use or within five minutes after use.

Safety during operation

WARNING

Do not use the device:
• outdoors or in a small space (< 20 m ^3 );
- lying or leaning;
- if any parts are dirty or wet;
•near large objects, like behind a door, under a shelf or near a cupboard;
- near or in a dusty and dirty environment, like a construction site;
•near flammable materials, liquids or fumes, e.g. in a shed, stable or green house;
•near other heat sources and open fire;
- with an appliance that automatically switches the device on, such as a timer, dimmer or any other device.

If the device, the electric cable or plug shows damage or is malfunctioning, immediately take the appliance out of use and disconnect the power supply.

Warranty

EUROM offers a 36-month warranty on this device from the date of purchase. The warranty does not cover wear and tear from normal use. The warranty expires if a defect is the result of

unintentional or careless use of the device. The manufacturer, importer and supplier are not liable for incorrect connections.

Introduction

Thank you for choosing this EUROM device. You have purchased a quality device that you will enjoy for many years. Using this device with respect and care will reduce the risk of personal injury or material damage.

CAUTION

It is important to read and understand this instruction manual before assembling, installing and using the device.

This manual describes the correct and safe use of this device. Keep this manual for future reference. The manual is an essential part of the device and must be given to the new owner upon resale or exchange. This manual has been compiled with the utmost care. Nevertheless, we reserve the right to improve and adjust this manual at any time. The images used may differ.

The following symbols and terms are used in this manual to alert the reader to safety issues and important information:

WARNING

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries to the operator or bystanders, light and/or moderate damage to the product or to the environment.

CAUTION

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to light and/or moderate damage to the product or to the environment.

Identification

EUROM® PO W E R F U L P R O D U C T S Art. nr. Batch. CK2000 360271 BD0159 220-240V ~ 50-60Hz - 1800-2000W EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Figure 5.

Specifications

TypeCK2000
Supply voltage: 220-240V~ / 50-60Hz
Power (L/M/H): 750 / 1250 / 2000W
Protective class: Class I
Dimensions: 53.5 x 19.6 x 30 cm
Weight: 2.07 kg

Description

This EUROM device is an easy-to-use electric heater for indoor use.

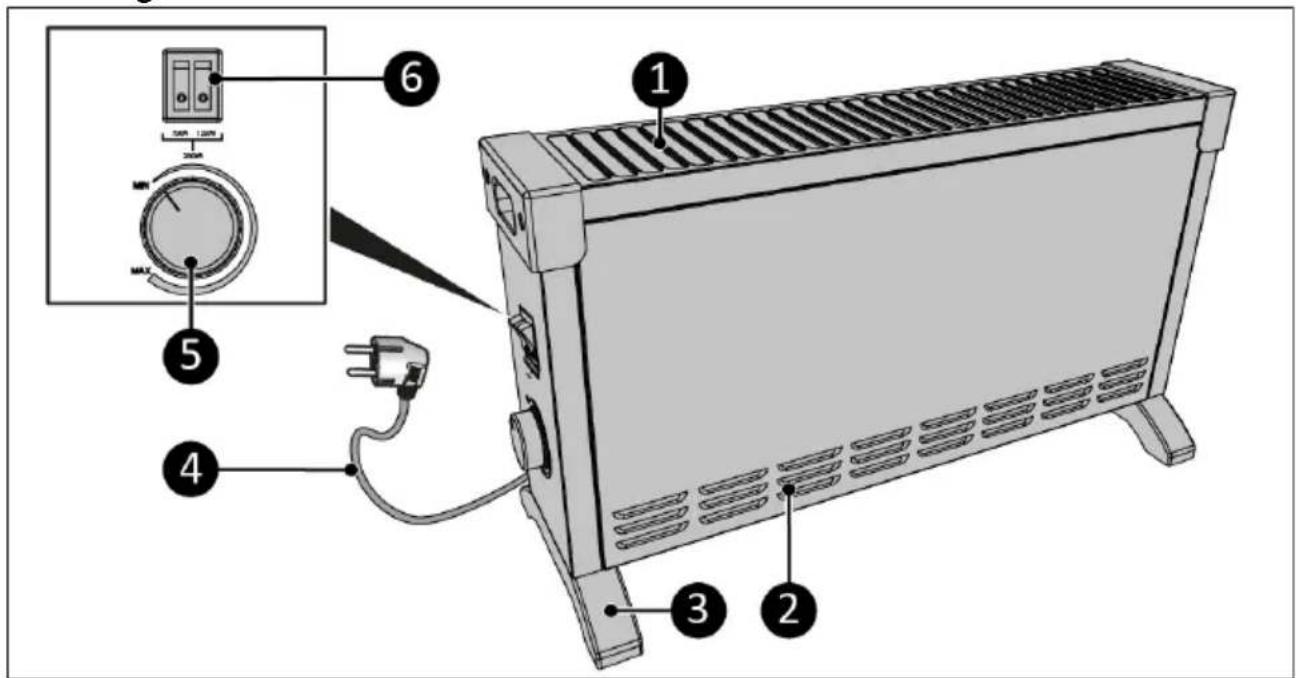

Unboxing

Diagram of a solar heating unit with labeled components including control panel, power plug, and fan base

Figure 6.

No.DescriptionNo.Description
1 Heat outlet safety grill 4 Power plug
2 Air inlet safety grill 5 Thermostat knob
3 Pedestals 6 Heat setting buttons

Transport and storage

• Clean the device before storing it.
• Transport the device in an upright position.
• Store the device in an upright position, in its original packaging, in a cool, dry and dust-free area.

Assembly

WARNING

Never place the device on surfaces such as beds or deep-pile carpet as openings could be blocked.

WARNING

The surface on which the device is placed must be made from non-flammable material and should be able to withstand a minimum temperature of 125^ C.

WARNING

Never use the device before it is correctly mounted.

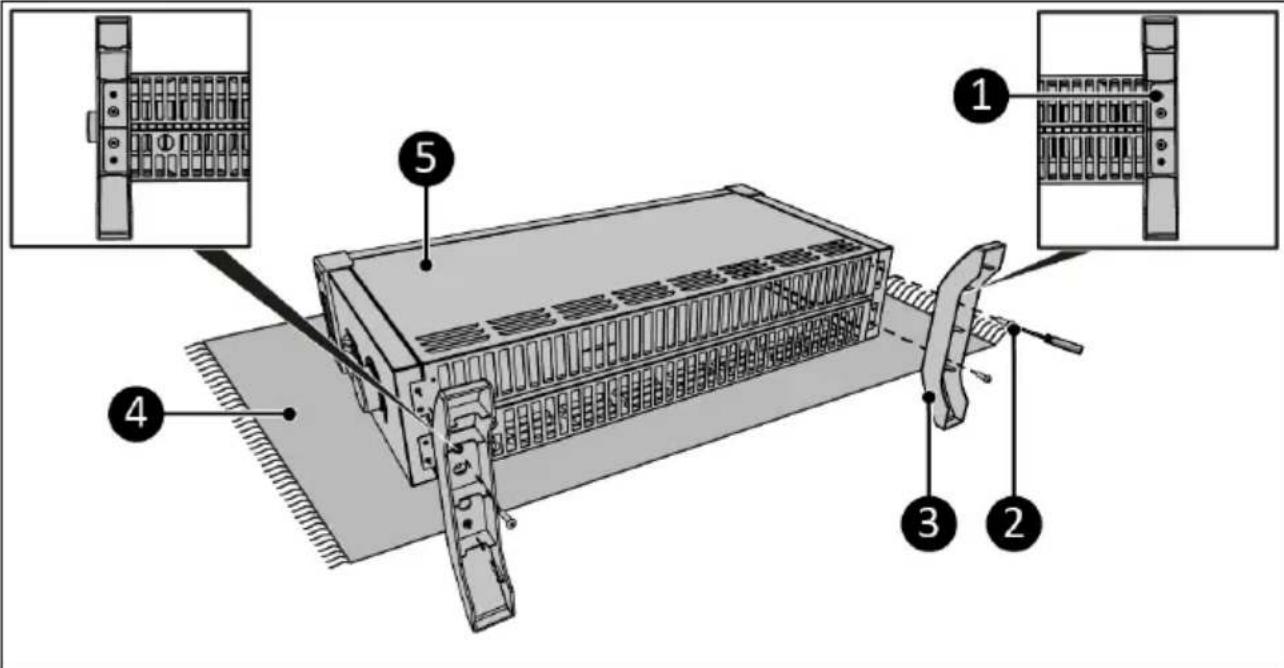

Mounting on pedestals

Technical diagram of a server rack with labeled components and exploded view views

Figure 7.

1. Lay the device down on a steady soft surface (Figure 7, pos. 4).

2. Place the pedestals (Figure 7, pos. 3) on both sides of the main body (Figure 7, pos. 5).

3. Screw and tighten the pedestals with the small screws (Figure 7, pos. 1) using the two holes, with a Phillips screwdriver (Figure 7, pos. 2).

4. Place the device on a horizontal, solid and non-flammable surface.

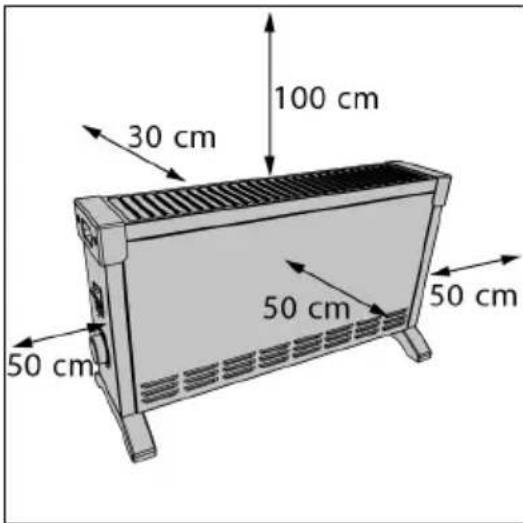

5. Place the device with a minimum clearance distance (Figure 8):

6. 100 cm on the top side;

7. 50 cm on the sides;
8. 30 cm on the back side;

9. 50 cm on the front side.

10. Do not place the device immediately below a socket outlet.

30 cm 100 cm 50 cm 50 cm 50 cm

Figure 8.

Installation

WARNING

Do not put the power plug into the wall socket before the device is correctly mounted or stands in the right place.

WARNING

Do not use an extension cable; this can cause overheating and fire. If using an extension cable is unavoidable, make sure it is undamaged and earthed. Use an extension cable with a minimum power of 2000 Watt. Always unwind the extension cable completely to prevent overheating.

WARNING

Never use the heater without the pedestals mounted.

CAUTION

Make sure that the main voltage is the same as indicated on the identification label of the device. All electrical connections must stay dry under all circumstances.

1. Make sure the device is correctly mounted.
2. Make sure both heat setting buttons are in the OFF position (pilot lights on buttons are dimmed).
3. Insert the power plug into an earthed wall socket that is easily accessible. Use an earthed wall socket with a minimum power of 2000 Watt.

Operation

WARNING

Before every use, make sure that:

• you operate the device with dry hands;
  •the device is clean and dry;
  •the device is not damaged;
  •the device is not covered or blocked;
  •the device is safely installed.

CAUTION

When the device is turned on or off, it may emit a sound. This is the material expanding and shrinking during heating and cooling down.

1. Turn both heat setting buttons to the desired heating setting. The lights on the heat setting buttons start shining.
   °Heat setting I: 750W
   °Heat setting II: 1250W
   °Heat setting III: 2000W
2. Turn the thermostat knob clockwise to the maximum position.
3. Once the desired temperature is reached, turn the thermostat knob anticlockwise until it clicks.
4. The device will stop heating and the temperature is set.
5. The device will automatically turn on and off to maintain the set temperature.

After operation

CAUTION

Do not use the power cable to unplug or carry the device. Do not wind the power cable too tightly or in sharp corners. Do not wrap the power cable around the device.

1. Make sure both heat setting buttons are in the OFF position (pilot lights on buttons are dimmed).
2. Disconnect the power plug from the power outlet.
3. Let the device cool down before touching it.
4. Wind the power cable.

Maintenance

WARNING

Do not perform any repairs or modifications to this device.

Maintenance and repairs must be carried out by a EUROM authorized professional. If the electric cable and/or electric plug is damaged, it should be replaced by the manufacturer or its service employee or persons with similar qualifications to prevent risks.

Cleaning

WARNING

The device becomes very hot. Make sure the device is turned off, unplugged and completely cooled down.

CAUTION

Do not use:

•scouring pads;
- hard brushes;
- flammable, aggressive or chemical cleaning products.

Prevent water from entering the device. Do not immerse any part of the device in water or other liquids.

It is recommended to clean the device after each use and prior to storage.

1. Wipe the device with a damp, clean, soft, lint-free cloth or a soft brush.
2. Use the vacuum cleaner to remove dust from the grilles.
3. Let the device dry completely prior to use and storage.

Disposal

Symbol of a recycling machine with no text or labels

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Attachments

Information requirement for the electric local space heaters
Model identifier(s): CK2000
Item Symbol Value Unit Item	Unit
Heat output Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output Pnom 2.0 kW manual heat charge control, with integrated thermostat					No
Minimum heat output (indicative)	Pmin 0.7 kW manual heat charge control with room and/or outdoor temperature feedback				No
Maximum continuous heat output	Pmax,c 1.9 kW electronic heat charge control with room and/or outdoor temperature feedback				No
Auxiliary electricity consumption fan assisted heat output				No
At nominal heat output	elmax	0.000	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin 0.000 kW single stage heat output and no room temperature control				No
In standby mode	eISB 0.000 kW two or more manual stages, no room temperature control				No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands
