USER MANUAL MWE FS20 G TEKA

natural_image Modern kitchen interior with dark wood cabinets and ovens, featuring a 'TEKA' logo in the top-right corner (no other text or symbols)

User Manual

MWE FS20 G WH

EN FR DE E&PT

Horno microondas

natural_image Simple line drawing of a circular object with internal features and small protrusions (no text or symbols)

Bandeja de vidrio

natural_image Simple line drawing of a circular object with vertical bars and two protruding legs (no text or symbols)
text_image Diagram of a microwave oven with labeled parts A through F, showing internal compartments and a central component.
text_image Technical diagram showing three labeled components of a mechanical assembly with concentric rings and a central shaft.
natural_image Line drawing of a microwave oven with lid and vent, showing open door and side panel (no text or symbols)

Notas:

text_image Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Panel de control

TEKA MWE FS20 G - Panel de control - 1

text_image Diagram showing a simple diagram with symbols for weather and weight, including a plus sign and a snowflake with weight measurement.

TEKA MWE FS20 G - Panel de control - 2

text_image Simple diagram with clock icons and a button labeled '11'

TEKA MWE FS20 G - Panel de control - 3

text_image +30s

TEKA MWE FS20 G - Panel de control - 4

natural_image Simple circular diagram with a curved arrow and plus sign at the top (no text or symbols inside)
natural_image Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

TEKA MWE FS20 G - Panel de control - 5

MANUAL DE INSTRUÇÕES

Modelo: M E FS20 G

natural_image Simple line drawing of a circular object with internal features and small protrusions (no text or symbols)

Prato de Vidro

natural_image Simple line drawing of a circular object with vertical bars and two protruding legs (no text or symbols)
text_image Diagram of a microwave oven with labeled parts A through F, showing internal compartments and a central component.
text_image Technical diagram showing three labeled components of a mechanical assembly with concentric rings and a central shaft.
natural_image Line drawing of a microwave oven with lid and vent, showing open door and side panel (no text or symbols)

Notas:

text_image Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Painel de Controle

Function

(Micro-ondas+Grill+Combi)

Descongelar por

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

ModelMWE FS20 G WH
Rated Voltage/Frequency230 V~ 50 Hz
Microwave Input1050 W
Microwave Output700 W
Grill1000 W

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

  1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
  2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

  3. Keep the appliance and its cord out of reach of children less than 8 years.

  4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

  6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

  7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

  8. When heating food in plastic or paper containers, keep

an eye on the oven due to the possibility of ignition.

  1. Only use utensils that are suitable for use in microwave ovens.

  2. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

  3. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

  4. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

  5. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

  6. The oven should be cleaned regularly and any food deposits removed.

  7. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

  8. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

  9. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

  10. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

  11. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

  12. This appliance is intended to be used in household and similar applications such as:

  13. staff kitchen areas in shops, offices and other working environments;

  14. by clients in hotels, motels and other residential type environments;
  15. farm houses;
  16. bed and breakfast type environments.

  17. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

  18. Metallic containers for food and beverages are not allowed during microwave cooking.

  19. The appliance shall not be cleaned with a steam cleaner.

  20. The appliance is intended to be used freestanding.

  21. The rear surface of appliances shall be placed against a wall.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

HOUSEHOLD USE ONLY

(NOT FOR COMMERCIAL USE)

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

  1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

  2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord.

3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

  1. Clean the cavity of the oven after using with a slightly damp cloth.

  2. Clean the accessories in the usual way in soapy water.

  3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

  4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

  5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

  1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
  2. Cook on maximum power for 1 minute.
  3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
  4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Browning dishFollow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
DinnerwareMicrowave-safe only. Follow manufacturer's instructions.Do not use cracked or chipped dishes.
Glass jarsAlways remove lid. Use only to heat food until just warm.Most glass jars are not heat resistant and may break.
GlasswareHeat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bagsFollow manufacturer's instructions. Do not close with metal tie.Make slits to allow steam to escape.
Paper plates and cupsUse for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towelsUse to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paperUse as a cover to prevent splattering or a wrap for steaming.
PlasticMicrowave-safe only. Follow the manufacturer's instructions.Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrapMicrowave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
ThermometersMicrowave-safe only ( meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum trayMay cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handleMay cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensilsMetal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist tiesMay cause arcing and could cause a fire in the oven.
Paper bagsMay cause a fire in the oven.
Plastic foamPlastic foam may melt or contaminate the liquid inside when exposed to high temperature.
WoodWood will dry out when used in the microwave oven and may split or crack.

NAMES OF OVEN PARTS AND ACCESSORIES

(In case of any differences between the appliance and the pictures in this manual, the product shall prevail.)

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

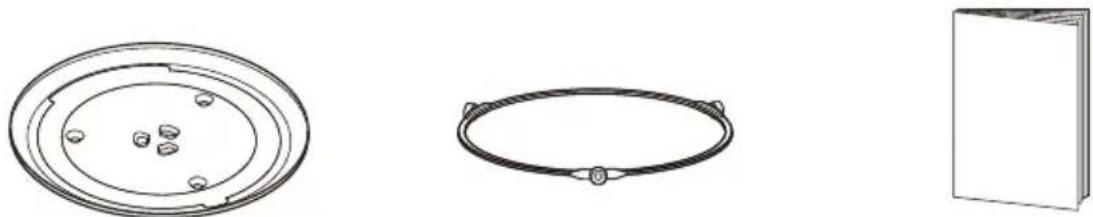

TEKA MWE FS20 G - NAMES OF OVEN PARTS AND ACCESSORIES - 1
Glass Tray Turntable Ring Assembly Instruction Manual

TEKA MWE FS20 G - NAMES OF OVEN PARTS AND ACCESSORIES - 2
Turntable Shaft

TEKA MWE FS20 G - NAMES OF OVEN PARTS AND ACCESSORIES - 3

natural_image Simple line drawing of a circular frame with vertical bars and two side supports (no text or symbols)

Grill Rack( Can not be used in microwave function and must be placed on the glass tray )

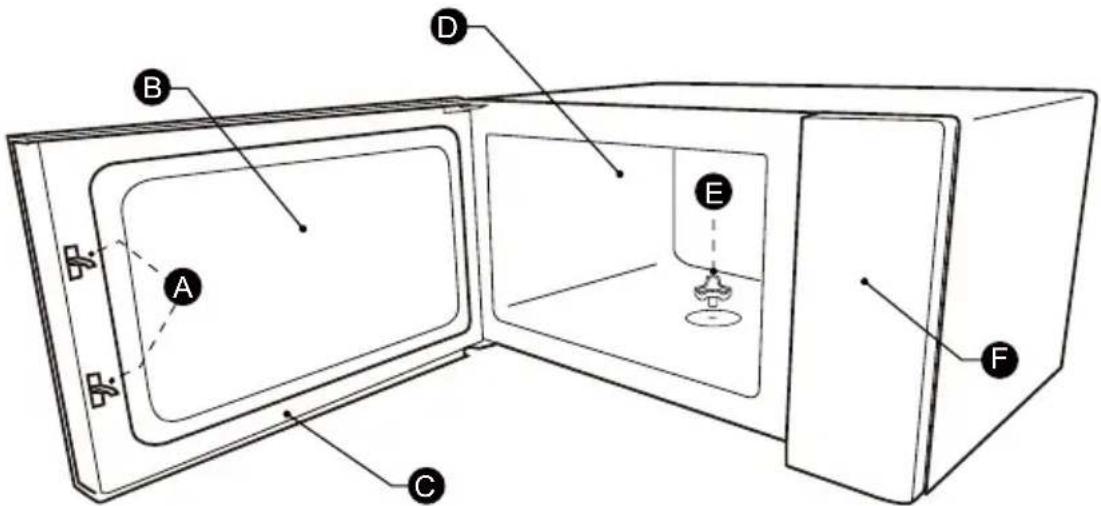

TEKA MWE FS20 G - NAMES OF OVEN PARTS AND ACCESSORIES - 4

text_image Diagram of a microwave oven with labeled parts A through F, showing internal compartments and a central component.

A) Safety interlock system
B) Observation window
C) Door assembly

Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

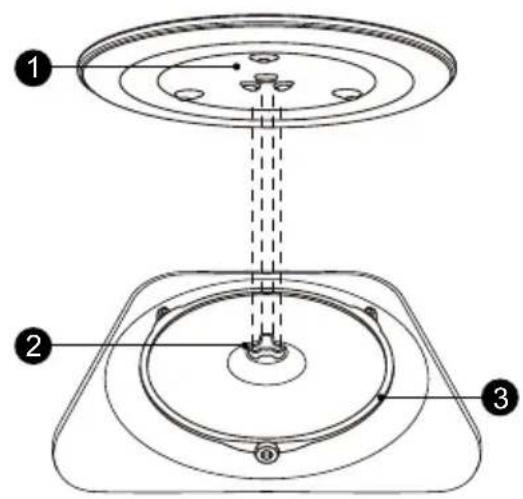

TEKA MWE FS20 G - NAMES OF OVEN PARTS AND ACCESSORIES - 5

text_image Technical diagram of a mechanical assembly with labeled components 1, 2, and 3

How to put the turntable in place:

  1. Place the turntable ring assembly ③ into the recess in the cooking compartment.
  2. Place the glass tray ① on the turntable ring assembly ③. Fit the raised, curved lines in the center of the glass tray bottom between the three spokes of the shaft. Make sure that the glass tray ① engages in the turntable shaft ② in the centre of the cooking compartment floor. The rollers on the shaft should fit inside the turntable bottom ridge.

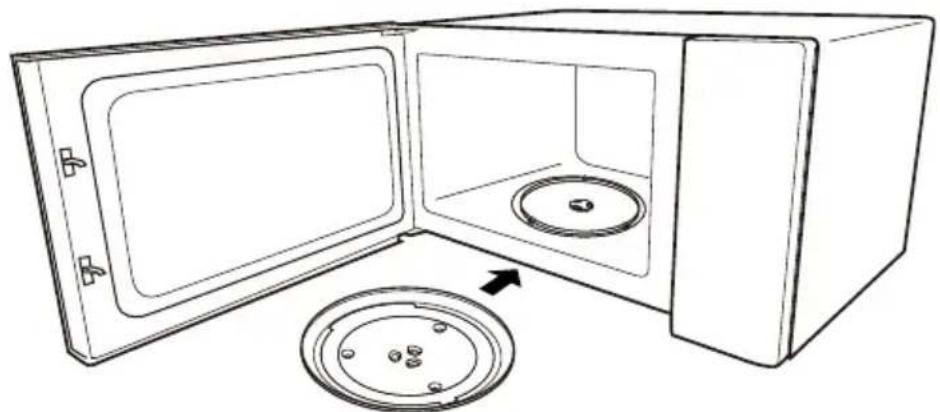

TEKA MWE FS20 G - NAMES OF OVEN PARTS AND ACCESSORIES - 6

natural_image Line drawing of a microwave oven with an open door and a circular lid, showing internal components (no text or symbols)

Notes :

  1. Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.
  2. Never place the glass tray upside down. The glass tray should never be restricted.
  3. Both glass tray and turntable ring assembly must always be used during cooking.
  4. All food and containers of food are always placed on the glass tray for cooking.
  5. Never restrict the movement of the turntable.
  6. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the waveguide cover that is attached to the oven cavity to protect the magnetron.

Installation

  1. Select a level surface that provide enough open space for the intake and/or outlet vents.

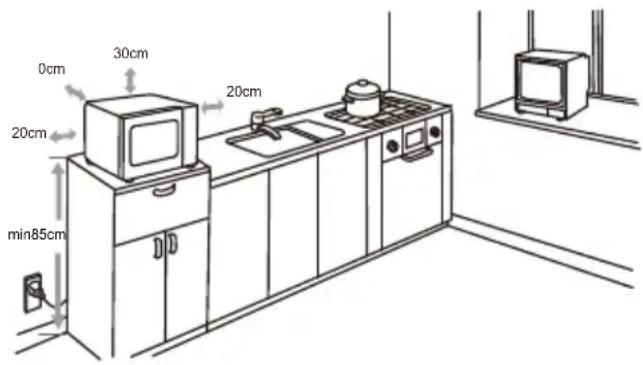

TEKA MWE FS20 G - Installation - 1

text_image 0cm 30cm 20cm 20cm min85cm 20cm 20cm

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.
Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.

(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

  1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be

void.

The accessible surface may be hot during opera

TEKA MWE FS20 G - Installation - 2

text_image Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Control Panel

TEKA MWE FS20 G - Control Panel - 1

text_image Diagram showing a simple diagram with symbols for a rectangular block, a square, and a snowflake with weight labeled in kg.

TEKA MWE FS20 G - Control Panel - 2

text_image Simple diagram with clock icons and a rectangular box containing three symbols: a square, a plus sign, and a minus sign.

TEKA MWE FS20 G - Control Panel - 3

text_image +30s

TEKA MWE FS20 G - Control Panel - 4

TEKA MWE FS20 G - Control Panel - 5

Defrost by Weight/Defrost by Time

Timer/Clock

II Stop/Cancel

+30s Start/+30Sec./Speedy Cooking

OPERATION

1. Setting the Clock

(1) Press " ⏻ | ⏻ twice and then "00:00" will display.
(2) Turn the knob to set the hour figures.
(3) Press " ☑ to confirm.
(4) Turn the knob to set the minute figures.
(5) Press " 🔍 | " to confirm. The clock is set.

Notes:

(1) The clock is a 24-hour display. If the clock is not set, it will not work when powered.
(2) To reset the clock, please repeat step 1 to step 5.
(3) After setting the clock, if “ ” is not pressed or if there is no operation within 1 minute, the setting is invalid.

2. Setting the Kitchen Timer

(1) Press " ⏻ | ⏻ " once and then "0:00" will display.
(2) Turn the knob to set the desired time. The maximum time value is "95:00".
(3) Press " ▶+30s" to confirm. The timer starts counting down.

Note: The kitchen timer is a timer.

3. Microwave Cooking

Microwave Power Chart

Microwave Power100%80% 50%30% 10%
DisplayP100P80P50P30P10

(1) Press " ☐ + ☐ once and then "P100" will display.
(2) Press " [icon] + 📋 repeatedly or turn the knob to set the power level. The 5 power levels are available.
(3) Press " ▷+30s " to confirm.
(4) Turn the knob to set the cooking time. The maximum time value is "95:00".
(5) Press " ▷ to start cooking.

4. Defrost By Weight

(1) Press " 2kg " once, the screen will display "dEF1".
(2) Turn the knob to set the weight of the food. The range of weight is 100-2000g.
(3) Press " ▷+30s" to start defrosting.

Note: The buzzer will sound to remind you to turn the food over during defrosting.

If no operation, the oven will continue working.

5. Defrost By Time

(1) Press " 2kg " twice, the screen will display "dEF2".
(2) Turn the knob to set the desired defrost time. The maximum time value is "95:00".
(3) Press " ▷+30s " to start defrosting.

Notes:

(1) The buzzer will sound to remind you to turn the food over during defrosting.

If no operation, the oven will continue working.

(2) The defrost power is P30 and it cannot be changed.

6. Speedy Cooking

(1) In standby mode, press " ▶+30s" to cook food at 100% power level for 30 seconds. Each press on the same key can increase 30 seconds and the maximum time value is "95:00".
(2) In standby mode, turn the knob left to set a cooking time with 100% power.

Continue to turn the knob to adjust the cooking time. The maximum time

value is "95:00". Then press "

+30s" to start cooking.

Note: In the cooking state and defrosting by time state, each more press on "

TEKA MWE FS20 G - Speedy Cooking - 1

can increase the cooking time by 30 seconds (except for defrosting by weight, the auto menu, and the first stage of multi-stage cooking).

7. Multi-Stage Cooking

Notes: (1) Two cooking stages can be set in multi-stage cooking.

(2) If you set the defrost function, it will work automatically in the first stage.

(3) The kitchen timer, auto menu cannot be set as one of the multi-stage.

Example: Defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes.

(1) Press " ②kg " twice, the screen will display "dEF2".
(2) Turn the knob to set the desired defrost time to 5 minutes.
(3) Press " ☐ + ☐" once and then "P100" will display.
(4) Press " [≡] + \~" again or turn the knob to set the power level to P80.
(5) Press " ▷+30s" to confirm.
(6) Turn the knob to set the cooking time to 7 minutes.
(7) Press " ▷+30s" to start cooking.

8. Grill and Combination Cooking

(1) Press " [icon] + " once and then "P100" will display.
(2) Press " [icon] + 📌" repeatedly or turn the knob until "G-1", "C-1", and "C-2" displays in order.
(3) Press " ▶+30s" to confirm.
(4) Turn the knob to set the cooking time. The maximum time value is "95:00".
(5) Press " ▶+30s" to start cooking.

Note: The buzzer will sound to remind you to turn the food over during grill cooking.

If no operation, the oven will continue working.

Combination Cooking Chart

FunctionDisplayMicrowave PowerGrill Power
Combi. 1C-155%45%
Combi. 2C-264%36%

9. Auto Menu

(1) Turn the knob right and then "A-1" will display.
(2) Continue to turn the knob to choose the menu you need. The 8 auto menus are available.
(3) Press " ▶+30s " to confirm.
(4) Turn the knob to set the weight of the food.
(5) Press " ▶+30s " to start cooking.

Auto Menu Chart

MenuWeightDisplayPower
A-1Auto Reheat200g200P100
400g400
600g600
A-2Vegetable300g300
400g400
A-3Fish250g250P80
350g350
450g450
A-4Meat250g250P100
350g350
450g450
A-5Pasta50g(with 450g cold water)50P80
100g(with 800g cold water)100
A-6Potato200g200P100
400g400
600g600
A-7Pizza200g200
400g 400
A-8Soup200ml200
400ml400

10. Lock-out Function for Children

You can use this function to prevent children from accidentally turning the oven on.

To activate the lock:

In standby mode, press and hold " [1] " for three seconds. A long beep sounds and " [____]" will display.

To deactivate the lock:

In the locked state, press and hold " [1] " for three seconds. A long beep sounds.

11. Inquiring Function

(1) If the clock has been set, the current time will display for three seconds by pressing " [J] | [J]" in the cooking state.

(2) In the microwave, grill, combination cooking state, press "to inquire about the power level or cooking mode. It will display for three seconds.

Trouble shooting

Normal
Microwave oven interfering TV receptionRadio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven lightIn low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of ventsIn cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.It is forbidden to run the unit without any food inside. It is very dangerous.
Trouble PossibleCause Remedy
Oven cannot be started.(1) Power cord is not plugged in tightly.Unplug. Then plug again after 10 seconds.
(2) Fuse blowing or circuit breaker works.Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
(3) Trouble with outlet.Test outlet with other electrical appliances.
Oven does not heat.(4) Door is not closed well.Close door well.

TEKA MWE FS20 G - Trouble shooting - 1

natural_image Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

natural_image Simple line drawing of a circular object with four small protrusions, no text or symbols present.

Plateau en Verre

natural_image Simple line drawing of a circular table with vertical bars and two legs (no text or symbols)
text_image Diagram of a microwave oven with labeled parts A through F, showing internal compartments and a central component.
text_image Technical diagram showing three labeled components of a mechanical assembly with concentric rings and a central shaft.
natural_image Line drawing of a microwave oven with lid and vent, showing open door and side panel (no text or symbols)

Remarques :

natural_image Warning symbol of steam inside a triangle (no text or numbers)

Panneau de contrôle

TEKA MWE FS20 G - Panneau de contrôle - 1

text_image Diagram showing a weight measurement setup with symbols for weight, water, and weight gain

TEKA MWE FS20 G - Panneau de contrôle - 2

text_image Simple diagram with clock icons and a rectangular box containing two symbols: one with a plus sign and another with a minus sign.

TEKA MWE FS20 G - Panneau de contrôle - 3

text_image +30s

TEKA MWE FS20 G - Panneau de contrôle - 4

natural_image Simple line drawing of a circular object with internal features and small protrusions (no text or symbols)

Glasteller

TEKA MWE FS20 G - Panneau de contrôle - 5

natural_image Simple line drawing of a circular object with vertical bars and two side supports (no text or symbols)
text_image Technical diagram of a microwave oven with labeled components A through F
text_image Technical diagram showing a mechanical assembly with labeled components 1, 2, and 3, including concentric rings and a central shaft.
natural_image Line drawing of a microwave oven with an open door and a circular lid, showing internal components (no text or symbols)

Hinweis:

text_image Diagram showing a simple diagram with icons for weather symbols, a plus sign, and a weight measurement.

TEKA MWE FS20 G - Hinweis: - 1

text_image Simple diagram with clock icons and a rectangular box containing three symbols: a square with 'I', a circular with 'J', and a vertical bar labeled 'II'.

TEKA MWE FS20 G - Hinweis: - 2

text_image +30s

TEKA MWE FS20 G - Hinweis: - 3
natural_image Simple line drawing of a circular object with internal features and small protrusions (no text or symbols)

Cam Tepsi

natural_image Simple line drawing of an oval-shaped object with vertical bars and two protruding legs (no text or symbols)
text_image Diagram of a microwave oven with labeled parts A through F, showing internal compartments and a central air vent.
text_image Technical diagram of a mechanical assembly with labeled components 1, 2, and 3
natural_image Line drawing of a microwave oven with open door and circular base, showing interior components (no text or symbols)

Notlar:

text_image Diagram showing a spring scale with weight measurement and weather icons for water and snow

TEKA MWE FS20 G - Notlar: - 1

text_image Simple diagram with clock icons and a blank rectangular box, likely indicating status or sequence.

TEKA MWE FS20 G - Notlar: - 2

text_image +30s

TEKA MWE FS20 G - Notlar: - 3

natural_image Simple circular diagram with a curved arrow and plus sign at the top (no text or symbols inside)

TEKA MWE FS20 G - Notlar: - 4

Fonksiyon (Mikrodalga+Izgara+Kombi)

TEKA MWE FS20 G - Notlar: - 5

natural_image Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Country Subsidiary Address City Phone

AustriaKüppersbusch AustriaEitnergasse, 131231 Wien+43 18 668 022
BelgiumKüppersbusch Belgium S.P.R.L.Doomveld Industrie, Asse 3, No. 11 - Boite 71731 Zellik+32 24 668 740
BulgariaTeka Bulgaria EOODBlvd. "Tsarigradsko Shosse" 1351784 Sofia+359 29 768 330
ChileTeka Chile S.A.Avd El Retiro Parque los Maitenes, 1237. Parque EneaPudahuel, Santiago de Chile+56 24 386 000
ChinaTeka International Trading (Shanghai) Co. Ltd.No.1506, Shengyuan Henghua Bldg. No.200 Wending Rd.Xuhui, Dist. 200030 Shanghai+86 2 153 076 996
Czech RepublicTeka CZ S.R.O.V Holesovickách, 593182 00 Praha 8 - Liben+420 284 691 940
EcuadorTeka Ecuador S.A.Parque Ind. California 2, Via a Daule Km 12Guayaquil+593 42 100 311
GreeceTeka Hellas A.E.Thesi Roupaki - Aspropyrgos193 00 Athens+30 2 109 760 283
HungaryTeka Magyarország Zrt.Terv u. 929200 Mosonmagyaróvár+36 96 574 500
IndonesiaPT Teka BuanaJalan Menteng Raya, Kantor Taman A9 Unit A312950 Jakarta+62 215 762 272
MalaysiaTeka Küchentechnik (Malaysia) Sdn Bhd10 Jalan Kartunis U1/47, Temasya Park, Off Glenmarie40150 Shah Alam, Selangor Darul Ehsan+60 376 201 600
MexicoTeka Mexicana S.A. de C.V.Blvd Manuel A. Camacho 126, Piso 3 Col. Chapultepec11000 Mexico D.F.+52 5 551 330 493
MoroccoTeka Maroc S.A.73, Bd. Slimane, Depôt 33, Route de Ain SebaaCasablanca+212 22 674 462
PeruTeka Küchentechnik Perú S.A.Av. El Polo 670 local A 201, CC El polo, SurcoLima+51 14 363 078
PolandTeka Polska Sp. ZO.O.ul. 3-go Maja 8 / A205-800 Pruszkow+48 227 383 270
PortugalTeka Portugal S.A.Estrada da Mota - Apdo 5333834-909 Ilhavo, Aveiro+35 1 234 329 500
RomaniaS.C. Teka Küchentechnik Romania S.R.L.Sevastopol str., no 24, 5th floor, of. 15010992 Bucharest Sector 1+40 212 334 450
Russia/PоссияTeka Rus LLC/OOO "Teka Рус"Neverovskogo 9, Office 417, 121170, Moscow, Russia121087 Россия, Москва+7 4 956 450 064
SingaporeTeka Singapore PTE LtdClemenceau Avenue, 83, 01-33/34 UE Square239920 Singapore+65 67 342 415
SpainTeka Industrial, S.A.C/ Cajo,1739011 Santander+34 942 355 050
ThailandTeka (Thailand) Co. Ltd.364/8 Sri-Ayuttaya Road, Phayathai, Ratchatavee10400 Bangkok+66 -26 424 888
TurkeyTeka Teknik Mutfak Aletleri Sanayi VeBüyükdere Cad. 24/1380290 Mecidiyeköy, Istanbul+90 2 122 883 134
UkraineTeka Ukranie LLC86-e, Bozhenko Str .2nd floor,4th entrance03150 Kyiv+380 444 960 680
United Arab EmiratesTeka Middle East FzeBuilding LOB 16, Office 417P.O. Box 18251 Dubai+971 48 872 912
United Arab EmiratesTeka Küchentechnik U.A.E LLCBin Khedia CentreP.O. Box 35142 Dubai+971 42 833 047
VenezuelaTeka Andina S.A.Ctra. Petare-Santa Lucia, km 3 (El Limoncito)1070 Caracas+58 2 122 912 821
VietnamTEKA Vietnam Co., Ltd.803, FI 8th, Daiminh Convention Center, 77, Hoang VanThai, Tan Phu Ward, District 7, Ho Chi Minh+84 854 160 646

TEKA MWE FS20 G - Notlar: - 6

text_image FR ©

TEKA MWE FS20 G - Notlar: - 7

text_image 'TEKA

Teka Industrial S.A.

natural_image World map silhouette showing continents and countries with no text or labels

teka.com

Asped mos eriatius sit atet hicil et velit

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : TEKA

Model : MWE FS20 G

Category : Microwave Oven
