USER MANUAL F4X1009NWK LG

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INHOUDSOPGAVE

Smart Diagnosis ....37

ONDERHOUD

Reinigen na elke wasbeurt....39

Voor u service belt ....43

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

ZORG VOOR HET MILIEU

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

4 ZORG VOOR HET MILIEU

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

6 VEILIGHEIDSVOORSCHRIFTEN

VEILIGHEIDSVOORSCHRIFTEN

LEES ALLE INSTRUCTIES VOOR HET GEBRUIK

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 VEILIGHEIDSVOORSCHRIFTEN

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

VEILIGHEIDSVOORSCHRIFTEN

9

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 VEILIGHEIDSVOORSCHRIFTEN

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

nl-nl_main.book.book Page 11 Monday, June 3, 2024 4:29 PM

VEILIGHEIDSVOORSCHRIFTEN

11

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 INSTALLATIE

INSTALLATIE

Technical diagram of a mechanical device with numbered components and an inset close-up view of the component.

Technical diagram of a mechanical or electrical component with labeled parts 1, 2, and 3

① Stekker
② Transportbouten
③ Afvoerslang

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Specifications

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

14 INSTALLATIE

Accessoires

Pure technical diagram of a rectangular frame with hatched sides and dimension line A (no text or symbols)

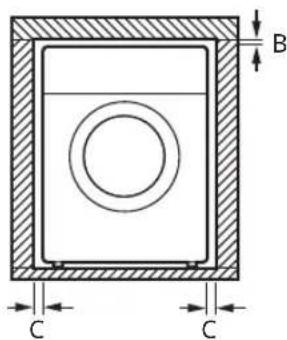

B C C

Index Speling (mm)
A	100
B	5
C	20

WAARSCHUWING

Technical illustration of two mechanical components: a circular component with internal grooves and a hexagonal bolt (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

16 INSTALLATIE

LET OP

Diagram showing a device with labeled components and directional arrows indicating movement or assembly.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing a circular component.

OPMERKING

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

OPMERKING

Line drawing of a front view of a washing machine with a control panel and labeled component (no text or symbols beyond the label)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a card with a numbered label (1) on the cover, no text or symbols present.

Technical diagram showing two mechanical or fluidic components with labeled connection point 1

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

20 INSTALLATIE

Diagram of a faucet with a valve inserted into a pipe, showing fluid flow direction (no text or symbols)

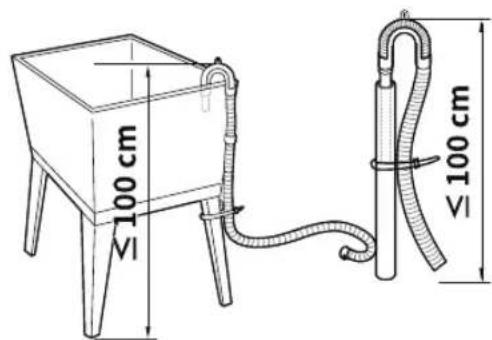

OPMERKING

Illustration showing a person using a handheld device to observe a magnified view of the device (no text or symbols present)

≤100 cm ≤145 cm ≤100 cm ≤105 cm

100 cm VI 100 cm VI

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

nl-nl_main.book.book Page 21 Monday, June 3, 2024 4:29 PM

INSTALLATIE

21

Line drawing of a kitchen sink with faucet and plate (no text or symbols)

NEDERLANDS

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 GEBRUIK

GEBRUIK

Gebruiksoverzicht

Medical illustration showing two stages of a surgical procedure with no visible text or symbols

Medical illustration showing a hand holding a tool near a surgical instrument, with an inset close-up of the instrument (no text or symbols present)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

24 GEBRUIK

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Diagram illustrating the process of fabric handling with labeled parts including a key, magnifying glass, and envelope.

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 GEBRUIK

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

28 GEBRUIK

Programmatabel

Wasprogramma

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Programma Voorwas
Katoen	●
Eco 40-60	●
Mix	●
Snel 30 min	●
Easy Care	●
Sportkleding
Hand/Wol Was
Fijne Was

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 GEBRUIK

Pure geometric lines and symbols without any text, numbers, or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Programma	kg	u:mm	kWh	°C	Liters	tpm	%
Mix	4 1:26	0,358 30 56	6 1180 64,4
Snel 30 min	2 0:30	0,134 24 45	9 720 85,4
Eco 40-60 (Vol)*1	9 3:48	0,80 39 73,0	1310 51,0
Eco 40-60 (Helft)*1	4,5 2:54	0,47 31 42,0	1360 53,4
Eco 40-60 (Kwart)*1	2,5 2:50	0,249 26 35,0	1360 56,7

F4X1008NWH

Programma	kg	u:mm	kWh	°C	Liters	tpm	%
Katoen 20 °C	8	2:08	0,173	24	53,3	1350	51,2
Katoen 60 °C	8	3:14	1,366	50	56,2	1350	49,4
Mix	4 1:26	0,358 30 56	6 1180 64,4
Snel 30 min	2 0:30	0,134 24 45	9 720 85,4
Eco 40-60 (Vol)*1	8 3:38	0,75 37 72,0	1350 52,0
Eco 40-60 (Helft)*1	4 2:48	0,45 32 37,0	1350 53,4
Eco 40-60 (Kwart)*1	2 2:43	0,189 25 30	0 1350 56,3

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

nl-nl_main.book.book Page 32 Monday, June 3, 2024 4:29 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

32 GEBRUIK

OPMERKING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

34 GEBRUIK

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

36 SMART FUNCTIONS

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

38 SMART FUNCTIONS

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

ONDERHOUD

⚠ WAARSCHUWING

Illustration of hands cleaning a circular object with arrows indicating motion (no text or symbols)

⚠ WAARSCHUWING

Diagram of a pipe fitting with a rotating valve, showing airflow direction (no text or symbols)

Illustration of mechanical components including a cylindrical component, a pin cutter, and a mechanical clamp (no text or symbols)

Illustration of a hand interacting with a tablet device, showing a finger pressing the screen (no text or symbols present)

Diagram showing a device with a lid and a bowl of milk being lifted by an arrow (no text or symbols)

Diagram illustrating a device's rotation and component selection, with magnified views showing 50 and 100+ parts.

Illustration showing two different electrical circuit components: a plug and a switch, both without any text or symbols.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

42 ONDERHOUD

De wasmiddellade reinigen

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

44 PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

46 PROBLEEMOPLOSSING

48 PROBLEEMOPLOSSING

nl-nl_main.book.book Page 50 Monday, June 3, 2024 4:29 PM Memo

LG

Life's Good

Smart Diagnosis (Diagnostic intelligent)....39

MAINTENANCE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

PRENDRE SOIN DE L'ENVIRONNEMENT

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

4 PRENDRE SOIN DE L'ENVIRONNEMENT

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

6 CONSIGNES DE SÉCURITÉ

CONSIGNES DE SÉCURITÉ

LISEZ TOUTES LES INSTRUCTIONS AVANT UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

CONSIGNES DE SÉCURITÉ

9

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 CONSIGNES DE SÉCURITÉ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Élimination

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 INSTALLATION

INSTALLATION

Technical diagram of a mechanical device with numbered components and an inset close-up view of the component.

Technical diagram of a mechanical or electrical component with labeled parts 1, 2, and 3

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Caractéristiques

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

14 INSTALLATION

Accessoires

Pure technical diagram of a rectangular frame with hatched sides and dimension line labeled A (no text or symbols beyond label)

B C C

Index Dégagement (mm)
A	100
B	5
C	20

AVERTISSEMENT

Technical illustration of two mechanical components: a circular component with a pin and a hexagonal bolt (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

16 INSTALLATION

ATTENTION

Diagram showing a device component with labeled parts and directional arrows indicating movement or assembly.

Pure geometric lines and symbols without any text, numbers, or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a magnified inset showing a circular component.

REMARQUE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

18 INSTALLATION

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

REMARQUE

Line drawing of a washing machine with a dial indicator and numbered label (no text or symbols on the device itself)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Illustration of a hand holding a folded paper or sheet with a numbered marker (1), no text or symbols present.

Technical diagram showing two mechanical or fluidic components with labeled connection point 1

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

20 INSTALLATION

Diagram of a faucet with a valve inserted into a pipe, showing fluid flow direction (no text or symbols)

REMARQUE

Illustration showing a person using a handheld device to observe eye examination, with magnified inset (no text or symbols)

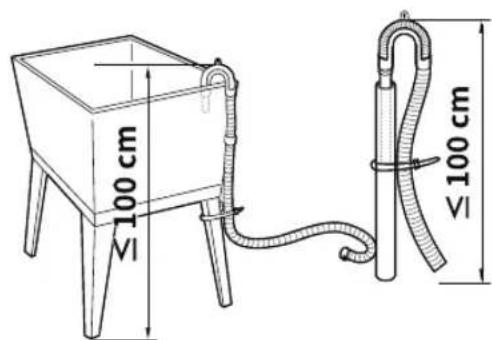

≤100 cm ≤145 cm ≤100 cm ≤105 cm

100 cm VI 100 cm VI

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

fr-fr_main.book.book Page 21 Monday, June 3, 2024 4:24 PM

INSTALLATION

21

Line drawing of a kitchen sink with faucet and chain, no text or symbols present

FRANÇAIS

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 UTILISATION

UTILISATION

Medical illustration showing a surgical procedure with labeled components and directional arrows indicating movement or positioning.

Medical illustration showing a hand holding a tool near a surgical instrument, with an inset close-up of the instrument (no text or symbols present)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

24 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Diagram illustrating the process of clothing turnover with labeled parts including key, magnifying glass, and card.

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 UTILISATION

Technical diagram of a mechanical device with numbered components and labeled parts

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

fr-fr_main.book.book Page 28 Monday, June 3, 2024 4:24 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

28 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

34 UTILISATION

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

36 FONCTIONS SMART

FONCTIONS SMART

Application LG ThinQ

Smart Diagnosis (Diagnostic intelligent)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

38 FONCTIONS SMART

Smart Diagnosis (Diagnostic intelligent)

Illustration of hands cleaning a circular object with arrows indicating direction (no text or symbols)

AVERTISSEMENT

Diagram of a pipe fitting with a rotating knob, showing motion direction (no text or symbols)

Diagram illustrating the process of a mechanical tool, showing how to adjust a component into a wire and then to a tool with a handle.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

42 MAINTENANCE

Illustration of a hand interacting with a tablet device, showing a finger pressing the screen (no text or symbols present)

Diagram showing a device with a circular component being inserted into a bowl, with arrows indicating flow direction (no text or symbols present)

Diagram illustrating a device's rotation and component selection, with magnified views showing 50 and 100 units.

Illustration showing two different electrical circuit components: a plug and a switch, both with wires and a magnified inset (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

44 DÉPANNAGE

DÉPANNAGE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

46 DÉPANNAGE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

48 DÉPANNAGE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Performance

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

fr-fr_main.book.book Page 51 Monday, June 3, 2024 4:24 PM

DÉPANNAGE

51

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

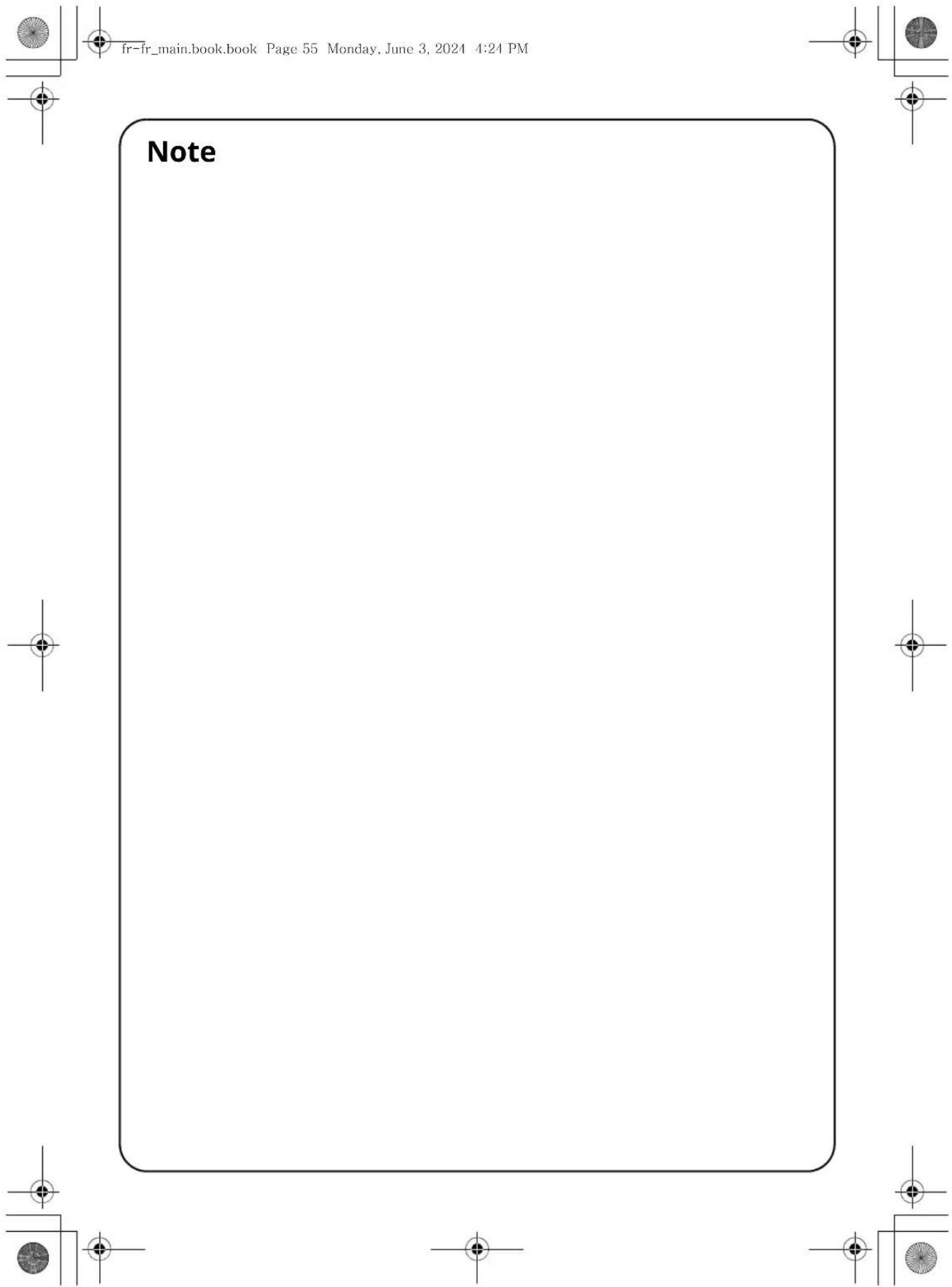

fr-ir_main.book.book Page 52 Monday, June 3, 2024 4:24 PM Note

fr-ir_main.book.book Page 53 Monday, June 3, 2024 4:24 PM Note

fr-ir_main.book.book Page 54 Monday, June 3, 2024 4:24 PM Note

fr-ir_main.book.book Page 55 Monday, June 3, 2024 4:24 PM Note

fr-ir_main.book.book Page 55 Monday, June 3, 2024 4:24 PM Note

fr-ir_main.book.book Page 55 Monday, June 3, 2024 4:24 PM Note

fr-fr_main.book.book Page 52 Monday, June 3, 2024 4:24 PM

LG

Life's Good
