Product type	Pool heat pump
Brand	Dantherm
Model	HPP-i 8
Dimensions (L × D × H)	864 × 359 × 648 mm
Net weight	47 kg
Power supply	230 V single-phase, 50 Hz
Maximum input current	9.5 A
Recommended fuse	16 A (aM/MCB type C)
RCD	30 mA, type F
Refrigerant	R32, charge 0.6 kg
Minimum installation area	3.1 m²
Air temperature range	-5 °C to +43 °C
Water temperature range (heating)	18 °C to 40 °C
Water temperature range (cooling)	12 °C to 30 °C
Heating capacity (Air 27°C/Water 27°C)	9.5 kW
Average COP at 50% speed (Air 27°C/Water 27°C)	8.9
Operating modes	Boost and Whisper
Sound pressure level at 10 m	19.6 – 31.5 dB(A)
Recommended water flow	3 – 5 m³/h
Water connections	Female 1½" or 50 mm
Connectivity	Wi-Fi via mobile app
Maintenance and cleaning	Clean with mild detergent or clean water; do not use white spirit or thinner; check bolts, cables and connections regularly.
Safety	Isolate power supply and wait 3 minutes before any intervention; do not drill or burn; keep away from open flames; intervention reserved for qualified personnel.
Warranty	Freezing, failure to comply with installation conditions, inadequate water quality (pH 7.2-7.8, free chlorine 1-2 ppm domestic) void the warranty.

Frequently Asked Questions - HPP-i 8 Dantherm

What is the minimum air temperature for the heat pump operation?

The heat pump can operate with an air temperature between -5 °C and +43 °C.

What operating modes are available?

Two modes are available: Boost (100% capacity for rapid heating) and Whisper (80% capacity, 3 dB(A) less).

How to lock the heat pump screen?

Press the On/Off button for 3 seconds to lock or unlock the screen. The buttons become dark when the screen is locked.

What type of refrigerant is used and what are the precautions?

The refrigerant is R32, classified A2L (low toxicity and flammability). It is forbidden to drill or burn the appliance. The installation must comply with a minimum area of 3.1 m² to avoid any risk of ignition.

How to synchronize the filtration pump with the heat pump?

If the filtration pump is controlled by a timer, the heat pump can take over to heat/cool. The P1 and P2 terminals allow connecting the pool pump. Consult an installer to activate this function.

What are the location requirements for the heat pump?

The heat pump must be installed in a well-ventilated area, more than 3.5 m from the edge of the pool. A minimum clearance of 700 mm at the rear and sides, and 2500 mm in front is required for air circulation.

How to perform a forced defrost?

In heating mode, after at least 10 minutes of continuous compressor operation, press the + and - buttons simultaneously for 5 seconds. The indicator flashes during defrost. The interval between two forced defrosts must be greater than 30 minutes.

What to do in case of error code E3?

The code E3 indicates a lack of water flow in the heat pump. Check the water circuit and the operation of the pool pump.

How to use the mobile app?

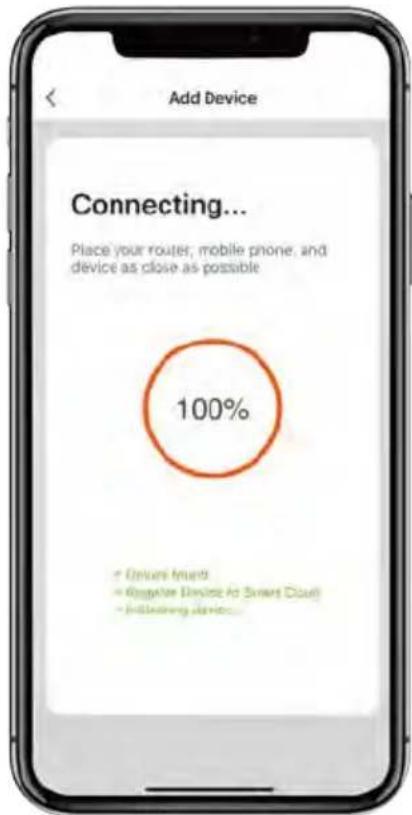

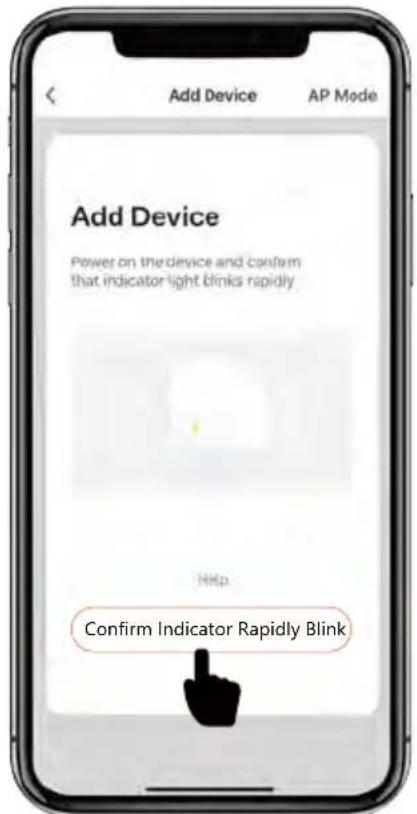

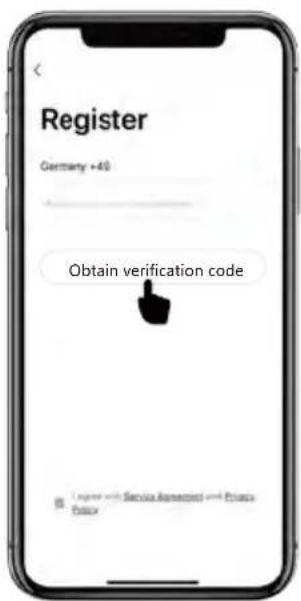

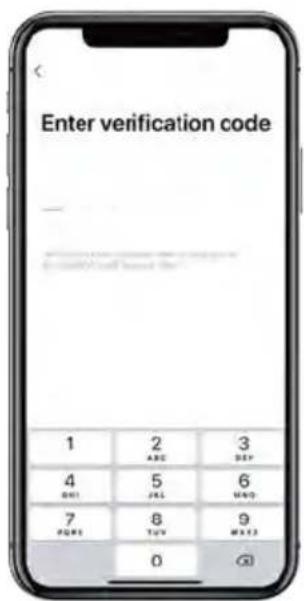

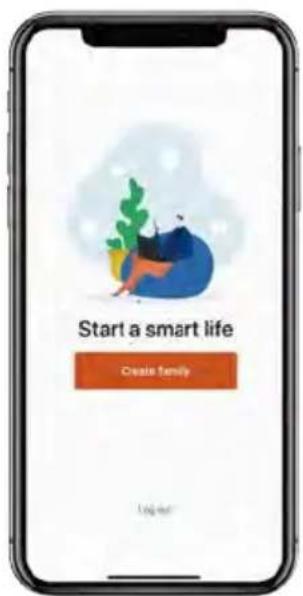

Download the app from the App Store or Google Play, register an account, create a family. On the heat pump, press the Wi-Fi button for 3 seconds until the indicator flashes, then connect via the app.

How to winterize the heat pump?

Cut off the power supply, drain the water via the valve or by disconnecting the pipes, clean the circuit with clean water, spray a water repellent inside, and cover the unit with a ventilated cover to avoid condensation.

USER MANUAL HPP-i 8 Dantherm

HPP-i / HPP-iw inverter heat pumps

HPP-i 8, 12, 16, HPP-iw 12, 16, 22, 28

Owner Installation Manual 1007332 Issue 5

HEALTH AND SAFETY WARNING

This product contains electrical and rotational equipment. ONLY competent trained people should work on this device, and must be isolated electrically before removing access panels.

This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Exterior view of a Danikendi air conditioner unit with visible fan blades and control panel (no text or symbols on main body)

CONTENTS

HEALTH AND SAFETY WARNING ....2

1.0 INTRODUCTION ....4

1.1 FOREWORD....4
1.2 WARNINGS ....4

2.0 ABOUT YOUR HEAT PUMP 8

2.1 TRANSPORTATION 8
2.2 ACCESSORIES....8
2.3 OPTIONAL ACCESSORIES....9
2.4 FEATURES....10
2.5 OPERATING CONDITIONS AND RANGE ... 10
2.6 OPERATING MODES ....10

3.0 INSTALLATION ....11

3.1 POSITIONING AND AIRFLOW....11
3.2 REFRIGERANT TYPE AND INSTALLED LOCATION....14

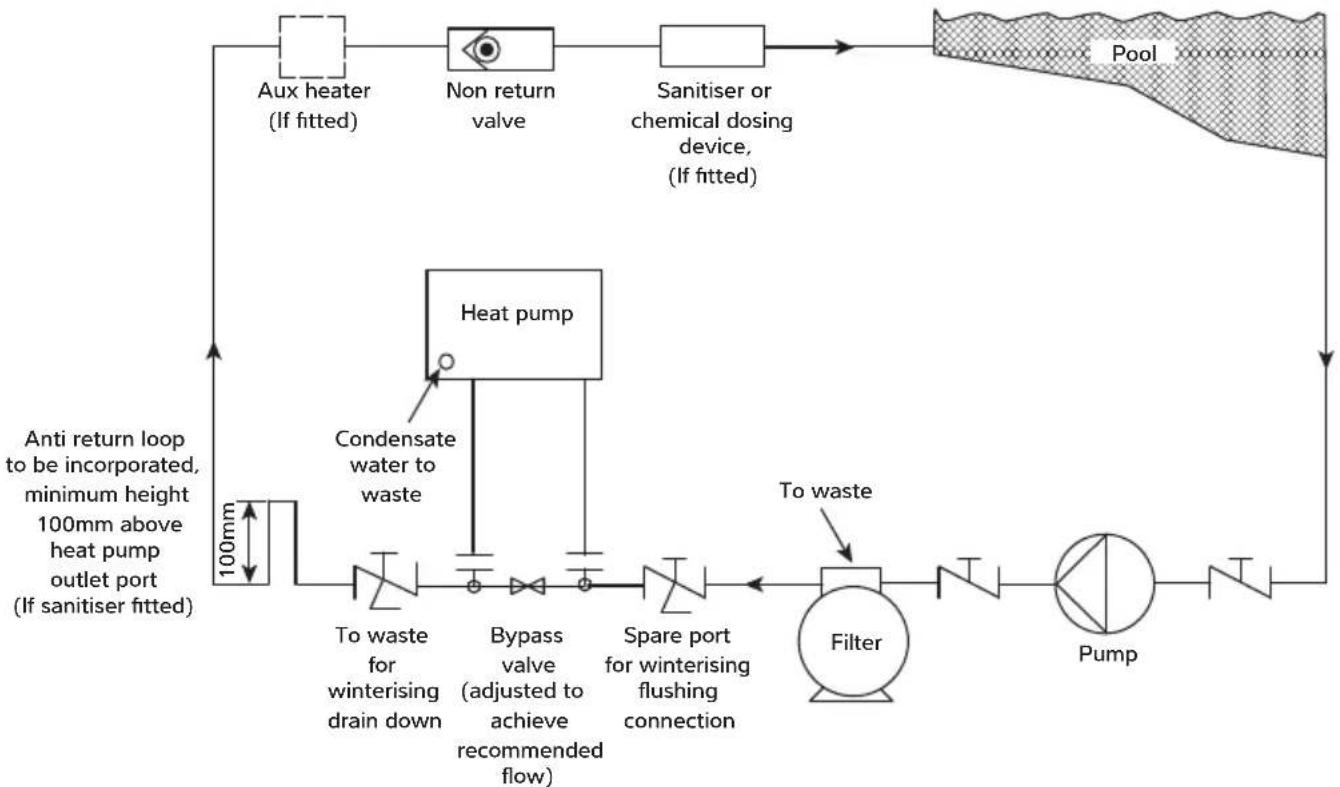

3.3 POOL WATER CIRCUIT....15
3.4 PLUMBING....16

3.5 INITIAL CHECKS ....16

3.6 ELECTROLYTIC CORROSION IN SWIMMING POOLS....17

3.7 ELECTRIC WIRING AND SUPPLY .....17

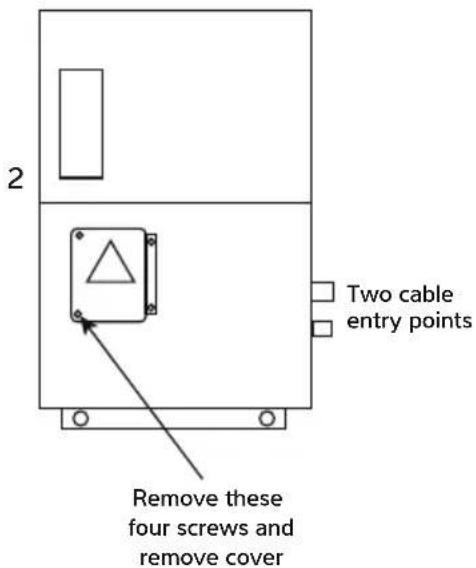

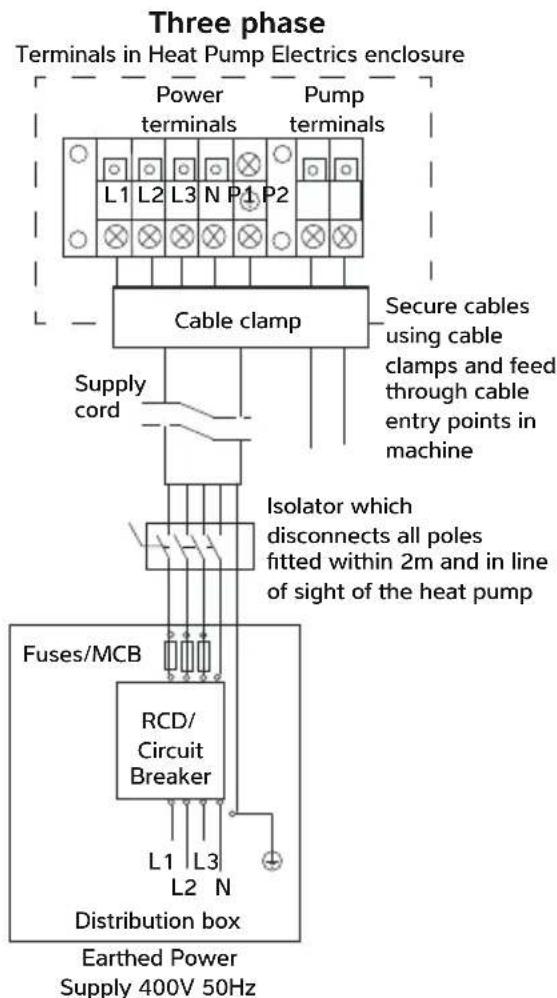

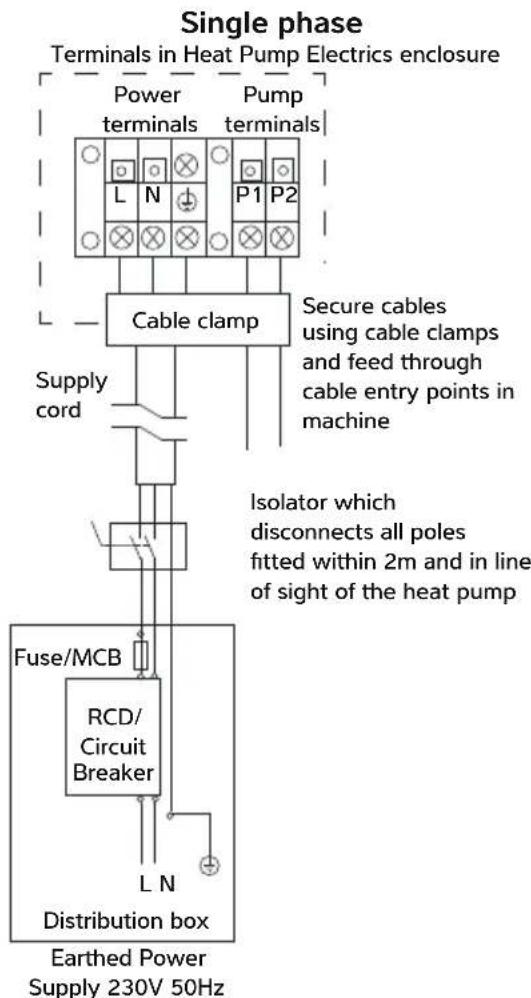

3.8 CONNECTING THE HEAT PUMP TO THE POWER SUPPLY ....18

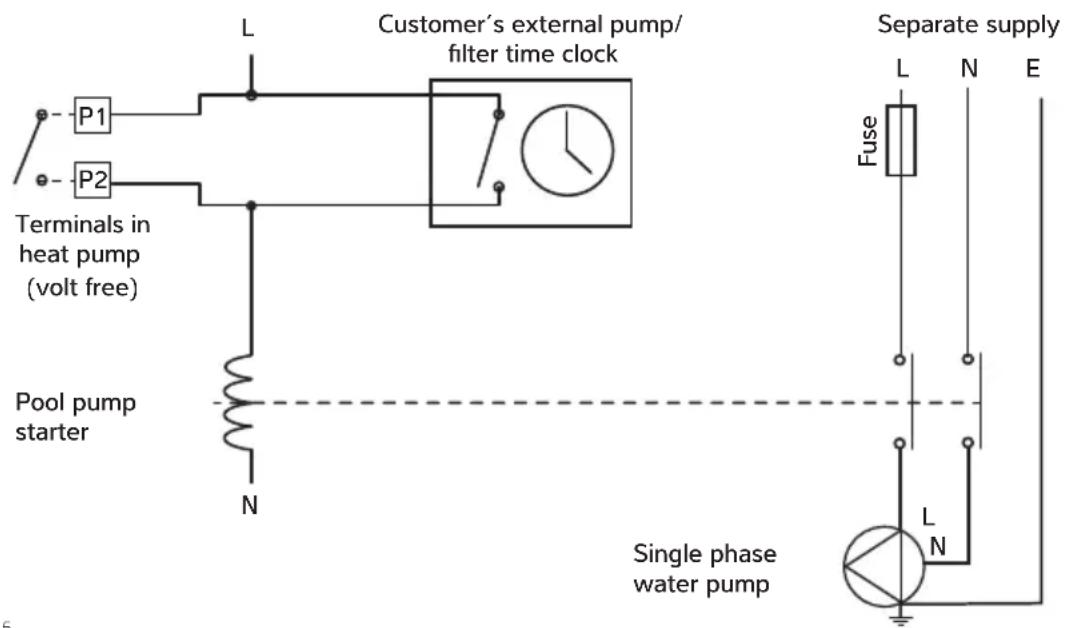

3.9 POOL PUMP SYNCHRONISATION TERMINALS P1 AND P2....19

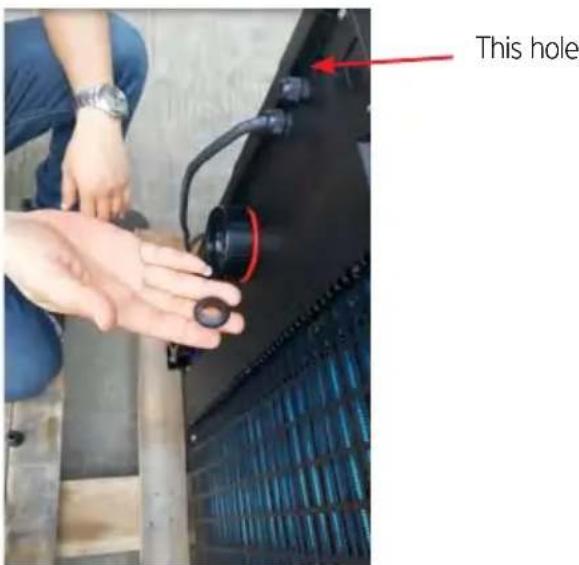

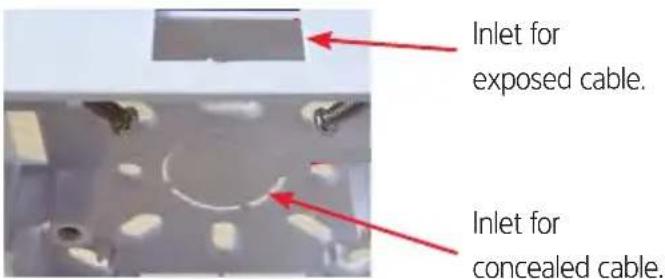

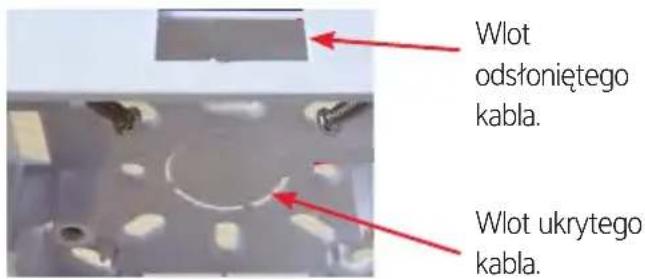

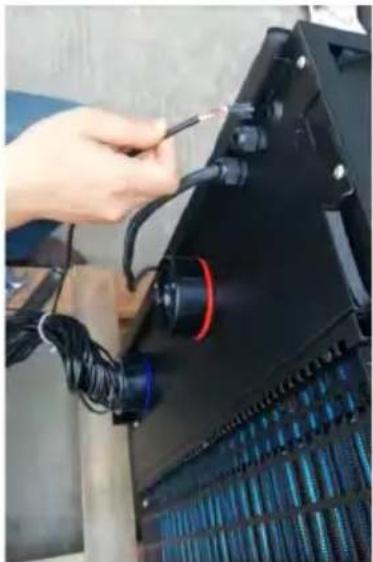

3.10 INSTALLING THE OPTIONAL REMOTE

CONTROLLER....20

4.0 USING YOUR HEAT PUMP....22

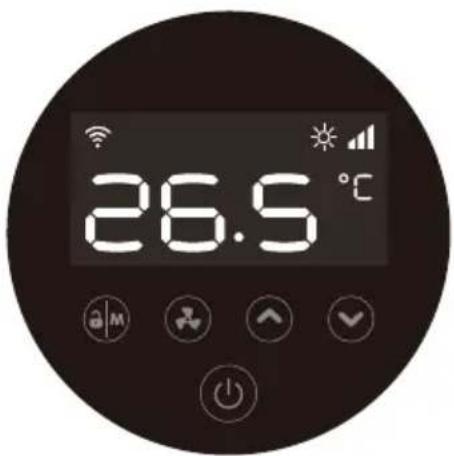

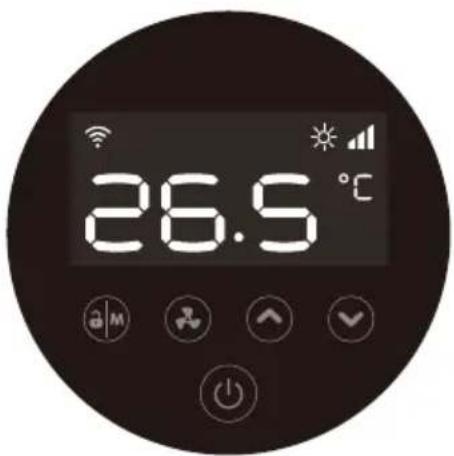

4.1 THE KEY PAD 22
4.2 OPERATING INSTRUCTIONS....23

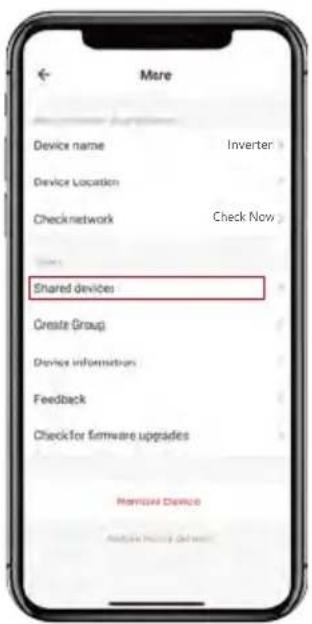

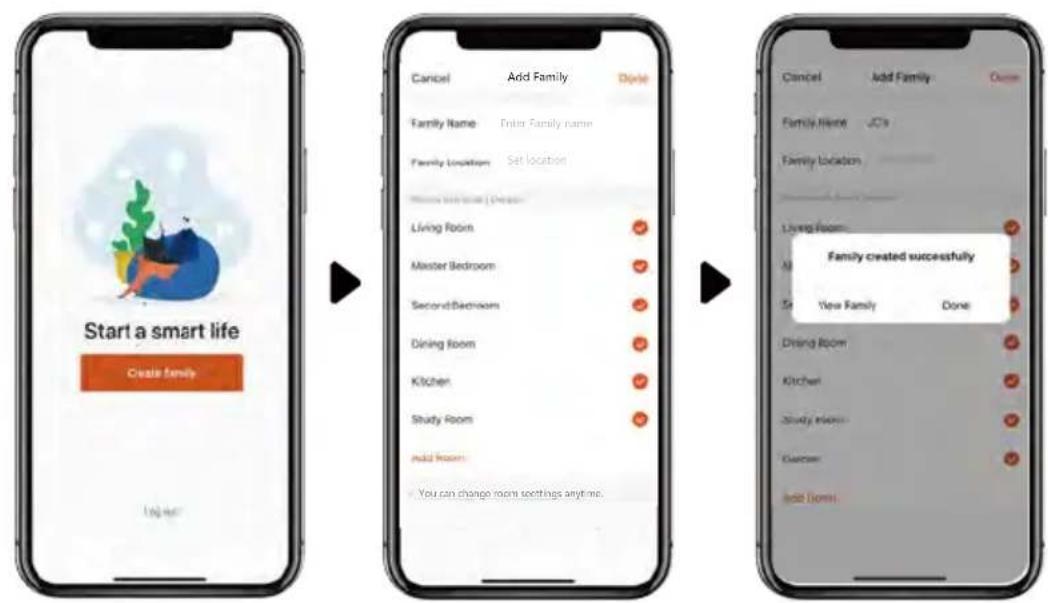

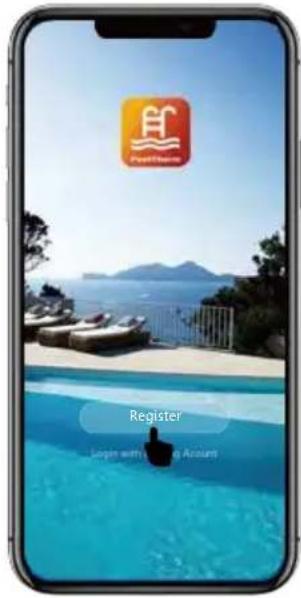

4.3 USING THE APP....24

4.4 USING THE OPTIONAL REMOTE CONTROLLER ....30

4.5 THE KEY PAD....30

4.6 OPERATING INSTRUCTIONS....31

5.0 TESTING....32
5.1 HEAT PUMP MALFUNCTION ....32
5.2 PROTECTION CODES ....33
5.3 FAULT CODES....34

6.0 MAINTENANCE 35
7.0 TROUBLE SHOOTING COMMON FAULTS .....35
8.0 DATASHEETS 36

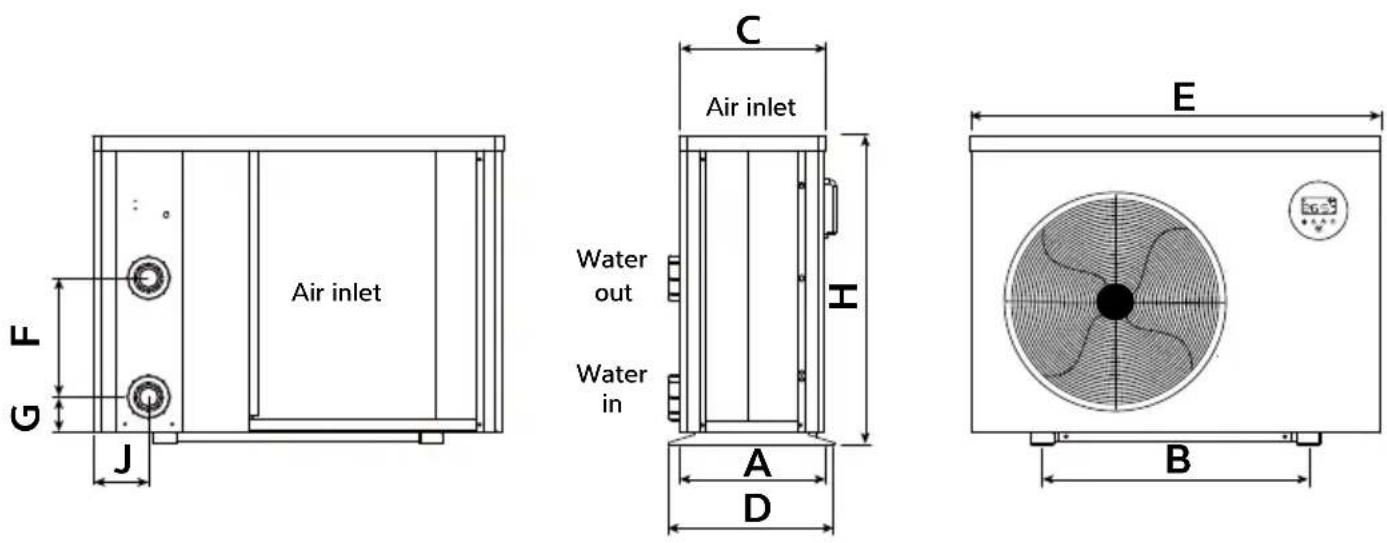

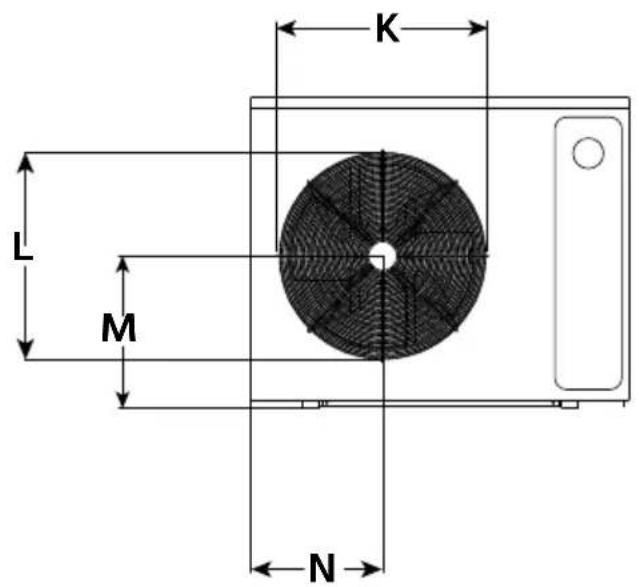

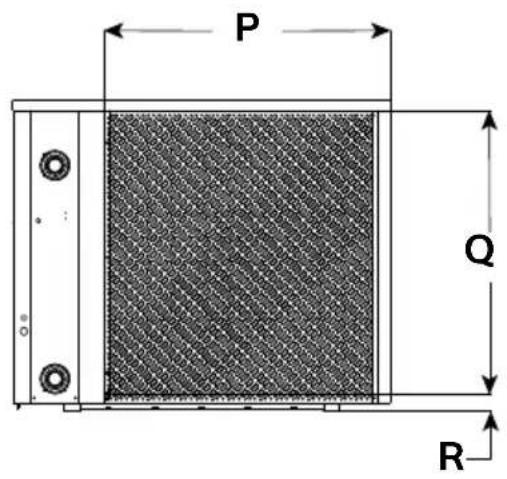

9.0 DIMENSIONS 38

9.1 DIMENSIONS....39

10.0 WINTERISATION PROCEDURE ....40

10.1 START UP PROCEDURE AFTER WINTERISATION ....40

11.0 WARRANTY CONDITIONS....41
12.0 DECLARATION OF CONFORMITY....42

1.0 INTRODUCTION

1.1 FOREWORD

Thank you for choosing this product, which is designed for quiet and energy efficient operation. It is the ideal way to heat your pool in an environmentally friendly way.

This guide provides information needed to install and operate the product effectively. Please ensure you read this manual and use the correct installation and operating procedures.

This manual is intended for installers and users. Read the entire manual before using the heat pump. Awareness of the correct operating procedure for the machine and any safety devices is important, to avoid damage or injury.

The appliance can be used by children aged from 8 years and above and persons with reduced, physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1.2 WARNINGS

Important safety information is contained in this manual and marked on the heat pump.

Please read and follow all safety advice.

The refrigerant used in this heat pump is R32. This refrigerant is environmentally friendly, but safety instructions must be strictly adhered to.

The WARNING sign denotes a hazard. It calls attention to a procedure or practice, which if not adhered to could result in injury. Warning signs and procedures must be complied with.

If a refrigerant leak is suspected stop using the heat pump and contact the service department.

[e-mail]

Take the following precautions in order to avoid any danger:

REFRIGERANT SAFETY:

This heat pump contains R32 refrigerant. Work on the refrigeration system, repair and disposal must be carried out by appropriately qualified and registered engineers.

Repair, service and disposal must be carried out in the EU by F-Gas registered engineers.

Completely de-gas the refrigerant before any brazing is performed. Brazing can only be carried out by technicians trained to EU 517/2014.

Risk assessments must be carried out before maintenance or repairs are started.

Appropriate safety measures and risk assessments must be taken before work commences.

Do not attempt to work on the equipment by yourself.

Consult the qualified engineer undertaking the work to establish all requirements before work commences.

ACTIONS TO AVOID (OPERATION AND HANDLING):

Be especially careful when handling the heat pump, not to cause any damage that may result in leakage of the cooling circuit.

Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

Do not pierce or burn.

IN CASE OF FIRE:

Toxic fumes may occur in the event of fire. You must leave the room as quickly as possible in the event of fire.

LOCATION REQUIREMENTS:

The heat pump contains R32 refrigerant so the following location requirements must be fulfilled:

The heat pump must be kept away from sources of fire or naked flames.

The heat pump must be installed, operated and stored where the floor area is larger than the minimum requirement., see section 3.2.

The heat pump shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).

Keep the ventilation openings clear of obstruction during operation.

Do not use or store combustible gas or liquids near the heat pump.

Check if there are any local regulations, which you must comply to, when installing or storing the heat pump.

Be aware that refrigerants may not contain an odour.

Installation must be carried out by competent people, in accordance with this manual.

INSTALLATION:

Read the instructions before installation, use and maintenance.

If R32 gas leaks during the installation process, stop the installation immediately and call the service centre.

If a repair is required, please contact the nearest after-sales service centre.

To avoid over heating or over cooling of pool water check and set the temperature on the control panel.

The heating performance can be improved by insulating the flow and return pipework.

It is recommended that a cover is used on the swimming pool to reduce heat losses.

AIRFLOW:

The heat pump must have access to adequate airflow. See section 3.1.

Do not place obstructions that will block air flow near the inlet or outlet.

ELECTRICAL SAFETY:

Mains power isolator should be out of reach of children.

After a power cut, when the power supply is restored, the heat pump may start up without warning.

Electric storms can damage electronic equipment. Ideally the heat pump should be switched off at the mains.

HEAT PUMP MALFUNCTION:

WARNING: Isolate heat pump electrically and wait 3 minutes before removing panels or entering heat pump.

Refer to the user check list in section 5.2 and the error codes listed in section 5.3 before initiating a service call.

Do not attempt to interfere with any internal control settings as these have been factory calibrated and sealed.

Any sign of abnormal operation such as water dripping should be reported immediately to the installer. If in doubt or if advice is required contact the Service department.

MAINTENANCE:

Isolate the power supply of the heat pump and wait 3 minutes before cleaning examination or repair.

Please clean this machine with household detergents or clean water. NEVER use petroleum spirit, thinners or any similar fuel.

Check bolts, cables and connections regularly.

DISPOSAL:

Repair, service and disposal of redundant heat pumps must be completed by authorised technicians. It is illegal to allow refrigerant gases to escape to air.

Do not attempt to work on the equipment by yourself. Improper operation may cause danger.

R32 Gas	Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
	The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.
	Do not piece or burn.
	Be aware that refrigerants may not contain an odour.
	Appliance shall be installed, operated and stored in a room with a floor area larger than Xm2, where X is the “minimum area” shown in section 3.2 and section 8.0.

	The heat pump must be kept away from sources of fire or naked flames.
	The heat pump must be installed in well ventilated area. Closed areas are not permitted.
	Repair and disposal must be carried out by F-Gas registered engineers.
	Completely de-gas the refrigerant before any brazing is performed. Brazing can only be carried out by technicians trained to EU 517/2014.

2.0 ABOUT YOUR HEAT PUMP

2.1 TRANSPORTATION

Always keep the heat pump upright.

Simple line drawing of a rectangular box with an upward arrow on its side, placed on a base (no text or symbols)

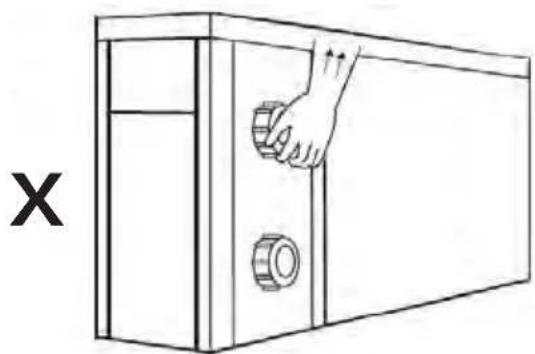

Do not lift the heat pump by the water inlet or outlet connections.

(If this is done the titanium heat exchanger inside the heat pump could be damaged).

Line drawing of a hand holding a switch inside a cabinet (no text or symbols)

2.2 ACCESSORIES

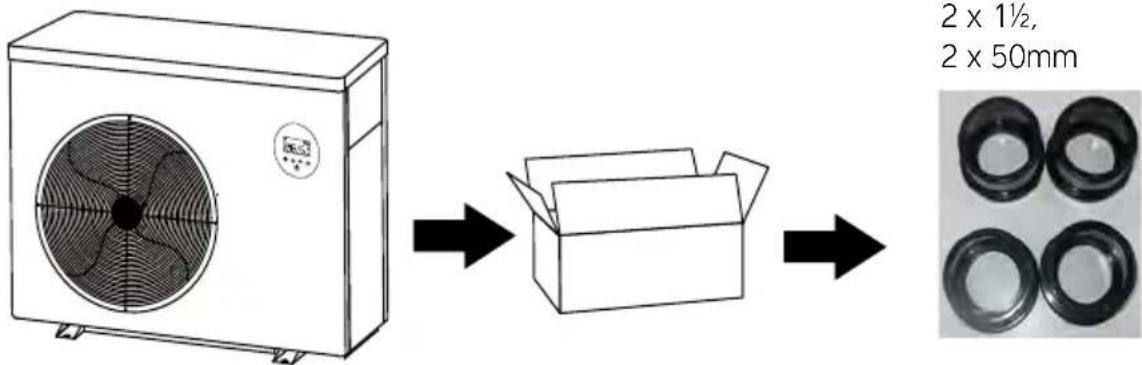

These accessories are provided with the heat pump.

Line drawing of a rectangular air conditioner unit with a circular fan and control panel (no text or symbols)

Rubber Feet (kit of 4)

Simple line drawing of a box with two arrows pointing outward (no text or symbols)

Water union connectors

$$ 2 \times 1 \frac {1}{2}, $$

$$ 2 \times 5 0 \mathrm{mm} $$

Four black plastic washers arranged in a 2x2 grid (no text or symbols visible)

Close-up of a white, coiled, oval-shaped plastic or rubber ring against a dark background (no text or symbols)

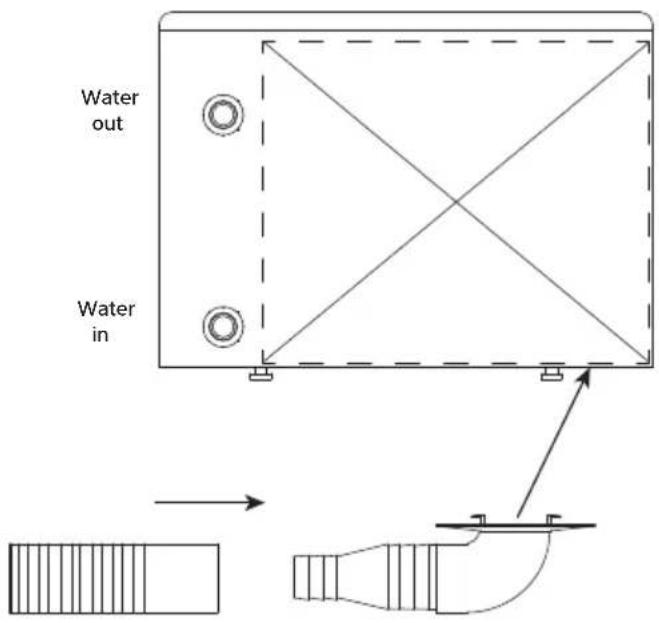

Drainage kit

Close-up of a metallic cylindrical component with a black base and metallic top (no visible text or symbols)

2.3 OPTIONAL ACCESSORIES

The following items are additional accessories available for purchase.

Remote controller kit for indoor installation.

(10m extension cable).

Winter cover.

Exterior view of a modern office building (no signage)

2.4 FEATURES

• Stepless DC inverter compressor
  • EEV Technology (Electronic Equalisation Valve)
• Quick reverse cycle defrosting with 4-way valve
  • High-efficiency twisted titanium heat exchanger
  • High pressure and low pressure protection
• Soft start and wide voltage application
  • Stable inverter control system

2.5 OPERATING CONDITIONS AND RANGE

Air temperature operating range:

HPP-i 8, 12, 16: -5-43°C

HPP-iw 12, 16, 22: -10-43°C

Water temperature setting range:

Heating: 18°C-40°C

Cooling: 12°C-30°C

2.6 OPERATING MODES

The heat pump has two modes: Boost mode and Whisper mode.

Mode Modes Characteristics
	Boost mode	Heating capacity: 20% to 100% capacityIntelligent optimizationFastest heating
[YSZT]	Whisper mode	Heating capacity: 20% to 80% capacitySound level: 3dB(A) lower than Boost mode

3.0 INSTALLATION

Installation must only be attempted by competent personnel.

3.1 POSITIONING AND AIRFLOW

The heat pump must be positioned in a well ventilated area. Minimum distances between the heat pump and any obstructions are shown below.

• The heat pump must be fixed by M10 bolts to a concrete base or mounting brackets. These must be solid and fixed securely. Brackets must be corrosion proof.
• Do not block inlet or outlet grilles.

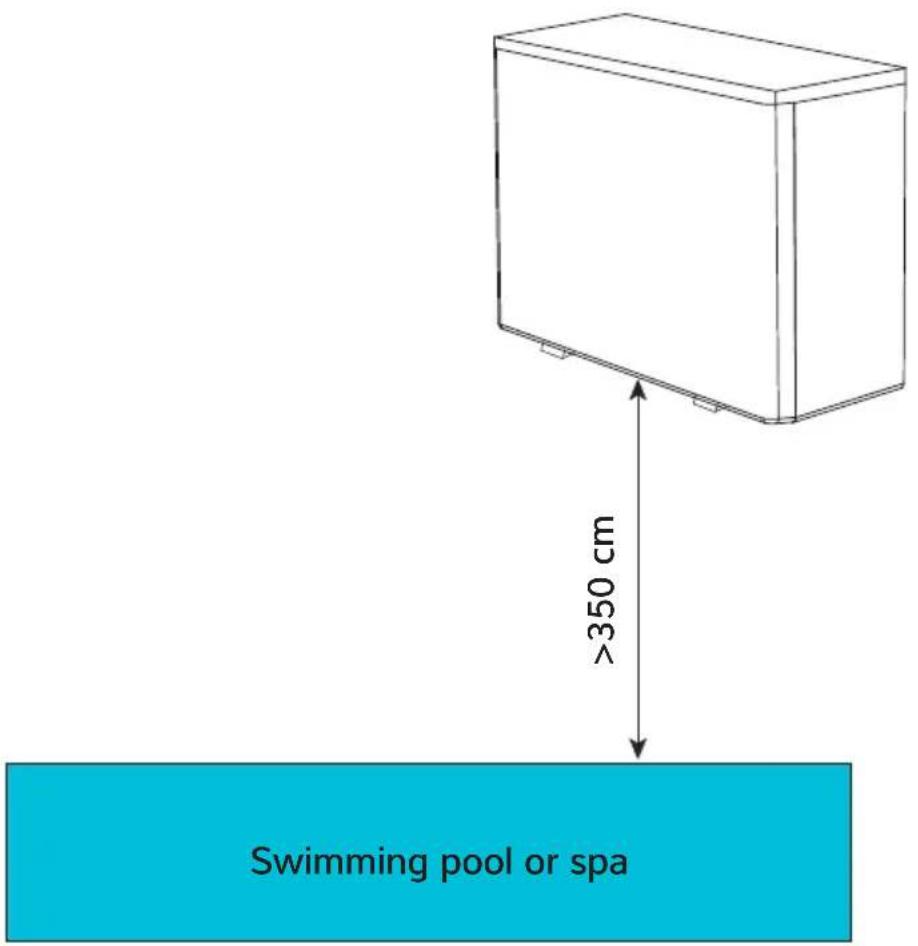

Airflow - general principles

The heat pump absorbs energy from the air drawn through it. To function effectively the heat pump must have access to the fresh air it needs.

• Air must not recirculate. The air leaving the heat pump must not be sucked back into the inlet.
• Air must not be restricted. The air volume must not be reduced.

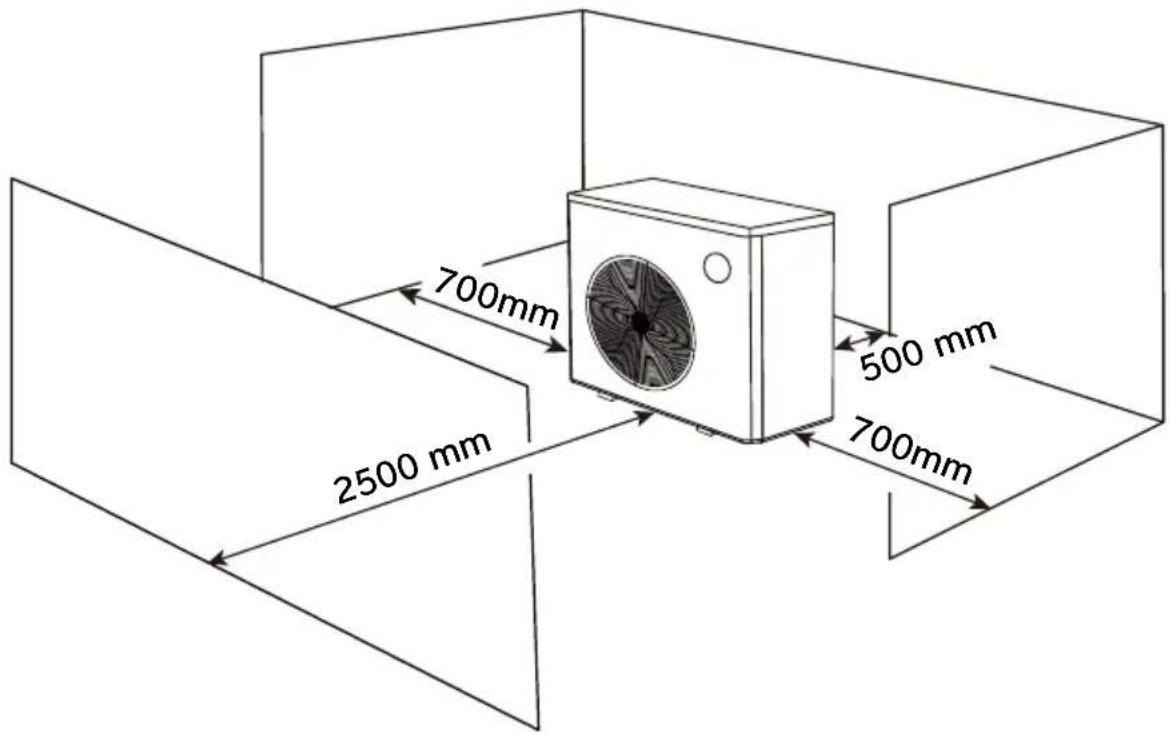

- The minimum required distances shown below must be provided to minimise the risk of air recirculation or restriction and reduction in performance. Further examples are shown on the following page.

700mm 2500 mm 500 mm 700mm

Possible positions of HPP-i Heat Pump

Suitable opening

Heat Pump

The red lines represent the air inlet area

* Controls are obscured by the wall. Connect to optional remote control panel or Wi-Fi before installing the heat pump in position.

Required free areas to provide air flow to and from heat pumps when installed in an enclosed area or where required to pass air through a wall etc. Ensure the heat pump is sealed against the wall so the outlet air cannot recirculate. Ensure the hole through the wall is sealed to avoid the outlet air entering cavities and is smooth so the outlet air is not restricted.

Free area is the available area through which air can pass through a grille or louvres.

Minimum free areas m^2
Model Discharge area
HPP-i 8 0.169
HPP-i 12 0.169
HPP-i 16 0.169
HPP-iw 12 0.169
HPP-iw 16 0.229
HPP-iw 22 0.301
HPP-iw 28 0.301

To comply with safety regulations regarding electrical installations in wet areas the heat pump must be installed at least 350cm away from the edge of the pool or spa.

>350 cm Swimming pool or spa

3.2 REFRIGERANT TYPE AND INSTALLED LOCATION

This heat pump contains R32, which is an environmentally friendly refrigerant with a GWP (Global Warming Potential) of 675. R32 has the safety in use classification of A2L, being low toxicity and lower flammability. In practical terms it is very difficult to ignite an A2L refrigerant, but this classification requires a risk assessment to be undertaken for the possibility of refrigerant being released by accident into an area connected to the heat pump, considering the application, location of components, and the installed refrigerant charge. This installation guidance can form the framework for such a risk assessment for the installation.

All flammable refrigerants will not ignite if the concentration level in a room stays below their lower flammability limit (LFL). European standard EN378 defines requirements to remain far below the lower flammable limit in case of accidental leakage. By choosing the location as dictated by EN378-1:2016 the probability of forming a flammable atmosphere can be eliminated. Please refer to the minimum area for each product and the interpretation below regarding locations of heat pump and swimming pool. This information is provided as a guide only and does not supersede the regulations or health and safety requirements.

Model HPP-i 8 HPP-i 12 HPP-i 16 HPP-iw 12 HPP-iw 16 HPP-iw 22 HPP-iw 28
Refrigerant charge	R32 kg 0.6 0.9	1.1 0.9 1.2 2.0 2.7
Minimum area	m^2	3.1	6.9	10.3	6.9	12.3	34.0	62.0
Notes *Assumed worst case for access category: a - general access and location class: I - mechanical equipment in occupied space; both as defined in line with EN378-1 2016 section 5.1 table 4 and section 5.3*Minimum Area is calculated in line with section C.2 on EN378-1 2016 (calculation C.2)

INTERPRETATION

Please refer to the installation situations below for how to apply the minimum area stated above.

Pool outside and heat pump outside:

Automatically meets the minimum area requirement because outside space is unlimited.

Pool outside and heat pump inside a plant room:

Automatically meets the minimum area requirement because the room must open to the outside for heat pump airflow and the outside space is unlimited.

Pool inside and heat pump outside:

The pool hall must exceed the minimum area requirement shown above.

Pool inside and heat pump inside a plant room, isolated from the pool hall:

The pool hall must exceed the minimum area requirement shown above.

Pool inside and heat pump inside a plant room, ventilated to the pool hall:

The pool hall and plant room combined must exceed the minimum area requirement shown above.

3.3 POOL WATER CIRCUIT

KEY
Isolation valve
Breakable coupling
Three way valve

3.4 PLUMBING

IMPORTANT

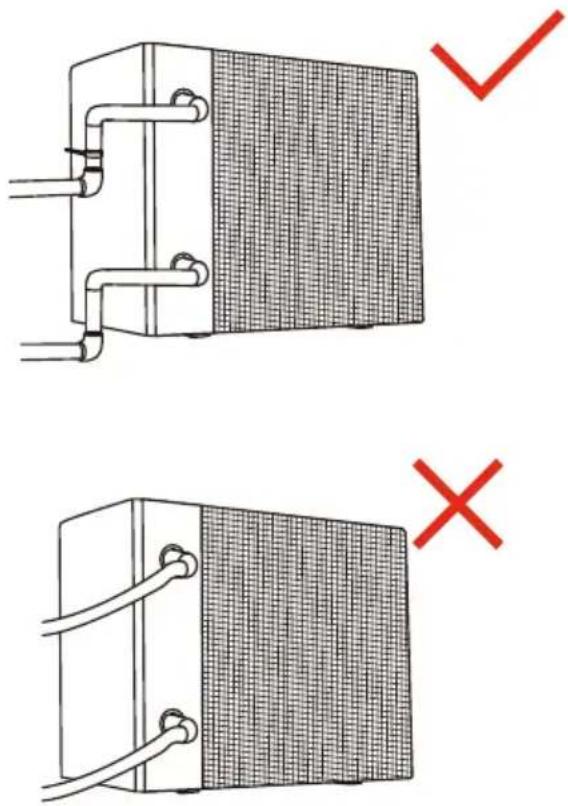

Before installing the heat pump ensure the blanking disks are removed from the pool water in/out connections. These should drop out when the adaptors are unscrewed.

1. Ensure that bypass is installed and set to achieve the recommended flow rates stated in the data sheet.
2. Ensure that the condensate drain kit supplied is fixed and is drained to a drain or soak-away. (It is best to do this first before the heat pump is fixed to pipework or the ground).
3. Inlet and outlet pipework must be supported to avoid excessive strain on the connections.
4. Water quality must be maintained. See warranty conditions.

Water out Water in

Hose. Condensate adaptor.
Fit in hole in base of unit. Approximate position shown.
Note: Fittings shown at larger scale for clarity.

Technical diagram showing two mechanical components with red checkmark and cross symbols indicating failure or rejection status.

3.5 INITIAL CHECKS

Start the filtration pump before the heat pump is turned on, and turn off the heat pump before the filtration pump. It is recommended to turn off the heat pump prior to backwashing.

Before starting the heat pump, please check for any leakage of water; and check/set the required temperature on the controller, and then turn on.

In order to protect the components, the heat pump incorporates time delays. When starting heating/cooling the fan will run for one minute before the compressor starts. When the heat pump stops heating/cooling, or is turned off by the user, the fan will continue to run for one minute.

After starting up, check for any error codes or abnormal noise from the heat pump.

3.6 ELECTROLYTIC CORROSION IN SWIMMING POOLS

Electrolytic corrosion will occur when dissimilar metals that are in contact with each other create a potential difference between themselves. Sometimes separated by a conductive substance known as an electrolyte, the dissimilar metals will create a small voltage (potential difference) that allows the ions of one material to pass to the other.

Just like a battery, ions will pass from the most positive material to the more negative material.

Anything more than 0.3 volts can cause the most positive material to degrade.

A swimming pool with its associated equipment can create this effect. The pool water being an ideal electrolyte and components of the filtration circuit, heating system, steps, lights etc providing the dissimilar metals needed to complete the circuit.

Whilst these small voltages are rarely a safety threat, they can create premature failure through corrosion. Not dissimilar to corrosion through oxidation, electrolytic corrosion can cause complete failure of a metallic material in a very short period of time.

In order to prevent this type of corrosion all metallic components in contact with swimming pool water should be bonded together using 10mm^2 bonding cable. This includes non-electrical items such as metal filters, pump strainer boxes, heat exchangers, steps and handrails. It is highly recommended that bonding be retrofitted to existing pools, which may not be protected by this system.

3.7 ELECTRIC WIRING AND SUPPLY

All electrical work to be carried out in accordance with I.E.E.regulations, latest issue, or local codes of practice as applicable.

The machine should be installed in accordance with EMC2004/108/EC.

Always isolate the main power supply before removing machine covers.

The machine power supply must incorporate the following. Fuses or motor type circuit breakers (aM Fuse / MCB type C) to specified rating (see datasheet). When using a fuse, H.R.C. fuses are recommended. An isolator which disconnects all poles must be must fitted within 2m and in line of sight of the heat pump. The isolator must have a minimum of 3mm air gap when turned off.

All units must be correctly earthed/grounded and its own separate type RCD earth leakage trip installed which protects the machine only. See data sheet for the correct type.

The following limits of operation must not be exceeded. Failure to provide the necessary voltages will invalidate the warranty. This voltage must be available at the heat pump whilst running. The voltage must not drop below the above figures when starting the compressor.

Minimum Maximum

Voltage

Single phase machines 207V 253V

Three-phase machines 360V 440V

Cycle frequency (50Hz) 47.5Hz 52.5Hz

3.8 CONNECTING THE HEAT PUMP TO THE POWER SUPPLY

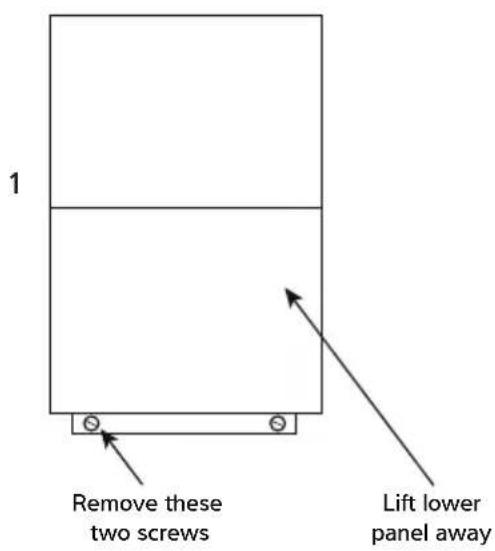

1 Remove these two screws Lift lower panel away

2 Two cable entry points Remove these four screws and remove cover

Single phase Terminals in Heat Pump Electrics enclosure Power terminals Pump terminals L N P1 P2 Cable clamp Secure cables using cable clamps and feed through cable entry points in machine Supply cord Isolator which disconnects all poles fitted within 2m and in line of sight of the heat pump Fuse/MCB RCD/ Circuit Breaker L N Distribution box Earthed Power Supply 230V 50Hz

Three phase Terminals in Heat Pump Electrics enclosure Power terminals Pump terminals L1 L2 L3 N P1 P2 Cable clamp Secure cables using cable clamps and feed through cable entry points in machine Supply cord Isolator which disconnects all poles fitted within 2m and in line of sight of the heat pump Fuses/MCB RCD/ Circuit Breaker L1 L3 L2 N Distribution box Earthed Power Supply 400V 50Hz

3.9 POOL PUMP SYNCHRONISATION TERMINALS P1 AND P2

For installations where the pool filter pump runs continuously, these terminals do not need to be used.

For installations where a timeclock controls the pool filter pump, and the same pump provides water flow to the heat pump, the heat pump can override "pump off" periods to ensure the pool is heated/cooled. To activate this setting please speak to your installer.

When installed in parallel with the timeclock, the pool filter pump will run when:

a) a block period of "pump on" has been set on the time clock for filtration purposes.

b) the heat pump runs the pool filter pump for temperature sampling and if the pool subsequently requires heating/cooling.

This feature operates by over-riding the timeclock for 3 minutes to circulate the pool water through the heat pump to sample the water temperature. The default sampling time interval is 1 hour. If the

measured temperature is more than 1^ C from the set temperature, the point heat pump will continue to run the filter pump and heat/cool the pool. If the measured temperature is within 1^ C of the set temperature, the filter pump will turned off until the next sampling period, or the next timeclock “pump on” period.

When the pool pump is already running, and the heat pump is not heating/cooling, the heat pump will sample the water temperature once per hour and will start heating/cooling if needed. The heat pump will ignore a demand to heat/cool the pool until the sampling timer (default 1 hour) has elapsed*.

This feature will reduce the pool filter pump run time to minimise pump energy usage.

*If the pool filter pump is later changed to run continuously, it is recommended to de-activate this setting so the heat pump will respond to a heating/ cooling demand without waiting for the sampling time interval to elapse. To deactivate this setting please speak to your installer.

Customer's external pump/ filter time clock Separate supply L P1 P2 Terminals in heat pump (volt free) Pool pump starter N Single phase water pump Fuse L N E

3.10 INSTALLING THE OPTIONAL REMOTE CONTROLLER

This optional accessory replaces the integral controller and can be installed up to 10m away.

Take the lid off the HPP-i to gain access to the existing controller. Remove the front cover. Disconnect the plug from the socket on the back of the controller as shown.

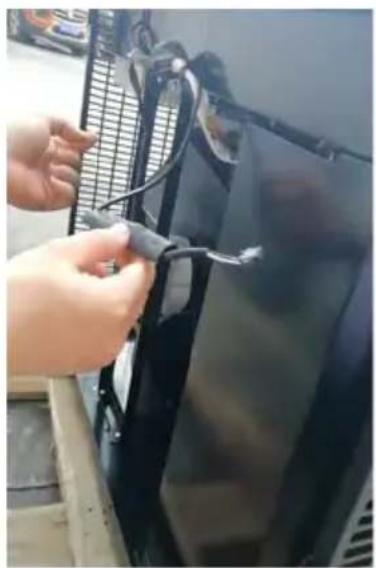

Remove the bulkhead connector from the position shown and replace it with a rubber grommet.

Person installing or adjusting a black panel with tools, no visible text or symbols

Feed the 10m cable through the grommet.

This hole

Route the cable inside the HPP-i securing it where necessary.

Hand using a tool to adjust or install a black electronic device with cables and connectors (no visible text or symbols)

Close-up of a hand holding a small cable attached to a black car door frame (no visible text or symbols)

Connect the lead. Connect the lead.

Close-up of hands holding small black connectors or connectors, no visible text or symbols

Remove the two screws from the back of the Remote Controller.

Two white plastic electronic enclosures on a textured surface, one with a display screen and the other with internal components (no visible text or symbols)

White electronic device with black cable and connector, placed on wooden surface (no visible text or symbols)

Remove the appropriate knock out and fit the back of the box to the wall.

Inlet for exposed cable. Inlet for concealed cable.

If the cable is concealed, fit the grommet in the hole to protect the cable from rubbing.

Secure the cable from the controller in the HPP-i.

Refit the front cover and the top cover.

To check that the installation is correct, set the temperature on the remote controller to slightly higher than the pool water. The HPP-i should run to heat the pool, immediately if the pump synchronisation is not in use, or at the next sampling period if pump synchronisation is in use.

Symbol Designation Function
	On/Off	1. Power On/Off2. Wi-Fi Setting
	Lock/Unlock and Heat Mode	1 Lock/Unlock Screen2. Heating mode (18-40°C)3. Cooling mode (12-30°C)4. Auto mode (12-40°C)
	Speed Mode	1. Boost2. Whisper
	Up/Down Temperature Setting

The buttons will turn dark when the controller is locked.

4.2 OPERATING INSTRUCTIONS

IMPORTANT

Remember that at startup there is a 1 minute time delay before the heat pump starts

a. Screen lock

1) Press 8 seconds to lock or unlock the screen. The buttons will turn dark when the controller is locked

2) Automatic lock period: 30 seconds if no operation.

b. Power on

Press for 3 seconds to unlock screen.

Press to power on heat pump.

c. Temperature setting

Press and to display and adjust the set temperature.

d. Mode selection

1. Heating/Cooling/Auto

Press a/m to switch between heating, cooling, and automatic modes.

Mode Symbol Water temperature setting range
Heating	18-40°C
Cooling 12-30°C
Auto	12-40°C

e. Speed Mode selection

Press to switch between Boost mode and

Whisper mode.

Default mode: Boost.

Please choose Boost mode for initial heating.

f. Wi-Fi

When the screen is on, press or 3 seconds, after flashes, enter Wi-Fi connection.

Connect Wi-Fi on mobile phone and input password, then control equipment by Wi-Fi. When APP connects Wi-Fi successfully 📤 light is on.

g. Defrosting

1. Automatic defrosting: When the heat pump is defrosting, the lamp flashes; after defrosting the lamp stops flashing.

2. Forced defrosting: When the heat pump is heating and the compressor has been running continuously for at least 10 minutes, press ⚣ and √ simultaneously for 5 seconds to start forced defrosting.

The lamp flashes and defrost starts, when the lamp stops flashing defrosting stops.

The interval between forced defrosts must be more than 30 minutes.

4.3 USING THE APP

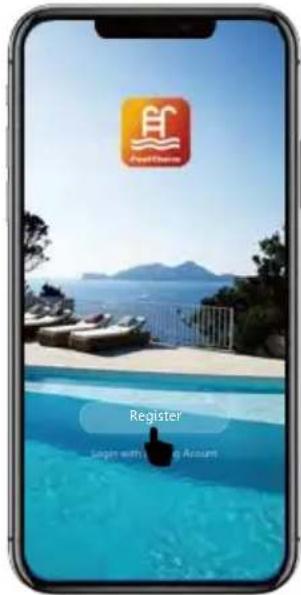

a. APP Download b. Account registration

Android please download from

iOS please download from

1. Register by mobile or E-mail.

Register Login with the Account

1. Mobile or E-mail registration.

Register Germany +40 Obtain verification code Logwin Service Associates and Privacy Policy

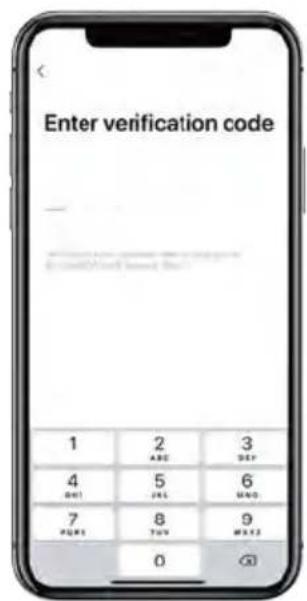

Enter verification code 1 2 3 AND DEP 4 5 6 OKI JKI NO 7 8 9 PARK TOP WAS? 0

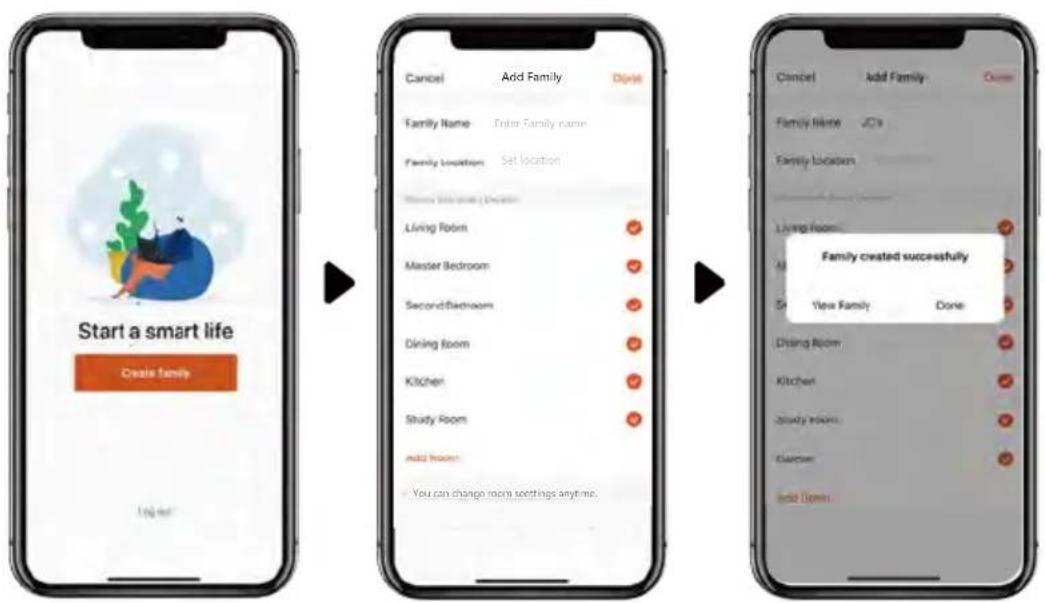

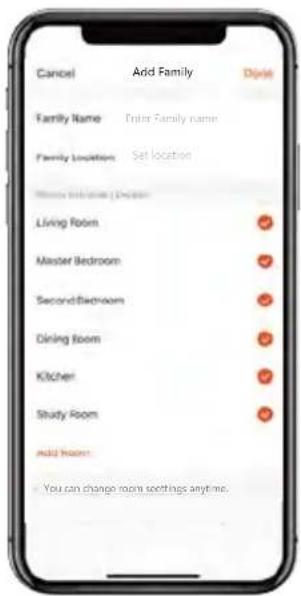

c. Create family

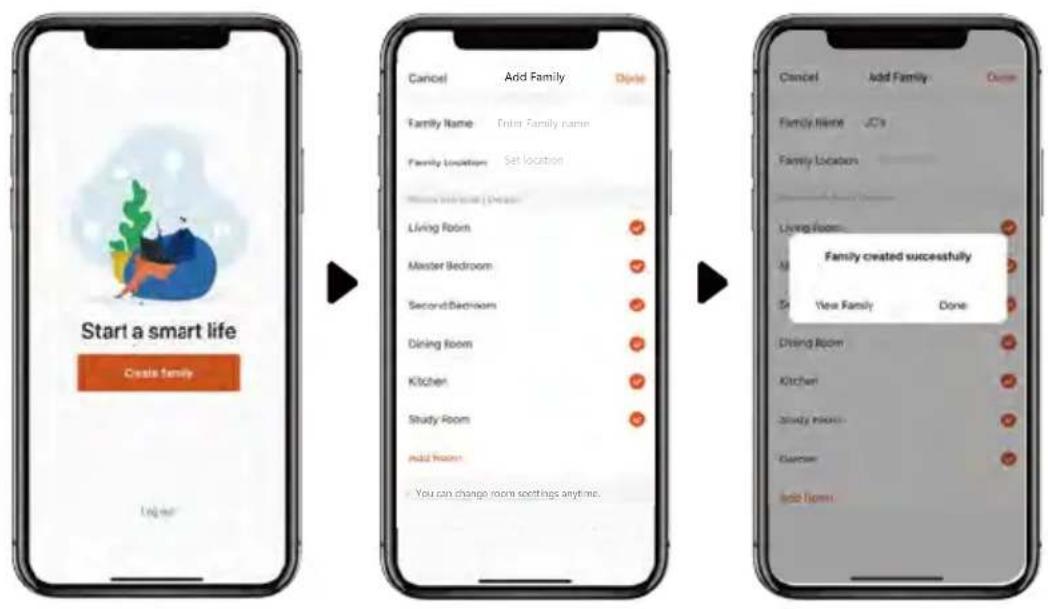

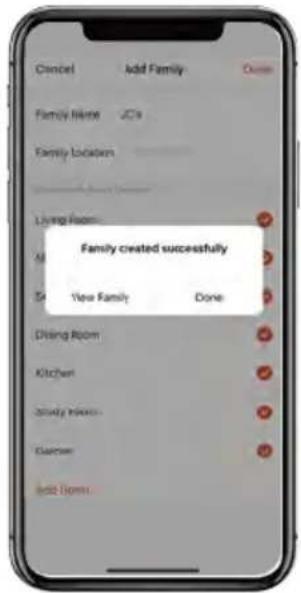

    C --> D["Add Family"]
    D --> E["Family created successfully"]

d. APP Pairing

26.5 °C

Please make sure you are connected to the Wi-Fi.

1. Press " ☐ for three seconds to unlock the screen.
2. Press “💡” for three seconds then release, after hearing the beep, enter the Wi-Fi code. During connection the “💡” flashes. When the APP connects to the Wi-Fi successfully the “ lights will come on.

Home Light Rain 28.0 °C Excellent Excellent Excellent All devices Garden Add Device Firebox Smart Air

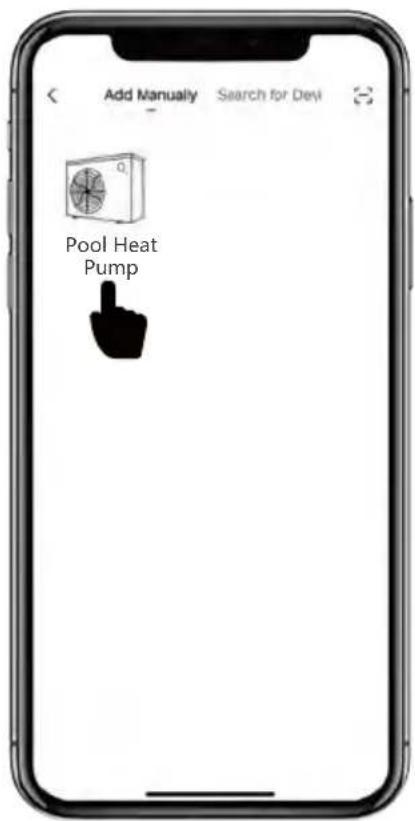

Add Manually Search for Devi Pool Heat Pump

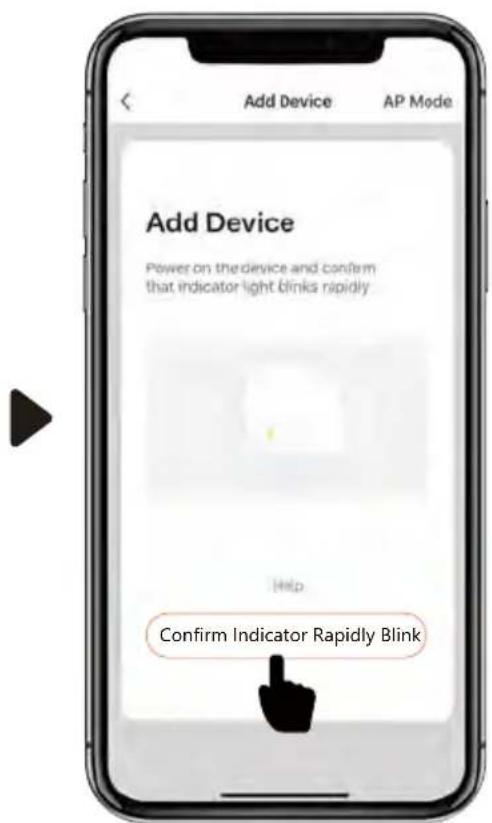

Add Device Power on the device and confirm that indicator light blinks rapidly Add Device Confirm Indicator Rapidly Blink

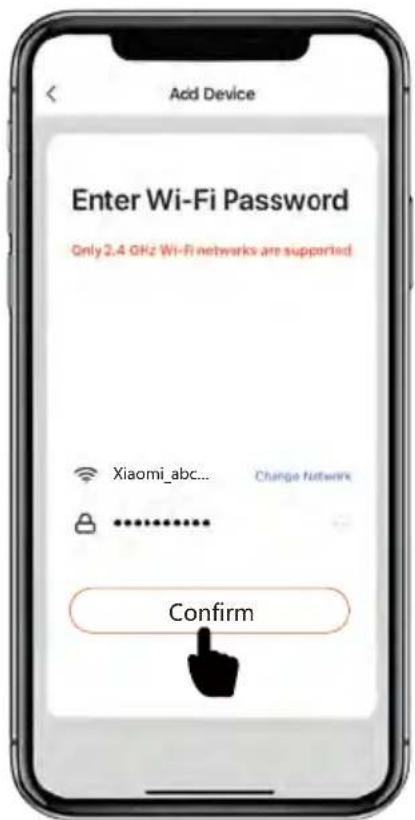

Add Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

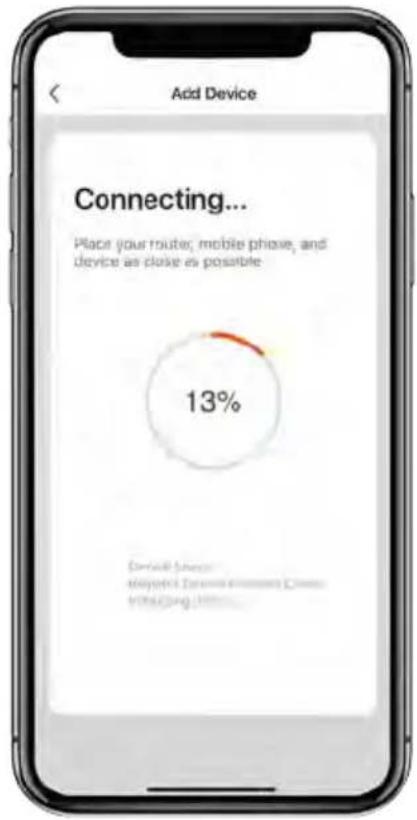

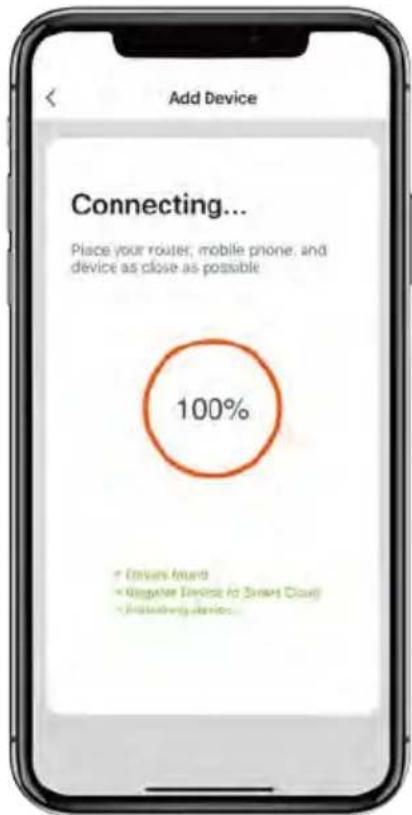

Add Device Connecting... Place your router, mobile phone, and device as close as possible 13% Device Manager my email: Email: Email: Email 2023-06-28

Add Device Connecting... Place your router, mobile phone, and device as close as possible 100% + Driver needs + Appulse Device to Smart Cloud + Including devices...

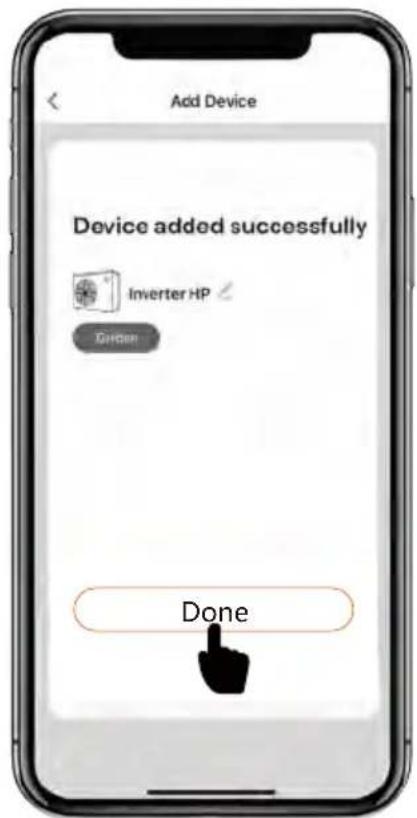

Add Device Device added successfully Inverter HP Edit Done

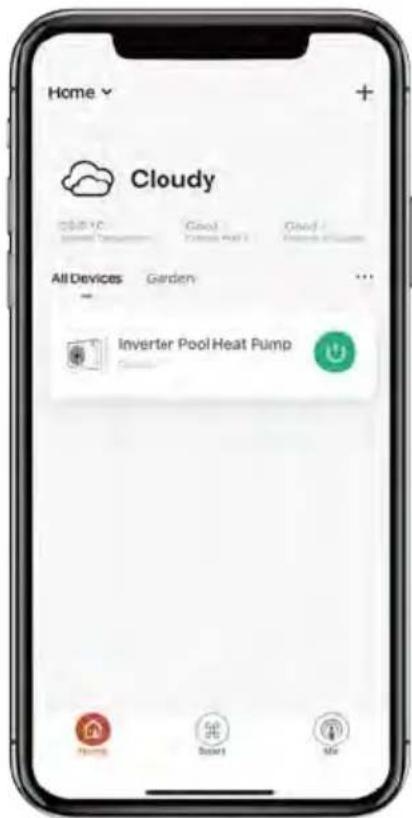

Home Cloudy Good Good All Devices Garden Inverter Pool Heat Pump

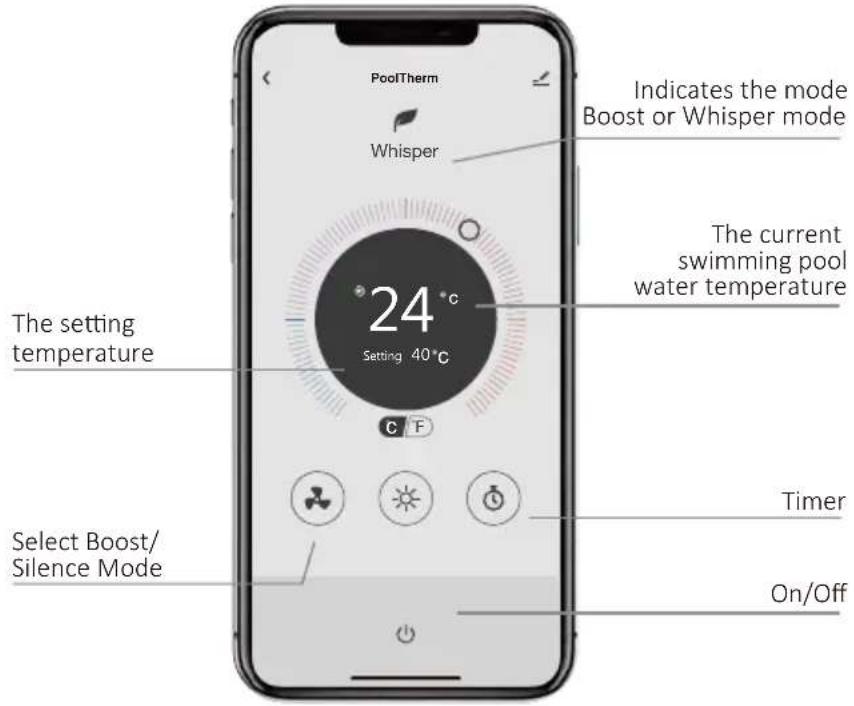

e. Operation

1. For heat pump with Heating function only :

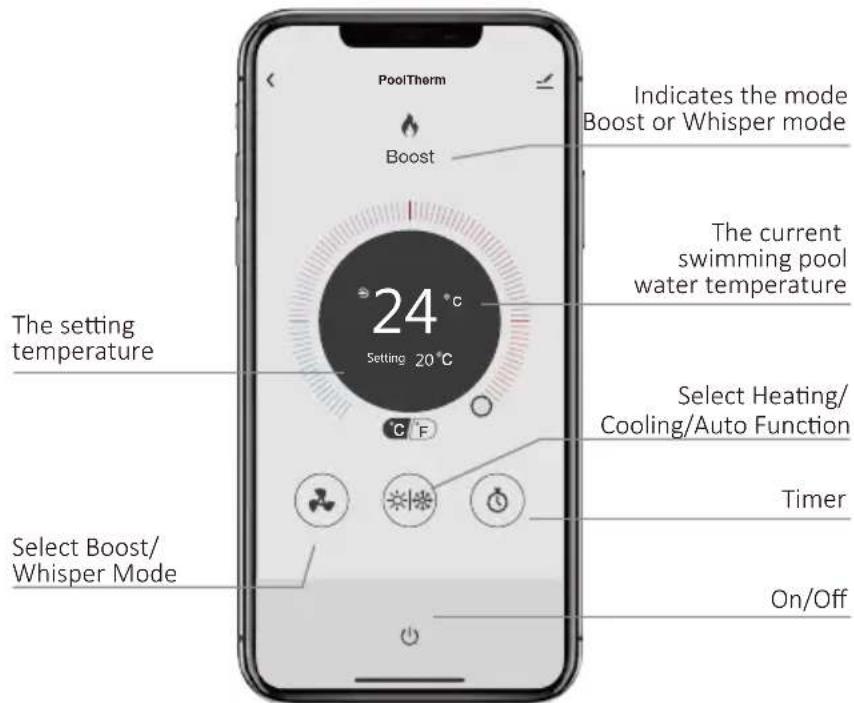

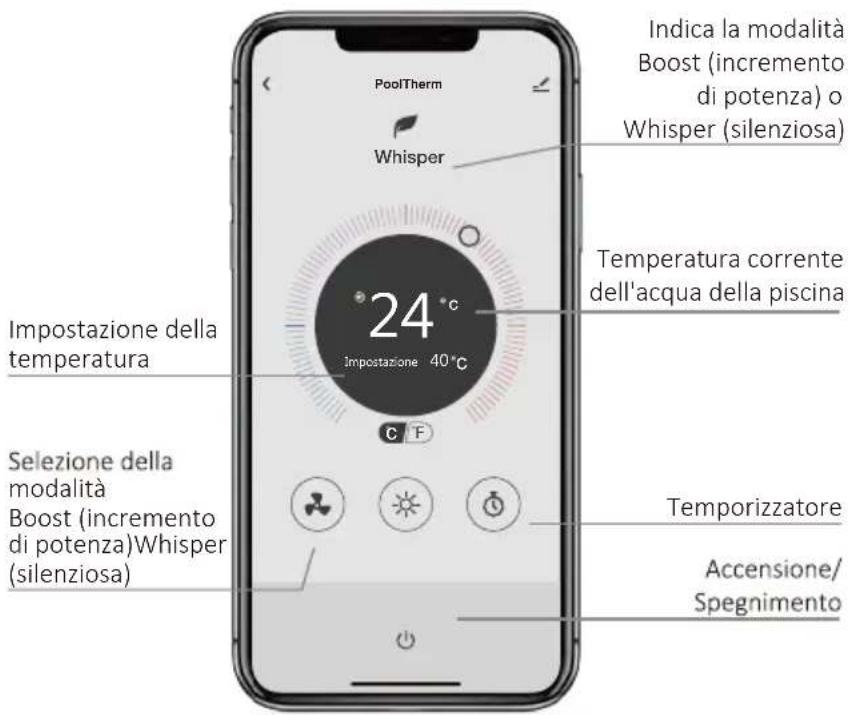

PoolTherm Whisper Indicates the mode Boost or Whisper mode The setting temperature 24°C Setting 40°C The current swimming pool water temperature C F Timer Select Boost/ Silence Mode On/Off

1. For heat pump with Heating and Cooling function :

PoolTherm Indicates the mode Boost or Whisper mode Boost The setting temperature 24°C Setting 20°C The current swimming pool water temperature Select Heating/ Cooling/Auto Function Timer Select Boost/ Whisper Mode On/Off

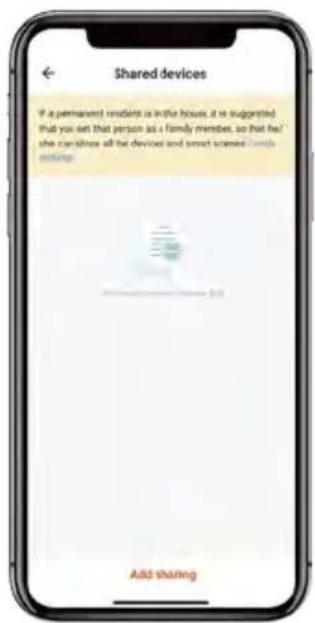

f. Share devices to your family members

After pairing, if your family members also want to control the device.

Please let your family members register the APP first, and then the administrator can operate as below:

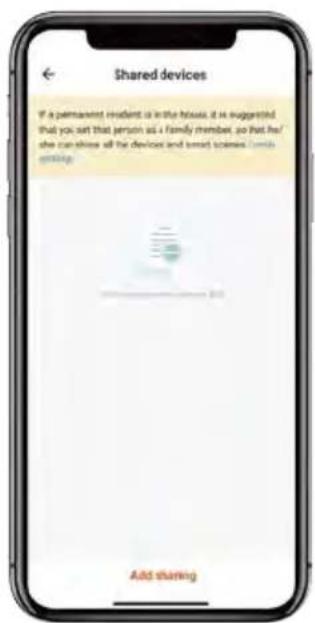

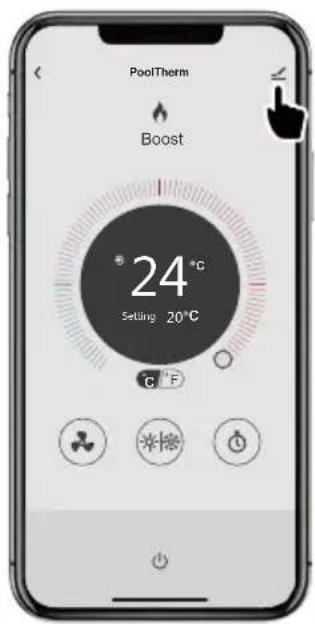

PoolTherm Boost 24 °C Setting 20°C °C "F" +/-

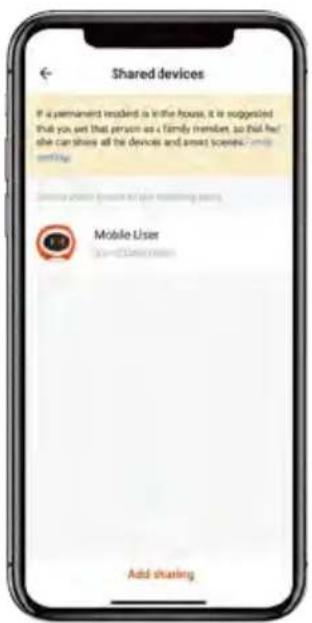

More Device name Device Location Check network Inverter Check Now Shared devices Create Group Device information Feedback Check for firmware upgrades Remove Device Add new hardware

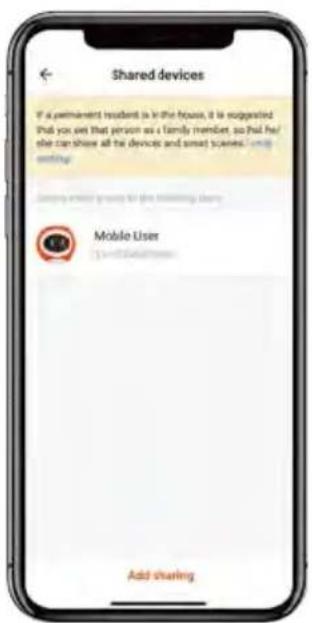

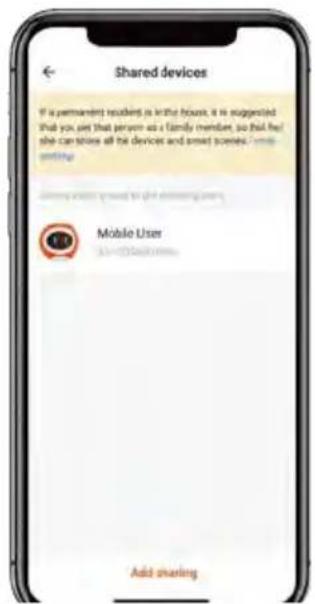

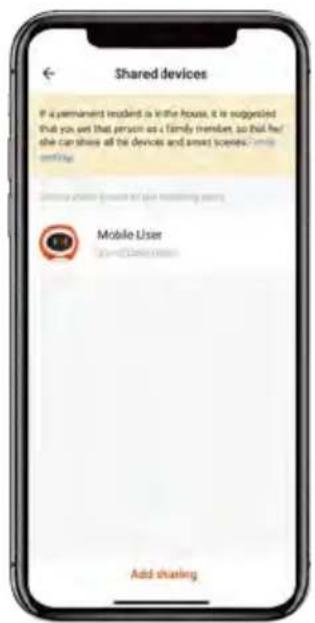

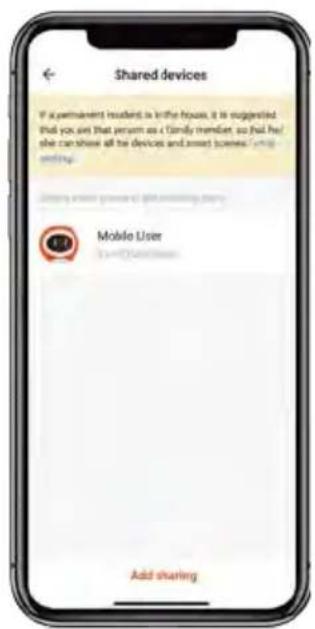

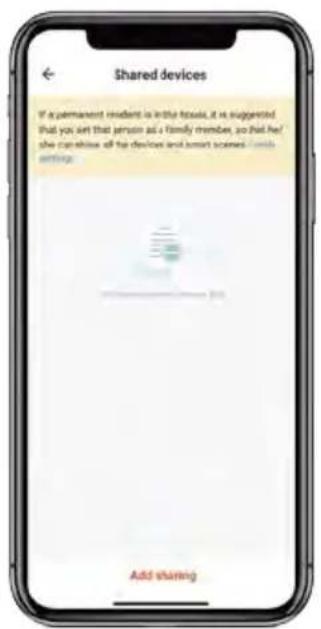

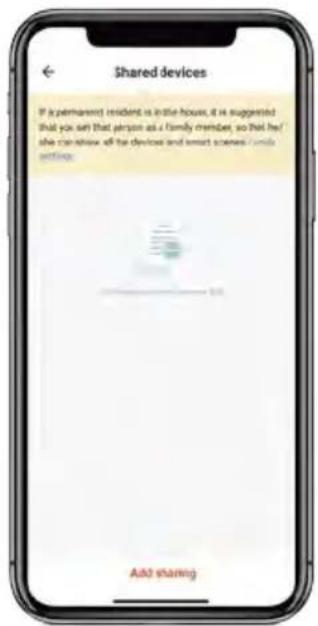

Shared devices If a permanent resident is in the houses, it is suggested that you eat that person as a family member, so that has she combines all the devices and smart science content. Add sharing

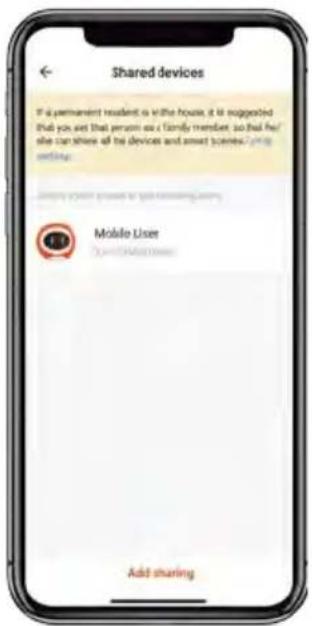

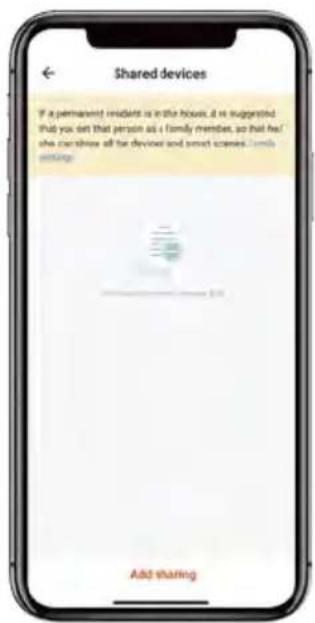

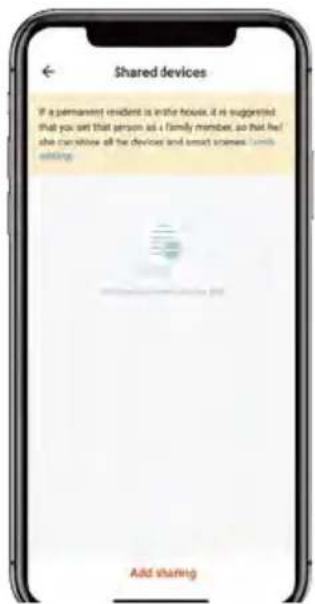

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that had she can share all the devices and most scenes like sharing. Mobile User Add sharing Add sharing

Notes:

1. The weather forecast is just for reference.

App is subject to updating without notice.

4.4 USING THE OPTIONAL REMOTE CONTROLLER

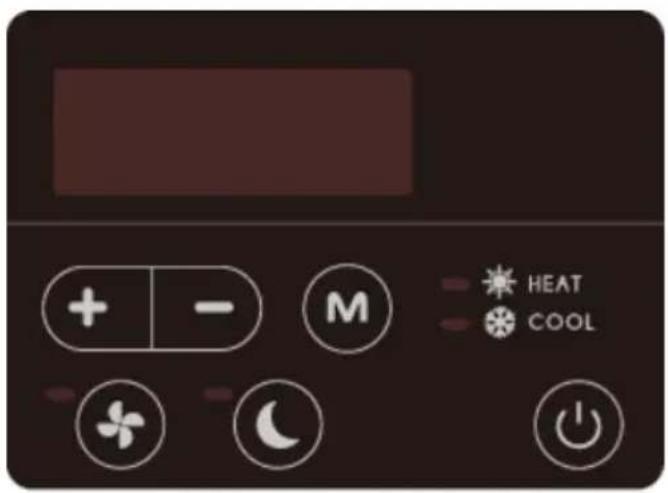

4.5 THE KEY PAD

HEAT COOL

Symbol Function
		Power On/Off
		Heating/Cooling/Auto mode
		Press to start Boost mode
		Press to start Whisper mode
		Temperature setting and display.

4.6 OPERATING INSTRUCTIONS

a. Power On & Power Off

Press to power on or power off the heat pump.

b. Temperature Setting

Press + - to display and adjust temperature.

c) Mode selection

1. Heating/Cooling/Auto modes

Press Ⓜ to choose heating, cooling and automatic mode.

In heating mode the ✿ light is on.

In cooling mode the light is on.

In automatic mode the and the lights are on.

1. Whisper and Boost modes

Press 📋 to start Boost mode, and light will turn on.

Press 📃 to start Whisper mode, and light will turn

on. (Default mode is Boost).

Please choose Boost mode for initial heating.

c. Defrosting

1. Automatic defrosting

When machine is defrosting, the -lamp flashes; after defrosting the -lamp is illuminated.

1. Forced defrosting

When the heat pump is heating and the compressor has been working continuously for at least 10 minutes, press Ⓞ and □ on the touchscreen controller simultaneously for 5 seconds to start forced defrosting. The ┌ lamp flashes and defrost starts, when the ┌ lamp stops flashing defrosting stops.

The interval between forced defrosts must be more than 30 minutes.

5.0 TESTING

Inspect the heat pump before use

• Check that the fan, air inlets and outlets are not obstructed.
• It is prohibited to install refrigeration pipe or components in corrosive environment.

5.1 HEAT PUMP MALFUNCTION

WARNING: Isolate heat pump electrically, and wait 3 minutes before removing panels or entering heat pump.

• Refer to the user check list in section 5.2 and the error codes listed in section 5.3 before initiating a service call.

• Do not attempt to interfere with any internal control settings as these have been factory calibrated and sealed.

• Check that the electric wiring conforms to the electric wiring diagram and that the machine is earthed.

• Double check that the main power switch is off.
• Check the temperature setting.

- Any sign of abnormal operation such as water dripping should be reported immediately to the installer. If in doubt or if advice is required contact the service department.

Fault Reason Solution
Heat pump doesn’t run	No power Wait until the power is restored
	Power is switched off Switch on the power
	Fuse has blown Check and change the fuse
	The breaker is off Check and turn on the breaker
Fan running but with insufficient heating	Evaporator blocked Remove the obstructions
	Air outlet blocked Remove the obstructions
	Compressor start delay Wait for the delay timer to time out
Display normal, but no heating	Set temperature too low Set desired heating temperature
	Start delay Wait for the delay timer to time out
Inaccurate switch action	Stop the machine, and cut off the power supply immediately, then contact your dealer
The fuse blows frequently or leakage circuit breaker trips frequently
If above solutions don’t work, please contact your installer with detailed information and your model number. Don’t try to repair it yourself.

5.2 PROTECTION CODES

These codes indicate machine stopping due to external circumstances. These are not faults with the heat pump.

NO.	Display Reason Solution
1 E3	No water flow through the heat pump. Check water circuit and pool pump.
2 E4	Three phase rotation protection.		Check phases connected correctly (Electrician required)
3	E5	Voltage of power supply to heat pump is out of range.	Check the power supply.
4	E6	Low water flow indicated by more than 10°C difference in inlet and outlet temperature.	Check water flow and pool pump.
5	Eb	Ambient temperature is out of range, either lower than -5°C (-10°C HPP-iw 12, 16, 22 versions) or higher than 43°C.	If outside, wait for ambient conditions to improve (winterisation may be required). If installed in a sheltered place, check for air recirculation.
5	Ed	Frost protection. The heat pump runs in heating mode for a short time when in standby mode to prevent frost build up.This does not replace winterisation.	Heat pump will resume standby once process is completed.

5.3 FAULT CODES

When the heat pump displays these error codes please contact your installer for advice.

No Display Description of fault code

1 E1 High pressure alarm

2 E2 Low pressure alarm

4 E7 Water outlet temp out of range alarm

5 E8 High exhaust temp alarm

6 EA Evaporator overheat alarm (only in cooling mode)

7 P0 Controller communication failure

8 P1 Water inlet temp sensor failure

9 P2 Water outlet temp sensor failure

10 P3 Gas exhaust temp sensor failure

11 P4 Evaporator coil pipe temp sensor failure

12 P5 Gas return temp sensor failure

13 P6 Cooling coil pipe temp sensor failure

14 P7 Ambient temp sensor failure

15 P8 Cooling plate sensor failure

16 P9 Current sensor failure

17 PA Restart memory failure

18 F1 Compressor drive module failure

19 F2 PFC module failure

20 F3 Compressor start failure

21 F4 Compressor running failure

22 F5 Inverter board over current protection

23 F6 Inverter board overheat protection

24 F7 Current protection

25 F8 Cooling plate overheat protection

26 F9 Fan motor failure

27 Fb Power filter plate - no power protection

28 FA PFC module over current protection

6.0 MAINTENANCE

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Isolate the power supply of the heat pump and wait 3 Minutes before cleaning examination or repair

Cover the heat pump body when not in use.

Please clean this machine with household detergents or clean water, NEVER use petroleum spirit, thinners or any similar fuel.

Check bolts, cables and connections regularly.

Repair, service and disposal of redundant heat pumps must be completed by authorised technicians. It is illegal to allow refrigerant gases to escape to air.

Do not attempt to work on the equipment by yourself. Improper operation may cause danger.

7.0 TROUBLE SHOOTING COMMON FAULTS

Yellow triangular warning sign with black exclamation mark, commonly used to indicate caution or hazard.

Requirements for service personnel

Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, F-Gas registered.

Do not attempt to work on the equipment by yourself.

8.0 DATASHEETS

MODEL UNITS HPP-i 8	HPP-i 12	HPP-i 16
PERFORMANCE CONDITION: Air 27°C/Water 27°C/RH 80%
Heating capacity kW 9.5 13.0 20.0
COP range 13.2-5.4 13.5-5.6 13.5-5.7
Average COP at 50% Speed 8.9 9.7 9.3
PERFORMANCE CONDITION: Air 15°C/Water 26°C/RH 70%
Heating capacity kW 7.0 9.5	13.5
COP range		6.9-4.2	7.0-4.0	7.0-4.2
Average COP at 50% Speed 6.3 6.1 6.3
PERFORMANCE CONDITION: Air 35°C/Water 28°C/RH 80%
Cooling capacity (kW)		3.9 5.2 7.4
TECHNICAL SPECIFICATIONS
Operating air temperature	°C	-5°C to 43°C
Water heat temperature set range	°C	18°C to 40°C
Water cool temperature set range	°C	12°C to 30°C
POWER SUPPLY		230V Single Phase 50Hz
Rated input power	kW	0.3-1.79	0.40-2.38	0.57-3.21
Rated input current	A	1.38-7.58	1.82-10.8	2.60-14.61
Maximum input current	A	9.5 12.5	19.5
Rated RCD type F	mA	30	30	30
Rated Fuse aM / MCB type C	A	16	16	25
Sound pressure level at 10m	dB(A)	19.6-31.5	21.9-32.0	24.3-36.1
Recommended water flow rate	m^3/h	3.0-5.0	4.0-6.0	7.0-10.0
Pressure drop	m/kPa	0.36/3.5	0.41/4.0	0.56/5.5
Pool water connections	Inches	11⁄2" or 50mm Female
GENERAL DATA
Net dimensions (w x d x h)	mm	864 x 359 x 648	864 x 359 x 648	954 x 359 x 748
Packed dimensions (w x d x h)	mm	950 x 375 x 675	950 x 375 x 675	1040 x 375 x 775
Net weight	kg	47	49	68
HERMETIC SYSTEM
Refrigerant charge R32	kg	0.6 0.9 1.1
Minimum area requirement	m2	3.1	6.9	10.3

NOTES: Heat pump performance parameters are subject to change without notice. Always refer to the nameplate. Global warming potential (GWP) R32 - 675. The data is subject to modification without prior warning.

MODEL UNITS HPP-iw	12 HPP	-iw 16 HPP-iw 22 HPP-iw 28
PERFORMANCE CONDITION: Air 27°C/Water 27°C/RH 80%
Heating capacity kW 15.0 21.0 27.5 36.0
COP range 15.0-6.6 14.8-6.4 15.0-6.8	14.8-6.0
Average COP at 50% Speed 10.6 10.3	10.3 10.2
PERFORMANCE CONDITION: Air 15°C/Water 26°C/RH 70%
Heating capacity kW 10.5 14.5 18.0 23.9
COP range 7.7-4.6 7.1-4.6 7.5-4.6 7.5-4.6
Average COP at 50% Speed 6.4		6.3 6.3 6.3
PERFORMANCE CONDITION: Air 35°C/Water 28°C/RH 80%
Cooling capacity	kW	6.7	9.5	11.9 16.0
TECHNICAL SPECIFICATIONS
Operating air temperature °C		-10°C to 43°C
Water heat temperature set range	°C	18°C to 40°C
Water cool temperature set range	°C	12°C to 30°C
POWER SUPPLY		230V Single Phase 50Hz	400V Three Phase 50Hz
Rated input power	kW	0.27-2.28	0.41-3.15	0.48-3.91	0.64-5.20
Rated input current	A	1.17-9.91	0.59-4.56	0.69-5.66	0.92-7.53
Maximum input current	A	13.5	5.8	7	9.5
Rated RCD type B	mA	30	30	30	30
Rated Fuse aM / MCB type C	A	20	10	10	16
Sound pressure level at 10m	dB(A)	20.8-24.5	20.4-33.7	23.0-34.4	22.1-34.2
Recommended water flow rate	m^3/h	5.0-7.0	8.0-10.0	10.0-12.0	12.0-18.0
Pressure drop	m/kPa	0.49/4.8	0.61/6.0	0.77/7.5	0.85-8.5
Pool water connections Inches		11⁄2" or 50mm Female
GENERAL DATA
Net dimensions (w x d x h)	mm	954x359x648	954x429x755	1084x429x948	1154x539x948
Packed dimensions (w x d x h)	mm	1040x445x655	1040x445x770	1130x445x985	1200x5555x985
Net weight	kg	52	68	93	120
HERMETIC SYSYEM
Refrigerant charge R32	kg 0.9	1.2 2.0	2.7
Minimum area requirement	m2	6.9	12.3	34.0	62.0

NOTES: Heat pump performance parameters are subject to change without notice. Always refer to the nameplate. Global warming potential (GWP) R32 - 675. The data is subject to modification without prior warning.

9.0 DIMENSIONS

	A B C	D E F G H J
HPP-i 8 334 5	60 318 359	864 250	74 648 116
HPP-i 12 334	560 318 359	864 290	74 648 116
HPP-i 16 334	590 318 359	954 390	74 748 116
HPP-iw 12 334	590 318 359	954 340	74 648 107
HPP-iw 16 404	590 388 4	29 954 460	74 755 107
HPP-iw 22 404	720 388 4	29 1084 6	20 74 948 107
HPP-iw 28 514	790 498 5	39 1154 6	50 74 948 128

9.1 DIMENSIONS

L M K N

P Q R

	KLMNPQR
HPP-i 8	478 465	285 288 533	565 50
HPP-i 12	478 465	285 288 630	565 50
HPP-i 16	478 465	349 315 675	666 50
HPP-iw 12	478 465	300 349 743	566 50
HPP-iw 16	587 540	370 349 731	667 50
HPP-iw 22	645 640	462 405 799	861 50
HPP-iw 22	645 630	462 400 876	866 50

10.0 WINTERISATION PROCEDURE

WARNING. Isolate machine before opening! As heat pump embodies electrical and rotational equipment, it is recommended for your own safety that a competent person carries out the following procedure.

(Drain Down Procedure)

ALL MODELS

Objective

To provide frost protection

To eliminate corrosion problems

To inhibit electrical components

1. Switch off electrical supply to heat pump.
2. Remove external fuses and keep in safe place away from heat pump to prevent accidental operation of heat pump.

3. Ensure water circulation pump is switched off.

4. Drain water from heat pump by:
   a) Drain valve if fitted.
   b) Disconnecting pipework to and from heat pump.
   c) Remove condenser drain down cover.
   d) Flush through water circuit in heat pump by using CLEAN TAP WATER (NOT POOL WATER) via hose into outlet connection – run for 10 minutes minimum, use spray nozzle if available.
   e) Allow to drain – fit plastic bags secured by elastic bands over water connections.

5. Uncover electrical enclosure (page 18) and liberally spray interior of unit, with moisture repellent aerosol WD-40 or similar, reseal enclosure.
6. If heat pump located outside, protect from weather by covering with VENTILATED cover. A bespoke cover is available. Do not use plastic sheet as condensation can occur within unit.

If this procedure is not adopted and frost or corrosion damage results then the warranty will become invalid.

10.1 START UP PROCEDURE AFTER WINTERISATION

1. Replace covers (if not fitted).
2. Remove front grille – using soft brush clean finned surfaces of heat pump. Replace panel.
3. Remove plastic covers on water connections and reconnect water piping or close drain valve.

4. Start up water circulating pump and leave running for at least 14 hour to establish flow and enable any air in system to escape.

5. Replace fuses to heat pump circuit.

6. Switch on heat pump.
7. Check control thermostat is set to required pool temperature.
8. Check daily to ensure pool water is at correct pH and has correct chemical balance. See section 11.0 Warranty Conditions.

11.0 WARRANTY CONDITIONS

The following exclusions apply to the warranty given by Dantherm A/S. No claims will be accepted if:

1. The heat pump is installed in any way that is not in accordance with the current procedures as defined by Dantherm A/S.
2. The heat pump has been worked upon or is adjusted by anyone other than a person authorised to do so by Dantherm A/S.
3. The heat pump is incorrectly sized for the application.
4. The water flow through the machine is outside the specified limits.
5. The water pH level and/or chemical balance is outside the following limits:

Acidity pH pH 7.2 - 7.8
Total Alkalinity, as CaCO3 ppm 80 - 120
Total Hardness, as CaCO3 ppm 150 - 250
Total Dissolved Solids ppm 1000
Maximum Salt Content ppm 35000
Free Chlorine Range ppm 1 - 2 Domestic
Free Chlorine Range ppm 3 - 6 Commercial
Superchlorination max 30ppm for 24 hrs
Bromine ppm 2 - 5
Baquacil ppm 25 - 50
Ozone ppm 0.9 Max
Maximum Copper Content ppm 1
Aquamatic Ionic Purifier	ppm 2 Max

1. The heat pump has suffered frost damage.

2. The electrical supply is insufficient or in any way incorrect.

3. The fan amps and duct pressure are outside the specified limits.

4. The air flow to and from the machine is outside the specified limits.

12.0 DECLARATION OF CONFORMITY

DANTHERM GROUP

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

[phone]

DECLARATION OF CONFORMITY

We hereby certify that the following Dantherm models:

HPP-i 8, HPP-i 12, HPP-i 16, HPP-iw 12, HPP-iw 15, HPP-lw 22, HPP-lw 28, range of electrically driven refrigeration heat pumps.

Conforms with

BS EN 60335-1:2012+A13:2017, BS EN 60335-2-40:2003+A13:2012, BS 62233.2008 and therefore comply with the Low Voltage Electrical Equipment Directive 2014/35/EU and the essential safety requirements of the Machinery Directive 2006/42/EC.

Conforms with

BS EN 55014-1:2017, BS EN 55014-2:2015, BS EN 61000-3-2:2014, BS EN61000-3-3:2013 and therefore comply with the Electromagnetic Compatibility Directive 2014/30/EU.

Compliant to RoHS Directive 2011/65/EC amended by Directive [EU] 2015/863

Inside the scope of the WEEE directive 2012/19/EU.

Don Kempster

Finance Director

Effective 2012/12/20 Date 13.5-2021

CE

Dantherm Ltd.

Unit 12, Galliford Road,

Maldon CM9 4XD,

United Kingdom

[phone]

[e-mail]

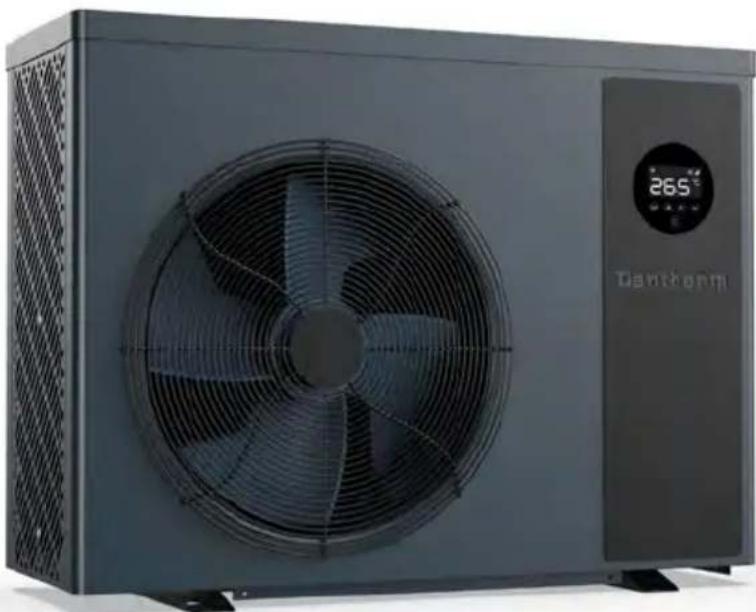

Exterior view of a Danikendi air conditioner unit with visible fan blades and digital display (no text or symbols on main body)

TABLE DES MATIÈRES

PRÉCAUTIONS DE SÉCURITÉ....2

1.0 INTRODUCTION 4

1.1 AVANT-PROPOS ....4
1.2 AVERTISSEMENTS 4

8.0 FICHES TECHNIQUES....36

9.0 DIMENSIONS 38

9.1 DIMENSIONS....39

10.0 PROCÉDURE D'HIVERNAGE 40

10.1 PROCÉDURE DE DÉMARRAGE APRÈS L'HIVERNAGE....40

11.0 CONDITIONS DE GARANTIE.... 41

12.0 DÉCLARATION DE CONFORMITÉ .....42

1.0 INTRODUCTION

1.1 AVANT-PROPOS

Simple line drawing of a rectangular box with an upward arrow on its side (no text or symbols)

Line drawing of a hand holding a rotary knob inside a cabinet (no text or symbols)

2.2 ACCESSOIRES

Line drawing of a white air conditioner unit with a circular fan and control panel (no text or symbols)

Simple line drawing of a box with two boxes and two arrows pointing outward (no text or symbols)

Four black plastic ring components arranged in a 2x2 grid (no text or symbols visible)

Close-up of a white, coiled, oval-shaped plastic or rubber film against a dark background (no text or symbols visible)

Kit de vidange

Close-up of a metallic mechanical component with a cylindrical shaft and black base (no visible text or symbols)

2.3 ACCESSOIRES EN OPTION

Exterior view of a large gray cardboard box on a metal platform (no visible text or symbols)

2.4 CARACTÉRISTIQUES

HPP-iw 12, 16, 22: -10-43 °C

>350 cm Swimming pool or spa

3.2 TYPE DE RÉFRIGÉRANT ET LIEU D'INSTALLATION

Two technical diagrams showing a heat exchanger or cooling unit with red checkmark and cross symbols (no text or labels)

3.5 CONTRÔLES INITIAUX

Person installing or adjusting a black panel on a wooden shelf (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a black electronic device with cables and connectors (no visible text or symbols)

Close-up of hands installing a black plastic clip on a car door frame (no visible text or symbols)

Close-up of hands holding small black connectors or sensors, no visible text or symbols

Two white plastic electronic enclosures on a textured surface, one with a display screen and the other with internal components (no visible text or symbols)

White electronic device with black cable and connector, placed on wooden surface (no visible text or symbols)

Register Login with the Account

1. Empleistem-maileregistratiqpar e-mail.

Register Germany +40 Obtain verification code Logwin Service Associates and Privacy Policy

Enter verification code 1 2 3 AND DEP 4 5 6 OKI JKI MDI 7 8 9 PARK TOP WASZ 0

d. Appairage de l'application

26.5 °C

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Add Device Confirm Indicator Rapidly Blink

Acid Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

Add Device Connecting... Place your router, mobile phone, and device as close as possible 13% Device Manager my email: Email: Email: Email 2023-06-29

Add Device Connecting... Place your router, mobile phone, and device as close as possible 100% + Driver needs + Appulse Device to Smart Cloud + Including devices...

Add Device Device added successfully Inverter HP Edit Done

Home Cloudy Good Good All Devices Garden Inverter Pool Heat Pump

e. Fonctionnement

More Device name Device Location Check network Shared devices Create Group Device Information Feedback Check for firmware upgrades Interrupted Devices Include Existing Defaults

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that her? she can choose all the devices and smart seconds. Family settings. Add sharing

Shared devices If a permanent student is in the house, it is suggested that you are that person as a family streamer, so that she can show all the devices and insert scenes from online. Adding an extra session of 50 minutes online Mobile User Add sharing

Remarques :

Control panel interface with battery, timer, and function buttons labeled 'HEAT' and 'COOL'

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Yellow triangular warning sign with black exclamation mark, commonly used for safety alerts

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

[phone]

DÉCLARATION OF CONFORMITÉ

Abstract geometric shape with black and gray color blocks (no text or symbols)

Dantherm Ltd.

Unit 12, Galliford Road,

Maldon CM9 4XD,

United Kingdom

[phone]

[e-mail]

HPP-i 8, 12, 16, HHP-iw 12, 16, 22, 28

Exterior view of a black Dantherm air conditioner unit with visible fan blades and control panel (no text or symbols on main body)

INHALTSVERZEICHNIS

Simple line drawing of a rectangular box with an upward arrow on its side, no text or symbols present.

Line drawing of a hand opening a door with two buttons, no text or symbols present

2.2 ZUBEHÖR

Line drawing of a rectangular air conditioner unit with a circular fan and control panel (no text or symbols)

Simple line drawing of a box with two boxes and two arrows pointing outward (no text or symbols)

Four black plastic washers arranged in a 2x2 grid (no text or symbols visible)

Rubber Feet
(4er-Set)

Close-up of a black cylindrical mechanical component with a metallic threaded end (no visible text or symbols)

Close-up of a white, coiled, looped plastic or rubber film against a dark background (no text or symbols visible)

Ablaufset

2.3 OPTIONALES ZUBEHÖR

Exterior view of a modern office building (no signage)

HPP-i 8, 12, 16: -5–43 °C

HPP-iw 12, 16, 22: -10–43 °C

Swimming pool per Whirlpool >350 cm

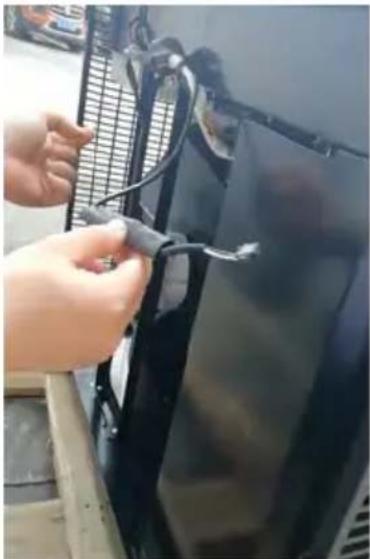

3.2 KÄLTEMITTEL TYP UND STANDORT DER INSTALLATION

Two technical diagrams showing a heat exchanger or cooling unit with red checkmark and cross symbols (no text or labels)

Person installing or adjusting a black panel on a wooden frame (no visible text or symbols)

Close-up of a person's hand adjusting a black industrial component with a red arrow pointing to the valve (no visible text or symbols)

Close-up of a hand connecting wires to a black industrial component with blue heat sinks (no visible text or symbols)

Close-up of hands holding a black cable attached to a black panel, with no visible text or symbols

Close-up of hands holding small black connectors or connectors, no visible text or symbols

Two white plastic electronic enclosures on a textured surface, one with a display screen and the other with internal components (no visible text or symbols)

White electronic device with black cable and a small connector, placed on a wooden surface (no visible text or symbols)

Register Login with the Account

Register Germany +40 Obtain verification code Logwin Service Associates and Privacy Policy

Enter verification code 1 2 3 AND DEP 4 5 6 OKI JKI NO 7 8 9 PARK TOP WAS? 0

c. Familie anlegen

Start a smart life Create family

▶

Cancel Add Family Delete Family Name Enter Family name Family Location Set location Home information / Choice Living Room Master Bedroom Second Bedroom Dining Room Kitchen Study Room Add Room You can change room settings anytime.

▶

Cancel Add Family Cancel Family Name: JCI's Family Location: Living Room Family created successfully View Family Done Dining Room Kitchen Study Room Garden Add Room

d. APP-Kopplung

26.5 °C

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Add Device Confirm Indicator Rapidly Blink

Acid Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

Add Device Connecting... Place your router, mobile phone, and device as close as possible 13% Device Manager my email: Email: Email: Email 2023-06-29

Add Device Connecting... Place your router, mobile phone, and device as close as possible 100% + Driver needs + Appulse Device to Smart Cloud + Including devices...

Add Device Device added successfully Inverter HP Edit Done

Home Cloudy Good Good All Devices Garden Inverter Pool Heat Pump

e. Bedienung

More Device name Device Location Check network Shared devices Create Group Device information Feedback Check for firmware upgrades Remove Device Remove hardware details

Shared devices If a permanent resident is in the house, it is suggested that you eat that person as a family member, so that has she comprises all the device and smart scenes. Limit editing. Add sharing

Shared devices If a permanent incident is in the house, it is suggested that you see that person as a family member, so that had she can share all the devices and smart screens will add sharing. Add sharing

Hinweise:

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Yellow triangular warning sign with black exclamation mark symbol

Unit 12 Galliford Road

Maldon CM9 4XD

United Kingdom

-44 (0)1621 856611

Handwritten signature or scribble on a white background, possibly a signature or artistic mark

Date

13.5-2024

CE

Dantherm Ltd.

Unit 12, Galliford Road,

Maldon CM9 4XD

United Kingdom

[phone]

[e-mail]

Bombas de calor inverter HPP-i / HPP-iw

HPP-i 8, 12, 16, HPP-iw 12, 16, 22, 28

Exterior view of a Danikendi air conditioner unit with visible fan blades and digital display (no text or symbols on main body)

ÍNDICE

Simple line drawing of a rectangular box with an upward arrow on its side, placed on a base (no text or symbols)

Line drawing of a hand opening a door with two buttons, no text or symbols present

2.2 ACCESORIOS

Line drawing of a rectangular air conditioner unit with a circular fan and control panel (no text or symbols)

Pies de goma (kit de 4)

Simple line drawing of a box with two arrows pointing outward (no text or symbols)

Four black plastic washers arranged in a 2x2 grid (no text or symbols visible)

Close-up of a white, coiled, oval-shaped plastic or rubber film against a dark background (no text or symbols visible)

Kitarleagrenkajte

Close-up of a metallic mechanical component with a black base and cylindrical top (no visible text or symbols)

2.3 ACCESORIOS OPCIONALES

Black-and-white photo of a cardboard box on a metal shelf, no visible text or symbols

2.4 CARACTERÍSTICAS

HPP-iw 12, 16, 22: -10-43 °C

The red lines represent the air inlet area

>350 cm Swimming spa or spa

Diagram showing two electrical or mechanical components with red checkmarks indicating failure or rejection status.

Person installing or adjusting a black panel on a wooden surface (no visible text or symbols)

Close-up of a hand using a tool to connect components on a black industrial device (no visible text or symbols)

Close-up of a hand holding a cable attached to a black metal panel, no visible text or symbols

Close-up of hands holding small black connectors or connectors, no visible text or symbols

Two white plastic electronic devices with internal components, placed on a textured surface (no visible text or symbols)

White electronic device with black cable and a small component on top, placed on a wooden surface (no visible text or symbols)

Register Login with the Account

1. Registro em aléfogistra do vino correo electrónico.

Register Germany +40 Obtain verification code Logwin Service Associates and Privacy Policy

Enter verification code 1 2 3 AND DEP 4 5 6 OKI JKI NO 7 8 9 PARK TOP WAS? 0

c. Crear familia

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Add Device Confirm Indicator Rapidly Blink

Acid Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

Add Device Connecting... Place your router, mobile phone, and device as close as possible 13% Device Manager my email: Email: Email: Email 2023-06-29

Add Device Connecting... Place your router, mobile phone, and device as close as possible 100% + Driver needs + Appulse Device to Smart Cloud + Including devices...

Add Device Device added successfully Inverter HP Edit Done

Home Cloudy Good Good All Devices Garden Inverter Pool Heat Pump

e. Funcionamiento

More Device name Inverter Device Location Checknetwork Check Now Shared devices Create Group Device information Feedback Check for firmware upgrades Remove Device

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that her/ she can share all the devices and smart screens (with uplink) Add sharing

Shared devices If a permanent resident is in the house, it is suggested that you see that person as a family member, so that he/she can show all the devices and smart scenes. We will be Joining personal groups for the meeting share. Mobile User 1-3+500000000 Add sharing

Notas:

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Yellow triangular warning sign with black exclamation mark, commonly used for safety alerts

Unit 12 Galliford Road

Maldon CM94XD

United Kingdom

[phone]

HPP-i 8, 12, 16, HPP-iw 12, 16, 22, 28

Exterior view of a black industrial air conditioning unit with a 265°F digital display (no visible text or symbols on the device itself)

INDICE

1.0 INTRODUZIONE ....4

1.1 PREMESSA....4

1.2 AVVERTENZE....4

3.4 IMPIANTO IDRAULICO....16

3.5 CONTROLLI INIZIALI 16

3.6 CORROSIONE ELETTROLITICA NELLE PISCINE....17

Simple line drawing of a rectangular box with an upward arrow on its side, placed on a base (no text or symbols)

Line drawing of a hand opening a door with two buttons, no text or symbols present

2.2 ACCESSORI

Line drawing of a rectangular air conditioner unit with a circular fan and control panel (no text or symbols)

Simple line drawing of a box with two boxes and two arrows pointing outward (no text or symbols)

Four black plastic washers arranged in a 2x2 grid (no text or symbols visible)

Riebbien Geetma
-kit di 4)

Close-up of a metallic mechanical component with a cylindrical top and black base (no visible text or symbols)

Close-up of a white, coiled, looped plastic or rubber film against a dark background (no text or symbols visible)

Drainageckit

Exterior view of a large gray cardboard box on a metal platform (no visible text or symbols)

2.4 CARATTERISTICHE

Two technical diagrams showing a heat exchanger or cooling unit with pipe fittings and a grid-patterned panel, marked with red checkmarks (no text or symbols present)

3.5 CONTROLLI INIZIALI

Person installing or adjusting a black panel on a wooden surface (no visible text or symbols)

Close-up of a person's hand holding a black industrial component with red circular features, no visible text or symbols

Close-up of a hand using a tool to connect cables to a black industrial machine component (no visible text or symbols)

1007332 EDIZIONE 5

Close-up of hands installing a cable on a black vehicle door panel (no visible text or symbols)

Close-up of hands holding small black connectors or wires, no visible text or symbols

Two white electronic components with internal cutouts, placed on a textured surface (no visible text or symbols)

White electronic device with a small black connector and coiled cable, placed on a wooden surface (no visible text or symbols)

iOS please navigate from

1. Registearsy trorbite cellulare. o e-mail.

Register Login with Account

Register Germany +40 Obtain verification code I agree with Service Assistant and Privacy Policy

Enter verification code 1 2 3 AND DEF 4 5 6 OK JNS MND 7 8 9 PARKS TOK WACC 0

Home Light Rain 28.0 °C Excellent Excellent All devices Garden Add Device

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Add Device Confirm Indicator Rapidly Blink

Acid Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

Add Device Connecting... Place your router, mobile phone, and device as close as possible 13% Device Manager Recommended Server Management System Virtualizing Time

Add Device Connecting... Place your router, mobile phone, and device as close as possible 100% + Drivers found + Together Devices to Smart Cloud + Including devices...

Add Device Device added successfully Inverter HP Green Done

Home Cloudy All Devices Garden Inverter Pool Heat Pump

e. Funzionamento

More Device name Device Location Check network Shared devices Create Group Device Information Feedback Check for firmware upgrades Remove Device

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that her she can show all the devices and smart screens/family settings. Add sharing

Shared devices If a permanent resident is in the house, it will suggested that you set that person as a family member, so that feel she can share of the devices and asset scenes? Add sharing Mobile User Add sharing

Note:

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Isolare

Yellow triangular warning sign with black exclamation mark, commonly used for safety alerts

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

[phone]

HPP-i 8, 12, 16, HPP-iw 12, 16, 22, 28

Exterior view of a Danikendi air conditioning unit with a five-petal fan and digital display (no text or symbols on the device itself)

SPIS TREŚCI

OSTRZEŻENIE BHP 2

1.0 WPROWADZENIE....4

Simple line drawing of a rectangular box with an upward arrow on its side, placed on a base (no text or symbols)

Line drawing of a hand holding a switch inside a cabinet (no text or symbols)

2.2 AKCESORIA

Watercuniopondonnectors

2 × 112,

2 × 50mm

2 x 1½, 2 x 50mm

BurbereFreizki

(zestaw 4 szt.)

Close-up of a metallic mechanical component with a cylindrical shaft and black base (no visible text or symbols)

Close-up of a white, coiled, looped plastic or rubber film against a dark background (no text or symbols visible)

Deatnagedkittywowy

2.3 OPCJONALNE AKCESORIA

Black-and-white photo of a cardboard box on a metal shelf, no visible text or symbols

2.4 FUNKCJE

HPP-i 8, 12, 16: -5-43°C

HPP-iw 12, 16, 22: -10-43°C

Two technical diagrams showing a heat exchanger or cooling unit with red checkmark and cross symbols (no text or labels)

3.5 KONTROLE POCZĄTKOWE

Person installing or adjusting a black panel on a wooden pallet (no visible text or symbols)

Close-up of hands adjusting a black industrial component with a red valve and blue mesh material (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a black electronic component with blue connectors (no visible text or symbols)

20

Close-up of a hand holding a black cable attached to a black metal frame, with no visible text or symbols.

1007332 WYDANIE 5

Close-up of hands holding small black connectors or sensors, no visible text or symbols

White electronic device with black cable and connector, placed on wooden surface (no visible text or symbols)

Two white electronic device cases on a textured surface, one open and one closed, with no visible text or symbols.

Register Login with the Account

Register Germany +40 Obtain verification code Logwin Service Associates and Privacy Policy

Enter verification code 1 2 3 A#D DEP 4 5 6 OKI JKI MDI 7 8 9 P#K Top MAX 0

c. Utwórz rodzinę

d. Parowanie APP

26.5 °C

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Add Device Confirm Indicator Rapidly Blink

Acid Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

Add Device Connecting... Place your router, mobile phone, and device as close as possible 13% Device Manager my email: Email: Email: Email: Email: 2023.06.09

Add Device Connecting... Place your router, mobile phone, and device as close as possible 100% + Driver needs + Appulse Device to Smart Cloud + Including devices...

Add Device Device added successfully Inverter HP Edit Done

Home Cloudy Good Good All Devices Garden Inverter Pool Heat Pump

e. Działanie

More Device name Device Location Check network Shared devices Create Group Device Information Feedback Check for firmware upgrades Remove Device

Shared devices If a permanent resident is in the house, it is suggested that you set that person as a family member, so that he/she can choose all the devices and smart frames. I am adding. Add sharing

Shared devices If a permanent resident is in the house, it is suggested that you say that person as a family member, so that feel she can stops all his devices and smart scenes/commemting. Adding social support to give streaming money. Mobile User Add sharing.

Uwagi:

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Yellow triangular warning sign with black exclamation mark symbol

Unit 12 Galliford Road

Maldon CM9 4XD

United Kingdom

[phone]

Exterior view of a Danthoni air conditioner unit with visible fan blades and digital display (no text or symbols on main body)

ÍNDICE

AVISO DE SAÚDE E SEGURANÇA 2

1.0 INTRODUÇÃO......4

1.1 PREFÁCIO....4

1.2 AVISOS....4

2.0 SOBRE A SUA BOMBA DE CALOR.... 8

2.1 TRANSPORTE 8

2.2 ACESSÓRIOS....8

2.3 ACESSÓRIOS OPCIONAIS....9

2.4 CARACTERÍSTICAS....10

3.4 CANALIZAÇÕES....16

3.5 VERIFICAÇÕES INICIAIS....16

3.6 CORROSÃO ELETROLÍTICA EM PISCINAS ...17

Simple line drawing of a rectangular box with an upward arrow on its side, placed on a base (no text or symbols)

Line drawing of a hand holding a switch inside a cabinet with two buttons, labeled 'X' (no text or symbols on the diagram itself)

2.2 ACESSÓRIOS

2 x 1½, 2 x 50mm

Close-up of a metallic mechanical component with a black base and cylindrical top (no visible text or symbols)

Close-up of a white, coiled, oval-shaped plastic or rubber film against a dark background (no text or symbols visible)

Kit de drenagem

2.3 ACESSÓRIOS OPCIONAIS

Exterior view of a large gray cardboard box with visible wear and surface texture (no text or symbols)

2.4 CARACTERÍSTICAS

HPP-iw 12, 16, 22: -10-43 °C

Two technical diagrams showing a heat exchanger or cooling unit with red checkmark and cross symbols (no text or labels)

3.5 VERIFICAÇÕES INICIAIS

Person installing or adjusting a black panel on a wooden shelf (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a black electronic device with cables and connectors (no visible text or symbols)

Close-up of hands installing a black plastic clip on a car door frame (no visible text or symbols)

Close-up of hands holding small black connectors or connectors, no visible text or symbols

Two white plastic electronic devices with internal components, placed on a textured surface (no visible text or symbols)

White electronic device with black cable and a small component on top, placed on a wooden surface (no visible text or symbols)

Register Login with the Account

Register Germany +40 Obtain verification code Logwin Service Associates and Privacy Policy

Enter verification code 1 2 3 A#D DEP 4 5 6 OKI JKI MDI 7 8 9 P#K Top MAX 0

c. Criar família

Add Manually Search for Devi Pool Heat Pump

Add Device Power on the device and confirm that indicator light blinks rapidly Add Device Confirm Indicator Rapidly Blink

Acid Device Enter Wi-Fi Password Only 2.4 GHz Wi-Fi networks are supported Xiaomi_abc... Change Network Confirm

Add Device Connecting... Place your router, mobile phone, and device as close as possible 13% Device Manager my email: Email: Email: Email 2023-06-28

Add Device Connecting... Place your router, mobile phone, and device as close as possible 100% + Driver needs + Appulse Device to Smart Cloud + Including devices...

Add Device Device added successfully Inverter HP Edit Done

Home Cloudy Good Good All Devices Garden Inverter Pool Heat Pump

e. Funcionamento

More Device name Inverter Device Location Check network Check Now Shared devices Create Group Device information Feedback Check for firmware upgrades Remove Device Add to new device

Shared devices If a permanent resident is in the house, it is suggested that you get that person as a family member, so that he/ she concludes all the devices and smart science family sharing Add sharing

Shared devices If a permanent involved is little house, it is suggested that you get that person as a family member, so that had she can share all the devices and aware scenes like confirm. Add sharing Mobile User Add sharing

Notas:

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

Yellow triangular warning sign with black exclamation mark symbol

Unit 12, Galliford Road

Maldon CM94XD

United Kingdom

[phone]

[e-mail]

danthermgroup.co.uk

VAT: GB 2235572 71

Abstract blue line drawing with intersecting curves and a central oval (no text or symbols)

Data

13-5-2021

CE

Dantherm Air Handling A/S

Marienlystvej 65,

DK-7800 Skive,

Denmark

[phone]

[e-mail]
