| Product Type | Document Shredder |
| Brand | GBC |
| Model | Momentum M12-12 |
| Cutting Capacity (sheets) | 12 sheets (estimated) |
| Cut Type | Cross Cut |
| CD/Card Slot | Yes (dedicated slot) |
| Dimensions (approx.) | 40 cm × 30 cm × 50 cm |
| Weight (approx.) | 10 kg |
| Power Supply | 120 V, 60 Hz |
| Reverse Function | Yes, via dedicated button |
| Anti-Jam Technology | Yes |
| Bin Full Indicator | Yes (red light) |
| Door Open Indicator | Yes (flashing red light) |
| Thermal Protection | Automatic shutoff in case of overheating |
| Safety Lock | Bin door with contact |
| Duty Cycle | 15 minutes before overheating |
| Maintenance | Lubricate with lubricating sheet every 3 empties |
| Warranty | 2 years (parts and labor) |
| Certifications | FCC Class B, ICES-003 (B) |
Frequently Asked Questions - Momentum M12-12 GBC
User questions about Momentum M12-12 GBC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Shredder in PDF format for free! Find your manual Momentum M12-12 - GBC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Momentum M12-12 by GBC.
USER MANUAL Momentum M12-12 GBC
| Model No.Nu. de modèleN.° de modeloModelo N° | Item No.Nu. d’articleN.° de artículoItem N° | Cut TypeType de coupeTipo de corteTipo de Corte | Sheet CapacityCapacité de feuillesCapacidad de la hojaCapacidade de Folhas | Bin Size (Gallons)Taille du bac (gallons)Tamaño del contenedor(Galones)Tamanho do Cesto(em galões) |
| X20-07 WSM177001 P-4 20 7 | ||||
| X18-12 WSM177002 P-4 18 12 | ||||
| M12-12 WSM177003 P-5 12 12 | ||||
| X22-23 WSM177004 P-4 22 23 | ||||
| X26-32 WSM177005 P-4 26 32 | ||||
| M20-32 WSM177006 P-5 20 32 | ||||
Please read and keep these important safety instructions
For a full copy of the operating instructions, hints & tips and troubleshooting guide, please visit www.gbc.com
The following symbol which is found on the product indicates you could be seriously hurt or killed if you open the machine. DO NOT OPEN.
WARNING
Electrical shock hazard. Do not open. No user serviceable parts inside. Refer servicing to qualified service personnel.
Warning: Do not touch cutters, beware of sharp edges.
Warning: Moving parts hazard, keep hands away from rollers while in operation.
- Please read all the safety information and the instructions; the manufacturer is not liable for cases of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions. In such cases, the warranty will be voided.
- Only use the unit for its intended purpose.
- The unit must only be connected to a supply voltage corresponding to the electrical rating shown on the unit.
- Unit should be connected to a socket outlet near the equipment that is easily accessible.
- Do not connect multiple adaptors or use with an extension cable.
- Do not attempt to service or repair the unit yourself.
- If recycling, separate paper and credit card shreds.
- Do not use this unit if the cable or plug have been damaged.
- Care should be taken when moving equipment to avoid any unlevelled surfaces.
- The device is intended for use indoors. Never use outdoors.
- Keep the device away from moisture.
- Be vigilant at all times, and always be careful what you are doing. Do not use electrical equipment if you are lacking in concentration or awareness, or are under the influence of drugs, alcohol or medication. Even a moment of inattentiveness can lead to serious injuries when using electrical equipment.
- Do not attempt to open, modify or repair the device. Do not drop, puncture, break or expose to high pressure.
- Alterations to the device and technical modifications are not permitted.
- Check the device and cable (and if applicable, the adapter) for any damage before use. If there is any visible damage, a strong odor, or excessive overheating of components, unplug all the components immediately and stop using the device.
- Shredder must be disconnected from power source if not used for an extended period of time.
- Do not use spray cleaners or spray lubricants as these may present a risk of flash fire.
- Never bypass the safety interlock (strictly forbidden and dangerous, especially when unit is connected to a power source).
- Do not lean on the shredder door; this may damage the door and will not be covered by your warranty.
- Failure to follow these instructions could result in damage/injury and will invalidate your guarantee.
Warning symbols
Warning symbols
Keep loose jewelry clear
Ties and loose clothing hazard
Keep long hair clear
Do not reach into opening
This equipment is not intended for use by children
No aerosols. Do not use spray cleaners or lubricants, as these may present a risk of flash fire.
Max sheet capacity. Do not try to shred more than the max capacity.
Warning: do not shred CD in paper feed slot
No heavy duty staples above 1 inch / 26 mm
Warning: moving parts
Warning: This equipment is not intended for use by children. Avoid touching the media feed opening with the hands, clothing or hair. Unplug this equipment when not in use for an extended period of time. Hazardous moving parts are in this equipment; keep body parts away from moving parts.
Only shred CDs and credit cards in the separate slot, as indicated.
| Icon Type Button / indication & action(troubleshoot) | ||
 | Control buttons | Auto-start and stand-by button(press one time) |
 | Manual reverse button(hold down) | |
 | Manual forward run button(hold down) | |
 | Status indications | Ready indicator, ready to shred and no overload |
 | Over heating indication(allow to cool) | |
 | Overloaded / Jam indication(reduce sheets / remove jammed paper) | |
 | Bin full indication(open door and empty the bin) | |
 | Door open or shredder head removedindication (close door firmly) | |

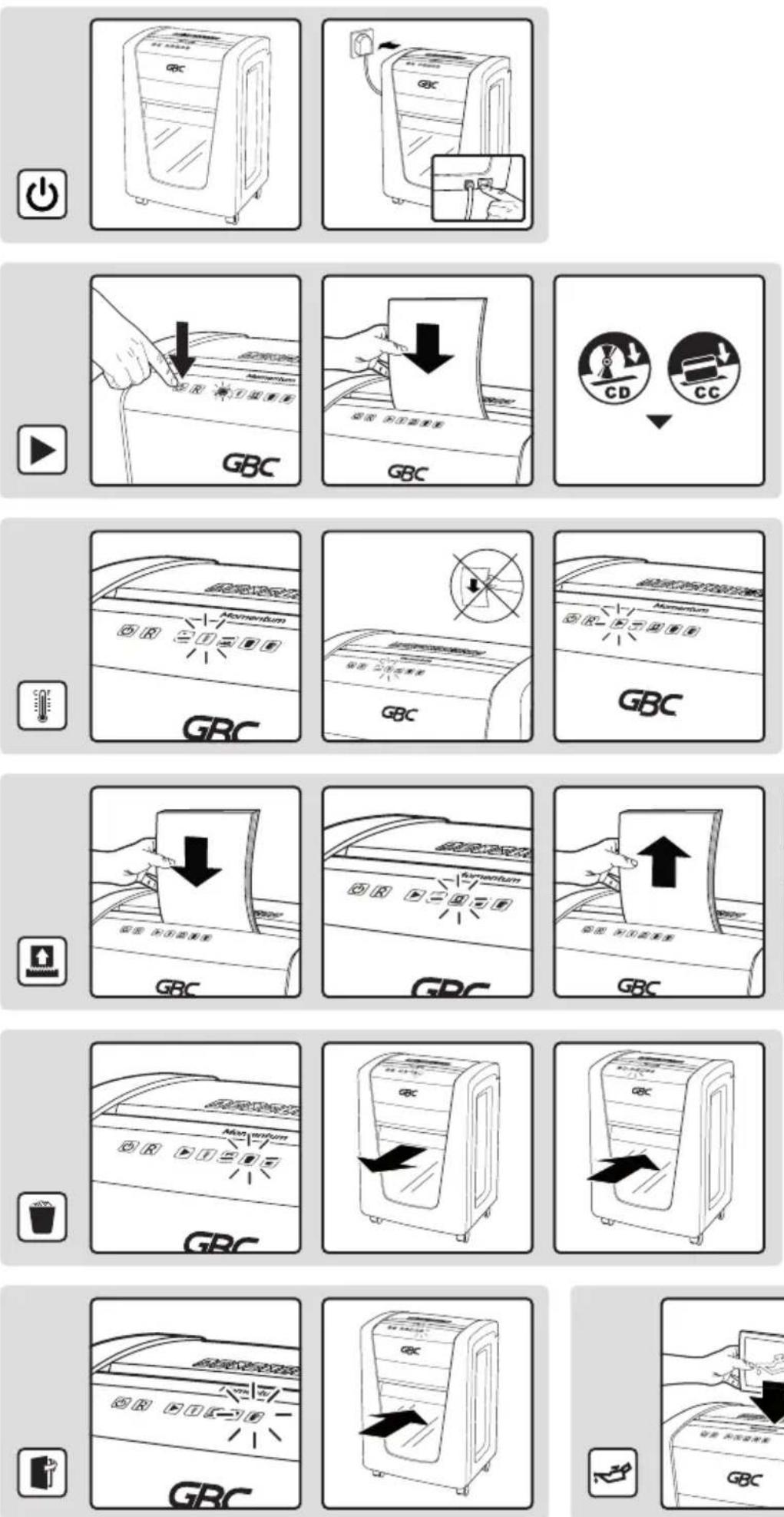

Operation
- Remove the shredder from the packaging and place the bin inside the shredder housing.
- Plug the power cord into the rear of the shredder.
- Connect the shredder to an appropriate power supply.
- Ensure the on/off switch in the back of the machine is in the 'on' position. The blue shredder in operation icon ▶ will flash every 3 seconds.
- To begin shredding press the button. The flashing icon changes to a solid blue light. You are now able to shred.
- Insert paper to be shredded into the feed area. The Anti-Jam Mechanism will sense the thickness of the paper being shredded.
If the paper stack thickness is greater than the shredder's sheet capacity, the Anti-Jam indicator will turn on and the machine will reverse the paper. Please remove the stack of paper and reduce the number of sheets to be within the specified capacity [9].
If the paper stack thickness is within the specified sheet capacity, the blue Ready triangle ▶ will remain on and paper will be shredded.
Note: Make sure the paper to be inserted is neatly stacked.
- If the shredder is left in shredder operational mode for more than 30 minutes without being used the shredder will automatically switch off in order to save power.
Warning: Do NOT under any circumstances use any metal objects (scissors, letter openers, etc.) in an attempt to clear the entry.
Anti-Jam Technology
This shredder will only shred stacks of paper within the specified sheet capacity; if there are too many sheets, the stack of paper will be rejected and the shredder will not start.
During the shredding process do not attempt to add more paper as this will cause a paper overload and auto-reverse will start; paper will then need to be removed.
Reverse function
- Should you wish to reverse the shredding direction while shredding a document, use the reverse function R.
- By pressing the reverse button the cutters will change direction allowing the retrieval of the document being shredded.
- The reverse function will only run while [R] is being pressed. When the reverse button is released the shredder will revert to ready mode.
Operation time
When the shredder is used continuously, the shredder may overheat. If this occurs the overheat icon will illuminate red.
When the shredder is ready to be used again the red overheat icon will go out.
To resume shredding, press the On button ⏻ and start feeding documents into the feed slot.
*Note: The X20-07 does not shred credit cards or CDs.
Momentum shredding capability
CAN shred the following:
• Stapled paper, 1 inch / 25 mm within the corner
- Small sized paper
- Paperclipped paper, 1 inch / 25 mm within the corner
- Capable of shredding small/medium paperclips (max. wire thickness = .035 inches / .9 mm)
- <80/100gsm paper
Thick paper or card <200gsm
Glossy paper or a sheet covered with print on both sides.
Warning! Only shred CD in machines with a separate CD shredding slot.
CANNOT shred the following:
Heavy duty staples. Check the staple leg length is not greater than .23 inches / 6 mm.
Large clips. Check the length of the paperclip is not longer than 1.25 inches / 32 mm.
Plastic sheets, laminated documents, plastic folders.
Binder clips
Bound documents
Adhesive labels.
Magazines or other documents bound by multiple staples or clips.
No aerosols No oil
Warning! Never shred CDs in the paper feed slot.
Bin full
When the bin is full the shredder will not function and the bin full symbol will illuminate and flash red.
When this happens you must empty the bin.
Pull out the bin to empty.
Once the bin is empty, push it back in and press the On button to resume shredding.
WARNING: The shredder bin must be fully pushed closed for the machine to operate.
- Empty the shredder bin when it is full otherwise the shredder's performance will be adversely affected. Operating the shredder with a full shredder bin can result in paper jamming in the cutters, which will increase the machine's noise level.
- Do not force down shredder paper in the bin using your feet.
Door open
If the door is opened during shredding as a safety precaution the shredder will instantly stop, and the door open symbol on the indicator panel will flash red.
To resume shredding, shut the door and press the ⏻ button.
WARNING
- The shredder DOOR must be fully pushed closed for the machine to operate.

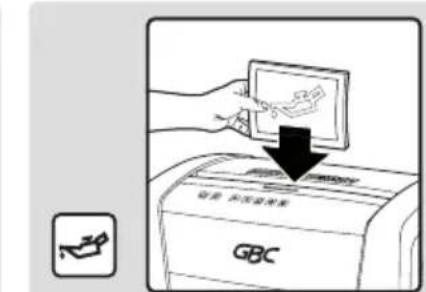

Lubrication of the shredder
GBC recommends using an oil sheet after the bin has been emptied three times (and every three bin emptying after this).
Guarantee
Operation of this machine has Two Year Limited Warranty within the date of purchase, subject to normal use. Within the guarantee period, ACCO Brands will at its own discretion either repair or replace the defective machine free of charge. Defects due to misuse or use for inappropriate purposes are not covered under the guarantee.
Proof of date of purchase will be required. Repairs or alterations made by persons not authorized by ACCO Brands will invalidate the guarantee. It is our aim to ensure that our products perform to the specifications stated. This guarantee does not affect the legal rights which consumers have under applicable national legislation governing sale of goods.
This guarantee does not apply to Australian customers - see end of manual.
Cutter warranties vary by model. Limited 2 year warranty on the shredder unit.
ACCO Brands USA LLC, Four Corporate Drive, Lake Zurich, IL 60047-8997 (in Canada, ACCO Brands Canada Inc., 5 Precidio Court, Brampton, ON L6S 6B7; and in Mexico, ACCO Mexicana, S.A. de C.V. Av. Circuito Industrial Norte #6 Parque Industrial Lerma 52000, Lerma Edo. De México) (each, respectively, "ACCO Brands") warrants to the original purchaser that the cutters of these GBC® AutoFeed Shredders are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase and all other parts are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase.
ACCO Brands' obligation under this warranty is limited to replacement or repair, at ACCO Brands' option, of any warranted part found defective by ACCO Brands without charge for material or labor. Any replacement, at ACCO Brands' option, may be the same product or a substantially similar product that may contain remanufactured or refurbished parts. This warranty shall be void in the following circumstances:
(i) if the product has been misused, (ii) if the product has been damaged by negligence or accident, or (iii) if the product has been altered by anyone other than ACCO Brands or ACCO Brands' authorized agents.
For warranty execution, please call:1-800-541-0094 in the USA1-800-263-1063 in Canada01-(55)-1500-5700 / 5778 in Mexico
Or go to www.gbc.com to register your product.
TO THE EXTENT ALLOWED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED WARRANTIES. REPRESENTATIONS OR PROMISES INCONSISTENT WITH OR IN ADDITION TO THIS WARRANTY ARE UNAUTHORIZED AND SHALL NOT BE BINDING ON ACCO BRANDS. TO THE EXTENT PERMITTED BY APPLICABLE LAWS, ANY IMPLIED WARRANTIES (IF APPLICABLE) ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACCO BRANDS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL OR
SIMILAR DAMAGES, WHETHER OR NOT FORSEEABLE. SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INCIDENTAL, PUNITIVE, EXEMLARY, CONSEQUENTIAL, OR SIMILAR DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.
FOR CONSUMERS WHO HAVE THE BENEFIT OF CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR JURISDICTION OF PURCHASE OR, IF DIFFERENT, IN THEIR JURISDICTION OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS.
To the extent permitted by law, this warranty is not transferable and will automatically terminate if the original product purchaser sells or otherwise disposes of the product.
This warranty gives you specific legal rights. Other rights, which vary from jurisdiction to jurisdiction, may exist. In addition some jurisdictions do not allow (i) the exclusion of certain warranties, (ii) limitations on how long an implied warranty lasts and/or (iii) the exclusion or limitation of certain types of costs and/or damages, so the above limitations may not apply.
FCC CLASS B NOTICE
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation."
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CANADA CLASS B NOTICE
This Class B digital apparatus complies with CAN ICES-003 (B) / NMB-3 (B)
MODIFICATIONS
Any modifications made to this device, that are not approved by ACCO Brands, may void the authority granted to the user by the FCC and/or by Industry Canada to operate this equipment.
Momentum shredding capability
CAN shred the following:
• Stapled paper, 1 inch / 25 mm within the corner
- Small sized paper
- Paperclipped paper, 1 inch / 25 mm within the corner
- Capable of shredding small/medium paperclips (max. wire thickness = .035 inches / .9 mm)
- <80/100gsm paper
Thick paper or card <200gsm
Glossy paper or a sheet covered with print on both sides.
Warning! Only shred CD in machines with a separate CD shredding slot.
CANNOT shred the following:
Heavy duty staples. Check the staple leg length is not greater than .23 inches / 6 mm.
Large clips. Check the length of the paperclip is not longer than 1.25 inches / 32 mm.
Plastic sheets, laminated documents, plastic folders.
Binder clips
Bound documents
Adhesive labels.
Magazines or other documents bound by multiple staples or clips.
No aerosols No oil
Warning! Never shred CDs in the paper feed slot.
Bin full
When the bin is full the shredder will not function and the bin full symbol will illuminate and flash red.
When this happens you must empty the bin.
Pull out the bin to empty.
Once the bin is empty, push it back in and press the On button to resume shredding.
WARNING: The shredder bin must be fully pushed closed for the machine to operate.
- Empty the shredder bin when it is full otherwise the shredder's performance will be adversely affected. Operating the shredder with a full shredder bin can result in paper jamming in the cutters, which will increase the machine's noise level.
- Do not force down shredder paper in the bin using your feet.
Door open
If the door is opened during shredding as a safety precaution the shredder will instantly stop, and the door open symbol on the indicator panel will flash red.
To resume shredding, shut the door and press the button.
WARNING
- The shredder DOOR must be fully pushed closed for the machine to operate.
Lubrication of the shredder
GBC recommends using an oil sheet after the bin has been emptied three times (and every three bin emptying after this).
Guarantee
Operation of this machine has Two Year Limited Warranty within the date of purchase, subject to normal use. Within the guarantee period, ACCO Brands will at its own discretion either repair or replace the defective machine free of charge. Defects due to misuse or use for inappropriate purposes are not covered under the guarantee.
Proof of date of purchase will be required. Repairs or alterations made by persons not authorized by ACCO Brands will invalidate the guarantee. It is our aim to ensure that our products perform to the specifications stated. This guarantee does not affect the legal rights which consumers have under applicable national legislation governing sale of goods.
This guarantee does not apply to Australian customers - see end of manual.
Cutter warranties vary by model. Limited 2 year warranty on the shredder unit.
ACCO Brands USA LLC, Four Corporate Drive, Lake Zurich, IL 60047-8997 (in Canada, ACCO Brands Canada Inc., 5 Precidio Court, Brampton, ON L6S 6B7; and in Mexico, ACCO Mexicana, S.A. de C.V. Av. Circuito Industrial Norte #6 Parque Industrial Lerma 52000, Lerma Edo. De México) (each, respectively, "ACCO Brands") warrants to the original purchaser that the cutters of these GBC® AutoFeed Shredders are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase and all other parts are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase.
ACCO Brands' obligation under this warranty is limited to replacement or repair, at ACCO Brands' option, of any warranted part found defective by ACCO Brands without charge for material or labor. Any replacement, at ACCO Brands' option, may be the same product or a substantially similar product that may contain remanufactured or refurbished parts. This warranty shall be void in the following circumstances:
(i) if the product has been misused, (ii) if the product has been damaged by negligence or accident, or (iii) if the product has been altered by anyone other than ACCO Brands or ACCO Brands' authorized agents.
For warranty execution, please call:1-800-541-0094 in the USA1-800-263-1063 in Canada01-(55)-1500-5700 / 5778 in Mexico
Or go to www.gbc.com to register your product.
TO THE EXTENT ALLOWED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED WARRANTIES. REPRESENTATIONS OR PROMISES INCONSISTENT WITH OR IN ADDITION TO THIS WARRANTY ARE UNAUTHORIZED AND SHALL NOT BE BINDING ON ACCO BRANDS. TO THE EXTENT PERMITTED BY APPLICABLE LAWS, ANY IMPLIED WARRANTIES (IF APPLICABLE) ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACCO BRANDS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL OR
SIMILAR DAMAGES, WHETHER OR NOT FORSEEABLE. SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INCIDENTAL, PUNITIVE, EXEMLARY, CONSEQUENTIAL, OR SIMILAR DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.
FOR CONSUMERS WHO HAVE THE BENEFIT OF CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR JURISDICTION OF PURCHASE OR, IF DIFFERENT, IN THEIR JURISDICTION OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS.
To the extent permitted by law, this warranty is not transferable and will automatically terminate if the original product purchaser sells or otherwise disposes of the product.
This warranty gives you specific legal rights. Other rights, which vary from jurisdiction to jurisdiction, may exist. In addition some jurisdictions do not allow (i) the exclusion of certain warranties, (ii) limitations on how long an implied warranty lasts and/or (iii) the exclusion or limitation of certain types of costs and/or damages, so the above limitations may not apply.
FCC CLASS B NOTICE
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation."
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CANADA CLASS B NOTICE
This Class B digital apparatus complies with CAN ICES-003 (B) / NMB-3 (B)
MODIFICATIONS
Any modifications made to this device, that are not approved by ACCO Brands, may void the authority granted to the user by the FCC and/or by Industry Canada to operate this equipment.
