USER MANUAL BCSA285K4SNLH BEKO

Simple line drawing of a pear and a carrot (no text or symbols)

BCSA285K4SN LH

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

Symbols and their descriptions

This instruction manual contains the following symbols:

Important information or useful usage tips.

Warning against dangerous conditions for life and property.

Warning against electric voltage.

Warning sign depicting a flame symbol in a triangular shape

WARNING!

In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally friendly refrigerant the R600a (flammable only under certain conditions) you must observe the following rules:

Do not hinder the free circulation of the air around the appliance.

Do not use mechanical devices in order to accelerate the defrosting, others than the ones recommended by the manufacturer.

Do not destroy the refrigerating circuit.

Do not use electric appliances inside the food keeping compartment, other than those that might have been recommended by the manufacturer.

INFORMATION

ENERGY SUPPLIER'S NAME MODEL IDENTIFIER (*) A A

The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label.

https://eprel.ec.europa.eu/

CONTENTS

Intended use ....4

Child safety 6

HCA Warning ......6

cleaning

Points to be considered when re-

for the problems

This product is equipped with a lighting source of the "G" energy class. The lighting source in this product shall only be replaced by professional repairers.

Recycling

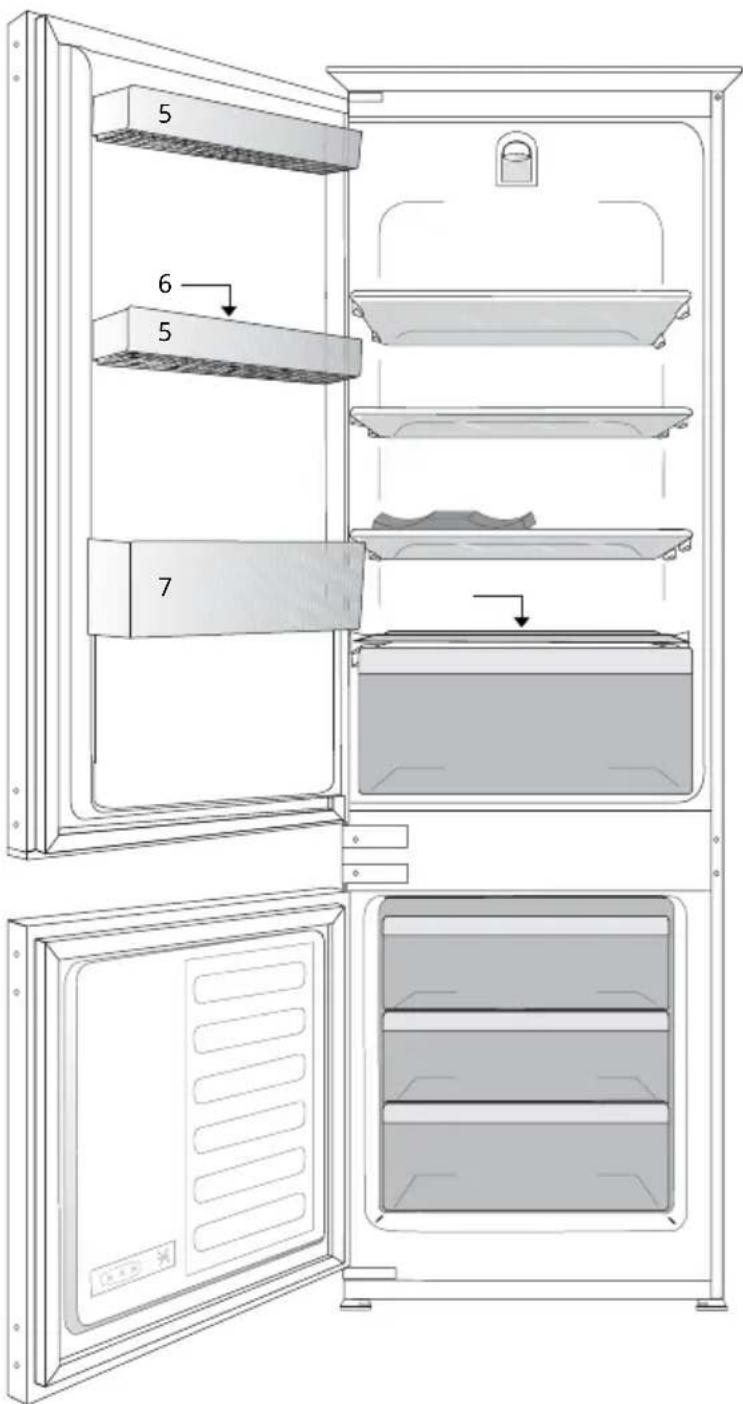

1 Your refrigerator

Technical diagram of an open refrigerator with labeled compartments and door panel, showing internal structure and mounting points.

2 Important Safety Warnings

information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

Intended use

• indoors and in closed areas such as homes;
  – in closed working environments such as stores and offices;
  – in closed accommodation areas such as farm houses, hotels, pensions.

outdoors.

General safety

the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

they may stick to your hand.

cleaning or defrosting.

materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

refrigerator such as the door as a means of support or step.

the refrigerator.

the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

holes on your refrigerator with any material.

performed by incompetent persons create a risk for the user.

a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

off the plug.

in the refrigerator.

or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

wait for at least 5 minutes to start the refrigerator after power failure.

handed in to the new owner of the product when it is given to others.

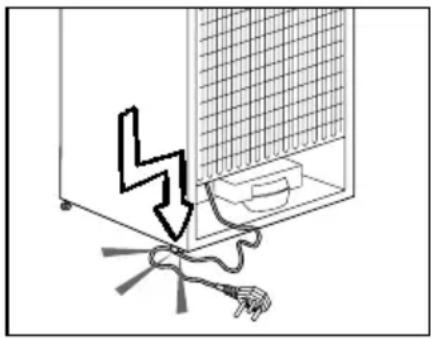

cable when transporting the

Diagram showing a device with a lightning bolt and cable, no text or symbols present

refrigerator. Consult with the service agent if you have any concerns.

shall be guaranteed only if the earth system in your house complies with standards.

sun and wind is dangerous with respect to electrical safety.

there is a power cable damage to avoid danger.

the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

storing food items. It must not be used for any other purpose.

located on the left wall inside the refrigerator.

outlet is loose.

for safety purposes.

inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

water on top of the refrigerator, otherwise this may cause electric shock or fire.

excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door.

cause fire.

may cause fire.

refrigerator to move.

may be snapped.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the

Things to be done for energy saving

refrigerator open for a long time.

refrigerator.

that the air circulation inside of it is

under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

closed containers.

Child safety

be kept away from reach of children.

compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

compartment will both provide

quality.

3 Installation

manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.

1. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Every recycled material is an indispensable source for the nature and for our national resources. If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

check the following:

it?

Clean the interior of the refrigerator

compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

warm. This is normal. These areas are designed to be warm to avoid condensation

Electric connection

Connect your product to a grounded socket which is being protected by a

Important:

with national regulations.

accessible after installation.

your mains voltage.

replaced by a qualified electrician.

it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be

packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions. Do not dispose of them along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

or waste collection center of your municipality about the disposal of your refrigerator.

against any danger.

Placing and Installation

where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

allows ease of use.

sources, humid places and direct sunlight.

ventilation around your refrigerator in

Replacing the interior light bulb

To change the Bulb/LED used for illumination of your refrigerator, call

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20^ C.

ambient temperatures under 10^ C.

4 Preparation

least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.

the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.

of your refrigerator is cleaned thoroughly.

side by side, there should be at least 2 cm distance between them.

for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings

materials should be kept for future transportations or moving.

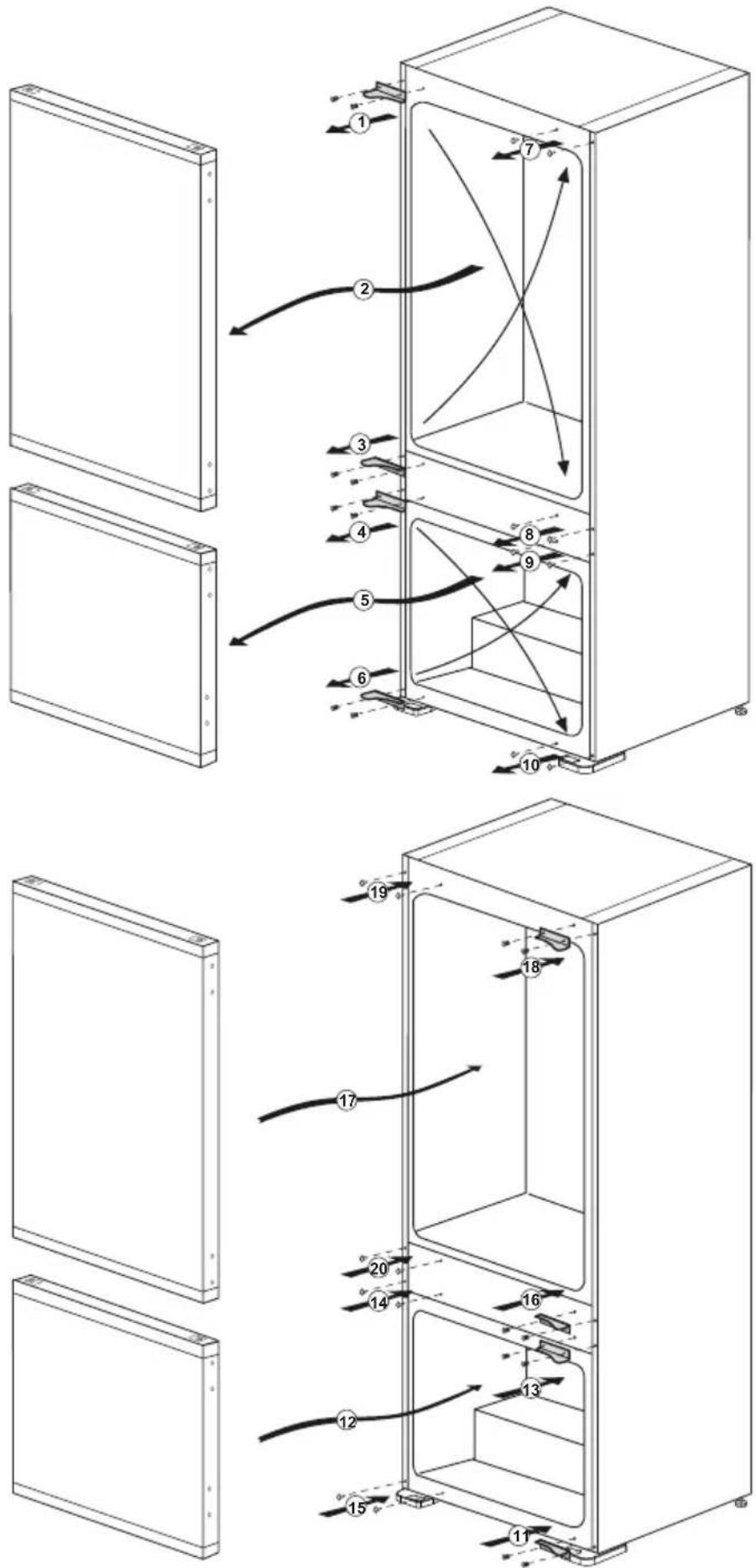

Reversing the doors

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

5 Using your refrigerator

Hand holding a circular dial with directional arrows, no text or symbols present

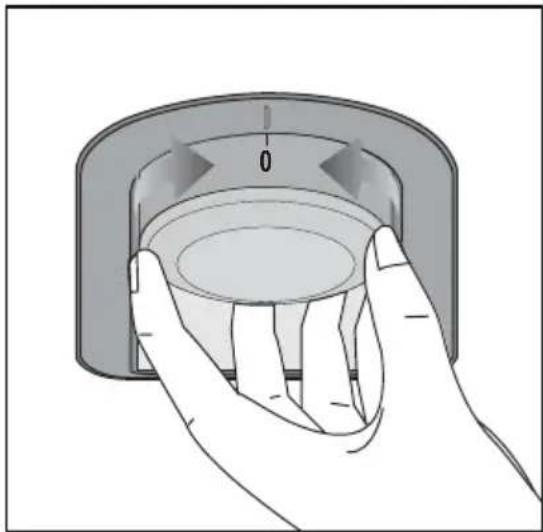

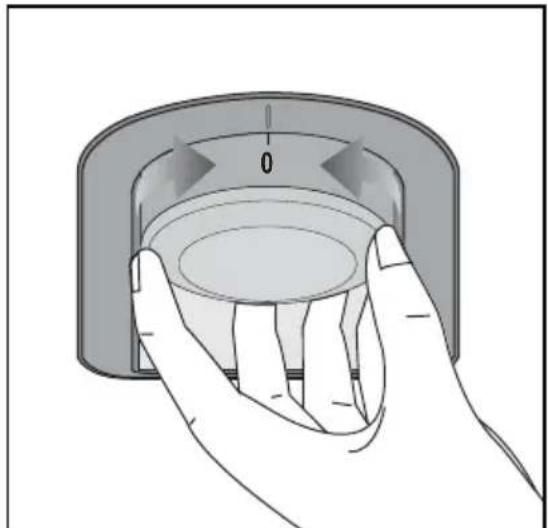

Thermostat setting button

The interior temperature of your refrigerator changes for the

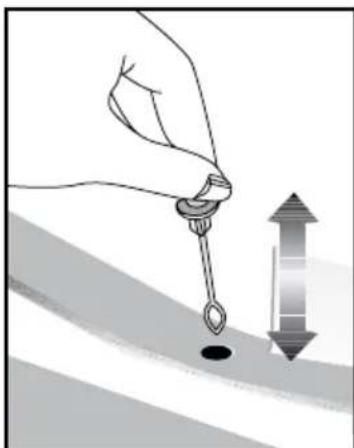

Defrost A) Fridge compartment

Fridge compartment performs full-automatic defrosting.

with certain intervals thanks to the automatic defrosting system of the rear wall. User is not required to scrape the

leaving the door open for long

cooling down to the room

room (e.g. exposing to sunlight).

using the thermostat. Numbers around the thermostat button indicates the cooling degrees.

than 32°C, turn the thermostat button to maximum position.

than 25^ C, turn the thermostat button to minimum position.

Illustration of a hand holding a tool above a droplet on a surface, with an upward arrow indicating motion (no text or symbols)

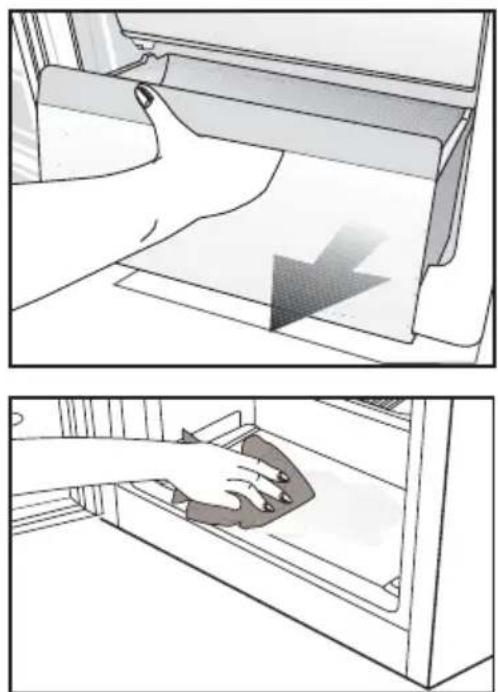

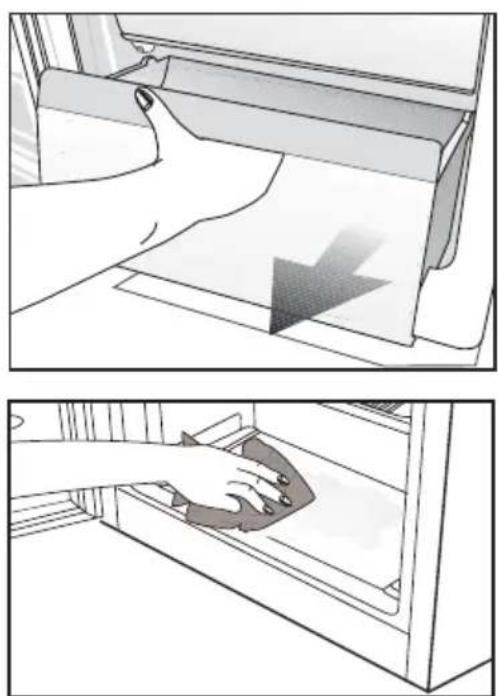

B) Freezer compartment

Defrosting is very straightforward and without mess, thanks to a special

Illustration of a medical device on a patient's bed with a rolled sheet of tissue (no text or symbols)

food should be wrapped in several layers of newspaper and stored in a

up the defrosting.

Do not use pointed or sharp-edged objects, such as knives or forks to remove the frost.

defrosting.

compartment.

Two-panel illustration showing a person cleaning a kitchen appliance; top panel shows a hand placing a cloth with a downward arrow (no text or symbols)

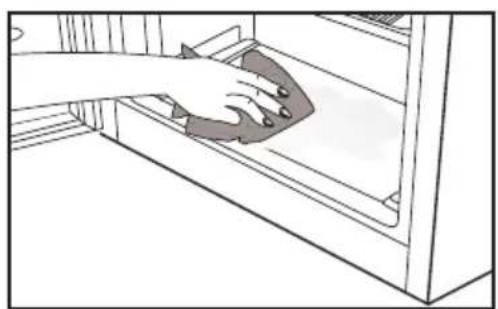

6 Maintenance and cleaning

similar substances for cleaning purposes.

appliance before cleaning.

instrument, soap, household cleaner, detergent and wax polish for cleaning.

cabinet of your refrigerator and wipe it dry.

a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

lamp housing and other electrical items.

used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.

they are clean and free from food particles.

contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

blown out? Check the fuse.

humid ambient conditions. Storage of food containing liquid in open containers. Leaving the door ajar. Switching the thermostat to a colder degree.

failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.

refrigerator. Defrosting cycle occurs periodically.

properly fit into the socket.

The fridge is running frequently or for a long time.

Large refrigerators operate for a longer period of time.with food. Cooling down of the refrigerator completely may last for a couple of hours longer.food causes longer running of the refrigerator until they reach the safe storage temperature.air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.are tightly closed.temperature to a warmer degree and wait until the temperature is achieved.to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.less frequently.

until the fridge or freezer reaches the desired temperature.refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

the ambient temperature. It is normal and not a fault.

Make sure that the floor is strong enough to carry the refrigerator, and level. the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

Condensation on the inner walls of refrigerator.

fault.

less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

the humidity is less, condensation will disappear.

a sponge, lukewarm water or carbonated water.

container or different brand packaging material.

The door is not closing.

obstructing the door.

moved. Adjust the elevation screws.

carry the refrigerator.

Crispers are stuck.

drawer.

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazard or caution.

AVVERTENZA!

https://eprel.ec.europa.eu/

Technical diagram of an open refrigerator with numbered compartments and labeled doors

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Hand holding a circular dial with directional arrows, no text or symbols present

Illustration of a hand holding a tool over a surface with an upward arrow indicating direction (no text or symbols)

B) Scomparto freezer

Illustration of a medical device on a sheet with a rolled paper or tube in the background (no text or symbols visible)

sbrinamento.

Diagram of a hand pressing down on a mechanical component with a shaded arrow indicating force or direction (no text or symbols present)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Warning sign depicting a flame symbol with hazard symbol inside a triangle

ATTENTION!

https://eprel.ec.europa.eu/

intérieure ....

Technical diagram of an open refrigerator with numbered compartments and labeled doors

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Illustration of a hand holding a circular component with directional arrows, no text or symbols present

Illustration of a hand holding a tool over a surface with a double-headed arrow indicating vertical displacement (no text or symbols)

Illustration of a medical device on a rolled sheet, no text or symbols present

Two-step diagram showing a hand pressing down a sheet of paper into a storage cabinet (no text or symbols present)
