USER MANUAL ATW4516MW AMANA

TOP LOAD WASHER OWNER'S MANUAL MANUEL DE L'UTILISATEUR DE LA LAVEUSE À CHARGEMENT PAR LE DESSUS

Table of Contents/Table des matières

WASHER SAFETY ....2 Washer Safety....2

CHOOSING RIGHT DETERGENT ....3 Choosing Right Detergent....3

CYCLE GUIDE....3 Cycle Guide....3

WASHER MAINTENANCE AND CARE ....5 Water Inlet Hoses ....5

Washer Care....5

Non-Use and Vacation Care....6

Winter Storage Care....6

Transporting Your Washer 6

Rein/Using Washer Again....6

INSTALLATION INSTRUCTIONS 6

REQUIREMENTS......6

Tools and Parts 6

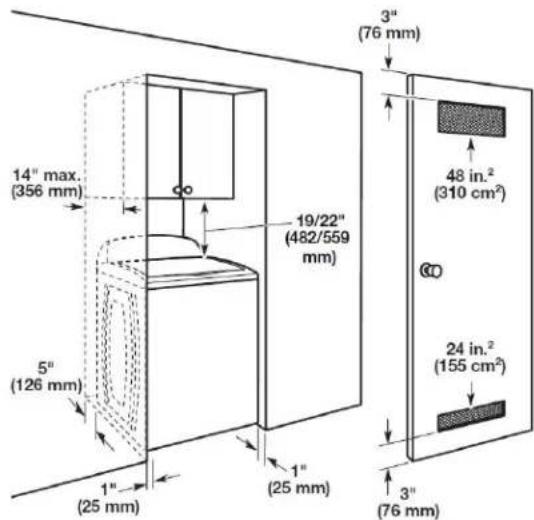

Location Requirements 7

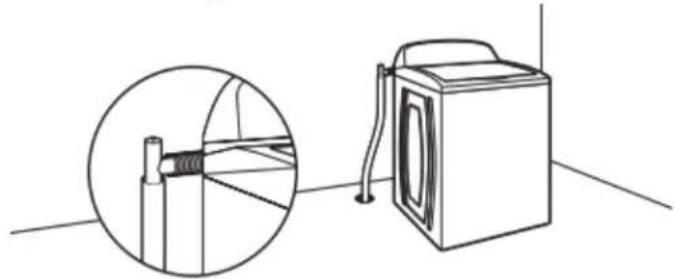

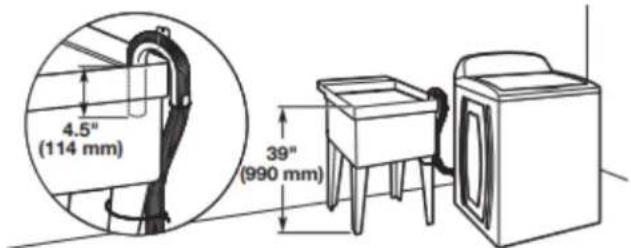

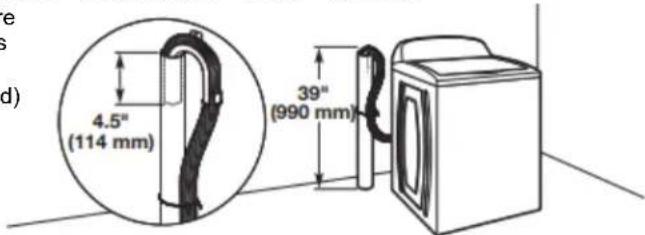

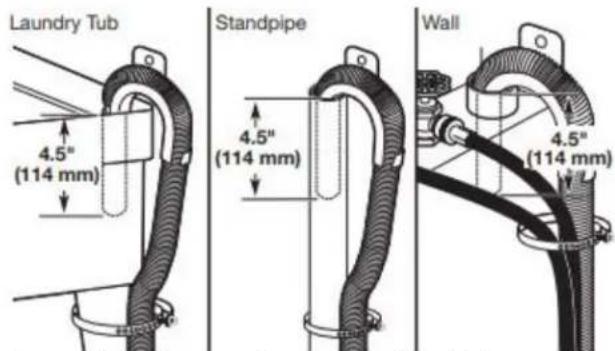

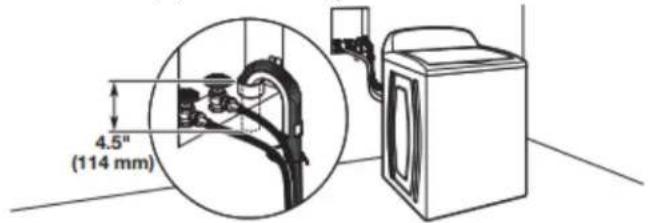

Drain System 7

Electrical Requirements 8

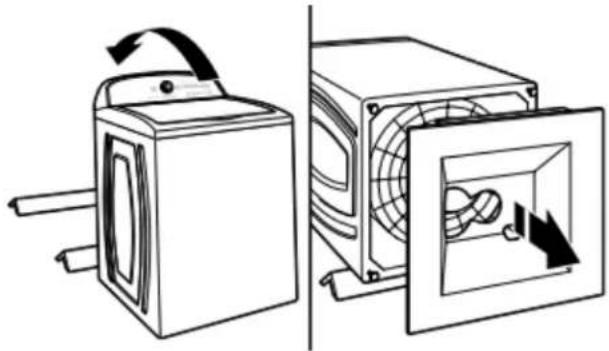

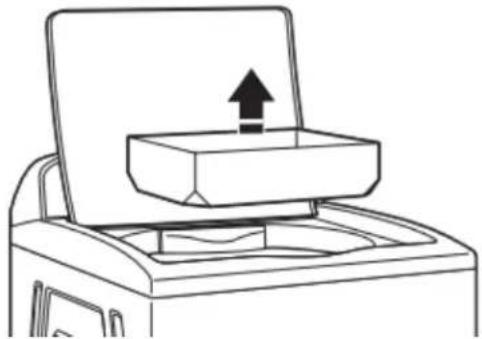

INSTALLATION 9 Unpacking 9

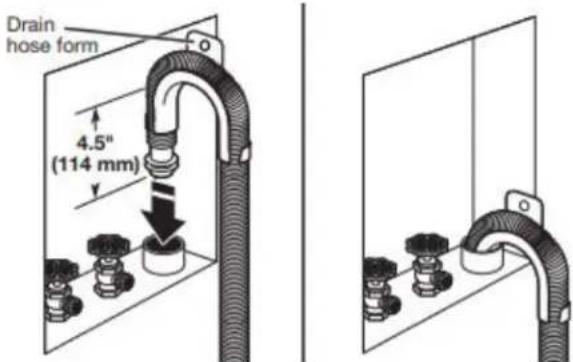

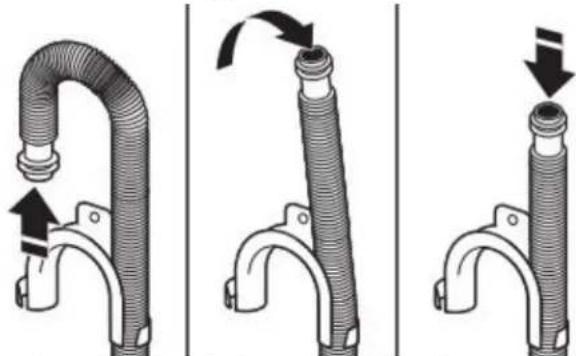

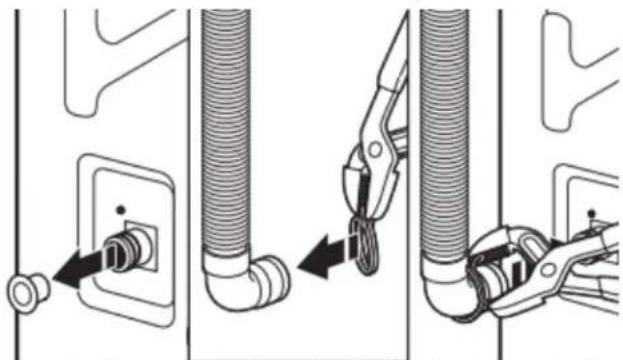

Connect Drain Hose 10

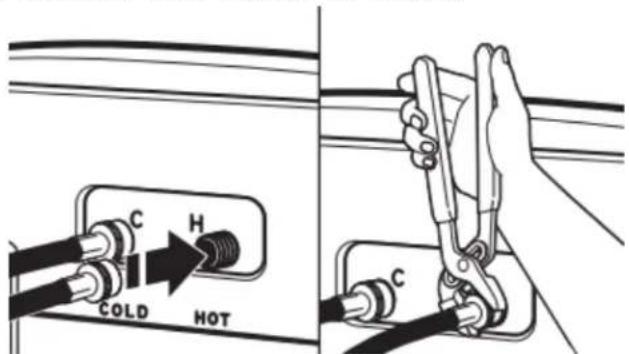

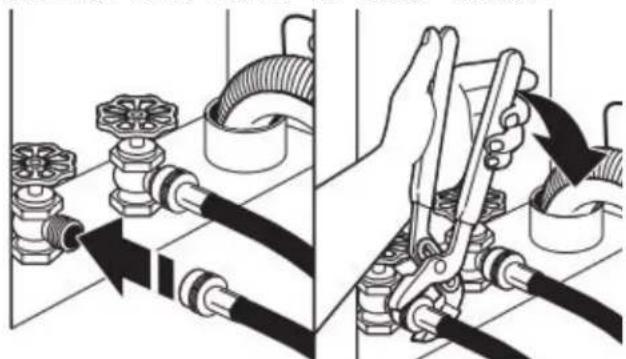

Connect Inlet Hoses 10

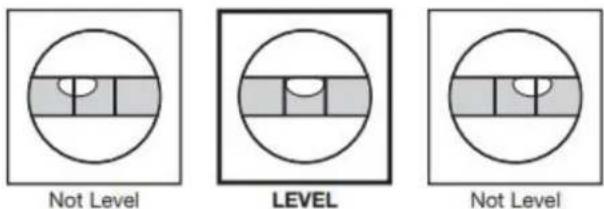

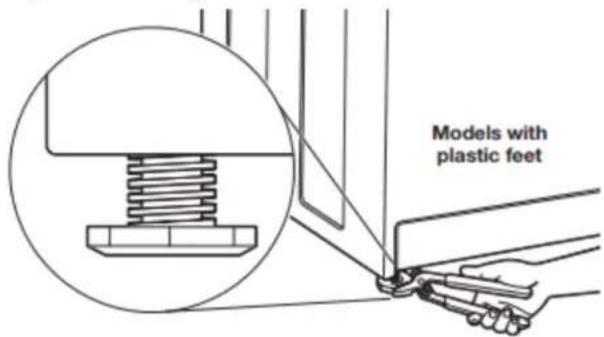

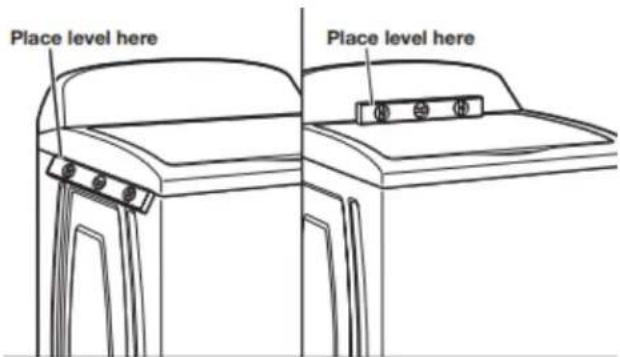

Level WasherComplete Installation Checklist 11

Complete Installation Checklist 12

WARRANTY 13

ASSISTANCE OR SERVICE 29

ASSISTANCE OU SERVICE....29

IMPORTANT:

Save for local electrical inspector's use.

IMPORTANT :

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
  ■ Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
  ■ Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.
  ■ Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
  ■ Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

■ Before the appliance is removed from service or discarded, remove the door.
Do not reach into the appliance if the tub or agitator is moving.
■ Do not install or store this appliance where it will be exposed to the weather.
■ Do not tamper with controls.
■ Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair ks instructions that you understand and have the skills to carry out.
Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).
■ See the Installation Instructions for grounding requirements and installation.

SAVE THESE INSTRUCTIONS

WARNING

Certain Internal parts are intentionally not grounded and may present a risk of electrical shock only during servicing. Service personnel – Do not contact any component that is not an integral part of the frame or metal cabinet.

CHOOSING RIGHT DETERGENT

Use only High Efficiency detergents. The package will be marked "HE" or "High Efficiency." Low-water washing creates excessive sudsing with a non-HE detergent. Using non-HE detergent will likely result in longer cycle times and reduced rinsing performance. It may also result in component malfunction and, over time, buildup of mold or mildew. HE detergents should be low-sudsing and quick-dispersing to produce the right amount of suds for the best performance. They should hold soil in suspension so it is not redeposited onto clean clothes. Not all detergents labeled as High Efficiency are identical in formulation and their ability to reduce suds. For example, natural, organic, or homemade HE detergents may generate a high level of suds. Always follow the detergent manufacturer's instructions to determine the amount of detergent to use. Do not go over the Max Line on the dispenser. See Quick Start Guide for more information.

CYCLE GUIDE

For best fabric care, choose the cycle that best fits the load being washed. Recommended settings for best performance are shown in bold. Not all cycles and options are available on all models. Not all settings and options are available on each cycle.

NOTE: All rinses are cold.

WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS, located in your appliance's Owner's Manual, before operating this appliance.

Items to Wash: Cycle: Temperature: Spin Speed: Description:
Large items such as sheets, sleeping bags, small comforters, jackets, small washable rugs, waterproof items	Bulky Items and Sheets	HotWarmCoolColdTap Cold	Low Use this cycle	to wash large items such as jackets and small comforters. The washer will fill with enough water to wet down the load before the wash portion of the cycle begins, and uses a higher water level than other cycles. Use this cycle after reinstalling your washer, see the “Reinstalling/Using Washer Again” section of your Owner’s Manual for more information.
Sturdy fabrics, colorfast items, towels, sheets, jeans	Normal Heavy	HotWarmCoolColdTap Cold	High Use this cycle	for heavily soiled or sturdy fabrics.
Cottons, linens, and mixed garment loads	Normal Regular	HotWarmCoolColdTap Cold	High Use this cycle	for normally soiled cottons and mixed-fabric loads.NOTE:Deep water wash is not available in the Normal Regular cycle mode. Selecting the Normal Regular cycle with the Deep Water Wash setting will result in auto sensing of the water level.
No-iron fabrics, permanent press, synthetics	Casual Hot	WarmCoolColdTap Cold	Low Use this cycle	to wash loads of no-iron fabrics such as sport shirts, blouses, casual business clothes, permanent press, and blends.
Machine-wash, silks, lingerie, washable wools	Delicate Hot	WarmCoolColdTap Cold	Low Use this cycle	to wash lightly soiled garments indicating “Machine Washable Silks” or “Gentle” cycle on the care label. Place small items in mesh garment bags before washing.
Swimsuits and items requiring rinsing without detergent	Rinse/Spin	Cold Rinse Only	High Combines a rinse and high-speed spin for loads requiring an additional rinse cycle or to complete a load after power interruption. Also use for loads that require rinsing only.
Hand-wash garments or dripping wet items	Drain/Spin	N/A	High	This cycle uses a spin to shorten drying times for heavy fabrics or special-care items washed by hand. Use this cycle to drain washer after cancelling a cycle or completing a cycle after a power failure.
No clothes in washer	Clean Washer with affresh®	HotWarmCoolColdTap Cold	Low Use this cycle	every 30 washes to keep the inside of your washer fresh and clean. This cycle uses a higher water level. Use with affresh Washer Cleaner tablet or liquid chlorine bleach to thoroughly clean the inside of your washer. This cycle should not be interrupted. See “Washer Care” in the “Washer Maintenance and Care” section of your Owner’s Manual.IMPORTANT:Do not place garments or other items in the washer during the Clean Washer with affresh cycle. Use this cycle with an empty washtub.

WARNING

Fire Hazard

Never place items in the washer that are dampened gasoline or other flammable fluids.

No washer can completely remove oil.

Do not dry anything that has ever had any type of (including cooking oils).

Doing so can result in death, explosion, or fire.

Line drawing of a women's front pants with buttons and pockets (no text or symbols)

Illustration of various household items including a coin, buttons, and a clip (no text or symbols)

Sort and Prepare Your Laundry

■ Empty pockets. Loose change, buttons, or any small object pass under the agitator and become trapped, causing unexpected sounds.
■ Sort items by recommended cycle, water temperature, and colorfastness.
- Separate heavily soiled items from lightly soiled.
- Separate delicate items from sturdy fabrics.
■ Do not dry items if stains remain after washing, because can set stains into fabric.
■ Treat stains promptly.
■ Close zippers, fasten hooks, tie strings and sashes, and remove non-washable trim and ornaments.
■ Mend rips and tears to avoid further damage to items washing.

Helpful Tips:

■ For best performance, use HE detergent when washing bulky items.
■ When washing waterproof or water-resistant items, load evenly.
■ Use mesh garment bags to help avoid tangling when washing delicate or small items.
■ Turn knits inside out to avoid pilling. Separate lint-takers from lint-givers. Synthetics, knits, and corduroy fabrics will pick up lint from towels, rugs, and chenille fabrics.
■ Promptly remove garments after cycle has completed to avoid odor, reduce wrinkling, and prevent rusting of metal hooks, zippers, and snaps.

NOTES:

■ Always read and follow fabric care label instructions to avoid oil damage to your garments.
■ The washer will not start or fill with the lid open.

Wash Temp	Description Suggested	Fabrics
Hot Some cold water is added to save energy. This will be cooler than your hot water heater setting.		Whites and pastelsDurable itemsHeavy soils
Warm Some cold water may be added, so this will be cooler than what your previous washer provided.		Bright colorsModerate to light soils
Cool Warm water may be added to assist in soil removal and to help dissolve detergents.		Colors that bleed o fadeLight soils
Cold This is the temperature from your faucet. If your tap cold water is very cold, warm water may be added to assist in soil removal and to help dissolve detergents.		Dark colors that bleed or fadeLight soils
Tap Cold This is the temperature from your faucet.		Dark colors that bleed or fadeLight soils

Wash Temp	Description Suggested	Fabrics
Hot Some cold water is added to save energy. This will be cooler than your hot water heater setting.		Whites and pastelsDurable itemsHeavy soils
Warm Some cold water may be added, so this will be cooler than what your previous washer provided.		Bright colorsModerate to light soils
Cool Warm water may be added to assist in soil removal and to help dissolve detergents.		Colors that bleed o fadeLight soils
Cold This is the temperature from your faucet. If your tap cold water is very cold, warm water may be added to assist in soil removal and to help dissolve detergents.		Dark colors that bleed or fadeLight soils
Tap Cold This is the temperature from your faucet.		Dark colors that bleed or fadeLight soils

Manual Soak

If you would like to manually soak your garments at any time during the wash portion of the cycle, press Start/Pause and leave the lid closed. Once your desired soak time has elapsed, press Start/Pause again to continue the cycle. As long as the lid remains closed, your soak time can be longer than 10 minutes. However, if the lid is opened during the soak and remains open for more than 10 minutes, the water will pump out automatically.

WASHER MAINTENANCE AND CARE

Water Inlet Hoses

Replace inlet hoses after 5 years of use to reduce the risk of failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are found.

When replacing your inlet hoses:

■ Mark the date of replacement on the label with a permanent marker.
- Check that the old washers are not stuck on the washer inlet valves.
■ Use new washers in the new inlet hoses to ensure a proper seal.

NOTE: This washer may not include inlet hoses. See the Installation Instructions for more information.

Washer Care

Recommendations to help keep your washer clean and performing at its best

1. Always use High Efficiency (HE) detergents and follow the HE detergent manufacturer's instructions regarding the amount of HE detergent to use. Never use more than the recommended amount because that may increase the rate at which detergent and soil residue accumulate inside your washer, which in turn may result in undesirable odor.
2. Use warm and hot wash water settings sometimes (not exclusively cold water washes), because they do a better job of controlling the rate at which soils and detergent accumulate.
3. Always leave the washer lid open between uses to help dry out the washer and prevent the buildup of odor-causing residue.

Cleaning your top-loading washer

Read these instructions completely before beginning the routine cleaning processes recommended below. This Washer Maintenance Procedure should be performed, at a minimum, once per month or every 30 wash cycles, whichever occurs sooner, to control the rate at which soils and detergent may otherwise accumulate in your washer.

Cleaning the inside of the washer

To keep your washer odor-free, follow the usage instructions provided above and use this recommended monthly cleaning procedure:

Recommended cycle for cleaning the asher

Some models have a "Clean Washer" cycle that uses higher volumes in combination with affre®asher Cleaner or liquid chlorine bleach to clean the inside of the washer.

If your model does not have a "Clean Washer" cycle, refer to online Cycle Guide for the optimal cycle for cleaning the inside the washer. Use this cycle with affinisher Cleaner or liquid chlorine bleach as described below.

Description of Clean Washer with affreysable operation:

1. This cycle will fill to a washer level high than in normal wash cycles to provide rinsing than in normal wash cycles to prevent rinsing at a level above the water line for normal wash.
2. During this cycle, there will be some agitation and spinning increase the removal of soils.

†affresh® is a registered trademark of Whirlpool, U.S.A.

After this cycle is complete, leave the lid open to allow for better ventilation and drying of the washer interior.

Begin procedure

1. Affresh®+ washer cleaner cycle procedure (recommended for best performance):

a. Open the washer lid and remove any clothing or items.
b. Place an affresh Washer Cleaner tablet in the bottom of the washer basket.
c. Do not place an affres Washer Cleaner tablet in the detergent dispenser.
d. Do not add any detergent or other chemical to the washer when following this procedure.
e. Close the washer lid.
f. Select the cycle recommended for cleaning the inside of the washer.
g. Press the START button to start the cycle.

NOTE: For best results, do not interrupt cycle. If cycle must be interrupted, press POWER/CANCEL. (For models with no Power/Cancel button, press and hold START/PAUSE for three seconds.) After the cycle has stopped, run a Rinse & Spin cycle to rinse cleaner from washer.

2F Chlorine bleach procedure (alternative):

a. Open the washer lid and remove any clothing or items.
b. Add 1 cup (236 mL) of liquid chlorine bleach to the bleach compartment.

NOTE: Use of more liquid chlorine bleach than is recommended above could cause washer damage over time.

c. Close the washer lid.
d. Do not add any detergent or other chemical to the washer when following this procedure.
e. Select the cycle recommended for cleaning the inside of the washer.
f. Press the START button to start the cycle.

NOTE: For best results, do not interrupt cycle. If cycle must be interrupted, press POWER/CANCEL. (For models with no Power/Cancel button, press and hold START/PAUSE for three seconds.) After the cycle has stopped, run a Rinse & Spin cycle to rinse cleaner from washer.

Cleaning the dispensers

After a period of using your washer, you may find some residue buildup in the washer's dispensers.

IMPORTANT: Dispensers are not dishwasher-safe.

For non-removable dispensers:

To remove residue from the dispensers, wipe them with an airfresh® Machine Cleaning Wipe or a damp cloth and towel dry. Do not attempt to remove the dispensers or trim for cleaning. The dispensers and trim are not removable.

The removable dispensers:

of your model has a dispenser drawer, press tab(s) to remove the drawer and clean it with an affin machine Cleaning Wipe or a damp cloth and towel dry before or after you run the Clean Washer cycle. Use an all-purpose surface cleaner, if needed.

Cleaning the outside of the washer

IMPORTANT: To avoid damaging the washer's finish, do not use abrasive products.

Use an affreshMachine Cleaning Wipe, a soft, damp cloth, or sponge to wipe away any spills. Use an ^® machine

Cleaning Wipe or only mild soaps or cleaners when cleaning external washer surfaces.

Non-Use and Vacation Care

Operate your washer only when you are home. If moving, or using your washer for a period of time, follow these steps:

1. Unplug or disconnect power to washer.
2. Turn off water supply to washer to avoid flooding due to pressure surge.

Winter Storage Care

IMPORTANT: To avoid damage, install and store washer where it for a medium-size load.

will not freeze. Because some water may stay in hoses, freezing can damage washer. If storing or moving during freezing wea winterize your washer.

To winterize washer:

1. Shut off both water faucets; disconnect and drain water inlet hoses.
2. Put 1 L (1 quart) of R.V.-type antifreeze in basket and run

washer on Rinse & Spin cycle for about 30 seconds to mi antifreeze and remaining water.

1. Unplug washer or disconnect power.

Transporting Your Washer

1. Shut off both water faucets. Disconnect and drain water inlet hoses.
2. If washer will be moved during freezing weather, follow "Winter Storage Care" directions before moving.
3. Disconnect drain hose from drain system and drain any remaining water into a pan or bucket. Disconnect drain from back of washer.
4. Unplug power cord.
5. Place inlet hoses and drain hose inside washer basket.
6. Drape power cord over edge and into washer basket.
7. Place original shipping materials back inside washer. If you not have shipping materials, place heavy blankets or towels into basket opening. Close lid and place tape over lid and

down front of washer. Keep lid taped until washer is place new location. Transport washer in the upright position.

To use washer again:

1. Hot Flush water pipes and hoses.
2. Reconnect water inlet hoses.
3. Turn on both water faucets.
   4 Plug into a grounded 3 prong outlet or reconnect power.
4. See your online Cycle Guide for information about which cycle(s) to run your washer through to clean washer and remove antifreeze, if used. Use only HE High Efficiency detergent. Use half the manufacturer's recommended amount

INSTALLATION INSTRUCTIONS REQUIREMENTS

Tools and Parts

Gather required tools and parts before starting installation.

Tools Needed:

Simple line drawing of a wrench (no text or symbols)

Adjustable or open end wrench 9/16" (14 mm)

Simple diagram with three circular symbols inside a rectangular box (no text or labels)

Level

4" minimum (102 mm)

Simple line drawing of a tape measure (no text or symbols)

Wind block Ruler or measuring tape

Reinstalling/Using Washer Again

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Line drawing of a pair of pliers (no text or symbols)

Adjustable pliers that open to ^31_4 " (45 mm)

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Flashlight

Simple line drawing of a bucket with a handle (no text or symbols)

Bucket

Parts Supplied:

NOTE: All parts supplied for installations are in the washer.

To reinstall washer after nonuse, vacation, winter storage, moving:

1. Refer to Installation Instructions to locate, level, and connect washer.
2. Before using again, run washer through the following recommended procedure:

Drain hose with clamp, U-form, and cable tie

Parts Needed: (if not supplied with washer)

Coiled black hoses with connectors and small black dots below (no text or symbols)

NOTE: Various inlet hose options are available; check your Quick Start Guide for ordering information.

Inlet hoses with flat washers

Alternate Parts: (not supplied with washer)

Your installation may require additional parts. To order, please refer to the contact information referenced in your Quick Start Guide.

If you have: You will need:

Overhead sewer Standard 20 gallon (76 L) 39" (990 mm) tall drain tub or utility sink, sump pump, and connectors (available from local plumbing suppliers)

1" (25 mm) standpipe 2" (51 mm) diameter to 1" (25mm) diameter standpipe adapter and connector kit

Drain hose too short Extension drain hose and connector kit Lint-clogged drain Drain protector and connector kit

Location Requirements

Select proper location for your washer to improve performance and minimize noise and possible "washer walk." Install your washer in a basement, laundry room, closet, or recessed area

IMPORTANT: Do not install, store, or operate washer where be exposed to weather or in temperatures below 32°F (0°C).

Water remaining in washer after use may cause damage in temperatures. See "Washer Maintenance and Care" for winterizing information.

Proper installation is your responsibility.

You will need:

■ A water heater set to 120°F (49°C).
■ A grounded electrical outlet located within 4 ft (1.2 m) of cord on back of washer.
■ Hot and cold water faucets located within 3 ft (0.9 m) of and cold water fill valves on washer, and water pressure 20–100 psi (138–690 kPa).
A level floor with maximum slope of 1" (25 mm) under entire washer. Installing on carpet or surfaces with foam backing is not recommended.
■ Floor must support washer's total weight (with water and load) of 315 lbs. (143 kgs).

Recessed area or closet installation

14" max. (356 mm) 5" (126 mm) 1" (25 mm) 19/22" (482/559 mm) 1" (25 mm) 3" (76 mm) 48 in.² (310 cm²) 24 in.² (155 cm²) 3" (76 mm)

NOTE: All 27" wide washers should have 19" clearance, while all 29" wide washers should have 22" clearance.

All dimensions show recommended spacing allowed, except for closet door ventilation openings, which are the minimum required. This washer has been tested for installation with spacing of 0" (0 mm) clearance on the sides. Consider allowing more space for ease of installation and servicing, and spacing for companion appliances and clearances for walls, doors, and floor moldings. Add spacing of 1" (25 mm) on all sides of washer to reduce noise transfer. If a closet door or louvered door is installed, top and bottom air openings in door are required.

For additional details (or information) specific to your model, refer to your Quick Start Guide.

Drain System

Drain system can be installed using a floor drain, wall standpipe, floor standpipe, or laundry tub. Select the method you need.

IMPORTANT: To avoid siphoning, no more than 4.5" (114 mm) of drain hose should be inside standpipe or below the top of wash hotb. Secure drain hose with cable tie.

Floor standpipe drain system

4.5" (114 mm) 39" (990 mm)

Minimum diameter for a standpipe drain: 2" (51 mm). Minimum carry-away capacity: 17 gallon (64 L) per minute. Top of standpipe must be at least 39" (990 mm) high; install no higher than 96" (2.44 m) from bottom of washer. If you must install higher than 96" (2.44 m), you will need a sump pump system.

Wall standpipe drain system

4.5" (114 mm)

See requirements in the "Floor standpipe drain system" section.

Laundry tub drain System

4.5" (114 mm) 39" (990 mm)

Minimum capacity: 20 gallon (76 L). Top of laundry tub must be least 39" (990 mm) above floor; install no higher than 96" (2.44 from bottom of washer.

Floor Drain System

Line drawing of a washing machine next to a cylindrical component, with an inset showing its cross-section (no text or symbols)

Floor drain system requires a Siphon Break Kit, 2 Connector and an Extension Drain Hose that may be purchased separately refer to the Quick Start Guide for online ordering information. Minimum siphon break height: 28" (710 mm) from bottom of washer (additional hoses may be needed).

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

■ A 120 V, 60 Hz, AC only, 15 or 20 A, fused electrical supply be required. A time-delay fuse or circuit breaker is recommended. 44 m) is recommended that a separate circuit breaker serving only this appliance be provided.
■ This washer is equipped with a power supply cord having a 3-prong grounding plug.
■ To minimize possible shock, the cord must be plugged into a mating, 3-prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
■ Do not ground to a gas pipe.
■ Check with a qualified electrician if you are not sure the Kits washer is properly grounded.
Do not have a fuse in the neutral or ground circuit.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected appliance:

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance: If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected appliance:

This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

SAVE THESE INSTRUCTIONS

INSTALLATION

Unpacking

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

Before you start: Remove shipping materials.

It is necessary to remove all shipping materials for proper operation and to avoid excessive noise from washer.

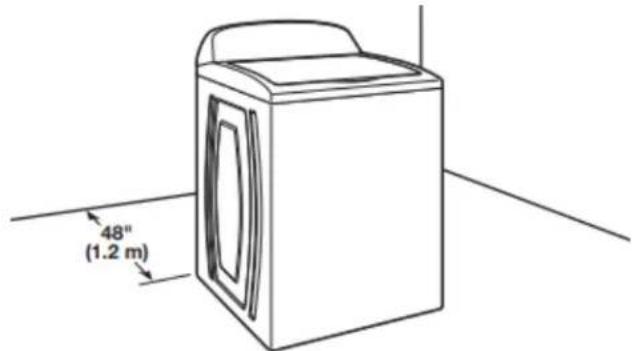

1. Move Washer

48" (1.2 m)

Move washer to within 4 ft (1.2 m) of its final location; it must be in a fully upright position.

NOTE: To avoid floor damage, set washer onto cardboard before moving it and make sure lid is taped shut.

2. Remove shipping base

IMPORTANT: Removing shipping base is necessary for proper operation. If your washer includes a sound shield, please refer to the instructions included with the sound shield to install it at this time.

Diagram showing a washing machine with airflow direction and fan inside, no text or symbols present

To avoid damaging floor, place cardboard supports from shipping carton on floor behind washer. Tip washer back and place on cardboard supports. Remove shipping base (some models require shipping base to be rotated 90° to the right before pulling off). Set washer upright.

3. Remove packaging material from inside washer

Line drawing of a printer with an open lid and an upward arrow indicating motion (no text or symbols)

Remove tape from washer lid, open lid, and remove packaging material from washer tub. Be sure that all parts have been removed from inside washer.

NOTE: Keep packaging material for inside washer in case you need to move washer later.

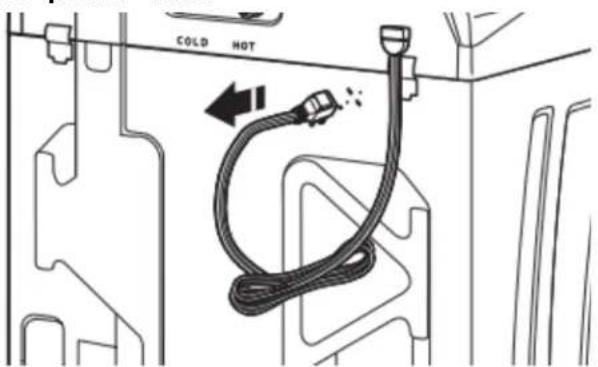

4. Free power cord

COLD HOT

Firmly grasp power cord plug and pull to free from rear panel Gently place power cord over console to allow free access to back of washer.

Connect Drain Hose

5. Attach drain hose to drain port

Mechanical assembly diagram showing pipe connection and clamp mechanism (no text or symbols)

If applicable, remove the red plastic plug from the black drain port on the back of the washer.

If clamp is not already in place on elbow end of drain hose, slide it over end as shown. Squeeze clamp with pliers and slide black elbow end of drain hose onto black drain port and secure with clamp.

For a laundry tub or standpipe drain, go to step 6.

For a floor drain, remove the pre-installed drain hose form as shown in step 7. You may need additional parts with separate directions. See the "Alternate Parts" section.

6. Place drain hose in standpipe

Drain hose form 4.5" (114 mm)

IMPORTANT: 4.5" (114 mm) of drain hose should be inside standpipe; do not force excess hose into standpipe or lay on bottom of laundry tub. Drain hose form must be used.

Place hose into standpipe (shown in picture) or over side of laundry tub.

7. Remove drain hose form (floor drain installations only)

Three-panel diagram showing a pipe fitting with arrows indicating motion, no text or symbols present.

For floor drain installations, you will need to remove the drain hose form from the end of the drain hose. You may need additional parts with separate directions. See "Tools and Parts."

It is the responsibility of the installer to install and secure the drain hose into the provided plumbing/drain in a manner that will avoid the drain hose coming out of and leaking from the plumbing/drain.

Connect Inlet Hoses

Washer must be connected to water faucets with new inlet hoses with flat washers (not provided). Do not use old hoses.

NOTE: Both hoses must be attached and have water flowing to inlet valves. If you are only connecting to a cold water faucet, you must use a Y-adapter (not provided).

8. Connect inlet hoses to water faucets

Illustration of two mechanical assembly steps showing pipe fittings and clamping mechanism (no text or symbols)

IMPORTANT: Do not overtighten hose or use tape or sealants on valve. Damage to the valves can result.

Attach hose to hot water faucet. Screw on coupling by hand until it is seated on washer. Use adjustable pliers to tighten couplings an additional two-thirds turn. Repeat this step with second hose for cold water faucet.

9. Clear water lines

Simple line drawing of a bucket with two buckets (no text or symbols)

Run water for a few seconds through hoses into a laundry tub, drainpipe, or bucket to prevent clogs. Water should run until clear.

Make note of which hose is connected to hot water to help attaching hoses to washer correctly.

10. Connect inlet hoses to washer

C H COLD HOT

IMPORTANT: To reduce risk of hose failure, replace the hoses every 5 years. Record hose installation or replacement dates for future reference.

■ Do not overtighten hose or use tape or sealants on valve. Damage to the valves can result.
■ Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

Attach hot water hose to red hot water inlet valve. Screw coupling by hand until it is snug. Use pliers to tighten couplings an additional two-thirds turn. Repeat with cold water inlet valve.

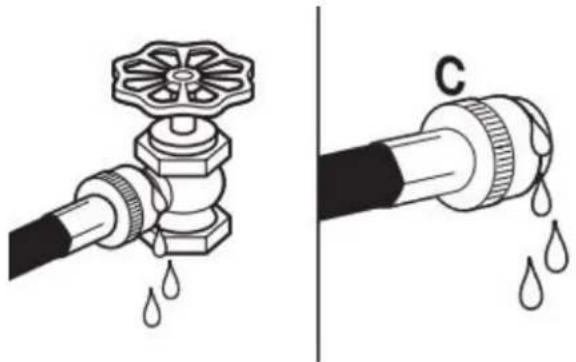

11. Check for leaks

Diagram showing a faucet with liquid drops and a hose with water droplets (no text or symbols)

Turn on water faucets to check for leaks. A small amount of water may enter washer. It will drain later.

12. Secure drain hose

Laundry Tub 4.5" (114 mm) Standpipe 4.5" (114 mm) Wall 4.5" (114 mm)

inSecure drain hose to laundry tub leg, drain standpipe, or inlet hoses for wall standpipe with cable tie.

It is the responsibility of the installer to install and secure the drain hose into the provided plumbing/drain in a manner that will avoid the drain hose coming out of or leaking from the plumbing/drain.

Level Washer

NOTE: Level washer properly to reduce excess noise and vibration.

13. Check levelness of washer

Place level here Place level here

Move the washer to its final location. Place a level on top edges of washer. Use side seam as a guide to check levelness of sides. Check levelness of front using lid, as shown. Rock washer back and forth to make sure all four feet make solid contact with floor. If washer is level, skip to step 15.

Not Level LEVEL Not Level

14. Adjust leveling feet

Models with plastic feet

If washer is not level:

Use adjustable pliers to turn the plastic leveling foot counterclockwise to lower the washer or clockwise to raise the washer.

Recheck levelness of washer and repeat as needed.

HELPFUL TIPS:

■ You may need to adjust two different feet to level your unit. Ensure each foot remains secured to the washer's base.
■ You may want to prop up front of washer about 4" (102 mm) with a wood block or similar object that will support weight of washer.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

15. Plug into a grounded 3-prong outlet

Illustration of an electric plug inserted into a wall socket (no text or symbols)

Complete Installation Checklist

■ Check electrical requirements. Be sure you have correct electrical supply and recommended grounding method.
■ Check that all parts are now installed. If there is an extra part, go back through steps to see what was skipped.
■ Check that you have all of your tools.
■ Check that shipping materials were completely removed from washer.
■ Check that the washer is level.
■ Check that water faucets are on.
■ Check for leaks around faucets and inlet hoses.
■ Remove protective film from console and any tape remaining on washer.
■ Check that washer is plugged into a grounded 3-prong outlet.
■ Dispose of/recycle all packaging materials.
- Read the "Washer Maintenance and Care" section.
■ To test and clean your washer, measure 1/2 of normal recommended amount of powdered or liquid HE detergent and pour it into washer basket or detergent dispenser (on some models). Close lid. Select any cycle. Start washer and allow to complete full cycle.

WHIRLPOOL CORPORATION LAUNDRY WARRANTY

LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Amana, Admiral, Estate, Inglis, or Roper brands of Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a company designated by Whirlpool to service Amana, Admiral, Estate, Inglis, or Roper brand appliances. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions.
2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing.
3. Service calls to repair or replace appliance light bulbs, air filters, or water filters. Consumable parts are excluded from warranty coverage.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.
6. Pick up and delivery. This major appliance is intended to be repaired in your home.
7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
8. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized company designated by Whirlpool to service Amana, Admiral, Estate, Inglis, or Roper brands is not available.
9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Whirlpool's published installation instructions.
10. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered, or cannot be easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

If outside the 50 United States and Canada, contact your authorized Whirlpool, Amana, Admiral, Estate, Inglis, or Roper dealer to determine if another warranty applies.

If you think you need repair service, first see the “Troubleshooting” section of the Use & Care Guide. If you are unable to resolve the problem after checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by calling the following numbers for assistance: In the U.S.A., call 800-843-0304 for Amana brand products; 800-688-9920 for Admiral brand products; 800-253-1301 for Estate brand products, or 800-447-6737 for Roper brand products. For assistance In Canada, call: 800-807-6777 for Amana, Admiral, Estate, Inglis, or Roper brand products. 1/12

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

Dealer name
Address
Phone number
Model number
Serial number
Purchase date

SÉCURITÉ DE LA LAVEUSE

CHOIX DU DÉTERGENT APPROPRIÉ

Line drawing of a pair of pants with buttons and pockets (no text or symbols)

Illustration of various household items including coins, a child, and a pair of buttons (no text or symbols)

Simple line drawing of a wrench (no text or symbols)

Simple diagram with three circular symbols inside a rectangular box (no text or labels)

Niveau

4 po min (102 mm) un

Cale de bois

Simple line drawing of a tape measure (no text or symbols)

Line drawing of a pair of pliers (no text or symbols)

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Lampe de poche

Simple line drawing of a bucket with handle (no text or symbols)

Seau

Pièces fournies :

Coiled black hoses with connectors and small black dots below (no text or symbols)

Line drawing of a washing machine next to a cylindrical component, with an inset showing its side view (no text or symbols)

Diagram showing a washing machine and its side view of a fan or vent (no text or symbols present)

Line drawing of a printer with an open lid and an upward arrow indicating upload or export (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled parts and directional arrows indicating movement or assembly.

Drain hose form 4.5" (114 mm)

Three-panel diagram showing a pipe fitting with arrows indicating movement, no text or symbols present.

Diagram showing two mechanical assembly steps: one with pipe fittings and arrows indicating direction, the other with a hand holding a tool (no text or symbols)

Simple line drawing of a bucket with two buckets (no text or symbols)

C H COLD HOT

Diagram showing a pipe valve being dissolved from a drop drop, with no text or symbols present.

Illustration of an electrical outlet with a plug inserted, showing power outlet and socket (no text or symbols)

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check "Troubleshooting" or visit www.whirlpool.com/product_help. It may save you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts or to order accessories

We recommend that you use only FSP® Factory Specified Parts.

These parts will fit right and work right because they are made with the same precision used to build every new Amana, Admiral, Estate, Inglis, or Roper brands of Whirlpool Corporation or Whirlpool Canada LP appliance.

To locate FSP® replacement parts, assistance in your area, or accessories:

Whirlpool Corporation Customer eXperience Center 800-843-0304 for Amana, 800-688-9920 for Admiral, 800-253-1301 for Estate, or 800-447-6737 for Roper

800-442-9991 (Accessories) www.whirlpool.com/accessories

Whirlpool Canada LP Customer eXperience Centre 800-807-6777 for

Amana, Admiral, Estate, Inglis, & Roper www.whirlpoolappliances.ca

or call your nearest designated service center or refer to your Yellow Pages telephone directory.

Our consultants provide assistance with

In the U.S.A.

■Features and specifications on our full line of appliances.
■Installation information.
■Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

In the U.S.A. and Canada

■Use and maintenance procedures.
■Accessory and repair parts sales.
■Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States and Canada.

You can write with any questions or concerns at:

Whirlpool Corporation Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692

Customer eXperience Centre Whirlpool Canada LP Unit 200-6750 Century Ave Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

ASSISTANCE OU SERVICE
