USER MANUAL CRD12L1B1BPGCA COMFEE

Line drawing of a stylized object resembling a robot or container with two circular features and a handle (no text or symbols)

CONTENT

IMPORTANT SAFEGUARDS 1

PRODUCT OVERVIEW 3

SPECIFICATIONS 4

QUICK START GUIDE 5

OPERATION INSTRUCTIONS 7

CLEANING AND MAINTENANCE 16

TROUBLESHOOTING 18

SERVICE AND SUPPORT 20

IMPORTANT SAFEGUARDS

CAUTION

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.

- Unplug from outlet when not in use and before cleaning. Please allow the product to cool down before installing or removing components.

- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.

- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

- Do not use outdoors. HOUSEHOLD USE ONLY.

- Do not let cord hang over edge of table or counter, or touch hot surfaces.

- Do not place on or near a hot gas or electric burner, or in a heated oven.

comfee

IMPORTANT SAFEGUARDS

• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
  • Always attach plug to appliance first, then plug cord into the wall outlet.
• Do not use appliance for purposes other than its intended use.
• CAUTION: Risk of Electric Shock. Cook only in removable container (Inner pot provided with the product).
• Intended for countertop use only.
• A short power-cord is used to reduce the risk resulting from it being grabbed by children becoming entangled in, or tripping over a longer cord.
• Do not use appliance for other than intended use.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off

IMPORTANT SAFEGUARDS

cord over edge of counter, never use outlet below counter, and never use with an extension cord. Cord:

• DO NOT IMMERSE IN WATER.

HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

PRODUCT OVERVIEW

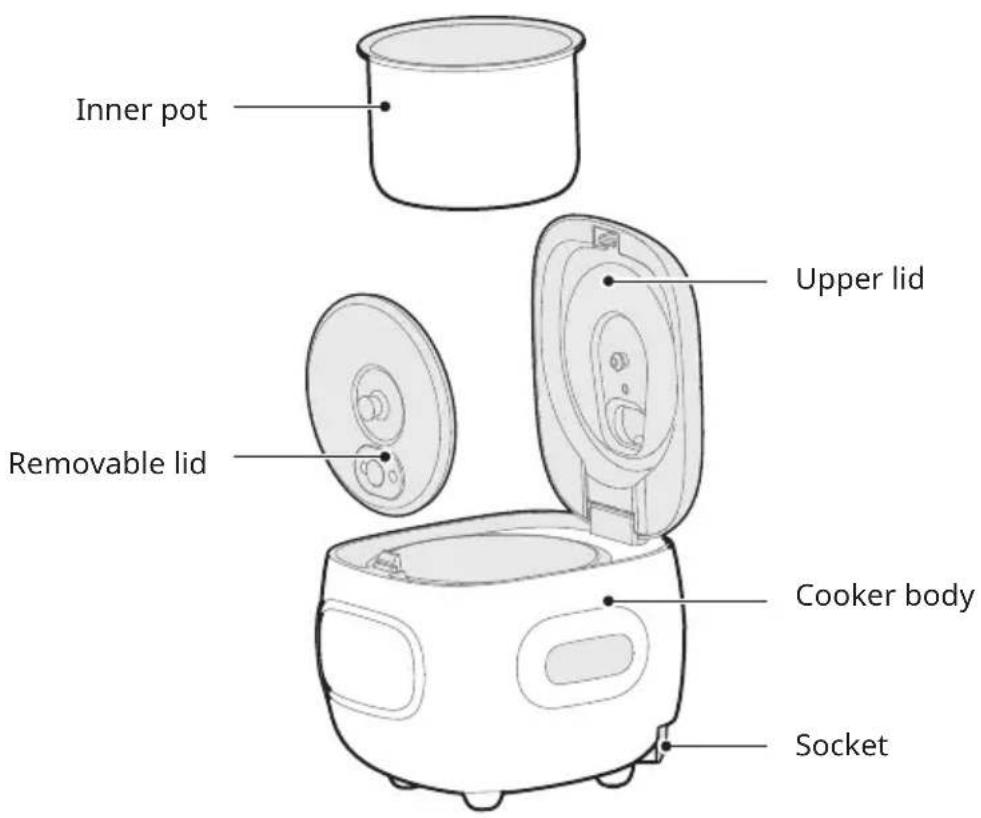

COMPONENT NAME

Inner pot Upper lid Removable lid Cooker body Socket

PRODUCT OVERVIEW

PARTS LIST

Standing rice spoon × 1

Measurement cup × 1

Power cord × 1 Manual × 1

SPECIFICATIONS

TECHNICAL DATA OF THE PRODUCT

Product Model Voltage	Frequency	Power	Capacity
CRD12L1B1BPGCA 120V~	60Hz	300W	1.2L

NOTE

All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

Reservation

For example: Make an appointment to finish cooking in 8 hours.

1. Prepare rice and water Place the rinsed rice into the inner pot and choose the appropriate water level according to the rice amount.

White Size 2 1.5 1 0.5

1. Set the timer for cooking completion Press the "💡" button, the Time Display flashes, and then press the button "💡" again to adjust the displayed reservation time.

2. Close the cover of the rice pot and select functions, such as "QUICKRICE".

QUICK RICE

1. Start cooking Press the "START/CANCEL" button, the cooking will be finished at the appointed time.

8:00

Gentle Reminder:

Display status refers to actual product.

1. Cancel cooking

Pressing the "START/CANCEL" button can cancel the selected cooking function.

QUICK START GUIDE

Gentle Reminder:

1. The time displayed under pre-set timer mode is the length of time from the start to the completion of cooking;
2. The pre-set time is suggested not for more than 12 hours, otherwise the rice may smell bad;
3. The pre-set time of the selected cooking function's should not be less than the cooking time. For example, if the reservation time for "SOUP" is less than 2 hours then cooking will started immediately because the cooking time is pre-set as 2 hours.

OPERATION INSTRUCTIONS

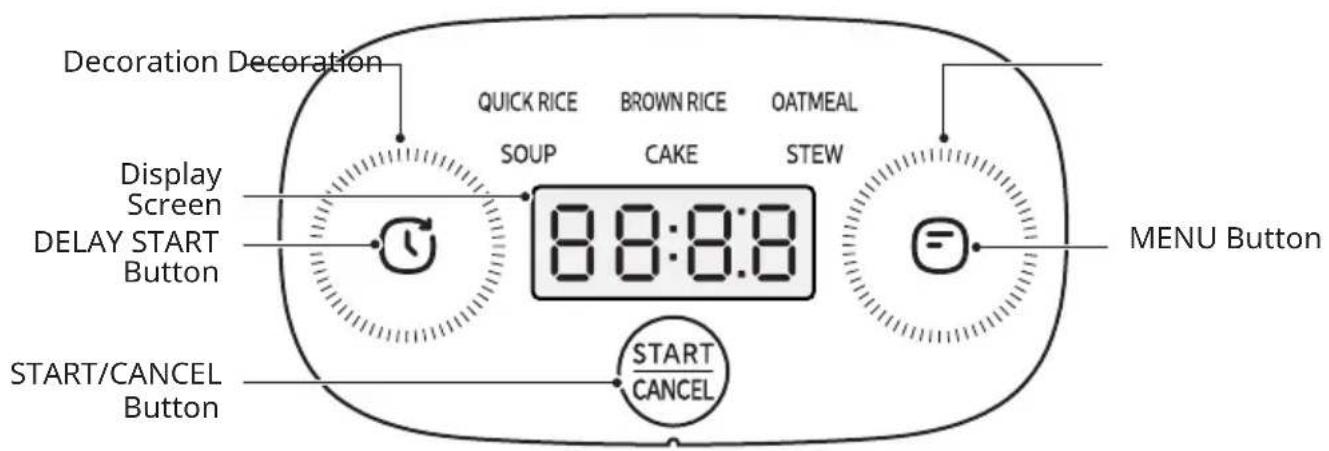

OPERATION PART

Decoration Decoration QUICK RICE BROWN RICE OATMEAL SOUP CAKE STEW Display Screen DELAY START Button 8:8:8:8 MENU Button START/CANCEL Button START CANCEL

INSTRUCTIONS FOR USE

Rice-water Ratio

1. Use the measuring cup provided with the product to measure the rice.

Simple math equation showing a glass of granular material equals two bowls of rice

1 cup of rice can cook about 2 bowls of rice (the diameter of the bowl rim is about 11.5cm)

Correct The rice should be level with the rim of the cup

If it is higher or lower than the rim, the water level will not be accurately controlled

NOTE

1. A 1.2-liter conventional rice cooker can cook up to 2 cups of rice, otherwise it may cause overflow or undercooked rice;
2. 11.5cm is the size of a regular household bowl.

OPERATION INSTRUCTIONS

QUICK RICE COOKING STEPS

1. Measure and wash rice

Use the measuring cup provided with the product to measure the rice and rinse the rice thoroughly.

1. Add water

Add water according to the rice water level in the picture on the right (taking long grain rice as an example)

1. Cook

Close the rice cooker lid and press the “=” “ button.

Select the "QUICK RICE" function and press the "START" button to enter the cooking state. After about 30 minutes, the cooking is completed and it automatically enters the keep-warm mode.

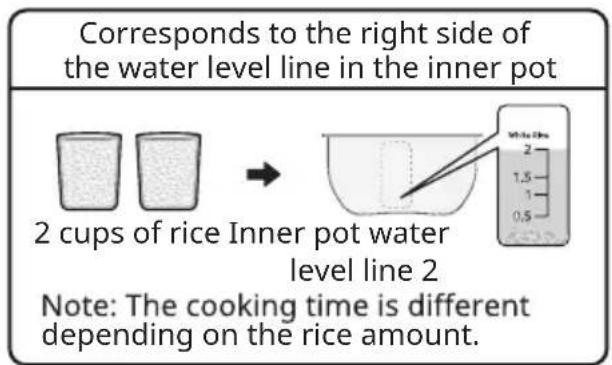

Corresponds to the right side of the water level line in the inner pot 2 cups of rice Inner pot water level line 2 Note: The cooking time is different depending on the rice amount.

OPERATION INSTRUCTIONS

INSTRUCTIONS FOR USE

Rice-water Ratio

1. Rice measuring method

1 measuring cup of rice can be cooked into 2 bowls of steamed rice, and the diameter of the bowl is about 11.5 cm.

Mathematical illustration showing a container filled with granular material equals two bowls of rice, likely illustrating the equivalence or proportionality.

2. Put in the rice and water

Take cooking 2 cups of rice as an example, put the washed rice into the inner pot and add water to the corresponding scale line 2 (The water level line shall be subject to the actual object).

White Rice 2 1.5 1 0.5

FUNCTION DESCRIPTION

(For specific functions, please refer to the actual panel for selective reference) QUICK RICE

1. Put the washed rice into the inner pot, refer to the rice-water ratio and inject the water according to the Quick Rice and water level line, or increase or decrease the water quantity according to personal preference.

Illustration of a container with liquid and scattered beans, pouring from a container (no text or symbols)

1. Close the cover and select the "QUICK RICE" cooking function (Cooking time is approximately 30 to 40 minutes, depending on the amount of rice and water used).

NOTE

1. The water shall not exceed the highest scale line.
2. For example, the rice-water ratio for bean or cereal quick rice can be adjusted according to the actual situation.

OPERATION INSTRUCTIONS

BROWN RICE

1. Measure and wash rice

Measure the rice in the measuring cup supplied with the product and wash the rice well.

2. Add water

Add water referring to the rice-water ratio and water level line, the amount of water can be adjusted according to personal taste.

White Rice 2 1.5 1 0.5

NOTE

The cooking time will vary depending on the amount of rice.

3. Cooking

Close the rice cooker lid and press the "=” button. Select the "BROWN RICE" function and press the "START/CANCEL" button to enter the cooking state. after about 1 hour and 20 minutes, you will hear a di-beep, which indicates that cooking is finished, and the cooker will automatically enter the KEEP WARM mode.

Tips

• "BROWN RICE" is cooked for approximately 1 hour and 20 minutes.
• Soak for two hours before using the function "BROWN RICE".

OPERATION INSTRUCTIONS

OATMEAL

1. Measure Oats

Measure oats using the provided measuring cup and place them in the inner pot (Maximum quantity is 0.75 cup).

2. Add water

Measure the water using the provided measuring cup and add it to the inner pot (Reference, 0.75 cup of oats requires 1.8 cups of water).

Simple line drawing of a container with liquid and two containers pouring liquid from a container (no text or symbols)

3. Cooking

Close the rice cooker lid and press the " (=)" button.

Select the "OATMEAL" function and press the "START/CANCEL" button to enter the cooking state (Cooking time is approximately 35 minutes) After cooking, it automatically enters the keep-warm mode.

NOTE

• The water shall not exceed the highest scale line.

OPERATION INSTRUCTIONS

SOUP

1. Prepare the ingredients

Wash the ingredients, cut them into pieces and put in the inner pot.

Simple line drawing of a container with liquid and two bags pouring into it (no text or symbols)

2. Add water

Add water according to personal preference, not exceeding the highest scale line.

3. Cooking

Close the rice cooker lid and press the "⊖" button.

Select the "SOUP" function and press the "START/CANCEL" button to enter the cooking state (Cooking time is approximately 1 hour and 35 minutes). After cooking, it automatically enters the keep-warm mode.

NOTE

1. The water shall not exceed the highest scale line.

CAKE

1. Prepare ingredients

Prepare the ingredients according to Add the sugar, the eggs and mix with a the figure on the right. whisk until frothy, then add the cake

1 eggs 30g castor sugar 40g cake flour (self-raising flour) 10g butter

Preparation of materials

2. Mixing

whisk until frothy, then add the cake flour and mix quickly, followed by the butter and pour into the rice cooker before the froth disappears (Grease the bottom of the pot with a little butter to avoid sticking, Do not use the inner pot of the rice cooker for stirring).

Illustration of a cooking process showing a bowl with liquid, a spoon, and food items (no text or symbols)

Mix and stir

OPERATION INSTRUCTIONS

3. Cooking

Close the lid, press the “☐” key and select CAKE (50 minutes by default), and then press START/CANCEL. The cooking is finished when a di-beep sounds, and the cooker automatically enters the KEEP WARM mode.

CAKE START CANCEL

STEW

1. Prepare the ingredients

Wash the ingredients, cut them into pieces and put in the inner pot.

Illustration of a container with liquid and scattered beans, pouring from a container into a larger bowl (no text or symbols)

1. Press the "☐" button to select the "STEW" function, and press the "START/CANCEL" button to enter the cooking state.

STEW START CANCEL

2. Add water

Add water according to personal preference, not exceeding the highest scale line.

OPERATION INSTRUCTIONS

START/CANCEL

1. During the cooking process, press the START/CANCEL button to cancel the cooking process and enter standby mode.

Gentle Reminder:

1. After cooking, it will automatically trigger the heat preservation function;
2. During the process of warm keeping, the product will be heated to maintain the temperature above 65 degrees Celsius;
3. The product can keep warm for as long as 24-hours;
4. In order to maintain the food taste and appearance, the heat preservation time is suggested within 5 hours.

OPERATION INSTRUCTIONS

THE USE OF WATER LEVEL LINES

White Rice

2 1.5 1 0.5

Rice: When adding water, for QUICK RICE, BROWN RICE, the water level line depends on the water level line scale of the rice.

Maximum rice amount Minimum rice amount
2 cups 0.5 cup

Oatmeal: Add water according to personal preference. Refer to 0.75 cup of oats and 1.8 cups of water Cooking oatmeal. Refer to 0.5 cup of oats and 1.25 cups of water Cooking oatmeal.

Maximum rice amount Minimum rice amount
0.75 cup 0.5 cup

CLEANING AND MAINTENANCE

Please disconnect the power supply before cleaning and maintenance

COVER DISASSEMBLY AND CLEANING

1. Pull the middle silicone gripper outward to remove the cover
2. Clean the cover and dry it
3. Install the cover back to its original position.

Simple line drawing of a hand pressing a button on a circular device (no text or symbols)

Note: When installing the cover, the flat surface of the cover sealing ring is on the outside.

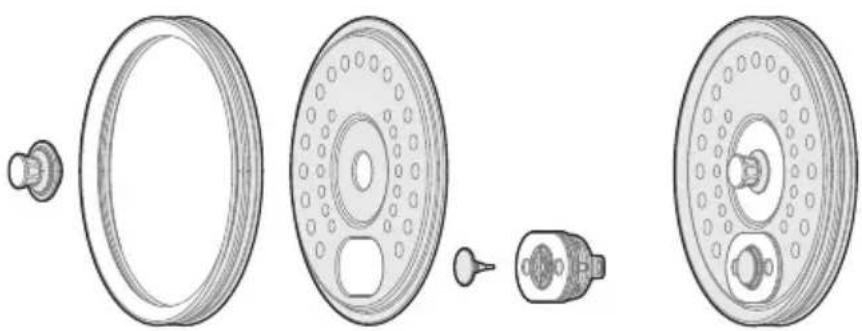

COVER AND SEALING RING INSTALLATION

1. Pay attention to the direction of the cover before installation, and install the parts one by one in place.

Technical line drawings of four mechanical components with no visible text or symbols

CoverSealing ring

Note: Complete the installation as shown in the picture, and ensure that all seals on the cover are installed in place to prevent air leakage during cooking and affect the taste of the rice.

CLEANING AND MAINTENANCE

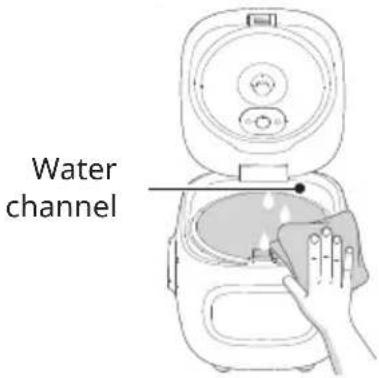

CLEANING COOKER BODY

Use a dry rag to clean the water, rice grains and other debris on the water channel and electric heating plate.

Water channel

INNER POT CLEANING

Dry the bottom and outer surface of the inner pot with a rag.

Illustration of a hand cleaning a large cylindrical container with a cloth, no text or symbols present

Do not use steel wool to clean the inner pot to avoid scratching the coating.

Simple line drawing of a hand pouring liquid into a container with a cross symbol (no text or labels)

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center.

Abnormal situation	Possible reasons Solutions
Too soft, too hard, too thick, too thin, not cooked, burnt rice, rice soup overflowing and insufficient boiling	Not add water according to the water level lineWrong selection of the functionThere is foreign matter on heating plateNo proper installation of the steam valveDeformation of inner pot	Add water according to the water level lineSelect the corresponding functionRemove foreign matters on the heating plate and cook againSteam valve is installed in placeContact customer replace the inner pot
Peculiar smell, discolouration and dry during heat preservation	The sealing ring and the edge of the inner pot are mixed with foreign mattersProduct air leakageToo long warm preservation time	Remove the foreign objectsContact customer service center to replace the sealing ringIt is recommended that the heat preservation shall be within 5 hours
Abnormal noise in the working process	Water on the inner pot has not been driedThe sound of the lid snapping shut when turning on or off the rice cooker.	Dry the water on the inner pot before usingNormal phenomenon

TROUBLESHOOTING

Indicator state	Abnormal display	Possible Reason	Solutions
Light on	E1	Main thermistor (bottom sensor) open circuit	Pull out and re-connect the power cord, the display still shows same message, please send the cooker to your local after-sales service centre for maintenance.
Light on	E2	Main thermistor (bottom sensor) short circuit
Light on	E5	Top lid sensor (handle thermistor) open circuit
Light on	E6	Top lid sensor (handle thermistor) short circuit
		Communication errorLight on EU
	EU	Communication errorFlash

SERVICE AND SUPPORT

1 YEAR LIMITED WARRANTY

This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning the product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover wear from normal use, and operation doesn't conformity with the instruction manuals, or damages to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if products is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the label.

We exclude all claims for special, incidental, and consequential damages by breach of express or implied warranty. All liability is limited to amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchant-ability or fitness for particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty.

This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental consequential damages, so the foregoing limitations may not apply to you. Please note that failure to complete and submit this form does not diminish your warranty

comfee

SERVICE AND SUPPORT

In the Event of a warranty period claim, question, comments or if service is required

for this product, please contact us at the following:

Customer Service Management Office:

Markham ON, L3R 5B4

Toll Free: 1-888-365-2230

Amazon Store:

https://www.feelcomfee.com/ca

E-mail:

[e-mail]

Made in China

comfee

... is how i feel!

CUISEUR À RIZ

Line drawing of a stylized object resembling a robot or container with two circular features and a handle (no text or symbols)

CATALOGUE

IMPORTANTES CONSIGNES DE SÉCURITÉ 1
VUE D'ENSEMBLE DE L'APPAREIL 3
SPÉCIFICATIONS 4
GUIDE DE DÉMARRAGE RAPIDE 5
INSTRUCTIONS D'UTILISATION 7
NETTOYAGE ET ENTRETIEN 16
DÉPANNAGE 18
SERVICE ET ASSISTANCE 20

IMPORTANTES CONSIGNES DE SÉCURITÉ

ATTENTION

Simple math equation showing a glass of granular material equals two bowls of rice

No. 2 2 1.5 1 0.5

DESCRIPTIONS DES FONCTIONS

INSTRUCTIONS D'UTILISATION

RIZ BRUN

Simple line drawing of a container with liquid and two blocks pouring from it (no text or symbols)

REMARQUE

Simple line drawing of a container with liquid and two containers pouring liquid from a container (no text or symbols)

3. Cuisson

Simple line drawing of a hand pressing a button on a circular device (no text or symbols)

Technical line drawings of four mechanical components with no visible text or symbols

Illustration of a hand cleaning a large cylindrical container with a cloth, accompanied by a checkmark icon (no text or symbols)

Simple line drawing of a hand pouring liquid into a container with a cross symbol (no text or labels)

DÉPANNAGE

[e-mail]

Fabriqué en Chine

comfee

... is how i feel!
