USER MANUAL MÖLNÅS 705.877.14 IKEA

Safety Information	4	What to do if ...	10
Product description	7	Technical data	14
Preparation 7		Environmental concerns	14
Daily use	8	Manufacturer	15
First Use	9	Helpful hints and tips	15
		Maintenance and cleaning	16
		IKEA GUARANTEE	17

Safety Information

• This section includes the safety instructions necessary to prevent the risk of personal injury or material damage.
• Our company shall not be held responsible for damages that may occur if these instructions are not observed.

Always use genuine spare parts and accessories.

Original spare parts will be provided for 10 years, following the product purchasing date.

Do not repair or replace any part of the product unless specified expressly in the user manual.

Do not perform any modifications on the product.

1.1 Purpose of usage

- This product is not intended for commercial use and it shall not be used out of its intended purpose.

This product is intended for operating interiors, such as households or similar.

For example;

- In the staff kitchens of the stores, offices and other working environments,

- In farm houses,

- In the units of hotels, motels or other resting facilities that are used by the customers,

- In hostels, or similar environments,

-In catering services and similar non-retail applications. This product shall not be used in open or enclosed external environments such as vessels, balconies or terraces. Exposing the product to rain, snow, sunlight and wind may cause risk of fire.

1.2 Safety of children, vulnerable persons and pets

• This product may be used by children aged 8 years and older and persons with underdeveloped physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a the product safe way and the hazards involved.
• Children between 3 and 8 years are allowed to put and take out food to/from the cooler product.
• Electrical products are dangerous for children and pets. Children and pets must not play with, climb on, or enter the product.
• Cleaning and user maintenance should not be performed by children unless there is someone overseeing them.
• Keep the packaging materials away from children. Risk of injury and suffocation.

Before disposing of old products:

1. Unplug the power cord from the mains socket.

2. Cut the power cord and remove it from the appliance together with the plug.

3. Do not remove the racks and drawers from the product to prevent children from getting inside the appliance.

4. Remove the doors.

5. Store the product so that it shall not be tipped over.

6.Do not allow children to play with the scrapped product.

• Do not dispose of the product by throwing it into fire. Risk of explosion.
• If there is a lock available in the product's door, keep the key out of children's reach.

1.3 Electrical safety

• The product shall not be plugged into the outlet during installation, maintenance, cleaning, repair, and transportation operations.
• If the power the cord is damaged, it shall be replaced by authorized service only to avoid any risk that may occur.
• Do not tuck the power cord under the product or to the rear of the product. Do not put heavy items on the power cord. The power cord should not be bent, crushed, and come into contact with any heat source.
• Do not use an extension cord, multi-plug or adaptor to operate your product.
• Portable multi sockets or portable power supplies may overheat and cause fire. Thus, do not have a multi-plug behind or in the vicinity of the product.
• The plug shall be easily accessible. If this is not possible, a mechanism that meets the electrical legislation and that disconnects all terminals from the mains (fuse, switch, main switch, etc.) shall be available on the electrical installation.
• Do not touch the plug with wet hands.
• When unplugging the appliance, don't hold the power cord, but the plug.

1.4 Handling Safety

• This product is heavy, do not handle it by yourself.
• Do not hold the product from its door while handling the product.
• Be careful not to damage the cooling system and the pipes while handling the product. Do not operate the product if the pipes are damaged, and contact an authorized service.

1.5 Installation Safety

• To prepare the product for installation, see the information in the user guide and make sure the electric and water utilities are as required. If the installation is not suitable, call a qualified electrician and plumber to have them make the necessary arrangements. Otherwise, electric shock, fire, issues with the product or injuries may occur.
• Check for any damage on the product before installing it. Do not have the product installed if it is damaged.
• Place the product on a level and hard surface and balance with the adjustable legs. Otherwise, the refrigerator may tip over and cause injuries.
• The product shall be installed in a dry and ventilated environment. Do not keep carpets, rugs or similar floor covers under the product if it is not recommended by the supplier. This may cause risk of fire as a result of inadequate ventilation!
• Do not block or cover ventilation holes. Otherwise, power consumption may be increased and damage to your product may occur.
• Do not connect the product to supply systems such as solar power supplies. Otherwise, damage to your product may occur as a result of the abrupt voltage fluctuations!
• The more refrigerant a refrigerator contains, the bigger its installation room shall be. In very small rooms, a flammable gas-air mixture may occur in case of a gas leak in the cooling system. At least 1 m ^3 of volume is required for each 8 grams of refrigerant. The amount of the refrigerant available in your product is specified in the Type Label.
• The installation place of the product shall not be exposed to direct sunlight and it shall not be in the vicinity of a heat source such as stoves, radiators, etc.

If you cannot prevent installation of the product in the vicinity of a heat source, you shall use a suitable insulation plate and the minimum distance to the heat source shall be as specified below.

- At least 30 cm away from heat sources such as stoves, heating units and heaters, etc.,

- And at least 5 cm away from electric ovens.

• Your product has the protection class of I. Plug the product in a grounded socket that conforms with the Voltage, Current and Frequency values specified in the type label. The socket outlet shall be equipped with a fuse with a rating of 10 A – 16 A. Our company shall not be responsible for the damages that shall be incurred as a result of operating the product without ensuring ground and electrical connections made as per local or national regulations.
• The product's power cable must be unplugged during installation. Otherwise, risk of electric shock and injury may occur!
• Do not plug the product to loose, broken, dirty, greasy sockets or sockets that has come out their seats or sockets with a risk of water contact.
• Place the power cord and hoses (if available) of the product so that they shall not cause a risk of tripping over.
• Penetration of humidity to live parts or to the power cord may cause short circuit. Thus, do not

use the product in humid environments or in areas where water may splash (e.g. garage, laundry room, etc.) If the refrigerator is wet by water, unplug it and contact an authorized service.

- Do not connect your refrigerator to power saving devices. These systems are harmful for the product.

1.6 Operational safety

• Do not use chemical solvents on the product. These materials contain an explosion risk.
• In case of a failure of the product, unplug it and do not operate until it is repaired by the authorized service. There is a risk of electric shock!
• Do not place a source of flame (e.g. candles, cigarettes, etc.) on the product or in the vicinity of it.
• Do not get on the product. Risk of falling and injury!
• Do not cause damage to the pipes of the cooling system using sharp and piercing tools. The refrigerant that sprays out in case of puncturing the gas pipes, pipe extensions or upper surface coatings may cause irritation of skin and injuries of the eyes.
• Do not place and operate electric appliances inside the refrigerators/deep freezer unless it is advised by the manufacturer.
• Do not jam any parts of your hands or your body to the moving parts inside the product. Be careful to prevent jamming of your fingers between the refrigerator and its door. Be careful while opening or closing the door if there are children around.
• Do not put ice cream, ice cubes or frozen food to your mouth as soon as you take them out of the freezer. Risk of frostbite!
• Do not touch the inner walls, metal parts of the freezer or food kept inside the refrigerator with wet hands. Risk of frostbite!
• Do not place soda cans or cans and bottles that contain fluids that may be frozen to the freezer compartment. Cans or bottles may explode. Risk of injury and material damage!
• Do not use or place materials sensitive against temperature such as flammable sprays, flammable objects, dry ice or other chemical agents in the vicinity of the refrigerator. Risk of fire and explosion!
• Do not store explosive materials such as aerosol cans with flammable materials inside the product.
• Do not place cans containing fluids over the product. Splashing of water on an electrical part may cause the risk of an electric shock or a fire.
• This product is not intended for storage and cooling of medicines, blood plasma, laboratory preparations or similar materials and products that are subject to the Medical Products Directive.
• If the product is used against its intended purpose, it may cause damage to or deterioration of the products kept inside.
• If your refrigerator is equipped with blue light, do not look at this light with optical devices. Do not stare directly at UV LED light for a long time. Ultraviolet rays may cause eye strain.
• Do not fill the product with more food than its capacity. Injuries or damages may occur if the contents of the refrigerator falls when the door

is opened. Similar problems may occur when an object is placed over the product.

• Ensure that you have removed any ice or water that may have fallen to the floor to prevent injuries.
• Change the locations of the racks/bottle racks on the door of your refrigerator while the racks are empty only. Danger of physical injury!
• Do not place objects that may fall/tipped over on the product. These objects may fall while opening or closing the door and cause injuries and/or material damages.
• Do not hit or exert excessive pressure on glass surfaces. Broken glass may cause injuries and/or material damages.
• The cooling system in your product contains R600a refrigerant. The refrigerant type used in the product is specified in the type label. This gas is flammable. Therefore, be careful not to damage the cooling system and the pipes while operating the product. In case of damage to the pipes;

- Do not touch the product or the power cord,

- Keep the product away from potential sources of fire that may cause the product to catch fire.

- Ventilation the area where the product is placed. Do not use a fan.

- If the product is damaged and you observe gas leak, please stay away from the gas. Gas may cause frostbite if it contacts your skin.

1.7 Maintenance and cleaning safety

• Do not pull by the door handle if you shall move the product for cleaning purposes. Handle may cause injuries if it is pulled too hard.
• Do not clean the product by spraying or pouring water on the product and inside the product. Risk of electric shock and fire.
• Do not use sharp or abrasive tools to clean the product. Do not use materials such as household cleaning agents, detergents, gas, gasoline, alcohol, wax, etc.
• Use cleaning and maintenance agents that are not harmful for food only inside the product.
• Do not use steam or steamed cleaning materials for cleaning the product and thawing the ice inside it. Steam contacts the live areas in your refrigerator and causes short circuit or electric shock!
• Take care to keep water away from the electronic circuits or lighting of the product.
• Use a clean, dry cloth to wipe the dust or foreign material on the tips of the plugs. Do not use a wet or damp piece of cloth to clean the plug. Otherwise, risk of fire or electric shock may occur.

Installation

To make the product ready for use, be careful that the electrical wiring and plumbing are appropriate by referring to the information in the user manual. If not, call a qualified electrician and plumber and have the necessary arrangements made.

⚠ WARNING: The manufacturer is not liable for damages caused by operations by unauthorized persons. To avoid shaking, place the product on a flat surface.

⚠ WARNING: During the installation, the power plug of the product should not be plugged in. Otherwise, there is a danger of death or serious injury!

⚠ WARNING: If the doorway of the room to where the product will be placed is so narrow that the product cannot pass through, pass the product by turning it to side; otherwise, call an authorized service.

• Do not expose the product to direct sunlight and do not store it in humid place.
• Do not install the product where the temperature drops below 10 °C.

To guarantee adequate ventilation, leave a space on both sides and above the appliance. The distance between the rear of the appliance and the wall behind the appliance should be 50 mm, to avoid access to hot surfaces. A reduction of this space will increase the Energy consumption of product.

Electrical connection

⚠ WARNING: Do not make connections to the extension cords or multiple sockets.
⚠ WARNING: Damaged power cable must be replaced by an Authorized Service.
⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged

- Our company will not be liable for any damages that occur when the product is used without grounding and electrical connections that are according to national regulations.

• The power cord plug must be easily accessible after installation.
• Connect your refrigerator to an outlet with a ground line with 220-240V/50 Hz voltage. Plugs should have a 10-16 A fuse.

Climate Class and Definitions

Please refer to the Climate Class on the rating plate of your device. One of the following information is applicable to your device according to the Climate Class.

SN: Long Term Temperate Climate: This cooling device is designed for use at ambient temperatures between 10 °C and 32 °C.
N: Temperate Climate: This cooling device is designed for use at ambient temperatures between 16°C and 32°C.
ST: Subtropical Climate: This cooling device is designed for use at ambient temperatures between 16°C and 38°C.
T: Tropical Climate: This cooling device is designed for use at ambient temperatures between 16°C and 43°C.

Product description

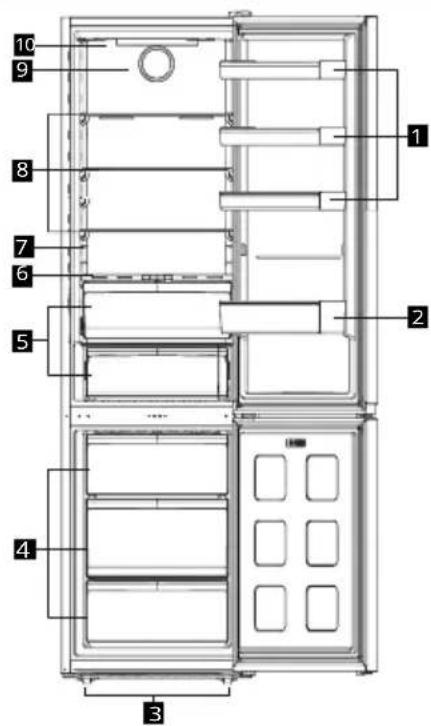

Technical diagram of a refrigerator interior with numbered components for identification

1 Adjustable door shelves
2 Bottle shelf
3 Adjustable front feet
4 Freezer compartment
5 The dairy (cold storage) bin or crisper
6 Everfresh
7 Rating Plate
8 Adjustable shelves
9 Fan
10 Control Panel

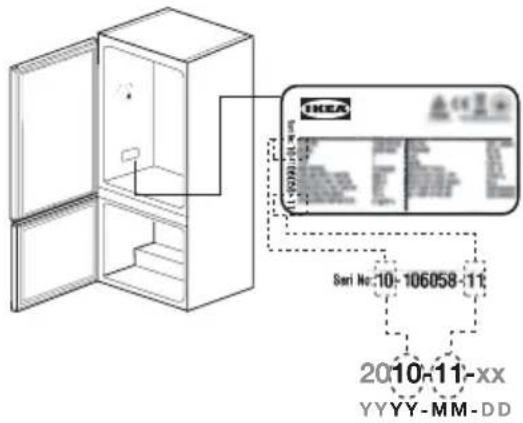

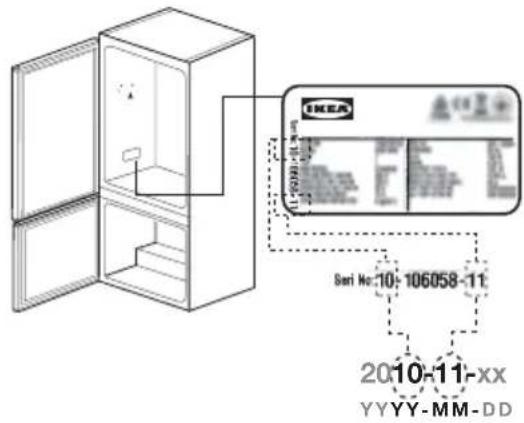

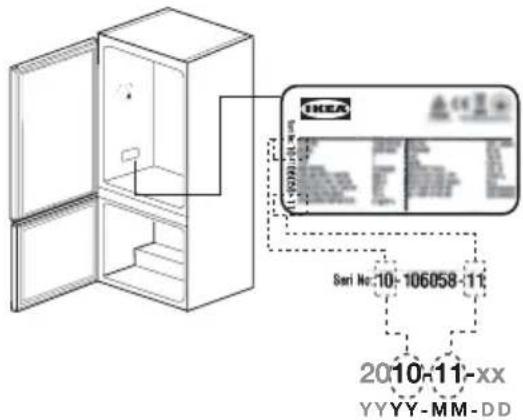

Seri No:10: 106058-11 2010-11-XX YYYY-MM-DD

Preparation

- For a freestanding appliance; 'this refrigerating appliance is not intended to be used as a built-in appliance.

- Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.

- The ambient temperature of the room where you install your refrigerator should at least be +10°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.

- Please make sure that the interior of your refrigerator is cleaned thoroughly.

- When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

• The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the "What to do if" section.

- Original packaging and foam materials should be kept for future transportations or moving.

- The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

- In some models, the instrument panel on display automatically turns off 1 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.

- When temperature change caused by door opening/closing frequently, condensation on door/body shelves and the glass containers may be seen.

• Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances.
• In case of multiple options are present glass shelves must be placed so that the air outlets at the backwall are not blocked, preferably air outlets are remaining below the glass shelf. This combination may help impoving air distribution and energy efficiency.
• Your product has adjustable condenser behind. For better performance please adjust it to open position as shown on Assembly Instructions manual.

Condenser Position Setting

The condenser of the refrigerator is located at the rear. To minimize power consumption and increase energy efficiency the top and bottom of the condenser must be pulled back and secured as shown in the picture. When the condenser is pulled backwards, the brackets lock and the condenser's position is secured.

Wall fixation comes within fitting bag. Wall fixation part is being used for tilting safety & providing ventilation distance.

Diagram showing heat exchanger with cooling pipes and directional arrows indicating flow or movement

First Use

Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in "Safety Information" and "Installation" sections.

If the product is transported horizontally, do not plug the product to power supply for first 4 hours.

Keep the product running without placing any food inside for 12 hours and do not open the door, unless absolutely necessary.

☐A sound will be heard when the compressor is engaged. It is normal for the product to make noise even if the compressor is not running, as fluid and gas may be compressed in the cooling system.

It is normal for the front edges of the refrigerator to be warm. These areas are designed to warm up in order to prevent condensation.

☐For some models, control panel turns off automatically 1 minute after the door closes. It will be reactivated when the door is opened or any button is pressed.

Cleaning the interior : Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish

Important! This appliance is sold in France. In accordance with regulations valid in this country it must be provided with a special device (see figure) placed in the lower compartment of the fridge to indicate the coldest zone of it.

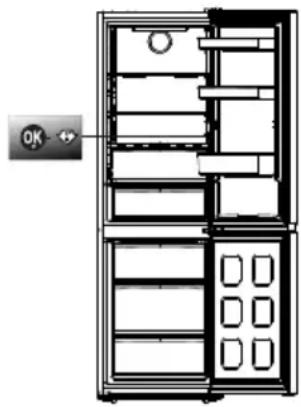

Architectural line drawing of a refrigerator with doors, shelves, and a door (no text or symbols)

Daily use

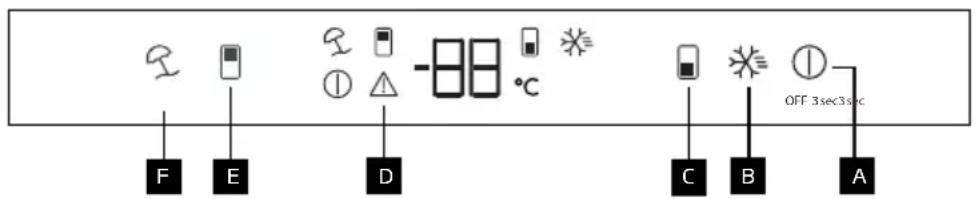

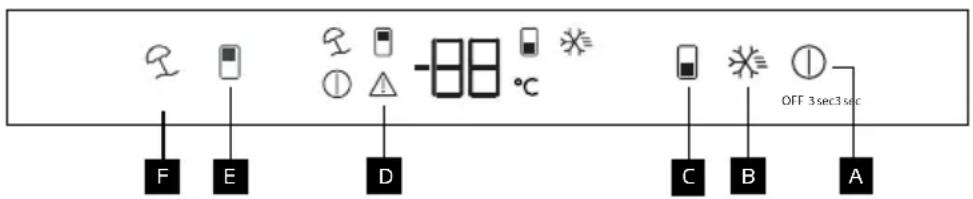

OFF 3 sec3 sec A B C D E F

A Product Swltct Off Button
B Quick Freezing Key
C Freezer Compartment Temperature Setting Key
D Error Status Indicator
E Cooler Compartment Temperature Setting Key
F Vacation Function Key

Product Switch Off Button A

When this button is pressed for 3 seconds, the product switches to off mode, in off mode the icon lights up on the display, in this mode the refrigerator does not perform cooling, when the button is pressed again for 3 seconds the refrigerator starts normal operation, the icon goes out.

Quick Freezing B

When the quick freeze key is pressed,

the quick freeze icon (B lights up and the quick freeze function shall be activated. The freezer compartment temperature is set to -27 °C. Press the key again to cancel the function. Quick freeze function will automatically self-cancel after a 48 hours. To freeze a large amount of fresh food press the quick freeze key before placing them in the freezer compartment.

Freezer Compartment Temperature Setting Key C

Temperature setting is made for freezer compartment. By pressing the key the temperature of the freezing compartment can be set at -18,-19,-20,-21,-22,-23,-24 °C.

Error Status Indicator D

This indicator () shall be active when your refrigerator cannot perform adequate cooling or in case of any sensor error. The letter "E" appears on the temperature display of the freezer compartment while the numbers 1, 2, 3..appear on the temperature display of the refrigerator compartment. These figures provide information to the authorized service on the error that has occurred. When you load the freezer compartment with hot food or if you leave the door open for a prolonged time, an exclamation mark can be lit. This is not a fault, this warning shall be removed when the food is cooled or pressed any key.

Cooler Compartment Temperature Setting E

Allows setting of temperature for cooler compartment. By pressing the key the cooling compartment can be set to 8, 7, 6, 5, 4, 3, 2 and 1°C.

Vacation Function F

To activate vacation function, press the button for 3 seconds. Vacation mode will be activated and the vacation icon (Flights up. The “- -” symbol appears on the cooler compartment temperature display and the cooling compartment does not perform active cooling. When this function is activated, it is not convenient to keep food in the cooling compartment. Other compartments continue to cool according to the temperatures set. Press and hold the key for 3 seconds again to cancel this function.

Adjusting the feet

If the product is unstable on the place where it is placed, adjust it by turning the front adjustment feet to the right or left.

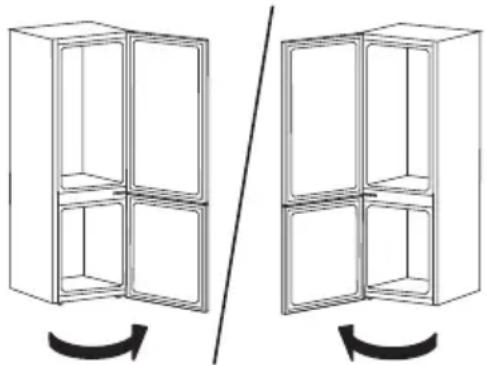

Changing door opening direction

Based on where you use, your refrigerator's door opening direction can be changed.

Diagram of two identical refrigerated cabinets with doors and doors, shown side by side (no text or symbols)

Changing the illumination lamp

To change the Bulb/LED used for illumination of your refrigerator, call your AuthorisedService.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

The lamps used in this appliance are stable in extreme physical conditions such as temperatures below -20 °C.

(only chest and upright freezer)

Door Open Alert

The door open alert system of your refrigerator may differ depending on the model.

Version 1;

If the door of the product remains open for a certain time (between 60 s and 120 s), an audio warning signal sounds; depending on the product model, a visual warning signal (light flash) can also be displayed. If you close the door of the device or press a button on the screen of the device, if any, the warning sound will stop.

Version 2;

If the door of the device remains open for a certain period of time (between 60 s and 120 s), the door open alert is sounded. The door open alert is sounded gradually. First, an audible warning starts to sound. After 4 minutes, if the door is still not closed, a visual warning (lighting flash) is activated. The door open alert will be delayed for a certain period of time (between 60 s and 120 s) when any key on the product screen, if any, is pressed. Then the process will start again. When the device door is closed, the door open alert will be cancelled.

Dairy Products Cold Storage Area

Cold Storage Drawer

The Cold Storage Drawer can reach lower temperatures in the cooler compartment. Use this drawer for delicatessen products (salami, sausage, etc.) and dairy products that require colder storage conditions, or for meat, chicken or fish to be consumed quickly. It is not suitable to store fruits and vegetables in this drawer.

Humidity Controlled Crisper

With the humidity controlled crisper, you can store vegetables and fruits for a longer period at an environment with ideal humidity conditions.

With the humidity setting system with 3 options in front of your crisper, you may control the humidity inside the compartment as per the food you store. We recommend you to store your food by selecting vegetable option when you store vegetables only, fruit option when you store fruit only and mixed option when you store mixed food.

We recommend that the vegetables and fruits shall not be stored in bags to improve the storage period of the food and to better benefit from the humidity control system. Leaving them in plastic bags causes vegetables to rot in a short time. We recommend that cucumbers and broccoli, in particular, are not stored in closed bags. In situations where contact with other vegetables is not preferred, use packaging materials such as paper that has a certain level of porosity in terms of hygiene.

When placing the vegetables, place heavy and hard vegetables at the bottom and light and soft ones on the top, taking into account the specific weights of vegetables.

Do not put fruits that have a high ethylene gas production such as pear, apricot, peach and particularly apple in the same crisper with other vegetables and fruits. The ethylene gas coming out of these fruits might cause other vegetables and fruits to mature faster and rot in a shorter period of time.

Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

Problems		Solutions
The refrigerator does not operate.	· The plug is not inserted into the socket correctly.	· Insert the plug into the socket securely.
	· The fuse of the socket which your refrigerator is connected to or the main fuse have blown out.	· Check the fuse.
Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).	· Door has been opened frequently.	· Do not open and close the door of refrigerator frequently.
	· Ambient is very humid. · Do not install your refrigerator into highly humid places.
	· Food containing liquid is stored in open containers.	· Do not store food with liquid content in open containers.
	· Door of the refrigerator is left open.	· Close the door of the refrigerator.
	· Thermostat is set to a very cold level.	· Set the thermostat to a suitable level.
Compressor is not running	· Protective thermic of the compressor will blow out during sudden power failures.	· The refrigerator will start running approximately after 6 minutes.
	· plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet.	· Please call the service if the refrigerator does not startup at the end of this period.
	· The fridge is in defrost cycle.	· This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.
	· The refrigerator is not plugged into the socket.	· Make sure that the plug is fit into the socket.
	· Temperature settings are not made correctly.	· Select the suitable temperature value.
	· There is a power outage. · Refrigerator returns to normal operation when the power restores.
The operation noise increases when the refrigerator is running.	The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.
The refrigerator is running frequently or for a long time.	New product may be wider than the previous one. Larger refrigerators operate for a longer period of time.
	The room temperature may be high.	It is normal that the product operates for longer periods in hot ambient.
	The refrigerator might be plugged in recently or might be loaded with food.	When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. This is normal.
	Large amounts of hot food might be put in the refrigerator recently.	Do not put hot food into the refrigerator.
	Doors might be opened frequently or left open for a long time.	>The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Do not open the doors frequently.
	Freezer or fridge compartment door might be left open.	Check if the doors are closed completely.
	The refrigerator is adjusted to a very low temperature.	Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.
	Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated.	Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.
Fridge temperature is very low while the freezer temperature is sufficient.	The fridge temperature is adjusted to a very low value.	Adjust the fridge temperature to a warmer degree and check.
Food kept in the fridge compartment drawers is frozen.	The fridge temperature is adjusted to a very high value.	Adjust the fridge temperature to a lower value and check.
Temperature in the fridge or freezer is very low.	The fridge temperature is adjusted to a very high value.	Fridge compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.
	Doors are opened frequently or left open for a long time.	Do not open the doors frequently.
	Door is open. Close the door completely.
	The refrigerator is plugged in or loaded with food recently.	This is normal. When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.
	Large amounts of hot food might be put in the refrigerator recently.	Do not put hot food into the refrigerator.
Vibrations or noise.	The floor is not level or stable.	If the refrigerator rocks when moved slowly, balance it by adjusting its feet. Also make sure that the floor is strong enough to carry the refrigerator, and level.
	The items put onto the refrigerator may cause noise.	Remove the items on top of the refrigerator.
There are noises coming from the refrigerator like liquid flowing, spraying, etc.	Liquid and gas flows occur in accordance with the operating principles of your refrigerator. It is normal and not a fault.
Whistle comes from the refrigerator.	Fans are used in order to cool the refrigerator. It is normal and not a fault.
Condensation on the inner walls of refrigerator.	Hot and humid weather increases icing and condensation. It is normal and not a fault.
	Doors are opened frequently or left open for a long time.	Do not open the doors frequently. Close them if they are open.
	Door is open. Close the door completely.
Humidity occurs on the outside of the refrigerator or between the doors.	There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

ENGLISH13

Bad odour inside the refrigerator.	No regular cleaning is performed.	Clean the inside of the refrigerator regularly with a sponge, lukewarm water or carbonate dissolved in water.
	Some containers or package materials may cause the smell.	Use a different container or different brand packaging material.
	Food is put into the refrigerator in uncovered containers.	Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
	Remove the foods that have expired best before dates and spoiled from the refrigerator.
The door is not closing.	Food packages are preventing the door from closing.	Replace the packages that are obstructing the door.
	The refrigerator is not completely even on the floor.	Adjust the feet to balance the refrigerator.
	The floor is not level or strong.	Make sure that the product is leveled and capable to carry the refrigerator.
Crispers are stuck. • The	food is touching the ceiling of the drawer.	Rearrange food in the drawer.
If The Surface Of The Product Is Hot.	High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance!

Technical data

Dimensions (mm) MÖLNÅS
Height 2035
Width 595
Depth 663
Net Volume(l)
Fridge 249
Freezer 106
Defrost system
Fridge Auto Defrost
Freezer Auto Defrost
Star Rating 4
Rising Time ( h) 11
Freezing capacity(kp/24h)	6
Energy consumption( kwh/Year)	170
Noise level(db) 35dBA
Energy class C

Environmental concerns

Disposal of packaging materials

The packaging material is 100% recyclable and is marked with the recycle symbol.

The various parts of the packaging must therefore be disposed of responsibility and in full compliance with local authority regulations governing waste disposal.

Scrapping of household appliances

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.

The symbol ✗ on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

Energy saving tips

To guarantee adequate ventilation follow installation instructions. Insufficient ventilation on back of the product increases energy consumption and decreases cooling efficiency.

Frequent door opening might cause an increase in Energy consumption.

The internal temperature of the appliance and the Energy Consumption may be affected also by the ambient temperature, as well as location of the appliance.

Temperature setting should take into consideration these factors. Reduce to a minimum door opening.

When thawing frozen food, place them in the refrigerator.

The low temperature of the frozen products cools the food in the refrigerator. Allow warm food and drinks to cool down before placing in the appliance.

Positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and

ENGLISH 15

distance between food and rear wall should be kept).

You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelf, maintaining an equivalent energy consumption.

Do not worry of the noise coming from the compressor.

Declaration of conformity

- This appliance has been designed for preserving food and is manufactured in compliance with Regulation (CE) No. 1935/2004.

CE

- This appliance has been designed, manufactured and marketed in compliance with:

- safety objectives of the "Low Voltage" Directive 2014/35/EU (which replaces 2006/95/CE and subsequent amendments);

- the protection requirements of Directive "EMC" 2014/30/EU.

Manufacturer

Ikea of Sweden AB - SE - 343 81 Älmhult, Sweden

Helpful hints and tips

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• Do not set temperature any colder than necessary.
• Ensure sufficient air circulation and exhaust at the appliance base and at the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool first.

Hints for freezing

To help you make the most of the freezing process, here are some hints:

- The maximum quantity of food which can be frozen in 24 hours is shown on the rating plate.

- The freezing process takes 24 hours. No further food to be frozen should be added during this period.

- Freeze only top quality, fresh and thoroughly cleaned foodstuffs.

- Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required.

- Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight.

- Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter.

- Lean foods store better and longer than fatty ones; salt reduces the storage life of foods.

- It is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• Make sure that the commercially frozen foodstuffs were adequately stored by the retailer.
• Make sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time.
• Do not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

Defrosting the freezer

The freezer compartment is frost free. This means that there is no build up of frost when it is in operation, neither on the internal walls nor on the food. The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan.

If the appliance is not going to be used

Disconnect the appliance from the power supply, remove all the food and clean. Leave the doors open enough for air to circulate inside the compartments. This will prevent the formation of mould and bad odours.

In case of power failures

Keep the doors of the appliance closed. In this way the stored food will stay cold as long as possible. Do not refreeze partially thawed food, consume it within 24 hours.

Maintenance and cleaning

△Never use gasoline, benzene or similar substances for cleaning purposes.

⚠️We recommend that you unplug the appliance before cleaning.

△Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.

△For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it.

△Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface.

Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.

Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

⚠️Make sure that no water enters the lamp housing and other electrical items.

△If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door open.

Check door seals regularly to ensure they are clean and free from food particles.

△To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

△Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

IKEA GUARANTEE

How long is the IKEA guarantee valid?

This guarantee is valid for five years from the original date of purchase of your appliance at IKEA. The original sales receipt, is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed Service Provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA Service Provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.

- Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

• Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.

- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

- Cases where no fault could be found during a technician's visit.

• Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.

- Repairs caused by installation which is faulty or not according to specification.

- The use of the appliance in a non-domestic environment i.e. professional use.

- Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by IKEA.

- Cost for carrying out the initial installation of the IKEA appliance.

• However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.

- This does not apply within Ireland, customer should contact the local IKEA dedicated after sales line or the appointed Service Provider for further information.

(just for GB)

These restrictions do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives you specific legal rights, which cover or exceed all the local legal demands. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country.

An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

- the technical specifications of the country in which the guarantee claim is made;

- the Assembly Instructions and User Manual Safety Information.

The dedicated AFTER SALES for IKEA appliances

Please don't hesitate to contact IKEA appointed Authorized Service Centre to:

• make a service request under this guarantee;

- ask for clarifications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture;

- ask for clarification on functions of IKEA appliances.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual before contacting us.

How to reach us if you need our service

Please refer to the last page of this manual for the full list of IKEA appointed Authorized Service Centre and relative national phone numbers.

In order to provide you a quicker service, we recommend to use the specific phone numbers listed on this manual. Always refer to the numbers listed in the booklet of the specific appliance you need an assistance for. Please also always refer to the IKEA article number (8 digit code).

i SAVE THE SALES RECEIPT! It is your proof of purchase

It is your proof of purchase and required for the guarantee to apply. The sales receipt also reports the IKEA name and article number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances please contact your nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

Spare parts information

- The following spare parts: thermostats, temperature sensors, printed circuit boards and light sources, will be available to professional repairers for a minimum period of seven years, after placing the last unit of the model on the market.

- The following spare parts: door handles, door hinges, trays and baskets will be available to professional repairers and end users for a minimum period of seven years, and door gaskets for a minimum period of 10 years, after placing the last unit of the model on the market.

This refrigerator contains biocidal products in the following parts to prevent dry film fungal growth and unwanted odours.

Active substance:

• Silver (CAS: 7440-22-4) contains
  (nano) silver for door handle and carbon filter
• Titanium dioxide (CAS: 13463-67-7)
  contains (nano) titanium dioxide for carbon filter
• IPBC (CAS: 55406-53-6) for seal

The concentrations of biocidal products are very low hence they should not pose unacceptable health risks.

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Inhaltsverzeichnis

Technical diagram of a refrigerator with numbered parts for identification

Pure electrical circuit lines without any symbols

Erste Verwendung

Diagram of an open refrigerator with doors, drawers, and a control panel (no text or symbols)

Tägliche Nutzung

F E D -88 °C OFF 3sec3sec C B A

Diagram of two side-by-side views of a double-door refrigerator with doors open, showing front and back angles (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

KEA GARANTIE

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Diagram of a refrigerator interior showing front and side views with no text or symbols

Diagram of two identical refrigerated cabinets with doors open, shown in side and top views (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

GARANTIE IKEA

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a coiled spring and vertical pipe with directional arrows, no text or symbols present

Primo utilizzo

Architectural floor plan of a double refrigerator with doors, drawers, and a circular vent (no text or labels)

Uso quotidiano

F E D C B A OFF 3sec3sec

Diagram of two identical refrigerated cabinets with doors open, showing front and side views (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

GARANZIA IKEA

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Første brug

Diagram of a refrigerator interior showing front and back compartments with no text or symbols

Daglig brug

OFF 3sec3sec A B C D E F

Diagram of two identical refrigerators with open doors, shown side by side with curved arrows indicating rotation (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Technical diagram of a refrigerator with numbered parts for identification

1 Justerbare dørhyller
2 Flaskehylle
3 Justerbare føtter
4 Fryserdel
6 Everfresh
7 Merkeplate
8 Justerbare hyller
9 Vifte
10 Kontrollpanel

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Første bruk

Diagram of a refrigerator interior showing front and back compartments with no text or symbols

Daglig bruk

F E D C B A OFF 3sec3sec

A Produktavslåingsknapp
B Hurtigfrys-tasten
C Innstillingstast for fryserdeltemperatur
D Feilstatusindikator
E Temperaturinnstillingstast for kjølerdelen
F Ferietast

Diagram of two identical refrigerated cabinets with doors open, shown side by side with curved arrows indicating rotation (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

IKEA GARANTI

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Diagram of a refrigerator interior showing front and back compartments with no text or symbols

Päivittäinen käyttö

OFF 3sec3sec A B C D E F

Diagram of two identical refrigerated cabinets with doors open, shown side by side with curved arrows indicating rotation (no text or symbols)

Lampun vaihtaminen

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

IKEA - TAKUU

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Första användning

Diagram of a refrigerator interior showing front and back compartments with no text or symbols

Daglig användning

OFF 3sec3sec A B C D E F

Diagram of two identical refrigerators with doors open, shown side by side with curved arrows indicating rotation (no text or symbols)

Byte av belysningen

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

IKEA GARANTI

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Primeira utilização

Diagram of a refrigerator interior showing front and back compartments with no text or symbols

Uso diário

F E D C B A OFF 3sec3sec

Diagram of two identical refrigerators with doors open, shown side by side with curved arrows indicating rotation (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

GARANTIA IKEA

Technical diagram of a refrigerator with numbered parts for identification

Pure electrical circuit lines without any symbols

Uso de primera vez

Diagram of a refrigerator interior showing door, front panel, and side compartments (no text or labels)

Uso diario

F E D C B A OFF 3sec3sec

Diagram of two side-by-side views of a double-door refrigerator with open doors and internal compartments (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

GARANTÍA IKEA

Safety Information	154	What to do if ...	161
Product description	158	Technical data	165
Preparation		Environmental concerns	165
Daily use	159	Manufacturer	166
First Use	160	Helpful hints and tips	166
		Maintenance and cleaning	167
		IKEA GUARANTEE	168

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a coiled spring with directional arrows indicating motion (no text or symbols)

Πρώτη χρήση

Interior view of a refrigerator with visible door, shelves, and ventilation slots (no text or symbols)

Καθημερινή χρήση

F E D C B A OFF 3sec3sec

Diagram of two identical refrigerated cabinets with doors open, shown in side and top views (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

ΕΓΓΥΗΣΗ ΙΚΕΑ

Labeled diagram of a refrigerator interior with numbered components for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Eerste gebruik

Diagram of a refrigerator interior showing front and back compartments with no text or symbols

Dagelijks gebruik

F E D C B A OFF 3sec3sec

Diagram of two side-by-side views of a double-door refrigerator with open doors and internal compartments (no text or symbols)

De lamp vervangen

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

IKEA GARANTIE

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Diagram of a refrigerator interior showing front and back compartments with no text or symbols

Diagram of two identical refrigerated cabinets with open doors, shown side by side with curved arrows indicating rotation (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

ZÁRUKA IKEA

Technical diagram of a refrigerator with numbered parts for identification

Pure schematic diagram of a heat exchanger or cooling system without any text, labels, or symbols

Pierwsze użycie

Diagram of a refrigerator interior showing front and back compartments with no text or symbols

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "\_\_\_\_", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

Diagram of two identical 3D cabinet designs with open doors, shown side by side with curved arrows indicating rotation (no text or symbols)

Wymiana żarówki

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

GWARANCJA IKEA

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Interior view of a refrigerator with visible door, shelves, and ventilation slots (no text or symbols)

Diagram of two identical refrigerated cabinets with doors open, showing front and side views (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

ГАРАНТИЯ IKEA

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Prvé použitie

Interior view of a refrigerator with doors, shelves, and a control panel (no text or symbols visible)

Denné používanie

F E D C B A OFF 3sec3sec

A Tlačidlo vypnutia produktu

Diagram of two identical refrigerated cabinets with open doors, shown side by side with curved arrows indicating rotation (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

ZÁRUKA IKEA

Labeled diagram of a refrigerator interior with numbered components for identification

Pure electrical circuit lines without any symbols

Pirmas naudojimas

Interior view of a refrigerator with doors, shelves, and a door (no text or symbols visible)

Diagram of two identical refrigerated cabinets with doors open, shown side by side with curved arrows indicating rotation (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

IKEA GARANTIJA

Technical diagram of a refrigerator with numbered components for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Diagram of a refrigerator interior showing front and back compartments with no text or symbols

Ikdienas lietošana

F E D C B A OFF 3sec3sec

Diagram of two identical refrigerated cabinets with open doors, shown side by side with curved arrows indicating rotation (no text or symbols)

Apgaismojuma lampas maina

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

IKEA GARANTIJA

Cik ilgi spelKEA garantija?

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Esmakasutus

Front view diagram of a refrigerator with visible door, shelves, and ventilation slots (no text or labels)

Diagram of two identical vertical panels with open doors, each showing a curved arrow indicating rotation or change (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

IKEA GARANTII

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Перше використання

Diagram of a refrigerator interior showing front and back compartments with no text or symbols

Diagram of two identical refrigerated cabinets with doors open, shown side by side with curved arrows indicating rotation (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

ГАРАНТИЯ IKEA

Скільки дідКБАзнтія

Technical diagram of a refrigerator with numbered parts for identification

1 Prilagodljive police na vratima
2 Polica za boce
3 Podesive prednje nožice
4 Odjeljak zamrzivača
7 Označna pločica
8 Prilagodljive police
9 Ventilator
10 Upravljačka ploča

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Prva uporaba

Diagram of a refrigerator interior showing front and side views with no text or symbols

Svakodnevna uporaba

F E D -88 °C OFF 3sec3sec C B A

A Gumb za isključivanje proizvoda
B Gumb brzog zamrzavanja
C Gumb podešavanja temperature odjeljka zamrzivača
D Indikator statusa pogreške
E Gumb podešavanja temperature odjeljka hladnjaka
F Pokazatelj funkcije godišnjeg odmora

Diagram of two side-by-side views of a double-door refrigerator with open doors and internal compartments (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

JAMSTVO IKEA

Koliko traje jamstvo IKEA?

Ovo jamstvo traje pet godina od datuma kupovine uređaja u IKEI. Originalni areba kađokazi kupovine. Ako se servisiranje obavi u jamstvu, to ne produljuje razdoblje jamstva za uređaj.

Technical diagram of a refrigerator with numbered parts for identification

1 Podesive police na vratima
2 Polica za boce
3 Podesive prednje nožice
4 Odeljak zamrzivača
5 Odeljak za mlečne proizvode (hladnjača) ili odeljak za voće za povrće
6 Everfresh
7 Nazivna pločica
8 Podesive police
9 Ventilator
10 Kontrolna tabla

Seri Nr:10-106058-11 2010-11-xx YYYY-MM-DD

Priprema

• Za samostojeći uređaj; ovaj rashladni uređaj nije namijenjen za upotrebu kao ugradbeni uređaj.
• Vaš frižider treba da bude postavljen najmanje 30 cm od izvora toplote kao što su ploče za kuvanje, rerne, centralno grejanje i šporeti i najmanje 5 cm od električnih rerni i ne bi trebalo da se nalazi pod direktnom sunčevom svetlošću.
• Sobna temperatura prostorije u kojoj instalirate frižider treba da bude najmanje +10°C. Ne preporučuje se rad vašeg frižidera u hladnijim uslovima za potrebe njegove efikasnosti.
• Vodite računa da unutrašnjost vašeg frižidera bude dobro očišćena.
• Kada prvi put koristite frižider, pridržavajte se sledećih uputstava tokom prvih šest sati.
• Vrata ne bi trebalo često otvarati.
• Mora se uključiti prazan bez postavljene hrane unutar njega.
• Ne isključujte frižider sa napajanja električnom energijom. Ako dođe do nestanka struje van vaše kontrole, pogledajte upozorenja u odeljku „Šta učiniti ako“.
• Originalnu ambalažu i materijale od pene treba sačuvati za budući transport ili premeštanje.
• Korpe/fioke koje se isporučuju sa odeljkom za hlađenje moraju uvek biti u upotrebi za potrebe nisku potrošnju energije i za bolje uslove skladištenja.
• Na nekim modelima, instrument tabla na ekranu se isključuje 1 minuta nakon što se vrata zatvore. Ona će se ponovo aktivirati kada se otvore vrata ili se pritisne bilo koje dugme.

• Kada je promena temperature uzrokovana čestim otvaranjem/zatvaranjem vrata, može se videti kondenzacija na policama vrata/kućišta i staklenim posudama.

• Budući da vrući i vlažni vazduh neće direktno prodreti u vaš proizvod dok se vrata ne otvore, vaš proizvod će stvoriti optimalne uslove dovoljne da sačuva vašu hranu. Funkcije i komponente poput kompresora, ventilatora, grejača, odmrzavanja, osvetljenja, ekrana i tako dalje funkcionisaće u skladu s potrebama da se u tim okolnostima potroši minimalna količina energije.

• U slučaju da postoji više opcija, staklene police moraju biti postavljene tako da izlazi za vazduh na zadnjem zidu ne budu blokirani, i po mogućnosti da izlazi za vazduh budu ispod staklene police. Ova kombinacija može doprineti u poboljšanju raspodele vazduha i energetske efikasnosti.
• Vaš proizvod ima podesivi kondenzator iza. Za bolje performanse, podesite ga u otvoreni položaj kao što je prikazano u uputstvu za sastavljanje.

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Prva upotreba

☐Pre upotrebe frižidera, pobrinite se da su potrebne pripreme napravljene u skladu sa uputstvima u odeljku „Informacije o bezbednosti“ i „Instalacija“.

Ako se proizvod transportuje horizontalno, nemojte ga uključivati na napajanje prva 4 sata.

Diagram of a refrigerator interior showing front and back compartments with no text or symbols

Svakodnevna upotreba

F E D C B A OFF 3sec3sec

Diagram of two identical refrigerators with open doors, shown side by side with curved arrows indicating rotation (no text or symbols)

Promena sijalice za osvetljenje

Da biste promenili sijalicu/LED svetlo koja se koristi za osvetljenje vašeg frižidera, pozovite ovlašćeni servis.

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

IKEA GARANCIJA

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Pri prvi uporabi

Diagram of a refrigerator interior showing front and side views with no text or symbols

Vsakodnevna uporaba

F E D C B A OFF 3sec3sec

Diagram of two identical refrigerated cabinets with open doors, shown side by side with curved arrows indicating rotation (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

GARANCIJA IKEA

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

İlk Kullanım

Interior view of a refrigerator with doors, shelves, and a door (no text or symbols visible)

Günlük kullanım

F E D C B A OFF 3sec3sec

Diagram of two identical refrigerated cabinets with doors open, shown side by side with curved arrows indicating rotation (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Technical diagram of a refrigerator with numbered parts for identification

Pure electrical circuit lines without any symbols

Първа употреба

Line drawing of a refrigerator interior showing compartments and doors (no text or symbols)

Ежедневна употреба

F E D -88 °C OFF 3sec3sec C B A

Diagram of two identical refrigerated cabinets with doors open, shown side by side with curved arrows indicating rotation (no text or symbols)

Defrosting the freezer

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Labeled diagram of a refrigerator interior with numbered components for identification

Pure diagram of a coiled spring and vertical pipe with directional arrows, no text or symbols present

Prima utilizare

Diagram of a refrigerator interior layout with no visible text or symbols

Utilizare zilnică

OFF 3 sec3 sec A B C D E F

Diagram of two identical 3D cabinet layouts with open doors, shown side by side with curved arrows indicating rotation (no text or symbols)

Schimbarea lămpii de iluminat

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

GARANTIE IKEA

Technical diagram of a refrigerator with numbered parts for identification

Pure diagram of a coiled spring and vertical pipe with directional arrows, no text or symbols present

Első használat

Front view diagram of a refrigerator with visible door, shelves, and ventilation slots (no text or labels)

Napi használat

F E D -88 °C C B OFF 3sec3sec A

Diagram of two identical refrigerated cabinets with doors and doors, shown side by side with curved arrows indicating rotation (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

IKEA GARANCIA

Technical diagram of a refrigerator with numbered parts for identification

1 Stillanlegar hurðarhillur
2 Flöskuhilla:
3 Stillanlegir framfætur
4 Frystihólf
5 Mjólkurafurðageymsla (kæligeymsla) eða grænmetisskúffa
6 Everfresh ferskvara
7 Merkispjald
8 Stillanlegar hillur
9 Vifta
10 Stjórnborð

Seri Nr.10-106058-11 2010-11-XX YYYY-MM-DD

Undirbúningur

Pure diagram of a heat exchanger or cooling system without any text, numbers, or symbols

Fyrsta notkun

Diagram of a refrigerator interior showing front and side views with no text or symbols

Dagleg notkun

F E D -88 °C OFF 3sec3sec C B A

Diagram of two identical refrigerated cabinets with doors open, shown side by side with curved arrows indicating rotation (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

IKEA ÁBYRGD
