USER MANUAL Tab Plus LENOVO

• Read this guide carefully before using your device.
• All pictures and illustrations in this guide are for your reference only. The actual product may vary.

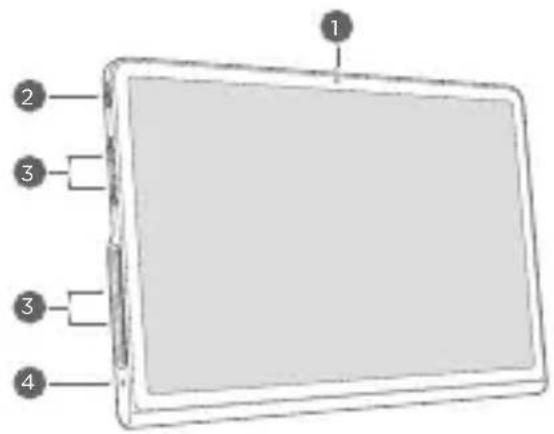

Overview

Diagram of a tablet device with numbered labels pointing to its front panel and screen area.

3 3 5 87 9 Lenovo 10

1 Front camera

2 Power button

3 Speakers

4 Audio jack

5 USB-C connector

6 Card tray

7 Microphones

8 Volume buttons

9 Rear camera

10 Kickstand

• When using the kickstand, do not place your hands on the edge or inside the stand to avoid injury caused by pinching.
• Please do not poke any objects into the speaker grill to avoid damaging the device.

Install cards

Turn off your device before inserting or removing a card.

Diagram of a smartphone with a screwdriver inserted, showing internal components and a screen (no text or symbols)

Charge your device

For environmental reasons this package may not include a charger in certain countries or regions. This device can be powered with most USB power adapters and a cable with USB Type-C plug.

If you do not carry the included charger with your device, you have the option of using a qualified USB-C charger (may be purchased separately). Lenovo branded USB-C chargers with the following listed maximum ratings are tested to work with the device.

• 9 Vdc, 2 A
• 10 Vdc, 4.5 A

It is recommended to use a charger that complies with applicable national/regional regulations for mobile device adapters. Only use a charger that complies with international and regional safety standards (such as EN/IEC/UL 62368) for charging. Other chargers may not comply with applicable safety standards, and using such chargers to charge may result in injury or death.

Help and more

To get more information and download the User Guide, go to https://support.lenovo.com.

European Union (EU) / United Kingdom (UK) compliance statement

CE UK CA

Lenovo (Singapore) Pte. Ltd. declares that the radio equipment type: TB351FU is in compliance with EU Radio Equipment Directive 2014/53/EU.

Lenovo (Slovakia) Ltd. declares that the radio equipment type: TB351FU is in compliance with UK Radio Equipment Regulation SI 2017 No. 1206.

The full text of the system declarations of conformity are available at: https://www.lenovo.com/us/en/compliance/eu-doc for EU and https://www.lenovo.com/us/en/compliance/uk-doc for UK.

This radio equipment operates with the following frequency bands and maximum radio-frequency power:

Model Name Frequency Bands Maximum Power (dBm)
TB351FU	WLAN 2400 - 2483.5 MHz < 20
	WLAN 5150 - 5250 MHz < 23
	WLAN 5250 - 5350 MHz < 20
	WLAN 5470 - 5725 MHz < 20
	WLAN 5725 - 5850 MHz < 14
	Bluetooth 2400 - 2483.5 MHz < 20

Restrictions of use:

Usage of this device is limited to indoor in the band 5150 to 5350 MHz.

AT

BE

FBG

CH

CY

CZ

DE

DK

EE

EL

ES

FR

HR

HU

MTE

NLIS

IT

LI

LT

LU

LV

NO

PL

UKT

RO

SE

SI

SK

TR

UK (NI)

Specific Absorption Rate information

THE DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.

The device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR.

Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands. The highest SAR values under the ICNIRP guidelines for your device model are listed below:

Maximum SAR for this model and conditions under which it was recorded.
EU/UK 10gSAR Limit(2.0 W/kg)	TB351FU	Body-worn(0 mm)	WLAN, Bluetooth 1.496 W/kg
EU/UK 10gSAR Limit(4.0 W/kg)		Limb (0 mm)	WLAN, Bluetooth 1.496 W/kg

The above information is for EU countries and UK. Please refer to the actual product for supported frequency bands in other countries.

During use, the actual SAR values for your device are usually well below the values stated. This is because, for purposes of system efficiency and to minimize interference on the network, the operating power of the device is automatically decreased when full power is not needed for the data connection. The lower the power output of the device, the lower its SAR value. If you are interested in further reducing your RF exposure then you can easily do so by limiting your usage or simply using a hands-free kit to keep the device away from your body.

Charging capabilities and the compatible charging devices of this product

The power delivered by the charger must be between min 18 Watts required by the radio equipment, and max 45 Watts in order to achieve the maximum charging speed. And the device supports USB Power Delivery (USB-PD).

18 - 45 W USB PD

Français

Démarrage

Diagram of a tablet device with numbered labels pointing to its front panel and screen area.

3 3 5 87 9 Lenovo 10

1 Caméra frontale

Diagram of a smartphone with a screwdriver inserted, showing internal components and a screen (no text or symbols)

18 - 45 W USB PD

Español

Comenzar

Diagram of a tablet device with numbered labels pointing to its front panel and screen area.

3 3 5 87 9 Lenovo 10

1 Cámara frontal

Diagram of a smartphone with a screwdriver inserted, showing internal components and a screen (no text or symbols)

18 - 45 W USB PD
