COOL1D - Wine cellar Summit - Free user manual and instructions

Product type	Wine cellar
Brand	Summit
Model	COOL1D / LX1D / WC1D
Capacity	8 bottles (without shelves) or 4 bottles (with shelves)
Dimensions (W x D)	18" x 22,5" (457 x 573 mm)
Power supply	115 V ~ 60 Hz, 15 A, grounded outlet
Temperature range	8 °C to 20 °C (46 °F to 68 °F)
Digital display	Temperature in °C or °F
Interior lighting	Automatic when door is opened
Open door alarm	Yes, after 5 minutes
Sabbath mode	Yes, turns off displays and alarms for 24 hours
Automatic defrost	Yes, without manual intervention
Installation	Built-in, built-in or freestanding (ventilation space required)
Door material	Stainless steel
Shelves	2 mobile wine shelves
Warranty	1 year (parts and labor)

Frequently Asked Questions - COOL1D Summit

How to set the temperature of my Summit COOL1D wine cellar?

Press the UP or DOWN symbols to adjust the temperature. The adjustable range is 8 °C to 20 °C (46 °F to 68 °F). Factory preset temperature is 8 °C (46 °F).

How to change the display from °C to °F?

Press and hold the UP and DOWN symbols simultaneously for 3 seconds to switch between Celsius and Fahrenheit.

What to do if the open door alarm goes off?

The audible alarm sounds if the door remains open for more than 5 minutes. Press any key or close the door to stop it.

How to clean the interior of the wine cellar?

Unplug the appliance. Clean the interior surfaces with a solution of warm water and baking soda (2 tablespoons per liter of water). Wring out the sponge well and avoid flammable liquids.

What are the required ventilation clearances for built-in installation?

For built-in installation, allow 2" (50 mm) at the rear and a ventilation channel of at least 5.11" x 2.36" (130 x 60 mm). Never block the ventilation grilles.

Why is my wine cellar vibrating or making noise?

Check that the appliance is level by adjusting the adjustable feet. An incorrect level can cause vibrations and noise.

What to do if the door does not close properly?

Check that the appliance is level, clean the door gaskets, and ensure that the baskets are correctly positioned.

What do the error codes "LL" or "EE" on the display mean?

"LL" indicates an open temperature sensor circuit, "EE" a short circuit. Contact customer service at 800-932-4267 for assistance.

The interior light is not working, what to check?

Ensure the appliance is plugged in and the circuit breaker has not tripped. The light turns on automatically when the door is opened. If the problem persists, contact after-sales service.

How to activate Sabbath mode?

Press the ON/OFF and UP keys simultaneously for 3 seconds. The dot in the upper left corner of the screen lights up to confirm. The mode automatically deactivates after 24 hours.

USER MANUAL COOL1D Summit

Line drawing of a rectangular appliance with a lid and side panel, no text or symbols present

INSTRUCTION MANUAL/ MANUEL D'INSTRUCTIONS

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. /

AVANT UTILISATION, VEUILLEZ LIRE ET SUIVRE TOUTES LES RÈGLES DE SÉCURITÉ ET LES

INSTRUCTIONS D'UTILISATION.

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www.summitappliance.com

TABLE OF CONTENTS

Appliance Safety 3

Important Safeguards 3-4

Location of Parts 5

Installation Instructions 6-10

Before Using your Appliance 6

Installation of your Appliance 6-9

Shelves and Capacity 10

Electrical Connection 11

Extension Cord 11

Installing the Stainless Steel Handle 12

Full Overlay Panel Installation Instructions 12

Operating your Appliance 13-14

Control Panel 13

Setting the Temperature Control 13

Interior Light 13

Sabbath Mode 14

Defrosting 14

Warning System 14

Care and Maintenance 15

Cleaning your Appliance 15

Power Failure 15

Vacations 15

Moving your Appliance 15

Energy-Saving Tips 15

Troubleshooting 16

Limited Warranty 17

French Version of the Manual 18-32

APPLIANCE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the word DANGER or WARNING.

DANGER

WARNING

DANGER means that failure to heed this safety statement may result in severe personal injury or death.

WARNING means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precautions, including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• Replace all panels before operating.
• It is recommended that a separate circuit serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
  • In the event of any damage:
• Avoid open flames and anything that creates a spark,
• Disconnect from the power source,
  • Air the room in which the appliance is located for several minutes and contact the Service Department for advice.
  • Replacing component parts and servicing shall be done by factory-authorized service personnel.

WARNING

FOLLOW WARNINGS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install appliance. Failure to do so can result in back or other injuries.
• To ensure proper ventilation for your appliance, the front of the appliance must be completely unobstructed. Choose a well-ventilated area with temperatures above 50°F (10°C) and below 89°F (32°C).
  • The appliance should not be located next to ovens, grills, or other sources of high heat.
• The appliance must be installed with all electrical, water, and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required.
• Do not kink or pinch the power supply cord of the appliance.
  • The size of the fuse (or circuit breaker) should be 15 amperes.
• It is important that the appliance be leveled in order to work properly. You may need to make several adjustments to level it.
  • All installations must be in accordance with local plumbing code requirements.
  • Make certain that the pipes are not pinched, kinked, or damaged during installation.
• Check for leaks after connection.
  • Never allow children to operate, play with or crawl inside the appliance.
• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolor the interior.
  • Use this appliance only for its intended purpose as described in this User Manual.
• Keep fingers out of the "pinch point" areas. Clearances between the drawers and cabinet are necessarily small. Be careful closing drawers when children are in the area.
  • This appliance is intended to be used in household and similar applications such as
• Staff kitchen areas in shops, offices, and other working environments.
• Farm houses and by clients in hotels, motels, and other residential type environments.
• Bed and breakfast type environments.
• Catering and similar non-retail applications.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

DANGER

Risk of child entrapment!

Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days.”

Before discarding your old appliance: Take off the doors

Leave the shelves in place so that children may not easily climb inside.

- SAVE THESE INSTRUCTIONS -

LOCATION OF PARTS

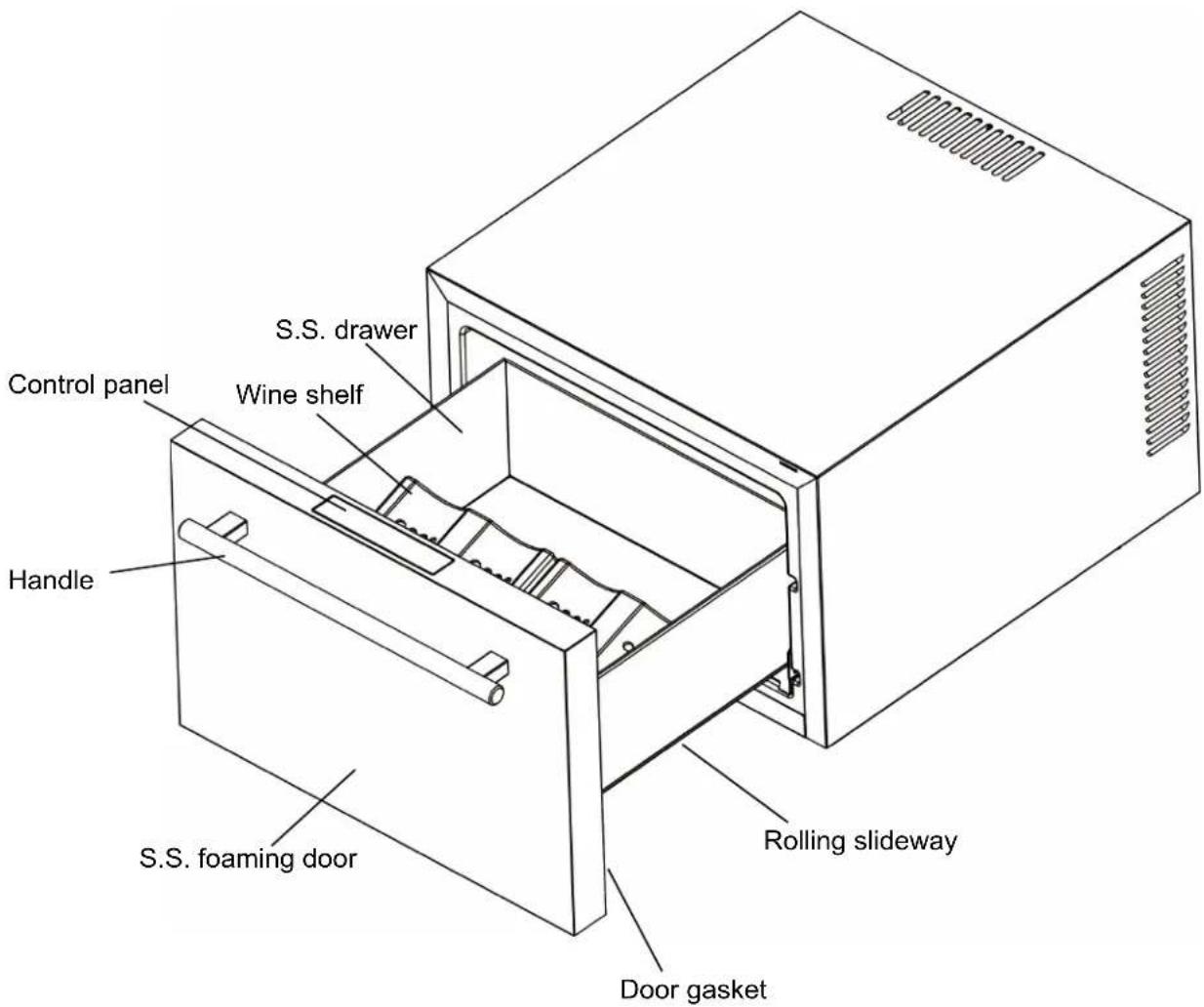

S.S. drawer Control panel Wine shelf Handle S.S. foaming door Rolling slideway Door gasket

NOTES:

• This wine cooler is designed for indoor use only.
• For ventilation purposes, the solid face of the drawer must face toward the door.

INSTALLATION INSTRUCTIONS

Before Using your Appliance

• Remove the exterior and interior packing.
• Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water, using a soft cloth.
  • Install the handle on the drawers if they are not already attached.

Installation of your Appliance

The appliance is designed for built-in, recessed, or free-standing installation

CAUTION: This appliance is not designed for the storage of medicine or other medical products.

• Place your appliance where the floor is strong enough to support it when it is fully loaded. To level the appliance, adjust the front leveling legs.
• For free-standing installation, 5" (127mm) of space between the back and sides of the appliance, and 4" (102mm) at the top, are suggested. This allows for proper air circulation. For built-in installation, keep 2" (50mm) at the rear. Make sure the air ventilation channels at the back of appliances are never covered or blocked in any way.
• Avoid locating the appliance in moist areas.
• Plug the appliance into an exclusive, properly grounded wall outlet.

NOTE: It is recommended that you do not install the appliance near an oven, radiator, or other heating sources. Heat sources may increase electrical consumption, and direct sunlight may affect the outer coating. Do not install in a location where the temperature will fall below 50^ F ( 10^ C). For best performance, do not install the appliance behind a cabinet door or block the base grille.

Built-in Installation

CAUTION: For this model, please take into consideration the clearances required for air intake and exhaust.

Hot air must be driven by the ventilation to the rear wall of the cooler and then expelled upwards. The ventilation channels shall be at least 5.11"x2.36" (130x60mm) in cross-section.

Warning: to ensure proper operation, the ventilation grilles must never be obstructed or covered.

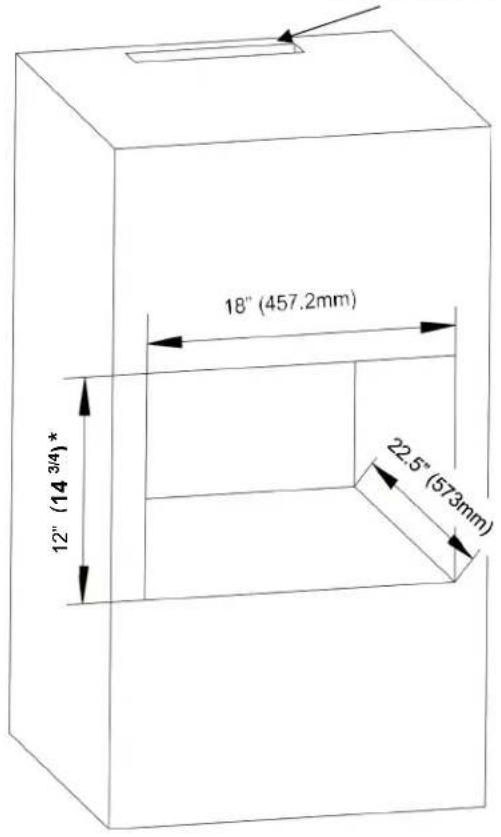

Ventilation channel 5.11x2.36 in. (130x60mm)

18" (457.2mm) 12" (14 3/4)* 22.5" (573mm)

NOTE: If you are unable to cut a top ventilation hole, install the included ventilation grille and allow for extra ventilation space.

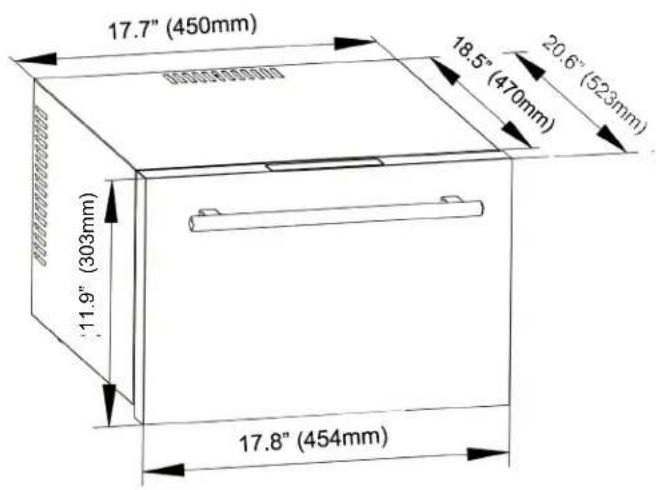

17.7" (450mm) 18.5" (470mm) 20.6" (523mm) 11.9" (303mm) 17.8" (454mm)

*Height needed if installing with included grille.

Line drawing of a refrigerator with an open door and internal shelves, showing a directional arrow (no text or symbols)

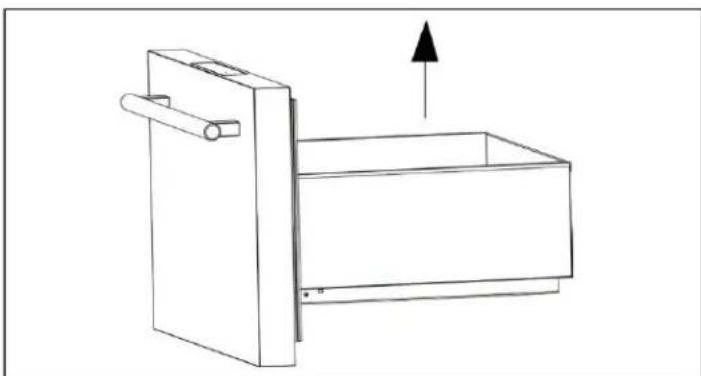

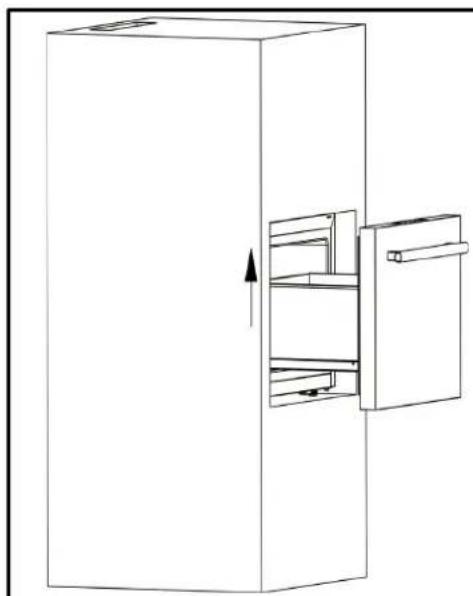

Recess the cooler into the kitchen cabinet and remove the S.S. drawer.

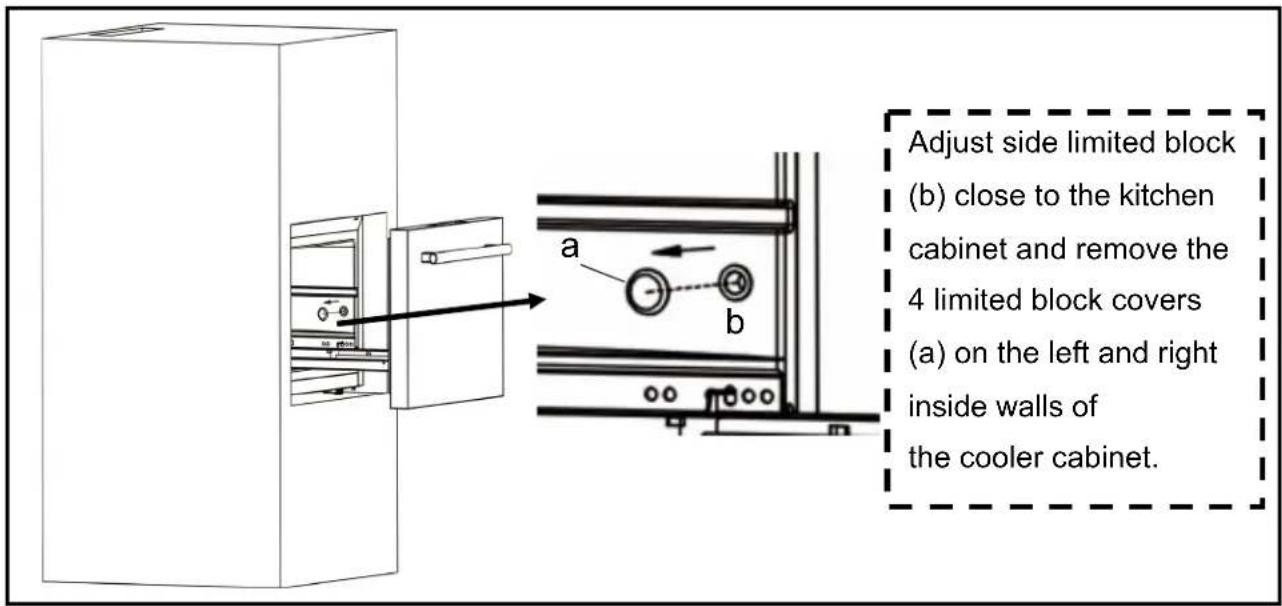

Adjust side limited block (b) close to the kitchen cabinet and remove the 4 limited block covers (a) on the left and right inside walls of the cooler cabinet.

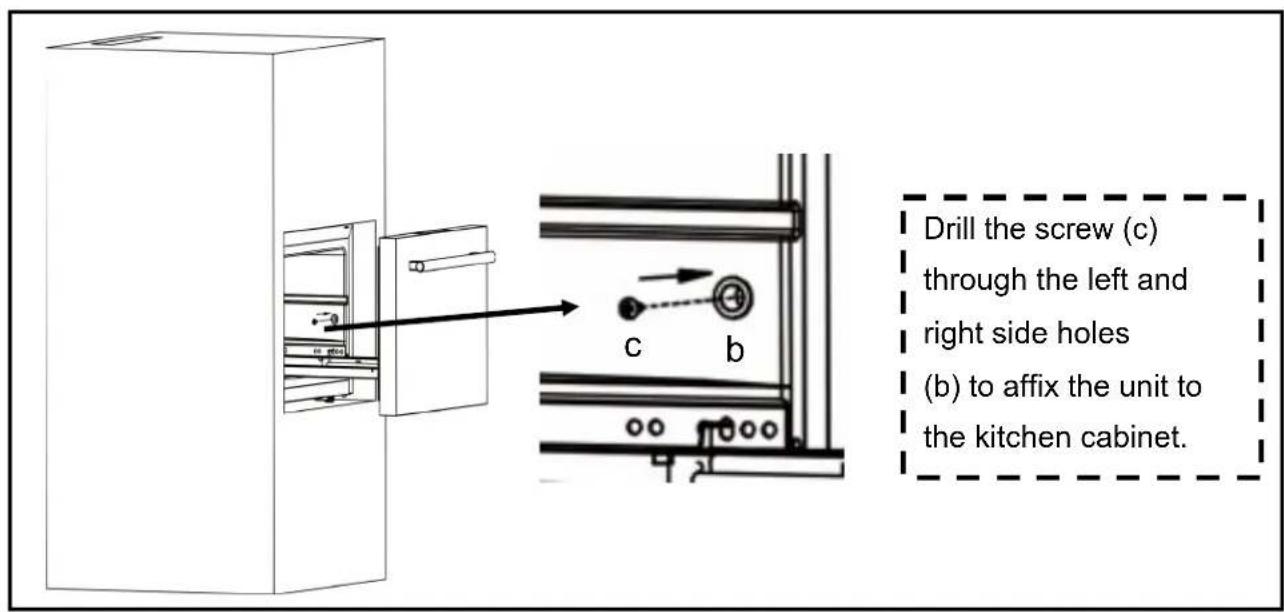

Drill the screw (c) through the left and right side holes (b) to affix the unit to the kitchen cabinet.

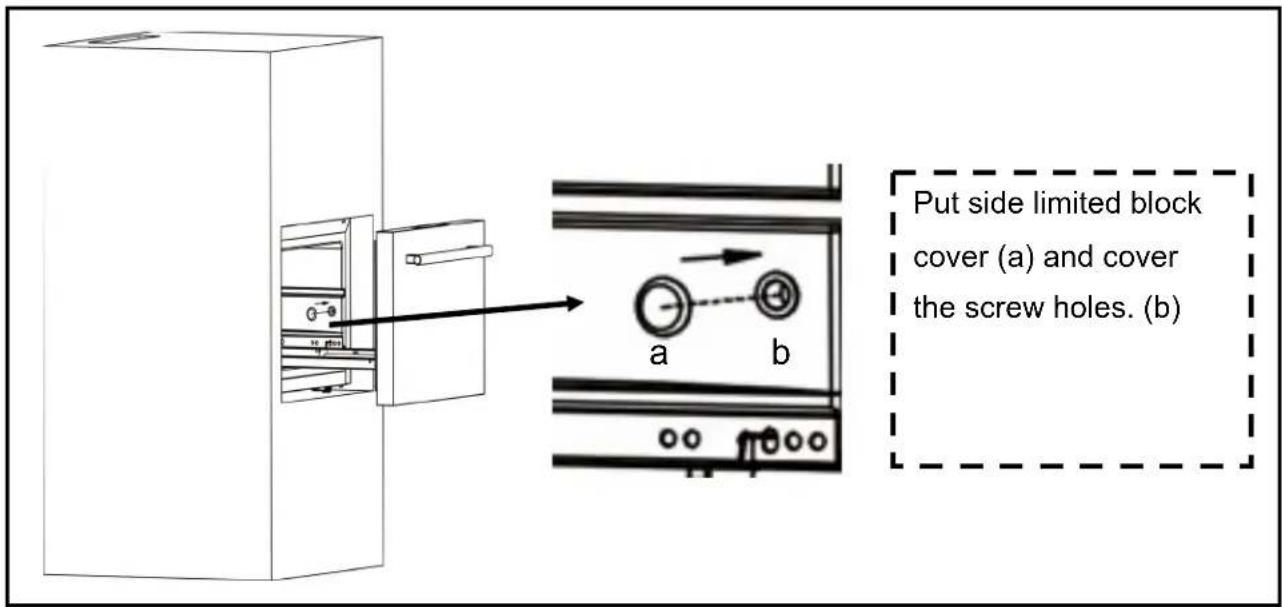

Put side limited block cover (a) and cover the screw holes. (b)

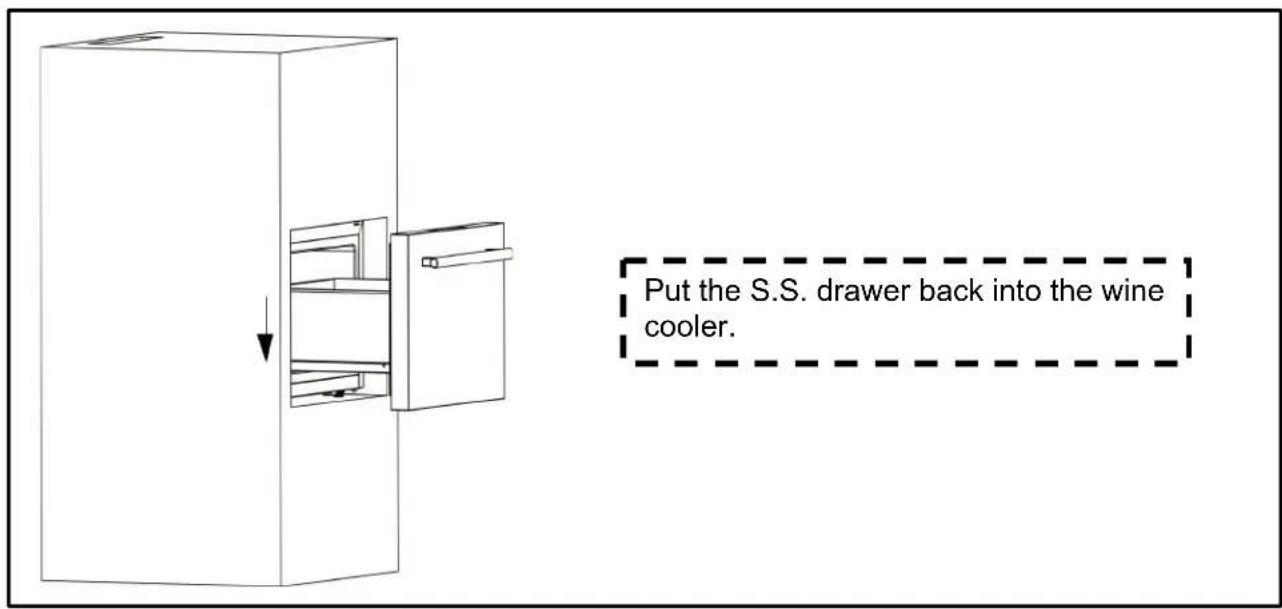

Put the S.S. drawer back into the wine cooler.

a. Side limited cover (2pcs on each side of cabinet) c. Screw

b. Side limited block (2pcs on each side of cabinet)

Shelves and capacity

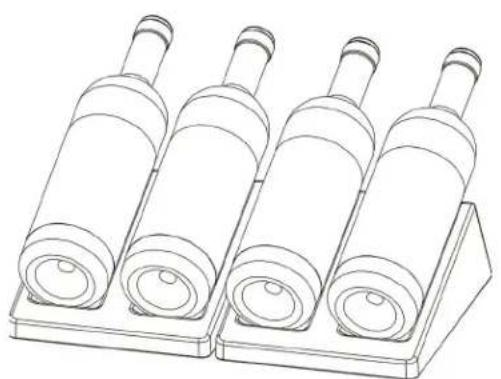

This model includes 2 movable wine shelves, you can store the wine with or without using the wine shelves. However, there will be different bottle capacities depending on if you use the wine shelves or not.

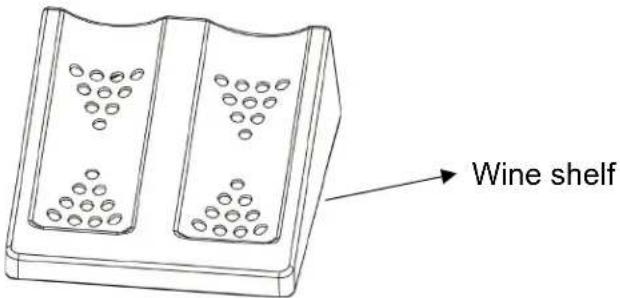

Wine shelf

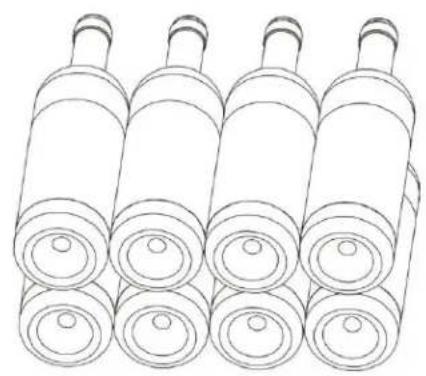

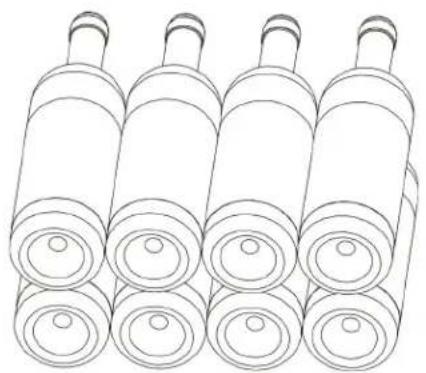

• Without using wine shelves, it can store 8 bottles of wine with a maximum diameter of 86mm

Line drawing of a four-cylindrical wine bottle in a rectangular box (no text or symbols)

Line drawing of stacked cylindrical containers with no text or symbols

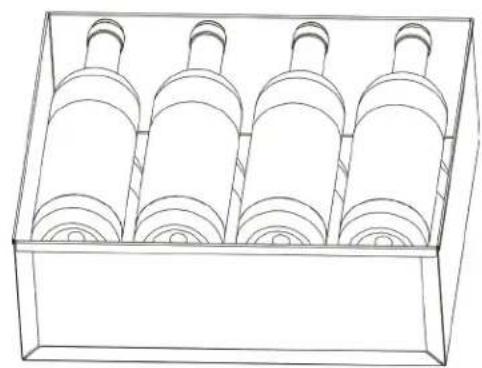

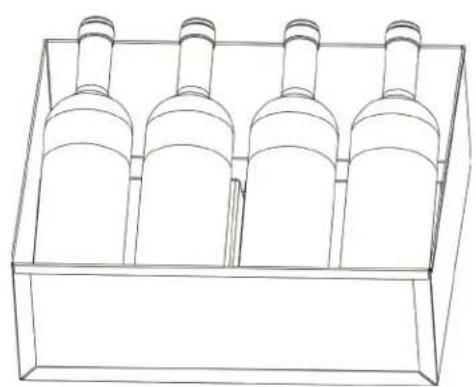

- With using wine shelves, it can store 4 bottles of wine with a maximum diameter of 86 ~mm

Line drawing of a rectangular box containing four identical bottles (no text or labels)

Line drawing of four cylindrical mechanical components mounted on a base (no text or symbols)

Electrical Connection

WARNING

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by a qualified electrician or an authorized service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug, which mates with standard three-prong wall outlets to minimize the possibility of electrical shock.

Do not, under any circumstances, cut or remove the third (grounding) prong from the power cord supplied. For personal safety, this appliance must be properly grounded. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.

This appliance requires a standard 115/120 Volt AC \~60Hz three-prong grounded electrical outlet. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or dangling.

The appliance should always be plugged into its own individual electrical outlet, which has a voltage rating that matches the rating label on the appliance. This provides the best performance and prevents overloading house wiring circuits, which could cause a fire hazard from overheating. Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull it straight out from the receptacle. Immediately repair or replace all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

Extension Cord

Due to potential safety concerns under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord, it is necessary that it be a UL/CUL-Listed, 3-wire grounding-type appliance extension cord that has a grounding-type plug. The electrical rating of the cord must be 115 volts and at least 10 amperes.

Installing the Stainless Steel Handle

This appliance includes one stainless steel handle that is not required to operate the appliance. To install the handle, follow the instructions below:

1. Remove the door gasket.
2. Install the handle with the screws provided. DO NOT over-tighten as this will cause damage to the stainless steel door surface.
3. Reinstall the door gasket.

Technical line drawing of a mechanical assembly with no visible text or symbols

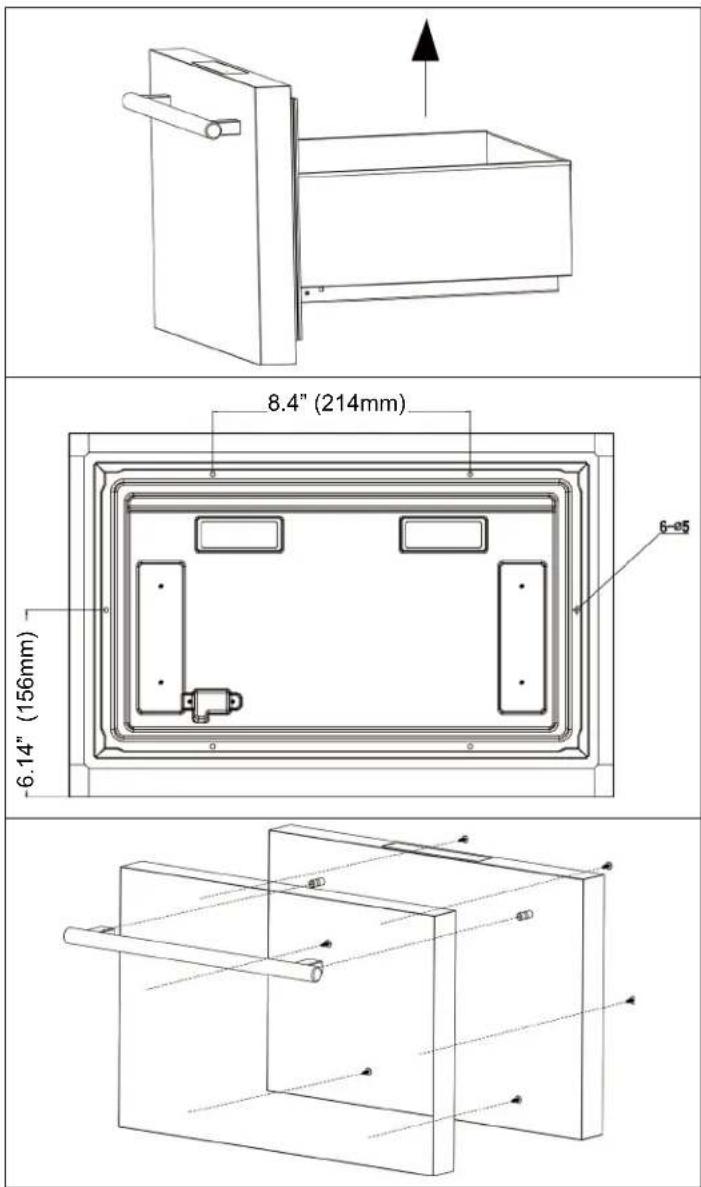

Full Overlay Panel Installation Instructions

This model is designed for a field-installed overlay panel, which can cover the stainless steel to give a built-in appearance. The overlay panel and appropriate hardware are not included with the appliance, and you must install the panel yourself.

Please follow the instructions below for installation:

1. Remove any items stored inside the drawers and take the drawers out.
2. Peel off the gasket and remove the handle by removing the two screws that attach the handle to the door.
3. Drill the 6 holes shown by using a 9/50" drill bit on the 4 sides of the drawer door front. (Fig.2)
4. Cut the overlay panels with 3/4" thickness to the following dimensions: 17.87" x 11.9" (WxH).
5. If reusing the handle that came with the appliance, drill two holes with a diameter of 9/50" in the overlay panel.
6. If user-supplied handle will be used, attach the handle to the overlay panels by using the flat head screws and drive the screws flush with the panels.

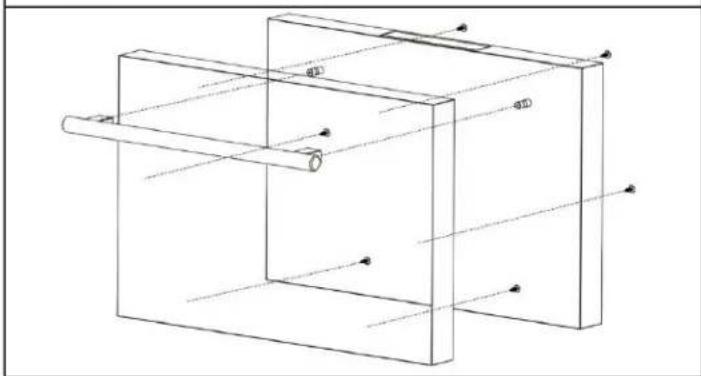

7. Attach the handle and overlay panel together to the drawer face using 2 M4x45 screws and through the 2 existing holes on the door face. Then attach the overlay panel to the drawer face using 6 M4x45 screws and through 6 existing holes inside the door groove. (Fig. 3)
8. Attach the overlay panel to the drawer face through the existing holes inside the door groove, using the 6 M4x45 screws.
9. Peel back the gaskets, then align the left and right side channels with the tracks in the cabinet.

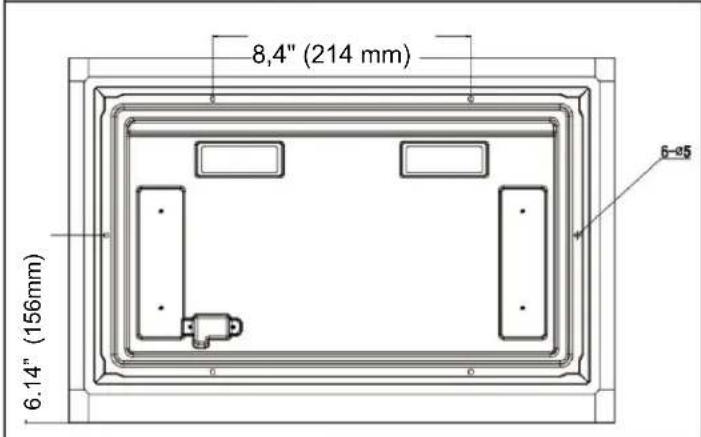

8.4" (214mm) 6-25 6.14" (156mm)

OPERATING YOUR APPLIANCE

Install the appliance in a place where the ambient temperature is between 50^ F and 89^ F ( 10^ to 32^ C), and ideally about 77^ F ( 25^ C). If the ambient temperature is above or below the recommended temperatures, the interior temperatures may fluctuate, and the optimal operating temperature may not be reached.

Control Panel

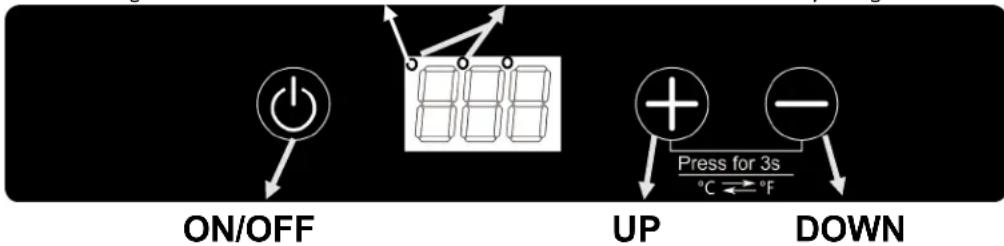

The dot will light on when Sabbath mode on These 2 dots will flash if door opening alarm is on

ON/OFF UP DOWN Press for 3s °C ←→ °F

ON/OFF Power

To turn the appliance off, press and hold the key for 5 seconds until the temperature display goes off.

NOTE: Pressing the ON/OFF key once can switch off the audible alarm when the alarm is on.

Setting the Temperature Control

• You can set the temperature by pressing the UP or DOWN symbol. The temperature preset at the factory is 46°F or 8°C.
  • The range of set temperatures is from 46^ F to 68^ F or 8^ C to 20^ C.
• Set the temperature by pressing the UP or DOWN symbol.
• The temperature will increase by 1°C/1°F each time you press the UP symbol and will decrease by 1°C/1°F each time you press the DOWN symbol.
• Select the temperature display in Fahrenheit or Celsius degrees. To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and hold the UP and DOWN symbols for 3 seconds.

Interior Light

• The interior light will turn on/off automatically when you open or close the door.

Sabbath Mode

• Sabbath mode is available for the observance of certain religious holidays. This mode turns off the displays, interior light, and audible alarms and prevents them from turning on again. Normal cooling operations will still take place.
• To initiate Sabbath mode, press the ON/OFF and UP symbols at the same time and hold for 3 seconds. The dot in the upper left corner of the LED screen will on and confirm that Sabbath mode is ON.
• Sabbath mode can be canceled by repeating the process above. Sabbath Mode will automatically turn off after 24 hours. If the power goes off, when it is recovered, Sabbath Mode will turn off.

Defrosting

Under normal operating conditions, the appliance does not require manual defrosting.

Warning System

Door Opening Alarm

If the door has been left open for more than 5 minutes, the 2 dots on the screen will flash and beep 3 times every 5 seconds. Press any key or close the door to stop the alarm.

CARE AND MAINTENANCE

Cleaning your Appliance

• Turn off the power, unplug the appliance, and remove all items.
- Wash the inside surfaces with a solution of warm water and baking soda (a quart of water to about 2 tablespoons of baking soda).
- Wring excess water out of the sponge or cloth when cleaning the area where the controls are located, or near any electrical parts.
- Wash the outside cabinet with warm water and mild liquid detergent. Rinse well, and wipe dry with a clean, soft cloth.
- Use an approved stainless steel cleaner to clean the doors and handle. Do not use steel wool or a steel brush on the stainless steel.

CAUTION: Failure to unplug the appliance before cleaning could result in electrical shock or other personal injuries.

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the drawers are opened. If the power is going to be off for a longer period of time, take the proper steps to protect the contents.

Vacations

• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items, and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the drawers slightly open.

Moving your Appliance

1. Remove all stored items.
2. Securely tape down all loose parts (baskets, dividers) inside your appliance.
3. Turn the adjustable legs up to the base to avoid damage.
4. Tape the drawers shut.
5. Be sure the appliance stays secure and in an upright position during transportation. Also, protect the outside of the appliance with a blanket or similar item.

Energy-Saving Tips

• The appliance should be located in the coolest area of the room, away from heat-producing appliances, and out of direct sunlight.
• Ensure that the appliance is adequately ventilated. Never cover air vents.
• Do not keep the drawers open longer than necessary.
• Let hot foods cool to room temperature before placing them in the appliance.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This reduces frost build-up inside the appliance.
• Appliance bins and baskets should not be lined with aluminum foil, wax paper, or paper towels. Liners interfere with cold air circulation, making the appliance less efficient.

TROUBLESHOOTING

You can solve many common problems easily, possibly saving you the cost of a service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

PROBLEM	POSSIBLE CAUSE	REMEDY
The appliance does not operate	The appliance is not connected to a power sourceThe appliance is turned offA triple circuit breaker or blown fuse	Connect the appliance to a power sourceTurn on the applianceTurn the circuit breaker on or replace the fuse
The appliance is not cold enough	The temperature is not set correctlyThe drawer is opened too oftenThe drawer was not closed completelyThe drawer is not hermetically sealedThe condenser is too dirtyThe ventilation opening is blocked or is too dusty	Check the set temperature. The ambient temperature could require a lower temperature setting, set a lower temperatureDo not open the drawer more often than necessaryClose the drawer properlyCheck the seal and clean or replace itClean the condenser, when necessaryClear any obstructions and wipe off the dust.
The appliance turns itself on and off frequently	The ambient room temperature is higher than averageA large amount of food has been added to the applianceThe drawer is opened too oftenThe drawer is not closed completelyThe drawer gasket does not seal properly	Place the appliance in a location with a cooler ambient temperatureLeave the appliance to work until the set temperature has been reachedDo not open the drawer more often than necessaryClose the drawer properlyCheck the drawer seal and clean it or replace it.
The light does not work	The appliance is not connected to a power supplyA tripped circuit breaker or a blown fuseThe light is switched off on the control panel	Connect the applianceTurn the circuit breaker on or replace the fuseSwitch on the light
Vibration	The appliance is not properly leveled	Level the appliance using the adjustable feet
The appliance makes too much noise	The appliance is not properly leveled	Level the appliance with the adjustable feet
The drawer will not close properly	The appliance is not properly leveledThe gasket is dirtyThe baskets or bins are out of position	Level the appliance with the adjustable feetClean the drawer gasketsCheck the baskets and bins and refit them correctly.
Display “LL,” “EE”	“LL” indicates the temperature sensor open circuit“EE” indicates the temperature sensor short circuit	Call for service.

If you've checked the table above and find that you still need help with your appliance, call our Customer Service facility at 800-932-4267 or visit summitappliance.com/support between 9:00 AM and 5:00 PM ET. We will do our best to answer your questions.

LIMITED WARRANTY

ONE-YEAR LIMITED WARRANTY

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards and are not covered from damage during handling or breakage.

ITEMS WARRANTOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for appliances operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES - LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

WARNING: This product can expose you to chemicals including Nickel (Metallic) which is known to the State of California to cause cancer.

For more information go to www.P65Warnings.ca.gov

Note: Nickel is a component in all stainless steel and some other metallic compositions.

Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www.summitappliance.com

For parts and accessory ordering, troubleshooting, and helpful hints, visit: www.summitappliance.com/support

SÉCURITÉ DE L'APPAREIL

Line drawing of a cabinet with an open door and internal shelves, showing a directional arrow (no text or symbols)

Line drawing of a four-cylindrical bottle holder in a rectangular box (no text or symbols)

Line drawing of stacked cylindrical containers with circular openings (no text or symbols)

Line drawing of a four-cane wine bottle holder (no text or symbols)

Line drawing of four cylindrical mechanical components mounted on a base (no text or symbols)

Technical line drawing of a mechanical assembly with a rectangular frame and two vertical supports (no text or symbols)

Line drawing of a rectangular box with a handle and an upward arrow, no text or symbols present

8,4" (214 mm) 6.14" (156mm) 6-05

Technical line drawing of a mechanical assembly with no visible text or symbols

FONCTIONNEMENT DE VOTRE APPAREIL

GARANTIE LIMITÉE D'UN AN

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www.summitappliance.com

www.summitappliance.com/support
