| Product type | Vinyl record turntable |
| Brand | Pro-Ject |
| Model | Debut B |
| Dimensions (W x D x H) | 415 x 335 x 118 mm |
| Weight | 5.5 kg |
| Power supply | AC adapter 15 V DC / 1.6 A |
| Drive type | Belt drive |
| Speeds | 33 1/3 and 45 RPM |
| Included cartridge | Audio-Technica AT91 |
| Tonearm | Straight aluminum tonearm |
| Dust cover | Included |
| Platter material | MDF (medium-density fiberboard) |
| Color | Black (matte finish) |
| Connectivity | RCA output (phono cables included) |
| Care and cleaning | Clean with a soft dry cloth; avoid contact with water or solvents |
| Safety | Use only with the supplied adapter; do not expose to moisture |
| Spare parts and repairability | Parts available from authorized Pro-Ject dealers |
| Warranty | 2 years |
| Country of manufacture | European Union |
Frequently Asked Questions - Debut B PRO-JECT
User questions about Debut B PRO-JECT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Turntable in PDF format for free! Find your manual Debut B - PRO-JECT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Debut B by PRO-JECT.
USER MANUAL Debut B PRO-JECT
- Make sure to have enough space to unpack your turntable.
Always unpack and set up in a clean environment. - Please Do NOT throw away the packaging! If you need service or want to return your product, please send it in the original packaging including all inserts. In case of damage due to alternative packaging your dealer cannot guarantee a full refund.
complete manual: www.project-audio.com/en/product/debut-pro

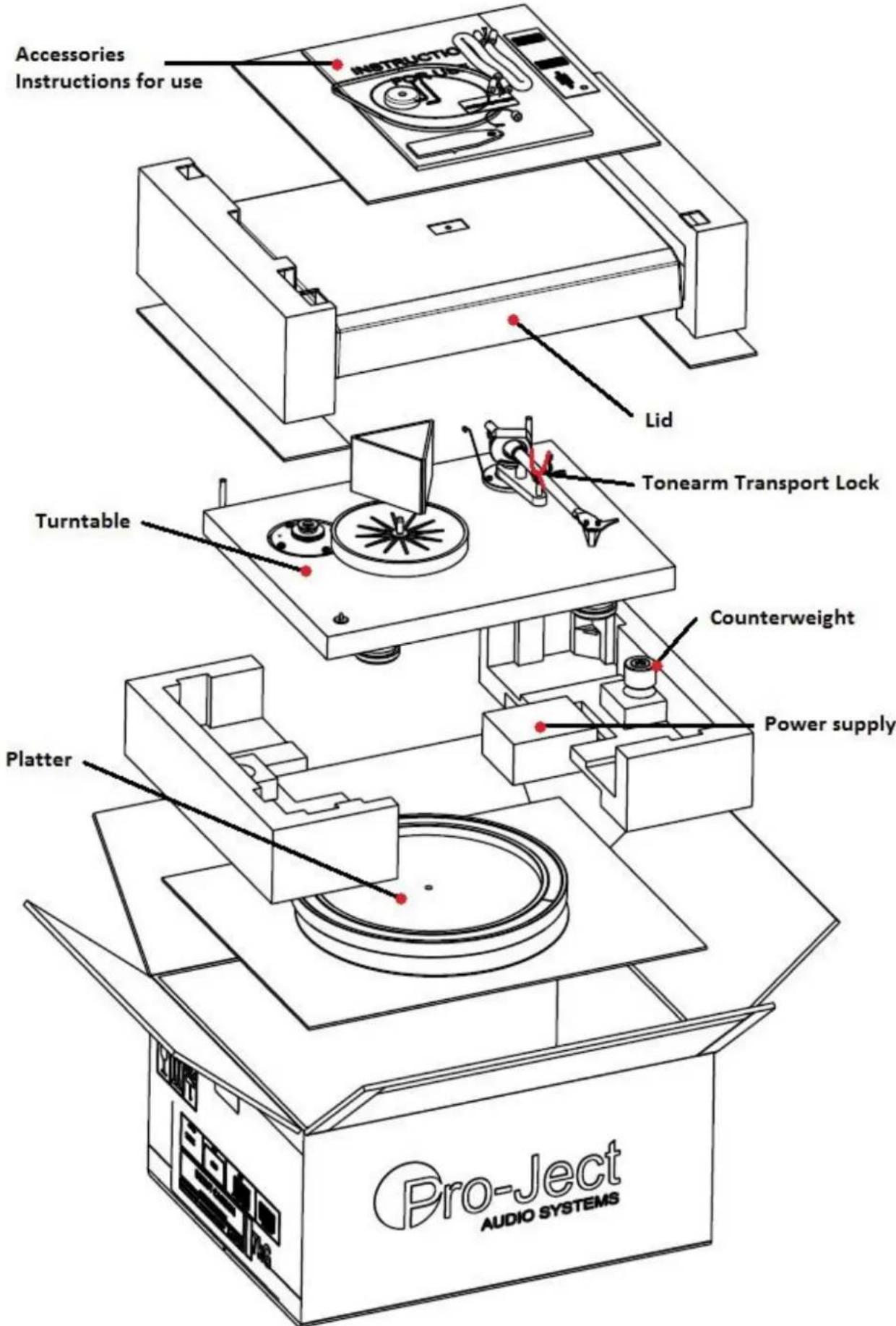

Unpack all items from accessory bag: Remove dust cover carton from the box.
Carefully remove the covering.

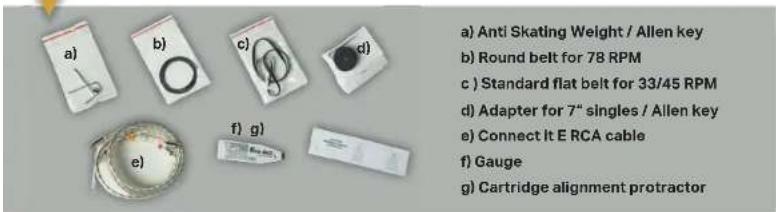

a) Anti Skating Weight / Allen key
b) Round belt for 78 RPM
c) Standard flat belt for 33/45 RPM
d) Adapter for 7^th singles/Allen key
e) Connect It E RCA cable
f) Gauge
g) Cartridge alignment protractor
Unpack the counterweight.
Unpack the power supply.
Lift the wrapped turntable out of the box.
Unpack the platter.
Put the flat drive belt (c) on the pulley and sub-platter.
Remove tonearm twist tie.
Place the stylus on the gauge. The stylus should read 20.
Plug in power supply and Connect it E (e) Yellow cable marks to the amplifier.
Put the platter on the turntable.
Put the counterweight In place.
Balance the tonearm by turning the counterweight forwards and backwards on the rod.
Unpack dust cover and Install it.
The turntable should always be placed on a flat surface. Check with a spirit level*.
Remove the stylus protection cover.
When the gauge stays level, your tracking force is set correct.
Use the switch to select the playback speed.
If necessary, level the turntable by adjusting the feet.
at the gauge (f) on the platter.
Put the loop of the Anti Skating Weight (a) in the outer notch on the tonearm post.
Connect to your hifi-system and have fun with music!
Debut PRO
The instrument everyone can play.

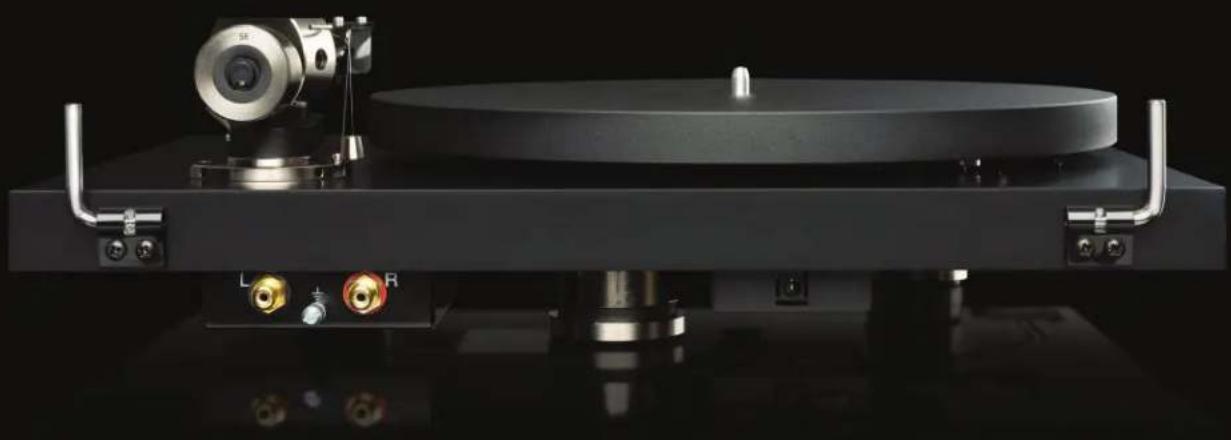

Need help?
Feel free to contact us. We have experienced
partners all over the world. Find your dealer here:
www.project-audio.com/en/find-a-dealer/
Service
Should you encounter a problem which you are not able to alleviate or identify despite the above information, please contact your dealer for further advice. Only when the problem cannot be resolved there should this unit be sent to the responsible distributor in your country. Warranty repairs will only be affected if the unit is returned correctly packaged. For this reason we recommend keeping the original packaging. Never return a recirc player without making sure that it is safety disassembled and correctly packaged in the original packaging according to the diagrams on the fias, page of this user guide. Please remove these parts and pick them separately. Id counterweight, anti-shaking weight and belt. Fit the cartilage protection cap and the transport lock for the tonearmulto, prior to carefully packaging the record player.
Warranty
The manufacturer accepts no responsibility for damage caused by not adhering to these instructions for use and/or by transportation without the original packaging. Modification or change to any part of the product by unauthorized persons release the manufacturer from any liability over and above the lawful rights of the customer.
Warranty: Terms and Conditions
A warranty is sold only for products purchased from an authorized Pro-Jest Audio Systems retailer or dealer. This warranty offer is limited to the repair of the equipment (which could be a repair or replacement at our discretion, neither of which affects your original warranty).
- Neither transportation or any other costs, nor any risk for removal, transportation and installation of products is covered by this warranty.
- a warranty is only valid for the one on the owner's behalf.
- This warranty does not apply to the customer.
- To be used with: the original sales invoice or other proof of ownership and date of purchase.
- Warranty must be claimed within two years of purchase from an authorized dealer. After this period of time, the warranty will expire.
- The legal warranty obligation exists in addition to this warranty and is not limited by this warranty.
A Pro-Ject Audio Systems warranty relates to claims of defects in materials and/or workmanship at the time of purchase, if does not cover:
- Deterioration of component parts, the nature of which is to become worn or depleted with use such as batteries and headphone ear gade, drive belts and cartridges.
- Damages caused by incorrect installation connection or docking
- Losses caused by the user's use of a device that is not authorized to use in the user's home, negligence, modifications, or use of parts that are not made or authorized by Pro-Jet Audio Systems.
- Damages caused by faulty or unsuitable ancillary equipment
- Damages caused by accidents, fighting, water fire, heat, war, public disturbances or any other cause beyond the reasonable control of Pro-Ject Audio Systems and its appointed distributors.
- Products where the serial number has been altered, deleted or removed or misfile integre.
Commercial Use
Fees caused due to using domestic products in commercial environments or on commercial scales are not covered by warranty. This turntable is intended for domestic use only. Using them for business applications and done so at your own risk.
Pro-ject Audio Systems is a Registered Trademark of K. Lichtenegger.
This quote was produced by: Pro-Joint Audio Systems Copyright © 2021. All rights reserved.
The information, pictures and figures were correct at the time of going to press. The manufacturer reserves the right to make changes to the technical specification without prior notice as deemed necessary to uphold the ongoing process of technical development.
Deutsch
B. Toshkaya and Yoonabang
- INTRODUCTION
1.2023年1月25日
a
-
Introduction to the General Treatment of Epilepsy
-
NiedererGensDerangement
n-0.0078602792K/1.5
T
A
P
15.2019年4月27日
10
1.
m
2015 Vol. 3: Introduction to Sets, Galerkin and Jensenberg Theory
2.00000000000000000000000000000
T
124567108342295455
1
NO.10247586930000000000000000000000000000000000000000000000000000
（）
w
0000000000000000
（）
2017年6月29日
T
2018年/6月29日星期一
(1)
124
（一）本次减持计划
（）
(1) ADE 为等腰RtΔ,且 AD = DE = 25,AB = AC
y
Sereosrssnre
supredneppe
T
2017年1月29日
T
P
C. 10
01.000000000000000000000000000000000000000000
10
m
ai a ai 分母最小值为 k .
The behaviour of the system is similar to that of the system with a linear damping function. See Table 1 for details.
00749248-57074 600000000000
2013/10/18 25:00 PM
0000000000000000000000000000000000000000000000000000000000
- The body, the patient, the patient's health
10.2017年1月14日
5
"
T. Ferretti, PhD
C0620.100000000000000000000000000000
P012489000000000000000000
8.10000000000000000000
QFJ1020000000000000000000000000000000000000000
1
y
1.577000000000000
p00000000000000000000000000000000000000
C000000000000000
2018年1月16日星期一
中
10
2017年1月1日（星期二）
1
123.04-250.00-250.00-45848-263
2.1.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.
Portugués
1
m - 1 0 ;
www.msfchina.com.cn
0123456789000000000000000000000000000000000000
"
e
00000000
A
2023/12/28 2:46:42:00
（）
700077113510632
000000000000
a
（一）股东登记方法
m = 311 ;
Controls, features and connections
1 Motor with TPE damped flange
2 Stepped drive pulley
3 Drive belt
4 Sub-platter
5 Platter with TPE damping and felt mat
6 Tonearm counterweight
7 Tonearm rest and removable transport lock
8 Tonearm lift lever

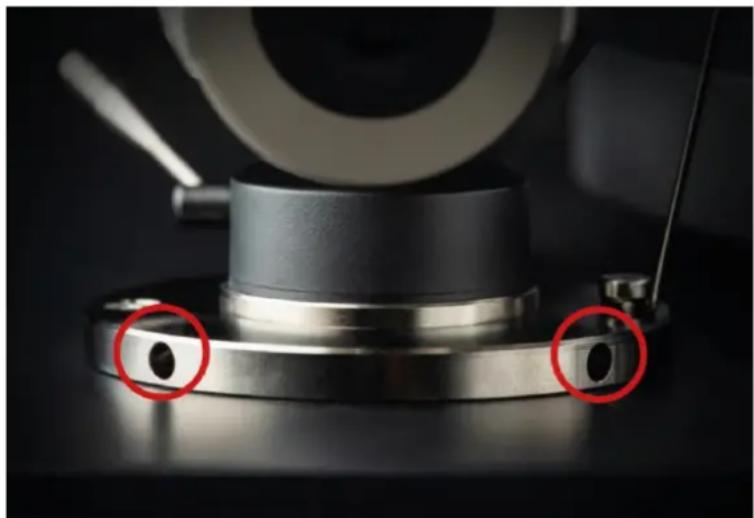

9 Tonearm base with VTA adjustment
10 Tonearm tube
11 Lid
12 Lid hinges
13 Hinge fasteners
14 Phono outputs: RCA with earth connection & balanced mini XLR output
15 Power supply socket
16 Anti-skating weight
17 Anti-skating weight support hoop
18 Anti-skating weight adjustment scale
19 Height adjustable feet with TPE damping
20 Speed selector
21 Headshell with finger lift and fitted Pro-Ject Pick it PRO Balanced
22 Single adapter
Accessories:
a Phono cable Connect it E
b Stylus pressure gauge
c Two-point cartridge alignment protractor
d Round drive belt (78 RPM)
e Flat drive belt (33, 45 RPM)
f Allen key 1.5mm, 2mm
g Universal power supply
h Manual or Setup Guide
During assembly and adjustment of the deck small parts could be lost if not carefully placed in a suitable receptacle. Before starting to assemble, get familiar with the parts listed above and correspondingly numbered in the technical drawings above.
Dear music lover,
Thank you for purchasing your Debut PRO B.
Since 1991 we have been offering high-quality hi-fi products at a reasonable price for discerning music lovers. We started with turntables because they are the first choice for the most natural and affordable music reproduction. Our main focus is always on the materials and technology used. The shape and design of our turntables are always dictated by the functionality.
To this day, our designs have always been kept functional and clean, so the first Pro-Ject product was very simple but made from the highest quality materials: MDF, steel, aluminium, glass, and carbon. Plastic was not used for reasons of sound, durability, and the love of the environment.
The result was a high-quality but simple-looking product with great sound at a low price.
After the Debut Carbon EVO revolutionized the Debut series in 2020, the Debut PRO raised the bar even higher. Now, the Debut PRO B revision also features a balanced mini XLR output together with our new Pick it PRO Balanced cartridge. The first ever balanced MM cartridge!
In order to achieve maximum performance and reliability with new Debut PRO B please read this guide carefully!
Warning of a hazard for the user, the unit or possible misuse.
Important notice.
Safety instructions
The power supply is used to connect and disconnect the unit from the mains. Make sure that the plug is easily accessible at all times. Hold the plug when unplugging the power cord. Never handle the power cord while your hands are wet or damp.
Avoid letting liquids enter the device. Never place any item containing liquid, like a flower vase, on or near the device. Never spill any liquid on the device. Never place any naked flame sources, like lighted candles, on or near the device. The product shall not be used in damp or wet locations, next to a bathtub, sink, swimming pool or any other similar conditions.
Keep plastic bags away from children to prevent any risk of suffocation.
First Set-up – Making your Debut PRO B ready for playback
The deck is supplied partially disassembled and carefully packaged for safe transport. The Setup Guide, included in the packaging with your Debut PRO B, explains the setup process step by step with pictures, so be sure to follow it first and then refer to this guide should you want more detailed explanations. Here, some of the more technical set-up steps are covered in detail and you will gain a lot of important background information which will make you more comfortable with everything your new Debut PRO B has to offer.

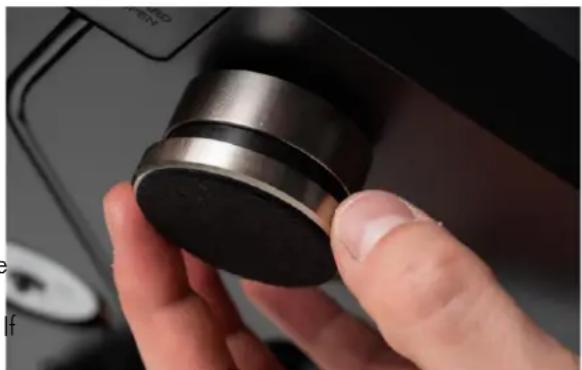

1. Positioning and levelling your turntable
Make sure the surface you wish to use the turntable on is level (use a spirit level) before placing the turntable on it. The height adjustable aluminium feet (19) on the Debut PRO B will also allow you to level the turntable itself, in case you cannot get the surface it is placed on to be level. Great surfaces to put your record player on are typically massive, heavy, stable and also as far as possible away from your speakers. This will avoid the sound of footsteps and other low frequency rumble noises to be transmitted via your floor and furniture/surface and picked up by your turntable. Your record player is super close to your speakers
and/or placed on the same surface as your speakers are, then the sound from your speakers will be picked up by your turntable over the sound pressure waves in the air and vibrations from speakers to the surface. It will be a great idea to decouple the speakers from the surface (for example with our Damp it) and/or get a really heavy, massive and decoupled surface for your turntable (for example our Ground it range of accessories). Different locations/rooms/set-up places have different requirements and if you think you might be running into troubles with your set-up, definitely do check these upgrades out, so your Debut PRO B can unfold all of its performance.

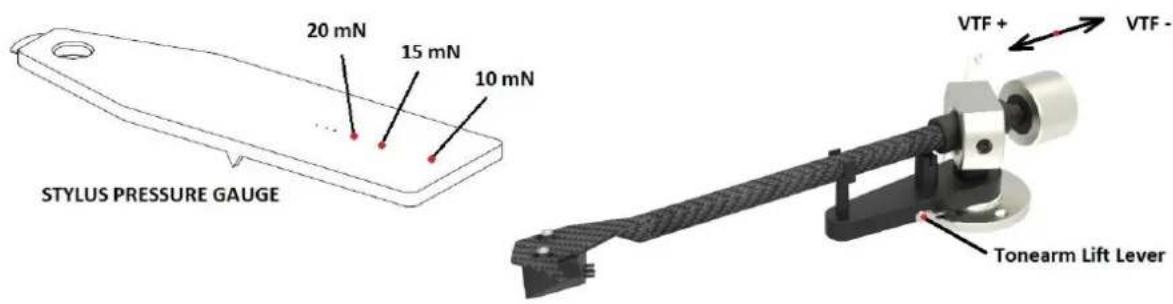

2. Cartridge tracking force adjustment (VTF = vertical tracking force)
The counterweight (6) supplied is suitable for cartridges weighing between 7 - 10.5g (Pro-Ject Pick it PRO Balanced - weight no. 58).
When using different cartridges than the ones supplied with the Debut PRO B, confirm the exact weight of your cartridge before you set the VTF.

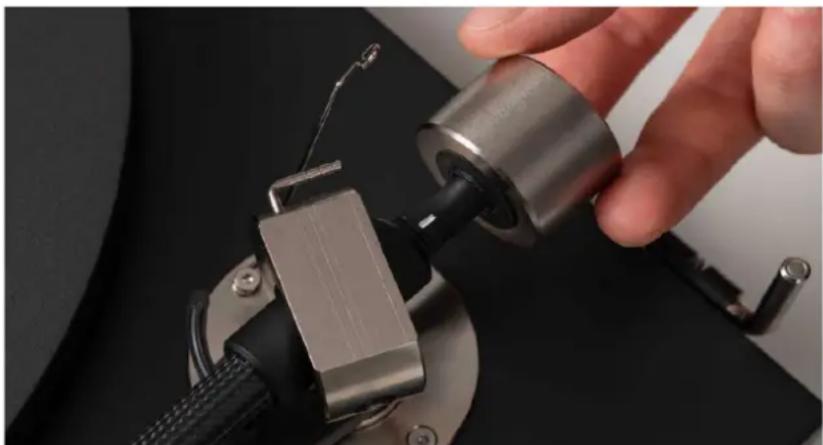

Pushing carefully, move the counterweight (6) onto the rear end of the counterweight support rod as shown in the picture below.
Place the stylus pressure gauge onto the platter. To set the required VTF, lower the tonearm lift lever as indicated in the illustration and place the tip of the stylus exactly in the point marked 20mN (20mN = 2g) . If
the stylus gauge becomes level, then the correct pressure has been achieved. However, if the there is insufficient or excessive pressure the gauge will either not move or tilt down.
To adjust the amount of pressure, carefully move the counterweight (6) along the support rod, until the stylus pressure is sufficient to raise the pressure gauge to the level position. Moving the counterweight (6) away from the cartridge will reduce pressure and towards will increase pressure.
Please note: Adjust the tracking force prior to installing the anti-skating weight.
The recommended tracking force for the Pro-Ject Pick IT PRO Balanced cartridge is 20mN = 2g
Use electronic tracking force scales (like Measure it E ) for more accurate results.
3. Anti-skating force adjustment
The anti-skating force must be adjusted corresponding to the downforce as follows:
Downforce Groove in the stub (18)
10-14mN 1
from bearing rings
15-19mN2
nd Ⅱ Ⅱ
20mN and bigger 3
d
Slip the loop of the anti-skating weight's thread over the third groove of the stub to set the correct anti-skating force for the factory-fitted cartridge. Feed the thread through the loop of the wire support (17).
The Pick it PRO Balanced cartridge on your new Debut PRO B has a recommended tracking force of 20mN (2 grams) so the correct groove for the anti-skating is the 3^rd groove.
4. Connection to an amplifier (integrated amplifier or phono preamplifier)
The record player has gold plated female RCA Phono sockets (14) on the back. Use the included Connect it E phono RCA cable to connect your Debut PRO B to your amplifier. The cable ends with the yellow markings are plugged into the phono inputs (sometimes also labelled gram, disc or RIAA) on your amplifier. Make sure that the phono input offers correct matching and amplification for the type of cartridge used. Line inputs (such as CD, Tuner, Tape or Video) are not suitable.
The recommended load impedance for the Pick it PRO Balanced is: 47 kohms
The recommended load capacitance for the Pick it PRO Balanced is: 150 - 300 pF
Check your amplifier documentation!
Take care to connect the left and right channels correctly. The right channel is usually marked red, the left channel black or white. Check the manual supplied with your amplifier for relevant information. The earthing wire of the tonearm lead should be connected to the earth terminal on your amplifier.
If your amplifier does not have an input suitable for phono cartridges you will require a separate phono amplifier stage for MM cartridges which is then connected between the record player and a free line level input of the amplifier. A separate phono preamplifier can also be helpful if you want to upgrade your sound experience, as external phono preamps are 100% dedicated to making your turntable sound as good as it can possibly be. They are not limited by other restrictions typically found in integrated amplifiers, which are almost always compromising sound quality a bit.
If you have a balanced phono preamplifier (like our Phono Box S3 B) you can use your Debut PRO B's full potential by running it in a true balanced configuration. With a separately available Connect it Phono E RCA/miniXLR you can connect your Debut PRO B to balanced phono preamplifiers and use your cartridge's full potential. Usually this is only possible with MC cartridges, as typical MM cartridges cannot be ran in a fully balanced configuration. The Pick it PRO Balanced is the first MM cartridge of its kind, specifically modified to be compatible with balanced phono preamplifiers!
For detailed product information regarding Pro-Ject Audio interconnect cables and phono amplifiers please refer to the Pro-Ject web site www.project-audio.com.
5. Mains power connection
The turntable is supplied with the universal power supply with 3 exchangeable sockets adapters suitable for all countries. Select the correct adapter for your country and insert the adapter to the exchangeable part of the power supply.
Connect the low voltage plug from the power supply to the socket (15) on the rear of the record player before connecting the power supply to the mains.
6. Fitting the lid
Fit the lid (dust cover 11) carefully over the hinge prongs and adjust the screws (13) until the lid stays open where you want it to without being too stiff to open or close.
The lid is not only a dust cover but also a resonant structure likely to be excited by and to pass into the plinth the acoustic energy emanating from your loudspeakers during replay. Therefore, it is recommended to remove the lid completely during vinyl playback for achieving a better sound quality.
7. Switching on and off, changing replay speed
The turntable is equipped with a rocker switch for electronic speed change. To play records at 33 rpm, move the rocker switch to the left side. To play records at 45 rpm, move the rocker switch to the right side. To be able to play 78 rpm the flat drive belt has to be removed and the round drive belt has to be fitted around the sub-platter (4) and the larger diameter part of the motor pulley (2). To do so, the platter (5) has to be removed.
After the round drive belt has been fitted, moving the rocker switch to the right selects 78 rpm.
Advanced Debut PRO B adjustment options
The following adjustments are NOT necessary for first time set-up but important later on when changing or upgrading the cartridge! For the included cartridge these settings are factory set correctly.

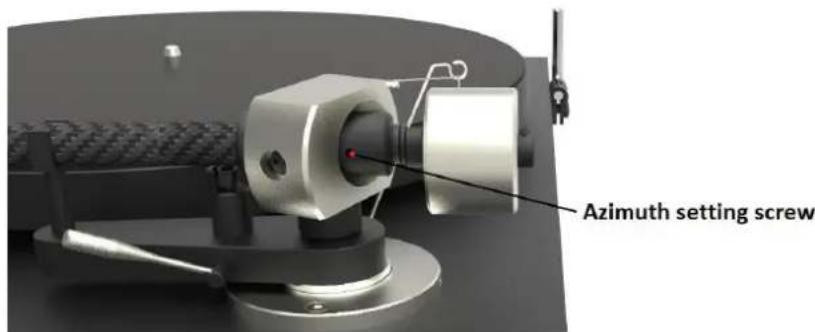

1. Adjusting the azimuth
The cartridge needle must be vertical in the record groove in order to trace the groove wall modulations correctly.
The cartridge on your Debut PRO B that comes pre-adjusted by the factory, is already correctly set up and you do not need to adjust the azimuth anymore! You should check and/or re-adjust the azimuth if you change or upgrade your cartridge.
A small screw at the bearing end of the arm allows incorrect azimuth to be corrected if your needle is not mounted exactly perpendicular to the cartridge body (which is often the case).
Slacken off the screw just enough to be able to revolve the arm tube without applying force. Please note: do not remove the screw completely!
With the aid of a good magnifying glass adjust the needle until it is vertical in the groove (i.e. perpendicular to the record's surface). Ideally this should correspond to the top surface of the cartridge body being parallel to the record surface.
When you are satisfied that the needle is vertical retighten the screw carefully.
Please note: Under no circumstances should the arm tube be adjusted with the needle still in the record groove! Irreparable damage may be caused to the cantilever suspension! The arm must be lifted to make each adjustment and lowered afterwards to check it.
2. Fitting and connecting a cartridge
The following instructions for fitting and connecting a cartridge are provided in case the cartridge is replaced by a different model at a later date, the included cartridge comes fully adjusted and aligned from the factory.
** All cartridges with half inch mounting holes can be fitted. Leaving the needle's protection cover on, fit the cartridge to the headshell using the screws supplied with the cartridge by passing one screw through each slot in the headshell (20). Do not tighten the nuts yet.
Connect the tonearm wires to the cartridge pins as follows:
white left channel positive (L + )
red right channel pos. (R+)
green right channel return (R-)
blue left channel return (L-)
The full sound quality of the record player can only be achieved if the cartridge is correctly adjusted. Particular tools like the Pro-Ject alignment tool are required to accomplish this job properly.
If you are not well acquainted with the adjustment of cartridges you are advised to call upon the willing help of your Pro-Ject dealer to accomplish this task for you.
Please note: Adjusting a cartridge and tonearm calls for the greatest care in order to avoid damaging the cartridge or tonearm bearings. Refer to the documentation of the alignment tools you are using for setting up your cartridge correctly. Leave this work to your dealer if you are in any way unsure of the necessary steps and precautions to be taken.
3. Adjusting the vertical tracking angle (VTA)
Put a record on the platter. When the needle is lowered into the record groove and the tonearm is not resting on the lift arm, the tube of the tonearm should be parallel to the surface of the record.
If it is not, loosen both hexagon screws in the tonearm base just enough to allow vertical movement of the arm pillar without force and slide the arm up or down until it is parallel.
Retighten the hexagon screws without applying excessive force (which would deform the arm pillar) - finger tight is quite sufficient.
4. Maintenance and cleaning
Your record player requires little or no regular maintenance. Remove dust with a slightly moistened antistatic cloth. Never use a dry cloth because this will create static electricity which attract more dust! Antistatic cleaning fluids are available at specialist stores but must be applied sparingly to avoid damage to rubber parts. It is recommended to fit the needle cover before cleaning or maintenance is carried out to avoid damage. If the player is not used over a long period of time the drive belt can be removed to prevent unequal stretching. The platter bearing is important for the correct speed and overall lifetime of the turntable. The oil can disappear by playing regularly or it gets dirty by rubbing of the metal (turns from grey to black). You should continually check if there is oil on the axle. In any case, it is a good idea to renew the lubrication after 3 years at the latest.
We recommend using Lube it to lubricate your platter bearing.
Always disconnect the record player from the mains power supply as a precaution before maintenance!
Technical specifications Pro-Ject Debut PRO B/ Pro-Ject 8.6 PRO
| Nominal speeds | 33/45 r.p.m.. *** 78 r.p.m. optional |
| Speed variance | 33: ±0.40% 45: ±0.50% |
| Wow and flutter | 33: ±0.16% 45: ±0.14% |
| Signal to noise | 68dB |
| Effective tonearm mass | 10g |
| Effective tonearm length | 8.6" (218.5mm) |
| Overhang | 18.5 mm |
| Power consumption | 4W/0W in Stand-By |
| Outboard power supply | 15V / 0 - 0.8mA DC (set at 0.5mA), universal power supply |
| Dimensions (W x H x D) | 415 x 118 x 320mm, dust cover open 415 x 365 x 405mm |
| Weight | 6.0kg |
| Dimensions packaging (W x H x D) | 488 x 235 x 393mm |
| Weight incl. packaging | 8.0kg |
Technical specifications Pro-Ject Pick it PRO Balanced
| Frequency range | 20-20.000 Hz +/-2 dB |
| Channel separation | 22dB/1kHz |
| Tracking ability | 70μm |
| Output voltage | 4mV |
| Recommended load impedance | 47kohms |
| Recommended load capacitance | 150-300 pF |
| Compliance/stylus type | 12μm/mN - elliptical |
| Recommended tracking force | 20mN (2g) |
| Tracking angle | \( 20^{\circ} \) |
| Internal impedance, DC resistance | 750 Ohm |
| Internal inductance | 450 mH |
| Weight | 7.2g |
Potential incorrect use and fault conditions
Pro-Ject turntables are manufactured to the highest standards and undergo strict quality controls before leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by incorrect use or unfortunate circumstances. Therefore, the following list of common fault symptoms is included.
The platter doesn't turn although the unit is switched on:
The unit is not connected to the mains power supply.
No mains at the socket.
Drive belt is not fitted or has slipped off.
No signal through one or other channel or both channels:
No signal contact from the cartridge to the internal tonearm wiring or from that to the arm lead or from that to the phono box or between that and the amplifier. This could be due to a faulty plug, broken wire or solder joint or simply loose plug/socket connection.
Phono input not selected at amplifier.
Amplifier not switched on.
Amplifier or speakers defective or muted.
No connection to the loudspeakers.
Strong hum on phono input:
No earth connection from cartridge or arm or arm cable to amplifier, or earth loop.
Distorted or inconsistent sound from one or both channels:
Record player is connected to wrong input of amplifier, or MM/MC switch incorrectly set.
Needle or cantilever damaged.
Wrong r.p.m., drive belt overstretched or dirty, platter bearing without oil, dirty or damaged.
Service
Should you encounter a problem which you are not able to alleviate or identify despite the above information, please contact your dealer for further advice. Only when the problem cannot be resolved there should the unit be sent to the responsible distributor in your country.
Guarantee repairs will only be effected if the unit is returned correctly packaged. For this reason, we recommend keeping the original packaging.
Never return a record player without making sure that is it safely disassembled and correctly packaged in the original packaging according to the diagrams on the last page of this user guide. Please remove these parts and pack them separately: lid (10), counterweight (6), anti-skating weight (15) platter (5) and belt (3). Fit the cartridge protection cap. Insert the transport lock for the tonearm (8) prior to carefully packaging the record player.
Warranty
The manufacturer accepts no responsibility for damage caused by not adhering to these instructions for use and/or by transportation without the original packaging. Modification or change to any part of the product by unauthorized persons release the manufacturer from any liability over and above the lawful rights of the customer.
PRO-JECT is a Registered Trademark of H. Lichtenegger.
This guide was produced by: Pro-Ject Audio Systems Copyright © 2024. All rights reserved.
The information was correct at the time of going to press. The manufacturer reserves the right to make changes to the technical specification without pricing notice as deemed necessary to uphold the ongoing process of technical development. Product image and illustrations can differ from final production specifications.
Declaration of Conformity
We, SEV Litovel, s r.o.
Palackého 1160/34
78401 Litovel
Czech Republic
(manufacturer)
and
Pro-Ject Audio Systems a division of Audio Tuning GmbH
Margaretenstrasse 98
1050 Vienna,
Austria
(distributor)
declare under our responsibility that the product is in conformity with the provisions of Directives:
2014/35/EU including amendments
2014/30/EU including amendments
2014/53/EU including amendments
The following harmonised standards were applied:
Pro-Ject Audio Systems a division of Audio Tuning GmbH
1050 Vienna, Austria, Margaretenstrasse 98
info@project-audio.com
