USER MANUAL M4317-PLVE AXIS

Technical line drawing of a circular mechanical component with concentric rings and mounting holes (no text or symbols)

Installation guide

Read through this installation guide carefully you install the product. Keep the installation future reference.

Legal considerations

Video surveillance can be regulated by laws that from country to country. Check the laws in your region before using this product for surveillance purposes.

Liability

Every care has been taken in the preparation of document. Please inform your local Axis office of inaccuracies or omissions. Axis Communications AB cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Axis Communications AB makes no warrant any kind with regard to the material contained with this document, including, but not limited to, the implied warranties of merchantability and fitness for particular purpose. Axis Communications AB shall be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance or use of this material. The product is only to be used for its intended purp

Intellectual property rights

Axis AB has intellectual property rights relating to technology embodied in the product described in document. In particular, and without limitation, the intellectual property rights may include one or more of the patents listed at axis.com/patent and one or additional patents or pending patent applications in the US and other countries.

This product contains licensed third-party software. See the third-party license information in the product's user interface for more information.

This product contains source code copyright Apple Computer, Inc., under the terms of Apple Public License 2.0 (see opensource.apple.com/apsl). The source code is available from developer.apple.com/bonjour/.

Equipment modifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals. local

Trademark acknowledgements

AXIS COMMUNICATIONS, AXIS, ARTPEC and VAPIX are registered trademarks of Axis AB in various jurisdictions. All other trademarks are the property of their respective owners. any Apple, Apache, Bonjour, Ethernet, Internet Explorer, Linux, Microsoft, Mozilla, Real, SMPTE, QuickTime, UNIX, Windows, and WWW are registered trademarks of the respective holders. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Oracle and/or its affiliates. The UPnP within Word Mark and UPnP Logo are trademarks of Open Connectivity Foundation, Inc. in the United States or other countries.

microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC.

^ose microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Regulatory information

Europe

This product complies with the applicable CE marking directives and harmonized standards:

Source

• Electromagnetic Compatibility (EMC) Directive 2014/30/EU. See Electromagnetic compatibility (EMC), on page 3.

• Low Voltage Directive (LVD) 2014/35/EU. See Safety, on page 4.

• Restriction of Hazardous Substances (RoHS)
  Directive 2011/65/EU and 2015/863, including
  any amendments, updates or replacements. So
  Disposal and recycling, on page 4.
  Axis Communications Inc.
  300 Apollo Drive
  Chelmsford, MA 01824

A copy of the original declaration of conformity be obtained from Axis Communications AB. See Contact information, on page 6.

Electromagnetic compatibility (EMC)

This equipment has been designed and tested to applicable standards for:

• Radio frequency emission when installed according to the instructions and used in its intended environment.
• Immunity to electrical and electromagnetic phenomena when installed according to the instructions and used in its intended environment

Contact information

United States of America

may Tel. [phone]

Canada

This digital equipment fulfills the requirements for RI emission according to the Class A limit of EN 5503 The product shall be connected using a shielded network cable (STP) that is properly grounded. Notice rules. This is a Class A product. In a domestic environment, this product may cause RF interference, in which ca the user may be required to take adequate measure:

Australia/New Zealand

This digital equipment fulfills the requirements for RI emission according to the Class A limit of AS/NZS CISPR 32. The product shall be connected

USA

This device complies with part 15 of the FCC Ru Operation is subject to the following two condition

1. This device may not cause harmful interference, and

2. this device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested using an unshielded network cable (UTP) and found to comply with the limits for a Class A digital device, pursuant to part of the FCC rules. This equipment has also been tested using a shielded network cable (STP) and found to comply with the limits for a Class A digital device, pursuant to part of the FCC rules.

comply with the limits for a Class A digital devig

pursuant to part 15 of the FCC rules. These limit designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to give harmful interference in which case the user will be required to correct the interference at his own expense.

ing a shielded network cable (STP) that is properly grounded. Notice! This is a Class A product. In a domestic environment this product may cause RF interference, in which case the user may be required to take adequate measures.

dapan

contact your local authority responsible for waste disposal. Businesses should contact the product supplier for information about how to dispose of this product correctly.

Korea

Product complies with the requirements of Directive 2011/65/EU and 2015/863 on the restriction use of certain hazardous substances in electric and electronic equipment (RoHS).

Safety

This product complies with IEC/EN/UL 62368-1 ed. safety of audio/video and IT equipment for outdoor use.

China

When used with Power over Ethernet (PoE), the Sourcing Equipment (PSE) shall comply with IEEE 802.3af and Limited Power Source (LPS) according annex Q of IEC/EN/UL 62368-1.

This product complies with the requirements of SJ/T 11364-2014, Marking for the restriction of hazardous substances in electrical and electronic power products.

We recommend the use of Axis midspans or Axis switches.

Photobiological safety

This product fulfills the requirements for photobiological safety according to IEC/EN 62471 (exempt).

Disposal and recycling

When this product has reached the end of its use, life, dispose of it according to local laws and regulations. For information about your nearest designated collection point, contact your local authority responsible for waste disposal. In accordance with local legislation, penalties may be applicable incorrect disposal of this waste.

Europe

This symbol means that the product shall not be disposed of together with household or commercial waste. Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) is applicable in the European Union member states. To prevent potential harm to human health and the environment, the product must be disposed of in an approved and environmentally safe recycling process. For information about your nearest designated collection point,

Declaration of the Presence Condition of the Restrict Substances Marking.

限用物質含有情況標示

Axis Communications AB

Gränden 1

223 69 Lund

Sweden

Tel: [phone]

axis.com

Warranty information

For information about Axis' product warranty and thereto related information, go to axis.com/warranty.

Support

Should you require any technical assistance, please contact your Axis reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channels to ensure a rapid response. If you are connected to the Internet, you can:

• download user documentation and software updates
  • find answers to resolved problems in the FAQ database, search by product, category, or phrase
  • report problems to Axis support staff by logging in to your private support area
• chat with Axis support staff
• visit Axis Support at axis.com/support

Learn more!

Visit Axis learning center axis.com/learning for useful trainings, webinars, tutorials and guides.

English

Safety information

Hazard levels

DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate inju

NNOOTT

Indicates a situation which, if not avoided, could result in damage to property.

Other message levels

Important

Indicates significant information which is essential for the product to function correctly.

Note

Indicates useful information which helps in getting the most out of the product.

Safety instructions

NNOOTT

• The Axis product shall be used in compliance with local laws and regulations.
  • This product is for professional use.
• Install this product at a safe distance from children.
• Store the Axis product in a dry and ventilated environment.
• Avoid exposing the Axis product to shocks or heavy pressure.
• Do not install the product on unstable poles, brackets, surfaces or walls.

• Use only applicable tools when installing the Axis product. Using excessive force with power tools could cause damage to the product.

- Use a soft cloth dampened with pure lukewarm injury. water to clean the device.

- Don't use chemicals such as window cleaner or acetone to clean your device.

Use only accessories that comply with the technical specification of your product. These can be provided by Axis or a third party. Axis recommends using Axis power source equipment compatible with your product.

• Use only spare parts provided by or recommended by Axis.
• Do not attempt to repair the product yourself. Contact Axis support or your Axis reseller for service matters.
• The power supply shall be plugged in to a sock outlet installed near the product and shall be easily accessible.
• Use a limited power source (LPS) with a rated output power limited to ≤ 100 W and a rated output current limited to ≤ 5 A.

Transportation

NNOOTT

- When transporting the Axis product, use the original packaging or equivalent to prevent damage to the product.

Battery

The Axis product uses a 3.0 V BR1632 lithium as the power supply for its internal real-time (RTC). Under normal conditions this battery will for a minimum of five years.

Lithium coin cell 3.0 V batteries contain 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME), CAS no. 110-71-4.

Dome or front glass

NNOOTT

• Be careful not to scratch, damage or leave fingerprints on the dome or front glass since this can decrease image quality. Keep the protective plastic on until the installation is complete.
• Don't clean a dome or front glass that looks clean to the eye, and never polish the surface. Excessive cleaning can damage the surface.
• Avoid cleaning the dome or front glass in direct sunlight or at elevated temperatures, since this can cause stains.

Français

Technical line drawing of a circular mechanical component with mounting holes and a central bore (no text or symbols)

1x

1x

1x

1x

1x

1x

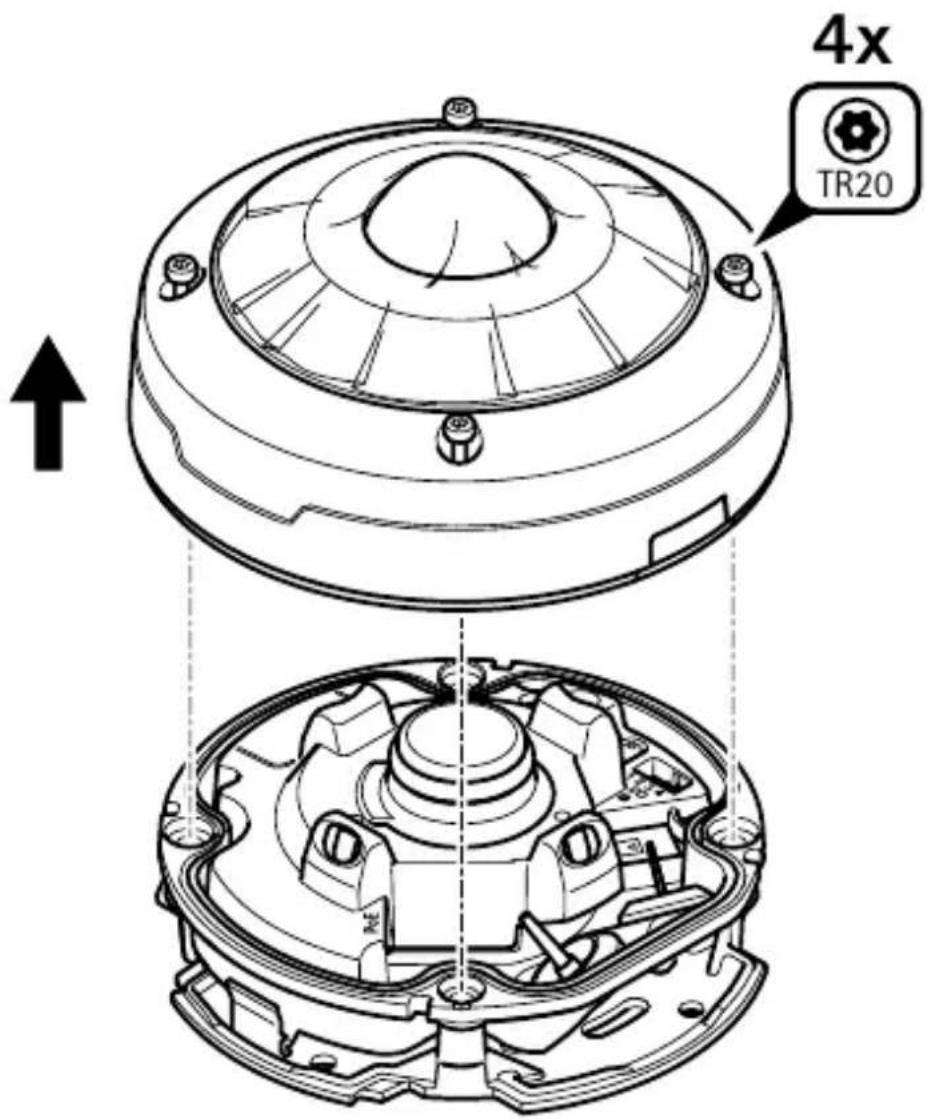

1.1

4x TR20

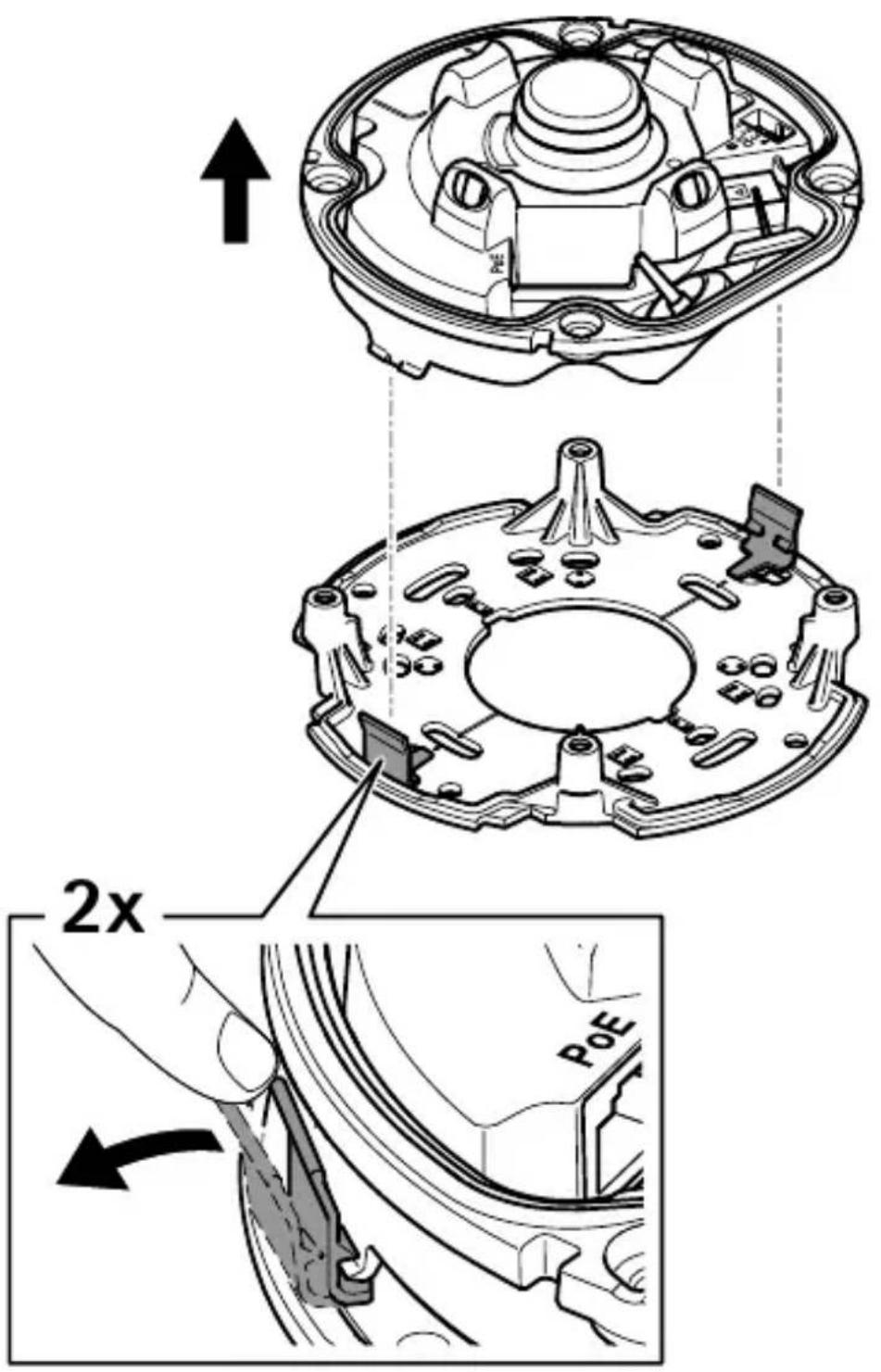

1.2

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

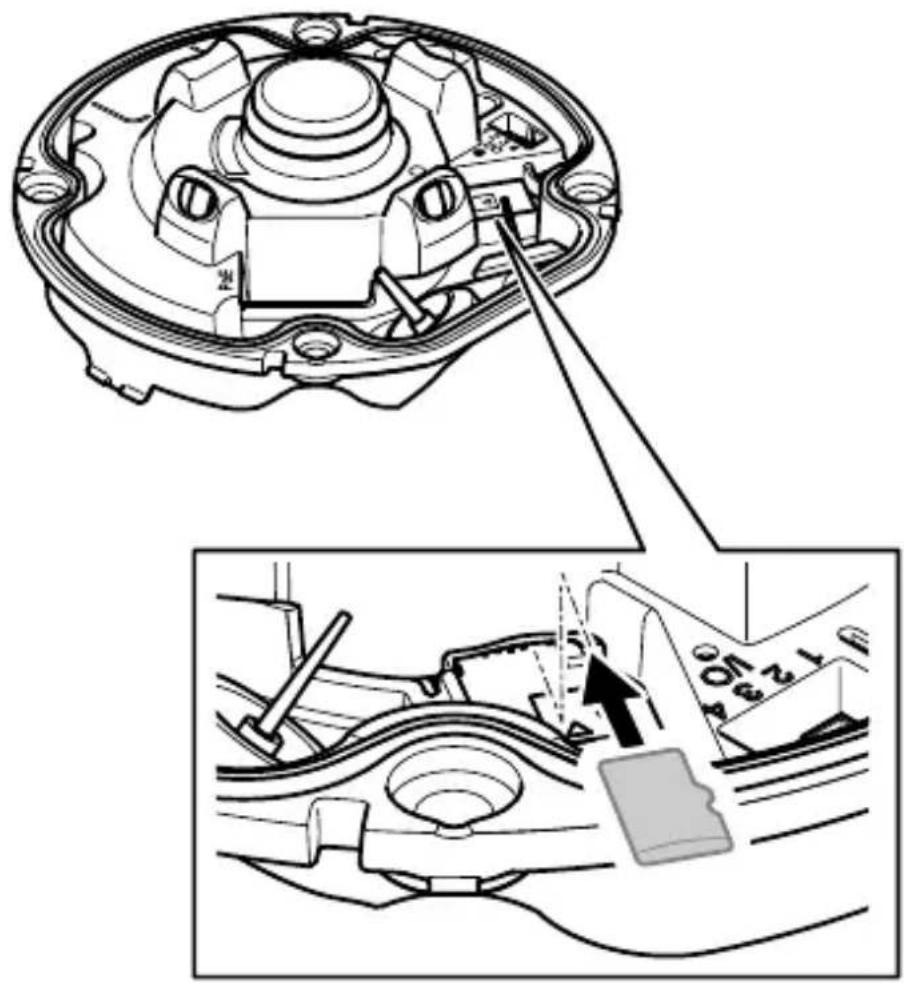

microSD microSDHC microSDXC

Technical diagram showing mechanical assembly with labeled parts and a zoomed-in detail view highlighting a specific component.

2.1

2.2 3.1

2.2

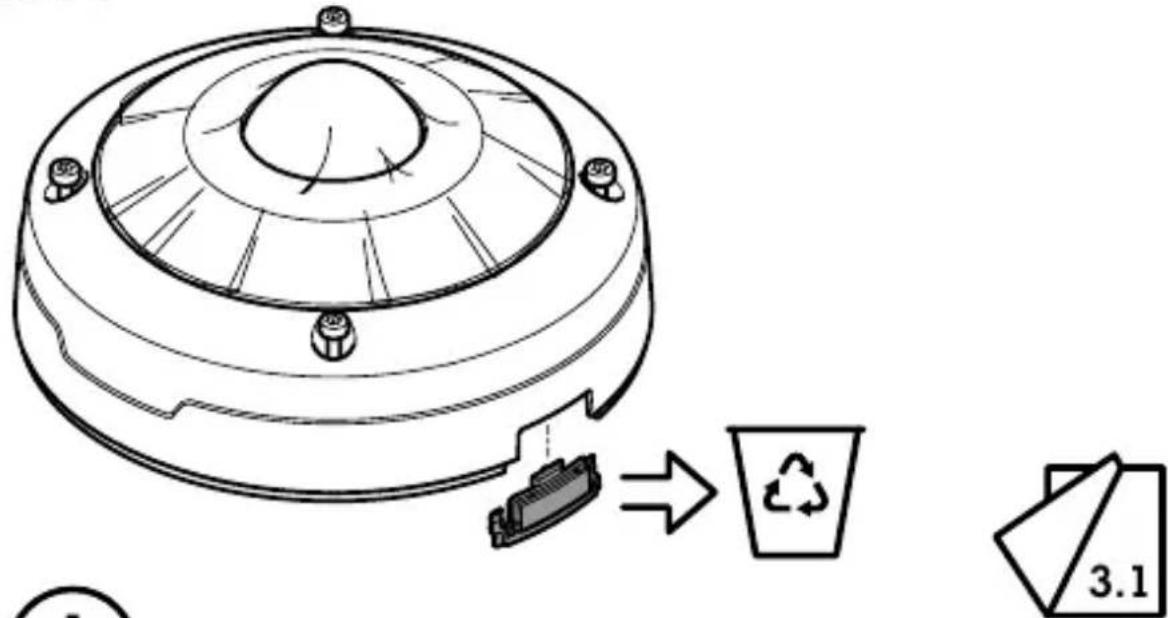

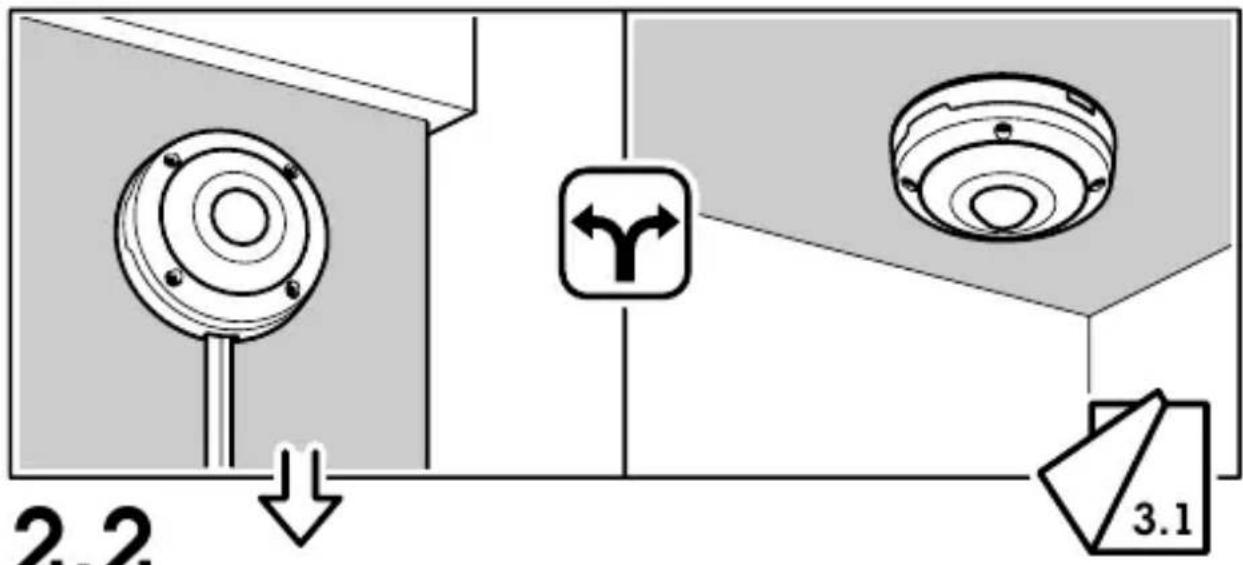

Diagram showing a mechanical component with a recycling symbol and a labeled page number 3.1

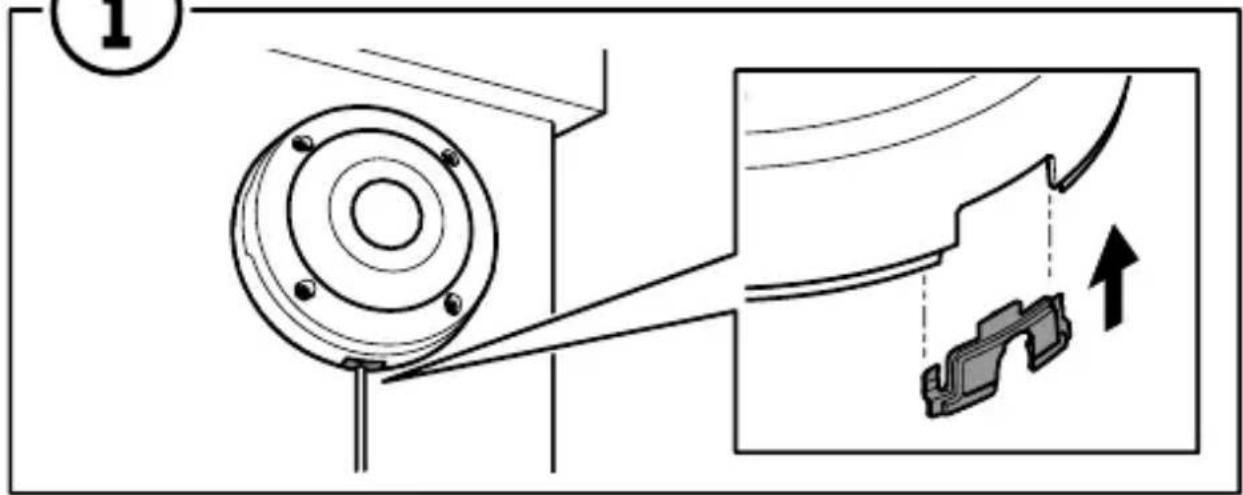

i

Technical diagram showing mechanical assembly with labeled components and directional arrows

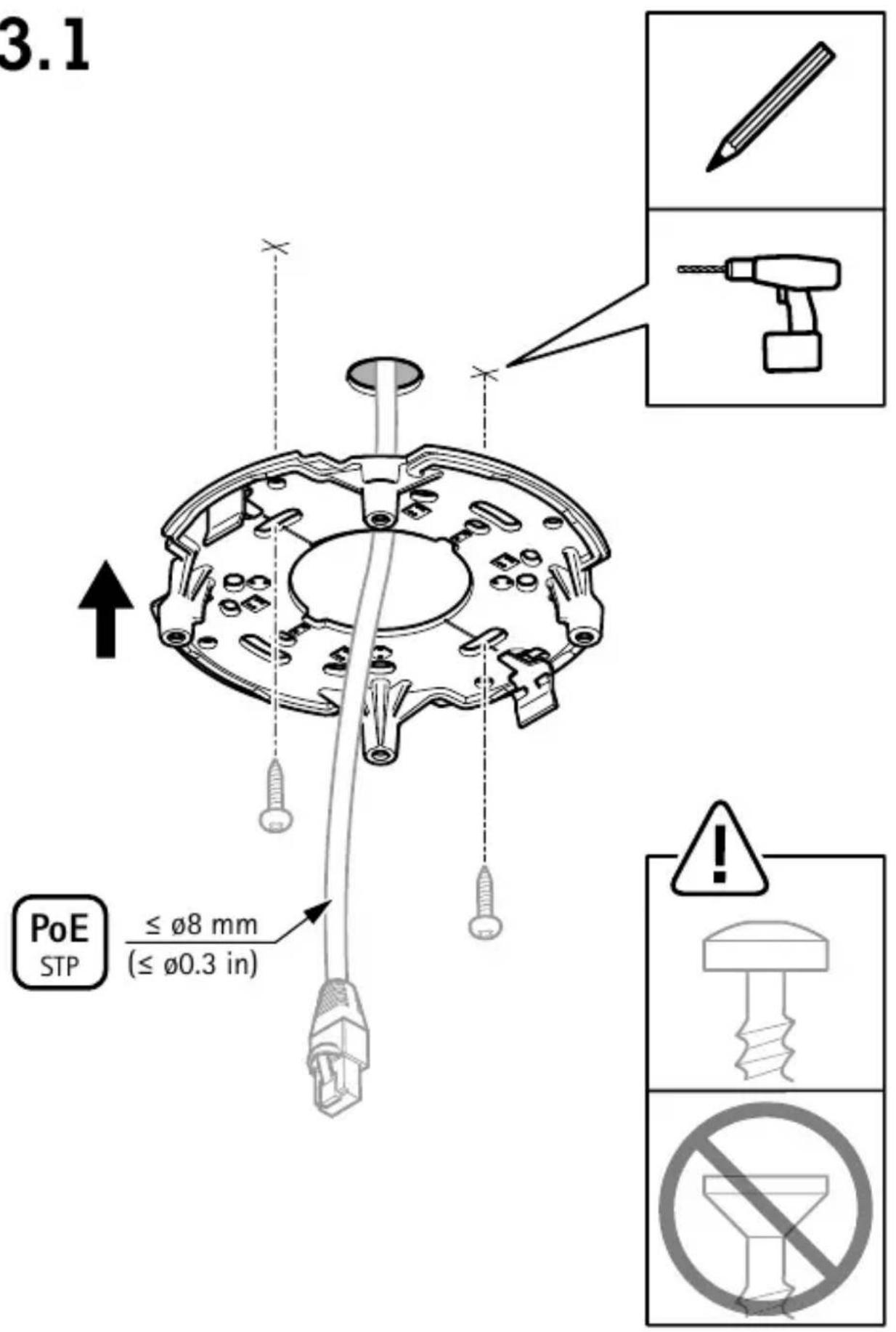

3.1

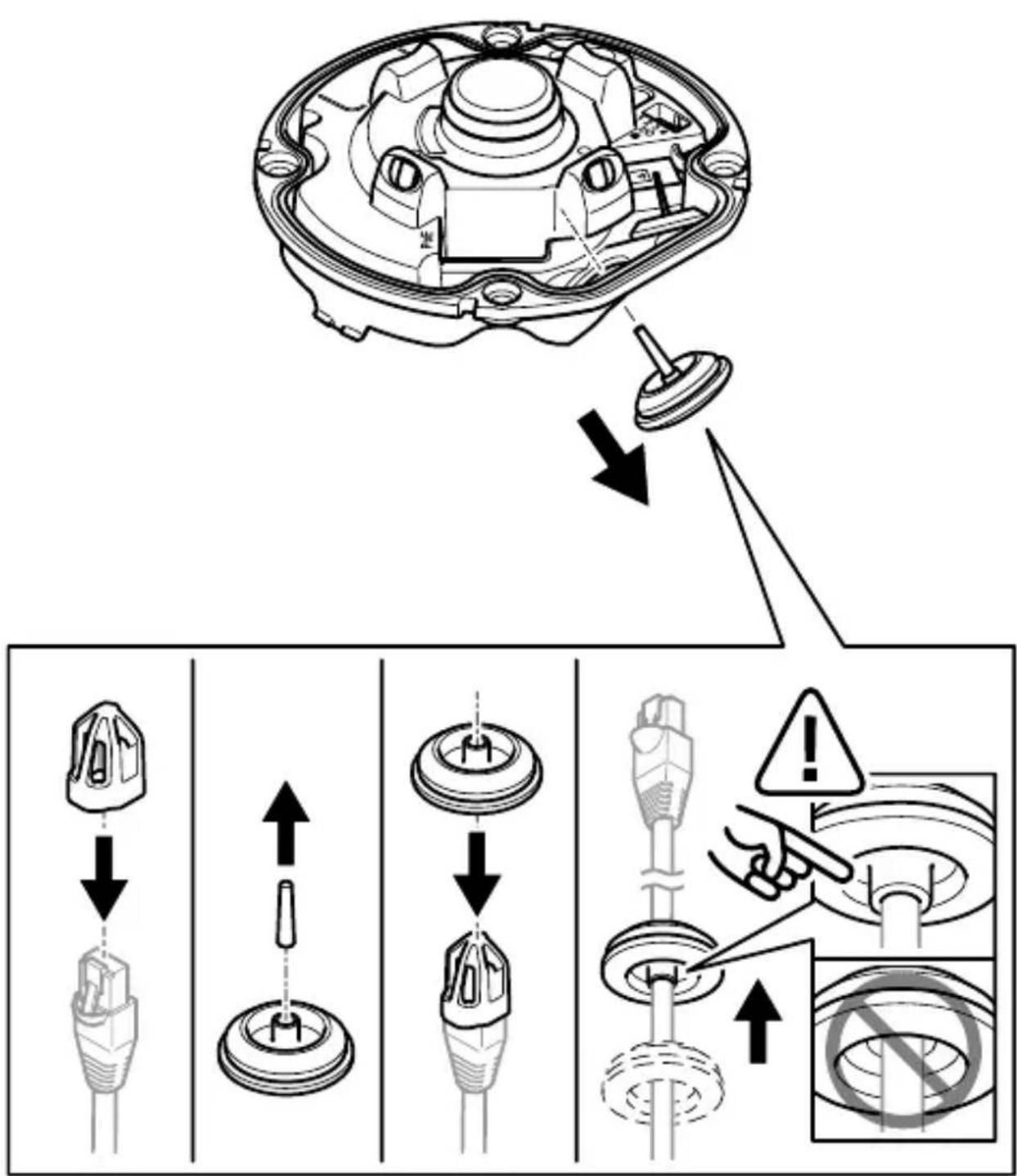

3.1 PoE STP ≤ Ø8 mm (≤ Ø0.3 in) ↑ × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × +

3.2

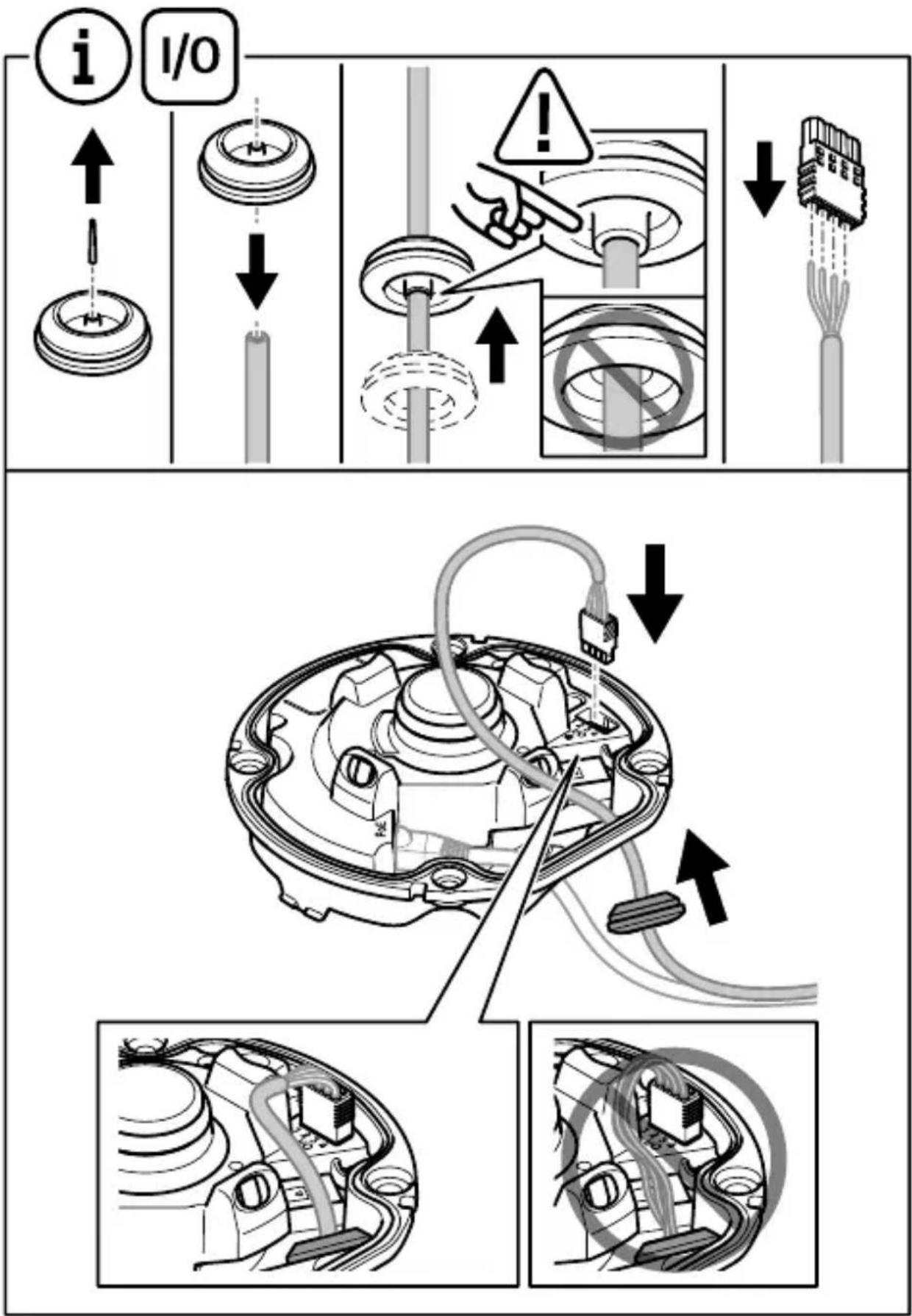

Technical diagram illustrating the assembly of a mechanical component with labeled parts and warning signs.

3.3

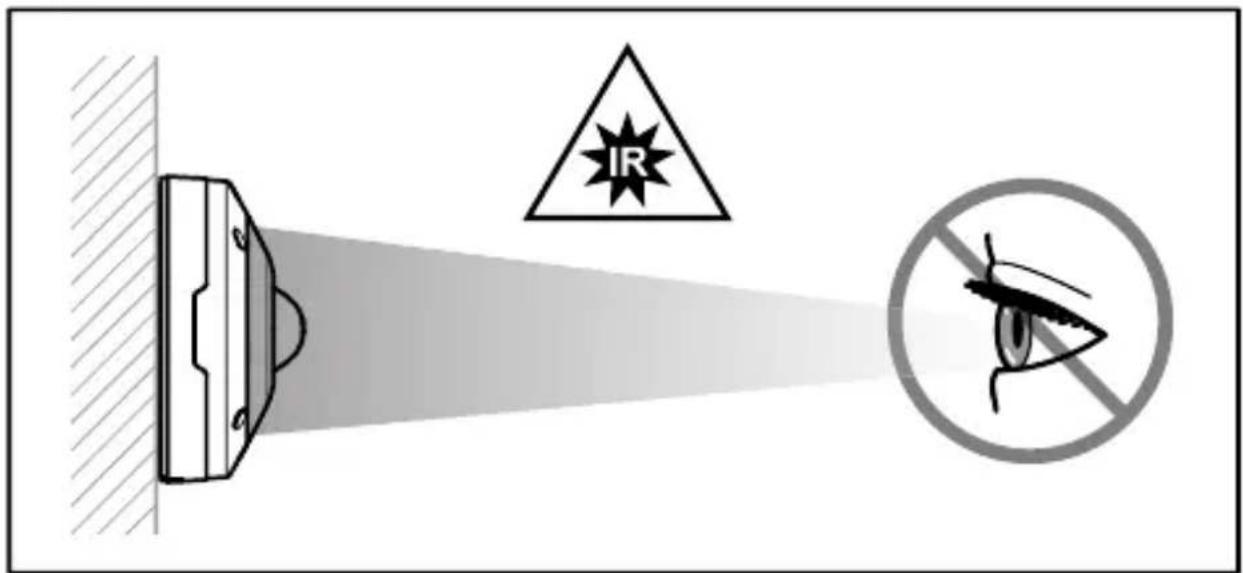

IR

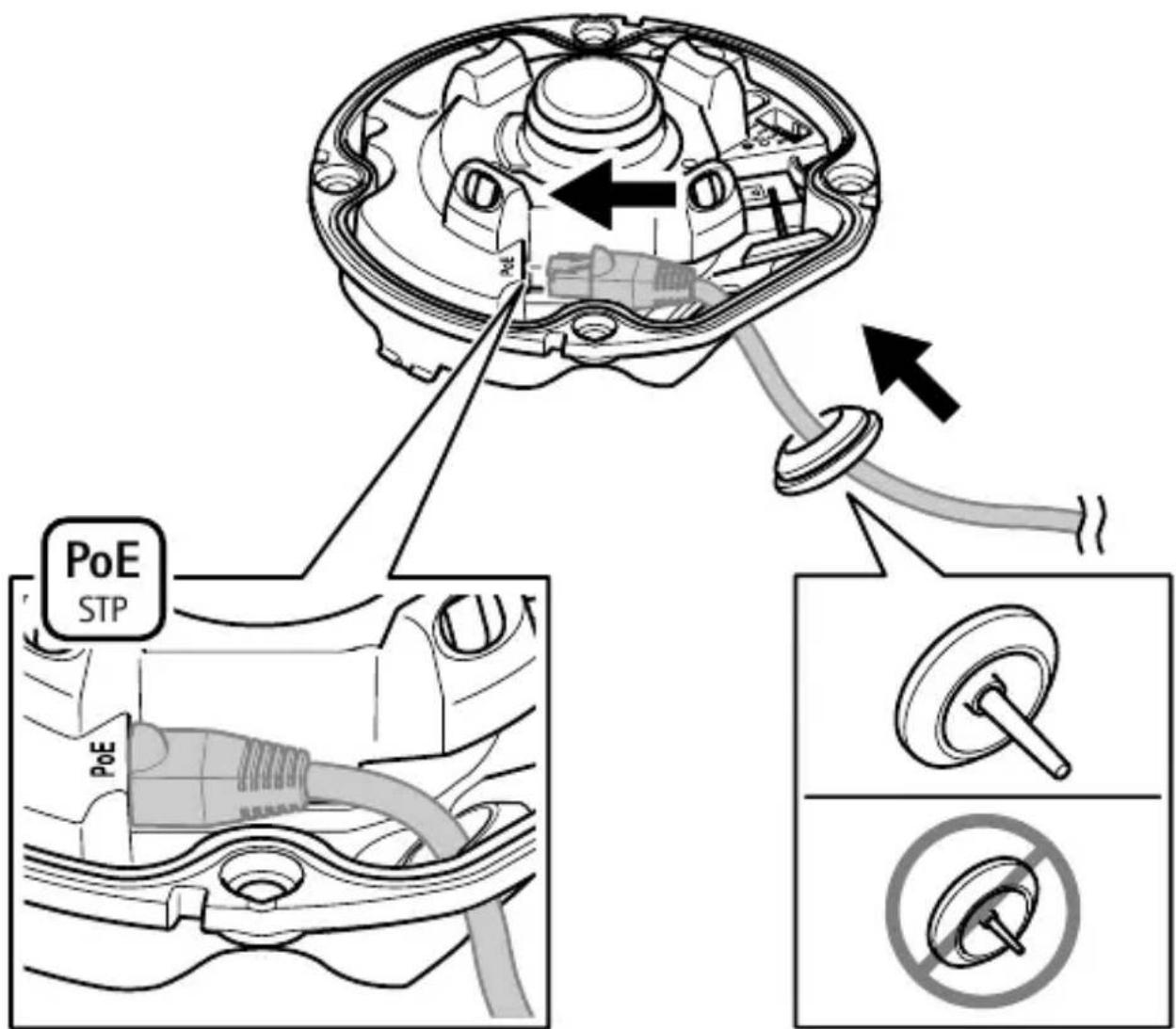

PoE STP

4x TR20 1 N m (0.74 lb ft)

3.6

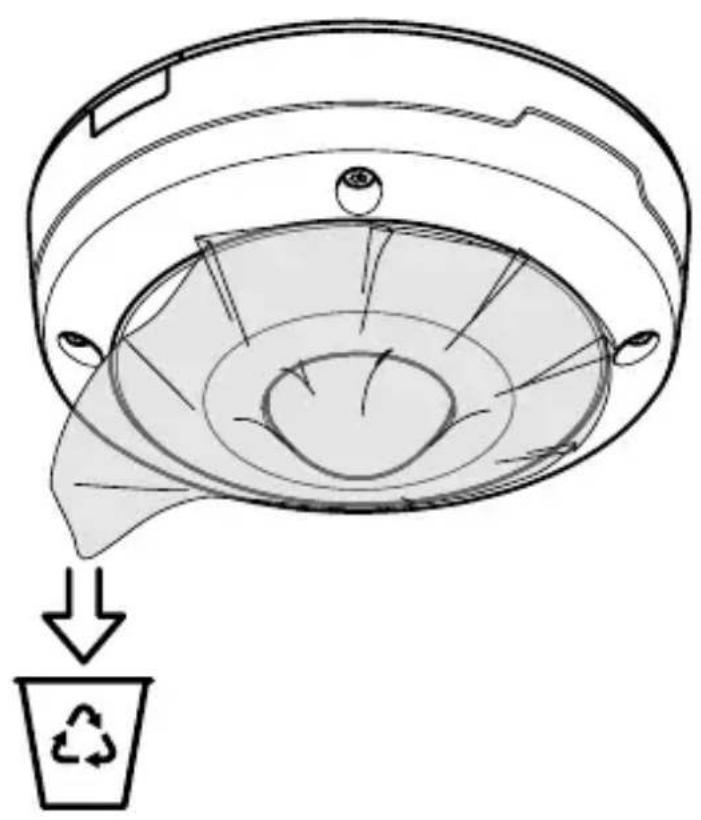

Diagram illustrating a recycling process with a circular container and recycling symbol, showing downward arrow and recycling icon.

3.7

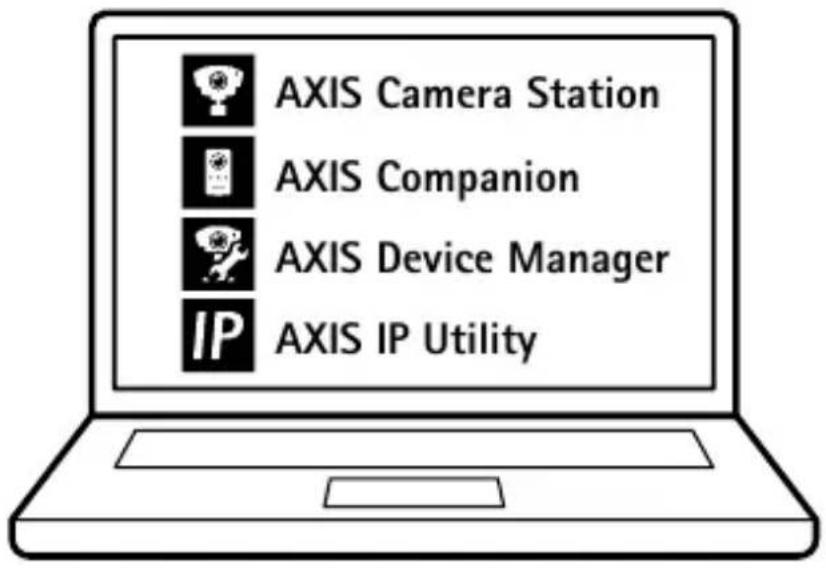

AXIS Camera Station AXIS Companion AXIS Device Manager IP AXIS IP Utility

QR code image containing encoded data, no visible human-readable text

help.axis.com

Icon of a document with an 'i' symbol, representing information (no text or symbols present)

AXIS M43 Series User Manual

3256805

2025-02 (M3.2)

© 2022 - 2025 Axis Communications AB
