Crystal Moon 83592 - Lighting ELAN - Free user manual and instructions

Product type	LED pendant light
Brand	ELAN
Model	Crystal Moon 83592
Category	Interior lighting
Light source	Integrated LED (non-replaceable)
Power supply	120 V AC, 60 Hz (via supplied LED driver)
Suspension cable length	Adjustable (up to approx. 1.5 m)
Canopy material	Metal
Shade material	Glass
Intended use	Indoor only
Installation	Ceiling, on standard outlet box
Estimated assembly time	30 to 60 minutes
Required tools (not included)	Phillips and flathead screwdrivers, wire strippers, electrical tape, ladder, safety glasses
Key features	Adjustable height, safety cable, energy-efficient LED
Maintenance and cleaning	Soft damp cloth with non-abrasive soap; do not use glass cleaner; glass shade hand washable
Essential safety instructions	Turn off electricity before any intervention; do not touch hot LEDs; do not look directly at LEDs
Available spare parts	Mounting bracket, wire connectors, screws, anchors, shade, LED assembly (see list in manual)
Customer service	1 855 226-7169 (Monday-Friday, 8am-4pm EST)
Warranty	3 years against manufacturing defects and material defects
Certifications	Compliant with the National Electrical Code (NEC)

Frequently Asked Questions - Crystal Moon 83592 ELAN

What tools are needed to install the Crystal Moon 83592?

You will need a Phillips screwdriver, a flathead screwdriver, wire strippers, electrical tape, a ladder, and safety glasses. These tools are not included.

How to adjust the suspension cable length?

Push up and hold the spring tube of the compression fitting (part C) to release the cable (D). Adjust to the desired length, then release the fitting to lock the cable.

Can I use this light fixture outdoors?

No, this fixture is for indoor use only. Do not install it in areas exposed to moisture or weather.

How to clean the glass shade?

Remove the shade carefully by unscrewing the screws. Wash it by hand with warm water and mild soap in a sink lined with towels. Do not put it in the dishwasher and do not use abrasive cleaners.

What to do if the fixture does not turn on?

First check that the fixture is properly plugged in. Ensure that the power is restored at the circuit breaker and that the wall switch is in the on position. If the problem persists, contact a qualified electrician.

Is the warranty transferable?

No, the 3-year warranty applies only to the original purchaser and is not transferable to subsequent owners.

Can I replace the LED myself?

The LED is integrated and non-replaceable. If it stops working, the fixture must be replaced or repaired by a professional. Contact customer service for replacement parts.

What type of electrical wiring is needed?

The fixture connects to a standard outlet box with a ground wire, a neutral wire (white), and a hot wire (black). Follow the wiring diagram provided in the manual.

How to install the ceiling anchors?

Temporarily place the mounting bracket, mark the locations, drill 9/32 inch holes, insert the plastic anchors (DD), then fasten the bracket with the anchor screws (EE).

What to do if a part is missing or damaged?

Before returning the item to the retailer, call ELAN customer service at 1 855 226-7169 (Monday-Friday, 8am-4pm EST) to obtain a replacement part. Do not attempt to assemble the product with missing parts.

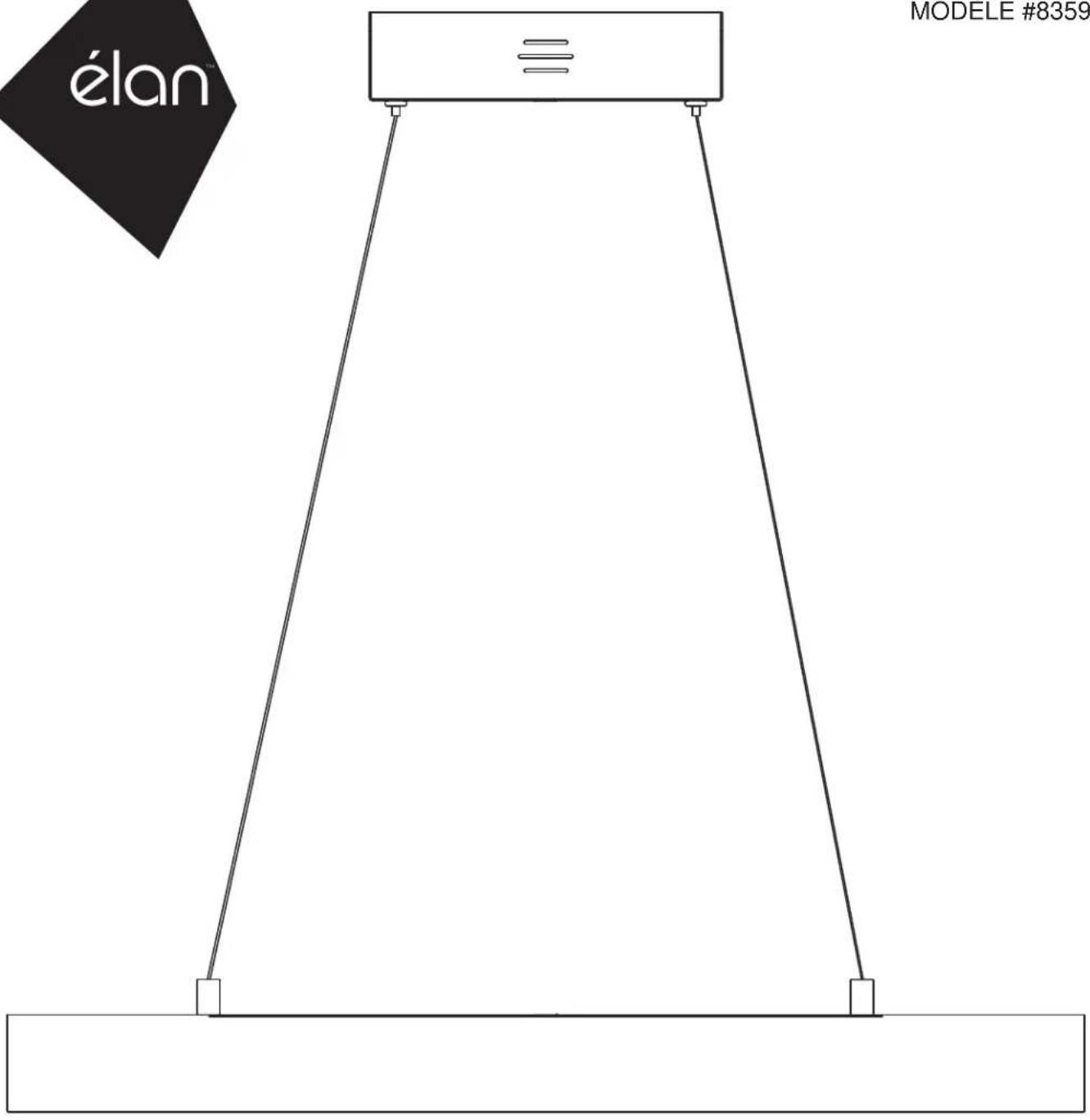

USER MANUAL Crystal Moon 83592 ELAN

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.

PART	DESCRIPTION	QTY.

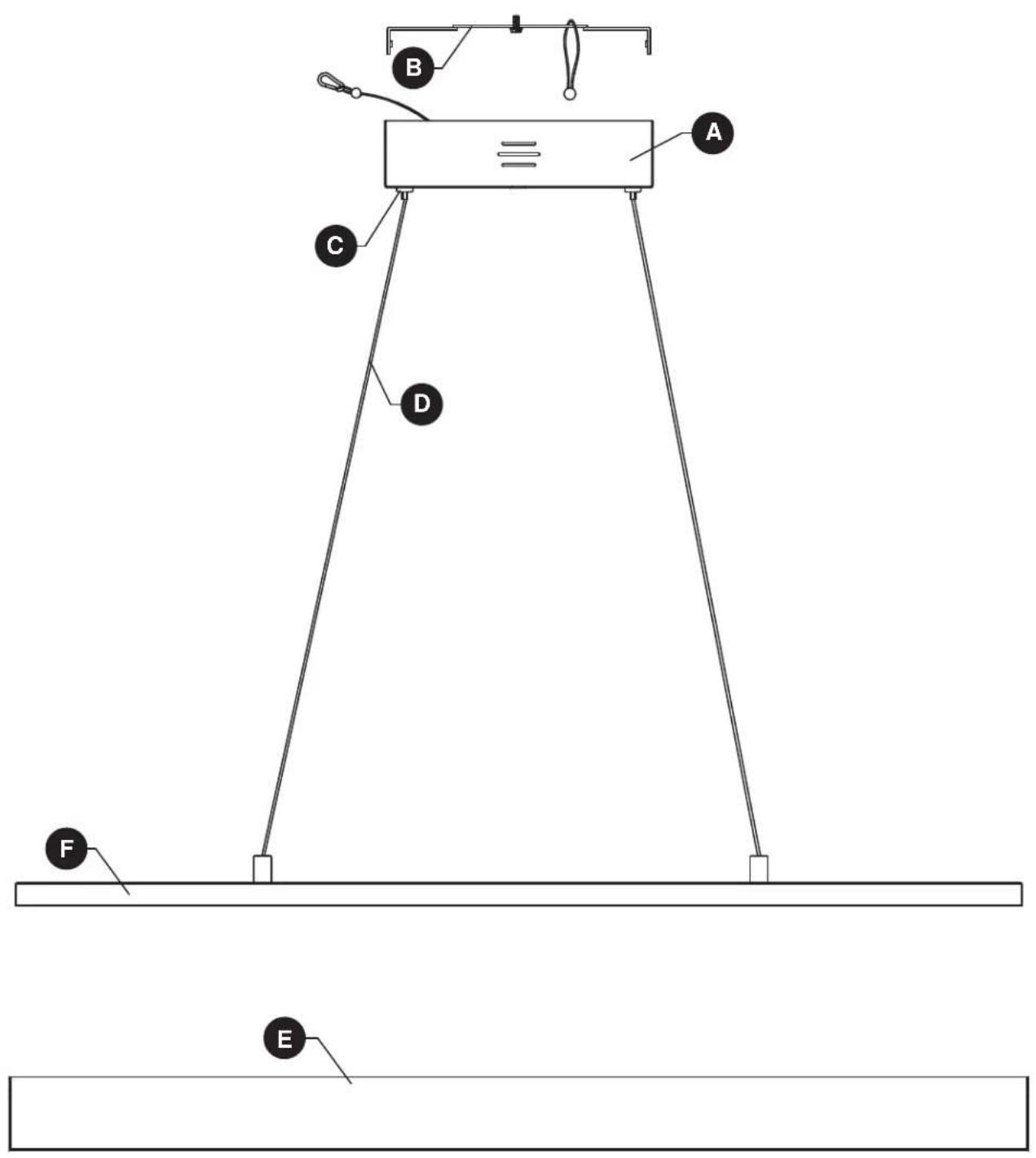

A	Canopy	1
B	Mounting Bracket	1
C	Compression Fitting	3

PART	DESCRIPTION	QTY.
D	Cable	3
E	Shade	1
F	LED Assembly	1

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the product.

WARNING

• IMPORTANT: NEVER attempt any work without shutting off the electricity.
• Go to the main fuse box, or circuit breaker, in your home. Place the main power switch in the "OFF" position and unscrew the fuse(s), or switch "OFF" the circuit breaker switch(es), that control the power to the fixture or room that you are working on.
• Place the wall switch in the "OFF" position. If the fixture to be replaced has a switch or pull chain, place those in the "OFF" position.
• Do not touch hot LED.
• The LED light output is strong enough to injure human eyes. Precautions must be taken to prevent looking directly at the LEDs with unaided eyes for more than a few seconds.
• WARNING: California Prop 65: This lighting fixture contains chemicals known to the state of California to cause cancer, birth defects, and/or other reproductive harm. Wash hands after use.

CAUTION

• Read and understand all instructions and illustrations completely before proceeding with assembly and installation of this fixture.
• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate completely, please contact a qualified licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate the UL listing, C.S.A. certification, and/or ETL listing of this fixture.
• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all local code specifications.
  • This fixture is for indoor use only.
• Use ONLY the supplied LED driver to power fixture.
• Driver cable is not intended for use through or concealed behind walls, floors, or ceilings.

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated assembly time: 30 minutes to 1 hour

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers, electrical tape, ladder, safety glasses.

ASSEMBLY INSTRUCTIONS

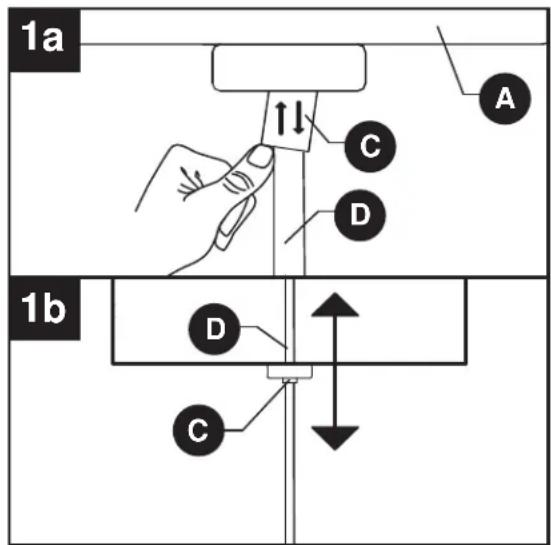

1. The hanging length of the cable (D) for this fixture is adjustable. Hold the fixture canopy (A) up against the ceiling to determine the desired length before the entire fixture is assembled.

The cable (D) is held in place by a compression fitting (C). Push up, and hold, the fitting's spring loaded tube (C) to release the cable (D) for adjustment.

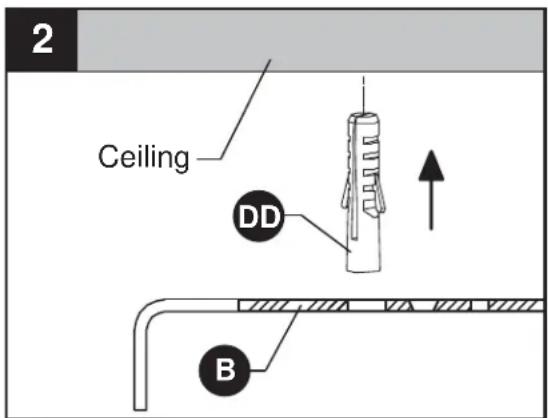

1. Temporarily raise mounting bracket (B) to ceiling. Mark location for anchor (DD). Use 9/32 size drill to drill holes for anchor (DD). Insert anchor (DD) into hole.

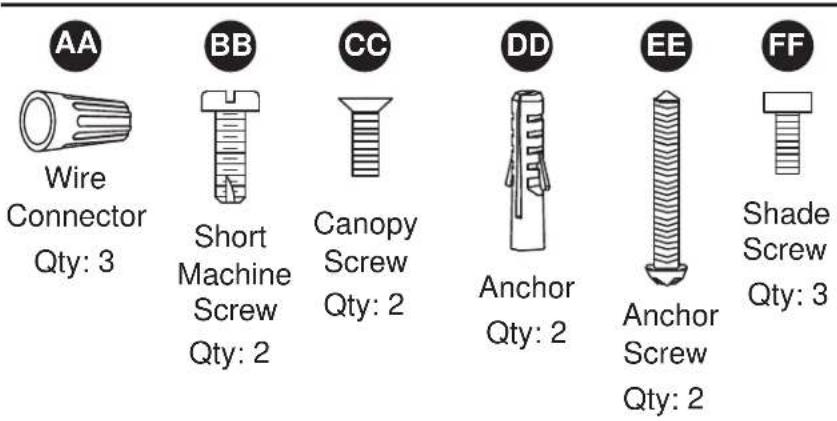

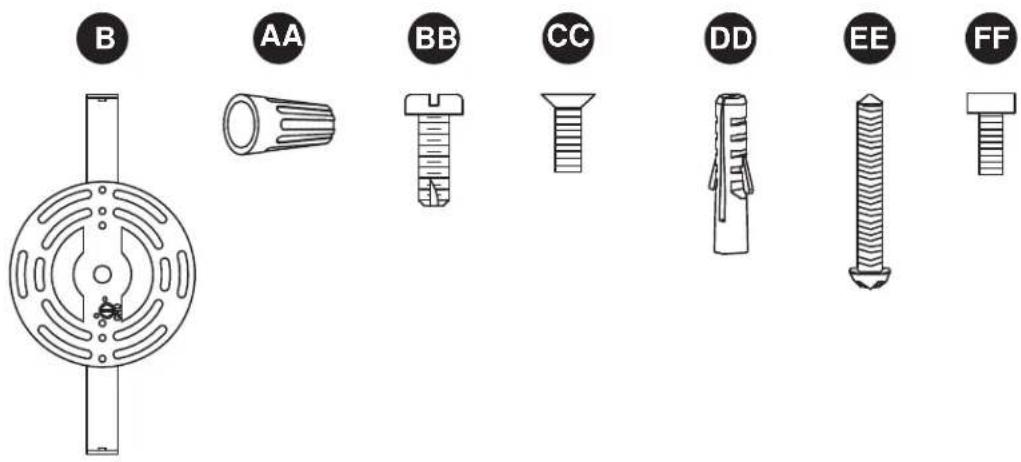

Hardware Used

x 2Anchor

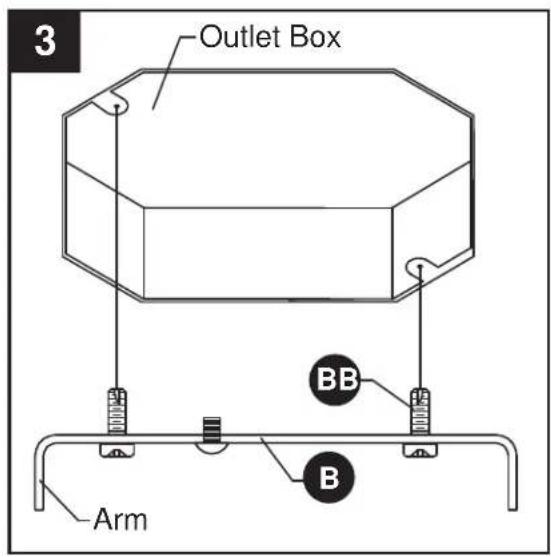

1. Orient the mounting bracket (B) so that the arms are facing away from the outlet box (not included). Connect the mounting bracket (B) to the outlet box with short machine screws (BB).

Hardware Used

Short Machine

Screw

x 2

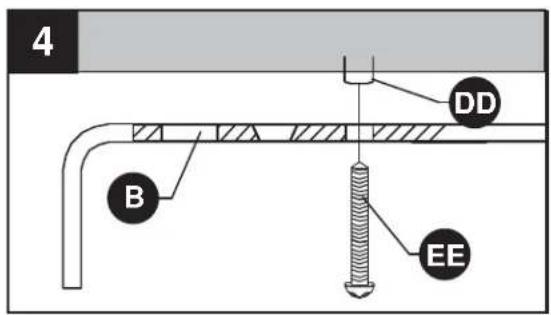

1. Screw anchor screws (EE) through mounting bracket (B) and into anchors (DD).

Hardware Used

Anchor

Screws

x 2

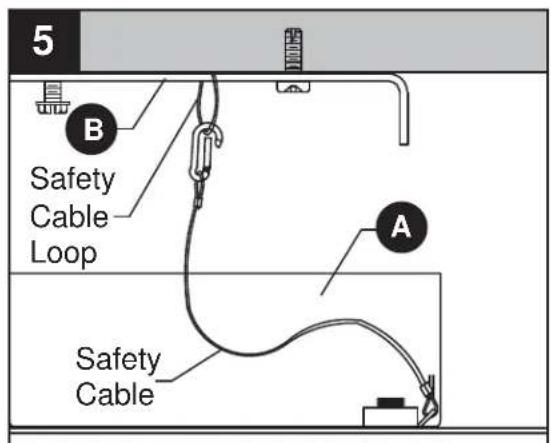

1. Connect safety cable located in canopy (A) to the safety cable loop located on mounting bracket (B).

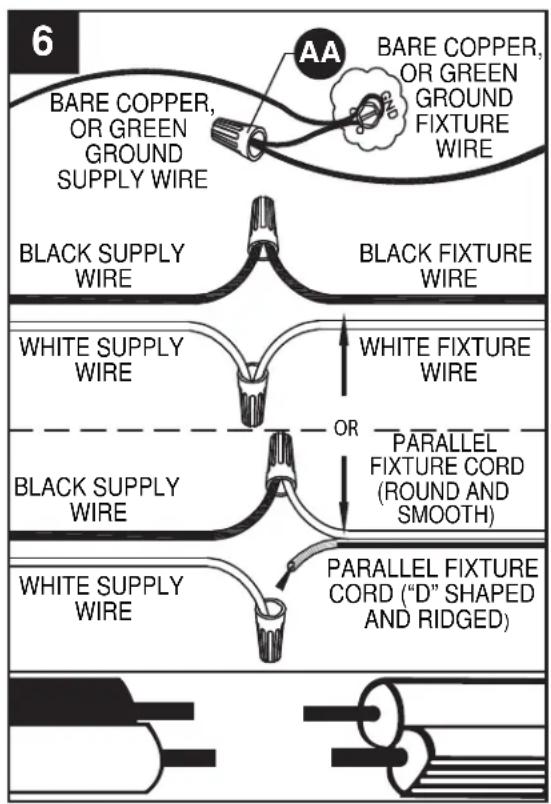

6. Wire connection guide:

Ground wire:

• For installation in the United States: Wrap ground wire from outlet box around ground screw preassembled on mounting bracket (B) no less than 2 in. from wire end. Tighten ground screw. If fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector (AA).
• For installation in Canada: If fixture is supplied with ground wire, wrap ground wire around ground screw on mounting bracket (B). Tighten ground screw.

Supply wires:

• Connect the Neutral (White) supply wire from the outlet box to the Neutral fixture wire (White or Parallel Cord “D” shaped and ribbed).
• Connect the Hot (Black) supply wire from the outlet box to the Hot fixture wire (Black or Parallel Cord round and smooth).

NOTE:

Fixture wires will either be:

• Black and White.
• Parallel Cord SPT-2 lamp wire with one round smooth wire and one "D" shaped ribbed wire.

Hardware Used

x 3Wire Connector

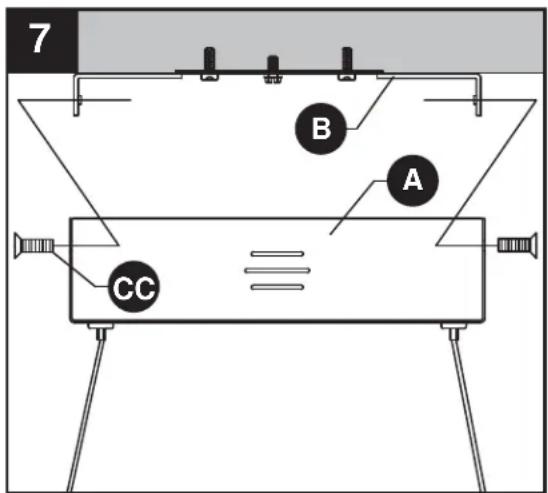

1. Pass canopy (A) over the mounting bracket (B) and secure with canopy screws (CC).

Hardware Used

Canopy Screw

× 3


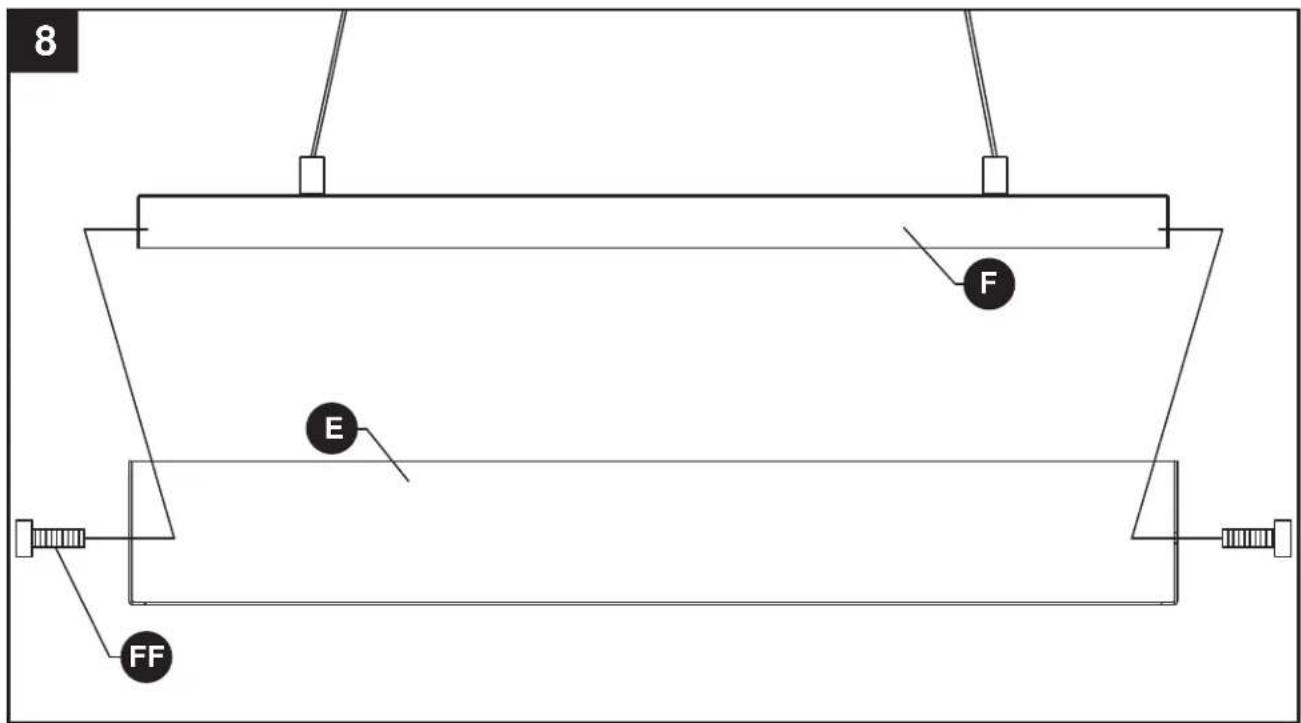

1. Raise shade (E) to the LED housing (F) and secure with shade screw (FF).

Hardware Used

Shade

Screw

x 3

CARE AND MAINTENANCE

• Always be certain that electric current is turned off before cleaning this item.
- Use a soft, moist cloth with mild non-abrasive soap to clean fixture. Never use glass cleaner on fixture, as it will damage the metal finish.
- All glass shades may be washed in a towel-lined sink with warm water and mild soap. Do not wash shades in an automatic dishwasher.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE CORRECTIVE ACTION
Fixture does not light.	1. Fixture may be wired incorrectly.	1. Check wiring.

élan Lighting warrants that its products will be free from defects in material and workmanship for three (3) year from the date of purchase by the Original Purchaser.

LED Rail, LED Lanterns. LED Wall Sconces, LED Pendants and LED Chandeliers for single family residences are warranted for three (3) year on the Light Engine and all other electrical components.

To replace a product that has a warranted defect, the Original Purchaser shall return any allegedly defective parts or products to the authorized élan distributor that the product was purchased from with PROOF OF PURCHASE, Original Purchaser's name and return address and a description of the claimed product defect.

If any of the warranted products are found by élan, in its sole discretion, to be defective, such products will, at élan's sole option and cost, be replaced, repaired or refunded less an amount directly attributable to Original Purchaser's prior use of the product. élan will return the repaired or replaced product prepaid freight. This warranty does not cover labor or other costs or expenses to remove or install any defective, repaired or replaced product.

The parties hereto expressly agree that Original Purchaser's sole and exclusive remedy against élan shall be for the repair, replacement or refund of defective products as provided herein. This warranty extends only to product ownership by the Original Purchaser; is not transferable whether to heirs, subsequent owners, or otherwise; and is void if the Original Purchaser ceases to own the product.

This warranty does not apply to any products that have been subjected to misuse, mishandling, misapplication, connected to voltage at more than 5% above standard North American voltage, unusual use (including but not limited to use in an environment where the annual average ambient operating temperature is below 27 or above 95 degrees Fahrenheit), neglect (including but not limited to improper maintenance), accident, acts of god such as high winds, improper installation or care, failure to follow the Product's written instructions for normal use and care, improper packaging of products returned to élan, modification (including but not limited to use of unauthorized parts or attachments), or adjustment or repair. Significant product exposure to chemicals, harsh cleaners, salt water or salt air will void any and all warranties on exterior finishes. This warranty only applies when all components, including transformers, have been provided by élan. Substituting another manufacturer's product and/or components will render the warranty completely void.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE OR INFRINGEMENT. ORIGINAL PURCHASER SHALL IN NO EVENT BE ENTITLED TO, AND ELAN LIGHTING SHALL NOT BE LIABLE FOR, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT LIMITED TO LOSS OF PROFIT, PROMOTIONAL AND/OR MANUFACTURING EXPENSES, OVERHEAD, INJURY TO REPUTATION AND/OR LOSS OF CUSTOMERS.

For replacement parts, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.

PART DESCRIPTION PART #
B	Mounting	Bracket	XBAR83592
AA	Wire	Connector	WC001
BB	Short Machine Screw	SCR832X050
CC	Canopy	Screw	CS83592
DD	Anchor		AB001
EE	Anchor	Screw	AS001
FF	Shade	Screw	SS83592
