Brand	ELAN
Model	Gorve 83716
Product Type	LED Light Fixture
Light Source	Integrated LED (LED Assembly)
Input Voltage	120 V AC (North American standard)
Usage	Indoor
Mounting Type	Wall-mounted (on outlet box)
Assembly Time	30 to 60 minutes
Required Tools (not included)	Phillips screwdriver, flat-head screwdriver, wire strippers, electrical tape, step ladder, safety goggles
Care and Cleaning	Soft damp cloth with non-abrasive soap. Do not use glass cleaners.
Warranty	3 years against manufacturing defects and material defects
Certifications	UL, CSA, ETL
Replacement Parts (references)	Mounting bracket (XBAR83716), Wire connectors (WC001), Short metal screws (SCR832X050), Fixture screws (CS83714), Anchors (AB001), Anchor screws (AS001)
Safety Instructions	Turn off power at the circuit breaker before any intervention. Do not touch hot LEDs. Do not look directly at LEDs. Wear safety goggles.

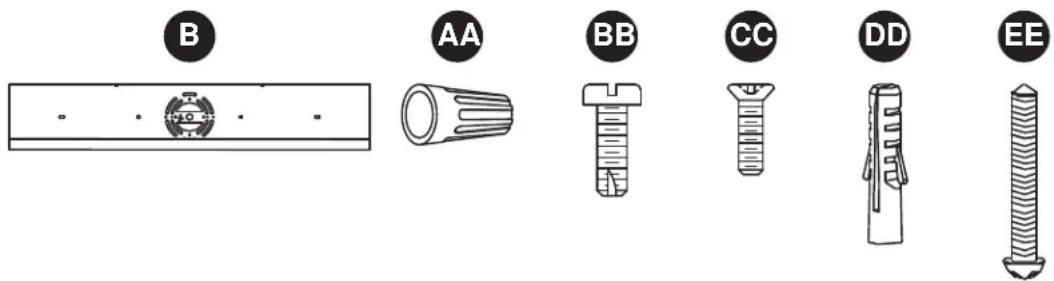

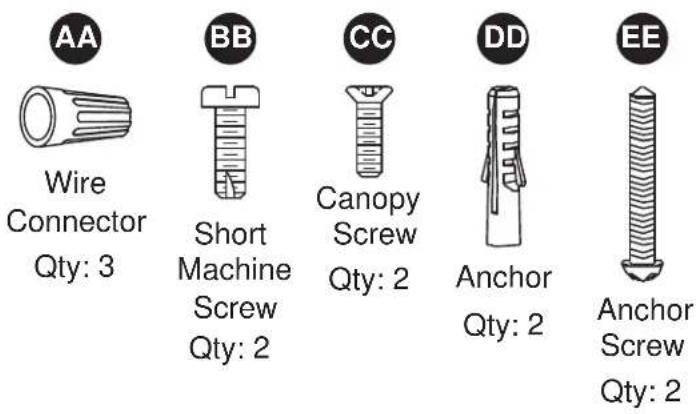

Package Contents	Fixture (A), Mounting bracket (B), LED Assembly (C), Wire connectors (AA, x3), Short metal screws (BB, x2), Fixture screws (CC, x2), Anchors (DD, x2), Anchor screws (EE, x2)

Frequently Asked Questions - Gorve 83716 ELAN

How to install the Gorve 83716 fixture?

The installation is done in several steps: 1) Mark and drill holes for the anchors (DD). 2) Attach the mounting bracket (B) to the outlet box using the short metal screws (BB). 3) Screw the anchor screws (EE) into the anchors. 4) Connect the electrical wires (ground, neutral, live) using the wire connectors (AA). 5) Attach the fixture (A) to the bracket with the fixture screws (CC). Always turn off the power before starting.

What tools are needed for assembly?

The required tools (not included) are: a Phillips screwdriver, a flat-head screwdriver, wire strippers, electrical tape, a step ladder, and safety goggles. A 9/32 in drill bit is also required to drill the anchor holes.

Can I use this fixture outdoors?

No, this fixture is exclusively designed for indoor use. Using it outdoors exposes the product to moisture and weather, which would void the warranty.

How to clean the fixture?

Use a soft damp cloth with non-abrasive soap. Never use glass cleaners as they could damage the metal finish. Make sure the power is turned off before cleaning.

What to do if the fixture does not turn on?

First, check that the fixture is properly connected: ensure the electrical connections are tight under the wire connectors (AA). If the problem persists, contact a qualified electrician or customer service at 1 855 226-7169.

What is the warranty of this product?

ELAN warrants this fixture against any manufacturing defect or material defect for 3 years from the date of purchase by the original buyer. The warranty covers replacement, repair, or refund, at ELAN's option. It does not cover labor or installation costs.

Can I replace the LEDs?

The LEDs are integrated into the LED Assembly (part C). They are not designed to be replaced individually. In case of failure, contact customer service to obtain a replacement assembly under warranty.

How to turn off the power before installation?

Go to the main fuse box or circuit breaker. Put the main switch in the OFF position or unscrew the corresponding fuse. If working on a specific circuit, turn that circuit breaker to OFF. Verify the absence of voltage before starting.

What replacement parts are available?

The available replacement parts are: mounting bracket (XBAR83716), wire connectors (WC001), short metal screws (SCR832X050), fixture screws (CS83714), anchors (AB001), and anchor screws (AS001). You can order them by calling 1 855 226-7169.

What to do if parts are missing?

Before starting assembly, compare the parts with the package contents list. If any parts are missing or damaged, do not attempt to assemble the product. Call customer service at 1 855 226-7169 to obtain replacement parts.

USER MANUAL Gorve 83716 ELAN

Three identical diamond-shaped diagrams with scattered dots, no text or symbols present

ATTACH YOUR RECEIPT HERE

Serial Number ____ Purchase Date ____

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.

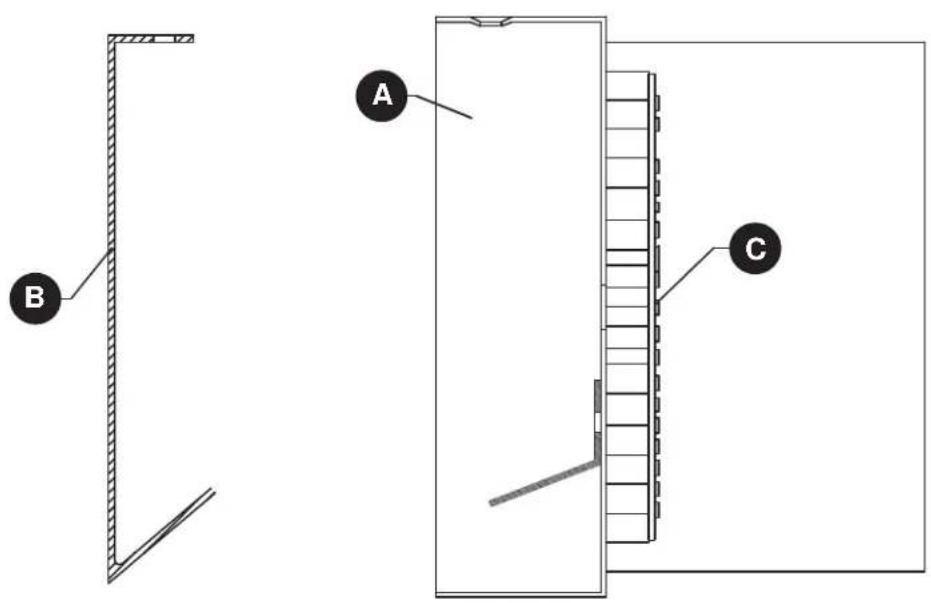

PART	DESCRIPTION	QUANTITY
A	Canopy
B	Mounting	Bracket
C	LED	Assembly

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the product.

WARNING

• IMPORTANT: NEVER attempt any work without shutting off the electricity.
• Go to the main fuse box, or circuit breaker, in your home. Place the main power switch in the "OFF" position and unscrew the fuse(s), or switch "OFF" the circuit breaker switch(es), that control the power to the fixture or room that you are working on.
• Place the wall switch in the "OFF" position. If the fixture to be replaced has a switch or pull chain, place those in the "OFF" position.
• Do not touch hot LED.
• The LED light output is strong enough to injure human eyes. Precautions must be taken to prevent looking directly at the LEDs with unaided eyes for more than a few seconds.
• WARNING: California Prop 65: This lighting fixture contains chemicals known to the state of California to cause cancer, birth defects, and/or other reproductive harm. Wash hands after use.

CAUTION

• Read and understand all instructions and illustrations completely before proceeding with assembly and installation of this fixture.
• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate completely, please contact a qualified licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate the UL listing, C.S.A. certification, and/or ETL listing of this fixture.
• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all local code specifications.
  • This fixture is for indoor use only.
• Use ONLY the supplied LED driver to power fixture.
• Driver cable is not intended for use through or concealed behind walls, floors, or ceilings.

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated assembly time: 30 minutes to 1 hour

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers, electrical tape, ladder, safety glasses.

ASSEMBLY INSTRUCTIONS

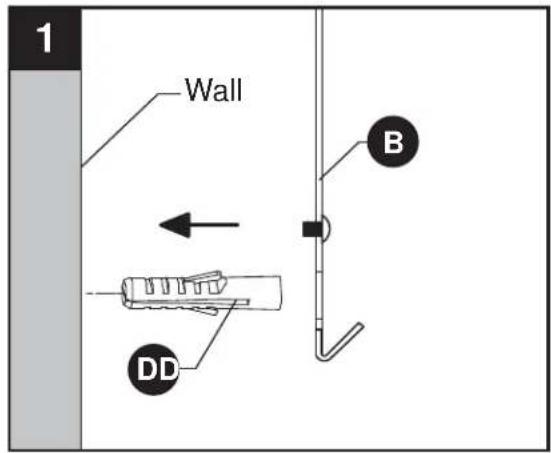

1. Temporarily raise mounting bracket (B) to wall. Mark location for anchor (DD). Use 9/32 size drill to drill holes for anchor (DD). Insert anchor (DD) into hole.

Hardware Used

x 2Anchor

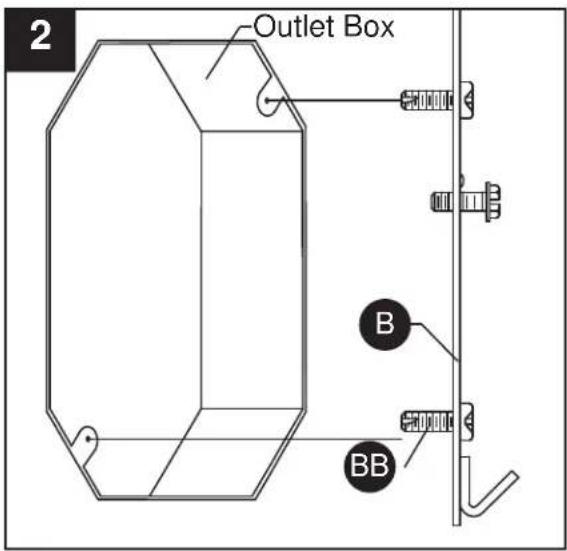

1. Connect the mounting bracket (B) to the outlet box with short machine screws (BB).

Hardware Used

Short Machine Screw

x 2

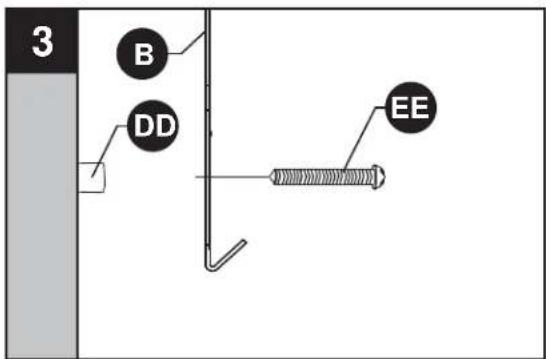

1. Screw anchor screws (EE) through mounting bracket (B) and into anchors (DD).

Hardware Used

Anchor Screws

x 2

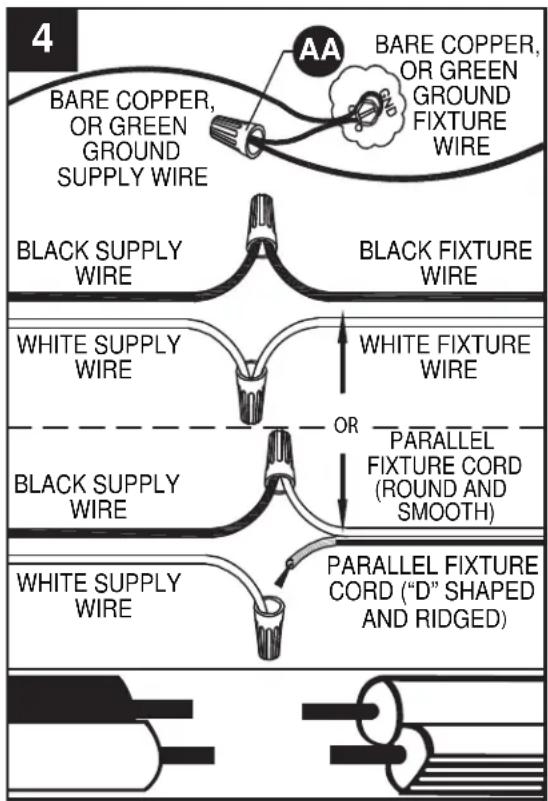

4. Wire connection guide:

Ground wire:

• For installation in the United States: Wrap ground wire from outlet box around ground screw preassembled on mounting bracket (B) no less than 2 in. from wire end. Tighten ground screw. If fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector (AA).
• For installation in Canada: If fixture is supplied with ground wire, wrap ground wire around ground screw on mounting bracket (B). Tighten ground screw. Connect fixture ground wire to outlet ground wire with a wire connector (AA).

Supply wires:

• Connect the Neutral (White) supply wire from the outlet box to the Neutral fixture wire (White or Parallel Cord "D" shaped and ribbed).
• Connect the Hot (Black) supply wire from the outlet box to the Hot fixture wire (Black or Parallel Cord round and smooth).

Hardware Used

NOTE:

Fixture wires will either be:

• Black and White.
• Parallel Cord SPT-1 lamp wire with one round smooth wire and one "D" shaped ribbed wire.

x 3Wire Connector

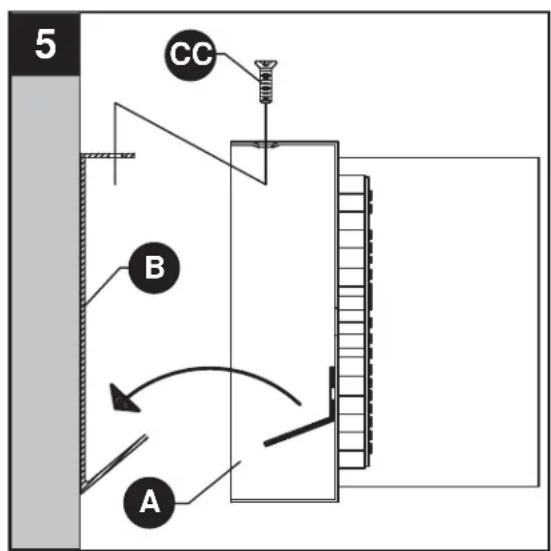

1. Pass the canopy (A) over the mounting bracket (B) and secure with canopy screws (CC).

Hardware Used

Canopy

Screw

x 2

• Always be certain that electric current is turned off before cleaning this item.
- Use a soft, moist cloth with mild non-abrasive soap to clean fixture. Never use glass cleaner on fixture, as it will damage the metal finish.

TROUBLESHOOTING

PROBLEM	POSSIBLE	CAUSE	CORRECTIVE
Fixture does not light.	1. Fixture may be wired incorrectly.		1. Check wiring.

WARRANTY

élan Lighting warrants that its products will be free from defects in material and workmanship for three (3) year from the date of purchase by the Original Purchaser.

LED Rail, LED Lanterns. LED Wall Sconces, LED Pendants and LED Chandeliers for single family residences are warranted for three (3) year on the Light Engine and all other electrical components.

To replace a product that has a warranted defect, the Original Purchaser shall return any allegedly defective parts or products to the authorized élan distributor that the product was purchased from with PROOF OF PURCHASE, Original Purchaser's name and return address and a description of the claimed product defect.

If any of the warranted products are found by élan, in its sole discretion, to be defective, such products will, at élan's sole option and cost, be replaced, repaired or refunded less an amount directly attributable to Original Purchaser's prior use of the product. élan will return the repaired or replaced product prepaid freight. This warranty does not cover labor or other costs or expenses to remove or install any defective, repaired or replaced product.

The parties hereto expressly agree that Original Purchaser's sole and exclusive remedy against élan shall be for the repair, replacement or refund of defective products as provided herein. This warranty extends only to product ownership by the Original Purchaser; is not transferable whether to heirs, subsequent owners, or otherwise; and is void if the Original Purchaser ceases to own the product.

This warranty does not apply to any products that have been subjected to misuse, mishandling, misapplication, connected to voltage at more than 5% above standard North American voltage, unusual use (including but not limited to use in an environment where the annual average ambient operating temperature is below 27 or above 95 degrees Fahrenheit), neglect (including but not limited to improper maintenance), accident, acts of god such as high winds, improper installation or care, failure to follow the Product's written instructions for normal use and care, improper packaging of products returned to élan, modification (including but not limited to use of unauthorized parts or attachments), or adjustment or repair. Significant product exposure to chemicals, harsh cleaners, salt water or salt air will void any and all warranties on exterior finishes. This warranty only applies when all components, including transformers, have been provided by élan. Substituting another manufacturer's product and/or components will render the warranty completely void.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE OR INFRINGEMENT. ORIGINAL PURCHASER SHALL IN NO EVENT BE ENTITLED TO, AND ELAN LIGHTING SHALL NOT BE LIABLE FOR, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT LIMITED TO LOSS OF PROFIT, PROMOTIONAL AND/OR MANUFACTURING EXPENSES, OVERHEAD, INJURY TO REPUTATION AND/OR LOSS OF CUSTOMERS.

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.

PART DESCRIPTION PART #
B	Mounting	Bracket	XBAR83716
AA	Wire	Connector	WC001
BB	Short Machine Screw	SCR832X050
CC	Canopy	Screw	CS83714
DD	Anchor		AB001
EE	Anchor	Screw	AS001
