FDW 614 D10P DOS LP D

EN User manual

OPTIONS AND FUNCTIONS....7

LOADING THE RACKS 8

DAILY USE....9

ADVICE AND TIPS....9

CARE AND MAINTENANCE....10

INSTALLATION....11

TROUBLESHOOTING....12

SUPPORT....13

Before using the appliance carefully read Safety Instructions guide.

OVERVIEW

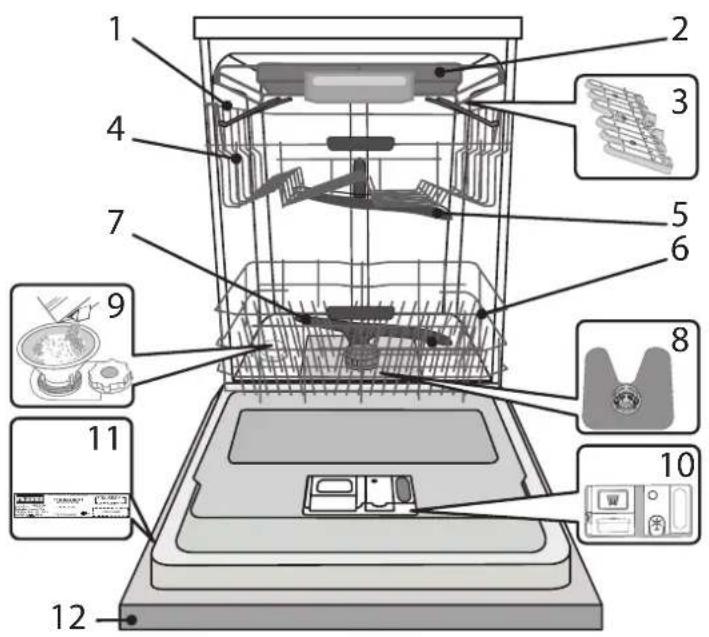

Labeled diagram of a kitchen appliance with numbered parts including dish, refrigerator, and washing machine

1. Upper rack
2. Cutlery rack
3. Foldable flaps
4. Upper rack height adjuster
5. Upper spray arm
6. Lower rack
7. Lower spray arm
8. Filter Assembly
9. Salt reservoir
10. Detergent and Rinse Aid dispensers
11. Rating plate
12. Control panel

CONTROL PANEL

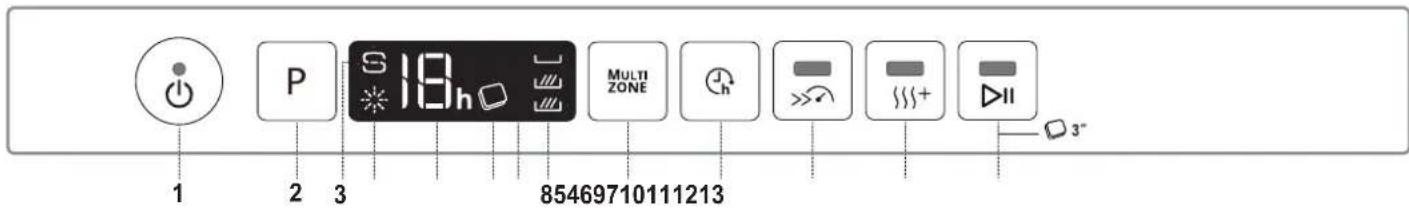

1 2 3 S 18h 85469710111213 MULTI ZONE 3" 3"

1. ON-OFF/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator
6. Tablet indicator light

7. Display

8. Multizone indicator lights

9. Multizone button
10. Delay button
11. Turbo button with indicator light
12. Extra Dry button with indicator light
13. START/Pause button with indicator light / Tab

FIRST TIME USE SALT, RINSE AID AND DETERGENT

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

• It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.
- It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light ☑ the control panel is lit.

Illustration of a hand pouring granular material into a bowl with a side view of a sliced fruit (no text or symbols)

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier.

The factory sets the default value for the water hardness

• Switch on the appliance by pressing the ON/OFF button.
• Switch off the appliance by pressing the ON/OFF button.
• Hold down button P for 5 seconds, until you hear a beep.
• Switch on the appliance by pressing the ON/OFF button.
  • The current selection level number and the salt indicator light both flash
• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table
Level	°dHGerman degrees	°fHFrench degrees	°ClarkEnglish degrees
1 Soft	0 - 6	0 - 10	0 - 7
2 Medium	7 - 11	11 - 20	8 - 14
3 Average	12 - 16	21 - 29	15 - 20
4 Hard	17 - 34	30 - 60	21 - 42
5 Very hard	35 - 50	61 - 90	43 - 62

- Switch off the appliance by pressing the ON/OFF button. Setting is complete!

As soon as this procedure is complete, run a program without loading.

Only use salt that has been specifically designed for dishwashers. After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation.

Using of Salt is recommended with any type of dishwasher detergent.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL ✕ indicator light in the control panel is lit.

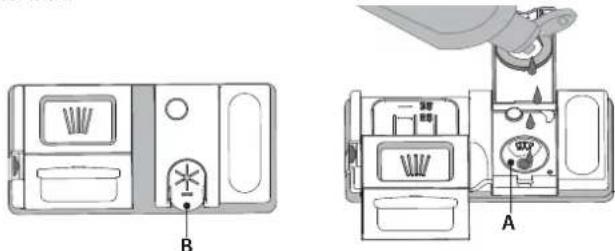

Technical diagram showing two views of a device with labeled components A and B, including a hand holding a valve or handle.

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.
   NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button P three times - a beep will be heard.
• Switch it on using the ON/OFF button.
• The current selection level number and rinse aid indicator light flash.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to ZERO (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid. A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.

• If you see bluish streaks on the dishes, set a low number (1-2).
• If there are drops of water or limescale marks on the dishes, set a mid-range number (3-4).

FILLING THE DETERGENT DISPENSER

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

Diagram of a device with labeled parts and annotations, including hand tools and component symbols

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D there are indications to help the detergent dosing.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

PROGRAMS TABLE

Program			Drying phase	CoolDry	Available options *)	Duration of wash program (h:min)**)	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1. Eco		50°	√	√		3:10 9.5 0.85
2. Auto		50-60°	√	√	MULTI ZONE >>	1:25 - 3:00 7.0	14.0 0.90 - 1.40
3. Intensive		65°	√	√	MULTI ZONE >>	2:50 17.0 1.60
4. Fast Wash&Dry		50°	√	√	MULTI ZONE	1:25 11.5 1.10
5. Crystals		45°	√	√	MULTI ZONE	1:40 12.0 1.20
6. Rapid 30'		45°	-	√	MULTI ZONE	0:30 9.0 0.50
7. Silent		50°	√	√	MULTI ZONE	3:30 16.0 1.15
8. Sanitizing		65°	√	-		1:40 12.0 1.30
9. Prewash		-	-	-	MULTI ZONE	0:12 4.5 0.01
10. Self-Clean		65°	-	-		0:50 8.0 0.85

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.
Pre-treatment of the dishes is not needed before any of the programs.
*) Not all options can be used simultaneously.
**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.

2 AUTO

For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly.

3 INTENSIVE

Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).

4 FAST WASH&DRY

Normally soiled crockery. Everyday cycle, that ensures optimal cleaning and drying performance in shorter time.

5 CRYSTALS

Program for delicate items, which are more sensitive to high temperatures, for example glasses and cups.

6 RAPID 30'

Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not include drying phase.

7 SILENT

Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.

8 SANITIZING

Normally or heavily soiled crockery, with additional antibacterial wash. Can be used to perform maintenance of the dishwasher.

9 PREWASH

Use to refresh crockery planned to be washed later. No detergent to be used with this program.

10 SELF-CLEAN

Program to be used to perform maintenance of the dishwasher, to be carried out only when the dishwasher is EMPTY using specific detergents designed for dishwasher maintenance

Notes:

Please note that cycle Rapid 30' is dedicated for lightly soiled dishes.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL). If an option is not compatible with the selected program (see PROGRAMS TABLE), the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

MULTI MULTIZONE

ZONE If there are not many dishes to be washed, a half loading may be used in order to save water, electricity and detergent.

Select the program and then press the MULTIZONE button: the symbol of the chosen rack will appear on the display.

By default the appliance washes dishes in all racks.

To wash only the specific rack, press this button repeatedly:

shown on the display (only lower rack)

shown on the display (only upper rack)

shown on the display (only cutlery rack)

shown on the display (option is OFF and the appliance will wash dishes in all racks).

Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly.

If upper rack is removed, please apply detergent directly to tub instead of detergent dispenser.

DELAY

The start time of the program may be delayed for a period of time between 1 and 12 hours.

1. Press the DELAY button: the corresponding «h» symbol appears on the display; each time you press the button, the time (1h, 2h, etc. up to max. 12h) from the start of the selected wash cycle will be increased.
2. Select the wash program, press the START/PAUSE button and within 4 seconds close the door: the timer will begin counting down.
3. Once this time has elapsed, the indicator light «h» switches off and the wash cycle begins.

To adjust the delay time and select a shorter period of time, press the DELAY button. To cancel it, press the button repeatedly until the selected delayed start indicator light «h» switches off.

The DELAY function cannot be set once a wash cycle has been started.

TURBO

This option can be used to reduce the duration of the main programs while maintaining the same washing and drying performance levels.

After selecting the program, press the TURBO button and the indicator light will switch on. To deselect the option, press the same button again.

EXTRA DRY

To improve the drying of the dishes, after selecting the program, press the EXTRA DRY button and the indicator light comes on.

A higher temperature during the final rinse and an extended drying phase allow for improving drying. To deselect the option, press the same button again. The EXTRA DRY option results in the lengthening of the wash cycle.

TABLET (Tab)

This setting allows you to optimize the performance of the program according to the type of detergent used.

Press the START/PAUSE button for 3 seconds (the corresponding symbol will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose).

If you use powder or liquid detergent, this option should be off.

OPERATION INDICATOR

A LED light projected on the floor indicates that the dishwasher is working. One of the following operating modes can be selected:

a) Disabled function.
b) When the cycle starts the light goes on for few seconds, stays off during the cycle and flashes at the end of the cycle.
c) The light stays on during the cycle and flashes at the end of the cycle (default mode).

If the delayed start was set, the light goes on either for the first few seconds or the entire duration of the countdown, based on whether mode b) or c) was set.

The light goes off every time the door is opened. To select the mode you prefer, switch on the machine, hold down button P until one of the three letters appears on the display, press button P until you reach the desired letter (or mode), hold down button P to confirm the selection.

Note: If CoolDry is active and it opens the door, then Operation Indicator will not flash at the end of cycle.

CoolDry

CoolDry is a convection drying system which automatically opens the door during/after drying phase to ensure exceptional drying performance every day. Door opens at the temperature that is safe to your kitchen furniture, thus door will not be opened when the option of TURBO is on.

As additional steam protection, special designed protection foil is added together with the dishwasher. To see how to mount protection foil please refer to (INSTALLATION GUIDE).

CoolDry functionality could be disabled by the user as follows:

1. Go to the Dishwasher software menu pressing and holding P button (6 sec).
2. You are currently in Light Control Menu (please refer to OPERATION INDICATOR description), if you don't want to change anything please press and hold P button (until one of the two letters appears on the display).
3. You switched to CoolDry Control Menu, you could change status of CoolDry functionality by pressing P button:
   E-enabled d-disabled
   To confirm the change and exit from the Control Menu please press and hold P button (3 sec).

LOADING THE RACKS

CUTLERY RACK

Open industrial equipment case with grid layout and internal structural components (no visible text or symbols)

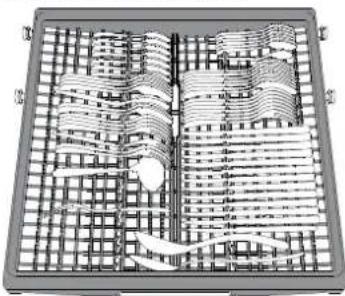

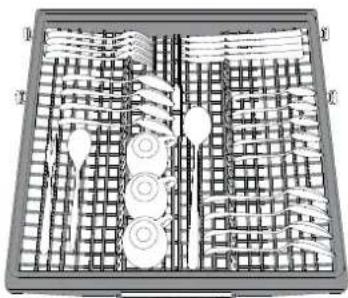

The third rack was designed to house the cutlery. Arrange the cutlery as shown in the figure.

A separate arrangement of the cutlery makes collection easier after washing and improves washing and drying performance.

Knives and other utensils with sharp edges must be positioned with the blades facing downwards.

Technical diagram of a mechanical assembly with grid and cylindrical components (no text or labels)

The geometry of the rack makes it possible to place such small items as coffee cups in the area in the middle.

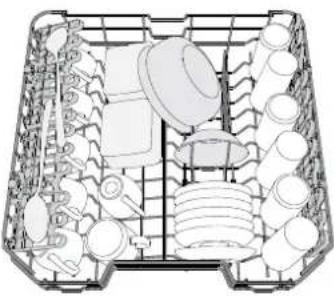

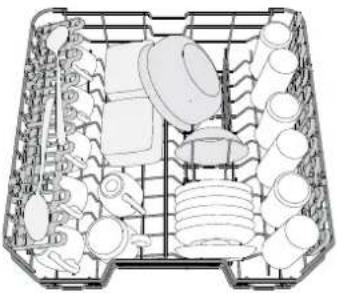

UPPER RACK

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

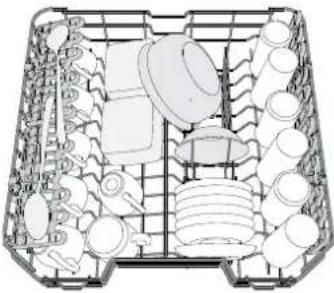

(loading example for the upper rack)

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper basket can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up compartments by creating more space upwards. The upper rack is equipped with a Upper Rack height adjuster (see figure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press the levers (A) at the sides of the rack and move the basket downwards.

Technical diagram showing a structural or mechanical assembly with labeled components and directional arrows, likely from an engineering or physics context.

We strongly recommend that you do not adjust the height of the rack when it is loaded. NEVER raise or lower the basket on one side only.

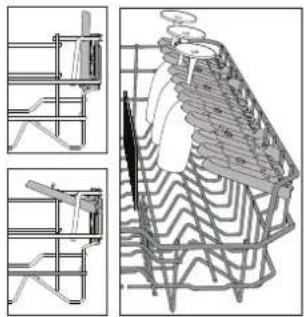

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be fold or unfold to optimize the arrangement of crockery inside the rack.

Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots. Depending on the model:

- to unfold the flaps there is needed to slide it up and rotate or release it from the snaps and pull it down. - to fold the flaps there is needed to rotate it and slide flaps down or pull it up and attach flaps to the snaps.

Technical line drawing of a mechanical assembly with internal components and cross-sectional views (no text or symbols)

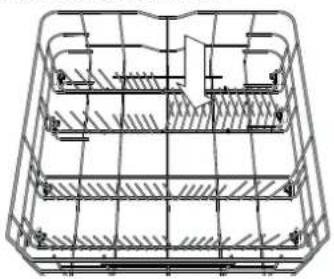

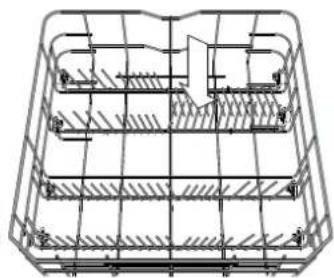

LOWER RACK

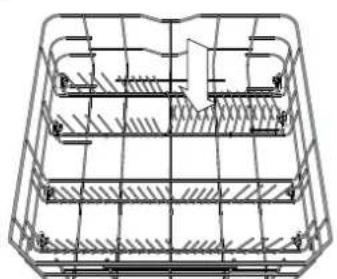

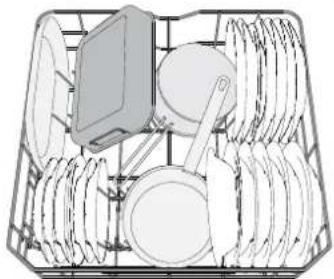

For pots, lids, plates, salad bowls, cutlery etc... Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm. The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

Diagram of a kitchen sink with plates and a handle, no text or symbols present

Technical line drawing of a mechanical or architectural component with grid lines and hatching (no text or symbols)

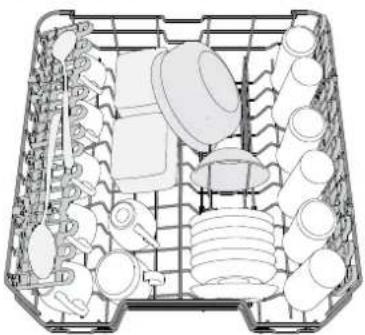

(loading example for the lower rack)

DAILY USE

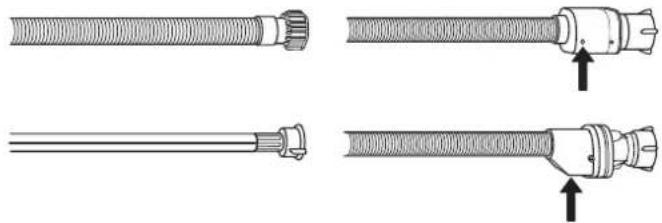

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. SWITCH ON THE DISHWASHER

Open the door and press the ON/OFF button.

3. LOAD THE RACKS (see LOADING THE RACKS)

4. FILLING THE DETERGENT DISPENSER

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing the P button.

Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec. When the program starts you hear a single beep. If the door was not closed within 4sec., the alarm sound will be played. In this case, open the door, press START/Pause button and close the door again within 4 sec.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and by the flashing of the wash cycle indicator on the panel and the light on the floor (if activated). Open the door and switch off the appliance by pressing the ON/OFF button.

Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: open the door, press and hold the ON/OFF button, the machine will switch off.

Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; Start the wash cycle by pressing START/Pause button and closing the door within 4 sec.

ADDING EXTRA CROCKERY

Without switching off the machine, open the door (START/Pause led starts blinking) (be ware of HOT steam!) and place the crockery inside the dishwasher. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

TIPS ON ENERGY SAVING

- When the household dishwasher is used according to the manufacturer's instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.

- In order to maximize dishwasher efficiency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in Loading chapter.

In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multizone), filling up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.

- Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.

UNSUITABLE CROCKERY

Items which are not dishwasher-safe:

• Wooden dishes, pots or pans: these may be damaged by the high washing temperatures.
• Handcrafted items: these are rarely suitable for washing in a dishwasher. The relatively high water temperatures and the detergents used may damage them.
• Plastic dishes: these are not heat resistant and may lose their shape. Heat resistant plastic dishes must be washed in the upper basket.
• Dishes and objects in copper, tin, zinc or brass: these tend to stain.
• Aluminium dishes: items made from anodised aluminium may lose their colour.
  • Silverware: silver items may stain.
• Glass and crystal: in general, glass and crystal objects can be washed in the dishwasher. However, certain types of glass and crystal may become dull and lose their clearness after many washings. Therefore, for these items we recommend using the least aggressive program available.
• Decorated items: the decorated objects available on the market are generally able to withstand washing in the dishwasher, although the colours may fade after a great many washes. If in doubt as to the fastness of the colours, it is advisable to wash just a few items at a time for approximately one month.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

CLEANING AND MAINTENANCE

Always unplug the appliance when cleaning it and when performing maintenance work. Do not use flammable liquids to clean the machine.

CLEANING THE DISHWASHER

Any marks on the inside of the appliance may be removed using a cloth dampened with water and a little vinegar. The external surfaces of the machine and the control panel can be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products.

PREVENTING UNPLEASANT ODOURS

Always keep the door of the appliance ajar in order to avoid moisture from forming and being trapped inside the machine.

Clean the seals around the door and detergent dispensers regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

CHEKING THE WATER SUPPLY HOSE

Check the inlet hose regularly for brittleness and cracks. If damaged, replace it by a new hose available through our After-Sales Service or your specialist dealer. Depending on the hose type:

Illustration of two types of cable connectors with threaded ends and connectors, showing different assembly states (no text or symbols present)

If the inlet hose has a transparent coating, periodically check if the colour intensifies locally. If yes, the hose may have a leak and should be replaced.

For water stop hoses: check the small safety valve inspection window (see arrow). If it is red, the water stop function was triggered, and the hose must be replaced by a new one.

For unscrewing this hose, press the release button while unscrewing the hose.

CLEANING THE FILTER ASSEMBLY

Regularly clean the filter assembly so that the filters do not clog and that the waste water flows away correctly.

Using dishwasher with clogged filters or foreign objects inside filtration system or sprayarms may cause unit malfunction resulting in lose of performance, noisy work or higher resources usage.

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water.

The dishwasher must not be used without filters or if the filter is loose.

At least once per month or after each 30 cycles, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

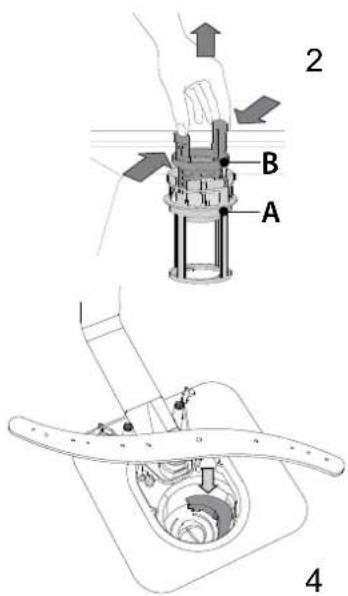

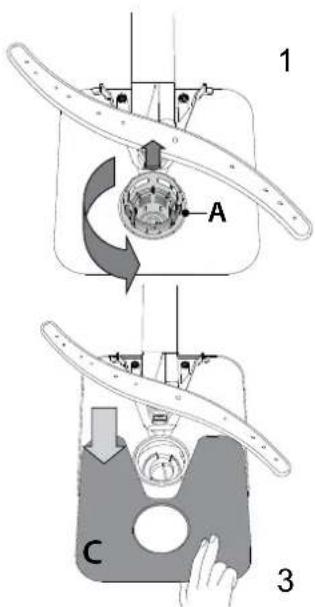

1. Turn the cylindrical filter A in an anti-clockwise direction and pull it out (Fig 1).
2. Remove the cup filter B by exerting a slight pressure on the side flaps (Fig 2).
3. Slide out the stainless-steel plate filter C (Fig 3).
4. In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.
5. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

1 A C 3

2 B A 4

After cleaning the filters, replace the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check

the arms from time to time and clean them with a small non-metallic brush.

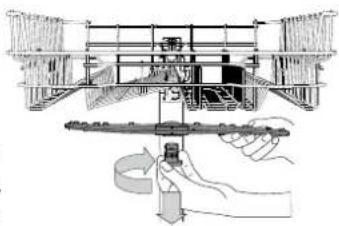

To remove the upper spray arm, turn the plastic locking ring in a clockwise

direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

The lower spray arm may be removed by pulling it upwards.

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency.

This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in final rinse and finishes in drying phase, before cycle ends.

• Single regeneration consumes: 3.5L of water;
  • Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.

INSTALLATION

If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

CONNECTING THE WATER SUPPLY

Adaptation of the water supply for installation should only be performed by a qualified technician.

The water inlet and outlet hoses may be positioned towards the right or the left in order to achieve the best possible installation.

Make sure the dishwasher does not bend or squash the hoses.

CONNECTING THE WATER INLET HOSE

- Run the water until it is perfectly clear.

- Screw the inlet hose tightly into position and turn on the tap. If the inlet hose is not long enough, contact a specialist store or an authorised technician.

The water pressure must be within the values indicated in the Technical Data table - otherwise the dishwasher may be function properly. Make sure the hose is not bent or compressed.

SPECIFICATIONS FOR THE CONNECTION OF THE WATER SUPPLY HOSE:

WATER SUPPLY cold or hot (max. 6	0°C)
WATER INTAKE 3/4"
POWER OF WATER PRESSURE	0,05 ÷ 1 MPa (0.5 ÷ 10 bar)7,25 – 145 psi

CONNECTING THE WATER OUTLET HOSE

Connect the outlet hose to a drain duct with a minimum diameter of 2 cm A.

The outlet hose connection must be at a height ranging from 40 to 80 cm from the floor or surface where the dishwasher rests.

Before connecting the water outlet hose to the sink drain, remove the plastic plug B.

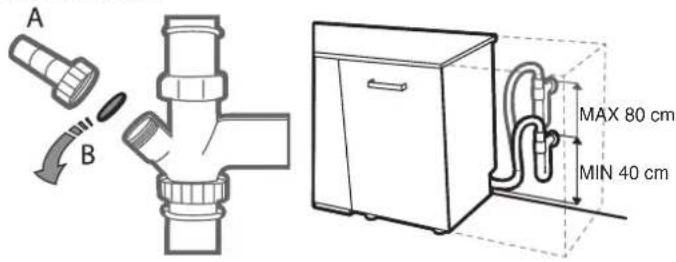

A B MAX 80 cm MIN 40 cm

ANTI-FLOODING PROTECTION

Anti-flooding protection. To ensure floods do not occur, the dishwasher: - is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance. Some models are also equipped with the supplementary safety device

New Aqua Stop, which guarantees anti-flooding protection even in the event of a supply hose rupture.

Under no circumstances should the water inlet hose be cut as it contains live electrical parts.

ELECTRICAL CONNECTION

WARNING: Under no circumstances should the water inlet hose be cut as it contains live electrical parts.

Before inserting the plug into the electrical socket, make sure that:

• The socket is earth and complies with current regulations;
- The socket can withstand the maximum load of the appliance as shown on the data plate located on the inside of the door (see PRODUCT DESCRIPTION).
- The power supply voltage falls within the values indicated on the data plate on the inside of the door.
- The socket is compatible with the plug of the appliance.

If this is not the case, ask an authorised technician to replace the plug (see AFTER-SALES SERVICE). Do not use extension cables or multiple sockets. Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.

The cable should not be bent or compressed.

If the power supply cable is damaged, have it replaced by the manufacturer or its authorised Technical Assistance Service in order to prevent all potential hazards.

The Company shall not be held responsible for any incidents, if these regulations are not observed.

POSITIONING AND LEVELLING

1. Position the dishwasher on a level sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position. If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.
2. Before recessing the dishwasher, stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form.
3. Place the dishwasher so that its sides or back panel are in contact with the adjacent cabinets or the wall. This appliance can also be recessed under a single worktop.
4. To adjust the height of the rear foot, turn the red hexagonal bushing on the lower central part at the front of the dishwasher using a hexagonal spanner with an opening of 8 mm. Turn the spanner in a clockwise direction to increase the height and in an anticlockwise direction to decrease it.

DIMENSIONS AND CAPACITY:

WIDTH 598 mm
HEIGHT 820 mm
DEPTH 555 mm
CAPACITY 14 standard place-settings

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet. The manufacturer ensures the availability of spare parts for at least 10 years after production date of this appliance.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Salt indicator is lit	Salt reservoir is empty. (After refill the salt indicator may remain lit for several wash cycles).	Refill reservoir with salt (for more information - see page 5).Adjust water hardness - see table, page 5.
Rinse aid indicator is lit	Rinse aid dispenser is empty. (After refill the rinse aid indicator may remain lit for several wash cycles).	Refill dispenser with rinse aid (for more information - see page 5).
The dishwasher won't start or does not respond to commands.	The appliance has not been plugged in properly.	Insert the plug into the socket.
	Power outage.	For safety reasons, dishwasher will not re-start automatically when power returns. Open dishwasher door, press START/Pause button and close the door within 4 seconds.
	The dishwasher door is not closed.CoolDry pin is not pulled in.	Vigorously push the door until you hear the "click".
	Cycle is interrupted by door opening for more than 4 seconds.	Press START/Pause and close the door within 4 seconds.
	It does not respond to commands.Display shows:9 or12and On/Off LED is blinking rapidly	Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in.
The dishwasher won't drain.Display shows:3 and On/Off LED is blinking rapidly	The wash cycle has not finished yet. Wait until the wash cycle finishes.
	The drain hose is bent. Check that the drain hose is not bent (see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain pipe.
	The filter is clogged up with food residues. Clean the filter (see CLEANING THE FILTER ASSEMBLY).
The dishwasher makes excessive noise.	The dishes are rattling against each Position the crockery correctly (see LOADING THE RACKS).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER). Restart the current cycle by switching OFF the dishwasher, then switch it on again, select a new program, press START/Pause and close the door within 4 seconds.Please do not add any detergent.
The dishes are not clean.	The crockery has not been arranged properly.	Arrange the crockery correctly (see LOADING THE RACKS).
	The spray arms cannot rotate freely, being hindered by the dishes.	Arrange the crockery correctly (see LOADING THE RACKS).
	The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER).
	The cap on the rinse aid compartment has not been shut correctly.	Make sure the cap of the rinse aid dispenser is closed.
	The filter is soiled or clogged. Clean the filter assembly (see CARE AND MAINTENANCE).
	There is no salt. Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
The dishwasher does not fill the water. Display shows:H,6 and On/Off LED is blinking rapidly	No water in the water supply or the tap is closed.	Make sure there is water in the water supply or the tap running.
	The inlet hose is bent.	Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it	After having carried out the verification and cleaning, turn off and turn on the dishwasher and restart a new program.
Dishwasher finishes the cycle prematurely. Display shows:15 and On/Off LED is blinking rapidly	Drain hose positioned too low or siphoning into home sewage system.	Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply. Check water supply for leaks or other issues letting air inside.
Detergent leaks.	Depends on the liquid detergent used and can be emphasized in case of delay option is activated.	Small leaks will not cause machine malfunction and can be avoided by changing liquid detergent type or using tablets.

SUPPORT

In the event of any operation problems, contact a Franke Technical Service Centre.

Never use the services of unauthorized technicians.

Specify:

• the type of fault
  – the appliance model (art./Code)
  – the serial number (S.N.) on the rating plate.

When you contact the After-Sales Service, you must provide the codes shown on the rating plate attached to the left or right side inside the door of the dishwasher.

FRANCE 100.00 € 25.00 € 50.00 € 50.00 €

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu

CE EAC ⏻ Ø ⊕ ± X

FRANKE.COM

INHALTSVERZEICHNIS

ÜBERSICHT....15

ERSTERGEBRAUCH....16

PROGRAMMTABELLE....17

OPTIONENUNDFUNKTIONEN....18

KÖRBE BELADEN....19

TÄGLICHERGEBRAUCH....20

HINWEISEUNDTIPPS....20

Labeled diagram of a kitchen appliance with numbered parts and corresponding images

Illustration of a hand pouring granular material into a bowl on a stand, with a separate dish nearby (no text or symbols)

Technical diagram of a device with labeled components and exploded view, including parts D, C, and a tool tip.

Interior view of a large industrial or construction site with grid-like structures and structural elements (no visible text or symbols)

Interior view of a mechanical or electrical enclosure with grid patterns and internal components (no visible text or symbols)

Technical line drawing of a mechanical assembly with components (no text or symbols)

Technical diagram showing electrical connections with labeled components and a directional arrow indicating flow or movement.

Technical line drawing of a mechanical assembly with internal components and cross-sectional views (no text or symbols)

UNTERKORB

Diagram of a multi-compartment kitchen or storage unit with multiple plates and a central fan (no text or labels)

Technical line drawing of a multi-level mechanical or architectural structure with grid lines and hatching (no text or symbols)

Illustration of three types of cable connectors with threaded ends and connectors, showing different installation states (no text or symbols present)

Technical line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

Illustration of a hand using a tool to press or install a mechanical component on a baseplate (no text or symbols visible)

WASSERENTHÄRTUNG

CE EAC ↓ ↕ ⏱ ± -

FRANKE.COM

ÍNDICE

Labeled diagram of a kitchen appliance with numbered parts for identification and assembly reference.

Illustration of a hand pouring granular material into a bowl on a stand, with a sliced cross-section nearby (no text or symbols)

Technical diagram showing two views of a shared air conditioner unit with labeled components A and B, including a hand holding a lid.

Diagram of a device with labeled parts and annotations, including hand tools and a warning symbol.

Interior view of a large industrial or construction site with grid-like structures and structural elements (no visible text or symbols)

Technical diagram of a mechanical assembly with grid patterns and central components (no text or labels)

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

Cross-sectional diagram of a geological or structural cross-section with layered geological formations (no text or labels)

CESTO INFERIOR

Technical line drawing of a mechanical assembly with gears and a handle (no text or symbols)

Technical line drawing of a mechanical cage or enclosure with internal structural components (no text or symbols)

Technical illustration of three types of threaded connectors with arrows indicating assembly or insertion (no text or symbols present)

Technical line drawing of a mechanical assembly with a lever and rotating component (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

SISTEMA DE ABLANDAMIENTO DE AGUA

CE EAC [↓] [∅] [÷] [×]

FRANKE.COM

SOMMAIRE

APERÇU 37

PREMIÈRE UTILISATION 38

TABLEAU DES PROGRAMMES....39

OPTIONS ET FONCTIONS 40

CHARGEMENT DES PANIERS....41

UTILISATION QUOTIDIENNE.... 41

AVIS ET CONSEILS 42

NETTOYAGE ET MAINTENANCE....43

INSTALLATION....44

DÉPANNAGE 45

ASSISTANCE......46

Labeled diagram of a kitchen appliance with numbered parts and interior components

Illustration of a hand pouring granular material into a bowl on a stand, with a slice of sugar being added (no text or symbols)

Technical diagram showing two views of a refrigerator with labeled parts A and B, including hand operating controls.

Diagram of a device with labeled parts and an inset showing a hand holding a tool or object.

Open industrial machine with grid and structural components (no visible text or symbols)

Illustration of a mechanical or electrical component with grid patterns and circular components (no text or symbols)

Technical line drawing of a mechanical assembly with multiple components and no visible text or symbols

Technical diagram showing structural components with labeled parts A and B, including a directional arrow and a central component.

Technical line drawing of a mechanical structure with multiple views (no text or symbols)

PANIER INFÉRIEUR

Diagram of a mechanical assembly with gears and a handle, no text or symbols present

Technical line drawing of a mechanical cage or enclosure with internal structural layers (no text or symbols)

Illustration of three types of threaded connectors with arrows indicating assembly or insertion (no text or symbols present)

Technical line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

SYSTÈME ADOUCISSEUR D'EAU

WARNING: Under no circumstances should the water inlet hose be cut as it contains live electrical parts.

Before inserting the plug into the electrical socket, make sure that:

• The socket is earth and complies with current regulations;
• The socket can withstand the maximum load of the appliance as shown on the data plate located on the inside of the door (see OVERVIEW).
• The power supply voltage falls within the values indicated on the data plate on the inside of the door.
• The socket is compatible with the plug of the appliance.

Labeled diagram of a kitchen appliance with numbered parts for identification and assembly reference.

Illustration of a hand pouring granular material into a bowl with a sash, next to a sliced food item (no text or symbols)

Simple line drawing of a bathroom sink with toilet, shower, and showerhead (no text or symbols)

B

Diagram of a refrigerator interior with labeled parts and a hand holding the lid, showing internal compartments and a valve.

Diagram of a device with labeled parts and annotations, including hand tool, funnel, and control panel

Open industrial machine tray with grid pattern and internal components (no visible text or symbols)

Technical diagram of a mechanical assembly with grid patterns and central components (no text or labels)

CESTELLO SUPERIORE

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Diagram of a layered structure with wavy patterns and a central vertical element (no text or symbols)

CESTELLO INFERIORE

Technical line drawing of a mechanical assembly with gears and a handle (no text or symbols)

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

Technical diagram showing electrical connections with labeled components A and B, likely from an engineering or mechanical context.

Technical line drawings of two types of threaded connectors with arrows indicating assembly or connection points (no text or symbols present)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component on a baseplate (no text or symbols visible)

SISTEMA DI ADDOLCIMENTO DELL'ACQUA

Labeled diagram of a kitchen appliance with numbered parts for identification and assembly reference.

Illustration of a hand pouring granular material into a bowl on a stand, with a separate gear-like object nearby (no text or symbols)

Technical diagram showing front and side views of a refrigerator with labeled components A and B

Diagram of a cleaning or cleaning device with labeled parts D and C, showing hand, brush tip, and tool handle.

Normally or heavily soiled crockery, with additional antibacterial wash. Can be used to perform maintenance of the dishwasher.

9 VOORSPOELEN

Interior view of a mechanical or electrical enclosure with grid patterns and internal components (no visible text or symbols)

Black-and-white illustration of a mechanical component with grid patterns and no visible text or symbols

BOVENSTE REK

Top-down schematic of a mechanical assembly with gears, springs, and housing (no text or labels)

Architectural line drawing of a building facade with wavy and grid lines (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A and E, and directional arrows indicating movement or force.

ONDERSTE REK

Diagram of a kitchen sink with plates and utensils (no text or labels)

Technical line drawing of a mechanical cage or enclosure with internal structural components (no text or symbols)

Always keep the door of the appliance ajar in order to avoid moisture from forming and being trapped inside the machine.

Clean the seals around the door and detergent dispensers regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours.

DE TOEVOERSLANG REINIGEN

Illustration of three types of threaded connectors with different internal structures and mounting points (no text or symbols)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a stovetop (no text or symbols visible)

WATERVERZACHTEND SYSTEEM

The Company shall not be held responsible for any incidents, if these regulations are not observed.

PLAATSEN EN WATERPAS ZETTEN

CE EAC [↓] [←] [÷] [×]

FRANKE.COM

ÍNDICE

VISÃO GERAL....70

Labeled diagram of a kitchen appliance with numbered parts for identification

Illustration of a hand pouring granular material into a bowl with a side view of a bread roll (no text or symbols)

Diagram showing two views of a refrigerator interior with labeled compartments and fixtures, including a hand holding a bag.

Diagram of a cleaning or cleaning device with labeled parts and tool icons

Interior view of a grid-patterned mechanical or electrical enclosure with no visible text or symbols

Black-and-white illustration of a mechanical device with grid pattern and central components (no text or symbols)

CESTO SUPERIOR

Technical line drawing of a mechanical assembly with gears and housing (no text or labels)

(exemplo de carga no cesto superior)

Carregue neste cesto a loiça frágil e leve: copos, chávenas, pires, tigelas.

ABAS DOBRÁVEIS COM POSIÇÃO AJUSTÁVEL

Cross-sectional diagram of a geological or structural cross-section with layered strata and no visible text or symbols

AJUSTAR A ALTURA DO CESTO SUPERIOR

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

CESTO INFERIOR

Cross-sectional diagram of a mechanical assembly with multiple components and no visible text or symbols

Technical line drawing of a mechanical cage or enclosure with internal structural components (no text or symbols)

(exemplo de carga para o cesto inferior)

UTILIZAÇÃO DIÁRIA

Illustration of three types of cable connectors with threaded ends and connectors, showing different installation states (no text or symbols present)

Technical line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

Illustration of a hand using a tool to press or install a mechanical component on a baseplate (no text or symbols visible)

CE EAC ⏻ Ø ⊖ ± X

FRANKE.COM

franke.com

FRANKE
